Alpine CDE-194BT Service Manual

<

Cautions for Safe Repair Work>

The following cautions will prevent accidents in the workplace and will ensure safe products.

*The symbols indicate caution is needed to prevent injuries and damage to property.

The symbols and their meanings follow.

*The following symbols indicate two levels of cautions.

When you see this symbol, you have to be very careful.

When you see this symbol, you have to follow the instructions there.

Do not look squarely into the laser light

Fuse Caution

coming from the pickup.

Always use a designated fuse.

You may loose you sight.

Use of an incorrect fuse may result in a fire.

Do not allow wiring to be caught in the

Battery Caution

screw/chassis.

Use the designated battery.

If wiring is caught in the screw/chassis, it may

Confirm the correct polarity and seat of the

An incorrect battery or an improperly connected

or seated battery may result in a fire.

High Temperature Caution

Designated Parts Caution

Touching the heat sink may cause severe burns.

Look up the part list and ensure that only

designated parts are used to prevent problems or

accidents.

Reverse Power Supply Connections or

Wiring Caution

Misconnections Caution

Reverse power supply connections or

prevent problems with ignition/breakdown.

misconnections may cause ignition problems and

smoke may result.

Soldering Caution

Wear Gloves

Hot solder from solder splash may cause severe

Wear gloves to prevent electrical shocks or injury

burns.

from the end face of the metal.

Warning

Caution

Warning

Caution

If you ignore this symbol and handle the product incorrectly or unsafely,
serious injury or death may result.

If you ignore this symbol and handle the product incorrectly or unsafely,
injury or only material damage may result.

cause a short circuit, resulting in a fire.

battery.

Ensure that the wiring is correct when rewiring to

Packing Method View

102-1

102-2

Back

NOSE side

T

O

P

s

i

d

e

104

103

105

101

101-5101-4101-3101-2101-1

X4

X1

X2 X1

X1

X1

103

X1

104

Model Code

CDE-195BT

NOTE:The part that has not PART NUMBER will not be supplied.

#####

IC501(*) :51

-

27561Z01(W25Q32FVSSIG

-

ST)

Software is not written in to the part indicated with (*).

101-1 03S60820Y16 SCR,MCH 5X8 ZN A
101-2 03S60824Y01 SCR,WEV 1.7X4 ZN A
101-3 07-24382Z01 BKT,RELEASE
101-4 16-26941Z01 CAP,RUBBER
101-5 03A60836Y01 SCR,CUS 5X7 ZN A
102-1 68-10334Z70 OM-CDROM AOTH
102-2 68-24567Z95 C/N-QRG AOEU AOTH

103 09-25216Z02 ASSY,ATTC-0083-01A
104 50-29950Z01 ASSY,DC3.5-MIC
105 15-24676Z01 CARRYING,CASE ASSY

(2)

(1) 01V42098S01

(2) No Extension Cord needed.

(1)

Extension Cable

*Always connect the Extension Cable when making checks of voltage and repair.

CB401

CH501

CB701

A-MUTE

Analog

Audio Processor

BD37067FV

Decola

Remote

Sensor

PNJ4L02M

DIMMER

POWER CONN(16P)

Block Diagram

FL/FR/RL/RR

POWER

AMP

STPA002

A-MUTE/P-AMP On

Steering

Remote Jack

STREM I/F

USB

HSD

USB+5V

VDD+3.3V

A/D Key

Rotary Encoder

RESET

SYSTEM REG

TB2920AHQ

LED+B

SERVO7V

I2C-Bus

AUDIO+B

SUB-W

RL/RR

Tuner/DSP

TEA6636

I2C-BUS

Control signal

VDD+1.2V

iPhone Auth. IC
Class4 2.0C

FL/FR

Decola_3.6V

P.ANT/O.REM

I2C-BUS

S-FLASH

4M

VDD+3.3V

VDD+5V

AUDIO+B

CONT1~5

FRONT

UART

8th Gen.

Bare Mech.

Motor Driver
BD8226EFV

Oasis

TC94A92FG

SERVO7V

CMD
BUS

AUX

E2PROM

4KByte

BT MIC

Chiron TC35661

UART

IIS

RF part

I2S

Matching parts

Filter

I2S

REAR

LCD

LCD DRIVER

(PT6578)

DAC

S-FLASH

4M

MIC ADC

AK5700VN-L

A-DET

B-DET L

ACC

B-DET H

B-DET L

A-DET

BATT

BATT

SUB DAC

CS4344-DZZR

LED DRIVER LED

Specifications

< FM RADIO >

Intermediate Frequency 300±0.15kHz

-

3dB Limiting Sensitivity (at 98.1MHz)

12.2dBf

Residual Noise (Ref. 400Hz, at 98.1MHz)

30±5dB

S/N Ratio (at 98.1MHz)

Stereo : 55dB

10kHz :

-12±

3dB

Stereo Separation (1kHz, at 98.1MHz)

35dB

< MW RADIO >

S/N Ratio (at 999kHz)

44dB

Image Rejection (at 1,404kHz)

50dB

< LW RADIO >

Intermediate Frequency

57kHz

Frequency Range

153~281kHz

2.5kHz :

-

5 +3/-5dB

< CD SECTION >

MP3 : SCD

-

7885 (FOLDER5

-

128kbps) : 0.3%

WMA : SCD

-

7885 (FOLDER10

-

128kbps) : 0.3%

Frequency Range 87.5~108.0MHz

Usable Sensitivity (30dB S/N, Mono, at 98.1MHz) 10.2dBf

Image Rejection (at 106.1MHz) 40dB

IF Rejection (at 90.1MHz) 60dB

Distortion (Input 60dBµ, at 98.1MHz) 1%

Frequency Response (Ref. 400Hz, at 98.1MHz) 100Hz : 0±3dB

PS Sensitivity (at 98.1MHz) 36.2dBf

Intermediate Frequency 57kHz

Frequency Range 531~1,602kHz

Usable Sensitivity (20dB S/N, at 999kHz) 35dB

IF Rejection (at 603kHz) 60dB

Distortion (at 999kHz) 1%

Frequency Response (Ref. 400Hz, at 999kHz) 100Hz : -3±4dB

Mono : 60dB

2.5kHz : -5 +3/-5dB

Usable Sensitivity (20dB S/N, at 216kHz) 41dB

S/N Ratio (at 216kHz) 42dB

Image Rejection (at 270kHz) 40dB

IF Rejection (at 162kHz) 50dB

Distortion (at 216kHz) 1.5%

Frequency Response (Ref. 400Hz, at 216kHz) 100Hz : -3±4dB

System Optical (Compact Disc System)

Channel Balance (1kHz) CD : TCD-782 : 0±3dB

Distortion (1kHz) CD : TCD-782 : 0.1%

Frequency Response (Ref. 1kHz, 0dB) CD : TCD-782 : 17Hz : 0±3dB

MP3 : SCD-7885 (FOLDER5-128kbps) : 0±3dB

WMA : SCD-7885 (FOLDER10-128kbps) : 0±3dB

AAC : SCD-7885 (FOLDER2-128kbps) : 0±3dB

AAC : SCD-7885 (FOLDER2-128kbps) : 0.3%

127Hz : 0±2dB

10.007kHz : 0

±

2dB

19.997kHz : 0

±

4dB

10.007kHz : 0

±

2dB

19.997kHz : 0

±

4dB

AAC : SCD

-

7885 (FOLDER2

-

128kbps) : 80dB

Separation (1kHz)

CD : TCD

-

782 : 65dB

< USB Audio (MEMORY) >

S/N Ratio (SCD

-

7885 (FOLDER5

-

128kbps))

80dB

Separation (1kHz, SCD

-

7885 (FOLDER5

-

128kbps))

65dB

< CD Deck Mechanism >

RF Waveform Amplitude

1.2+0.7/

-

0.5Vp-p

Quantity of Jitter (3T standard deviation)

Less than 30.0nsec

Measurement Angle Range

Front and Rear :

-

20°~50°

< Pickup >

Wave Length

795nm

Laser Power

CLASS I

< GENERAL >

S/N Ratio CD : TCD-782 : 80dB

MP3 : SCD-7885 (FOLDER5-128kbps) : 17Hz : 0±3dB

127Hz : 0±2dB

10.007kHz : 0±2dB

19.997kHz : 0±4dB

WMA : SCD-7885 (FOLDER10-128kbps) : 17Hz : 0±3dB

127Hz : 0±2dB

AAC : SCD-7885 (FOLDER2-128kbps) : 17Hz : 0±3dB

127Hz : 0±2dB

10.007kHz : 0±2dB

MP3 : SCD-7885 (FOLDER5-128kbps) : 80dB

WMA : SCD-7885 (FOLDER10-128kbps) : 80dB

De-Emphasis (Ref. 1kHz, 0dB) CD : TCD-782 : 4kHz : -20±3dB

Channel Balance (1kHz, SCD-7885 (FOLDER5-128kbps)) 0±3dB

Distortion (1kHz, SCD-7885 (FOLDER5-128kbps)) 0.3%

Frequency Response 17Hz : 0±4dB

(Ref. 1kHz 0dB, SCD-7885 (FOLDER5-128kbps)) 127Hz : 0±2dB

Test Disc CD-DA : ALMEDIO* TCD-782

MP3 : SCD-7885 (FOLDER5-128kbps) : 65dB

WMA : SCD-7885 (FOLDER10-128kbps) : 65dB

AAC : SCD-7885 (FOLDER2-128kbps) : 65dB

16kHz : -20±3dB

10.007kHz : 0±2dB

19.997kHz : 0±4dB

CD-R : ALMEDIO* TCD-R082LMR or TCD-R082LMY

CD-RW : ALMEDIO* TCD-W082W / TCD-W082L / TCD-W082H

(* Former maker name : A-BEX, New maker name : ALMEDIO)

Laser Current Initial value ±5mA

Power Supply 14.4V DC

Right and Left : ±20°

(The initial value of laser current is indicated on the Flexible Cable.)

Power Output (T.H.D.10%, TCD

-

782 (1kHz, 0dB)) / Impedance

18W / ch / 4ohm

Pre Output (T.H.D.1%, TCD-782 (1kHz, 0dB)) / Impedance 6 +5/-2dBV / ch / 10k ohm (2V Pre Out)

NOTE : Due to Continuing product improvement, specifications and designs are subject to change without notice.

Back-up Current (ACC-OFF after 1 minute) 5mA

Dimensions (W x H x D) Chassis : 178 x 50 x 164.7mm

Nose : 188 x 58 x 24.06mm

Weight 1.4kg

< Special DISC Playability >

Judging standard : Confirm following track are done in play and there is no skip. (However, the interpolation noise is excluded.)

Item Use DISC Confirmation item

CD-DA

CD-R Standard DISC ALMEDIO* TCD-R082LMR at playing track #1 and track #23.

CD-RW Standard DISC ALMEDIO* TCD-W082W at playing track #1 and track #23.

Standard DISC ALMEDIO* TCD-782 at playing track #1 and track #23.

Eccentric DISC Playability ALMEDIO* TCD-713R at playing track #1 and track #15.

Vertical deviation DISC Playability ALMEDIO* TCD-732RA at playing track #16.

Scratch DISC ALMEDIO* TCD-721 at playing track #6. (1.2mm)

Black dot DISC ALMEDIO* TCD-726 or TCD-725B at playing track #10. (1.0mm)

Fingerprint DISC ALMEDIO* TCD-726 or TCD-725B at playing track #15. (ø75µm)

Inetrruption DISC ALMEDIO* TCD-726 at playing track #6. (1.0mm)

Scratch DISC ALMEDIO* TCD-R021W at playing track #6. (1.2mm)

Black dot DISC ALMEDIO* TCD-R025W at playing track #10. (1.0mm)

Fingerprint DISC ALMEDIO* TCD-R025W at playing track #15. (ø75µm)

Eccentric DISC Playability ALMEDIO* TCD-R012W at playing track #1 and track #16.

Vertical deviation DISC Playability ALMEDIO* TCD-R032W at playing track #16.

Scratch DISC ALMEDIO* TCD-W021W at playing track #10. (1.2mm)

Black dot DISC ALMEDIO* TCD-W025W at playing track #9. (0.7mm)

Fingerprint DISC ALMEDIO* TCD-W025W at playing track #15. (ø75µm)

Eccentric DISC Playability ALMEDIO* TCD-W012W at playing track #1 and track #16.

Vertical deviation DISC Playability ALMEDIO* TCD-W032W at playing track #16.

or TCD-R082LMY

ALMEDIO* TCD-W082L

ALMEDIO* TCD-W082H

(* Former maker name : A-BEX, New maker name : ALMEDIO)

No ELEP COAT

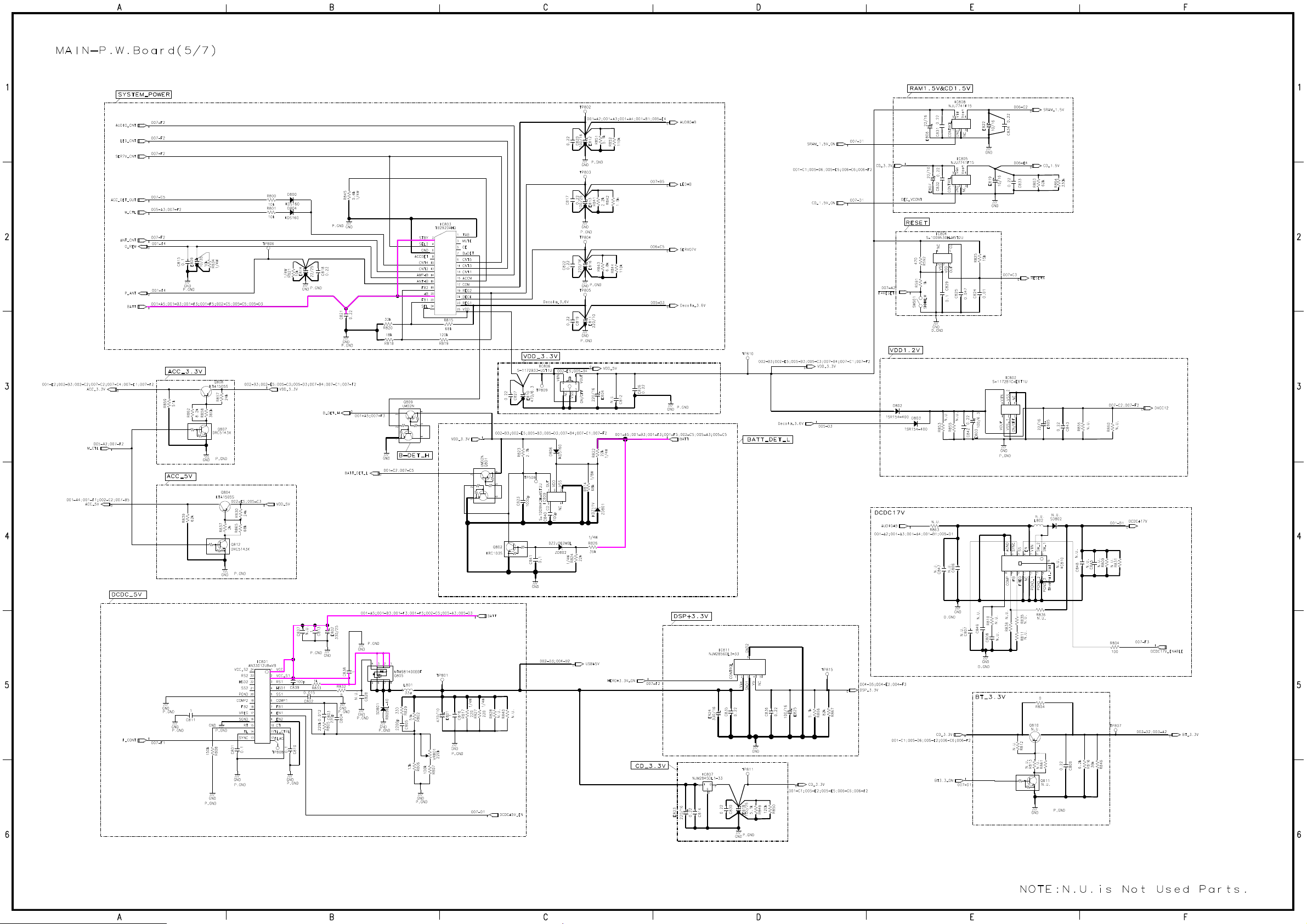

MAIN

-P.W.Board

No ELEP COAT

No ELEP COATNo ELEP COAT

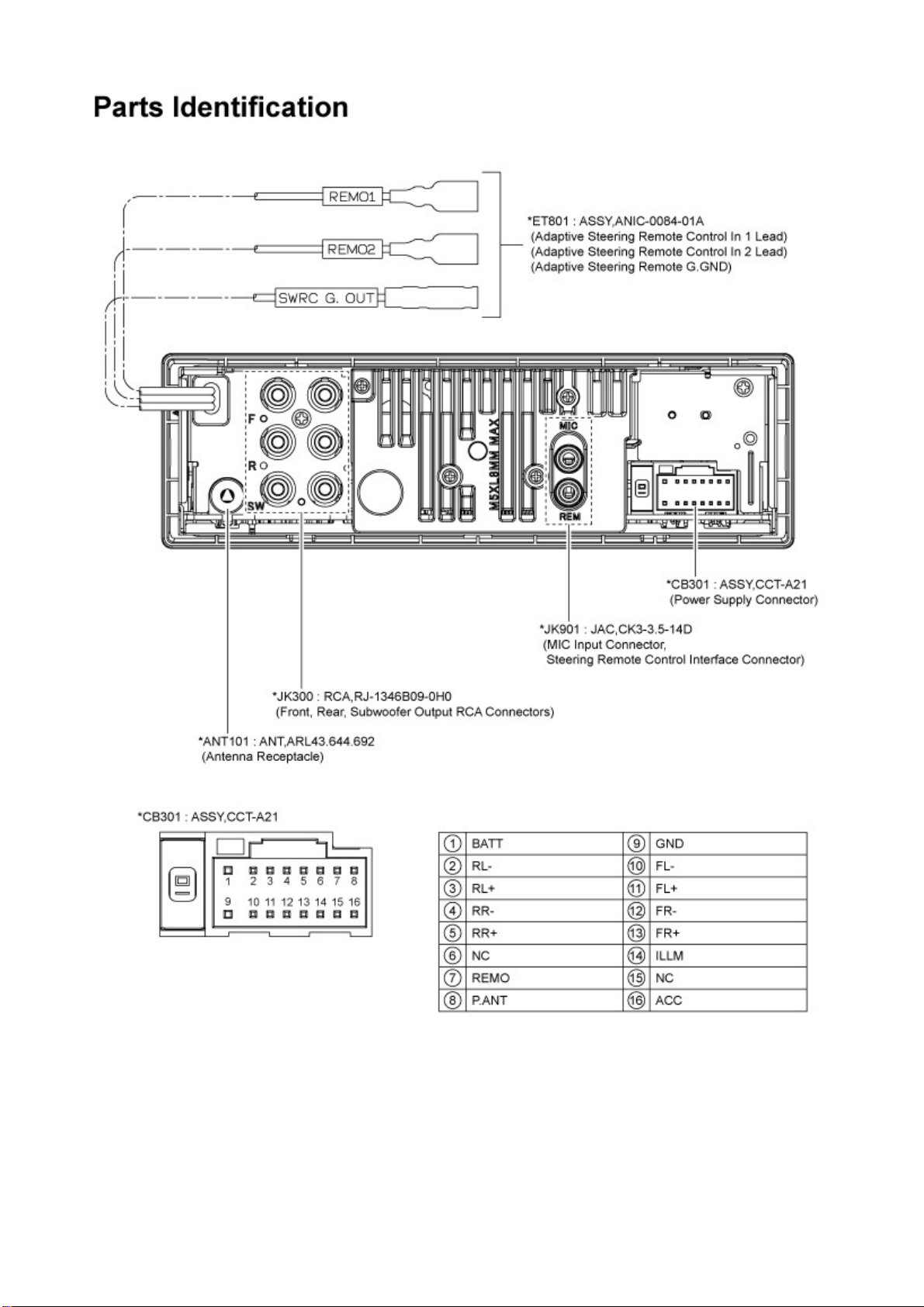

ASSY,ANIC-0084-01A

BLK(GND)

BRN/ORG(REMO2)

BRN/YEL(REMO1)

ET801

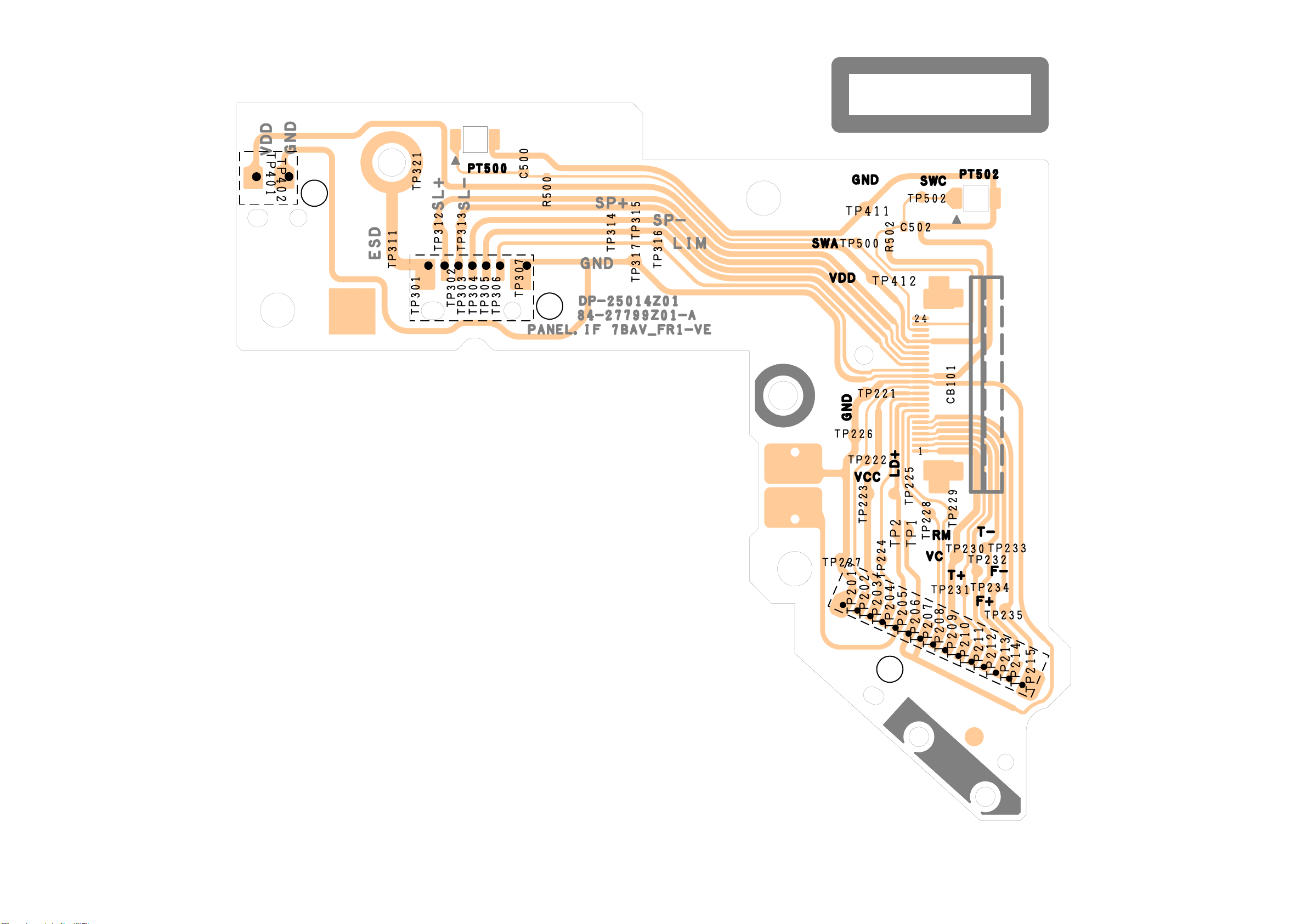

Orange Color Pattern:Component Side Pattern

No ELEP COAT

MAIN

-P.W.Board

No ELEP COAT

No ELEP COATNo ELEP COAT

Orange Color Pattern:Component Side Pattern

ANT101 09-26262Z01 ANT,ARL43.644.692-DB
C101 08S35349Y16 CAP,CER 105K-B1A -CP
C103 08S45231Y38 CAP,CER 102J-CH1H-CP
C104 08S35374W12 CAP,CER 106K-B0J -CP
C105 08S35374W12 CAP,CER 106K-B0J -CP
C106 08S35374W12 CAP,CER 106K-B0J -CP
C107 08S35374W12 CAP,CER 106K-B0J -CP
C108 08S45231Y38 CAP,CER 102J-CH1H-CP
C109 08S45676W65 CAP,CER.222K-B1H -CP
C110 08S35374W12 CAP,CER 106K-B0J -CP
C111 08S35374W12 CAP,CER 106K-B0J -CP
C112 08S35374W12 CAP,CER 106K-B0J -CP
C114 08S45232Y17 CAP,CER 104K-B0J -CP
C115 08S35374W12 CAP,CER 106K-B0J -CP
C116 08S45231Y06 CAP,CER 3R0C-CJ1H-CP
C117 08S45677W60 CAP,CER 102J-CH1H-CP
C118 08S45232Y17 CAP,CER 104K-B0J -CP
C119 08S65670Y01 CAP,CER 106KX5R1C-CP
C120 08S45232Y17 CAP,CER 104K-B0J -CP
C121 08S45232Y05 CAP,CER 102K-B1H -CP
C122 08S35349Y17 CAP,CER 225K-B0J -CP
C123 08S35374W11 CAP,CER 475K-B0J -CP
C124 08S45232Y05 CAP,CER 102K-B1H -CP
C125 08S45232Y17 CAP,CER 104K-B0J -CP
C126 08S45232Y17 CAP,CER 104K-B0J -CP
C127 08S45232Y08 CAP,CER 332K-B1H -CP
C128 08S45232Y05 CAP,CER 102K-B1H -CP
C129 08S45232Y05 CAP,CER 102K-B1H -CP
C130 08S45232Y05 CAP,CER 102K-B1H -CP
C131 08S45677W34 CAP,CER.82RJ-CH1H-CP
C132 08S45231Y17 CAP,CER 22RJ-CH1H-CP
C141 08S45231Y25 CAP,CER 101J-CH1H-CP
C142 08S45231Y13 CAP,CER 10RD-CH1H-CP
C143 08S45232Y03 CAP,CER 471K-B1H -CP
C145 08S45677W60 CAP,CER 102J-CH1H-CP
C153 08S45231Y38 CAP,CER 102J-CH1H-CP
C154 08S45231Y16 CAP,CER 18RJ-CH1H-CP
C155 08S45232Y07 CAP,CER 222K-B1H -CP
C160 08S45676W73 CAP,CER.103K-B1H -CP
C161 08S45676W73 CAP,CER.103K-B1H -CP
C162 08S65668Y05 CAP,CER 224KX5R1A-CP
C163 08S45231Y11 CAP,CER 8R0D-CH1H-CP
C164 08S45231Y11 CAP,CER 8R0D-CH1H-CP
C165 08S45231Y38 CAP,CER 102J-CH1H-CP
C166 08S65670Y01 CAP,CER 106KX5R1C-CP
C167 08S45232Y17 CAP,CER 104K-B0J -CP
C168 08S45232Y17 CAP,CER 104K-B0J -CP
C169 08S45231Y38 CAP,CER 102J-CH1H-CP
C170 08S65670Y01 CAP,CER 106KX5R1C-CP
C300 08S45676W73 CAP,CER.103K-B1H -CP
C301 08S65676Y03 CAP,CER 225KX7R1C-CP
C302 08S35350Y04 CAP,CER 105K-B1C -CP
C305 08S65669Y03 CAP,CER 224KX7R1H-CP
C306 08S65676Y03 CAP,CER 225KX7R1C-CP

C307 08S65669Y03 CAP,CER 224KX7R1H-CP
C308 08S65676Y03 CAP,CER 225KX7R1C-CP
C309 08S65676Y03 CAP,CER 225KX7R1C-CP
C310 08S65676Y03 CAP,CER 225KX7R1C-CP
C311 08S65676Y03 CAP,CER 225KX7R1C-CP
C312 08S65669Y03 CAP,CER 224KX7R1H-CP
C313 08S35349Y12 CAP,CER 105K-B0J -CP
C314 08S35374W12 CAP,CER 106K-B0J -CP
C315 08S35374W12 CAP,CER 106K-B0J -CP
C316 08S65669Y03 CAP,CER 224KX7R1H-CP
C317 08S45231Y25 CAP,CER 101J-CH1H-CP
C318 08S45232Y17 CAP,CER 104K-B0J -CP
C319 08S45231Y25 CAP,CER 101J-CH1H-CP
C320 08S35350Y04 CAP,CER 105K-B1C -CP
C321 08S65669Y02 CAP,CER 474KX7R1E-CP
C322 08S65669Y02 CAP,CER 474KX7R1E-CP
C323 08S65669Y02 CAP,CER 474KX7R1E-CP
C324 08S65669Y02 CAP,CER 474KX7R1E-CP
C325 08S65669Y02 CAP,CER 474KX7R1E-CP
C327 08S35349Y16 CAP,CER 105K-B1A -CP
C333 08S45232Y17 CAP,CER 104K-B0J -CP
C501 08S45676W85 CAP,CER 104K-B1C -CP
C502 08S45676W85 CAP,CER 104K-B1C -CP
C503 08S45676W85 CAP,CER 104K-B1C -CP
C504 08S65669Y03 CAP,CER 224KX7R1H-CP
C505 08S45232Y07 CAP,CER 222K-B1H -CP
C506 08S65668Y05 CAP,CER 224KX5R1A-CP
C507 08S45677W60 CAP,CER 102J-CH1H-CP
C508 08S45232Y07 CAP,CER 222K-B1H -CP
C509 08S45232Y07 CAP,CER 222K-B1H -CP
C510 08S65669Y03 CAP,CER 224KX7R1H-CP
C512 08S65669Y03 CAP,CER 224KX7R1H-CP
C514 08S45232Y11 CAP,CER 103K-B1C -CP
C515 08S45232Y07 CAP,CER 222K-B1H -CP
C516 08S45232Y05 CAP,CER 102K-B1H -CP
C517 08S45232Y17 CAP,CER 104K-B0J -CP
C518 08S45676W85 CAP,CER 104K-B1C -CP
C519 08S45232Y05 CAP,CER 102K-B1H -CP
C520 08S65669Y03 CAP,CER 224KX7R1H-CP
C523 08S45232Y17 CAP,CER 104K-B0J -CP
C524 08S45676W85 CAP,CER 104K-B1C -CP
C525 08S45676W85 CAP,CER 104K-B1C -CP
C526 08S45676W85 CAP,CER 104K-B1C -CP
C527 08S45232Y17 CAP,CER 104K-B0J -CP
C528 08S45676W85 CAP,CER 104K-B1C -CP
C529 08S45676W85 CAP,CER 104K-B1C -CP
C530 08S45232Y17 CAP,CER 104K-B0J -CP
C531 08S45676W85 CAP,CER 104K-B1C -CP
C533 08S45676W85 CAP,CER 104K-B1C -CP
C534 08S45676W85 CAP,CER 104K-B1C -CP
C535 08S45232Y21 CAP,CER 104K-B1A-CP
C536 08S45232Y21 CAP,CER 104K-B1A-CP
C537 08S45676W85 CAP,CER 104K-B1C -CP
C538 08S45676W85 CAP,CER 104K-B1C -CP
C539 08S45676W85 CAP,CER 104K-B1C -CP

C540 08S45232Y17 CAP,CER 104K-B0J -CP
C541 08S45676W85 CAP,CER 104K-B1C -CP
C542 08S45676W85 CAP,CER 104K-B1C -CP
C543 08S45676W85 CAP,CER 104K-B1C -CP
C544 08S45676W85 CAP,CER 104K-B1C -CP
C545 08S45676W85 CAP,CER 104K-B1C -CP
C546 08S45676W85 CAP,CER 104K-B1C -CP
C547 08S45231Y15 CAP,CER 15RJ-CH1H-CP
C548 08S45231Y15 CAP,CER 15RJ-CH1H-CP
C549 08S65668Y05 CAP,CER 224KX5R1A-CP
C550 08S35349Y16 CAP,CER 105K-B1A -CP
C551 08S35349Y16 CAP,CER 105K-B1A -CP
C552 08S65669Y03 CAP,CER 224KX7R1H-CP
C554 08S45676W85 CAP,CER 104K-B1C -CP
C555 08S45676W69 CAP,CER.472K-B1H -CP
C556 08S45232Y03 CAP,CER 471K-B1H -CP
C561 08S45676W73 CAP,CER.103K-B1H -CP
C562 08S45676W80 CAP,CER 223K-B1E -CP
C601 08S45232Y05 CAP,CER 102K-B1H -CP
C602 08S45231Y13 CAP,CER 10RD-CH1H-CP
C603 08S35374W12 CAP,CER 106K-B0J -CP
C604 08S45232Y05 CAP,CER 102K-B1H -CP
C605 08S45232Y05 CAP,CER 102K-B1H -CP
C606 08S35374W12 CAP,CER 106K-B0J -CP
C607 08S35374W12 CAP,CER 106K-B0J -CP
C608 08S35374W12 CAP,CER 106K-B0J -CP
C609 08S45232Y17 CAP,CER 104K-B0J -CP
C610 08S35374W12 CAP,CER 106K-B0J -CP
C611 08S45232Y17 CAP,CER 104K-B0J -CP
C612 08S45232Y05 CAP,CER 102K-B1H -CP
C613 08S45231Y13 CAP,CER 10RD-CH1H-CP
C614 08S45232Y05 CAP,CER 102K-B1H -CP
C615 08S45231Y13 CAP,CER 10RD-CH1H-CP
C616 08S35349Y12 CAP,CER 105K-B0J -CP
C617 08S45232Y05 CAP,CER 102K-B1H -CP
C618 08S35349Y12 CAP,CER 105K-B0J -CP
C619 08S35349Y12 CAP,CER 105K-B0J -CP
C620 08S45232Y17 CAP,CER 104K-B0J -CP
C621 08S45232Y17 CAP,CER 104K-B0J -CP
C623 08S45231Y04 CAP,CER 1R5C-CK1H-CP
C624 08S45231Y12 CAP,CER 9R0D-CH1H-CP
C625 08S45231Y13 CAP,CER 10RD-CH1H-CP
C704 08S45232Y14 CAP,CER 333K-B1C -CP
C705 08S45232Y17 CAP,CER 104K-B0J -CP
C706 08S35374W12 CAP,CER 106K-B0J -CP
C707 08S35349Y17 CAP,CER 225K-B0J -CP
C708 08S45231Y15 CAP,CER 15RJ-CH1H-CP
C709 08S45232Y17 CAP,CER 104K-B0J -CP
C710 08S45232Y08 CAP,CER 332K-B1H -CP
C711 08S45676W69 CAP,CER.472K-B1H -CP
C712 08S45232Y12 CAP,CER 153K-B1C -CP
C713 08S45232Y17 CAP,CER 104K-B0J -CP
C714 08S45232Y17 CAP,CER 104K-B0J -CP
C715 08S45232Y17 CAP,CER 104K-B0J -CP

C716 08S45232Y17 CAP,CER 104K-B0J -CP
C717 08S45232Y14 CAP,CER 333K-B1C -CP
C718 08S45232Y14 CAP,CER 333K-B1C -CP
C719 08S45232Y08 CAP,CER 332K-B1H -CP
C720 08S45676W73 CAP,CER.103K-B1H -CP
C721 08S45232Y14 CAP,CER 333K-B1C -CP
C722 08S45232Y11 CAP,CER 103K-B1C -CP
C723 08S45232Y17 CAP,CER 104K-B0J -CP
C724 08S45231Y21 CAP,CER 47RJ-CH1H-CP
C725 08S45232Y12 CAP,CER 153K-B1C -CP
C726 08S45232Y07 CAP,CER 222K-B1H -CP
C727 08S45232Y17 CAP,CER 104K-B0J -CP
C728 08S45232Y14 CAP,CER 333K-B1C -CP
C729 08S45232Y05 CAP,CER 102K-B1H -CP
C730 08S35374W12 CAP,CER 106K-B0J -CP
C733 08S45231Y15 CAP,CER 15RJ-CH1H-CP
C734 08S45232Y17 CAP,CER 104K-B0J -CP
C735 08S45232Y17 CAP,CER 104K-B0J -CP
C736 08S45676W73 CAP,CER.103K-B1H -CP
C737 08S35374W12 CAP,CER 106K-B0J -CP
C738 08S45231Y38 CAP,CER 102J-CH1H-CP
C739 08S65669Y03 CAP,CER 224KX7R1H-CP
C740 08S45231Y28 CAP,CER 181J-CH1H-CP
C741 08S45676W80 CAP,CER 223K-B1E -CP
C742 08S65668Y05 CAP,CER 224KX5R1A-CP
C744 08S65669Y03 CAP,CER 224KX7R1H-CP
C745 08S65669Y03 CAP,CER 224KX7R1H-CP
C746 08S65668Y05 CAP,CER 224KX5R1A-CP
C747 08S65668Y05 CAP,CER 224KX5R1A-CP
C748 08S45232Y05 CAP,CER 102K-B1H -CP
C749 08S45232Y08 CAP,CER 332K-B1H -CP
C750 08S65668Y05 CAP,CER 224KX5R1A-CP
C752 08S45676W85 CAP,CER 104K-B1C -CP
C754 08S45231Y15 CAP,CER 15RJ-CH1H-CP
C755 08S45231Y15 CAP,CER 15RJ-CH1H-CP
C756 08S45231Y15 CAP,CER 15RJ-CH1H-CP
C801 08S45232Y21 CAP,CER 104K-B1A-CP
C802 08S45232Y12 CAP,CER 153K-B1C -CP
C803 08S45676W74 CAP,CER 123K-B1H -CP
C804 08S45232Y01 CAP,CER 221K-B1H -CP
C805 08S45232Y07 CAP,CER 222K-B1H -CP
C809 08S65669Y03 CAP,CER 224KX7R1H-CP
C810 08S45232Y21 CAP,CER 104K-B1A-CP
C811 08S35349Y16 CAP,CER 105K-B1A -CP
C813 08S65670Y07 CAP,CER 105KX5R1H-CP
C814 08S65669Y03 CAP,CER 224KX7R1H-CP
C815 08S65128F88 CAP,CER 104K-B1H -CP
C816 08S35349Y16 CAP,CER 105K-B1A -CP
C817 08S65669Y03 CAP,CER 224KX7R1H-CP
C818 08S65669Y03 CAP,CER 224KX7R1H-CP
C819 08S65669Y03 CAP,CER 224KX7R1H-CP
C820 08S65669Y03 CAP,CER 224KX7R1H-CP
C821 08S65669Y03 CAP,CER 224KX7R1H-CP
C822 08S65669Y03 CAP,CER 224KX7R1H-CP
C823 08S45232Y05 CAP,CER 102K-B1H -CP

C824 08S45676W73 CAP,CER.103K-B1H -CP
C825 08S45676W89 CAP,CER 473K-B1E -CP
C826 08S65669Y03 CAP,CER 224KX7R1H-CP
C827 08S65669Y03 CAP,CER 224KX7R1H-CP
C829 08S45676W85 CAP,CER 104K-B1C -CP
C830 08S65669Y03 CAP,CER 224KX7R1H-CP
C831 08S65669Y03 CAP,CER 224KX7R1H-CP
C832 08S65669Y03 CAP,CER 224KX7R1H-CP
C833 08S65669Y03 CAP,CER 224KX7R1H-CP
C834 08S65669Y03 CAP,CER 224KX7R1H-CP
C835 08S65669Y03 CAP,CER 224KX7R1H-CP
C836 08S65669Y03 CAP,CER 224KX7R1H-CP
C838 08S65670Y07 CAP,CER 105KX5R1H-CP
C839 08S45231Y25 CAP,CER 101J-CH1H-CP
C840 08S45677W36 CAP,CER.101J-CH1H-CP
C841 08S45676W85 CAP,CER 104K-B1C -CP
C842 08S65669Y03 CAP,CER 224KX7R1H-CP
C843 08S65669Y03 CAP,CER 224KX7R1H-CP
C846 08S65128F88 CAP,CER 104K-B1H -CP
C870 08S45676W80 CAP,CER 223K-B1E -CP
C871 08S45676W80 CAP,CER 223K-B1E -CP
C901 08S65668Y05 CAP,CER 224KX5R1A-CP
C902 08S65669Y03 CAP,CER 224KX7R1H-CP
C903 08S65669Y03 CAP,CER 224KX7R1H-CP
C905 08S45676W85 CAP,CER 104K-B1C -CP
C906 08S45232Y11 CAP,CER 103K-B1C -CP
C907 08S45232Y13 CAP,CER 223K-B1C -CP
C908 08S45676W65 CAP,CER.222K-B1H -CP
C909 08S35349Y16 CAP,CER 105K-B1A -CP

CB301 09-27558Z01 ASSY,CCT-A21 -DB

CB701 09T75287Y24 FFC,IMSA9631S-24Y-ED

CH501 09-18738Z01 BTB,DF20-S -DB
D101 48-17547Z01 DIO,DA3J101F0L -CP
D300 48-07016Z01 DIO,KDS181-RTK -CP
D301 48-07016Z01 DIO,KDS181-RTK -CP
D302 48T75446Y01 DIO,RR264M-400 -CP
D303 48T75527Y01 DIO,1SR154-400 -E1
D304 48-07016Z01 DIO,KDS181-RTK -CP
D307 48-05965Z01 DIO,1SS361-L -CP
D309 48-05828Z01 DIO,1N5406G-04 -
D800 48-07015Z01 DIO,KDS160-RTK -CP
D802 48T75527Y01 DIO,1SR154-400 -E1
D803 48T75527Y01 DIO,1SR154-400 -E1
D804 48-07015Z01 DIO,KDS160-RTK -CP
D806 48-07015Z01 DIO,KDS160-RTK -CP
D807 48-05965Z01 DIO,1SS361-L -CP
D870 48-12230Z01 DIO,KDS226-RTK -CP
D871 48-12230Z01 DIO,KDS226-RTK -CP
D872 48-07015Z01 DIO,KDS160-RTK -CP
D873 48-07015Z01 DIO,KDS160-RTK -CP
D901 48-07016Z02 DIO,KDS184-RTK -CP
E300 23S65134W52 CAP,ELY 3R3-1V(3)-E2
E301 23T75346W03 CAP,X-PRO 332-1C +
E302 23T75234Y06 CAP,MAR 22R-1C-E55E3

E303 23S65134W52 CAP,ELY 3R3-1V(3)-E2
E304 23S75244Y27 CAP,ELY 47R-1E -E6
E305 23S65134W52 CAP,ELY 3R3-1V(3)-E2
E306 23S65134W52 CAP,ELY 3R3-1V(3)-E2
E307 23S65134W52 CAP,ELY 3R3-1V(3)-E2
E308 23S65134W52 CAP,ELY 3R3-1V(3)-E2
E311 23S65134W34 CAP,ELY 47R-1C(6)-E6
E312 23T75234Y05 CAP,MAR 10R-1C-D55E2
E313 23T75234Y05 CAP,MAR 10R-1C-D55E2
E314 23T75234Y05 CAP,MAR 10R-1C-D55E2
E315 23T75234Y05 CAP,MAR 10R-1C-D55E2
E316 23T75234Y06 CAP,MAR 22R-1C-E55E3
E317 23T75234Y05 CAP,MAR 10R-1C-D55E2
E500 23S65134W51 CAP,ELY 2R2-1V(3)-E2
E501 23S75244Y17 CAP,ELY 22R-1C -E2
E502 23S65134W81 CAP,ELY 22R-1C(4)-E2
E703 23S65134W35 CAP,ELY 101-1C(8)-E6
E704 23T65679Y11 CAP,CD 47R-0J -E2
E705 23S65134W35 CAP,ELY 101-1C(8)-E6
E801 23S75244Y13 CAP,ELY 471-1A -EA
E802 23S75244Y30 CAP,ELY 331-1E -EA
E803 23S65134W13 CAP,ELY 101-0J(6)-E6
E804 23S75244Y20 CAP,ELY 221-1C -E6
E805 23S75244Y17 CAP,ELY 22R-1C -E2
E807 23S75244Y09 CAP,ELY 22R-1A -E2
E808 23S75244Y17 CAP,ELY 22R-1C -E2
E809 23S65134W54 CAP,ELY 10R-1V(5)-E3
E810 23T65114Y08 CAP,FK 471-0J-F -EA
E811 23S65134W24 CAP,ELY 221-1A(8)-E6
E812 23T75234Y19 CAP,MAR 101-1C-H63E6
E813 23S75244Y28 CAP,ELY 101-1E -E6
E814 23S65134W44 CAP,ELY 22R-1E(6)-E6
E816 23S75244Y20 CAP,ELY 221-1C -E6
E818 23S65134W47 CAP,ELY 101-1E(8)-E6
E819 23S65134W80 CAP,ELY 10R-1C(3)-E2
E822 23S65134W80 CAP,ELY 10R-1C(3)-E2
E823 23S75244Y20 CAP,ELY 221-1C -E6
E824 23S75244Y21 CAP,ELY 331-1C -EA
E825 23S75244Y19 CAP,ELY 101-1C -E6
E902 23S65134W24 CAP,ELY 221-1A(8)-E6

ET801 09-30307Z01 ASSY,ANIC-0084-01A

IC101 51-22873Z01 TEA6636HW/V103 -QT

IC302 51-29909Z01 BD37067FV-ME2 -SE9

IC303 51-25497Z01 STPA002 -ZS

IC371 51-10945Z01 CS4344-DZZR -SE2

IC501 83-26452Z86 15HU_1Din&2Din_R_lC501_Soft

IC501 51-27561Z01 W25Q32FVSSIG -ST

IC502 51T15185Y02 TC7SH08FU,JF-L -CP

IC503 51T55336Y02 TC7SH04FU,JF-L -CP

IC504 51-22801Z01 M24C32-WMN6TP -SE2

IC505 51-27561Z01 W25Q32FVSSIG -ST

IC506 51-30400Z01 TMPM32BC2DFG-APN -QT

IC507 51-30312Z01 AK5700VN-L -LE2

IC601 51-24902Z01 TC35661IDBG -BE6

IC701 51-16202Z01 TC94A92FG-301 -QT

IC702 51-14737Z01 BD8226EFV-E2 -SE6

IC801 51-20097Z02 AN33012UB-VB -SE6

IC802 51-23576Z01 S-1172B1C-E6T1U -SE2

IC803 51-13711Z02 TB2920AHQ -ZS

IC804 51-20765Z24 S-1009N30H-M5T2U -CP

IC805 51-06963Z01 NJU7741F15-TE1 -CP

IC806 51-25207Z01 S-1172B33-U5T1U -NE2

IC807 51-05862Z01 NJM2845DL1-33-TE1NE5

IC808 51-06963Z01 NJU7741F15-TE1 -CP

IC809 51-20765Z36 S-1009N42H-M5T2U -CP

IC811 51-13565Z03 NJM2856DL3-33TE1-NE5

IC901 51-26850Z01 MFI337S3959 -CP

IC902 51T93532F05 TC4S01F-TE85L -CP

IC903 51-11433Z01 RT9702AGB -CP

JK300 09-25331Z01 RCA,RJ-1346B09-0H0DB

JK901 09-14149Z01 JAC,CK3-3.5-14D -DB
L101 24T95456W11 FBI,BLM18AG601SH1-CP
L102 24T95458W07 FBI,BLM31PG601SH1-CP
L103 24T95456W11 FBI,BLM18AG601SH1-CP
L104 24T95456W11 FBI,BLM18AG601SH1-CP
L105 24T95456W11 FBI,BLM18AG601SH1-CP
L106 24T45482Y05 IND,LQH31HN R29J -CP
L107 24T25164Y12 IND,FSLM2520 R82J-CP
L108 24T25164Y19 IND,FSLM2520 3R3J-CP
L109 24T55488Y37 IND,LLQ1608 R27J -CP
L110 24T65645Y03 IND,LLM3225 561K -CP
L111 24T65645Y03 IND,LLM3225 561K -CP
L112 24T95459W07 FBI,BLM41PG102SH1-E1
L113 24T95456W11 FBI,BLM18AG601SH1-CP
L114 24T65645Y01 IND,LLM3225 4R7J -CP
L115 24T95456W23 FBI,BLM18BD252SH1-CP
L116 24T95456W23 FBI,BLM18BD252SH1-CP
L117 24T95456W23 FBI,BLM18BD252SH1-CP
L325 24T95456W27 FBI,BLM18PG181SH1-CP
L501 24-06212Z13 FBI,BLM15BB100SH1-CP
L502 24-06212Z13 FBI,BLM15BB100SH1-CP
L503 24-06212Z07 FBI,BLM15BD601SH1-CP
L504 24-06212Z11 FBI,BLM15BD471SH1-CP
L505 24-06212Z11 FBI,BLM15BD471SH1-CP
L506 24-06212Z11 FBI,BLM15BD471SH1-CP
L507 24-06212Z11 FBI,BLM15BD471SH1-CP
L701 24T95456W11 FBI,BLM18AG601SH1-CP
L702 24T95456W07 FBI,BLM18BD102SH1-CP
L703 24T95456W07 FBI,BLM18BD102SH1-CP
L704 24T95456W07 FBI,BLM18BD102SH1-CP
L801 24-25206Z01 IND,SFCB1280T33RM-EA
PS301 48-16589Z01 POLY,SW SMDC075F -E2

Q101 48-20742Z01 TR,BCX54 -E2

Q300 48T75180Y04 TR,IMH23-T110 -CP

Q301 48T75180Y04 TR,IMH23-T110 -CP

Q302 48-13000Z05 TR,LTC124EUBFS8-TLCP

Q303 48T75180Y04 TR,IMH23-T110 -CP

Q306 48-20093Z01 TR,DMC561010R -CP

Q308 48-04929Z02 TR,KRC102S-RTK -CP

Q309 48-04929Z03 TR,KRC103S-RTK -CP

Q310 48T25737Y01 TR,UMD2N-TR -CP

Q701 48-17707Z01 TR,DSA700300L -E2

Q702 48-19949Z01 TR,DRC5143X -CP

Q703 48T55462Y01 TR,2SB1132-QR-100-E2

Q704 48-04940Z17 TR,KRA118S-RTK -CP

Q705 48-13000Z01 TR,LTC114EUBFS8-TLCP

Q801 48T25737Y01 TR,UMD2N-TR -CP

Q802 48-04929Z03 TR,KRC103S-RTK -CP

Q803 48T25737Y01 TR,UMD2N-TR -CP

Q804 48-09581Z04 TR,KTA1505S-GRRTK-CP

Q805 48-20288Z01 FET,MTM981400BBF -E2

Q807 48-19949Z01 TR,DRC5143X -CP

Q808 48-09581Z04 TR,KTA1505S-GRRTK-CP

Q809 48T25737Y01 TR,UMD2N-TR -CP

Q812 48-19949Z01 TR,DRC5143X -CP

Q902 48-09583Z04 TR,KTA1504S-GRRTK-CP

Q903 48-13000Z01 TR,LTC114EUBFS8-TLCP

R101 06S15615Y25 RES,RK 101J 1/16 -CP
R104 06S15616Y14 RES,RK 474J 1/16 -CP
R107 06S15615Y25 RES,RK 101J 1/16 -CP
R109 06S15615Y25 RES,RK 101J 1/16 -CP
R110 06S15615Y25 RES,RK 101J 1/16 -CP
R111 06S15616Y28 RES,RK 3R3J 1/16 -CP
R113 06S15615Y25 RES,RK 101J 1/16 -CP
R121 06S15616Y23 RES,RK JUMPER1/16-CP
R196 06S65415Y11 RES,RK 68RF 1/16 -CP
R197 06S45348Y38 RES,RK 474F 1/4 -CP
R206 06S45348Y38 RES,RK 474F 1/4 -CP
R207 06S15615Y25 RES,RK 101J 1/16 -CP
R219 06S45674W57 RES,RK 102J 1/10 -CP
R220 06S45674W57 RES,RK 102J 1/10 -CP
R221 06S45674W57 RES,RK 102J 1/10 -CP
R222 06S15615Y25 RES,RK 101J 1/16 -CP
R223 06S45674W73 RES,RK 472J 1/10 -CP
R224 06S45674W73 RES,RK 472J 1/10 -CP
R225 06S45674W57 RES,RK 102J 1/10 -CP
R231 06S15615Y48 RES,RK 911J 1/16 -CP
R232 06S15615Y48 RES,RK 911J 1/16 -CP
R233 06S15615Y48 RES,RK 911J 1/16 -CP
R300 06S15593Y93 RES,RK 683F 1/10 -CP
R301 06S70072F61 RES,CP .222-J-1/4-CP
R302 06S15593Y93 RES,RK 683F 1/10 -CP
R303 06S15593Y93 RES,RK 683F 1/10 -CP
R304 06S45674W81 RES,RK 103J 1/10 -CP
R305 06S70072F77 RES,CP .103-J-1/4-CP
R306 06S15593Y93 RES,RK 683F 1/10 -CP
R307 06S15615Y37 RES,RK 331J 1/16 -CP
R308 06S15615Y37 RES,RK 331J 1/16 -CP
R309 06S15593Y93 RES,RK 683F 1/10 -CP
R310 06S15593Y93 RES,RK 683F 1/10 -CP

R311 06S64995F37 RES,RK 221J 1/8 -CP
R312 06S64995F37 RES,RK 221J 1/8 -CP
R313 06S64995F37 RES,RK 221J 1/8 -CP
R314 06S64995F37 RES,RK 221J 1/8 -CP
R315 06S64995F37 RES,RK 221J 1/8 -CP
R316 06S64995F37 RES,RK 221J 1/8 -CP
R317 06S64995F29 RES,RK 101J 1/8 -CP
R319 06S64995F29 RES,RK 101J 1/8 -CP
R320 06S64995F29 RES,RK 101J 1/8 -CP
R321 06S64995F29 RES,RK 101J 1/8 -CP
R322 06S64995F29 RES,RK 101J 1/8 -CP
R323 06S64995F29 RES,RK 101J 1/8 -CP
R327 06S15615Y73 RES,RK 103J 1/16 -CP
R328 06S15615Y81 RES,RK 223J 1/16 -CP
R329 06S45674W41 RES,RK 221J 1/10 -CP
R330 06S45674W41 RES,RK 221J 1/10 -CP
R331 06S45674W41 RES,RK 221J 1/10 -CP
R332 06S45674W41 RES,RK 221J 1/10 -CP
R338 06S15615Y25 RES,RK 101J 1/16 -CP
R339 06S15615Y25 RES,RK 101J 1/16 -CP
R340 06S15615Y25 RES,RK 101J 1/16 -CP
R341 06S15615Y97 RES,RK 104J 1/16 -CP
R342 06S15615Y25 RES,RK 101J 1/16 -CP
R343 06S15615Y81 RES,RK 223J 1/16 -CP
R344 06S15615Y73 RES,RK 103J 1/16 -CP
R345 06S45674W41 RES,RK 221J 1/10 -CP
R346 06S15615Y77 RES,RK 153J 1/16 -CP
R347 06S15615Y73 RES,RK 103J 1/16 -CP
R348 06S15615Y25 RES,RK 101J 1/16 -CP
R349 06S45674W97 RES,RK 473J 1/10 -CP
R350 06S70072F29 RES,CP .101-J-1/4-CP
R351 06S15615Y73 RES,RK 103J 1/16 -CP
R352 06S15615Y73 RES,RK 103J 1/16 -CP
R353 06S15615Y81 RES,RK 223J 1/16 -CP
R355 06S15615Y33 RES,RK 221J 1/16 -CP
R356 06S15615Y33 RES,RK 221J 1/16 -CP
R357 06S35095Y08 RES,RK JUMPER 1/4-CP
R501 06S15615Y25 RES,RK 101J 1/16 -CP
R502 06S45674W81 RES,RK 103J 1/10 -CP
R503 06S45674W57 RES,RK 102J 1/10 -CP
R504 06S45674W81 RES,RK 103J 1/10 -CP
R505 06S70072F53 RES,CP .102-J-1/4-CP
R506 06S15593Y73 RES,RK 103F 1/10 -CP
R507 06S45674W57 RES,RK 102J 1/10 -CP
R508 06S15615Y73 RES,RK 103J 1/16 -CP
R509 06S15593Y73 RES,RK 103F 1/10 -CP
R510 06S45674W57 RES,RK 102J 1/10 -CP
R511 06S45674W57 RES,RK 102J 1/10 -CP
R512 06S45674W57 RES,RK 102J 1/10 -CP
R513 06S45674W57 RES,RK 102J 1/10 -CP
R514 06S45674W57 RES,RK 102J 1/10 -CP
R515 06S15594Y23 RES,RK JUMPER1/10-CP
R516 06S45674W89 RES,RK 223J 1/10 -CP
R517 06S45674W57 RES,RK 102J 1/10 -CP
R518 06S15594Y23 RES,RK JUMPER1/10-CP

R519 06S45674W57 RES,RK 102J 1/10 -CP
R520 06S15594Y23 RES,RK JUMPER1/10-CP
R521 06S45674W89 RES,RK 223J 1/10 -CP
R522 06S15615Y89 RES,RK 473J 1/16 -CP
R524 06S15615Y37 RES,RK 331J 1/16 -CP
R525 06S15615Y49 RES,RK 102J 1/16 -CP
R527 06S45675W43 RES,RK JUMPER1/10-CP
R533 06S15615Y77 RES,RK 153J 1/16 -CP
R534 06S15615Y77 RES,RK 153J 1/16 -CP
R535 06S65415Y09 RES,RK 47RF 1/16 -CP
R536 06S65415Y09 RES,RK 47RF 1/16 -CP
R538 06S15615Y89 RES,RK 473J 1/16 -CP
R539 06S45674W89 RES,RK 223J 1/10 -CP
R540 06S15615Y89 RES,RK 473J 1/16 -CP
R541 06S15615Y81 RES,RK 223J 1/16 -CP
R542 06S15616Y23 RES,RK JUMPER1/16-CP
R543 06S45674W89 RES,RK 223J 1/10 -CP
R544 06S15615Y89 RES,RK 473J 1/16 -CP
R545 06S15615Y37 RES,RK 331J 1/16 -CP
R547 06S15615Y33 RES,RK 221J 1/16 -CP
R548 06S15615Y37 RES,RK 331J 1/16 -CP
R549 06S15615Y25 RES,RK 101J 1/16 -CP
R550 06S15615Y89 RES,RK 473J 1/16 -CP
R551 06S15615Y25 RES,RK 101J 1/16 -CP
R552 06S15615Y37 RES,RK 331J 1/16 -CP
R553 06S15615Y34 RES,RK 241J 1/16 -CP
R554 06S15615Y25 RES,RK 101J 1/16 -CP
R555 06S15615Y49 RES,RK 102J 1/16 -CP
R558 06S45674W81 RES,RK 103J 1/10 -CP
R559 06S15615Y25 RES,RK 101J 1/16 -CP
R560 06S15615Y25 RES,RK 101J 1/16 -CP
R561 06S15615Y73 RES,RK 103J 1/16 -CP
R562 06S45674W81 RES,RK 103J 1/10 -CP
R564 06S15615Y25 RES,RK 101J 1/16 -CP
R568 06S45674W81 RES,RK 103J 1/10 -CP
R569 06S45674W81 RES,RK 103J 1/10 -CP
R570 06S15615Y25 RES,RK 101J 1/16 -CP
R571 06S15615Y25 RES,RK 101J 1/16 -CP
R572 06S45674W81 RES,RK 103J 1/10 -CP
R573 06S45674W81 RES,RK 103J 1/10 -CP
R574 06S64996F26 RES,RK 105J 1/8 -CP
R576 06S15615Y25 RES,RK 101J 1/16 -CP
R577 06S15615Y59 RES,RK 272J 1/16 -CP
R578 06S15615Y59 RES,RK 272J 1/16 -CP
R579 06S15615Y25 RES,RK 101J 1/16 -CP
R580 06S15615Y25 RES,RK 101J 1/16 -CP
R581 06S15615Y59 RES,RK 272J 1/16 -CP
R582 06S15615Y59 RES,RK 272J 1/16 -CP
R583 06S15615Y73 RES,RK 103J 1/16 -CP
R584 06S15615Y25 RES,RK 101J 1/16 -CP
R585 06S15615Y25 RES,RK 101J 1/16 -CP
R586 06S15615Y73 RES,RK 103J 1/16 -CP
R587 06S15615Y73 RES,RK 103J 1/16 -CP
R588 06S15615Y73 RES,RK 103J 1/16 -CP

R589 06S15616Y23 RES,RK JUMPER1/16-CP
R590 06S15615Y73 RES,RK 103J 1/16 -CP
R591 06S15593Y49 RES,RK 102F 1/10 -CP
R592 06S15593Y41 RES,RK 471F 1/10 -CP
R593 06S15615Y73 RES,RK 103J 1/16 -CP
R594 06S15615Y73 RES,RK 103J 1/16 -CP
R595 06S15615Y73 RES,RK 103J 1/16 -CP
R596 06S15615Y73 RES,RK 103J 1/16 -CP
R597 06S15615Y81 RES,RK 223J 1/16 -CP
R598 06S15615Y81 RES,RK 223J 1/16 -CP
R599 06S15615Y25 RES,RK 101J 1/16 -CP
R600 06S15615Y89 RES,RK 473J 1/16 -CP
R601 06S15615Y25 RES,RK 101J 1/16 -CP
R602 06S15615Y89 RES,RK 473J 1/16 -CP
R603 06S15615Y89 RES,RK 473J 1/16 -CP
R604 06S15615Y49 RES,RK 102J 1/16 -CP
R605 06S64996F26 RES,RK 105J 1/8 -CP
R606 06S15616Y23 RES,RK JUMPER1/16-CP
R607 06S15616Y23 RES,RK JUMPER1/16-CP
R610 06S15615Y73 RES,RK 103J 1/16 -CP
R611 06S15615Y73 RES,RK 103J 1/16 -CP
R612 06S15615Y25 RES,RK 101J 1/16 -CP
R613 06S15615Y25 RES,RK 101J 1/16 -CP
R614 06S15615Y73 RES,RK 103J 1/16 -CP
R618 06S15615Y25 RES,RK 101J 1/16 -CP
R620 06S45675W43 RES,RK JUMPER1/10-CP
R621 06S45675W43 RES,RK JUMPER1/10-CP
R622 06S15616Y23 RES,RK JUMPER1/16-CP
R623 06S15615Y25 RES,RK 101J 1/16 -CP
R624 06S15616Y23 RES,RK JUMPER1/16-CP
R625 06S15616Y23 RES,RK JUMPER1/16-CP
R626 06S15616Y23 RES,RK JUMPER1/16-CP
R627 06S15616Y23 RES,RK JUMPER1/16-CP
R631 06S15615Y25 RES,RK 101J 1/16 -CP
R632 06S15615Y25 RES,RK 101J 1/16 -CP
R633 06S15615Y25 RES,RK 101J 1/16 -CP
R634 06S15616Y23 RES,RK JUMPER1/16-CP
R635 06S15616Y23 RES,RK JUMPER1/16-CP
R636 06S15615Y33 RES,RK 221J 1/16 -CP
R637 06S15616Y23 RES,RK JUMPER1/16-CP
R638 06S15615Y33 RES,RK 221J 1/16 -CP
R639 06S15615Y33 RES,RK 221J 1/16 -CP
R640 06S15616Y23 RES,RK JUMPER1/16-CP
R642 06S15616Y23 RES,RK JUMPER1/16-CP
R643 06S15615Y97 RES,RK 104J 1/16 -CP
R644 06S15615Y25 RES,RK 101J 1/16 -CP
R645 06S15615Y25 RES,RK 101J 1/16 -CP
R646 06S70072F53 RES,CP .102-J-1/4-CP
R647 06S15615Y25 RES,RK 101J 1/16 -CP
R648 06S15615Y25 RES,RK 101J 1/16 -CP
R649 06S15615Y25 RES,RK 101J 1/16 -CP
R650 06S15615Y25 RES,RK 101J 1/16 -CP
R651 06S15615Y25 RES,RK 101J 1/16 -CP
R652 06S15615Y25 RES,RK 101J 1/16 -CP
R653 06S15615Y25 RES,RK 101J 1/16 -CP

R655 06S15616Y23 RES,RK JUMPER1/16-CP
R657 06S45674W57 RES,RK 102J 1/10 -CP
R658 06S15615Y25 RES,RK 101J 1/16 -CP
R659 06S15615Y25 RES,RK 101J 1/16 -CP
R660 06S45674W81 RES,RK 103J 1/10 -CP
R661 06S45674W57 RES,RK 102J 1/10 -CP
R662 06S45674W97 RES,RK 473J 1/10 -CP
R663 06S15615Y33 RES,RK 221J 1/16 -CP
R664 06S15615Y33 RES,RK 221J 1/16 -CP
R665 06S15615Y33 RES,RK 221J 1/16 -CP
R666 06S15615Y33 RES,RK 221J 1/16 -CP
R667 06S15615Y89 RES,RK 473J 1/16 -CP
R668 06S45674W57 RES,RK 102J 1/10 -CP
R684 06S15616Y23 RES,RK JUMPER1/16-CP
R701 06S45674W90 RES,RK 243J 1/10 -CP
R702 06S70072F66 RES,CP .362-J-1/4-CP
R703 06S15615Y89 RES,RK 473J 1/16 -CP
R704 06S15615Y89 RES,RK 473J 1/16 -CP
R706 06S45675W30 RES,RK 105J 1/10 -CP
R707 06S45674W41 RES,RK 221J 1/10 -CP
R708 06S15615Y89 RES,RK 473J 1/16 -CP
R709 06S15615Y89 RES,RK 473J 1/16 -CP
R710 06S15616Y18 RES,RK 684J 1/16 -CP
R711 06S15615Y77 RES,RK 153J 1/16 -CP
R712 06S15615Y89 RES,RK 473J 1/16 -CP
R713 06S15615Y83 RES,RK 273J 1/16 -CP
R714 06S45674W61 RES,RK 152J 1/10 -CP
R715 06S15615Y25 RES,RK 101J 1/16 -CP
R716 06S15615Y91 RES,RK 563J 1/16 -CP
R718 06S15615Y63 RES,RK 392J 1/16 -CP
R719 06S15615Y25 RES,RK 101J 1/16 -CP
R720 06S15615Y91 RES,RK 563J 1/16 -CP
R721 06S15615Y85 RES,RK 333J 1/16 -CP
R730 06S70072F90 RES,CP .1R0-J-1/4-CP
R732 06S15615Y73 RES,RK 103J 1/16 -CP
R733 06S15615Y81 RES,RK 223J 1/16 -CP
R734 06S15615Y72 RES,RK 912J 1/16 -CP
R735 06S15615Y72 RES,RK 912J 1/16 -CP
R736 06S15615Y72 RES,RK 912J 1/16 -CP
R737 06S15615Y73 RES,RK 103J 1/16 -CP
R738 06S15616Y23 RES,RK JUMPER1/16-CP
R739 06S15616Y36 RES,RK 225J 1/16 -CP
R740 06S70072F33 RES,CP .151-J-1/4-CP
R800 06S45674W81 RES,RK 103J 1/10 -CP
R801 06S45674W81 RES,RK 103J 1/10 -CP
R802 06S15593Y90 RES,RK 513F 1/10 -CP
R803 06S15593Y92 RES,RK 623F 1/10 -CP
R804 06S15615Y25 RES,RK 101J 1/16 -CP
R805 06S15616Y06 RES,RK 224J 1/16 -CP
R806 06S15593Y76 RES,RK 133F 1/10 -CP
R807 06S45675W06 RES,RK 104J 1/10 -CP
R808 06S65415Y51 RES,RK 154F 1/16 -CP
R814 06S35084Y47 RES,RK 683F 1/8 -CP
R815 06S65415Y47 RES,RK 683F 1/16 -CP

R816 06S15615Y68 RES,RK 622J 1/16 -CP
R817 06S70072F37 RES,CP .221-J-1/4-CP
R818 06S65415Y40 RES,RK 183F 1/16 -CP
R819 06S65415Y50 RES,RK 124F 1/16 -CP
R820 06S65415Y43 RES,RK 333F 1/16 -CP
R821 06S70072F77 RES,CP .103-J-1/4-CP
R822 06S35083Y41 RES,RK 223F 1/4 -CP
R823 06S15615Y59 RES,RK 272J 1/16 -CP
R824 06S35083Y41 RES,RK 223F 1/4 -CP
R825 06S15593Y77 RES,RK 153F 1/10 -CP
R826 06S35083Y44 RES,RK 393F 1/4 -CP
R827 06S70072F37 RES,CP .221-J-1/4-CP
R829 06S15615Y37 RES,RK 331J 1/16 -CP
R830 06S45674W90 RES,RK 243J 1/10 -CP
R832 06S15616Y23 RES,RK JUMPER1/16-CP
R833 06S15615Y49 RES,RK 102J 1/16 -CP
R834 06S70072F77 RES,CP .103-J-1/4-CP
R837 06S65415Y94 RES,RK 202F 1/16 -CP
R839 06S15593Y92 RES,RK 623F 1/10 -CP
R841 06S15615Y57 RES,RK 222J 1/16 -CP
R842 06S45674W61 RES,RK 152J 1/10 -CP
R843 06S15615Y69 RES,RK 682J 1/16 -CP
R844 06S15615Y98 RES,RK 114J 1/16 -CP
R845 06S35083Y34 RES,RK 562F 1/4 -CP
R846 06S15615Y86 RES,RK 363J 1/16 -CP
R847 06S35083Y45 RES,RK 473F 1/4 -CP
R848 06S70072F69 RES,CP .472-J-1/4-CP
R849 06S15615Y66 RES,RK 512J 1/16 -CP
R850 06S15615Y99 RES,RK 124J 1/16 -CP
R851 06S15615Y66 RES,RK 512J 1/16 -CP
R852 06S15615Y98 RES,RK 114J 1/16 -CP
R854 06S45675W43 RES,RK JUMPER1/10-CP
R857 06S45674W90 RES,RK 243J 1/10 -CP
R858 06S15616Y11 RES,RK 364J 1/16 -CP
R859 06S45674W98 RES,RK 513J 1/10 -CP
R862 06S15615Y71 RES,RK 822J 1/16 -CP
R864 06S15616Y10 RES,RK 334J 1/16 -CP
R865 06S15615Y93 RES,RK 683J 1/16 -CP
R866 06S15615Y66 RES,RK 512J 1/16 -CP
R867 06S15615Y95 RES,RK 823J 1/16 -CP
R870 06S70072F77 RES,CP .103-J-1/4-CP
R871 06S70072F77 RES,CP .103-J-1/4-CP
R872 06S45675W22 RES,RK 474J 1/10 -CP
R873 06S45675W22 RES,RK 474J 1/10 -CP
R874 06S35083Y25 RES,RK 102F 1/4 -CP
R875 06S35083Y25 RES,RK 102F 1/4 -CP
R901 06S15615Y57 RES,RK 222J 1/16 -CP
R902 06S15615Y57 RES,RK 222J 1/16 -CP
R903 06S15615Y25 RES,RK 101J 1/16 -CP
R904 06S15615Y49 RES,RK 102J 1/16 -CP
R905 06S15615Y25 RES,RK 101J 1/16 -CP
R906 06S45675W43 RES,RK JUMPER1/10-CP
R907 06S15615Y25 RES,RK 101J 1/16 -CP
R908 06S15615Y49 RES,RK 102J 1/16 -CP
R909 06S65415Y11 RES,RK 68RF 1/16 -CP

R911 06S45675W30 RES,RK 105J 1/10 -CP
R912 06S45674W89 RES,RK 223J 1/10 -CP
R913 06S70072F29 RES,CP .101-J-1/4-CP
R914 06S15615Y57 RES,RK 222J 1/16 -CP
R915 06S45674W69 RES,RK 332J 1/10 -CP
R916 06S45674W89 RES,RK 223J 1/10 -CP
R917 06S45674W57 RES,RK 102J 1/10 -CP
RA501 06S15771Y13 RES,ARYEXB28V101J-CP
RA701 06S15771Y33 RES,ARY 472J 4 -CP
RA702 06S15771Y33 RES,ARY 472J 4 -CP
RA703 06S15771Y13 RES,ARYEXB28V101J-CP
RA704 06S15771Y13 RES,ARYEXB28V101J-CP
RA705 06S15771Y13 RES,ARYEXB28V101J-CP
RA706 06S15771Y13 RES,ARYEXB28V101J-CP
RA707 06S15771Y45 RES,ARYEXB28V473J-CP
RA708 06S15771Y45 RES,ARYEXB28V473J-CP
SA101 08-19391Z01 VST,IMSA-6803-01Y-CP
SD801 48-19296Z01 DIO,SHT RB056L-40-E1
SF601 91-25003Z01 SAW,B39242B3912U -E1

SW501 40T16096W03 SW ,TACT SKHHLW
T302 25-27559Z01 CHOKE,DGJ-A01 -DB
VR801 18-12468Z11 VAR,EVM2NSX80 224-CP
VT101 24-28469Z01 COIL,RF FM 5CCEG -E6
XL101 91-24701Z03 XTL,DSX321G 62.40-CP
XL502 91-24701Z02 XTL,DSX321G 12.00-CP
XL601 91-26676Z01 XTL,DSX321G 26.00-CP
XL701 91-24701Z01 XTL,DSX321G 16.93-CP
Z502 91T75196Y01 EMI,BK1005HM102 -CP
Z503 91T15509Y08 EMI,BK1608HM102 -CP
Z504 91T15509Y08 EMI,BK1608HM102 -CP
Z505 91T15509Y08 EMI,BK1608HM102 -CP
Z506 91T15509Y08 EMI,BK1608HM102 -CP
Z507 91T15509Y08 EMI,BK1608HM102 -CP
Z508 91T15509Y08 EMI,BK1608HM102 -CP
Z509 91T75196Y01 EMI,BK1005HM102 -CP
Z701 91T75196Y08 EMI,BK1005HW601 -CP
ZD501 48-18196Z02 DIO,ZEN DZ2S051M0LCP
ZD502 48-18196Z02 DIO,ZEN DZ2S051M0LCP
ZD503 48-21149Z19 DIO,ZEN DZ2J051L0LCP
ZD801 48-07043Z37 DIO,ZEN KDZ11V -CP
ZD802 48-21149Z26 DIO,ZEN DZ2J062M0LCP
ZD803 48-01607Z08 DIO,ZEN LUDZ3.9B -CP

ANT101 09-26262Z01 ANT,ARL43.644.692-DB
C101 08S35349Y16 CAP,CER 105K-B1A -CP
C103 08S45231Y38 CAP,CER 102J-CH1H-CP
C104 08S35374W12 CAP,CER 106K-B0J -CP
C105 08S35374W12 CAP,CER 106K-B0J -CP
C106 08S35374W12 CAP,CER 106K-B0J -CP
C107 08S35374W12 CAP,CER 106K-B0J -CP
C108 08S45231Y38 CAP,CER 102J-CH1H-CP
C109 08S45676W65 CAP,CER.222K-B1H -CP
C110 08S35374W12 CAP,CER 106K-B0J -CP
C111 08S35374W12 CAP,CER 106K-B0J -CP
C112 08S35374W12 CAP,CER 106K-B0J -CP
C114 08S45232Y17 CAP,CER 104K-B0J -CP
C115 08S35374W12 CAP,CER 106K-B0J -CP
C116 08S45231Y06 CAP,CER 3R0C-CJ1H-CP
C117 08S45677W60 CAP,CER 102J-CH1H-CP
C118 08S45232Y17 CAP,CER 104K-B0J -CP
C119 08S65670Y01 CAP,CER 106KX5R1C-CP
C120 08S45232Y17 CAP,CER 104K-B0J -CP
C121 08S45232Y05 CAP,CER 102K-B1H -CP
C122 08S35349Y17 CAP,CER 225K-B0J -CP
C123 08S35374W11 CAP,CER 475K-B0J -CP
C124 08S45232Y05 CAP,CER 102K-B1H -CP
C125 08S45232Y17 CAP,CER 104K-B0J -CP
C126 08S45232Y17 CAP,CER 104K-B0J -CP
C127 08S45232Y08 CAP,CER 332K-B1H -CP
C128 08S45232Y05 CAP,CER 102K-B1H -CP
C129 08S45232Y05 CAP,CER 102K-B1H -CP
C130 08S45232Y05 CAP,CER 102K-B1H -CP
C131 08S45677W34 CAP,CER.82RJ-CH1H-CP
C132 08S45231Y17 CAP,CER 22RJ-CH1H-CP
C141 08S45231Y25 CAP,CER 101J-CH1H-CP
C142 08S45231Y13 CAP,CER 10RD-CH1H-CP
C143 08S45232Y03 CAP,CER 471K-B1H -CP
C145 08S45677W60 CAP,CER 102J-CH1H-CP
C153 08S45231Y38 CAP,CER 102J-CH1H-CP
C154 08S45231Y16 CAP,CER 18RJ-CH1H-CP
C155 08S45232Y07 CAP,CER 222K-B1H -CP
C160 08S45676W73 CAP,CER.103K-B1H -CP
C161 08S45676W73 CAP,CER.103K-B1H -CP
C162 08S65668Y05 CAP,CER 224KX5R1A-CP
C163 08S45231Y11 CAP,CER 8R0D-CH1H-CP
C164 08S45231Y11 CAP,CER 8R0D-CH1H-CP
C165 08S45231Y38 CAP,CER 102J-CH1H-CP
C166 08S65670Y01 CAP,CER 106KX5R1C-CP
C167 08S45232Y17 CAP,CER 104K-B0J -CP
C168 08S45232Y17 CAP,CER 104K-B0J -CP
C169 08S45231Y38 CAP,CER 102J-CH1H-CP
C170 08S65670Y01 CAP,CER 106KX5R1C-CP
C300 08S45676W73 CAP,CER.103K-B1H -CP
C301 08S65676Y03 CAP,CER 225KX7R1C-CP
C302 08S35350Y04 CAP,CER 105K-B1C -CP
C305 08S65669Y03 CAP,CER 224KX7R1H-CP
C306 08S65676Y03 CAP,CER 225KX7R1C-CP

C307 08S65669Y03 CAP,CER 224KX7R1H-CP
C308 08S65676Y03 CAP,CER 225KX7R1C-CP
C309 08S65676Y03 CAP,CER 225KX7R1C-CP
C310 08S65676Y03 CAP,CER 225KX7R1C-CP
C311 08S65676Y03 CAP,CER 225KX7R1C-CP
C312 08S65669Y03 CAP,CER 224KX7R1H-CP
C313 08S35349Y12 CAP,CER 105K-B0J -CP
C314 08S35374W12 CAP,CER 106K-B0J -CP
C315 08S35374W12 CAP,CER 106K-B0J -CP
C316 08S65669Y03 CAP,CER 224KX7R1H-CP
C317 08S45231Y25 CAP,CER 101J-CH1H-CP
C318 08S45232Y17 CAP,CER 104K-B0J -CP
C319 08S45231Y25 CAP,CER 101J-CH1H-CP
C320 08S35350Y04 CAP,CER 105K-B1C -CP
C321 08S65669Y02 CAP,CER 474KX7R1E-CP
C322 08S65669Y02 CAP,CER 474KX7R1E-CP
C323 08S65669Y02 CAP,CER 474KX7R1E-CP
C324 08S65669Y02 CAP,CER 474KX7R1E-CP
C325 08S65669Y02 CAP,CER 474KX7R1E-CP
C327 08S35349Y16 CAP,CER 105K-B1A -CP
C333 08S45232Y17 CAP,CER 104K-B0J -CP
C501 08S45676W85 CAP,CER 104K-B1C -CP
C502 08S45676W85 CAP,CER 104K-B1C -CP
C503 08S45676W85 CAP,CER 104K-B1C -CP
C504 08S65669Y03 CAP,CER 224KX7R1H-CP
C505 08S45232Y07 CAP,CER 222K-B1H -CP
C506 08S65668Y05 CAP,CER 224KX5R1A-CP
C507 08S45677W60 CAP,CER 102J-CH1H-CP
C508 08S45232Y07 CAP,CER 222K-B1H -CP
C509 08S45232Y07 CAP,CER 222K-B1H -CP
C510 08S65669Y03 CAP,CER 224KX7R1H-CP
C512 08S65669Y03 CAP,CER 224KX7R1H-CP
C514 08S45232Y11 CAP,CER 103K-B1C -CP
C515 08S45232Y07 CAP,CER 222K-B1H -CP
C516 08S45232Y05 CAP,CER 102K-B1H -CP
C517 08S45232Y17 CAP,CER 104K-B0J -CP
C518 08S45676W85 CAP,CER 104K-B1C -CP
C519 08S45232Y05 CAP,CER 102K-B1H -CP
C520 08S65669Y03 CAP,CER 224KX7R1H-CP
C523 08S45232Y17 CAP,CER 104K-B0J -CP
C524 08S45676W85 CAP,CER 104K-B1C -CP
C525 08S45676W85 CAP,CER 104K-B1C -CP
C526 08S45676W85 CAP,CER 104K-B1C -CP
C527 08S45232Y17 CAP,CER 104K-B0J -CP
C528 08S45676W85 CAP,CER 104K-B1C -CP
C529 08S45676W85 CAP,CER 104K-B1C -CP
C530 08S45232Y17 CAP,CER 104K-B0J -CP
C531 08S45676W85 CAP,CER 104K-B1C -CP
C533 08S45676W85 CAP,CER 104K-B1C -CP
C534 08S45676W85 CAP,CER 104K-B1C -CP
C535 08S45232Y21 CAP,CER 104K-B1A-CP
C536 08S45232Y21 CAP,CER 104K-B1A-CP
C537 08S45676W85 CAP,CER 104K-B1C -CP
C538 08S45676W85 CAP,CER 104K-B1C -CP
C539 08S45676W85 CAP,CER 104K-B1C -CP

C540 08S45232Y17 CAP,CER 104K-B0J -CP
C541 08S45676W85 CAP,CER 104K-B1C -CP
C542 08S45676W85 CAP,CER 104K-B1C -CP
C543 08S45676W85 CAP,CER 104K-B1C -CP
C544 08S45676W85 CAP,CER 104K-B1C -CP
C545 08S45676W85 CAP,CER 104K-B1C -CP
C546 08S45676W85 CAP,CER 104K-B1C -CP
C547 08S45231Y15 CAP,CER 15RJ-CH1H-CP
C548 08S45231Y15 CAP,CER 15RJ-CH1H-CP
C549 08S65668Y05 CAP,CER 224KX5R1A-CP
C550 08S35349Y16 CAP,CER 105K-B1A -CP
C551 08S35349Y16 CAP,CER 105K-B1A -CP
C552 08S65669Y03 CAP,CER 224KX7R1H-CP
C554 08S45676W85 CAP,CER 104K-B1C -CP
C555 08S45676W69 CAP,CER.472K-B1H -CP
C556 08S45232Y03 CAP,CER 471K-B1H -CP
C561 08S45676W73 CAP,CER.103K-B1H -CP
C562 08S45676W80 CAP,CER 223K-B1E -CP
C601 08S45232Y05 CAP,CER 102K-B1H -CP
C602 08S45231Y13 CAP,CER 10RD-CH1H-CP
C603 08S35374W12 CAP,CER 106K-B0J -CP
C604 08S45232Y05 CAP,CER 102K-B1H -CP
C605 08S45232Y05 CAP,CER 102K-B1H -CP
C606 08S35374W12 CAP,CER 106K-B0J -CP
C607 08S35374W12 CAP,CER 106K-B0J -CP
C608 08S35374W12 CAP,CER 106K-B0J -CP
C609 08S45232Y17 CAP,CER 104K-B0J -CP
C610 08S35374W12 CAP,CER 106K-B0J -CP
C611 08S45232Y17 CAP,CER 104K-B0J -CP
C612 08S45232Y05 CAP,CER 102K-B1H -CP
C613 08S45231Y13 CAP,CER 10RD-CH1H-CP
C614 08S45232Y05 CAP,CER 102K-B1H -CP
C615 08S45231Y13 CAP,CER 10RD-CH1H-CP
C616 08S35349Y12 CAP,CER 105K-B0J -CP
C617 08S45232Y05 CAP,CER 102K-B1H -CP
C618 08S35349Y12 CAP,CER 105K-B0J -CP
C619 08S35349Y12 CAP,CER 105K-B0J -CP
C620 08S45232Y17 CAP,CER 104K-B0J -CP
C621 08S45232Y17 CAP,CER 104K-B0J -CP
C623 08S45231Y04 CAP,CER 1R5C-CK1H-CP
C624 08S45231Y12 CAP,CER 9R0D-CH1H-CP
C625 08S45231Y13 CAP,CER 10RD-CH1H-CP
C704 08S45232Y14 CAP,CER 333K-B1C -CP
C705 08S45232Y17 CAP,CER 104K-B0J -CP
C706 08S35374W12 CAP,CER 106K-B0J -CP
C707 08S35349Y17 CAP,CER 225K-B0J -CP
C708 08S45231Y15 CAP,CER 15RJ-CH1H-CP
C709 08S45232Y17 CAP,CER 104K-B0J -CP
C710 08S45232Y08 CAP,CER 332K-B1H -CP
C711 08S45676W69 CAP,CER.472K-B1H -CP
C712 08S45232Y12 CAP,CER 153K-B1C -CP
C713 08S45232Y17 CAP,CER 104K-B0J -CP
C714 08S45232Y17 CAP,CER 104K-B0J -CP
C715 08S45232Y17 CAP,CER 104K-B0J -CP

C716 08S45232Y17 CAP,CER 104K-B0J -CP
C717 08S45232Y14 CAP,CER 333K-B1C -CP
C718 08S45232Y14 CAP,CER 333K-B1C -CP
C719 08S45232Y08 CAP,CER 332K-B1H -CP
C720 08S45676W73 CAP,CER.103K-B1H -CP
C721 08S45232Y14 CAP,CER 333K-B1C -CP
C722 08S45232Y11 CAP,CER 103K-B1C -CP
C723 08S45232Y17 CAP,CER 104K-B0J -CP
C724 08S45231Y21 CAP,CER 47RJ-CH1H-CP
C725 08S45232Y12 CAP,CER 153K-B1C -CP
C726 08S45232Y07 CAP,CER 222K-B1H -CP
C727 08S45232Y17 CAP,CER 104K-B0J -CP
C728 08S45232Y14 CAP,CER 333K-B1C -CP
C729 08S45232Y05 CAP,CER 102K-B1H -CP
C730 08S35374W12 CAP,CER 106K-B0J -CP
C733 08S45231Y15 CAP,CER 15RJ-CH1H-CP
C734 08S45232Y17 CAP,CER 104K-B0J -CP
C735 08S45232Y17 CAP,CER 104K-B0J -CP
C736 08S45676W73 CAP,CER.103K-B1H -CP
C737 08S35374W12 CAP,CER 106K-B0J -CP
C738 08S45231Y38 CAP,CER 102J-CH1H-CP
C739 08S65669Y03 CAP,CER 224KX7R1H-CP
C740 08S45231Y28 CAP,CER 181J-CH1H-CP
C741 08S45676W80 CAP,CER 223K-B1E -CP
C742 08S65668Y05 CAP,CER 224KX5R1A-CP
C744 08S65669Y03 CAP,CER 224KX7R1H-CP
C745 08S65669Y03 CAP,CER 224KX7R1H-CP
C746 08S65668Y05 CAP,CER 224KX5R1A-CP
C747 08S65668Y05 CAP,CER 224KX5R1A-CP
C748 08S45232Y05 CAP,CER 102K-B1H -CP
C749 08S45232Y08 CAP,CER 332K-B1H -CP
C750 08S65668Y05 CAP,CER 224KX5R1A-CP
C752 08S45676W85 CAP,CER 104K-B1C -CP
C754 08S45231Y15 CAP,CER 15RJ-CH1H-CP
C755 08S45231Y15 CAP,CER 15RJ-CH1H-CP
C756 08S45231Y15 CAP,CER 15RJ-CH1H-CP
C801 08S45232Y21 CAP,CER 104K-B1A-CP
C802 08S45232Y12 CAP,CER 153K-B1C -CP
C803 08S45676W74 CAP,CER 123K-B1H -CP
C804 08S45232Y01 CAP,CER 221K-B1H -CP
C805 08S45232Y07 CAP,CER 222K-B1H -CP
C809 08S65669Y03 CAP,CER 224KX7R1H-CP
C810 08S45232Y21 CAP,CER 104K-B1A-CP
C811 08S35349Y16 CAP,CER 105K-B1A -CP
C813 08S65670Y07 CAP,CER 105KX5R1H-CP
C814 08S65669Y03 CAP,CER 224KX7R1H-CP
C815 08S65128F88 CAP,CER 104K-B1H -CP
C816 08S35349Y16 CAP,CER 105K-B1A -CP
C817 08S65669Y03 CAP,CER 224KX7R1H-CP
C818 08S65669Y03 CAP,CER 224KX7R1H-CP
C819 08S65669Y03 CAP,CER 224KX7R1H-CP
C820 08S65669Y03 CAP,CER 224KX7R1H-CP
C821 08S65669Y03 CAP,CER 224KX7R1H-CP
C822 08S65669Y03 CAP,CER 224KX7R1H-CP
C823 08S45232Y05 CAP,CER 102K-B1H -CP

C824 08S45676W73 CAP,CER.103K-B1H -CP
C825 08S45676W89 CAP,CER 473K-B1E -CP
C826 08S65669Y03 CAP,CER 224KX7R1H-CP
C827 08S65669Y03 CAP,CER 224KX7R1H-CP
C829 08S45676W85 CAP,CER 104K-B1C -CP
C830 08S65669Y03 CAP,CER 224KX7R1H-CP
C831 08S65669Y03 CAP,CER 224KX7R1H-CP
C832 08S65669Y03 CAP,CER 224KX7R1H-CP
C833 08S65669Y03 CAP,CER 224KX7R1H-CP
C834 08S65669Y03 CAP,CER 224KX7R1H-CP
C835 08S65669Y03 CAP,CER 224KX7R1H-CP
C836 08S65669Y03 CAP,CER 224KX7R1H-CP
C838 08S65670Y07 CAP,CER 105KX5R1H-CP
C839 08S45231Y25 CAP,CER 101J-CH1H-CP
C840 08S45677W36 CAP,CER.101J-CH1H-CP
C841 08S45676W85 CAP,CER 104K-B1C -CP
C842 08S65669Y03 CAP,CER 224KX7R1H-CP
C843 08S65669Y03 CAP,CER 224KX7R1H-CP
C846 08S65128F88 CAP,CER 104K-B1H -CP
C870 08S45676W80 CAP,CER 223K-B1E -CP
C871 08S45676W80 CAP,CER 223K-B1E -CP
C901 08S65668Y05 CAP,CER 224KX5R1A-CP
C902 08S65669Y03 CAP,CER 224KX7R1H-CP
C903 08S65669Y03 CAP,CER 224KX7R1H-CP
C905 08S45676W85 CAP,CER 104K-B1C -CP
C906 08S45232Y11 CAP,CER 103K-B1C -CP
C907 08S45232Y13 CAP,CER 223K-B1C -CP
C908 08S45676W65 CAP,CER.222K-B1H -CP
C909 08S35349Y16 CAP,CER 105K-B1A -CP

CB301 09-27558Z01 ASSY,CCT-A21 -DB

CB701 09T75287Y24 FFC,IMSA9631S-24Y-ED

CH501 09-18738Z01 BTB,DF20-S -DB
D101 48-17547Z01 DIO,DA3J101F0L -CP
D300 48-07016Z01 DIO,KDS181-RTK -CP
D301 48-07016Z01 DIO,KDS181-RTK -CP
D302 48T75446Y01 DIO,RR264M-400 -CP
D303 48T75527Y01 DIO,1SR154-400 -E1
D304 48-07016Z01 DIO,KDS181-RTK -CP
D307 48-05965Z01 DIO,1SS361-L -CP
D309 48-05828Z01 DIO,1N5406G-04 -
D800 48-07015Z01 DIO,KDS160-RTK -CP
D802 48T75527Y01 DIO,1SR154-400 -E1
D803 48T75527Y01 DIO,1SR154-400 -E1
D804 48-07015Z01 DIO,KDS160-RTK -CP
D806 48-07015Z01 DIO,KDS160-RTK -CP
D807 48-05965Z01 DIO,1SS361-L -CP
D870 48-12230Z01 DIO,KDS226-RTK -CP
D871 48-12230Z01 DIO,KDS226-RTK -CP
D872 48-07015Z01 DIO,KDS160-RTK -CP
D873 48-07015Z01 DIO,KDS160-RTK -CP
D901 48-07016Z02 DIO,KDS184-RTK -CP
E300 23S65134W52 CAP,ELY 3R3-1V(3)-E2
E301 23T75346W03 CAP,X-PRO 332-1C +
E302 23T75234Y06 CAP,MAR 22R-1C-E55E3

E303 23S65134W52 CAP,ELY 3R3-1V(3)-E2
E304 23S75244Y27 CAP,ELY 47R-1E -E6
E305 23S65134W52 CAP,ELY 3R3-1V(3)-E2
E306 23S65134W52 CAP,ELY 3R3-1V(3)-E2
E307 23S65134W52 CAP,ELY 3R3-1V(3)-E2
E308 23S65134W52 CAP,ELY 3R3-1V(3)-E2
E311 23S65134W34 CAP,ELY 47R-1C(6)-E6
E312 23T75234Y05 CAP,MAR 10R-1C-D55E2
E313 23T75234Y05 CAP,MAR 10R-1C-D55E2
E314 23T75234Y05 CAP,MAR 10R-1C-D55E2
E315 23T75234Y05 CAP,MAR 10R-1C-D55E2
E316 23T75234Y06 CAP,MAR 22R-1C-E55E3
E317 23T75234Y05 CAP,MAR 10R-1C-D55E2
E500 23S65134W51 CAP,ELY 2R2-1V(3)-E2
E501 23S75244Y17 CAP,ELY 22R-1C -E2
E502 23S65134W81 CAP,ELY 22R-1C(4)-E2
E703 23S65134W35 CAP,ELY 101-1C(8)-E6
E704 23T65679Y11 CAP,CD 47R-0J -E2
E705 23S65134W35 CAP,ELY 101-1C(8)-E6
E801 23S75244Y13 CAP,ELY 471-1A -EA
E802 23S75244Y30 CAP,ELY 331-1E -EA
E803 23S65134W13 CAP,ELY 101-0J(6)-E6
E804 23S75244Y20 CAP,ELY 221-1C -E6
E805 23S75244Y17 CAP,ELY 22R-1C -E2
E807 23S75244Y09 CAP,ELY 22R-1A -E2
E808 23S75244Y17 CAP,ELY 22R-1C -E2
E809 23S65134W54 CAP,ELY 10R-1V(5)-E3
E810 23T65114Y08 CAP,FK 471-0J-F -EA
E811 23S65134W24 CAP,ELY 221-1A(8)-E6
E812 23T75234Y19 CAP,MAR 101-1C-H63E6
E813 23S75244Y28 CAP,ELY 101-1E -E6
E814 23S65134W44 CAP,ELY 22R-1E(6)-E6
E816 23S75244Y20 CAP,ELY 221-1C -E6
E818 23S65134W47 CAP,ELY 101-1E(8)-E6
E819 23S65134W80 CAP,ELY 10R-1C(3)-E2
E822 23S65134W80 CAP,ELY 10R-1C(3)-E2
E823 23S75244Y20 CAP,ELY 221-1C -E6
E824 23S75244Y21 CAP,ELY 331-1C -EA
E825 23S75244Y19 CAP,ELY 101-1C -E6
E902 23S65134W24 CAP,ELY 221-1A(8)-E6

ET801 09-30307Z01 ASSY,ANIC-0084-01A

IC101 51-22873Z01 TEA6636HW/V103 -QT

IC302 51-29909Z01 BD37067FV-ME2 -SE9

IC303 51-25497Z01 STPA002 -ZS

IC371 51-10945Z01 CS4344-DZZR -SE2

IC501 83-26452Z86 15HU_1Din&2Din_R_lC501_Soft

IC501 51-27561Z01 W25Q32FVSSIG -ST

IC502 51T15185Y02 TC7SH08FU,JF-L -CP

IC503 51T55336Y02 TC7SH04FU,JF-L -CP

IC504 51-22801Z01 M24C32-WMN6TP -SE2

IC505 51-27561Z01 W25Q32FVSSIG -ST

IC506 51-30400Z01 TMPM32BC2DFG-APN -QT

IC507 51-30312Z01 AK5700VN-L -LE2

IC601 51-24902Z01 TC35661IDBG -BE6

IC701 51-16202Z01 TC94A92FG-301 -QT

IC702 51-14737Z01 BD8226EFV-E2 -SE6

IC801 51-20097Z02 AN33012UB-VB -SE6

IC802 51-23576Z01 S-1172B1C-E6T1U -SE2

IC803 51-13711Z02 TB2920AHQ -ZS

IC804 51-20765Z24 S-1009N30H-M5T2U -CP

IC805 51-06963Z01 NJU7741F15-TE1 -CP

IC806 51-25207Z01 S-1172B33-U5T1U -NE2

IC807 51-05862Z01 NJM2845DL1-33-TE1NE5

IC808 51-06963Z01 NJU7741F15-TE1 -CP

IC809 51-20765Z36 S-1009N42H-M5T2U -CP

IC811 51-13565Z03 NJM2856DL3-33TE1-NE5

IC901 51-26850Z01 MFI337S3959 -CP

IC902 51T93532F05 TC4S01F-TE85L -CP

IC903 51-11433Z01 RT9702AGB -CP

JK300 09-25331Z01 RCA,RJ-1346B09-0H0DB

JK901 09-14149Z01 JAC,CK3-3.5-14D -DB
L101 24T95456W11 FBI,BLM18AG601SH1-CP
L102 24T95458W07 FBI,BLM31PG601SH1-CP
L103 24T95456W11 FBI,BLM18AG601SH1-CP
L104 24T95456W11 FBI,BLM18AG601SH1-CP
L105 24T95456W11 FBI,BLM18AG601SH1-CP
L106 24T45482Y05 IND,LQH31HN R29J -CP
L107 24T25164Y12 IND,FSLM2520 R82J-CP
L108 24T25164Y19 IND,FSLM2520 3R3J-CP
L109 24T55488Y37 IND,LLQ1608 R27J -CP
L110 24T65645Y03 IND,LLM3225 561K -CP
L111 24T65645Y03 IND,LLM3225 561K -CP
L112 24T95459W07 FBI,BLM41PG102SH1-E1
L113 24T95456W11 FBI,BLM18AG601SH1-CP
L114 24T65645Y01 IND,LLM3225 4R7J -CP
L115 24T95456W23 FBI,BLM18BD252SH1-CP
L116 24T95456W23 FBI,BLM18BD252SH1-CP
L117 24T95456W23 FBI,BLM18BD252SH1-CP
L325 24T95456W27 FBI,BLM18PG181SH1-CP
L501 24-06212Z13 FBI,BLM15BB100SH1-CP
L502 24-06212Z13 FBI,BLM15BB100SH1-CP
L503 24-06212Z07 FBI,BLM15BD601SH1-CP
L504 24-06212Z11 FBI,BLM15BD471SH1-CP
L505 24-06212Z11 FBI,BLM15BD471SH1-CP
L506 24-06212Z11 FBI,BLM15BD471SH1-CP
L507 24-06212Z11 FBI,BLM15BD471SH1-CP
L701 24T95456W11 FBI,BLM18AG601SH1-CP
L702 24T95456W07 FBI,BLM18BD102SH1-CP
L703 24T95456W07 FBI,BLM18BD102SH1-CP
L704 24T95456W07 FBI,BLM18BD102SH1-CP
L801 24-25206Z01 IND,SFCB1280T33RM-EA
PS301 48-16589Z01 POLY,SW SMDC075F -E2

Q101 48-20742Z01 TR,BCX54 -E2

Q300 48T75180Y04 TR,IMH23-T110 -CP

Q301 48T75180Y04 TR,IMH23-T110 -CP

Q302 48-13000Z05 TR,LTC124EUBFS8-TLCP

Q303 48T75180Y04 TR,IMH23-T110 -CP

Q306 48-20093Z01 TR,DMC561010R -CP

Q308 48-04929Z02 TR,KRC102S-RTK -CP

Q309 48-04929Z03 TR,KRC103S-RTK -CP

Q310 48T25737Y01 TR,UMD2N-TR -CP

Q701 48-17707Z01 TR,DSA700300L -E2

Q702 48-19949Z01 TR,DRC5143X -CP

Q703 48T55462Y01 TR,2SB1132-QR-100-E2

Q704 48-04940Z17 TR,KRA118S-RTK -CP

Q705 48-13000Z01 TR,LTC114EUBFS8-TLCP

Q801 48T25737Y01 TR,UMD2N-TR -CP

Q802 48-04929Z03 TR,KRC103S-RTK -CP

Q803 48T25737Y01 TR,UMD2N-TR -CP

Q804 48-09581Z04 TR,KTA1505S-GRRTK-CP

Q805 48-20288Z01 FET,MTM981400BBF -E2

Q807 48-19949Z01 TR,DRC5143X -CP

Q808 48-09581Z04 TR,KTA1505S-GRRTK-CP

Q809 48T25737Y01 TR,UMD2N-TR -CP

Q812 48-19949Z01 TR,DRC5143X -CP

Q902 48-09583Z04 TR,KTA1504S-GRRTK-CP

Q903 48-13000Z01 TR,LTC114EUBFS8-TLCP

R101 06S15615Y25 RES,RK 101J 1/16 -CP
R104 06S15616Y14 RES,RK 474J 1/16 -CP
R107 06S15615Y25 RES,RK 101J 1/16 -CP
R109 06S15615Y25 RES,RK 101J 1/16 -CP
R110 06S15615Y25 RES,RK 101J 1/16 -CP
R111 06S15616Y28 RES,RK 3R3J 1/16 -CP
R113 06S15615Y25 RES,RK 101J 1/16 -CP
R121 06S15616Y23 RES,RK JUMPER1/16-CP
R196 06S65415Y11 RES,RK 68RF 1/16 -CP
R197 06S45348Y38 RES,RK 474F 1/4 -CP
R206 06S45348Y38 RES,RK 474F 1/4 -CP
R207 06S15615Y25 RES,RK 101J 1/16 -CP
R219 06S45674W57 RES,RK 102J 1/10 -CP
R220 06S45674W57 RES,RK 102J 1/10 -CP
R221 06S45674W57 RES,RK 102J 1/10 -CP
R222 06S15615Y25 RES,RK 101J 1/16 -CP
R223 06S45674W73 RES,RK 472J 1/10 -CP
R224 06S45674W73 RES,RK 472J 1/10 -CP
R225 06S45674W57 RES,RK 102J 1/10 -CP
R231 06S15615Y48 RES,RK 911J 1/16 -CP
R232 06S15615Y48 RES,RK 911J 1/16 -CP
R233 06S15615Y48 RES,RK 911J 1/16 -CP
R300 06S15593Y93 RES,RK 683F 1/10 -CP
R301 06S70072F61 RES,CP .222-J-1/4-CP
R302 06S15593Y93 RES,RK 683F 1/10 -CP
R303 06S15593Y93 RES,RK 683F 1/10 -CP
R304 06S45674W81 RES,RK 103J 1/10 -CP
R305 06S70072F77 RES,CP .103-J-1/4-CP
R306 06S15593Y93 RES,RK 683F 1/10 -CP
R307 06S15615Y37 RES,RK 331J 1/16 -CP
R308 06S15615Y37 RES,RK 331J 1/16 -CP
R309 06S15593Y93 RES,RK 683F 1/10 -CP
R310 06S15593Y93 RES,RK 683F 1/10 -CP

R311 06S64995F37 RES,RK 221J 1/8 -CP
R312 06S64995F37 RES,RK 221J 1/8 -CP
R313 06S64995F37 RES,RK 221J 1/8 -CP
R314 06S64995F37 RES,RK 221J 1/8 -CP
R315 06S64995F37 RES,RK 221J 1/8 -CP
R316 06S64995F37 RES,RK 221J 1/8 -CP
R317 06S64995F29 RES,RK 101J 1/8 -CP
R319 06S64995F29 RES,RK 101J 1/8 -CP
R320 06S64995F29 RES,RK 101J 1/8 -CP
R321 06S64995F29 RES,RK 101J 1/8 -CP
R322 06S64995F29 RES,RK 101J 1/8 -CP
R323 06S64995F29 RES,RK 101J 1/8 -CP
R327 06S15615Y73 RES,RK 103J 1/16 -CP
R328 06S15615Y81 RES,RK 223J 1/16 -CP
R329 06S45674W41 RES,RK 221J 1/10 -CP
R330 06S45674W41 RES,RK 221J 1/10 -CP
R331 06S45674W41 RES,RK 221J 1/10 -CP
R332 06S45674W41 RES,RK 221J 1/10 -CP
R338 06S15615Y25 RES,RK 101J 1/16 -CP
R339 06S15615Y25 RES,RK 101J 1/16 -CP
R340 06S15615Y25 RES,RK 101J 1/16 -CP
R341 06S15615Y97 RES,RK 104J 1/16 -CP
R342 06S15615Y25 RES,RK 101J 1/16 -CP
R343 06S15615Y81 RES,RK 223J 1/16 -CP
R344 06S15615Y73 RES,RK 103J 1/16 -CP
R345 06S45674W41 RES,RK 221J 1/10 -CP
R346 06S15615Y77 RES,RK 153J 1/16 -CP
R347 06S15615Y73 RES,RK 103J 1/16 -CP
R348 06S15615Y25 RES,RK 101J 1/16 -CP
R349 06S45674W97 RES,RK 473J 1/10 -CP
R350 06S70072F29 RES,CP .101-J-1/4-CP
R351 06S15615Y73 RES,RK 103J 1/16 -CP
R352 06S15615Y73 RES,RK 103J 1/16 -CP
R353 06S15615Y81 RES,RK 223J 1/16 -CP
R355 06S15615Y33 RES,RK 221J 1/16 -CP
R356 06S15615Y33 RES,RK 221J 1/16 -CP
R357 06S35095Y08 RES,RK JUMPER 1/4-CP
R501 06S15615Y25 RES,RK 101J 1/16 -CP
R502 06S45674W81 RES,RK 103J 1/10 -CP
R503 06S45674W57 RES,RK 102J 1/10 -CP
R504 06S45674W81 RES,RK 103J 1/10 -CP
R505 06S70072F53 RES,CP .102-J-1/4-CP
R506 06S15593Y73 RES,RK 103F 1/10 -CP
R507 06S45674W57 RES,RK 102J 1/10 -CP
R508 06S15615Y73 RES,RK 103J 1/16 -CP
R509 06S15593Y73 RES,RK 103F 1/10 -CP
R510 06S45674W57 RES,RK 102J 1/10 -CP
R511 06S45674W57 RES,RK 102J 1/10 -CP
R512 06S45674W57 RES,RK 102J 1/10 -CP
R513 06S45674W57 RES,RK 102J 1/10 -CP
R514 06S45674W57 RES,RK 102J 1/10 -CP
R515 06S15594Y23 RES,RK JUMPER1/10-CP
R516 06S45674W89 RES,RK 223J 1/10 -CP
R517 06S45674W57 RES,RK 102J 1/10 -CP
R518 06S15594Y23 RES,RK JUMPER1/10-CP

R519 06S45674W57 RES,RK 102J 1/10 -CP
R520 06S15594Y23 RES,RK JUMPER1/10-CP
R521 06S45674W89 RES,RK 223J 1/10 -CP
R522 06S15615Y89 RES,RK 473J 1/16 -CP
R524 06S15615Y37 RES,RK 331J 1/16 -CP
R525 06S15615Y49 RES,RK 102J 1/16 -CP
R527 06S45675W43 RES,RK JUMPER1/10-CP
R533 06S15615Y77 RES,RK 153J 1/16 -CP
R534 06S15615Y77 RES,RK 153J 1/16 -CP
R535 06S65415Y09 RES,RK 47RF 1/16 -CP
R536 06S65415Y09 RES,RK 47RF 1/16 -CP
R538 06S15615Y89 RES,RK 473J 1/16 -CP
R539 06S45674W89 RES,RK 223J 1/10 -CP
R540 06S15615Y89 RES,RK 473J 1/16 -CP
R541 06S15615Y81 RES,RK 223J 1/16 -CP
R542 06S15616Y23 RES,RK JUMPER1/16-CP
R543 06S45674W89 RES,RK 223J 1/10 -CP
R544 06S15615Y89 RES,RK 473J 1/16 -CP
R545 06S15615Y37 RES,RK 331J 1/16 -CP
R547 06S15615Y33 RES,RK 221J 1/16 -CP
R548 06S15615Y37 RES,RK 331J 1/16 -CP
R549 06S15615Y25 RES,RK 101J 1/16 -CP
R550 06S15615Y89 RES,RK 473J 1/16 -CP
R551 06S15615Y25 RES,RK 101J 1/16 -CP
R552 06S15615Y37 RES,RK 331J 1/16 -CP
R553 06S15615Y34 RES,RK 241J 1/16 -CP
R554 06S15615Y25 RES,RK 101J 1/16 -CP
R555 06S15615Y49 RES,RK 102J 1/16 -CP
R558 06S45674W81 RES,RK 103J 1/10 -CP
R559 06S15615Y25 RES,RK 101J 1/16 -CP
R560 06S15615Y25 RES,RK 101J 1/16 -CP
R561 06S15615Y73 RES,RK 103J 1/16 -CP
R562 06S45674W81 RES,RK 103J 1/10 -CP
R564 06S15615Y25 RES,RK 101J 1/16 -CP
R568 06S45674W81 RES,RK 103J 1/10 -CP
R569 06S45674W81 RES,RK 103J 1/10 -CP
R570 06S15615Y25 RES,RK 101J 1/16 -CP
R571 06S15615Y25 RES,RK 101J 1/16 -CP
R572 06S45674W81 RES,RK 103J 1/10 -CP
R573 06S45674W81 RES,RK 103J 1/10 -CP
R574 06S64996F26 RES,RK 105J 1/8 -CP
R576 06S15615Y25 RES,RK 101J 1/16 -CP
R577 06S15615Y59 RES,RK 272J 1/16 -CP
R578 06S15615Y59 RES,RK 272J 1/16 -CP
R579 06S15615Y25 RES,RK 101J 1/16 -CP
R580 06S15615Y25 RES,RK 101J 1/16 -CP
R581 06S15615Y59 RES,RK 272J 1/16 -CP
R582 06S15615Y59 RES,RK 272J 1/16 -CP
R583 06S15615Y73 RES,RK 103J 1/16 -CP
R584 06S15615Y25 RES,RK 101J 1/16 -CP
R585 06S15615Y25 RES,RK 101J 1/16 -CP
R586 06S15615Y73 RES,RK 103J 1/16 -CP
R587 06S15615Y73 RES,RK 103J 1/16 -CP
R588 06S15615Y73 RES,RK 103J 1/16 -CP

R589 06S15616Y23 RES,RK JUMPER1/16-CP
R590 06S15615Y73 RES,RK 103J 1/16 -CP
R591 06S15593Y49 RES,RK 102F 1/10 -CP
R592 06S15593Y41 RES,RK 471F 1/10 -CP
R593 06S15615Y73 RES,RK 103J 1/16 -CP
R594 06S15615Y73 RES,RK 103J 1/16 -CP
R595 06S15615Y73 RES,RK 103J 1/16 -CP
R596 06S15615Y73 RES,RK 103J 1/16 -CP
R597 06S15615Y81 RES,RK 223J 1/16 -CP
R598 06S15615Y81 RES,RK 223J 1/16 -CP
R599 06S15615Y25 RES,RK 101J 1/16 -CP
R600 06S15615Y89 RES,RK 473J 1/16 -CP
R601 06S15615Y25 RES,RK 101J 1/16 -CP
R602 06S15615Y89 RES,RK 473J 1/16 -CP
R603 06S15615Y89 RES,RK 473J 1/16 -CP
R604 06S15615Y49 RES,RK 102J 1/16 -CP
R605 06S64996F26 RES,RK 105J 1/8 -CP
R606 06S15616Y23 RES,RK JUMPER1/16-CP
R607 06S15616Y23 RES,RK JUMPER1/16-CP
R610 06S15615Y73 RES,RK 103J 1/16 -CP
R611 06S15615Y73 RES,RK 103J 1/16 -CP
R612 06S15615Y25 RES,RK 101J 1/16 -CP
R613 06S15615Y25 RES,RK 101J 1/16 -CP
R614 06S15615Y73 RES,RK 103J 1/16 -CP
R618 06S15615Y25 RES,RK 101J 1/16 -CP
R620 06S45675W43 RES,RK JUMPER1/10-CP
R621 06S45675W43 RES,RK JUMPER1/10-CP
R622 06S15616Y23 RES,RK JUMPER1/16-CP
R623 06S15615Y25 RES,RK 101J 1/16 -CP
R624 06S15616Y23 RES,RK JUMPER1/16-CP
R625 06S15616Y23 RES,RK JUMPER1/16-CP
R626 06S15616Y23 RES,RK JUMPER1/16-CP
R627 06S15616Y23 RES,RK JUMPER1/16-CP
R631 06S15615Y25 RES,RK 101J 1/16 -CP
R632 06S15615Y25 RES,RK 101J 1/16 -CP
R633 06S15615Y25 RES,RK 101J 1/16 -CP
R634 06S15616Y23 RES,RK JUMPER1/16-CP
R635 06S15616Y23 RES,RK JUMPER1/16-CP
R636 06S15615Y33 RES,RK 221J 1/16 -CP
R637 06S15616Y23 RES,RK JUMPER1/16-CP
R638 06S15615Y33 RES,RK 221J 1/16 -CP
R639 06S15615Y33 RES,RK 221J 1/16 -CP
R640 06S15616Y23 RES,RK JUMPER1/16-CP
R642 06S15616Y23 RES,RK JUMPER1/16-CP
R643 06S15615Y97 RES,RK 104J 1/16 -CP
R644 06S15615Y25 RES,RK 101J 1/16 -CP
R645 06S15615Y25 RES,RK 101J 1/16 -CP
R646 06S70072F53 RES,CP .102-J-1/4-CP
R647 06S15615Y25 RES,RK 101J 1/16 -CP
R648 06S15615Y25 RES,RK 101J 1/16 -CP
R649 06S15615Y25 RES,RK 101J 1/16 -CP
R650 06S15615Y25 RES,RK 101J 1/16 -CP
R651 06S15615Y25 RES,RK 101J 1/16 -CP
R652 06S15615Y25 RES,RK 101J 1/16 -CP
R653 06S15615Y25 RES,RK 101J 1/16 -CP

R655 06S15616Y23 RES,RK JUMPER1/16-CP
R657 06S45674W57 RES,RK 102J 1/10 -CP
R658 06S15615Y25 RES,RK 101J 1/16 -CP
R659 06S15615Y25 RES,RK 101J 1/16 -CP
R660 06S45674W81 RES,RK 103J 1/10 -CP
R661 06S45674W57 RES,RK 102J 1/10 -CP
R662 06S45674W97 RES,RK 473J 1/10 -CP
R663 06S15615Y33 RES,RK 221J 1/16 -CP
R664 06S15615Y33 RES,RK 221J 1/16 -CP
R665 06S15615Y33 RES,RK 221J 1/16 -CP
R666 06S15615Y33 RES,RK 221J 1/16 -CP
R667 06S15615Y89 RES,RK 473J 1/16 -CP
R668 06S45674W57 RES,RK 102J 1/10 -CP
R684 06S15616Y23 RES,RK JUMPER1/16-CP
R701 06S45674W90 RES,RK 243J 1/10 -CP
R702 06S70072F66 RES,CP .362-J-1/4-CP
R703 06S15615Y89 RES,RK 473J 1/16 -CP
R704 06S15615Y89 RES,RK 473J 1/16 -CP
R706 06S45675W30 RES,RK 105J 1/10 -CP
R707 06S45674W41 RES,RK 221J 1/10 -CP
R708 06S15615Y89 RES,RK 473J 1/16 -CP
R709 06S15615Y89 RES,RK 473J 1/16 -CP
R710 06S15616Y18 RES,RK 684J 1/16 -CP
R711 06S15615Y77 RES,RK 153J 1/16 -CP
R712 06S15615Y89 RES,RK 473J 1/16 -CP
R713 06S15615Y83 RES,RK 273J 1/16 -CP
R714 06S45674W61 RES,RK 152J 1/10 -CP
R715 06S15615Y25 RES,RK 101J 1/16 -CP
R716 06S15615Y91 RES,RK 563J 1/16 -CP
R718 06S15615Y63 RES,RK 392J 1/16 -CP
R719 06S15615Y25 RES,RK 101J 1/16 -CP
R720 06S15615Y91 RES,RK 563J 1/16 -CP
R721 06S15615Y85 RES,RK 333J 1/16 -CP
R730 06S70072F90 RES,CP .1R0-J-1/4-CP
R732 06S15615Y73 RES,RK 103J 1/16 -CP
R733 06S15615Y81 RES,RK 223J 1/16 -CP
R734 06S15615Y72 RES,RK 912J 1/16 -CP
R735 06S15615Y72 RES,RK 912J 1/16 -CP
R736 06S15615Y72 RES,RK 912J 1/16 -CP
R737 06S15615Y73 RES,RK 103J 1/16 -CP
R738 06S15616Y23 RES,RK JUMPER1/16-CP
R739 06S15616Y36 RES,RK 225J 1/16 -CP
R740 06S70072F33 RES,CP .151-J-1/4-CP
R800 06S45674W81 RES,RK 103J 1/10 -CP
R801 06S45674W81 RES,RK 103J 1/10 -CP
R802 06S15593Y90 RES,RK 513F 1/10 -CP
R803 06S15593Y92 RES,RK 623F 1/10 -CP
R804 06S15615Y25 RES,RK 101J 1/16 -CP
R805 06S15616Y06 RES,RK 224J 1/16 -CP
R806 06S15593Y76 RES,RK 133F 1/10 -CP
R807 06S45675W06 RES,RK 104J 1/10 -CP
R808 06S65415Y51 RES,RK 154F 1/16 -CP
R814 06S35084Y47 RES,RK 683F 1/8 -CP
R815 06S65415Y47 RES,RK 683F 1/16 -CP

R816 06S15615Y68 RES,RK 622J 1/16 -CP
R817 06S70072F37 RES,CP .221-J-1/4-CP
R818 06S65415Y40 RES,RK 183F 1/16 -CP
R819 06S65415Y50 RES,RK 124F 1/16 -CP
R820 06S65415Y43 RES,RK 333F 1/16 -CP
R821 06S70072F77 RES,CP .103-J-1/4-CP
R822 06S35083Y41 RES,RK 223F 1/4 -CP
R823 06S15615Y59 RES,RK 272J 1/16 -CP
R824 06S35083Y41 RES,RK 223F 1/4 -CP
R825 06S15593Y77 RES,RK 153F 1/10 -CP
R826 06S35083Y44 RES,RK 393F 1/4 -CP
R827 06S70072F37 RES,CP .221-J-1/4-CP
R829 06S15615Y37 RES,RK 331J 1/16 -CP
R830 06S45674W90 RES,RK 243J 1/10 -CP
R832 06S15616Y23 RES,RK JUMPER1/16-CP
R833 06S15615Y49 RES,RK 102J 1/16 -CP
R834 06S70072F77 RES,CP .103-J-1/4-CP
R837 06S65415Y94 RES,RK 202F 1/16 -CP
R839 06S15593Y92 RES,RK 623F 1/10 -CP
R841 06S15615Y57 RES,RK 222J 1/16 -CP
R842 06S45674W61 RES,RK 152J 1/10 -CP
R843 06S15615Y69 RES,RK 682J 1/16 -CP
R844 06S15615Y98 RES,RK 114J 1/16 -CP
R845 06S35083Y34 RES,RK 562F 1/4 -CP
R846 06S15615Y86 RES,RK 363J 1/16 -CP
R847 06S35083Y45 RES,RK 473F 1/4 -CP
R848 06S70072F69 RES,CP .472-J-1/4-CP
R849 06S15615Y66 RES,RK 512J 1/16 -CP
R850 06S15615Y99 RES,RK 124J 1/16 -CP
R851 06S15615Y66 RES,RK 512J 1/16 -CP
R852 06S15615Y98 RES,RK 114J 1/16 -CP
R854 06S45675W43 RES,RK JUMPER1/10-CP
R857 06S45674W90 RES,RK 243J 1/10 -CP
R858 06S15616Y11 RES,RK 364J 1/16 -CP
R859 06S45674W98 RES,RK 513J 1/10 -CP
R862 06S15615Y71 RES,RK 822J 1/16 -CP
R864 06S15616Y10 RES,RK 334J 1/16 -CP
R865 06S15615Y93 RES,RK 683J 1/16 -CP
R866 06S15615Y66 RES,RK 512J 1/16 -CP
R867 06S15615Y95 RES,RK 823J 1/16 -CP
R870 06S70072F77 RES,CP .103-J-1/4-CP
R871 06S70072F77 RES,CP .103-J-1/4-CP
R872 06S45675W22 RES,RK 474J 1/10 -CP
R873 06S45675W22 RES,RK 474J 1/10 -CP
R874 06S35083Y25 RES,RK 102F 1/4 -CP
R875 06S35083Y25 RES,RK 102F 1/4 -CP
R901 06S15615Y57 RES,RK 222J 1/16 -CP
R902 06S15615Y57 RES,RK 222J 1/16 -CP
R903 06S15615Y25 RES,RK 101J 1/16 -CP
R904 06S15615Y49 RES,RK 102J 1/16 -CP
R905 06S15615Y25 RES,RK 101J 1/16 -CP
R906 06S45675W43 RES,RK JUMPER1/10-CP
R907 06S15615Y25 RES,RK 101J 1/16 -CP
R908 06S15615Y49 RES,RK 102J 1/16 -CP
R909 06S65415Y11 RES,RK 68RF 1/16 -CP

R911 06S45675W30 RES,RK 105J 1/10 -CP
R912 06S45674W89 RES,RK 223J 1/10 -CP
R913 06S70072F29 RES,CP .101-J-1/4-CP
R914 06S15615Y57 RES,RK 222J 1/16 -CP
R915 06S45674W69 RES,RK 332J 1/10 -CP
R916 06S45674W89 RES,RK 223J 1/10 -CP
R917 06S45674W57 RES,RK 102J 1/10 -CP
RA501 06S15771Y13 RES,ARYEXB28V101J-CP
RA701 06S15771Y33 RES,ARY 472J 4 -CP
RA702 06S15771Y33 RES,ARY 472J 4 -CP
RA703 06S15771Y13 RES,ARYEXB28V101J-CP
RA704 06S15771Y13 RES,ARYEXB28V101J-CP
RA705 06S15771Y13 RES,ARYEXB28V101J-CP
RA706 06S15771Y13 RES,ARYEXB28V101J-CP
RA707 06S15771Y45 RES,ARYEXB28V473J-CP
RA708 06S15771Y45 RES,ARYEXB28V473J-CP
SA101 08-19391Z01 VST,IMSA-6803-01Y-CP
SD801 48-19296Z01 DIO,SHT RB056L-40-E1
SF601 91-25003Z01 SAW,B39242B3912U -E1

SW501 40T16096W03 SW ,TACT SKHHLW
T302 25-27559Z01 CHOKE,DGJ-A01 -DB
VR801 18-12468Z11 VAR,EVM2NSX80 224-CP
VT101 24-28469Z01 COIL,RF FM 5CCEG -E6
XL101 91-24701Z03 XTL,DSX321G 62.40-CP
XL502 91-24701Z02 XTL,DSX321G 12.00-CP
XL601 91-26676Z01 XTL,DSX321G 26.00-CP
XL701 91-24701Z01 XTL,DSX321G 16.93-CP
Z502 91T75196Y01 EMI,BK1005HM102 -CP
Z503 91T15509Y08 EMI,BK1608HM102 -CP
Z504 91T15509Y08 EMI,BK1608HM102 -CP
Z505 91T15509Y08 EMI,BK1608HM102 -CP
Z506 91T15509Y08 EMI,BK1608HM102 -CP
Z507 91T15509Y08 EMI,BK1608HM102 -CP
Z508 91T15509Y08 EMI,BK1608HM102 -CP
Z509 91T75196Y01 EMI,BK1005HM102 -CP
Z701 91T75196Y08 EMI,BK1005HW601 -CP
ZD501 48-18196Z02 DIO,ZEN DZ2S051M0LCP
ZD502 48-18196Z02 DIO,ZEN DZ2S051M0LCP
ZD503 48-21149Z19 DIO,ZEN DZ2J051L0LCP
ZD801 48-07043Z37 DIO,ZEN KDZ11V -CP
ZD802 48-21149Z26 DIO,ZEN DZ2J062M0LCP
ZD803 48-01607Z08 DIO,ZEN LUDZ3.9B -CP

FRONT-P.W.Board

No ELEP COAT

No ELEP COAT

No ELEP COATNo ELEP COAT

Orange Color Pattern:Component Side Pattern
Blue Color Pattern:Foil Side Pattern

FRONT-P.W.Board

No ELEP COAT

No ELEP COAT

No ELEP COATNo ELEP COAT

Orange Color Pattern:Component Side Pattern
Blue Color Pattern:Foil Side Pattern

Model Code
CDE-195BT

NOTE:The part that has not PART NUMBER will not be supplied.

#####

IC501(*) :51-27561Z01(W25Q32FVSSIG -ST)
Software is not written in to the part indicated with (*).

C403 08S45676W65 CAP,CER.222K-B1H -CP
C404 08S45232Y15 CAP,CER 473K-B1A -CP
C405 08S45232Y15 CAP,CER 473K-B1A -CP
C408 08S45676W80 CAP,CER 223K-B1E -CP
C409 08S45232Y04 CAP,CER 681K-B1H -CP
C410 08S35349Y12 CAP,CER 105K-B0J -CP
C411 08S35349Y17 CAP,CER 225K-B0J -CP
C412 08S45232Y15 CAP,CER 473K-B1A -CP
C414 08S45232Y17 CAP,CER 104K-B0J -CP
C415 08S35374W10 CAP,CER 225K-B1A -CP
C416 08S45232Y17 CAP,CER 104K-B0J -CP
C417 08S35349Y17 CAP,CER 225K-B0J -CP

CB401 09-18716Z01 BTB,DF20-P -EJ
D401 48-12230Z01 DIO,KDS226-RTK -CP
D402 48-12230Z01 DIO,KDS226-RTK -CP
D403 48-12230Z01 DIO,KDS226-RTK -CP
D404 48-07015Z01 DIO,KDS160-RTK -CP
D406 48-12230Z01 DIO,KDS226-RTK -CP

IC400 51-28064Z01 BH2228FV-E2 -SE2

IC401 51-02442Z01 PT6578LQ(L) -QT

IC402 51-18623Z01 PNJ4L02M -NE1

JK401 09-27672Z01 JAC,CK-3552 -DB

LCD401 65-26816Z01 LCD,8384011401C
LD401 48-27600Z01 LED,R/G/B 99-135 -E1
LD402 48-27600Z01 LED,R/G/B 99-135 -E1
LD403 48-27600Z01 LED,R/G/B 99-135 -E1
LD404 48-27857Z01 LED,R/G/B 64-23 -CP
LD405 48-27857Z01 LED,R/G/B 64-23 -CP
LD406 48-27857Z01 LED,R/G/B 64-23 -CP
LD407 48-27857Z01 LED,R/G/B 64-23 -CP
LD408 48-27857Z01 LED,R/G/B 64-23 -CP
LD409 48-27857Z01 LED,R/G/B 64-23 -CP
Q400 48-22236Z01 TR,DSC5A01R0L -CP

Q401 48-22236Z01 TR,DSC5A01R0L -CP

Q402 48-22236Z01 TR,DSC5A01R0L -CP

Q403 48T75482Y03 TR,2SC5876-R-T106-CP

Q404 48T75482Y03 TR,2SC5876-R-T106-CP

Q405 48T75482Y03 TR,2SC5876-R-T106-CP

Q406 48-22236Z01 TR,DSC5A01R0L -CP

Q407 48-22236Z01 TR,DSC5A01R0L -CP

Q408 48-22236Z01 TR,DSC5A01R0L -CP

Q409 48T75482Y03 TR,2SC5876-R-T106-CP

Q410 48T75482Y03 TR,2SC5876-R-T106-CP

Q411 48T75482Y03 TR,2SC5876-R-T106-CP

Q412 48-22236Z01 TR,DSC5A01R0L -CP

Q413 48-22236Z01 TR,DSC5A01R0L -CP

Q414 48-22236Z01 TR,DSC5A01R0L -CP

Q415 48T75482Y03 TR,2SC5876-R-T106-CP

Q416 48T75482Y03 TR,2SC5876-R-T106-CP

Q417 48T75482Y03 TR,2SC5876-R-T106-CP

Q418 48-22236Z01 TR,DSC5A01R0L -CP

Q419 48-22236Z01 TR,DSC5A01R0L -CP

Q420 48-22236Z01 TR,DSC5A01R0L -CP

Q421 48T75482Y03 TR,2SC5876-R-T106-CP

Q422 48T75482Y03 TR,2SC5876-R-T106-CP

Q423 48T75482Y03 TR,2SC5876-R-T106-CP

Q424 48-22236Z01 TR,DSC5A01R0L -CP

Q425 48-22236Z01 TR,DSC5A01R0L -CP

Q426 48-22236Z01 TR,DSC5A01R0L -CP

Q427 48T75482Y03 TR,2SC5876-R-T106-CP

Q428 48T75482Y03 TR,2SC5876-R-T106-CP

Q429 48T75482Y03 TR,2SC5876-R-T106-CP

R400 06S15615Y49 RES,RK 102J 1/16 -CP
R401 06S64995F53 RES,RK 102J 1/8 -CP
R402 06S15615Y49 RES,RK 102J 1/16 -CP
R403 06S15615Y49 RES,RK 102J 1/16 -CP
R404 06S15615Y49 RES,RK 102J 1/16 -CP
R405 06S15615Y49 RES,RK 102J 1/16 -CP
R406 06S64995F53 RES,RK 102J 1/8 -CP
R407 06S64995F53 RES,RK 102J 1/8 -CP
R408 06S15615Y49 RES,RK 102J 1/16 -CP
R409 06S64995F53 RES,RK 102J 1/8 -CP
R410 06S64995F53 RES,RK 102J 1/8 -CP
R411 06S15615Y25 RES,RK 101J 1/16 -CP
R412 06S15615Y25 RES,RK 101J 1/16 -CP
R413 06S64995F53 RES,RK 102J 1/8 -CP
R414 06S15615Y25 RES,RK 101J 1/16 -CP
R415 06S15616Y23 RES,RK JUMPER1/16-CP
R416 06S15616Y23 RES,RK JUMPER1/16-CP
R417 06S15616Y23 RES,RK JUMPER1/16-CP
R418 06S35084Y44 RES,RK 393F 1/8 -CP
R419 06S70072F37 RES,CP .221-J-1/4-CP
R420 06S15615Y65 RES,RK 472J 1/16 -CP
R421 06S15615Y65 RES,RK 472J 1/16 -CP
R422 06S15615Y65 RES,RK 472J 1/16 -CP
R423 06S15593Y05 RES,RK 15RF 1/10 -CP
R428 06S15615Y65 RES,RK 472J 1/16 -CP
R429 06S15593Y88 RES,RK 433F 1/10 -CP
R430 06S45674W71 RES,RK 392J 1/10 -CP
R431 06S15593Y05 RES,RK 15RF 1/10 -CP
R432 06S35084Y39 RES,RK 153F 1/8 -CP
R433 06S70072F13 RES,CP .22R-J-1/4-CP
R434 06S35084Y78 RES,RK 132F 1/8 -CP
R435 06S35084Y39 RES,RK 153F 1/8 -CP
R436 06S35084Y44 RES,RK 393F 1/8 -CP
R437 06S35084Y78 RES,RK 132F 1/8 -CP
R438 06S35084Y28 RES,RK 182F 1/8 -CP
R439 06S35084Y31 RES,RK 332F 1/8 -CP
R440 06S35084Y29 RES,RK 222F 1/8 -CP
R441 06S35084Y64 RES,RK 432F 1/8 -CP
R442 06S35084Y68 RES,RK 752F 1/8 -CP
R443 06S15616Y23 RES,RK JUMPER1/16-CP
R444 06S15616Y23 RES,RK JUMPER1/16-CP
R445 06S15616Y23 RES,RK JUMPER1/16-CP
R446 06S15593Y07 RES,RK 18RF 1/10 -CP
R447 06S15593Y07 RES,RK 18RF 1/10 -CP
R448 06S15593Y07 RES,RK 18RF 1/10 -CP

R449 06S15616Y23 RES,RK JUMPER1/16-CP
R450 06S15616Y23 RES,RK JUMPER1/16-CP
R451 06S15616Y23 RES,RK JUMPER1/16-CP
R452 06S15593Y21 RES,RK 68RF 1/10 -CP
R453 06S15593Y21 RES,RK 68RF 1/10 -CP
R454 06S15593Y21 RES,RK 68RF 1/10 -CP
R455 06S35084Y28 RES,RK 182F 1/8 -CP
R456 06S35084Y31 RES,RK 332F 1/8 -CP
R457 06S35084Y29 RES,RK 222F 1/8 -CP
R458 06S35084Y64 RES,RK 432F 1/8 -CP
R459 06S35084Y68 RES,RK 752F 1/8 -CP
R460 06S15616Y23 RES,RK JUMPER1/16-CP
R461 06S70072F29 RES,CP .101-J-1/4-CP
R462 06S15616Y23 RES,RK JUMPER1/16-CP
R463 06S15616Y23 RES,RK JUMPER1/16-CP
R464 06S15593Y07 RES,RK 18RF 1/10 -CP
R465 06S15593Y07 RES,RK 18RF 1/10 -CP
R466 06S15593Y07 RES,RK 18RF 1/10 -CP
R467 06S15593Y27 RES,RK 121F 1/10 -CP
R468 06S15593Y27 RES,RK 121F 1/10 -CP
R469 06S15593Y27 RES,RK 121F 1/10 -CP
R470 06S15593Y27 RES,RK 121F 1/10 -CP
R471 06S15593Y27 RES,RK 121F 1/10 -CP
R472 06S15593Y27 RES,RK 121F 1/10 -CP
R473 06S15593Y27 RES,RK 121F 1/10 -CP
R474 06S15593Y27 RES,RK 121F 1/10 -CP
R475 06S15593Y27 RES,RK 121F 1/10 -CP
R476 06S15593Y25 RES,RK 101F 1/10 -CP
R477 06S70072F21 RES,CP .47R-J-1/4-CP
R478 06S64995F53 RES,RK 102J 1/8 -CP
R479 06S15593Y25 RES,RK 101F 1/10 -CP
R480 06S15615Y49 RES,RK 102J 1/16 -CP
R481 06S15616Y23 RES,RK JUMPER1/16-CP
R482 06S15616Y23 RES,RK JUMPER1/16-CP
R483 06S15616Y23 RES,RK JUMPER1/16-CP
R484 06S15593Y05 RES,RK 15RF 1/10 -CP
R485 06S15593Y05 RES,RK 15RF 1/10 -CP
R486 06S70072F13 RES,CP .22R-J-1/4-CP
R487 06S15593Y25 RES,RK 101F 1/10 -CP
R488 06S70072F21 RES,CP .47R-J-1/4-CP
R489 06S15593Y25 RES,RK 101F 1/10 -CP
R490 06S15593Y25 RES,RK 101F 1/10 -CP
R491 06S15593Y25 RES,RK 101F 1/10 -CP
R492 06S15593Y25 RES,RK 101F 1/10 -CP
R493 06S35095Y08 RES,RK JUMPER 1/4-CP
RA401 06S15771Y13 RES,ARYEXB28V101J-CP

SK401 09-19382Z01 SKT,CM-V105 -DB
SW401 40T65353Y01 SW,TACT SKRPACE010E2
SW402 40T65353Y01 SW,TACT SKRPACE010E2
SW403 40T65353Y01 SW,TACT SKRPACE010E2
SW404 40T65353Y01 SW,TACT SKRPACE010E2
SW405 40T65353Y01 SW,TACT SKRPACE010E2
SW406 40T65353Y01 SW,TACT SKRPACE010E2
SW407 40T65353Y01 SW,TACT SKRPACE010E2

SW408 40T65353Y01 SW,TACT SKRPACE010E2
SW409 40T65353Y01 SW,TACT SKRPACE010E2
SW410 40T65353Y01 SW,TACT SKRPACE010E2
SW411 40T65353Y01 SW,TACT SKRPACE010E2
SW412 40-10735Z02 ENC,EC12D1524405 -DB

SW413 40T65353Y01 SW,TACT SKRPACE010E2
SW414 40T65353Y01 SW,TACT SKRPACE010E2
SW415 40T65353Y01 SW,TACT SKRPACE010E2
SW416 40T65353Y01 SW,TACT SKRPACE010E2
SW417 40T65353Y01 SW,TACT SKRPACE010E2
SW418 40T65353Y01 SW,TACT SKRPACE010E2
Z401 91-14147Z01 EMI,ACM2012H-900 -CP
ZD401 48-18196Z02 DIO,ZEN DZ2S051M0LCP
ZD402 48-18196Z02 DIO,ZEN DZ2S051M0LCP
ZD404 48-21149Z67 DIO,ZEN DZ2J033M0LCP

※

Ac

※

Ab

※

Aa

※

Ac

※

Ab

No ELEP COAT

No ELEP COAT

No ELEP COATNo ELEP COAT

※

Aa

Orange Color Pattern:Component Side Pattern

No ELEP COAT

No ELEP COAT

No ELEP COATNo ELEP COAT

Orange Color Pattern:Component Side Pattern

Model Code
CDE-195BT

NOTE:The part that has not PART NUMBER will not be supplied.

#####

IC501(*) :51-27561Z01(W25Q32FVSSIG -ST)
Software is not written in to the part indicated with (*).

CB101 09T75287Y24 FFC,IMSA9631S-24Y-ED
PT500 48-14634Z01 PHTTR,SML810TB-T86CP
PT502 48-14634Z01 PHTTR,SML810TB-T86CP
R500 06S15615Y85 RES,RK 333J 1/16 -CP
R502 06S15615Y85 RES,RK 333J 1/16 -CP

※

Ad

SENSOR(DP86Z7BA-W)-P.W.Board

No ELEP COAT

No ELEP COAT

No ELEP COATNo ELEP COAT

※

Ad

Orange Color Pattern:Component Side Pattern

SENSOR(DP86Z7BA-W)-P.W.Board

No ELEP COAT

No ELEP COAT

No ELEP COATNo ELEP COAT

Orange Color Pattern:Component Side Pattern

Model Code
CDE-195BT

NOTE:The part that has not PART NUMBER will not be supplied.

#####

IC501(*) :51-27561Z01(W25Q32FVSSIG -ST)
Software is not written in to the part indicated with (*).

LD700 48-14635Z02 LED,SML-S13RT-T68-CP
LD701 48-14635Z02 LED,SML-S13RT-T68-CP
R700 06S45674W51 RES,RK 561J 1/10 -CP
R701 06S45674W51 RES,RK 561J 1/10 -CP

※

Ak

※

Ai

Ae

※

DRIVE(DP86Z7BA-W)-P.W.Board

Ak

※

※

Ae

Ai

※

No ELEP COAT

No ELEP COAT

No ELEP COATNo ELEP COAT

Orange Color Pattern:Component Side Pattern

DRIVE(DP86Z7BA-W)-P.W.Board

Orange Color Pattern:Component Side Pattern

Model Code
CDE-195BT

NOTE:The part that has not PART NUMBER will not be supplied.

#####

IC501(*) :51-27561Z01(W25Q32FVSSIG -ST)
Software is not written in to the part indicated with (*).

SW800 40-24933Z01 SW,DETCT SPVT1102-E6

FPC.DRIVE-P.W.Board

(Foil Side View)

Af

Ag

Blue Color Pattern : Foil Side Pattern

Model Code
CDE-195BT

NOTE:The part that has not PART NUMBER will not be supplied.

#####

IC501(*) :51-27561Z01(W25Q32FVSSIG -ST)
Software is not written in to the part indicated with (*).

Refer to the Exploded View (Cabinet).

Ah

FPC.LED-P.W.Board

(

Foil Side

Blue Color Pattern : Foil Side Pattern

View)

Aj

Model Code
CDE-195BT

NOTE:The part that has not PART NUMBER will not be supplied.

#####

IC501(*) :51-27561Z01(W25Q32FVSSIG -ST)
Software is not written in to the part indicated with (*).

Refer to the Exploded View (Cabinet).

Model Code
CDE-195BT

NOTE:The part that has not PART NUMBER will not be supplied.

#####

IC501(*) :51-27561Z01(W25Q32FVSSIG -ST)
Software is not written in to the part indicated with (*).

MAIN-P.W.Board ANT101 09-26262Z01 ANT,ARL43.644.692-DB
MAIN-P.W.Board C101 08S35349Y16 CAP,CER 105K-B1A -CP
MAIN-P.W.Board C103 08S45231Y38 CAP,CER 102J-CH1H-CP
MAIN-P.W.Board C104 08S35374W12 CAP,CER 106K-B0J -CP
MAIN-P.W.Board C105 08S35374W12 CAP,CER 106K-B0J -CP
MAIN-P.W.Board C106 08S35374W12 CAP,CER 106K-B0J -CP
MAIN-P.W.Board C107 08S35374W12 CAP,CER 106K-B0J -CP
MAIN-P.W.Board C108 08S45231Y38 CAP,CER 102J-CH1H-CP
MAIN-P.W.Board C109 08S45676W65 CAP,CER.222K-B1H -CP
MAIN-P.W.Board C110 08S35374W12 CAP,CER 106K-B0J -CP
MAIN-P.W.Board C111 08S35374W12 CAP,CER 106K-B0J -CP
MAIN-P.W.Board C112 08S35374W12 CAP,CER 106K-B0J -CP
MAIN-P.W.Board C114 08S45232Y17 CAP,CER 104K-B0J -CP
MAIN-P.W.Board C115 08S35374W12 CAP,CER 106K-B0J -CP
MAIN-P.W.Board C116 08S45231Y06 CAP,CER 3R0C-CJ1H-CP
MAIN-P.W.Board C117 08S45677W60 CAP,CER 102J-CH1H-CP
MAIN-P.W.Board C118 08S45232Y17 CAP,CER 104K-B0J -CP
MAIN-P.W.Board C119 08S65670Y01 CAP,CER 106KX5R1C-CP
MAIN-P.W.Board C120 08S45232Y17 CAP,CER 104K-B0J -CP
MAIN-P.W.Board C121 08S45232Y05 CAP,CER 102K-B1H -CP
MAIN-P.W.Board C122 08S35349Y17 CAP,CER 225K-B0J -CP
MAIN-P.W.Board C123 08S35374W11 CAP,CER 475K-B0J -CP
MAIN-P.W.Board C124 08S45232Y05 CAP,CER 102K-B1H -CP
MAIN-P.W.Board C125 08S45232Y17 CAP,CER 104K-B0J -CP
MAIN-P.W.Board C126 08S45232Y17 CAP,CER 104K-B0J -CP
MAIN-P.W.Board C127 08S45232Y08 CAP,CER 332K-B1H -CP
MAIN-P.W.Board C128 08S45232Y05 CAP,CER 102K-B1H -CP
MAIN-P.W.Board C129 08S45232Y05 CAP,CER 102K-B1H -CP
MAIN-P.W.Board C130 08S45232Y05 CAP,CER 102K-B1H -CP
MAIN-P.W.Board C131 08S45677W34 CAP,CER.82RJ-CH1H-CP
MAIN-P.W.Board C132 08S45231Y17 CAP,CER 22RJ-CH1H-CP
MAIN-P.W.Board C141 08S45231Y25 CAP,CER 101J-CH1H-CP
MAIN-P.W.Board C142 08S45231Y13 CAP,CER 10RD-CH1H-CP
MAIN-P.W.Board C143 08S45232Y03 CAP,CER 471K-B1H -CP
MAIN-P.W.Board C145 08S45677W60 CAP,CER 102J-CH1H-CP
MAIN-P.W.Board C153 08S45231Y38 CAP,CER 102J-CH1H-CP
MAIN-P.W.Board C154 08S45231Y16 CAP,CER 18RJ-CH1H-CP
MAIN-P.W.Board C155 08S45232Y07 CAP,CER 222K-B1H -CP
MAIN-P.W.Board C160 08S45676W73 CAP,CER.103K-B1H -CP
MAIN-P.W.Board C161 08S45676W73 CAP,CER.103K-B1H -CP
MAIN-P.W.Board C162 08S65668Y05 CAP,CER 224KX5R1A-CP
MAIN-P.W.Board C163 08S45231Y11 CAP,CER 8R0D-CH1H-CP
MAIN-P.W.Board C164 08S45231Y11 CAP,CER 8R0D-CH1H-CP
MAIN-P.W.Board C165 08S45231Y38 CAP,CER 102J-CH1H-CP
MAIN-P.W.Board C166 08S65670Y01 CAP,CER 106KX5R1C-CP
MAIN-P.W.Board C167 08S45232Y17 CAP,CER 104K-B0J -CP
MAIN-P.W.Board C168 08S45232Y17 CAP,CER 104K-B0J -CP
MAIN-P.W.Board C169 08S45231Y38 CAP,CER 102J-CH1H-CP
MAIN-P.W.Board C170 08S65670Y01 CAP,CER 106KX5R1C-CP
MAIN-P.W.Board C300 08S45676W73 CAP,CER.103K-B1H -CP
MAIN-P.W.Board C301 08S65676Y03 CAP,CER 225KX7R1C-CP
MAIN-P.W.Board

C302 08S35350Y04 CAP,CER 105K-B1C -CP

MAIN-P.W.Board C305 08S65669Y03 CAP,CER 224KX7R1H-CP
MAIN-P.W.Board C306 08S65676Y03 CAP,CER 225KX7R1C-CP

MAIN-P.W.Board C307 08S65669Y03 CAP,CER 224KX7R1H-CP
MAIN-P.W.Board C308 08S65676Y03 CAP,CER 225KX7R1C-CP
MAIN-P.W.Board C309 08S65676Y03 CAP,CER 225KX7R1C-CP
MAIN-P.W.Board C310 08S65676Y03 CAP,CER 225KX7R1C-CP
MAIN-P.W.Board C311 08S65676Y03 CAP,CER 225KX7R1C-CP
MAIN-P.W.Board C312 08S65669Y03 CAP,CER 224KX7R1H-CP
MAIN-P.W.Board C313 08S35349Y12 CAP,CER 105K-B0J -CP
MAIN-P.W.Board C314 08S35374W12 CAP,CER 106K-B0J -CP
MAIN-P.W.Board C315 08S35374W12 CAP,CER 106K-B0J -CP
MAIN-P.W.Board C316 08S65669Y03 CAP,CER 224KX7R1H-CP
MAIN-P.W.Board C317 08S45231Y25 CAP,CER 101J-CH1H-CP
MAIN-P.W.Board C318 08S45232Y17 CAP,CER 104K-B0J -CP
MAIN-P.W.Board C319 08S45231Y25 CAP,CER 101J-CH1H-CP
MAIN-P.W.Board C320 08S35350Y04 CAP,CER 105K-B1C -CP
MAIN-P.W.Board C321 08S65669Y02 CAP,CER 474KX7R1E-CP
MAIN-P.W.Board C322 08S65669Y02 CAP,CER 474KX7R1E-CP
MAIN-P.W.Board C323 08S65669Y02 CAP,CER 474KX7R1E-CP
MAIN-P.W.Board C324 08S65669Y02 CAP,CER 474KX7R1E-CP
MAIN-P.W.Board C325 08S65669Y02 CAP,CER 474KX7R1E-CP
MAIN-P.W.Board C327 08S35349Y16 CAP,CER 105K-B1A -CP
MAIN-P.W.Board C333 08S45232Y17 CAP,CER 104K-B0J -CP
MAIN-P.W.Board C501 08S45676W85 CAP,CER 104K-B1C -CP
MAIN-P.W.Board C502 08S45676W85 CAP,CER 104K-B1C -CP
MAIN-P.W.Board C503 08S45676W85 CAP,CER 104K-B1C -CP
MAIN-P.W.Board C504 08S65669Y03 CAP,CER 224KX7R1H-CP
MAIN-P.W.Board C505 08S45232Y07 CAP,CER 222K-B1H -CP
MAIN-P.W.Board C506 08S65668Y05 CAP,CER 224KX5R1A-CP
MAIN-P.W.Board C507 08S45677W60 CAP,CER 102J-CH1H-CP
MAIN-P.W.Board C508 08S45232Y07 CAP,CER 222K-B1H -CP
MAIN-P.W.Board C509 08S45232Y07 CAP,CER 222K-B1H -CP
MAIN-P.W.Board C510 08S65669Y03 CAP,CER 224KX7R1H-CP
MAIN-P.W.Board C512 08S65669Y03 CAP,CER 224KX7R1H-CP
MAIN-P.W.Board C514 08S45232Y11 CAP,CER 103K-B1C -CP
MAIN-P.W.Board C515 08S45232Y07 CAP,CER 222K-B1H -CP
MAIN-P.W.Board C516 08S45232Y05 CAP,CER 102K-B1H -CP
MAIN-P.W.Board C517 08S45232Y17 CAP,CER 104K-B0J -CP
MAIN-P.W.Board C518 08S45676W85 CAP,CER 104K-B1C -CP
MAIN-P.W.Board C519 08S45232Y05 CAP,CER 102K-B1H -CP
MAIN-P.W.Board C520 08S65669Y03 CAP,CER 224KX7R1H-CP
MAIN-P.W.Board C523 08S45232Y17 CAP,CER 104K-B0J -CP
MAIN-P.W.Board C524 08S45676W85 CAP,CER 104K-B1C -CP
MAIN-P.W.Board C525 08S45676W85 CAP,CER 104K-B1C -CP
MAIN-P.W.Board C526 08S45676W85 CAP,CER 104K-B1C -CP
MAIN-P.W.Board C527 08S45232Y17 CAP,CER 104K-B0J -CP
MAIN-P.W.Board C528 08S45676W85 CAP,CER 104K-B1C -CP
MAIN-P.W.Board C529 08S45676W85 CAP,CER 104K-B1C -CP
MAIN-P.W.Board C530 08S45232Y17 CAP,CER 104K-B0J -CP
MAIN-P.W.Board C531 08S45676W85 CAP,CER 104K-B1C -CP
MAIN-P.W.Board C533 08S45676W85 CAP,CER 104K-B1C -CP
MAIN-P.W.Board C534 08S45676W85 CAP,CER 104K-B1C -CP
MAIN-P.W.Board C535 08S45232Y21 CAP,CER 104K-B1A-CP
MAIN-P.W.Board

C536 08S45232Y21 CAP,CER 104K-B1A-CP

MAIN-P.W.Board C537 08S45676W85 CAP,CER 104K-B1C -CP
MAIN-P.W.Board C538 08S45676W85 CAP,CER 104K-B1C -CP
MAIN-P.W.Board C539 08S45676W85 CAP,CER 104K-B1C -CP

MAIN-P.W.Board C540 08S45232Y17 CAP,CER 104K-B0J -CP
MAIN-P.W.Board C541 08S45676W85 CAP,CER 104K-B1C -CP
MAIN-P.W.Board C542 08S45676W85 CAP,CER 104K-B1C -CP
MAIN-P.W.Board C543 08S45676W85 CAP,CER 104K-B1C -CP
MAIN-P.W.Board C544 08S45676W85 CAP,CER 104K-B1C -CP
MAIN-P.W.Board C545 08S45676W85 CAP,CER 104K-B1C -CP
MAIN-P.W.Board C546 08S45676W85 CAP,CER 104K-B1C -CP
MAIN-P.W.Board C547 08S45231Y15 CAP,CER 15RJ-CH1H-CP
MAIN-P.W.Board C548 08S45231Y15 CAP,CER 15RJ-CH1H-CP
MAIN-P.W.Board C549 08S65668Y05 CAP,CER 224KX5R1A-CP
MAIN-P.W.Board C550 08S35349Y16 CAP,CER 105K-B1A -CP
MAIN-P.W.Board C551 08S35349Y16 CAP,CER 105K-B1A -CP
MAIN-P.W.Board C552 08S65669Y03 CAP,CER 224KX7R1H-CP
MAIN-P.W.Board C554 08S45676W85 CAP,CER 104K-B1C -CP
MAIN-P.W.Board C555 08S45676W69 CAP,CER.472K-B1H -CP
MAIN-P.W.Board C556 08S45232Y03 CAP,CER 471K-B1H -CP
MAIN-P.W.Board C561 08S45676W73 CAP,CER.103K-B1H -CP
MAIN-P.W.Board C562 08S45676W80 CAP,CER 223K-B1E -CP
MAIN-P.W.Board C601 08S45232Y05 CAP,CER 102K-B1H -CP
MAIN-P.W.Board C602 08S45231Y13 CAP,CER 10RD-CH1H-CP
MAIN-P.W.Board C603 08S35374W12 CAP,CER 106K-B0J -CP
MAIN-P.W.Board C604 08S45232Y05 CAP,CER 102K-B1H -CP
MAIN-P.W.Board C605 08S45232Y05 CAP,CER 102K-B1H -CP
MAIN-P.W.Board C606 08S35374W12 CAP,CER 106K-B0J -CP
MAIN-P.W.Board C607 08S35374W12 CAP,CER 106K-B0J -CP
MAIN-P.W.Board C608 08S35374W12 CAP,CER 106K-B0J -CP
MAIN-P.W.Board C609 08S45232Y17 CAP,CER 104K-B0J -CP
MAIN-P.W.Board C610 08S35374W12 CAP,CER 106K-B0J -CP
MAIN-P.W.Board C611 08S45232Y17 CAP,CER 104K-B0J -CP
MAIN-P.W.Board C612 08S45232Y05 CAP,CER 102K-B1H -CP
MAIN-P.W.Board C613 08S45231Y13 CAP,CER 10RD-CH1H-CP
MAIN-P.W.Board C614 08S45232Y05 CAP,CER 102K-B1H -CP
MAIN-P.W.Board C615 08S45231Y13 CAP,CER 10RD-CH1H-CP
MAIN-P.W.Board C616 08S35349Y12 CAP,CER 105K-B0J -CP
MAIN-P.W.Board C617 08S45232Y05 CAP,CER 102K-B1H -CP
MAIN-P.W.Board C618 08S35349Y12 CAP,CER 105K-B0J -CP
MAIN-P.W.Board C619 08S35349Y12 CAP,CER 105K-B0J -CP
MAIN-P.W.Board C620 08S45232Y17 CAP,CER 104K-B0J -CP
MAIN-P.W.Board C621 08S45232Y17 CAP,CER 104K-B0J -CP
MAIN-P.W.Board C623 08S45231Y04 CAP,CER 1R5C-CK1H-CP
MAIN-P.W.Board C624 08S45231Y12 CAP,CER 9R0D-CH1H-CP
MAIN-P.W.Board C625 08S45231Y13 CAP,CER 10RD-CH1H-CP
MAIN-P.W.Board C704 08S45232Y14 CAP,CER 333K-B1C -CP
MAIN-P.W.Board C705 08S45232Y17 CAP,CER 104K-B0J -CP
MAIN-P.W.Board C706 08S35374W12 CAP,CER 106K-B0J -CP
MAIN-P.W.Board C707 08S35349Y17 CAP,CER 225K-B0J -CP
MAIN-P.W.Board C708 08S45231Y15 CAP,CER 15RJ-CH1H-CP
MAIN-P.W.Board C709 08S45232Y17 CAP,CER 104K-B0J -CP
MAIN-P.W.Board C710 08S45232Y08 CAP,CER 332K-B1H -CP
MAIN-P.W.Board C711 08S45676W69 CAP,CER.472K-B1H -CP
MAIN-P.W.Board C712 08S45232Y12 CAP,CER 153K-B1C -CP
MAIN-P.W.Board

C713 08S45232Y17 CAP,CER 104K-B0J -CP

MAIN-P.W.Board C714 08S45232Y17 CAP,CER 104K-B0J -CP
MAIN-P.W.Board C715 08S45232Y17 CAP,CER 104K-B0J -CP

MAIN-P.W.Board C716 08S45232Y17 CAP,CER 104K-B0J -CP
MAIN-P.W.Board C717 08S45232Y14 CAP,CER 333K-B1C -CP
MAIN-P.W.Board C718 08S45232Y14 CAP,CER 333K-B1C -CP
MAIN-P.W.Board C719 08S45232Y08 CAP,CER 332K-B1H -CP
MAIN-P.W.Board C720 08S45676W73 CAP,CER.103K-B1H -CP
MAIN-P.W.Board C721 08S45232Y14 CAP,CER 333K-B1C -CP
MAIN-P.W.Board C722 08S45232Y11 CAP,CER 103K-B1C -CP
MAIN-P.W.Board C723 08S45232Y17 CAP,CER 104K-B0J -CP
MAIN-P.W.Board C724 08S45231Y21 CAP,CER 47RJ-CH1H-CP
MAIN-P.W.Board C725 08S45232Y12 CAP,CER 153K-B1C -CP
MAIN-P.W.Board C726 08S45232Y07 CAP,CER 222K-B1H -CP
MAIN-P.W.Board C727 08S45232Y17 CAP,CER 104K-B0J -CP
MAIN-P.W.Board C728 08S45232Y14 CAP,CER 333K-B1C -CP
MAIN-P.W.Board C729 08S45232Y05 CAP,CER 102K-B1H -CP
MAIN-P.W.Board C730 08S35374W12 CAP,CER 106K-B0J -CP
MAIN-P.W.Board C733 08S45231Y15 CAP,CER 15RJ-CH1H-CP
MAIN-P.W.Board C734 08S45232Y17 CAP,CER 104K-B0J -CP
MAIN-P.W.Board C735 08S45232Y17 CAP,CER 104K-B0J -CP
MAIN-P.W.Board C736 08S45676W73 CAP,CER.103K-B1H -CP
MAIN-P.W.Board C737 08S35374W12 CAP,CER 106K-B0J -CP
MAIN-P.W.Board C738 08S45231Y38 CAP,CER 102J-CH1H-CP
MAIN-P.W.Board C739 08S65669Y03 CAP,CER 224KX7R1H-CP
MAIN-P.W.Board C740 08S45231Y28 CAP,CER 181J-CH1H-CP
MAIN-P.W.Board C741 08S45676W80 CAP,CER 223K-B1E -CP
MAIN-P.W.Board C742 08S65668Y05 CAP,CER 224KX5R1A-CP
MAIN-P.W.Board C744 08S65669Y03 CAP,CER 224KX7R1H-CP
MAIN-P.W.Board C745 08S65669Y03 CAP,CER 224KX7R1H-CP
MAIN-P.W.Board C746 08S65668Y05 CAP,CER 224KX5R1A-CP
MAIN-P.W.Board C747 08S65668Y05 CAP,CER 224KX5R1A-CP
MAIN-P.W.Board C748 08S45232Y05 CAP,CER 102K-B1H -CP
MAIN-P.W.Board C749 08S45232Y08 CAP,CER 332K-B1H -CP
MAIN-P.W.Board C750 08S65668Y05 CAP,CER 224KX5R1A-CP
MAIN-P.W.Board C752 08S45676W85 CAP,CER 104K-B1C -CP
MAIN-P.W.Board C754 08S45231Y15 CAP,CER 15RJ-CH1H-CP
MAIN-P.W.Board C755 08S45231Y15 CAP,CER 15RJ-CH1H-CP
MAIN-P.W.Board C756 08S45231Y15 CAP,CER 15RJ-CH1H-CP
MAIN-P.W.Board C801 08S45232Y21 CAP,CER 104K-B1A-CP
MAIN-P.W.Board C802 08S45232Y12 CAP,CER 153K-B1C -CP
MAIN-P.W.Board C803 08S45676W74 CAP,CER 123K-B1H -CP
MAIN-P.W.Board C804 08S45232Y01 CAP,CER 221K-B1H -CP
MAIN-P.W.Board C805 08S45232Y07 CAP,CER 222K-B1H -CP
MAIN-P.W.Board C809 08S65669Y03 CAP,CER 224KX7R1H-CP
MAIN-P.W.Board C810 08S45232Y21 CAP,CER 104K-B1A-CP
MAIN-P.W.Board C811 08S35349Y16 CAP,CER 105K-B1A -CP
MAIN-P.W.Board C813 08S65670Y07 CAP,CER 105KX5R1H-CP
MAIN-P.W.Board C814 08S65669Y03 CAP,CER 224KX7R1H-CP
MAIN-P.W.Board C815 08S65128F88 CAP,CER 104K-B1H -CP
MAIN-P.W.Board C816 08S35349Y16 CAP,CER 105K-B1A -CP
MAIN-P.W.Board C817 08S65669Y03 CAP,CER 224KX7R1H-CP
MAIN-P.W.Board C818 08S65669Y03 CAP,CER 224KX7R1H-CP
MAIN-P.W.Board C819 08S65669Y03 CAP,CER 224KX7R1H-CP
MAIN-P.W.Board

C820 08S65669Y03 CAP,CER 224KX7R1H-CP

MAIN-P.W.Board C821 08S65669Y03 CAP,CER 224KX7R1H-CP
MAIN-P.W.Board C822 08S65669Y03 CAP,CER 224KX7R1H-CP
MAIN-P.W.Board C823 08S45232Y05 CAP,CER 102K-B1H -CP

MAIN-P.W.Board C824 08S45676W73 CAP,CER.103K-B1H -CP
MAIN-P.W.Board C825 08S45676W89 CAP,CER 473K-B1E -CP
MAIN-P.W.Board C826 08S65669Y03 CAP,CER 224KX7R1H-CP
MAIN-P.W.Board C827 08S65669Y03 CAP,CER 224KX7R1H-CP
MAIN-P.W.Board C829 08S45676W85 CAP,CER 104K-B1C -CP
MAIN-P.W.Board C830 08S65669Y03 CAP,CER 224KX7R1H-CP
MAIN-P.W.Board C831 08S65669Y03 CAP,CER 224KX7R1H-CP
MAIN-P.W.Board C832 08S65669Y03 CAP,CER 224KX7R1H-CP
MAIN-P.W.Board C833 08S65669Y03 CAP,CER 224KX7R1H-CP
MAIN-P.W.Board C834 08S65669Y03 CAP,CER 224KX7R1H-CP
MAIN-P.W.Board C835 08S65669Y03 CAP,CER 224KX7R1H-CP
MAIN-P.W.Board C836 08S65669Y03 CAP,CER 224KX7R1H-CP
MAIN-P.W.Board C838 08S65670Y07 CAP,CER 105KX5R1H-CP
MAIN-P.W.Board C839 08S45231Y25 CAP,CER 101J-CH1H-CP
MAIN-P.W.Board C840 08S45677W36 CAP,CER.101J-CH1H-CP
MAIN-P.W.Board C841 08S45676W85 CAP,CER 104K-B1C -CP
MAIN-P.W.Board C842 08S65669Y03 CAP,CER 224KX7R1H-CP
MAIN-P.W.Board C843 08S65669Y03 CAP,CER 224KX7R1H-CP
MAIN-P.W.Board C846 08S65128F88 CAP,CER 104K-B1H -CP
MAIN-P.W.Board C870 08S45676W80 CAP,CER 223K-B1E -CP
MAIN-P.W.Board C871 08S45676W80 CAP,CER 223K-B1E -CP
MAIN-P.W.Board C901 08S65668Y05 CAP,CER 224KX5R1A-CP
MAIN-P.W.Board C902 08S65669Y03 CAP,CER 224KX7R1H-CP
MAIN-P.W.Board C903 08S65669Y03 CAP,CER 224KX7R1H-CP
MAIN-P.W.Board C905 08S45676W85 CAP,CER 104K-B1C -CP
MAIN-P.W.Board C906 08S45232Y11 CAP,CER 103K-B1C -CP
MAIN-P.W.Board C907 08S45232Y13 CAP,CER 223K-B1C -CP
MAIN-P.W.Board C908 08S45676W65 CAP,CER.222K-B1H -CP
MAIN-P.W.Board C909 08S35349Y16 CAP,CER 105K-B1A -CP

MAIN-P.W.Board CB301 09-27558Z01 ASSY,CCT-A21 -DB

MAIN-P.W.Board CB701 09T75287Y24 FFC,IMSA9631S-24Y-ED

MAIN-P.W.Board CH501 09-18738Z01 BTB,DF20-S -DB
MAIN-P.W.Board D101 48-17547Z01 DIO,DA3J101F0L -CP
MAIN-P.W.Board D300 48-07016Z01 DIO,KDS181-RTK -CP
MAIN-P.W.Board D301 48-07016Z01 DIO,KDS181-RTK -CP
MAIN-P.W.Board D302 48T75446Y01 DIO,RR264M-400 -CP
MAIN-P.W.Board D303 48T75527Y01 DIO,1SR154-400 -E1
MAIN-P.W.Board D304 48-07016Z01 DIO,KDS181-RTK -CP
MAIN-P.W.Board D307 48-05965Z01 DIO,1SS361-L -CP
MAIN-P.W.Board D309 48-05828Z01 DIO,1N5406G-04 ­MAIN-P.W.Board D800 48-07015Z01 DIO,KDS160-RTK -CP
MAIN-P.W.Board D802 48T75527Y01 DIO,1SR154-400 -E1
MAIN-P.W.Board D803 48T75527Y01 DIO,1SR154-400 -E1
MAIN-P.W.Board D804 48-07015Z01 DIO,KDS160-RTK -CP
MAIN-P.W.Board D806 48-07015Z01 DIO,KDS160-RTK -CP
MAIN-P.W.Board D807 48-05965Z01 DIO,1SS361-L -CP
MAIN-P.W.Board D870 48-12230Z01 DIO,KDS226-RTK -CP
MAIN-P.W.Board D871 48-12230Z01 DIO,KDS226-RTK -CP
MAIN-P.W.Board D872 48-07015Z01 DIO,KDS160-RTK -CP
MAIN-P.W.Board D873 48-07015Z01 DIO,KDS160-RTK -CP
MAIN-P.W.Board D901 48-07016Z02 DIO,KDS184-RTK -CP
MAIN-P.W.Board

E300 23S65134W52 CAP,ELY 3R3-1V(3)-E2

MAIN-P.W.Board E301 23T75346W03 CAP,X-PRO 332-1C +
MAIN-P.W.Board E302 23T75234Y06 CAP,MAR 22R-1C-E55E3

MAIN-P.W.Board E303 23S65134W52 CAP,ELY 3R3-1V(3)-E2
MAIN-P.W.Board E304 23S75244Y27 CAP,ELY 47R-1E -E6
MAIN-P.W.Board E305 23S65134W52 CAP,ELY 3R3-1V(3)-E2
MAIN-P.W.Board E306 23S65134W52 CAP,ELY 3R3-1V(3)-E2
MAIN-P.W.Board E307 23S65134W52 CAP,ELY 3R3-1V(3)-E2
MAIN-P.W.Board E308 23S65134W52 CAP,ELY 3R3-1V(3)-E2
MAIN-P.W.Board E311 23S65134W34 CAP,ELY 47R-1C(6)-E6
MAIN-P.W.Board E312 23T75234Y05 CAP,MAR 10R-1C-D55E2
MAIN-P.W.Board E313 23T75234Y05 CAP,MAR 10R-1C-D55E2
MAIN-P.W.Board E314 23T75234Y05 CAP,MAR 10R-1C-D55E2
MAIN-P.W.Board E315 23T75234Y05 CAP,MAR 10R-1C-D55E2
MAIN-P.W.Board E316 23T75234Y06 CAP,MAR 22R-1C-E55E3
MAIN-P.W.Board E317 23T75234Y05 CAP,MAR 10R-1C-D55E2
MAIN-P.W.Board E500 23S65134W51 CAP,ELY 2R2-1V(3)-E2
MAIN-P.W.Board E501 23S75244Y17 CAP,ELY 22R-1C -E2
MAIN-P.W.Board E502 23S65134W81 CAP,ELY 22R-1C(4)-E2
MAIN-P.W.Board E703 23S65134W35 CAP,ELY 101-1C(8)-E6
MAIN-P.W.Board E704 23T65679Y11 CAP,CD 47R-0J -E2
MAIN-P.W.Board E705 23S65134W35 CAP,ELY 101-1C(8)-E6
MAIN-P.W.Board E801 23S75244Y13 CAP,ELY 471-1A -EA
MAIN-P.W.Board E802 23S75244Y30 CAP,ELY 331-1E -EA
MAIN-P.W.Board E803 23S65134W13 CAP,ELY 101-0J(6)-E6
MAIN-P.W.Board E804 23S75244Y20 CAP,ELY 221-1C -E6
MAIN-P.W.Board E805 23S75244Y17 CAP,ELY 22R-1C -E2
MAIN-P.W.Board E807 23S75244Y09 CAP,ELY 22R-1A -E2
MAIN-P.W.Board E808 23S75244Y17 CAP,ELY 22R-1C -E2
MAIN-P.W.Board E809 23S65134W54 CAP,ELY 10R-1V(5)-E3
MAIN-P.W.Board E810 23T65114Y08 CAP,FK 471-0J-F -EA
MAIN-P.W.Board E811 23S65134W24 CAP,ELY 221-1A(8)-E6
MAIN-P.W.Board E812 23T75234Y19 CAP,MAR 101-1C-H63E6
MAIN-P.W.Board E813 23S75244Y28 CAP,ELY 101-1E -E6
MAIN-P.W.Board E814 23S65134W44 CAP,ELY 22R-1E(6)-E6
MAIN-P.W.Board E816 23S75244Y20 CAP,ELY 221-1C -E6
MAIN-P.W.Board E818 23S65134W47 CAP,ELY 101-1E(8)-E6
MAIN-P.W.Board E819 23S65134W80 CAP,ELY 10R-1C(3)-E2
MAIN-P.W.Board E822 23S65134W80 CAP,ELY 10R-1C(3)-E2
MAIN-P.W.Board E823 23S75244Y20 CAP,ELY 221-1C -E6
MAIN-P.W.Board E824 23S75244Y21 CAP,ELY 331-1C -EA
MAIN-P.W.Board E825 23S75244Y19 CAP,ELY 101-1C -E6
MAIN-P.W.Board E902 23S65134W24 CAP,ELY 221-1A(8)-E6

MAIN-P.W.Board ET801 09-30307Z01 ASSY,ANIC-0084-01A
MAIN-P.W.Board IC101 51-22873Z01 TEA6636HW/V103 -QT
MAIN-P.W.Board IC302 51-29909Z01 BD37067FV-ME2 -SE9
MAIN-P.W.Board IC303 51-25497Z01 STPA002 -ZS
MAIN-P.W.Board IC371 51-10945Z01 CS4344-DZZR -SE2
MAIN-P.W.Board IC501 83-26452Z86 15HU_1Din&2Din_R_lC501_Soft
MAIN-P.W.Board IC501 51-27561Z01 W25Q32FVSSIG -ST
MAIN-P.W.Board IC502 51T15185Y02 TC7SH08FU,JF-L -CP
MAIN-P.W.Board IC503 51T55336Y02 TC7SH04FU,JF-L -CP
MAIN-P.W.Board IC504 51-22801Z01 M24C32-WMN6TP -SE2
MAIN-P.W.Board IC505 51-27561Z01 W25Q32FVSSIG -ST
MAIN-P.W.Board

IC506 51-30400Z01 TMPM32BC2DFG-APN -QT

MAIN-P.W.Board IC507 51-30312Z01 AK5700VN-L -LE2
MAIN-P.W.Board IC601 51-24902Z01 TC35661IDBG -BE6

MAIN-P.W.Board IC701 51-16202Z01 TC94A92FG-301 -QT
MAIN-P.W.Board IC702 51-14737Z01 BD8226EFV-E2 -SE6
MAIN-P.W.Board IC801 51-20097Z02 AN33012UB-VB -SE6
MAIN-P.W.Board IC802 51-23576Z01 S-1172B1C-E6T1U -SE2
MAIN-P.W.Board IC803 51-13711Z02 TB2920AHQ -ZS
MAIN-P.W.Board IC804 51-20765Z24 S-1009N30H-M5T2U -CP
MAIN-P.W.Board IC805 51-06963Z01 NJU7741F15-TE1 -CP
MAIN-P.W.Board IC806 51-25207Z01 S-1172B33-U5T1U -NE2
MAIN-P.W.Board IC807 51-05862Z01 NJM2845DL1-33-TE1NE5
MAIN-P.W.Board IC808 51-06963Z01 NJU7741F15-TE1 -CP
MAIN-P.W.Board IC809 51-20765Z36 S-1009N42H-M5T2U -CP
MAIN-P.W.Board IC811 51-13565Z03 NJM2856DL3-33TE1-NE5
MAIN-P.W.Board IC901 51-26850Z01 MFI337S3959 -CP
MAIN-P.W.Board IC902 51T93532F05 TC4S01F-TE85L -CP
MAIN-P.W.Board IC903 51-11433Z01 RT9702AGB -CP

MAIN-P.W.Board JK300 09-25331Z01 RCA,RJ-1346B09-0H0DB

MAIN-P.W.Board JK901 09-14149Z01 JAC,CK3-3.5-14D -DB

MAIN-P.W.Board L101 24T95456W11 FBI,BLM18AG601SH1-CP
MAIN-P.W.Board L102 24T95458W07 FBI,BLM31PG601SH1-CP
MAIN-P.W.Board L103 24T95456W11 FBI,BLM18AG601SH1-CP
MAIN-P.W.Board L104 24T95456W11 FBI,BLM18AG601SH1-CP
MAIN-P.W.Board L105 24T95456W11 FBI,BLM18AG601SH1-CP
MAIN-P.W.Board L106 24T45482Y05 IND,LQH31HN R29J -CP
MAIN-P.W.Board L107 24T25164Y12 IND,FSLM2520 R82J-CP
MAIN-P.W.Board L108 24T25164Y19 IND,FSLM2520 3R3J-CP
MAIN-P.W.Board L109 24T55488Y37 IND,LLQ1608 R27J -CP
MAIN-P.W.Board L110 24T65645Y03 IND,LLM3225 561K -CP
MAIN-P.W.Board L111 24T65645Y03 IND,LLM3225 561K -CP
MAIN-P.W.Board L112 24T95459W07 FBI,BLM41PG102SH1-E1
MAIN-P.W.Board L113 24T95456W11 FBI,BLM18AG601SH1-CP
MAIN-P.W.Board L114 24T65645Y01 IND,LLM3225 4R7J -CP
MAIN-P.W.Board L115 24T95456W23 FBI,BLM18BD252SH1-CP
MAIN-P.W.Board L116 24T95456W23 FBI,BLM18BD252SH1-CP
MAIN-P.W.Board L117 24T95456W23 FBI,BLM18BD252SH1-CP
MAIN-P.W.Board L325 24T95456W27 FBI,BLM18PG181SH1-CP
MAIN-P.W.Board L501 24-06212Z13 FBI,BLM15BB100SH1-CP
MAIN-P.W.Board L502 24-06212Z13 FBI,BLM15BB100SH1-CP
MAIN-P.W.Board L503 24-06212Z07 FBI,BLM15BD601SH1-CP
MAIN-P.W.Board L504 24-06212Z11 FBI,BLM15BD471SH1-CP
MAIN-P.W.Board L505 24-06212Z11 FBI,BLM15BD471SH1-CP
MAIN-P.W.Board L506 24-06212Z11 FBI,BLM15BD471SH1-CP
MAIN-P.W.Board L507 24-06212Z11 FBI,BLM15BD471SH1-CP
MAIN-P.W.Board L701 24T95456W11 FBI,BLM18AG601SH1-CP
MAIN-P.W.Board L702 24T95456W07 FBI,BLM18BD102SH1-CP
MAIN-P.W.Board L703 24T95456W07 FBI,BLM18BD102SH1-CP
MAIN-P.W.Board L704 24T95456W07 FBI,BLM18BD102SH1-CP
MAIN-P.W.Board L801 24-25206Z01 IND,SFCB1280T33RM-EA
MAIN-P.W.Board PS301 48-16589Z01 POLY,SW SMDC075F -E2
MAIN-P.W.Board Q101 48-20742Z01 TR,BCX54 -E2
MAIN-P.W.Board Q300 48T75180Y04 TR,IMH23-T110 -CP
MAIN-P.W.Board Q301 48T75180Y04 TR,IMH23-T110 -CP
MAIN-P.W.Board

Q302 48-13000Z05 TR,LTC124EUBFS8-TLCP

MAIN-P.W.Board Q303 48T75180Y04 TR,IMH23-T110 -CP
MAIN-P.W.Board Q306 48-20093Z01 TR,DMC561010R -CP

MAIN-P.W.Board Q308 48-04929Z02 TR,KRC102S-RTK -CP
MAIN-P.W.Board Q309 48-04929Z03 TR,KRC103S-RTK -CP
MAIN-P.W.Board Q310 48T25737Y01 TR,UMD2N-TR -CP
MAIN-P.W.Board Q701 48-17707Z01 TR,DSA700300L -E2
MAIN-P.W.Board Q702 48-19949Z01 TR,DRC5143X -CP
MAIN-P.W.Board Q703 48T55462Y01 TR,2SB1132-QR-100-E2
MAIN-P.W.Board Q704 48-04940Z17 TR,KRA118S-RTK -CP
MAIN-P.W.Board Q705 48-13000Z01 TR,LTC114EUBFS8-TLCP
MAIN-P.W.Board Q801 48T25737Y01 TR,UMD2N-TR -CP
MAIN-P.W.Board Q802 48-04929Z03 TR,KRC103S-RTK -CP
MAIN-P.W.Board Q803 48T25737Y01 TR,UMD2N-TR -CP
MAIN-P.W.Board Q804 48-09581Z04 TR,KTA1505S-GRRTK-CP
MAIN-P.W.Board Q805 48-20288Z01 FET,MTM981400BBF -E2
MAIN-P.W.Board Q807 48-19949Z01 TR,DRC5143X -CP
MAIN-P.W.Board Q808 48-09581Z04 TR,KTA1505S-GRRTK-CP
MAIN-P.W.Board Q809 48T25737Y01 TR,UMD2N-TR -CP
MAIN-P.W.Board Q812 48-19949Z01 TR,DRC5143X -CP
MAIN-P.W.Board Q902 48-09583Z04 TR,KTA1504S-GRRTK-CP
MAIN-P.W.Board Q903 48-13000Z01 TR,LTC114EUBFS8-TLCP
MAIN-P.W.Board R101 06S15615Y25 RES,RK 101J 1/16 -CP
MAIN-P.W.Board R104 06S15616Y14 RES,RK 474J 1/16 -CP
MAIN-P.W.Board R107 06S15615Y25 RES,RK 101J 1/16 -CP
MAIN-P.W.Board R109 06S15615Y25 RES,RK 101J 1/16 -CP
MAIN-P.W.Board R110 06S15615Y25 RES,RK 101J 1/16 -CP
MAIN-P.W.Board R111 06S15616Y28 RES,RK 3R3J 1/16 -CP
MAIN-P.W.Board R113 06S15615Y25 RES,RK 101J 1/16 -CP
MAIN-P.W.Board R121 06S15616Y23 RES,RK JUMPER1/16-CP
MAIN-P.W.Board R196 06S65415Y11 RES,RK 68RF 1/16 -CP
MAIN-P.W.Board R197 06S45348Y38 RES,RK 474F 1/4 -CP
MAIN-P.W.Board R206 06S45348Y38 RES,RK 474F 1/4 -CP
MAIN-P.W.Board R207 06S15615Y25 RES,RK 101J 1/16 -CP
MAIN-P.W.Board R219 06S45674W57 RES,RK 102J 1/10 -CP
MAIN-P.W.Board R220 06S45674W57 RES,RK 102J 1/10 -CP
MAIN-P.W.Board R221 06S45674W57 RES,RK 102J 1/10 -CP
MAIN-P.W.Board R222 06S15615Y25 RES,RK 101J 1/16 -CP
MAIN-P.W.Board R223 06S45674W73 RES,RK 472J 1/10 -CP
MAIN-P.W.Board R224 06S45674W73 RES,RK 472J 1/10 -CP
MAIN-P.W.Board R225 06S45674W57 RES,RK 102J 1/10 -CP
MAIN-P.W.Board R231 06S15615Y48 RES,RK 911J 1/16 -CP
MAIN-P.W.Board R232 06S15615Y48 RES,RK 911J 1/16 -CP
MAIN-P.W.Board R233 06S15615Y48 RES,RK 911J 1/16 -CP
MAIN-P.W.Board R300 06S15593Y93 RES,RK 683F 1/10 -CP
MAIN-P.W.Board R301 06S70072F61 RES,CP .222-J-1/4-CP
MAIN-P.W.Board R302 06S15593Y93 RES,RK 683F 1/10 -CP
MAIN-P.W.Board R303 06S15593Y93 RES,RK 683F 1/10 -CP
MAIN-P.W.Board R304 06S45674W81 RES,RK 103J 1/10 -CP
MAIN-P.W.Board R305 06S70072F77 RES,CP .103-J-1/4-CP
MAIN-P.W.Board R306 06S15593Y93 RES,RK 683F 1/10 -CP
MAIN-P.W.Board R307 06S15615Y37 RES,RK 331J 1/16 -CP
MAIN-P.W.Board R308 06S15615Y37 RES,RK 331J 1/16 -CP
MAIN-P.W.Board R309 06S15593Y93 RES,RK 683F 1/10 -CP
MAIN-P.W.Board

R310 06S15593Y93 RES,RK 683F 1/10 -CP

MAIN-P.W.Board R311 06S64995F37 RES,RK 221J 1/8 -CP
MAIN-P.W.Board R312 06S64995F37 RES,RK 221J 1/8 -CP
MAIN-P.W.Board R313 06S64995F37 RES,RK 221J 1/8 -CP

MAIN-P.W.Board R314 06S64995F37 RES,RK 221J 1/8 -CP
MAIN-P.W.Board R315 06S64995F37 RES,RK 221J 1/8 -CP
MAIN-P.W.Board R316 06S64995F37 RES,RK 221J 1/8 -CP
MAIN-P.W.Board R317 06S64995F29 RES,RK 101J 1/8 -CP
MAIN-P.W.Board R319 06S64995F29 RES,RK 101J 1/8 -CP
MAIN-P.W.Board R320 06S64995F29 RES,RK 101J 1/8 -CP
MAIN-P.W.Board R321 06S64995F29 RES,RK 101J 1/8 -CP
MAIN-P.W.Board R322 06S64995F29 RES,RK 101J 1/8 -CP
MAIN-P.W.Board R323 06S64995F29 RES,RK 101J 1/8 -CP
MAIN-P.W.Board R327 06S15615Y73 RES,RK 103J 1/16 -CP
MAIN-P.W.Board R328 06S15615Y81 RES,RK 223J 1/16 -CP
MAIN-P.W.Board R329 06S45674W41 RES,RK 221J 1/10 -CP
MAIN-P.W.Board R330 06S45674W41 RES,RK 221J 1/10 -CP
MAIN-P.W.Board R331 06S45674W41 RES,RK 221J 1/10 -CP
MAIN-P.W.Board R332 06S45674W41 RES,RK 221J 1/10 -CP
MAIN-P.W.Board R338 06S15615Y25 RES,RK 101J 1/16 -CP
MAIN-P.W.Board R339 06S15615Y25 RES,RK 101J 1/16 -CP
MAIN-P.W.Board R340 06S15615Y25 RES,RK 101J 1/16 -CP
MAIN-P.W.Board R341 06S15615Y97 RES,RK 104J 1/16 -CP
MAIN-P.W.Board R342 06S15615Y25 RES,RK 101J 1/16 -CP
MAIN-P.W.Board R343 06S15615Y81 RES,RK 223J 1/16 -CP
MAIN-P.W.Board R344 06S15615Y73 RES,RK 103J 1/16 -CP
MAIN-P.W.Board R345 06S45674W41 RES,RK 221J 1/10 -CP
MAIN-P.W.Board R346 06S15615Y77 RES,RK 153J 1/16 -CP
MAIN-P.W.Board R347 06S15615Y73 RES,RK 103J 1/16 -CP
MAIN-P.W.Board R348 06S15615Y25 RES,RK 101J 1/16 -CP
MAIN-P.W.Board R349 06S45674W97 RES,RK 473J 1/10 -CP
MAIN-P.W.Board R350 06S70072F29 RES,CP .101-J-1/4-CP
MAIN-P.W.Board R351 06S15615Y73 RES,RK 103J 1/16 -CP
MAIN-P.W.Board R352 06S15615Y73 RES,RK 103J 1/16 -CP
MAIN-P.W.Board R353 06S15615Y81 RES,RK 223J 1/16 -CP
MAIN-P.W.Board R355 06S15615Y33 RES,RK 221J 1/16 -CP
MAIN-P.W.Board R356 06S15615Y33 RES,RK 221J 1/16 -CP
MAIN-P.W.Board R357 06S35095Y08 RES,RK JUMPER 1/4-CP
MAIN-P.W.Board R501 06S15615Y25 RES,RK 101J 1/16 -CP
MAIN-P.W.Board R502 06S45674W81 RES,RK 103J 1/10 -CP
MAIN-P.W.Board R503 06S45674W57 RES,RK 102J 1/10 -CP
MAIN-P.W.Board R504 06S45674W81 RES,RK 103J 1/10 -CP
MAIN-P.W.Board R505 06S70072F53 RES,CP .102-J-1/4-CP
MAIN-P.W.Board R506 06S15593Y73 RES,RK 103F 1/10 -CP
MAIN-P.W.Board R507 06S45674W57 RES,RK 102J 1/10 -CP
MAIN-P.W.Board R508 06S15615Y73 RES,RK 103J 1/16 -CP
MAIN-P.W.Board R509 06S15593Y73 RES,RK 103F 1/10 -CP
MAIN-P.W.Board R510 06S45674W57 RES,RK 102J 1/10 -CP
MAIN-P.W.Board R511 06S45674W57 RES,RK 102J 1/10 -CP
MAIN-P.W.Board R512 06S45674W57 RES,RK 102J 1/10 -CP
MAIN-P.W.Board R513 06S45674W57 RES,RK 102J 1/10 -CP
MAIN-P.W.Board R514 06S45674W57 RES,RK 102J 1/10 -CP
MAIN-P.W.Board R515 06S15594Y23 RES,RK JUMPER1/10-CP
MAIN-P.W.Board R516 06S45674W89 RES,RK 223J 1/10 -CP
MAIN-P.W.Board R517 06S45674W57 RES,RK 102J 1/10 -CP
MAIN-P.W.Board

R518 06S15594Y23 RES,RK JUMPER1/10-CP

MAIN-P.W.Board R519 06S45674W57 RES,RK 102J 1/10 -CP
MAIN-P.W.Board R520 06S15594Y23 RES,RK JUMPER1/10-CP

MAIN-P.W.Board R521 06S45674W89 RES,RK 223J 1/10 -CP
MAIN-P.W.Board R522 06S15615Y89 RES,RK 473J 1/16 -CP
MAIN-P.W.Board R524 06S15615Y37 RES,RK 331J 1/16 -CP
MAIN-P.W.Board R525 06S15615Y49 RES,RK 102J 1/16 -CP
MAIN-P.W.Board R527 06S45675W43 RES,RK JUMPER1/10-CP
MAIN-P.W.Board R533 06S15615Y77 RES,RK 153J 1/16 -CP
MAIN-P.W.Board R534 06S15615Y77 RES,RK 153J 1/16 -CP
MAIN-P.W.Board R535 06S65415Y09 RES,RK 47RF 1/16 -CP
MAIN-P.W.Board R536 06S65415Y09 RES,RK 47RF 1/16 -CP
MAIN-P.W.Board R538 06S15615Y89 RES,RK 473J 1/16 -CP
MAIN-P.W.Board R539 06S45674W89 RES,RK 223J 1/10 -CP
MAIN-P.W.Board R540 06S15615Y89 RES,RK 473J 1/16 -CP
MAIN-P.W.Board R541 06S15615Y81 RES,RK 223J 1/16 -CP
MAIN-P.W.Board R542 06S15616Y23 RES,RK JUMPER1/16-CP
MAIN-P.W.Board R543 06S45674W89 RES,RK 223J 1/10 -CP
MAIN-P.W.Board R544 06S15615Y89 RES,RK 473J 1/16 -CP
MAIN-P.W.Board R545 06S15615Y37 RES,RK 331J 1/16 -CP
MAIN-P.W.Board R547 06S15615Y33 RES,RK 221J 1/16 -CP
MAIN-P.W.Board R548 06S15615Y37 RES,RK 331J 1/16 -CP
MAIN-P.W.Board R549 06S15615Y25 RES,RK 101J 1/16 -CP
MAIN-P.W.Board R550 06S15615Y89 RES,RK 473J 1/16 -CP
MAIN-P.W.Board R551 06S15615Y25 RES,RK 101J 1/16 -CP
MAIN-P.W.Board R552 06S15615Y37 RES,RK 331J 1/16 -CP
MAIN-P.W.Board R553 06S15615Y34 RES,RK 241J 1/16 -CP
MAIN-P.W.Board R554 06S15615Y25 RES,RK 101J 1/16 -CP
MAIN-P.W.Board R555 06S15615Y49 RES,RK 102J 1/16 -CP
MAIN-P.W.Board R558 06S45674W81 RES,RK 103J 1/10 -CP
MAIN-P.W.Board R559 06S15615Y25 RES,RK 101J 1/16 -CP
MAIN-P.W.Board R560 06S15615Y25 RES,RK 101J 1/16 -CP
MAIN-P.W.Board R561 06S15615Y73 RES,RK 103J 1/16 -CP
MAIN-P.W.Board R562 06S45674W81 RES,RK 103J 1/10 -CP
MAIN-P.W.Board R564 06S15615Y25 RES,RK 101J 1/16 -CP
MAIN-P.W.Board R568 06S45674W81 RES,RK 103J 1/10 -CP
MAIN-P.W.Board R569 06S45674W81 RES,RK 103J 1/10 -CP
MAIN-P.W.Board R570 06S15615Y25 RES,RK 101J 1/16 -CP
MAIN-P.W.Board R571 06S15615Y25 RES,RK 101J 1/16 -CP
MAIN-P.W.Board R572 06S45674W81 RES,RK 103J 1/10 -CP
MAIN-P.W.Board R573 06S45674W81 RES,RK 103J 1/10 -CP
MAIN-P.W.Board R574 06S64996F26 RES,RK 105J 1/8 -CP
MAIN-P.W.Board R576 06S15615Y25 RES,RK 101J 1/16 -CP
MAIN-P.W.Board R577 06S15615Y59 RES,RK 272J 1/16 -CP
MAIN-P.W.Board R578 06S15615Y59 RES,RK 272J 1/16 -CP
MAIN-P.W.Board R579 06S15615Y25 RES,RK 101J 1/16 -CP
MAIN-P.W.Board R580 06S15615Y25 RES,RK 101J 1/16 -CP
MAIN-P.W.Board R581 06S15615Y59 RES,RK 272J 1/16 -CP
MAIN-P.W.Board R582 06S15615Y59 RES,RK 272J 1/16 -CP
MAIN-P.W.Board R583 06S15615Y73 RES,RK 103J 1/16 -CP
MAIN-P.W.Board R584 06S15615Y25 RES,RK 101J 1/16 -CP
MAIN-P.W.Board R585 06S15615Y25 RES,RK 101J 1/16 -CP
MAIN-P.W.Board R586 06S15615Y73 RES,RK 103J 1/16 -CP
MAIN-P.W.Board R587 06S15615Y73 RES,RK 103J 1/16 -CP
MAIN-P.W.Board

R588 06S15615Y73 RES,RK 103J 1/16 -CP

MAIN-P.W.Board R589 06S15616Y23 RES,RK JUMPER1/16-CP
MAIN-P.W.Board R590 06S15615Y73 RES,RK 103J 1/16 -CP
MAIN-P.W.Board R591 06S15593Y49 RES,RK 102F 1/10 -CP

MAIN-P.W.Board R592 06S15593Y41 RES,RK 471F 1/10 -CP
MAIN-P.W.Board R593 06S15615Y73 RES,RK 103J 1/16 -CP
MAIN-P.W.Board R594 06S15615Y73 RES,RK 103J 1/16 -CP
MAIN-P.W.Board R595 06S15615Y73 RES,RK 103J 1/16 -CP
MAIN-P.W.Board R596 06S15615Y73 RES,RK 103J 1/16 -CP
MAIN-P.W.Board R597 06S15615Y81 RES,RK 223J 1/16 -CP
MAIN-P.W.Board R598 06S15615Y81 RES,RK 223J 1/16 -CP
MAIN-P.W.Board R599 06S15615Y25 RES,RK 101J 1/16 -CP
MAIN-P.W.Board R600 06S15615Y89 RES,RK 473J 1/16 -CP
MAIN-P.W.Board R601 06S15615Y25 RES,RK 101J 1/16 -CP
MAIN-P.W.Board R602 06S15615Y89 RES,RK 473J 1/16 -CP
MAIN-P.W.Board R603 06S15615Y89 RES,RK 473J 1/16 -CP
MAIN-P.W.Board R604 06S15615Y49 RES,RK 102J 1/16 -CP
MAIN-P.W.Board R605 06S64996F26 RES,RK 105J 1/8 -CP
MAIN-P.W.Board R606 06S15616Y23 RES,RK JUMPER1/16-CP
MAIN-P.W.Board R607 06S15616Y23 RES,RK JUMPER1/16-CP
MAIN-P.W.Board R610 06S15615Y73 RES,RK 103J 1/16 -CP
MAIN-P.W.Board R611 06S15615Y73 RES,RK 103J 1/16 -CP
MAIN-P.W.Board R612 06S15615Y25 RES,RK 101J 1/16 -CP
MAIN-P.W.Board R613 06S15615Y25 RES,RK 101J 1/16 -CP
MAIN-P.W.Board R614 06S15615Y73 RES,RK 103J 1/16 -CP
MAIN-P.W.Board R618 06S15615Y25 RES,RK 101J 1/16 -CP
MAIN-P.W.Board R620 06S45675W43 RES,RK JUMPER1/10-CP
MAIN-P.W.Board R621 06S45675W43 RES,RK JUMPER1/10-CP
MAIN-P.W.Board R622 06S15616Y23 RES,RK JUMPER1/16-CP
MAIN-P.W.Board R623 06S15615Y25 RES,RK 101J 1/16 -CP
MAIN-P.W.Board R624 06S15616Y23 RES,RK JUMPER1/16-CP
MAIN-P.W.Board R625 06S15616Y23 RES,RK JUMPER1/16-CP
MAIN-P.W.Board R626 06S15616Y23 RES,RK JUMPER1/16-CP
MAIN-P.W.Board R627 06S15616Y23 RES,RK JUMPER1/16-CP
MAIN-P.W.Board R631 06S15615Y25 RES,RK 101J 1/16 -CP
MAIN-P.W.Board R632 06S15615Y25 RES,RK 101J 1/16 -CP
MAIN-P.W.Board R633 06S15615Y25 RES,RK 101J 1/16 -CP
MAIN-P.W.Board R634 06S15616Y23 RES,RK JUMPER1/16-CP
MAIN-P.W.Board R635 06S15616Y23 RES,RK JUMPER1/16-CP
MAIN-P.W.Board R636 06S15615Y33 RES,RK 221J 1/16 -CP
MAIN-P.W.Board R637 06S15616Y23 RES,RK JUMPER1/16-CP
MAIN-P.W.Board R638 06S15615Y33 RES,RK 221J 1/16 -CP
MAIN-P.W.Board R639 06S15615Y33 RES,RK 221J 1/16 -CP
MAIN-P.W.Board R640 06S15616Y23 RES,RK JUMPER1/16-CP
MAIN-P.W.Board R642 06S15616Y23 RES,RK JUMPER1/16-CP
MAIN-P.W.Board R643 06S15615Y97 RES,RK 104J 1/16 -CP
MAIN-P.W.Board R644 06S15615Y25 RES,RK 101J 1/16 -CP
MAIN-P.W.Board R645 06S15615Y25 RES,RK 101J 1/16 -CP
MAIN-P.W.Board R646 06S70072F53 RES,CP .102-J-1/4-CP
MAIN-P.W.Board R647 06S15615Y25 RES,RK 101J 1/16 -CP
MAIN-P.W.Board R648 06S15615Y25 RES,RK 101J 1/16 -CP
MAIN-P.W.Board R649 06S15615Y25 RES,RK 101J 1/16 -CP
MAIN-P.W.Board R650 06S15615Y25 RES,RK 101J 1/16 -CP
MAIN-P.W.Board R651 06S15615Y25 RES,RK 101J 1/16 -CP
MAIN-P.W.Board R652 06S15615Y25 RES,RK 101J 1/16 -CP
MAIN-P.W.Board

R653 06S15615Y25 RES,RK 101J 1/16 -CP

MAIN-P.W.Board R655 06S15616Y23 RES,RK JUMPER1/16-CP
MAIN-P.W.Board R657 06S45674W57 RES,RK 102J 1/10 -CP

MAIN-P.W.Board R658 06S15615Y25 RES,RK 101J 1/16 -CP
MAIN-P.W.Board R659 06S15615Y25 RES,RK 101J 1/16 -CP
MAIN-P.W.Board R660 06S45674W81 RES,RK 103J 1/10 -CP
MAIN-P.W.Board R661 06S45674W57 RES,RK 102J 1/10 -CP
MAIN-P.W.Board R662 06S45674W97 RES,RK 473J 1/10 -CP
MAIN-P.W.Board R663 06S15615Y33 RES,RK 221J 1/16 -CP
MAIN-P.W.Board R664 06S15615Y33 RES,RK 221J 1/16 -CP
MAIN-P.W.Board R665 06S15615Y33 RES,RK 221J 1/16 -CP
MAIN-P.W.Board R666 06S15615Y33 RES,RK 221J 1/16 -CP
MAIN-P.W.Board R667 06S15615Y89 RES,RK 473J 1/16 -CP
MAIN-P.W.Board R668 06S45674W57 RES,RK 102J 1/10 -CP
MAIN-P.W.Board R684 06S15616Y23 RES,RK JUMPER1/16-CP
MAIN-P.W.Board R701 06S45674W90 RES,RK 243J 1/10 -CP
MAIN-P.W.Board R702 06S70072F66 RES,CP .362-J-1/4-CP
MAIN-P.W.Board R703 06S15615Y89 RES,RK 473J 1/16 -CP
MAIN-P.W.Board R704 06S15615Y89 RES,RK 473J 1/16 -CP
MAIN-P.W.Board R706 06S45675W30 RES,RK 105J 1/10 -CP
MAIN-P.W.Board R707 06S45674W41 RES,RK 221J 1/10 -CP
MAIN-P.W.Board R708 06S15615Y89 RES,RK 473J 1/16 -CP
MAIN-P.W.Board R709 06S15615Y89 RES,RK 473J 1/16 -CP
MAIN-P.W.Board R710 06S15616Y18 RES,RK 684J 1/16 -CP
MAIN-P.W.Board R711 06S15615Y77 RES,RK 153J 1/16 -CP
MAIN-P.W.Board R712 06S15615Y89 RES,RK 473J 1/16 -CP
MAIN-P.W.Board R713 06S15615Y83 RES,RK 273J 1/16 -CP
MAIN-P.W.Board R714 06S45674W61 RES,RK 152J 1/10 -CP
MAIN-P.W.Board R715 06S15615Y25 RES,RK 101J 1/16 -CP
MAIN-P.W.Board R716 06S15615Y91 RES,RK 563J 1/16 -CP
MAIN-P.W.Board R718 06S15615Y63 RES,RK 392J 1/16 -CP
MAIN-P.W.Board R719 06S15615Y25 RES,RK 101J 1/16 -CP
MAIN-P.W.Board R720 06S15615Y91 RES,RK 563J 1/16 -CP
MAIN-P.W.Board R721 06S15615Y85 RES,RK 333J 1/16 -CP
MAIN-P.W.Board R730 06S70072F90 RES,CP .1R0-J-1/4-CP
MAIN-P.W.Board R732 06S15615Y73 RES,RK 103J 1/16 -CP
MAIN-P.W.Board R733 06S15615Y81 RES,RK 223J 1/16 -CP
MAIN-P.W.Board R734 06S15615Y72 RES,RK 912J 1/16 -CP
MAIN-P.W.Board R735 06S15615Y72 RES,RK 912J 1/16 -CP
MAIN-P.W.Board R736 06S15615Y72 RES,RK 912J 1/16 -CP
MAIN-P.W.Board R737 06S15615Y73 RES,RK 103J 1/16 -CP
MAIN-P.W.Board R738 06S15616Y23 RES,RK JUMPER1/16-CP
MAIN-P.W.Board R739 06S15616Y36 RES,RK 225J 1/16 -CP
MAIN-P.W.Board R740 06S70072F33 RES,CP .151-J-1/4-CP
MAIN-P.W.Board R800 06S45674W81 RES,RK 103J 1/10 -CP
MAIN-P.W.Board R801 06S45674W81 RES,RK 103J 1/10 -CP
MAIN-P.W.Board R802 06S15593Y90 RES,RK 513F 1/10 -CP
MAIN-P.W.Board R803 06S15593Y92 RES,RK 623F 1/10 -CP
MAIN-P.W.Board R804 06S15615Y25 RES,RK 101J 1/16 -CP
MAIN-P.W.Board R805 06S15616Y06 RES,RK 224J 1/16 -CP
MAIN-P.W.Board R806 06S15593Y76 RES,RK 133F 1/10 -CP
MAIN-P.W.Board R807 06S45675W06 RES,RK 104J 1/10 -CP
MAIN-P.W.Board R808 06S65415Y51 RES,RK 154F 1/16 -CP
MAIN-P.W.Board R814 06S35084Y47 RES,RK 683F 1/8 -CP
MAIN-P.W.Board

R815 06S65415Y47 RES,RK 683F 1/16 -CP

MAIN-P.W.Board R816 06S15615Y68 RES,RK 622J 1/16 -CP
MAIN-P.W.Board R817 06S70072F37 RES,CP .221-J-1/4-CP
MAIN-P.W.Board R818 06S65415Y40 RES,RK 183F 1/16 -CP

MAIN-P.W.Board R819 06S65415Y50 RES,RK 124F 1/16 -CP
MAIN-P.W.Board R820 06S65415Y43 RES,RK 333F 1/16 -CP
MAIN-P.W.Board R821 06S70072F77 RES,CP .103-J-1/4-CP
MAIN-P.W.Board R822 06S35083Y41 RES,RK 223F 1/4 -CP
MAIN-P.W.Board R823 06S15615Y59 RES,RK 272J 1/16 -CP
MAIN-P.W.Board R824 06S35083Y41 RES,RK 223F 1/4 -CP
MAIN-P.W.Board R825 06S15593Y77 RES,RK 153F 1/10 -CP
MAIN-P.W.Board R826 06S35083Y44 RES,RK 393F 1/4 -CP
MAIN-P.W.Board R827 06S70072F37 RES,CP .221-J-1/4-CP
MAIN-P.W.Board R829 06S15615Y37 RES,RK 331J 1/16 -CP
MAIN-P.W.Board R830 06S45674W90 RES,RK 243J 1/10 -CP
MAIN-P.W.Board R832 06S15616Y23 RES,RK JUMPER1/16-CP
MAIN-P.W.Board R833 06S15615Y49 RES,RK 102J 1/16 -CP
MAIN-P.W.Board R834 06S70072F77 RES,CP .103-J-1/4-CP
MAIN-P.W.Board R837 06S65415Y94 RES,RK 202F 1/16 -CP
MAIN-P.W.Board R839 06S15593Y92 RES,RK 623F 1/10 -CP
MAIN-P.W.Board R841 06S15615Y57 RES,RK 222J 1/16 -CP
MAIN-P.W.Board R842 06S45674W61 RES,RK 152J 1/10 -CP
MAIN-P.W.Board R843 06S15615Y69 RES,RK 682J 1/16 -CP
MAIN-P.W.Board R844 06S15615Y98 RES,RK 114J 1/16 -CP
MAIN-P.W.Board R845 06S35083Y34 RES,RK 562F 1/4 -CP
MAIN-P.W.Board R846 06S15615Y86 RES,RK 363J 1/16 -CP
MAIN-P.W.Board R847 06S35083Y45 RES,RK 473F 1/4 -CP
MAIN-P.W.Board R848 06S70072F69 RES,CP .472-J-1/4-CP
MAIN-P.W.Board R849 06S15615Y66 RES,RK 512J 1/16 -CP
MAIN-P.W.Board R850 06S15615Y99 RES,RK 124J 1/16 -CP
MAIN-P.W.Board R851 06S15615Y66 RES,RK 512J 1/16 -CP
MAIN-P.W.Board R852 06S15615Y98 RES,RK 114J 1/16 -CP
MAIN-P.W.Board R854 06S45675W43 RES,RK JUMPER1/10-CP
MAIN-P.W.Board R857 06S45674W90 RES,RK 243J 1/10 -CP
MAIN-P.W.Board R858 06S15616Y11 RES,RK 364J 1/16 -CP
MAIN-P.W.Board R859 06S45674W98 RES,RK 513J 1/10 -CP
MAIN-P.W.Board R862 06S15615Y71 RES,RK 822J 1/16 -CP
MAIN-P.W.Board R864 06S15616Y10 RES,RK 334J 1/16 -CP
MAIN-P.W.Board R865 06S15615Y93 RES,RK 683J 1/16 -CP
MAIN-P.W.Board R866 06S15615Y66 RES,RK 512J 1/16 -CP
MAIN-P.W.Board R867 06S15615Y95 RES,RK 823J 1/16 -CP
MAIN-P.W.Board R870 06S70072F77 RES,CP .103-J-1/4-CP
MAIN-P.W.Board R871 06S70072F77 RES,CP .103-J-1/4-CP
MAIN-P.W.Board R872 06S45675W22 RES,RK 474J 1/10 -CP
MAIN-P.W.Board R873 06S45675W22 RES,RK 474J 1/10 -CP
MAIN-P.W.Board R874 06S35083Y25 RES,RK 102F 1/4 -CP
MAIN-P.W.Board R875 06S35083Y25 RES,RK 102F 1/4 -CP
MAIN-P.W.Board R901 06S15615Y57 RES,RK 222J 1/16 -CP
MAIN-P.W.Board R902 06S15615Y57 RES,RK 222J 1/16 -CP
MAIN-P.W.Board R903 06S15615Y25 RES,RK 101J 1/16 -CP
MAIN-P.W.Board R904 06S15615Y49 RES,RK 102J 1/16 -CP
MAIN-P.W.Board R905 06S15615Y25 RES,RK 101J 1/16 -CP
MAIN-P.W.Board R906 06S45675W43 RES,RK JUMPER1/10-CP
MAIN-P.W.Board R907 06S15615Y25 RES,RK 101J 1/16 -CP
MAIN-P.W.Board R908 06S15615Y49 RES,RK 102J 1/16 -CP
MAIN-P.W.Board

R909 06S65415Y11 RES,RK 68RF 1/16 -CP

MAIN-P.W.Board R911 06S45675W30 RES,RK 105J 1/10 -CP
MAIN-P.W.Board R912 06S45674W89 RES,RK 223J 1/10 -CP

MAIN-P.W.Board R913 06S70072F29 RES,CP .101-J-1/4-CP
MAIN-P.W.Board R914 06S15615Y57 RES,RK 222J 1/16 -CP
MAIN-P.W.Board R915 06S45674W69 RES,RK 332J 1/10 -CP
MAIN-P.W.Board R916 06S45674W89 RES,RK 223J 1/10 -CP
MAIN-P.W.Board R917 06S45674W57 RES,RK 102J 1/10 -CP
MAIN-P.W.Board RA501 06S15771Y13 RES,ARYEXB28V101J-CP
MAIN-P.W.Board RA701 06S15771Y33 RES,ARY 472J 4 -CP
MAIN-P.W.Board RA702 06S15771Y33 RES,ARY 472J 4 -CP
MAIN-P.W.Board RA703 06S15771Y13 RES,ARYEXB28V101J-CP
MAIN-P.W.Board RA704 06S15771Y13 RES,ARYEXB28V101J-CP
MAIN-P.W.Board RA705 06S15771Y13 RES,ARYEXB28V101J-CP
MAIN-P.W.Board RA706 06S15771Y13 RES,ARYEXB28V101J-CP
MAIN-P.W.Board RA707 06S15771Y45 RES,ARYEXB28V473J-CP
MAIN-P.W.Board RA708 06S15771Y45 RES,ARYEXB28V473J-CP
MAIN-P.W.Board SA101 08-19391Z01 VST,IMSA-6803-01Y-CP
MAIN-P.W.Board SD801 48-19296Z01 DIO,SHT RB056L-40-E1
MAIN-P.W.Board SF601 91-25003Z01 SAW,B39242B3912U -E1
MAIN-P.W.Board SW501 40T16096W03 SW ,TACT SKHHLW

MAIN-P.W.Board T302 25-27559Z01 CHOKE,DGJ-A01 -DB
MAIN-P.W.Board VR801 18-12468Z11 VAR,EVM2NSX80 224-CP
MAIN-P.W.Board VT101 24-28469Z01 COIL,RF FM 5CCEG -E6
MAIN-P.W.Board XL101 91-24701Z03 XTL,DSX321G 62.40-CP
MAIN-P.W.Board XL502 91-24701Z02 XTL,DSX321G 12.00-CP
MAIN-P.W.Board XL601 91-26676Z01 XTL,DSX321G 26.00-CP
MAIN-P.W.Board XL701 91-24701Z01 XTL,DSX321G 16.93-CP
MAIN-P.W.Board Z502 91T75196Y01 EMI,BK1005HM102 -CP
MAIN-P.W.Board Z503 91T15509Y08 EMI,BK1608HM102 -CP
MAIN-P.W.Board Z504 91T15509Y08 EMI,BK1608HM102 -CP
MAIN-P.W.Board Z505 91T15509Y08 EMI,BK1608HM102 -CP
MAIN-P.W.Board Z506 91T15509Y08 EMI,BK1608HM102 -CP
MAIN-P.W.Board Z507 91T15509Y08 EMI,BK1608HM102 -CP
MAIN-P.W.Board Z508 91T15509Y08 EMI,BK1608HM102 -CP
MAIN-P.W.Board Z509 91T75196Y01 EMI,BK1005HM102 -CP
MAIN-P.W.Board Z701 91T75196Y08 EMI,BK1005HW601 -CP
MAIN-P.W.Board ZD501 48-18196Z02 DIO,ZEN DZ2S051M0LCP
MAIN-P.W.Board ZD502 48-18196Z02 DIO,ZEN DZ2S051M0LCP
MAIN-P.W.Board ZD503 48-21149Z19 DIO,ZEN DZ2J051L0LCP
MAIN-P.W.Board ZD801 48-07043Z37 DIO,ZEN KDZ11V -CP
MAIN-P.W.Board ZD802 48-21149Z26 DIO,ZEN DZ2J062M0LCP
MAIN-P.W.Board ZD803 48-01607Z08 DIO,ZEN LUDZ3.9B -CP
FRONT-P.W.Board C403 08S45676W65 CAP,CER.222K-B1H -CP
FRONT-P.W.Board C404 08S45232Y15 CAP,CER 473K-B1A -CP
FRONT-P.W.Board C405 08S45232Y15 CAP,CER 473K-B1A -CP
FRONT-P.W.Board C408 08S45676W80 CAP,CER 223K-B1E -CP
FRONT-P.W.Board C409 08S45232Y04 CAP,CER 681K-B1H -CP
FRONT-P.W.Board C410 08S35349Y12 CAP,CER 105K-B0J -CP
FRONT-P.W.Board C411 08S35349Y17 CAP,CER 225K-B0J -CP
FRONT-P.W.Board C412 08S45232Y15 CAP,CER 473K-B1A -CP
FRONT-P.W.Board C414 08S45232Y17 CAP,CER 104K-B0J -CP
FRONT-P.W.Board C415 08S35374W10 CAP,CER 225K-B1A -CP
FRONT-P.W.Board C416 08S45232Y17 CAP,CER 104K-B0J -CP
FRONT-P.W.Board

C417 08S35349Y17 CAP,CER 225K-B0J -CP

FRONT-P.W.Board CB401 09-18716Z01 BTB,DF20-P -EJ

FRONT-P.W.Board D401 48-12230Z01 DIO,KDS226-RTK -CP

FRONT-P.W.Board D402 48-12230Z01 DIO,KDS226-RTK -CP
FRONT-P.W.Board D403 48-12230Z01 DIO,KDS226-RTK -CP
FRONT-P.W.Board D404 48-07015Z01 DIO,KDS160-RTK -CP
FRONT-P.W.Board D406 48-12230Z01 DIO,KDS226-RTK -CP
FRONT-P.W.Board IC400 51-28064Z01 BH2228FV-E2 -SE2
FRONT-P.W.Board IC401 51-02442Z01 PT6578LQ(L) -QT
FRONT-P.W.Board IC402 51-18623Z01 PNJ4L02M -NE1

FRONT-P.W.Board JK401 09-27672Z01 JAC,CK-3552 -DB

FRONT-P.W.Board LCD401 65-26816Z01 LCD,8384011401C

FRONT-P.W.Board LD401 48-27600Z01 LED,R/G/B 99-135 -E1
FRONT-P.W.Board LD402 48-27600Z01 LED,R/G/B 99-135 -E1
FRONT-P.W.Board LD403 48-27600Z01 LED,R/G/B 99-135 -E1
FRONT-P.W.Board LD404 48-27857Z01 LED,R/G/B 64-23 -CP
FRONT-P.W.Board LD405 48-27857Z01 LED,R/G/B 64-23 -CP
FRONT-P.W.Board LD406 48-27857Z01 LED,R/G/B 64-23 -CP
FRONT-P.W.Board LD407 48-27857Z01 LED,R/G/B 64-23 -CP
FRONT-P.W.Board LD408 48-27857Z01 LED,R/G/B 64-23 -CP
FRONT-P.W.Board LD409 48-27857Z01 LED,R/G/B 64-23 -CP
FRONT-P.W.Board Q400 48-22236Z01 TR,DSC5A01R0L -CP
FRONT-P.W.Board Q401 48-22236Z01 TR,DSC5A01R0L -CP
FRONT-P.W.Board Q402 48-22236Z01 TR,DSC5A01R0L -CP
FRONT-P.W.Board Q403 48T75482Y03 TR,2SC5876-R-T106-CP
FRONT-P.W.Board Q404 48T75482Y03 TR,2SC5876-R-T106-CP
FRONT-P.W.Board Q405 48T75482Y03 TR,2SC5876-R-T106-CP
FRONT-P.W.Board Q406 48-22236Z01 TR,DSC5A01R0L -CP
FRONT-P.W.Board Q407 48-22236Z01 TR,DSC5A01R0L -CP
FRONT-P.W.Board Q408 48-22236Z01 TR,DSC5A01R0L -CP
FRONT-P.W.Board Q409 48T75482Y03 TR,2SC5876-R-T106-CP
FRONT-P.W.Board Q410 48T75482Y03 TR,2SC5876-R-T106-CP
FRONT-P.W.Board Q411 48T75482Y03 TR,2SC5876-R-T106-CP
FRONT-P.W.Board Q412 48-22236Z01 TR,DSC5A01R0L -CP
FRONT-P.W.Board Q413 48-22236Z01 TR,DSC5A01R0L -CP
FRONT-P.W.Board Q414 48-22236Z01 TR,DSC5A01R0L -CP
FRONT-P.W.Board Q415 48T75482Y03 TR,2SC5876-R-T106-CP
FRONT-P.W.Board Q416 48T75482Y03 TR,2SC5876-R-T106-CP
FRONT-P.W.Board Q417 48T75482Y03 TR,2SC5876-R-T106-CP
FRONT-P.W.Board Q418 48-22236Z01 TR,DSC5A01R0L -CP
FRONT-P.W.Board Q419 48-22236Z01 TR,DSC5A01R0L -CP
FRONT-P.W.Board Q420 48-22236Z01 TR,DSC5A01R0L -CP
FRONT-P.W.Board Q421 48T75482Y03 TR,2SC5876-R-T106-CP
FRONT-P.W.Board Q422 48T75482Y03 TR,2SC5876-R-T106-CP
FRONT-P.W.Board Q423 48T75482Y03 TR,2SC5876-R-T106-CP
FRONT-P.W.Board Q424 48-22236Z01 TR,DSC5A01R0L -CP
FRONT-P.W.Board Q425 48-22236Z01 TR,DSC5A01R0L -CP
FRONT-P.W.Board Q426 48-22236Z01 TR,DSC5A01R0L -CP
FRONT-P.W.Board Q427 48T75482Y03 TR,2SC5876-R-T106-CP
FRONT-P.W.Board Q428 48T75482Y03 TR,2SC5876-R-T106-CP
FRONT-P.W.Board Q429 48T75482Y03 TR,2SC5876-R-T106-CP
FRONT-P.W.Board R400 06S15615Y49 RES,RK 102J 1/16 -CP
FRONT-P.W.Board R401 06S64995F53 RES,RK 102J 1/8 -CP
FRONT-P.W.Board R402 06S15615Y49 RES,RK 102J 1/16 -CP
FRONT-P.W.Board

R403 06S15615Y49 RES,RK 102J 1/16 -CP

FRONT-P.W.Board R404 06S15615Y49 RES,RK 102J 1/16 -CP
FRONT-P.W.Board R405 06S15615Y49 RES,RK 102J 1/16 -CP

FRONT-P.W.Board R406 06S64995F53 RES,RK 102J 1/8 -CP
FRONT-P.W.Board R407 06S64995F53 RES,RK 102J 1/8 -CP
FRONT-P.W.Board R408 06S15615Y49 RES,RK 102J 1/16 -CP
FRONT-P.W.Board R409 06S64995F53 RES,RK 102J 1/8 -CP
FRONT-P.W.Board R410 06S64995F53 RES,RK 102J 1/8 -CP
FRONT-P.W.Board R411 06S15615Y25 RES,RK 101J 1/16 -CP
FRONT-P.W.Board R412 06S15615Y25 RES,RK 101J 1/16 -CP
FRONT-P.W.Board R413 06S64995F53 RES,RK 102J 1/8 -CP
FRONT-P.W.Board R414 06S15615Y25 RES,RK 101J 1/16 -CP
FRONT-P.W.Board R415 06S15616Y23 RES,RK JUMPER1/16-CP
FRONT-P.W.Board R416 06S15616Y23 RES,RK JUMPER1/16-CP
FRONT-P.W.Board R417 06S15616Y23 RES,RK JUMPER1/16-CP
FRONT-P.W.Board R418 06S35084Y44 RES,RK 393F 1/8 -CP
FRONT-P.W.Board R419 06S70072F37 RES,CP .221-J-1/4-CP
FRONT-P.W.Board R420 06S15615Y65 RES,RK 472J 1/16 -CP
FRONT-P.W.Board R421 06S15615Y65 RES,RK 472J 1/16 -CP
FRONT-P.W.Board R422 06S15615Y65 RES,RK 472J 1/16 -CP
FRONT-P.W.Board R423 06S15593Y05 RES,RK 15RF 1/10 -CP
FRONT-P.W.Board R428 06S15615Y65 RES,RK 472J 1/16 -CP
FRONT-P.W.Board R429 06S15593Y88 RES,RK 433F 1/10 -CP
FRONT-P.W.Board R430 06S45674W71 RES,RK 392J 1/10 -CP
FRONT-P.W.Board R431 06S15593Y05 RES,RK 15RF 1/10 -CP
FRONT-P.W.Board R432 06S35084Y39 RES,RK 153F 1/8 -CP
FRONT-P.W.Board R433 06S70072F13 RES,CP .22R-J-1/4-CP
FRONT-P.W.Board R434 06S35084Y78 RES,RK 132F 1/8 -CP
FRONT-P.W.Board R435 06S35084Y39 RES,RK 153F 1/8 -CP
FRONT-P.W.Board R436 06S35084Y44 RES,RK 393F 1/8 -CP
FRONT-P.W.Board R437 06S35084Y78 RES,RK 132F 1/8 -CP
FRONT-P.W.Board R438 06S35084Y28 RES,RK 182F 1/8 -CP
FRONT-P.W.Board R439 06S35084Y31 RES,RK 332F 1/8 -CP
FRONT-P.W.Board R440 06S35084Y29 RES,RK 222F 1/8 -CP
FRONT-P.W.Board R441 06S35084Y64 RES,RK 432F 1/8 -CP
FRONT-P.W.Board R442 06S35084Y68 RES,RK 752F 1/8 -CP
FRONT-P.W.Board R443 06S15616Y23 RES,RK JUMPER1/16-CP
FRONT-P.W.Board R444 06S15616Y23 RES,RK JUMPER1/16-CP
FRONT-P.W.Board R445 06S15616Y23 RES,RK JUMPER1/16-CP
FRONT-P.W.Board R446 06S15593Y07 RES,RK 18RF 1/10 -CP
FRONT-P.W.Board R447 06S15593Y07 RES,RK 18RF 1/10 -CP
FRONT-P.W.Board R448 06S15593Y07 RES,RK 18RF 1/10 -CP
FRONT-P.W.Board R449 06S15616Y23 RES,RK JUMPER1/16-CP
FRONT-P.W.Board R450 06S15616Y23 RES,RK JUMPER1/16-CP
FRONT-P.W.Board R451 06S15616Y23 RES,RK JUMPER1/16-CP
FRONT-P.W.Board R452 06S15593Y21 RES,RK 68RF 1/10 -CP
FRONT-P.W.Board R453 06S15593Y21 RES,RK 68RF 1/10 -CP
FRONT-P.W.Board R454 06S15593Y21 RES,RK 68RF 1/10 -CP
FRONT-P.W.Board R455 06S35084Y28 RES,RK 182F 1/8 -CP
FRONT-P.W.Board R456 06S35084Y31 RES,RK 332F 1/8 -CP
FRONT-P.W.Board R457 06S35084Y29 RES,RK 222F 1/8 -CP
FRONT-P.W.Board R458 06S35084Y64 RES,RK 432F 1/8 -CP
FRONT-P.W.Board R459 06S35084Y68 RES,RK 752F 1/8 -CP
FRONT-P.W.Board R460 06S15616Y23 RES,RK JUMPER1/16-CP
FRONT-P.W.Board

R461 06S70072F29 RES,CP .101-J-1/4-CP

FRONT-P.W.Board R462 06S15616Y23 RES,RK JUMPER1/16-CP
FRONT-P.W.Board R463 06S15616Y23 RES,RK JUMPER1/16-CP
FRONT-P.W.Board R464 06S15593Y07 RES,RK 18RF 1/10 -CP

FRONT-P.W.Board R465 06S15593Y07 RES,RK 18RF 1/10 -CP
FRONT-P.W.Board R466 06S15593Y07 RES,RK 18RF 1/10 -CP
FRONT-P.W.Board R467 06S15593Y27 RES,RK 121F 1/10 -CP
FRONT-P.W.Board R468 06S15593Y27 RES,RK 121F 1/10 -CP
FRONT-P.W.Board R469 06S15593Y27 RES,RK 121F 1/10 -CP
FRONT-P.W.Board R470 06S15593Y27 RES,RK 121F 1/10 -CP
FRONT-P.W.Board R471 06S15593Y27 RES,RK 121F 1/10 -CP
FRONT-P.W.Board R472 06S15593Y27 RES,RK 121F 1/10 -CP
FRONT-P.W.Board R473 06S15593Y27 RES,RK 121F 1/10 -CP
FRONT-P.W.Board R474 06S15593Y27 RES,RK 121F 1/10 -CP
FRONT-P.W.Board R475 06S15593Y27 RES,RK 121F 1/10 -CP
FRONT-P.W.Board R476 06S15593Y25 RES,RK 101F 1/10 -CP
FRONT-P.W.Board R477 06S70072F21 RES,CP .47R-J-1/4-CP
FRONT-P.W.Board R478 06S64995F53 RES,RK 102J 1/8 -CP
FRONT-P.W.Board R479 06S15593Y25 RES,RK 101F 1/10 -CP
FRONT-P.W.Board R480 06S15615Y49 RES,RK 102J 1/16 -CP
FRONT-P.W.Board R481 06S15616Y23 RES,RK JUMPER1/16-CP
FRONT-P.W.Board R482 06S15616Y23 RES,RK JUMPER1/16-CP
FRONT-P.W.Board R483 06S15616Y23 RES,RK JUMPER1/16-CP
FRONT-P.W.Board R484 06S15593Y05 RES,RK 15RF 1/10 -CP
FRONT-P.W.Board R485 06S15593Y05 RES,RK 15RF 1/10 -CP
FRONT-P.W.Board R486 06S70072F13 RES,CP .22R-J-1/4-CP
FRONT-P.W.Board R487 06S15593Y25 RES,RK 101F 1/10 -CP
FRONT-P.W.Board R488 06S70072F21 RES,CP .47R-J-1/4-CP
FRONT-P.W.Board R489 06S15593Y25 RES,RK 101F 1/10 -CP
FRONT-P.W.Board R490 06S15593Y25 RES,RK 101F 1/10 -CP
FRONT-P.W.Board R491 06S15593Y25 RES,RK 101F 1/10 -CP
FRONT-P.W.Board R492 06S15593Y25 RES,RK 101F 1/10 -CP
FRONT-P.W.Board R493 06S35095Y08 RES,RK JUMPER 1/4-CP
FRONT-P.W.Board RA401 06S15771Y13 RES,ARYEXB28V101J-CP

FRONT-P.W.Board SK401 09-19382Z01 SKT,CM-V105 -DB

FRONT-P.W.Board SW401 40T65353Y01 SW,TACT SKRPACE010E2
FRONT-P.W.Board SW402 40T65353Y01 SW,TACT SKRPACE010E2
FRONT-P.W.Board SW403 40T65353Y01 SW,TACT SKRPACE010E2
FRONT-P.W.Board SW404 40T65353Y01 SW,TACT SKRPACE010E2
FRONT-P.W.Board SW405 40T65353Y01 SW,TACT SKRPACE010E2
FRONT-P.W.Board SW406 40T65353Y01 SW,TACT SKRPACE010E2
FRONT-P.W.Board SW407 40T65353Y01 SW,TACT SKRPACE010E2
FRONT-P.W.Board SW408 40T65353Y01 SW,TACT SKRPACE010E2
FRONT-P.W.Board SW409 40T65353Y01 SW,TACT SKRPACE010E2
FRONT-P.W.Board SW410 40T65353Y01 SW,TACT SKRPACE010E2
FRONT-P.W.Board SW411 40T65353Y01 SW,TACT SKRPACE010E2

FRONT-P.W.Board SW412 40-10735Z02 ENC,EC12D1524405 -DB
FRONT-P.W.Board SW413 40T65353Y01 SW,TACT SKRPACE010E2
FRONT-P.W.Board SW414 40T65353Y01 SW,TACT SKRPACE010E2
FRONT-P.W.Board SW415 40T65353Y01 SW,TACT SKRPACE010E2
FRONT-P.W.Board SW416 40T65353Y01 SW,TACT SKRPACE010E2
FRONT-P.W.Board SW417 40T65353Y01 SW,TACT SKRPACE010E2
FRONT-P.W.Board SW418 40T65353Y01 SW,TACT SKRPACE010E2
FRONT-P.W.Board Z401 91-14147Z01 EMI,ACM2012H-900 -CP
FRONT-P.W.Board ZD401 48-18196Z02 DIO,ZEN DZ2S051M0LCP
FRONT-P.W.Board

ZD402 48-18196Z02 DIO,ZEN DZ2S051M0LCP

FRONT-P.W.Board ZD404 48-21149Z67 DIO,ZEN DZ2J033M0LCP

IF(DP86Z7BA-W)-

CB101 09T75287Y24 FFC,IMSA9631S-24Y-ED

P.W.Board
IF(DP86Z7BA-W)-

P.W.Board
IF(DP86Z7BA-W)-

P.W.Board
IF(DP86Z7BA-W)-

P.W.Board
IF(DP86Z7BA-W)-

P.W.Board
SENSOR(DP86Z7BA-

W)-P.W.Board
SENSOR(DP86Z7BA-

W)-P.W.Board
SENSOR(DP86Z7BA-

W)-P.W.Board
SENSOR(DP86Z7BA-

W)-P.W.Board
DRIVE(DP86Z7BA-

W)-P.W.Board

Miscellaneous HD1 EP-17785Z04 EP21A99NV-M

Miscellaneous M1 66-26081Z68 ASSY,MTR SPDL V DP-Z

Miscellaneous M2 66-26081Z69 ASSY,MTR SLED V DP-Z

PT500 48-14634Z01 PHTTR,SML810TB-T86CP

PT502 48-14634Z01 PHTTR,SML810TB-T86CP

R500 06S15615Y85 RES,RK 333J 1/16 -CP

R502 06S15615Y85 RES,RK 333J 1/16 -CP

LD700 48-14635Z02 LED,SML-S13RT-T68-CP

LD701 48-14635Z02 LED,SML-S13RT-T68-CP

R700 06S45674W51 RES,RK 561J 1/10 -CP

R701 06S45674W51 RES,RK 561J 1/10 -CP

SW800 40-24933Z01 SW,DETCT SPVT1102-E6

Exploded View (Cabinet) (1/2)

21

20

12

13

SW412

11

X2

26

7

CB401

10

SK401

JK401

2

.......paint of GREASE applied.

27

ANT101

JK300

G-1

JK901

CB301

19

9

LCD401

23

3

16

X4

G-1

GREASE G747 (11S42419J30)

Exploded View (Cabinet) (2/2)

18

15

X2

C

B

4

G-1

5

15

X2

14

24

15

X2

A

16

X2

6

ET801

A

15

15

X2

6

8

CH501

C

SW501

15

B

22

17

16

.......paint of GREASE applied.

G-1

GREASE G747 (11S42419J30)

Model Code
CDE-195BT

NOTE:The part that has not PART NUMBER will not be supplied.

#####

IC501(*) :51-27561Z01(W25Q32FVSSIG -ST)
Software is not written in to the part indicated with (*).
