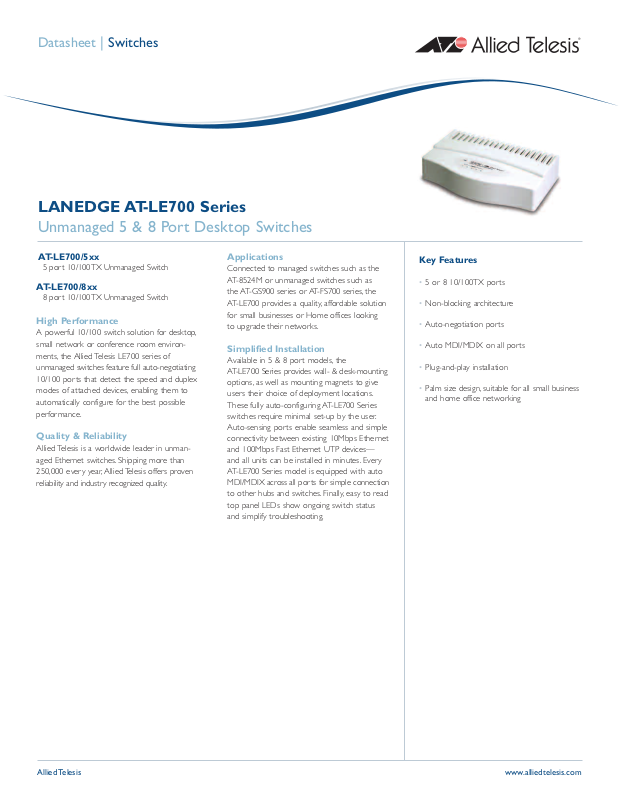

Datasheet | Switches
LANEDGE AT-LE700 Series
Unmanaged 5 & 8 Port Desktop Switches
T-LE700/5xx
A
5 port 10/100TX Unmanaged Switch
AT-LE700/8xx
t 10/100TX Unmanaged Switch
8 por
High Performance
A powerful 10/100 switch solution for desktop,
small network or conference room environments, the Allied Telesis LE700 series of
unmanaged switches feature full auto-negotiating
10/100 ports that detect the speed and duplex
modes of attached devices, enabling them to
automatically configure for the best possible
performance.
Quality & Reliability
Allied Telesis is a worldwide leader in unmanaged Ethernet switches. Shipping more than
250,000 every year
reliability and industry recognized quality.
, Allied Telesis offers proven
Applications
Connected to managed switches such as the
AT-8524M or unmanaged switches such as
the AT-GS900 series or AT-FS700 series, the
AT-LE700 provides a quality, affordable solution
for small businesses or Home offices looking
to upgrade their networks.
Simplified Installation
Available in 5 & 8 port models, the
AT-LE700 Series provides wall- & desk-mounting
options, as well as mounting magnets to give
users their choice of deployment locations.
These fully auto-configuring AT-LE700 Series
switches require minimal set-up by the user.
Auto-sensing ports enable seamless and simple
connectivity between existing 10Mbps Ethernet
and 100Mbps Fast Ethernet UTP devices—
and all units can be installed in minutes. Every
AT-LE700 Series model is equipped with auto
MDI/MDIX across all ports for simple connection
to other hubs and switches. Finally, easy to read
top panel LEDs show ongoing switch status
and simplify troub
leshooting.
Key Features
• 5 or 8 10/100TX ports
• Non-blocking architecture
• Auto-negotiation ports
• Auto MDI/MDIX on all ports
• Plug-and-play installation
• Palm size design, suitable for all small business
and home office networking
Allied Telesis www.alliedtelesis.com
LANEDGE AT-LE700 Series | Unmanaged 5 & 8 Port Desktop Switches
Technical Specifications
Performance
Ethernet
10Mbps (Half Duplex)
20Mbps (Full Duplex)
Fast Ethernet
100Mbps (Half Duplex)
200Mbps (Full Duplex)
MAC Addresses: 1K
Packet Buffer: 768K
Half/Full Duplex
Auto Negotiation
Auto MDI/MDIX on all ports
Interface Connections
10/100TX Rj-45
Power Characteristics
Frequency: 50 to 60Hz
AT-LE700/5
Power Requirements: 7.5vDC +/- 5%
Power Consumption: 2.8W (Max.)
Current Consumption 800mA
Environmental Specifications
O
perating Temp: 0-40 C (32-104F)
Non-Operating Temp: -10-70C (-13 to 158F)
Operating Humidity: 10-90% Non-Condensing
Non-operating Humidity: 5-90% Non-Condensing
Physical Specifications
Dimensions: 3.0 x 12.3 x 7.6 cm (W x D x H)
(
1.18 x 4.8 x 3.0 in)
Weight: 0.12kgs (0.26 lbs)
Standards & Compliance
IEEE802.3 10T Ethernet
IEEE802.3u 100TX Fast Ethernet
IEEE802.3x Flow Control
Cer
tification
FCC/EN55022 Class A
VCCI Class A
CE
C-TICK
Ordering Information
AT-LE700/5-xx
5 port 10/100TX unmanaged switch
AT-LE700/8-xx
8 port 10/100TX unmanaged switch
Where xx = 10 for U.S. power adapter
= 20 for no power adapter
= 30 for U.K. power adapter
= 40 for Australia power adapter
= 50 for Europe power adapter
AT-LE700/8
Power Requirements: 7.5vDC +/- 5%
Power Consumption: 2.5W (Max.)
Current Consumption: 800mA
USA Headquarters | 19800 North Creek Parkway | Suite 200 | Bothell | WA 98011 | USA | T: +1 800 424 4284 | F: +1 425 481 3895
European Headquarters | Via Motta 24 | 6830 Chiasso | Switzerland | T: +41 91 69769.00 | F: +41 91 69769.11
Asia-Pacific Headquarters | 11 Tai Seng Link | Singapore | 534182 | T: +65 6383 3832 | F: +65 6383 3830
www.alliedtelesis.com
© 2006 Allied Telesis Inc.All r ights reserved. Information in this document is subject to change without notice. All company names, logos, and product designs that are trademarks or registered trademarks are the proper ty of their respective owners. 617-000082 Rev. D
