WIDE BAND COMMUNICATION RECEIVER
DJ-X3 T/E
DJ-X3 T/E
Instruction Manual
POWER
SCAN
SCRT
V/P/M
MW
BANK
1M/10M
DJ-X3
WIDE BAND
COMMUNICATION RECEIVER
Thank you for purchasing this ALINCO receiver.
This instruction manual contains important safety and operating
instructions. Please read it carefully before using the receiver.
2
Contents
Features ··········································································································4
NOTICE···········································································································5
Precautions ·····································································································6
Request and Agreement·················································································6
Accessories ····································································································7
Connecting the Antenna ···········································································7
Attaching the Battery Case ·······································································7
Loading the Batteries················································································8
The NiMH Battery Pack·············································································8
Prevent Short Circuiting the Battery Pack·················································9
Battery Recharger···················································································10
Attaching the Belt Clip ············································································11
Attaching the Hand Strap ·······································································11
Chapter 1 Names and Functions of Parts
External View ································································································12
Front ········································································································12
Top ··········································································································12
Side ·········································································································13
Keyboard ······································································································14
Display ··········································································································15
Chapter 2 Basic Operation
Power Switch ································································································16
Adjusting the Audio Volume ·········································································16
Adjusting the Squelch···················································································17
Adjusting the Squelch Level ···································································17
Monitor Function ·····················································································18
Mute Function ·························································································18

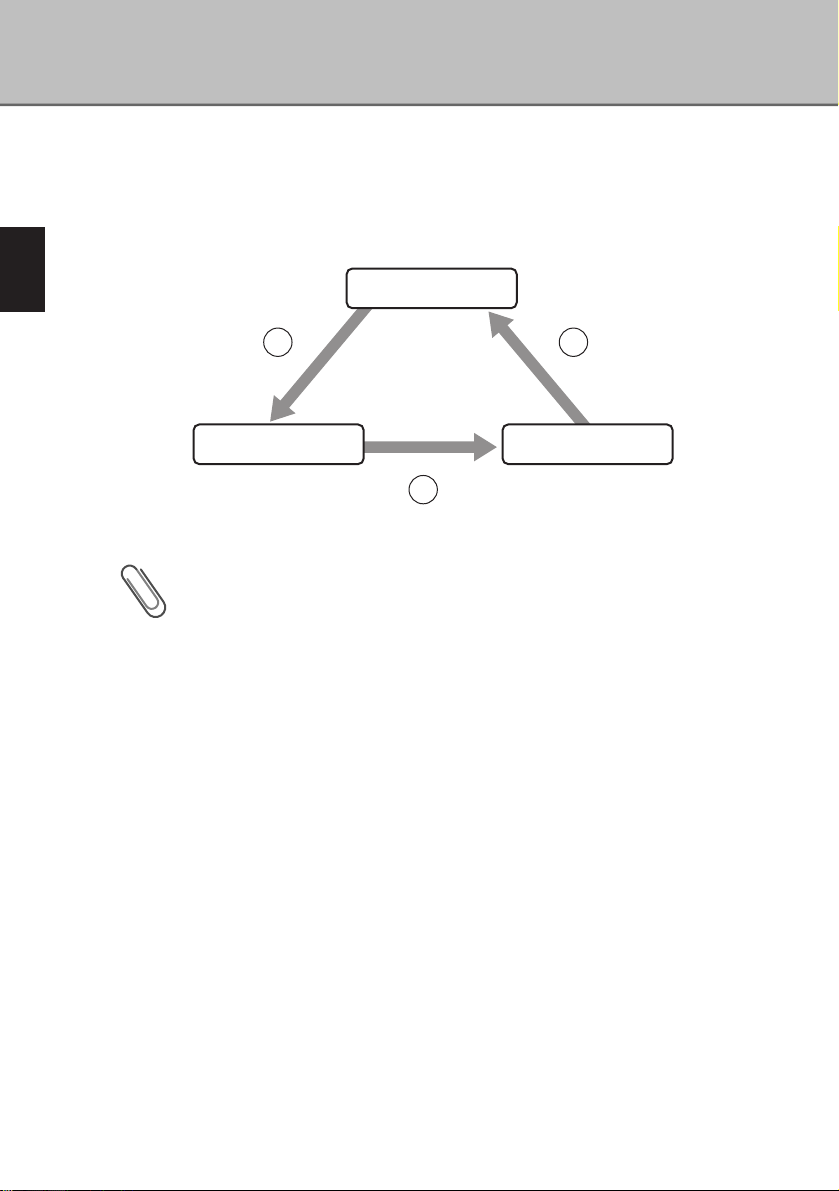

Operating Modes··························································································19
Switching Modes·····················································································20

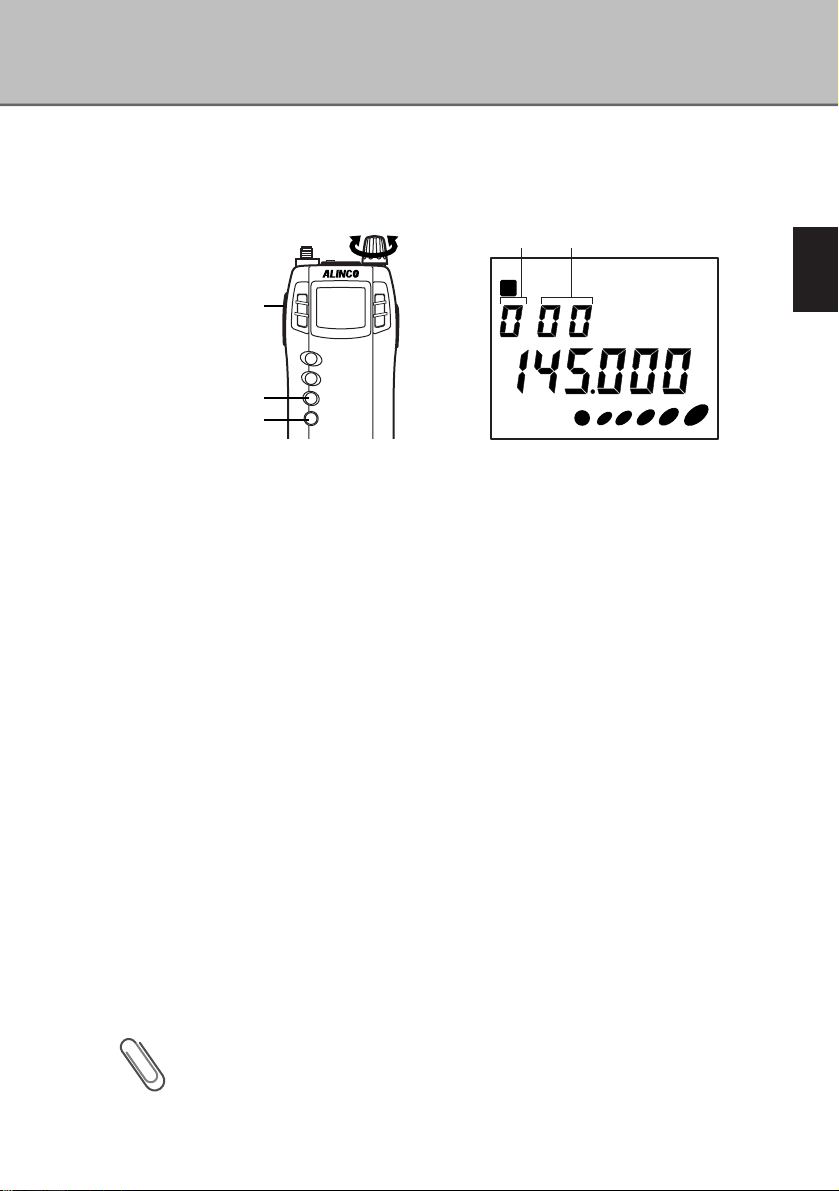

Setting the Frequency···················································································21
In VFO Mode ···························································································21
In Preset Mode························································································21
In Memory Mode ·····················································································22
Memory Function ··························································································22
Types of Memory ····················································································22
Programming a Channel ·········································································23
Erase a Channel······················································································24
3
Scan Function ·······························································································25
VFO Scan ································································································25
Program Scan ·························································································26
Preset Scan·····························································································27
Memory Scan ··························································································27
Setting the Tuning Step ················································································29
Memory Skip ·································································································30
Chapter 3 Useful Functions of the DJ-X3
Descrambling ·······························································································31
Bug Detector·································································································32
Keylock ·········································································································34
Battery Charge Indicator ··············································································34
Resetting·······································································································35
How to Reset Partially ·············································································35
How to Reset All······················································································35
The Set Mode Function·················································································36
Setting Each Item····················································································36
ATT (Attenuator) Function ·······································································37

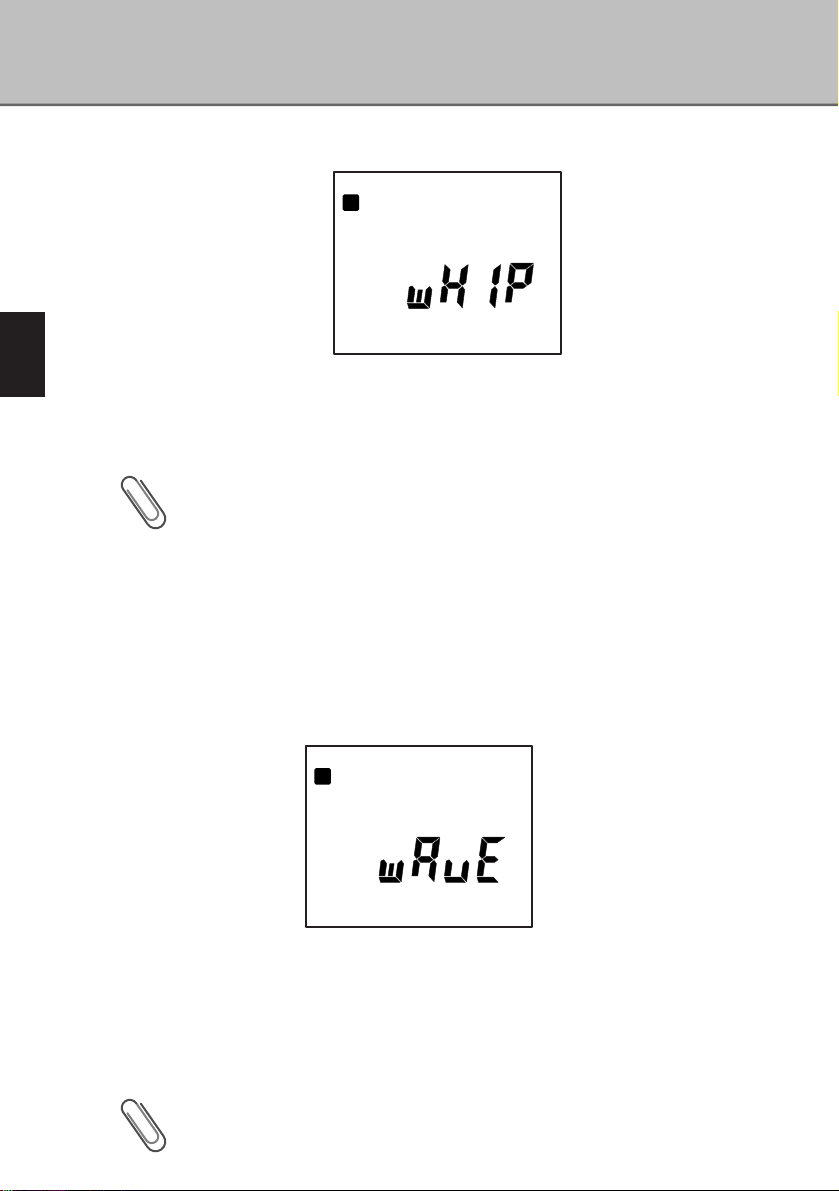

Selecting the Antenna·············································································37
Selecting the Modulation Mode ······························································38
Selecting between Stereo and Monophonic···········································39
Setting Bug Detector Sensitivity······························································39

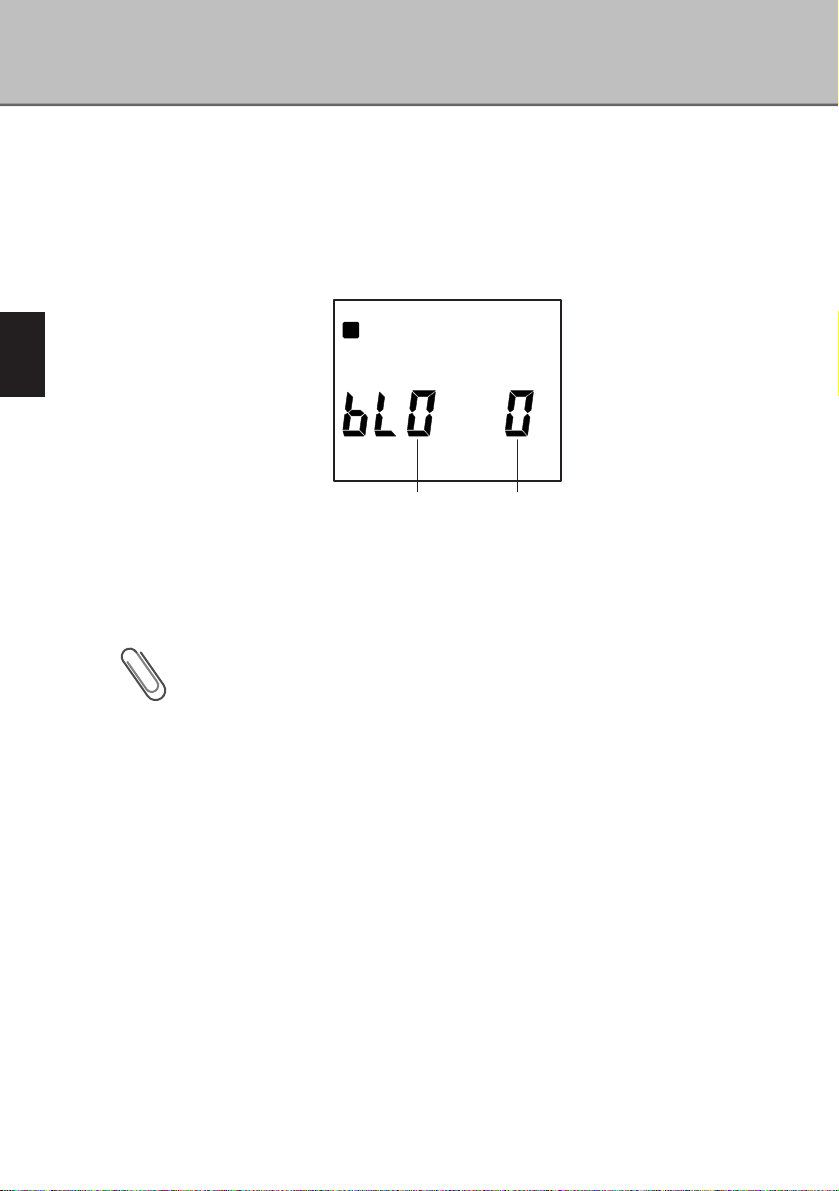

Setting Bank Link ····················································································40
Lamp Function ························································································41
Setting the Scan Mode (Timer Scan/Busy Scan)····································41

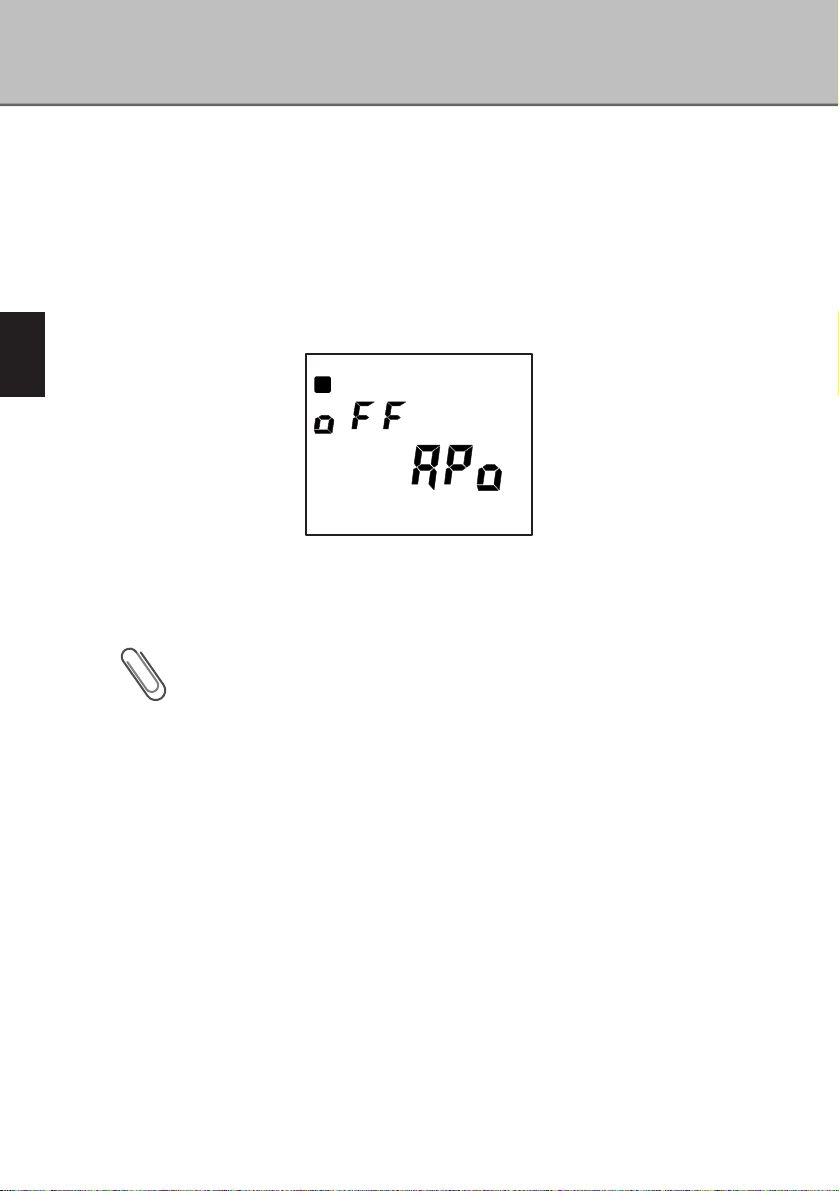

APO (Auto Power Off) Function ······························································42
BS (Battery Save) Function ·····································································43
Overwrite Memory Setting·······································································43
PRIO (Priority) Watch Function ·······························································44
Beep Function·························································································44
Setting Operation of the Monitor and Mute Functions ····························45
Setting Operation of the MONI key ·························································45

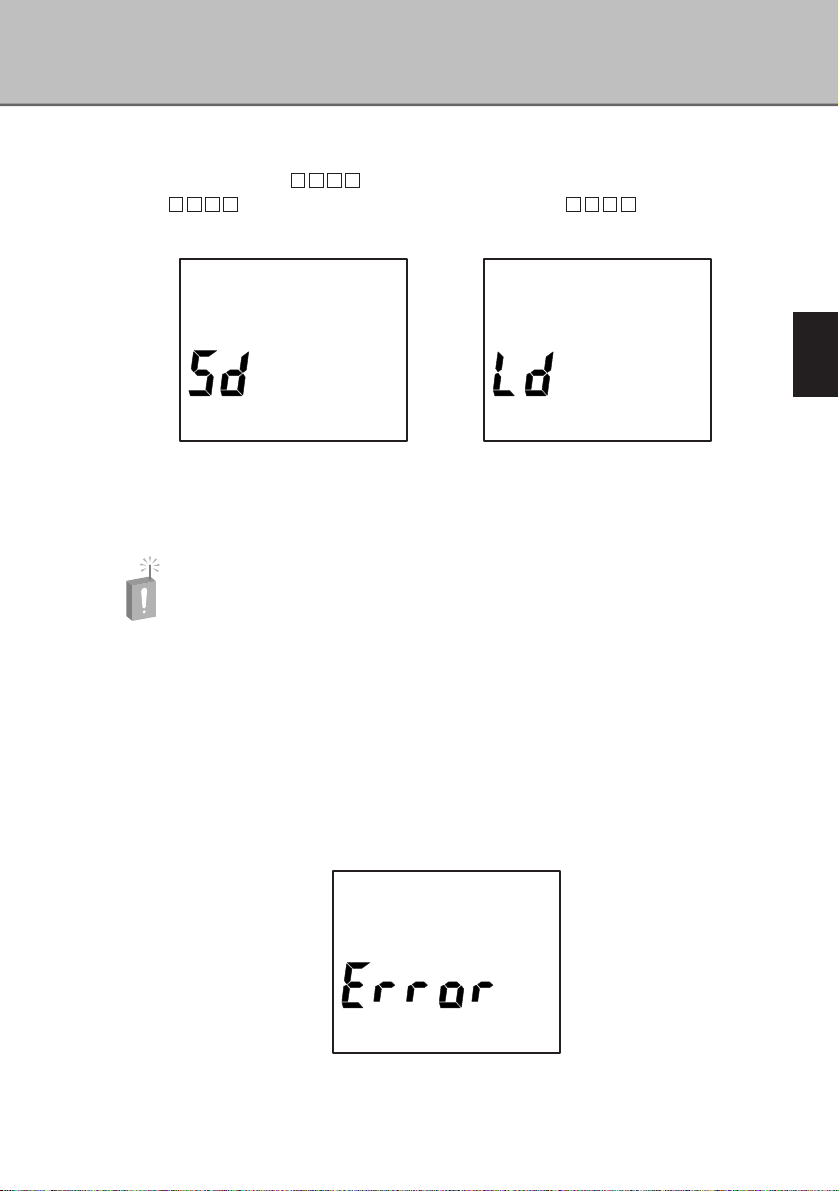

Cloning··········································································································46
Chapter 4 Appendix
Troubleshooting ····························································································49
Specifications ·······························································································50
General ···································································································50
Receiver ··································································································50
4
Features
The DJ-X3 is a wide band communication receiver which has many various
functions in a small package.
Easy operation is performed with a simple key arrangement that allows you to
access a wide range of communications.
The DJ-X3 has the following features:
Types of Memory
The DJ-X3 has different types of memory functions.
For instance, Memory channels for regular recall
and use, "Program channel" which allows you to
specify upper and lower range limits for scanning
and "Priority channel" which allows you to receive
two alternating programmed frequencies.
For more information, see
"Memory Function." (P.22)
Types of Scanning
The DJ-X3 has several types of scanning functions,
that search for signals quickly and easily. It allows
you to select a variety of scanning operations, such
as "Memory scan", "Program scan", and so on.
For more information, see
"Scan Function." (P.25)
For more information, see
"Bug Detector." (P.32)
Bug Detector
The DJ-X3 can detect a frequency which may be
used for bugging. When a listening microphone is
found, the DJ-X3 alerts you with a display and a
warning sound.
For more information, see
"Descrambling." (P.31)
Descrambling
The DJ-X3 can return some types of scrambled
voice transmissions to normal voice reception.
5
Tested to Comply
With FCC Standards
FOR HOME OR OFFICE USE
Information in this document is subject to change without notice or obligation. All
brand names and trademarks are the property of their respective owners. Alinco
cannot be liable for pictorial or typographical inaccuracies. Some parts, options
and/or accessories are unavailable in certain areas. Changes or modifications not
expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
Copyright 2001 All rights reserved. No part of this document may be reproduced,
copied, translated or transcribed in any form or by any means without the prior
written permission of Alinco, Inc., Osaka, Japan. English Edition Printed in Japan.
NOTICE
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
6
Precautions
No warranty is made on the effectiveness of the "Bug Detector" function. The
function should be considered experimental and for educational or
entertainment use.
Use of the descrambling function may not be permitted in certain jurisdictions.
Check with the regulations that apply in your area before using.
Request and Agreement
· This product is manufactured and shipped under strict quality control.
However, in some rare instances, if questionable or doubtful points are found,
please notify the store where you purchased the product.
· Since this product is a wide band communication receiver, its internal
oscillation can sometimes block a signal, or detect an internal signal
(sometimes referred to as a "birdie.") These symptoms are not a malfunction.
· The contents of this instruction manual may change without notice.
DANGER
Improper product handling may cause cracking, fire, smoke, performance loss
or other troubles. Observe the following precautions in usage.
1. Do not disassemble or modify this product.
2. Do not insert any metal objects into the charger terminal.
3. Avoid using or storing the product in excessively hot environments, i.e.
inside hot cars or outdoors in scorching heat. Also, avoid highly humid and
dusty places.
4. Do not drop the product or subject it to strong shocks.
5. Use the exclusive recharger EDC-105 to charge the DJ-X3.
7
Accessories
Open the box and check that the following accessories are included.
■
Connecting the Antenna
Connect the antenna to the SMA
antenna connector at the upper left
corner.
Hold the antenna by its base, and
turn it clockwise until it stops.
To disconnect the antenna, turn it
counter-clockwise.
■
Attaching the Battery Case
· How to attach the battery case
Align with the grooves on the transceiver, and
slide in the direction of the arrow until it clicks.
· How to detach the battery case
Push down the catch, and pull out the battery
pack or case free of the transceiver.
Tip
Attaching/detaching the NiMH battery pack is
done the same way as with the battery case.
Catch
Groove
Instruction manual
Belt clip (with one screw)
Battery case (EDH-31S)
AC adapter
NiMH (Nickel Metal Hydride)
battery pack (EBP-52NS)
Antenna
Hand strap
Battery recharger (EDC-105)
Warranty
(
EDC-93
)
(
EDC-94
)
T E TD ED
8
■
Loading the Batteries
Load three AA batteries in the battery
case in the "+" and "-" orientation
marked at the bottom of the case.
Caution!
· Do not use NiCad AA batteries.
· Use new batteries of the same type and brand.
· Use high capacity alkaline batteries.
■
The NiMH Battery Pack
Caution!
· The battery pack is not charged when shipped. It
must be charged before use.
· It takes 10 hours maximum to fully charge the
battery pack with the EDC-105.
· Charging should be conducted in a temperature
range of 0 to 40°C. (32 to 104°F)
· Do not modify, dismantle, incinerate or immerse the battery pack in water
as this can be dangerous.
· Never short-circuit the battery pack terminals, as this can cause damage
to the equipment or lead to heating of the battery which may cause burns.
· Unnecessary prolonged charging (overcharging) can deteriorate battery
performance.
· The battery pack should be stored in a dry place where the temperature
range is from -20 to +45°C. (-4 to +113°F)
Temperatures outside this range can cause the battery liquid to leak.
Exposure to prolonged high humidity can cause corrosion of metal
components.
· Normally, the battery pack can be charged up to 500 times. However, the
battery pack can be considered dead if the period of use drops off
markedly despite the pack being charged for the aforementioned charging
time. When this happens, a new pack should be used.
· To protect the environment, do not dispose of the battery pack. At the end
of its useful life, check with your local solid waste officials for details on
recycling options or proper disposal in your area. You may also contact
our office.
EBP-52NS (3.6V-500mAh)
About 10 hours
Battery Pack Type
Charging Time
9
■
Prevent Short Circuiting the Battery Pack
Be extra cautious when carrying the
battery pack; short-circuiting will
produce surge current possibly
resulting in fire.
Terminals
DON'T carry with
metals of any type,
e.g. chains.
Do enclose inside a non-conductive enclosure.
(bags or handkerchief made only of nonconductive material)
DON'T carry the
NiMH battery pack
inside bags with a
metal plated interior.
Do protect by
spreading a non-
conductive sheet on a
flat surface.
DON'T place in the
proximity of metals or
conductives, e.g. nails,
chains.
10
■
Battery Recharger
· Recharging with the EDC-105
1. Mount NiMH battery pack on the
transceiver. (The NiMH battery
pack can also be placed in the
battery recharger.)
2. Connect AC adapter plug to the
battery recharger.
3. Select position 1 to 3 with the lever
on the recharger and adjust the
battery pack to fit in it. (According
to different types of battery packs,
the position of the lever changes.)
4. Set the battery pack in the
recharger making contact with
terminals on the rear side of the
transceiver and those on the
recharger.
5. Connect the power plug to the AC
outlet.
6. The red light on the recharger
goes on and starts to recharge the
battery. (While connected to the
AC outlet, the charge is
maintained.)
Caution!
· When battery temperature exceeds a certain level, a protective function
operates automatically and turns off the charge. (The red light goes off.)
Should this happen, unplug the recharger and dismount the transceiver or
the battery pack immediately. After removing the cause of the problem,
you may resume use of the battery recharger.
· Turn the transceiver power off before recharging the battery pack.
· Disconnect the EDC-105 from the outlet while not using it.
· Never charge the battery packs of other manufacturers with this charger.
· The required recharging time depends on the condition and model of a
battery pack, but it may take at most 10 hours. Refer to the instruction
manual of the battery pack.
· Never short-circuit the recharging terminals of this recharger with metal
objects, etc. The charger can be damaged.
· The ECD-105 does not work when the voltage from the wall outlet is
extremely low.
AC adapter plug
Terminals
(rear side)
Terminals
on the rechager
Lever(1 3)
Power plug
1
2
3
11
■
Attaching the Belt Clip
Attach the belt clip on the rear side of
the transceiver with the included
screw. Make sure it is tightened
properly.
■
Attaching the Hand Strap
Attach the hand strap through the
opening between the belt clip and
the transceiver as shown in the
illustration on the left.
1
Names and Functions of Parts
12
1
Chapter
Names and Functions of Parts
External View
■
Front
■
Top
Antenna connector
For connecting the included antenna.
(P.7)
Earphone jack
For connecting an earphone.
Dial, [VOL/SQL(SET)] key
Use this dial to change frequency and
various settings. When you press it
down, you can change the volume level
and squelch setting, or select options in
Display
Displays the frequency and other information. (P.15)
Speaker
Thin built-in speaker
Keyboard
For changing the mode and various settings. (P.14)
POWER
SCAN
SCRT
V/P/M
MW
BANK
WIDE BAND
COMMUNICATION RECEIVER
DJ-X3
1M/10M
13
1
Names and Functions of Parts
■
Side
DC-IN
Terminal for connecting an external DC
power supply.
INDC
[FUNC/ENTER] key
Use this key to set and execute several
settings. You can also hold this key
down for about one second to activate
the key-lock function. (P.34)
[MONI(ST/SK)] key
When holding this key down, the
squelch temporarily opens. It is also
used for the Mute function. (P.18)
ENT
KL
ST SK
MONI
FUNC
Caution!
If you use an external or outdoor antenna, be sure it is properly grounded
and in compliance with lacal codes.
14
1
Names and Functions of Parts
Keyboard
"F" appears on the display when you press the [FUNC/ENTER] key
Turns the power on/off.
Executes scanning. (P.25)
When "F" is displayed, used for Descrambling.
(P.31)
Switches the operating mode. (P.20)
When "F" is displayed, programs and clears the
Memory channels. (P.23,24)
Switches between the Preset and the Memory
mode. (P.21,22)
In VFO mode, selects a unit for
increasing/decreasing the displayed frequency by
one click of the dial.
Key Function
[POWER] key
[SCAN (SCRT)] key
[V/P/M (MW)] key
[BANK (1M/10M)] key
1
2
3
4
POWER
SCAN
SCRT
V/P/M
MW
BANK
WIDE BAND
COMMUNICATION RECEIVER
DJ-X3
1M/10M
1
2
3
4
15
1
Names and Functions of Parts
Display
In the illustration below, all indicators are displayed.
From to are not displayed on this transceiver.
16
12
Descriptions
Appears when you press the [FUNC/ENTER] key.
Flashes when displaying over 1000MHz frequency. (Indicates a digit
of 1000MHz.)
Indicates the modulation mode. "W" appears when WFM modulation
is selected and "A" when AM modulation is selected. When FM
modulation is selected, nothing appears.
Appears when executing Memory skip.

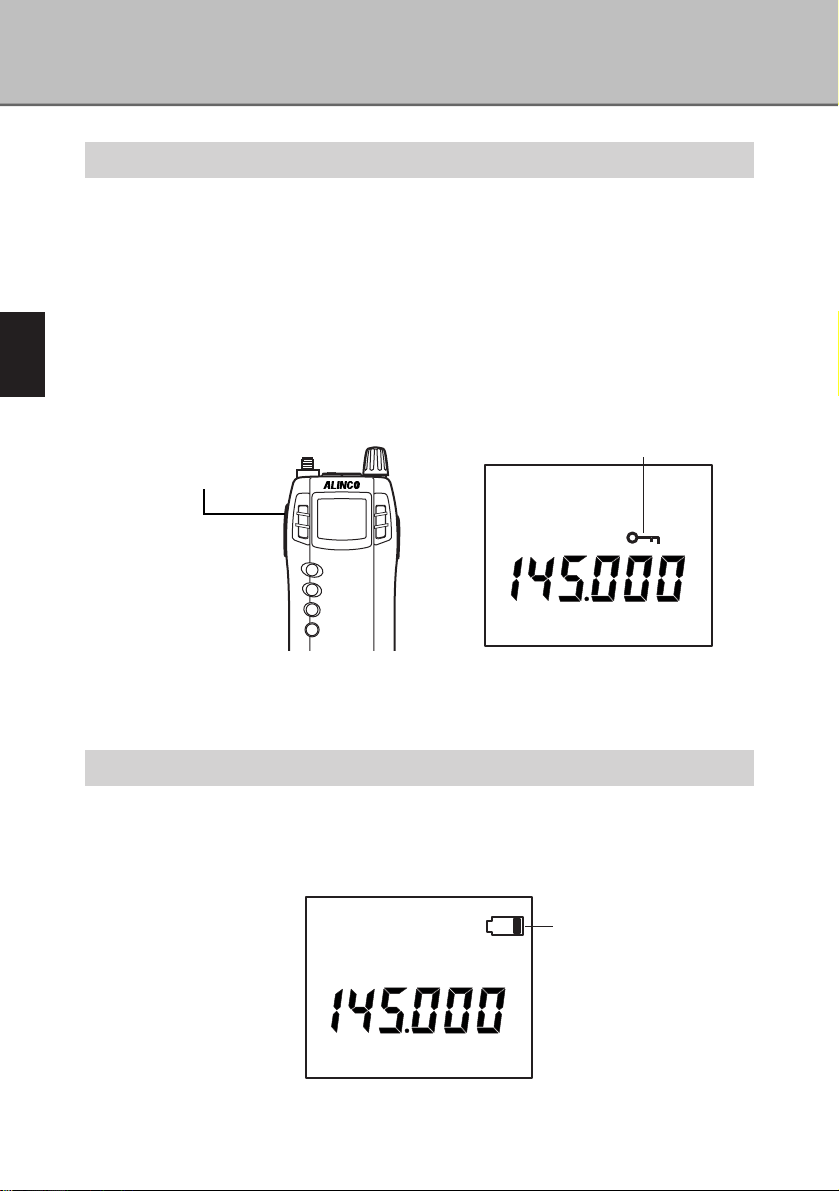

Appears when the keys are locked.
Appears when the battery is exhausted.
Displays the bank No. (left one digit) and the channel No. (right two
digits) of Programmed memory.
Displays the frequency and value of various settings.
Appears when using the Bug Detector.
Flashes when Descrambling.
Appears when the Attenuator is ON.
Displays the relative signal strength.
1
2
3
4
5
6
7
8
9
10
11
W
SKIP
ATT
VOX
A
F T SQ DCS
75
50
25
B
1 2
7
8
9
3 4 5 6
10
11
12 13 14
15
16
2
Chapter
Basic Operation
2
Basic Operation
16
Power Switch
Hold the POWER switch down for a second. "HELLO" will appear on the
display. (The indication may be different from the illustration below depending
on the version: North America or Europe.)
To turn the power off, hold the POWER switch down until the display
disappears.
Adjusting the Audio Volume
1
Press the [VOL/SQL (SET)] key. (dial)
"voL" will appear on the display.
2
Adjust the audio volume by rotating the dial.
There are 31 levels of audio volume. (00-30) As the value increases, the
audio becomes louder.
3
Press the [FUNC/ENTER] key.
Return to the normal mode.
If the DJ-X3 makes no sound...
When the squelch closes or the Mute function is activated, the DJ-X3 does not
make sound even if you increase the value of the audio volume setting. For more
information, see "Adjusting the Squelch Level" (P.17) and "Mute Function." (P.18)
POWER
3
1
2
[POWER] key
POWER
SCAN
SCRT
V/P/M
MW
BANK
1M/10M
17
2
Basic Operation
Adjusting the Squelch
The squelch silences the DJ-X3 except for signals above a certain level.
Squelch eliminates noise when the DJ-X3 receives less than a certain level.
"To unmute the squelch" means that the DJ-X3 receives a signal higher than
the squelch setting and reproduces the sound.
Conversely, "to close the squelch" means that the DJ-X3 does not generate
audio because of insufficient signal level.
■
Adjusting the Squelch Level
You can specify the signal level at which the DJ-X3 unmutes by adjusting the
squelch level.
1
Press the [VOL/SQL (SET)] key (dial) twice.
(When "voL" is on the display, press it once.)
"SqL" will appear on the display.
2
Adjust the squelch level by rotating the dial.
There are 11 squelch levels. (0-10) A higher squelch level requires a
stronger signal to unmute the squelch.
3
Press the [FUNC/ENTER] key.
Return to the normal mode.
Tip
To keep the squelch open, set the squelch level to 0.
POWER
3
1
2
2
Basic Operation
18
■
Monitor Function
The Monitor function temporarily unmutes the squelch. This is useful when the
desired signal is weak or intermittent. This feature is activated when the
[MONI(ST/SK)] key is set to the Monitor function in the Set mode. For more
information, see "Setting Operation of the MONI key." (P.45)
There are two options in the Monitor function: PUSH and HOLD. Both options
open the squelch, and "B" appears on the display when you press the
[MONI(ST/SK)] key.
· PUSH: Squelch unmutes while holding the [MONI(ST/SK)] key down. When
you release the key, the squelch goes back to its normal setting.
· HOLD: Squelch unmutes and remains open until you press the [MONI(ST/SK)]
key again. The squelch then goes back to its normal setting.
You can switch the mode between PUSH and HOLD in the Set mode. For more
information, see "Setting Operation of the MONI key." (P.45)
■
Mute Function
This function mutes all sound from the receiver. Even when the squelch opens,
this function keeps the sound off, and while it is activated, the beep sound
cannot be heard either. This function is activated when the [MONI(ST/SK)] key
is set to the Mute function in the Set mode. For more information, see "Setting
Operation of the MONI key." (P.45)
There are two options in the Mute function: PUSH and HOLD. Both options
execute the Mute function, and "B" appears on the display when you press the
[MONI(ST/SK)] key.
POWER
SCAN
SCRT
[MONI(ST/SK)] key
19
2
Basic Operation
· PUSH: Mute function is on while holding the [MONI(ST/SK)] key down. When
you release the key, the function is off and received signals and the
beep sound can again be heard.
· HOLD: Mute function is on, and it remains on until you again press the
[MONI(ST/SK)] key.
Tip
Select either the Monitor function or the Mute function.
The preparation for receiving a signal is now finished. Now, try to adjust the
frequency and receive a signal.
The next section explains the three operating modes of the DJ-X3.
Operating Modes
The DJ-X3 has three operating modes; VFO mode, Preset mode, and Memory
mode.
VFO mode ····································VFO mode allows you to change the
frequency by using the dial.
Preset mode·································The frequencies of AM radio, FM radio, and
TV have been already set and you can
choose among them.
Memory mode ······························You can call up and monitor a previously
programmed frequency.
Tip
To program memory, see "Memory Function." (P.22)
B
POWER
SCAN
SCRT
[MONI(ST/SK)] key
2
Basic Operation
20
■
Switching Modes
Every press of the [V/P/M (MW)] key changes the operating mode as shown
below.
Tip
When nothing is programmed in Memory mode, Memory mode is skipped and
the receiver switches between VFO mode and Preset mode in turn.
Preset mode Memory mode
VFO mode
V/P/M
MW
V/P/M
MW
V/P/M
MW
21
2
Basic Operation

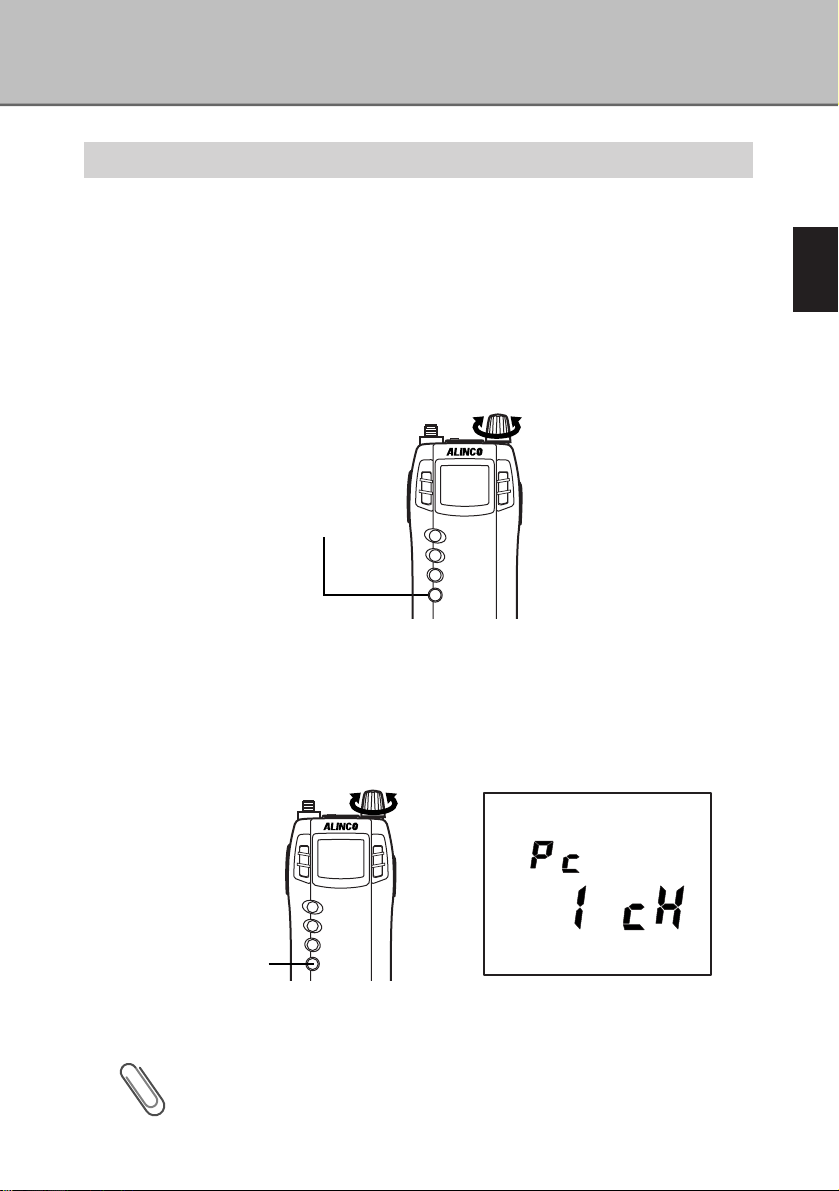

Setting the Frequency
■
In VFO Mode
Rotating the dial increases or decreases the displayed frequency by a value
determined by the selected tuning step.
To increase/decrease the frequency by a 1MHz-step, press the
[BANK(1M/10M)] key one time and rotate the dial one click each.
To increase/decrease the frequency by a 10MHz-step, press the
[BANK(1M/10M)] key once again and rotate the dial one click for each step.
In 1MHz or 10MHz tuning mode, the 1MHz or 10 MHz number flashes.
■
In Preset Mode
1
Select a band by pressing the BANK key.
Every press of the [BANK(1M/10M)] key changes the band as shown below:
AM radio FM radio ➝ TV ➝ AM radio...
2
Increase/decrease the frequency by rotating the dial.
Tip
"A" appears on the display when you have selected AM radio, and "W" appears
when you have selected TV. However, nothing appears when you have selected
FM radio. Also, the frequency is displayed when AM/FM radio is selected but the
channel number displays when TV is selected.
W
POWER
SCAN
SCRT
V/P/M
MW
BANK
1M/10M
1
2
Adjust frequency
Increases/decreases
by a 1MHz-step with one press,
by a 10MHz-step with double press.
POWER
SCAN
SCRT
V/P/M
MW
BANK
1M/10M
2
Basic Operation
22
■
In Memory Mode
1
Select a bank by pressing the [BANK(1M/10M)] key.
2
Select a channel by rotating the dial.
It is not possible to select a channel which is not programmed.
Memory Function
This function allows you to program frequencies into the DJ-X3 memory. A
programmed frequency is called a channel.
The DJ-X3 has four types of memory functions: Memory channel, Program scan
channel, Priority channel, and Search-pass memory channel.
■
Types of Memory
Memory channel ·····························A channel which is called up in Memory
mode. The DJ-X3 has 700 Memory bank
channels. (70 channels 10 banks) You can
easily call up a frequently used frequency.
Program scan channel····················A channel which is used for Program scan.
You can program 20 pairs of frequency
ranges. (upper and lower limits)
Priority channel ·······························A channel which is used for Priority
monitoring functions. You can program up
to 8 channels.
Search-pass memory channel ········If you program a frequency you do not want
to use, it will be skipped when executing
VFO scan and Program scan. You can
program up to 100 "Skip" channels.
Caution!
It is not possible to program duplicated frequencies in the Search-pass
memory channel. If you try to do so, an error beep will sound.
B
Bank No. Channel No.
POWER
SCAN
SCRT
V/P/M
MW
BANK
1M/10M
1
2
23
2
Basic Operation
■
Programming a Channel
1
In VFO mode, select the frequency you want to program.
2
Press the [FUNC/ENTER] key.
"F", bank No., and channel No. will appear on the display.
3
Select a bank by pressing the [BANK(1M/10M)] key.
Each bank No. corresponds to the following bank.
0 - 9 ·········································· For Memory channel
A, B ·········································· For Program scan channel
P ··············································· For Priority channel
J ··············································· For Search-pass memory channel
Select a bank according to the use.
4
Select a channel by rotating the dial.
According to the type of bank, the number of available channels is different
as shown below:
Bank 0 - 9 ································· 00 - 69
Bank A, B ································· A00 - B19
Bank P ······································ 00 - 07
Bank J ······································ 00 - 99
If the bank No. flashes, the channel is available. If it appears on the display
and is not flashing, the channel is already programmed.
5
Press the [V/P/M (MW)] key.
The setting will be completed.
Tip
· It is not possible to increase the number of memory channels.
· It is not possible to overwrite memories in the default setting. For more
information, see "Overwrite Memory Setting." (P.43)
F
B
Bank No. Channel No.
POWER
SCAN
SCRT
V/P/M
MW
BANK
1M/10M
3
4
1,5
2
2
Basic Operation
24
■
Erase a Channel
1
Switch to the Memory mode by pressing the [V/P/M (MW)] key.
2
Select a channel you want to erase.
For more information, see "In Memory Mode." (P.22)
3
Press the [FUNC/ENTER] key.
"F" will appear on the display.
4
Press the [V/P/M (MW)] key.
The channel will be erased.
Tip
You can clear all the programmed channels at one time. For more information,
see "Resetting." (P.35)
B
Bank No. Channel No.
POWER
SCAN
SCRT
V/P/M
MW
BANK
1M/10M
1,4
3
25
2
Basic Operation
Scan Function
The scan function periodically changes the frequency to search for a signal.
The DJ-X3 has four types of scan functions.
VFO scan ······································Scans the entire band in VFO mode.
Program scan································Scans a specified range of frequencies. The
upper limit and lower limit of the range need
to be set in advance.
Preset scan ··································Scans the entire band in Preset mode.
Memory scan ·······························Scans specified memory banks.
■
VFO Scan
1
Switch to VFO mode by pressing the [V/P/M (MW)] key.
2
Press the [SCAN (SCRT)] key.
3
Rotate the dial while holding the [SCAN(SCRT)] key and change the
display to "vFo."
4
Release the [SCAN (SCRT)] key.
VFO scan starts, and ". (decimal point)" flashes on the display.
Scanning pauses when a signal is received.
B
Flashes
POWER
SCAN
SCRT
V/P/M
MW
BANK
WIDE BAND
COMMUNICATION RECEIVER
DJ-X3
1M/10M
1
3
2,3,4
2
Basic Operation
26
■
Program Scan
This function scans a specified range of frequencies. Before using this function,
you need to specify the upper and lower frequency limits. These frequencies
are called a "Program scan channel", and the DJ-X3 has 20 pairs of program
scan channels. Set the combination of upper and lower limits. (i.e. A00 and
B00, or A01 and B01) For more information, see "Programming a Channel."
(P.23)
1
Switch to the VFO mode by pressing the [V/P/M (MW)] key.
2
Press the [SCAN(SCRT)] key.
3
Rotate the dial while holding the [SCAN(SCRT)] key, and select a pair
of programmed channels to be scanned.
Frequencies between A and B of the same No. will be scanned.
4
Release the [SCAN(SCRT)] key.
Program scan starts. ". (decimal point)" flashes, and "PS" appears on the
display. Scanning pauses when a signal is received.
Tip
The tuning step and modulation mode of the Program scan function are the
same as those set for the VFO mode (not the memory mode).
Program channel No.
Flashes
POWER
SCAN
SCRT
V/P/M
MW
BANK
WIDE BAND
COMMUNICATION RECEIVER
DJ-X3
1M/10M
1
3
2,3,4
27
2
Basic Operation
■
Preset Scan
1
Switch to Preset mode by pressing the [V/P/M (MW)] key.
2
Select AM radio, FM radio, or TV by pressing the [BANK(1M/10M)] key.
3
Press the [SCAN(SCRT)] key.
Preset scan starts, and ". (decimal point)" flashes on the display.
Scanning pauses when a signal is received.
■
Memory Scan
This function scans specified banks or all banks in the Memory mode.
There are three types of Memory scan.
Bank scan ·····································Scans a specified bank only.
Bank link scan·······························Scans multiple banks. Up to five banks can
be linked. Link setting is required in
advance. For more information, see "Setting
Bank Link." (P.40)
All-bank scan ·······························Scans banks 0 to 9.
Tip
In any type of scan, banks A (B), P, and J are not scanned.
W
Flashes
POWER
SCAN
SCRT
V/P/M
MW
BANK
1M/10M
2
1
3
2
Basic Operation
28
To operate Memory scan:
1
Switch to Memory mode by pressing the [V/P/M (MW)] key.
2
Press the [SCAN(SCRT)] key.
Type of Memory scan will appear on the display.
3

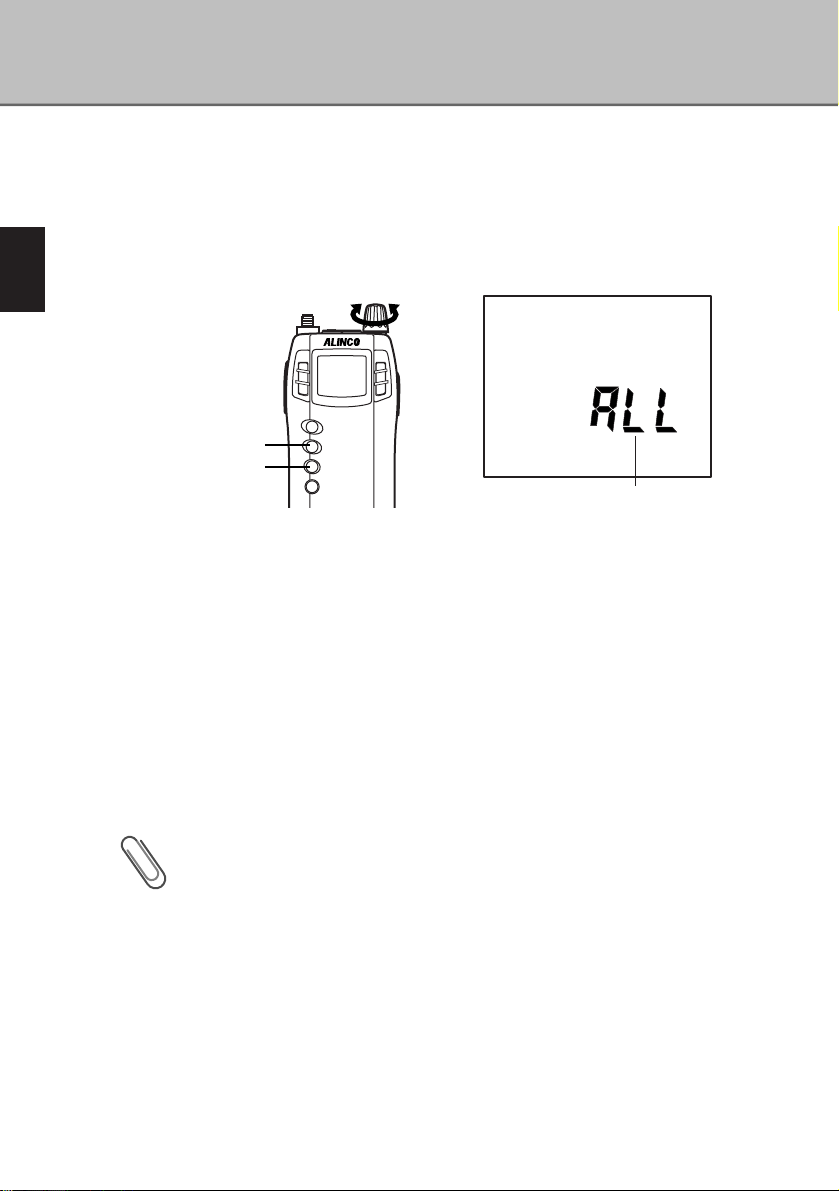

Rotate the dial while holding the [SCAN(SCRT)] key, and select a type
of Memory scan.
mEmory : ··································Bank scan
LInk : ·········································Bank link scan
ALL : ·········································All-bank scan
When selecting Bank scan, the current bank displayed in the Memory mode
will be scanned.
4
Release the [SCAN(SCRT)] key.
Memory scan starts, and ". (decimal point)" flashes on the display.
Scanning pauses when receiving a signal.
Tip
The following are common to all the scans:
· Scanning direction depends on the direction of the last operation. (However, in
the case of Program scan, the DJ-X3 will scan toward the direction of the other
programmed limit. )
· If you rotate the dial while scanning, the direction of scanning can change.
· To stop scanning, press any key except the dial and the [MONI(ST/SK)] key.
· If you activate the Monitor function while scanning, scanning pauses. When you
stop operating the Monitor function, scanning restarts.
· You can set the scan-resume conditions. For more information, see "Setting the
Scan Mode (Timer Scan/Busy Scan)." (P.41)
Type of Memory scan
POWER
SCAN
SCRT
V/P/M
MW
BANK
1M/10M
1
2
3
29
2
Basic Operation
Setting the Tuning Step
The tuning step sets the increment/decrement of each click of the dial when
adjusting the frequency in VFO mode.
1
Switch to VFO mode by pressing the [V/P/M (MW)] key.
2
Press the [FUNC/ENTER] key.
"F" will appear on the display.
3
Press the [MONI(ST/SK)] key.
The currently selected tuning step will appear on the display.
The default setting is AUTO. ("AUto")
4
Select a tuning step by rotating the dial from the following:
5, 6.25, 8.33, 10, 12.5, 15, 20, 25, 30, 50, 100, or AUTO. (Unit: kHz)
5
Press the [FUNC/ENTER] key.
Setting is completed, the receiver returns to the VFO mode.
Tip
· AUTO is for selecting the suitable tuning step and modulation mode
automatically.
· When AUTO is selected, it is not possible to change the modulation mode.
F
POWER
SCAN
SCRT
V/P/M
MW
BANK
1M/10M
1
4
3
2,5
2
Basic Operation
30
Memory Skip
This function is for skipping the specified memory channel(s) when executing
the Memory scan function.
1
Switch to Memory mode by pressing the [V/P/M (MW)] key.
2
Call up the memory channel you want to skip.
3
Press the [FUNC/ENTER] key.
"F" will appear on the display.
4
Press the [MONI(ST/SK)] key.
The Skip setting will be completed, and "SKIP" will appear on the display.
How do you cancel the memory skip?
Call up the memory channel to cancel, and then repeat steps 3 and 4 above.
When complete, the word "SKIP" is removed from the display.
F
SKIP
Appear
POWER
SCAN
SCRT
V/P/M
MW
BANK
1M/10M
1
4
3
31
3
Useful Functions of the DJ-X3
Descrambling
This function returns scrambled voice to normal reception.
1
Select the frequency of the scrambled voice.
2
Press the [FUNC/ENTER] key.
"F" will appear on the display.
3
Press the [SCAN(SCRT)] key.
The Descrambling function starts operating, and " " appears at the bottom
left of the display and flashes. Decode No. for scrambling will appear on the
display.
4
Select a decode No. by rotating the dial.
Select a decode No. from 01 to 16. Select the No. which allows you to
understand the voice.
Tip
Pressing the [FUNC/ENTER] key allows you to descramble the voice using the
specified decode No., and change the frequency at the same time.
How do you cancel the Descrambling function?
Press the [FUNC/ENTER] key, then the [SCAN(SCRT)] key.
Caution!
Use of the Descrambling function may be prohibited in some jurisdictions.
Check local regulations before use.
Flashes Decode No.
POWER
SCAN
SCRT
V/P/M
MW
BANK
1M/10M
3
4
2
3
Chapter
Useful Functions of the DJ-X3
3
Useful Functions of the DJ-X3
32
Bug Detector
The DJ-X3 detects a bug’s signal by scanning frequencies in the programmed
memory banks. When a listening microphone is found, the DJ-X3 notifies you
with its display and a warning sound.
Caution!
Be sure to remove the earphone when detecting bugs.
1
Turn the power ON while holding down the [MONI(ST/SK)] key.
" " will appear on the display, and the DJ-X3 starts scanning according to
the set memory bank link.
When a bug’s signal is found, "dc" flashes on the display, and scanning stops.
2
Press the dial (the [VOL/SQL(SET)] key) down to adjust the audio volume.
Adjust the audio volume so that the howling noise sounds at an angle to the
DJ-X3, and detect the listening microphone. Be sure not to cover the
speaker.
Tip
You can set a level of the Bug Detector’s sensitivity. For more information, see
"Setting Bug Detector Sensitivity." (P.39)
ATT
F
B
Flashes
Appear
POWER
SCAN
SCRT
V/P/M
MW
BANK
1M/10M
2
1
33
3
Useful Functions of the DJ-X3
Caution!
· Operate in a quiet environment where doors and windows are closed. It is
hard to find a listening microphone in a noisy environment.
· Depending on the modulation setting, this function may not work
correctly.
· When the battery voltage is low, this function does not work normally. Be
sure to recharge the battery pack completely, load new AA batteries, or
supply sufficient voltage from the DC power supply.
· Since this function detects a bug’s signal by the presence or absence of a
howling noise, a loud sound may be emitted during detection; however, it
is not a malfunction.
· Detection area is approximately 15 square meters (18 square yards)
depending on the type of listening microphone.
How do you stop detecting?
Turn the power OFF, then turn the power ON while holding the [MONI(ST/SK)]
key down.
Tip
When you turn the power on while holding the [MONI(ST/SK)] key down, but the
Bug Detector function doesn't operate, the following reasons may be
considered: Bank link scan mode is not selected or there is no memory data in
the area. If so, select the bank link scan mode and program at least one channel
in the area.
3
Useful Functions of the DJ-X3
34
Keylock
To prevent incorrect or unauthorized operations, you can lock the keys.
The following operations can be used while the keylock is ON.
· Monitor function
· Mute function
· Adjusting the audio volume and squelch
· Canceling the keylock
· Turning the power ON/OFF
1
Hold down the [FUNC/ENTER] key for a second.
The keylock will turn ON, and the key icon will appear on the display.
How do you cancel the keylock?
Hold down the [FUNC/ENTER] key for a second while the keylock is ON. The
keylock will turn OFF, and the key icon will disappear.
Battery Charge Indicator
When the battery pack is exhausted, the battery icon at the upper right corner
of the display will appear. If the indicator starts to flash, the battery power will
soon be depleted and the transceiver won't work any longer. Recharge the
battery pack or load new AA batteries at that time.
Appears
Appears
POWER
SCAN
SCRT
V/P/M
MW
BANK
1M/10M
[FUNC/ENTER] key
35
3
Useful Functions of the DJ-X3
Resetting
You can reset programmed memory channels and settings.
There are two types of reset; Partial reset and All reset.
Partial reset ···································Programmed memory channels remain, and
the other settings are reset.
All reset ·········································All the memory channels and settings are
reset. However, Preset channels (AM
radio/FM radio/TV) cannot be reset.
■
How to Reset Partially
Turn the power on while holding the [FUNC/ENTER] key down.
■
How to Reset All
Turn the power on while holding down the [FUNC/ENTER] key, the
[BANK(1M/10M)] key, and the dial all at the same time.
[FUNC/ENTER] key
POWER
SCAN
SCRT
V/P/M
MW
BANK
1M/10M
[FUNC/ENTER] key
POWER
SCAN
V/P/M
BANK
SCRT
MW
1M/10M
3
Useful Functions of the DJ-X3
36
The Set Mode Function
This Set mode allows you to customize the DJ-X3 for your particular application.
The following items can be set in the Set mode.
ATT (Attenuator) function (P.37)
Selecting the antenna (P.37)
Selecting the modulation mode (P.38)
Selecting between stereo and monophonic (P.39)
Setting Bug Detector sensitivity (P.39)
Setting bank link (P.40)
Lamp function (P.41)
Setting the scan mode (Timer scan/Busy scan) (P.41)
APO (Auto Power Off) function (P.42)
BS (Battery Save) function (P.43)
Overwrite memory setting (P.43)
PRIO (Priority) Watch function (P.44)
Beep function (P.44)
Setting operation of the Monitor and Mute functions (P.45)
Setting operation of the MONI key (P.45)
■
Setting Each Item
All the items of the Set mode are set by the same operation.
1
Press the [FUNC/ENTER] key.
"F" will appear on the display.
2
Press the dial (the [VOL/SQL(SET)] key) down.
Change to the Set mode and the item name will be displayed.
3
Select an item by pressing the dial. (the [VOL/SQL(SET)] key)
Each press of the [VOL/SQL (SET)] key changes the item as shown below.
Att ➝ wHIP(EAr) ➝ AbAr ➝ SbAr ➝ wAvE ➝ StErEo(mono) ➝ bUg ➝ bL0
➝ LAmP ➝ tImEr(bUSy) ➝ APo ➝ bS ➝ ow ➝ Pr ➝ bEEP ➝ PUSH(HoLd)
➝ monI(mUtE) ➝ Att...
When you press the [MONI(ST/SK)] key, the setting direction reverses.
4
Change the value or setting by
rotating the dial.
5
Press the [FUNC/ENTER] key.
The setting will be completed.
For detailed information of each item, see the following:
4
2,3
1,5
37
3
Useful Functions of the DJ-X3
■
ATT (Attenuator) Function
This function attenuates strong signals on nearby channels.
Use this function when the received signal is influenced by a strong signal.
ATT function attenuates the received signal about 20 dB.
In the Set mode, select "Att."
· Select ON/OFF by rotating the dial.
· The default setting is OFF.
■
Selecting the Antenna
You can select the antenna depending on the frequency you wish to receive.
The DJ-X3 has four types of antennas:
AM bar antenna ····························The internal antenna which receives 100
kHz to 1620 kHz including the AM radio
band.
Short-wave bar antenna················The internal antenna which receives 1625
kHz to 12 MHz including the short-wave
band.
Earphone antenna·························The earphone's cord performs the role of
antenna. Receives over 12 MHz.
External antenna ···························The whip antenna attached to the DJ-X3.
Available to receive entire frequency band.
Each type of antenna displays below:
AM bar antenna ····························AbAr
Short-wave bar antenna················SbAR
Earphone antenna·························EAr
External antenna ···························wHIP
F
3
Useful Functions of the DJ-X3
38
In the Set mode, select the type of antenna.
· In the case of each type of bar antenna, rotate the dial and set ON/OFF.
· In the case of using the earphone antenna, rotate the dial and select either the
earphone antenna or the whip antenna.
Tip
· If each type of bar antenna is set to OFF, the external antenna attached to the
DJ-X3 receives signals for those bands.
· When using the earphone antenna, a signal may be unstable depending on the
position of the earphone cord.
· When using the bar antenna, a signal may be unstable depending on the
frequency and the position of the receiver.
■
Selecting the Modulation Mode
You can select a modulation mode from AM, FM, and WFM.
In the Set mode, select "wAvE."
· Every click of the dial changes the modulation mode as shown below:
AM ➝ WFM ➝ FM ➝ AM...
· "A" appears on the display when you select AM radio, and "W" appears when
you select TV and broadcast FM reception. However, nothing appears when
you select narrow band FM communications radio.
Tip
When the channel step setting is set to AUTO, the modulation mode cannot be
changed.
W
F
F
39
3
Useful Functions of the DJ-X3
■

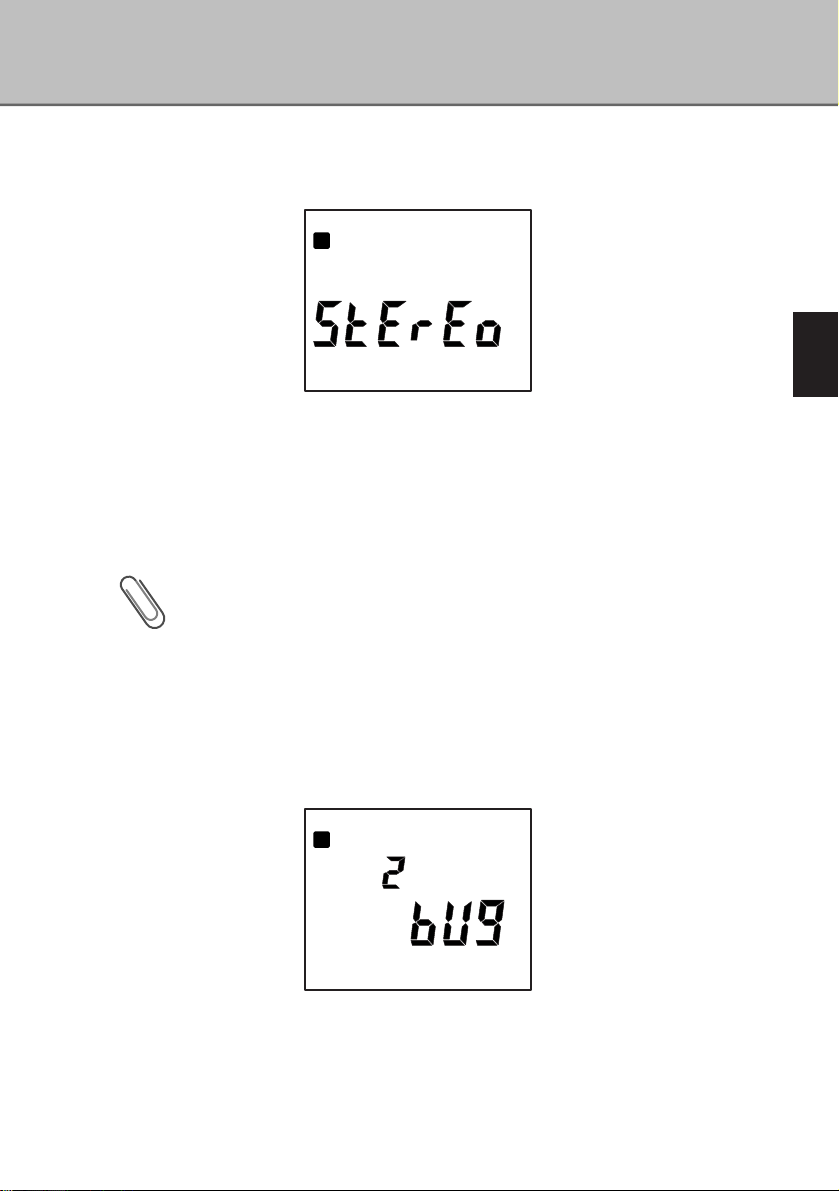

Selecting between Stereo and Monophonic
In the Set mode, select either "mono" or "StErEo."
· When rotating the dial, the setting of "mono" and "StErEo" changes alternately.
· Stereo mode is available only when the modulation mode is set to WFM. You
will receive a signal in monophonic even when stereo mode is selected if the
receiver is set to AM or FM. WFM must be present to receive stereo.
· The default setting is stereo mode.
Tip
To monitor a signal in stereo, stereo headphones are necessary.
■
Setting Bug Detector Sensitivity
You can select the sensitivity when detecting a bug. There are 5 sensitivity
levels: 0 (highest) - 4 (lowest).
In the Set mode, select "bUg."
· Select the sensitivity by rotating the dial.
· The default setting is 2.
FWF
3
Useful Functions of the DJ-X3
40
■
Setting Bank Link
This is the setting for the "Bank link scan", which scans specified multiple
banks.
You can select up to 5 banks from 10 (0 to 9) programmed banks.
In the Set mode, select "bL."
· Select bank link No. by rotating the dial.
· Select a bank to link by pressing the [BANK(1M/10M)] key. One bank can be
assigned to each bank link No. 0-4.
Tip
· When only one bank is set to the bank link, if you execute the bank link scan,
only one bank will be scanned.
· For more information about bank link scan, see "Memory Scan." (P.27)
· Scanning while the Bug Detector operates reflects the settings of the bank link.
· The Bug Detector detects a listening microphone from bank linked memories.
· When using the Bug Detector, corresponding banks must be linked.
F
Bank link No. Bank No.
41
3
Useful Functions of the DJ-X3
■
Lamp Function
This function sets the display backlight ON or OFF.
When ON is selected, an operation of any key turns ON the backlight, and it
automatically turns OFF after 5 seconds.
In the Set mode, select "LAmP."
· Select ON/OFF by rotating the dial.
· The default setting is ON.
■
Setting the Scan Mode (Timer Scan/Busy Scan)
You can set the scan-resume condition.
While executing a scan, if the DJ-X3 receives a signal, scanning will pause.
You can set the condition under which the DJ-X3 restarts scanning.
Timer scan (tImEr)·························Restarts after a five-second stop, even while
receiving a signal.
Busy scan (bUSy) ·························Restarts when the DJ-X3 no longer receives
a signal.
In the Set mode, select "tImEr(bUSy)."
· Select Timer/Busy scan by rotating the dial.
· The default setting is Timer scan.
F
F
3
Useful Functions of the DJ-X3
42
■
APO (Auto Power Off) Function
This function automatically turns the power off if there is no key operation for a
specified period of time.
Just before cutting the power off, a beep sound will be heard. Select the time
from 30, 60, 90 minutes, and OFF. When OFF is selected, this function does not
work.
In the Set mode, select "APO."
· Select ON/OFF by rotating the dial.
· The default setting is OFF.
Tip
The APO function does not operate while the DJ-X3 is scanning.
F
B
43
3
Useful Functions of the DJ-X3
■
BS (Battery Save) Function
This function extends battery life.
If there is no key operation for five seconds, the internal power rapidly cycles
between ON and OFF.
In the Set mode, select "bS."
· Select ON/OFF by rotating the dial.
· The default setting is ON.
■
Overwrite Memory Setting
To prevent from overwriting memory channels by mistake, you can choose to
disable or enable the overwrite function.
In the Set mode, select "ow."
· Select ON/OFF by rotating the dial.
"on" : Enables overwriting a memory.
"oFF" : Disables the abirity to overwrite.
· The default setting is OFF.
F
F
3
Useful Functions of the DJ-X3
44
■
PRIO (Priority) Watch Function
This function monitors two frequencies alternately.
Every five seconds, the DJ-X3 momentarily switches from the frequency in the
VFO mode to the frequency in the Priority channel.
In the Set mode, select "Pr."
· Select a Priority channel No. from 0 to 7 by rotating the dial.
· Press the [FUNC/ENTER] key, to leave the Set mode. The Priority Watch
function is now active.
Tip
· Scanning is not available during the Priority Watch.
· If the DJ-X3 receives a signal on the Priority channel, receiving time will be
extended for 2 seconds.
How do you cancel the Priority Watch?
Press either the [SCAN(SCRT)] key or the [FUNC/ENTER] key during the
Priority Watch.
■
Beep Function
The beep sound which is heard when you operate keys on the DJ-X3 can be turned
OFF.
In the Set mode, select "bEEP."
· Select ON/OFF by rotating the dial.
F
F
Priority channel
45
3
Useful Functions of the DJ-X3
■
Setting Operation of the Monitor and Mute Functions
Select operation of the [MONI(ST/SK)] key when the Monitor and the Mute
function is used.
In the Set mode, select either "HoLd" or "PUSH."
· Select either "HoLd" or "PUSH" by rotating the dial.
· When "PUSH" is set, the Monitor and the Mute function is activated while
holding down the [MONI(ST/SK)] key.
· When "HoLd" is set, the Monitor and the Mute function is activated or
deactivated every time the [MONI(ST/SK)] key is pressed.
· The default setting is PUSH.
■
Setting Operation of the MONI key
Select the use of the [MONI(ST/SK)] key for either the Monitor or the Mute
function.
In Set mode, select "monl" or "mUtE."
· Select either "monl" or "mUtE" by rotating the dial.
When "monI" is selected, the [MONI(ST/SK)] key operates the Monitor function.
When "mUtE" is selected, the [MONI(ST/SK)] key operates the Mute function.
· The default setting is Moniter.
F
F
3
Useful Functions of the DJ-X3
46

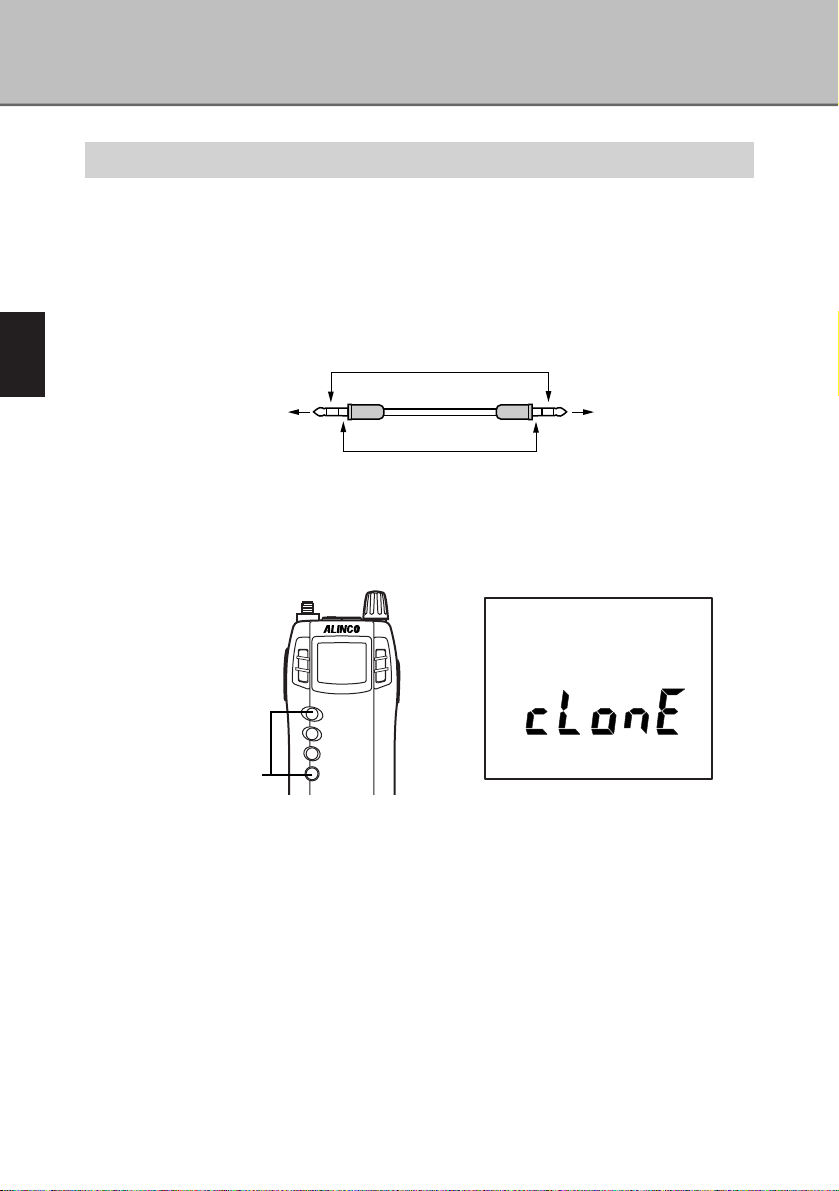

Cloning
When using the Clone function, all the memories and settings of one DJ-X3
(master) can be copied to another DJ-X3 (slave).
1
Turn OFF both DJ-X3s. (master and slave)
2
Connect the earphone jacks on both master and slave DJ-X3s with the
cloning cable.
3
Turn on both master and slave power while holding the
[BANK(1M/10M)] key down.
"cLonE" will appear on the display.
POWER
SCAN
SCRT
V/P/M
MW
BANK
1M/10M
3
Connect to the
earphone jack of
the master unit.
Connect to the
earphone jack of
the slave unit.
47
3
Useful Functions of the DJ-X3
4
Press the dial (the [VOL/SQL(SET)] key) of the master DJ-X3.
Cloning starts. "Sd " appears on the master DJ-X3's display, and
"Ld " appears on the slave DJ-X3's display. ( changes
constantly.)
When cloning is completed, "PASS" appears on both DJ-X3s' displays.
To return to normal operation, turn the power off, and then turn it on again.
Caution!
· Do not disconnect the cable while cloning.
· All data in the slave DJ-X3 will be updated if cloning is executed. Be
careful with current data on the slave side before cloning.
· If you disconnect the cable or turn off the other DJ-X3 after "PASS" was
displayed, "comErr" will appear on the display; however, cloning has been
executed normally.
If "Error" appears on the display...
If incorrect data is transmitted while cloning, "Error" will appear on both DJ-X3s'
displays. Press the dial (the [VOL/SQL(SET)] key) down on the master DJ-X3 to
restart cloning. If "Error" appears on both DJ-X3s' displays once again, it is not
possible to transmit data as it may be incorrect data.
(Slave)
(Master)
3
Useful Functions of the DJ-X3
48
If "comErr" appears on the display...
If a communication error occurs, "comErr" will appear on both DJ-X3s' displays.
Make sure the cloning cable is connected to each receiver’s earphone jack
properly.
Press the dial (the [VOL/SQL(SET)] key) down on the master DJ-X3 to restart
cloning.
To copy the data to another slave DJ-X3
After completing one cloning operation, connect the master DJ-X3 to another
slave DJ-X3, and then turn power on while holding the [BANK(1M/10M)] key on
the master DJ-X3. Press the dial (the [VOL/SQL(SET)] key) down on the master
DJ-X3 to restart cloning.
49
4
Appendix
Troubleshooting
Please check the list below before concluding the DJ-X3 is faulty. If a problem
persists, reset the DJ-X3. This can sometimes correct erroneous operation.
Symptom Possible Cause Action
Recharge or exchange batteries.
Check the "+" and "-" orientation
Remove dirt in/on the battery
case
Adjust the volume
Remove the earphone
Adjust the squelch level or
turn off
Turn the power off, then on (If
unit does not recover, reset)
Recharge or exchange batteries
Adjust the squelch level or
turn off
Turn the Attenuator OFF
Check the type of antenna,
and then switch
Change the tuning step, and
adjust the frequency
Select the suitable modulation mode
Recharge or exchange batteries
Turn OFF keylock
Set the squelch value higher
to cut the noise off
Program upper and lower limit properly
Dead battery
Incorrect position of
battery
Poor contact with the
battery case and transceiver terminals
Volume too low
Earphone connected
Squelch closed
Incorrect operation of
CPU
Battery exhausted
Squelch level too high
Attenuator is ON
Incorrect antenna selection
(WHIP, EAR, ABAR, SBAR)
Incorrect frequency
Incorrect modulation
mode
Dead battery
Keylock is ON
Squelch opens
Incorrect programmed
edge in Program scan
Cannot turn the
power on
No speaker audio
Abnormal display
or operation
Low sensitivity
Unclear sound
Cannot set the
frequency etc.
Cannot scan
Cannot execute
Program scan
4
Chapter
Appendix
4
Appendix
50
Specifications
■
General
Receiving range E : 0.1 - 1299.995 MHz
T : 0.1 - 1299.995 MHz
Modulation modes : A3 (AM), F3 (FM, WFM)
Ant. impedance : 50Ω
Ant. terminal : SMA
Supply voltage : DC 3.6V - DC 6V
(external input voltage DC 4.5V - DC 16V)
Ground : Negative ground
Current consumption : Reception : approx. 75 mA
Battery save (1 : 4) : approx. 39 mA
Temperature range : –10 ~ +60°C (+14 ~ +140°F)
Frequency stability : ±5 ppm (–10 ~ +60°C / +14 ~ +140°F)
Dimensions : W:56 H:102 D:23 mm (without projections)
(W:2.20 H:4.01 D:0.90 in.)
Weight : Approx. 145 g
(a NiMH battery pack and an antenna inclusive)
(Approx. 5 oz.)
■
Receiver
System : Triple-conversion superheterodyne
1st I.F : 248.45 MHz
2nd I.F. : 38.85 MHz
3rd I.F. : 450 kHz
Selectivity
AM/FM
: –6 dB/12 kHz or over, –60 dB/30 kHz or less
WFM : –6 dB/150 kHz or over
Sensitivity AM : 0.5 - 1.62 MHz 17dBµ or less 10dB S/N
(Typical) 1.62
MHz or ove
r 5dBµ or less 10dB S/N
FM : 30 - 550 MHz -3dBµ or less 12dB SINAD
550 MHz or over 0dBµ or less 12dB SINAD
WFM : 13dBµ or less 12dB SINAD
Sub-freq. output : MAX 220mW or over (8Ω)
ALINCO,INC.
Head Office: Shin-Dai Building 9th Floor
2-6, 1-Chome, Dojimahama, Kita-ku, Osaka 530-0004, Japan
Phone: +81-6-4797-2136 Fax: +81-6-4797-2157
E-mail: export@alinco.co.jp
PS0384A
Loading...
