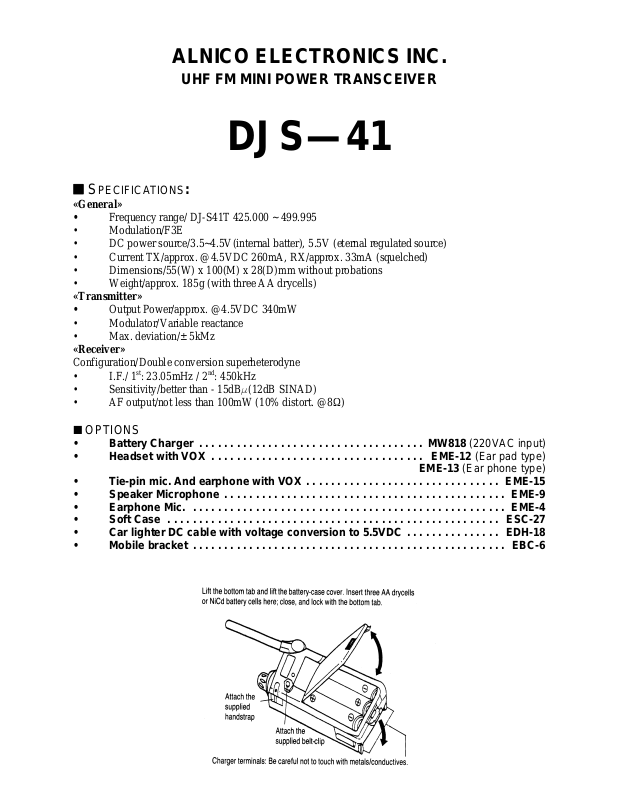

Alinco DJ-S41 instruction manual

ALNICO ELECTRONICS INC.
UHF FM MINI POWER TRANSCEIVER
DJS—41
2 S
PECIFICATIONS
«General»
Frequency range/ DJ-S41T 425.000 ~ 499.995
DC power source/3.5~4.5V(internal batter), 5.5V (eternal regulated source)
Current TX/approx. @4.5VDC 260mA, RX/approx. 33mA (squelched)
Dimensions/55(W) x 100(M) x 28(D)mm without probations
Weight/approx. 185g (with three AA drycells)
«Transmitter»
Output Power/approx. @4.5VDC 340mW
Modulator/Variable reactance
Max. deviation/± 5kMz
«Receiver»
Configuration/Double conversion superheterodyne
I.F./ 1
Sensitivity/better than - 15dB)(12dB SINAD)
AF output/not less than 100mW (10% distort. @86)
2 OPTIONS
Battery Charger ....................................MW818
Headset with VO X .................................. EME-12
Tie-pin mic. And earphone with VOX ............................... EME-15
Speaker Microphone ............................................. EME-9
Earphone Mic. .................................................. EME-4
Soft Case ..................................................... ESC-27
Car lighter DC cable wi t h voltage conversion t o 5. 5VDC ............... EDH-18
Mobile bracket .................................................. EBC-6
st
: 23.05mHz / 2nd: 450kHz
:
(220VAC input)
(Ear pad type)
EME-13
(Ear phone type)
SETTINGS
A
NTENNA 2
1
Rotate and let the antenna stand up when operating.
2
E
XTERNAL POWER TERMINAL
2
Connect the optional EDH-18 or an external regulated 5.5 VDC source (negative ground).
E
XTERNAL MICROPHONE JACK 2
3
Connect to this jack when using an optional microphone.
2
E
XTERNAL SPEAKER JACK
4
Connect to this jack when using an optional speaker.
PTT
2
5
Press-to-talk switch.
2
M
ONITOR
6
Press this switch to unmute the preset squelch and monitor weak signals. Press and hold the F-key and press this key to lock/unlock the keys to avoid unintended key entries. ("L" is dis­played during the keylock.)
F
UNCTION
(F)2 7
Press and hold this key and press an­other key to activate this secondary function. Press and release this key quickly to change the blinking fre­quency digit: the blinking digit can be changed with the UP/DOWN key.
1
17 2 3 4
5
16
15 6
7 8
9
14
13
10 11 12
A) "M" is displayed continuously on a programmed
memory channel. The "M" flashes on a memory channel not yet programed.
B) Memory channel number. C) Frequency (and other parameters when program­ming functions.) D) "BUSY" when upon re­ceiving a signal. E) S-meter/RF output power meter. F)Auto Power Off enabled. G) Low Battery
Indication.(Flashes when needs replacement or change,) H) Low Power Output mode indicator. I} Alarm function ON. J) Other shift direct ion. K) CTCSS tone encoder ON.
