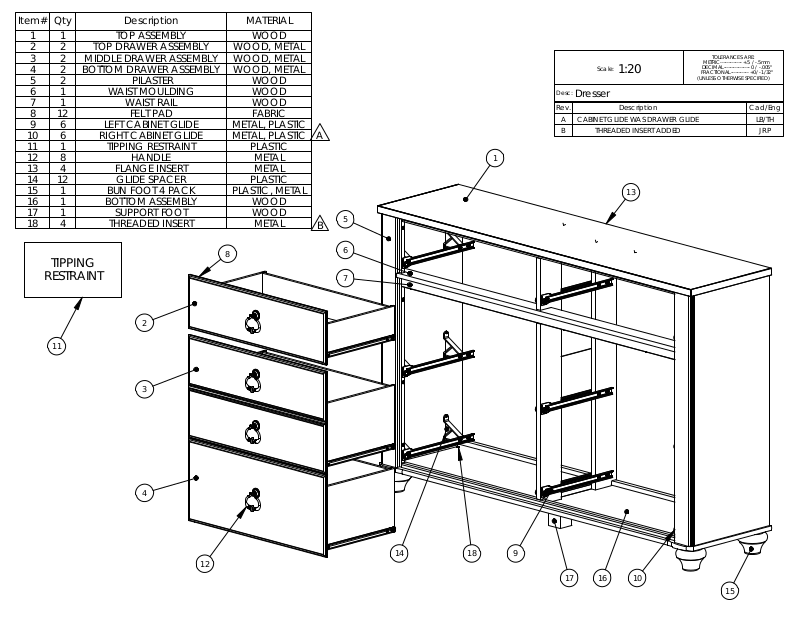

Item# Qty Description MATERIAL
1 1 TOP ASSEMBLY WOOD
2 2 TOP DRAWER ASSEMBLY WOOD, METAL
3 2 MIDDLE DRAWER ASSEMBLY WOOD, METAL
4 2 BOTTOM DRAWER ASSEMBLY WOOD, METAL
5 2 PILASTER WOOD
6 1 WAIST MOULDING WOOD
7 1 WAIST RAIL WOOD
8 12 FELT PAD FABRIC
9 6 LEFT CABINET GLIDE METAL, PLASTIC
10 6 RIGHT CABINET GLIDE METAL, PLASTIC
11 1 TIPPING RESTRAINT PLASTIC
12 8 HANDLE METAL
13 4 FLANGE INSERT METAL
14 12 GLIDE SPACER PLASTIC
15 1 BUN FOOT 4 PACK PLASTIC, METAL
16 1 BOTTOM ASSEMBLY WOOD
17 1 SUPPORT FOOT WOOD
18 4 THREADED INSERT METAL
TOLERANCES ARE:
METRIC------------- +.5 / -.5mm
Scale:
1:20
Desc:
Dresser
Rev.
A CABINET GLIDE WAS DRAWER GLIDE LB/TH
A
1
5
B
B THREADED INSERT ADDED
Description
13
DECIMAL---------------- 0 / -.005"
FRACTIONAL----------- +0/ -1/32"
(UNLESS OTHERWISE SPECIFIED)
Cad/Eng
JRP
TIPPING
RESTRAINT
11
8
2
3
4
6
7
12
14
18
9
17
1016
15
