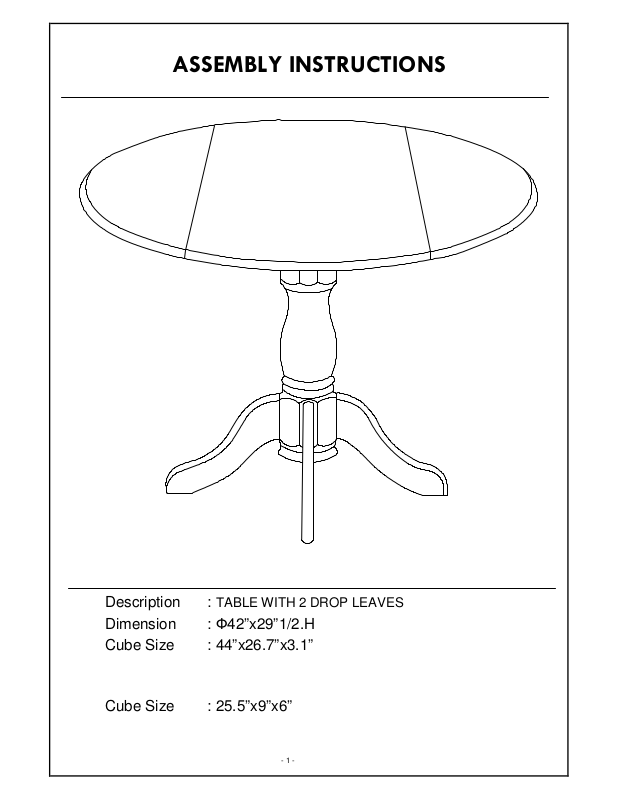

Page 1
ASSEMBLY INSTRUCTIONS
:
Description
Dimension
Cube Size
Cube Size : 25.5”x9”x6”
TABLE WITH 2 DROP LEAVES
: Ф42”x29”1/2.H
: 44”x26.7”x3.1”
- 1 -
Page 2
BEFORE ASSEMBLY
NO Description
Qty Sketch
NO
Description
Qty Sketch
NO Desc
ription
Qty Sketch
NO
Description
Qty Sketch
IMPORTANT NOTE:
- Place all wooden parts on a clean and smooth surface such as a rug or carpet to avoid the parts from being scratched.
- Remove all wrapping material, including staples & packing straps before you start to assemble.
- DO NOT tighten all screws and bolts until completely assembled.
- Keep all hardware parts out of reach of children.
PART LIST
When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have the following
parts:
A Top 1 B Leg 4
C Pedestal 1 D Mounting plate 1
HARDWARE LIST
When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have all of the
following hardware:
1
( Φ8.5xΦ19mm)
Hexagon nut
3
(M8x13mm)
5
( Φ6.5xΦ13mm)
7
(M6x48mm)
Large flat
washer
Small flat
washer
Bolt
4 2
4 4
4 6
12 8
Large lock
washer
( Φ8.5xΦ11mm)
Wrench
(M13mm)
Small lock
washer
( Φ6.5xΦ9mm)
Medium flat
washer
( Φ6.5xΦ16mm)
4
1
12
8
Allen key
9
(M4)
1
- 2 -
Page 3
STEP 1
Attach legs (B) to the pedestal (C) with washers (1), (2) and nuts (3). Tighten with wrench (4).
x4
1
2
3
4
C
STEP 2
B
Put the Mounting plate (D) on top of the pedestal, and attach with bolts (7), washers (5), (6). Tighten with Allen
key (9).
9
D
7
6
5
x4
- 3 -
Page 4
STEP 3
Carefully place the frame (from Step 2) on bottom side of the table top (A), with bolts (7), washers (8), (6).
Tighten with Allen key (9).
9
7
6
x8
A
8
- 4 -
