CARE AND MAINTENANCE
Store outdoor furniture indoors or cover well when it is not in use.
Dust regularly with small brush or vacuum.Spills should be taken care of
immediately before they harden or stain with a slightly dampened sponge.
NOTICE
Please make sure that you have all parts indicated
before you begin assembly of this item.

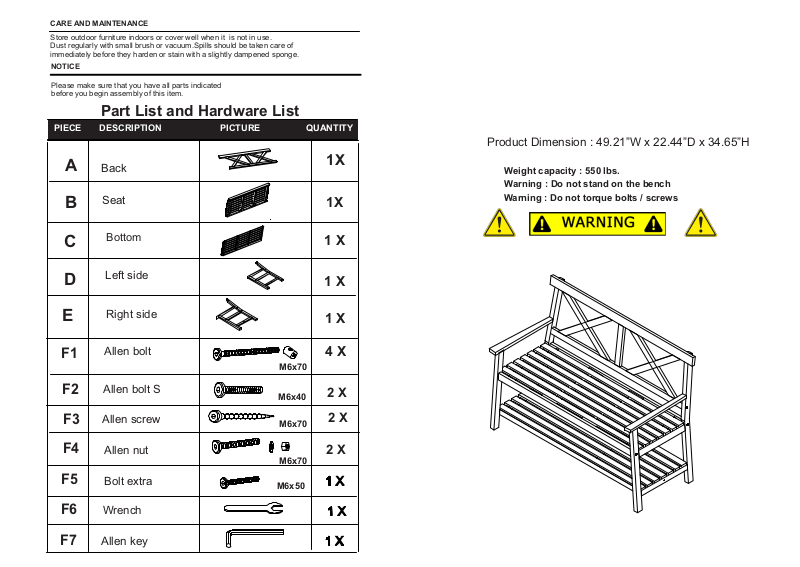

Part List and Hardware List
PIECE DESCRIPTION PICTURE QUANTITY
Product Dimension : 49.21”W x 22.44”D x 34.65”H
A
B
C
D
E
F1
F2
F3
Back
Seat
Bottom
Left side
Right side
Allen bolt
Allen bolt S
Allen screw
M6x70
M6x40
M6x70
1X
1X
1 X
1 X
1 X
4 X
2 X
2 X
Weight capacity : 550 lbs.
Warning : Do not stand on the bench
Warning : Do not torque bolts / screws
F4
F5
F6
F7
Allen nut
Bolt extra
Wrench
Allen key
2 X
M6x70
M6x50
Page 2
Before beginning the assembly of the product,make sure all parts are present.
Compare the parts with package contents list and hardware contents list.
If any parts are missing or damaged,do not attempt to assemble the product.
Tool required for assembly (included) : Allen key and Wrench.
1
D
F7
F1
F1
F5
F1
F5
A
B

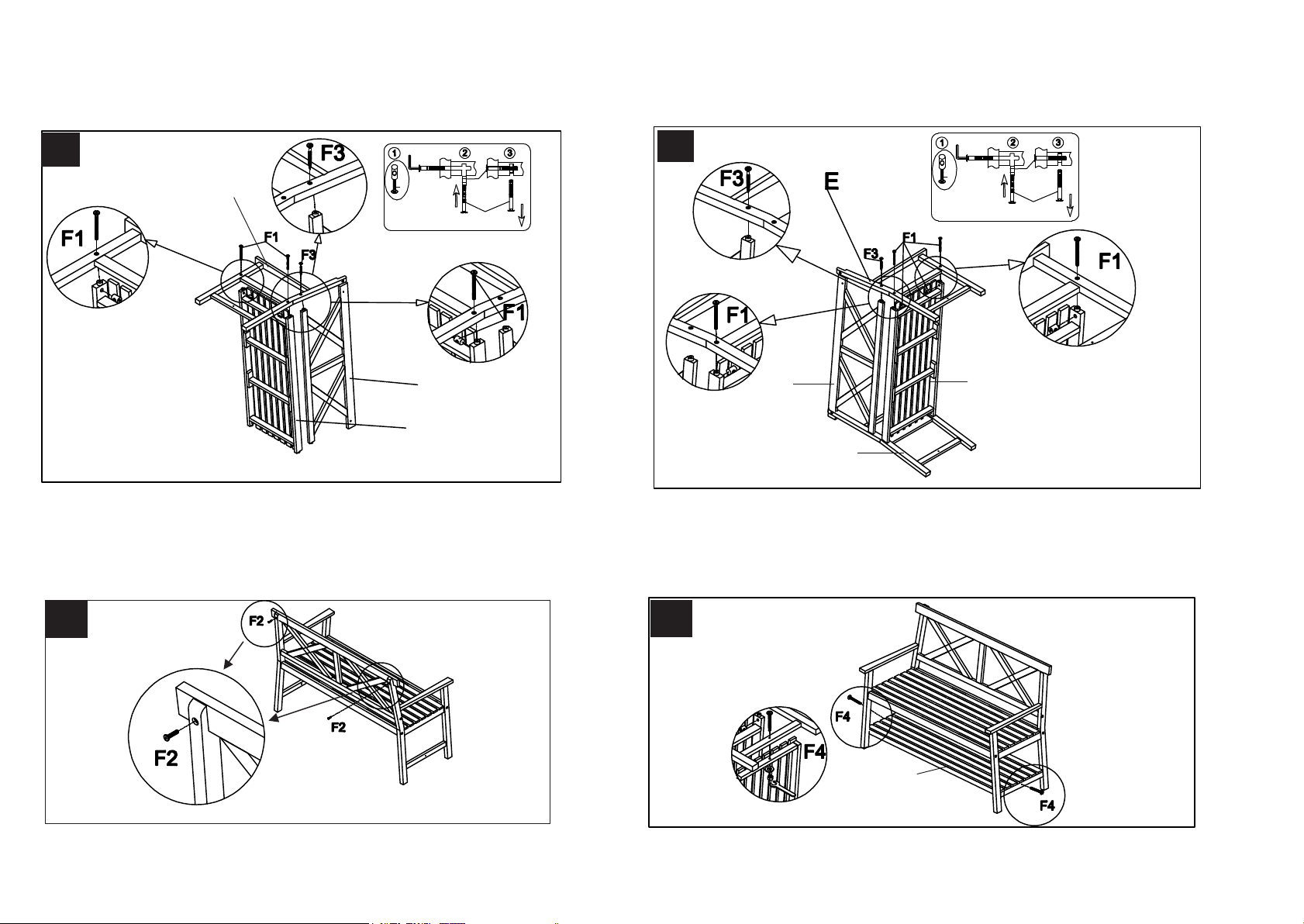

Step1: attach the left side (D) to the seat (B), back (A),
bottom (C) as shown on the picture.Using the Allen bolt (F1),
the Allen screw (F3) and tighten with the Allen key (F7). Make
sure you don’t tighten too tight and you will do at the end.
2
A
F7
F1
F1
F5
F1
F5
B
A
Step 2: repeat with the right side (E) as step 1 as shown on the
picture. At last tighten all bolts and screws.
3
Step 3: Use the Allen bolt S (F2) to fix the back (A)
as shown on the picture by using the Allen key (F7).
4
C
Step 4: put the bottom (C) using the Allen nut (F4) as shown
on the picture. Tighten the Allen nut (F4) by using the Allen
key (F7) and wrench (F6).
