Alcatel-Lucent SPEDDTOUCH PRO User Manual

SPEED TOUCH

PRO

User's Guide

3EC 17059 ABAA TCZZA Ed. 01

Status

Released

2 / 238

Change Note

Short Title

BD F aa 34297

CD-UG STPro R3.2.6

All rights reserved. Passing on and copying of this
document, use and communication of its contents
not permitted without written authorization from Alcatel.

3EC 17059 ABAA TCZZA Ed. 01

Contents

1 Speed Touch Quick Guide 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.1 Get Acquainted with your Speed Touch 12. . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.2 Speed Touch Installation 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.2.1 What you Need 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.2.2 STPro Wiring 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.2.3 Check your Service Provider's Offering 19. . . . . . . . . . . . . . . . . .

1.2.4 Configure your STPro (If Necessary) 20. . . . . . . . . . . . . . . . . . . . .

1.2.5 Surf the Internet 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.2.6 Detailed STPro Information 22. . . . . . . . . . . . . . . . . . . . . . . . . . . .

2 Wiring Guide - Ethernet and ATMF25.6 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.1 LAN Cables 26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.2 Connecting Ethernet 27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.2.1 Ethernet Port(s) on your STPro 28. . . . . . . . . . . . . . . . . . . . . . . . . .

2.2.2 Single PC Ethernet Wiring 29. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.2.3 LAN Ethernet Wiring 30. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.3 Connecting the ATMF25.6 Port (Optional) 31. . . . . . . . . . . . . . . . . . . . . . . .

2.4 Ethernet vs. ATMF25.6 Connectivity 32. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Contents

3 Wiring Guide - DSL, Power and Console 33. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.1 Locating Ports 34. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.2 Connecting the DSL Port 35. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.3 Connecting the Power Adapter 36. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.4 Connecting the Serial Port (Optional) 37. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4 Wiring Guide - Resumé 39. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5 Configuration and Use - Packet Services 43. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.1 Supported Packet Services 44. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.2 Packet Services at a Glance 45. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.3 Selection Criteria 48. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6 Configuration and Use - Transparent Bridging 49. . . . . . . . . . . . . . . . . . . . . . .

6.1 Preparatory Steps 50. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6.2 Using Bridging 51. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6.3 Bridging Configuration 52. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6.4 Bridge Data 55. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7 Configuration and Use - Bridged PPPoE 57. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7.1 Preparatory Steps 58. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7.2 Using Bridged PPPoE 59. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3EC 17059 ABAA TCZZA Ed. 01

3 / 238

Contents

7.3 Bridged PPPoE Configuration 60. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8 Configuration and Use - PPPtoPPTP Relaying 61. . . . . . . . . . . . . . . . . . . . . . . .

8.1 Preparatory Steps 62. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8.2 Using PPPoAPPTP Relaying 63. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8.2.1 Preparing the PC for PPTP Tunneling 64. . . . . . . . . . . . . . . . . . . .

8.2.2 Using PPTP towards your STPro 65. . . . . . . . . . . . . . . . . . . . . . . . .

8.3 Example : MS Windows 98 DialUp Networking 66. . . . . . . . . . . . . . . . . . . .

8.3.1 Create a New DialUp Networking Icon 67. . . . . . . . . . . . . . . . .

8.3.2 Open a DialUp Session 70. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8.3.3 Close a DialUp Session in Use 72. . . . . . . . . . . . . . . . . . . . . . . . .

8.4 PPPoA/PPTP Configuration 73. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

9 Configuration and Use - PPP & IP Routing 79. . . . . . . . . . . . . . . . . . . . . . . . . . . .

9.1 Preparatory Steps 80. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

9.2 Using PPP & IP Routing 81. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

9.3 PPP Configuration 84. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

9.4 PPP Entry Configuration 87. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

9.4.1 The PPP Configuration Page 88. . . . . . . . . . . . . . . . . . . . . . . . . . .

9.4.2 Authentication Related Configurations 89. . . . . . . . . . . . . . . . . . .

9.4.3 IP Routing Related Configurations 90. . . . . . . . . . . . . . . . . . . . . . .

9.4.4 Connection Related Configuration 94. . . . . . . . . . . . . . . . . . . . . .

10 Configuration and Use - CIP & IP Routing 97. . . . . . . . . . . . . . . . . . . . . . . . . . . .

10.1 Preparatory Steps 98. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10.2 CIP Configuration for a LIS 99. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10.2.1 General CIP Configuration Procedure 100. . . . . . . . . . . . . . . . . . .

10.2.2 Retrieving LIS Parameters 101. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10.2.3 Implicit Assignment Mechanism 102. . . . . . . . . . . . . . . . . . . . . . . .

10.2.4 Explicit Assignment Mechanism 103. . . . . . . . . . . . . . . . . . . . . . . . .

10.2.5 Configuring the STPro for CIP 104. . . . . . . . . . . . . . . . . . . . . . . . . .

10.2.6 Adding Appropriate Routes to the Routing Tables 105. . . . . . . . . .

10.2.7 Example Configuration 107. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10.3 Using CIP & IP Routing 109. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10.4 CIP Configuration 110. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

11 Networking - ATM 117. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

11.1 The ATM Packet Switching Technology 118. . . . . . . . . . . . . . . . . . . . . . . . . . . .

11.1.1 ATM Parameters 119. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

11.1.2 ATM and the STPro 120. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

11.1.3 ATM and Interfaces 121. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

11.2 ATMF25.6 Port Configuration 123. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

11.3 The Speed Touch Phonebook 124. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

11.3.1 The STPro 'Phonebook' Page 125. . . . . . . . . . . . . . . . . . . . . . . . . . .

11.3.2 Using the Phonebook 128. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4 / 238

3EC 17059 ABAA TCZZA Ed. 01

11.3.3 AutoPVC and the Phonebook 130. . . . . . . . . . . . . . . . . . . . . . . . . .

12 Networking Services - IP 133. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

12.1 Speed Touch and IP 134. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

12.2 Packet Services and IP 135. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

12.2.1 Transparent Bridging 136. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

12.2.2 PPPoAtoPPTP Relaying 137. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

12.2.3 Routed Packet Services 138. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

12.3 Speed Touch Addresses 139. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

12.3.1 STPro IP Address Types 140. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

12.3.2 Static IP Address Configuration 142. . . . . . . . . . . . . . . . . . . . . . . . .

12.4 Speed Touch DHCP 145. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

12.4.1 STPro DHCP Pages 146. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

12.4.2 The STPro DHCP Server 147. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

12.4.3 The STPro DHCP Client 153. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

12.5 Speed Touch Routing 154. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

12.5.1 The STPro IP Router 155. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

12.5.2 Configuring the STPro IP Routing Table 158. . . . . . . . . . . . . . . . . .

12.6 Speed Touch NAT&PAT 162. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

12.6.1 STPro and NA(P)T 163. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

12.6.2 Packet Services and NA(P)T 164. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Contents

13 Networking Services - DNS 167. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

13.1 Speed Touch DNS Resolving 168. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

13.2 Configuring the Speed Touch DNS Server 170. . . . . . . . . . . . . . . . . . . . . . . . .

14 Maintenance - Speed Touch Software 175. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

14.1 Software Upload from the local LAN 176. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

14.2 Software Download from the DSL WAN 181. . . . . . . . . . . . . . . . . . . . . . . . . . .

15 Maintenance - Speed Touch Password 183. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

16 Maintenance - Speed Touch ToDefaults 185. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

16.1 PingofLife 186. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

16.2 Speed Touch Reset 189. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

16.2.1 BrowsetoDefaults 190. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

16.2.2 PingtoDefaults 191. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

16.2.3 SwitchtoDefaults 192. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

17 Maintenance - Speed Touch Web Interface 193. . . . . . . . . . . . . . . . . . . . . . . . . . .

17.1 Web Interface Preconditions 194. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

17.1.1 Disabling Proxy Servers 195. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

17.1.2 Disabling Proxying for Local IP Addresses 196. . . . . . . . . . . . . . . .

17.2 Browsing to the Speed Touch Pages 197. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

17.3 Speed Touch Page Structure 198. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3EC 17059 ABAA TCZZA Ed. 01

5 / 238

Contents

18 Maintenance - Speed Touch CLI 201. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

18.1 Native CLI Access 202. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

18.1.1 CLI through a Telnet Session 203. . . . . . . . . . . . . . . . . . . . . . . . . . .

18.1.2 CLI via Serial Access 205. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

18.1.3 CLI Command Basics 206. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Abbreviations 211. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

AppendixA Speed Touch Troubleshooting 213. . . . . . . . . . . . . . . . . . . . . . . . . . . .

AppendixB Speed Touch Specifications 215. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

AppendixC Speed Touch Default Assignments 227. . . . . . . . . . . . . . . . . . . . . . . .

AppendixD Safety and Agency Regulatory Notices 231. . . . . . . . . . . . . . . . . . . .

6 / 238

3EC 17059 ABAA TCZZA Ed. 01

Alcatel Speed Touch Pro

Introduction

The Alcatel Speed TouchPro DSL router provides highspeed access to the Internet and

Corporate networks for small office and fastidious home users and highspeed inter office
LANtoLAN connections.

For optimal Local Area Network (LAN) performance the Alcatel Speed TouchPro

includes a comprehensive set of features, as there are a DHCP server, DNS server and
NAT&PAT to name a few.

3EC 17059 ABAA TCZZA Ed. 01

7 / 238

ADSL/POTS and

y

ADSL/ISDN

Three variants of Alcatel's Speed Touch Pro Asymmetric Digital

Subscriber Line (ADSL) routers exist:

 An ADSL/POTS variant connecting to an analog POTS(*) line

 two ADSL/ISDN variants connecting to a digital ISDN(**) line:

 An ISDN variant compliant to ETSI standards

 An ISDN variant compliant to both ETSI and ITU

standards.

(*) Plain Old Telephone Service (POTS)

(**) Integrated Services Digital Network (ISDN)

Terminolog

Safety instructions

CAUTION

WARNING

For readability, the Alcatel Speed TouchPro will be referred to

as STPro in this User's Guide.

Prior to connecting the Alcatel Speed TouchPro, read the

Safety Instructions in appendix D.

The following words and symbols mark special messages
throughout this document:

WARNING: indicates that failure to follow the directions could

cause bodily harm or loss of life.

CAUTION: indicates that failure to follow the directions could

result in damage to equipment or loss of information.

8 / 238

3EC 17059 ABAA TCZZA Ed. 01

Trademarks

The following trademarks are used in this document:

 Speed Touch is a trademark of the Alcatel Company
 Netscape and Netscape Navigator are registered

trademarks of Netscape Communications Corporation

 Windows and Internet Explorer are trademarks of

Microsoft Corporation

 Apple and MacOS are registered trademarks of Apple

Computer Inc.

 UNIX is a registered trademark of UNIX System

Laboratories, Inc.

 Ethernet is a trademark of Xerox Corporation.

Other products may be trademarks or registered trademarks of
their respective manufacturers.

Service Provider

PC, workstation,

terminal, ...

Disclaimer

For readability, the term Service Provider (SP) will be used to
designate all organizations which provide either DSL connectivity,
Internet access or Corporate access, for example an Internet
Service Provider (ISP).

For readability, PC will refer to all involved computer devices
which are able to interact with the STPro, i.e. Personal
Computer (PC), Macintosh computer, workstation, (remote)
terminal, etc.

All examples throughout this document refer to :

 Net 10" IP addresses for local network configurations

 VPI 0, or VPI 8 to identify the Virtual Path (VP) on the DSL line.

However, your SP might prefer other values.

3EC 17059 ABAA TCZZA Ed. 01

9 / 238

User's Guide updates

Due to the continuous evolution of the Alcatel DSL technology,
existing products are regularly upgraded. Alcatel documentation
changes accordingly.

For more information on the newest technological changes and
documents, please consult the Alcatel web site at following
Uniform Resource Locator (URL):

http://www.alcatel.com

http://www.alcateldsl.com

10 / 238

3EC 17059 ABAA TCZZA Ed. 01

1 Speed Touch Quick Guide

1 Speed Touch Quick Guide

Aim of this Quick Guide

In this chapter

Use this chapter to quickly connect your STPro to the Internet.

Topic See

Get Acquainted with your STPro 1.1

STPro Installation 1.2

3EC 17059 ABAA TCZZA Ed. 01

11 / 238

k

1 Speed Touch Quick Guide

1.1 Get Acquainted with your Speed Touch

Delivery chec

Damaged or missing

items

Other materials

Check your STPro package for the following items:

 The Alcatel Speed TouchPro

 1 Power supply adapter with 2m (6.56ft.) connecting cable

 2m Cat.5 straightthrough Ethernet/ATMF cable (RJ45/RJ45)

 2m DSL cable (RJ11/RJ11, RJ14/RJ14)

 This User's Guide, either in hard copy format or on CDrom.

In the event of damaged or missing items, contact your local
product dealer for further instructions.

Your STPro shipping carton may also include release notes, safety
and conformity declarations, and other materials.

12 / 238

3EC 17059 ABAA TCZZA Ed. 01

1 Speed Touch Quick Guide

Your STPro

ADSL/POTS and

ADSL/ISDN

Your STPro is presented in a slim line box:

For a detailed information and a LED description, refer to
appendix B.

Three STPro variants exist:

 The ADSL/POTS STPro variant

 The ADSL/ISDN (ETSI) STPro variant

 The ADSL/ISDN (ETSI/ITU) STPro variant.

STPro models

Three STPro models can be identified:

 The single 10BaseT Ethernet port STPro model

 The dual port STPro model with both 10BaseT Ethernet port

and ATM Forum  25.6 Mbps (ATMF25.6) port

 The integrated10BaseT four port Ethernet hub STPro model.

To determine your model, refer to appendix B.

3EC 17059 ABAA TCZZA Ed. 01

13 / 238

1 Speed Touch Quick Guide

Identify your variant

Use only the STPro variant which is appropriate for the DSL
service delivered to your local premises.

Identify your STPro via the marking label on the bottom:

Q A

CPYYWWNNNNN

MODEL NUMBER:

3EC18604XXXXxx

ALCATEL SPEED TOUCH Pro

Ethernet ADSL Router for POTS

In the figure above, an example is provided of the marking label
for an ADSL/POTS STPro.

Note: For ADSL/ISDN variants, the description POTS is replaced by ISDN.

The NorthAmerican market uses exclusively ADSL/POTS models.
The marking label is similar to the example below:

Speed Touch Pro NT Tested to Comply with

FC

FCC rules Part 15 and Part 68
FOR HOME OR OFFICE USE

C

FCC ID: 6VUBEL–35680–DL–N

Made in: Country

REN:<0.1

CP992300XXX

Q A

R

LISTED

US

PART BY ONE OR MORE OF THE FOLLOWING U.S. PATENTS:

C

I . T . E . E168438

PART OF A SYSTEM THAT IS COVERED IN WHOLE OR IN

MODEL NUMBER:

3EC 18204BC

5,636,253.5,633,817.5,657,355.5,903,612.5,867,528
5,951,660.6,044,151.6,072,810.6,088,386.6,105,084

AA01

14 / 238

3EC 17059 ABAA TCZZA Ed. 01

1.2 Speed Touch Installation

1 Speed Touch Quick Guide

Aim of this section

In this section

Execution of the steps in this section will bring you on the Internet
in no time.

Topic See

What you Need 1.2.1

STPro Wiring 1.2.2

Check your SP's Service Offerings 1.2.3

Configure your STPro (If Necessary) 1.2.4

Surf the Internet 1.2.5

Detailed STPro Information 1.2.6

3EC 17059 ABAA TCZZA Ed. 01

15 / 238

1 Speed Touch Quick Guide

1.2.1 What you Need

DSL service

Local networking

Depending on the STPro variant you purchased, the following DSL
service must be available at your local premisses:

 ADSL/POTS

ADSL service must be enabled on your POTS telephone line.

 ADSL/ISDN

ADSL service must be enabled on your ISDN telephone line.

As both telephone and ADSL service are simultaneously available
from the same copper pair, you need a central splitter, or
distributed filters for decoupling ADSL and telephone signals.

Contact your SP for more information.

To use the Ethernet port(s) you need at least:

 One PC with an Ethernet 10BaseT PCNetwork Interface

Card (NIC) installed.

 For local networking, a 10BaseT hub (if needed) and the

necessary connection cables.

Accessing the STPro

To use the (optional) ATMF25.6 port you need:

 A PC with an ATMF25.6 PCNIC installed.

 For ATM networking, a workgroup ATM switch.

For local configuration via HTTP/HTML, you need:

 A TCP/IP protocol suite

 A Web browser.

For native Command Line Interface (CLI) you need:

 A serial cable

 An ASCII terminal (VT100), or a PC with ASCII terminal

emulation.

16 / 238

3EC 17059 ABAA TCZZA Ed. 01

1.2.2 STPro Wiring

1 Speed Touch Quick Guide

You must wire

Ethernet port(s)

(10BaseT)

Optional ATMF25.6

port (ATMF25)

DSL port (Line)

 The Ethernet Port(s) (10BaseT)

 The Optional ATMF25.6 Port (ATMF25)

 The DSL Port (Line)

 The Power Port (DC).

Use the included LAN cable to wire your PC's Ethernet port to
STPro's Ethernet interface.

Refer to section 2.2 for more information.

Use the included LAN cable to wire your PC's ATMF25.6 port to
the STPro's ATMF25.6 port.

Refer to section 2.3 for more information.

Use the included DSL cable to wire the STPro's Line port to your
DSL wall outlet.

Power port (DC)

Refer to section 3.2 for more information.

Firstly check whether the included mains adapter suits the local
power specifications. If you are not sure of the regional power
conditions, check the adapter's specifications in section B.5, and
your local power company.

Plug the adapter's coaxial jack into the STPro's receptacle marked
'DC'.

Refer to section 3.3 for more information.

3EC 17059 ABAA TCZZA Ed. 01

17 / 238

1 Speed Touch Quick Guide

Check your wiring

Once all connections are made, the result should look similar as
below:

Turn on your STPro

Once all previous steps are completed, turn on your STPro.

The STPro is ready for service as soon as the startup procedures
are completed, the Power On Self Test (POST) is passed and both
Power/Alarm and Line Sync LEDs on the front panel are constantly
lit green.

Refer to section B.2 for more information.

18 / 238

3EC 17059 ABAA TCZZA Ed. 01

1 Speed Touch Quick Guide

1.2.3 Check your Service Provider's Offering

Service offering

The SP provides at least the following information:

 The VPI/VCI of the Virtual Channel (VC) to use on the DSL

line

 The Packet Service supported on this VC

 The Encapsulation Method (if different from the Packet

Service's default encapsulation).

Example:

 VPI/VCI = 0/35

 Packet Service = Transparent Bridging

 Encapsulation Method : Bridge default, i.e. LLC/SNAP

Your STPro supports multiple simultaneous VCs on the DSL line. If
your SP exploits this capability, he will provide this information per
VC.

Selection criteria

Default STPro VPI/VCI

settings

For more information on the criteria to prefer one Packet Service
over the other, see chapter 5.

The VPI/VCI value of the default configured VCs are listed in
appendix C.

In the event that the provided VPI/VCI differ with the STPro
defaults, you can change VC settings via the STPro pages.

See section 11.3 for more information.

3EC 17059 ABAA TCZZA Ed. 01

19 / 238

1 Speed Touch Quick Guide

1.2.4 Configure your STPro (If Necessary)

STPro access

STPro Configuration

In most cases your STPro provides instant Internet connectivity as
it features well chosen defaults

In exceptional cases additional or advanced configurations are
desired, the STPro offers various access methods:

 Its web interface (See chapter 17)

 A Telnet CLI session (See subsection 18.1.1)

 A Serial CLI session (See subsection 18.1.2).

Configure the STPro via its web interface.

Most STPro topics have a dedicated page, e.g. for Bridging,
DHCP, DNS, etc. Context related Help pages provide detailed
information.

For profound configurations use the Command Line Interface
(CLI).

20 / 238

3EC 17059 ABAA TCZZA Ed. 01

1.2.5 Surf the Internet

1 Speed Touch Quick Guide

Finishing setup

Access methods

Alwayson access

Dialin access

After wiring (and optionally configuring) the STPro you are ready
to surf the Internet.

Depending on the selected packet service(s), there is:

 AlwaysOn Access

 DialIn Access.

With Transparent Bridging and CIP & IP Routing, no connection
procedure is needed. Turn on the STPro and you are online.

Note: Although no access procedure is needed, some SPs require

authentication before granting accesss to their resources.

A main feature of the STPro is support for traditional Dialin
connectivity to a Remote Access Server (RAS) via its PPPoAtoPPTP
Relaying and PPP & IP Routing packet services.

Manually establish a connection via the STPro pages or via
Operating System (OS) dependent dialin applications.

Most dialin procedures require a user name and password for
identification and authentication.

3EC 17059 ABAA TCZZA Ed. 01

21 / 238

1 Speed Touch Quick Guide

1.2.6 Detailed STPro Information

The STPro is more than

just" a DSL router

Use the following parts to explore STPro's advanced features:

Alcatel Speed Touch Quick Guide

Alcatel Speed Touch Wiring Guide

Ethernet and ATMF25.6 2

DSL, Power and Console 3

Resumé 4

Alcatel Speed Touch Configuration and Use

Packet Services 5

Transparent Bridging 6

Bridged PPPoE 7

PPPoAtoPPTP Relaying 8

PPP & IP Routing 9

CIP & IP Routing 10

Alcatel Speed Touch Networking

ATM 11

1

IP 12

DNS 13

Alcatel Speed Touch Maintenance

Alcatel Speed Touch Software 14
Alcatel Speed Touch Password 15
Alcatel Speed Touch ToDefaults 16
Alcatel Speed Touch Web Interface 17
Alcatel Speed Touch CLI 18

Alcatel Speed Touch Appendices

22 / 238

3EC 17059 ABAA TCZZA Ed. 01

Alcatel

Speed TouchPro

Wiring Guide

3EC 17059 ABAA TCZZA Ed. 01

23 / 238

24 / 238

3EC 17059 ABAA TCZZA Ed. 01

2 Wiring Guide - Ethernet and ATMF25.6

2 Wiring Guide - Ethernet and ATMF25.6

In this chapter

Topic See

LAN Cables 2.1

Connecting Ethernet 2.2

Connecting ATMF25.6 (Optional) 2.3

Ethernet vs. ATMF25.6 Connectivity 2.4

3EC 17059 ABAA TCZZA Ed. 01

25 / 238

2 Wiring Guide - Ethernet and ATMF25.6

2.1 LAN Cables

Included LAN cable

Using LAN cables

LAN cable types vs.

port types

In your STPro package a full wired straightthrough RJ45/RJ45
cable, further referred to as LAN cable is included.

You can use LAN cables other than the one provided in the box,
e.g. crossover LAN cables. However, make sure that these have
the correct layout.

See section B.6 for more information on how to identify
straightthrough and crossover LAN cables.

Note: As the included LAN cable is fully wired, it can also be used for

connecting the STPro's ATMF25.6 port.

Determine the LAN cable type from the following table:

Speed Touch Other equipment Type of LAN cable Symbol

MDIX MDIX Crossover

MDI Straightthrough

Equipment and ports

ATMNetwork ATMNetwork Crossover

ATMEnd Straightthrough

PC Ethernet ports are always of type MDI; ATM PCNIC ports are
always of type ATMEnd.

Ethernet hub ports are of type MDIX; ATM switch ports are of type
ATMNetwork.

Note: You may use the (switchable) uplink" or cascade" MDI port which is

sometimes present on Ethernet hubs. However, make sure to use the correct
cable type.

26 / 238

3EC 17059 ABAA TCZZA Ed. 01

2.2 Connecting Ethernet

2 Wiring Guide - Ethernet and ATMF25.6

In this section

Topic See

Ethernet Port(s) on your STPro 2.2.1

Single PC Ethernet Wiring 2.2.2

LAN Ethernet Wiring 2.2.2

3EC 17059 ABAA TCZZA Ed. 01

27 / 238

2 Wiring Guide - Ethernet and ATMF25.6

gy

y

2.2.1 Ethernet Port(s) on your STPro

Ethernet interfaces

Ethernet port(s) LED

Each Ethernet port

1

of the STPro is a 10BaseT Half Duplex

Ethernet interface of type MDIX:

1

1 1 1 1

Each Ethernet port on the rear panel has a LED:

Link Integrity/Activity LED

CAUTION

10Base T/MDI-X

Indicator

Name Color State

Integrity Green Off No connection on this port.

Activity

On Ethernet link up.

Flashing Data is flowing from/to this

Description

Ethernet port. (hub only)

10BaseT Half Duplex Interfacing

Make sure the 10BaseT port(s) of your PC(s) are configured for
either Auto Negotiation or Half Duplex.

Never configure the 10BaseT Ports for FullDuplex !

28 / 238

3EC 17059 ABAA TCZZA Ed. 01

2.2.2 Single PC Ethernet Wiring

2 Wiring Guide - Ethernet and ATMF25.6

Single PC configuration

Procedure

In this configuration the STPro is connected to a single PC. Your
LAN" consists of only one PC and the STPro.

Proceed as indicated in the following figure to connect your STPro
to a single PC:

MDI

10 BaseT

MDIX

3EC 17059 ABAA TCZZA Ed. 01

29 / 238

2 Wiring Guide - Ethernet and ATMF25.6

2.2.3 LAN Ethernet Wiring

Procedure

Proceed as indicated in the following figure to make the
connections for a LAN (STPro hub specific connections are shaded
gray):

MDI

MDI

MDI

MDI

MDI

MDI

Hub

MDIX

10 BaseT

MDIX

CAUTION

MDI vs. MDIX hub

ports and the STPro

30 / 238

Cascading Repeating Hubs

You may cascade up to four repeating hubs in your LAN
(limitations of Repeating Ethernet V2.0/IEEE802.3 hubs). In case
more hubs need to be cascaded, you must use switching hubs.

In the above figure an MDIX port on the hub connects to the

STPro. Therefore, a crossover LAN cable is used.

Note: In case the hub's uplink" port is used to wire the STPro you can use the

included straightthrough LAN cable.

3EC 17059 ABAA TCZZA Ed. 01

2 Wiring Guide - Ethernet and ATMF25.6

2.3 Connecting the ATMF25.6 Port (Optional)

Check your STPro

model

ATMF25.6 port

Procedure

This connection procedure applies solely to the dual port STPro
model.

The ATMF25.6 port on the single Ethernet port STPro model is an
ATM Forum 25.6 Mbit/s compliant interface of type ATM Network

Equipment"; the PCNIC's ATMF25.6 port is of type ATM End
Equipment".

Proceed as indicated in the following figure to connect the STPro
ATMF25.6 port to your PC's ATMF25.6 PCNIC using the
included straightthrough LAN cable:

3EC 17059 ABAA TCZZA Ed. 01

ATM

ATMF25

31 / 238

2 Wiring Guide - Ethernet and ATMF25.6

2.4 Ethernet vs. ATMF25.6 Connectivity

Ethernet port(s)

ATMF25.6 port

Concurrent use of both

ports

Due to its inherent support for networking, Ethernet will be your
natural choice for creating a small LAN.

The (optional) ATMF25.6 port provides excellent protocol
transparency and native ATM application support.

The dual port STPro model is designed for the concurrent use of
both Ethernet and ATMF25.6 ports. Networking configurations
remain equally valid if the ports are used simultaneously.

There is no performance penalty on this simultaneous use except
for the sharing of the upstream and downstream DSL bandwidth.

32 / 238

3EC 17059 ABAA TCZZA Ed. 01

3 Wiring Guide - DSL, Power and Console

3 Wiring Guide - DSL, Power and Console

In this chapter

Topic See

Locating Ports 3.1

Connecting the DSL Port 3.2

Connecting the Power Adapter 3.3

Connecting the Serial Port (Optional) 3.4

3EC 17059 ABAA TCZZA Ed. 01

33 / 238

3 Wiring Guide - DSL, Power and Console

3.1 Locating Ports

Port description

4

4

Following ports are used:







: DSL line port, marked LINE"

3

: Power socket, market DC"

4

: Serial port, marked Console".

5

5

5

3

3

34 / 238

3EC 17059 ABAA TCZZA Ed. 01

3.2 Connecting the DSL Port

3 Wiring Guide - DSL, Power and Console

Preconditions prior to

connecting

Procedure

A central splitter or distributed filters for decoupling DSL and
POTS or ISDN signals must be installed on your telephone line or
telephone wall outlets. In some cases crossover adapters might be
required.

Proceed as indicated in the following figure to connect the STPro
to the DSL line using the included black DSL cable:

Lin
e

DSL Cable

3EC 17059 ABAA TCZZA Ed. 01

35 / 238

3 Wiring Guide - DSL, Power and Console

3.3 Connecting the Power Adapter

Introduction

Power adapter types

Procedure

The STPro is delivered with a modular external power adapter
converting the AC mains to 9VDC/1A unregulated output voltage.

Check if the power adapter included in the STPro package is
compatible with your local electrical power specifications.

See section B.5 for connector layout and output specifications.

If you are not sure of the specifications of your local mains power,
contact your local product dealer for more information.

Proceed as follows to connect the power supply adapter :

36 / 238

DC

3EC 17059 ABAA TCZZA Ed. 01

3 Wiring Guide - DSL, Power and Console

3.4 Connecting the Serial Port (Optional)

Serial access

Requirements for using

the serial access

Procedure

Like most routers the STPro carries a serial port on its back panel,
featuring access from a remote host via a modem connection or
local access from a terminal.

For access via the serial port, you must have the following:

 A serial cable

 An ASCII terminal (VT100) or a workstation/PC with ASCII

terminal emulation or emulation application for local
configuration via the CLI

or

 A POTS or ISDN modem for remote configuration of the

STPro via the CLI.

Proceed as follows to connect the STPro serial port:

Step Action

1 Determine the serial port on the STPro back panel.

See appendix B for more information.

2 Connect the serial cable to the STPro serial port.

3 Connect the other end of the serial cable to the serial

interface of the (emulated) ASCII terminal or modem.

3EC 17059 ABAA TCZZA Ed. 01

37 / 238

3 Wiring Guide - DSL, Power and Console

38 / 238

3EC 17059 ABAA TCZZA Ed. 01

4 Wiring Guide - Resumé

4 Wiring Guide - Resumé

After wiring

The following illustrations show some of the wiring configurations
possible for the STPro once all of the connections have been
made:

3EC 17059 ABAA TCZZA Ed. 01

39 / 238

4 Wiring Guide - Resumé

40 / 238

3EC 17059 ABAA TCZZA Ed. 01

Alcatel

Speed TouchPro

Configuration and Use

3EC 17059 ABAA TCZZA Ed. 01

41 / 238

42 / 238

3EC 17059 ABAA TCZZA Ed. 01

5 Configuration and Use - Packet Services

5 Configuration and Use - Packet Services

In this chapter

Topic See

Supported Packet Services 5.1

Packet Services at a Glance 5.2

Selection Criteria 5.3

3EC 17059 ABAA TCZZA Ed. 01

43 / 238

5 Configuration and Use - Packet Services

5.1 Supported Packet Services

What is a packet

service ?

Six packet services

Multiprotocol

Packet services are the core functions of the STPro. They provide
that frames or packets get forwarded from the LAN side towards
the DSL line and vice versa.

 Transparent Bridging

 Bridged PPPoE

 PPPoAtoPPTP Relaying

 PPP & IP Routing

 Classical IP & IP Routing

 ATM cell switching (*).

(*) Requires the optional ATMF25.6 port.

All examples in this User's Guide are based on the Internet
Protocol (IP) suite.

However, the STPro DSL router is a true multiprotocol device: it
can easily handle most other popular protocol suites

Examples in this User's

Guide

44 / 238

This User's Guide presents typical configurations, but as an
experienced user you are free to experiment and to find an
optimal configuration.

3EC 17059 ABAA TCZZA Ed. 01

5 Configuration and Use - Packet Services

5.2 Packet Services at a Glance

Access methods

Forwarding methods

The STPro supports two access methods:

 Direct access

Once initial configuration is done, continuous and immediate
access is available via the DSL line.

For direct access use either of:

 Transparent Bridging
 CIP & IP Routing.

 Dialin access

In this mode access must be explicitly established, e.g. by
dialing" into a Remote Access Server (RAS).

For dialin access use either of:

 Bridged PPPoE
 PPPoAtoPPTP Relaying
 PPP & IP Routing.

As their names imply the packet services can be differentiated in
two groups:

 Forwarding packet services:

 Transparent Bridging
 Bridged PPPoE
 PPPoAtoPPTP Relaying.

These packet services forward frames unmodified.

 Routing packet services:

 PPP & IP Routing
 CIP & IP Routing.

These packet services, combined with NA(P)T allow to share a
single IP address amongst multiple users on the LAN.

3EC 17059 ABAA TCZZA Ed. 01

45 / 238

A

5 Configuration and Use - Packet Services

Transparent Bridging

PPPoE

PPPo

The STPro IEEE802.1D Transparent Bridging packet service (further
referred to as Bridging) offers complete protocol transparency and
has inherent configuration simplicity. Yet it provides excellent
forwarding performance.

PPPoE is one of two popular mechanisms to get in touch with the
SP.

 Bridged PPPoE

By installing a PPPoE client application (provided by your SP.)
on your PC(s) and by using the STPro's bridge, connectivity
can be established.

The other method to get in touch with the SP over the DSL line is
PPPoA.

 PPPoAtoPPTP Relaying

Similar to Bridged PPPoE this requires installation of a PPTP
dialin application (*) on your PC(s).

CIP & IP Routing

 PPP & IP Routing

PPPoA SP access can equally be accomplished by the
embedded PPPoA dialin client of the STPro.

(*) Most popular OSs have a PPTP dialin application installed, e.g. Microsoft
DialUp Networking or support PPTP Tunneling software to be installed.

The STPro IP router can also be combined with Classical IP (CIP).

Classical IP is a mature technique for creating classical IP networks
on top of ATM technology. It is widely supported by most, if not all
remote access routers.

Although not the original aim of Classical IP it is mostly used for
connecting routers over wide area pointtopoint links.

46 / 238

3EC 17059 ABAA TCZZA Ed. 01

5 Configuration and Use - Packet Services

Packet services resumé

Detailed packet service

use description

All STPro's packet services can be summarized as follows:

Port Packet

Service

10BaseT Bridging n 1 per user Multiprotocol

Ethernet

ATMF25.6

(optional)

(*) The supported protocol(s) depend on the provisioning by the session client

application, e.g. IP, IPX and NETBEUI for Microsoft's DialUp Networking
application for PPPoAtoPPTP Relaying.

Bridged PPPoE n 1 per user Multiprotocol (*)

PPPoA/PPTP 1 1 per user Multiprotocol (*)

PPP & IP Routing n 1 (via NAPT) IP Suite

CIP & IP Routing n 1 (via NAPT) IP Suite

ATM Cell Switching

The functionality of ATM Cell switching depends on the
capabilities, offered by the drivers included with the ATMF25.6
PCNIC.

User/VC IP Address Protocol

For more information on the configuration and use of all of the
STPro packet services, see for:

 Transparent Bridging: chapter 6

 Bridged PPPoE: chapter 7

 Relayed PPPoA: chapter 8

 Routed PPPoA: chapter 9

 Classical IP & IP Routing: chapter 10.

3EC 17059 ABAA TCZZA Ed. 01

47 / 238

5 Configuration and Use - Packet Services

5.3 Selection Criteria

In this section

Selection criteria

Simultaneous use of

packet services

 Selection Criteria

 Simultaneous Use of Packet Services.

The criteria below can help you to select the most appropriate
packet service for your application:

 The configuration required by your SP
 The application protocol you wish to use (within the

boundaries of the remote end)

 The access method: an Alwayson" connection or a

connection that is established when needed, i.e. Dialin"

 Connectivity to a single or multiple remote networks
 Security features such as identification, authentication,

encryption and NA(P)T

 DSL modem vs DSL gateway model.

All packet services can be active at the same time without any
restriction. The STPro can manage any combination of the packet
services simultaneously up to a maximum number of 12
configured virtual connections.

48 / 238

Note: For Transparent Bridging (including Bridged PPPoE) the maximum

number of configured Bridging ports is four.

3EC 17059 ABAA TCZZA Ed. 01

6 Configuration and Use - Transparent Bridging

6 Configuration and Use - Transparent Bridging

Introduction

In this chapter

Transparent Bridging is the packet service of your choice as it:

 Is platform and OS independent

 Is true multiprotocol

 Has no performance limitations in the Alcatel implementation

 Has almost no constraints on the number of attached users.

Topic See

Preparatory Steps 6.1

Using Bridging 6.2

Bridging Configuration 6.3

Bridge Data 6.4

3EC 17059 ABAA TCZZA Ed. 01

49 / 238

6 Configuration and Use - Transparent Bridging

6.1 Preparatory Steps

Needed information

Multiple destinations

PC(s)

 VPI/VCI value of the VC(s) to use on the DSL line

 Transparent Bridging service must be supported on these

VCs

 Encapsulation method (LLC/SNAP)

 The PC's IP configuration: static or dynamic (DHCP).

Note: The RFC1483 is updated by RFC2684. The STPro fully complies with the

relevant sections in both RFCs.

You can attach up to four connections (VCs ) to the bridge.

To conserve DSL upstream bandwidth do not attach more
connections than needed.

Bridging does not impose specific requirements to your PC's
protocol layers. However, make sure that these are properly
installed and configured.

In all subsequent examples, TCP/IP will be used.

50 / 238

TCP/IP

CAUTION

For TCP/IP, your SP will assign either static IP parameters or will
ask to enable DHCP (per PC).

Transparent Bridging and DHCP

If the SP requires you to use DHCP on your local PC(s), you must
disable the STPro DHCP server.

This is to avoid conflicts between two DHCP servers.

See section 12.4 for more information.

3EC 17059 ABAA TCZZA Ed. 01

6.2 Using Bridging

6 Configuration and Use - Transparent Bridging

Bridging configuration

Using Bridging

Per default, following Bridging entry is preconfigured:

 Br1 (Bridge on 8.35)

This entry is disabled per default. To enable it change its state into
forwarding" on the 'Bridge' page.

In case this Bridging entry does not meet your requirements, you
can configure a new one as follows:

1. If needed, add a Bridging phonebook entry with the correct

VPI/VCI on the 'Phonebook' page.

2. On the 'Bridge' page, select this phonebook entry from the

'Bridge Port' popdown list.

3. For this entry, select the correct encapsulation method.

4. Click

See section 6.3 for more information.

Make sure your STPro is turned on first.

Turn on your PC(s), start your Web browser and you are on the
Internet or have Corporate Intranet access.

.

Although the access method of the bridge is 'Alwayson', the
remote organization might ask for a user name and password.

3EC 17059 ABAA TCZZA Ed. 01

51 / 238

6 Configuration and Use - Transparent Bridging

6.3 Bridging Configuration

Introduction

In this section

The 'Bridge' page

This section describes the use of the STPro 'Bridge' page.

 The 'Bridge' Page

 The 'Bridging Ports' Table

 'Bridging Ports' Table Components

 The 'Aging' Box

 Adding Entries

 Deleting Entries.

Click in the left pane of the STPro pages to pop up the
'Bridging' page (See section 17.2 for more information):

52 / 238

3EC 17059 ABAA TCZZA Ed. 01

6 Configuration and Use - Transparent Bridging

The 'Bridging Ports'

table

'Bridging Ports' table

components

The following figure shows the 'Bridging Ports' table:

Field Description

Bridge Port Indicates the phonebook entry used by the Bridging entry.

Encap Indicates the applied encapsulation method for Ethernet

frames(*) on the VC.

The STPro supports both the LLC/SNAP method (default) and
the VCMUX method.

FCS Indicates whether the last four bytes of the Ethernet frames

are preserved or not. By default the FCS is set to NO.

Note: You can set the FCS to YES via the CLI.

State

(*) Ethernet frames are also referred to as Medium Access Control (MAC)

frames or IEEE802.3 frames.

Allows you to change the state of the individual LAN ports. It
can take following values:

Value Description

disabled

learning The Bridge port only submits

forwarding

By default, the sole configured Bridge port Br1 is disabled.

The Bridge port participates in the
relaying of frames.

Source MAC addresses of frames,
arriving in the Bridge via this port are
also stored in the filtering database.

information to the filtering database.

It does not participate in the relaying
of frames.

The Bridge port in this state, does not
participate in the relaying of frames,
nor in updating the filtering
database.

3EC 17059 ABAA TCZZA Ed. 01

53 / 238

x

6 Configuration and Use - Transparent Bridging

The 'Aging' bo

Adding entries

The following figure shows the 'Aging' box:

It indicates the aging timer of the bridge internal database.
If the aging time of a MAC entry has expired this entry will be

removed from the database.
Only in exceptional cases the default value of 300 seconds (5

minutes) needs to be modified. The allowed range is from 10
seconds to 12 days.

Proceed as follows:

1. Browse to the 'Bridge' page.

2. Select the phonebook entry from the 'Bridge port' popdown

list.

Note: In case the presented phonebook entries do not suite your desired

configuration, you must firstly create a correct phonebook entry. See
section 11.3 for more information.

Deleting entries

3. Select the encapsulation method for the Bridging port from

the 'Encap' popdown list (per default set to LLC/SNAP).

4. Click

and to finish the procedure.

On the 'Bridge' page, click next to the Bridging entry you
want to delete. As a result your selection is deleted.

Click

.

54 / 238

3EC 17059 ABAA TCZZA Ed. 01

6.4 Bridge Data

6 Configuration and Use - Transparent Bridging

Introduction

The 'Bridge Data' page

Transparent Bridging relies completely on its filtering database for
its frame forwarding through the bridge. This filtering database is
accessible via the 'Bridge' page and allows you to overview all
current MAC entries.

Click on the 'Bridge' page to pop up the 'Bridge Data'
page:

Available 'Bridge

Data' tables

3EC 17059 ABAA TCZZA Ed. 01

All MAC entries are spread over 3 tables:

 The 'permanent MAC addresses' table

 The 'static MAC addresses' table

 The 'dynamic MAC addresses' table.

55 / 238

6 Configuration and Use - Transparent Bridging

Permanent MAC

addresses

Static MAC addresses

These are the MAC addresses that must always be resident inside
the bridge, as stipulated in the IEEE802.1D standard:

 The STPro's own Ethernet MAC address:

e.g. 00-80-9F-01-02-03

 The Broadcast MAC address:

FF-FF-FF-FF-FF-FF

 The bridge group MAC address:

01-80-C2-00-00-00

 The 16 reserved MAC addresses of IEEE802.1D:

From 01-80-C2-00-00-01
up to 01-80-C2-00-00-0F

 The all LANs bridge management group MAC address:

01-80-C2-00-00-10

This table lists the MAC addresses you have added to the filtering
database via the CLI. These MAC addresses will never be aged by
the bridge.

Dynamic MAC

addresses

In principle, no static MAC addresses are to be configured.

This table lists all MAC entries added by the learning process of
the Bridge.

If the aging time of a MAC entry has expired, i.e. its age equals
the time indicated in the 'Aging' box, this entry will be removed
from the list.

56 / 238

3EC 17059 ABAA TCZZA Ed. 01

7 Configuration and Use - Bridged PPPoE

7 Configuration and Use - Bridged PPPoE

Introduction

In this chapter

The STPro transparent bridge can be used in combination with a
PPP over Ethernet (PPPoE) client installed on your PC.

The resulting Bridged PPPoE packet service provides similar dialin
experience as found on pointtopoint connections.

Topic See

Preparatory Steps 7.1

Using Bridged PPPoE 7.2

Bridged PPPoE Configuration 7.3

3EC 17059 ABAA TCZZA Ed. 01

57 / 238

7 Configuration and Use - Bridged PPPoE

7.1 Preparatory Steps

Needed information

Multiple destinations

PC(s)

 VPI/VCI value of the VC(s) to use on the DSL line

 Bridging packet service must be supported on this VC

 Encapsulation method (LLC/SNAP)

 Remote access server must be a PPPoE server

 PPPoE client to be installed

 User name and password for your user account.

Up to four simultaneous Bridged PPPoE sessions can be active.

Note: Per active Bridged PPPoE session a dedicated Bridging entry must be

made available on the STPro. See section 7.3 for more information.

To use Bridged PPPoE, a PPPoE client must be installed on your PC.

The SP will provide the PPPoE client software. Contact him for
more information.

58 / 238

3EC 17059 ABAA TCZZA Ed. 01

7.2 Using Bridged PPPoE

7 Configuration and Use - Bridged PPPoE

Creating and using a

PPPoE session instance

Via the PPPoE client, you will be able to create PPPoE session
icons, representing all the connection parameters, just like
creating DialUp icons with Microsoft's DialUp Networking.

All you need is your user name and password for your account;
although sometimes also a Service Name and/or Access
Concentrator is required.

Check with your SP which Service Name and/or Access
Concentrator to choose, if any.

For further details on how to fill in these parameters and use
additional functionality, consult the User's Guide of your PPPoE
client or follow the instructions of your SP.

3EC 17059 ABAA TCZZA Ed. 01

59 / 238

7 Configuration and Use - Bridged PPPoE

7.3 Bridged PPPoE Configuration

Introduction

Bridging configuration

As the Bridged PPPoE packet service implies nothing more than
using the STPro Transparent Bridging packet service, no specific
configuration for Bridged PPPoE is required on the STPro.

However, you may need to configure the Transparent Bridging
packet service of the STPro in order to meet the requirements of
your SP regarding VC(s) and encapsulation.

Proceed as follows:

1. Browse to the 'Bridge' page.

2. Select the phonebook entry from the 'Bridge port' popdown

list.

Note: In case the presented phonebook entries do not suite your desired

configuration, you must firstly create a correct phonebook entry. See
section 11.3 for more information.

3. For this entry, select the correct encapsulation method from

the 'Encap' popdown list (per default set to LLC/SNAP).

4. Click

and to finish the procedure.

See section 6.3 for more information.

60 / 238

3EC 17059 ABAA TCZZA Ed. 01

8 Configuration and Use - PPPtoPPTP Relaying

8 Configuration and Use - PPPtoPPTP Relaying

Introduction

See also

PPPoAtoPPTP Relaying(*) is the packet service of your choice as
it:

 Provides standard Dialin PPP behavior

 Supports security via identification, authentication and

encryption

 Has multiprotocol support depending on the PPTP

implementation, e.g. for MS Windows: TCP/IP, IPX/SPX and
NETBEUI

 Offers complete TCP/IP protocol transparency; no NAPT is

required

 Supports concurrent access to multiple remote destinations

(depending on provisioning).

(*) PPPoAtoPPTP Relaying is also referred to as Relayed PPP over ATM (PPPoA)

or PPPoA/PPTP.

PPP & IP Routing packet service in chapter 9.

Topics

3EC 17059 ABAA TCZZA Ed. 01

Topic See

Preparatory Steps 8.1

Using PPPoAtoPPTP Relaying 8.2

Example: MS Windows 98 DialUp Networking 8.3

PPPoA/PPTP Configuration 8.4

61 / 238

8 Configuration and Use - PPPtoPPTP Relaying

8.1 Preparatory Steps

What you should know

in advance

Multiple destination

PC(s)

 VPI/VCI value of the VC(s) to use on the DSL line

 PPPoA/PPTP packet service must be supported on this VC

 Encapsulation method (VCMUX)

 Remote access server must be a PPP(oA) server

 User name and password for your user account.

The STPro can manage up to 12 PPPoA/PPTP connections
simultaneously.

Note: Check with your SP or corporate whether multiple endtoend connectivity

is enabled.

Your PC must support PointtoPoint Protocol (PPP) and
PointtoPoint Tunnelling Protocol (PPTP).

Note: All Microsoft Windows platforms support PPP and PPTP.

A PPTP DialUp application must be installed on your PC.

TCP/IP

Note: All Microsoft Windows platforms have a PPTP DialUp application

installed per default.

Before you can establish PPTP tunnels, you must configure:

 An IP address in each PC which initiates a PPTP tunnel

 An IP address in the STPro which terminates the PPTP

tunnel(s)

See chapter 12 for more information on IP.

62 / 238

3EC 17059 ABAA TCZZA Ed. 01

8 Configuration and Use - PPPtoPPTP Relaying

8.2 Using PPPoAPPTP Relaying

Introduction

In this section

Before you can create a PPTP tunnel towards the STPro, firstly you
must initially configure a PPTP dialup connection on your PC.
Once this PPTP dialup connection is configured, you can use it to
open a PPPoA/PPTP connection to the remote side of the DSL line.

Because the configuration and use of such a connection follows
similar patterns for all popular OSs, this section will describe the
procedures in global.

In section 8.3 an example is provided on how to create and use a
PPTP DialUp icon in MS Windows 98.

Topic See

Preparing the PC for PPTP Tunneling 8.2.1

Using PPTP towards your STPro 8.2.2

3EC 17059 ABAA TCZZA Ed. 01

63 / 238

8 Configuration and Use - PPPtoPPTP Relaying

8.2.1 Preparing the PC for PPTP Tunneling

Creating a PPTP

connection icon

PPTP connection

parameters

Most, if not all OSs provide a Graphical User Interface (GUI)
guided procedure for the initial creation of a PPTP connection
icon.

The result of such creation is in most cases an icon or entry in a
folder or a table called 'RAS', 'DialUp Networking', 'PPTP', 'Call
sessions', 'Remote Access', etc.

During the initial configuration of your PPTP connection icon, you
must provide the following parameters:

 A name for the PPTP connection icon

 The VPN server's IP address or DNS hostname, i.e. the

STPro's IP address or DNS hostname

Optionally, you can complete this entry with

 The VC's PPTP phonebook name - configured on your STPro

- to be used for this connection.

Note: Only in case multiple PPTP phonebook entries are directed towards

different destinations, you must add the appropriate phonebook name to
the dialstring. This allows the STPro to open the session to the correct
specific destination. In case all PPTP phonebook entries are directed
towards the same destination, it is better not to add a phonebook name to
the dialstring.

64 / 238

3EC 17059 ABAA TCZZA Ed. 01

8 Configuration and Use - PPPtoPPTP Relaying

8.2.2 Using PPTP towards your STPro

PPPoA/PPTP

configuration

Opening a session

Credentials

Per default, following PPTP phonebook entries are available for
PPPoA/PPTP connections:

 RELAY_PPP1 (PPTP on 8.48)

 RELAY_PPP2 (PPTP on 8.49)

 RELAY_PPP3 (PPTP on 8.50)

 RELAY_PPP4 (PPTP on 8.51)

In case these PPTP phonebook entries do not meet your
requirements, you can configure a new one.

See section 11.3 for more information.

Depending on your OS, you can open a session by either double
clicking the PPTP session icon or selecting it from a RAS table and
clicking 'DialUp' or 'Connect'.

Before you can actually browse the Internet or contact the remote
side's resources, you must supply the following credentials:

 A user name

 An associated password.

Note: Most, if not all OSs allow the credentials to be saved.

3EC 17059 ABAA TCZZA Ed. 01

65 / 238

8 Configuration and Use - PPPtoPPTP Relaying

8.3 Example : MS Windows 98 DialUp Networking

In this section

The following overview summarizes the necessary steps to setup a
Microsoft Windows 98 PC for the use of PPPoAtoPPTP Relaying:

Step Action See

1 Configure a Private IP address on your PC

2 Create a new DialUp Networking icon 8.3.1

5 Open a DialUp Session 8.3.2

6 Surf the Internet.

7 Close a DialUp Session in Use 8.3.3

66 / 238

3EC 17059 ABAA TCZZA Ed. 01

8 Configuration and Use - PPPtoPPTP Relaying

8.3.1 Create a New DialUp Networking Icon

Procedure

Proceed as follows:

Step Action and Description

1

Doubleclick the 'My Computer' icon on your desktop.

Doubleclick the 'DialUp Networking' icon.

2

Doubleclick the 'Make New Connection' icon to activate the 'Make

3

New Connection' wizard.

If you use the DialUp Networking application for the first time, the

4

'Welcome to DialUp Networking' window appears.

In that case, click

The 'Make New Connection' window pops up:

3EC 17059 ABAA TCZZA Ed. 01

67 / 238

8 Configuration and Use - PPPtoPPTP Relaying

Step Action and Description

In the first input field of the 'Make New Connection' window, type a

5

name, e.g. an alias for the organization you are connecting to.

Note: This name will appear below the DialUp icon at the end of

this procedure.

In the 'Select a device' listbox of the 'Make New Connection' window

6

you must select the 'Microsoft VPN Adapter' for PPTP tunneling.

7

Click to pop up the VPN server window:

8

Enter the DNS hostname or IP address of the Virtual Private Net
work (VPN) server.

Note: VPN server" is another word for PPTP server, which is in this

case your STPro.

The default IP address for the STPro is 10.0.0.138.

Its default hostname is SpeedTouch".

Optionally, you can add the phonebook name to specify which VC is
to be used for the connection.

A window pops up confirming that you have successfully installed a

9

new DialUp connection.

Click to finish the procedure.

68 / 238

3EC 17059 ABAA TCZZA Ed. 01

8 Configuration and Use - PPPtoPPTP Relaying

Result

Creating multiple

DialUp icons for

multiple destinations

A new icon with the name of the connection you have just created
will be added to your 'DialUp Networking' folder:

Per destination you can create a unique icon. To do so, repeat the
steps starting with step 3 of the previous procedure.

3EC 17059 ABAA TCZZA Ed. 01

69 / 238

8 Configuration and Use - PPPtoPPTP Relaying

8.3.2 Open a DialUp Session

Procedure

Proceed as follows:

Step

Action and Description

Doubleclick the appropriate DialUp icon in the 'DialUp

1

Networking' folder or doubleclick its shortcut on your desktop.

The 'Connect To' window pops up:

2

Fill in your user name and password, according your user account at
the SP.

Note: If you want the current DialUp connection to remember your

credentials for future use, check the 'Save Password' box (). Make
sure though, that you have logged in when you boot your PC.

3

Click

The 'Connecting To Corporate' window appears shortly before being
minimized in the system tray:

Start your application now, e.g. a Web browser.

4

70 / 238

3EC 17059 ABAA TCZZA Ed. 01

w

8 Configuration and Use - PPPtoPPTP Relaying

While you are

connected

The 'Connected To'

windo

Once the DialUp connection is established, you can find the
MSDUN icon showing two PCs connected to each other in the
system tray:

The MSDUN icon symbolizes activity on the PPPoA/PPTP
connection by flashing PC(s):

 A flashing Front" PC symbolizes upstream (T

) link activity

X

(from your local PC towards the STPro)

 A flashing Behind" PC symbolizes downstream (R

) link

X

activity (from the STPro towards your PC).

You can check the status of the connection by doubleclicking the
MSDUN icon

in the system tray.

A 'Connected To' window will pop up, showing the status of the
PPPoA/PPTP connection:

3EC 17059 ABAA TCZZA Ed. 01

71 / 238

8 Configuration and Use - PPPtoPPTP Relaying

8.3.3 Close a DialUp Session in Use

Procedure

Proceed as follows:

Step Action and Description

1

If the DialUp connection is minimized, click the MSDUN icon in
the system tray:

The 'Connected To' window pops up.

2

Click to close the DialUp session.

Result

The PPTP tunnel to the STPro will no longer exist. The PPPoA/PPTP
entry on the STPro is made available again for other users.

72 / 238

3EC 17059 ABAA TCZZA Ed. 01

8 Configuration and Use - PPPtoPPTP Relaying

8.4 PPPoA/PPTP Configuration

Introduction

In this subsection

The 'PPTP' page

This section describes the use of the STPro 'PPTP' page.

 The 'PPTP' Page

 The 'PPTP Connections' Table

 'PPTP Connections' Table Components

 Adding Entries

 Deleting Entries

 Tunneling from behind an IP Router.

Click in the left pane of the STPro pages to pop up the
'PPTP' page (See section 17.2 for more information):

3EC 17059 ABAA TCZZA Ed. 01

73 / 238

8 Configuration and Use - PPPtoPPTP Relaying

The 'PPTP Connections'

table

'PPTP Connections'

table components

The following figure shows the 'PPTP Connections' table:

Field Description

Name Indicates the phonebook entry name used for the PPPoA/PPTP

connection.

Encap Indicates the applied encapsulation method for PPP frames in VCs.

The STPro supports both the VCMUX method (default) and the
LLC/NLPID method.

HDLC

Framing

The encapsulation method for a PPPoA/PPTP connection can be
configured via the CLI.

The PPP frames arriving via a PPTP tunnel, and the PPP frames
encapsulated on ATM connections, differ in format.

The PPP format on AAL5 follows RFC 1661 PointtoPoint Protocol
(PPP)":

PPP Frame

P_ID Information Padding

Whereas the PPP format within a tunnel follows PointtoPoint
Tunneling Protocol (PPTP)":

PPP Frame

Address Control P_ID Information Padding

(FF) (03)

The latter format has two additional bytes in front of the frame
(FF03) inherited from another encapsulation i.e., RFC 1662 PPP
in HDLClike framing".

74 / 238

3EC 17059 ABAA TCZZA Ed. 01

Field Description

8 Configuration and Use - PPPtoPPTP Relaying

HDLC

Framing

(continued)

In order to cope with these PPP frame differences, the STPro
adapts to the different formats on a 'per connection' base.

Additionally, the STPro offers the following PPP/AAL5 format
configuration options via the CLI if interoperability problems
should arise:

Value Description
Never

The STPro will make sure that FF03 will
never be found in front of a PPP frame
encapsulated on a AAL5/ATM
connection, independent of the actual
format of the PPP frame in the tunnel.
This setting is default, and follows
RFC2364.

Always

The STPro will make sure that FF03 is
always in front of a PPP frame
encapsulated on an AAL5/ATM
connection. Although not supported by
RFC2364, some equipment may rely on
this format.

Keep

The STPro will not change the PPP frame
arriving via a tunnel.

Note: This configuration possibility applies only to the upstream

direction ! In the downstream direction, the STPro will always
make sure that FF03 is in front of the frame prior to put it in a
PPTP tunnel.

State The STPro allows multiple users to connect simultaneously via

several PPTP entries.

The 'State' column indicates the connection state of the PPTP entry.
It can take following values:

Value Description

Idle

The PPTP entry is configured, and ready
for use.

In Use (IP) A user opened a session on this PPTP

entry.

The number in brackets is the IP address
of the PC currently using the PPPoA/PPTP
connection.

3EC 17059 ABAA TCZZA Ed. 01

75 / 238

8 Configuration and Use - PPPtoPPTP Relaying

Adding entries

Deleting entries

Proceed as follows:

1. Browse to the 'PPTP' page.

2. Select the phonebook entry from the 'Name' popdown list.

Note: In case the presented phonebook entries do not suite your desired

configuration, you must firstly create a correct phonebook entry. See
section 11.3 for more information.

3. Select the encapsulation method for the PPPoA/PPTP entry

from the 'Encap' popdown list (per default set to VCMUX).

4. Select the HDLC framing from the 'HDLC' popdown list (per

default set to never").

5. Click

and to finish the procedure.

On the 'PPTP' page, click next to the PPPoA/PPTP entry
you want to delete. As a result your selection is deleted. Click

.

76 / 238

3EC 17059 ABAA TCZZA Ed. 01

y

8 Configuration and Use - PPPtoPPTP Relaying

Tunneling from behind

an IP router

STPro

The STPro allows local tunneling from behind an IP router:

172.16.0.2

IP Router Local PPTP tunnels

Ethernet LAN

172.16.0.3

10.0.0.138 10.0.0.1

IP Network 10

172.16.0.1

IP Network 172.16

This requires settings in both STPro and PCs.

You must add a default route for the STPro via the 'Routing' page
(See section 12.5 for more information).

In the example of the figure above the route to be added has the
following parameters:

 Destination: 0.0.0.0/0
 Source: Any
 Gateway: 10.0.0.1

PCs

Verify connectivit

For each PC, you must add a route to its internal routing table.
This route must point to the STPro.

In the example of the figure above the route to be added to each
PC's routing table has the following parameters:

 Destination: 10.0.0.138
 Gateway: 172.16.0.1

You can verify connectivity from behind the IP router by applying a
ping to the STPro.

3EC 17059 ABAA TCZZA Ed. 01

77 / 238

8 Configuration and Use - PPPtoPPTP Relaying

78 / 238

3EC 17059 ABAA TCZZA Ed. 01

9 Configuration and Use - PPP & IP Routing

9 Configuration and Use - PPP & IP Routing

Introduction

In this chapter

PPP & IP Routing(*) is the packet service of your choice as it:

 Has an authenticated session concept: it supports

identification, authentication and autoconfiguration

 Requires no session client on the PC(s), avoiding special

installation procedures

 Allows multiple users to share a single IP address if NA(P)T is

enabled.

(*) PPP & IP Routing is also referred to as Routed PPPoA.

Topic See

Preparatory Steps 9.1

Using PPP & IP Routing 9.2

PPP Configuration 9.3

PPP Entry Configuration 9.4

3EC 17059 ABAA TCZZA Ed. 01

79 / 238

9 Configuration and Use - PPP & IP Routing

9.1 Preparatory Steps

Needed information

Multiple destinations

PC(s)

 VPI/VCI value of the VC(s) to use on the DSL line

 PPP & IP Routing packet service must be supported on this

VC

 Encapsulation method (VCMUX)

 Remote access server must be a PPP(oA) server

 User name and password for your user account

Note: If connectivity to multiple remote organizations is required, you need

additional sets of these parameters.

The STPro can manage up to 12 PPP & IP Routing connections
simultaneously.

Note: Check with your SP or corporate whether multiple endtoend connectivity

is enabled.

In order to use the PPP & IP Routing mode of the STPro, the OS on
your PC(s) must support TCP/IP.

See chapter 12 for more information on IP.

80 / 238

3EC 17059 ABAA TCZZA Ed. 01

9.2 Using PPP & IP Routing

9 Configuration and Use - PPP & IP Routing

Access methods for PPP

PPP & IP Routing

configuration

Three methods exist to open a PPP & IP Routing session:

 Dialin

The session is opened manually.

 Alwayson

After the STPro is powered and finished its POST successfully,
the STPro automatically tries to open the PPP session.

 Dialondemand

The session is opened automatically, triggered by the arrival
or departure of packets at an STPro Ethernet port, destined
for a PPP connection.

Per default, following PPP & IP Routing connections are
preconfigured:

 PPP1: dialin connection

 PPP2: alwayson connection

 DHCP_SPOOF: spoofing connection.

In case these entries do not meet your requirements, you can
configure a new one as follows:

1. If needed, add a PPP phonebook entry with the correct

VPI/VCI on the 'Phonebook' page.

2. On the 'PPP' page, select this phonebook entry from the

'Name' popdown list.

3. For this entry, select the correct encapsulation method from

the 'Encap' popdown list.

4. Click

.

5. Optionally, perform detailed configurations.

See section 9.3 for more information.

3EC 17059 ABAA TCZZA Ed. 01

81 / 238

9 Configuration and Use - PPP & IP Routing

Opening dialin

sessions

Proceed as follows (See section 17.2 for more information):

1. Click

on the STPro pages.

2. On the 'Dialin' page the following table is shown:

3. Click next to the PPP dialin entry you want to

connect with.

4. If applicable the 'Authentication' table pops up:

Enter your user name and password in the appropriate fields.
If you want the STPro to remember your credentials, check
'Save password' ().

5. Click

.

6. After identification and authentication the 'Dialin' page

reappears.
While the STPro tries to open the session 'trying' will

appear in the 'State' field. Once the session is active the field
displays 'up'. From then you are online and you can start
your application or browse the Internet.

82 / 238

3EC 17059 ABAA TCZZA Ed. 01

9 Configuration and Use - PPP & IP Routing

Closing dialin

sessions

Proceed as follows:

1. Browse to the 'Dialin' page.

2. Active PPP & IP routing sessions are indicated via up in the

'State' field.

Click

next to the PPP & IP routing entry you want to

close the session for.
The session state of the entry will change to down, i.e. it

becomes idle.

3EC 17059 ABAA TCZZA Ed. 01

83 / 238

9 Configuration and Use - PPP & IP Routing

9.3 PPP Configuration

Introduction

In this subsection

The 'PPP' page

This section describes the use of the 'PPP' page.

Prior to be able to use the PPP entry, you may need to configure it.
This is described in section 9.4.

 The 'PPP' Page

 The 'PPP Configuration' Table

 'PPP Configuration' Table Components

 Adding Entries

 Deleting Entries.

Click in the left pane of the STPro pages to pop up the
'PPP' page (See section 17.2 for more information):

84 / 238

3EC 17059 ABAA TCZZA Ed. 01

9 Configuration and Use - PPP & IP Routing

The 'PPP

Configuration' table

'PPP Configuration'

table components

The following figure shows the 'PPP Configuration' table:

Field Description

Name Indicates the PPP phonebook entry name for the PPP entry.

Encap Indicates the applied encapsulation method for PPP frames in

the VC.

The STPro supports both the VCMUX method (default) and
the LLC/SNAP method.

Mode Indicates whether the PPP entry is configured for:

• Alwayson" connectivity

• Dialin" connectivity

• DialonDemand" connectivity.

See section 9.4.4 for more information.

State Indicates the active state of the PPP session.

It can take following values:

Value Description
Up

Down The PPP session is closed, the PPP

Trying

Status Allows to change the state of Alwayson PPP entries:

• On: The alwayson PPP connection is enabled.

• Off: The alwayson PPP connection is disabled.

The PPP session is opened and active.

connection is idle.

The PPP session is trying to reach the
active state.

3EC 17059 ABAA TCZZA Ed. 01

85 / 238

9 Configuration and Use - PPP & IP Routing

Adding entries

Detailed configuration

Proceed as follows:

1. Browse to the 'PPP' page.

2. Select the phonebook entry from the 'Name' popdown list.

Note: In case the presented phonebook entries do not suite your desired

configuration, you must firstly create a correct phonebook entry. See
section 11.3 for more information.

3. Select the encapsulation method for the PPP entry from the

'Encap' popdown list (per default set to VCMUX).

4. Click

5. Optionally, click

.

to enter the appropriate
configurations in the 'Authentication', 'Routing' and 'Options'
tables.

See section 9.4 for more information.

6. Click

to finish the procedure.

Prior to using the PPPoA connection you may need to enter
additional configurations for the connection.

Deleting entries

See section 9.4 for more information.

On the 'PPP' page, click next to the idle PPP entry you
want to delete. As a result your selection is deleted. Click

.

86 / 238

3EC 17059 ABAA TCZZA Ed. 01

9.4 PPP Entry Configuration

9 Configuration and Use - PPP & IP Routing

Introduction

Interaction with the

STPro IP router

In this section

After enabling the PPP entry in the 'PPP Configurations' table, you
must configure the PPP connection.

Configuration of PPP entries must be done per PPP entry.

This section describes the various PPP entry configurations the
STPro offers for assuring endtoend connectivity.

Most of the configurations described in this section, influence the
IP router in the STPro.

See section 12.5 for more information on IP routing aspects.

Topic Section

The PPP Configuration Page 9.4.1

Authentication Related Configuration 9.4.2

IP Routing Related Configuration 9.4.3

Connection Related Configuration 9.4.4

3EC 17059 ABAA TCZZA Ed. 01

87 / 238

9 Configuration and Use - PPP & IP Routing

9.4.1 The PPP Configuration Page

The 'PPP configuration'

page

Click next to a PPP entry you want to configure to pop up
the particular 'PPP Configuration' page:

88 / 238

3EC 17059 ABAA TCZZA Ed. 01

x

9 Configuration and Use - PPP & IP Routing

9.4.2 Authentication Related Configurations

Introduction

'Authentication' bo

Guest" credentials

In most cases you will have a user account with user name and
password to identify and authenticate yourself.

Via the 'Authentication' box in the 'PPP Configuration' page, you
can fill out your credentials for permanent storage.

Following figure shows the 'Authentication' box:

Per default, the user account guest" is assumed (Both user name
and password are 'guest').

If your SP has a guest account, you are able to open a session
without having an actual subscription.

Memorizing credentials

3EC 17059 ABAA TCZZA Ed. 01

The STPro is able to memorize user name, and password per PPP
connection; fill out both, and click .

The next time you establish this PPP connection, the information is
retrieved from permanent storage.

Note: Leaving the entries blank, forces users to identify and authenticate

themselves each time the session is opened.

89 / 238

x

9 Configuration and Use - PPP & IP Routing

9.4.3 IP Routing Related Configurations

Introduction

Advanced routing

In this subsection

If a PPP session is opened successfully (either manually by the user,
triggered by LAN traffic, or automatic at boot time), routes are
automatically added to the STPro's routing table.

For advanced users, the STPro allows manual configuration of
routes to dedicated destinations.

See section 12.5 for more information.

Moreover, routes can be configured via the CLI, which will only be
added to the IP route table upon establishing the PPP connection.

See chapter 18 for more information on the CLI.

 'Routing' box
 Connection Sharing
 Connection Sharing Subnet Values
 'My net only' Configuration
 Destination Networks
 Destination Networks Subnet Values
 Address Translation ()
 Primary and Secondary DNS Server.

90 / 238

'Routing' bo

The following figure shows the 'Routing' input box:

3EC 17059 ABAA TCZZA Ed. 01

9 Configuration and Use - PPP & IP Routing

Connection sharing

The 'Connection Sharing' field allows you to configure which LAN
members, besides the PC that opened the PPP session, can use the
PPP connection.

Three options are available:

 Only Me

Only frames of the PC that opened the PPP session will be
routed via this PPP connection.

Suppose you opened a PPP session to your corporate and
other LAN members are surfing the Internet.

Via this option you can prevent them from using the PPP
connection to your corporate as their gateway to the Internet.

 Everybody

All PC(s) on the local LAN can forward frames over this PPP
connection. This option is the exact opposite to 'Only me'.

If you open a PPP session to the Internet, other LAN members
can share the PPP connection. In this way they are not
required to open a session themselves.

 My net only

Only PC(s) having the same network, and subnet number as
the PC that opened the outbound PPP session, can use the
PPP connection.

Connection sharing

subnet values

The following table lists the used netmasks, related to the three
possible options:

Connection Sharing value Related Source Subnet Mask Notation

Only Me 255.255.255.255 /32

Everybody 0.0.0.0 /0

My net Only 255.255.255.0 (default)

This value depends on the
subnet mask in use.

/*

3EC 17059 ABAA TCZZA Ed. 01

91 / 238

9 Configuration and Use - PPP & IP Routing

'My net Only'
configuration

Destination networks

In case you want to privilege access via a particular PPP
connection for specific PCs, proceed as follows::

Step Action

1 Configure the PCs, to which you want to privilege outbound access

via this PPP connection, in a particular subnet of your local LAN.

Note: Don't forget to make the STPro also a member of this

workgroup.

2 Configure the 'Connection Sharing' box of the particular PPP

connection for 'My net only'.

3 It is sufficient now to open the PPP session of this PPP connection

from one PC of this subnet.

Note: As a result, only the members of that particular subnet can share this PPP

connection.

The 'Destination networks' field allows you to configure which
destination can be reached over the particular PPP connection.

Four options are available:

 All networks

The STPro can potentially route frames to all destinations over
this PPP connection. The PPP connection acts as if it was a
default gateway.

 Remote net only

A PPP connection configured for 'Remote net only', only
forwards frames that is destined to this specific network. All
other frames are blocked.

 Remote host only

Only those frames with a destination IP address which
matches exactly with this entry in the STPro routing table are
forwarded over this PPP connection. In fact, only
communication with the single remote host is possible.

 Specific network defined below

If all previous cases do not fulfill your requirements, 'Specific
network'

might help you out: you can specify which

destination(s) are reachable over this PPP connection. Only if
the destination IP address of a packet matches with this entry,
the packet is forwarded over this PPP connection.

92 / 238

3EC 17059 ABAA TCZZA Ed. 01

y

9 Configuration and Use - PPP & IP Routing

Destination networks

subnet values

Address translation

()

The following table lists the used netmasks, related to the four
possible options:

Connection Sharing value Related Source Subnet Mask Notation

All Networks 0.0.0.0 /0

Remote net only 255.255.255.0 /0

Remote host only 255.255.255.255 /32

Specific network

defined below

255.255.255.0.0 (default)

This value is depending on the
destination Subnet Mask.

/*

You can apply Network Address and Port Translation (NA(P)T) on
the (negotiated) PPP IP address. Per default NA(P)T are enabled.

Via this checkbox it is possible to check/uncheck the NA(P)T flag
().

See section 12.6 for more information.

Primary and secondar

DNS server

These fields allow - optionally - to enter the IP address(es) of the
primary, and optionally the secondary, DNS server(s). If you supply
these IP addresses, the STPro will negotiate these addresses with
the remote side of the PPP connection. If these fields are left blank,
the remote side will supply the IP addresses of the primary and
secondary DNS servers.

See chapter 13 for more information.

3EC 17059 ABAA TCZZA Ed. 01

93 / 238

x

9 Configuration and Use - PPP & IP Routing

9.4.4 Connection Related Configuration

Introduction

In this subsection

'Options' bo

The following paragraphs explain which options that are used by
a PPP entry when it opens a PPP session.

 'Options' box

 Local and/or Remote IP: STPro PPP Client/Server Behavior

 Mode: Triggering of a PPP Session

 Idle Time Limit

 LCP Echo () Requests

 PAP (): Authentication Protocols

 ACCOMP (): PPP Framing.

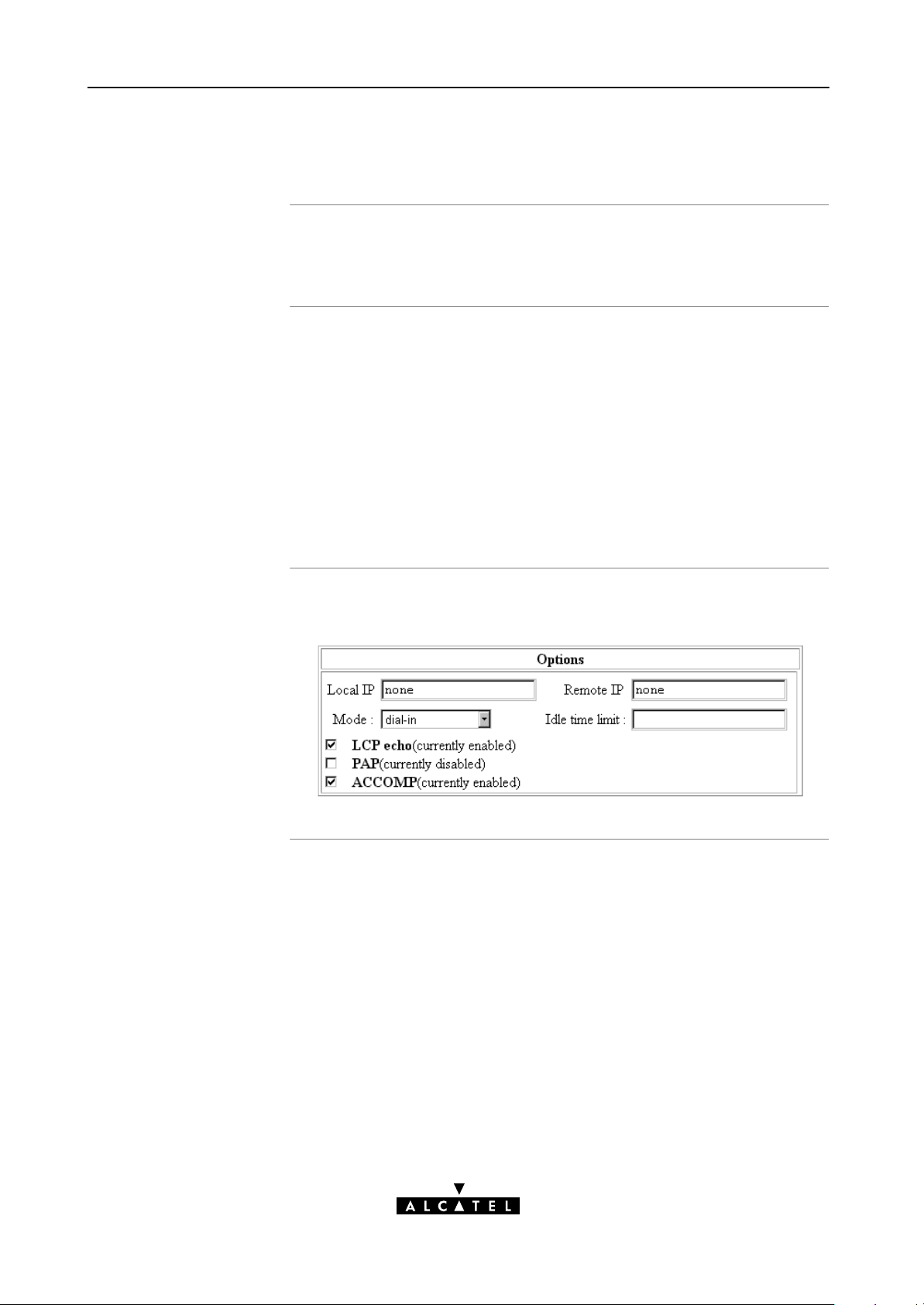

Following figure shows the 'Options' input box:

94 / 238

3EC 17059 ABAA TCZZA Ed. 01

9 Configuration and Use - PPP & IP Routing

Local and/or remote

IP: STPro PPP

server/client behavior

Mode: triggering of

PPP session

During the opening of a PPP session, IP addresses are negotiated
between the two peers for the PPP connection. The Local IP' and
'Remote IP' fields influence this negotiation.

Typically at the client side, the 'Local IP' and 'Remote IP' boxes are
left empty. This forces the client to ask the remote server for
addresses.

In case you want to set up the STPro as PPP server, suitable values
for your network configuration must be supplied:

 Setting a local IP address

Forces the remote PPP client (if it allows to) to accept this IP
address as the STPro PPP session IP address.

 Setting a remote IP address

Forces the remote client (if it allows to) to accept this IP
address as its PPP session IP address.

The 'Mode' field allows you to configure how a PPP session is
opened.

Three options are available:

 Dialin

The PPP session is opened manually by clicking
to the PPP connection in the 'Dialin' page.

 Alwayson

After the STPro is powered and finished its Power On Self Test
(POST) successfully, the STPro automatically tries to open a
PPP session for the PPP connection.

 Dialondemand

The PPP session is opened automatically for a limited period
of time. The opening of the session is triggered by the arrival
of packets at the STPro Ethernet port, to be sent over the PPP
connection.

Note: By default one PPP connection is configured as 'Dialin' (i.e. PPP1),

another as 'Alwayson' (i.e. PPP2).

next

3EC 17059 ABAA TCZZA Ed. 01

95 / 238

9 Configuration and Use - PPP & IP Routing

Idle time limit

LCP echo () requests

PAP (): used

authentication protocol

In case you configured a PPP connection for 'Dialondemand',
the 'Idle Time Limit' box allows you to specify the time after which
an opened, but unused PPP session is closed.

If left free, the idle limit time is infinite (i.e. the PPP session will
never be closed).

If a PPP session is up, it can issue Link Control Protocol (LCP)
echo requests at regular intervals and expects LCP echo replies in
return.

This checkbox allows to turn on/off LCP echo request/replies by
respectively setting (), or clearing the flag.

By default LCP echo is on (i.e. flagged ), allowing the local PPP
peer to detect communication errors, resulting in closing of the
PPP session.

The STPro features two authentication protocols to be used:

 Challenge Handshake Authentication Protocol (CHAP).

ACCOMP (): used

PPP framing

 Password Authentication Protocol (PAP)

Per default the STPro will negotiate CHAP with the BroadBand
RAS (BBRAS) as it is the safest authentication protocol. However,
PAP will be allowed, if needed.

Setting the PAP flag () will force the STPro only to negotiate PAP
with the BBRAS.

Address and Control field COMPression (ACCOMP), sometimes
abbreviated as ACCM, is by default enabled, i.e. flagged ().

This option flag should not be cleared, except in special
circumstances, i.e. where the remote PPP server expects to see
HDLC like framing (FF03 imposed to the PPP packet).

96 / 238

3EC 17059 ABAA TCZZA Ed. 01

10 Configuration and Use - CIP & IP Routing

10 Configuration and Use - CIP & IP Routing

Introduction

In this chapter

Classical IP & IP routing(*) is the packet service of your choice as it:

 Is a third standardized method next to PPPoA and PPPoE for

creating IP networks on top of ATM technology

 Is traditionally well supported by ATM access routers at the

remote end of the connection

 Similar to Bridging, provides "Alwayson" type of

connections.

(*) In the following, Classical IP & IP Routing will be referred to as Classical

IP (CIP).

Topic Section

Preparatory Steps 10.1

CIP Configuration for a LIS 10.2

Using CIP & IP Routing 10.3

CIP Configuration 10.4

3EC 17059 ABAA TCZZA Ed. 01

97 / 238

10 Configuration and Use - CIP & IP Routing

10.1 Preparatory Steps

Needed information

Multiple destinations

PC(s)

 VPI/VCI value of the VC(s) to use on the DSL line

 CIP packet service must be supported on this VC

 Encapsulation method (LLC/SNAP)

 For full compliancy to RFC1577 the remote access device

must issue and respond to InATMARP messages.

Note: The RFC1577 on which Classical IP over ATM relies is updated by

RFC2225. The STPro fully complies with both RFCs.

The STPro can manage up to 12 CIP connections simultaneously.

Note: Check with your SP whether multiple endtoend connectivity is enabled.

In order to use the CIP & IP Routing mode of the STPro, the OS on
your PC(s) must support TCP/IP.

See chapter 12 for more information on IP.

98 / 238

3EC 17059 ABAA TCZZA Ed. 01

10 Configuration and Use - CIP & IP Routing

10.2 CIP Configuration for a LIS

Introduction

In this section

In this section the basic procedure to enable connectivity in a
Logical IP Subnet (LIS) via the ATM core network.

Topic See

General CIP Configuration Procedure 10.2.1

Retrieving LIS Parameters 10.2.2

Implicit Assignment Mechanism 10.2.3

Explicit Assignment Mechanism 10.2.4

Configuring the STPro for CIP 10.2.5

Adding Appropriate Routes to the Routing Tables. 10.2.6

Example of a CIP LIS Configuration 10.2.7

3EC 17059 ABAA TCZZA Ed. 01

99 / 238

10 Configuration and Use - CIP & IP Routing

10.2.1 General CIP Configuration Procedure

Decision procedure

Due to the many decisions that must be made in order to be able
to configure the STPro to be an active member of a LIS, the
procedure to be followed is best retrieved from the following
decision table:

Step Decision and/or Action See

Are you configuring the STPro for an existing LIS ?

1

Answer Action and Description
Yes

No You can create the LIS with IP parameters of

2 Retrieve the appropriate LIS parameters, and check on

which VCs (identifiable by their VPI/VCI values) your service
provider enabled the CIP packet service.

3

If needed, create a CIP phonebook entry, i.e. a CIP PVC, in
the 'Phonebook' web page.

You must retrieve the LIS IP parameters to
which your local configuration must adhere to.
See topic 'Configuration for an Existing LIS' of
subsection 10.2.2.

your choice. See topic 'Creating a New LIS' of
subsection 10.2.2.

In case you create a new LIS, you must create
the LIS at both end of the DSL connection, i.e.
at the local, and on the remote side.

10.2.2

10.2.2

10.4

4

Is the remote access router a RFC1577/RFC2225 compliant device,
e.g. another STPro?

Answer Action and Description
Yes

No

5

If needed, create a CIP member in the 'CIP Interfaces' table
of the 'CIP' page.

6

Add appropriate IP routes to the STPro via the 'IP route'
table on the 'Routing' page.

7

Add appropriate IP routes in you PC(s).

The remote access router will respond to
'InATMARP' requests, thus the CIP PVC can be
implicitly assigned to the CIP member.

The remote access router will not respond to
'InATMARP' requests submitted by the STPro,
thus the CIP PVC must be explicitly assigned to
the CIP member.

See

10.2.3

10.2.4

10.4

10.2.6

10.2.6

100 / 238

3EC 17059 ABAA TCZZA Ed. 01
