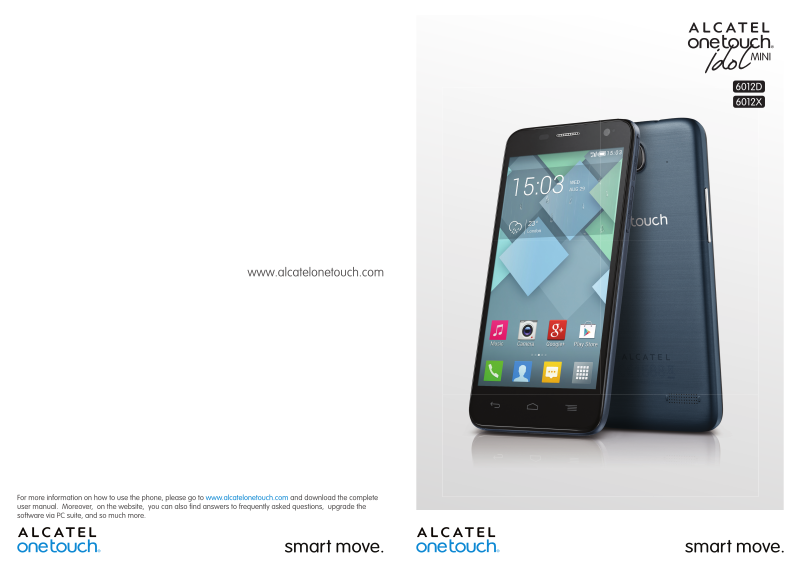

Alcatel One Touch Idol Mini User Guide
Note:
This is a shared user manual for ONE TOUCH 6012X/ONE TOUCH 6012D
specifying Dual SIM information where relevant.
Table of Contents
Safety and use ............................................................................4
General information ...............................................................11
1 Your mobile .......................................................................13
1.1 Keys and connectors ................................................................................ 13
1.2 Getting started ...........................................................................................15
1.3 Home screen ..............................................................................................20
1.4 Applications and widgets list ..................................................................30
2 Text input ..........................................................................31
2.1 Using Onscreen Keyboard ......................................................................31
2.2 Text editing ................................................................................................ 32
3 Phone call, Call log and Contacts ...................................34
3.1 Phone ........................................................................................................... 34
3.2 Call log .........................................................................................................42
3.3 People .......................................................................................................... 43
4 Messaging, Email ...............................................................51
4.1 Messaging ....................................................................................................51
4.2 Gmail/Email .................................................................................................58
4.3 Google Talk ................................................................................................64
5 Calendar & Alarm clock & Calculator ...........................68
5.1 Calendar ......................................................................................................68
5.2 Time .............................................................................................................70
5.3 Calculator ....................................................................................................72
6 Getting connected ............................................................74
6.1 Connecting to the Internet.....................................................................74
6.2 Browser .......................................................................................................77
1 2
6.3 Connecting to Bluetooth devices ........................................................85
6.4 Connecting to a computer .....................................................................86
6.5 Sharing your phone's mobile data connection ...................................88
6.6 Connecting to virtual private networks ..............................................89
6.7 Configuring Internet (SIP) calling ........................................................... 92
7 Google Play Store ............................................................ 94
7.1 Locate the item you want to download and install ..........................94
7.2 Download and install ................................................................................ 95
7.3 Manage your downloads ..........................................................................97
8 Multimedia applications ...................................................99
8.1 Camera ........................................................................................................99
8.2 Gallery ........................................................................................................102
8.3 YouTube ....................................................................................................105
8.4 Music ..........................................................................................................106
8.5 Video Player .............................................................................................108
9 Google Maps ....................................................................109
9.1 Get My Location .....................................................................................109
9.2 Search for a location ..............................................................................110
9.3 Star a location ..........................................................................................110
9.4 Get driving, public transportation or walking directions ..............112
9.5 Arrangement of Layers ..........................................................................113
9.6 Join Latitude to see your friends' locations and share yours
with them ..................................................................................................114
10 Others ..............................................................................117
10.1 File Manager .............................................................................................117
10.2 Sound Recorder ......................................................................................117
10.3 Radio ..........................................................................................................118
10.4 Torch..........................................................................................................119
10.5 Setup Wizard ...........................................................................................120
10.6 Alcatel Help .............................................................................................120
10.7 Other applications ..................................................................................120
11 Settings ............................................................................121
11.1 Wireless & networks .............................................................................121
11.2 Device ........................................................................................................123
11.3 Personal .....................................................................................................126
11.4 Accounts ...................................................................................................133
11.5 System ........................................................................................................133
12 Making the most of your phone ....................................141
12.1 ONE TOUCH Manager.........................................................................141
12.2 Upgrade .....................................................................................................142
13 Telephone warranty .......................................................144
14 Accessories ......................................................................146
15 Troubleshooting .............................................................. 147
16 Specifications ................................................................... 152
This product meets applicable national SAR limits of
2.0W/kg. The specific maximum SAR values can be
found on page 8 of this user guide.
When carrying the product or using it while worn
on your body, either use an approved accessory
www.sar-tick.com
such as a holster or otherwise maintain a distance
of 10 mm from the body to ensure compliance with
RF exposure requirements. Note that the product
may be transmitting even if you are not making a
phone call.
Safety and use ..............................
We recommend that you read this chapter carefully before using your phone. The
manufacturer disclaims any liability for damage, which may result as a consequence of
improper use or use contrary to the instructions contained herein.
TRAFFIC SAFETY:•
Given that studies show that using a mobile phone while driving a vehicle constitutes
a real risk, even when the hands-free kit is used (car kit, headset...), drivers are
requested to refrain from using their mobile when the vehicle is not parked.
When driving, do not use your phone and headphone to listen to music or to the
radio. Using a headphone can be dangerous and forbidden in some areas.
When switched on, your phone emits electromagnetic waves that can interfere with
the vehicle’s electronic systems such as ABS anti-lock brakes or airbags. To ensure
that there is no problem:
- do not place your phone on top of the dashboard or within an airbag deployment
area,
- check with your car dealer or the car manufacturer to make sure that the
dashboard is adequately shielded from mobile phone RF energy.
CONDITIONS OF USE:•
You are advised to switch off the telephone from time to time to optimise its
performance.
Switch the phone off before boarding an aircraft.
Switch the phone off when you are in health care facilities, except in designated
areas. As with many other types of equipment now in regular use, mobile telephones
can interfere with other electrical or electronic devices, or equipment using radio
frequency.
Switch the phone off when you are near gas or flammable liquids. Strictly obey all
signs and instructions posted in a fuel depot, petrol station, or chemical plant, or in
any potentially explosive atmosphere.
When the phone is switched on, it should be kept at least 15 cm from any medical
device such as a pacemaker, a hearing aid or insulin pump, etc. In particular when
using the phone, you should hold it against the ear on the opposite side to the
device, if any.
To avoid hearing impairment, pick up the call before holding your phone to your
ear. Also move the handset away from your ear while using the "hands-free" mode
because the amplified volume might cause hearing damage.
3 4
Do not let children use the phone and/or play with the telephone and accessories
without supervision.
Please note that your phone is a unibody device, the back cover and battery are
not removable. Do not attempt to disassemble your phone. If you disassemble your
phone the warranty will not apply. Also disassembling the phone may damage the
battery, and may cause leakage of substances that could create an allergic reaction.
Always handle your phone with care and keep it in a clean and dust-free place.
Do not allow your phone to be exposed to adverse weather or environmental
conditions (moisture, humidity, rain, infiltration of liquids, dust, sea air, etc). The
manufacturer’s recommended operating temperature range is -10°C to +55°C.
At over 55°C the legibility of the phone’s display may be impaired, though this is
temporary and not serious.
Emergency call numbers may not be reachable on all cellular networks. You should
never rely only on your phone for emergency calls.
Do not open, dismantle or attempt to repair your mobile phone yourself.
Do not drop, throw or bend your mobile phone.
Do not use the phone if the glass made screen is damaged, cracked or broken to
avoid any injury.
Do not paint it.
Use only batteries, battery chargers, and accessories which are recommended by
TCT Mobile Limited and its affiliates and are compatible with your phone model. TCT
Mobile Limited and its affiliates disclaim any liability for damage caused by the use of
other chargers or batteries.
Remember to make back-up copies or keep a written record of all important
information stored in your phone.
Some people may suffer epileptic seizures or blackouts when exposed to flashing
lights, or when playing video games. These seizures or blackouts may occur even if
a person never had a previous seizure or blackout. If you have experienced seizures
or blackouts, or if you have a family history of such occurrences, please consult your
doctor before playing video games on your phone or enabling a flashing-lights feature
on your phone.
Parents should monitor their children’s use of video games or other features that
incorporate flashing lights on the phones. All persons should discontinue use and
consult a doctor if any of the following symptoms occur: convulsion, eye or muscle
twitching, loss of awareness, involuntary movements, or disorientation. To limit the
likelihood of such symptoms, please take the following safety precautions:
- Do not play or use a flashing-lights feature if you are tired or need sleep.
- Take a minimum of a 15-minute break hourly.
- Play in a room in which all lights are on.
- Play at the farthest distance possible from the screen.
- If your hands, wrists, or arms become tired or sore while playing, stop and rest for
several hours before playing again.
- If you continue to have sore hands, wrists, or arms during or after playing, stop the
game and see a doctor.
When you play games on your phone, you may experience occasional discomfort
in your hands, arms, shoulders, neck, or other parts of your body. Follow the
instructions to avoid problems such as tendinitis, carpal tunnel syndrome, or other
musculoskeletal disorders.
PROTECT YOUR HEARING
To prevent possible hearing damage, do not listen at high volume levels for
long periods. Exercise caution when holding your device near your ear while
the loudspeaker is in use.
PRIVACY:•
Please note that you must respect the laws and regulations in force in your
jurisdiction or other jurisdiction(s) where you will use your mobile phone regarding
taking photographs and recording sounds with your mobile telephone. Pursuant to
such laws and regulations, it may be strictly forbidden to take photographs and/or to
record the voices of other people or any of their personal attributes, and duplicate
or distribute them, as this may be considered to be an invasion of privacy. It is the
user's sole responsibility to ensure that prior authorisation be obtained, if necessary,
in order to record private or confidential conversations or take a photograph
of another person; the manufacturer, the seller or vendor of your mobile phone
(including the operator) disclaim any liability which may result from the improper
use of the mobile phone.
BATTERY:•
Please note your phone is a unibody device, the back cover and battery are not
removable. Observe the following precautions:
- Do not attempt to open the back cover,
- Do not attempt to eject, replace and open battery,
- Do not punctuate the back cover of your phone,
- Do not burn or dispose of your phone in household rubbish or store it at
temperature above 60°C.
Phone and battery as a unibody device must be disposed of in accordance with locally
applicable environmental regulations.
5 6
This symbol on your telephone, the battery and the accessories means
that these products must be taken to collection points at the end of their
life:
- Municipal waste disposal centres with specific bins for these items of
equipment
- Collection bins at points of sale.
They will then be recycled, preventing substances being disposed of in the
environment, so that their components can be reused.
In European Union countries:
These collection points are accessible free of charge.
All products with this sign must be brought to these collection points.
In non European Union jurisdictions:
Items of equipment with this symbol are not to be thrown into ordinary bins if your
jurisdiction or your region has suitable recycling and collection facilities; instead they
are to be taken to collection points for them to be recycled.
CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT
TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
CHARGERS•
Mains powered chargers will operate within the temperature range of: 0°C to
40°C.
The chargers designed for your mobile phone meet with the standard for safety of
information technology equipment and office equipment use. They are also compliant
to the ecodesign directive 2009/125/EC. Due to different applicable electrical
specifications, a charger you purchased in one jurisdiction may not work in another
jurisdiction. They should be used for this purpose only.
RADIO WAVES:•
Proof of compliance with international standards (ICNIRP) or with European
Directive 1999/5/EC (R&TTE) is required of all mobile phone models before they can
be put on the market. The protection of the health and safety for the user and any
other person is an essential requirement of these standards or this directive.
THIS DEVICE MEETS INTERNATIONAL GUIDELINES FOR EXPOSURE TO
RADIO WAVES.
Your mobile device is a radio transmitter and receiver. It is designed not to exceed
the limits for exposure to radio waves (radio frequency electromagnetic fields)
recommended by international guidelines. The guidelines were developed by an
independent scientific organization (ICNIRP) and include a substantial safety margin
designed to assure the safety of all persons, regardless of age and health.
The radio wave exposure guidelines use a unit of measurement known as the Specific
Absorption Rate, or SAR. The SAR limit for mobile devices is 2 W/kg.
Tests for SAR are conducted using standard operating positions with the device
transmitting at its highest certified power level in all tested frequency bands. The
highest SAR values under the ICNIRP guidelines for this device model are:
6012X:
Maximum SAR for this model and conditions under which it was recorded.
Head SAR UMTS 2100 + Bluetooth + Wi-Fi 0.566 W/kg
Body-worn SAR UMTS 2100 + Bluetooth + Wi-Fi 0.857 W/kg
6012D:
Maximum SAR for this model and conditions under which it was recorded.
Head SAR UMTS 2100 + Bluetooth + Wi-Fi 0.566 W/kg
Body-worn SAR UMTS 2100 + Bluetooth + Wi-Fi 0.857 W/kg
During use, the actual SAR values for this device are usually well below the values
stated above. This is because, for purposes of system efficiency and to minimize
interference on the network, the operating power of your mobile device is
automatically decreased when full power is not needed for the call. The lower the
power output of the device, the lower its SAR value.
Body-worn SAR testing has been carried out at a separation distance of 10 mm.
To meet RF exposure guidelines during body-worn operation, the device should be
positioned at least this distance away from the body. If you are not using an approved
accessory ensure that whatever product is used is free of any metal and that it
positions the phone the indicated distance away from the body.
Organizations such as the World Health Organization and the US Food and Drug
Administration have statesd that if people are concerned and want to reduce their
exposure they could use a hands-free device to keep the phone away from the head
and body during phone calls, or reduce the amount of time spent on the phone.
For more information you can go to www.alcatelonetouch.com
Additional information about electromagnetic fields and public health are available on
the following site: http://www.who.int/peh-emf.
Your telephone is equipped with a built-in antenna. For optimal operation, you should
avoid touching it or degrading it.
As mobile devices offer a range of functions, they can be used in positions other
than against your ear. In such circumstances the device will be compliant with
the guidelines when used with headset or usb data cable. If you are using another
accessory ensure that whatever product is used is free of any metal and that it
positions the phone at least 10 mm away from the body.
7 8
Regulatory information•
The following approvals and notices apply in specific regions as noted.
6012X:
6012D:
9 10
LICENCES •
(1)
microSD Logo is a trademark.
The Bluetooth word mark and logos are owned by the Bluetooth
SIG, Inc. and any use of such marks by TCT Mobile Limited and its
affiliates is under license. Other trademarks and trade names are
those of their respective owners.
ONE TOUCH 6012X/ONE TOUCH 6012D
Bluetooth QD ID B021282
SwiftKey is a registered trademark of TouchType Ltd.
The Wi-Fi Logo is a certification mark of the Wi-Fi Alliance.
Google, the Google logo, Android, the Android logo, Google
SearchTM, Google MapsTM, GmailTM, YouTube, Google Play Store,
Google Latitude
The Android robot is reproduced or modified from work created and shared
by Google and used according to terms described in the Creative Commons 3.0
Attribution License (the text will show when you touch and hold Google legal in
Settings\About phone\Legal information)
You have purchased a product which uses the open source (http://opensource.
org/) programs mtd, msdosfs, netfilter/iptables and initrd in object code and other
open source programs licensed under the GNU General Public License and Apache
License.
We will provide you with a complete copy of the corresponding source codes upon
request within a period of three years from the distribution of the product by TCT.
You may download the source codes from http://sourceforge.net/projects/alcatel/
files/. The provision of the source code is free of charge from internet.
TM
and Hangouts
TM
are trademarks of Google Inc.
(1)
.
General information ...................
Internet address• : www.alcatelonetouch.com
Hot Line Number:• see "TCT Mobile Services" leaflet or go to our website.
Address:• Room 1910-12A, Tower 3, China HK City, 33 Canton Road, Tsimshatsui,
Kowloon, Hong Kong
On our website, you will find our FAQ (Frequently Asked Questions) section. You
can also contact us by e-mail to ask any questions you may have.
An electronic version of this user guide is available in English and other languages
according to availability on our server: www.alcatelonetouch.com
Your telephone is a transceiver that operates on GSM in quad-band (850/900/1800/1900
MHz) or UMTS in dual-band (900/2100 MHz).
This equipment is in compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC. The entire copy of the Declaration of Conformity
for your telephone can be obtained through our website: www.alcatelonetouch.
com.
Protection against theft
Your telephone is identified by an IMEI (phone serial number) shown on the packaging
label and in the phone’s memory. We recommend that you note the number the first
time you use your telephone by entering * # 0 6 # and keep it in a safe place. It may
be requested by the police or your operator if your telephone is stolen. This number
allows your mobile telephone to be blocked preventing a third person from using it,
even with a different SIM card.
(1)
(1)
It may not available according to the countries.
11 12
(1)
Contact your network operator to check service availability.
Disclaimer
There may be certain differences between the user manual description and the
phone’s operation, depending on the software release of your telephone or specific
operator services.
TCT Mobile shall not be held legally responsible for such differences, if any, nor for
their potential consequences, which responsibility shall be borne by the operator
exclusively.
This handset may contain materials, including applications and software in executable
or source code form, which is submitted by third parties for inclusion in this handset
("Third Party Materials"). All third party materials in this handset are provided "as
is", without warranty of any kind, whether express or implied, including the implied
warranties of merchantability, fitness for a particular purpose or use/third party
application, interoperability with other materials or applications of the purchaser
and non-infringement of copyright. The purchaser undertakes that TCT Mobile has
complied with all quality obligations incumbent upon it as a manufacturer of mobile
devices and handsets in complying with Intellectual Property rights. TCT Mobile will
at no stage be responsible for the inability or failure of the Third Party Materials to
operate on this handset or in interaction with any other devices of the purchaser.
To the maximum extent permitted by law, TCT Mobile disclaims all liability for any
claims, demands, suits or actions, and more specifically – but not limited to – tort
law actions, under any theory of liability, arising out of the use, by whatever means,
or attempts to use, such Third Party Materials. Moreover, the present Third Party
Materials, which are provided free of charge by TCT Mobile, may be subject to
paid updates and upgrades in the future; TCT Mobile waives any responsibility
regarding such additional costs, which shall be borne exclusively by the purchaser.
The availability of the applications may vary depending on the countries and the
operators where the handset is used; in no event shall the list of possible applications
and software provided with the handsets be considered as an undertaking from
TCT Mobile; it shall remain merely as information for the purchaser. Therefore,
TCT Mobile shall not be held responsible for the lack of availability of one or more
applications wished for by the purchaser, as its availability depends on the country
and the operator of the purchaser. TCT mobile reserves the right at any time to add
or remove Third Party Materials from its handsets without prior notice; in no event
shall TCT Mobile be held responsible by the purchaser for any consequences that
such removal may have on the purchaser regarding the use or attempt to use such
applications and Third Party Materials.
Your mobile
1
Keys and connectors1.1
Headset connector
Back key
Home key
..........................
Power key
Front camera
Charging LED indicator
Touch screen
Option key
micro-USB/
Charger connector
13 14
Flashlight
Camera
SIM1 slot
Volume up
Volume down
SIM2 slot/
microSD card slot
Option key
Touch: As • Menu key, touch to access Wallpaper, Manage
applications and Settings.
Touch and hold: Open a list of thumbnail images of apps •
you've worked with recently. Touch it to open an app. Swipe it
upwards or downwards to remove a thumbnail from the list.
Home key
While on any application or screen, touch to return to the •
Home screen.
Back key
Touch to go back to the previous screen, or to close a dialog •
box, options menu, the Notification panel, etc.
Power key
Press: Lock the screen/Light up the screen.•
Press and hold: Show the pop-up menu to select from Power •
off/Restart/Airplane mode/Quick start.
Press and hold: Power on.
Press to mute the ringtone when there’s an incoming call.•
Press and hold for more than 7 seconds to restart the phone •
when the system halted.
Press and hold• Power key and Volume down key to capture
a screenshot.
Press and hold • Power key and Volume up key under power
off mode to restore factory set.
Volume Keys
Under call mode, adjust the earpiece or headset volume.•
In Music/Video/Streaming mode, adjust the media volume.•
In general mode, adjust the ring tone volume.•
Mute the ringtone of an incoming call.•
Press to light up the screen when it dims during a call.•
In Camera mode, using it as the capture key allows you to •
take a photo.
15 16
Getting started1.2
Set-up1.2.1
Inserting or removing the SIM card and microSD card
You must insert your SIM card to make phone calls. Please power off your
phone before inserting or removing the SIM card and microSD card.
Inserting or removing SIM cards
(2)
There are two SIM card slots on the phone. You can insert one or two
SIM cards into slots. Please power off your phone before inserting or
removing SIM cards.
Your phone only support micro-SIM card. Please contact network operator
and use professional scissors prune SIM card to micro-SIM card.
To install, take off micro-SIM card protector, insert the micro-SIM card
into the slot with chip facing downward, and then cover the slot.
To remove the card, open micro-SIM card protector, gently press it out,
and then cover the slot.
Steps for removing and installing microSD card are the same with steps
for micro-SIM card
(1)
.
(1)
Charging the battery
Connect the battery charger to your phone and mains socket
respectively.
When using your telephone for the first time, charge the battery fully •
(approximately 5 hours).
You are advised to fully charge the battery (
). Charging status is
indicated by the percentage on screen while the phone is powered off. The
percentage increases as the phone is charged.
The charging status bar will not float if your battery is extendly
consumed. To reduce power consumption and energy waste,
when battery is fully charged, disconnect your charger from the
plug; switch off Wi-Fi, GPS, Bluetooth or background-running
applications when not in use; reduce the backlight time, etc.
Power on your phone1.2.2
Hold down the Power key until the phone powers on, unlock your phone
(Slide, PIN, Password, Pattern, Face unlock or Voice unlock) if necessary
and confirm. The Home screen will display.
If you do not know your PIN code or if you have forgotten it, contact your
network operator. Do not leave your PIN code with your phone. Store
this information in a safe place when not in use.
(1)
6012X only.
(2)
6012D only.
17 18
Set up your phone for the first time
The first time you power on the phone, you should set the following
options:
Touch • Get started..., then select the phone's language.
Select your input keyboard, then touch • Next.
Select SIM you want to use, then touch • Next.
Set your date and timezone, you can also choose • Automatic time zone,
then touch Next.
Setup Google account• : Touch Setup now. If you have a Google
Account, touch Yes to sign in, then enter your user name and password.
If you forget your password, you can go to http://www.google.com/ to
retrieve it. If you don’t own a Google Account, you are prompted to
create one by touching Get an account. Touch Not now to skip to
the next step.
Touch • Next, then the Setup complete screen will display, touch Finish
to confirm.
If you power on your phone with no SIM card inserted, you can connect
to a Wi-Fi network to sign into your Google account and to use some
features.
Power off your phone1.2.3
Hold down the Power key from the Home screen, select Power off, and
then touch OK to confirm.
Home screen1.3
You can bring all the items (applications, shortcuts, folders and widgets)
you love or use most frequently to your Home screen for quick access.
Touch the Home key to switch to the Home screen.
Status bar
Status/Notification indicators •
Touch and drag down to open the Notification •
panel
Search bar
(1)
Touch • to enter text search screen
Touch • to enter voice search screen
Favorite tray applications
Touch to enter the application•
Touch and hold to move or change applications•
Application tab
Touch to open main menu•
The Home screen is provided in an extended format to allow more space
for adding applications, shortcuts etc. Slide the Home screen horizontally
left and right to get a complete view of the Home screen. The white
short line at the lower part of the screen indicates which screen you are
viewing.
Using the touchscreen1.3.1
(1)
Touch
To access an application, touch it with your finger.
(1)
Depends on software version.
19 20
Touch and Hold
Touch and hold the Home screen to access the available options for
setting the wallpaper.
Drag
Place your finger on any item to drag it to another location.
Status icons
For dual SIM model, status icons referring to either SIM1 or SIM2 will be
identified by a colour which you have defined.
GPRS connected
(1)
Receiving location data
from GPS
GPRS in use Roaming
EDGE connected No SIM card inserted
Slide/Swipe
Slide the screen to scroll up and down the applications, web pages… at
your convenience.
Flick
Similar to swiping, but flicking makes it move quicker.
Pinch/Spread
Place your fingers of one hand on the screen surface and draw them apart
or together to scale an element on the screen.
Rotate
Automatically change the screen orientation from portrait to landscape by
turning the phone sideways to have a better view.
Status bar1.3.2
From status bar, you can view both phone status and notification
information.
21 22
EDGE in use Vibrate mode
3G connected Ringer is silenced
3G in use Phone microphone is mute
HSPA (3G+) connected Battery is very low
HSPA (3G+) in use Battery is low
Connected to a Wi-Fi
network
Battery is partially drained
Bluetooth is on Battery is full
Connected to a Bluetooth
device
Battery is charging
Airplane mode Headset connected
Alarm is set No signal (gray)
GPS is on Signal strength (blue)
(1)
6012D only.
Notification icons
New text or multimedia
message
Problem with SMS or MMS
delivery
New Hangouts message Call forwarding is on
New voicemail Uploading data
Upcoming event Downloading data
Data is synchronizing Download finished
Missed call
Call on hold
Notification panel
Touch and drag down the Status bar to open the Notification panel.
Touch and drag up to close it. From the Notification panel, you can open
items and other reminders indicated by notification icons or view wireless
service information.
Touch to access Quick setting bar
Song is playing Select input method
Screenshot error
USB tethering is on
Portable Wi-Fi hotspot
is on
Screenshot captured System update available
Carrier data use threshold
approaching or exceeded
Call in progress
An open Wi-Fi network is
available
Phone is connected via USB
cable
Radio is on
Connected to VPN
23 24
Touch one notification and slide it sideways to delete it.
Touch the icon
notifications will remain).
Touch
and then the Settings icon to access Settings.
to clear all event–based notifications (other ongoing
Quick setting bar
• Touch icons to enable/disable functions or to
change modes
Search bar 1.3.3
(1)
The phone provides a Search function which can be used to locate
information within applications, the phone or the web.
Search by text
Touch Search bar from the Home screen. •
Enter the text/phrase you want to search for.•
Touch •
on the keyboard if you want to search on the web.
Search by voice
Touch •
from Search bar to display a dialog screen.
Speak the word/phrase you want to search for. A list of search results •
will display for you to select from.
Lock/Unlock your screen1.3.4
To protect your phone and privacy, you can lock the phone screen by
creating a variety of patterns, PIN or password.
To create a screen unlock pattern (refer to section "Screen lock" for
detail settings)
Drag down the Notification panel and touch •
to enter Settings, then touch Security\Set up screen lock\
icon
Pattern.
Draw your own pattern.•
Draw your unlock pattern
Touch to confirm by drawing pattern again
To create a screen unlock PIN/Password
Touch • Settings\Security\Set up screen lock\PIN or Password.
Set your PIN or password.•
To lock phone screen
Press the Power key once to lock the screen.
and then the Settings
(1)
Depends on software version.
25 26
To unlock phone screen
Press the Power key once to light up the screen, draw the unlock pattern
you have created or enter PIN or password to unlock the screen.
If you have chosen Slide as the screen lock, touch and drag the icon
downwards to unlock the screen.
Reposition
Touch and hold the item to be repositioned to activate the Move mode,
drag the item to the desired position and then release. You can move
items both on the Home screen and the Favorite tray. Hold the icon on
the left or right edge of the screen to drag the item to another Home
screen.
Remove
Touch and hold the item to be removed to activate the Move mode, drag
the item up to the top of Remove icon, and release after the item turns
red.
Create folders
To improve the organization of items (shortcuts or applications) on the
Home screen and the Favorite tray, you can add them to a folder by
stacking one item on top of another. To rename a folder, open it, touch
the folder’s title bar to input the new name.
Personalize your Home screen1.3.5
Add
Touch the Application tab
to active the Move mode, and drag the item to any Home screen as you
prefer.
While adding an application to a Home screen, drag it to the top of App
info icon to view its detail information. If the application is downloaded,
drag it to the top of Uninstall icon to uninstall it directly.
, touch and hold an application or a widget
27 28
Wallpaper customization
Touch and hold an empty area, a popup window named Choose
wallpaper from will appear, offering a range of options. Gallery includes
pictures you have taken, cropped or downloaded. Live wallpapers
includes a scrolling list of animated wallpapers. Video wallpaper includes
preset videos in phone, videos stored in SD card and camera. Wallpapers
includes all preset wallpapers in the phone. Slide left and right to locate a
desired image, touch Set wallpaper to confirm.
Application tab1.3.6
Touch on the Home screen to enter applications and widgets list.
To return to the Home screen, touch the Home key.
Consult recently-used applications
To consult recently-used applications, you can touch and hold the Option
key. Touch a thumbnail in the window to open the related application.
Touch one thumbnail and slide it upwards or downwards to delete it.
You can also touch and hold the app and touch Remove from list to
delete it.
Volume adjustment1.3.7
Using volume key
Press Volume key to adjust the volume. To active the vibrate mode,
press the Volume down key until the phone vibrates. Press the Volume
down key once more to active the silent mode.
Using Settings menu
Drag down the Notification panel and touch
to enter Settings, then touch Sound you can set the volume of
icon
ringtone, notification, system and etc. to your preference.
and then the Settings
Applications and widgets list1.4
This list contains all pre-embedded and newly installed applications and
widgets.
To access the list, touch
To return to the Home screen, touch the Home key or the Back key.
Slide left and right to view all applications and widgets. Touch APPS,
DOWNLOADED or WIDGETS to access the category directly.
Touch the icon
from the Home screen.
to access the Google Play Store.
29 30
Text input
2
..............................
Using Onscreen Keyboard2.1
Onscreen Keyboard settings
Touch the Application tab from the Home screen, select Settings\
Language & input, touch the Settings icon on the right of Android
keyboard or SwiftKey, a series of settings are available for your
selection.
Adjust the Onscreen Keyboard orientation
Turn the phone sideways or upright to adjust the Onscreen Keyboard
orientation. You can also adjust it by changing the settings (On application
list, touch Settings\Display\Orientation).
Android keyboard2.1.1
Touch to enter text or numbers
Touch to switch between "abc/Abc" mode; Touch
& hold to switch between "abc/ABC" mode
Touch & hold, then select to enter symbols/
emoticons
Touch & hold to show input options; When Wi-Fi or data connection
is on, touch to enter voice input
Touch to switch between symbol and numeric keyboard
31 32
SwiftKey keyboard2.1.2
Slide through letters to input characters
Touch to delete incorrect characters
Touch to insert a space or complete the current word or
insert a prediction as preferred
Touch and hold to switch voice input
Touch to enter Numbers and symbols, etc.
Text editing2.2
You can edit the text you have entered.
Touch and hold or double-tap within the text you would like to edit.•
Drag the tap to change the high-lighted selection.•
Following options will show: • Select all
Paste
Touch the icon •
.
to confirm.
, Cut , Copy and
You can also insert new text
Touch where you want to type, or touch and hold a blank space, the •
cursor will blink and the tab will show. Drag the tab to move the
cursor.
If you have selected any text, touch the tab to show • PASTE icon which
allows you to paste any text you have previously copied.
Phone call, Call log
3
and Contacts .........................
Phone3.1 ...........................................................
Placing a call3.1.1
You can easily launch a call using Phone. Touch the Application tab from
the Home screen and select Phone.
People
Call log
Touch and hold to access voicemail
Slide to access Call log and People
Touch to get more options
Touch to hide/show the dial pad
Enter the desired number from the keyboard directly or select a contact
from People or Call log by sliding or touching tabs, then touch Call to
place the call.
The number you entered can be saved to People by touching
selecting Add contact.
If you make a mistake, you can delete the incorrect digits by touching
To hang up a call, touch End.
and
.
33 34
International call
To dial an international call, touch and hold
to enter "+", then enter
the international country prefix followed by the full phone number and
finally touch Call.
Emergency call
If your phone has network coverage, dial emergency number and touch
Call to make an emergency call. This works even without a SIM card and
without typing the PIN code.
Make a call with two SIM cards, a dialog will popup for you to
choose a SIM card. The system will choose the default one if the
countdown time is over.
(1)
Answering or rejecting a call3.1.2
When you receive a call, touch .
Slide rightward to answer;•
Slide leftward to reject;•
Slide upward to reject the call by sending a preset message.•
To mute the ringtone volume of an incoming call, press the Volume
up/down key or turn the phone face down if Turn over to mute is
activated. To activate, touch Settings\Gestures\Turn over to mute.
Calling your voicemail 3.1.3
Your voicemail is provided by your network to avoid missing calls. It works
like an answering machine that you can consult at any time.
To access your voicemail, touch and hold
To set your voicemail number, touch
on Phone tab.
and touch Settings\Voice call\
Voicemail.
If you receive a voicemail, a voicemail icon
appears on the Status bar.
Open the Notification panel, touch New voicemail.
During a call3.1.4
To adjust the volume during a call, press the Volume up/down key.
(1)
6012D only.
35 36
Touch to hold the current call. Touch this icon again to
retrieve the call.
Touch to display Dialpad.
Touch to end the current call.
Touch to mute the current call. Touch this icon again to
unmute the call.
Touch to activate the speaker during the current call. Touch
this icon again to deactivate the speaker.
and select Start recording to record.
Touch
To avoid misoperation on touchscreen during a call, screen will
be locked automatically when you put the cellphone close to your
ear; and it will be unlocked when the cellphone is taken away
from your ear.
Managing multiple calls3.1.5
With this phone you can handle multiple calls at the same time.
Swap calls
When you accept two calls, you can now switch between two lines. The
current call is put on hold and you have joined in the other call.
Conference calls
You can set up a conference call.
Place a call to the first participant of the conference call. •
Touch •
and select Add call.
Enter the phone number of the person you want to add to conference and •
touch Call. You can also add participants from Contacts or Call log.
Touch icon •
During a conference call, touch •
privately to one of the participants. Touch End to drop the participant
from the conference, touch
hold on other participants.
Touch • End to end the conference call and disconnect all callers.
(1)
to start a conference call.
to drop a participant or to talk
to talk privately to the participant and
(1)
Depending on your network operator.
37 38
Call settings3.1.6
Touch and select Settings from Dial screen, the following options are
available:
Voice call
Voicemail•
Voicemail service Opens a dialog box where you can select your
carrier’s voicemail service or another service.
Voicemail settings If you are using your carrier’s voicemail service,
this opens a dialog box where you can enter the
phone number to use for listening to and managing
your voicemail. You can enter a comma (,) to
insert a pause into the number — for example, to
add a password after the phone number.
IP prefix number•
Enter prefix number Edit prefix number for IP dial.
Call forwarding•
Touch to configure how your calls are forwarded when you are busy,
unanswered or unreachable.
Call barring•
You can activate or deactivate the call barring for outgoing and incoming
calls. The various options are:
All outgoing calls All out going calls are barred.
International
outgoing calls
International
except home
All incoming calls All incoming calls are barred.
Incoming calls in
roaming
Cancel all Deactivate all call barring.
Change barring
password
Additional settings•
Caller ID Opens a dialog box where you can set whether
Call waiting Mark the check box to notify you of a new
Call waiting status Check the call waiting status of your phone.
Outgoing international calls are barred.
Outgoing international calls except those to your
country of subscription are barred.
Incoming calls are barred when you are abroad.
Change the original barring password for activating
call barring.
your phone number is displayed when making
calls.
incoming call.
39 40
Video call
Local video •
replacement
Display •
peer video
Peer video •
replacement
Enable back •
camera
(1)
You can pick a picture from your collection to
display when Camera is unreachable.
Mark the checkbox to display picture for replacing
peer video when it is unavailable.
Set a picture to display when peer video is
unavailable.
Mark the checkbox to turn on back camera during
a video call.
Bigger peer video• Touch to enable a bigger view of peer.
Auto drop back• Mark the checkbox to enable dropping back to
voice call automatically.
Outgoing •
video call
Incoming •
video call
Touch to display local video when you place a
call.
Touch to display local video when receiving an
incoming call.
Call forwarding• Touch to configure how your calls are forwarded
when you are busy, unanswered or unreachable.
Call barring• Enter to cancel types of video calls and change
barring password.
Additional •
settings
Caller ID Open a dialog box where you can
set whether your phone number is
displayed when making calls.
Call waiting Mark the check box to notify you
of a new incoming call.
Call waiting
status
Touch to view call waiting status
if available.
Other settings
Fixed Dialing Numbers•
Fixed Dialing Number (FDN) is a service mode of SIM, where outgoing
calls are restricted to a set of phone numbers. These numbers are added
to the FDN list. The most common practical application of FDN is for
parents to restrict the phone numbers which their children can dial.
For security reasons, you’ll be prompted to enable FDN by entering SIM
PIN2 which is usually acquired from your service provider or SIM maker.
Minute reminder•
Mark the checkbox to enable minute reminder at 50s of every minute
during a call.
Vibrate reminder•
Mark the checkbox to enable vibration when the call is connected.
Turn over to mute•
Mark the checkbox to mute the incoming calls by turning the phone
over.
Power key ends call•
Mark the checkbox to end a call by pressing the Power key.
Dual mic noise reduction•
Mark the checkbox to turn on dual mic for noise reduction.
Quick responses•
Touch to edit quick responses which will be used when you reject a call
with messages.
(1)
Depending on your model.
41 42
TTY mode•
TTY mode can be used by people who are deaf, have bad hearing or
speech impairments.
After connecting the cell phone and a TTY machine, the machine will
convert incoming speech to text for the person using the TTY and
converts outgoing text from the TTY machine to spoken voice for the
person on the other end of the conversation.
International dialing assist•
Mark the checkbox to activate.
Call log3.2
You can access your call memory by touching from the Dial screen.
Touch
There are three kinds of calls in Call log:
Touch a contact or number to view information or further operations.
You can view detailed information of a call, launch a new call or send
messages to a contact or number, or add numbers to People (only
available for unsaved phone numbers), etc.
Touch the photo
To clear the entire call memory, touch
on the right side of contact/number to place a call directly.
Incoming calls (blue arrows)
Outgoing calls (green arrows)
Missed calls (red arrows)
to open the Quick Contact panel.
and Delete.
People3.3 ..........................................................
People app enables quick and easy access to the people you want to
reach.
You can view and create contacts on your phone and synchronize these
with your Gmail contacts or other applications on the web or on your
phone.
Consult your contacts3.3.1
To access People app, touch the Application tab on the Home screen,
then select People.
Touch to view your favourite contacts
Touch to view your contact groups
Touch icon to open Quick Contact panel
Touch to view the contact’s detailed information
Touch to add a new contact
Touch to search in People
43 44
Loading...
