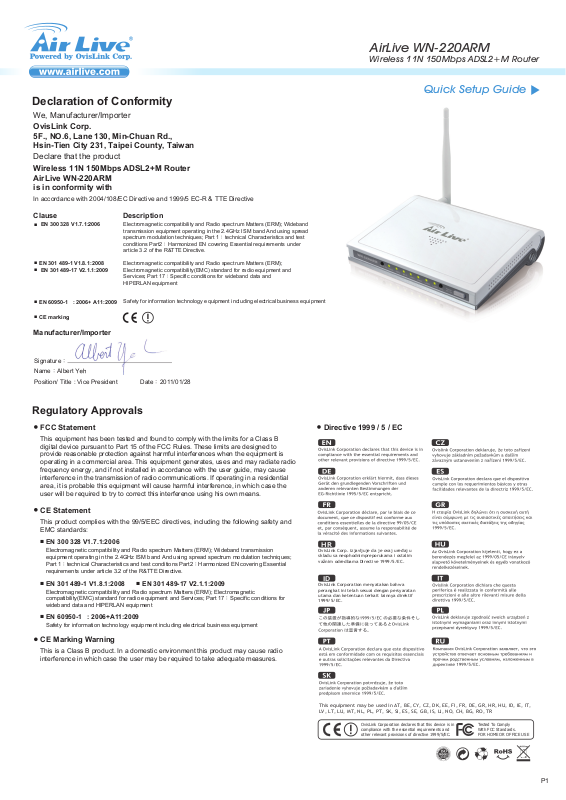

Airlive WN-220ARM Quick Install Guide
Declaration of Conformity
We, Manufacturer/Importer
OvisLink Corp.
5F., NO.6, Lane 130, Min-Chuan Rd.,
Hsin-Tien City 231, Taipei County, Taiwan
Declare that the product
Wireless 11N 150Mbps ADSL2+M Router
AirLive WN-220ARM
is in conformity with
In accordance with 2004/108/EC Directive and 1999/5 EC-R & TTE Directive
AirLive WN-220ARM
Wireless 11N 150Mbps ADSL2+M Router
Quick Setup Guide
Clause
■
EN 300 328 V1.7.1:2006
■
EN 301 489-1 V1.8.1:2008
■
EN 301 489-17 V2.1.1:2009
■
EN 60950-1 : 2006+ A11:2009
■
CE marking
Description
Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband
transmission equipment operating in the 2.4GHz ISM band And using spread
spectrum modulation techniques; Part 1：technical Characteristics and test
conditions Part2：Harmonized EN covering Essential requirements under
article 3.2 of the R&TTE Directive.
Electromagnetic compatibility and Radio spectrum Matters (ERM);
Electromagnetic compatibility(EMC) standard for radio equipment and
Services; Part 17：Specific conditions for wideband data and
HIPERLAN equipment
Safety for information technology equipment including electrical business equipment
Manufacturer/Importer
Signature：
Name：Albert Yeh
Position/ Title : Vice President
Date：
2011/01/28
Regulatory Approvals
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interferences when the equipment is
operating in a commercial area. This equipment generates, uses and may radiate radio
frequency energy, and if not installed in accordance with the user guide, may cause
interference in the transmission of radio communications. If operating in a residential
area, it is probable this equipment will cause harmful interference, in which case the
user will be required to try to correct this interference using his own means.
Directive 1999 / 5 / EC
CE Statement
This product complies with the 99/5/EEC directives, including the following safety and
EMC standards:
■
EN 300 328 V1.7.1:2006
Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband transmission
equipment operating in the 2.4GHz ISM band And using spread spectrum modulation techniques;
Part 1：technical Characteristics and test conditions Part2：Harmonized EN covering Essential
requirements under article 3.2 of the R&TTE Directive.
■
EN 301 489-1 V1.8.1:2008
Electromagnetic compatibility and Radio spectrum Matters (ERM); Electromagnetic
compatibility(EMC) standard for radio equipment and Services; Part 17：Specific conditions for
wideband data and HIPERLAN equipment
■
EN 60950-1 : 2006+A11:2009
Safety for information technology equipment including electrical business equipment
■
EN 301 489-17 V2.1.1:2009
CE Marking Warning
This is a Class B product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
HR
OvisLink Corp. izjavljuje da je ovaj uređaj u
skladu sa neophodnimpreporukama i ostalim
važnim odredbama Directive 1999/5/EC.
ID
OvisLink Corporation menyatakan bahwa
perangkat ini telah sesuai dengan persyaratan
utama dan ketentuan terkait lainnya direktif
1999/5/EC.
This equipment may be used in AT, BE, CY, CZ, DK, EE, FI, FR, DE, GR, HR, HU, ID, IE, IT,
LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, GB, IS, LI, NO, CH, BG, RO, TR
OvisLink Corporation declares that this device is in
compliance with the essential requirements and
other relevant provisions of directiv
e 1999/5/EC.
Tested To Comply
With FCC Standards.
FOR HOME OR OFFICE USE
P1
AirLive WN-220ARM
Wireless 11N 150Mbps ADSL2+M Router
Quick Setup Guide
EN
English
The default IP address: 192.168.1.254
The default login name is admin
The default password is airlive
Please check manual on CD for more detail configuration
DE
Deutsch
Die voreingestellte IP Adresse : 192.168.1.254
Der Standard Login ist “admin”
Das Standard Passwort ist “airlive”
Weitere detaillierte Informationen über die Konfiguration entnehmen Sie
bitte dem auf der beiliegenden CD enthaltenen Benutzerhandbuch.
FR
Français
L’adresse IP par défaut: 192.168.1.254
Le nom login par défaut est admin
Le mot de passe par défaut est airlive
Pour les informations détaillées sur la configuration Web, Veuillez vous
référer au guide Utilisateur sur le CD
CZ
Česky
Základní IP adresa: 192.168.1.254
Základní přihlašovací jméno je ‘admin’
Základní heslo je ‘airlive’
Doporučujeme nastudovat detaily v uživatelském manuálu
ES
Español
La dirección IP por defecto del : 192.168.1.254
El nombre de acceso por defecto ‘admin’
La clave de acceso por defecto es ‘airlive’
Por favor lea el manual en el CD para mayor información sobre la
configuración.
GR
Ελληνικός
Η προεπιλεγμένη διεύθυνση IP: 192.168.1.254
Το προκαθορισμένο όνομα χρήστη είναι admin
Το προκαθορισμένο password είναι airlive
Παρακαλούμε ελέγξτε τον ηλεκτρονικό οδηγό που βρίσκετε στο CD
HR
Hrvatska
Početna IP adresa: 192.168.1.254
Početno korisničko ime je admin
Početna lozinka je airlive
Za više informacija, molimo pogledajte korisnički vodič na priloženom
CD-u.
ID
Bahasa
Alamat IP adalah : 192.168.1.254
Nama Login adalah admin
Password adalah airlive
Keterangan lebih lanjut mengenai teknik pemasangan silakan melihat
file Manual yang terdapat dalam CD
PL
Polski
Fabryczny adres IP: 192.168.1.254
Standardowa nazwa użytkownika to admin
Standardowe hasło to airlive
W celu uzyskania bardziej szczegółowych informacji prosimy o
zapoznanie się z instrukcją użytkownika na płycie CD
HU
Magyar
A alapértelmezett IP-címe: 192.168.1.254
Alapértelmezett felhasználói név: admin
Alapértelmezett jelszó: airlive
Részletesebb leírás a telepítő CD-n lévő kézikönyvben található
IT
Italiano
L’IP leader: 192.168.1.254
il nome di login di default: admin
La password è default: airlive
Per informazioni più dettagliate sulla configurazione, fare riferimento alla
guida utente presente sul CD
PT
Português
O endereço IP por defeito: 192.168.1.254
O nome do login por defeito é “admin”
A palavra-chave por defeito é “airlive”
Por favor verifique as configurações em detalhe no manual que vem
no CD.
RU
Русский
IP адрес по умолчанию: 192.168.1.254
Имя пользователя по умолчанию “admin”
Пароль по умолчанию “airlive”
Для более детальной информации о Web конфигурациях,
пожалуйста, обратитесь к руководству пользователя доступном
на CD.
SK
Slovensky
Predvolená IP adresa: 192.168.1.254
Štandardné prihlasovacie meno je ‘admin’
Štandardné heslo je ‘airlive’
Opis detailnej konfigurácie nájdete na CD dodávanom spolu s
výrobkom
P2
