Airlive WLP-90MF, WLP-90MFB DATASHEET

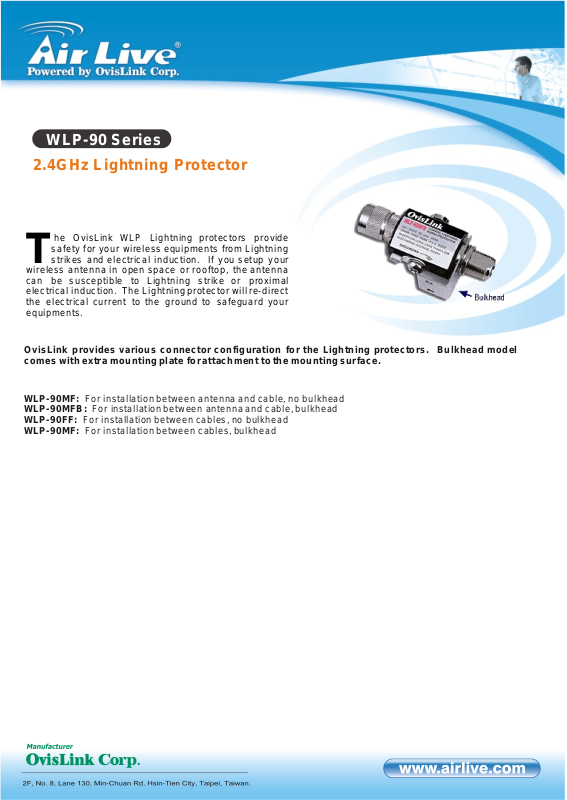

WLP-90 Series

2.4GHz Lightning Protector

he OvisLink WLP Lightning protectors provide safety for your wireless equipments from Lightning strikes and electrical induction. If you setup your

wireless antenna in open space or rooftop, the antenna can be susceptible to Lightning strike or proximal electrical induction. The Lightning protector will re-direct the electrical current to the ground to safeguard your equipments.

OvisLink provides various connector configuration for the Lightning protectors. Bulkhead model comes with extra mounting plate for attachment to the mounting surface.

WLP-90MF: For installation between antenna and cable, no bulkhead WLP-90MFB: For installation between antenna and cable, bulkhead WLP-90FF: For installation between cables, no bulkhead WLP-90MF: For installation between cables, bulkhead

Specification

Connector type

· WLP-90MF: N-type male to N-type female,

non-bulkhead

· WLP-90MFB: N-type male to N-type

female, bulkhead

· WLP-90FF: N-type female to N-type

female, non-builkhead

· WLN-90FFB: N-type female to N-type

female, builkhead

Impedance

· 50 ohm

Frequency Range

· 3GHz

V.S.W.R.

· 1:1.5 Max (0~2.7GHz)

Insertion Loss:

· 0.3dB

Impulse Breakdown Voltage:

· 1000v 5KV/uS Max

Insulation Resistance:

· 10,000M Ohm

Max. Withstanding Current:

· 5000A 8/20us

Max. Power:

· 200W PEP

Breakdown Voltage:

· DC 90V

Dimensions:

· 86mm x 45mm x 20mm Max.

Ordering Information

WLP-90MF Lightning Protector: N-type male to female

WLP-90MFB Lightning Protector: N-type male to female,bulkhead

WLP-90MF Lightning Protector: N-type female to female WLP-90MF Lightning Protector: N-type female to female , bulkhead
