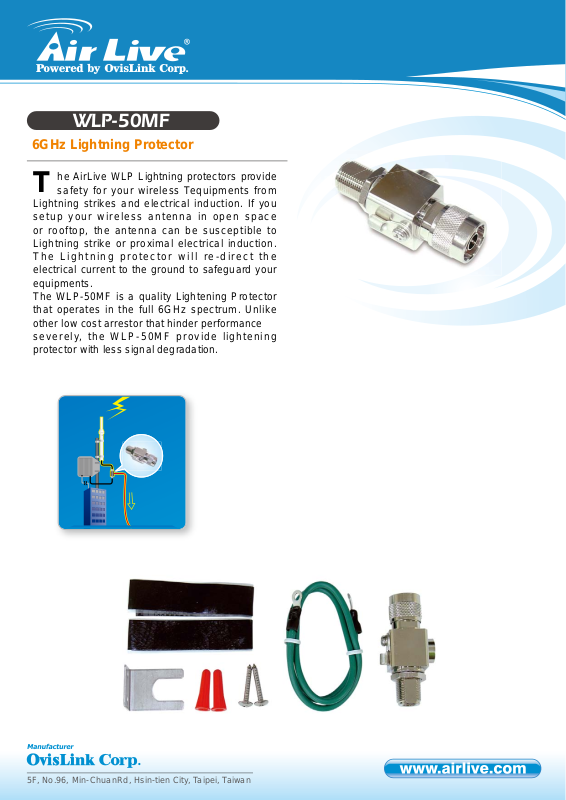

Airlive WLP-50MF DATASHEET

WLP-50MF

6GHz Lightning Protector

he AirLive WLP Lightning protectors provide

T

safety for your wireless Tequipments from
Lightning strikes and electrical induction. If you
setup your wireless antenna in open space
or rooftop, the antenna can be susceptible to
Lightning strike or proximal electrical induction.
The Lightning protector will re-direct the
electrical current to the ground to safeguard your
equipments.
The WLP-50MF is a quality Lightening Protector
that operates in the full 6GHz spectrum. Unlike
other low cost arrestor that hinder performance
severely, the WLP-50MF provide lightening
protector with less signal degradation.

5F, No.96, Min-ChuanRd, Hsin-tien City, Taipei, Taiwan

Specifi cations

Connector type

- N-type male to N-type female

Material

- Copper with electro-plating

- Port Traffic Statistics

Impedance

- 50 ohm

Frequency Range

- 6GHz

V.S.W.R.

- 1.1: 1 max (~4GHz)

- 1.3: 1 max (4 ~6GHz)classification

Surge Breakdown:

- 5KV (wave 1.2/50us)

Max. Withstanding Current:

- 5000A 8/20us

Accessories:

- Bulk Head, Adhesive tape

Dimension

- 68mm x 30mm x 20mm Max.

Insertion Loss:

- 0.8dB max @ DC 6 Ghz

DC Breakdown Voltage:

- 90V + 15%

Insulation Resistance:

- >10,000M Ohm

Ordering Information:

WLP-50MF 5GHz Lightning Protector: N-type male to female
