AirLive WL-1500R User Manual

WL-1500R
802.11g Wireless Broadband Router
User’s Manual
AirLive WL-1500R User’s Manual
i
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The availability of some specific channels and/or operational frequency bands are country dependent and
are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user.
AirLive WL-1500R User’s Manual
1

TABLE OF CONTENTS

ABOUT THIS GUIDE........................................................................................................... 4
Purpose.............................................................................................................................................4
Overview of this User’s Guide...........................................................................................................4
INTRODUCTION .................................................................................................................5
Features............................................................................................................................................5
UNPACKING AND SETUP ....................................................................................................6
Unpacking.........................................................................................................................................6
Setup.................................................................................................................................................6
HARDWARE INSTALLATION ................................................................................................7
Front Panel........................................................................................................................................7
Rear Panel........................................................................................................................................8
Hardware connections.......................................................................................................................8
Connect the Router using LAN................................................................................................................... 8
Connect the Router using Wireless LAN................................................................................................... 9
Check the installation........................................................................................................................ 9
PC NETWORK TCP/IP SETTING ......................................................................................10
Windows 95/98/ME .........................................................................................................................10
Windows 2000.................................................................................................................................11
Windows XP....................................................................................................................................12
WIRELESS BROADBAND ROUTER CONFIGURATION............................................................13
Login to the Wireless Broadband Router through WLAN................................................................13
Login to the Wireless Broadband Router through LAN ...................................................................13
Configuration Menu.........................................................................................................................14
Setup Wizard...................................................................................................................................15

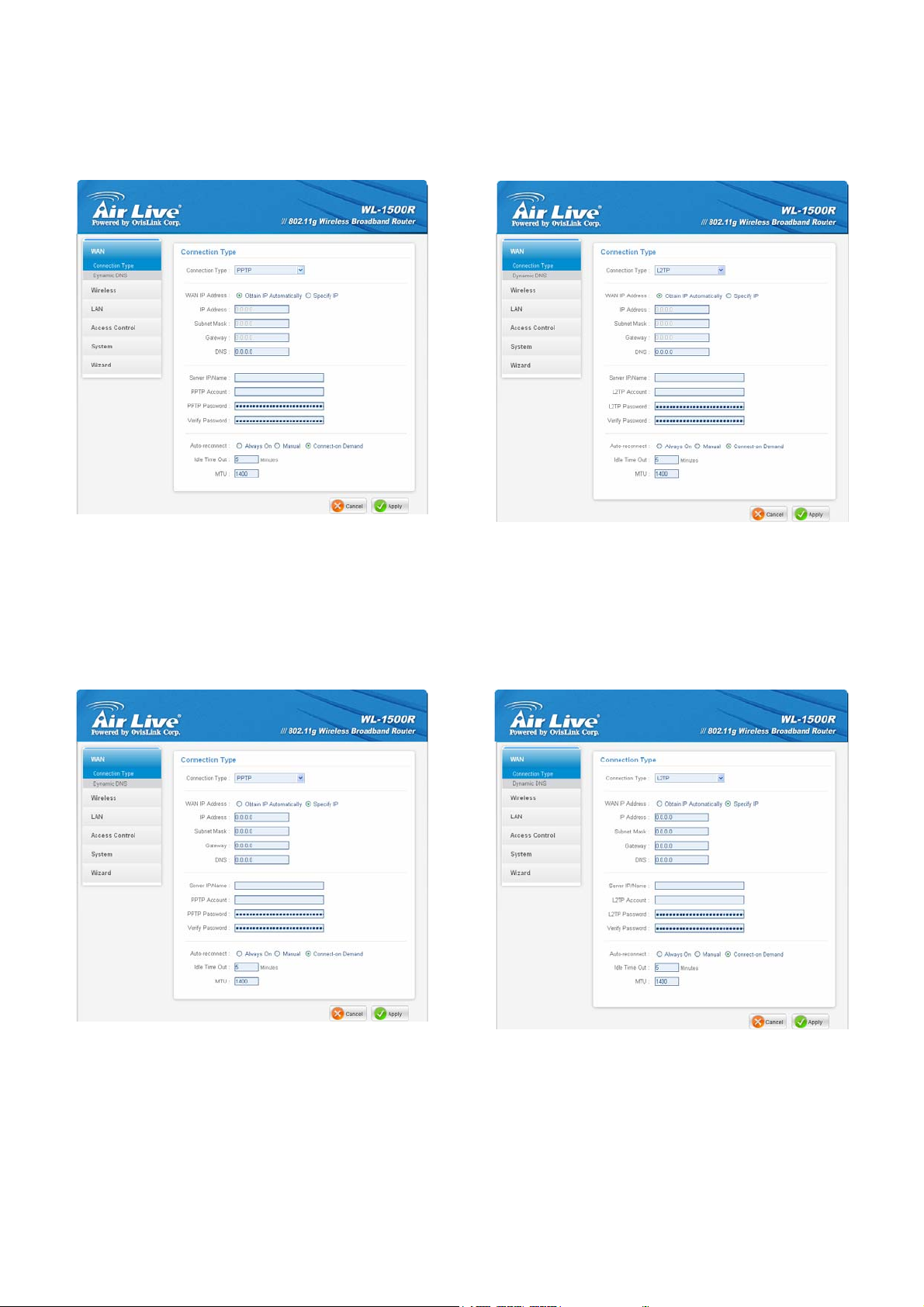

WAN Setting....................................................................................................................................26
DHCP Client or Fixed IP............................................................................................................................ 26

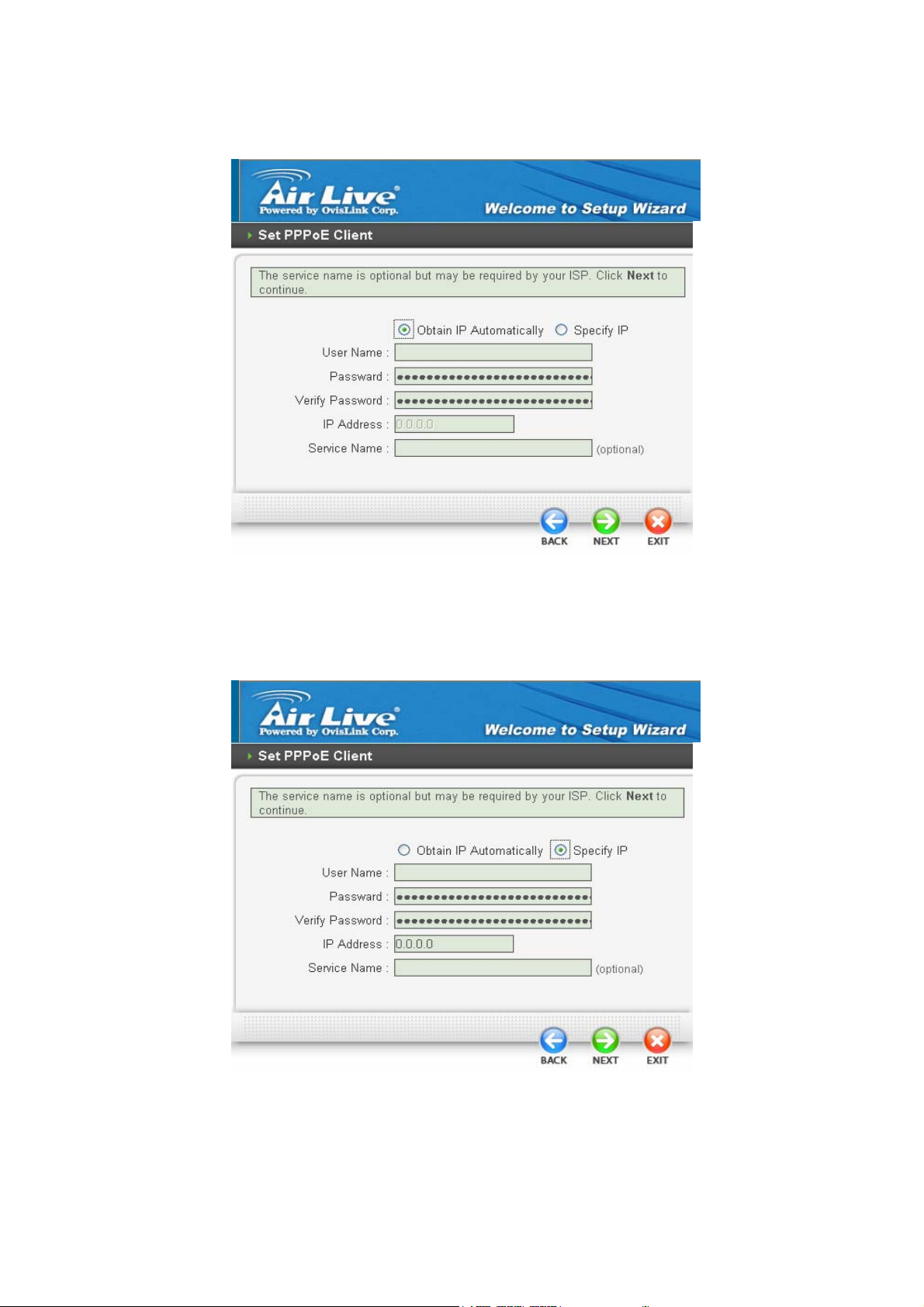

PPPoE with Obtain IP Automatically........................................................................................................ 27
PPPoE with Specify IP............................................................................................................................... 28
PPTP/L2TP with Obtain IP Automatically............................................................................................... 29
PPTP/L2TP with Specify IP....................................................................................................................... 29
BigPond Cable ............................................................................................................................................. 30
Dynamic DNS:............................................................................................................................................. 30

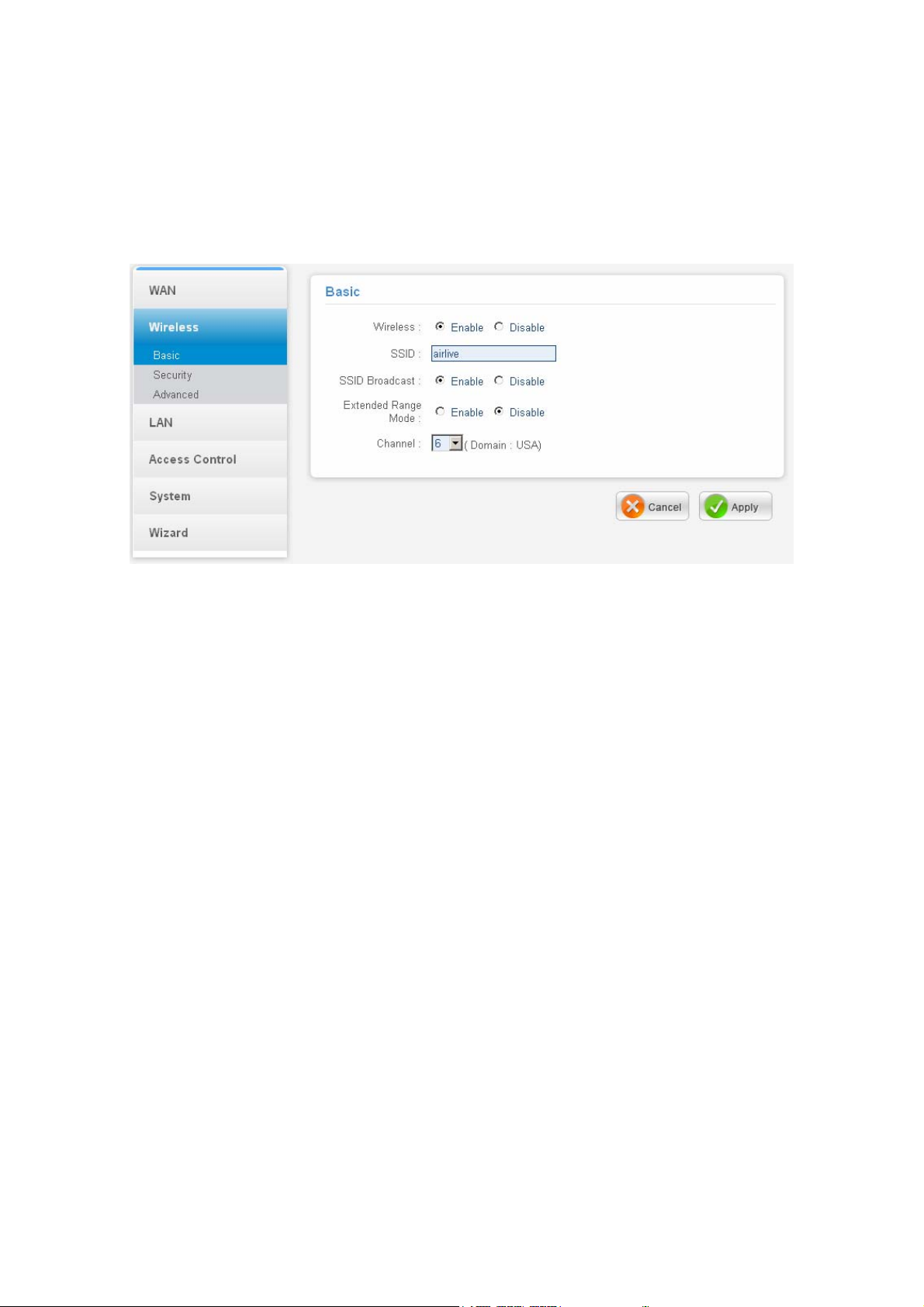

Wireless setting...............................................................................................................................31
Basic.............................................................................................................................................................. 31
AirLive WL-1500R User’s Manual
2
Security......................................................................................................................................................... 32
Advanced...................................................................................................................................................... 35

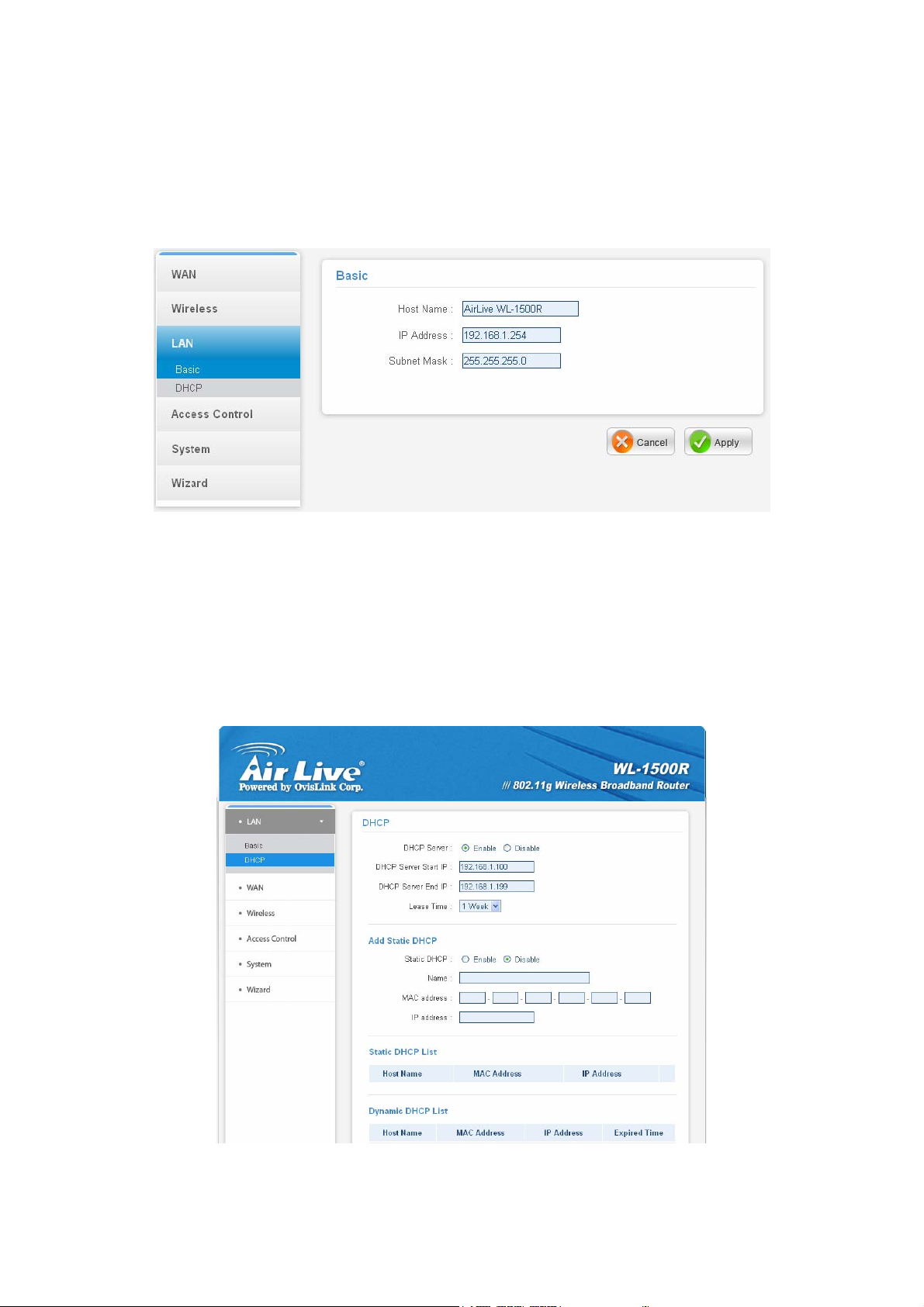

LAN Setting.....................................................................................................................................36
Basic.............................................................................................................................................................. 36
DHCP............................................................................................................................................................ 36
Access Control Setting....................................................................................................................38

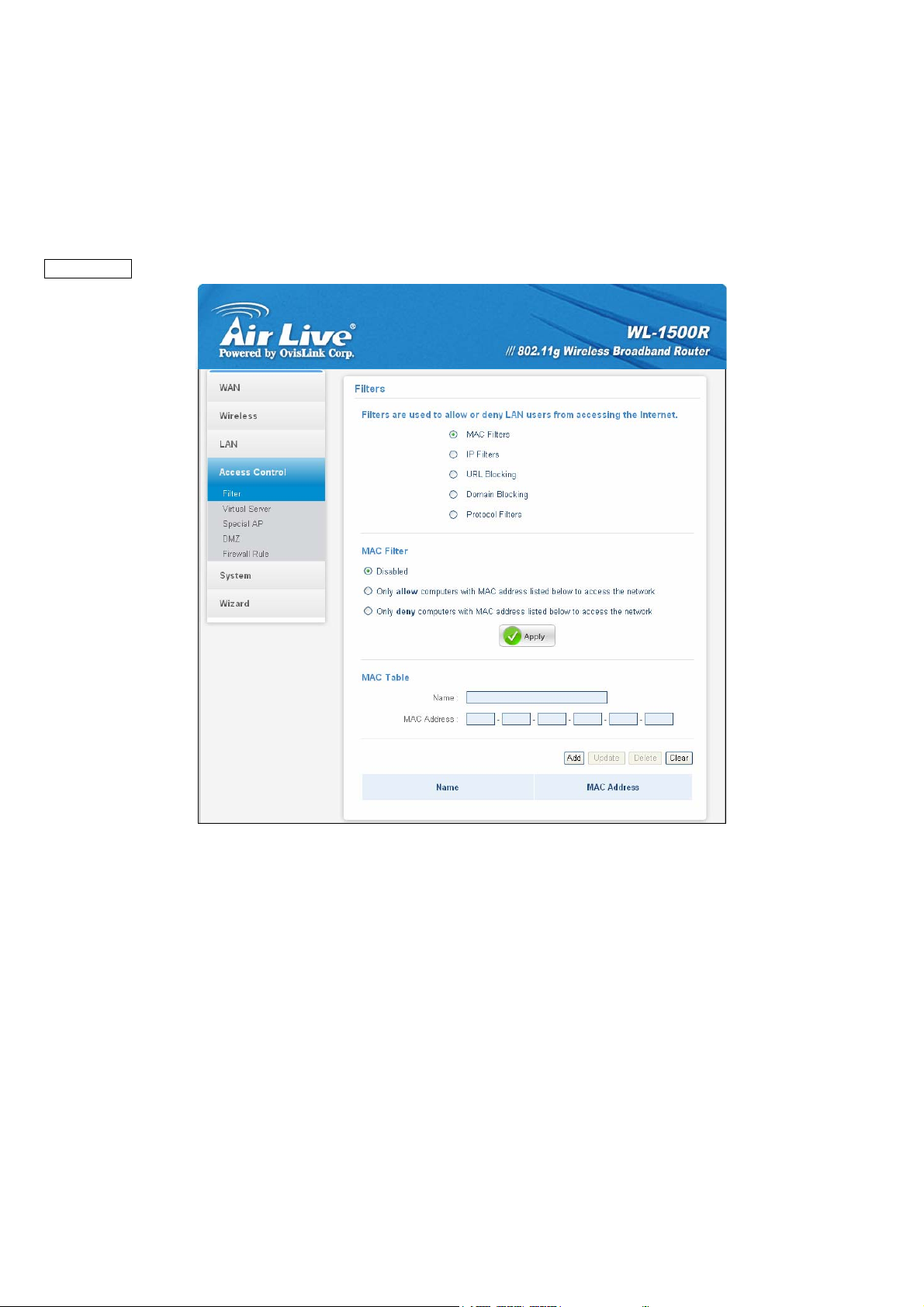

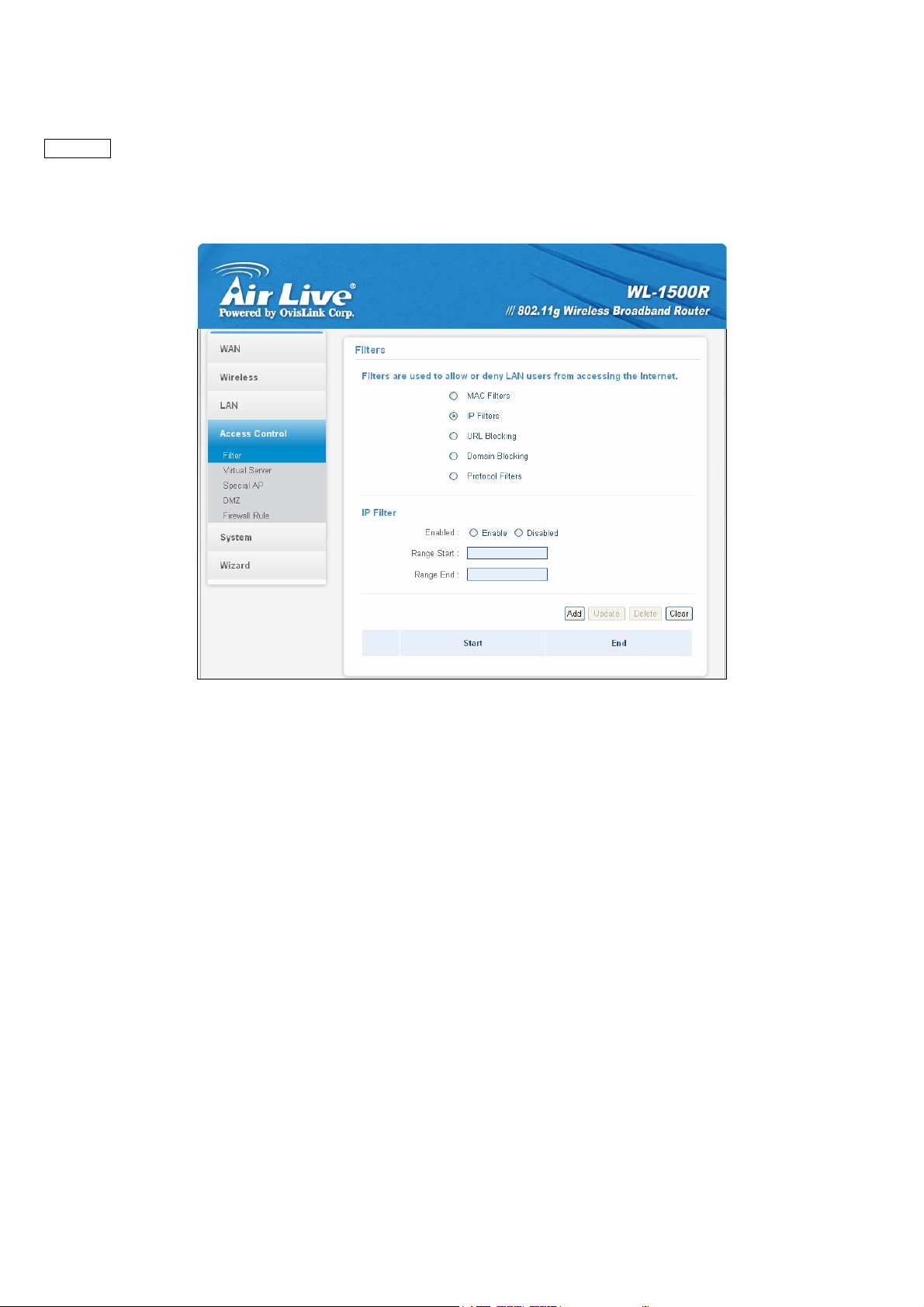

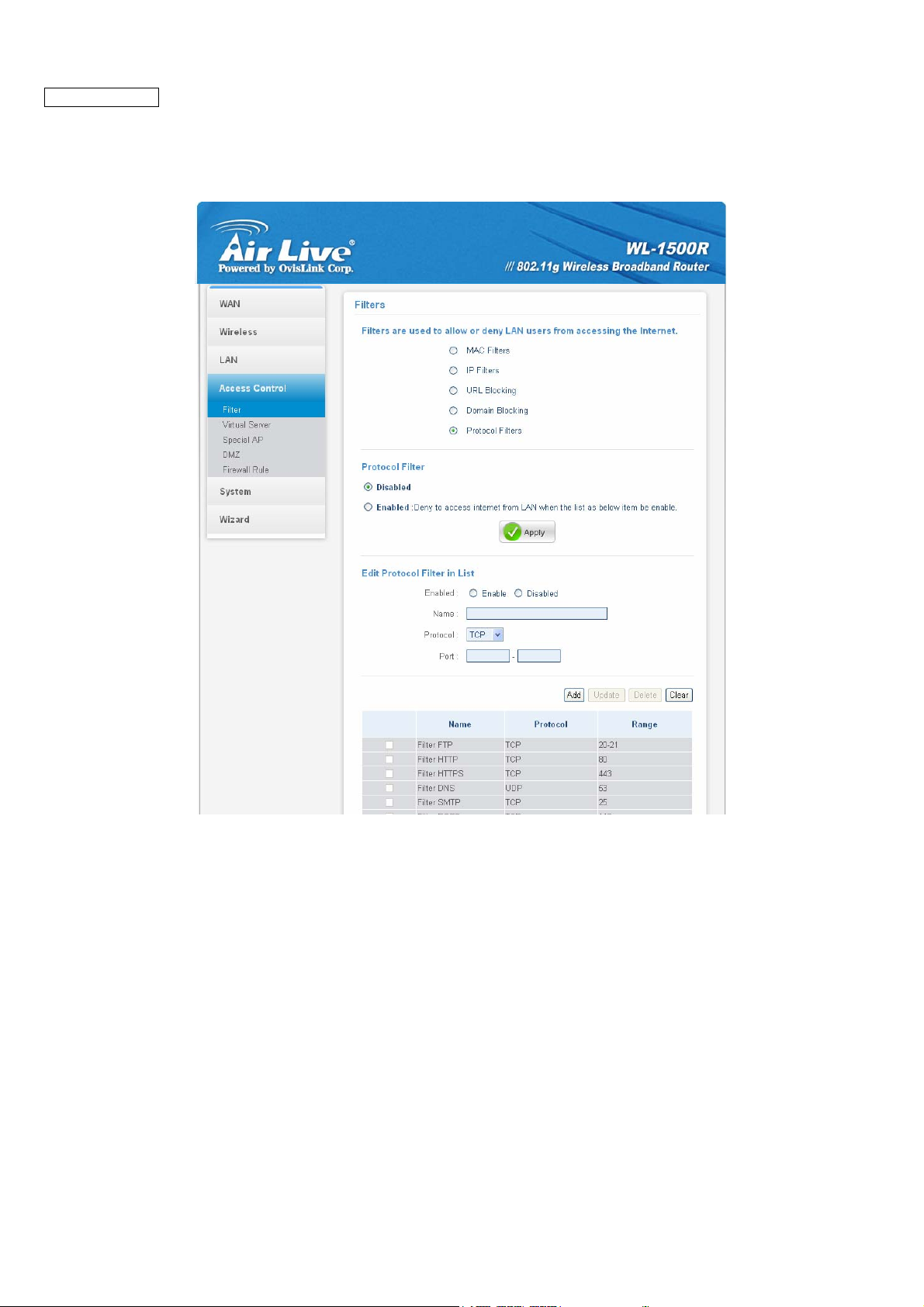

Filter............................................................................................................................................................... 38

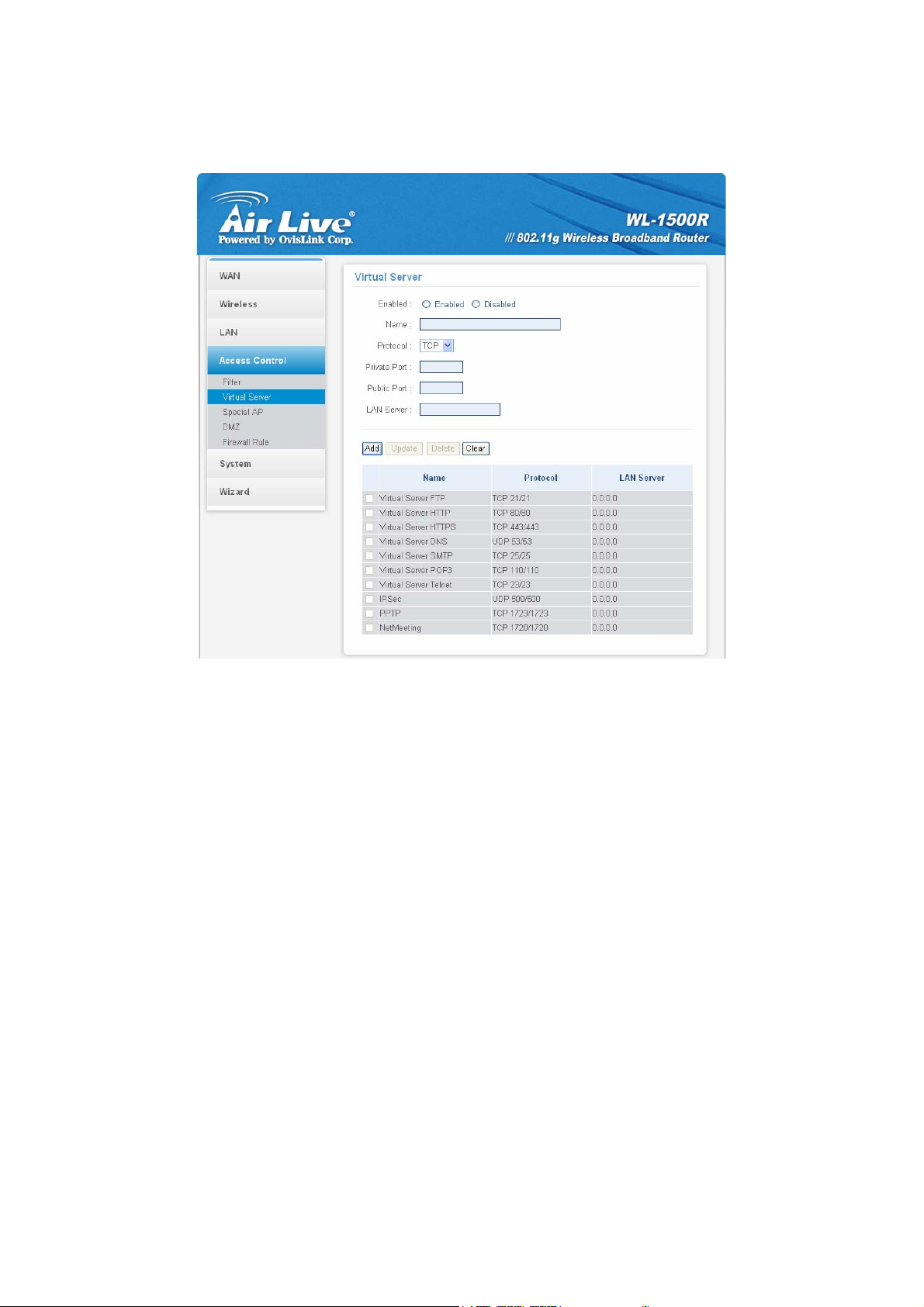

Virtual Server............................................................................................................................................... 42
Special AP.................................................................................................................................................... 43
DMZ............................................................................................................................................................... 44
Firewall Rule................................................................................................................................................ 46
Password...................................................................................................................................................... 47
Time............................................................................................................................................................... 48
Device Information...................................................................................................................................... 49
Log................................................................................................................................................................. 50
Log Setting................................................................................................................................................... 51
Statistic ......................................................................................................................................................... 52
Restart .......................................................................................................................................................... 52
Firmware....................................................................................................................................................... 53
Configuration................................................................................................................................................ 54
UPnP............................................................................................................................................................. 54
Ping Test ...................................................................................................................................................... 55
Remote Management................................................................................................................................. 56
TECHNICAL SPECIFICATIONS............................................................................................57
AirLive WL-1500R User’s Manual
3

About This Guide

Congratulations on your purchase of this IEEE 802.11g Wireless Broadband Router. This integrated access device combines Internet gateway functions with wireless LAN and Fast Ethernet switch. It provides a complete solution for Internet surfing and office resources sharing, and it is easy to configure and operate for every users.

Purpose

This manual discusses how to install the IEEE 802.11g Wireless Broadband Router.

Overview of this User’s Guide

Introduction. Describes the Wireless Broadband Router and its features. Unpacking and Setup. Helps you get started with the basic installation of the Wireless Router. Identifying External Components. Describes the front panel, rear panel and LED indicators of the Wireless Route r. Connecting the Router. Tells how you can connect the Wireless Router to your xDSL/Cable Modem. Technical Specifications. Lists the technical (general, physical and environmental, performance and Routers settings)
specifications of the Wireless Broadband Router.
AirLive WL-1500R User’s Manual
4

Introduction

With the explosive growth of the Internet, accessing information and services at any time, day or night has become a standard requirement for most people. The era of the standalone PC is waning. Networking technology is moving out of the exclusive domain of corporations and into homes with at least two computers.
This integrated access device combines Internet gateway functions with wireless LAN and Fast Ethernet switch. Designed for the business and home, it saves you the cost of installing a separate modem and ISP line for each computer, while providing ready connection for the users, with or without the network wires.
Broadband network access is also gaining ground. However, allowing more than two computers to access the Internet at the same time means less affordable, higher costs. Thus, there is a need to share one legal IP address over a single Internet connection to link the home with the Internet.
The scarcity of IP addresses and using a shared Internet connection through an Internet sharing device can solve high network access costs. All linked computers can make full use of broadband capabilities over such a device.
This device not only comes equipped with a wide range of features, but also can be installed and configured right out of the box. This device supports a simple local area network and Internet access share, offering great cost savings.
The local area network connects up home computers while also allowing any of the computers to access the Internet, share resources, or play online games—the basis of the family computing lifestyle.
Applications Broadband Internet access: Several computers can share one high-speed broadband connection through wireless or
wired (WLAN, LAN and WAN-Internet).
Resource sharing: Share resources such as printers, scanners and other peripherals. File sharing: Exchange data, messages, and distribute files thus making good use of hard disk space. Online gaming: Through the local area network, online gaming and e-commerce services can be easily setup. Firewall: A built-in firewall function — for security and anti-hack system.

Features

Compliant with IEEE 802.11g and 802.11b Devices Built-in 4 x 10/100Mbps Auto-MDIX LAN Ports Built-in 1 x 10/100Mbps Auto-MDIX WAN Port (Internet) Supports Cable/DSL Modems with Dynamic IP, Static IP, PPPoE, L2TP, PPTP or BigPond Connection Types DHCP Server Feature Allocates up to 253 Client IP Addresses Supports 64/128-bit Wired Equivalent Privacy (WEP) Supports WPA, WPA2, WPA-PSK and WPA2-PSK Advanced Security Supports MAC Address, Protocol Filters and UPnP (Universal Plug & Play) Traffic Control with Virtual Server, Virtual PC mapping and DMZ Provides Additional Security with SPI / NAT firewall and Attack Alert via emails Provides Additional Security of Enable/Disable SSID, Password Protection Flash Memory for Firmware Upgrade, Save/Restore Settings, and Traffic Log Compliant with Windows 95/98/NT/2000/XP, Linux and Mac OS Easy Management and Remote Management via Web Browser (HTTP) Range for Indoor of 30 ~ 50 meters (depends on the environment) Range for Outdoor of 50 ~ 200 meters (depends on the environment)
AirLive WL-1500R User’s Manual
5

Unpacking and Setup

This chapter provides unpacking and setup information for the IEEE 802.11g Wireless Broadband Router.

Unpacking

Open the box of the Wireless Broadband Router and carefully unpack it. The box should contain the following items: One IEEE 802.11g Wireless Broadband Router One 2dBi dipole antenna One CD-ROM with User’s Guide One AC Power adapter If any item is found missing or damaged, please contact your local reseller for replacement.

Setup

The setup of the Wireless Broadband Router can be performed properly using the followi ng methods: The power outlet should be within 1.82 meters (6 feet) of the Broadband Router. Visually inspect the DC power jack and make sure that it is fully secured to the power adapter. Make sure that there is proper heat dissipation from and adequate ventilation around the Broadband Router. Do not
place heavy objects on the Broadband Router. Fix the direction of the antennas. Try to place the Wireless Router in a position that can best cover your wireless network.
Normally, the higher you place the antenna, the better the performance will be. The antenna’s position enhances the receiving sensitivity.
AirLive WL-1500R User’s Manual
6

Hardware Installation

Front Panel

The figure below shows the front panel of the Wireless Broadband Router.
Figure 1. Front panel
POWER This indicator lights green when the hub is receives power, otherwise it is off. Status This indicator blinks green means the Internet Broadband Router is working successful. Otherwise, this indicator always
on or off means the function of the Internet Broadband Router is fail. WAN (Link/ACT) The indicators light green when the WAN port was connected to an xDSL/Cable modem successfully. The indicators blink green while the WAN port was transmitting or receiving data on the xDSL/Cable modem.
WLAN (ACT)
This indicator lights green when there are wireless devices connected and transmitting data to the Wireless Router. LAN (Link/ACT) These indicators light green when the LAN ports were connected successfully. These indicators blink green while the LAN ports were transmitting data.
AirLive WL-1500R User’s Manual
7

Rear Panel

The figure below shows the rear panel of the Wireless Broadband Router.
Figure 2. Rear Panel
Antenna There are one 2 dBi Gain Antenna in the rear panel for wireless connection. LAN (1-4) Four RJ-45 10/100Mbps Auto-MDIX ports for connecting to either 10Mbps or 100Mbps Ethernet connections. WAN In the four port broadband router, there is an RJ-45 10/100Mbps Auto-MDIX port for the WAN that will fit the xDSL/Cable
modem’s specification need. DC IN Plug the power adapter to this power jack RESET Use a pin-shape item to push to reset this device to factory default settings. It will be useful too when the manager forgot
the password to login, but the setting will be back to default setting.

Hardware connections

Connect the Router using LAN

Plug in one end of the network cable to the WAN port of the Wireless Internet Broadband Router. Plug in the other end of the network cable to the Ethernet port of the xDSL or Cable modem. Use another network cable to connect to the Ethernet card on the computer system; the other end of the cable connects
to the LAN port of the Internet Broadband Router. Since the Wireless Broadband Router has four ports, you can connect up to four computers directly to the unit. There you do not have to buy a switch to connect these computers since one Internet Broadband Router functions both as a connection-sharing unit and as a switch.
AirLive WL-1500R User’s Manual
8

Connect the Router using Wireless LAN

Figure 3. Connecting the WLAN Router
Plug in one end of the RJ45 network cable to the xDSL/Cable Modem. Plug in the other end of the RJ45 network cable to the Wireless Internet Broadband Router WAN port.

Check the installation

The control LEDs of the Wireless Internet Broadband Router are clearly visible and the status of the network link can be seen instantly:
With the power source on, once the device is connected to the broadband modem, the Power, CPU, LAN, WLAN and WAN port link LEDs of the Internet Broadband Router will light up indicating a normal status.
While the WAN is link up to the ADSL/Cable modem, the WAN port’s Link/ACT LED will light up. While the LAN is link up to the computer system, the LAN port’s Link/ACT LED will light up.
AirLive WL-1500R User’s Manual
9

PC Network TCP/IP Setting

The network TCP/IP settings differ based on the computer’s operating system (Win95/98/ME/NT/2000/XP) and are as follows.

Windows 95/98/ME

Click on the “Network neighborhood” icon found on the desktop. Click the right mouse button and a context menu will be show. Select “Properties” to enter the TCP/IP setting screen. Select “Obtain an IP address automatically” on the “IP address” field.
Select “Disable DNS” in the “DNS” field.
Figure 4. Windows 95/95/Me IP setup
Figure 5. Windows 95/98/Me DNS setup
AirLive WL-1500R User’s Manual
10
Select “None” for the “Gateway address” field.
Figure 6. Windows 95/98/Me Gateway setup

Windows 2000

Double click on the “My computer” icon on the desktop. When “My computer” window opens, open the “Control panel” and then open the “Network dialup connection” applet. Double click on the “Local area network connection” icon. Select “Properties” to enter the TCP/IP setting window.
In the “Local area network status” window, click on “Properties.” In the “Local area network connection” window, first select TCP/IP setting and then select “Properties.” Set both “IP address” and “DNS” to Automatic configuration.
Figure 7. Windows 2000 IP and DNS setup
AirLive WL-1500R User’s Manual
11

Windows XP

Point the cursor and click the right button on the “My Network Place” icon. Select “properties” to enter the TCP/IP setting window. Set “IP address” to “Obtain an IP address automatically.” Set “DNS” to “Obtain DNS server address automatically.”
Figure 8. Windows XP IP and DNS setup
AirLive WL-1500R User’s Manual
12

Wireless Broadband Router Configuration

First make sure that the network connections are functioning normally. This Wireless Broadband Router can be configured using Internet Explorer 5.0 or newe r web browser versions.

Login to the Wireless Broadband Router through WLAN

Before configuring the Wireless Broadband Router through WLAN, make sure that the SSID, Channel and the WEP is set properly.
The default setting of the Wireless Broadband Router that you will use: SSID: airlive Channel: 6 Security: disable IP Address: 192.168.1.254

Login to the Wireless Broadband Router through LAN

Before you configure this device, note that when the Wireless Broadband Router is configured through an Ethernet connection, make sure the host PC must be set on the IP sub-network that can be accessed by the xDSL/Cable modem. For example, when the default network address of the xDSL/Cable modem Ethernet interface is 192.168.1.x, then the host PC should be set at 192.168.1.xxx (where xxx is a number between 2 and 254), and the default subnet mask is
255.255.255.0. Using the Web Browser Open Internet Explorer 5.0 or above Internet browser. Enter IP address
Figure 9. Web address When the following dialog box appears, enter the user name and password to login to the main configuration window, the
default username and password is “airlive”.
Note: If needed to set a password, then refer to the System – Password Setting. After entering the password, the main page comes up, the screen will display the device information.
http://192.168.1.254 (the factory-default IP address setting) to the URL web address location.
Figure 10. Login
AirLive WL-1500R User’s Manual
13
Figure 11. Device information

Configuration Menu

When the main page appears, find the Configuration menu in the left side of the screen. Click on the setup item that you want to configure. There are six main options: WAN, Wireless, LAN, Access Control, System and Wizard as shown in the Configuration Menu screen.
AirLive WL-1500R User’s Manual
14
Figure 12. Configuration Menu

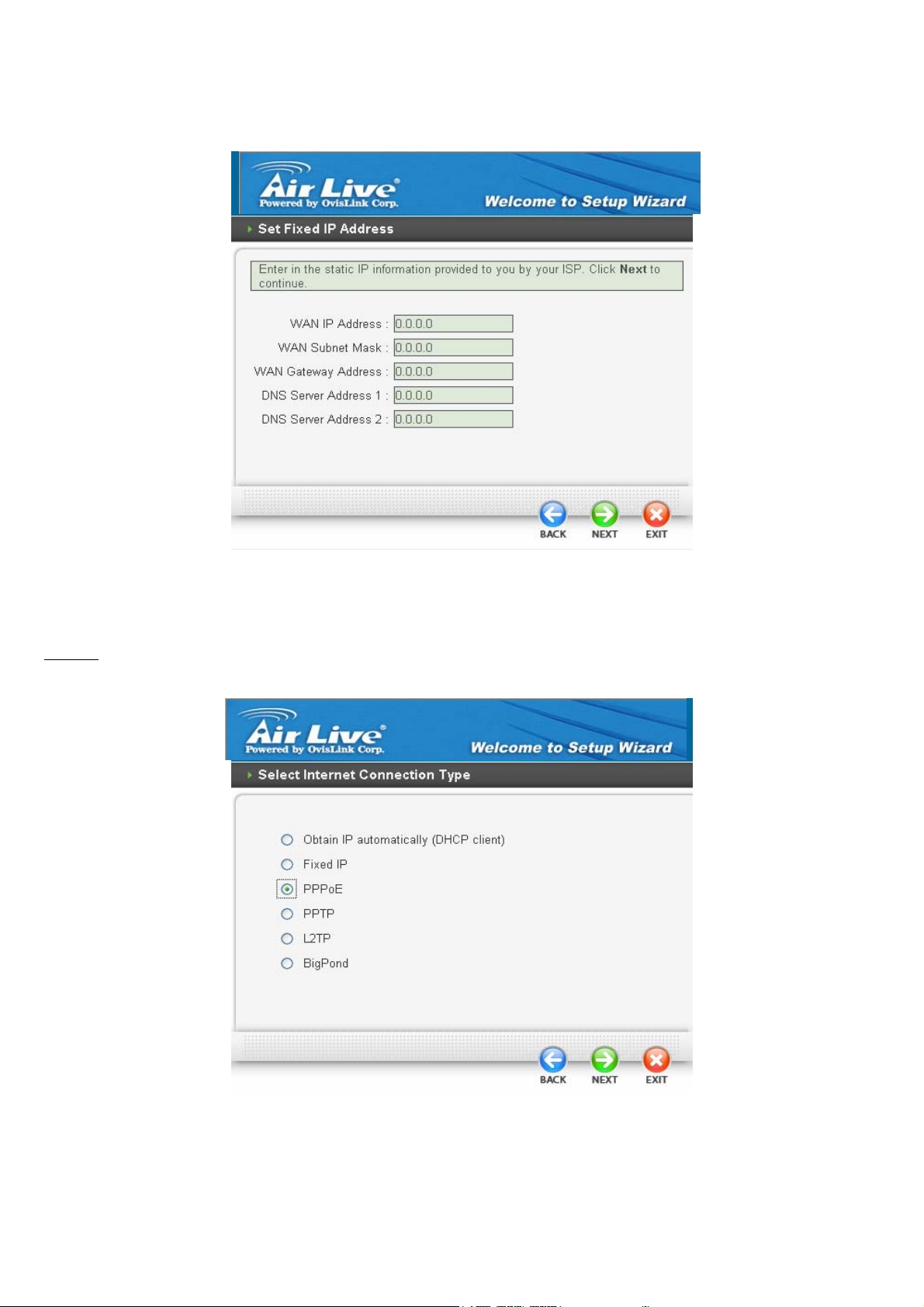

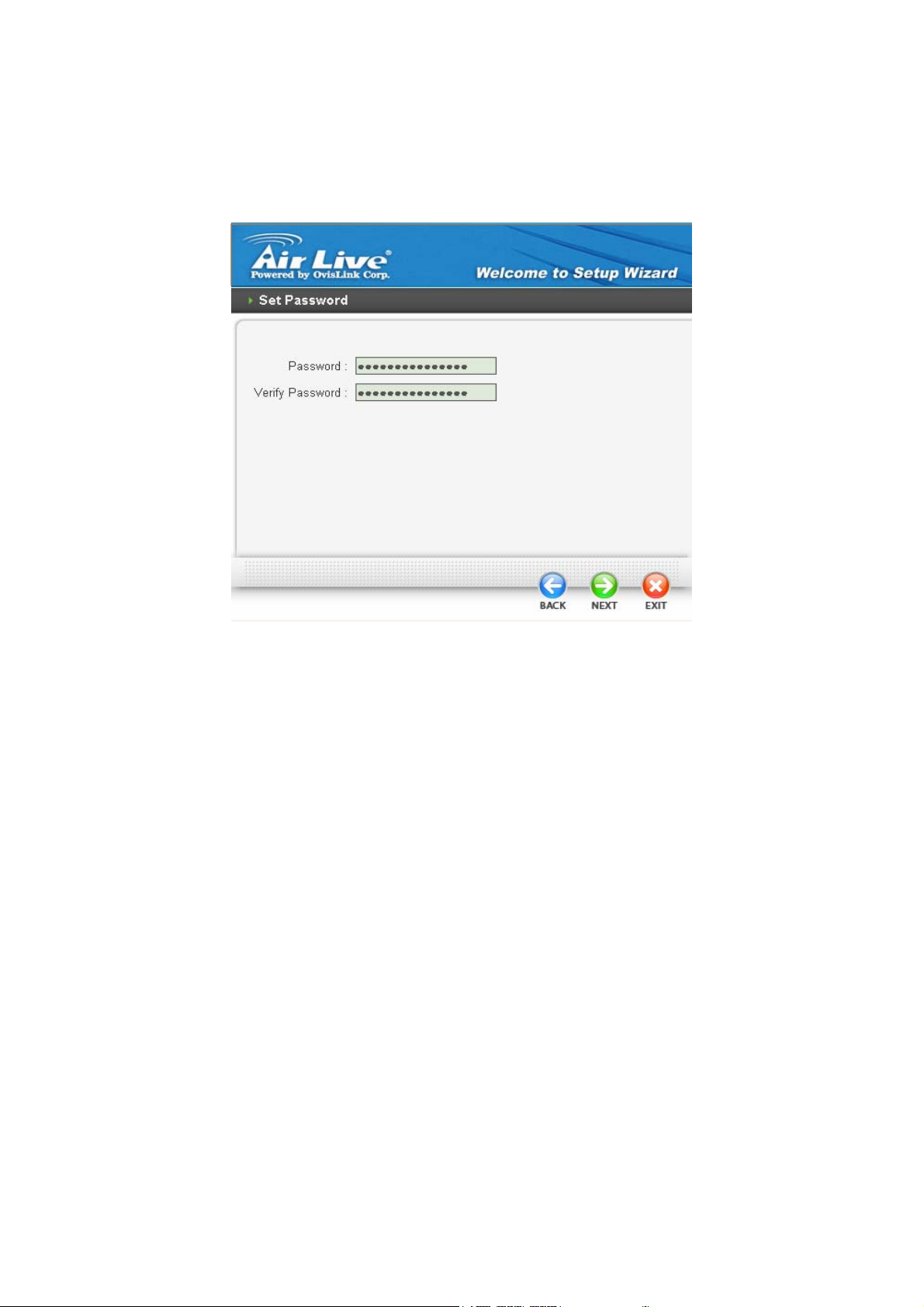

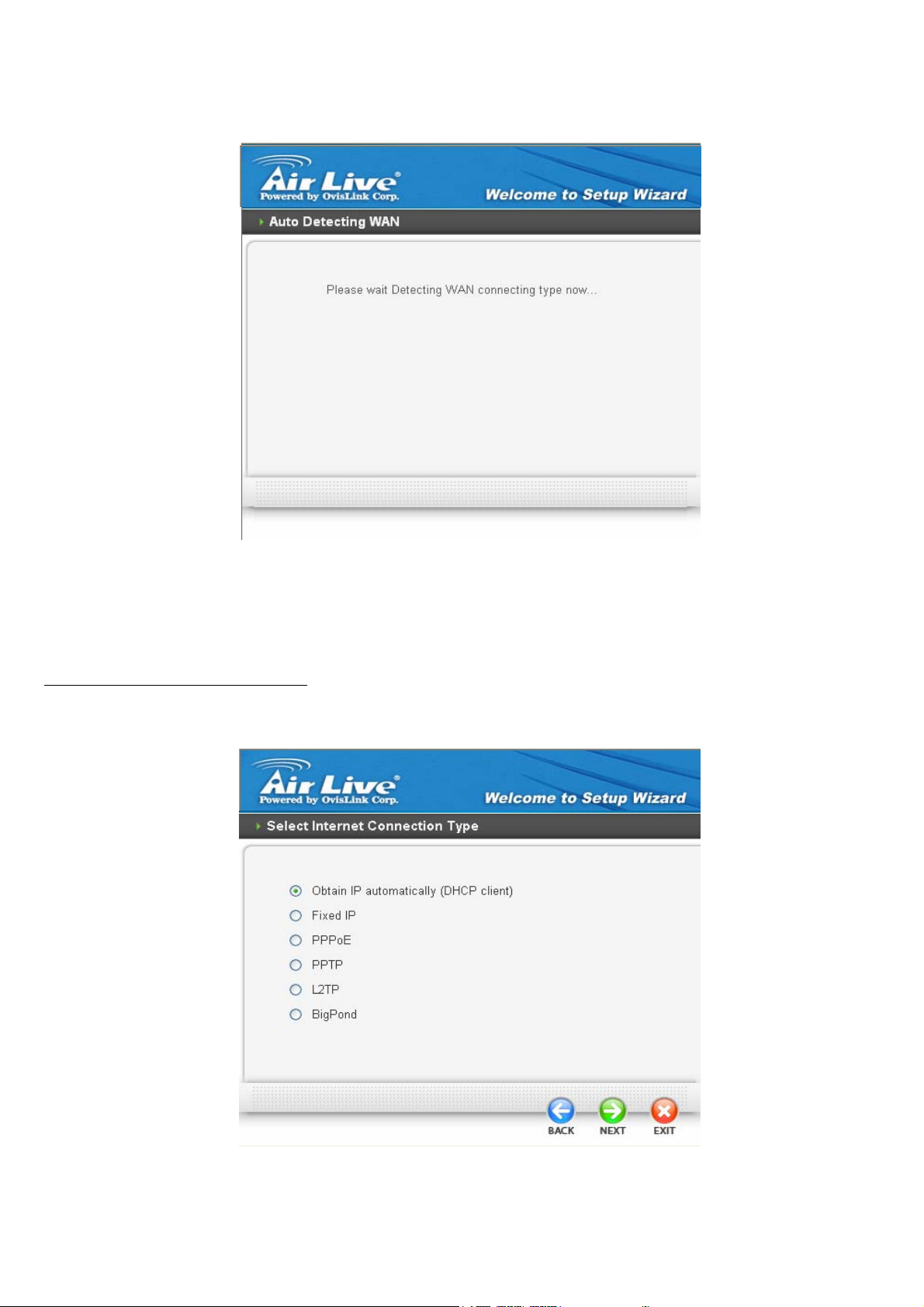

Setup Wizard

Setup wizard is provided as the part of the web configuration utility. User can simply follow the step-by-step process to get the wireless router configuration ready to run in 6 easy steps by clicking on the “Wizard” button on the function menu. The following screen will appear. Please click “Next” to continue.
Figure 13. Setup Wizard
AirLive WL-1500R User’s Manual
15
