Agilent Technologies 3070 System Installation Manual

3070 Board Test Systems
System Installation Manual (MS Windows Version)
June 2003
© Agilent Techonolgies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) i
Contents
System Installation Manual (MS Windows Version)
E9970-90001 Rev. H 06/2003
In this Chapter.............................................................................................................................. 1-1
Referenced Manuals ..............................................................................................................1-1
Tools Required............................................................................................................................. 1-2
Getting Started ............................................................................................................................. 1-3
Verify Site Preparation Complete.......................................................................................... 1-3
Check for Shipping Damage.................................................................................................. 1-3
Check the Shipment Against the Order Before Uncrating .................................................... 1-3
Un-crate the System............................................................................................................... 1-3
Check the System and the Contents of all Crates and Boxes Against the Order................... 1-3
Setting Up the KVM and Support Arms...................................................................................... 1-5
Introduction............................................................................................................................ 1-5
Install the KVM and Support Arms....................................................................................... 1-5
Adjust the Support Arm Tension ......................................................................................... 1-15
Setting Up the Strip Printer........................................................................................................ 1-17
Install the Strip Printer Tray ................................................................................................ 1-17
Install the Strip Printer......................................................................................................... 1-17
Preparing the Testhead............................................................................................................... 1-18
Install the Footswitch........................................................................................................... 1-18
Install the Probe and Probe Cradle ...................................................................................... 1-19
Install the Fixture Pull-Down Label -- Non-English Only .................................................. 1-19
Attach the Site LAN Cable .................................................................................................. 1-20
Powering the PDU and Controller ............................................................................................. 1-21
Supply Power to the PDU.................................................................................................... 1-21
Switch on the Controller ...................................................................................................... 1-21
Configuring the System to a Network ................................................................................. 1-22
Logon as service3070 to Complete the Installation .......................................................... 1-22
© Agilent Techonolgies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) ii
Table of Contents
Installing a Support Bay and Instrument Rack .......................................................................... 1-23
Introduction.......................................................................................................................... 1-23
Install the Testhead Module Umbilical Cable(s) (307X Only)............................................ 1-23
Install the GPIB Cables (307X Only) .................................................................................. 1-24
Setting-Up Other Hardware .......................................................................................................1-27
Install a Pay-Per-Use (PPU) Button Adapter....................................................................... 1-27
Setup the Testhead for Automation ..................................................................................... 1-30
Install AccessPlus Cables .................................................................................................... 1-32
Enabling the Testhead................................................................................................................ 1-33
Boot the Testhead ................................................................................................................ 1-33
Troubleshooting Testhead Boot........................................................................................... 1-33
Check the System Config File ............................................................................................. 1-34
Verifying the Vacuum Subsystem ............................................................................................. 1-36
Introduction.......................................................................................................................... 1-36
Install the Vacuum Manifold ............................................................................................... 1-36
Connect the Compressed Air ............................................................................................... 1-36
Check the Vacuum Actuation System ................................................................................. 1-36
Troubleshooting ................................................................................................................... 1-37
Verifying the Testhead............................................................................................................... 1-39
Run AutoAdjust All............................................................................................................. 1-39
Run Full Diagnostics ........................................................................................................... 1-39
Completing the Installation........................................................................................................ 1-40
Verify Strip Printer .............................................................................................................. 1-40
System Printer / Plotter........................................................................................................1-40
Stabilize the Testhead ..........................................................................................................1-40
Reinstall Covers................................................................................................................... 1-40
Make System Recovery and Backup Tapes......................................................................... 1-40
Turn System Administration Over to the Customer ............................................................ 1-40
Fill Out the System Support Log ......................................................................................... 1-40
Maintenance Records........................................................................................................... 1-41
About ScanWorks ................................................................................................................ 1-41
Installation Billing Information ........................................................................................... 1-41
© Agilent Techonolgies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) iii
Table of Contents
In Case of Difficulty .................................................................................................................. 1-42
Shipping Damage or Incorrect Shipment............................................................................. 1-42
Network, System Administration, or Test Server Help ....................................................... 1-42
Optional Agilent Performance Port Actuator Control System (ACS)................................. 1-42
Vacuum Subsystem.............................................................................................................. 1-42
Additional Resources........................................................................................................... 1-42
2 MS Windows System Installation Reference
In this Chapter.............................................................................................................................. 2-1
Referenced Manuals ..............................................................................................................2-1
Introduction............................................................................................................................ 2-1
Logging-On as service3070 ......................................................................................................... 2-2
Display the Logon Status from a Current Login.................................................................... 2-2
Logon as service3070 to Complete the Installation ............................................................ 2-2
The Root Directory Environment Variable ................................................................................. 2-3
Introduction............................................................................................................................ 2-3
Determine the Value of the Root Directory Environment Variable ...................................... 2-3
Use of the Root Directory Environment Variable in a BT-BASIC Window ........................ 2-4
Use of the Root Directory Environment Variable in a Korn Shell Window ......................... 2-5
Use of the Root Directory Environment Variable in a DOS Command Prompt Window .... 2-6
Directory Descriptions................................................................................................................. 2-7
Editing Files................................................................................................................................. 2-8
Front-Slashes versus Back-Slashes in Command Lines Containing File Paths .................... 2-8
Use BT-BASIC ...................................................................................................................... 2-8
How to Edit the System Config File to Match the Testhead Configuration.......................... 2-9
How to Resolve the Standard Config File from the System Config File ............................ 2-10
MS Windows Quick Reference ................................................................................................. 2-15
BT-BASIC Quick Reference ..................................................................................................... 2-16
Korn Shell Quick Reference ......................................................................................................2-17
vi and vi Editor Quick Reference .............................................................................................. 2-20
© Agilent Techonolgies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) iv
Table of Contents
Codewords & Software License Keys ....................................................................................... 2-24
Introduction.......................................................................................................................... 2-24
Installing Codewords & Software License Keys................................................................. 2-24
Verify Installed Codewords ................................................................................................. 2-24
Compile the Two Config Files............................................................................................. 2-24
System Config File Specifics..................................................................................................... 2-26
Introduction.......................................................................................................................... 2-26
Location of the System Config File..................................................................................... 2-26
Edit the System Config File................................................................................................. 2-26
The "Official" and "Actual" System Config Files ............................................................... 2-26
To Repair a Corrupt System Config File ............................................................................. 2-26
Descriptions of Some Statements in the System Config File .............................................. 2-27
Standard Config File Specifics ..................................................................................................2-29
Introduction.......................................................................................................................... 2-29
Location of the Standard Config File .................................................................................. 2-29
The Board Config File ......................................................................................................... 2-29
Standard Config File Syntax Similarities to and Differences from the System Config File2-29
Statements Allowed in the Standard, System, and Board Config Files............................... 2-30
Statements Allowed in the System Config File................................................................... 2-30
Descriptions of Some Statements in the Standard Config File............................................ 2-30
Compiling the System and Standard Config Files..................................................................... 2-35
The bootptab File ....................................................................................................................... 2-36
Hardware Addresses ............................................................................................................ 2-36
IP Addresses ........................................................................................................................ 2-37
The hosts File............................................................................................................................. 2-38
Test Device Communication ............................................................................................... 2-38
Device Files ............................................................................................................................... 2-40
Introduction.......................................................................................................................... 2-40
Location of Device Files...................................................................................................... 2-40
If a DUT Power Supply is Replaced.................................................................................... 2-40
DUT Power Supply Device Files......................................................................................... 2-40
© Agilent Techonolgies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) v
Table of Contents
Vacuum Control......................................................................................................................... 2-41
Location of Vacuum Control Statements............................................................................. 2-41
Vacuum Control Specifics ................................................................................................... 2-41
Rotating the Testhead ................................................................................................................ 2-42
Testhead Cards........................................................................................................................... 2-43
If Changing a ControlXT/XTP or System Card .................................................................. 2-43
DUT Power Supplies ................................................................................................................. 2-45
Voltage Ranges .................................................................................................................... 2-45
DUT Power Supplies Allowed ............................................................................................ 2-45
Module Mappings ................................................................................................................ 2-45
GPIB Addresses and Device Files ....................................................................................... 2-46
Controller Cables and Devices .................................................................................................. 2-49
X2000 Controller ................................................................................................................. 2-49
X2100 Controller ................................................................................................................. 2-49
IPC Controller...................................................................................................................... 2-49
Private LAN and Serial Port MUX............................................................................................ 2-59
Introduction.......................................................................................................................... 2-59
IP Addresses ........................................................................................................................ 2-59
Hardware Addresses ............................................................................................................ 2-59
Verify Communication to the Testhead............................................................................... 2-59
Serial Port MUX .................................................................................................................. 2-60
Troubleshooting LAN Port Connections ................................................................................... 2-61
Simple Solution.................................................................................................................... 2-61
Setting the LAN Connection Properties .............................................................................. 2-61
Installing Drivers and Configuring LAN Ports.......................................................................... 2-62
Installing the Graphics and LAN Drivers ............................................................................ 2-62
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 1-1
1111
MS Windows System Installation Procedure
E9970-90001 Rev. H 06/2003
CAUTION
This system should only be installed by an Agilent 3070 service-trained customer engineer (CE).
Testhead boot conflicts may occur if this system is on a network with 3070 UNIX controllers with IP addresses other than in the 10.3.112.XX series. See Configuring the System to a Network on page 1-22 for more information.
In this Chapter... Tools Required, 1-2
Getting Started, 1-3
Setting Up the KVM and Support Arms, 1-5
Setting Up the Strip Printer, 1-17
Preparing the Testhead, 1-18
Powering the PDU and Controller, 1-21
Installing a Support Bay and Instrument Rack, 1-23
Setting-Up Other Hardware, 1-27
Enabling the Testhead, 1-33
Verifying the Vacuum Subsystem, 1-36
Verifying the Testhead, 1-39
Completing the Installation, 1-40
In Case of Difficulty, 1-42
Referenced Manuals
These manuals are referenced in this manual:
Agilent 3070 Site Preparation Manual
(E9900-90045).
Administering Agilent 3070 MS Windows Systems.
Agilent 3070 / 79000 Repair Manual.
CAUTION
Some customers change Regional Options on the controller to set Your locale to their geographic location. Is is alright to do this as long as you don’t change Decimal symbol. The Decimal symbol must remain a period (.); it cannot be changed to a comma (,) or Board Consultant will damage testplans.
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 1-2
Chapter 1: MS Windows System Installation Procedure: Tools Required
Tools Required These tools are needed in addition to the tools supplied
with the system shipment:
BNC-to-dual banana coaxial cable 11001-60001,
for Diagnostics,
BNC(F)-to-BNC(F) (barrel) connector
1250-0080, for Diagnostics,
Pin Verification Fixture (PVF) for Diagnostics:
E3771B for one-module systems,
E4033B for one to four-module systems,
N4355A 2-Bank No-Wire Interface PVF (only
required with No-Wire fixture,)
T10 & T20 Torx drivers,
#2 Phillips or Posi screwdriver,
1/4-inch flat blade screwdriver,
5- and 10-mm hex key wrenches,
Diagonal-cutters to cut straps,
Utility knife to open boxes,
7/16-inch and 9/16-inch, 3/8-inch square-drive
sockets,
6-inch-long, 3/8-inch square-drive extension,
3/8-inch square-drive ratchet,
Cordless drill – 14.4 Volt, 3/8-inch drill / driver
kit.
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 1-3
Chapter 1: MS Windows System Installation Procedure: Getting Started
Getting Started Verify Site Preparation Complete
Typically, the Agilent 3070 Site Preparation Manual (03066-90114) is delivered to the customer by an Agilent representative one month prior to system shipment. A copy can also be found included with the system shipment. From the site prep. manual:
1 View the customer's completed site preparation
checklist.
2 Ask the customer for a copy of the system plan
drawing or have them select the appropriate layout from Chapter 3.
Check for Shipping Damage
If damage is found, contact Agilent’s Manufacturing Test Business Unit, Order Administration:
Inside the United States call (970) 679-2261.
Outside the United States call (970) 679-3155.
Check the Shipment Against the Order Before Uncrating
Un-crate the System
Follow the un-crating instructions attached to the pallet ramp.
Check the System and the Contents of all Crates and Boxes Against the Order
For 3070 systems, the label on the lower right corner of the rear of the testhead cradle identifies the module capacity as shown in Table 1-1.
NOTE
Testheads with capacities for more than one module can be configured with fewer modules. Additional modules can be added later.
Check that:
A support bay is included with four-module
systems to hold DUT power supplies.
The strip printer, tape cartridges, licenses, and
documentation is included.
The bag on the testhead includes:
• A pod key,
Tab le 1- 1 The testhead label identifies the module capacity
Label Contains Text Module Capacity
E9900 4
E9998 2
E9997 1
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 1-4
Chapter 1: MS Windows System Installation Procedure: Getting Started
• A probe cradle,
• Certificates of calibration,
• A Certificate of Hardware Address for the System Card, and
• Configuration printouts.
The bag on the testhead cradle includes:
•An Agilent 3070 Family Site Preparation Manual, (03066-90114)
• Some tools,
• A female quick-disconnect compressed air fitting, and
• An Installation Kit 03066-69902 (it contains various tools and parts.)
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 1-5
Chapter 1: MS Windows System Installation Procedure: Setting Up the KVM and Support Arms
Setting Up the KVM and Support Arms
This section contains:
Introduction, 1-5
Install the KVM and Support Arms, 1-5
Adjust the Support Arm Tension, 1-15
Introduction
The default location for the KVM (Keyboard, Video Monitor, Mouse) installation is on the right side of the testhead, when facing the testhead from the front.
The customer can be accommodated if a preference exists for having the KVM on the left side. To do this, the pod cover(s) must be removed, then the KVM wiring must be re-routed.
Install the KVM and Support Arms
Follow the instructions given in Table 1-2. Additionally,
Figure 1-2 on page 1-12 shows the right side
installation detail, and Figure 1-3 on page 1-13 shows the left side installation detail.
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 1-6
Chapter 1: MS Windows System Installation Procedure: Setting Up the KVM and Support Arms
Tab le 1- 2 Install the KVM and support arms
Task Step
1 Remove the two shipping
bolts.
Do this so that the testhead can be rotated. Figure 1-1 on page 1-11 shows the location of the shipping bolts.
2 If the KVM will be
installed on the left (non-default) side, follow the steps for this task. Otherwise, continue with
Task 3.
CAUTION
Before rotating the testhead, remove all objects including the monitor and keyboard support arms from the rotational path of the testhead.
During rotation, should the testhead hit anything, damage could result.
CAUTION
Remove the shipping bolts before attempting to rotate the testhead. Otherwise, damage can result. Shipping bolts can be stored for later use in the holes used by the testhead pallet shipping brackets.
Remove pod cover:
a If testhead connectors (BNC) are visible over a pod cover, rotate the
testhead about 10 degrees to allow the pod cover to be removed.
Apply PDU power to activate the testhead rotation switch. See Powering
the PDU and Controller on page 1-21.
b Use a T20 Torx driver to remove the pod-cover screws and then remove the
pod cover.
c Remove power to the PDU if connected.
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 1-7
Chapter 1: MS Windows System Installation Procedure: Setting Up the KVM and Support Arms
3 Install the support arms:
CAUTION
Install the support arm T-piece to the front of the system. Damage may occur during testhead rotation if the support arm T-piece is positioned to the rear.
a Open the pod door.
b If present, pry the plastic square plug from the top of the mounting arm post.
c Unpack the support arms and the monitor and keyboard trays.
d Install the post of the support arm T-piece (E9900-10245), in the appropriate
column.
1) If the pod door is in the way, remove it by lifting it up, then out. Replace it when done.
2) Secure the post using a 1/4-inch hex key wrench, two each cap screws (3030-1044), and lock washers (2190-0963). For 307X, 317X and 327X systems, use the top and middle screw holes.
e Insert the 13-cm (5-inch) extension riser (E9900-10246), into the hole of the
support arm T-piece that is farthest from the operator.
f If needed, install the square plastic cap in the top of the unused support arm
column.
Tab le 1- 2 Install the KVM and support arms (continued)
Task Step
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 1-8
Chapter 1: MS Windows System Installation Procedure: Setting Up the KVM and Support Arms
4 Install the keyboard tray: a Insert the keyboard support arm E9900-10248, in the hole in the support
arm T-piece.
b Install the keyboard tray E9900-10247, on the keyboard support arm using a
Phillips or Posi screwdriver and four flat-head screws, 3030-0219, in the end of the arm:
Choose one of the center sets of holes for mounting. Other mounting hole
sets can be selected at the customer’s request.
Install the keyboard tray so that the tilt adjuster knob can be adjusted
from the front of the keyboard.
5 Position the KVM: a Unpack the keyboard and mouse and place them on the keyboard tray.
b Place the plastic keyboard overlay on the keyboard.
c Install the monitor support arm.
d Install the monitor tray on the support arm.
e Unpack the video monitor, then mount it on the support arm with its
included screws.
f Locate the mouse and mouse pad, then place them on the keyboard tray.
Tab le 1- 2 Install the KVM and support arms (continued)
Task Step
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 1-9
Chapter 1: MS Windows System Installation Procedure: Setting Up the KVM and Support Arms
6 Route the KVM cables:
CAUTION
If the KVM cables are not routed with enough slack, they can be damaged when the support arms are adjusted. Figure 1-4 on page 1-14 describes this further.
NOTE
The keyboard and mouse is shipped with long enough cables to accommodate installation on the left side.They are folded back on themselves in the testhead cable trough (identified in Figure 1-1 on page 1-11).
For 307X and 317X systems, a second video monitor cable is pre-installed to accommodate KVM installation on the left side.
For 327X systems, the existing video monitor cable is long enough to reach to the left side. Re-route it through the testhead cable troughs. Cut cable ties inside the pod, if necessary.
It may be necessary to obtain a 8120-1763 power cord extension cable to connect power from the PDU to the video monitor. Route the power cable through the testhead cable trough.
Route the KVM cables through the support arm cable troughs.
Tab le 1- 2 Install the KVM and support arms (continued)
Task Step
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 1-10
Chapter 1: MS Windows System Installation Procedure: Setting Up the KVM and Support Arms
7 Connect the KVM cables:
NOTE
The USB connectors on (the left side of) the video monitor are not used.
a Remove the cover from the rear of the video monitor, then connect the
power and signal cables.
b Replace the rear cover.
c Connect the keyboard and mouse cables.
8 Install the barcode scanner
cables:
NOTE
Perform this task only if installing an optional barcode scanner. Otherwise, continue with Tas k 9 .
a Insert the bar code scanner cable between the keyboard cable and the
keyboard extension cable.
b Route the bar code scanner cables through the support arm cable troughs.
9 Tidy and secure all cables. Use new cable ties where necessary.
10 Replace pod cover and
door.
Re-install the pod door and use a T20 Torx driver to replace the pod cover screws.
Tab le 1- 2 Install the KVM and support arms (continued)
Task Step
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 1-11
Chapter 1: MS Windows System Installation Procedure: Setting Up the KVM and Support Arms
Figure 1-1 Rear of testhead
Shipping bolt and bracket
Strip printer cable coiled under testhead
and parts
on each side of testhead
cable trough
Bags of manuals
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 1-12
Chapter 1: MS Windows System Installation Procedure: Setting Up the KVM and Support Arms
Figure 1-2 KVM and support arm detail for the right side of the testhead
Video Monitor
(Flat Panel Display)
Support Arm Tension Adjustments (Top View) (1/4-inch hex)
Monitor Arm on top
Keyboard Arm on bottom
Keyboard Mouse
Keyboard Tray Tilt Adjustment
T-piece post inside column
Cables Troughs Short, Medium, Long
Support Arm
T- piece
Right Pod
Riser under Monitor Arm
Post Screw Holes Use top and bottom for 307X or 317X, middle and bottom for 327X
S
L
L
M
M
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 1-13
Chapter 1: MS Windows System Installation Procedure: Setting Up the KVM and Support Arms
Figure 1-3 KVM and support arm detail for the left side of the testhead
Video Monitor
(Flat Panel Display)
Top View of Support Arm
T-piece
Monitor Arm (top and rear)
Keyboard Arm (bottom and front)
KeyboardMouse
Post Screw Holes Use top and bottom for 307X or 317X, middle and bottom for 327X.
T-piece post inside column
Cables
Left side of testhead
Riser under Monitor Arm
Support Arm T- piece
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 1-14
Chapter 1: MS Windows System Installation Procedure: Setting Up the KVM and Support Arms
Figure 1-4 Allow enough slack when routing cables
Leave slack here so cables are not damaged when support arm is adjusted.
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 1-15
Chapter 1: MS Windows System Installation Procedure: Setting Up the KVM and Support Arms
Adjust the Support Arm Tension
There are two types of support arm tension adjustments: vertical and horizontal.
Use Table 1-3 on page 1-15 and Figure 1-5 on page 1-16 to adjust the support arm tension.
Tab le 1- 3 Adjust the support arms
Task Step
1 Adjust the support arm
vertical tension:
• Use a 1/4-inch hex key wrench to adjust the monitor and keyboard support arm vertical tension adjustment screws:
Turn the screw clockwise to make the arm tension harder, and counterclockwise to make the arm tension easier.
These screws are approximately 48 turns stop-to-stop.
2 Adjust the support arm
horizontal tension:
• Use a 3/32-inch hex key wrench to adjust the joints in the support arms to a firm but movable tension.
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 1-16
Chapter 1: MS Windows System Installation Procedure: Setting Up the KVM and Support Arms
Figure 1-5 Adjust the support arms
Video Monitor
Arm Vertical Tension
Adjustments (Top View)
(1/4-inch hex)
Keyboard Mouse
Keyboard Tray
Tilt Adjustment
(knob)
Pod
Arm Horizontal
Adjustments
(3/32-inch hex)
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 1-17
Chapter 1: MS Windows System Installation Procedure: Setting Up the Strip Printer
Setting Up the Strip Printer
This section contains:
Install the Strip Printer Tray, 1-17
Install the Strip Printer, 1-17
Install the Strip Printer Tray
Unpack the strip printer tray and install it in the testhead column opposite the monitor and keyboard.
A plastic cover may need to be pried out of the top of the column first.
Install the Strip Printer
1 Unpack the strip printer and place it on the strip
printer tray.
2 Connect the pre-routed power and data cables.
NOTE
To install the strip printer on the left side, re-route the power and data cables through the testhead cable trough.
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 1-18
Chapter 1: MS Windows System Installation Procedure: Preparing the Testhead
Preparing the Testhead
This section contains:
Install the Footswitch, 1-18
Install the Probe and Probe Cradle, 1-19
Install the Fixture Pull-Down Label -- Non-English
Only, 1-19
Attach the Site LAN Cable, 1-20
Install the Footswitch
NOTE
With software revision 3070 05.20p and later, the footswitch must be connected to the system. The footswitch must be pressed to lock fixtures on the testhead.
1 Locate the footswitch and cable that are coiled on the
front of the testhead cradle.
See Figure 1-6 for locations.
2 Unpack the footswitch and place it on the floor in
front of the testhead.
Figure 1-6 Location of the footswitch and leveling foot
Footswitch Cable coiled under front of testhead
Testhead Leveling Foot
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 1-19
Chapter 1: MS Windows System Installation Procedure: Preparing the Testhead
Install the Probe and Probe Cradle
The probe cradle (Figure 1-7) is located on the pod cover of the testhead as shipped from the factory. If the customer wants the probe in a different location, an extra strip of sticky-backed hook-and-loop fastener is provided with the system so you can re-locate the probe cradle.
WARNING
Do not place the probe cradle where it could interfere with an overhanging test fixture, thereby presenting a pinch hazard between the fixture and the probe cradle.
Do not place the probe cradle where it could interfere with testhead rotation.
1 Peel the backing paper off the hook-and-loop
fastener and affix the fastener where the customer wants it (see the Warning above).
2 Move the probe cradle to the new location:
a Rotate the cradle sideways to separate the
fastener.
b Press the probe cradle firmly onto the
hook-and-loop fastener you just installed.
3 Unpack the probe and insert it in the probe cradle.
Figure 1-7 Probe cradle (E9900-66400)
Install the Fixture Pull-Down Label -- Non-English Only
If installing the system in an English-speaking country, skip this step.
1 Locate the Fixture Pull-down Air Labels
(E9900-84316).
2 Choose the label that is of the correct language for
the location and apply it over the English text that is silk-screened on the rear of the testhead near the compressed air connectors.
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 1-20
Chapter 1: MS Windows System Installation Procedure: Preparing the Testhead
Attach the Site LAN Cable
Complete this instruction only if the system will be connected to a network.
• Connect the RJ45 plug from the site Ethertwist LAN cable to the RJ45 coupler at the rear of the pod.
NOTE
An RJ45 coupler should be visible from the rear of the controller’s pod. It should not be necessary to remove the pod cover to attach the site LAN cable.
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 1-21
Chapter 1: MS Windows System Installation Procedure: Powering the PDU and Controller
Powering the PDU and Controller
This section contains:
Supply Power to the PDU, 1-21
Switch on the Controller, 1-21
Configuring the System to a Network, 1-22
Logon as service3070 to Complete the Installation,
1-22
Supply Power to the PDU
CAUTION
Disconnect testhead power before connecting or disconnected testhead cables. Otherwise, damage can result.
1 Connect the PDU power cable to the power source:
Instructions for connecting power are given in the
Agilent 3070 / 79000 Family Site Preparation Manual 03066-90114, which is shipped in print with
the system.
NOTE
The PDU is not serviceable; if it is defective, it must be replaced.
WARNING
DO NOT open the PDU for any reason. Voltages capable of causing injury or death are present inside the PDU, even with the switches off.
2 Switch on the Mains Disconnect Switch:
The PDU has two switches, both of which are accessible from the rear of the pod:
One is the green Switched Circuits Enabled rocker
switch that enables power to the testhead – DO NOT switch this one on yet.
The other is the large, red rotary Mains Disconnect
Switch that enables power to the PDU outlets,
video monitor, and system controller – switch only this one on now.
Switch on the Controller
1 Switch on the video monitor.
2 Open the pod door and switch on the controller.
NOTE
A line of random characters may be printed on the strip printer. This is normal and should be ignored.
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 1-22
Chapter 1: MS Windows System Installation Procedure: Powering the PDU and Controller
NOTE
If the MS Windows registration key is needed, it can be found on the testhead controller after removing the pod cover.
Configuring the System to a Network
This is usually done with the assistance of the site network administrator and the Agilent systems engineer (SE). Either:
Configure the network now OR
Close the configuration window(s), and configure
the system to a network later.
Instructions for configuring the system to a network can be found in Administering Agilent 3070 MS Windows Systems (shipped in paper with the system).
NOTE
If you are setting up a network with other UNIX­based 3070 systems, be aware that the IP address of 3070 UNIX systems changed from the HP
15.3.112.XX series to the Agilent 10.3.112.XX series. This occurred with the 3070 UNIX software release B.03.80.
Logon as service3070 to Complete the Installation
If it should be necessary to change the logon:
1 Press together <CTRL> <Alt> <Delete>.
2 Click Log Off.
Wait for the log off, then follow the on-screen instructions to log back on.
3 Enter the logon information:
Logon Name = service3070
Default Password = service
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 1-23
Chapter 1: MS Windows System Installation Procedure: Installing a Support Bay and Instrument Rack
Installing a Support Bay and Instrument Rack
This section contains:
Introduction, 1-23
Install the Testhead Module Umbilical Cable(s)
(307X Only), 1-23
Install the GPIB Cables (307X Only), 1-24
Introduction
Complete instructions in this section if installing a support bay or instrument rack.
If an instrument rack is included containing instruments requiring GPIB control, see Install the GPIB Cables
(307X Only) on page 1-24.
CAUTION
Follow proper ESD precautions while performing tasks in this section.
Remove power to the testhead by powering-off the PDU to prevent electrical damage when connecting cables.
Install the Testhead Module Umbilical Cable(s) (307X Only)
NOTE
Umbilical cables consist of DUT power supply wires, a ground wire, coaxial functional port wires, and PDU branch control wires.
One umbilical cable is used per testhead module.
Route each umbilical cable directly through the door of the respective testhead module (cabling no longer passes through a cable clamp panel in the testhead).
Reference Figure 1-8 on page 1-25 for these steps:
1 Apply PDU power, rotate the testhead to the service
position, then remove PDU power.
CAUTION
Remove the shipping bolts before attempting to rotate the testhead. Otherwise, damage can result.
Before rotating the testhead, remove all objects, including the monitor / keyboard support arms, from the rotational path. Damage could result if the testhead hits anything during rotation.
2 Remove the testhead module door locking bracket.
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 1-24
Chapter 1: MS Windows System Installation Procedure: Installing a Support Bay and Instrument Rack
3 Locate the two access plates on a testhead module
door.
4 Use a T20 Torx driver to loosen the plate covering
the smaller hole then turn the plate around to expose the hole.
NOTE
The smaller hole is for the umbilical cable; the larger hole is for the optional AccessPlus cables.
5 With the testhead module door open, connect all
umbilical cable DUT power supply connectors to the ASRU Card.
See Figure 1-14 on page 1-32 for the ASRU card connectors.
6 Connect the ground wire to the ground lug on the
side wall of the testhead module.
7 Connect both of the white coaxial cables to the
functional ports on the ASRU card. See Figure 1-14 on page 1-32 for the ASRU card connectors.
Install the GPIB Cables (307X Only)
• Route the GPIB cable from the support bay, and con­nect the GPIB cable plug to the controller’s GPIB card port.
CAUTION
If multiple racks or bays are installed containing equipment needing GPIB control, connect the GPIB cabling as shown in Figure 1-9 on page 1-26.
If the cable connections fork, GPIB errors may occur.
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 1-25
Chapter 1: MS Windows System Installation Procedure: Installing a Support Bay and Instrument Rack
Figure 1-8 Cable the testhead to the support bay
Module 2
Module 3
Module 0
Module 1
Optional Support B ay
GPIB Cable
1
0
23
Aux Aux
Aux Aux Aux Aux Aux Aux
Cable Clamp Panel
Module Umbilical
Cables
Module Door Locking Bracket Vacuum Manifold
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 1-26
Chapter 1: MS Windows System Installation Procedure: Installing a Support Bay and Instrument Rack
Figure 1-9 GPIB cables to an instrument rack, support bay, and controller. DO NOT allow the GPIB cabling to fork
Instrument Rack
Controller
Instrument Rack
Controller
Inst rument 1
Inst rument 2
VXI Mainframe
Instrument Rack
Controller
YES - 3070
NO
NO
External Instruments in the Support Bay or Testhead
DUT Supplies in the Support Bay or Testhead
External Instruments in the Support Bay or Testhead
DUT Supplies in the Support Bay or Testhead
External Instruments in the Support Bay or Testhead
DUT Supplies in the Support Bay or Testhead
Inst rument 1
Inst rument 2
VXI Mainframe
Inst rument 1
Inst rument 2
VXI Mainframe
Inst rument 1
Inst rument 2
VXI Mainframe
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 1-27
Chapter 1: MS Windows System Installation Procedure: Setting-Up Other Hardware
Setting-Up Other Hardware
This section contains:
Install a Pay-Per-Use (PPU) Button Adapter, 1-27
Setup the Testhead for Automation, 1-30
Install AccessPlus Cables, 1-32
Install a Pay-Per-Use (PPU) Button Adapter
If installing a PPU system, and the controller has been moved from its original location, reinstall the button hardware in the same pod as the controller:
1 Mount the Dual Button Holder (with cable) on the
bottom hinge of the controller pod as shown in
Figure 1-10 on page 1-28.
2 Plug the Dual Button Holder cable into the PPU
Button Adapter, and plug the adapter into the Com1 port on the controller.
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 1-28
Chapter 1: MS Windows System Installation Procedure: Setting-Up Other Hardware
Figure 1-10 Pay-Per-Use button adapter hardware in the pod
PPU Button Adapter 0960-2134
Dual Button Holder with cable 1252-8421
Right Pod, cover removed
Pod door open
To Com1 port of controller
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 1-29
Chapter 1: MS Windows System Installation Procedure: Setting-Up Other Hardware
Installing and Removing Test Credit Buttons
E3995A test credit button(s) are installed as shown in
Figure 1-11. One 50k test credit button is included with
the PPU system. It is packaged in a 3-inch by 1.5-inch box inside a plastic bag containing installation instructions.
Test credit buttons may be inserted while the system is running. To insert a button, grasp it with the flange or labeled side up. Push the button firmly into one of the
ports of the button holder. Save the packaging material until you are certain that the button is working correctly.
To remove a test credit button, grasp the button by its flange and pull it straight out of the button holder. To remove the button holder cable from the button adapter, deflect one of the retaining latches with your fingernail, a pen, or similar instrument. The button connector will pop up for removal.
Figure 1-11 Installing PPU buttons
Verifying the Test Credit Buttons
From a 3070service logon, run a report that tests the test credit buttons:
Click Start > Programs > Agilent 3070 > PPU Report?

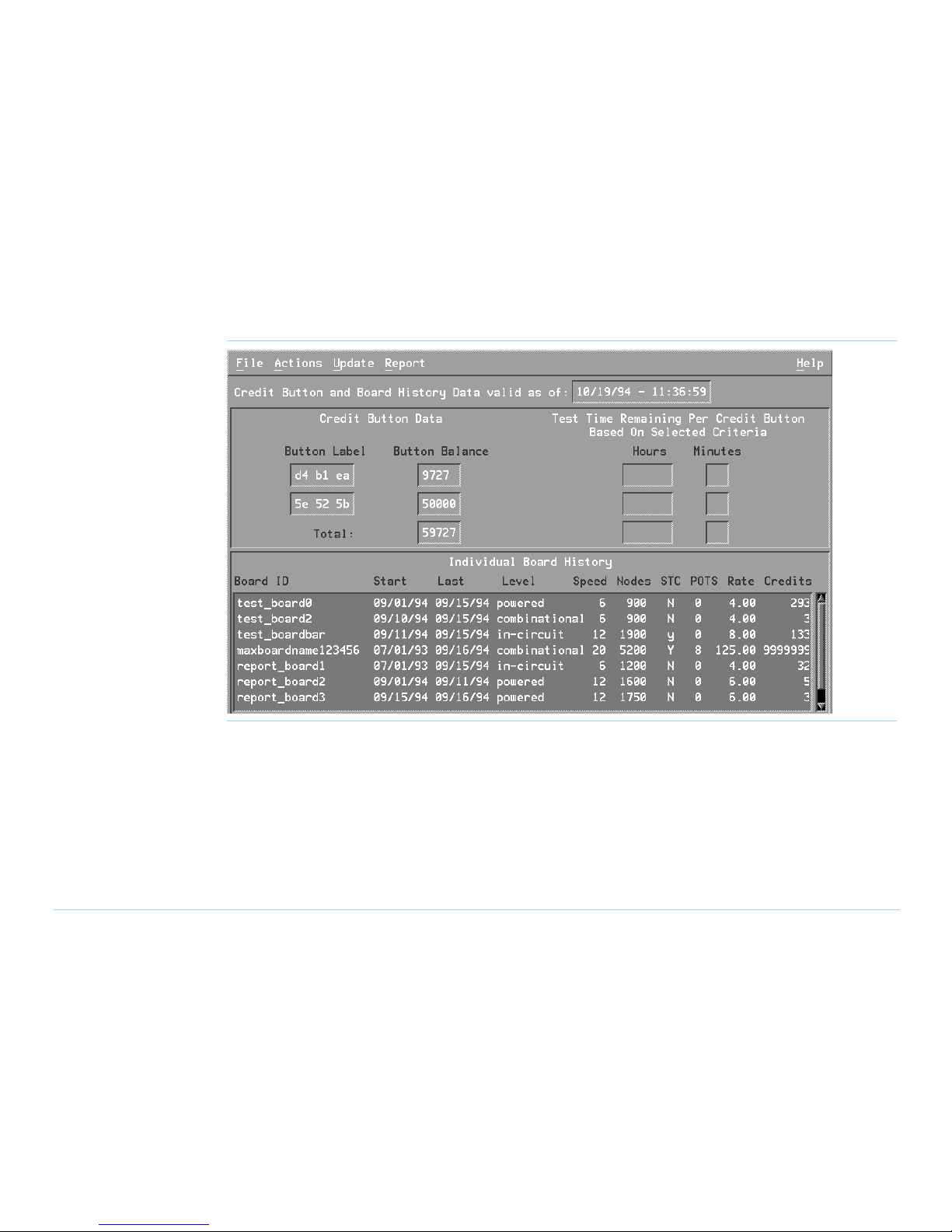

A report similar to the one shown in Figure 1-12 on page 1-30 will be displayed in a new window.
Verify that the button label and the button balance are correct for the number of buttons installed.1 Buttons are identified by the button label number on the button.
PPU1HH.WPG
PPU Buttons
Dual Buttons Holder with cable
1 The E3994A 10k Test Credit Button may also be used and would indicate 10,000 credits.
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 1-30
Chapter 1: MS Windows System Installation Procedure: Setting-Up Other Hardware
Figure 1-12 PPU report
Setup the Testhead for Automation
If a piece of automation equipment is being installed on top of the testhead:
1 Shut down the testhead.
2 Rotate the testhead to the normal position, then
install the shipping bolts to keep it from being rotated
(see Figure 1-1 on page 1-11 for shipping bolt locations).
3 Screw the testhead leveling feet down to the floor to
stabilize the testhead (see Figure 1-6 on page 1-18). Also install floor brackets to keep the testhead stable. If you don’t have a floor bracket kit, order Agilent 44990-63221. Installation instructions accompany the kit.
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 1-31
Chapter 1: MS Windows System Installation Procedure: Setting-Up Other Hardware
4 Use a 5-millimeter hex key wrench to remove the
safety shroud from around the testhead’s pin field.
5 After installing the automation equipment on the
testhead, reach under the testhead and disconnect the plug from the Auxiliary connector (J3) on the System Card (Figure 1-13).
Figure 1-13 Connecting the EMO cable
6 Remove the jumper from terminals 11 and 12 on the
plug and connect the Emergency Shutdown (EMO) switch on the automation equipment to pins 11 and 12 on the plug. Then reinstall the plug on the System Card.
WARNING
DO NOT operate the system without an EMO switch properly wired and accessible to the operator. Failure to provide EMO capability may result in death or serious bodily injury.
7 Boot the testhead. When the testhead is booted, press
the EMO switch on the automation equipment to verify that it is functioning properly.
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 1-32
Chapter 1: MS Windows System Installation Procedure: Setting-Up Other Hardware
Figure 1-14 ASRU card connections (rear view)
)
Install AccessPlus Cables
Complete this section only if the system includes the AccessPlus option.
• Route the AccessPlus cables through the slots in the module doors, shown in Figure 1-8 on page 1-25.
Supplies 1-4
Supplies 5-6
Functional Ports
Red band
03066-66532 ASRU Card
White band
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 1-33
Chapter 1: MS Windows System Installation Procedure: Enabling the Testhead
Enabling the Testhead
This section contains:
Boot the Testhead, 1-33
Troubleshooting Testhead Boot, 1-33
Check the System Config File, 1-34
Boot the Testhead
NOTE
The first time the testhead is booted, there will be several Warning - Standard calibration tables not loaded for Module X Slot X messages.
These warning messages are normal; they are generated because there are no valid AutoAdjust tables in the
$AGILENT3070_ROOT/diagnostics/th1/cal_B
subdirectory.
These warning messages should not be seen after the AutoAdjust process is completed later.
1 Apply PDU power to the testhead:
Switch on the green rocker switch on the PDU.
2 Boot the controller (if not already booted), then log
on as service3070 (default password is service).
3 Start DGN if it does not start automatically:
a Open a Korn shell window:
One way is to click Start > Programs > Agilent 3070 > Korn Shell.
b At the Korn Shell window prompt enter:
dgn
4 In the DGN window, boot the testhead using the
Testhead Functs and Testhead Power On function
keys.
Troubleshooting Testhead Boot
If the testhead will not boot, watch the LEDs on the ControlXT/XTP Card for proper sequencing, and watch the monitor screen during the approximately two-minute power-up process for clues.
See Table 1-4 on page 1-34 to identify the control card status LEDs in the following LED sequencing discussion.
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 1-34
Chapter 1: MS Windows System Installation Procedure: Enabling the Testhead
Description of ControlXT/XTP LED Sequencing
1 After about 2 minutes LED activity will begin.
2 Some various quick green-LED activity will be seen,
then LED7 will flash for about 30 seconds.
3 More quick LED activity will occur including some
red LEDs on for only about 2 seconds.
4 The sequence concludes successfully with green
LEDs 5 and 7 continuously toggling opposite each other (heartbeat condition).
No red LEDs should remain on. If the testhead encounters boot errors, verify the bootptab file contains the unique hardware address of the control card. See the Agilent 3070 / 79000 Repair Manual.
Check the System Config File
NOTE
Non-matching config files can result from the controller being shipped separate from the testhead, or if testhead cards have been moved.
NOTE
The Actual Config function key F4 polls the cards in the testhead to identify their type.
1 Compare the system and standard config files to the
configuration printouts shipped with the system:
Open a Korn shell window: Click Start > Programs >
Agilent 3070 > Korn Shell.
2 At the prompt enter:
cd $AGILENT3070_ROOT/diagnostics/th1
then,
more config
NOTE
For more information about
$AGILENT3070_ROOT, see “The Root Directory
Environment Variable” in Chapter 2.
Tab le 1- 4 ControlXT/XTP Card status LEDs (as viewed
from the card edge)
LED Ref Des 6 7 4 5 2 3 0 1
Color R=Red G=Green
■ ■
RG
■ ■
RG
■ ■
RG
■ ■
RG
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 1-35
Chapter 1: MS Windows System Installation Procedure: Enabling the Testhead
3 Do the two system config files match the system
configuration printout that was shipped with the system?
If yes, continue to Verifying the Testhead on
page 1-39.
If no, continue with step 4.
4 Ask the customer's system administrator if there is a
plan for configuring the card locations.
5 Edit the system config files to match the actual card
locations. For more information, see “Editing Files” in Chapter 2.
6 Compile the configuration files. For more
information, see “Compile the two Config Files” in Chapter 2. .
NOTE
If the config files will not compile correctly, check if the codewords are correct.
For more information, see “Verify Installed Codewords” in Chapter 2.
7 Close the Korn Shell window.
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 1-36
Chapter 1: MS Windows System Installation Procedure: Verifying the Vacuum Subsystem
Verifying the Vacuum Subsystem
This section contains:
Introduction, 1-36
Install the Vacuum Manifold, 1-36
Connect the Compressed Air, 1-36
Check the Vacuum Actuation System, 1-36
Troubleshooting, 1-37
Introduction
The 327X (one-module) testhead has at least one internal vacuum solenoid. The second internal solenoid is optional.
It is the customer's responsibility to connect external vacuum solenoid control wires to the System Card if external solenoids are used.
See Figure 1-15 on page 1-38 to reference internal vacuum solenoids in a 4-module testhead.
Install the Vacuum Manifold
• Install the vacuum manifold on the vacuum ports located toward the rear of the testhead,
•See Figure 1-8 on page 1-25 for the vacuum port locations.
Connect the Compressed Air
• A male-quick-disconnect air fitting is installed on the rear of the testhead to connect to the compressed air supply,
• If the customer's compressed air hose has the oppo­site fitting to mate with the testhead fitting, install the included female quick-disconnect fitting.
Check the Vacuum Actuation System
NOTE
See “Vacuum Control Specifics” in Chapter 2 for more information.
1 If a vacuum source is connected and the solenoid(s)
are wired, turn the vacuum on and off and listen for the sound of solenoids operating:
a Install and lock-down a fixture.
b Open a BT-BASIC window.
One way is to double-click the BT-BASIC desktop icon.
c At the BT-BASIC window prompt, enter:
1) testhead is 1
2) vacuum well a is <m>
where <m> = a valid module vacuum port (where the vacuum manifold or external vacuum hoses are connected).
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 1-37
Chapter 1: MS Windows System Installation Procedure: Verifying the Vacuum Subsystem
d At the prompt, alternately enter:
faon
faoff
Otherwise, use a voltmeter to verify that the 24-volt dc can be switched to all terminal pairs of the auxiliary connector (J3) on the System Card. See
Figure 1-15 on page 1-38 for the relay wiring block
diagram.
NOTE
Early 317x and 3070 systems used external vacuum solenoids.
Troubleshooting
If the vacuum control will not work, check:
If the vacuum source is turned on.
If the compressed air supply is turned on.
If the 24 VDC is present on the Auxiliary port
when switched on.
If the solenoid is operating correctly.
How many solenoids are being used to control the
vacuum?
Which Auxiliary ports are being used to control
which solenoids?
If external solenoids are used, which solenoids
have hoses to which vacuum ports?
With the testhead powered-up, look at the system
config file:
$AGILENT3070_ROOT/diagnostics/th1/config
NOTE
For more information about
$AGILENT3070_ROOT, see “The Root Directory
Environment Variable” in Chapter 2. .
NOTE
The vacuum well is normally defined in the testplan.
The vacuum outlets are where the vacuum connects to the test fixture on top of the testhead.
Agilent 317X and 327X testheads have two vacuum ports – for the 327X testhead, ports 2 and 3 are reversed from the orientation shown in
Figure 1-15 on page 1-38.
• Verify that the relay <r> controls vacuum <m> statement(s) agree(s) with the hardware:
r=1 for Aux 1.
r=2 for Aux 2.
r=3 for Aux 3.
r=4 for Aux 4.
r=5 for Aux 5.
m= the module vacuum port(s) connected (can be 0; 1; 2; 3; 0,1; 2,3; 0-3).
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 1-38
Chapter 1: MS Windows System Installation Procedure: Verifying the Vacuum Subsystem
Figure 1-15 Internal vacuum solenoids in a four-module testhead
E9946A Vacuum components shown above the dotted line
Vacuum components below the dotted line are customer supplied
Vacuum
Source
Pressure Gage
Port3
In
0ut
+ _
+ _
+ _
+ _
+ _
1
2
3
4
5
6
7
8
9
10
11
12
Remote Shutdown Jumper
+ _
+ _
+ _
+ _
+ _
1
2
3
4
5
6
7
8
9
10
11
12
Relay 2
Relay 1
Relay 3
Relay 4
Relay 5
80-PSI Regulator
03066-67911
Air Lines
Port2
Port1
Port0
Vacuum Valve E3770-67900
E9900-63200 4-Module Manifold
System Card
2-inch Vacuum Hose
Manual Cut-off Valve
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 1-39
Chapter 1: MS Windows System Installation Procedure: Verifying the Testhead
Verifying the Testhead
Run AutoAdjust All
CAUTION
Allow the testhead to warm up for 30 minutes before running AutoAdjust All.
If the testhead temperature is not allowed to stabilize, diagnostic and testing failures may appear later.
1 Verify a service3070 logon.
2 Start Diagnostics if it does not start automatically:
a Click Start > Programs > Agilent 3070 > Korn
Shell.
b At the Korn Shell window prompt, enter:
dgn
3 From the Service Package - Level 1 menu, select
Config.
4 Select DGN Config.
5 Press function key F6 in the AutoAdjust menu to run
AutoAdjust All.
6 Verify that there are no errors.
Run Full Diagnostics
NOTE
Compressed air must be attached to the system to run full Diagnostics.
1 Place a pin verification fixture on the testhead, then
lock it down.
2 Change Manual Intervention to Yes (press Next Value).
NOTE
Do not press Save Config as that will make the Manual Intervention selection permanent.
3 Run Full Diagnostics.
4 Verify that there are no errors.
5 Logout of DGN.
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 1-40
Chapter 1: MS Windows System Installation Procedure: Completing the Installation
Completing the Installation
Verify Strip Printer
1 Open a BT-BASIC window.
2 Enter: printer is “/dev/com/2”
3 Enter: print “strip printer test”
Do this a couple of times. The printer should print “strip printer test.”
4 Enter: printer is *
5 Close the BT-BASIC window.
System Printer / Plotter
The customer's system administrator or LAN manager will provide the device’s name, IP address, and driver.
Stabilize the Testhead
Stabilize the testhead to keep it from moving around on the floor:
• Use a hex-key wrench to screw the testhead's four leveling feet down to the floor.
See Figure 1-6 on page 1-18 for the location of a leveling foot.
NOTE
It may be necessary to remove the pod cover to access the hex-slot of the leveling foot.
Reinstall Covers
If any pod or cradle covers are still off the system, reinstall them now.
Make System Recovery and Backup Tapes
A recovery tape allows you to boot the controller after a catastrophic fault, such as when you can no longer boot from disk.
To make a backup or recovery tape, see Administering
Agilent 3070 MS Windows Systems.
CAUTION
Using system recovery tape will overwrite all existing data on system controller.
Turn System Administration Over to the Customer
Inform the customer of the appropriate logins and passwords for the system.
Fill Out the System Support Log
Introduce the customer to the Agilent 3070 / 79000 System Support Log, 03066-90150.
1 Place your business card in Chapter 1, and suggest
that other Agilent representatives' cards belong there too.
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 1-41
Chapter 1: MS Windows System Installation Procedure: Completing the Installation
2 Place the customer's Agilent 3070 software licenses
in Chapter 2.
3 Fill out the Installation and Configuration Records to
reflect the system.
Maintenance Records
If a problem was fixed that warrants a Maintenance Record, fill one out now.
About ScanWorks
If the testhead is equipped with ScanWorks boundary-scan, the system config file ($AGILENT3070_ROOT/diagnostics/th1/config) and standard config file ($AGILENT3070_ROOT/
standard/config
) must be edited to use the ScanWorks hardware. This is the customer’s responsibility. See the Syntax Reference User’s manual for information on the ports... statement. You should have code similar to this in your config files:
performance port
port 2 100 pin bsi 1
end performance port
Installation Billing Information
Up to eight hours may be charged to Agilent's Electronics Manufacturing Test Division (EMTD/0900) for performing the scope of the system installation that includes:
Initial site preparation – two hours.
Verifying the site preparation – two hours.
Installing the system and completing full
Diagnostics – four hours.
Contact EMTD at 1.800.447.TEST to bill charges above and beyond this scope.
Do not include repair time on the installation repair order. Instead, complete a separate repair order for any warranty repair associated with the installation.
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 1-42
Chapter 1: MS Windows System Installation Procedure: In Case of Difficulty
In Case of Difficulty Shipping Damage or Incorrect Shipment
Contact your local Agilent Sales office.
Network, System Administration, or Test Server Help
Review Chapter 2 in the System Installation
Manual (MS Windows Version) for more
information.
See Administrating Agilent 3070 MS Windows
Systems. This manual is also available in
electronic format as part of the User documentation shipped on the controller’s hard drive.
Optional Agilent Performance Port Actuator Control System (ACS)
See Agilent Performance Port in the 3070 Service Documentation.
Vacuum Subsystem
See “Air Subsystems” troubleshooting in the online service documentation.
Additional Resources
If you need phone support, contact Agilent's Customer Support Center. Go to the Agilent Automated Test Equipment Contacts website and select your country:
www.agilent.com/see/contact_info
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 2-1
2222
MS Windows System Installation Reference
E9970-90001 Rev. J 10/2003
In this Chapter...
Logging-On as service3070, 2-2
The Root Directory Environment Variable, 2-3
Directory Descriptions, 2-7
Editing Files, 2-8
MS Windows Quick Reference, 2-15
BT-BASIC Quick Reference, 2-16
Korn Shell Quick Reference, 2-17
vi and vi Editor Quick Reference, 2-20
Codewords & Software License Keys, 2-24
System Config File Specifics, 2-26
Standard Config File Specifics, 2-29
Compiling the System and Standard Config Files, 2-35
The bootptab File, 2-36
The hosts File, 2-38
Device Files, 2-40
Vacuum Control, 2-41
Rotating the Testhead, 2-42
Testhead Cards, 2-43
DUT Power Supplies, 2-45
Controller Cables and Devices, 2-49
Private LAN and Serial Port MUX, 2-59
Troubleshooting LAN Port Connections, 2-61
Installing Drivers and Configuring LAN Ports, 2-62
Referenced Manuals
The following manuals are referenced within this chapter:
Administering Agilent 3070 MS Windows Systems,
Agilent 3070 / 79000 Family Site Preparation
Manual E9900-90045,
3070 / 79000 Family Board Test Systems Repair
Manual,
Agilent 3070 Family Users' Manual.
Introduction
The information in this chapter may be helpful when installing an Agilent 3070 system that has a MS Windows controller.
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 2-2
Chapter 2: MS Windows System Installation Reference: Logging-On as service3070
Logging-On as service3070
The service3070 logon allows system configuration and testing.
Display the Logon Status from a Current Login
1 Press the <Ctrl><Alt><Delete> keyboard keys at the
same time.
Logon as service3070 to Complete the Installation
If it should be necessary to change the logon:
1 Press together <CTRL> <Alt> <Delete>.
2 Click Log Off.
Wait for the log off, then follow the on-screen instructions to log back on.
3 Enter the logon information:
Logon Name = service3070
Default Password = service
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 2-3
Chapter 2: MS Windows System Installation Reference: The Root Directory Environment Variable
The Root Directory Environment Variable
This section contains:
Introduction, 2-3
Determine the Value of the Root Directory
Environment Variable, 2-3
Use of the Root Directory Environment Variable in
a BT-BASIC Window, 2-4
Use of the Root Directory Environment Variable in
a Korn Shell Window, 2-5
Use of the Root Directory Environment Variable in
a DOS Command Prompt Window, 2-6
Introduction
3070 systems now establish a root directory environment variable.
Beginning with software revision 3070 04.00pa, an environment variable is used to allow 3070 board files to be easily transferred between 3070 systems running either MS Windows or UNIX.
The environment variable is named
$AGILENT3070_ROOT. It replaces the root directory path
(upper path names) on both operating systems.
The directories, /var/hp3070 and /opt/hp3070, are replaced by $AGILENT3070_ROOT on all MS Windows systems.
The root directory environment variable default is set to
C:/Agilent3070.
Determine the Value of the Root Directory Environment Variable
1 Open a Korn shell window:
Double-click the desktop Korn Shell icon OR
Click Start > Programs > Agilent 3070 > Korn
Shell.
2 At the prompt, enter:
echo $AGILENT3070_ROOT
The string returned is typically:
C:/Agilent3070
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 2-4
Chapter 2: MS Windows System Installation Reference: The Root Directory Environment Variable
Use of the Root Directory Environment Variable in a BT-BASIC Window
Table 2-1 illustrates new path equivalents using the
system config file in a BT-BASIC window.
NOTE
BT-BASIC usage is the same in both UNIX and MS Windows.
Table 2- 1 Absolute & Environment Variable file path usage in BT-BASIC
Absolute Addressing at 3070 Software Release 3070 04.00pa
New Absolute addressing at 3070 Software Release 3070 05.00p or later
Environment Variable Addressing at 3070 Software Release 3070 04.00pa or later
msi "D:/Agilent3070/diagnostics/th1" msi "C:/Agilent3070/diagnostics/th1" msi btgetenv$ ("AGILENT3070_ROOT") &
"/diagnostics/th1"
get "D:/Agilent3070/diagnostics/th1/ config"
get "C:/Agilent3070/diagnostics/th1/ config"
get btgetenv$ ("AGILENT3070_ROOT") & "/diagnostics/th1/config"
NOTE
At software revision 3070 05.00p, the Agilent3070 directory was moved from D:/Agilent3070/ to C:/Agilent3070/
btgetenv$ ("AGILENT3070_ROOT")
is only required for BT-BASIC commands which are referenced to the root.
If the BT-BASIC command msi btgetenv$ ("AGILENT3070_ROOT") & <command> is used prior to the next BT-BASIC command (for example
compile or faon), use of the environment variable to define the root path is unnecessary. BT-BASIC commands which normally contain paths (msi, load, copy, save, get, store, unlink, rcall
) for example, will require:
btgetenv$ ("AGILENT3070_ROOT") & <rest of path>
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 2-5
Chapter 2: MS Windows System Installation Reference: The Root Directory Environment Variable
Use of the Root Directory Environment Variable in a Korn Shell Window
In a Korn shell window, follow the UNIX syntax:
Use $<variable> (instead of %<variable>%).
Use the correct case.
Use / (forward slash) instead of \ (backslash).
Table 2-2 illustrates new path usage when working in a
Korn shell window.
Table 2- 2 Absolute & Environment Variable file path usage in a korn shell window
Absolute Addressing at 3070 Software Release 3070 04.00pa
New Absolute addressing at 3070 Software Release 3070 05.00p or later
Environment Variable Addressing at 3070 Software Release 3070 04.00pa or later
D:/Agilent3070/diagnostics/th1 C:/Agilent3070/diagnostics/th1 $AGILENT3070_ROOT/diagnostics/th1
/opt/hp3070/help/C/SERVICE /opt/hp3070/help/C/SERVICE $AGILENT3070_ROOT/Documentation/SERVICE
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 2-6
Chapter 2: MS Windows System Installation Reference: The Root Directory Environment Variable
Use of the Root Directory Environment Variable in a DOS Command Prompt Window
In a MS-DOS Command Prompt window:
Use %<variable>% (instead of $<variable>).
Use \ (backslash) instead of / (forward slash).
Table 2-3 on page 2-6 illustrates new path usage using
the dev directory as an example when working in a
MS-DOS Command Prompt window.
Table 2- 3 Absolute & Environment Variable file path usage at a MS-DOS Command Prompt
Absolute Addressing at 3070 Software Release 3070 04.00pa
New Absolute addressing at 3070
Software Release 3070 05.00p or later
Environment Variable Addressing at 3070 Software Release 3070 04.00pa or later
D:\Agilent3070\dev C:\Agilent3070\dev %AGILENT3070_ROOT%\dev
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 2-7
Chapter 2: MS Windows System Installation Reference: Directory Descriptions
Directory Descriptions
Table 2-4 lists descriptions of some 3070 MS Windows
system directories.
Tab le 2- 4 Descriptions of various 3070 MS Windows system directories
$AGILENT3070_ROOT/
The directory where the vast majority of the 3070 system software resides.
$AGILENT3070_ROOT/autofile
The directory that contains all the autofiles for the system.
$AGILENT3070_ROOT/bin
The directory that contains most of the executable programs for the system.
$AGILENT3070_ROOT/boards
The directory that should contain customer board directories.
$AGILENT3070_ROOT/contrib
The directory where user-contributed software that may be of use to 3070 customers is redistributed by Agilent.
$AGILENT3070_ROOT/dev
A directory that contains pseudo device files for use by the 3070 software.
$AGILENT3070_ROOT/diagnostics
A directory that contains testhead configuration and diagnostic information / programs.
$AGILENT3070_ROOT/etc
A directory that contains miscellaneous files.
$AGILENT3070_ROOT/help
A directory that contains help information.
$AGILENT3070_ROOT/home
The directory that contains the MS Windows user's home directories.
$AGILENT3070_ROOT/lib
The directory that contains digital libraries and other executables.
$AGILENT3070_ROOT/library
The directory that contains device libraries provided for board development.
$AGILENT3070_ROOT/qm
The directory to which statistics are logged.
$AGILENT3070_ROOT/standard
A directory that contains templates used throughout the system.
$AGILENT3070_ROOT/tmp
A directory that is used by the 3070 software for storing temporary files / logs.
$AGILENT3070_ROOT/util
A directory that is used for storing a few utility files.
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 2-8
Chapter 2: MS Windows System Installation Reference: Editing Files
Editing Files This section contains:
Front-Slashes versus Back-Slashes in Command
Lines Containing File Paths, 2-8
Use BT-BASIC, 2-8
How to Edit the System Config File to Match the
Testhead Configuration, 2-9
How to Resolve the Standard Config File from the
System Config File, 2-10
Front-Slashes versus Back-Slashes in Command Lines Containing File Paths
A general rule for commands using a path to a directory or file is to use a forward-slash (/) for commands tied to a 3070 application, and use a back-slash (\) for operating system-related commands.
If a command line containing a file path fails to execute, it may be because the slash used is of the wrong type.
Reversing the slash(es) may resolve the issue.
This is because:
Many Korn shell commands are used in the MS
Windows environment, and require front-slashes (/) in command lines containing file paths.
In MS Windows, when opening a file from the
Start > Run... menu, both front-slashes (/) and back-slashes (\) are recognized.
A command may be performed in or with some
relationship to the MS-DOS environment, which can require back-slashes in command lines containing file paths.
Use BT-BASIC
BT-BASIC is the designated file-editing tool. Unless otherwise specified, editing described in this chapter is performed using BT-BASIC.
Korn shell, vi, and viw editors can also be used to edit files.
Reference information for all these tools:
BT-BASIC Quick Reference on page 2-16.
Korn Shell Quick Reference on page 2-17.
vi and vi Editor Quick Reference on page 2-20.
NOTE
BT-BASIC cannot be accessed when logged in as administrator.
Open BT-BASIC
Double-click the desktop BT-BASIC icon OR
Click Start > Programs > Agilent 3070 > BT-BASIC.
BT-BASIC will open with the cursor on the command line.
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 2-9
Chapter 2: MS Windows System Installation Reference: Editing Files
Open a File in BT-BASIC
• From the command line, enter:
get btgetenv$ ("AGILENT3070_ROOT") & "
<path to the file>"
For more information about this command, see Use
of the Root Directory Environment Variable in a BT-BASIC Window on page 2-4.
Edit in BT-BASIC
• Press F1 on the keyboard, if necessary, to toggle to
the workspace.
To move the cursor, use the keyboard arrow keys, and the Insert Char, and Delete Char keys.
Save in BT_BASIC
1 Press F1 on the keyboard, if necessary, to toggle to
the command line.
2 Enter:
re-save
Exit BT-BASIC
1 Press F1 on the keyboard, if necessary, to toggle to
the command line.
2 Enter:
exit
How to Edit the System Config File to Match the Testhead Configuration
If the testhead configuration has changed, the system config file MUST be updated to reflect the change.
Table 2-5 on page 2-9 describes the process.
Tab le 2- 5 Edit the system config file to match the testhead configuration
Task Step
1 Open the system config file
in a BT-BASIC window.
a Open a BT-BASIC window by double-clicking the desktop icon.
b From the BT-BASIC command line, enter:
get btgetenv$ ("AGILENT3070_ROOT") & "/diagnostics/th1/config"
2 Arrange or modify
statements to reflect the actual testhead configuration.
Do this as required.
See Table 2-8 on page 2-16 for commonly used BT-BASIC commands.
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 2-10
Chapter 2: MS Windows System Installation Reference: Editing Files
How to Resolve the Standard Config File from the System Config File
If the system config file has changed, it is good practice to edit the standard config file to reflect the changes as a service to the board test development personnel.
See Table 2-6 to resolve the standard config file from the system config file.
Figure 2-1 on page 2-14 illustrates the concept.
The desired end result is to copy the cards ..., serial
ports
..., supplies ... and ports ... statements
from the system config file to the standard config file.
No changes to the system config file are made.
3 Save and exit the system
config file.
•Enter:
1) re-save
2) exit
4 Compile the system config
file.
For instructions, see Compiling the System and Standard Config Files on page 2-35.
Tab le 2- 5 Edit the system config file to match the testhead configuration
Task Step
Tab le 2- 6 Resolve the standard config file from the system config file
Task Step
1 Make a backup copy of the
standard config file:
a Open a BT-BASIC window by double-clicking the desktop icon.
b At the prompt, enter:
msi btgetenv$ ("AGILENT3070_ROOT") & "/standard"
c copy config over config.temp
2 Open the standard config
file:
a Enter:
get btgetenv$ ("AGILENT3070_ROOT") & "/standard/config"
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 2-11
Chapter 2: MS Windows System Installation Reference: Editing Files
3 Open the system config file
in a new BT-BASIC window:
•At the new BT-BASIC window command line, enter:
get btgetenv$ ("AGILENT3070_ROOT") & "/diagnostics/th1/config"
4 Arrange the two BT-BASIC
windows so that each can be readily accessed.
5 Copy the appropriate
statements from the system config file to the clipboard buffer:
In the BT-BASIC window containing the system config file:
a Press F1 on the keyboard to enter the workspace.
b Locate the module <number> that contains un-commented
cards 1 ... statements using the arrow keys or the Prev and Next keys.
c Scroll the text up until the end module statement is visible.
d Click and drag with the mouse to highlight the text including the ports ...
statement
The highlighted text is now copied in the clipboard buffer.
NOTE
Do not include probe, debug port, bank, or end bank statements.
These statements are not valid in the standard config file.
Tab le 2- 6 Resolve the standard config file from the system config file (continued)
Task Step
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 2-12
Chapter 2: MS Windows System Installation Reference: Editing Files
6 Paste the copied text in the
standard config file:
CAUTION
Do not delete the ! Specify instrument ...
through
! connect ... statements.
a Activate the window containing the standard config file by clicking on the
window border.
b Press F1 on the keyboard to enter the workspace.
c Move the cursor immediately below the module <number> statement that
corresponds to the module <number> statement copied in the previous task.
Take care not to overwrite other lines.
d Click the right mouse button.
The text from the buffer will be inserted into the standard config file.
7 Verify that each
un-commented module
<number>
and end module statement in the system config file is un-commented in the standard config file.
8 Save , then exit the standard
config file:
a In the window containing the standard config file, press F1 to return to the
command line.
b Enter:
1) re-save
2) exit
Tab le 2- 6 Resolve the standard config file from the system config file (continued)
Task Step
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 2-13
Chapter 2: MS Windows System Installation Reference: Editing Files
9 Exit the system config file
without saving it:
a In the window containing the system config file, press F1 to return to the
command line.
b Enter:
exit
10 Compile the standard config
file.
Instructions are given in Compiling the System and Standard Config Files on page 2-35.
Tab le 2- 6 Resolve the standard config file from the system config file (continued)
Task Step
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 2-14
Chapter 2: MS Windows System Installation Reference: Editing Files
Figure 2-1 Copying configuration information
configuration xxxx
Status
: xxx lines in workspace
BT-BASIC
!
! CONFIGURATION FOR DEVELOPING BOARD TESTS
target . . . enable . . .
module . .
! Specify instrument
end module
$AGILENT3070_ROOT/diagnostics/th1/config
configuration xxxx
Status
: xxx lines in workspace
command
BT-BASIC
!
! CONFIGURATION FOR DEVELOPING BOARD TESTS
target . . . enable . . .
module . .
! Specify instrument
end module
$AGILENT3070_ROOT/standard/config
configuration xxxx
Status
: xxx lines in workspace
BT-BASIC
BASIC
! relay 1 controls vacuum . . .
module . .
end module module . .
cards 1 asru . . .
ports . . ., . . .
configuration xxxx
command
BT-BASIC
bank . .
ports . . ., . . .
cards 1 . . .
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 2-15
Chapter 2: MS Windows System Installation Reference: MS Windows Quick Reference
MS Windows Quick Reference
See Table 2-7 for a MS Windows quick-reference.
Tab le 2- 7 MS Windows quick-reference
To Do This... Enter This...
• Kill processes and applications
• Monitor CPU and memory usage
Open the MS Windows Task Manager:
a Hold down the <Ctrl><Alt><Delete> keys at the same time (or
right-click on the toolbar).
b Click Task Manager...
• View error logs
• Perform diagnostics
• Use other various administrative tools
Open the MS Windows Event Viewer:
a Click Start > Settings > Control Panel.
b Double-click Administrative Tools, then select the appropriate
application.
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 2-16
Chapter 2: MS Windows System Installation Reference: BT-BASIC Quick Reference
BT-BASIC Quick Reference
Table 2-8 lists some commonly used BT-BASIC
statements.
Additional BT-BASIC information is given in Editing
Files on page 2-8.
NOTE
If uncertain whether to use front-slashes or back-slashes, see Front-Slashes versus
Back-Slashes in Command Lines Containing File Paths on page 2-8.
Tab le 2- 8 Commonly used BT-BASIC statements
BT-BASIC Statement Statement Function
msi btgetenv$ ("AGILENT3070_ROOT") & "<path to the file>" Change to file location
get btgetenv$ ("AGILENT3070_ROOT") & "<path to the file>" Retrieve an existing file
save "<filename>" Create a new file
re-save
Save an existing file
compile "<filename>" Compile a file
compile "<filename>";testhead Compile a testhead file
findn "<string expression>" Find the next occurrence of a string
expression
exit
Quit BT-BASIC
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 2-17
Chapter 2: MS Windows System Installation Reference: Korn Shell Quick Reference
Korn Shell Quick Reference
Although the operating system is MS Windows, a number of 3070 UNIX commands are valid in the Korn shell.
See Table 2-9 for a Korn shell quick reference. Keyboard keys are in { }.
For complete information about a command, at a Korn shell window prompt, enter:
man <command_name>
NOTE
If uncertain whether to use front-slashes or back-slashes, see Front-Slashes versus
Back-Slashes in Command Lines Containing File Paths on page 2-8.
Tab le 2- 9 Korn shell quick reference
Working with Directories
To Do This... Enter This...
Show current working directory
pwd
Change directory cd <pathname>
Change to home directory
cd
Create a directory mkdir <directoryname>
Remove an (empty) directory rmdir <directoryname>
Display permissions for a directory ls -ld <directoryname>
Working with Files
To Do This... Enter This...
List files and directories in current directory
ls
List all files or directories, including hidden ("dot") files
ls -a
List files, and show directories with / and executables with *
ls -f
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 2-18
Chapter 2: MS Windows System Installation Reference: Korn Shell Quick Reference
Display permissions for a file ls -l <filename>
Create or edit a file vi <filename>orviw <filename>
Display file contents more <filename>(q to quit) (v to vi)
Copy a file with permissions and owners cp -p <file1><file2>
Move a file to a new filename mv <old_file><new_file>
Append file1 onto the end of file2 cat <file1> >> <file2>
Remove a file rm <filename>
Finding and Organizing
To Do This... Enter This...
Find file(s) beginning with x in the current and sub-directories
find . -name 'x*' -print
Find all occurrences of word in all files in the current directory
grep word *
Display date and time
date
Display manual page for <command name> man <commandname>
Find name of current host system
hostname
Find current system information
uname -a
Find environment information, including PATH
env
System Operations
To Do This... Enter This...
Clear screen
clear
Exit / close Korn shell window exit
Tab le 2- 9 Korn shell quick reference (continued)
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 2-19
Chapter 2: MS Windows System Installation Reference: Korn Shell Quick Reference
Set Korn shell for vi
set -o vi
Edit the command line (in Korn shell set for vi) {ESC} (use vi commands)
Recall previous command line (in Korn shell set for vi) {ESC}k (back) or j (forward)
Execute previous command line (in Korn shell set for vi) {Return} (when line is displayed)
List current process status and PID's
ps -ef
Redirect input from a file to a command
command < infile
Connect two processes with a "pipe"
command1 | command2
Network Operations
To Do This... Enter This...
Invoke FTP and connect to remote host ftp <remote_hostname>
Set transfer mode to ASCII
ascii
Set transfer mode to binary
bin
Copy a file using ftp from remote_hostname get <remote_file>
Copy a file using ftp from the local current directory to current directory on the remote_hostname
put <local_file>
Exit FTP
bye
Tab le 2- 9 Korn shell quick reference (continued)
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 2-20
Chapter 2: MS Windows System Installation Reference: vi and vi Editor Quick Reference
vi and vi Editor Quick Reference
See Table 2-10 for a vi and viw editor quick reference.
Keyboard keys are in { }.
NOTE
If uncertain whether to use front-slashes or back-slashes, see Front-Slashes versus
Back-Slashes in Command Lines Containing File Paths on page 2-8.
Table 2-10 vi and viw editor quick reference
Getting Started with vi
To Do This... Enter This in Command Mode...
Create or edit a file in a Korn shell window vi <filename>
Create or edit a file in a vi window viw <filename>
Make sure you're in command mode
{ESC}
Show if you are in command or insert mode
:set showmode
Find out what file you are in
{CTRL}g
Moving Within a File
To Do This... Enter This in Command Mode...
Move the cursor left or right h or l or arrow keys
Move the cursor up or down k or j or arrow keys
Cursor to end of line
$
Cursor to beginning of line 0 (Zero) or ^
Cursor to end of file
G
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 2-21
Chapter 2: MS Windows System Installation Reference: vi and vi Editor Quick Reference
Cursor to line <n> <n>G
Inserting Text
To Do This... Enter This in Command Mode...
Insert text at the cursor position
i
Insert a new line after the current line O (capital)
Insert (Append) text after the cursor position
a
Backspace to overwrite previous character (in Insert Mode) {CTRL}h or {Backspace}
Replace single character r <character>
Replace until {ESC} is pressed
R
Deleting Text
To Do This... Enter This in Command Mode...
Delete characters at cursor
x
Delete word (cursor at beginning of word)
dw
Delete the entire line at the cursor position
dd
Delete from cursor to end of the current line
D
Delete from cursor to end of the file
dG
Moving Text
To Do This... Enter This in Command Mode...
Join lines of text
J
Table 2-10 vi and viw editor quick reference (continued)
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 2-22
Chapter 2: MS Windows System Installation Reference: vi and vi Editor Quick Reference
Copy a line into a buffer
yy
Put copied or deleted text line from buffer after cursor line
p
Read in another file after cursor line :r <filename>
Searching Text
To Do This... Enter This in Command Mode...
Search forward for <words> /<words>
Search backward for <words> ?<words>
Repeat the previous search for words
n (next) or N (previous)
Saving and Printing Files
To Do This... Enter This in Command Mode...
Save file in same filename
:w
Save file to a new filename :w <new_filename>
Exit from file without saving changes
:q!
Overwrite another existing file with this file :w! or wq!
Save and exit from the vi editor
:wq
Repairing Mistakes
To Do This... Enter This in Command Mode...
Undo the previous action
u
Restore a line to its previous state
U
Restore ("put") last delete
p
Table 2-10 vi and viw editor quick reference (continued)
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 2-23
Chapter 2: MS Windows System Installation Reference: vi and vi Editor Quick Reference
Restore current file to last saved text and disregard changes
:e!
Undo last edit u (repeat to toggle)
Recover a file after a system interruption (from the Korn shell) vi -r <filename>
Table 2-10 vi and viw editor quick reference (continued)
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 2-24
Chapter 2: MS Windows System Installation Reference: Codewords & Software License Keys
Codewords & Software License Keys
This section contains:
Introduction, 2-24
Installing Codewords & Software License Keys,
2-24
Verify Installed Codewords, 2-24
Compile the Two Config Files, 2-24
Introduction
Codewords & software license keys are pre-installed at the factory and normally do not require adjustment.
The capabilities of a 3070 system are based on the codewords and software licenses installed.
Codeword & software licenses are used by the system config file compiler and allows confirmation that the hardware and the supported software features are compatible.
NOTE
Agilent will issue software license keys to replace the current codeword scheme for new 3070 features starting with software release 05.20p. At present, only new features will require the license key.
Installing Codewords & Software License Keys
Instructions for installing codewords are included with the software license(s) and Entitlement Certificate(s).
Verify Installed Codewords
To verify the codewords & software license keys:
a Click Start > Programs > Command Prompt.
b At a command window prompt, enter:
codeword -l (el, not one)
c If errors are returned, the board config will not
compile properly.
Compile the Two Config Files
CAUTION
If the codewords have changed in any way, it will be necessary to compile both the system and standard config files. Instructions are given in
Compiling the System and Standard Config Files on page 2-35.
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 2-25
Chapter 2: MS Windows System Installation Reference: Codewords & Software License Keys
CAUTION
Incorrectly entered codewords, blank lines or spaces before or after a codeword may cause errors when compiling the config files. User and
Operator logins may not boot if the $AGILENT3070_ROOT/lib/.enable file contains
invalid information. Codeword order does not matter.
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 2-26
Chapter 2: MS Windows System Installation Reference: System Config File Specifics
System Config File Specifics
This section contains:
Introduction, 2-26
Location of the System Config File, 2-26
Edit the System Config File, 2-26
The "Official" and "Actual" System Config Files,
2-26
To Repair a Corrupt System Config File, 2-26
Descriptions of Some Statements in the System
Config File, 2-27
Introduction
The system config file must match the testhead card configuration.
Edit the system config file if either the testhead cards or locations of the testhead cards have changed.
Location of the System Config File
The path to the system config file is:
$AGILENT3070_ROOT/diagnostics/th1/config
Edit the System Config File
1 Login as service3070 (default password is
service).
2 At a BT-BASIC window prompt, enter:
msi btgetenv$ ("AGILENT3070_ROOT") & "/diagnostics/th1"
3 Enter:
get "config"
4 Edit the file to match the actual testhead card
configuration.
5 Enter:
re-save
6 Compile the changed system config file. See
Compiling the System and Standard Config Files
on page 2-35
The "Official" and "Actual" System Config Files
The "official" system config file is the system config file as when the system was shipped.
It is contained on a printout shipped with the system, and can be used as a model if it should be necessary to customize the system config file.
The "actual" system config file is the system config file in use which reflects the actual cards and card locations in the testhead.
To Repair a Corrupt System Config File
One of the sys.config.xxx templates can be copied from the $AGILENT3070_ROOT/diagnostics directory and edited to match the actual system configuration.
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 2-27
Chapter 2: MS Windows System Installation Reference: System Config File Specifics
NOTE
Changes to the system config file should be reflected in the standard config file. See Standard
Config File Specifics on page 2-29.
Descriptions of Some Statements in the System Config File
The testhead name Statement
The testhead name statement in the system config file identifies the block in the bootptab file that contains hardware and IP addresses for the System Card and ControlXT/XTP Cards.
The testhead name statement in the system config file includes only the modules that are present; for a four-module system it looks like:
testhead name testhead1 module3 module2 module1 module0
The System Card is represented by testhead1
The ControlXT/XTP Card in each module is represented by module<n>
Modules are mapped in the hosts file. Using this information, specific hardware addresses can be determined in the bootptab file.
The line frequency Statement
In this statement, the unused frequency is commented. For example, if the system power is connected to 60 hertz, 50 is commented.
NOTE
"Commented" means that the comment character, an exclamation mark (!), has been placed at the beginning of a line.
The relay Statement
See Vacuum Control on page 2-41.
The cards <keywords> Statements
These statements identify to the system which cards are installed and where they are installed.
See Table 2-15 on page 2-43 for available 3070 testhead cards with diagnostics names, cards <keywords> statements, pattern applications rates and part numbers.
The cards <keywords> statements can be delimited by commas (,); a range can be separated by the word "to."
Valid examples are:
cards 2, 3, 4, 5 hybrid standard double
density
cards 2 to 5 hybrid standard double
density
cards 2, 4, 7 to 11 hybrid standard
double density
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 2-28
Chapter 2: MS Windows System Installation Reference: System Config File Specifics
The supplies <keywords> Statements
Numbering of the supplies in the supplies
<keywords>
statements is arbitrary.
The software will accept any mapping of supply numbers to modules.
If the customer plans to share board test fixtures with other systems, it is possible they may have modified the default power supply setting.
If so, reconcile the supplies numbering with existing systems.
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 2-29
Chapter 2: MS Windows System Installation Reference: Standard Config File Specifics
Standard Config File Specifics
This section contains:
Introduction, 2-29
The Board Config File, 2-29
Standard Config File Syntax Similarities to and
Differences from the System Config File, 2-29
Statements Allowed in the Standard, System, and
Board Config Files, 2-30
Statements Allowed in the System Config File, 2-30
Descriptions of Some Statements in the Standard
Config File, 2-30
Introduction
The standard config file should reflect all testhead resources available to the board test developer.
As shipped, the standard config file:
Has the correct target <keywords> statement.
Includes commented enable <keywords>
statements for optional components.
Location of the Standard Config File
The path to the standard config file is:
$AGILENT3070_ROOT/standard/config
The Board Config File
The board test developer can use the standard config file as a template when developing a board config file.
The board config file is located in each board's subdirectory, and is a copy or subset of the standard config file.
The board config file can describe the resources in any one system or system subset.
Standard Config File Syntax Similarities to and Differences from the System Config File
The cards <keywords> syntax is the same for the system config file and the standard config file.
However, some of the syntax for the standard config file is different from that of the system config file.
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 2-30
Chapter 2: MS Windows System Installation Reference: Standard Config File Specifics
Statements Allowed in the Standard, System, and Board Config Files
NOTE
connect statements allow programmers to name
and define the use of external ports.
Usually these can remain as-shipped until the customer decides how to use these ports.
Statements Allowed in the System Config File
NOTE
These statements are not allowed in either the Standard or Board Config Files, but are allowed in the System Config File.
Descriptions of Some Statements in the Standard Config File
The target <keywords> Statements
A target <keywords> statement is needed in each board config file.
See Table 2- 11 for factory default target <keywords> statements.
NOTE
The target <keywords> statement should be the first un-commented statement in the file and must exist before the cards <keywords> statements.
• target • cards
• enable • supplies
• module • ports
• end module • boards
• access ports • connect
• boards wired in parallel
testhead name bank
line frequency end bank
board handler probe
relay <x> controls
vacuum
<y>
debug port
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 2-31
Chapter 2: MS Windows System Installation Reference: Standard Config File Specifics
See Table 2-12 for 3X72 process test system default
target <keywords> statements.
Tab le 2- 11 Factory default target <keywords> statements
Pattern Application Rate (MP/s (mega patterns-per-second))
target <keyword> Statement
2
target Agilent3070 value
6
target hp3073 standard
12
target hp3070 advanced
20
target high accuracy
Table 2-12 3X72 process test system default target <keywords> statements
Product Description target <keyword> Statement
Agilent 3172-U Unpowered Test (up to 2modules)
target unpowered
Agilent 3072-U Unpowered Test (up to 4 modules)
target unpowered
Agilent 3172-P Powered Test (up to 2 modules)
target unpowered enable power testing
Agilent 3072-P Powered Test (up to 4 modules)
target unpowered enable power testing
Agilent 3X72 Test Development System Software and Licenses
target unpowered
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 2-32
Chapter 2: MS Windows System Installation Reference: Standard Config File Specifics
The enable <keywords> Statements
These statements are used in combination with codewords to selectively enable software features.
CAUTION
enable <keywords> statements should exist after
the target <keywords> statements, and must be outside of a module block.
The programmer will un-comment the correct enable <keywords> statements which correspond to standard
or optional software features as the board config file is developed.
NOTE
Codewords must be installed to enable optional software features. For more information, see
Codewords & Software License Keys on
page 2-24.
Table 2-13 contains some enable <keywords>
statements in the standard config file.
Table 2-13 Some enable <keywords> statements in the standard config file
enable <keywords> Functional Description:
advanced boundary scan
Enables you to test chains of boundary scan parts, such as testing the interconnections without nailed access.
all high accuracy resources
For double density, high accuracy HybridPlus Cards, this option enables channel resources to be routed to pins that would otherwise be used for extended grounding on XG-50 fixtures. Because the resource assignments change, this option cannot be used with XG-50 fixtures.
combo test
Enables both in-circuit and functional test.
common delimiter
Enables interoperability between UNIX and MS Windows
connect check
Enables Agilent Connect Check.
dual well shared wiring
Enables dual-well shared wiring.
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 2-33
Chapter 2: MS Windows System Installation Reference: Standard Config File Specifics
drivethru
Enables the testing of digital devices through series resistors using Agilent TestJet technology. You can use the Agilent Drive Thru Test in combination with the Agilent Access Consultant to identify and selectively remove nonessential probing locations.
express fixturing
Allows Agilent SimPlate Express or cassette fixtures for your board test. If this option is not enabled, only an Agilent SimPlate Fixture can be used.
flash70
Enables flash memory programming mode.
flash isp
Enables flash isp software, which supports new data formats. Only supported with ControlXTP cards.
incircuit test
Enables automatic in-circuit test generation for systems which do not have it.
magic
Enables Agilent MagicTest circuit analysis mode.
multiple board versions
Enables Agilent Multiple Board Versions.
paneltest
Enables software that helps you develop tests for multiple-board panels on one fixture.
pld isp
Enables native PLD programming on the 3070 and supports CPLD programming with STAPL, SVF, Jam and JBC file types. Only supported with ControlXTP cards.
polarity check
Enables Agilent Polarity Check testing.
powered testing
Allows limited powered testing on an Agilent 3072 system (a maximum of two HybridPlus Cards, one HybridPlus and one ChannelPlus Card, or one HybridPlus and one AccessPlus Card per module).
silicon nails
Enables automatic generation of silicon nails ITL test files derived from library tests and customized to the board topology on user selected devices.
Table 2-13 Some enable <keywords> statements in the standard config file
enable <keywords> Functional Description:
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 2-34
Chapter 2: MS Windows System Installation Reference: Standard Config File Specifics
testjet
Enables the TestJet testing technique on your board. This option is automatically enabled on the Agilent 3072 system.
throughput multiplier
Allows testing up to four boards simultaneously (one per module), which increases board throughput. It can only be used with the paneltest option.
Table 2-13 Some enable <keywords> statements in the standard config file
enable <keywords> Functional Description:
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 2-35
Chapter 2: MS Windows System Installation Reference: Compiling the System and Standard Config Files
Compiling the System and Standard Config Files
For changes to the system config file and the standard config file to be enabled, they must be compiled.
NOTE
If codewords have been modified in any way, both the system and standard config files must be compiled.
To compile the config files:
1 Login as service3070 (default password is
service)
2 Open BT-BASIC.
3 Compile the system config file. At the command line,
enter:
a msi btgetenv$ ("AGILENT3070_ROOT") &
"/diagnostics/th1"
b compile "config"; testhead
4 Compile the standard config file. At the command
line, enter:
a msi btgetenv$ ("AGILENT3070_ROOT") &
"/standard"
b compile "config"
5 When the config files have compiled without errors,
exit BT-BASIC.
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 2-36
Chapter 2: MS Windows System Installation Reference: The bootptab File
The bootptab File This section contains:
Hardware Addresses, 2-36
IP Addresses, 2-37
Hardware Addresses
Each System Card and Control Card has a unique hardware address (HA).
When changing a System Card, remove the ROM(s) from the pre-existing card and install it on the new card.
When changing a Control Card, update the bootptab file to reflect the unique HA of the new card.
CAUTION
Changes made to the bootptab file MUST be done through the Bootp Server program.
NOTE
The environment variable $SystemRoot is usually set to c:\winnt\system32
Given below is a method to edit the bootptab file:
1 Login as service3070 (password is service).
2 Make a backup copy. One example:
a Open Windows Explorer:
For Windows NT, click Start > Programs > Windows NT Explorer.
For Windows 2000, click Start > Programs > Accessories > Windows Explorer.
b Navigate to:
C:\WINNT\system32\drivers\etc
c Right-click on the bootptab file then select copy.
d Navigate to:
C:\Temp
e Right-click and select paste.
An unchanged copy is now in C:\Temp
3 Open Bootp Server:
a Click Start > Settings > Control Panel.
b Double-click BOOTP Server.
4 In the BOOTP Server properties window, click the
Clients tab.
5 If a ControlXT/XTP Card was removed, delete its
hardware address:
a Pull down the Hardware Address menu and
select the address of the card removed.
b Click Delete.
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 2-37
Chapter 2: MS Windows System Installation Reference: The bootptab File
6 Add the HA of the ControlXT/XTP Card you are
installing:
a Click New.
b Enter the ControlXT/XTP Card HA. The
complete HA is typically 0060B0B2xxxx (xxxx = the number on the card).
7 Configure the card’s IP address:
a In the Available options menu, select the following
three options one at a time and click >> to move them to the Configured options menu:
• IP address >>
• Merit dump file >>
• Subnet mask >>
b In the Configured options menu, select each option
and click Edit.
Enter:
• IP Address = 10.3.112.4 for module 0
10.3.112.5 for module 1
10.3.112.6 for module 2
10.3.112.7 for module 3
Merit dump file = This is a comment; enter
the module number (e.g., module 2).
Subnet mask = 255.255.255.0
8 In the BOOTP Server properties window, click Close.
9 Restart the BOOTP Server:
a From Control Panel click Services.
b Double-click Weird Solutions BOOTP Server.
c Click Stop > Yes (wait) > Start (wait).
10 Close the Services and Control Panel windows.
This completes the procedure.
IP Addresses
The bootptab file, in conjunction with the hosts file, manages IP addresses for the modules in the testhead.
See The hosts File on page 2-38 to view IP addresses for the testhead modules.
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 2-38
Chapter 2: MS Windows System Installation Reference: The hosts File
The hosts File The path to the hosts file is:
$SystemRoot/system32/drivers/etc/hosts
NOTE
$SystemRoot is an environment variable that is
usually set to: c:/winnt
The hosts file must include these IP addresses:
10.3.112.2 testhead1 (System Card)
10.3.112.7 module3
10.3.112.6 module2
10.3.112.5 module1
10.3.112.4 module0
Example 2-1 on page 2-39 shows a sample hosts file.
Test Device Communication
To verify connection to each of the devices listed in the
hosts file:
1 Boot the testhead.
2 From a DOS window prompt, enter:
ping <system name>OR
ping <IP address>
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 2-39
Chapter 2: MS Windows System Installation Reference: The hosts File
Example 2-1 A sample hosts file
# # This is a sample HOSTS file used by Microsoft TCP/IP for MS Windows. # # This file contains the mappings of IP addresses to host names. Each # entry should be kept on an individual line. The IP address should # be placed in the first column followed by the corresponding host name. # The IP address and the host name should be separated by at least one # space. # # Additionally, comments (such as these) may be inserted on individual # lines or following the machine name denoted by a '#' symbol. # # For example: # # 102.54.94.97 rhino.acme.com # source server # 38.25.63.10 x.acme.com # x client host
127.0.0.1 localhost # 10.3.112.1 UNIX Controller uses this # 10.3.112.10 MS Windows Controller uses this
10.3.112.2 testhead1
10.3.112.3 hpibgw
10.3.112.4 module0
10.3.112.5 module1
10.3.112.6 module2
10.3.112.7 module3
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 2-40
Chapter 2: MS Windows System Installation Reference: Device Files
Device Files This section contains:
Introduction, 2-40
Location of Device Files, 2-40
If a DUT Power Supply is Replaced, 2-40
DUT Power Supply Device Files, 2-40
Introduction
Management of devices on MS Windows controllers are very different than on UNIX controllers.
On MS Windows controllers, most devices are managed invisibly by the operating system. A small number of devices (primarily GPIB) are mirrored in the
$AGILENT3070_ROOT/dev directory so that the 3070
software will execute properly.
Location of Device Files
Device files can be found in the directory:
$AGILENT3070_ROOT/dev
and are shown in Table 2-14.
If a DUT Power Supply is Replaced
Change the appropriate ps<x> file if the GPIB address of any power supply changes.
Example 2-2 shows the contents of the default ps0 file.
In the line:
7,22
22
represents the GPIB address.
Example 2-2 Contents of the default ps0 file
!!!! 26 0 1 664499475 0000 hpib 7,22
DUT Power Supply Device Files
See Table 2-18 on page 2-47 for DUT power supply GPIB addresses and device files.
Table 2-14
Device Files in $AGILENT3070_ROOT/dev
gpio1 hpib1 dmm
null scope dmm_ref
ps0. . . ps11 hp3488 synth
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 2-41
Chapter 2: MS Windows System Installation Reference: Vacuum Control
Vacuum Control Location of Vacuum Control Statements
These are contained in the system config file:
$AGILENT3070_ROOT/diagnostics/th1/config
Vacuum Control Specifics
The relay <x> controls vacuum <y> statements need to match the actual hardware configuration after the customer decides how to implement vacuum control.
For testheads without internal vacuum valves, the default statements are:
relay 1 controls vacuum 2,3
relay 2 controls vacuum 0,1
For testheads with the Agilent E9945A two-module internal vacuum system, the default statements are:
relay 1 controls vacuum 3
relay 2 controls vacuum 2
For testheads with the Agilent E9946A four-module internal vacuum system, the default statements are:
relay 1 controls vacuum 3
relay 2 controls vacuum 2
relay 3 controls vacuum 1
relay 4 controls vacuum 0
There is nothing special about the defaults except that each matches a configuration shown in the site preparation manual.
See the Agilent 3070 / 79000 Family Site Preparation Manual 03066-90114 for a drawing of this default vacuum hookup.
Modify the relay statements so that they will work the hardware.
For example, to turn on all four vacuum ports with a single relay, the following statement might be used in the system config file:
relay 1 controls vacuum 0,1,2,3
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 2-42
Chapter 2: MS Windows System Installation Reference: Rotating the Testhead
Rotating the Testhead
CAUTION
Remove all objects, including the monitor / keyboard support arms, from the rotational path of the testhead.
If the testhead would hit anything, damage could result.
CAUTION
Remove the shipping bolts before attempting to rotate the testhead. Otherwise, damage can result.
1 Open the pod door.
2 Press and hold the testhead rotation switch inside the
pod until the testhead rotates to the desired position.
There is also sometimes a testhead rotation switch on the rear of the pod.
NOTE
The PDU must be turned on for the testhead rotation switch to be active.
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 2-43
Chapter 2: MS Windows System Installation Reference: Testhead Cards
Testhead Cards Table 2-15 shows available testhead cards with their
diagnostics names, cards <keywords> statements, pattern applications rates and part numbers.
If Changing a ControlXT/XTP or System Card
See Private LAN and Serial Port MUX on page 2-59.
Table 2-15 MS Windows supported cards with DGN names, cards <keywords> statements, pattern application rates and
part numbers
Card Type DGN
Config Name
cards <keywords> Statement in the System
Config File
Pattern Application Rate (MP/s)
Card P/N
Access Access
access
6,12,20 E1061-66501
Analog Analog
analog
6,12,20 E1121-66526
Ana_DD
analog double density
2,6,12,20 E4000-66542
Ana_DD2
analog double density
2,6,12,20 E4000-66551
ASRU ASRU_C
asru c revision
2,6,12,20 03066-66532
Control Ctl_Xt
control xt
2,6,12,20 E4000-66512
Ctl_Xtp
control xtp
2,6,12,20 E9900-66504
Hybrid H_PpuStd
hybrid standard
6 E4045-66527
H_StdDD
hybrid standard double density
6 E4000-66540
H_StdDD2
hybrid standard double density
6 E4000-66550
H_PpuDD
hybrid standard double density
6 E4000-66546
HPpuDD2
hybrid standard double density
6 E4000-66550
H_AdvDD
hybrid advanced double density
12 E4000-66544
HAdvDD2
hybrid advanced double density
12 E4000-66550
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 2-44
Chapter 2: MS Windows System Installation Reference: Testhead Cards
H_HA_DD
hybrid high accuracy double density
20 E4000-66545
HHADD2
hybrid high accuracy double density
20 E4000-66550
HVal_32
hybrid value
2 N1122-66502
HStd_32
hybrid standard double density 32
6 E9900-66502
HAdv_32
hybrid advanced double density 32
12 E9900-66502
H_HA_32
hybrid high accuracy double density 32
20 E9900-66502
HPpu_32
hybrid high accuracy double density 32
20 E9900-66502
Table 2-15 MS Windows supported cards with DGN names, cards <keywords> statements, pattern application rates and
part numbers (continued)
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 2-45
Chapter 2: MS Windows System Installation Reference: DUT Power Supplies
DUT Power Supplies
This section contains:
Voltage Ranges, 2-45
Module Mappings, 2-45
DUT Power Supplies Allowed, 2-45
GPIB Addresses and Device Files, 2-46
Voltage Ranges
DUT power supplies are set at the factory in one of two configurations:
• Option 220 for line voltages of 200–220 volts.
• Option 240 for line voltages of 230–240 volts.
DUT Power Supplies Allowed
Table 2-16 lists the DUT the power supplies allowed.
Module Mappings
Table 2-17 on page 2-46 lists the default DUT power
supply mappings for each module.
The commented ("!") statements illustrate that a power supply number (1 through 24) cannot be assigned more than once in a testhead, and a channel number (1 through 6) cannot be assigned more than once in a module.
For 307X systems with a support bay, if it is necessary to determine which DUT power supply is wired to which module, the DUT/ASRU cables E4000-61602 are labeled on both ends with the module numbers to which they are routed.
Agilent 317X systems use cable numbers E4000-61606 and E1170-61607.
Table 2-16 DUT power supplies allowed
Product No. Model No. Description
44940A 6624A 4 outputs: 2 @ 0-7 V, 0-5 A or 0-20 V, 0-2 A and 2 @ 0-20 V, 0-2 A or 0-50 V,
0-0.8 A
44941A 6621A 2 outputs: 0-7 V, 0-10 A and 0-20 V, 0-4 A
E4034A 6634A 1 output: 1-100 V, 0-1 A
E3784A 6642A 1 output: 0-20 V, 0-10 A
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 2-46
Chapter 2: MS Windows System Installation Reference: DUT Power Supplies
GPIB Addresses and Device Files
If the DUT power supplies are functional, a supply’s GPIB address can be determined by tracing the cabling to determine which supply is connected to the module.
If the supply has a front panel and is accessible, the GPIB address can be read from the front panel of the supply.
Table 2-18 lists DUT power supply GPIB addresses and
device files. See If a DUT Power Supply is Replaced on page 2-40 for more information about DUT power supply GPIB addresses.
Table 2-17 Default DUT power supply mappings for each module (rear view of testhead)
Module 0 Module 2
supplies hp6624 13 to 16 asru channels 1 to 4 ! supplies hp6624 5 to 8 asru channels 1 to 4
! supplies hp6621 13 to 14 asru channels 1 to 4 supplies hp6621 5 to 6 asru channels 1 to 4
! supplies hp6624 23 to 24 asru channels 5 to 6 ! supplies hp6624 19 to 20 asru channels 5 to 6
supplies hp6621 23 asru channels 5 to 6 ! supplies hp6621 19 asru channels 5 to 6
! supplies hp6634 23 asru channels 5 supplies hp6634 19 asru channels 5
! supplies hp6634 24 asru channels 6 supplies hp6634 20 asru channels 6
! supplies hp6642 23 asru channels 5 to 6 ! supplies hp6642 19 asru channels 5 to 6
Module 1 Module 3
supplies hp6624 9 to 12 asru channels 1 to 4 supplies hp6624 1 to 4 asru channels 1 to 4
! supplies hp6621 9 to 10 asru channels 1 to 4 ! supplies hp6621 1 to 2 asru channels 1 to 4
! supplies hp6624 21 to 22 asru channels 5 to 6 supplies hp6624 17 to 18 asru channels 5 to 6
! supplies hp6621 21 asru channels 5 to 6 ! supplies hp6621 17 asru channels 5 to 6
supplies hp6634 21 asru channels 5 ! supplies hp6634 17 asru channels 5
supplies hp6634 22 asru channels 6 ! supplies hp6634 18 asru channels 6
! supplies hp6642 21 asru channels 5 to 6 ! supplies hp6642 17 asru channels 5 to 6
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 2-47
Chapter 2: MS Windows System Installation Reference: DUT Power Supplies
NOTE
The customer has the flexibility to modify the DUT power supply GPIB addressing.
Table 2-18 DUT power supply GPIB addresses and device files
Power Supply Connection GPIB Address Device File
Module 0, asru channels 1-4 22
$AGILENT3070_ROOT/dev/ps0
Module 1, asru channels 1-4 23
$AGILENT3070_ROOT/dev/ps1
Module 2, asru channels 1-4 24
$AGILENT3070_ROOT/dev/ps2
Module 3, asru channels 1-4 25
$AGILENT3070_ROOT/dev/ps3
Module 0, asru channel 5 or 5-6 26
$AGILENT3070_ROOT/dev/ps4
Module 0, asru channel 6 27
$AGILENT3070_ROOT/dev/ps5
Module 1, asru channel 5 or 5-6 28
$AGILENT3070_ROOT/dev/ps6
Module 1, asru channel 6 29
$AGILENT3070_ROOT/dev/ps7
Module 2, asru channel 5 or 5-6 1
$AGILENT3070_ROOT/dev/ps8
Module 2, asru channel 6 2
$AGILENT3070_ROOT/dev/ps9
Module 3, asru channel 5 or 5-6 3
$AGILENT3070_ROOT/dev/ps10
Module 3, asru channel 6 4
$AGILENT3070_ROOT/dev/ps11
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 2-48
Chapter 2: MS Windows System Installation Reference: DUT Power Supplies
To Change DUT Power Supply GPIB Addresses
For 307X systems only where the power supplies are mounted in a support bay:
• Open the support bay and find the correct power sup­ply.
Systems without support bays have the power supplies mounted in the testhead:
• Panels must be removed from the testhead in order to access the front panel of the power supplies.
To change the GPIB address, press ADDR (beside the display), enter the desired address on the ENTRY keypad, and then press ENTER on the ENTRY keypad.
NOTE
If a power supply is split between two modules, the default GPIB address (and device file) is the one for the lower-numbered module.
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 2-49
Chapter 2: MS Windows System Installation Reference: Controller Cables and Devices
Controller Cables and Devices
X2000 Controller
See:
Figure 2-2 on page 2-50
Table 2-19 on page 2-51
X2100 Controller
Figure 2-3 on page 2-53
Table 2-20 on page 2-54
IPC Controller
Figure 2-4 on page 2-56
Table 2-21 on page 2-57
© Agilent Technologies 2001–2003 Agilent 3070 System Installation Manual (MS Windows Version) 2-50
Chapter 2: MS Windows System Installation Reference: Controller Cables and Devices
Figure 2-2 x2000 controller cabling diagram
x2000.WPG
Strip
Printer
