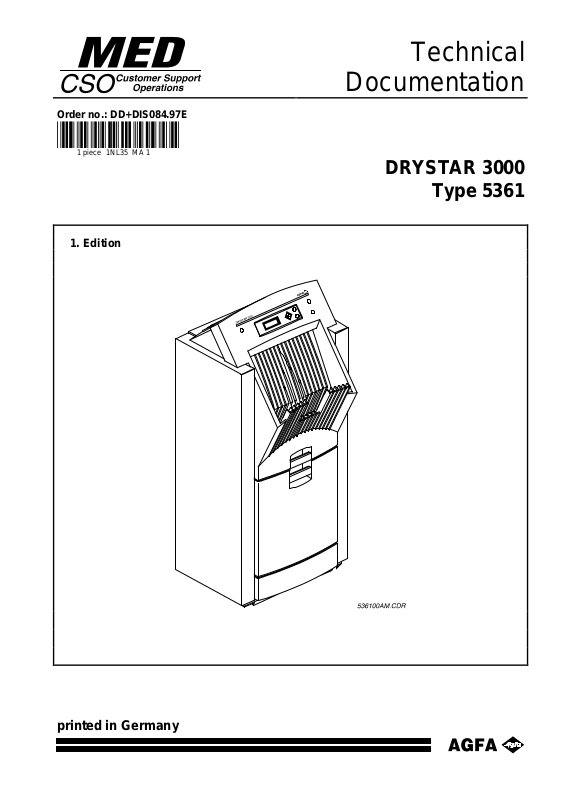

AGFA DRYSTAR 3000 Service Manual

Order no.: DD+DIS084.97E

*11NL351*

1 piece 1NL35 MA 1

1. Edition

Technical

Documentation

DRYSTAR 3000

Type 5361

printed in Germany

Overview

0. Order list

1. Pre-installation

2. Controls and Connectors

3. Installation

4. Operating instruction s

5. Theory of operation

6. Service and maintenance

7. Reference and Circuit Diagrams

8. Spare Parts List

9. Options

10. Modifications

11. Technical Modifications

12. Maintenance

13. Fieldservice Bulletins

14. Installation Planning

15. Glossary

HEALTHCARE

Imaging Services

Document No: DD+DIS238.06E

► Purpose of this Document

Generic Safety Directions
for HealthCare Imaging Products

This Generic Safety Directions document comprises the general safety relevant information including
relevant environmental and occupational safety instructions for the Service Engineer.

It is valid for all Agfa HealthCare Imaging Products and part of each Service Documentation as well as
Installation Planning document.
The latest version is available via MedNet, GSO Library path:
General Info => Agfa HealthCare => Publications => Service Manual

Generic Safety Directions

► Document History

Edition.

Revision

1.3 07-2009

Release

Date

Changes
compared to previous Revision 1.2:

• Updated table with laser classification to latest changes of the
corresponding standard. See section 3.3.

• Added section Environmental and occupational Safety Instructions.
See section 9.

• Added safety note concerning inroom installations of CR equipment
and corresponding X-ray shielding. See section 17.

• Added laser safety note and safety note concerning electrical checks
after repairs. See section 19.

• Added treatment for Lithium batteries in sections 19 and 21.

• Updated information concerning the recycling pass. See section 24.

► Referenced Documents

Document Title

Not applicable Not applicable

The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled.

Edition 1, Revision 3
07-2009 printed in Germany

Agfa Company Confidential

DOCUMENT CONTROL NOTE:

Document Node ID: 11849633

eq_generic_safety_directions_e_template_v01

Copyright © 2009 Agfa HealthCare N.V.

DD+DIS238.06E

► Manufacturer

Agfa HealthCare N.V.

Publisher

Agfa-Gevaert HealthCare GmbH
Tegernseer Landstraße 161
D - 81539 München
Germany

Copyright © 2009 Agfa HealthCare N.V.

All rights reserved.
Technical modifications reserved.

AGFA and the Agfa-Rhombus are trademarks of Agfa HealthCare N.V.

Generic Safety Directions

WARNING:
Improper operation or service activities may cause damage or injuries.

INSTRUCTION:

(1) Read the "Generic Safety Directions" document

(see MEDNET GSO => General Info => Agfa HealthCare => Publications =>
Service Manual) prior to attempting any operation, repair or maintenance task on the
equipment.

(2) Strictly observe all safety directions within the "Generic Safety Directions" and on

the product.

The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled.

Edition 1, Revision 3 Generic Safety Directions for HealthCare Imaging Products Page 2 of 28

07-2009 Agfa Company Confidential

DOCUMENT CONTROL NOTE:

DD+DIS238.06E

LIST OF CONTENTS

1

DISCLAIMER......................................................................................................... 5

2 USED ICONS ........................................................................................................ 6

3 LABELS .................................................................................................................7

4 PRODUCT COMPLAINTS .................................................................................. 10

Generic Safety Directions

3.1 CE Mark................................................................................................... 7

3.2 System Labels ......................................................................................... 7

3.3 System Labels concerning Laser Radiation ............................................ 8

5 REFERENCES .................................................................................................... 10

6 INTENDED USE.................................................................................................. 11

7 INTENDED USER ............................................................................................... 11

8 QUALIFICATIONS FOR OPERATION AND SERVICE TASKS.......................... 11

9 ENVIRONMENTAL AND OCCUPATIONAL SAFETY INSTRUCTIONS............. 12

10 CONNECTIONS TO OTHER EQUIPMENT ........................................................ 13

11 ACCESSORIES AND SPARE PARTS................................................................ 14

12 COMPLIANCE..................................................................................................... 14

13 SAFETY DIRECTIONS FOR OPERATION......................................................... 17

14 RADIATION PROTECTION ................................................................................ 18

15 SAFETY DIRECTIONS FOR CLEANING AND DISINFECTION......................... 18

16 GENERAL SAFETY DIRECTIONS FOR SERVICE ACTIVITIES ....................... 19

17 SAFETY DIRECTIONS FOR INSTALLATION PLANNING ACTIVITIES ............ 20

18 SAFETY DIRECTIONS FOR INSTALLATION ACTIVITIES................................ 22

19 SAFETY DIRECTIONS FOR MAINTENANCE AND REPAIR ACTIVITIES ........ 23

20 SAFETY DIRECTIONS FOR REMOTE SERVICE ACTIVITIES ......................... 26

The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled.

Edition 1, Revision 3 Generic Safety Directions for HealthCare Imaging Products Page 3 of 28

07-2009 Agfa Company Confidential

DOCUMENT CONTROL NOTE:

DD+DIS238.06E

21 SAFETY DIRECTIONS FOR TRANSPORT AND SHIPMENT OF SPARE

Generic Safety Directions

PARTS, ACCESSORIES AND DEVICES............................................................27

22

SAFETY DIRECTIONS CONCERNING MODIFICATIONS.................................27

23 SAFETY DIRECTIONS CONCERNING HAZARDOUS MATERIALS .................27

24 RECYCLING ........................................................................................................27

25 WASTE DISPOSAL .............................................................................................28

26 ERASING PROTECTED HEALTH INFORMATION (PHI) ...................................28

The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled.

Edition 1, Revision 3 Generic Safety Directions for HealthCare Imaging Products Page 4 of 28

07-2009 Agfa Company Confidential

DOCUMENT CONTROL NOTE:

DD+DIS238.06E

1 Disclaimer

The installation and service of equipment described herein is to be performed by qualified
personnel who are employed by Agfa HealthCare or one of its affiliates or who are
otherwise authorized by Agfa HealthCare or one of its affiliates to provide such services.

Fitters, engineers and other persons who are not employed by or otherwise directly
affiliated with or authorized by Agfa HealthCare or one of its affiliates are directed to
contact one of the local offices of Agfa HealthCare or one of its affiliates before attempting
installation or service procedures.

No part of this document may be reproduced, copied, adapted or transmitted in any form
or by any means without the written permission of Agfa HealthCare.

Agfa HealthCare makes no warranties or representation, expressed or implied, with
respect to the accuracy, completeness or usefulness of the information contained in this
document and specifically disclaims warranties of suitability for any particular purpose.

Agfa HealthCare shall under no circumstances be liable for any damage arising from the
use or inability to use any information, apparatus, method or process disclosed in this
document.

Agfa HealthCare is not liable for resulting consequences, damages or injuries if you don’t
operate the product correctly or if you don’t have it serviced correctly.

Agfa HealthCare reserves the right to change the product, the characteristics and its
documentation without further notice to improve reliability, function or design.

NOTE:

In the United States, Federal Law stipulates that medical devices should only be sold to,
distributed and used by or by order of a licensed physician.

Generic Safety Directions

The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled.

Edition 1, Revision 3 Generic Safety Directions for HealthCare Imaging Products Page 5 of 28

07-2009 Agfa Company Confidential

DOCUMENT CONTROL NOTE:

DD+DIS238.06E

2 Used Icons

Icon Name and Circumstances

Generic Safety Directions

CAUTION: Possible dangerous situation: Light injuries or
damage to the equipment described in the manual and/or
damage to any other equipment or goods and/or environmental
pollution can be the consequence.

WARNING: Dangerous situation: Potential serious injury to a
user, engineer, patient or any other person and possible
mistreatment of patients can be the consequence.

DANGER: Direct, immediate danger: Death or heavy injuries
can be the consequence.

INSTRUCTION:

If used in combination

with the warning or caution sign: Indicates
a specific instruction, which if followed exactly, avoids the
subject of the warning or caution.

If used without warning or caution sign: Indicates an instruction
where it is important to follow literally as described.

IMPORTANT:

Highlights very important actions which have to be carried out to
prevent malfunction.

NOTE:

Indicates advice to facilitate the following step or action.

Highlights unusual points.

Indicates background information.

Can be used to explain or highlight displays of the
graphical user interface.

Is additional information without influence on the action or step!

The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled.

Edition 1, Revision 3 Generic Safety Directions for HealthCare Imaging Products Page 6 of 28

07-2009 Agfa Company Confidential

DOCUMENT CONTROL NOTE:

_

DD+DIS238.06E

3 Labels

Generic Safety Directions

3.1

3.2

CE Mark

CE Mark

This product carries the CE Mark. The CE Declaration (CE Conformity)
becomes invalid if the product is changed without explicit consent of the
manufacturer! This applies to all parts, not only to safety elements.

System Labels

All system labels and software version number locations are referred to within this service
document in the appropriate section.

Enclosed an overview of common labels, according to ISO 3864.
This list is not complete.

Hot Surface

Obstacles

The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled.

Laser Beam

Corrosive Liquid

DOCUMENT CONTROL NOTE:

Magnetic Field

High Voltage

Ionizing Radiation

Hand Injuries

C&W

005.cdr

Edition 1, Revision 3 Generic Safety Directions for HealthCare Imaging Products Page 7 of 28

07-2009 Agfa Company Confidential

DD+DIS238.06E

Generic Safety Directions

3.3

System Labels concerning Laser Radiation

According to its classification, laser radiation can lead to eye and skin injuries.
Each laser source is classified from class 1 to class 4, based on standard
DIN EN 60825-1:2007.

The table below lists the meaning of the different laser classes. Note the detailed
instructions in the user manual and technical documentation.

Class # Meaning Example Label

Class 1:

Class 1 M:

Not dangerous to the human eye, even
when using optical instruments. Can
nevertheless produce irritating effects,
especially with low ambient light
conditions.

Not dangerous to the human eye if no
optical instruments (magnifying glass or
binocular) are used.
Can nevertheless produce irritating
effects, especially with low ambient light
conditions.

CLASS 1 LASER PRODUCT

LASER RADIATION

DO NOT VIEW DIRECTLY WITH

OPTICAL INSTRUMENTS

CLASS 1M LASER PRODUCT

Class 2:

Dangerous to the human eye for
intentional staring into the beam.
Not dangerous for short term exposure
< 0,25 seconds.
Using optical instruments does not
increase the risk of eye injury.

LASER RADIATION

Can even for short term exposure < 0,25
seconds produce dazzling and irritating
effects, especially with low ambient light

DO NOT STARE INTO BEAM

CLASS 2 LASER PRODUCT

conditions.

The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled.

DOCUMENT CONTROL NOTE:

Edition 1, Revision 3 Generic Safety Directions for HealthCare Imaging Products Page 8 of 28

07-2009 Agfa Company Confidential

DD+DIS238.06E

Class # Meaning Example Label

Generic Safety Directions

Class 2M:

Class 3R:

Dangerous to the human eye when
staring into the beam or when using
optical instruments (magnifying glass or
telescope). No hazard for short term
exposure < 0,25 seconds (aversion
response of the eye) without use of
optical instruments. Can produce
dazzling and irritating effects even for
short term exposure < 0,25 seconds,
especially at low ambient light conditions.

Possibly dangerous to the human eye for
direct view into the beam.
Risks of an eye injury is increasing with
duration of exposure.
Can produce dazzling and irritating
effects, especially with low ambient light
conditions.

LASER RADIATION

DO NOT STARE INTO THE BEAM

OR VIEW DIRECTLY WITH

OPTICAL INSTRUMENTS

CLASS 2M LASER PRODUCT

LASER RADIATION

AVOID DIRECT EYE EXPOSURE

CLASS 3R LASER PRODUCT

Class 3B:

Class 4:

The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled.

Normally dangerous to the human eye
for direct view into the beam.
Viewing diffuse reflections is normally not
dangerous.
Risk of small skin injuries or ignition of
explosive material if the power of the
laser beam is close to the upper limits of
class 3 B.

Dangerous to the human eye for direct
view into the beam or viewing diffuse
reflections.
Very often class 4 lasers also implicate a
fire hazard.

DOCUMENT CONTROL NOTE:

LASER RADIATION

AVOID EXPOSURE TO BEAM

CLASS 3B LASER PRODUCT

LASER RADIATION

AVOID EYE OR SKIN EXPOSURE

TO DIRECT OR SCATTERED

RADIATION

CLASS 4 LASER PRODUCT

Edition 1, Revision 3 Generic Safety Directions for HealthCare Imaging Products Page 9 of 28

07-2009 Agfa Company Confidential

DD+DIS238.06E

4 Product Complaints

Any service person who has any complaints or has experienced any dissatisfaction in the
quality, durability, reliability, safety, effectiveness or performance of this product must
notify Agfa HealthCare by the Agfa HealthCare complaint procedure.

If the product malfunctions and may have caused or contributed to a serious injury of a
patient or an accident or if there are any hazards which may cause an accident
Agfa HealthCare must be notified immediately by telephone, fax or written
correspondence to the following address:

Agfa Service Support - local support addresses and phone numbers listed on:
www.agfa.com

Agfa – Gevaert N.V.

Generic Safety Directions

Septestraat 27

2640 Mortsel, Belgium.

Fax [phone]

5 References

Technical Documentation is available via MedNet (PDF) and your local Agfa HealthCare
support organisation (Paper).

Access to MedNet:

IntraNet: http://docs.agfanet/bu/mi/mednet/mednetcso.nsf
ExtraNet: http://extranet.agfa.com/bu/mi/mednet/mednetcso.nsf

The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled.

Edition 1, Revision 3 Generic Safety Directions for HealthCare Imaging Products Page 10 of 28

07-2009 Agfa Company Confidential

DOCUMENT CONTROL NOTE:

DD+DIS238.06E

6 Intended Use

This Agfa HealthCare product should only be operated in a hospital or clinical radiological
environment by qualified staff.

It must only be operated according to its specifications and its intended use. Any
operation not corresponding to the specifications or intended use may result in hazards,
which in turn may lead to serious injuries or fatal accidents (for example electric shocks).
AGFA will not assume any liability whatsoever in these cases.

Make sure that the product is constantly monitored in order to avoid inappropriate
handling, especially by children.

The product must only be installed and put into operation under the specified conditions.

Generic Safety Directions

7 Intended User

This manual is written for Agfa trained Field Service Engineers and Clinical Application
Specialists, trained users of Agfa HealthCare products and trained diagnostic X–Ray
clinical personnel who have received proper training. Users are considered as the persons
who handle the equipment as well as the persons having authority over the equipment.

8 Qualifications for Operation and Service Tasks

This Technical Documentation describes adjustments and routines which must only to be
performed by qualified technical personnel.

The Agfa (trained) Field Service Engineers and Clinical Application Specialists must have
received adequate Agfa HealthCare training on the safe and effective use of the product
and applicable environmental and occupational safety matters before attempting to work
with it. Training requirements may vary from country to country.

Agfa (trained) Field Service Engineers and Clinical Application Specialists must make
sure that training is received in accordance with local laws or regulations that have the
force of law.

Your local Agfa HealthCare representative can provide further information on training.

The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled.

Edition 1, Revision 3 Generic Safety Directions for HealthCare Imaging Products Page 11 of 28

07-2009 Agfa Company Confidential

DOCUMENT CONTROL NOTE:

DD+DIS238.06E

Generic Safety Directions

9 Environmental and occupational Safety Instructions

Each Agfa (trained) Field Service Engineer and Clinical Application Specialist:

• Must make his or her personal contribution to improve safety and protect the

environment.

• When working on a customers site, has a duty to take reasonable care to avoid injury
to himself or herself or to others who may be affected by their acts or omissions.

• Is obligated to adhere strictly to regulations and instructions.

• Shall familiarise himself or herself with the provisions of the Agfa Healthcare

Health, Safety and Environment Policy and any specific rules or procedures relating to
occupational safety at work and the protection of the environment.

• Shall promptly report any near misses, accidents, incidents or dangerous occurrences
to their line manager and co-operate fully in any investigation.

• Shall co-operate with company management on matters relating to
health, safety and environment and, where appropriate, discuss with and / or assist
their manager in resolving matters relating to health, safety and environment.

• Shall ensure that any company equipment issued to them, or, for which they are
responsible, is correctly used and properly maintained.

• Shall wear protective equipment whenever instructed or if it is recommended to do so.

• Shall be responsible for good housekeeping in the area in which he or she is working.

• Shall report situations, which could put them at risk, on either company or

customers' premises, to their manager or supervisor; and, if warranted, directly and in
confidence, to the Health and Safety Co-ordinator, Global HSE Manager, or ultimately
to the Managing Director.

• Shall report any injuries, diseases or dangerous occurrences to his or her line
manager.

• Shall report any accidents, incidents or near misses to his or her line manager.

• Shall report any situation of which he or she is aware that is potentially dangerous.

• Shall comply with any health surveillance procedure instituted for his or her benefit or

for compliance with regulations.

The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled.

Edition 1, Revision 3 Generic Safety Directions for HealthCare Imaging Products Page 12 of 28

07-2009 Agfa Company Confidential

DOCUMENT CONTROL NOTE:

DD+DIS238.06E

10 Connections to other Equipment

Agfa HealthCare equipment must only be used in combination with other Agfa HealthCare
equipment or components if these are expressly recognized by Agfa HealthCare as
compatible. A list of such equipment and components is available from Agfa HealthCare
service on request.

Changes or additions to the equipment must only be carried out by persons authorized to
do so by Agfa HealthCare. Such changes must comply with best engineering practice and
all applicable laws and regulations that have the force of law within the jurisdiction of the
hospital.

The Agfa HealthCare products are designed to communicate with other devices in the
hospital network using DICOM protocols.

Generic Safety Directions

Connections to other equipment:

Warning:
Accessory equipment not complying with the safety requirements of this product

may lead to a safety hazard.

INSTRUCTION:

Consult the Technical Documentation before making any connections to other equipment.

Consideration relating to the choice of accessory equipment shall include:

• Use of the accessory equipment in the patient vicinity.

• Evidence that the safety certification of the accessory equipment has been performed

in accordance with the appropriate IEC 60601-1 and IEC 60601-1-1 harmonized
national standard.

In addition all configurations must comply with the medical electrical systems standard IEC
60601-1-1. The party that makes the connections acts as system Configurer and is
responsible for complying with the systems standard.

If required, contact your local service organization.

The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled.

Edition 1, Revision 3 Generic Safety Directions for HealthCare Imaging Products Page 13 of 28

07-2009 Agfa Company Confidential

DOCUMENT CONTROL NOTE:

DD+DIS238.06E

11 Accessories and Spare Parts

Parts and accessories replacement:

WARNING:

Hazards may be introduced because of component failure or improper operation.

INSTRUCTION:

• Replace defective parts with Agfa HealthCare original spare parts.

• Use only tools and measuring instruments which are suitable for the procedure.

• Only approved Agfa HealthCare accessories must be used. For a list of compatible

accessories contact your local Agfa HealthCare organization or www.agfa.com.

Generic Safety Directions

12 Compliance

Directive for HealthCare Imaging Products:

Council Directive 93/42/EEC of 14 June 1993 concerning medical devices
(OJ No L 169/1 of 1993-07-12)

• ANNEX I - ESSENTIAL REQUIREMENTS - GENERAL REQUIREMENTS The
products are designed and manufactured in such a way that, when used under the
conditions and for the purposes intended and, where applicable, by virtue of the
technical knowledge, experience, education or training of intended users, they will not
compromise the clinical condition or the safety of patients, or the safety and health of
users.

• ANNEX II - EC DECLARATION OF CONFORMITY: Full quality assurance system
ISO 13485

• ANNEX X - CLINICAL EVALUATION: The clinical evaluation follows a defined and
methodologically sound procedure.

The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled.

Edition 1, Revision 3 Generic Safety Directions for HealthCare Imaging Products Page 14 of 28

07-2009 Agfa Company Confidential

DOCUMENT CONTROL NOTE:

DD+DIS238.06E

Applied Standards for HealthCare Imaging Products

• IEC 60601-1, Ed. 3: Medical electrical equipment - Part 1: General requirements for

• ISO 14971:2000, Medical devices – Application of risk management to medical devices

• IEC 60601-1-2, It specifies the MANUFACTURER of the ME EQUIPMENT or ME

SYSTEM provides information to the RESPONSIBLE ORGANIZATION that is essential
in determining the suitability of the ME EQUIPMENT or ME SYSTEM for the
electromagnetic environment of use, and in managing the electromagnetic environment
of use to permit the ME EQUIPMENT or ME SYSTEM to maintain BASIC SAFETY and
provide its ESSENTIAL PERFORMANCE without disturbing other equipment.

Additional standards for documentation:

IEC 62079 Ed. 1: Preparation of instructions - Structuring, content and presentation

Harmonization:

Global Harmonization Task Force (GHTF) www.ghtf.org/

This document has been prepared to comply with Study Group 1 guidance document
of the Global Harmonization Task Force (GHTF) www.ghtf.org/
of a consistent, harmonized definition for a medical device that could be used within a
global regulatory model and would offer significant benefits to the manufacturer, user,
patient or consumer, and to Regulatory Authorities and support global convergence of
regulatory systems.

IECEE CB SCHEME

The IECEE CB (C
for acceptance of test reports dealing with the safety of electrical and electronic products.
It is a multilateral agreement among participating countries and certification organizations.
Agfa has produced a CB test report and claims national certification in all other member
countries of the CB Scheme.

Details see www.iecee.org

Generic Safety Directions

basic safety and essential performance

to assist development

ertification Body) Scheme is the world's first truly international system

The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled.

Edition 1, Revision 3 Generic Safety Directions for HealthCare Imaging Products Page 15 of 28

07-2009 Agfa Company Confidential

DOCUMENT CONTROL NOTE:

DD+DIS238.06E

Radiation of radio frequency:

CAUTION: For USA only:
This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the service manual, may cause interference
to radio communication.

Note:

This product has been tested and found to comply with the limits for a Class A
computing device pursuant to Subpart B of Part 15 of FCC Rules, which are designed to
provide reasonable protection against such interference when operated in a commercial
environment.

Generic Safety Directions

Operation of this equipment in a residential area is likely to cause interference.

The user will be required to take all necessary measures to correct the interference at
his own expense.

The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled.

Edition 1, Revision 3 Generic Safety Directions for HealthCare Imaging Products Page 16 of 28

07-2009 Agfa Company Confidential

DOCUMENT CONTROL NOTE:

DD+DIS238.06E

13 Safety Directions for Operation

Accessibility of the mains power switch:

CAUTION:
Do not obstruct the mains power switch.

Position the Agfa HealthCare product so that it is possible to disconnect the mains power

connection.

• Under certain conditions the Agfa HealthCare product will show a display containing a

message. This message will show that either a problem or action has occurred or that
a requested action is required or cannot be performed. The user must read these
messages carefully they will provide information on what to do. This will be either
performing an action to resolve the problem or to contact the Agfa HealthCare
service organization. Details on the contents of messages can be found in this

Technical Documentation.

• All images created using any image technology can show artifacts which could be

confused with diagnostic information. If there is any doubt that the diagnostic
information could be corrupted, additional investigations must be performed to get

clear diagnostic information.

• Ventilation openings must not be covered.

• If you notice conspicuous noise or smoke, disconnect the product immediately from

the mains.

• Do not pour water or any other liquid over the device.

• If a system malfunction causes an emergency situation involving the patient, operating

personnel or any system component, activate the emergency stop for the system
concerned. All motor driven system movements will be stopped.

• Do not store any magnetic media near or on devices, which produce magnetic fields,

since stored data may be lost.

Generic Safety Directions

Explosive environment:

DANGER:
Risk of explosion.

Never operate this device in zones where there are flammable anesthetics or oxygen which
may cause an explosion.

The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled.

Edition 1, Revision 3 Generic Safety Directions for HealthCare Imaging Products Page 17 of 28

07-2009 Agfa Company Confidential

DOCUMENT CONTROL NOTE:

DD+DIS238.06E

Usage of an un-interruptible power supply:

Warning:
Images can be lost due to power failure.

Connect the equipment to an un-interruptible power supply (UPS) or an institutional
standby generator.

14 Radiation Protection

Only qualified and authorized personnel shall operate any X-Ray system. In this context
qualified means those legally permitted to operate this X-Ray equipment in the jurisdiction
in which the X-Ray equipment is being used, and authorized means those authorized by
the authority controlling the use of the X-Ray equipment. Full use must be made of all
radiation protection features, devices, systems, procedures and accessories.

Ionizing radiation can lead to radiation injuries if handled incorrectly. When radiation is
applied, the required protective measures must be complied with.

Generic Safety Directions

15 Safety Directions for Cleaning and Disinfection

• Details about cleaning and disinfection or sterilization methods that may be used on
SYSTEM parts or ACCESSORIES that can become contaminated through contact
with the PATIENT or with body fluids, are referred to within the individual service
documents.

• Disconnect the power supply from the equipment prior to cleaning the equipment.

The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled.

DOCUMENT CONTROL NOTE:

Edition 1, Revision 3 Generic Safety Directions for HealthCare Imaging Products Page 18 of 28

07-2009 Agfa Company Confidential

DD+DIS238.06E

Generic Safety Directions

16 General Safety Directions for Service Activities

• This system uses high voltage. Please consider the respective safety regulations.

• Electrical repairs and connections must only be performed by a qualified electrician.

• Mechanical repairs and connections must only be performed by a qualified technician.

• The safety directions for operation (see section 13) are also valid for all service

activities.

• During all service activities observe prescribed local and country-specific

requirements (e.g. occupational safety and accident prevention regulations).

• All existing screw connections must be tightened sufficiently firmly, but they may not

be overstressed when tightening. There must always be compliance with stated
torque values!

• Damaged or missing screws may be replaced only with the same screw types that

have the specified hardness rating. Unless a different value is listed in the
instructions, all Allen screws used must be hardness rated 8.8.

• All screws must be secured in accordance with the corresponding data.

If "Loctite" has to be used to secure screws, this is stated in the text.

• Any Agfa service PC or tool which is to be connected via RS232, RJ45, USB or other

interface to an Agfa device must not be connected to the mains but must be operated
on its internal battery or indirect supply (low voltage).

• When handling printed circuit boards (abbr.: PCBs) the following points must be
observed:

o Always switch off the equipment and unplug the power cord, before you

disconnect or connect cables on printed circuit boards.

o When working on PCBs, always wear an anti-static wrist strap. Never touch any

parts or components on PCBs with your bare fingers.

o PCBs have to be kept or transported in their protection bags. Never carry a

PCB without protection bag and walk on carpet or plastic floor covering
(electrostatic charge).

o Once the PCB is taken out of its protection bag, it has to be protected from

electrostatic charge by a grounded mat.

Static discharge at electrical components:

CAUTION:
Static discharge! Electrical components may be destroyed:

For the repair on electrical components, wear a grounding strap
(Order number: CM+9 9999 0830 0) around the wrist and connect the other end of this

strap on a grounded conducting metal piece.

The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled.

Edition 1, Revision 3 Generic Safety Directions for HealthCare Imaging Products Page 19 of 28

07-2009 Agfa Company Confidential

DOCUMENT CONTROL NOTE:

DD+DIS238.06E

Generic Safety Directions

17 Safety Directions for Installation Planning Activities

Protecting CR (Computed Radiography) Equipment against scattered X-Rays:

Warning:
Image plate is sensitive for X-rays. Poor image quality possible.

The digitizer and the cassette storage shall be protected against X-ray radiation this way,
that the annual dose equivalent at the installation place will not exceed 1 mSv.

Protecting Film-Screen Systems against scattered X-Rays:

Warning:
Film is sensitive for X-rays. Poor image quality possible.

The film-screen system shall be protected against X-ray radiation this way, that the annual
dose equivalent at the installation place will not exceed 1 mSv.

Accessibility of the power disconnection device:

Warning:
Electrical device. Shock possible.

INSTRUCTION:

• Do not position Agfa EQUIPMENT so it is difficult to operate the disconnection device
when an APPLIANCE COUPLER or separable plug is used as isolation.

• Local and International wiring regulations must be observed. Check all supplies and
voltages, currents, trips and fuses with the Hospital facilities department or their
engineers.

The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled.

Edition 1, Revision 3 Generic Safety Directions for HealthCare Imaging Products Page 20 of 28

07-2009 Agfa Company Confidential

DOCUMENT CONTROL NOTE:

DD+DIS238.06E

• The device complies with the EN 60601-1, 2006 standard for Information Technology.
This means that, although it is absolutely safe, patients may not come in direct contact
with the equipment. Therefore the operator console must be placed outside a radius
of 1.5 m around the patient.

• This device should be installed behind the institution firewall for network security and
anti-virus protection. No ongoing computer virus protection or network security for this
medical device is provided (e.g. a computer firewall). Network security and anti-virus
provisions are the ongoing responsibility of the user or institution.

Generic Safety Directions

R = 1.5m

1.5m

1.5m

Patient environment

Fixing equipment at the wall or floor:

Warning:
Unknown composition of wall or floor structure: Risk of injury or damage:

Hospital management is responsible for the position, location and fixing of all equipment.

Floor load:

CAUTION:
Heavy device may damage the floor covering.

Make sure that the floor covering is solid enough to stand the weight of the device.

Fixing equipment at the ceiling:

CAUTION:
Ceiling construction may be inadequate for fixing of equipment: Risk of injury or

damage:

Hospital management is responsible for the position, location and fixing of all equipment.

The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled.

Edition 1, Revision 3 Generic Safety Directions for HealthCare Imaging Products Page 21 of 28

07-2009 Agfa Company Confidential

DOCUMENT CONTROL NOTE:

DD+DIS238.06E

18 Safety Directions for Installation Activities

• If not otherwise stated, installation and configuration is performed by Agfa HealthCare
trained personnel.

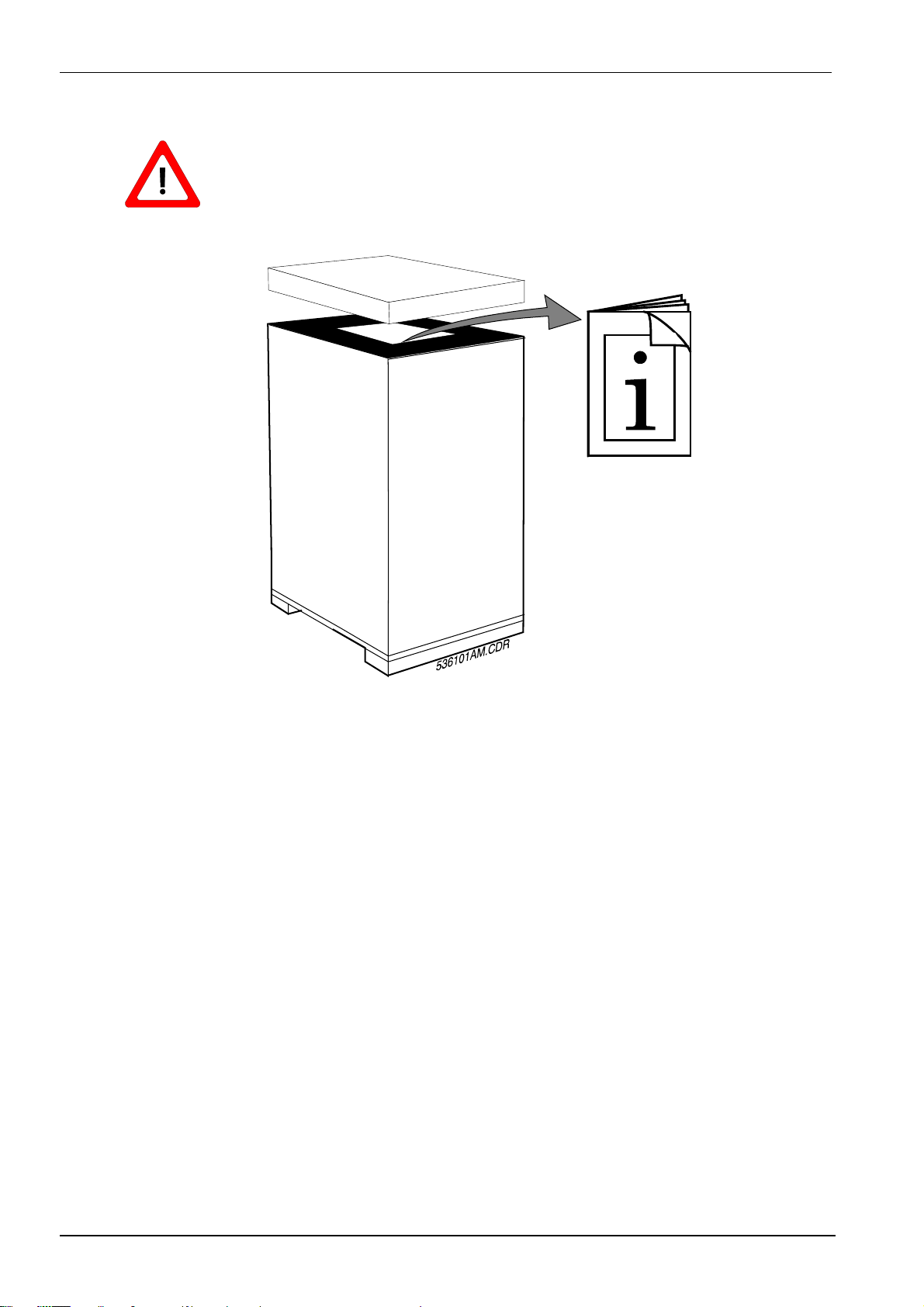

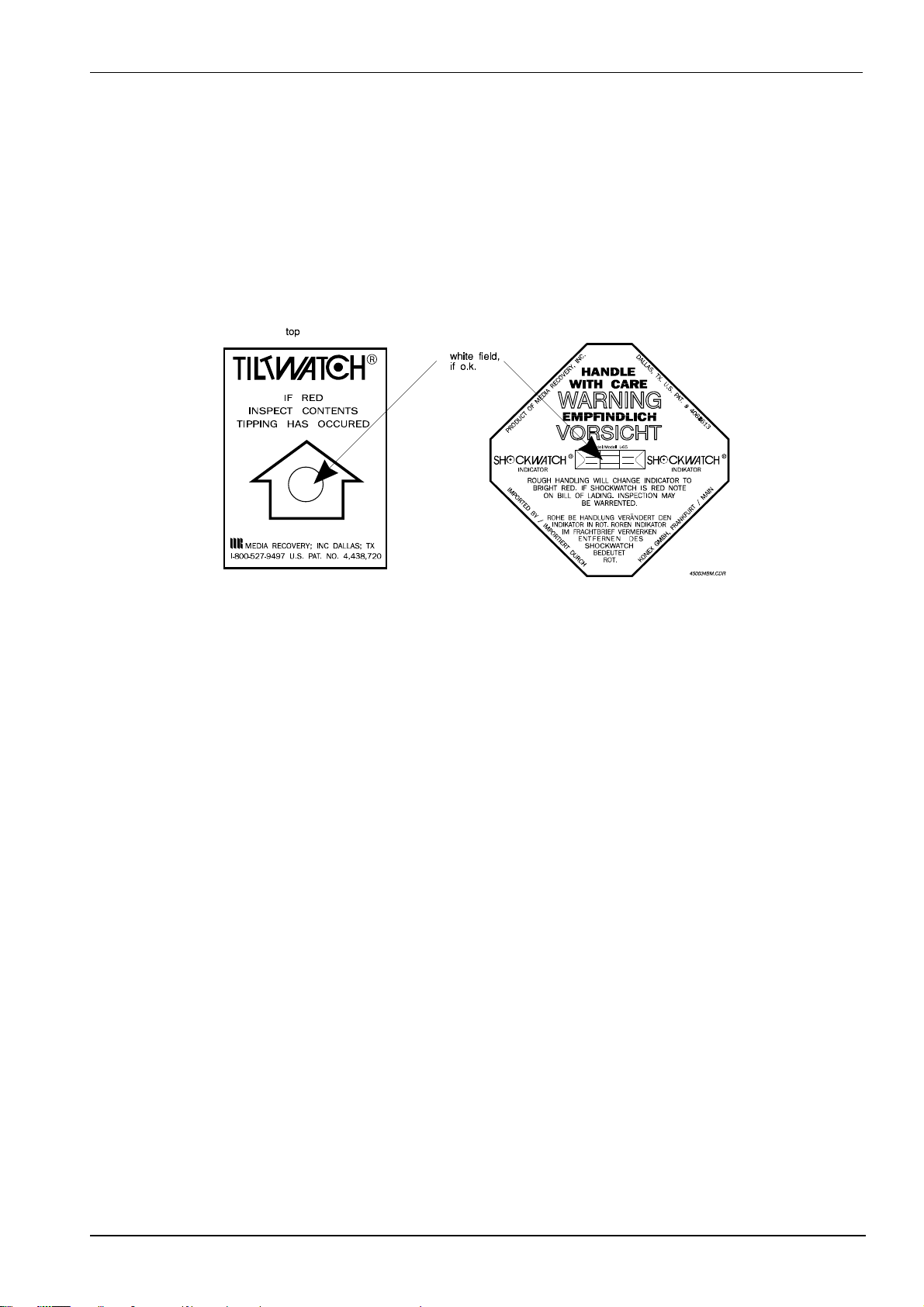

• If damage of the package is visible from the outside contact your local AGFA
representative.

• Apart from wearing the required protective clothing, e.g. safety boots and gloves, care
must be taken that heavy loads are correctly lifted/carried to avoid injury. The relevant
instructions must be complied with. Heavy or awkward loads must be moved by
mechanical means or by several people.

• When installing the product be sure that there is either a mains plug or an all-cable
disconnecting device in the internal installation fitted near the product and that it is
easily accessible.

• Defective covers, sharp edges or protruding parts of equipment can cause injuries, if
accidentally knocked into. Route cables and position equipment safely.

• This device should be installed behind the institution firewall for network security and
anti-virus protection. No ongoing computer virus protection or network security for this
medical device is provided (e.g., a computer firewall). Network security and anti-virus
provisions are the ongoing responsibility of the user or institution.

Generic Safety Directions

Connection of the device to the power supply:

CAUTION:
Risk of damaging the device by using the wrong power supply:

INSTRUCTION:

Prior to connecting the device to the mains:

• Compare the power requirements indicated on the type label with the available
power supply in the installation room.

• Check the service manual for the type of input voltage selection, manual or
automatic: If manual, select the appropriate voltage and fuses.

• Confirm to use the correct socket and plug for the required power supply.

• Check the equipment will work with the power supply available.

The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled.

Edition 1, Revision 3 Generic Safety Directions for HealthCare Imaging Products Page 22 of 28

07-2009 Agfa Company Confidential

DOCUMENT CONTROL NOTE:

DD+DIS238.06E

Ground potential differences:

CAUTION:
To comply with ISO 60601-1 (annex I) all computers and peripherals must be

connected to the same power source.

INSTRUCTION:

• Always connect the associated monitor to the same Uninterruptible Power Source as

• When different combinations of equipment are used in various medical environments

Generic Safety Directions

the PC.

a potential difference (V) can exist between the protective earths in different localities.
If the protective earthing fails this potential difference can cause a HAZARD for the
OPERATOR or for the PATIENT.

19 Safety Directions for Maintenance and Repair Activities

• This Technical Documentation identifies the parts on which preventive inspection and
maintenance shall be performed by Agfa HealthCare service personnel, including the
periods to be applied.

• In general the device has to be switched off during service activities. Exception: If the
device is switched on to perform tests pay particular attention to any hazards due to
moving and rotating parts. Avoid lose clothing or finger traps. Switch off the device
immediately after the tests.

• Do not turn motors manually. If required, first disconnect the motor from the motor
control board.

• Make sure that the power cord does not show any signs of damage.

• After repair work always check that the integrated safety features are not overridden

or disconnected.

• If there is any visible damage to the machine casing do not hand-over the product to
the customer. First repair the machine casing.

The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled.

Edition 1, Revision 3 Generic Safety Directions for HealthCare Imaging Products Page 23 of 28

07-2009 Agfa Company Confidential

DOCUMENT CONTROL NOTE:

DD+DIS238.06E

Replacing batteries:

WARNING:
Battery can explode, causing chemical burns.

INSTRUCTION:

• Check that batteries are inserted with correct polarity.

• Only use batteries of the same type or an equivalent type as specified by the

manufacturer.

• Dispose of empty batteries in compliance with the specifications of the manufacturer.

• When removing lithium batteries from the equipment take appropriate measures to

avoid short circuit of the battery:
Either use tape to cover the two poles of the battery or put the battery back in its
original packing and secure the packing by tape.

Generic Safety Directions

Performing the electrical test according to national regulations:

WARNING:

Improper ground connections inside the device or too high leakage current may lead to

electric shocks.

• After any work at the power supply or at any component connected to mains voltage
inform the responsible organization

1

about the necessity of the electrical test
according to national regulations.
If specific national regulations do not exist: It is recommended to perform the
electrical test according to IEC 62353.

• Make sure, that all grounding connections to metallic covers and all grounding
connections inside the device are present.

NOTE:
On MedNet, GSO Library path "General Info => Agfa HealthCare => Publications =>

Service Manual" a form “IEC 62353:2007 Test Documentation” for CR Digitizers is
available, to be handed out to the responsible organization (Intranet Link

/ Extranet Link).

1

Responsible Organization:

Entity accountable for the use and maintenance of a medical equipment or a medical equipment system. The
accountable entity can be, for example, a hospital or an individual clinician.

The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled.

Edition 1, Revision 3 Generic Safety Directions for HealthCare Imaging Products Page 24 of 28

07-2009 Agfa Company Confidential

DOCUMENT CONTROL NOTE:

DD+DIS238.06E

Performing service activities at devices emitting laser radiation:

WARNING:
Laser radiation. Eye injury possible.

INSTRUCTION:

• Strictly observe the warning notes in the service manual of devices emitting laser

• Strictly observe the warning labels at the modules emitting laser light. For the

• Do not look into the laser beam.

Generic Safety Directions

radiation (See service manual chapter describing Safety Guidelines / General
Repair Instructions) and at the corresponding steps of instructions.

meaning of the labels refer to section 3.3 in this document.

• Do not open modules containing a laser. Only open modules containing a laser if
explicitly instructed to do so.

• Do not keep tools in the laser beam unless explicitly instructed to do so.

• Make yourself familiar with the path of the laser light and the conditions, when the

laser beam is switched on. Refer to the Functional Description in the
corresponding service manual.

• Do not operate modules with laser outside the device.

Sharp edges:

CAUTION:
Sharp edges inside the device: Cut or abrasion possible.

Be careful at maintenance and replacement of parts.

Cleaning optical elements:

CAUTION:
Image artifacts possible after cleaning optical elements.

When cleaning optical elements follow the service manual precisely.

The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled.

Edition 1, Revision 3 Generic Safety Directions for HealthCare Imaging Products Page 25 of 28

07-2009 Agfa Company Confidential

DOCUMENT CONTROL NOTE:

DD+DIS238.06E

Secured screws:

CAUTION:
Opening screws secured by red lacquer may misalign important device

adjustments:

Do not open screws that are secured by red lacquer.

Opening PCs and Workstations:

Warning:
Electrical shock and damage to the equipment possible.

• Only open the PC or workstation if explicitly stated in the service manual.

Generic Safety Directions

• Unplug before opening.

• Observe anti-static safety regulations.

Replacing fuses:

Warning:
Replacing fuses by wrong type may lead to fire hazard!

Use only fuses of the exact value and characteristics stated in the service manual or on
the device.

20 Safety Directions for remote Service Activities

Remote Service Activities:

Warning:
During remote service activities images can be lost.

Inform the customer prior to remote service activities to finish the current work and to
stop working on the system.

The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled.

Edition 1, Revision 3 Generic Safety Directions for HealthCare Imaging Products Page 26 of 28

07-2009 Agfa Company Confidential

DOCUMENT CONTROL NOTE:

DD+DIS238.06E

Generic Safety Directions

21 Safety Directions for Transport and Shipment of Spare Parts,

Accessories and Devices

• In compliance with transport regulations, all uninterruptible power supplies (UPS)

must be shipped with batteries disconnected.

• Use the original packing when returning spare parts, accessories or devices.

• Before returning any spare part with a built in lithium battery remove it and dispose the

batteries locally according to local waste regulations.

22 Safety Directions concerning Modifications

Modifications made in products/systems shipped by Agfa HealthCare must not be
implemented without written permission from Agfa HealthCare.

This applies in particular to changes which may affect the mechanical and/or electrical
safety or radiation-protection properties of a product (e.g. changing of safety distances,

removal of locks/instructions etc.).

23 Safety Directions concerning Hazardous Materials

'Hazardous materials' is the designation for substances which can ignite or explode or
which are toxic, injurious to health, corrosive or irritating. The “Hazardous Material”
instructions must be read and the required protective measures must be complied with
when performing work to avoid health risks.

Their properties together with the hazards and protective measures connected with them
are identified clearly by symbols and described by the instructions appertaining to the
hazardous substances.

24 Recycling

Agfa HealthCare has Recycling Passports available for all equipment. The Recycling
Passport explains whether hazardous materials, special components and batteries are
present, where they are located and how they can be removed at the end of the life cycle.

The Recycling Passports are meant to be used as information for waste treatment
partners and companies that want to recycle end-of-life Agfa equipment.

To get a copy of the required Agfa HealthCare Recycling Passport please contact your
local Sales organization.

The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled.

Edition 1, Revision 3 Generic Safety Directions for HealthCare Imaging Products Page 27 of 28

07-2009 Agfa Company Confidential

DOCUMENT CONTROL NOTE:

DD+DIS238.06E

25 Waste Disposal

On August 13, 2005, the European Directive on Waste Electrical and
Electronic Equipment (WEEE) 2002/96/EC, amended by Directive
2003/108/EC, came into force.

The directive on Waste Electrical and Electronic Equipment (WEEE) aims to
prevent the generation of electric and electronic waste and to promote the
reuse, recycling and other forms of recovery. It therefore requires the collection
of WEEE, recovery and reuse or recycling.
This directive has to be implemented into national law by the individual
European countries by August 13

Due to the implementation into national law, specific requirements can be
different within the European Member States.

th

2005.

Generic Safety Directions

This symbol on the product, or in the manual and in the warranty, and / or on
its packaging indicates that this product shall not be treated as household
waste.

For more detailed information about take-back and recycling of this product,
please contact your local Agfa service organization. By ensuring this product is
disposed of correctly, you will help prevent potential negative consequences
for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. The recycling of materials will
help to conserve natural resources.
If your equipment or replaced spare parts contain batteries or accumulators
please dispose of these separately according to local regulations.

26 Erasing Protected Health Information (PHI)

AGFA HealthCare Field Service Personnel or its authorized affiliates are responsible for
the removal of Protected Health Information (PHI) patient data from devices, modules or
parts that are removed from the customer’s site. This also applies to the exchange of
spare parts, especially to parts that are returned to central warehouses for repair or
refurbishing. Examples for parts or modules that may contain Protected Health
Information (PHI) are: Computer hard disks, CD-ROMS, backup tapes, archive tapes.

The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled.

Edition 1, Revision 3 Generic Safety Directions for HealthCare Imaging Products Page 28 of 28

07-2009 Agfa Company Confidential

DOCUMENT CONTROL NOTE:

DD+DIS084.97E Pre-installation

Section 1

List of contents

1 INSPECTION OF PACKING.......................................................................... 1

2 UNPACKING INSTRUCTIONS...................................................................... 2

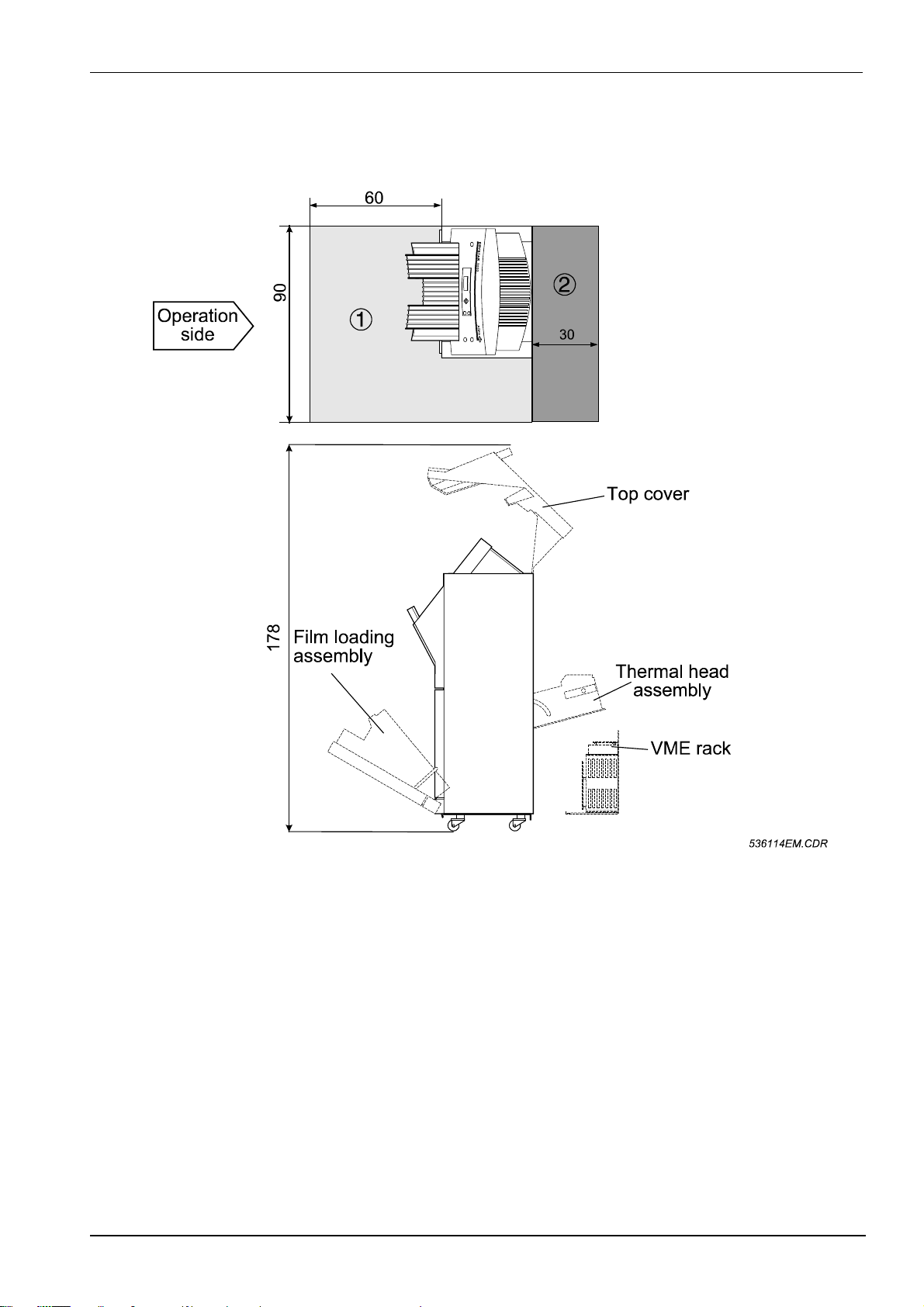

3 SPACE REQUIREMENTS............................................................................. 3

4 CHECKING THE ACCESSORY KIT.............................................................. 4

5 SPECIFICATIONS......................................................................................... 5

5.1 Environmental requirements..........................................................................................5

5.2 Dimensions and weight.................................................................................................. 5

5.3 Power requirements........................................................................................................ 6

5.4 Interface requirements ...................................................................................................6

6 AGENCY APPROVALS................................................................................. 7

01/28/98 DRYSTAR 3000 Section 1 / I

DD+DIS084.97E Pre-installation

1 INSPECTION OF PACKING

Upon arrival, check inventory with the carrier.

• Inspect the packing material for obvious sig ns of damage such as crushed, punctured,
torn, broken, wet or ratt ling packages.

• Check the safety indicators on the machine pack ing.
The machine packing is provided with a "TILTWAT CH" indicat o r and a " SHO CKWATCH"
indicator. They are attached to the out side of the packing material and indicat e, if the
printer has been tilted, turned upside down or exposed to shocks dur ing transport.

Figure 1

If the machine was tilted, the cir cle in
the arrow head of the TILTWATCH
indicator changes from white to red.

If the machine was subjected to shocks the
square field in the middle of t he "SHOCK­WATCH" indicator changes from white to
red.

• If damage is not evident, sign and stam p the bill of loading: conditions of cont ent unknown

- subject to inspection

• If damage is evident, contact your Purchasing Depar tment for action, have the carrier
indicate the damage on the fr eight bill, and sign all copies of the consig nm ent.

During formal inspection, you should:

• Open all packages within 15 days of receipt for a complet e inspection of the consignment.

• Report concealed damage to the carrier within 15 days of receipt or the carrier may not

accept liability.

01/28/98 DRYSTAR 3000 Section 1 / 1

Pre-installation DD+DIS084.97E

2 UNPACKING INSTRUCTIONS

For unpacking refer to the unpacking instructions, enclosed i nsi de t he
packing, as shown in fi gure 2 bel ow !

Figure 2

Section 1 / 2 DRYSTAR 3000 01/28/98

DD+DIS084.97E Pre-installation

3 SPACE REQUIREMENTS

For easy access, it is recommended to respect the f ree space around the unit as shown in the
diagrams below.

Figure 3

Minimum space requirements for operation and servicing

01/28/98 DRYSTAR 3000 Section 1 / 3

Pre-installation DD+DIS084.97E

Figure 4

Optimum space requirements for servicing

4 CHECKING THE ACCESSORY KIT

Compare the inventory of the accessory kit with the pack ing list. The packing list att ached to
the shipping carton specifies the exact contents of your accessory kit.

Section 1 / 4 DRYSTAR 3000 01/28/98

DD+DIS084.97E Pre-installation

5 SPECIFICATIONS

5.1 Environmental requirements

You should install the printer in a location where the operating condit ions ar e within the lim it s
specified below.

Conditions Temperature Relative Humidity Air Pressure

Operating

Storage

Working-Mode Noise level Heat emission Max. permi ssi ble magn.

Standby
Printing

Throughput Film formats Film loading assembly

50 films (14 x 17") per hour on
an average

Dust (suspension) 0,2 mg/m³

Dust (sedimentation) 1,5 mg/(m²h)

+10° C to +35° C 10% - 80% 70 kPa to 106 kPa

-25° C to +55° C 10% - 100% 70 kPa to 106 kPa

field in the room

45 dB (A) max. 200 W 30 Gauss
55 dB (A) max. 650 W 30 Gauss

capacity

14 x 11"

14 x14"
14 x17"

100

5.2 Dimensions and weight

Dimensions

Printer With packing Without packing

Length (cm) 89,3 57
Width (cm ) 72,4 60
Height (cm) 160 134

Weight

Printer Floor load

With pack ing (kg) 160 58,4 N/cm² per area
Without packing (kg) 125 58,4 N/cm² per area

01/28/98 DRYSTAR 3000 Section 1 / 5

Pre-installation DD+DIS084.97E

5.3 Power requirements

Ensure that adequate AC input is available. The printer’s power requirements are stated on
the serial number identifying label located on the rear panel. A grounded AC outlet, according
to one of the specifications list ed below, should be provided in the dir ect environm ent of the
printer.

Printer Drystar 3000 5361/100 Tolerance

Frequency (Hz) 50 60
Power input 3 wire (safety ground) single phase
Nominal voltage (V AC) 110 - 120 V AC 110 - 120 V AC +5% / - 5% of

rated voltage

Power consumption (W)

Standby:
Printing:

Fuses

Power supply (A):
Decurling unit (A):

15 A f (fixed fuse)

270
700

2 x 8 A ff

Leakage current < 3.5 mA

Protective conductor < 0.12 W to

5.4 Interface requirements

Depending on the printer configuration, the appropriate video input signal or net work
connection is to be provided prior to installation as shown in the table below:

Signal Printer configuration

Ethernet network node with Ethernet interface
Analog RGB or B/W video with analog video interface (VSI and SWB II)
Digital with MFRI interface

to protective ground

protective ground

< 3.5 mA

to protective ground

< 0.12 W to pr ot ect ive

ground

Section 1 / 6 DRYSTAR 3000 01/28/98

DD+DIS084.97E Pre-installation

6 AGENCY APPROVALS

The printer has been tested and f ound t o comply with the following international standards
and regulations:

Safety standards:

• TÜV approval according to: IEC 601-1, IEC 601-1- 1, VDE 0750 Par t 1 (12.91):
Medical electrical equipment - General requir em ents for safety (Germany)

• UL approval according to: UL 2601-1:
Medical electrical equipment (USA)

• C-UL approval according to: CSA 22.2 No. 601.1 M90:
Medical electrical equipment (Canada)

Radio-interference regulations (interf erence suppression):

• FCC rules 47 CFR-part 15-subpart B, class A. (emission r ules - USA)

• EN60601-1-2 (1993)

• EN55011 class A; emission

• EN61000-3-3; Flicker, short term flicker PST<=1,0

• §N61000-3-2; Harmonic class A

USA regulations:

• FDA 510k requirements

• FDA par t 820 Good Manufacturing Practice for Medical Devices requirements

01/28/98 DRYSTAR 3000 Section 1 / 7

DD+DIS084.97E Controls and connectors

Section 2

List of contents

1 LOCAL KEYPAD........................................................................................... 1

2 REAR PANEL................................................................................................ 2

3 VIDEO CONNECTION................................................................................... 3

4 NETWORK CONNECTION............................................................................ 4

5 EXTERNAL KEYPAD.................................................................................... 5

6 JAM CLEARANCE BUTTON......................................................................... 6

01/28/98 DRYSTAR 3000 Section 2 / I

DD+DIS084.97E Controls and connectors

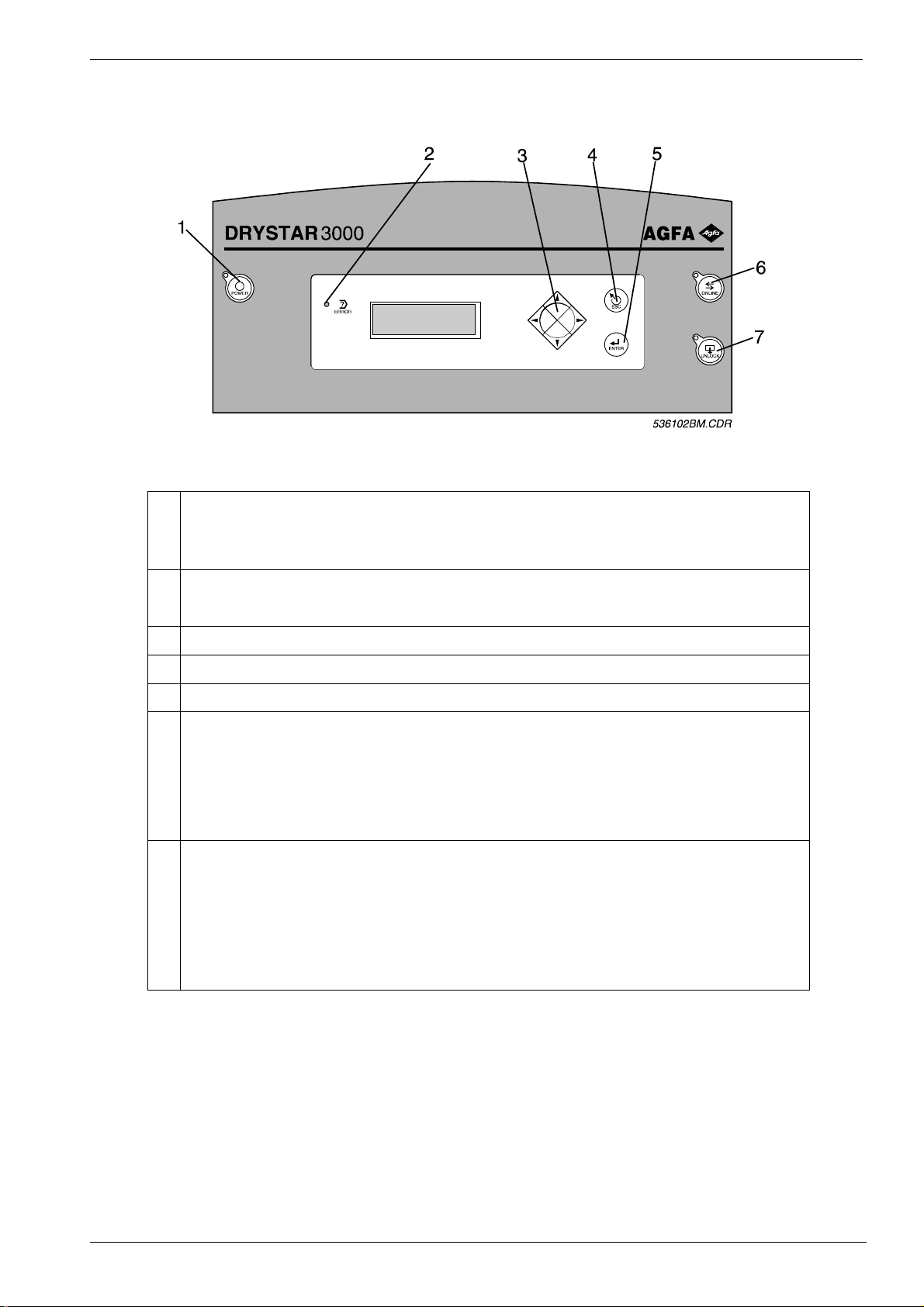

1 LOCAL KEYPAD

Figure 1

1 Power key, switches the printer on and off.

A delay circuit prevents the printer from voltage peaks. It may take up to 3 sec.
between switch-on and start-up of the printer .

2 Error LED, lights up when an error occurs.

Depending on the severity of the error a beeper is switched on, t oo.
3 Cursor key, to enter the local mode and scroll through the display screens.
4 ESC key, to leave the current display without saving.
5 ENTER key, to confirm the selection in the local keypad display.
6 ONLINE key, to switch the printer online or offline. The LED lights up if the

printer is online.

Online means, the printer is prepared to acquire diagnostic images.

Offline means, the printer cannot acquire diag nost ic im ages. Printing testimages

is possible however.
7 UNLOCK key, to open the front door. The LED lights up if the front door is open.

By pressing the unlock-key, the lock ing solenoid releases the two lids (front and

top - cover) for about 3 sec.

Note: In case the machine is switched off , the unlock key is disabled. Use a

screwdriver instead to open the lid. Refer to t he oper at ion instructions for more

information.

01/28/98 DRYSTAR 3000 Sect ion 2 / 1

Controls and connectors DD+DIS084.97E

2 REAR PANEL

1

4

3

5

2

6

7

8

15

9

10

14

Figure 2, Example

13

12

11

536102AM.CDR

1

External Keypad Connectors, see page 5.

2*

Network Connection ( 10B2, Twisted pair, MAU), see page 4.

3*

Video Connection. See page 3.

4*

Video external Sync. See page 3.

5*

Video Sync Selection Receiver. See page 3.

6

Floppy drive To read and write 3,5“ DOS formatt ed floppies.

7*

RS232 or RS422 control port, optional. Used for host control connection.
8*
9*

10

Interground Bolt To be connected to the host device if necessar y. See sect ion 6. 1.
11

Service Port. RS232 (Sub-D 25 pin female) Connector for service PC.
12

Decurl Fuse Holder. It keeps two fuses for the decurl unit heater.
13

Mains Connector

14

Supplementary protective earth connector

15*

Connector plate for MFRI. 37 pin interface connector.

* optional

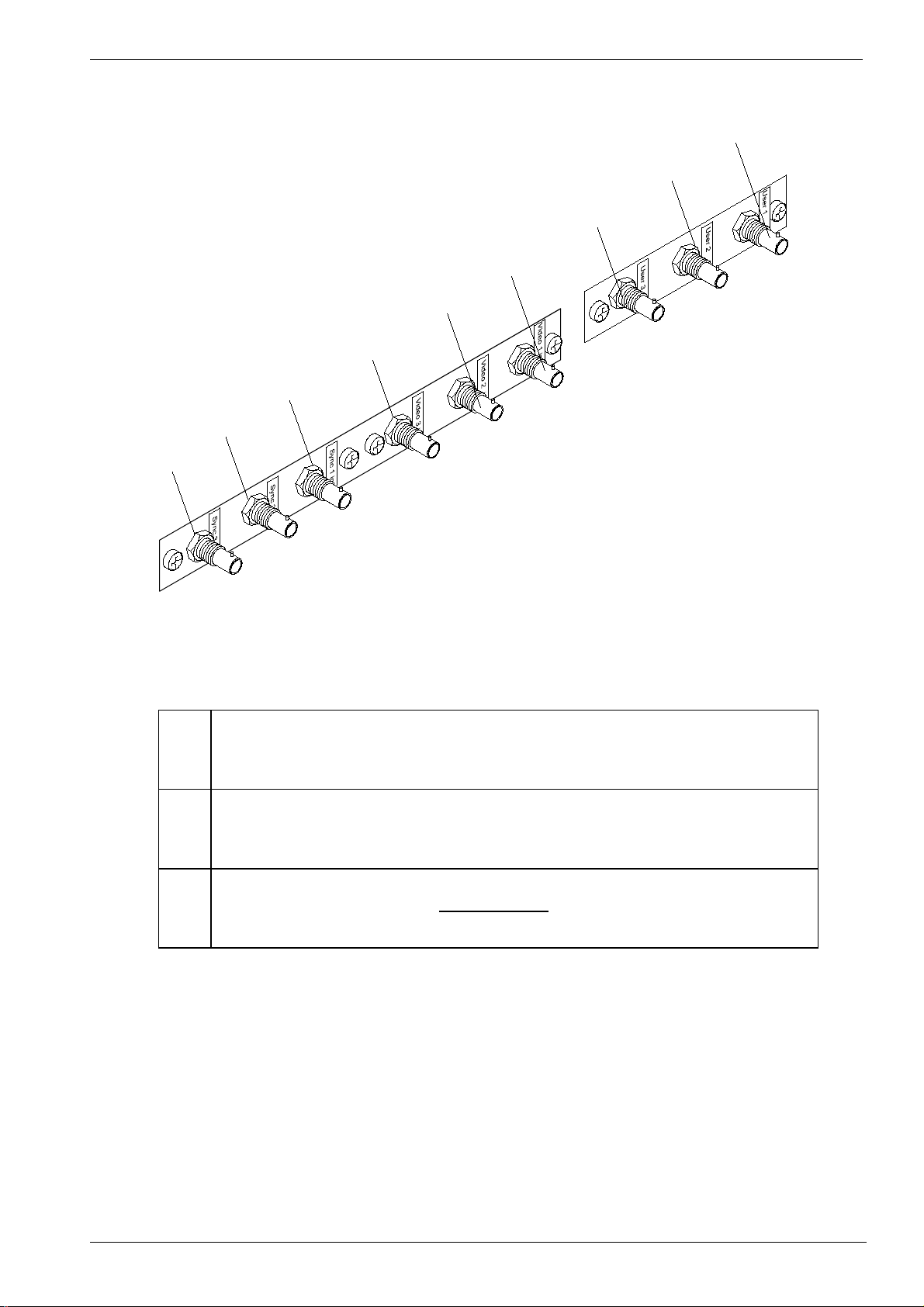

3 VIDEO CONNECTION

Section 2 / 2 DRYSTAR 3000 01/ 28/ 98

DD+DIS084.97E Controls and connectors

7

8

9

1

2

536102OM.CDR

3

4

5

6

Figure 3

1

Video inputs 1, 2 and 3. Fibre optic connector. Receives the video signal.
2
3

4

Sync 1, 2 and 3 input. Only used in case an external sync (synchronization)

connection is necessary.

5
6
7

Sync Selector 1, 2 and 3 input. Only used in case of an external sync

(synchronization) connection in combination with a VIDCOM III transmitter

8

box.
9

01/28/98 DRYSTAR 3000 Sect ion 2 / 3

Controls and connectors DD+DIS084.97E

R

4 NETWORK CONNECTION

1

2

3

535802EM.CD

Figure 4

1

AUI Ether net (Sub-D 15 pin female) connection to an external t r ansceiver. *

2

10B2 50 Ω connection to coax cable Thin Ethernet . *

3

TP Thin Ethernet Twisted Pair connection.*

*Remark: No automatic „t ype of connection“ recognition. Jumperset t ing is necessary

according to the connection.

Section 2 / 4 DRYSTAR 3000 01/ 28/ 98

DD+DIS084.97E Controls and connectors

5 EXTERNAL KEYPAD

FIGURE 5

Item Keyname Screen Function of the key

1
2
3

4

5

6
7
8
9

10

11
12
13

14

15

16
17
18

ESC
HELP
QUEUE

F1
INFO

F2
B&W/COL

F3
UP/DOWN
RIGHT/LEFT
SET UP
FORMAT

ERASE

PRINT
EXAM
COPY

STORE COL

STORE B&W

–
PLUS
–

All Returns to the previous screen without changes
All NOT YET IMPLEMENTED
Exam Group, Set,

To access destination(s) and queue(s)

Work, Destination
Work, Destination To view the destination specifications

Work Toggles between B/W and color acquisition

If applicable Scrolls or moves up/down
If applicable Moves left/right or page up/down
Exam Group, Set To access the set-up screen
Work , Patient ID To select a film format or to enter alphanumeric

characters

Work
Patient ID
Work + Copy (13)
Queue

Deletes the last captured, previous or selected
Deletes the last character
Deletes the predefined number of copies

Deletes the selected print job
Work Prints the current film and displays a new one
Work Closes an Exam folder
Work

Patient ID
Destination

To change the number of copies

To enter the selected character

Toggles the destination selection on/ off
If applicable Expose key or saves the entered color

information
If applicable Expose key or saves the entered B&W

information
– Connector for foot switch
Work, Queue Toggles emer gency priority on/off
– Intensity of LCD display

01/28/98 DRYSTAR 3000 Sect ion 2 / 5

Controls and connectors DD+DIS084.97E

R

6 JAM CLEARANCE BUTTON

536102NM.CD

Figure 5

The button, located under the top cover at the left side of the printer, can be used to clear a
jam. The decurl motor M2 and the main drive mot or M1 are started simultaneously.

The decurl motor M2 drives the jammed film towards the decurl exit.
The main drive motor M1 drives the jamm ed film towards the film loading assem bly.

Remark: These two actions always are executed the same way, no matter whether the left or

right part of the button is hit.

Section 2 / 6 DRYSTAR 3000 01/ 28/ 98

DD+DIS170.99E Installation /Machine Start-up

Section 3

List of contents

1PRE-CHECK................................................................................................................... 2

1.1 Site inspection............................................................................................................................. 2

1.2 Installation checklist................................................................................................................... 2

1.3 Scope of delivery......................................................................................................................... 3

1.4 Removing the transport protection........................................................................................... 3

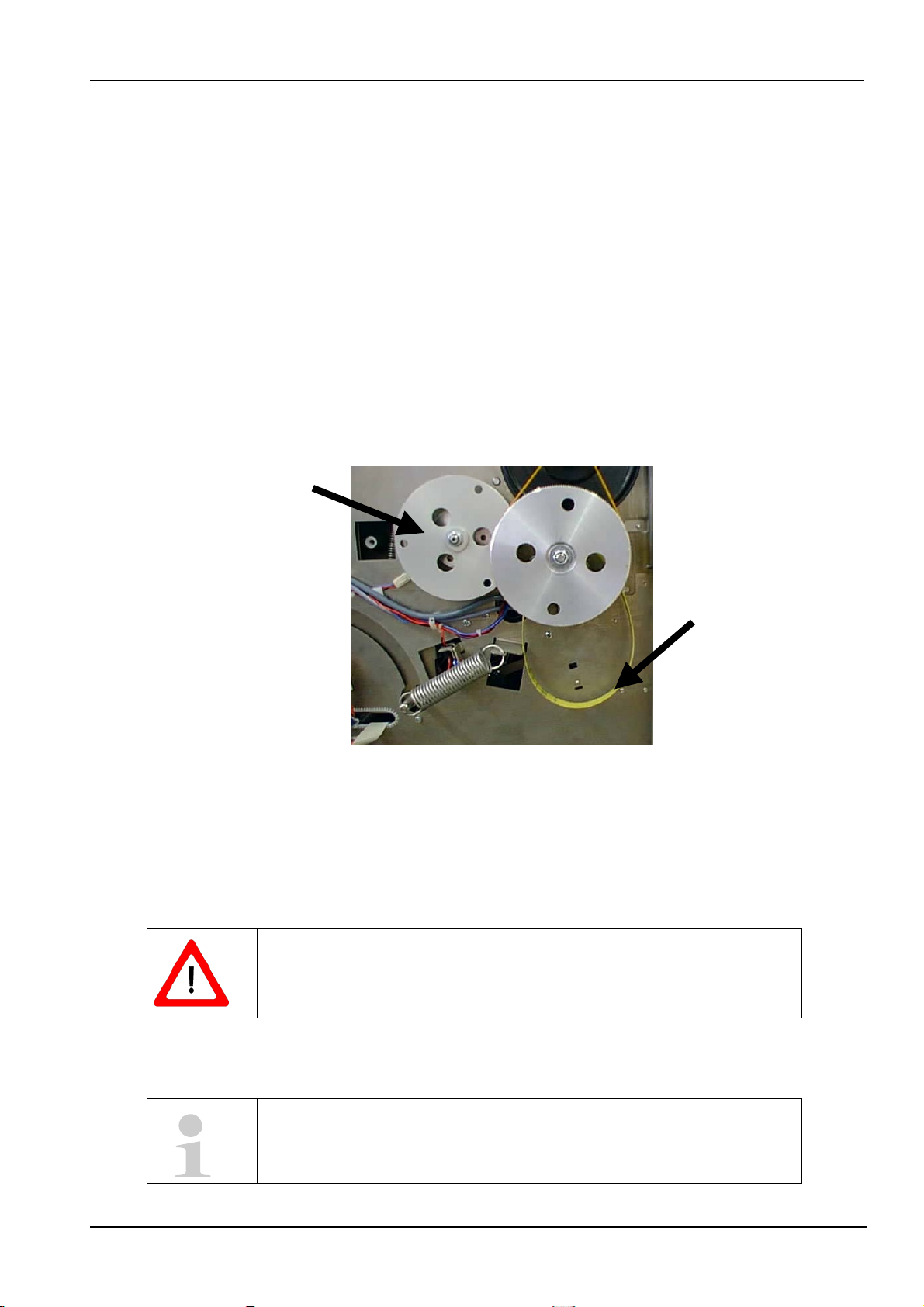

1.5 Mounting the flat belt of the main drive.................................................................................... 3

2INSTALLATION................................................................................................................ 3

2.1 Technical installation.................................................................................................................. 3

2.1.1 Standard delivery..........................................................................................................3

2.1.2 Mains connection..........................................................................................................3

2.1.3 Switch on device...........................................................................................................3

2.1.4 Loading films................................................................................................................ 4

2.1.5 Print SMPTE test image from local keypad .................................................................. 4

2.1.6 Check the configuration of the device (IMOS).............................................................. 5

2.1.7 Check Time and Date................................................................................................... 6

2.1.8 Fill out Site Info............................................................................................................. 7

2.1.9 Set the installation date................................................................................................ 7

2.1.10 Positioning of the printer............................................................................................... 7

2.2 Connectivity................................................................................................................................. 8

2.2.1 External cabling............................................................................................................ 8

2.2.2 Autolock of VSI........................................................................................................... 10

3SYSTEM INTEGRATION.................................................................................................. 10

3.1 Destination/Network.................................................................................................................. 10

3.2 Example for a simple Network .................................................................................................11

3.3 Connect the service host (optional)........................................................................................ 12

4APPLICATION............................................................................................................... 12

4.1 Introduction: Customization / NVE.......................................................................................... 12

4.2 Application / Customization Overview.................................................................................... 13

4.3 Language.................................................................................................................................... 14

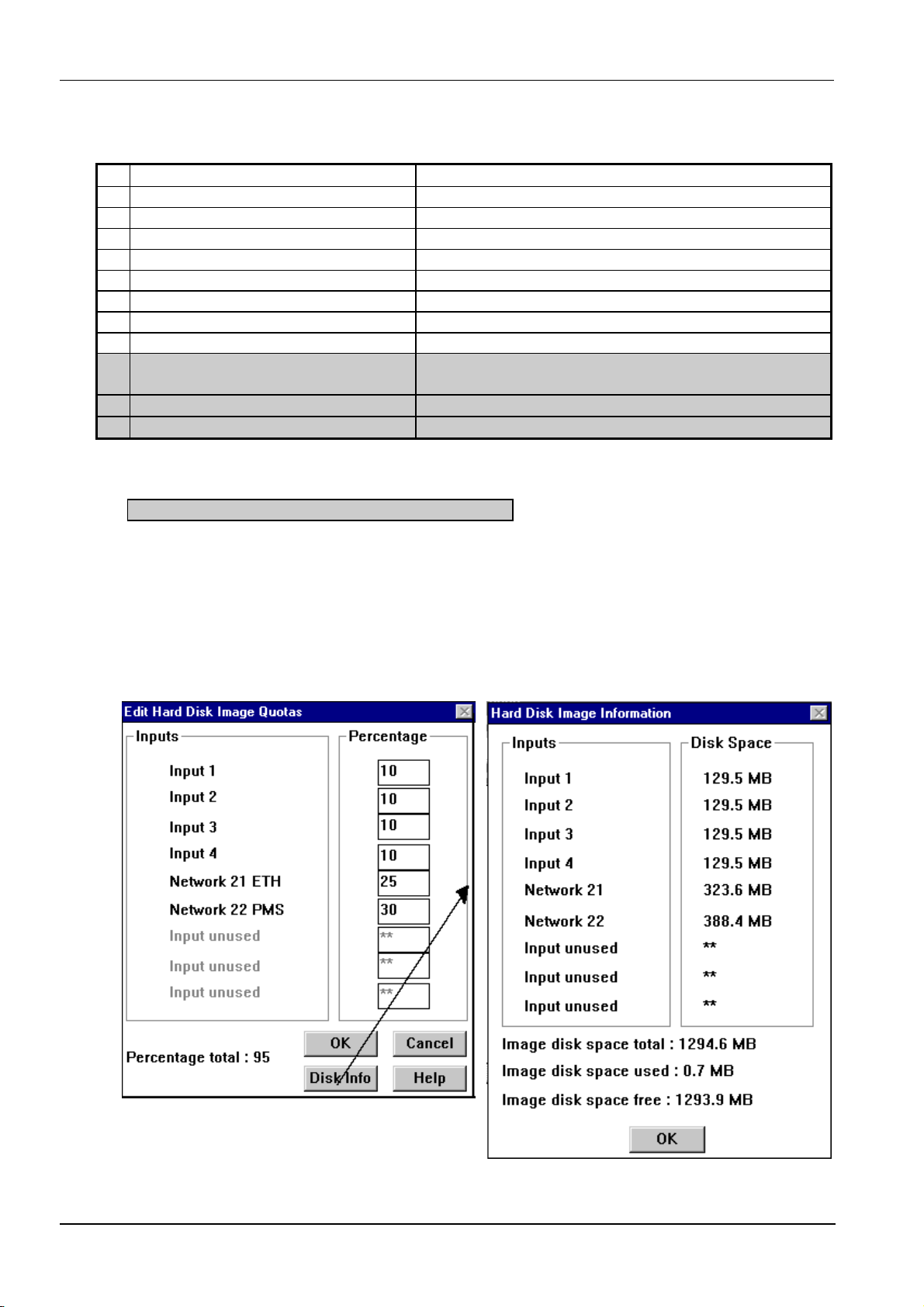

4.4 Disk Space Quotas.................................................................................................................... 14

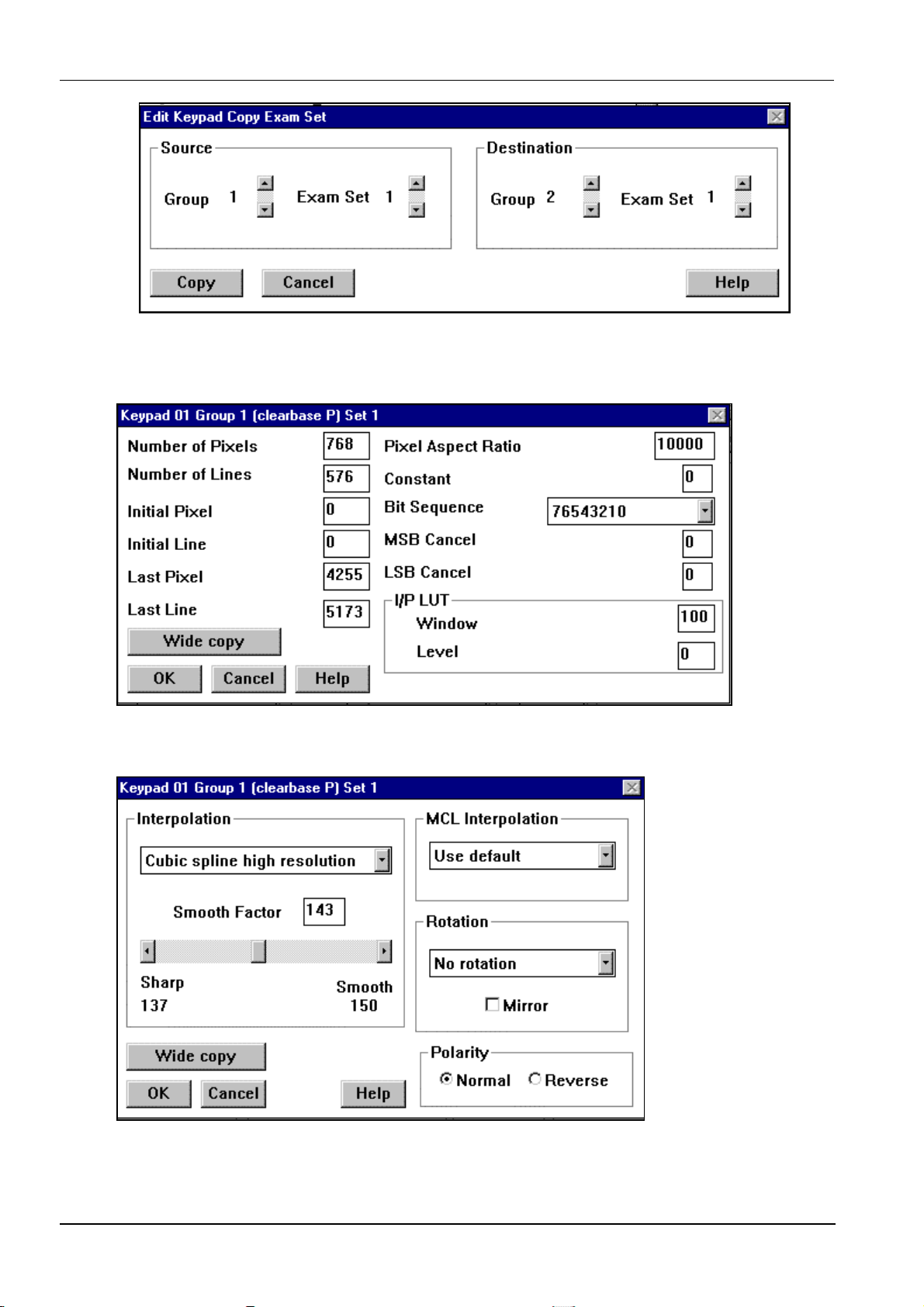

4.5 Edit keypads .............................................................................................................................. 15

4.6 Print a diagnostic image........................................................................................................... 17

5KICK OFF..................................................................................................................... 18

5.1 Backup........................................................................................................................................ 18

6ADDENDUM A: REMOVING THE TRANSPORT PROTECTION ............................................... 19

7A

DDENDUM B: MOUNTING THE DETACHED FLAT BELT OF THE MAIN DRIVE

(LEFT HAND MACHINE SIDE)........................................................................................... 23

7.1 Attachment of the flat belt on the flat belt pulley................................................................... 23

09.01.00 Type 5361 Section 3 / I

Installation /Machine Start-up DD+DIS221.98E

1 Pre-Check

1.1 Site inspection

Take care that you have performed the necessary steps of the site inspection. A specif ic
readiness checklist concerning the site inspect ion t opics is included in the installation planning
section of this documentation (section 14). It is intended that you send the filled out readiness
checklist to the NSO in advance.
Thus, to your own advantage, it is ensured, that all necessar y prepar at ion work is done before
delivery and installation.

1.2 Installation checklist The following order of listed t asks i s mandat ory !

Action

1 Pre - Check

 Ensure site inspection items
 Unpack the printer
 Check scope of delivery
 Remove transport protection elements

The following order of listed t asks i s not mandat ory !

Action

2 Installation

Technical installation

 Connect mains cable
 Switch on
 Load film
 Print test image f rom local keypad
 Check the configurat ion of the device (IMOS)

Compare with the delivered OGT file

 Check time and date
 Fill out site info
 Set the installation date
 Position the printer at its f inal locat ion

Task

Code

INS

Task

Code

INS 2.1

See

section

Add:A

See

section

14

1

1.3

Connectivity

 Perform external connection (cables)
 Perform autolock ( in case of VSI installed)
 print diagnostic image f r om the host

3 System integration

 Adjust network parameters (ART - Par am eters)
 Connect service host (optional)

Section 3 / 2 5361 09.01.00

INS 2.2

SIC 3.

DD+DIS170.99E Installation /Machine Start-up

4 Application

 Adapt disk space quotas
 Edit keypads
 Print diagnostic image

5 Kick off

 Backup
 Train the user

1.3 Scope of delivery

Check the scope of delivery by means of the pack ing list, attached to the printer.

1.4 Removing the transport protection

To remove the transport protection elements refer to the addendum A of this section.

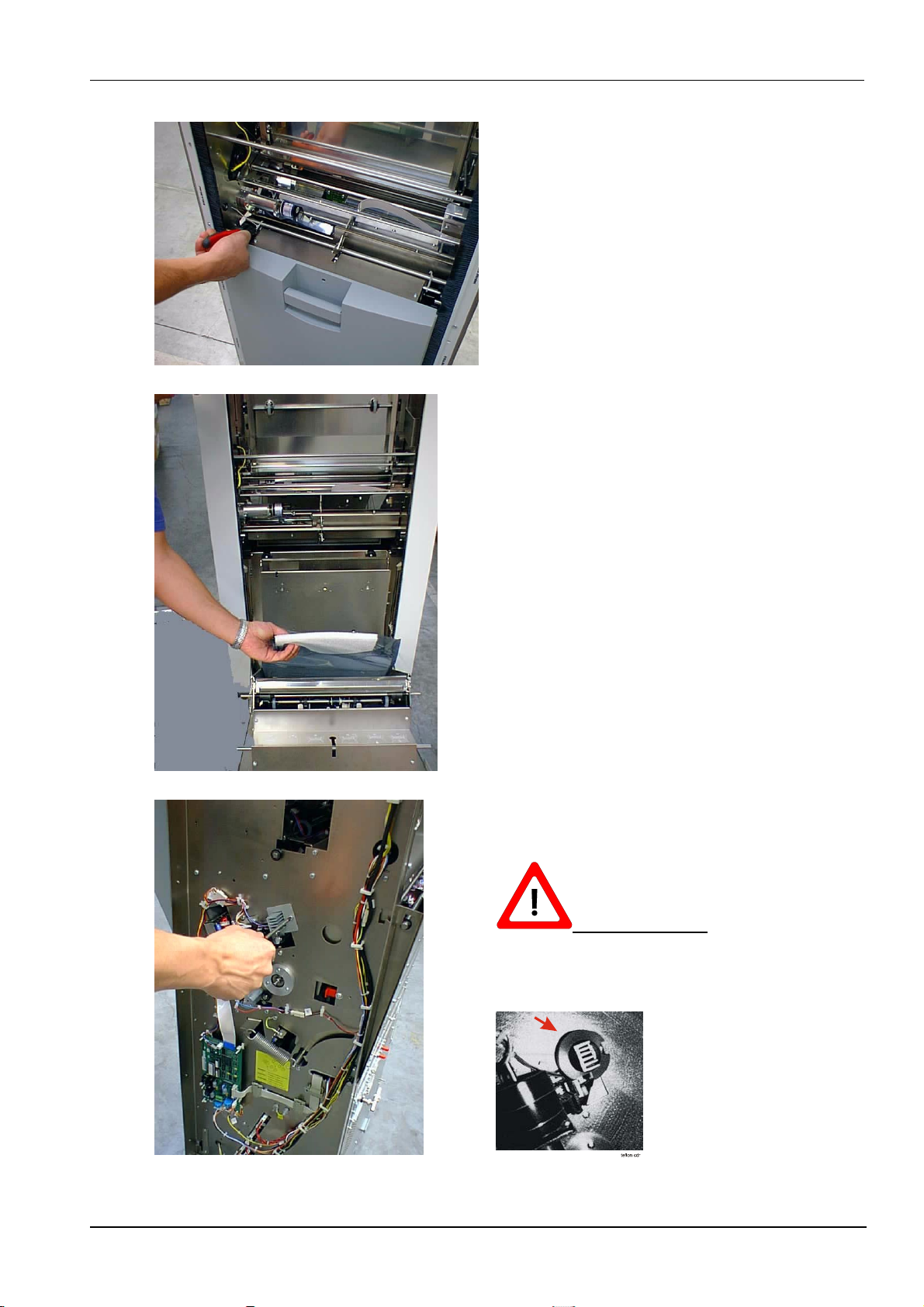

1.5 Mounting the flat belt of the mai n dri ve

For the mounting procedure of the main drive flat belt ref er to Addendum B of this section.

Do not connect the printer to the mains outlet before you finished all
actions described in the above mentioned Addenda A and B (refer to
item 1.4) !

APP 4

OTR 5

2 Installation

The installation sequence described in this part has been designed to make the installation as
easy as possible. The procedure below outlines the recommended installation steps.
All printers are configur ed at production site as defined by marketing .

2.1 Technical installation

2.1.1 Standard delivery

The printer is provided with an auto switching power supply. For this reason there are no
adaptations to perform t o align to local line voltages or freq uencies. There are no voltage­specific fuses to install.

default language is: - English

2.1.2 Mains connection

• Mains cable
Install the printer to the same g round as the host system for safet y reasons. If this is not
possible see section 6.1 for solutions

• Supplementary protective earth cable
This cable is plugged onto the supplementary earth connector (not included, has to be
ordered separately under ABC-Code: 79K67)
Apply this cable only in case the printer is connected to other non IEC 601 conf orming
equipment.

2.1.3 Switch on device

Switch on the device with the power switch in front of the printer.

09.01.00 5361 Section 3 / 3

Installation /Machine Start-up DD+DIS221.98E

2.1.4 Loading films

Refer to the user manual to perform the correct action for

loading films.

You also can see the sequence of handling by imprinted

icons on top of the film loading assembly. To see these
icons, open the top cover and the cover of the f ilm loading
compartment (see Figure 1) .

Figure 1

2.1.5 Print SMPTE test image from local keypad

When all req uirements in the previous paragraphs are f ulfilled, a first test im age has to be
printed to verify the mechanical operation of the printer.

• Print an SMPTE testimage:

536103AZ.CDR

Figure 2: SMPTE testimage

?

ERROR

1

ESC

ENTER

3 x

?

2

ERROR

ERROR

?

ESC

ENTER

ESC

3

ENTER

?

ERROR

4

1 x

?

ERROR

ESC

ENTER

ESC

5

ENTER

wait ca. 2 minutes

?

6

ERROR

3 x

ESC

ENTER

536110AB.CDR

Figure 3: Print SMPTE testimag e at
the local keypad.

Section 3 / 4 5361 09.01.00

DD+DIS221.98E Installation /Machine Start-up

2.1.6 Check the configuration of the device (IMOS)

2.1.6.1 Starting the I M O S Drystar 3000 service software

For to check the config ur at ion of the printer, perform the following steps to enter t he IMOS
Drystar 3000 service program:

• Connect your service PC locally to the printer

• Switch on your service PC.

• Switch on the printer.

• Select the Drystar 3000-Icon.

Figure 4

• The IMOS Drystar 3000 service program shows up with in a separate window as shown
below.

Figure 5

09.01.00 5361 Section 3 / 5

Installation /Machine Start-up DD+DIS221.98E

2.1.6.2 Check configuration

In general, the delivered printer unit is pr econfigured, with all interfaces inst alled accor ding to
the order at OSD in Belgium. For t hi s reason t here i s no f urther conf iguration

necessary !

Configuration at product ion sit e affects the following items:

- 3 input s analog: VSI and switchboard 2 + opt. SSR1 (ext. sync.)
digital: MFRI + 3M (P 952)

USP (SPC 1)
AMDI

- 1 out put Drystar 3000

- 1 network APIP / DICOM* / Postscript*
*) optional

The window above shows a listing of a specific configuration. You may ensure t he correctness
of the configuration via the IMOS Drystar 3000 service program. In order t o do t his, compare
the attached OGT f ile (part of the delivery) with the actual config uration entries.
In case of discrepancies you have to reconfigure the Drystar 3000. Refer to section 6. 2 or 9

2.1.7 Check Time and Date

Check time and date in the IMOS Drystar 3000 application menu and adjust if necessary.

Figure 6

Note: Time and Date influences

• Patient ID: e.g. 804241430 = year 1998 Month 04
Day 24 Hour 14 Min 30

• The logbook time stamping

• The installation date

Figure 7: IMOS Window f or t i me and dat e adjust ment

Section 3 / 6 5361 09.01.00

DD+DIS221.98E Installation /Machine Start-up

2.1.8 Fill out Site Info

• In IMOS Drystar 3000, go to "I nstall → Installation Report".

• Select "Site Info"

• Fill out the site specific inform ation. This will be part of the info count er header.

2.1.9 Set the installation date

• In IMOS Drystar 3000, go to "I nstall → Installation Report".

• Select "date of installation": Now automatically the cur r ent date is set as device

installation date.

Note: The date of installat ion can only be set once.

2.1.10 Positioning of the printer

When positioning the printer at ist final location, please ensure that the stoppers at the wheels

are locked.

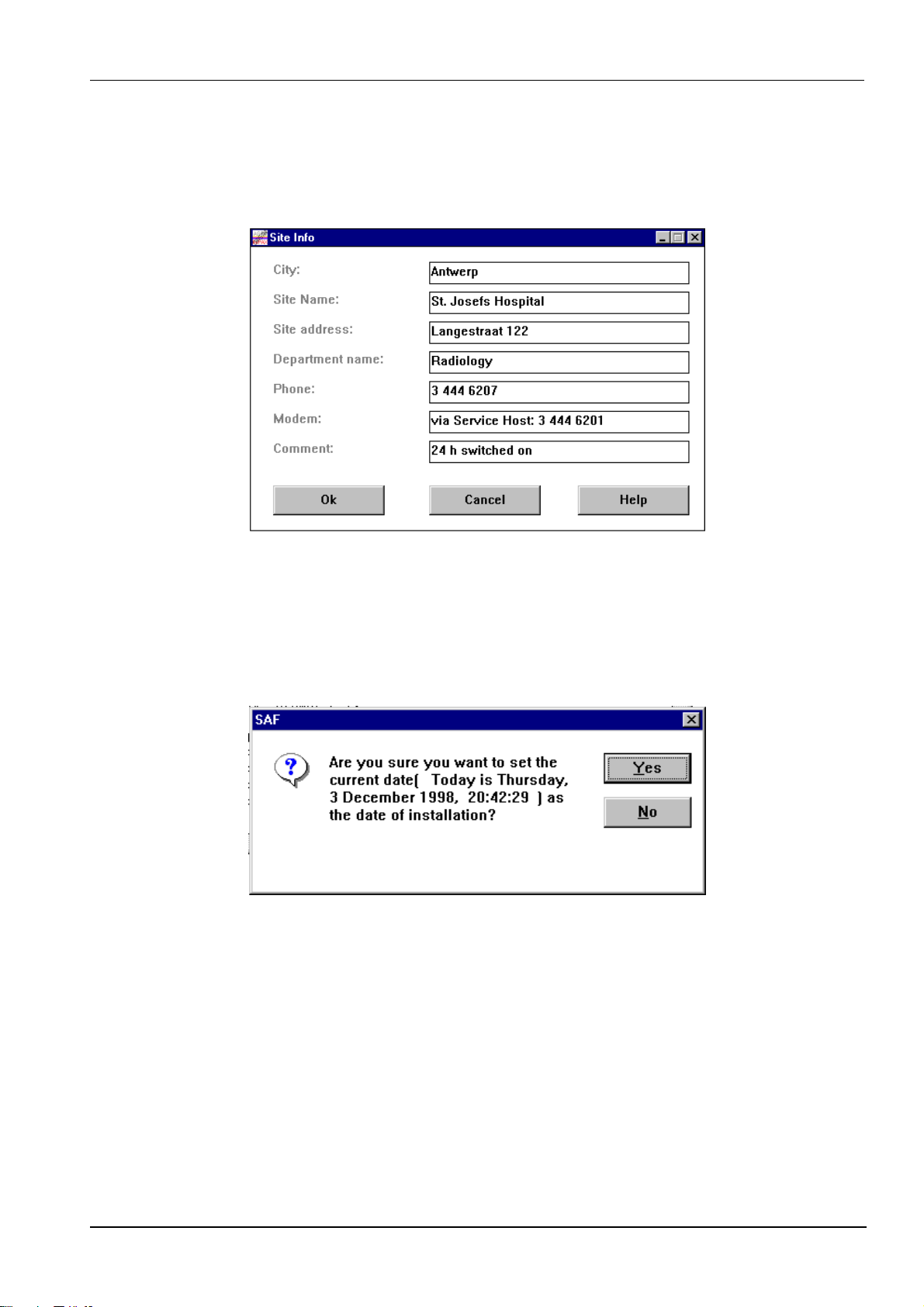

Figure 8: Site info (Example)

Figure 9: Installation Date

09.01.00 5361 Section 3 / 7

Installation /Machine Start-up DD+DIS221.98E

r

2.2 Connectivity

2.2.1 External cabling

• Refer to the corresponding interface release document available on DIGIMAIL (+49 89
6207 7777 analog / [phone] ISDN), download area „interf aces / connectivity“ or
http://medical.agfa.com (AGFA Medical Homepage).

2.2.1.1 Video Connection. Monitor in the video chain

A

F
G
A

0

0
0
3

R
A

T
S
Y

R
D

VIDEO OUT

A

VIDEO IN

75 Ohm Terminator

VIDEO OUT

A

VIDEO IN
(Fibre)

VIDCOM

HOST

MONITOR

536103SZ.CDR

Figure 10

2.2.1.2 Video Connection: Monitor at the end of the video chain

A

F
G
A

0

0
0
3

R
A
T

S

Y
R
D

VIDEO OUT

A

VIDEO IN

VIDCOM
VIDEO IN

(Fibre)

A

Host

VIDEO OUT

536103RZ.cdr

MONITOR

Figure 11

• Make sure that the BNC-coax cables (A) used in the video chain are as short as
possible. For video signals above 100 MHz the coax-cables should not be longer

than 5 m.

• optical cables can have a length of up to 350m.

• For jumper settings of t he VSI board refer to IMOS Drystar 3000: REPAI R → VME

Boards

75 Ohm

Terminato

Section 3 / 8 5361 09.01.00

DD+DIS221.98E Installation /Machine Start-up

2.2.1.3 Example for VIDCO M and VSI connection (here: color input)

Figure 12

09.01.00 5361 Section 3 / 9

Installation /Machine Start-up DD+DIS221.98E

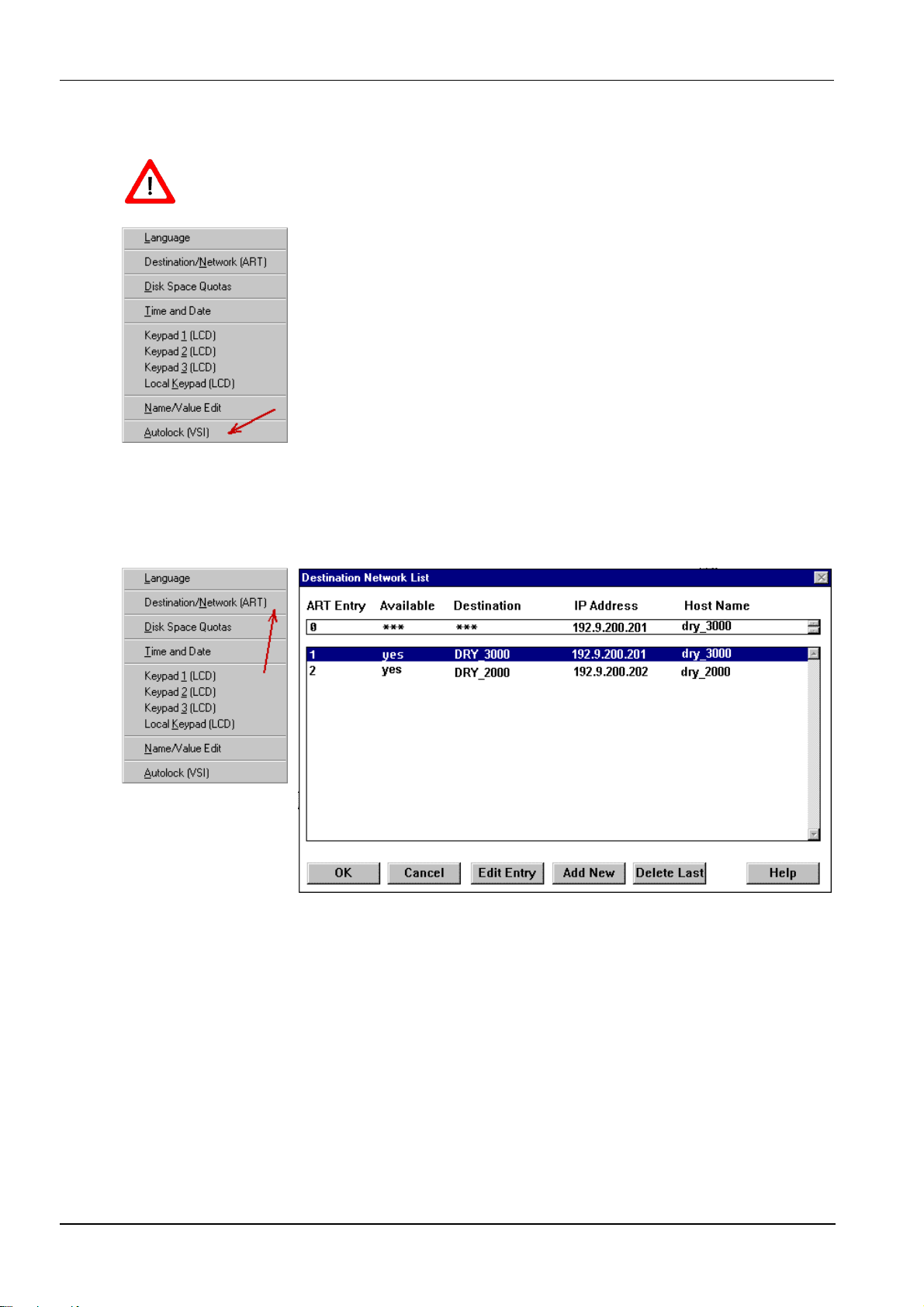

2.2.2 Autolock of VSI Autolock is only needed for analog connections

The autolock procedure is described in section 9, VSI.

Figure 13

3 System integration

3.1 Destination/Network

Figure 14

• The Destination Network List shows every configured Network Node with its corr esponding
parameters.

• To edit a new Network Node, press <ADD NEW>

Section 3 / 10 5361 09.01.00

DD+DIS221.98E Installation /Machine Start-up

y

)

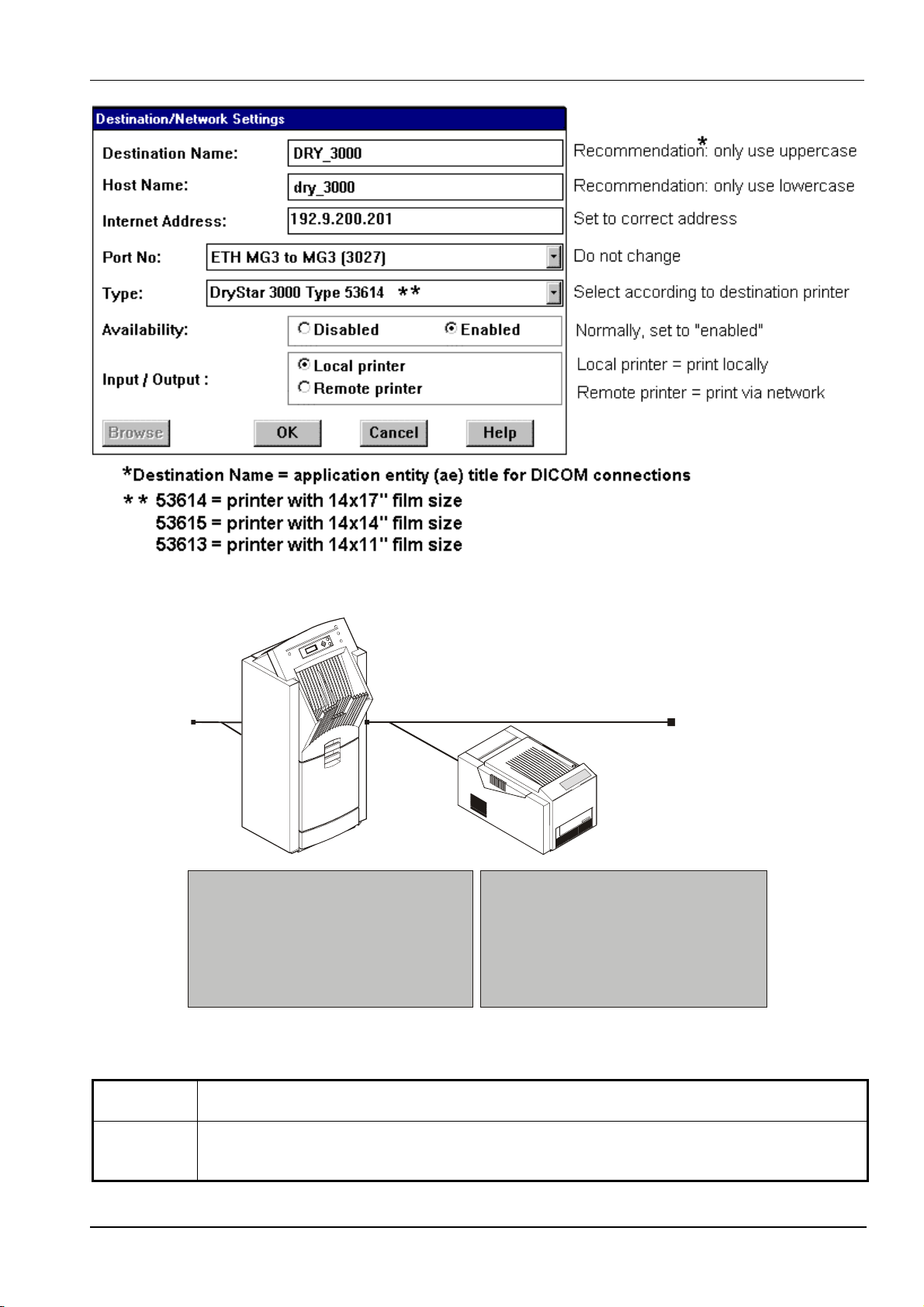

3.2 Example for a simple Network

0

0

0

3

R

A

T

S

Y

R

D

ART ENTRY 1

Destination name: DRY_3000
Host name: dry_3000 (= AOS shell prompt)
IP Address: 192.9.200.201
Port: 3027
Type: Drystar 3000 (Typ 53614)
Availability: Enabled
Input/Output: Local Printer

ART ENTRY 1

Capture images at Drys tar 3000
Print images at Drystar 3000

(in Drystar 3000)

=

5

6

3

0

1

3

Z

L

C

.

D

R

ART ENTRY 2

(in Drystar 3000)

Destination name: DRY_2000
Host name: dr

_2000 (= AOS shell prompt
IP Address: 192.9.200.202
Port: 3027
Type: Drystar 2000 (Typ 5358)
Availability: Enabled
Input/Output: Remote Printer

ART ENTRY 2

Capture images at D rystar 3000
Print images at Drystar 2000

=

Note 1
Note 2

For ART0 settings see screen in previous page (ART 0 = ART 1)
In case images captured on Drystar 2000 shall be print ed on t he Drystar 3000, too, the

Drystar 2000 settings have to be made accordingly.

09.01.00 5361 Section 3 / 11

Installation /Machine Start-up DD+DIS221.98E

3.3 Connect the service host (optional)

• In case a service host (see Figure 15) was ordered with the device
(refer to OGT file, delivered with the device), make the connections as
described in the installation instructions delivered with the service host.

• Pass the corresponding RSC or GSC (RSC = Regonial Support
Center, GSC = Global Support Center) t he network parameters as
described in the service host installation instructions.

Figure 15

4 Application

4.1 Introduction: Customizati on / NVE

Application can also be called Customization. Customization is the adaptation of the printer to
the customers need. IMOS offer s for most customization steps comf or table shells.

Figure 17

Figure 16

Note: Name/Value Edit is a fast alternative for the advanced user,

to adjust specific parameter s of the printer directly.
For an overview of all important parameters see document

DD+DIS115.98E, NVF parameters MG3000 and Drystar.

Section 3 / 12 5361 09.01.00

DD+DIS221.98E Installation /Machine Start-up

536103JZ.C

4.2 Application / Customization Overview

Customization is the adaptation of the system to t he customers needs. Following parts of the system
are concerned:

• The user display

• The harddisk

• The film

Enclosed a graphical overview of the most important custom ization items.

See next page for explanation of figures 1 to 11

User Display

INFO

QUEUE

HELP

ESC

1 2 3 4 5

SET UP FORMAT

F1

F2

Drystar 3000 US Room 2

<1> Dr. Miller

PRINT EXAM

ERASE

US Room 2 Dr. Miller

<1> 1/0 Kidn. pos.

B&W/COLB&W/COL

F3

IF 220
IS 80
IA 3

F4

6 7 8 9 0

STORE

COPY

COL

Dr. Miller
8x10 1/0 Kidn. Pos
Pt: US802041430
Copies: 1
To: DRY_2000
Queue: 12/16

STORE

B&W

Harddisk Drystar 3000

3

4

Partition F:

2

9

11

B&W Image

5

6

1

10

7

8

DR

Figure 18

Table with recommended adjustments during customi zat i on see next page

09.01.00 5361 Section 3 / 13

Installation /Machine Start-up DD+DIS221.98E

Table with recommended adjustments during customizat ion

Adjustment Where to find

1 Time and Date Time and date (section 2.1.7)
2 Disk Space Quota Disk Space Quota (section 4.4)
3 Hospital Name and Location* Edit Keypad (section 4.5)
4 Exam group names* Edit Keypad (section 4.5)
5 Exam Set ID`s* Edit Keypad (section 4.5)
6 Black & White Layouts* Edit Keypad (section 4.5)
7 Contrast B&W* Edit Keypad (s ect ion 4. 5) Edit Films
8 Interpolation ( Shar pness) * Edit Keypad (section 4.5) Edit Sources
9 Film recovery after power failure Name Value Edit: MNU: parameter

b_cftbl_usr[1].no_recovery **

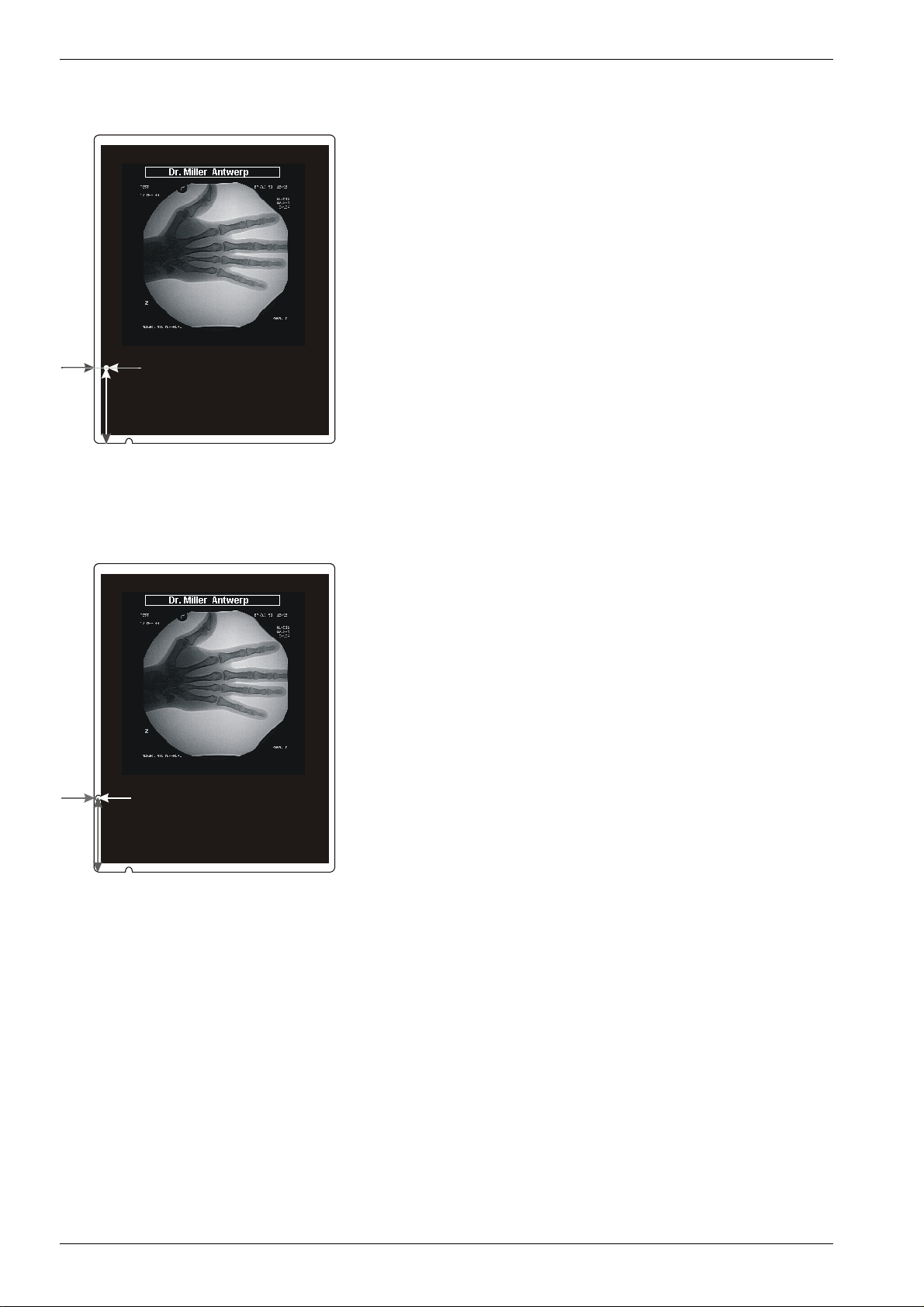

10 Set I CO N for film reduction
11 Activate annotations

* To make these parameter s act ive, no r eset r equired. Simply confirm with <ok>, leave the

current keypad screen and re-enter it .

**see DD+DIS115.98E; NVF Parameters

grey fields mean optional, i.e. not mandatory

Name Value Edit: DSP: parameter icon_pos **
Name Value Edit: MNU: parameter annotation **

4.3 Language

At the time being only English

4.4 Disk Space Quotas

Adapt the disk space quotas according t o the input image size and workload of the inputs.

Note: Input 4 is the local keypad. Do not adj ust input 2 below 10 MB

Figure 19

Section 3 / 14 5361 09.01.00

DD+DIS221.98E Installation /Machine Start-up

4.5 Edit keypads

• Select the Keypad, you wish to customize.

Figure 20

• Select the desired exam set

Figure 21

• Select the next action to be performed via the 3 edit buttons at the bottom of the above
shown screen.

• Change the values for interpolation and taste look up table (and eventually other settings,
too) as described in section 5, application.

• Use <DELETE ALL> to delete all examination groups at once.

Selection: <Copy Exam Set>

• To shorten the amount of time for the customization you can copy specific completed
examination sets. After that you only have to modif y a few remaining parameters.

09.01.00 5361 Section 3 / 15

Installation /Machine Start-up DD+DIS221.98E

Figure 22

Selection: <EDIT SOURCES>

Figure 23

Selectio: <EDIT IMAGES>

Figure 24

Section 3 / 16 5361 09.01.00

DD+DIS221.98E Installation /Machine Start-up

Selection: <EDIT FILMS>

The actions described above, which have to be performed for each keypad are identical for
each keypad.

4.6 Print a diagnostic image

• Print a diagnostic image from all connected host systems.

• Discuss the image quality with the customer

Figure 25

09.01.00 5361 Section 3 / 17

Installation /Machine Start-up DD+DIS221.98E

5 Kick off

5.1 Backup

• In IMOS Drystar 3000, go to "I nstall" → "Backup".

• Select the destination and filename for the backup.

Figure 26

• Explain the operation of the device to the customer.

Section 3 / 18 5361 09.01.00

DD+DIS221.98E Installation /Machine Start-up

6 Addendum A: Removing the transport protection

1. This document informs you what should be done after Drystar 3000 is unpack ed.

Do not connect the printer to the mains outlet before you finished all
handling described in this document !

• Take the long screw driver attached to the
accessories (see scope of delivery).

• Unlock the top cover and the cover of the
film loading compartm ent by insert ing the
screw driver in the hole betweeen the grips
of these covers

• Open the top cover first

• Open the cover of the film loading

compartment


• At the inside- right hand side - there is a
floppy holder

• Remove the tape but leave the floppies in
the holder as you normally do not need
these floppies during installation

09.01.00 5361 Section 3 / 19

Installation /Machine Start-up DD+DIS221.98E

• With the top cover opened you get access
to the unlocking screws of the side covers

• Turn the screws on top of the left and rig ht
side covers 90 degrees counter clock wise
using a coin or a screw driver

• Lift the covers a few centimeters and then
remove them.



• Cut the plastic strip that secures the film
guiding plate and remove it.

• Cut the 2 plastic strips that secure the
decurl unit and remove them


Section 3 / 20 5361 09.01.00

DD+DIS221.98E Installation /Machine Start-up

• Cut the 2 plastic strips that secure the shaft
above the film loading compartment and
remove them.


• Open the film loading compartm ent and
remove the buffer, which lies where
normally the film is put. (not shown on this
picture)



• At the right side of the printer there is a
locking plate on the densitometer module.

• Loose the screw and then remove the plate

Option: Mobile Kit
At the right hand side of the printer with a
mobile kit installed there is a black teflon ring
on the densitometer module.
Do not remove this ring!

09.01.00 5361 Section 3 / 21

Installation /Machine Start-up DD+DIS221.98E

• On the left and right side there is a square
hole.

• In that hole there is on both sides a red
coloured blocking plate holding the ther mal
head compartment against the chassis

• Remove on each side the hexagonal screw
and remove the red blocking plate

• Open the thermal head compartment.


• Remove the hexagonal screws on both
sides.

• Close the thermal head compartment and
lock it by turning the 2 screws with the ring
90 degrees clock wise.


• Deposit the screw driver of the accessory­Kit in the prepared holder at the lef t side.

• Install the side covers (take care that the
bottom of the side covers is well positioned
over the positioning pins).

• Proceed with the installation.


Section 3 / 22 5361 09.01.00

DD+DIS170.99E Installation /Machine Start-up

7 Addendum B:

Mounting the detached flat belt of the main drive
(left hand machine side)

Reason:

For first operation of the machine the flat bel t must be mount ed agai n.

flat belt pulley

If the printer is out of operation for a longer time period (about 6 weeks), the flat
belt of the main drive may suff er permanent pressure marks due t o the belt
tension.

These pressure marks on the flat belt result in irregularit ies of the film transport
system, and thus also in image artef acts (horizontal lines at a spacing of approx.
13 cm).

Therefore, at t he pr oduction line, the flat belt is detached again after the printer
has been calibrated and the belt tension has been mounted at t he belt pulley,
(see figure 1).

detached flat belt

Figure 1 (Addendum B)

7.1 Attachment of the flat belt on the flat belt pulley

• Undo the upper screw in the left side cover (by quarter rot ation).

• Lift the cover and remove it.

• Place the detached belt on the running face of the pulley, by slowly turning the flat belt

pulley by hand.

When the flat belt pulley is turned in order to mount the belt, the motor
reacts like a generator.
Therefore turn t he flat belt pulley only slowly to keep the generator
effect as low as possible.

• Carefully keep the flat belt pulley turning by hand, thus moving the belt to the centre of the
pulley running face.

Subsequent adjustment of the belt tension or calibration of the pr int er
is not necessary.

09.01.00 5361 Section 3 / 23

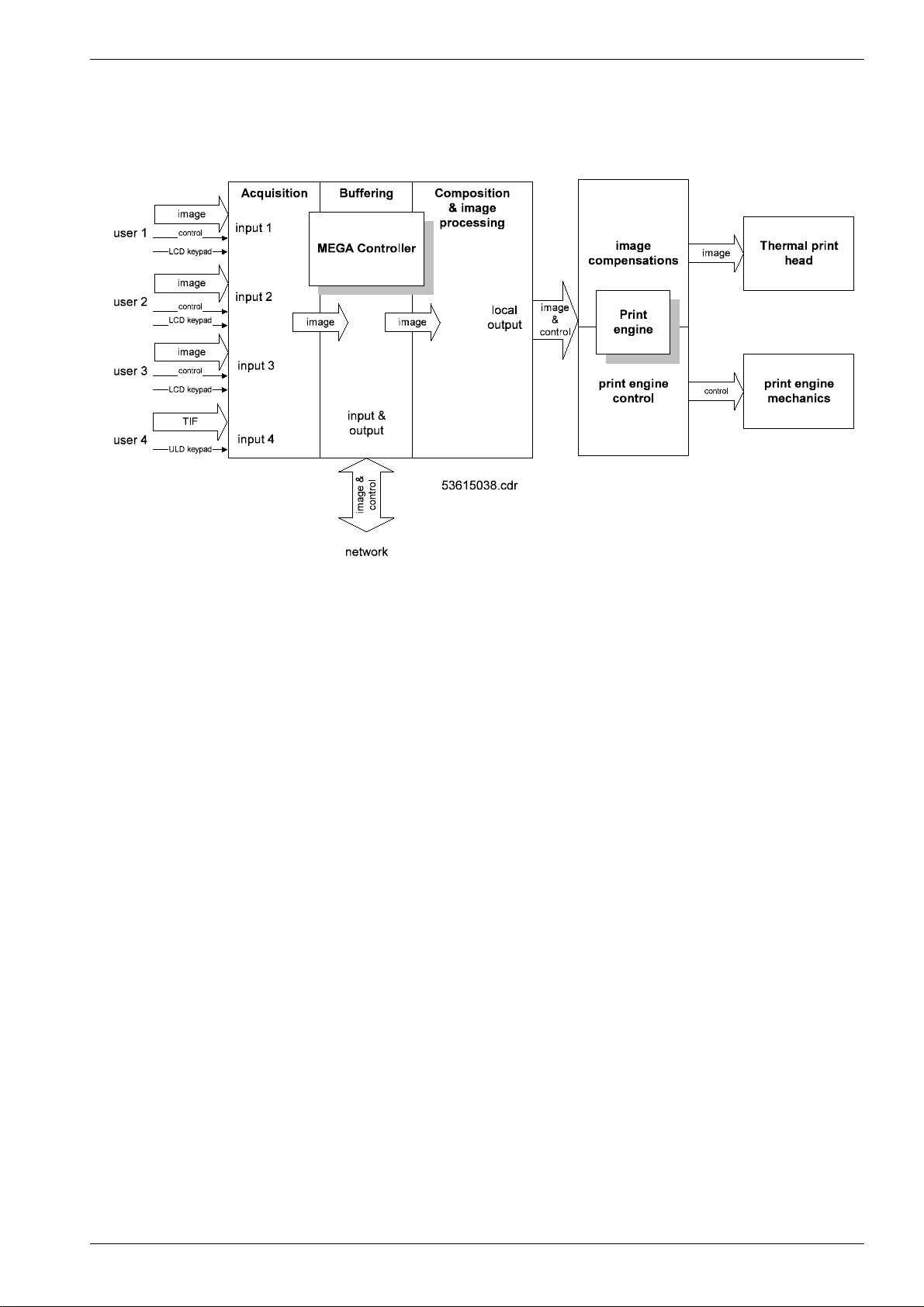

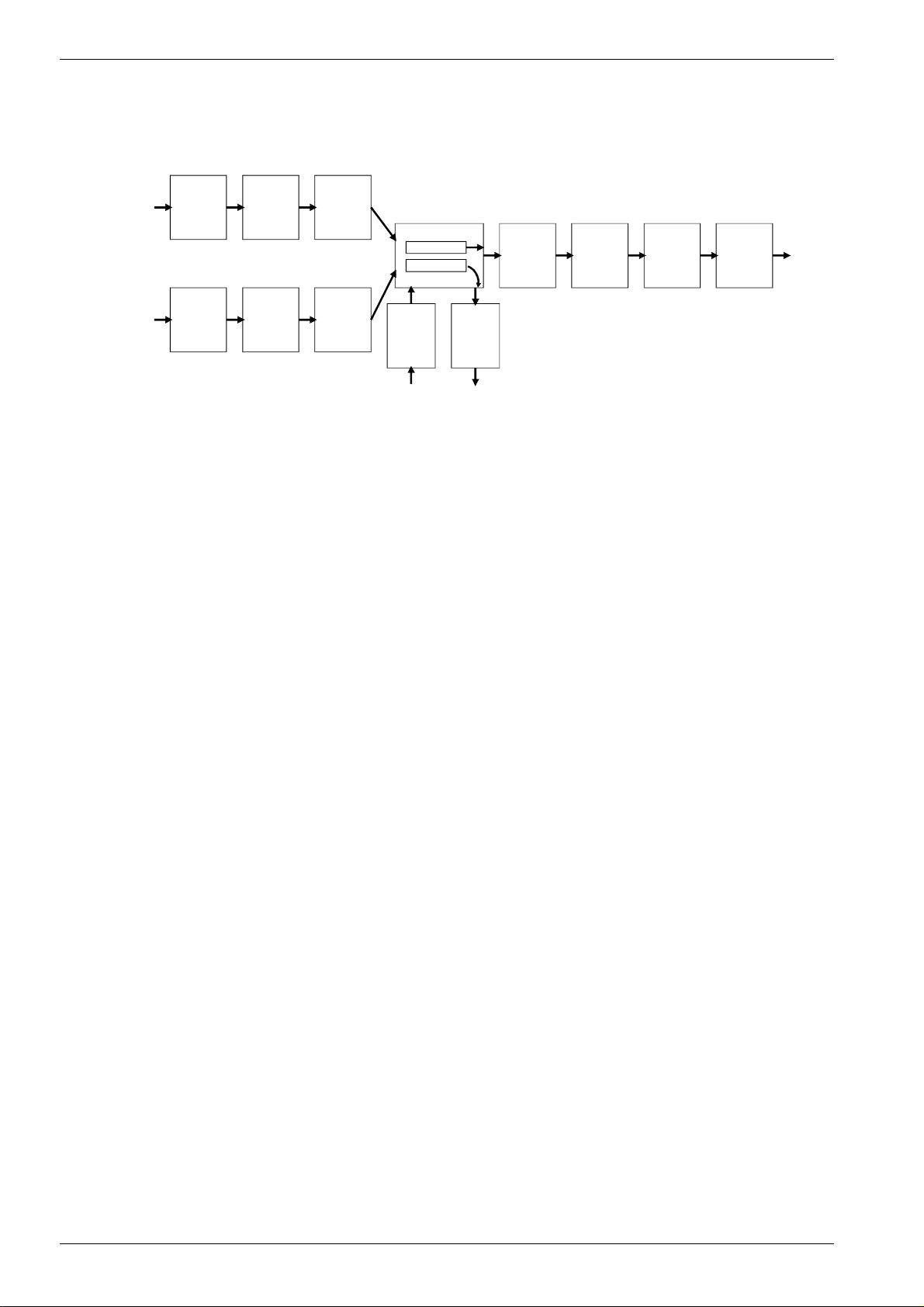

DD+DIS103.02E Theory of operation

Section 5

Table of contents

1 INTRODUCTION............................................................................................................... 1

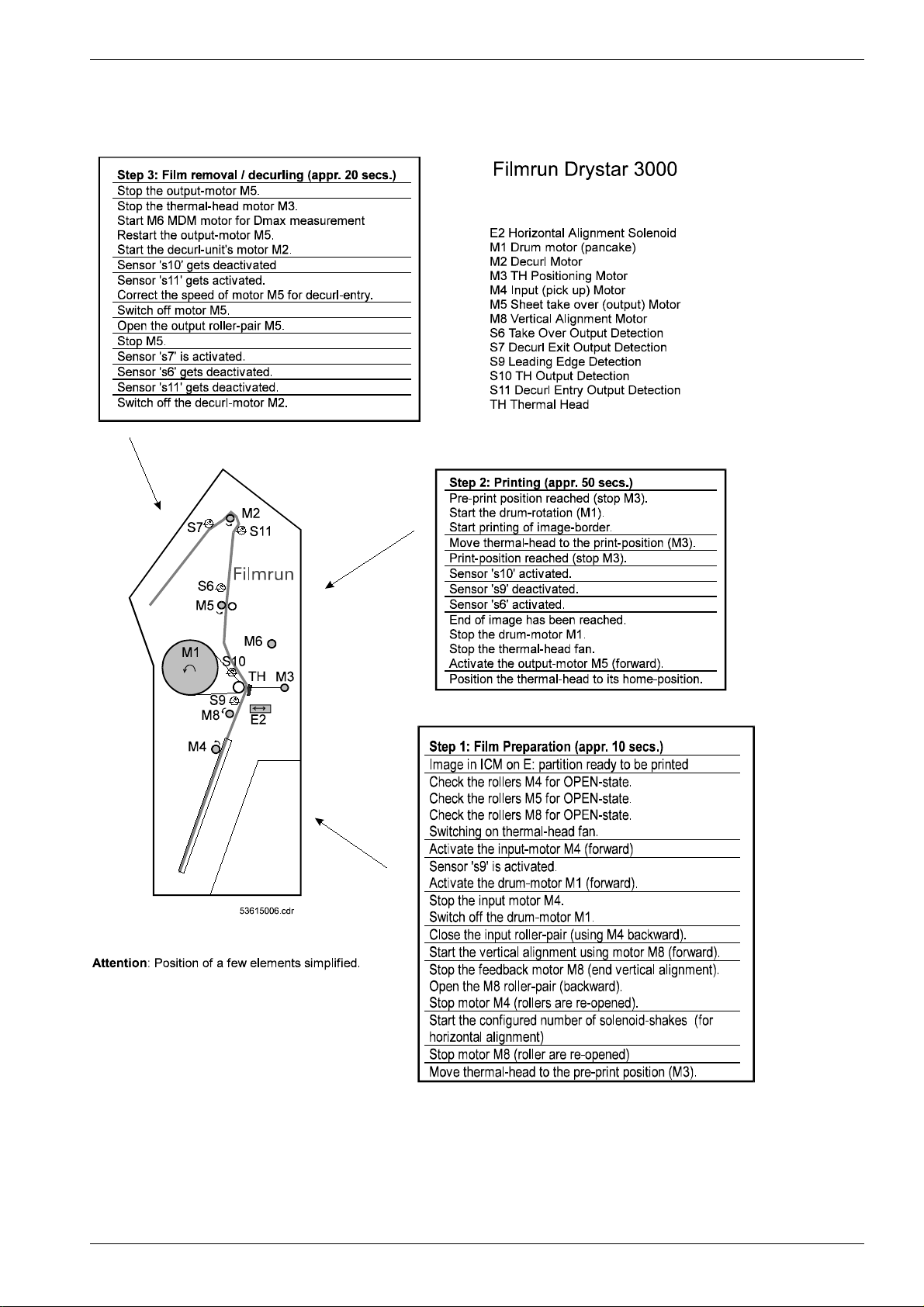

2 FUNCTIONAL SEQUENCE ..............................................................................................4

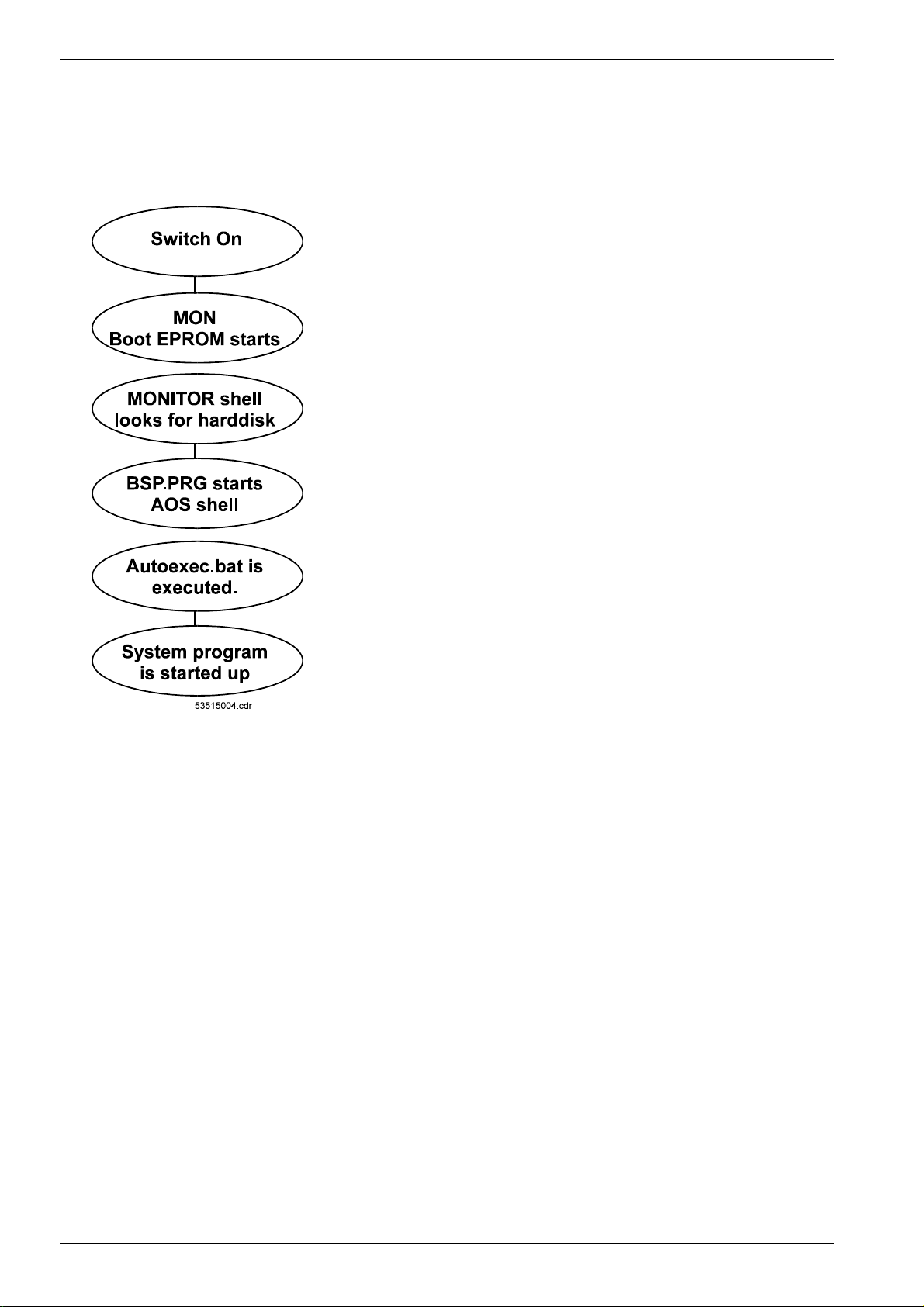

2.1 Sequence of functions after switching on: SW component startup ................................................4
