AEG KM9800E-A User Manual
MICROMAT KM9800E
Built-In Electric Oven
User information
Dear Customer,
Please read this user information carefully and keep it to refer to later.
Please pass the user information on to any future owner of the appliance.
The following symbols are used in the text:
1 Safety instructions
Warning! Information that affects your personal safety.
Important! Information that prevents damage to the appliance.
3 Useful tips and hints
2 Environmental information
2
Contents
Operating Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Safety instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Description of the Appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
General Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Oven Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Oven Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Before using for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Setting and changing the current time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Initial cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Getting to know the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Operating the Oven. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
The Electronic Oven Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Oven Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Microwave. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Combi Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Microwave Quick Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Information on the power setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Inserting the Oven Shelf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Additional functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Microwave Programmes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

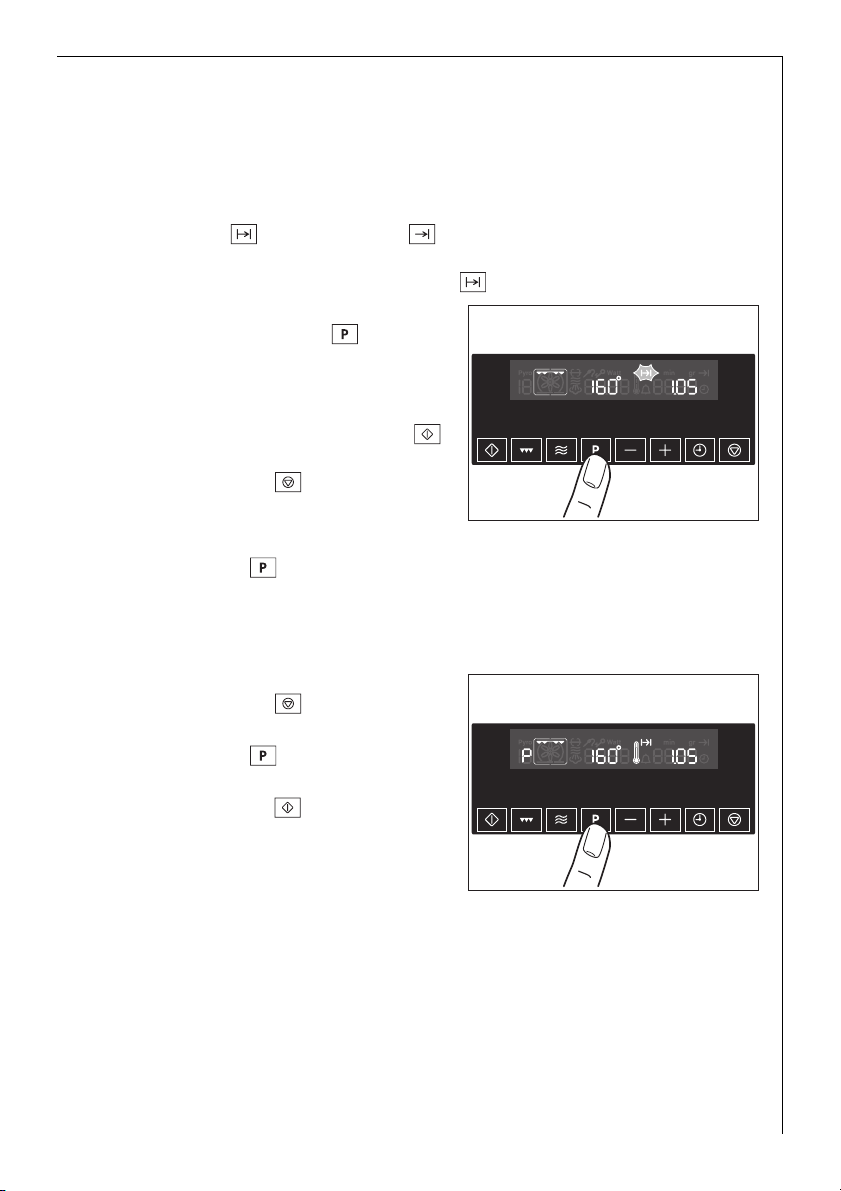

Memory function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Clock Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Other Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Switching off the display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Child safety device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Button Beep . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
The oven's safety cut-out function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Usage, Tables and Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Microwave . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Information about operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Suitable cookware and material. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Microwave Cooking Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Combi-Function Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Tips for the microwave . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Test dishes in accordance with IEC 60705 . . . . . . . . . . . . . . . . . . . . . . . . . 46
Single Economy Grill . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
3
Grilling table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Programmes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Outside of the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Oven interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Side rails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Oven lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
What to do if … . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Safety information for the installer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Guarantee/Customer Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

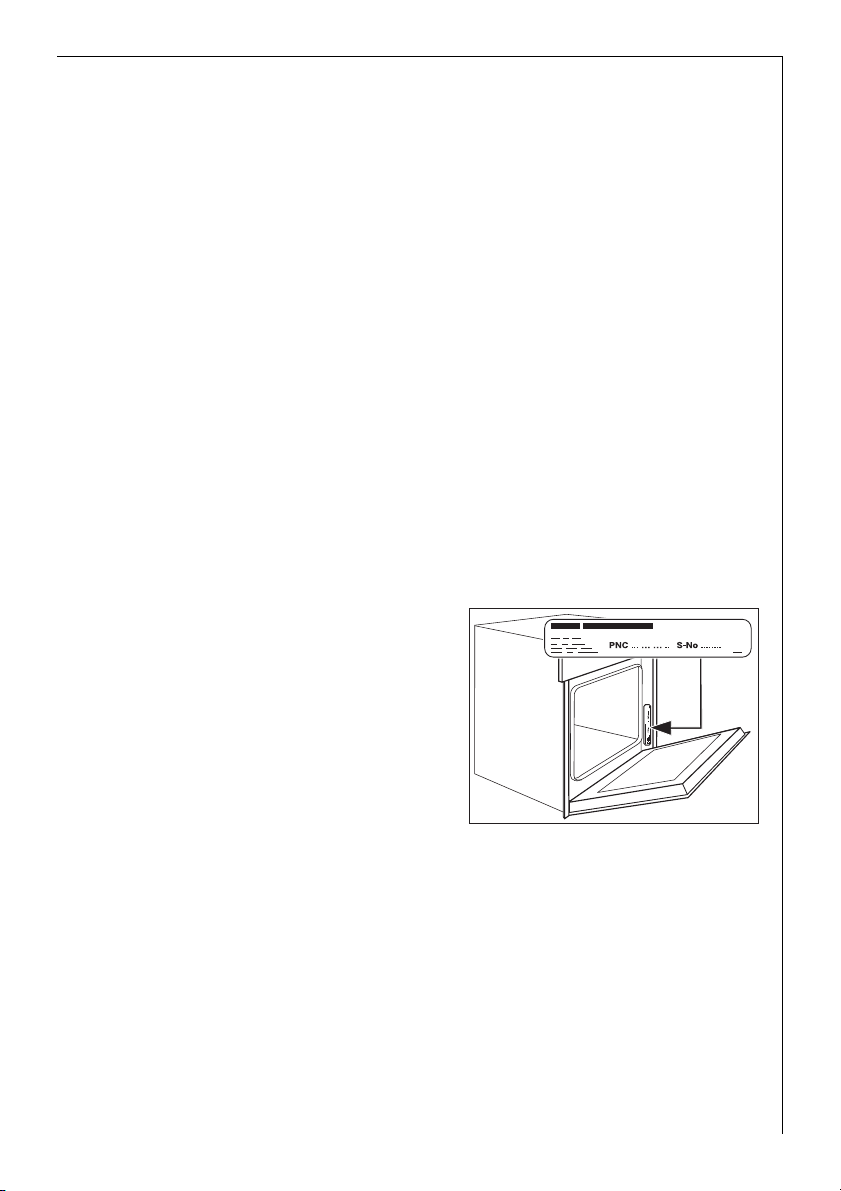

Service and Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
4
Operating Instructions
1 Safety instructions
This appliance conforms with the following EU Directives:
5
– 73/23/EEC dated 19.02.1973 Low Voltage Directive
– 89/336/EEC dated 03.05.1989 EMC Directive inclusive of Amending
Directive 92/31/EEC
– 93/68/EEC dated 22.07.1993 CE Marking Directive
Electrical safety
• This appliance must be connected by a qualified electrician only.
• In the event of a fault or damage to the appliance: take the fuses out
or switch off.
• Should the door seal and the door seal surfaces be damaged, the appliance must not be operated until they are repaired.
• Repairs to the appliance must only be carried out by qualified
service engineers. Considerable danger may result from improper re-
pairs. If repairs become necessary, please contact your local Service
Force Centre.
Children’s safety
• Small children must be kept away from the appliance. Make sure that
children do not touch the appliance when playing.
• Always heat baby food in jars or bottles with the lid or top off. After
heating, stir well or shake so that the heat is evenly distributed. Before you give the baby food to the child, please be sure to test the
temperature.
• When operating the grill (alone or in combination with the microwave) the viewing window becomes hot. Therefore keep small children away from the door of the appliance.
5
Safety whilst Using
• This appliance is intended to be used for cooking, roasting and baking
food in the home.
• Take care when connecting electric appliances to sockets nearby. Do
not allow connecting leads to come into contact with or to catch beneath the hot oven door.
• Warning: Risk of burns! The interior of the oven becomes hot dur-
ing use.
• Using ingredients containing alcohol in the oven may create an alcohol-air mixture that is easily ignited. In this case, open the door carefully. Do not have embers, sparks or naked flames in the vicinity when
opening the door.
3 Information about acrylamides
According to the latest scientific research, intensive browning of food,
especially in products containing starch, may present a health risk due
to acrylamide. Therefore we recommend cooking at low temperatures
and not browning foods too much.
6
Microwave
• Only switch the appliance on when there is food inside it. Without
food inside it, the appliance could be overloaded.
• Only use microwave-safe cookware (see chapter Usage, Tables and
Tips / Suitable Cookware and Material).
• To protect the interior or the door of the appliance from corrosion
through escaping steam (condensed water), please dry the appliance
with a cloth after each use.
• Do not leave the appliance unattended if food is being heated or
cooked in disposable containers made of plastic, paper or other flammable materials.
• If smoke appears, keep the appliance closed. Switch off the appliance
and disconnect from the power supply. Do not use the appliance under any circumstances if it is no longer working correctly.
• When heating liquids always put a
coffee spoon or a glass rod in the
container to avoid delay in boiling. With delay in boiling the
boiling temperature is reached
without the typical steam bubbles
rising. If the container is shaken
even slightly the liquid can suddenly boil over or spray violently.
Risk of burns!
• Prick food with „skin“ or „peel“,
such as potatoes, tomatoes, sausages, with a fork several times
before cooking so that the food
does not burst.
Ensure that a minimum temperature
of 70 °C is reached when cooking/
heating food. For this please refer to
the power and time data in the
tables. Never use mercury or liquid
thermometers to measure the
temperature of the food.
• Foods heated with microwaves
give off heat to the cookware. Use
oven gloves or something similar.
7
• Do not overcook the dishes by using powers and times that are too
high. The food can dry out, burn or set itself alight in certain places.
• The interior of the oven, the grill heating element and the accessories
become hot when the appliance is operating. Please be careful when
handling them and use oven gloves or similar.
Risk of burns!
• Metal objects must be at least 2 cm from the walls of the interior and
the oven interior door. Otherwise spark discharge can occur and the
appliance can be damaged.
• If not advised otherwise, do not use aluminium foil.
• Do not get anything caught between the door and the door frame.
• Always keep the door seal, the door seal surfaces and the interior
clean. Lack of cleanliness in the appliance can lead to dangerous situations.
• Do not store any flammable objects inside the oven. These could ignite when the oven is switched on.
3 Note on enamel coating
Changes in the colour of the oven’s enamel coating as a result of use do
not affect the appliance’s suitability for normal and correct use. They
therefore do not constitute a defect in the sense of the warranty law.
8
Do not use the appliance...
... for cooking eggs in their shells
(with fried eggs, pierce the yolks
first) and snails, otherwise they will
burst,
... for heating large amounts of
cooking oil (fondue, deep frying)
and drinks with high alcohol content. Spontaneous combustion!
Risk of explosion!
... for heating tightly closed containers, e. g. tins, bottles, screw top
jars,
... for drying animals, textiles, seeds
and gel pillows, and other inflammable materials: Danger of fire!
... for cookware made of porcelain,
ceramic or earthenware that has
small holes, e. g. on handles or
unglazed bottoms. Moisture penetrating small holes can cause the
cookware to crack when it is heated.
9
Disposal
Packaging material
2
The packaging materials are environmentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE<,
>PS<, etc. Please dispose of the packaging materials in the appropriate
container at your local waste disposal facilities.
2 Old appliance
The symbol
product may not be treated as household waste. Instead it shall be
handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the
environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city
office, your household waste disposal service or the shop where you
purchased the product.
W on the product or on its packaging indicates that this
1 Warning: Before disposing of old appliances please make them inoper-
able so that they cannot be a source of danger.
To do this, disconnect the appliance from the mains supply and remove the mains cable from the appliance.
10
Description of the Appliance
General Overview
Control panel
Control Panel
Door
handle
Full glass
door
Oven display
Function buttons
Oven
11
Oven Features
Grill heating element
Shelf positions
Oven Accessories
Shelf
For dishes, cake tins, items for
roasting and grilling.
Crunch tray
(not scratchproof and knifeproof)
Source of microwaves
Oven lighting
Bottom glass,
removable
Oven shelf runners, removable
12
Before using for the first time
Setting and changing the current time
3 The oven only operates when the time has been set.
When the appliance is connected to
the electrical supply or when there
has been a power cut, the symbol
for Time flashes automatically.
1. To change a time that has already
been set, press the Clock
Functions button repeatedly until the symbol for Time flashes.
2. Using the or button, set the
current time.
After about 5 seconds, the flashing
stops and the clock displays the
time of day set.
The appliance is now ready to use.
3 The time can only be modified, if
the child safety device is deactivated, none of the clock functions
Countdown , Cook time or
End time and no oven function
is set.
13
Initial cleaning
Clean the oven before using it for the first time.
1 Important: Do not use caustic or abrasive cleaning agents! These can
damage the oven surfaces.
3 For the metal surfaces, use commercially available cleaning agents.
1. Open the oven door.
The oven light is lit.
2. Remove all oven accessories, and clean them with warm water and a
scouring agent.
3. Wash the oven in the same way, and wipe dry.
4. Wipe the front of the appliance with a damp cloth.
Getting to know the appliance
The appliance can be operated in test mode for testing or performing
all operating steps. The oven is not heating up
Switching on the test mode
1. Switch off the appliance using
the Stop button.
2. Press and hold Baking and Roasting
Programmes and buttons at
the same time until an acoustic signal sound and ”d” lights up in the
display.
Switching off the test mode
1. Switch off the appliance using
the Stop button.
2. Press and hold Baking and Roasting
Programmes and buttons at the same time until an acoustic signal sounds and”d” goes out in the display.
14
Operating the Oven
The Electronic Oven Control
Baking and Roasting Programmes
Microwave function
Oven Functions
Memory: P / Test: d
Temperature/Time/Microwave Power
Thermometer symbol
Weight display
Time functions
Operating period
Start button
Grill function but-
Microwave button
Baking and Roasting Programmes
Selector buttons
Stop button/
Reset
Clock Functions
3 General instructions
• Always confirm the selected function with the Start button. If the
selected function is not started within 30 seconds, the appliance
switches off.
• When the selected function is started, the oven begins to heat up or
the time set begins to count down.
• If the oven door is opened during operation, the function stops. After
closing the door continue with the Start button. If the Start
button is not pressed within 30 seconds, the appliance switches off.
• The oven light is switched on as long as an oven function is started or
the oven door is opened.
The oven light goes off after 10 minutes when the door is open and
the appliance switched off.
• Stop operation with the Stop button, continue with the Start
button. Switch off the appliance by pressing the Stop button repeatedly.
15
Switching the oven on
1. Press Grill button. The oven
function Single Economy Grill
appears.
A suggested temperature appears
on the temperature display.
2. Press Start button to start the
oven function Single Economy
Grill .
Changing the oven temperature
16
Press the or button to raise
or lower the temperature.
The setting changes in steps of 5°C.
Thermometer symbol
• The slowly rising thermometer symbol indicates how far the oven
has already heated up.
• When the selected temperature is reached, an audible signal sounds.
Switching the oven off
To switch off the oven, press
the Stop button repeatedly until
the time and the residual heat, if
any, is displayed.
3 Cooling fan
The fan switches on automatically in order to keep the appliance’s surfaces cool. When the oven is switched off, the fan continues to run to
cool the appliance down, then switches itself off automatically.
17
Oven Functions
The oven has the following functions:
Single Economy Grill
For grilling flat foods placed on the middle of the shelf such as steaks,
escalopes or fish, or for toasting.
Microwave M
In microwave mode, the heat is created directly in the food. For heating
ready meals and drinks, for defrosting meat or fruit and for cooking
vegetables and fish.
Combi function
For the style of heating for the oven function(s), the function
Microwave M can be switched on. The dishes are cooked in the short-
est time and browned at the same time.
Microwave M Quick Start
Quick Start of the maximum microwave power when the appliance is
switched off using the Start button.
Length of time from 30 seconds to 7 minutes. Each press of the button
adds 30 seconds to the operating time displayed.
18
Microwave
1. If necessary, switch off the appliance using the Stop button.
2. By repeatedly pressing the
Microwave button, set the desired power.
• The settings options offered are in
100 Watt steps from 1000 Watt to
100 Watt.
• Repeatedly pressing the
Microwave button makes the
power display begin again at
1000 Watt.
3. Using the or button, set the
desired cook time. The symbol for
Cook time flashes.
• The cooking times can be set as follows:
– From 0 to 2 mins. in 5 second steps,
– from 2to 5mins. in 10 second steps,
– from 5 to 10 mins. in 20 second steps,
– from 10 to 20 mins. in 30 second steps,
– from 20 mins. onwards in 1 minute steps.
• The maximum length of operation that can be set is:
– At 700 Watt to 1000 Watt
0 to 7 mins. 40 secs.,
– at 100 Watt to 600 Watt 0 to 59 mins.
19
4. When the Start button is
pressed, the time set begins to
count down. The symbol for Cook
time illuminates.
• While the time counts down, the
power can be changed using the
Microwave button.
• While the time counts down, us-
ing the buttons and the
cook time can be increased or
reduced.
When the time has elapsed, an audible signal sounds for 2 minutes.
The microwave switches itself off.
The symbol for Cook time flashes and time indicator appears.
To turn off the audible signal:
Press any button.
20
Loading...
