Built-in Compact Oven
Hot air, microwave, grill

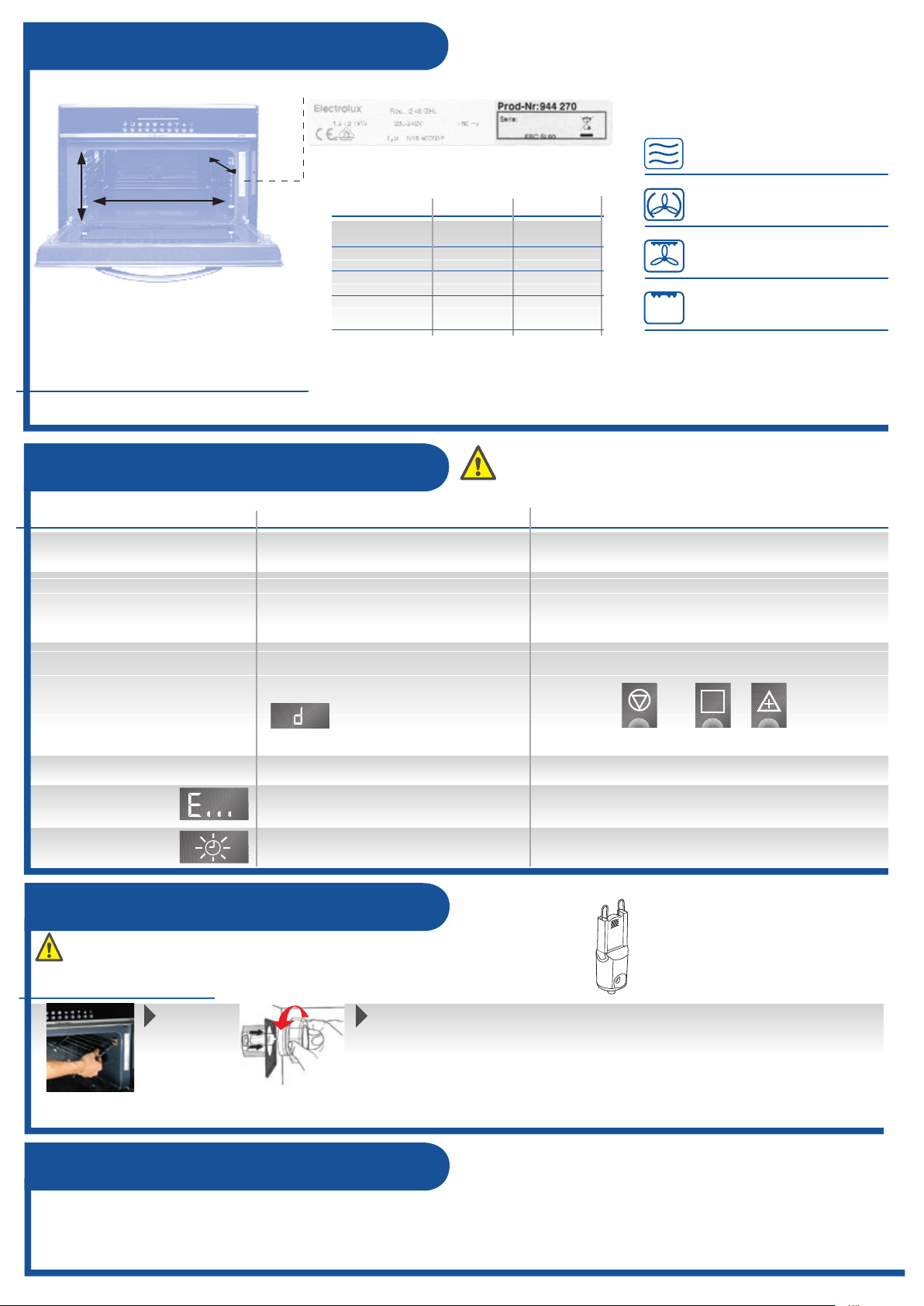

Technical data/Problem solving
Customer service/Warranty
Safety instructions
Installations
EBC SL9
(55 cm)
EBC SL90
(60 cm)
This document is an integral part of the documentation for the installation compact oven EBC SL 9/90
315 7313 03_08/2009
Installation Instructions |
AP a g e |
|
|
Details see safety instructions page C |
|
Electrical connection / supply |
For servicing the appliance must be disconnected! |
Connection by means of a power socket shall be provided by the customer, so that the power socket is available and outside the range of coordination
1.Clamp connection as per the connection diagram
2.Secure the strain relief
The electro connection has to be carried out by a licensed fitter For a network connecting line, use line version H05VV-F or higher
Installation has to be carried out using a supply line with plug or it shall be provided with a separator laid in the home installation with at least 3 mm contact gap, which separates the equipment at the same time and all-pin, according to NIN 2000.

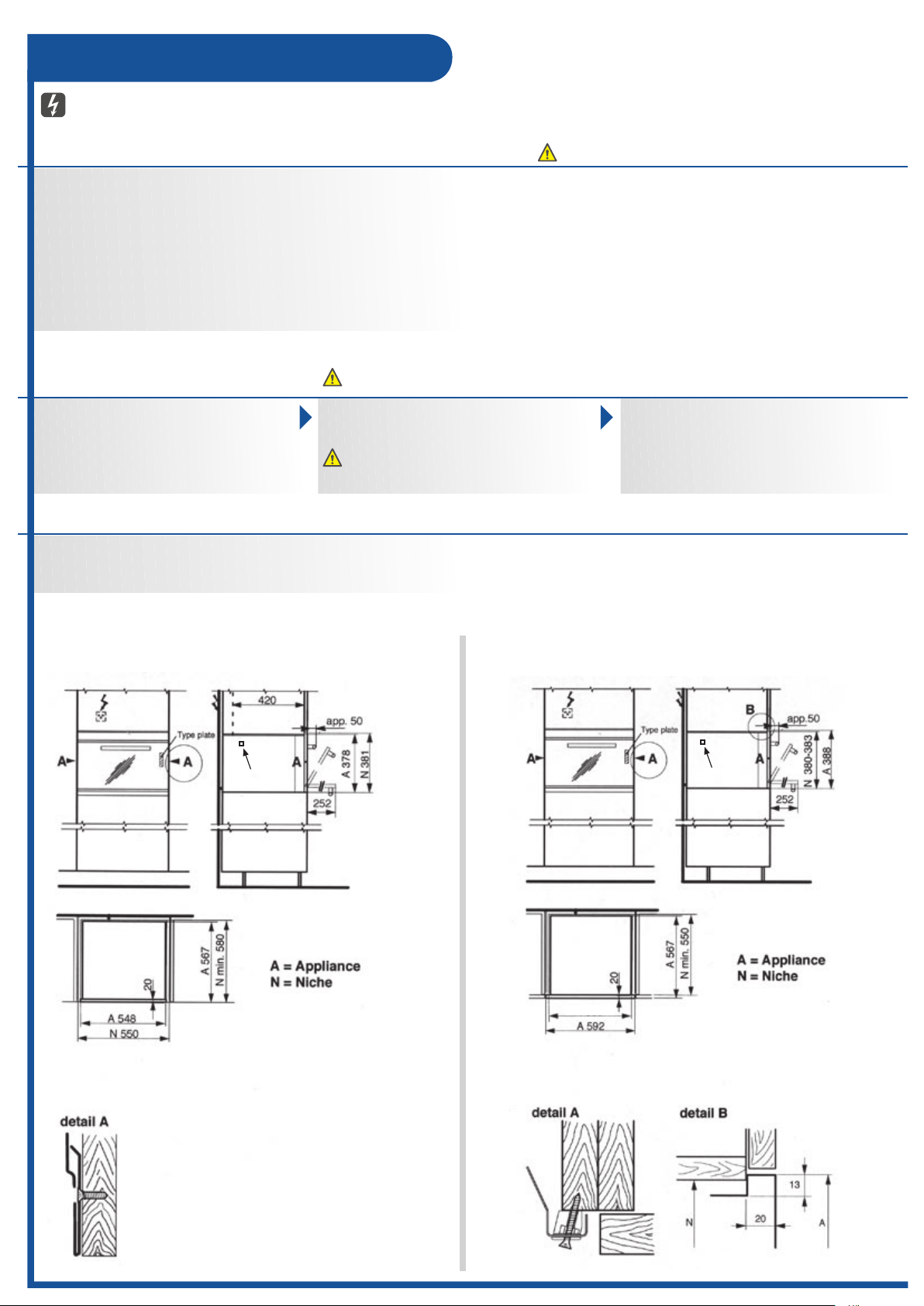

Installation |
During installation in combustible matter, NIN 2000, section 4.2.2 and fire protection guidelines and |
|
regulations of the Association of Cantonal Fire Insurance shall be strictly adhered to. |
||
Place the appliance in front of the |
Push the oven into the recess |
Fix the oven on the both sides with |
recess and connect the mains plug |
|
2 screws (detail A) |
- Cable length: 2.50 m from appliance |
WARNING: do not trap the cable! |
|
- Plug: version 12 |
When plugging in at the top, fasten |
|
|
cable with the cable routing on the |
|
|
left-hand side. |
|
Variants
If the compact oven is built in directly over the installation oven in combinations, this must be done with the enclosed support bracket set no. 315 68 3900. Look at installation sheet no. 315 6837 00 for the installation standard.
EBC SL9 (55 cm, 230 V) |
EBC SL90 (60 cm, 230 V) |
cable routing |
cable routing |
N 560-568
