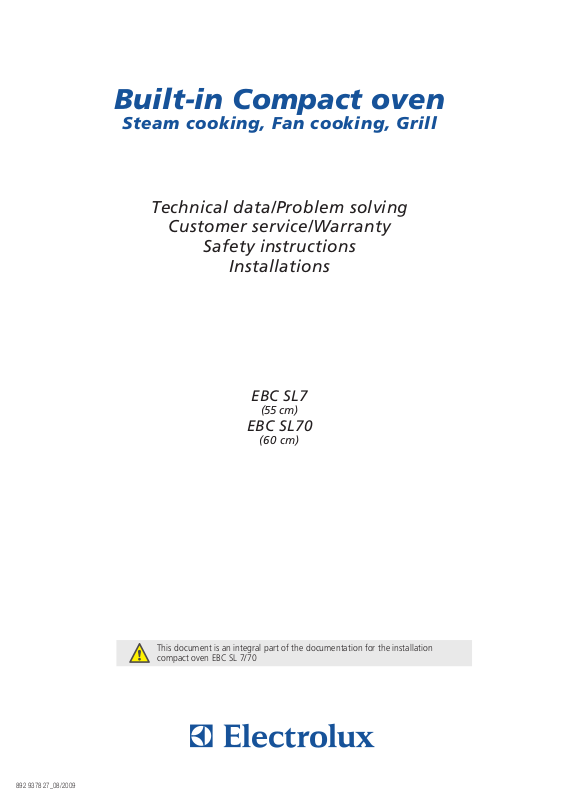

Page 1
892 9378 27_08/2009
EBC SL7
(55 cm)
EBC SL70
(60 cm)
Technical data/Problem solving
Customer service/Warranty
Safety instructions
Installations
This document is an integral part of the documentation for the installation
compact oven EBC SL 7/70
Built-in Compact oven
Steam cooking, Fan cooking, Grill

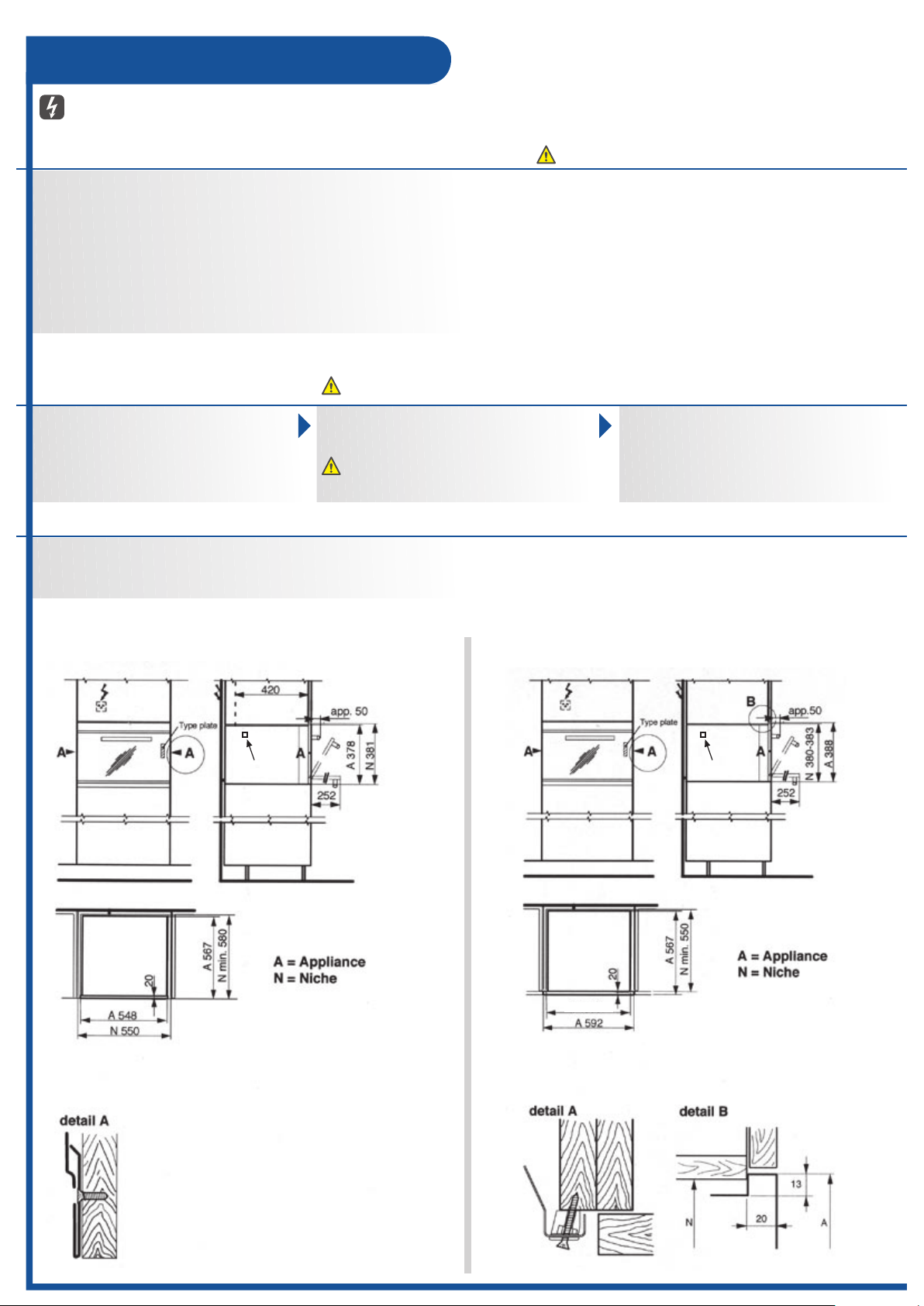

Page 2
231
Installation Instructions
Installation
WARNING: do not trap the cable!
When plugging in at the top, fasten
cable with the cable routing on the
left-hand side.
Push the oven into the recess Fix the oven on the both sides with
2 screws (detail A)
Place the appliance in front of the
recess and connect the mains plug.
During installation in combustible matter, NIN 2000, section 4.2.2 and fire protection guidelines and
regulations of the Association of Cantonal Fire Insurance shall be strictly adhered to.
Variants
If the compact oven is built in directly over the installation oven in combinations, this must be done with the enclosed support
bracket set no. 315 68 3900. Look at installation sheet no. 315 6837 00 for the installation standard.
EBC SL7 (55 cm, 230 V) EBC SL70 (60 cm, 230 V)
Details see safety instructions page C
Connection by means of a power socket shall be provided by the customer, so that the power socket is available and outside the range of coordination
1. Clamp connection as per the connection diagram
2. Secure the strain relief
The electro connection has to be carried out by a licensed fitter.
For a network connecting line, use line version H05VV-F or higher.
Installation has to be carried out using a supply line with plug or it shall be provided with a separator laid in the home installation with at
least 3 mm contact gap, which separates the equipment at the same time and all-pin, according to NIN 2000.
For servicing the appliance must be disconnected!
Electrical connection / supply
- Cable length: 2.50 m from appliance
- Plug: version 12
cable routingcable routing
N 560-568
A
Page

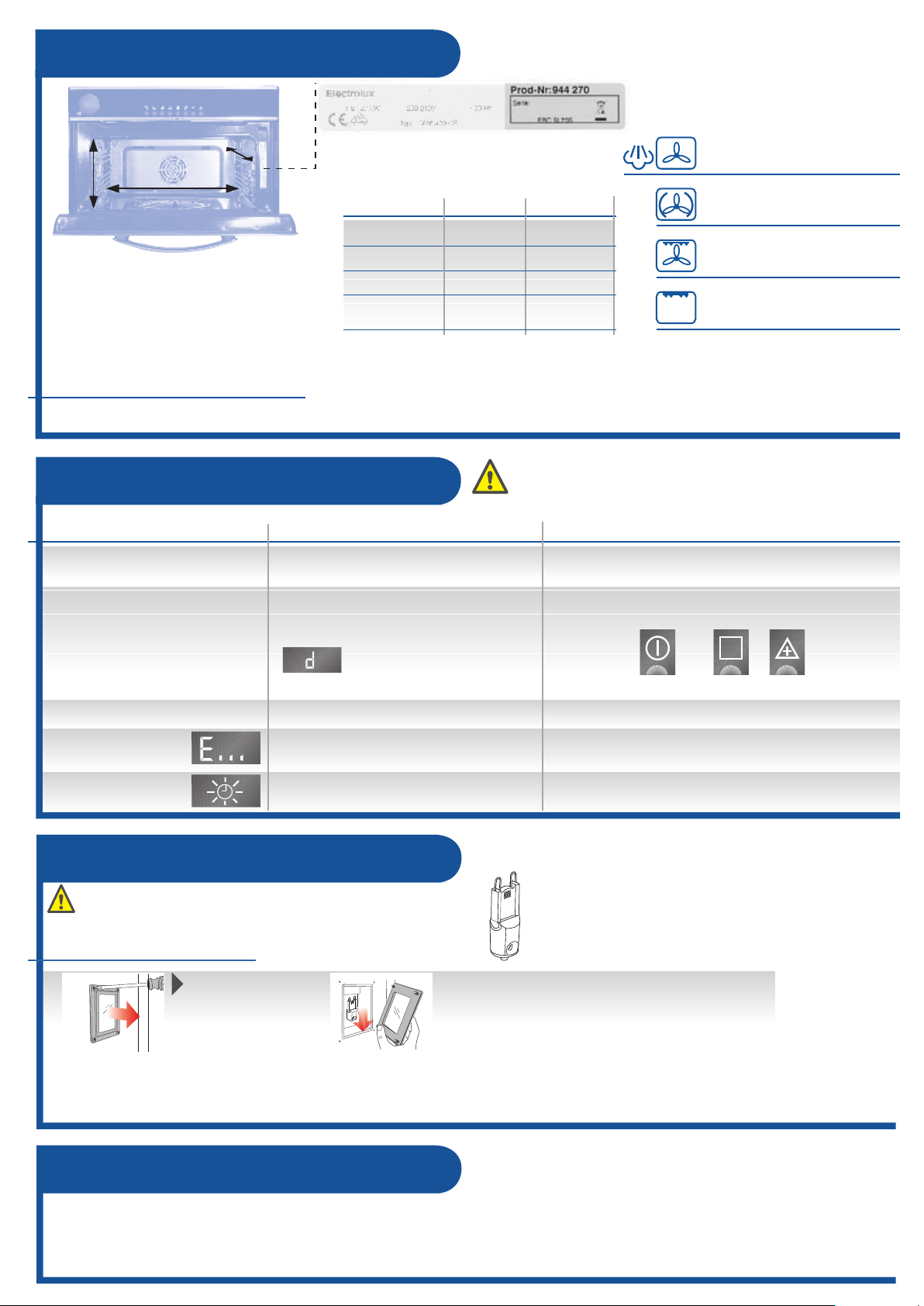

Page 3
40 cm
37,8 cm
20,5 cm
A
+
1. 2.
Assembly in
reverse order
12
EBC SL70
Depth
EBC SL7
Width
59,254,8
Height
38,837,8
56,7 56,7
cm
81,9 81,9
Depth when
door open
Warranty
For each product we issue a warranty of 2 years (display by letter of guarantee, invoice or sales document) to the end consumer from sale or
delivery date. The warranty covers the costs for materials, work and travel time, it is not applicable in the event of non observance of instructions
for use and operating regulations, improper installation and damage caused by external influences, force majeure, third party interferences
and use of non-original parts.
Before changing lamp, disconnect or unscrew fuses!
Changing Lamps
- Bakery volume 31 l
Read label
Customer service needs this data
for all enquiries/orders!
Fan cooking (Rear wall
heating element): 1650 W
External dimensions for:
Technical Data
According to model 2 glass recesses are visible on the left side of the front panel. These are conditional on production technique and
have no impact on quality and life span of the appliance.
Indications conditional of manufacture
Problem Solving
Problem Cause Solution
The oven is not working - Check fuses
- Mains plug connected?
Fault in the power supply
Improper work can result in damage to persons or property. If you cannot
remove interferences with these tips, please contact your customer
service (see page C).
- The oven is not getting hot even though the
mode of operation and temperature are
switched on
- Automatic programm with delayed
cooking start was set
Cancel automatic settings or reset
-> Clock functions see 5, operating instructions
Service-Symbol
light (Errorr-Code)
According to error
Notify customer service
Symbol time of day is flashing Power cut Set time of day -> see page 5, Instructions for use
- Heating element and fan are not working
Oven light is not working
Bulb is defective
Exchange bulb -> see page B
- Possible that the demo mode is activated! Switch off
demo mode:
At the same time press until
the signal is audible
Switch off
Steam generator: 1800 W
Grill size: 1500 W
Turbo grill: 1500 W
...
5…
*
Halogen lamp 25 W, 230 V -G9
constant up to 300 °
-> Electro specialist dealer or central
replacement part service
Squared lamp cover
Remove griddle guide
,
Unscrew glass.
Do not damage seals!
Do not forget to fit it back again!
Subject to technical modifications.
Change halogen lamp*, always handle
with cloth, to avoid fatty residues burning.
B
Page
Temperature in the oven compartment is measured according to an internationally applicable standard while appliance is empty.
Your own measurements can be inaccurate and are not suitable for verifying temperature accuracy.

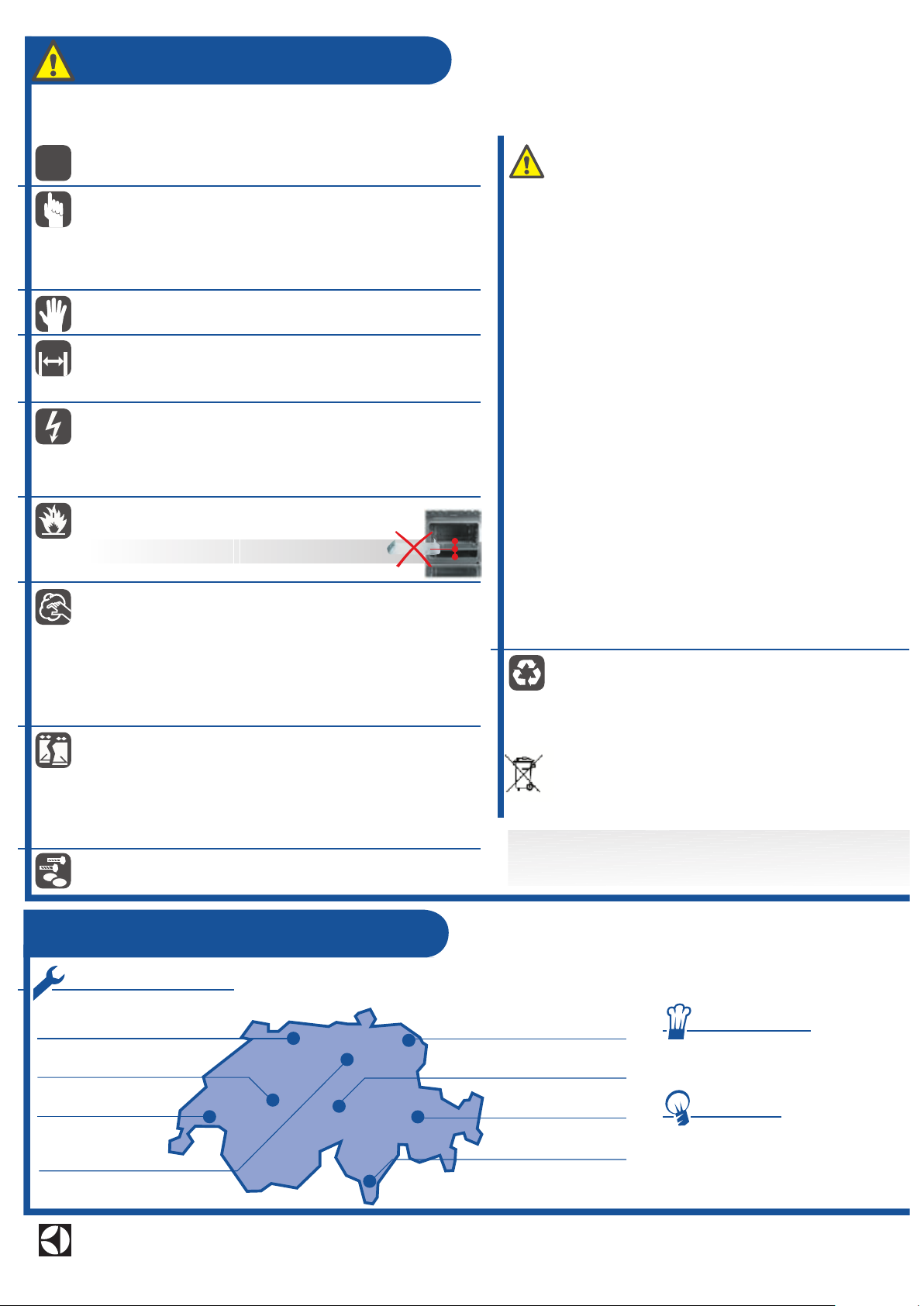

Page 4
The Electrolux Group.
SOS
Safety instructions
This applicance meets the EC directives:
- 73/23/EWG Low voltage directive including amendment 90/683/EWG
- 89/336/EWG EMV directive including amendment 92/31/EWG
- 93/68/EWG CE identification directive
Customer service
4052 Basel
St. Jakob Turm
Birsstrasse 320B
3018 Bern
Morgenstrasse 131
1028 Préverenges
Le Trési 6
Mägenwil/Zürich
5506 Mägenwil
Industriestrasse 10
9000 St. Gallen
Zürcherstrasse 204 e
6020 Emmenbrücke
Seetalstrasse 11
7000 Chur
Comercialstrasse 19
6916 Grancia
Zona Industriale E
One number for all locations
- 044 405 81 11
Cooking advice/Sales
8048 Zürich
Badenerstrasse 587
- 0848 848 023
Replacement parts
sales
5506 Mägenwil
Industriestrasse 10
- 0848 848 111 http://www.electrolux.ch
or
-
ONLY use appliance once you have read and understood these instructions
-
Only use for standard home cooking and roasting, in accordance with
these instructions
-
Only use when installed and in-house
. Electric shocks, risk of injury!
-
Keep these instructions safe for other persons using the oven
-
Disregarding these instructions/safety instructions can result in this appliance
posing a danger
-
After use check whether the appliance is switched off
- In the case of emergency immediately pull out the mains plug or
switch circuit breaker to OFF
-
NEVER use for heating purposes or purposes other than those described
-
NEVER use when defective or you suspect there are defects/damage
- Installation only by specialist while observing the installation instructions and
the local regulations
- Installation in combustible materia: Adhere to NIN2000 guidelines and
fire prevention act
- Install appliance at a suitable working height (eye level)
Dangerous voltage
- The power supply must comply with details on appliance. The appliance has to
be connected to power supply and protective earthing by a specialist as standard,
via mains plug or permantely connected via network circuit breaker
(all-pin 3 mm contact gap)
- The mains plug or circuit breaker must be within reach at ally times
- Do not allow the cord to come into contact with the back of the appliance/hot parts.
CAUTION! If the appliance is used, the basic safety precautions
have to be complied with, in order to elimiate the risk of fire, electric
shock and injuries to persons
-
Appliance parts become hot during use. Burn hazard!
- Do not use oven to store food
- Only use supplied accessories and suitable, heat-resistant dishware,
observe manufacturer's instructions.
- Keep oven door closed when steam cooking.
Risk of damage from humidity
- Caution when opening the oven door after steam cooking.
Hot steam can cause burns
- Always operate appliance with steam rosette from the steam generator.
Avoid contact with hot water in the steam generator. Burn hazard
- DO NOT fill water directly in the
s
team generator, always via water drawer.
Boiling water can cause burns.
- In using alcoholic ingredients in the oven, highly inflammable gas can
emerge, Caution when opening the door, no flames, sparks, blaze nearby.
- Always grill with the oven door closed. Do not leave the appliance unattended
during operation. Keep children away. Window is especially hot; Burn hazard!
- Only handle hot cookware with oven gloves or thermo gloves
- People (including children) who, because of their physical, sensory or
mental capabilities or their inexperience or ignorance are not able to use
the device safely, should not use this device without supervision or
instruction by a responsible person.
- Caution when closing the oven door. Risk of catching parts of your own
body or someone else
’s .
-
Caution when taking out grills/shelves with cooked food. The grills/shelves
can slide down when in a sloping position. Caution: Burn hazard
- Containers with hot liquid can tip if they hang over the edge of the grill.
Caution: Burn hazard
- Avoid overheating: Detrimental steam can develop, alcohol can ignite,
food can dry out and inflame
- Clean appliance and remove food residues regularly (hygiene,
Fire hazard, service life of appliance)
- Always keep seals and seal areas clean (heat loss)
- Switch off the oven after use. Disconnect the appliance from the mains
for long periods of non-use.
- Do not load, climb or sit on over door.
- Do not pull mains plug from power socket by the cable.
Do not touch mains plug/-socket with wet hands
- Always supervise when heating oil/fat, do not overheat -
it can become inflamed: Fire risk!
Extinguish fire with fire blanket or foam extinguisher
- NEVER line oven with aluminium foil, or base with accessories.
-> This will ruin the oven base!
(Good baking results are only achieved without foil)
- Do not use appliance in the case of defect or suspicion of defect, immediatley
disconnect from mains. Repair work to be carried out by authorised
customer service.
- Do not damage mains cable, e.g. jamming, sharp edges, heat etc.
Do not use appliance with defective mains cable, disconnect immediately.
ONLY have mains cable/plug and oven door replaced by customer service,
in order to avoid hazards
- Do not open oven housing. Oven doors must only be removed by
service technician. Risk of injury
- Always keep the oven clean (build up of odours)
- Clean inside carefully. Do not use sharp objects (Damage)
- Prior to cleaning, disconnect appliance from mains and leave to cool down!
- Before exchanging oven lamp disconnect appliance from mains, pull out mains
plug or disconnect the mains fuse
- Do not clean appliance with steam or high pressure device. Do not use
combustible cleaning agent
- If oven shelf runners are removed for cleaning, always ensure you reinstall them
correctly. Otherwise there is a risk of grills or shelves falling. Burn hazard
- Caution when cleaning the steam rosette: sharp edges
-
Only remove the remaining water from the steam generator once it has cooled down
- For safety reasons only use original replacement parts and accessories
-
Only use accessories recommended by the manufacturer and
oven-suited dishware
IMPORTANT! Please read carefully.
Important information concerning your personal safety and information on how to avoid damaging the appliance.
Page
C
- Adhere to national and regional regulations when disposing of range
- Packaging: Recyclable, the foil and the hard foam parts hav e been
labelled accordingly. Dispose of at a public waste-disposal site
- Range: Pull the out of power socket. Cut off mains cable.
Take appliance and mains cable to public waste-disposal site/
dealer or the official SENS collection points / recyclers. A list of
official collection points is available at www.sens.ch
The symbol on the product or its packaging indicates that this product
should not be treated as normal household waste, but must be left at a
collection point for the recycling of electrical and electronic appliances.
In correctly disposing of this product you are making a contribution to the
protection of the environment and the health of the rest of the population.
The environment and health are at danger through incorrect waste disposal.
