MP8780 Multimedia Projector

Operator's Guide

MP8780 Projecteur multimédia Guide de l'opérateur MP8780 Multimedia-Pr ojektor Benutzerhandbuch Pr oyector de Multimedia MP8780 Manual del Usuario MP8780 Proiettore Multimediale Manuale dell'operatore MP8780 Bruksanvisning for multimediaprojektor MP8780 Multimedia Pr ojector Gebruiksaanwijzing

EPS-57A

MP8780 Table of Contents

Safeguards

Warranty

Section 1: Unpack

1.1 Contents of Shipping Box

1.2 Optional Accessories

1.3 Keep Your Packing Materials

1.4 What's Next?

.................................................................................................................

.......................................................................................................

.................................................................................................................

..............................................................................................................................

Section 2: Product Description

2.1 Machine Characteristics

2.2 Part Identification List

2.3 System Setup - Connecting Various Equipment

2.4 Remote Control Transmitter Identification

Section 3: Basic Operations

3.1 Projector Startup

3.2 Projector Shutdown

........................................................................................

........................................................................................................................

...................................................................................................................

.........................................................................................................

....................................................................................................

..................................................................................

............................................................................................................

...............................................................................................................

.......................................................................

...............................................................................

6 6 6 6

7 8 9 11

12 12

ENGLISH

Section 4: Adjustments and Functions

4.1 Menu Navigation

4.2 How To Use Height Adjustment Feet

4.3 SETUP

4.4 IMAGE

4.5 OPT

.......................................................................................................................................

......................................................................................................................................

............................................................................................................................................

Section 5: Maintenance

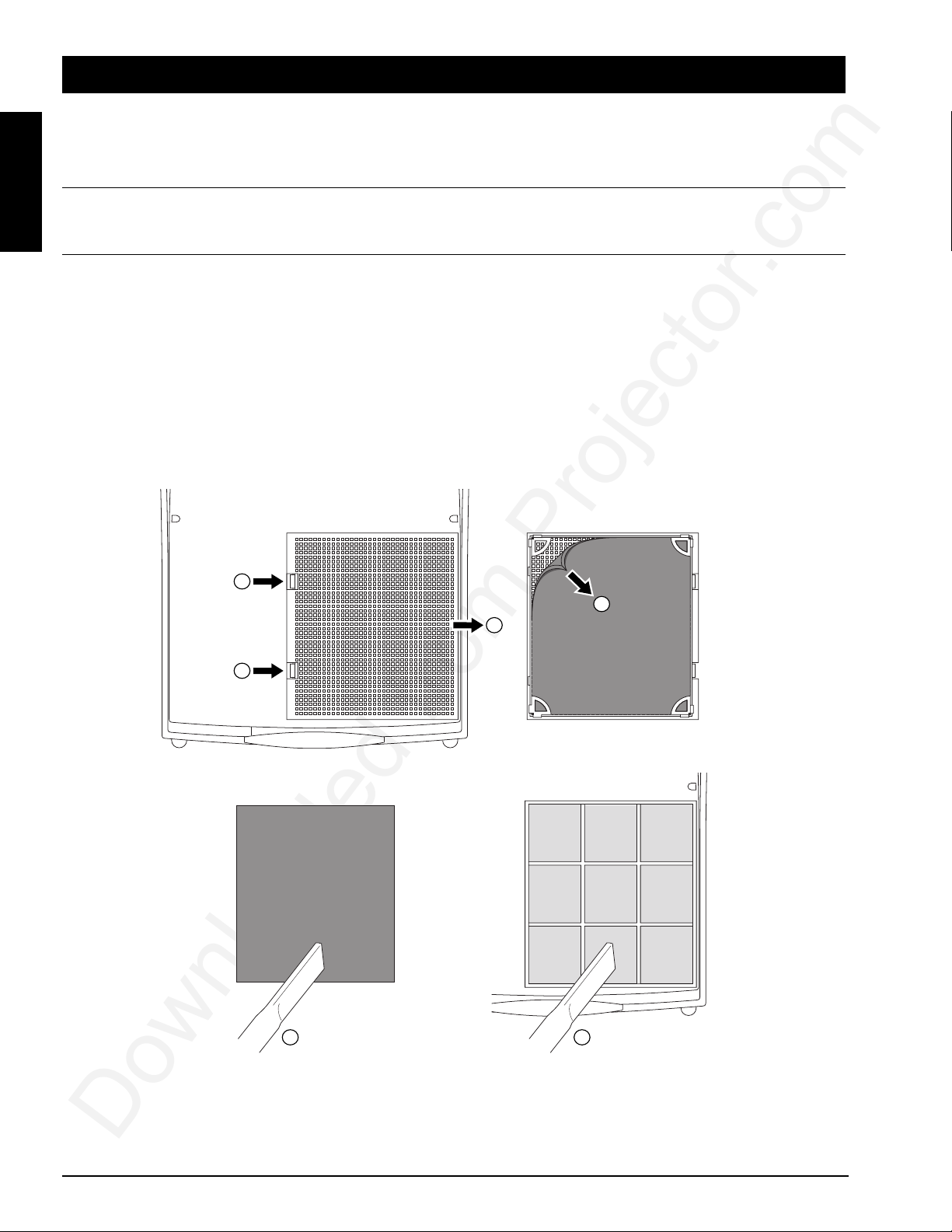

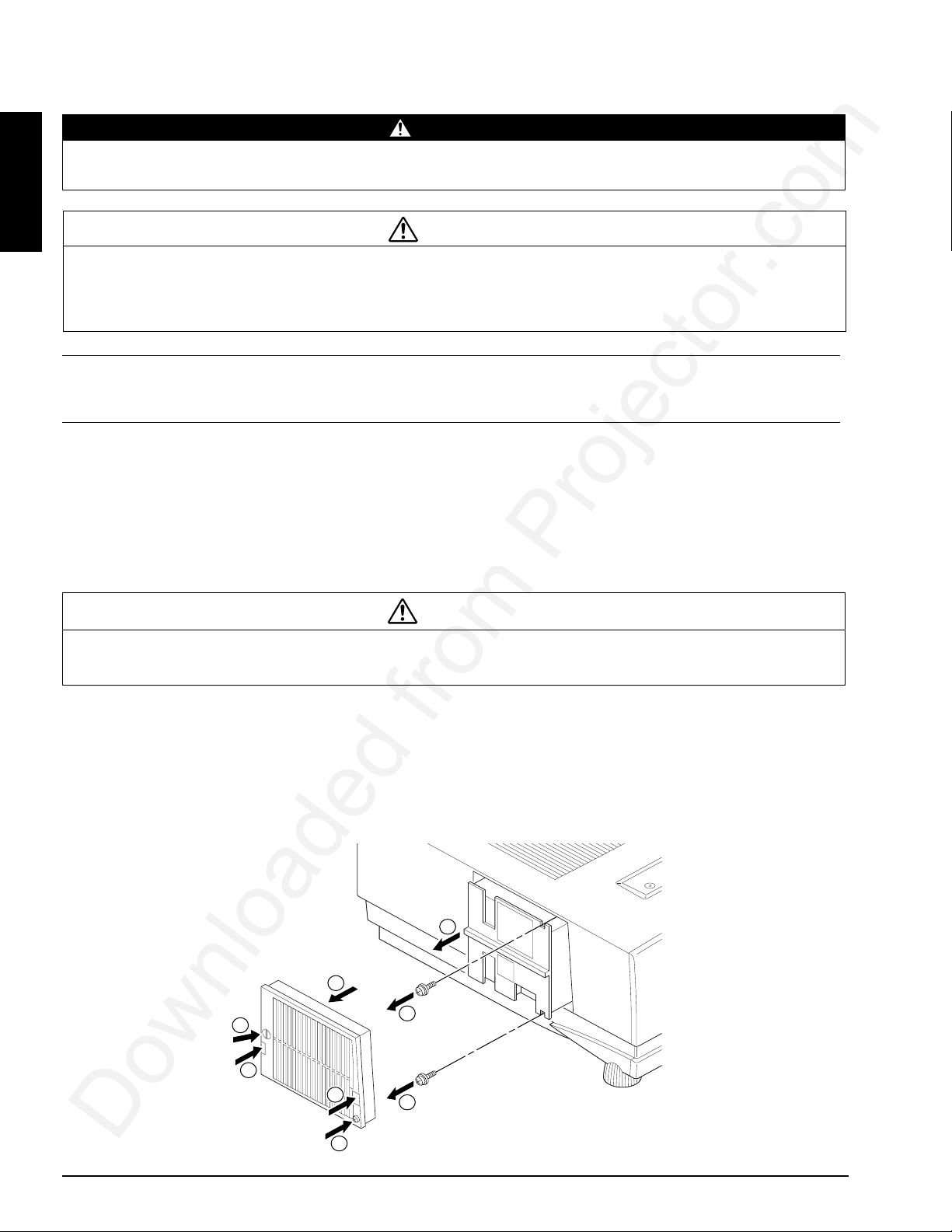

5.1 Cleaning the Air Filter

Section 6: Lamp

6.1 Lamp

6.2 Display Lamp Operation Hours

6.3 Reset Lamp Hours

...........................................................................................................

..........................................................................................................................................

Section 7: Troubleshooting

7.1 Symptom/Solution Table

7.2 Message/Solution Table

Section 8: Accessories

8.1 Service Information

.......................................................................................................................

...............................................................................................

...............................................................................................................

................................................................................................

.....................................................................................................................

.........................................................................................

...........................................................................................................

.............................................................................................................

.................................................................................................

...................................................................................................................

......................................................................

........................................................................................

13 13 14 15 16

19 19 20

21 21

Appendix: Technical Information

...............................................................................

A-1

ENGLISH

3M™ Multimedia Projector MP8780 © 3M 1999

Safeguards

INTENDED USE

Before operating the machine, please read the entire manual thoroughly. The 3M™ Multimedia Projector 8780 was designed, built and tested for use indoors, using 3M™ brand lamps, 3M™ brand ceiling mount hardware and nominal local voltages. This projector is not intended for household use. The use of other replacement lamps, outdoor operation or different voltages has not been tested and could damage the projector or peripheral equipment and/or create a potentially unsafe operating condition.

IMPORTANT SAFEGUARDS

1. Read and understand all instructions before using. Pay particular attention to areas where this symbol is shown.

WARNING - Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

Caution - Indicates a potentially hazardous situation which, if not avoided, could result in minor or moderate injury.

It may also be used to alert against unsafe practices.

✔ Note - Used to emphasize important conditions or details.

2. Close supervision is necessary when any appliance is used by or near children. Do not leave appliance unattended while in use.

3. Never look directly into the projector lens when the lamp is on. The high pressure mercury lamp produces a strong light which could damage your eyesight.

ENGLISH

4. Care must be taken as burns can occur from touching hot parts.

5. Do not operate appliance with a damaged cord or if the appliance has been dropped or damaged – until it has been examined by a qualified service technician.

6. Position the cord so that it will not be tripped over, pulled, or contact hot surfaces.

7. If any extension cord is necessary, a cord with a current rating at least equal to that of the appliance should be used. Cords rated for less amperage than the appliance may overheat.

8. Always unplug appliance from electrical outlet before cleaning and servicing and when not in use. Grasp plug and pull to disconnect.

9. To reduce the risk of electric shock, do not immerse this appliance in water or other liquids.

10. To reduce the risk of electric shock, do not disassemble this appliance, but take it to a qualified technician when service or repair work is required. Incorrect assembly can cause electric shock when the appliance is subsequently used.

11. Connect this appliance to a grounded outlet.

12. Do not expose this projector to direct sunlight, or use it outside.

13. Keep all ventilation openings free of any obstructions.

14. Always open the lens shutter or remove lens cap when the projection lamp is on.

15. Do not look directly into light beam of laser pointer. The pointer produces a strong light which could damage your eyesight.

16. The projection lamp contains mercury. Always dispose of it in a proper manner according to local regulations.

17. To avoid premature lamp failure, do not change the mounting position of the projector

(desktop ➮ ceiling mount or ceiling ➮ desktop mount) and continue to use the same lamp.

18. Always operate machine on a flat, sturdy surface.

LOCATION OF PRODUCT SAFETY LABELS

Safety labels are used on or within the 8780 projector to alert you to items or areas requiring your attention.

ENGLISH

DO NOT REMOVE SCREWS EXCEPT USER SERVICE SCREWS

HIGH TEMPERATURE

MAY CAUSE BURNS. REPLACE THE LAMP UNIT ONLY AFTER IT HAS COOLED. REPLACE WITH THE SAME LAMP UNIT.

HIGH VOLTAGE

MAY CAUSE AN ELECTRIC SHOCK AND ULTRAVIOLET. REPLACE THE LAMP AFTER FIRST REMOVING THE POWER PLUG FROM THE OUTLET. THIS COVER IS PROVIDED WITH AN INTERLOCK. DON'T DEFEAT THIS INTERLOCK.

DO NOT BLOCK THE VENTILATION HOLES (SIDE AND UNDERNEATH) OF THE UNIT. THIS MAY CAUSE A FAILURE.

CAUTION

ATTENTION

HIGH TEMPERATURE

MAY CAUSE BURNS. REPLACE THE LAMP UNIT ONLY AFTER IT HAS COOLED.

EXPLOSION

THE LAMP MAY EXPLODE WHILE IT IS LIT. HANDLE THE LAMP CAREFULLY SO AS NOT TO DAMAGE IT.

Visual Systems Division Austin, TX 78726-9000

LCD PROJECTOR MOD NO.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

MP8780

AC100-240V

6.5A-2.7A 50/60HZ

MADE IN JAPAN

UL 1950

LISTED

685Z

E73930

Important

This projection lamp contains mercury. Consult your local hazardous waste regulations and dispose of this lamp

in a proper manner.

WARNING

DO NOT STARE DIRECTLY INTO THE PROJECTION LENS.

SAVE THESE INSTRUCTIONS

The information contained in this manual will help you operate and maintain your 3M MP8780 Multimedia Projector.

3M™ Multimedia Projector MP8780 © 3M 1999

Warranty

LIMITED WARRANTY

3M warrants this product against any defects in material and workmanship, under normal usage and storage, for a period of two years from date of purchase. Proof of purchase date will be required with any warranty claim. In the event this product is found to be defective within the warranty period, 3M's only obligation and your exclusive remedy shall be replacement of any defective parts (labor included).

To obtain warranty service, immediately notify the dealer from which you purchased the product of any defects. In the USA call 1-800-328-1371 for warranty or repair service.

LIMITATION OF LIABILITY

THE FOREGOING WARRANTY IS MADE IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, AND 3M SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTY OF MERCHANTIBILITY AND FITNESS. 3M SHALL NOT BE LIABLE FOR ANY DAMAGES, DIRECT, CONSEQUENTIAL, OR INCIDENTAL, ARISING OUT OF THE USE OR INABILITY TO USE THIS PRODUCT.

Important: The above warranty shall be void if the customer fails to operate product in accordance with 3M's written

instruction.This warranty gives you specific legal rights and you may have other rights which vary from state to state.

ENGLISH

FCC STATEMENT - CLASS A: This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instruction manual may cause interference to radio communications. It has been tested and found to comply with the limits for a Class "A" computing device pursuant to Subpart B of Part 15 of the FCC Rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment. Operation of this equipment in a residential area is likely to cause interference in which case the user at his/ her own expense will be required to take whatever measures may be required to correct the interference.

EEC STATEMENT: This machine was tested against the 89/336/EEC (European Economic Community) for EMC (Electro Magnetic Compatibility) and fulfills these requirements.

Video Signal Cables: Double shielded coaxial cables (FCC shield cable) must be used and the outer shield must be connected to the ground. If normal coaxial cables are used, the cable must be enclosed in metal pipes or in a similar way to reduce the interference noise radiation.

Video Inputs: The input signal amplitude must not exceed the specified level.

PATENTS, TRADEMARKS & COPY RIGHTS

IBM is a registered trademark of International Business Machines Corporation. Apple Macintosh and Apple Powerbook are registered trademarks of Apple Computer, Inc. Microsoft and Windows 95 & Windows 98 are registered trademarks, and Windows and Windows for Workgroups are trademarks of the Microsoft Corporation. Toshiba is a registered trademark of Toshiba Corporation. All other products are trademarks or registered trademarks of

their respective companies.

Section 1: Unpack

1.1 Contents of Shipping Box

The 3M™ MP8780 Multimedia Projector is shipped with the necessary cables required for standard VCR, PC, MAC™ II or laptop computer connections. Carefully unpack and verify that you have all of the items shown below in Figure 1.1. If any of these items are missing, please contact your place of purchase.

ENGLISH

MP8780 Multimedia

Projector

3-Conductor

Video/Audio Cable

VGA Cable

(15-15 pin M/M)

ADB Adapter

Cable

1.2 Optional Accessories

• RS-232 control cable

• Gender Change SVGA MAC Monitor Adaptor

BACK

LIGHT

VIDEORGB

VOLUMEFOCUS

DRAG

BLANK

ZOOM

RESET

STANDBY/ON MUTE

Remote Control

(S-Video mini DIN4-pin)

PS/2 Adapter

L R

SELECT

Transmitter

Video Cable

Cable

Figure 1.1 Inventory of Shipping Box

....................................................

...........

Power Cord

US, UK, Europe

R L

RCA to Stereo

(1) (1)

Lens

Cap

Mini Jack

65432

OFF

MAC

Adaptor

Serial Mouse

Cable

• USB mouse cable

..........................................................

(1)

1.3 Keep Your Packing Materials

✔ Important

Save the shipping box and packing materials in the event the MP8780 should require shipping to a 3M Service Center for repair.

1.4 What's Next?

After you have unpacked the MP8780 system and identified all the parts, you are ready to set up the projector. We hope you will enjoy using this high performance product in your meetings, presentations and training sessions. This product has been produced in accordance with 3M's highest quality and safety standards to ensure smooth and trouble

free use in the years to come.

3M™ Multimedia Projector MP8780 © 3M 1999

Section 2: Product Description

2.1 Machine Characteristics

The MP8780 Multimedia Projector integrates ultra-high bright lamp and polysilicon LCD display technology into a single unit. It accepts input from three different computer sources and three video/audio sources and projects a bright, super crisp image. Switching your presentation from a computer input to a video input, and then back to a computer input simply requires the push of a button on the remote control keypad or control panel keypad.

The MP8780 Multimedia Projector offers the following features:

ENGLISH

• Ultra-high brightness projection lamp

• Real XGA (1.8 inch XGA HTPS LCD panels with high aperture ratio)

• Intelligent scaling for UXGA, SXGA,XGA, SVGA, VGA

• Automatic optimum source selection display

• USB, Serial, PS/2 and Apple Desktop Bus (ADB) mouse emulation

• Manual lens shift without keystone correction

• Power zoom and focus

• Freeze and Magnify Functions

• Picture-in-picture (PIP)

• Timer function

• Two internal stereo speakers (3W x 2)

• Three computer inputs: RGB1, RGB2, RGB3 (BNC)

The MP8780 is one of the brightest projectors in the marketplace. The brightness of your machine will vary depending on the ambient room conditions and contrast/brightness settings.

• Three video inputs: Video1, Video2, Video3

• Easy to set up and use

• Ability to display 16.7 million colors

• Digital Gamma Correction

• High resolution and component video compatible

• Higher resolution for video by de-interlacing

• Full function remote control

• Volume control for external speakers

• RS-232 control capability

• Horizontal and vertical image inverting

• Horizontal and vertical image position control

• Automatic keystone correction

• On screen menus in seven languages

• IR remote control sensor in front/rear

• Color balance control for data/video

• Optional ceiling mount kit

✔ Note

2.2 Part Identification List

ENGLISH

STANDBY/ON MUTE

BLANK

ZOOM

RESET

DRAG

SELECT

L R

VOLUMEFOCUS

BACK LIGHT

VIDEORGB

11 10

Figure 2.2 Identifying MP8780 Parts

1. Operation Panel a) STANDBY/ON button b) Input Source: RGB/Video c) Mute, Blank, Volume, Zoom, Focus d) Display Menu (On/Off) e) Select button (select displayed value) f) Arrow Direction buttons (left/right or up/down)

2. Remote Control Sensors (front/back)

3. Stereo Speakers

4. Terminal Connection Panels a) S-Video, Video, Audio inputs b) RGB1, RGB2 and RGB3 inputs c) RGB output d) Audio L/R input, Audio output

(RCA jack) e) RS-232 Control f) UBS Port g) Mouse control port (serial/PS/2/ADB) h) RGB3 or component video (BNC)

EPS-59A

5. Image Shift Control

6. Height Adjustment Feet

7. Projection lens

8. Carry Handle

9. LED Indicators a) Lamp b) Temperature c) Fan d) Cover open e) Change lamp f) Power On

10. AC Power Cord Input

11. Main Power Switch (On/Off)

12. Lamp Access Door

13. Remote Control Transmitter

3M™ Multimedia Projector MP8780 © 3M 1999

2.3 System Setup - Connecting Various Equipment

CRT

Display

RGB OUT

ININ

Audio

Left

Audio Right

OUTOUT

It only takes a few minutes to connect the 3M™ Multimadia Projector MP8780 to your computer, VCR, or other device. Always disconnect the projector power before connecting any cables.

Connection Terminals

ENGLISH

Computer Connections

MONITOR PORT

OUT OUT

Audio

Left

Audio

Right

RGB1LRRGB2

PUT

IN IN

ININ

Video Connections

VIDEO1 L R

VIDEO2 L R

Audio

Right

Audio

Left

MAC

Adaptor

65432

MONITOR

1 OFF

PORT

OUT OUT

MAC

EPS-143A

RGB1

PUT

VIDEO1RL R VIDEO2 SERIAL MOUSEL R USB

R/Y(CV) G/U B/V

RGB2 RGB

RGB3/VIDEO3

LR LRLRHS VS

RGB

OUT PUT

SERIAL MOUSE USB

IN IN

OUT

PS/2 or SERIAL PORT

EPS-142A

OUT PUT

IN IN IN

Audio L/R

Video

OUTOUTOUT

REDWHTYEL

VCR

S-VHS

Audio

Left

OUT

OUT OUT

Laser Disc

Audio

Right

REDWHT

INININ

BNC Connections

R/Y(CV) G/U B/V

RGB3/VIDEO3

LRHS VS

Caution

Turn power off to all devices before making connections. Never plug anything into the projector or computer while any device is in operation. The MP8780 must be powered down when making connections. The mouse emulation (except USB) may not work if the unit is not powered down before the mouse cable connections are made.

2.3 System Setup - Connecting Various Equipment (continued)

BNC Connections

ENGLISH

There are four kinds of usage for BNC connectors:

Purpose Usage of BNC Menu Selection

R/Y(CV) G/U B/V HS VS Selection1 Selection2

Usage 1 RGB Input Red Green Blue HS VS RGB3 Usage 2 Component Input Y U V NC NC VIDEO3 YUV Usage 3 CV CV NC NC NC NC VIDEO3 CV/S Usage 4 S-video Y C NC NC NC VIDEO3 CV/S (Note): NC No Connection

Usage 1: Selecting "RGB" determines the usage of BNC as RGB Input. Usage 2: Selecting "VIDEO3" and "YUV" determines the usage of BNC as Component Input. Usage 3/4: Selecting "VIDEO3" and "CV/S" determines the usage of BNC as CV or S. Usage of BNC as CV or S is

determined automatically by detecting input signal by the projector. On the above table, "Selecting 1" is done by direct "RGB" or "VIDEO" button of Oeration Panel or Remote Controller.

Selection 2 is done by "MENU" button and selecting "OPTION"-1st layer, "BNC"-2nd layer and "YUV/CV/S"-3rd layer. Apple™ Desktop Mouse - The Macintosh operating system should recognize the MP8780 as a mouse without any drivers

being loaded. VirtualMouse for PC Computer - For IBM™ compatible computers, the operating systems will need to be set to "Serial

Mouse," "PS/2 Mouse" or "USB Mouse" to recognize the projector as a mouse pointer device.

Change mouse driver information to "Serial Mouse", "PS/2 Mouse" or "USB Mouse".

a) Windows™ 95/Windows™ 98 - Click "Start;" select "Settings;" select "Control Panel." Click on "Mouse;"

select the "General" tab; (see what driver is currently loaded and make note of it); select "Change;" select "Show all devices;" (make note of the current Manufacturer and Model); select "Standard Mouse Type" for Manufacturer; then select "Standard Serial Mouse" or "Standard PS/2 Mouse". Click OK to change and apply the new driver. Restart Windows if prompted.

b) Windows™ 3.1 - From "Program Manager" click "Main;" then click "Windows Setup," (make note of

what the current mouse driver is); Click "Options;" then "Change Systems Settings." Choose "Mouse." It should be listed as "Microsoft or IBM PS/2."

✔ Note

For proper mouse operation, always turn the projector power on first and then power up the computer. For some laptop computers you may need to disable the internal pointing device (IPD). This is done through

the BIOS level set up of the particular machine, or it could be listed in a "Utilities" program group, i.e., "Toshiba Utilities™," or "Thinkpad Features™."

3M™ Multimedia Projector MP8780 © 3M 1999

2.4 Remote Control Transmitter Identification

STANDBY/ON

Set main power switch to ON. Press STANDBY/ON button to begin projection mode (lamp on) To turn lamp off, press STAND/ON then select YES on Shut Down screen. Select NO to continue running.

BLANK

Press button to turn ON/OFF the screen blanking function.

ZOOM

Press (+) to increase or (-) to decrease the size of the displayed image

RGB

Press the RGB button to select the input source. Press again to select the next source (RGB1 - RGB2 - RGB3 - RGB1).

TIMER

Press button to turn the menu screen timer ON/OFF.

the blank function is active.

stops timer. Third press deletes timer from screen display.

The timer does not display when

Second press

FREEZE

Press button to turn ON/OFF the freeze image function. Allow background to refresh in PIP Mode1.

DRAG

In mouse mode, press button to hold, reposition and drop an object on the screen. In MAGNIFY mode, press MAGNIFY button then press the DRAG button and change the magnifying position

by moving the MINI-JOY stick.

STANDBY/ON

ZOOM

BLANK

+ +

– – –

RGB

L R

SELECT

TIMER

DRAG

MUTE

VOLUMEFOCUS

VIDEO

MAGNIFYFREEZE

–

ENGLISH

MUTE

Press button to turn the mute function (speaker sound) ON/OFF.

FOCUS

Press (+) or (-) to adjust the image sharpness.

VOLUME

Press (+) to increase or (-) to decrease speaker volume.

VIDEO

Press the VIDEO button to select the input source. Press again to select the next source

(Video1 - Video2 - Video3 - Video1).

Press to display the menu screen.

MAGNIFY

Press to enter the Magnify Mode. Operate mini-joy stick or press L or R button to control magnify function.

Press for right mouse button function, Mouse Mode. Press to reduce size of magnified image, Magnify Mode.

MINI-JOY STICK

Operate for normal mouse functions, Mouse Mode, Operate for select function, Menu Mode. Operate to change the image area to be magnified, Magnify Mode.

L-SELECT

Press for left mouse button function, Mouse Mode. Press for select function, Menu Mode. Press for magnify function, Magnify Mode.

Section 3: Basic Operations

3.1 Projector Startup

ENGLISH

+–+–+

Select

Zoom Focus Volume

–

Blank

RGB

Standby/On

Video

Figure 3.1 Projector Controls

1. Make all cable connections and line hookups with the power off.

2. Turn the POWER SWITCH of the projector on. The ON indicator will light up orange.

3. Press the STANDBY/ON button . The ON indicator blinks (green) and then lights (green).

Standby/O

The ON indicator will blink green during warm-up and lamp ignition. When power is turned off, there is a 90 second reset period before the STANDBY/ON button will function again.

4. Adjust the screen size by pressing the ZOOM +/- button.

5. Adjust the sharpness by pressing the FOCUS +/- button.

6. Turn on all connected equipment. Refer to section 2.3.

7. Press the RGB/VIDEO button on the projector or remote to select the source of the signal to be projected on the screen. The selected signal input is displayed at the top right of the screen. The display will show the last selected input source before power was turned off.

3.2 Projector Shutdown

1. In projection mode, press the STANDBY/ON button. The Shut Down screen will display. Select

the

YES option (press arrow button or mini-joy stick) to turn off. The fan will continue to run for approximately 90 seconds.

2. Turn the MAIN POWER SWITCH of the projector off.

Standby/O

Do not turn off the POWER SWITCH before pressing the STANDBY/ON button. After the STANDBY/ON button is pressed, the fan rotates for about 90 seconds to cool the projector.

3. Attach lens cap to protect projection lens.

4. Disconnect cables if moving projector to new location.

3M™ Multimedia Projector MP8780 © 3M 1999

Caution

Section 4: Adjustments and Functions

4.1 Menu Navigation

MUTE

STANDBY/ON

BLANK

+ +

VOLUMEFOCUS

ZOOM

– – –

TIMER

VIDEO

RGB

MAGNIFYFREEZE

DRAG

–

L R

SELECT LIGHT

1. Press MENU button on projector or remote control.

On-screen menus are displayed on the screen.

2. Select the sub-menu (SETUP, IMAGE, OPTION) to be adjusted using the SELECT ( ) buttons or MINI-JOY STICK. Selected Menu is highlighted.

Figure 4.1 Menu Button

ENGLISH

3. Select the sub-menu item to be adjusted using the SELECT ( ) buttons or MINI-JOY STICK. Highlighted items may be adjusted.

✔ Note

Separate settings are provided for the VIDEO1, VIDEO2, RGB1, RGB2 and RGB3 input terminals. Adjustments are saved after power off.

4.2 How To Use Height Adjustment Feet

Adjust the image elevation using the height adjustment at the front of the projector.

1. Raise the front end of the projector so the feet are not touching the table top.

2. Rotate or retract each foot to the desired height.

Figure 4.3 Height Adjustment

4.3 SETUP

The SETUP sub-menu is used to adjust and move the image position. The projector will display either the RGB (Figure 4.4) or Video (Figure 4.5) menu according to the input source being projected.

ENGLISH

SETUP IMAGE OPTION

BRIGHTNESS CONTRAST POSITION PHASE H SIZE AUTO MAC MODE GAIN

SETUP IMAGE OPTION

BRIGHTNESS CONTRAST COLOR TINT SHARPNESS GAMMA SCAN MODE VCR MODE

Figure 4.4 RGB Signal Figure 4.5 Video Signal

Set Menu - RGB Input/Video Input

RGB Screen Video Screen Value/Position Factory Setting BRIGHTNESS BRIGHTNESS ±00 |——|——| (-10~+10) ±00 CONTRAST CONTRAST ±00 |——|——| (-10~+10) ±00 POSITION H±000 (±127) ±000

V±000 (±127) ±000

PHASE 00 (0~19) 00 H SIZE ±00 (±64) ±00 AUTO ✔ H SIZE yes

✔ POSITION yes ✔ PHASE yes

GAIN no

MAC MODE On=MAC has priority off

Off=VESA has priority

GAIN R ±00 (±64) R ±00

G ±00 (±64) G ±00 B ±00 (±64) R ±00

COLOR ±00 |——|——| (-10~+10) ±00 TINT ±00 |——|——| (-10~+10) ±00 SHARPNESS ±00 |——|——| (-10~+10) ±00 GAMMA ±00 |——|——| (-10~+10) ±00 SCAN MODE Movie (video) movie

Photo (still photo)

VCR MODE On (VCR mode) Off

Off (normal)

✔ Note

• TINT cannot be adjusted with a PAL, M-PAL or SECAM video signal input.

• TINT, COLOR and SHARPNESS cannot be adjusted with an RGB signal input.

• V. POSIT, H. POSIT, H. PHASE and H. SIZE cannot be adjusted with a VIDEO signal input.

• Menu operation is not possible during magnify or freeze functions.

3M™ Multimedia Projector MP8780 © 3M 1999

4.4 IMAGE

The IMAGE sub-menu is used to change the image characteristics.

SETUP IMAGE OPTION

PIP MIRROR MESSAGE COLOR TEMP

ENGLISH

SETUP IMAGE OPTION

PIP MIRROR MESSAGE COLOR TEMP

SETUP IMAGE OPTION

PIP MIRROR MESSAGE COLOR TEMP

Figure 4.6 Image Adjustment Screens

IMAGE MENU

Adjustment Screen Value Description Default PIP OFF – Reset PIP mode OFF

ON1 – Computer input frozen, no screen updates occur ON2 – Screen Refreshed

MIRROR NORMAL – Standard tabletop projection (no inversion) NORMAL

H INVERT – Rear projection application

MESSAGE ON – display messages ON

OFF – do not display messages

COLOR TEMP NATIVE - Maxiun brightness COMPUTER: NATIVE

COOL - High temperature VIDEO: MEDIUM MEDIUM - Medium temperature WARM - Low temperature

4.5 OPTION

The OPT. sub-menu allows you to control communication function.

ENGLISH

SETUP IMAGE OPTION

RESET LANGUAGE TIMER AUTO OFF REMOTE LAMP TIMER BNC SPECIAL

SETUP IMAGE OPTION

RESET LANGUAGE TIMER AUTO OFF REMOTE LAMP TIMER BNC SPECIAL

SETUP IMAGE OPTION

RESET LANGUAGE TIMER AUTO OFF REMOTE LAMP TIMER BNC SPECIAL

SETUP IMAGE OPTION

RESET LANGUAGE TIMER AUTO OFF REMOTE LAMP TIMER BNC SPECIAL

Figure 4.7 OPTION Adjustment Screens

3M™ Multimedia Projector MP8780 © 3M 1999

4.5 OPTION (continued)

OPTION MENU

Adjustment Screen Value Description Default RESET DEFAULT – Reset to factory default settings

LAMP TIMER – Reset lamp timer hours to zero

LANGUAGE ENGLISH

FRANCAIS DEUTSCH HOLLANDS (NEDERLANDS) ENGLISH DUTCH ITALIANO SVENSKA

TIMER POSITION 1 – Display timer in lower right of screen POSITION 1

POSITION2 – Display timer in center of screen

AUTO OFF YES – automatic power off after 10 minutes of no input NO

NO – manual power off

REMOTE Both – Enable front & rear sensors

FRONT – Enable front sensor only BOTH REAR – Enable rear sensor only OFF – Turns off sensors

LAMP TIMER CURRENT TIMER – Displays current lamp

operating hours

BNC YUV – Selects component video YUV

CV/S – Selects composite or S-video

SPECIAL FIRMWARE REV – Display revision level of Firmware,

Input type, horizontal/vertical frequency

ENGLISH

Section 5: Maintenance

5.1 Cleaning the Air Filter

✔ Note

ENGLISH

Clean the air filter about every 50 hours, if air is restricted due to dust accumulation on filter, the projector may shut down due to overheating.

1. Turn off the MAIN POWER switch of the projector and pull out power cord. Let cool for 20 minutes.

2. Remove the air filter from the bottom of projector. Push down on tabs (1), open cover (2) and slide cover off (3).

3. Turn cover over and carefully remove foam air filter screen (4).

4. Clean foam screen and metal screen using a vacuum cleaner.

5. Re-install air filter and replace air filter door.

Figure 5.1 Remove Air Filter

3M™ Multimedia Projector MP8780 © 3M 1999

Section 6: Lamp

6.1 Lamp

The following symptoms may indicate a lamp in need of replacement:

• LAMP indicator lights up red.

• "CHANGE THE LAMP" message appears on the screen.

✔ Note

This lamp contains mercury. Consult your local hazardous waste regulations and dispose of this lamp in a proper manner.

6.2 Display Lamp Operation Hours

The lamp operating hours will display when the projector is powered up. When the lamp operating hours reach 950 hours, the message "CHANGE LAMP" will display and the change lamp

indicator will flash red. When the operating hours exceed 1000 hours, the message "CHANGE LAMP NO LIFE" will display and the projector power will automatically turn off after 10 minutes.

✔ Note

After normal lamp operating time has expired, the projector will only run for 10 minute intervals when restarted until the lamp is replaced and the lamp timer is reset. The message "CHANGE LAMP" will display in red at projector start up to remind you to change the lamp.

ENGLISH

6.3 Replacing the Lamp

WARNING

To reduce the risk of electrical shock, always turn off projector and disconnect power cord before changing lamp.

ENGLISH

Caution

To reduce the risk of severe burns, allow the projector to cool for at least 45 minutes before replacing the lamp. To reduce the risk of cuts to fingers and damage to internal components, use caution when removing lamp glass that has failed and shattered into sharp pieces.

✔ Note

For maximum lamp life, do not apply shock, handle or scratch the lamp glass when it is hot. Also, do not use an old or previously used lamp as a replacement lamp.

1. Loosen cover retaining screws: The lamp access cover is located on the side of the projector. Use a screwdriver to uncrew the retaining screws (1) on the left and right side of the cover.

2. Remove lamp cover: Press the spring tabs on each side of the cover and gently remove the lamp cover (3).

3. Loosen lamp retaining screws: Use a screwdriver to unscrew the lamp module retaining screws (4).

4. Remove lamp module: Carefully slide the lamp module out (5) of the projector.

Caution

To reduce the risk of cuts to fingers and/or decreasing image quality by touching the lens, do not insert hand into the empty lamp compartment when the lamp has been removed.

5. Insert lamp module: Carefully insert the new lamp module (5). Ensure that it is fully seated. Tighten the lamp module retaining screws (4) to secure the lamp module in place.

6. Insert lamp cover: Position the lamp cover and depress the spring tabs (2) on each side of the cover to lock it in place.

7. Tighten retaining screw: Tighten the cover retaining screws (1) to the cover. After replacing the projection lamp, always reset the lamp operation hours to zero.

Figure 6.1 Lamp Module

EPS-124A

3M™ Multimedia Projector MP8780 © 3M 1999

Section 7: Troubleshooting

7.1 Symptom/Solution Table

Symptom Cause Solution

Power cannot be • The Main power is not turned on. • Turn the MAIN POWER switch on. turned on. • The power cord is disconnected. • Insert the power cord into an AC socket.

• 90 seconds have not elapsed since • Wait 90 seconds before turning on power. the power was turned off.

ENGLISH

No picture and sound. • The setting of the input source is not • Set the correct input using the input select button of

Sound is heard with no • RGB/Video/Audio wiring to projector • Connect the cable to correct input/output source. picture. is not correct.

Picture is displayed with • Audio wiring to projector is not correct. • Connect the cable to correct input/output source. no sound. • The volume is set to minimum. • Press the VOL button to increase Volume.

Color is weak and tint is • The color and tint have been adjusted • Adjust the color and tint correctly. incorrect. incorrectly.

Picture is dark. • The brightness and contrast has not • Adjust the brightness and contrast correctly.

Picture is not clear • Projector is out of focus. • Adjust the focus and PHASE. LAMP indicator lights • Lamp will not ignite.

red. Cover indicator red. • Air filter door on bottom of case

TEMP indicator • Temperature inside projector • Clear blocked ventilation holes. red. is too hot. • Clean air filter.

correct. the projector or the remote control.

• RGB/Video/Audio wiring to projector is • Connect the cable to correct input/output source. not correct.

• Lens cap is on. • Remove lens cap.

• The unit is muted. • Press the MUTE button.

been adjusted incorrectly.

• The lamp needs to be replaced. • Replace the lamp with a new one.

• Turn off power and let cool for 20 minutes, then restart.

• If problem persists call your dealer.

• Ensure air filter door is closed.

is open.

7.2 Message/Solution Table

Error Message Displays

NO SIGNAL IS DETECTED.

INVALID.

CHANGE THE LAMP. LIFE: 50 HS

CHANGE THE LAMP. NO LIFE.

The projector is not detecting a signal.

The horizontal frequency of input signal exceeds projector capability.

Lamp operation time is greater than 950 hours.

Lamp operation time is greater than 1,000

Cause

Solution

Check cable connections to input device. Input device not connected to this input mode, switch to next mode.

Switch projector to correct resolution. See Appendix A.5

Change the projector lamp and reset the lamp operation hours to zero.

Change the projection lamp and reset the lamp operation hours to zero.

Section 8: Accessories

8.1Service Information

For product information, product assistance, service information, or to order accessories, please call:

ENGLISH

In U.S. or Canada: 1-800-328-1371 In other locations, contact your local 3M Sales office.

-Accessories Part Number

Metal Halide lamp module, 440 W Power cord (US) Power cord (UK) Power cord (Germany) VGA cable MAC adapter S-video cable 3-conductor video/audio cable Serial mouse cable PS/2 mouse cable ADB mouse cable Remote Control Gender changer

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78-8118-3243-1

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78-8118-3387-6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78-8118-3388-4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

78-6969-8958-7 DY-0205-1356-9 DY-0205-1355-1 DY-0205-1354-4 78-8118-3401-5 78-8118-3391-8 78-8118-3238-1 78-8118-3234-0

78-8118-3649-9 78-8118-3239-9

Not Included with Basic Packet Part Number

Ceiling mount Adjustable height suspension Shipping case RS-232 control cable USB mouse cable

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

78-6969-8921-5 78-6969-8312-7 78-6969-8955-3 78-8118-3312-4 78-8118-8186-7

How to Order

Please order these parts through your dealer, or contact 3M Customer Service at the following number: In U.S. or Canada: 1-800-328-1371

In other locations, contact your 3M Sales office.

---------------------------------------------------------------------------------------------------------------------------------------The contents of this manual are subject to revision without prior notice. 3M assumes no responsibility for the infringement of special rights of a third party or other rights that may arise out of the

information contained in this manual. Reproduction of this manual in any form without prior permission is strictly prohibited. 3M will replace the manual if any pages are missing or collated incorrectly.

3M™ Multimedia Projector MP8780 © 3M 1999

Appendix: Technical Information

Table of Contents

A.1 Technical Specifications A.2 Dimensions A.3 Projector-to-Screen Distance A.4 Connection to the Video Signal Terminal A.5 Connection to the RGB Signal Terminal A.6 Indicator Status A.7 Connection to the Control Signal Terminal

A.1 Technical Specifications

✔ Note

All specifications are subject to change without notice.

Product name Model Name Display system

Panel size

Liquid crystal panel

Lens Lamp Speaker (stereo) Power supply Power consumption Operating temperature range Dimensions

Weight

Drive system Number of pixels

video signal input terminal

Multimedia projector MP8780 3 LCD panels, strip pixel configuration. 46 mm (1.8 in.) TFT active matrix 786,432 pixels (V768 × H1024) per panel. 2.36 million total pixels with 3 panels. F/Number: F/2.7 – F/3.4 Focal Length: F = 72 – 108 mm ( Metal Halide lamp 440W 2 x 3 watt AC100 ∼ 240V, 6.5A ~ 2.9A, 50/60 Hz (Automatic) 630W typical 32° ∼ 95°F (0° ~ 35°C)

17.2 in. (W) x 8.9 in. (H) x 19.8 in. (D) 430 mm (W) x 222 mm (H) x 495 mm (D)

16.0 kg (35 lbs.) S VIDEO:Mini DIN 4pin terminal

VIDEO :RCA Jack termina + BNC AUDIO :RCA Jack terminal

2.8 in. – 4.3 in.

)

Input/Output terminal

RGB input/output signal terminal

Control terminal Mouse MD 9pin (serial/PS2/ADB)

USB 4pin

RGB signal:D-sub 15pin (Female) AUDIO :RCA Jack + BNC

D-sub 9pin (Male)

A-1

TECHNICAL

A.2 Dimensions

520 mm

(20.8 in.)

PUT

OUT

RGB3/VIDEO3

R/Y(CV) G/U B/V

RGB2 RGB

LR LRLRHS VS

L R VIDEO2 SERIAL MOUSELR USB

RGB1

VIDEO1

PUT

495 mm

(19.8 in.)

–

+–+–+

LAMP

MP8780

430 mm

(17.2 in.)

CHANGE LAMP

COVER

FAN

TEMP

POWER

222 mm

(8.9 in.)

A-2

TECHNICAL

A.3 Projector-to-Screen Distance

Image Shift Control

Normal

Shift Down (Ceiling Mount)

Shift Up

Example of the Multimedia projector and screen installation. Determine picture size and projection distance as shown below.

Screen Size Distance to Screen

Width Height Diagonal Minimum Maximum

81 cm 61 cm 102 cm 145 cm 226 cm

(32 in.) (24 in.) (40 in.) (4.7 ft) (7.4 ft)

130 cm 91 cm 152 cm 226 cm 347 cm

(48 in.) (36 in.) (60 in.) (7.4 ft) (11.4 ft)

180 cm 122 cm 203 cm 306 cm 468 cm

(64 in.) (48 in.) (80 in.) (10 ft) (15.3 ft)

230 cm 152 cm 254 cm 386 cm 588 cm

(80 in.) (60 in.) (100 in.) (12.7 ft) (19.3 ft)

280 cm 183 cm 305 cm 467 cm 709 cm

(96 in.) (72 in.) (120 in.) (15.3 ft) (23.3 ft)

354 cm 229 cm 381 cm 587 cm 890 cm

(120 in.) (90 in) (150 in.) (19.3 ft) (29.2 ft)

179 cm 305 cm 508 cm 788 cm 1193 cm

(160 in.) (120 in.) (200 in.) (25.8 ft) (39.1 ft)

728 cm 457 cm 762 cm 1190 cm 1197 cm

(287 in.) (180 in.) (300 in.) (39 ft) (58.9 ft)

✔ Note

These sizes are ± 1%. This is due to variations in the manufacture of the lens. If you are close to one of the endpoints you should verify with your unit that the image is the proper size at the proper distance.

The image can be shifted up or down without distortion (keystoning) by turning the Image Shift Control knob on the top of the projector.

A-3

TECHNICAL

A.4 Connection to the Video Signal Terminal

a) Input signal

S-VIDEO signal VIDEO signal

AUDIO signal

b) Signal input terminal

Video input signal terminals have priority in the following order:

1. S-VIDEO input terminal

2. RCA jack (composite) input terminal

Audio sound from input devices is output to the RGB/Video out jack.

Input Output

Chrominance signal

Luminance signal 1.0Vp-p, 75 Ω termination Chrominance signal 0.286Vp-p (burst signal), 75 Ω termination

Ground

S VIDEO input (Mini DIN 4pin)

✔ Note

1.0Vp-p, 75 Ω termination 140mVrms, 46 k Ω (MAX 7.0Vp-p) 0-140mVrms, 680 Ω

Luminance signal

Ground

A.5 Connection to the RGB Signal Terminal

a) Input signal / Output signal

Video signal Horizontal sync signal Vertical sync signal Composite sync signal

Audio signal

Input Output

b) Signal input terminal / output terminal

Video signal (Red)

Video signal (Green)

Video signal (Blue)

No Connection

Ground

Ground (for R)

9 10 11 12 13 14

Analog 0.7Vp-p 75 Ω termination (Positive polarity) TTL level (Positive/negative polarity) TTL level (Positive/negative polarity) TTL level (Negative polarity) 140mVrms, 46k Ω (MAX 7.0Vp-p) 0 ∼ 140mVrms, 680 Ω

No Connection Ground Ground No Connection Horizontal/Composite sync signal Vertical sync signal

Ground (for G)

Ground (for B)

A-4

TECHNICAL

No Connection

c) Example of computer signal

Scan Frequency

Dot Clock

Mode No. H-Size Resolution H (kHz) V (Hz) (MHz) Computer

1 780 320x480i 15.7 59.9 12.270 NTSC(RGB) RGB-NTSC 2 940 384x576i 15.6 50.0 14.687 PAL(RGB) RGB-PAL 3 848 640x400 24.8 56.4 21.053 640X400 TEXT56 4 900 720x400 31.5 70.1 28.322 720X400 TEXT70 4 800 640x400 31.5 70.1 25.175 720X400 TEXT70 4 800 640x350 31.5 70.1 25.175 720X400 TEXT70 5 936 720x400 37.9 85.0 35.500 720X400 TEXT85 5 832 640x400 37.9 85.1 31.500 720X400 TEXT85 5 832 640x350 37.9 85.1 31.500 720X400 TEXT85 6 800 640x480 31.5 59.9 25.175 640X480 VGA60 7 896 640x480 35.0 66.6 31.334 MAC13 MAC13 8 832 640x480 37.9 72.8 31.500 640X480 VGA72

9 840 640x480 37.5 75.0 31.500 640X480 VGA75 10 832 640x480 43.3 85.0 36.000 640X480 VGA85 11 1024 800x600 35.2 56.3 36.000 800X600 SVGA56 12 1056 800x600 37.9 60.3 40.000 800X600 SVGA60 13 1040 800x600 48.1 72.2 50.000 800X600 SVGA72 14 1056 800x600 46.9 75.0 49.500 800X600 SVGA75 15 1048 800x600 53.7 85.1 56.250 800X600 SVGA85 16 1152 832x624 49.7 74.6 57.283 MAC16 MAC16 17 1344 1024x768 48.4 60.0 65.000 1024X768 XGA60 18 1328 1024x768 56.5 70.1 75.000 1024X768 XGA70 19 1312 1024x768 60.0 75.0 78.750 1024X768 XGA75 20 1376 1024x768 68.7 85.0 94.500 1024X768 XGA85 21 1312 1024x768 48.8 60.0 64.000 MAC19A MAC19A 22 1328 1024x768 60.2 74.9 80.000 MAC19B MAC19B 23 1264 1024x768i 35.5 87.0 44.900 1024X768I XGAi 24 1472 1152x864 54.1 60.1 79.648 1152X864 25 1472 1152x864 64.0 70.0 94.178 1152X864 26 1600 1152x864 67.5 75.0 108.000 1152X864 27 1568 1152x864 77.3 84.9 121.268 1152X864 28 1456 1152x870 68.6 75.0 99.931 MAC21 MAC21 29 1500 1152x900 61.8 66.0 92.707 1152X900 SUN 30 1800 1280x960 60.0 60.0 108.000 1280X960 31 1680 1280x960 75.0 75.0 126.000 1280X960 32 1728 1280x960 85.9 85.0 148.500 1280X960 33 1688 1280x1024 64.0 60.0 108.000 1280X1024 SXGA60 34 1688 1280x1024 80.0 75.0 135.000 1280X1024 SXGA75 35 1728 1280x1024 91.1 85.0 157.500 1280X1024 SXGA85 36 1688 1280x1024i 47.7 88.8 80.534 1280X1024I SXGAi 37 2160 1600x1200 75.0 60.0 162.000 1600X1200 UXGA60 38 2160 1600x1200 81.3 65.0 175.500 1600X1200 UXGA65 39 2200 1920x1080i 33.7 59.9 74.176 HDTV1080I HDTV1080 39 1100 960x1034i 33.5 59.0 36.851 HDTV1080I HDTV1034 40 1650 1280x720 45.0 59.9 74.176 HDTV720P HDTV720P 41 2200 1920x1080 67.4 59.9 148.352 HDTV1080P HDTV1080P

A-5

TECHNICAL

c) Example of computer signal (continued)

Note 1: MAC adapter is necessary to set the resolution mode.

Projector is compatible with 13 inch mode and 16 inch mode. Set all dip switches OFF except those indicated below. MAC 13" mode = switch 1 and 2 are ON

MAC 16" mode = switch 2 and 4 are ON

(Example of 16 inch mode)

Note 2: Some input sources may not be displayed properly because they are not compatible with the

projector.

A.6 Indicator Status

The indicators lamps will light or flash to indicate the following operating conditions:

POWER CHANGE

LAMP COVER FAN TEMP LAMP Meaning Remedy

Lights Orange Off Off Off Off Off Standby mode Normal

Flashes Green Off Off Off Off Off During warm up Normal

Lights Off Off Off Off Off During operation Nor mal Green Flash Off Off Off Off The lamp operating Replace lamp

RED hours have reached

950 hours or more

Lights Off Off Off Off The lamp operating Replace lamp

RED hours have reached

1000 hours or more

Lights Off Lights Off Off Off Bottom cover is open Attach the Orange RED Bottom cover

Off Off Lightd Off Off Cooling fan not Contact your

RED operating dealer

Off Off Off Flashes Off Operating temperature Check the air filter.

RED is above normal range Remove any

Off Off Off Lights Off Operating temperature objects blocking

RED is above normal range ventilation. Lower

and projector has the ambient overheated temperature.

Contact your dealer

Off Off Off Off Lights Lamp or internal power Change lamp.

RED failure Contact your

dealer

When the LAMP indicator lights or flashes, turn the power off. If the problem persists, contact your dealer.

A-6

TECHNICAL

A.7 Connection to the Control Signal Terminal

ComputerProjector 1 2 3 4 5 6

Shield

1 2 3 4 5 6 7 8 9

Shield

Mini Din 6-pin (Male)

D-sub 9-pin (Male)

a) Mouse emulation

(1) While the projector and computer are turned OFF, connect the projector and the mouse terminal of

computer using an appropriate cable (PS/2, Serial or ADB). (2) Turn ON the projector. (3) Turn ON the computer. (4) Select the correct mouse driver for the application. See computer's User Manual for this procedure.

✔ Note

In some Notebook computers with an internal pointing device, mouse emulation will not work unless the internal pointing device is disabled. In this case, disable the internal pointing device in BIOS setting. Check the computer's manual for procedure to follow to disable internal pointing device in BIOS setting.

Caution

Turn off the power to both the projector and computer before connecting. Connect the computer to the control terminal of the projector using the appropriate cable.

PS/2 mouse

ADB mouse

D-sub 9-pin (Male)

1 2 3 4 5 6 7 8 9

Shield

ComputerProjector 1 2 3 4

Shield

Mini Din 4-pin (Male)

A-7

TECHNICAL

A.7 Connection to the Control Signal Terminal (continued)

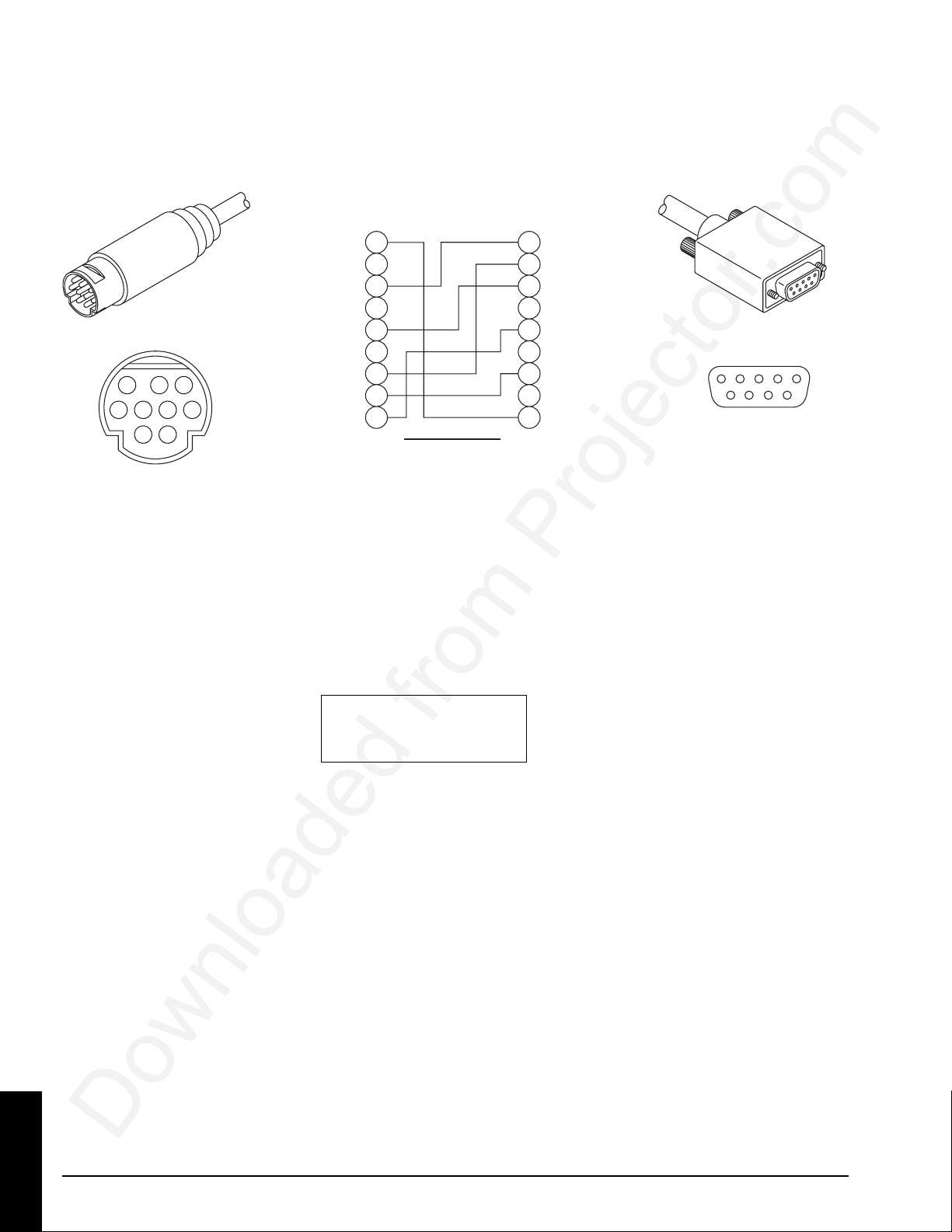

Serial mouse

ComputerProjector 1 2 3 4 5 6 7 8 9

Shield

Mini Din 9-pin (Male)

8 9

5 6 21

1 2 3 4 5 6 7 8 9

Shield

D-sub 9-pin (Female)

RS-232 Control Cable (not included with basic packout)

This cable is used to directly control the projector without using the Remote Control or Operator's Panel.

Not available

for this printing.

A-8

TECHNICAL

A.7 Connection to the Control Signal Terminal (continued)

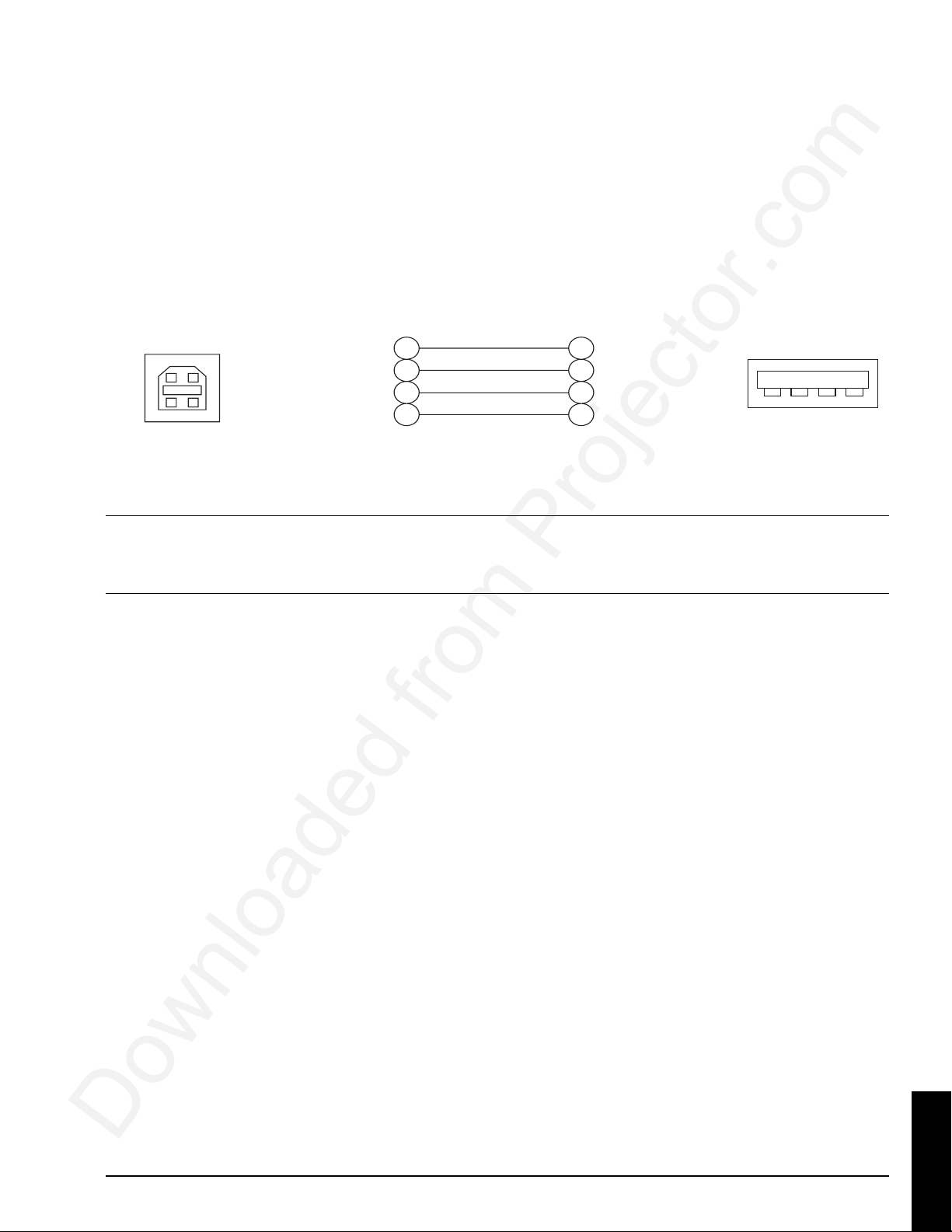

USB Mouse Cable

This cable is used to connect the projector and computer to allow computer mouse control via the projector's remote control buttons. Connect the cable, select the input source where the computer is to be connected and start the mouse functions.

USB Mouse Jack

(B Type)

Some laptop computers with a built-in pointing device (track ball) may not recognize the external mouse. In this case, change the BIOS (system setup) so that an external mouse can be selected. Some computers may not have the necessary utility program to operate a mouse. Refer to the computer hardware manual.

Projector

NC –DATA +DATA

GND

1 2 3 4

USB Cable

✔ Note

Computer

+5V

–DATA

+DATA

GND

USB Mouse Jack

(A Type)

3421

A-9

TECHNICAL

A.8 Serial Inferface Command Codes

Command Code Formats

All codes in this document are in ASCII Text. In order to get this to work you must send at the same communication setting as the projector.

This should be 9600 8N1.

For the rest of this document CR is a carriage return which is code 13. There are two types of commands that can be sent to the projector. They are Write or Read commands. Write Command Format User:

Code CR

Projector (if it worked):

OKCR

Projector (if it did not work):

NGCR

Read Command Format

User:

Code CR

Projector (if it worked):

Data O K CR

Projector (if it did not work):

NGCR

A-10

TECHNICAL

A.8 Serial Inferface Command Codes (continued)

Function Code Meaning

Power On/Off Write Codes

D00W00 Power On D00W01 Power Off

Read Codes Returns: D00R 00 - Standby

01 - Power on but no lamp 02 - Power on and lamp 03 - Power off but fan running

Source Selection Write Codes

D02W01 RGB 1 D02W02 RGB 2 D02W03 RGB 3 D02W11 Video 1 D02W12 Video 2 D02W13 Video 3 D03W00 Shows what input is selected on-screen

Read Codes Returns: D02R 01 – RGB 1

02 – RGB 2 03 – RGB 3 11 – Video 1 12 – Video 2 13 – Video 3

Volume Control Write Codes Sets volume level to a value between 00 and 14 hex.

D04W00 to This corresponds to 20 possible settings. D04W14

Read Codes Returns: D04R 00 to 14 hex

Focus Control Write Codes

D05W00 300ms Clockwise D05W01 300ms Counterclockwis D05W10 Continuous Clockwise D05W11 Continuous Counterclockwise D05W20 Turn off motor

Zoom Write Codes

D06W00 300ms Clockwise D06W01 300ms Counterclockwise D06W10 Continuous Clockwise D06W11 Continuous Counterclockwise D06W20 Turn off motor

Mute Write Codes

D07W00 Mute off D07W01 Mute on

Read Codes Returns: D07R 00 - mute is off

Blank Write Codes

D08W00 Blank is off - image is shown D08W01 Blank is on - black screen is shown

Read Codes Returns: D08R 00 - off

01 - mute is on

01 - on

A-11

TECHNICAL

A.8 Serial Inferface Command Codes (continued)

Function Code Meaning

Contrast Write Codes

D12W00 to D12W14 Set contrast level to a value between 00 and 14 hex.

This corresponds to 20 possible settings.

Read Codes Returns: D12R 00 to 14 hex

Brightness Write Codes

D13W00 to D13W14 Sets brightness level to a value between 00 and 14 hex.

This corresponds to 20 possible settings.

Read Codes Returns: D13R 00 to 14 hex

Tint (Hue) Write Codes

D14W00 to D14W14 Sets tint (hue) level to a value between 00 and 14 hex.

This corresponds to 20 possible settings.

Read Codes Returns: D14R 00 to 14 hex

Color (Saturation) Write Codes

D15W00 to D15W14 Sets color (saturation) level to a value between 00 and 14

hex. This corresponds to 20 possible settings.

Read Codes Returns: D15R 00 to 14 hex

Sharpness Write Codes

D16W00 to D16W14 Sets sharpness level to a value between 00 and 14 hex.

This corresponds to 20 possible settings.

Read Codes Returns: D16R 00 to 14 hex

Gamma Write Codes Sets shar pness level to a value between 00 and 14 hex.

D17W00 to D17W14 This corresponds to 20 possible settings. Read Codes Returns:

D17R 00 to 14 hex

PC Mode Read Codes Returns:

D30R 0 to 41 hex

See Computer (RGB) Signal Connection (Section A–5) 00-Shows no input

MAC Mode Write Codes

D32W00 MAC MODE “OFF” D32W01 MAC MODE “ON”

Default is “OFF”

Read Codes Returns: D32R 00-MAC MODE is OFF

01-MAC MODE is ON

Phase Write Codes

D34W00 to D34W13 Set phase to a value in the range of 00 to 13 hex. D35W00 Reset phase to default

Read Codes Returns: D34R 00 to 13 hex

A-12

TECHNICAL

A.8 Serial Inferface Command Codes (continued)

Function Code Meaning

Display Position Write Codes

D36W00 to D36WFE Change vertical display position (up/down) from reset

position by 00 to FE.

D37W00 to D37WFE Change horizontal display position (left/right) from reset

position by 00 to FE.

D38W00 Resets display position Read Codes Returns:

D36R 00 to FE vertical position D37R 00 to FE horizontal position

H-Size Write Codes The 00 to 80 denotes the deviation of clock numbers from

D39W00 to D39W80 the standard in one horizontal period. “40” is zero, “00” is -

64 and “80” is +64 decimal. Default value is “40”

Read Codes Returns: D39R 00 to 80 hex

On–Screen Displays Write Codes

D51W00 Disables on–screen display except “WARNING” D51W01 Enables on–screen display

Read Codes 00-On–screen display is disabled D51R 01-On–screen display is enabled

Language Selection Write Codes

D52W00 English D52W01 French D52W02 Spanish D52W03 German D52W04 Dutch D52W05 Italian D52W06 Swedish

Read Codes Returns: D52R 00 - English

Mirror (H/V Inversion) Write Codes

D53W00 NORMAL D53W01 H–INVERT D53W02 V–INVERT D53W03 H&V–INVERT

Read Codes Returns: D53R 00-NORMAL

Auto Off Write Codes

D55W00 Disables auto off D55W01 Enables auto off

Read Codes Returns: D55R 00-Auto off is disabled

01 - French 02 - Spanish 03 - German 04 – Dutch 05 – Italian 06 - Swedish

01-H–INVERT 02-V–INVERT 03-H&V–INVERT

Default is “NO” auto off

01-Auto off is enabled

A-13

TECHNICAL

A.8 Serial Inferface Command Codes (continued)

Function Code Meaning

IR receiver selection Write Codes

D5AW00 Selects Front and Rear IR Receiver D5AW01 Selects Front IR Receiver D5AW02 Selects Rear IR Receiver

Read Codes Returns: D5AR 00-Front and Rear Receiver is selected

01-Front receiver is selected 02-Rear receiver is selected

Magnify Write Codes

D5BW00 D5BW01XY to 01:x1, 02:x2, 03:x4, 04:x8, 05:x16, 06:x32, 07:x64 D5BW07XY XYdenotes magnifying portion (00 to FF) Read Codes D5BR 00 – Off

01 to 07

PIP Write Codes

D5CW00 Off D5CW01 ON1 D5CW02 ON2 D5CW03 Refreshes the background for ON1

Read Codes Returns: D5CR 00 – Off

01 – ON1 02 – ON2

Lamp Timer Reset Write Codes

D60W00 Resets the lamp timer Read Codes Returns:

D60R xxxx-shows lamp operating time in hours (decimal)

Temperature Read Codes Returns:

D61R Shows the status of internal temperature

00-Temperature level 0 01-Temperature level 1 02-Temperature level 2 03-Temperature level 3 04-Temperature level 4 (Warning) 05-Temperature level 5 (Power Off)

Error Status Read Codes Returns:

D01R 00-No error

01-Interlock error 02-Lamp error 04-Temperature error 08-Fan error 10-Memory error

Note: If there is more than one error, the resulting read code will be the sum f the error codes listed above. Example: For Interlock-01 and Lamp-02, resulting read code is 03.

A-14

TECHNICAL

Important Notice

All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the accuracy or completeness is not guaranteed Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated with such use. Any statements related to the product which are not contained in 3M’s current publications, or any contrary statements contained on your purchase order shall have no force or effect unless expressly set forth in a written agreement signed by an authorized officer of 3M.

Warranty and Limited Remedy. This product will be free from defects in material and manufacture for a period of two years from the date of purchase. 3M MAKES NO OTHER WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. If this product is defective within the warranty period stated above, your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M product or refund the purchase price of the 3M product.

Limitation of Liability. Except where prohibited by law, 3M will not be liable for any loss or damage arising from this 3M product, whether direct, indirect, special, incidental or consequential regardless of the legal theory asserted.

Let us help you make the most of your next presentation. We offer everything from presentation supplies to tips for better meetings. And we're the only transparency manufacturer that offers a recycling program for your used transparencies. For late-breaking news, handy reference and free product samples, call us toll-free in the continental United States and Canada, 24 hours a day, or visit our Internet Website.

3M Austin Center

Building A145-5N-01 6801 River Place Blvd. Austin, TX 78726-9000

3M Canada

P.O. Box 5757 London, Ontario N6A 4T1

3M Mexico, S.A. de C.V.

Apartado Postal 14-139 Mexico, D.F. 07000 Mexico

3M Europe

Boulevard de l'Oise 95006 Cerge Pontoise Cedex France

Litho in USA

78-6970-9001-3 Rev. A

PLEASE READ

We are in no way responsible for the contents of the manual. We do not guarantee its accuracy and we do not make any claim of copyright. The copyright remains the property of their respective owners.

Visit the site to read the latest projector news and reviews, read and comment on projector specifications, download user manuals and much more.

3M MP8780 User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Safeguards

Warranty

6.1 Lamp
