3Com Wireless 11g PCI Adapter

Quick Installation Guide

3CRPCIG75 3CRPCIG75-LAT

Antes de usar este equipo por primera vez, lo invitamos a leer detenidamente las siguientes instrucciones. Guarde este manual para consultas futuras.

3Com Corporation, 350 Campus Drive, Marlborough, MA USA 01752-3064

Copyright © 2005-2008, 3Com Corporation. All rights reserved. No part of this documentation may be reproduced in any form or by any means or used to make any derivative work (such as translation, transformation, or adaptation) without written permission from 3Com Corporation.

3Com Corporation reserves the right to revise this documentation and to make changes in content from time to time without obligation on the part of 3Com Corporation to provide notification of such revision or change.

3Com Corporation provides this documentation without warranty, term, or condition of any kind, either implied or expressed, including, but not limited to, the implied warranties, terms or conditions of merchantability, satisfactory quality, and fitness for a particular purpose. 3Com may make improvements or changes in the product(s) and/or the program(s) described in this documentation at any time.

If there is any software on removable media described in this documentation, it is furnished under a license agreement included with the product as a separate document, in the hard copy documentation, or on the removable media in a directory file named LICENSE.TXT or !LICENSE.TXT. If you are unable to locate a copy, please contact 3Com and a copy will be provided to you.

UNITED STATES GOVERNMENT LEGEND

If you are a United States government agency, then this documentation and the software described herein are provided to you subject to the following:

All technical data and computer software are commercial in nature and developed solely at private expense. Software is delivered as “Commercial Computer Software” as defined in DFARS 252.227-7014 (June 1995) or as a “commercial item” as defined in FAR 2.101(a) and as such is provided with only such rights as are provided in 3Com’s standard commercial license for the Software. Technical data is provided with limited rights only as provided in DFAR 252.227-7015 (Nov 1995) or FAR 52.227-14 (June 1987), whichever is applicable. You agree not to remove or deface any portion of any legend provided on any licensed program or documentation contained in, or delivered to you in conjunction with, this User Guide.

Unless otherwise indicated, 3Com registered trademarks are registered in the United States and may or may not be registered in other countries.

3Com and the 3Com logo are registered trademarks of 3Com Corporation. Intel, Pentium, and Celeron are registered trademarks of Intel Corporation. Microsoft, Windows, and

Windows Vista are registered trademarks of Microsoft Corporation. All other company and product names may be trademarks of the respective companies with which they are

associated.

Check the Package Contents

Before you start with the installation, verify that your PCI Adapter package includes the following items:

■ One 3Com Wireless 11g PCI Adapter with standard PCI

bracket

■ One remote antenna

■ One low-profile PCI bracket

■ One 3Com Installation CD-ROM, which contains the driver

for the PCI Adapter

■ This 3Com Wireless 11g PCI Adapter Quick Installation Guide

■ One warranty flyer

If any of these items are damaged or missing, please contact your 3Com network supplier immediately.

Check the Minimum System Requirements

You can install the PCI Adapter on any desktop computer running Microsoft Vista.

If using Windows 2000, please download the driver and utility from the 3COM web site.

Your computer must also have, at least, the following:

■ Available PCI slot

■ 733 MHz Intel

equivalent)

Windows® XP, Windows 2000, or Windows

™

Pentium™ III or Celeron processor (or

4 Check the Package Contents

■ 256 MB of RAM

■ 7 MB of free disk space

■ CD-ROM drive

Check the PCI Bracket

The standard PCI bracket to which the PCI Adapter is attached by default is for standard, full-height desktops. If you are using a low-profile desktop, you need to replace the standard bracket with the low-profile bracket for the PCI Adapter to fit the computer case.

To replace the PCI bracket:

1 Remove the two screws that secure the PCI Adapter to the

bracket. Save the screws to fasten the low-profile bracket later.

2 Replace the standard bracket with the low-profile bracket. 3 Fasten the PCI Adapter to the low-profile bracket using the screws

you removed in step 1.

Installing the Wireless PCI Adapter 5

Figure 1 Standard Bracket (Left) and Low-Profile Bracket (Right)

Installing the Wireless PCI Adapter

Installing the PCI Adapter is a two-step process:

1 Install the PCI Adapter hardware 2 Install the 3Com PCI Adapter driver

Install the PCI Adapter Hardware

You will need:

■ A Phillips screwdriver to remove the computer case and slot

cover and to secure the PCI Adapter into the slot.

■ Antistatic protection

Attach the antenna to the antenna connector only after you secure the PCI Adapter into the slot.

6 Installing the Wireless PCI Adapter

To install the PCI Adapter into a PCI slot:

1 Shut down your computer, and then unplug the power cord from

the power source.

2 Remove the computer cover. 3 Locate an empty PCI slot and remove the slot cover. See 1 in

Figure 2 on the next page. Save the screw so that you can secure the PCI Adapter into the slot later.

Figure 2 Inserting the PCI Adapter Into a PCI Slot

Install the 3Com Wireless PCI Adapter Driver 7

4 Insert the PCI Adapter into the slot, and then press it down

gently until it seats snugly in the slot. See 2 in Figure 2.

5 Secure the PCI Adapter into the slot using the screw that you

removed earlier.

6 Replace the computer cover. 7 Attach the antenna to the PCI Adapter’s antenna connector, and

then turn the threaded part clockwise to secure it. Do not overtighten.

For optimal reception, position the antenna so that it is straight up.

8 Reconnect the power cord to the power source, and then turn

on your computer.

9 If the Found New Hardware Wizard appears when Windows

starts, click Cancel.

Install the 3Com Wireless PCI Adapter Driver

Your PCI Adapter includes a CD that contains the 3Com Wireless Driver. Running the PCI Adapter setup program installs the adapter driver.

This section first covers installing on Windows XP and then discusses installing on Windows Vista.

8 Install the 3Com Wireless PCI Adapter Driver

Install the PCI Adapter Driver on Windows XP

1 With the computer on and Windows running, insert the 3Com

Installation CD into the CD-ROM drive. The 3Com Wireless 11g PCI Adapter Installation Manager setup

menu appears.

If the setup menu does not appear, click Start > Run, and then type

d:\setup.exe (where d: is the drive letter assigned to your

CD-ROM drive).

2 On the setup menu, click Install Wireless Product. The wizard

prepares for installation.

3 Click Next. The 3Com Wireless Utility welcome screen End User

Software License Agreement appears.

4 Read the agreement carefully, and then click I accept the terms of

the license agreement to agree to all the terms and conditions. Now click Next.

5 Choose your country and then click Next. 6 When the message

click Finish.

7 On the setup menu, click Exit.

You have completed installing the PCI Adapter driver.

InstallShield Wizard Complete appears,

Install the 3Com Wireless PCI Adapter Driver 9

Install the PCI Adapter Driver on Windows Vista

1 With the computer on and Windows running, insert the 3Com

Installation CD into the CD-ROM drive. The 3Com Wireless PCI Adapter Installation Manager setup

menu appears.

If the setup menu does not appear, click > All Programs > Accessories > Run, and then type drive letter assigned to your CD-ROM drive).

2 On the setup menu, click Install Wireless Product. The wizard

prepares for installation.

3 Click Next. The 3Com End User Software License Agreement

appears.

4 Read the agreement carefully, and then click I accept the terms

of the license agreement to agree to all the terms and conditions. Now click Next.

5 Choose your country and then click Next. 6 When the message

InstallShield Wizard Complete appears,

click Finish.

7 On the setup menu, click Exit.

You have completed installing the PCI Adapter driver.

d:\setup.exe (where d: is the

10 What to Do Next

Install the PCI Adapter Driver on Windows 2000

You can download software for installing the PCI Adapter on computers using Windows 2000 from 3com.com. Go to 3com.com > Support > Downloads & Drivers, and then enter the 3C number for your PCI Adapter.

What to Do Next

This section first covers connecting on Windows XP and then discusses connecting on Windows Vista operating system.

Connecting on Windows XP

By default, the PCI Adapter now scans for access points in range.

If you want to connect to a specific access point, you must configure your wireless connection using the Windows Zero Configuration (WZC) tool.

Ensure that you have Windows XP Service Pack 2 installed on your computer.

Ensure that the Use Windows to configure my wireless network settings check box is selected in the Wireless Network Connection Properties tab.

What to Do Next 11

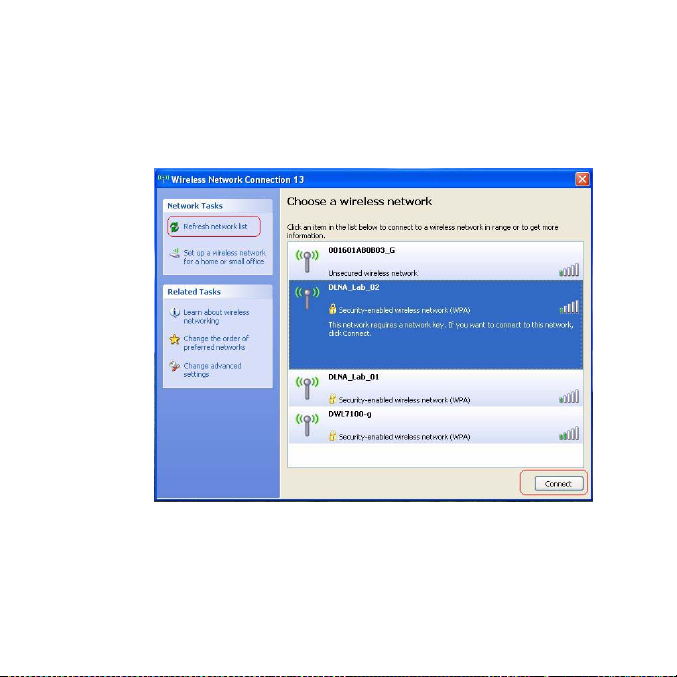

1 Click the network icon in the system tray to view Wireless

Networks.

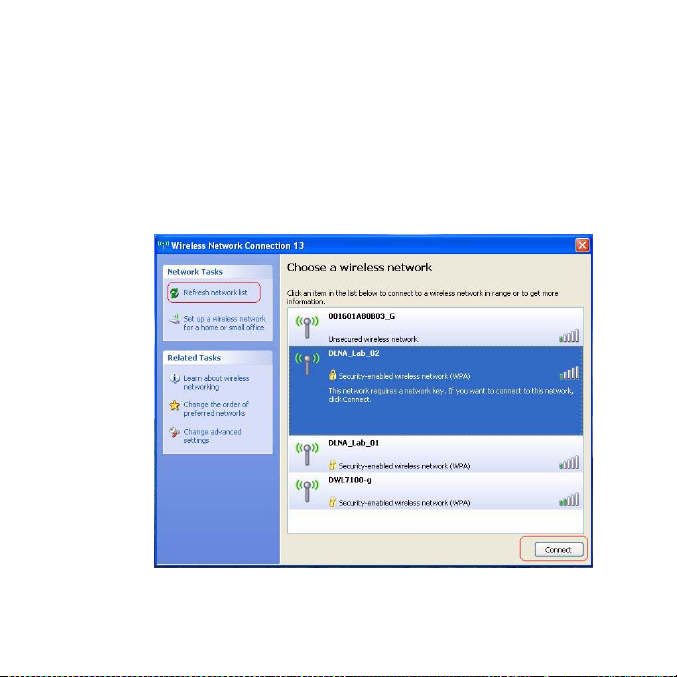

2 Click Refresh network list to reload and search for available

wireless devices. Select a wireless network in the list and click Connect to join the selected wireless network.

12 What to Do Next

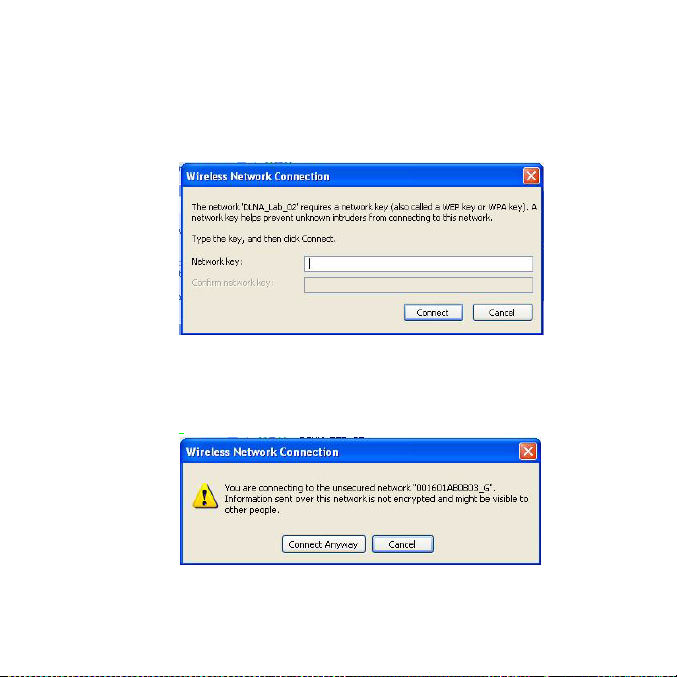

3 If wireless security is activated for the selected wireless network,

the Wireless Network Connection Window appears. Input the Network key and click Connect.

4 If there is no security activated for the selected wireless network, a

warning window appears. Click Connect Anyway.

5 Close the Wireless Network Connection list window.

Windows Vista WLAN AutoConfig

The PC will begin functioning in Station Mode (as a Client) with your Wireless LAN network as soon as the Network Key is set up.

If you do not have an existing wireless network, first set up your wireless router before you use your PC in Station Mode.

1 Start your PC and connect with an existing WLAN AP. 2 Have the Network Key (WEP Key or WPA Key) ready if your

Wireless Network requires security code.

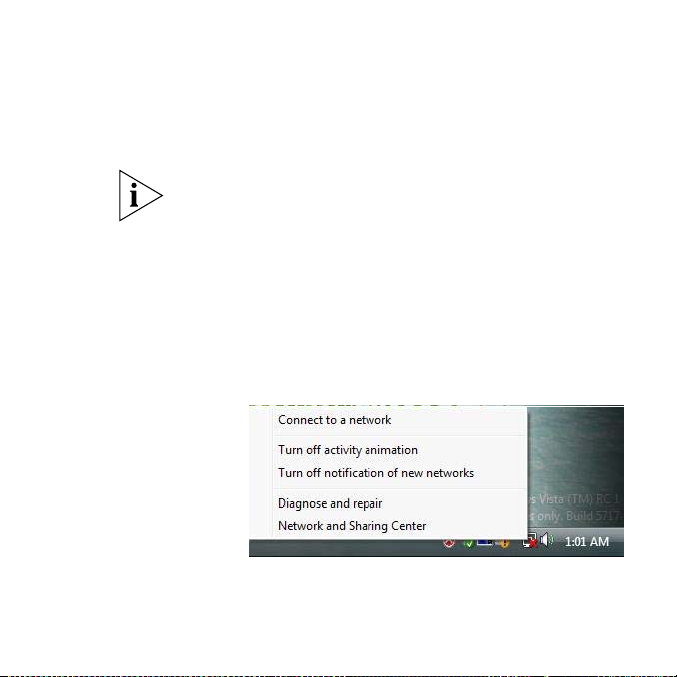

3 Right click on the Wireless Network icon in the system tray.

There are two Network icons in the system tray. The wireless network connection icon is shown here:

4 Select Connect to a network from the Wireless Network icon

menu. The Wireless Network Connection dialog box appears, as shown

here:

What to Do Next 13

14 What to Do Next

5 Select the Wireless Network of your choice by clicking on its

name. The entire block is highlighted.

6 Select Connect in the lower right corner.

What to Do Next 15

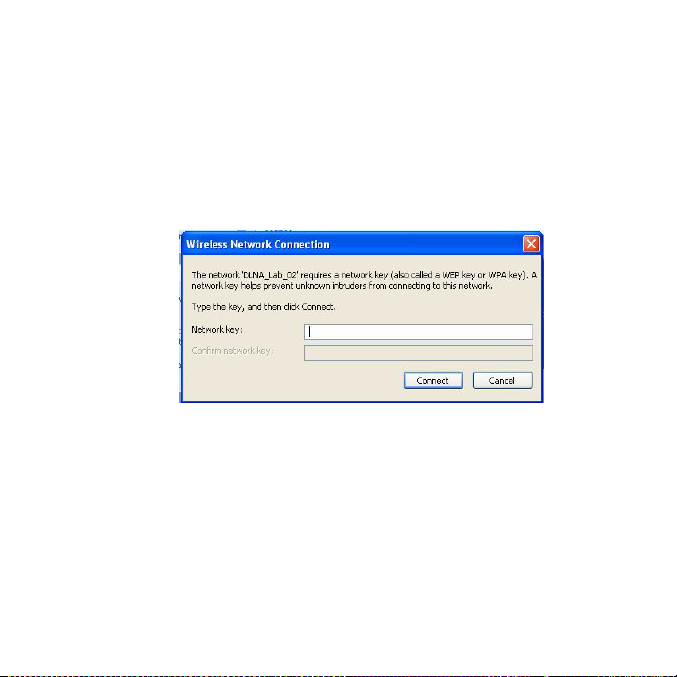

The next Wireless Network Connection dialog box appears, shown here:

7 Enter the Network Key (WEP Key or WPA Key) for your Wireless

Network.

If your network is using WEP encryption, then a HEX or an ASCII format is necessary when entering your Network key:

■ HEX — 10 Characters in HEX notation for 40 bit or 26

characters for 128 bit encryption.

16 What to Do Next

■ ASCII — 5 Characters for 40 bit or 13 characters for 128 bit

encryption.

If your network is using WPA or WPA2 encryption, you must enter an 8 – 63 character alphanumeric key-phrase.

8 Select Connect.

The Wireless Network Connection dialog box appears again as you are being connected.

What to Do Next 17

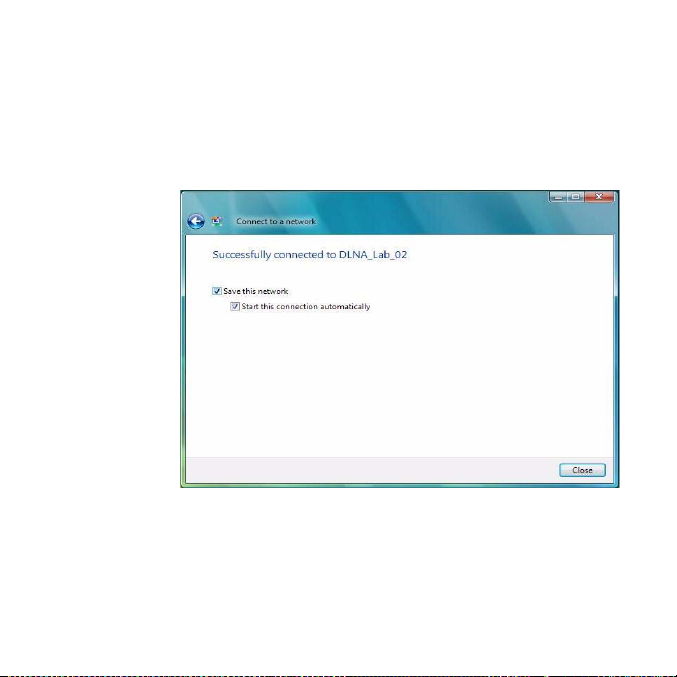

Once successfully connected to Generic1, as shown below, click the check box to Save this network. Start this connection automatically should also be enabled.

9 Click Close.

18 Troubleshooting Installation

Troubleshooting Installation

Refer to Table 1 for a list of issues that you may encounter during installation and some suggested solutions.

Tab l e 1 Installation Issues and Possible Solutions

Problem Possible Solution

Installation program does not finish or the driver fails to load

Use the Device Manager to resolve resource conflicts that may exist. To start the Device Manager, go to the Control Panel, double-click System, and then click the Device Manager tab.

■ If the hardware item for the PCI Adapter

under Network adapters has a yellow exclamation point, right-click the item, and then click Update Driver. Follow the instructions on the Hardware Update Wizard to update the PCI Adapter driver.

does not appear under Network adapters, repeat the setup procedure.

Telephone Technical Support and Repair 19

Table 1 Installation Issues and Possible Solutions

Problem Possible Solution

Windows shows the PCI Adapter as an unknown device

Power/Activity LED is off

■ Verify that the PCI Adapter is inserted

properly into the PCI slot.

■ If the PCI Adapter is inserted properly into

the slot and Windows still does not recognize it, use the Device Manager to remove the unknown device, and then repeat the setup procedure.

■ Verify that the PCI Adapter is inserted

properly into the PCI slot.

■ Verify that the driver was installed

successfully by checking the status of the device on the Device Manager. See “What to Do Next” on page 10.

Telephone Technical Support and Repair

To obtain telephone support as part of your warranty and other service benefits, you must first register your product at:

http://eSupport.3com.com/

Contact Us

3Com offers telephone, e-mail and Internet access to technical support and repair services for registered products. To access these services for your region, use the appropriate telephone number, URL, or e-mail address from the following URL:

http://csoweb4.3com.com/contactus/
