3com 3CISDN1 Guide
3CISDN1 CABLE
ENGLISH (US) . . . . . . . 1
FRANÇAIS. . . . . . . . . . 7
DEUTSCH . . . . . . . . . . 13
– 0 –
3CISDN1 CABLE
– 1 –
ENGLISH
ENGLISH
3Com ISDN Upgrade Kit: 3CISDN1
Congratulations on your purchase of a 3Com ISDN Upgrade Kit, 3CISDN1.
Your kit includes the following items:
!
3CISDN1 cable
!
RJ-45 cable
!
3CISDN1 Upgrade CD which includes the Installation program, an
electronic manual, and all the files necessary to upgrade your 3Com ISDN
compatible LAN + Modem PC Card for ISDN connections on computers
running Windows 95, 98, 2000, NT 4.0 and Windows Millennium Edition.
Also included on the CD is BVRP communications software.
!
This 3CISDN1 Quick Start Guide
Installing the 3CISDN1 Files
Note: You must install a 3Com ISDN-compatible LAN+Modem PC Card before
installing the 3CISDN1 files.
!
1 Insert the
files required for the 3CISDN1 cable to operate properly. If AutoPlay is
active, the Master Installer window appears.
2 Follow the prompts that appear in the Master Installer window. If the
Master Installer window does not appear, go to your CD-ROM drive and
launch
3CISDN1 Upgrade CD
setup.exe
.
into the CD-ROM drive to install all the
– 2 –
Connecting the 3CISDN1 Cable for Windows 95, 98, 2000 and Windows Millennium Edition
Note: Use only the 3CISDN1 cable supplied in your kit for connection to an
!
ISDN network. Any other cable can damage your 3Com ISDN-compatible
LAN+Modem PC Card.

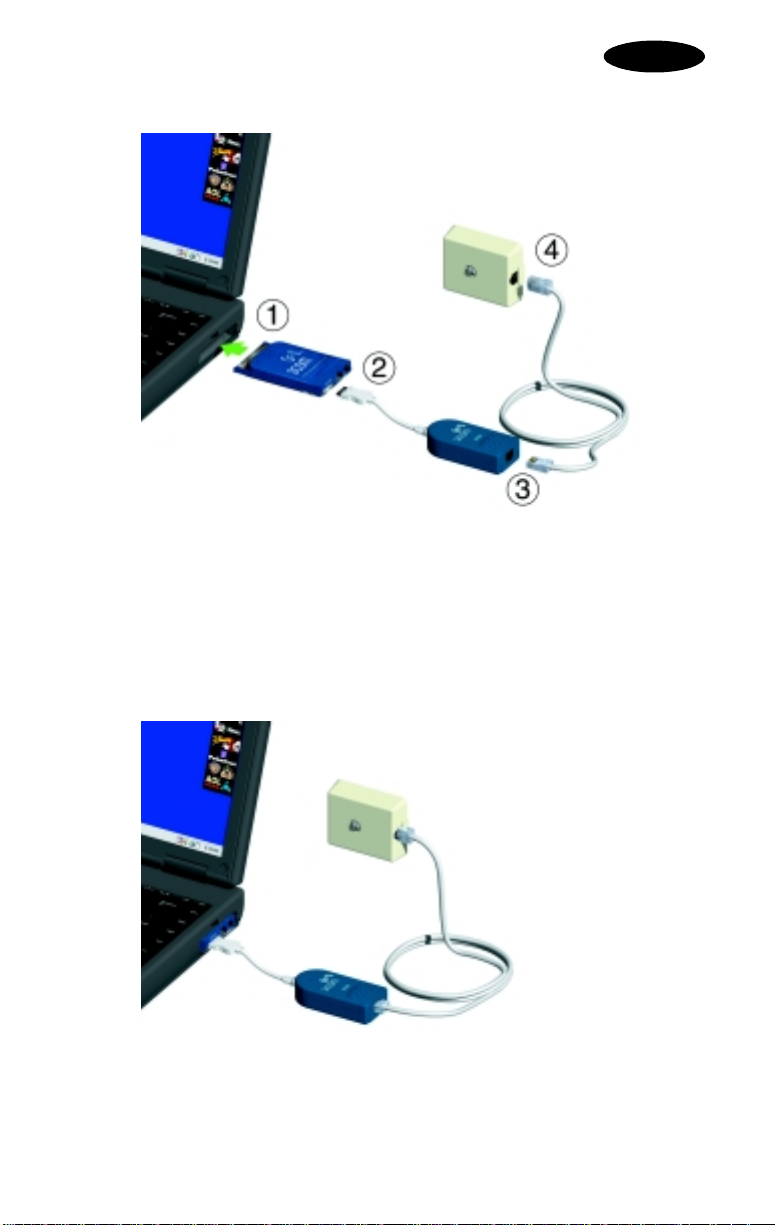

1 Insert your 3Com ISDN compatible LAN+Modem PC Card into an
available slot on your notebook (Type II or III). Each connection is
illustrated in Figure 1.
Figure 1
2 Connect the ISDN cable to the 15-pin connector on your 3Com ISDN-
compatible LAN+Modem PC Card.
3 Connect one end of the RJ-45 cable to the 3CISDN1 cable.
4 Connect the other end of the RJ-45 cable to an ISDN wall jack. Figure 2
illustrates the completed connections.
Figure 2
Connecting the 3CISDN1 Cable in Windows NT 4.0
Use only the 3CISDN1 cable supplied with your kit to connect to an ISDN
!
network. Any other cable can damage your 3Com ISDN-compatible LAN +
Modem PC Card.
1 Turn off your computer.
2 Connect the ISDN cable to the 15-pin connector on your 3Com ISDN
compatible LAN+Modem PC Card.
3 Connect one end of the RJ-45 cable into the 3CISDN1 adapter.
4 Connect the other end of the RJ-45 cable to an ISDN wall jack.
5 Insert your 3Com ISDN compatible LAN+Modem PC Card into an
available slot on your notebook (Type II or III).
6 Turn your computer on.
ENGLISH
Using the 3CISDN1 Control Panel
Once the ISDN cable is set up, the 3CISDN1 Control Panel appears in the
Windows taskbar. To open it, just click the ISDN icon located in the taskbar.
This control panel checks the software to be checked, the communications
status to be displayed, and accurate troubleshooting to be performed when
a setting or installation error is encountered.
For additional information about the 3CISDN1, refer to the User’s Guide on
3CISDN1 Upgrade CD.
the
– 4 –
3Com Corporation Limited Warranty
This warranty applies to customers located in the United States, Australia, Canada (except Quebec),
Ireland, New Zealand, U.K., and other English language countries, and countries for which a
translation into the local language is not provided.
3Com ISDN Upgrade Kit: 3CISDN1
HARDWARE:
from defects in workmanship and materials, under normal use and service, for the following length of
time from the date of purchase from 3Com or its authorized reseller:
Lifetime
3Com's sole obligation under this express warranty shall be, at 3Com's option and expense, to repair
the defective product or part, deliver to Customer an equivalent product or part to replace the
defective item, or if neither of the two foregoing options is reasonably available, 3Com may, in its sole
discretion, refund to Customer the purchase price paid for the defective product. All products that are
replaced will become the property of 3Com. Replacement products may be new or reconditioned.
3Com warrants any replaced or repaired product or part for ninety (90) days from shipment, or the
remainder of the initial warranty period, whichever is longer.
SOFTWARE:
substantial conformance to its program specifications, for a period of ninety (90) days from the date
of purchase from 3Com or its authorized reseller. 3Com warrants the media containing software
against failure during the warranty period. No updates are provided. 3Com's sole obligation under
this express warranty shall be, at 3Com's option and expense, to refund the purchase price paid by
Customer for any defective software product, or to replace any defective media with software which
substantially conforms to applicable 3Com published specifications. Customer assumes responsibility
for the selection of the appropriate applications program and associated reference materials. 3Com
makes no warranty or representation that its software products will meet Customer's requirements or
work in combination with any hardware or applications software products provided by third parties,
that the operation of the software products will be uninterrupted or error free, or that all defects in
the software products will be corrected. For any third party products listed in the 3Com software
product documentation or specifications as being compatible, 3Com will make reasonable efforts to
provide compatibility, except where the non-compatibility is caused by a "bug" or defect in the third
party's product or from use of the software product not in accordance with 3Com's published
specifications or user manual.
THIS 3COM PRODUCT MAY INCLUDE OR BE BUNDLED WITH THIRD PARTY SOFTWARE, THE USE OF
WHICH IS GOVERNED BY A SEPARATE END USER LICENSE AGREEMENT. THIS 3COM WARRANTY
DOES NOT APPLY TO SUCH THIRD PARTY SOFTWARE. FOR THE APPLICABLE WARRANTY, PLEASE
REFER TO THE END USER LICENSE AGREEMENT GOVERNING THE USE OF SUCH SOFTWARE.
OBTAINING WARRANTY SERVICE:
Authorized 3Com Service Center within the applicable warranty period to obtain warranty service
authorization. Dated proof of purchase from 3Com or its authorized reseller may be required.
Products returned to 3Com's Corporate Service Center must be pre-authorized by 3Com with a
Return Material Authorization (RMA) number or User Service Order (USO) number marked on the
outside of the package, and sent prepaid and packaged appropriately for safe shipment, and it is
recommended that they be insured or sent by a method that provides for tracking of the package.
Responsibility for loss or damage does not transfer to 3Com until the returned item is received by
3Com. The repaired or replaced item will be shipped to Customer, at 3Com's expense, not later than
thirty (30) days after 3Com receives the defective product.
3Com shall not be responsible for any software, firmware, information, or memory data of Customer
contained in, stored on, or integrated with any products returned to 3Com for repair, whether under
warranty or not.
Dead- or Defective-on-Arrival. In the event a product completely fails to function or exhibits a defect
in materials or workmanship within the first forty-eight (48) hours of installation but no later than
thirty (30) days after the date of purchase, and this is verified by 3Com, it will be considered dead- or
defective-on-arrival (DOA) and a replacement shall be provided by advance replacement. The
replacement product will normally be shipped not later than three (3) business days after 3Com's
verification of the DOA product, but may be delayed due to export or import procedures. The
shipment of advance replacement products is subject to local legal requirements and may not be
available in all locations. When an advance replacement is provided and Customer fails to return the
3Com warrants to the end user ("Customer") that this hardware product will be free
3Com warrants to Customer that each software program licensed from it will perform in
Customer must contact a 3Com Corporate Service Center or an
