NTRODUCTION
OfficeConnect hub
Network server
I
Welcome to the world of networking with 3Com®. In the
modern business environment, communication and sharing
information is crucial. Computer networks have proved to
be one of the fastest modes of communication but, until
recently, only large businesses could afford the networking
advantage. The OfficeConnect® product range from 3Com
has changed this, bringing networks to the small office.
The OfficeConnect Fast Ethernet Hub 4, Hub 8, and Hub 12
are ideal for creating small, fast (high bandwidth) networks.
They are compact and attractively designed for desktop use.
These products are part of the OfficeConnect range, which
neatly stack together with the OfficeConnect Stacking Clip.
When referring to all three products, this guide uses the
term ‘OfficeConnect hub’.
The OfficeConnect hub is a Fast Ethernet (Class II) repeater,
allowing the creation of a network that runs 10 times faster
than standard Ethernet. You can connect a workstation,
server or other piece of equipment to each 100BASE-TX
port, as shown in Figure 1. The Hub 4 has four 100BASE-TX
ports, the Hub 8 has eight, and the Hub 12 has twelve.
Figure 1
Hub 4 and Server
If you need to connect more workstations, simply use the
stacking clip to connect another OfficeConnect hub to form
a stack (each hub is a single Class II repeater).
Small Network Featuring OfficeConnect Fast Ethernet
5
REATING YOUR
C
ETWORK
N
Fast Ethernet Hub 4 and Hub 8—Front
Alert LED
orange
Alerts you to
excessive network
use or a
partitioned
100BASE-TX port.
Alert
Power LED
green
Indicates that
the power
supply to the
hub is present.
Activity
Power
Collision
Activity LED
(Hub 4 only)
yellow
Flashes each time a
packet is received
on a port.
Port Status
12345678 1% 2% 3% 6% 12% 25% 50% 80%
Green = OK, Yellow = Partitioned
Collision LED
yellow
Flashes each time a
collision is detected
at the hub. Collisions
are part of normal
network operation.
6
Port Status LEDs
green/yellow
Indicates the status of each port. If
nothing is connected, the LED is off.
If green, the link between the port
and the next piece of network
equipment is OK.
If yellow, the port has partitioned due
to a fault on that segment.
Network Utilization
OfficeConnect Fast Ethernet Hub 8
Network Utilization
LEDs (Hub 8 only)
green/yellow/orange
Indicates how much your
network is being used.
Fast Ethernet Hub 4 and Hub 8—Rear
POWER
Power adapter socket
Only use the power adapter that is
supplied with this OfficeConnect
hub. Do not use any other adapter.
Uplink/Normal
8
Uplink/Normal switch
Affects the operation of the highest numbered port
(port 4 on Hub 4 and port 8 on Hub 8). For connecting
the port to a workstation, set to Normal (out). For
connecting the port to another OfficeConnect unit, set
to Uplink (in). Refer to the “Connecting OfficeConnect
Hubs Together” section.
7
1X
100BASE-TX RJ-45 ports
Use 100BASE-TX cable with RJ-45 connectors.
You can connect the OfficeConnect hub to any
workstation or piece of equipment that has a
100BASE-TX port. The highest numbered port
can be used to link to another OfficeConnect
unit. Refer to the “Connecting OfficeConnect
Hubs Together” section.
Fast Ethernet Hub 12—Front
Alert LED
orange
Alerts you to
excessive network
use or a
partitioned
100BASE-TX port.
Alert
Power LED
green
Indicates that
the power
supply to the
hub is present.
Power
Collision
Collision LED
yellow
Flashes each time a
collision is detected
at the hub. Collisions
are part of normal
network operation.
Port Status
3
2
9
718
Green = OK, Yellow = Partitioned
5
10411
Port Status LEDs
green/yellow
Indicates the status of each port. If
nothing is connected, the LED is off.
Network Utilization LEDs
green/yellow/orange
Indicates how much your
network is being used.
If green, the link between the port
and the next piece of network
equipment is OK.
If yellow, the port has partitioned due
to a fault on that segment.
Network Utilization
6
12
1% 2% 3% 6% 12% 25% 50% 80%
OfficeConnect Fast Ethernet Hub 12
8
Fast Ethernet Hub 12—Rear
POWER
Power adapter socket
Only use the power adapter that is
supplied with this OfficeConnect
hub. Do not use any other adapter.
6X
Uplink/Normal
12
Uplink/Normal switch
Affects the operation of the highest numbered
port (port 12). For connecting the port to a
workstation, set to Normal (out).
For connecting the port to another
OfficeConnect unit, set to Uplink (in). Refer to
the “Connecting OfficeConnect Hubs
Together” section.
9
1X
7X
100BASE-TX RJ-45 ports
Use 100BASE-TX cable with RJ-45 connectors.
You can connect the OfficeConnect hub to any
workstation or piece of equipment that has a
100BASE-TX port. The highest numbered port
can be used to link to another OfficeConnect
unit. Refer to the “Connecting OfficeConnect
Hubs Together” section.
Before You Start
Your OfficeConnect hub comes with:
One power adapter for use with the OfficeConnect hub
■
A Product Registration card for you to fill out and return
■
Four rubber feet
■
A stacking clip
■
Two unit labels and eight cable ties.
■
An OfficeConnect Network Assistant CD-ROM.
■
The extra parts mentioned in the next section are not
supplied with the hub.
Workstation Connections
To connect workstations or other equipment to your hub,
you need:
1
A 100BASE-TX adapter card for
each workstation. 3Com
produce a range of easy to
install network adapter cards,
which provide your
workstations with 100BASE-T
connections.
2
An operating system (for example, Netware or Windows
95/98) with network support configured, running on
your workstations.
3
2
3
One ‘Straight-through’ 100BASE-TX cable for each
workstation or piece of equipment. A ‘Straight-through’
cable is one where the pins of one connector are
connected to the same pins of the other connector; refer
to Figure 5 on page 16. 100BASE-TX cable must be data
grade (Category 5) shielded or unshielded. We
recommend that you use shielded cable. The maximum
length you can use is 100m (328ft).
In order to comply with the 100BASE-TX standard,
ports designed for workstation connections have been
marked with the graphical symbol ‘x’ (1x, 2x, 3x, ...).
This denotes a crossover in the port’s internal wiring.
Hub Connections

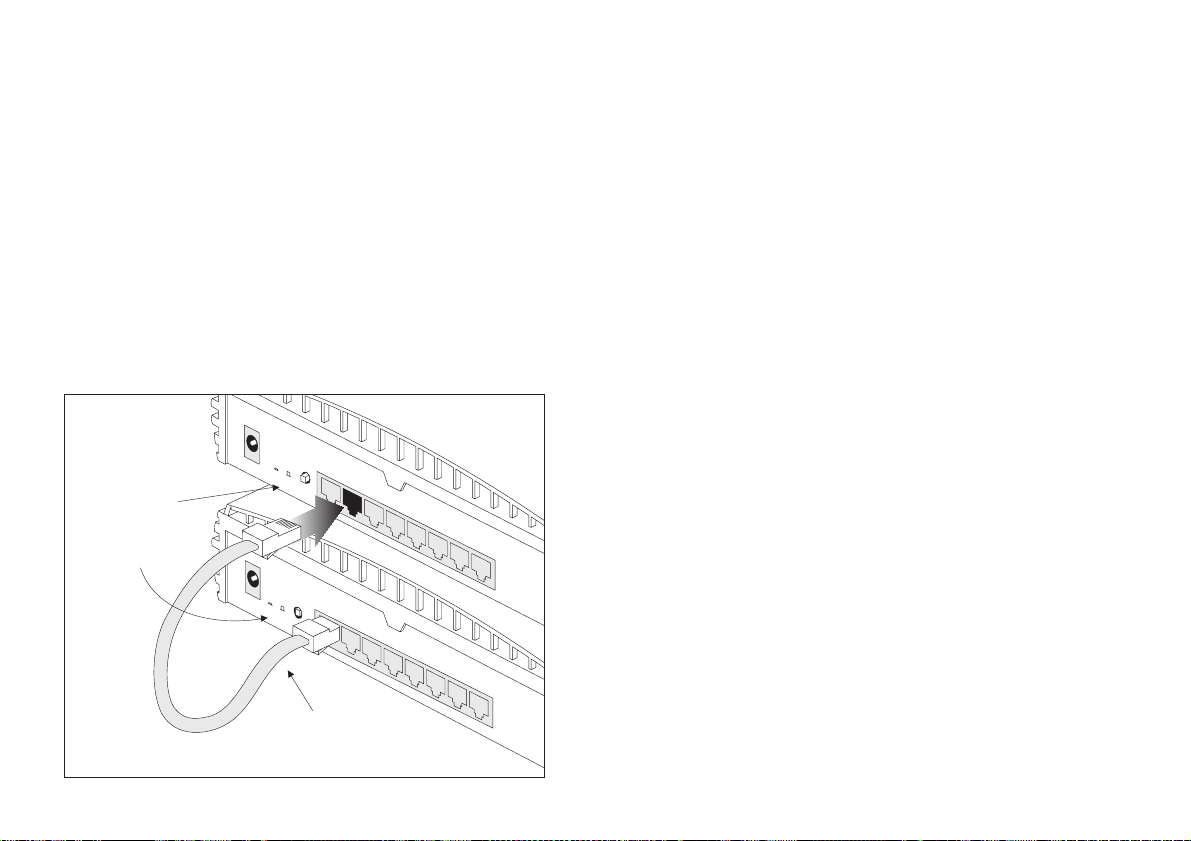

To connect to another OfficeConnect hub, you need:
One ‘Straight-through’ 100BASE-TX cable. The maximum
■
length is 100m (328ft). Refer to “Connecting
OfficeConnect Hubs Together” on page 13.
1
10
Stacking the Units Together
1
Fastening
Piece
2
Fastening
Piece
The Rubber Feet
The four self-adhesive rubber feet prevent your hub from
moving around on your desk. Only stick the feet to the
marked areas at each corner of the underside of your hub if
you intend to place the unit directly on top of the desk. Do
not fix the feet if you are going to use the clip.
The Stacking Clip
The blue stacking clip allows you to stack your
OfficeConnect units together neatly and securely.
CAUTION: You can stack up to a maximum of four
units. Smaller units must be stacked above larger
units.
To fit another unit:
1
Rest the second unit on top of the clip and align it with the front of the unit below.
2
Press down gently on the unit to secure it onto the clip,
ensuring the fastening pieces fit into the slots on the unit
below, as shown in Figure 2 (picture 2).
Figure 2
Stacking Your Units Together
To fit the clip:
1
Place your unit on a flat surface.
2
Fit the clip across the top of the unit, as shown in
Figure 2 (picture 1), ensuring that the longer sections of
the fastening pieces are pointing downwards.
3
Align the fastening pieces over the slots found on each side of the unit.
4
Push the clip down gently to secure it, ensuring the
To remove the clip:
1
Remove the top unit together with the clip. If you hook
a finger around one of the the fastening pieces and then
pull it gently from out of the slot, the clip should come
away with the upper unit attached to it.
2
Push the clip in the center, so it bends towards the base
of the unit, and then separate once the clip is loose.
fastening pieces snap into the slots on the unit.
11
Positioning Your OfficeConnect Hub
When installing your OfficeConnect hub, ensure:
It is out of direct sunlight and away from sources of
■
heat.
Cabling is away from power lines, fluorescent lighting
■
fixtures, and sources of electrical noise such as radios,
transmitters and broadband amplifiers.
Water or moisture cannot enter the case of the unit.
■
Air flow around the unit and through the vents in the
■
side of the case is not restricted. We recommend you
provide a minimum of 25.4 mm (1in.) clearance.
For Hub 12:
Make two screw holes 142mm (5.6in.) apart.
Use the guide at the at the back of this manual to mark the
position of the holes.
Fix the screws into the wall, leaving their heads 3mm
(0.12in.) clear of the wall surface.
Remove any connections to the hub and locate it over the
screw heads. When in line, gently push the hub on to the
wall and move it downwards to secure. When making
connections, be careful not to push the hub up and off the
wall.
CAUTION: Only wall mount single units, do not wall
mount stacked units.
Securing Your Hub
There are two slots on the underside of the OfficeConnect
hub which can be used for wall mounting. It is
recommended that you mount the hubs with the LEDs
facing upwards to prevent dust entering the cooling vents.
When wall mounting the unit, ensure that it is within
reach of the power outlet.
For Hub 4 or Hub 8:
(5.9in.) apart. Use the guide at the back of this manual to
mark the position of the holes.
Make two screw holes 150mm
Also available from 3Com, is the OfficeConnect Mounting
Unit (part number 3C16765). This allows you to firmly
secure a stack of OfficeConnect devices to the desktop or
onto a shelf in a rack.
12
Connecting Workstations and Other Equipment to Your Hub
WARNING: Please read the ‘Important Safety
Information’ section before you start.
WARNHINWEIS: Bitte lesen Sie den Abschnitt
‘Wichtige Sicherheitsinformationen’ sorgfältig durch,
bevor Sie das Gerät einschalten.
AVERTISSEMENT: Veuillez lire attentivement la
section “Consignes importantes de sécurité” avant de
mettre en route.
CAUTION: Do not power the hub off and on quickly.
Wait about five seconds between power cycles.
Connecting workstations and other equipment to your hub
is easy. Connect them using 100BASE-TX cables to any of
the hub’s 100BASE-TX RJ-45 ports. To connect a
100BASE-TX cable, simply slot the connector into the
relevant RJ-45 port. When the connector is fully in, its latch
locks it into place. To disconnect the cable, push the
connector’s latch in and remove it.
The hub detects all port connections, so you can start using
your network immediately. When you need more ports,
simply add more OfficeConnect hubs.
If you are using the highest-number port (port 4 on
Hub 4, port 8 on Hub 8, port 12 on Hub 12) to
connect a workstation, ensure the Uplink/Normal
switch is set to Normal (out).
Connecting OfficeConnect Hubs Together
You can increase the number of workstations that can
connect to your network by adding another OfficeConnect
hub.
You can directly connect together a maximum of two
Fast Ethernet hubs. The total length of cable (A + B +
C below) between two workstations, or between a
workstation and a non-repeater piece of equipment
(such as a switch), must not exceed 205m (672ft).
Each cable (A, B or C) must not exceed 100m (328ft).
3Com recommends that the cable (B) between the
Fast Ethernet hubs is no longer than 5m (16.4ft). This
allows the maximum hub to workstation cable length
(A or C) of 100m (328ft) to be used, as in Figure 3.
Figure 3
Network
Workstation
Example:
13
Configuration Rules and Example of a Fast Ethernet
Switch
A
100m (328ft)
100m
(328ft)
Hub Hub
B
5m (16.4ft)
C
Workstation
100m (328ft)
Connecting 100BASE-TX Hubs
You can connect two OfficeConnect hubs together, as seen
in Figure 4, with 100BASE-TX in a number of ways, but for
simplicity we recommend the following method:
1
Connect the highest-number port (port 4 on Hub 4,
port 8 on Hub 8, port 12 on Hub 12) of the lower hub
to any port of the upper hub.
2
Set the Uplink/Normal switch on the lower hub to Uplink
(in). If you use the highest-number port of the upper hub
ensure that its Uplink/Normal Switch is set to Normal.
Connecting to 10BASE-T Networks
Your OfficeConnect Hub can be connected to a 10BASE-T
network through an OfficeConnect switch (for example, an
OfficeConnect Dual Speed Switch 8).
Checking Hub Connections
When you have connected your hubs, power them on. The
Port Status LEDs for the ports you have used on the hubs
should be green. If they are not, check your connections
and the settings of the Uplink/Normal switches.
Figure 4
Switch set to
Normal (out)
Switch set to
Uplink (in)
Correct Hub Connections Using 100BASE-TX
POWER
Uplink/Normal
8
POWER
Uplink/Normal
100BASE-TX cable
with RJ-45 connectors
Spot Checks
At frequent intervals, visually check that:
The Alert LED is off — this is the best way to find out if
■
there are problems with your network.
Case vents are not obstructed.
■
Cabling is secure and not pulled taut.
■
1X
1X
14
ROBLEM SOLVING
P
The OfficeConnect hub has been designed to aid you when
detecting and solving possible problems with your network.
These problems are rarely serious; the cause is usually a
disconnected or damaged cable, or incorrect configuration.
If this section does not solve your problem, contact your
supplier for information on what to do next.Perform these
actions first:
Ensure all equipment is powered on.
■
Power each unit off, wait about 5 seconds and then
■
power them on.
Check the following symptoms and solutions:
Power LED not lit.
If there is still no power, you may have a faulty power
adapter which needs replacing with another OfficeConnect
power adapter.
with the hub.
Check your power adapter connection.
Do not use any other power adapter
Alert LED continuously lit.
excessive use of your network (over 80%) or, more likely, a
100BASE-TX port has partitioned due to a loop in your
network (in which case the corresponding Port Status LED
will be yellow). Examine your connections and remove the
loop. Each piece of equipment needs only one connection
to your OfficeConnect hub.
Port Status LED yellow.
your network which has caused this port to partition.
Examine your connections and remove the loop. Each piece
of equipment needs only one connection to your
OfficeConnect hub.
Link between two OfficeConnect hubs not working.
Check your hub connections; follow the information given
in the “Connecting OfficeConnect Hubs Together” section.
It is likely that an Uplink/Normal switch is incorrectly set.
Workstation connection not working.
are using a 100Mbps adapter in your workstation. If your
adapter can operate at various speeds, ensure that it is set
to operate at 100Mbps.
There is either continual
It is likely that there is a loop in
Check that you
15
Port Status LED not lit for a port that has a
1
Normal
port
Pin Pin
Uplink
port
Rx+
Rx-
Tx+
Tx-
Rx-
Rx+
Tx-
Tx+
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1
Normal
port
Pin Pin
Normal
port
Rx+
Rx-
Tx+
Tx-
Rx+
Rx-
Tx+
Tx-
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
connection.
There is a problem with this particular
connection. Check that the equipment connected to the
hub is powered on, operating correctly, and contains a
100BASE-TX connection.
The hub can only be directly
connected to equipment that can provide a 100Mbps
connection (not 10Mbps only)
You are using a 100Mbps adapter in your workstation,
■
. In particular, ensure that:
if connecting a workstation to the hub. If your adapter
can operate at various speeds, ensure that it is set to
operate at 100Mbps.
Any 10Mbps equipment that you want to link to the
■
hub, is connected through a 10/100 hub or switch.
You are using a ‘Straight-through’ 100BASE-TX cable that
■
is properly connected at both ends, and is not damaged.
Refer to Figure 5 to compare the wiring of a
straight-through and a crossover cable.
16
Figure 5
Straight-through Cable/Crossover Cable
ETWORKING TERMINOLOGY
N
A
Network
IBM-compatible PCs) and other equipment (for example,
printers), connected for the purpose of exchanging
information or sharing resources. Networks vary in size,
some are within a single room, others span continents.
A
Local Area Network (LAN)
office, that spans no more than a single site.
Ethernet
to pass information around the network.
Fast Ethernet
than standard Ethernet.
10BASE-T
runs over
100BASE-TX
protocol that runs over
100Mbps. The OfficeConnect hub uses RJ-45 type
connectors for connecting your TP network
is a collection of workstations (for example,
is a network, usually in an
is a type of LAN, referring to the technology used
is a type of LAN that runs ten times faster
is the name given to the Ethernet protocol that
Twisted Pair (TP)
is the name given to the Fast Ethernet
cable at 10Mbps.
Twisted Pair (TP)
cable at
A
Network Loop
equipment are connected by more than one path. Your hub
detects this and
break the loop.
A
segment
whether this cable is 10BASE-T, 100BASE-TX, or another
type.
Packets
other equipment send to each other over the network.
Collisions
occur if two or more devices (pieces of network equipment)
attempt to transmit at the same time. A sudden sustained
increase in the number of collisions can indicate a problem
with a device, particularly if it is not accompanied by a
general increase in traffic.
are the units of information your workstations and
are a part of normal Fast Ethernet operation and
occurs when two pieces of network
partitions
is the length of cable connected to a port,
(isolates) one of its ports to
17
IMENSIONS AND STANDARDS
D
Dimensions and Operating Conditions
OfficeConnect Fast Ethernet Hub 4
4 VA
14 BThU/hr
power
0 to 40°C (32 to 105°F)
operating
temperature
0 to 90%
(non-condensing)
humidity
500g (1.1lb)
OfficeConnect Fast Ethernet Hub 8
9 VA
31 BThU/hr
power
0 to 40°C (32 to 105°F)
operating
temperature
0 to 90%
(non-condensing)
humidity
550g (1.2lb)
225mm (9in.)
35.8mm
(1.4in.)
135.4mm (5.3in.)
225mm (9in.)
35.8mm
(1.4in.)
135.4mm (5.3in.)
OfficeConnect Fast Ethernet Hub 12
12 VA
40 BThU/hr
power requirement
0 to 40°C (32 to 105°F)
operating
temperature
0 to 90%
(non-condensing)
humidity
18
950g (2.1lb)
228mm (9.12in.)
54.6mm
(2.1in.)
185.4mm (7.3in.)
Standards
Functional: ISO 8802/3
IEEE 802.3
Safety: UL 1950, EN 60950
CSA 22.2 #950
IEC 950
EMC: EN 55022 Class B
EN 50082-1
FCC Part 15 Class B
†
†
*
ICES-003 Class B
VCCI Class B
†
CNS 13438 Class A
Environmental: EN 60068 (IEC 68)
†Category 5 screened cables must be used to ensure
compliance with the Class B requirements of this standard.
The use of unscreened cables (category 3 or category 5)
complies with the Class A requirements.
*Refer to “Electromagnetic Compatibility” on page 32 for
conditions of operation.
19
NVIRONMENTAL STATEMENTS
E
It is the policy of 3Com Corporation to be
environmentally-friendly in all operations. To uphold our
policy, we are committed to:
Establishing environmental performance standards that
■
comply with national legislation and regulations.
Conserving energy, materials and natural resources in all
■
operations.
Reducing the waste generated by all operations.
■
Ensuring that all waste conforms to recognized
■
environmental standards.
Maximizing the recyclable and reusable content of all
■
products.
Ensuring that all products can be recycled, reused and
■
disposed of safely.
Ensuring that all products are labelled according to
■
recognized environmental standards.
Improving our environmental record on a continual basis.
■
End Of Life Statement
3Com processes allow for the recovery, reclamation and safe
disposal of all end-of-life electronic components.
Regulated Materials Statement
3Com products do not contain any hazardous or
ozone-depleting material.
Environmental Statement about the Documentation
The documentation for this product is printed on paper that
comes from sustainable, managed forests; it is fully
biodegradable and recyclable, and is completely
chlorine-free. The varnish is environmentally-friendly, and the
inks are vegetable-based with a low heavy-metal content.
Environmental Statement about the Product Packaging
The packaging for this product is fully recyclable. It has a
recycled (post consumer) waste content of at least 40% by
weight, and no heavy-metal content.
20
MPORTANT SAFETY INFORMATION
I
WARNING: Warnings contain directions that you
must follow for your personal safety. Follow all
directions carefully.
You must read the following safety information
carefully before you install or remove the unit:
Exceptional care must be taken during installation and
■
removal of the unit.
Only stack the OfficeConnect hub with other
■
OfficeConnect units.
To ensure compliance with international safety standards,
■
only use the power adapter that is supplied with the
unit.
The socket outlet must be near to the unit and easily
■
accessible. You can only remove power from the unit by
disconnecting the power cord from the outlet.
This unit operates under SELV (Safety Extra Low Voltage)
■
conditions according to IEC 950. The conditions are only
maintained if the equipment to which it is connected
also operates under SELV conditions.
There are no user-replaceable fuses or user-serviceable
■
parts inside the hub. If you have a physical problem with
the unit that cannot be solved with problem solving
actions in this guide, contact your supplier.
Disconnect the power adapter before moving the unit.
■
WARNING: RJ-45 ports. These are shielded RJ-45
data sockets. They cannot be used as telephone
sockets. Only connect RJ-45 data connectors to these
sockets.
21
ICHTIGE SICHERHEITSHINWEISE
W
WARNHINWEIS: Warnhinweise enthalten
Anweisungen, die Sie zu Ihrer eigenen Sicherheit
befolgen müssen. Alle Anweisungen sind sorgfältig zu
befolgen.
Sie müssen die folgenden Sicherheitsinformationen
sorgfältig durchlesen, bevor Sie das Geräts installieren
oder ausbauen:
Bei der Installation und beim Ausbau des Geräts ist mit
■
höchster Vorsicht vorzugehen.
Stapeln Sie das Geräts nur mit anderen OfficeConnect
■
Gerätes zusammen.
Aufgrund von internationalen Sicherheitsnormen darf das
■
Gerät nur mit dem mitgelieferten Netzadapter verwendet
werden.
Die Netzsteckdose muß in der Nähe des Geräts und
■
leicht zugänglich sein. Die Stromversorgung des Geräts
kann nur durch Herausziehen des Gerätenetzkabels aus
der Netzsteckdose unterbrochen werden.
Der Betrieb dieses Geräts erfolgt unter den
■
SELV-Bedingungen (Sicherheitskleinstspannung) gemäß
IEC 950. Diese Bedingungen sind nur gegeben, wenn
auch die an das Gerät angeschlossenen Geräte unter
SELV-Bedingungen betrieben werden.
Es sind keine von dem Benutzer zu ersetzende oder zu
■
wartende Teile in dem Gerät vorhanden. Wenn Sie ein
Problem mit dem Switch haben, das nicht mittels der
Fehleranalyse in dieser Anleitung behoben werden kann,
setzen Sie sich mit Ihrem Lieferanten in Verbindung.
Vor dem Ausbau des Geräts das Netzadapterkabel
■
herausziehen.
WARNHINWEIS: RJ-45-Anschlüsse. Dies sind
abgeschirmte RJ-45-Datenbuchsen. Sie können nicht
als Telefonanschlußbuchsen verwendet werden. An
diesen Buchsen dürfen nur RJ-45-Datenstecker
angeschlossen werden.
22
ONSIGNES IMPORTANTES DE SÉCURITÉ
C
AVERTISSEMENT: Les avertissements présentent des
consignes que vous devez respecter pour garantir
votre sécurité personnelle. Vous devez respecter
attentivement toutes les consignes.
Nous vous demandons de lire attentivement les
consignes suivantes de sécurité avant d’installer ou de
retirer l’appareil:
Faites très attention lors de l'installation et de la dépose
■
du groupe.
Seulement entasser le moyer avec les autres moyeux
■
OfficeConnects.
Pour garantir le respect des normes internationales de
■
sécurité, utilisez uniquement l'adaptateur électrique remis
avec cet appareil.
La prise secteur doit se trouver à proximité de l’appareil
■
et son accès doit être facile. Vous ne pouvez mettre
l’appareil hors circuit qu'en débranchant son cordon
électrique au niveau de cette prise.
L’appareil fonctionne à une tension extrêmement basse
■
de sécurité qui est conforme à la norme CEI 950. Ces
conditions ne sont maintenues que si l'équipement
auquel il est raccordé fonctionne dans les mêmes
conditions.
Il n’y a pas de parties remplaceables par les utilisateurs
■
ou entretenues par les utilisateurs à l’intérieur du moyeu.
Si vous avez un problème physique avec le moyeu qui ne
peut pas être résolu avec les actions de la résolution des
problèmes dans ce guide, contacter votre fournisseur.
Débranchez l'adaptateur électrique avant de retirer cet
■
appareil.
AVERTISSEMENT: Ports RJ-45. Il s'agit de prises
femelles blindées de données RJ-45. Vous ne pouvez
pas les utiliser comme prise de téléphone. Branchez
uniquement des connecteurs de données RJ-45 sur
ces prises femelles.
23
ECHNICAL SUPPORT
T
3Com provides easy access to technical support information
through a variety of services. This section describes these
services.
Information contained in this section is correct at time of
publication. For the most recent information, 3Com
recommends that you access the 3Com Corporation World
Wide Web site.
Online Technical Services
3Com offers worldwide product support 24 hours a day,
7 days a week, through the following online systems:
World Wide Web site.
■
3Com Knowledgebase Web Services.
■
World Wide Web Site
To access the latest networking information on the
3Com Corporation World Wide Web site, enter this URL
into your Internet browser:
http://www.3com.com/
This service provides access to online support information
such as technical documentation and software, as well as
support options that range from technical education to
maintenance and professional services.
3Com Knowledgebase Web Services
This interactive tool contains technical product information
compiled by 3Com expert technical engineers around the
globe. Located on the World Wide Web at:
http://knowledgebase.3com.com
This service gives all 3Com customers and partners
complementary, round-the-clock access to technical
information on most 3Com products.
.
24
Support from Your Network Supplier
If you require additional assistance, contact your network
supplier. Many suppliers are authorized 3Com service
partners who are qualified to provide a variety of services,
including network planning, installation, hardware
maintenance, application training, and support services.
When you contact your network supplier for assistance,
have the following information ready:
Product model name, part number, and serial number.
■
A list of system hardware and software, including revision
■
levels.
Diagnostic error messages.
■
Details about recent configuration changes, if applicable.
■
If you are unable to contact your network supplier, see the
following section on how to contact 3Com.
Support from 3Com
If you are unable to obtain assistance from the 3Com online
technical resources or from your network supplier, 3Com
offers technical telephone support services. To find out more
about your support options, call the 3Com technical
telephone support phone number at the location nearest
you.
When you contact 3Com for assistance, have the following
information ready:
Product model name, part number, and serial number.
■
A list of system hardware and software, including revision
■
levels.
Diagnostic error messages.
■
Details about recent configuration changes, if applicable.
■
25
Here is a list of worldwide technical telephone support
numbers:
Country Telephone Number Country Telephone Number
Asia, Pacific Rim
Australia
Hong Kong
India
Indonesia
Japan
Malaysia
New Zealand
Pakistan
Philippines
Europe
From anywhere in Europe, call: +31 (0)30 6029900 phone
Europe, South Africa, and Middle East
From the following countries, you may use the toll-free numbers:
Austria
Belgium
Denmark
Finland
France
Germany
Hungary
Ireland
Israel
Italy
1 800 678 515
800 933 486
+61 2 9937 5085
001 800 61 009
0031 61 6439
1800 801 777
0800 446 398
+61 2 9937 5085
1235 61 266 2602
+31 (0)30 6029999 fax
0800 297468
0800 71429
800 17309
0800 113153
0800 917959
0800 1821502
00800 12813
1800 553117
1800 9453794
1678 79489
P. R. o f C h i n a
Singapore
S. Korea
From anywhere in S. Korea:
From Seoul:
Tai w an , R . O .C .
Thailand
Netherlands
Norway
Poland
Portugal
South Africa
Spain
Sweden
Switzerland
U.K.
10800 61 00137 or
021 6350 1590
800 6161 463
00798 611 2230
(0)2 3455 6455
0080 611 261
001 800 611 2000
0800 0227788
800 11376
00800 3111206
0800 831416
0800 995014
900 983125
020 795482
0800 55 3072
0800 966197
26
Country Telephone Number Country Telephone Number
Latin America
Argentina
Brazil
Chile
Colombia
AT&T +800 666 5065
0800 13 3266
1230 020 0645
98012 2127
Mexico
Peru
Puerto Rico
Venezu e la
01 800 CARE (01 800
2273)
AT&T +800 666 5065
800 666 5065
AT&T +800 666 5065
North America
1 800 876-3266
27
Returning Products for Repair
Before you send a product directly to 3Com for repair, you
must first obtain a Return Material Authorization (RMA)
number. Products sent to 3Com without authorization
numbers will be returned to the sender unopened, at the
sender’s expense.
To obtain an authorization number, call or fax:
Country Telephone Number Fax Number
Asia, Pacific Rim + 65 543 6500 + 65 543 6348
Europe, South Africa,
and Middle East
Latin America 1 408 326 2927 1 408 326 3355
From the following countries, you may call the toll-free numbers;
select option 2 and then option 2:
+ 31 30 6029900 + 31 30
6029999
Country Telephone Number Fax Number
Austria
Belgium
Denmark
Finland
France
Germany
Hungary
Ireland
Israel
Italy
Netherlands
Norway
Poland
Portugal
South Africa
Spain
Sweden
Switzerland
U.K.
U.S.A. and Canada 1 800 876 3266 1 408 326 7120
0800 297468
0800 71429
800 17309
0800 113153
0800 917959
0800 1821502
00800 12813
1800553117
1800 9453794
1678 79489
0800 0227788
800 11376
00800 3111206
0800 831416
0800 995014
900 983125
020 795482
0800 55 3072
0800 966197
(not toll-free)
28
3Com Corporation L
IMITED WARRANTY
3Com OfficeConnect Fast Ethernet Hub 4, Hub 8, Hub 12
The duration of the warranty for the OfficeConnect Fast Ethernet Hub 4
(3C16723A), Hub 8 (3C16722A) and Hub 12 (3C16721A) is lifetime, including
the power adapter.
Advance hardware exchange is available during the first year from your date of
purchase in accordance with 3Com’s standard terms and conditions for such
service. After the first year the warranty reverts to 3Com’s standard lifetime
limited warranty.
To qualify for the lifetime limited warranty and the advance hardware exchange
you must submit the appropriate product warranty registration card to 3Com,
otherwise this product will be warranted for a period of one (1) year without
advance hardware exchange.
H
ARDWARE
3Com warrants this hardware product to be free from defects in workmanship
and materials, under normal use and service, for the following length of time
from the date of purchase from 3Com or its authorized reseller:
One (1) year (unless otherwise specified above)
3Com’s sole obligation under this express warranty shall be, at 3Com’s option
and expense, to repair the defective product or part, deliver to Customer an
equivalent product or part to replace the defective item, or if neither of the two
foregoing options is reasonably available, 3Com may, in its sole discretion, refund
to Customer the purchase price paid for the defective product. All products that
are replaced will become the property of 3Com. Replacement products may be
new or reconditioned. 3Com warrants any replaced or repaired product or part
for ninety (90) days from shipment, or the remainder of the initial warranty
period, whichever is longer.
S
OFTWARE
3Com warrants that each software program licensed from it will perform in
substantial conformance to its program specifications, for a period of ninety (90)
days from the date of purchase from 3Com or its authorized reseller. 3Com
warrants the media containing software against failure during the warranty
period. No updates are provided. 3Com's sole obligation under this express
warranty shall be, at 3Com's option and expense, to refund the purchase price
paid by Customer for any defective software product, or to replace any defective
media with software which substantially conforms to applicable 3Com published
specifications. Customer assumes responsibility for the selection of the
appropriate applications program and associated reference materials. 3Com
makes no warranty or representation that its software products will meet
Customer’s requirements or work in combination with any hardware or
applications software products provided by third parties, that the operation of the
software products will be uninterrupted or error free, or that all defects in the
software products will be corrected. For any third party products listed in the
3Com software product documentation or specifications as being compatible,
3Com will make reasonable efforts to provide compatibility, except where the
non-compatibility is caused by a "bug" or defect in the third party's product or
from use of the software product not in accordance with 3Com’s published
specifications or user manual.
Y
2000 W
EAR
In addition to the Hardware Warranty and Software Warranty stated above,
3Com warrants that each product sold or licensed to Customer on and after
January 1, 1998 that is date sensitive will continue performing properly with
regard to such date data on and after January 1, 2000, provided that all other
products used by Customer in connection or combination with the 3Com
product, including hardware, software, and firmware, accurately exchange date
data with the 3Com product, with the exception of those products identified at
3Com’s Web site, http://www.3com.com/products/yr2000.html, as not meeting
this standard. If it appears that any product that is stated to meet this standard
does not perform properly with regard to such date data on and after January 1,
2000, and Customer notifies 3Com before the later of April 1, 2000, or ninety
(90) days after purchase of the product from 3Com or its authorized reseller,
3Com shall, at its option and expense, provide a software update which would
effect the proper performance of such product, repair such product, deliver to
Customer an equivalent product to replace such product, or if none of the
foregoing is feasible, refund to Customer the purchase price paid for such
product.
Any software update or replaced or repaired product will carry a Year 2000
Warranty for ninety (90) days after purchase or until April 1, 2000, whichever is
later.
O
BTAINING WARRANTY SERVICE
Customer must contact a 3Com Corporate Service Center or an Authorized 3Com
Service Center within the applicable warranty period to obtain warranty service
authorization. Dated proof of purchase from 3Com or its authorized reseller may
be required. Products returned to 3Com's Corporate Service Center must be
ARRANTY
29
pre-authorized by 3Com with a Return Material Authorization (RMA) number
marked on the outside of the package, and sent prepaid and packaged
appropriately for safe shipment, and it is recommended that they be insured or
sent by a method that provides for tracking of the package. The repaired or
replaced item will be shipped to Customer, at 3Com's expense, not later than
thirty (30) days after 3Com receives the defective product.
Dead- or Defective-on-Arrival. In the event a product completely fails to function
or exhibits a defect in materials or workmanship within the first forty-eight (48)
hours of installation but no later than thirty (30) days after the date of purchase,
and this is verified by 3Com, it will be considered dead- or defective-on-arrival
(DOA) and a replacement shall be provided by advance replacement. The
replacement product will normally be shipped not later than three (3) business
days after 3Com’s verification of the DOA product, but may be delayed due to
export or import procedures. When an advance replacement is provided and
Customer fails to return the original product to 3Com within fifteen (15) days
after shipment of the replacement, 3Com will charge Customer for the
replacement product, at list price.
3Com shall not be responsible for any software, firmware, information, or
memory data of Customer contained in, stored on, or integrated with any
products returned to 3Com for repair, whether under warranty or not.
ADDITIONAL SERVICES:
Telephone Support. This OfficeConnect® product comes with telephone technical
support for ninety (90) days. The ninety (90) day period begins on the date of
Customer's product purchase.
The telephone technical support is available from 3Com from 9 a.m. to 5 p.m.,
local time, Monday through Friday, excluding local holidays. Telephone technical
support is limited to the 3Com products designated above and may include
assistance with installation, product specific configuration, and identification of
equipment problems. Please refer to the Technical Support appendix in the User
Guide for telephone numbers.
Response to requests for telephone technical support will be in the form of a
return call from a 3Com representative by close of business the following business
day.
To qualify for this 90 days of telephone technical support, you must register on
the 3Com Web site at http://support.3Com.com/index.htm, and provide your date
of purchase, product number, and serial number. 3Com reserves the right to
modify or cancel this telephone support offering at any time, without advance
notice. This offer is not available where prohibited or restricted by law.
3Com’s Web and Bulletin Board Service are available at no charge, and provide
software and firmware upgrades, a bug list, and technical information about
3Com products.
W
ARRANTIES EXCLUSIVE
IF A 3COM PRODUCT DOES NOT OPERATE AS WARRANTED ABOVE,
CUSTOMER'S SOLE REMEDY FOR BREACH OF THAT WARRANTY SHALL BE
REPAIR, REPLACEMENT, OR REFUND OF THE PURCHASE PRICE PAID, AT 3COM'S
OPTION. TO THE FULL EXTENT ALLOWED BY LAW, THE FOREGOING
WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER
WARRANTIES, TERMS, OR CONDITIONS, EXPRESS OR IMPLIED, EITHER IN FACT
OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING
WARRANTIES, TERMS, OR CONDITIONS OF MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE, SATISFACTORY QUALITY, CORRESPONDENCE WITH
DESCRIPTION, AND NON-INFRINGEMENT, ALL OF WHICH ARE EXPRESSLY
DISCLAIMED. 3COM NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON
TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE,
INSTALLATION, MAINTENANCE OR USE OF ITS PRODUCTS.
3COM SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND
EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT OR MALFUNCTION IN THE
PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMER'S OR ANY THIRD
PERSON'S MISUSE, NEGLECT, IMPROPER INSTALLATION OR TESTING,
UNAUTHORIZED ATTEMPTS TO OPEN, REPAIR OR MODIFY THE PRODUCT, OR
ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY
ACCIDENT, FIRE, LIGHTNING, OTHER HAZARDS, OR ACTS OF GOD.
L
IMITATION OF LIABILITY
TO THE FULL EXTENT ALLOWED BY LAW, 3COM ALSO EXCLUDES FOR ITSELF
AND ITS SUPPLIERS ANY LIABILITY, WHETHER BASED IN CONTRACT OR TORT
(INCLUDING NEGLIGENCE), FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT,
SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE OR
PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATA, OR OTHER
FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE SALE,
INSTALLATION, MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION
OF ITS PRODUCTS, EVEN IF 3COM OR ITS AUTHORIZED RESELLER HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, AND LIMITS ITS LIABILITY TO
REPAIR, REPLACEMENT, OR REFUND OF THE PURCHASE PRICE PAID, AT 3COM'S
OPTION. THIS DISCLAIMER OF LIABILITY FOR DAMAGES WILL NOT BE AFFECTED
IF ANY REMEDY PROVIDED HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE.
30
D
ISCLAIMER
Some countries, states, or provinces do not allow the exclusion or limitation of
implied warranties or the limitation of incidental or consequential damages for
certain products supplied to consumers, or the limitation of liability for personal
injury, so the above limitations and exclusions may be limited in their application
to you. When the implied warranties are not allowed to be excluded in their
entirety, they will be limited to the duration of the applicable written warranty.
This warranty gives you specific legal rights which may vary depending on local
law.
G
OVERNING LAW
This Limited Warranty shall be governed by the laws of the State of California,
U.S.A. excluding its conflicts of laws principles and excluding the United Nations
Convention on Contracts for the International Sale of Goods.
3Com Corporation
5400 Bayfront Plaza
Santa Clara, CA 95054
(408) 326-5000
31
E
LECTROMAGNETIC COMPATIBILITY
FCC S
TATEMENT
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules, and the Canadian
Department of Communications Equipment Standards entitled, “Digital
Apparatus,” ICES-003. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur
in a particular installation.
If this equipment causes interference to radio or television reception, which can
be determined by turning the equipment off and on, try to correct the
interference by using one or more of the following measures:
■
Reorient the receiving antenna.
■
Relocate the equipment with respect to the receiver.
■
Move the equipment away from the receiver.
■
Plug the equipment into a different outlet so that equipment and receiver are
on different branch circuits.
■
Consult the dealer or an experienced radio/television technician for help.
CSA S
TATEMENT
This Class B digital apparatus meets all requirements of the Canadian
interference-Causing Equipment Regulations.
Cet appareil numérique de la classe B respecte toutes les exigences du Règlement
sur le matériel brouilleur du Canada.
VCCI S
TATEMENT
BCIQ S
TATEMENT
I
NFORMATION TO THE USER
The user may find the following booklet prepared by the Federal Communications
Commission helpful:
How to Identify and Resolve Radio-TV Interference Problems
This booklet is available from the U.S. Government Printing Office, Washington,
DC 20402, Stock No. 004-000-00345-4.
In order to meet FCC emissions limits, this equipment must be used only with
cables which comply with IEEE 802.3.
32
333435
Wall mounting screw hole guide
Fast Ethernet Hub 4 and 8 150mm (5.9in.)
Wall mounting screw hole guide
Fast Ethernet Hub 12 142mm (5.6in.)
36
Part No. DUA 1672-1AAA03
Published June 1999
Loading...
