1. Product Overview
Here is what you can find in this section:
1.1 Components and Associated Products
1.2 Terms and Symbols
2N TELEKOMUNIKACE a.s., www.2n.cz 4/118
Basic Properties
2N Access Unit is an elegant and reliable access IP system equipped with a number of
useful functions, which are not always common in devices of this category.
2N Access Unit is a modular access system that meets all individual user needs. Unlike
other access systems available on the market, is not a single-module 2N Access Unit
system with a fixed functionality, but a user friendly modular system, allowing the user
to assemble required modules and accessories on a “plug and play” basis. This
approach provides individual configuration options and increase in functionality as
necessary.
Keypad is a numeric keypad module that allows you to use the device for code lock
switch activation.
Integrated card reader module provides the RFID card access control functionality.
With additional software settings, you can control more functions than the door lock
using the card.
Electric lock switch – this switch can be can be controlled via a numeric keypad or
Automation actions. The switch can be completed with additional output modules if
necessary. A wide range of the switch mode settings provide an infinite number of
applications.
Resistance – is designed as a robust, mechanically resistant access 2N Access Unit
system, which withstands any weather conditions without requiring additional
accessories.
Installation of is very easy. All you have to do is assemble the required 2N Access Unit
modules and connect the system to your LAN via a mains cable. Being of the “plug
and play” type, the modules need not be configured individually. Feed the intercom
either from a 12 V power supply or directly from your PoE-supporting LAN.
To configure 2N Access Unit , you need a PC equipped with any Internet browser. To
manage extensive intercom installations easily, use the .2N Access Commander
2N TELEKOMUNIKACE a.s., www.2n.cz 5/118
Advantages of Use
Elegant design
Weather resistance
Variable mounting options (brick/plasterboard flush mounting, wall mounting)
Optional numeric keypad with backlight
Use of multiple modules of the same type – e.g. building entrance/exit card
reader
Integrated electronic lock switches with wide setting options
Integrated RFID card reader module, Bluetooth module, fingerprint reader
module or touch keypad module
LAN (PoE) or external 12 V power supply
Configuration via web interface
HTTP server for configuration
SNTP client for server time synchronisation
SMTP client for e-mail sending
TFTP/HTTP client for automatic configuration and firmware update
2N TELEKOMUNIKACE a.s., www.2n.cz 6/118
1.1 Components and Associated Products
Basic Units
2N Part No. 916009
Axis Part No. 01365-001
2N Access Unit 125kHz
®
The card reader provides you with access control via
contactless cards or keyfobs. The module supports the 125
kHz EM4xxx.
2N Part No. 916010
Axis Part No. 01366-001
13.56 MHz, NFC ready2N Access Unit
®
The card reader module provides you with access control
via contactless cards or keyfobs. The module supports the
following 13.56 MHz cards or other carriers (only card
serial number is read):
ISO14443A (Mifare, DESFire)
PicoPass (HID iClass)
FeliCa
ST SR(IX)
2N Mobile Key®
2N Part No. 916013
Axis Part No. 01368-001
2N Access Unit Bluetooth
®
The Bluetooth reader is used for reading users secure ID
numbers from the application of smart 2N Mobile Key
®
phones Android and iOS.
2N TELEKOMUNIKACE a.s., www.2n.cz 7/118
2N Part No. 916019
Axis Part No. 01367-001
2N Access Unit Fingerprint reader
®
The Fingerprint reader is used for verification of human
fingers for access control and intercom control.
2N Part No. 916016
Axis Part No. 01370-001
2N Access Unit Touch keypad
®
The numeric touch keypad module helps you control the
lock and use other code-accessible functions. The keypad
digits and symbols are backlit.
2N Part No. 9160334
Axis Part No. 01850-001
2N Access Unit 2.0 RFID – 125kHz, 13.56MHz, NFC
®
The card reader provides you with access control via
contactless cards or keyfobs. The module supports the 125
kHz EM-41xx.
The card reader module provides you with access control
via contactless cards or keyfobs. The module supports the
following 13.56 MHz cards or other carriers (only card
serial number is read):
125 kHz
EM4xxx
13.56 MHz
ISO14443A (Mifare, DESFire)
PicoPass (HID iClass)
FeliCa
ST SR(IX)
2N Mobile Key
®
2N TELEKOMUNIKACE a.s., www.2n.cz 8/118
2N Part No. 9160334-S
Axis Part No. 01850-001
2N Access Unit 2.0 RFID – 125kHz, secured 13.56MHz,
®
NFC
The card reader provides you with access control via
contactless cards or keyfobs. The module supports the 125
kHz EM-41xx.
The card reader module provides you with access control
via contactless cards or keyfobs. The module supports the
following 13.56 MHz cards or other carriers (only card
serial number is read):
125 kHz
EM4xxx
13.56 MHz
ISO14443A (Mifare, DESFire)
PicoPass (HID iClass)
FeliCa
ST SR(IX)
2N Mobile Key
®
HID SE (Seos, iClass SE, Mifare SE)
2N Part No. 9160335
Axis Part No. 01851-001
2N Access Unit 2.0 Bluetooth & RFID – 125kHz, 13.56
®
MHz, NFC
The bluetooth card reader module provides you with
access control via contactless cards or keyfobs. The
module supports the following 125 kHz and 13.56 MHz
cards or other carriers (only card serial number is read):
125 kHz
EM4xxx
13.56 MHz
ISO14443A (Mifare, DESFire)
PicoPass (HID iClass)
FeliCa
ST SR(IX)
2N Mobile Key
®
2N TELEKOMUNIKACE a.s., www.2n.cz 9/118
2N Part No. 9160335-S
Axis Part No. 01851-001
2N Access Unit 2.0 Bluetooth & RFID – 125kHz, secured
®
13.56MHz, NFC
The bluetooth card reader module provides you with
access control via contactless cards or keyfobs. The
module supports the following 125 kHz and 13.56 MHz
cards or other carriers (only card serial number is read):
125 kHz
EM4xxx
13.56 MHz
ISO14443A (Mifare, DESFire)
PicoPass (HID iClass)
FeliCa
ST SR(IX)
2N Mobile Key
®
HID SE (Seos, iClass SE, Mifare SE)
2N Part No. 9160336
Axis Part No. 01852-001
2N Access Unit 2.0 Touch keypad & RFID – 125kHz, 13.56
®
MHz, NFC
The touch keypad and card reader module provides you
with access control via contactless cards or keyfobs. The
module supports the following 125 kHz and 13.56 MHz
cards or other carriers (only card serial number is read):
125 kHz
EM4xxx
13.56 MHz
ISO14443A (Mifare, DESFire)
PicoPass (HID iClass)
FeliCa
ST SR(IX)
2N Mobile Key
®
2N TELEKOMUNIKACE a.s., www.2n.cz 10/118
2N Part No. 9160336-S
Axis Part No. 01852-001
2N Access Unit 2.0 Touch keypad & RFID – 125kHz,
®
secured 13.56MHz, NFC
The touch keypad and card reader module provides you
with access control via contactless cards or keyfobs. The
module supports the following 125 kHz and 13.56 MHz
cards or other carriers (only card serial number is read):
125 kHz
EM4xxx
13.56 MHz
ISO14443A (Mifare, DESFire)
PicoPass (HID iClass)
FeliCa
ST SR(IX)
2N Mobile Key
®
HID SE (Seos, iClass SE, Mifare SE)
Tip
– Supported auxiliary modules: 2N IP Verso modules are supported
®
RFID card reader (125 kHz; 13.56 MHz), keypad, 5-button module,
Wiegand, etc.
License
2N Part No. 916012
Axis Part No. 01369-
001
2N Access Unit NFC license
2N Part No. 9160401
Axis Part No. 02000-
001
2N Access Unit Lift module license
2N TELEKOMUNIKACE a.s., www.2n.cz 11/118
Frames
9155011 2N Part No.
Axis Part No. 01278-001
Flush mounting frame, 1-module
Covering frame for the 1-module brick/plasterboard flush
mounting box. This 1-module frame is used for connection of
an OUT card reader or keypad, for example. Remember to
order the frame when you order a 1-module flush mounting
box, Part No. 9155014.
9155011B2N Part No.
Axis Part No. 01279-001
Flush mounting frame, 1-module
Covering frame for the 1-module brick/plasterboard flush
mounting box. This 1-module frame is used for connection of
an OUT card reader or keypad, for example. Remember to
order the frame when you order a 1-module flush mounting
box, Part No. 9155014.
9155012 2N Part No.
Axis Part No. 01281-001
Flush mounting frame, 2-module
Covering frame for the 2-module brick/plasterboard flush
mounting box. Remember to order the frame when you order a
2-module flush mounting box, Part No. 9155015.
2N TELEKOMUNIKACE a.s., www.2n.cz 12/118
9155012B2N Part No.
Axis Part No. 01282-001
Flush mounting frame, 2-module
Covering frame for the 2-module brick/plasterboard flush
mounting box. Remember to order the frame when you order a
2-module flush mounting box, Part No. 9155015.
9155021 2N Part No.
Axis Part No. 01287-001
Wall mounting frame, 1-module
Covering frame for wall (surface) mounting.This 1-module
frame is used for connection of an OUT card reader or keypad,
for example.
9155021B2N Part No.
Axis Part No. 01288-001
Wall mounting frame, 1-module
Covering frame for wall (surface) mounting.This 1-module
frame is used for connection of an OUT card reader or keypad,
for example.
2N TELEKOMUNIKACE a.s., www.2n.cz 13/118
9155022 2N Part No.
Axis Part No. 01289-001
Wall mounting frame, 2-module
Covering frame for wall (surface) mounting.
9155022B2N Part No.
Axis Part No. 01290-001
Wall mounting frame, 2-module
Covering frame for wall (surface) mounting.
Tip
The 1-module frame is used when an auxiliary module from 2N IP Verso
®
is mounted onto an extended interconnecting cable, for an OUT card
reader or keypad, for example.
2N TELEKOMUNIKACE a.s., www.2n.cz 14/118
Tip
Remember to order the flush mounting frame when you order a brick
/plasterboard flush mounting box:
1-module frame, Part No. – 1-module flush mounting box, 9155011
Part No. .9155014
2-module frame, Part No. – 2-module flush mounting box, 9155012
Part No. .9155015
2N TELEKOMUNIKACE a.s., www.2n.cz 15/118
Extending Modules
2N Part No. 916020
Axis Part No. 01371-001
RJ-45 adapter
9155032 2N Part No.
Axis Part No. 01255-001
2N IP Verso ® – RFID Reader, 125 kHz
The card reader module works with as an 2N Access Unit
OUT card reader. The module supports cards, key fobs and
/or other 125 kHz standard carriers: .EM4xxx
2N Part No. 9155040
Axis Part No. 01262-001
– RFID Reader NFC support, 13.56 MHzIP Verso 2N
®
The card reader module works with as an 2N Access Unit
OUT card reader. The module supports cards, key fobs and
/or other 13.56 MHz standard carriers (only card serial
number is read):
ISO14443A (Mifare, DESFire)
PicoPass (HID iClass)
FeliCa
ST SR(IX)
2N Mobile Key
®
2N TELEKOMUNIKACE a.s., www.2n.cz 16/118
2N Part No. 9155082
Axis Part No. 01637-001
2N IP Verso® – Bluetooth & RFID reader 125kHz, 13.56MHz,
NFC
The bluetooth and card reader module works with 2N
as an OUT card reader. The module supports Access Unit
cards, key fobs and/or other 125 kHz and 13.56 MHz
standard carriers (only card serial number is read):
125 kHz
EM4xxx
13.56 MHz
ISO14443A (Mifare, DESFire)
PicoPass (HID iClass)
FeliCa
ST SR(IX)
2N Mobile Key
®
2N Part No. 9155084
Axis Part No. 01639-001
2N IP Verso® – Bluetooth & RFID reader 125kHz, secured
13.56MHz, NFC
The bluetooth and secured card reader module works with
as an OUT card reader. The module 2N Access Unit
supports cards, key fobs and/or other 125 kHz and 13.56
MHz standard carriers (only card serial number is read):
125 kHz
EM4xxx
13.56 MHz
ISO14443A (Mifare, DESFire)
PicoPass (HID iClass)
FeliCa
ST SR(IX)
2N Mobile Key
®
HID SE (Seos, iClass SE, Mifare SE)
2N TELEKOMUNIKACE a.s., www.2n.cz 17/118
2N Part No. 9155081
Axis Part No. 01636-001
2N IP Verso® – Touch keypad & RFID reader 125kHz, 13.56
MHz, NFC
The touch keypad and card reader module works with 2N
as an OUT card reader. The module supports Access Unit
cards, key fobs and/or other 125 kHz and 13.56 MHz
standard carriers (only card serial number is read):
125 kHz
EM4xxx
13.56 MHz
ISO14443A (Mifare, DESFire)
PicoPass (HID iClass)
FeliCa
ST SR(IX)
2N Mobile Key
®
2N Part No. 9155083
Axis Part. No 01638-001
2N IP Verso® – Touch keypad & RFID reader 125kHz,
secured 13.56MHz, NFC
The touch keypad and secured card reader module works
with as an OUT card reader. The module 2N Access Unit
supports cards, key fobs and/or other 125 kHz and 13.56
MHz standard carriers (only card serial number is read):
125 kHz
EM4xxx
13.56 MHz
ISO14443A (Mifare, DESFire)
PicoPass (HID iClass)
FeliCa
ST SR(IX)
2N Mobile Key
®
HID SE (Seos, iClass SE, Mifare SE)
2N TELEKOMUNIKACE a.s., www.2n.cz 18/118
91550312N Part No.
Axis Part No. 01253-001
– Keypad2N IP Verso
®
The numeric keypad module helps enter a numeric entrance
code. Use the keypad for departures or double entrance
authentication. The keypad digits and symbols are backlit.
2N Part No. 9155031B
Axis Part No. 01254-001
– Keypad2N IP Verso
®
The numeric keypad module helps enter a numeric entrance
code. Use the keypad for departures or double entrance
authentication. The keypad digits and symbols are backlit.
2N Part No. 9155047
Axis Part No. 01277-001
– Touch keypad2N IP Verso
®
The numeric keypad module helps you dial users via their
phonebook positions or phone numbers, control the lock
and use other code-accessible functions. The keypad digits
and symbols are backlit.
2N Part No. 9155037
Axis Part No. 01259-001
– Wiegand2N IP Verso
®
The Wiegand module helps you interconnect your system
with other systems (access, security) via the Wiegand
interface. The module is installed under another module, i.e.
cannot be installed directly into the (must 2N Access Unit
be mounted outside).
2N TELEKOMUNIKACE a.s., www.2n.cz 19/118
2N Part No. 9155034
Axis Part No. 01257-001
– I/O2N IP Verso
®
The logic input/output module helps you integrate various
sensors and control doors or other equipment. The module
is installed under another module, i.e. cannot be installed
directly into the (must be mounted 2N Access Unit
outside).
91550302N Part No.
Axis Part No. 01252-001
– Info panel2N IP Verso
®
The Infopanel module helps you add your company logo,
opening hours and similar information to the access unit.
The Infopanel has software-controlled backlight.
2N Part Numbers:
1550509
9155054
9155055
Axis Part No. :
01267-001
01268-001
01269-001
1 m Interconnecting Cable
3 m Interconnecting Cable
5 m Interconnecting Cable
2N TELEKOMUNIKACE a.s., www.2n.cz 20/118
Mounting Accessories
9155014 2N Part No.
Axis Part No.
01284-001
Flush mounting box, 1-module
The box is designed for brick/plasterboard flush mounting of a 1module installation. Supplied including accessories for multiple box
assemblies.
9155015 2N Part No.
Axis Part No. 01285-
001
Flush mounting box, 2-module
The box is designed for brick/plasterboard flush mounting of a 2module installation. Supplied including accessories for multiple box
assemblies.
2N Part No. 9155061
Axis Part No.
01293-001
Backplate, 1 module
A backplate for glass or uneven surface mounting.
2N TELEKOMUNIKACE a.s., www.2n.cz 21/118
2N Part No.
9155062
Axis Part No.
01294-001
Backplate, 2 modules
A backplate for glass or uneven surface mounting.
For the installation choose the appropriate mounting frame and box if 2N Access Unit
necessary. The is designed for outdoor applications and requires no 2N Access Unit
additional roof.
2N TELEKOMUNIKACE a.s., www.2n.cz 22/118
Electric Locks
932071EPart No.
BEFO 11211
12 V / 230 mA DC
low consumption
932081EPart No.
BEFO 11221 with momentum pin
12 V / 230 mA DC
low consumption
For opening of the lock a short electrical impuls is sufficient,
which unlocks the lock. Lock is then open until someone closes
the door.
932091EPart No.
BEFO 11211MB with mechanical blocking
12 V / 230 mA DC
low consumption
Enables mechanically close or open the lock. When opened,
the lock is open all the time. When closed, it behaves as
standart electrical lock.
Part No. 932061E
211211 door signalling, low consumption
12 V / 230 mA
A regular lock with a built-in contact to indicate whether the
door is open or closed.
2N TELEKOMUNIKACE a.s., www.2n.cz 23/118
Part No. 932072E
31211 fail-safe
12 V / 170 mA DC
The failsafe lock is closed when electricity is switched on.
When electricity is interrupted, the lock is opened.
Part No. 932062E
321211 fail-safe, door signalling
12 V / 170 mA
The failsafe lock is closed when electricity is switched on.
When electricity is interrupted, the lock is opened.
It contains a built-in contact to indicate whether the door is
open or closed.
Tip
FAQ: Electric locks – Differences between locks for 2N IP intercoms
2N TELEKOMUNIKACE a.s., www.2n.cz 24/118
Power Supply
2N Part Numbers:
91378100, 01394-001
91378100E
91378100US, 01403-
001
PoE injector – without cable
PoE injetor – with EU cable
PoE injector – with US cable
For intercom power supply via an E cable where the PoE thernet
switch is unavailable.
Part No.
91341482E
91341482US
Stabilised 12 V / 1 A power supply needs to be used where no PoE
is available.
932928Part No.
For external power supply of the lock with 12 V AC voltage.
2N TELEKOMUNIKACE a.s., www.2n.cz 25/118
Additional Modules
9159010 2N Part No.
Axis Part No. 01386-001
Security relay
A simple, security enhancing add-on. Prevents lock
tampering. Installed between the intercom, from
which it is also supplied, and the lock to be
controlled.
Part No. 9159013
Departure button
Connects the logic input for door unlocking from
inside the building.
2N Part No. 9159012
Axis Part No. 01388-001
Magnetic door contact
A door installation set for door opening status
identification. Used for door protection, open door
or violent door opening detection.
9134173 2N Part No.
Axis Part No. 01384-001
RFID card, type Mifare Classic 1k, 13.56 MHz
2N TELEKOMUNIKACE a.s., www.2n.cz 26/118
2N Part No. 9134174
Axis Part No. 01385-001
RFID fob, type Mifare Classic 1k, 13.56 MHz
9134165E 2N Part No.
Axis Part No. 01395-001
RFID card, type EM4100, 125 kHz
9134166E 2N Part No.
Axis Part No. 01396-001
RFID fob, type EM4100, 125 kHz
9137420E 2N Part No.
Axis Part No. 01399-001
External RFID card reader for connection to PC
using a USB interface.
Suitable for system administration and adding of
125 kHz EM41xx cards using a web interface or the
.2N Access Commander
®
2N TELEKOMUNIKACE a.s., www.2n.cz 27/118
2N Part No. 9137421E
Axis Part No. 01400-001
Ext. RFID Reader 13.56 MHz, 125 kHz + NFC/HCE
(USB interface)
External RFID card reader for connection to PC
using a USB interface. Suitable for system
administration and adding 13.56 MHz, 125 kHz cards
and Android platform devices supporting NFC/HCE
using web interface or the 2N IP intercom 2N
®
application. It reads the same Access Commander
types of cards and devices as card readers in 2N IP
.intercoms
13.56 MHz/ISO/IEC 14443A Mifare Classic 1k
& 4k, DESFire EV1, Mini, Plus S&X, Ultralight,
Ultralight C
13.56 MHz/ISO/IEC 14443B CEPAS, HID
iCLASS (CSN only)
13.56 MHz/JIS X 6319 Felica
ISO/IEC 18092 SmartPhone with NFC/HCE
support, since Android version 4.3 (2N
®
app required)Mobile Key
EMarine
2N TELEKOMUNIKACE a.s., www.2n.cz 28/118
2N Part No. 9137424E
Axis Part No. 01527-001
Ext. secured RFID Reader 13.56 MHz, 125 kHz + NFC
/HCE (USB interface)
External secured RFID card reader for connection
to PC using a USB interface. Suitable for system
administration and adding 13.56 MHz, 125 kHz cards
and Android platform devices supporting NFC/HCE
using web interface or the 2N IP intercom 2N
®
application. It reads the same Access Commander
types of cards and devices as card readers in 2N IP
.intercoms
13.56 MHz/ISO/IEC 14443A Mifare Classic 1k
& 4k, DESFire EV1, Mini, Plus S&X, Ultralight,
Ultralight C
13.56 MHz/ISO/IEC 14443B CEPAS, HID
iCLASS (CSN or PAC ID)
13.56 MHz/JIS X 6319 Felica
ISO/IEC 18092 SmartPhone with NFC/HCE
support, since Android version 4.3 (2N
®
app required)Mobile Key
EMarine
2N Part No. 9137423E
Axis Part No. 01401-001
- external fingerprint reader (USB 2N IP intercom
interface)
9137410E 2N Part No.
Axis Part No. 01397-001
External IP relay – 1 output
A stand-alone IP device, which can be controlled
from an IP intercom via commands. Helps HTTP
control a device remotely.
2N TELEKOMUNIKACE a.s., www.2n.cz 29/118
9137411E 2N Part No.
Axis Part No. 01398-001
External IP relay – 4 outputs, PoE
A stand-alone IP device, which can be controlled
from an IP intercom via commands. Helps HTTP
control a device remotely.
2N TELEKOMUNIKACE a.s., www.2n.cz 30/118
Part No. 9159014EU/US/UK
2N 2Wire
®
(set of 2 adapters plus EU/US/UK power supply)
Converter helps you connect any IP 2N 2Wire
®
device to your existing two-wire cabling from the
original door bell/phone without reconfiguring. All
you have to do is have one
unit at each end of the cable and 2N 2Wire
®
connect one of them at least to the power supply.
The unit then provides supply not 2N 2Wire ® PoE
only to the other converter, but also to all the IP
terminal equipment connected.
2N Part No. 9159030
Axis Part No. 01389-001
External 125 kHz RFID card reader
Secondary reader for connection to an internal
reader. Allows for control of card entry from both
sides of the door. IP67 cover, also suitable for
exteriors. Reads EM4100 and EM4102 cards.
2N Part No. 9159031
Axis Part No. 01390-001
External 13.56MHz Mifare RFID card reader,
Wiegand
Secondary reader for connection to an internal
reader. Allows for control of card entry from both
sides of the door. IP68 cover, also suitable for
exteriors. Reads Mifare cards.
2N TELEKOMUNIKACE a.s., www.2n.cz 31/118
2N Part No. 9160501
Axis Part No. 0820-001
AXIS A9188 Network I/O relay module
Lift control relay module for up to 8 floors
Tip
Refer to the local 2N distributor for more accessories and
recommendations please.
2N TELEKOMUNIKACE a.s., www.2n.cz 32/118
1.2 Terms and Symbols
The following symbols and pictograms are used in the manual:
Safety
Always abide by this information to prevent persons from injury.
Warning
Always abide by this information to prevent damage to the device.
Caution
Important information for system functionality.
Tip
Useful information for quick and efficient functionality.
Note
Routines or advice for efficient use of the device.
2N TELEKOMUNIKACE a.s., www.2n.cz 33/118
2. Description and Installation
Here is what you can find in this section:
2.1 Before You Start
2.2 Mechanical Installation
2.3 Electric Installation
2.4 Extending Module Connection
2.5 Mounting Completion
2N TELEKOMUNIKACE a.s., www.2n.cz 34/118
2.1 Before You Start
Product Completeness Check
Check your package for completeness before installation.2N Access Unit
1x 2N Access Unit
1x Hex key
Brief manual
2N TELEKOMUNIKACE a.s., www.2n.cz 35/118
2.2 Mechanical Installation
Mounting Types Overview
Refer to the table below for a list of mounting types and necessary components. You
can assemble multiple units in all the mounting types.
Flush mounting – classic bricks
incl. hollow bricks, thermally insulated walls, etc.
What you need for mounting:
a properly cut hole as instructed in the box package
plaster, mounting glue, mounting foam or mortar as necessary
2N Access Unit
flush mounting box and frame
1 module: box Part No. , frame part No. 9155014 9155011
2 modules: box Part No. , frame part No. 9155015 9155012
2N TELEKOMUNIKACE a.s., www.2n.cz 36/118
Flush mounting – plasterboard
What you need for mounting:
a properly cut hole as instructed in the box package
2N Access Unit
flush mounting box and frame
1 module: box Part No. , frame part No. 9155014 9155011
2 modules: box Part No. , frame part No. 9155015 9155012
2N TELEKOMUNIKACE a.s., www.2n.cz 37/118

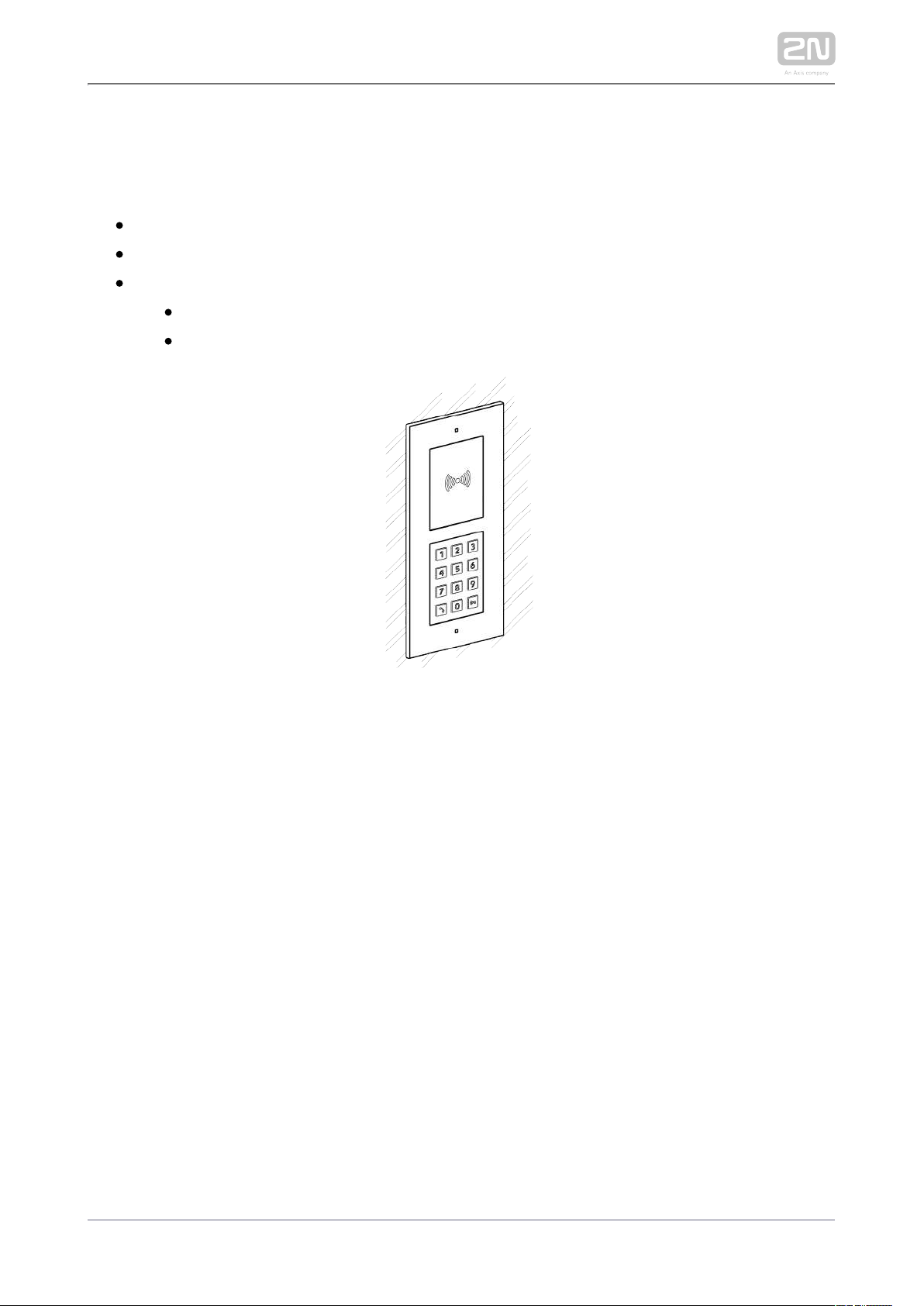

Wall (surface) mounting
(concrete and steel structures, entry barrier columns, interiors, etc.)
What you need for mounting:
2N Access Unit
a proper frame
1 module: frame Part No. 9155021
2 modules: frame Part No. 9155022
For uneven surfaces use a backplate for the required count of modules, Part Nos.
– 9155061 9155062
Caution
The warranty does not apply to the product defects and failures arisen
as a result of improper mounting (in contradiction herewith). The
manufacturer is neither liable for damage caused by theft within an area
that is accessible after the attached electric lock is switched on. The
product is not designed as a burglar protection device except when
used in combination with a standard lock, which has the security
function.
When the proper mounting instructions are not met, water might get in
and destroy the electronics. It is because the intercom circuits are under
continuous voltage and water infiltration causes an electro-chemical
reaction. The manufacturer’s warranty shall be void for products
damaged in this way!
2N TELEKOMUNIKACE a.s., www.2n.cz 38/118
General Mounting Principles
Tip
Select flush mounting where possible to make your product elegant
looking, more vandal resistant and more secure.
You are advised to buy the flush mounting box in advance and
commission a building company to do the masonry for you, for example.
The mounting box also helps you put your intercom exactly in the
vertical position.
2N TELEKOMUNIKACE a.s., www.2n.cz 39/118
Caution
Make sure that the diameter of the dowel holes is accurate to avoid
falling out of the dowels! Use the mounting glue to secure the dowels if
necessary.
Make sure that the depth of the dowel holes is accurate!
Do not use low-quality dowels to avoid falling out of the dowels of the
wall!
Having removed the front panel, make sure that no dirt gets inside the
product (especially onto the sealing surface).
Never turn an assembly of devices after mounting. Make 2N Access Unit
sure that the flush mounting boxes have been installed accurately.
Check the plasterboard wall and room interior pressure values. If the
difference between the values is too great (as a result, e.g., of
overpressure ventilation), separate the intercom using, for example, the
mounting box enclosed and seal the cable passage.
Surface mounting may cause problems on places exposed to potential
vandalism (such as public garages, etc.). In this case, use steel anchoring
elements instead of the dowels and screws included in the delivery.
The wall mounting surface must be flat with the maximum inequality of
0.5 mm (e.g. prefabricated boards, glass, cut stone, etc.). If the surface is
uneven, use flush mounting and a backplate, – Part Nos. 9155061 9155062
, or equalise the wall surface.
2N TELEKOMUNIKACE a.s., www.2n.cz 40/118
Risk of personal injury
Eliminate the risk of personal injury! Wall mounting is not recommended
for narrow passages or places where people’s attention is distracted by
something else. The manufacturer shall not be liable for injuries in such
cases!
Module Installation
2.2.1 One Module Box
2.2.2 Two Module Box
2.2.3 Module dimensions
2N TELEKOMUNIKACE a.s., www.2n.cz 41/118
2.2.1 One Module Box
Flush mounting – classic bricks
2N TELEKOMUNIKACE a.s., www.2n.cz 42/118
2N TELEKOMUNIKACE a.s., www.2n.cz 43/118
Flush mounting – plasterboard
2N TELEKOMUNIKACE a.s., www.2n.cz 44/118
2N TELEKOMUNIKACE a.s., www.2n.cz 45/118
2N TELEKOMUNIKACE a.s., www.2n.cz 46/118
Module flush mounting
2N TELEKOMUNIKACE a.s., www.2n.cz 47/118
2N TELEKOMUNIKACE a.s., www.2n.cz 48/118
2N TELEKOMUNIKACE a.s., www.2n.cz 49/118
2N TELEKOMUNIKACE a.s., www.2n.cz 50/118
2N TELEKOMUNIKACE a.s., www.2n.cz 51/118
Wall (surface) mounting
2N TELEKOMUNIKACE a.s., www.2n.cz 52/118
2N TELEKOMUNIKACE a.s., www.2n.cz 53/118
2N TELEKOMUNIKACE a.s., www.2n.cz 54/118
2N TELEKOMUNIKACE a.s., www.2n.cz 55/118
2N TELEKOMUNIKACE a.s., www.2n.cz 56/118
2.2.2 Two Module Box
Flush mounting – classic bricks
2N TELEKOMUNIKACE a.s., www.2n.cz 57/118
2N TELEKOMUNIKACE a.s., www.2n.cz 58/118
2N TELEKOMUNIKACE a.s., www.2n.cz 59/118
2N TELEKOMUNIKACE a.s., www.2n.cz 60/118
Flush mounting – plasterboard
2N TELEKOMUNIKACE a.s., www.2n.cz 61/118
2N TELEKOMUNIKACE a.s., www.2n.cz 62/118
2N TELEKOMUNIKACE a.s., www.2n.cz 63/118
Module flush mounting
2N TELEKOMUNIKACE a.s., www.2n.cz 64/118
2N TELEKOMUNIKACE a.s., www.2n.cz 65/118
2N TELEKOMUNIKACE a.s., www.2n.cz 66/118
2N TELEKOMUNIKACE a.s., www.2n.cz 67/118
2N TELEKOMUNIKACE a.s., www.2n.cz 68/118
Wall (surface) mounting
2N TELEKOMUNIKACE a.s., www.2n.cz 69/118
2N TELEKOMUNIKACE a.s., www.2n.cz 70/118
2N TELEKOMUNIKACE a.s., www.2n.cz 71/118
2N TELEKOMUNIKACE a.s., www.2n.cz 72/118
2N TELEKOMUNIKACE a.s., www.2n.cz 73/118
2.2.3 Module dimensions
Frames
9155011 – Flush mounting frame, 1 module
9155012 – Flush mounting frame, 2 modules
9155021 – Surface mounting frame, 1 module
9155022 – Surface mounting frame, 2 modules
Backplates
9155061 – 1 module
9155062 – 2 modules
2N TELEKOMUNIKACE a.s., www.2n.cz 74/118
1.
2.
1.
2.
3.
4.
2.3 Electric Installation
This subsection describes how to install the modules and connect the 2N Access Unit
to the power supply and LAN and how to connect other elements.
Version A – Stand-alone Access Unit
Place the on the flush mounting box / pre-drilled holes with 2N Access Unit
dowels and pull the cables through the bottom holes. Pull the Ethernet cable
through the bottom hole to the left if necessary.
Insert the metal fitting elements up and down and screw the access unit tight.
You can level the unit slightly in this mounting type.

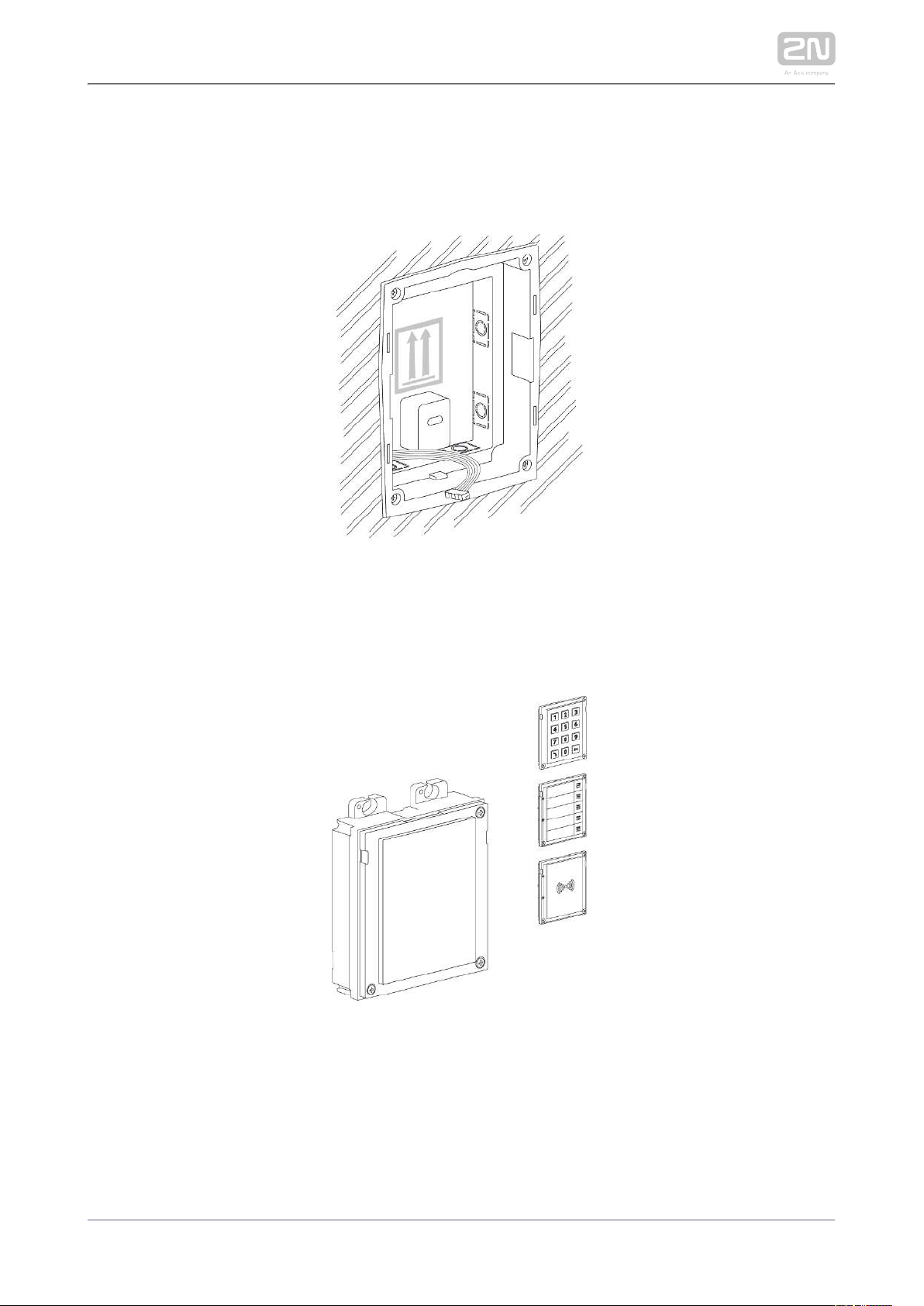

Version B – Access Unit with an additional module
Unscrew the upper part of the additional base – keypad, RFID reader, etc.
Use a flat screwdriver to take the upper part out.
Slide the additional module to the access unit. Secure its position with small side
wedges and screws.
Place the assembled modules on the flush mounting box / predrilled holes with
dowels and pull the cables through the access unit bottom holes. Feed the
Ethernet cable without the connector from the additional module to the access
unit base if necessary.
2N Access Unit
Power Supply Connection
2N Access Unit can be powered either from an external 12 V / 1 A DC source or
directly from the LAN equipped with PoE 802.3af supporting network elements.
External power supply
For reliability reasons, use a 12 V ±15 % SELV supply dimensioned to the current
consumption as required for feeding of the access unit and connected modules.
2N TELEKOMUNIKACE a.s., www.2n.cz 75/118
Current consumption
[A]
Part No. Available power output
[W]
1 91341482E, 91341482US 12
PoE power supply
2N Access Unit is compatible with the PoE 802.3af (Class 0–12.95 W) technology and
can be fed directly from the LAN via the compatible network elements. If your LAN
does not support this technology, insert a PoE injector, Part No. 91378100, between
and the nearest network element. This power supply provides2N Access Unit
with 12 W for feeding of itself and the connected modules.2N Access Unit
Combined power supply
2N Access Unit can be fed from an external power supply and PoE at the same time.
In this configuration, the maximum power for the connected modules is available.
LAN Connection
2N Access Unit is connected to the Local Area Network (LAN) via the UTP/STP cable
(Cat 5e or higher) terminated with a terminal board as shown in the figure below. As
the device is equipped with the Auto-MDIX function, either the straight or crossed
cable can be used.
Caution
We recommend the use of a LAN surge protection.
We recommend the use of a shielded SSTP Ethernet cable.
2N TELEKOMUNIKACE a.s., www.2n.cz 76/118
Caution
There may be connectivity problems in version 586v2 if a 2N Access Unit
cable longer than 30 m is used for LAN connection. If this happens, we
recommend you to:
integrate another network element (switch) to shorten the jump
feed the device from an external 12 V supply
change the PoE phantom supply (typically TP-LINK) to spare-pair supply
– Phihong injector, Part No. 91378100
change the Ethernet bitrate to Half Duplex – 10 mbps
UTP Cable Connection to Access Unit Terminal Board
Legend to the figure
PoE,
RD, TD
LAN (PoE according to 802.1af) terminals
IN1,
IN2,
IN3
IN1, IN2 and IN3 terminals used as an input in the passive/active mode (−30 V to +30 V
DC) for departure button, open door sensor, ESS etc. connection
OFF = open OR U > 1.5 V
IN
ON = closed contact OR U < 1.5 V
IN
2N TELEKOMUNIKACE a.s., www.2n.cz 77/118
OUT1
OUT1 active output terminals for connection of or electric lock: 2N IP Security Relay
®
8 up to 12 V DC depending on power supply (PoE: 10 V; adapter: power supply voltage
minus 2 V), up to 400 mA
RELAY1 RELAY1 terminals with accessible 30 V / 1 A AC/DC NO/NC contact
12 V / 1 AExternal supply terminals for – 12 V / 1 A2NAccess Unit
RESET RESET / FACTORY RESET button
RJ-45 RJ-45 adapter connector – no need to use the PoE, RD and TD terminals for this
connector
2N TELEKOMUNIKACE a.s., www.2n.cz 78/118
Output wiring diagram for Relay terminals
The electric lock is opened by power supply connection.
The magnetic lock is opened by power supply disconnection.
Tip
Wiring diagram of IN1, IN2 and IN3 terminals in active mode
Wiring diagram of IN1, IN2 and IN3 terminals in passive mode
2N TELEKOMUNIKACE a.s., www.2n.cz 79/118
Reset Button
Located among the main unit connectors, the Reset button helps you reset the factory
default values, restart the device, find the device IP address and switch the static
/dynamic mode.
IP Address Finding
Follow the instructions below to :identify the current IP address
Press and hold the RESET button.
Wait until the red and green LEDs go on simultaneously on the device and the
acoustic signal can be heard (approx. 15–35 s).
Release the RESET button.
The device automatically announces the current IP address.
Note
The delay after pressing RESET till the first light and sound signalling is
set to 15–35 s depending on the 2N IP intercom/answering unit model
used.
42 s is the valid value for 15 s is the valid value for 2N Access Unit,
.2N Access Unit 2.0
Static IP Address Setting
Follow the instructions below to switch on the mode (DHCP OFF):Static IP address
Press and hold the RESET button.
Wait until the red and green LEDs go on simultaneously on the device and the
acoustic signal can be heard (approx. 15–35 s).
2N TELEKOMUNIKACE a.s., www.2n.cz 80/118
Wait until the red LED goes off and the acoustic signal can be heard
(approx. for another 3 s).
Release the RESET button.
The following network parameters will be set after restart:
IP address: 192.168.1.100
Network mask: 255.255.255.0
Default gateway: 192.168.1.1
Dynamic IP Address Setting
Follow the instructions below to switch on the mode (DCHP ON):Dynamic IP address
Press and hold the RESET button.
Wait until the red and green LEDs go on simultaneously on the device and the
acoustic signal can be heard (approx. 15–35 s).
Wait until the red LED goes off and the acoustic signal can be heard
(approx. for another 3 s).
Wait until the green LED goes off and the red LED goes on again and the
acoustic signal can be heard (approx. for another 3 s).
Release the RESET button.
2N TELEKOMUNIKACE a.s., www.2n.cz 81/118
Factory Reset
Follow the instructions below to :reset the factory default values
Press and hold the RESET button.
Wait until the red and green LEDs go on simultaneously and the acoustic signal
can be heard (approx. 15–35 s).
Wait until the red LED goes off and the acoustic signal can be heard
(approx. for another 3 s).
Wait until the green LED goes off and the red LED goes on again and the
acoustic signal can be heard (approx. for another 3 s).
Wait until the red LED goes off and the acoustic signal can be heard
(approx. for another 3 s).
Release the RESET button.
Caution
In case of resetting the factory default settings on a device with a
version of firmware 2.18 or higher it is necessary to reprogram the
using the instructions from section .2N Security Relay
®
2.4
2N Access Unit is equipped with a button, which is RESET located between the LED
(LED1 and LED2 as shown in the figure below) indicators in the right-hand upper part
. in version . of the unit The button is located in the middle of the lower part 586v4
Press the button shortly (< 1 s) to restart the system without changing configuration.
2N TELEKOMUNIKACE a.s., www.2n.cz 82/118
2N Access Unit Connectors, PCB Version 599v3
2N TELEKOMUNIKACE a.s., www.2n.cz 83/118
2N Access Unit Connectors, PCB Version 586v2
2N TELEKOMUNIKACE a.s., www.2n.cz 84/118
2N Access Unit Connectors, PCB Version 586v4
Device Restart
Press the RESET button shortly (< 1 s) to restart the system without changing
configuration.
Note
The time interval between the short press of RESET and reconnection
after restart is 49 s for , 14 s .2N Access Unit for 2N Access Unit 2.0
Available Switches
Location Name Description
Basic
unit
Relay 1
Passive switch: NO/NC contact, up to 30 V / 1 A AC/DC
2N TELEKOMUNIKACE a.s., www.2n.cz 85/118
Location Name Description
Output 1Active switch output: 8 up to 12 V DC depending on power supply (PoE: 10
V; adapter: power supply voltage minus 2 V), up to 400 mA
Tamper
switch
Helps to secure the system against tampering. The information about
unauthorised manipulation with the device can be used in the menu
Hardware / Digital Inputs / Tamper Switch, in Automation a it is also logged
in the Events.
2N TELEKOMUNIKACE a.s., www.2n.cz 86/118
Output wiring diagram for Relay terminals
The electric lock is opened by power supply connection.
The magnetic lock is opened by power supply disconnection.
Warning
When you connect a device containing a coil, such as a relay or an
electromagnetic lock, it is necessary to protect the intercom output
againstvoltage peak while switching off the induction load. For this way of
protection we recommend a 1 A / 1000 V diode (e.g., 1N4007, 1N5407,
1N5408) connected antiparallel to the device.
2N TELEKOMUNIKACE a.s., www.2n.cz 87/118
2.4 Extending Module Connection
2N Access Unit allows to connect following extending modules:
Keypad
Touch keypad
125 kHz RFID card reader
13.56 MHz RFID card reader
13.56 MHz RFID Card Reader NFC support
Bluetooth & RFID reader 125kHz, 13.56MHz, NFC
Bluetooth & RFID reader 125kHz, secured 13.56MHz, NFC
Touch keypad & RFID reader 125kHz, 13.56MHz, NFC
Touch keypad & RFID reader 125kHz, secured 13.56MHz, NFC
Bluetooth reader
Fingerprint reader
I/O module
Infopanel
Wiegand module
Security relay
Module Bus Interconnection
All the modules that can be connected to are interconnected via a bus. 2N Access Unit
The bus starts on the basic unit and goes over all the modules. The order of modules
on the bus is irrelevant. And it also irrelevant which bus connector on the module is
used as the input and which is used as the output.
The modules include a 220 mm long bus interconnecting cable; Part No. 9155037
Wiegand modules and I/O modules include an 80 mm long bus Part No. 9155034
cable. These two modules can be hidden inside one of the modules described below
(Infopanel, Keypad, RFID card reader, Bluetooth) and/or placed freely behind a
standalone access unit (in a mounting box, e.g.).
You can order a separate bus cable ( , , ) of the Part Nos. 9155050 9155054 9155055
length of 1 m, 3 m or 5 m for remote module installation. Typically, it helps install an
RFID card reader on the opposite side of the wall on which is installed. 2N Access Unit
This long cable can only be used once on the bus.
2N TELEKOMUNIKACE a.s., www.2n.cz 88/118
Module Power Supply
All the modules connected to , except for the Tamper Switch, are 2N Access Unit
powered from the bus. The available bus power output depends on the power supply
type. The basic unit can use a 2 A power supply to increase the bus power available to
the modules connected.
Power supply Specification Available power output
External supply 12 V ±15% / 1 A 12 W
PoE 802.3af (Class 0–12.95 W) 12 W
The count of modules on the bus is limited by the available power supply output. The
maximum count of the modules on the bus is 30.
Basic unit
(571v3)
Consumption [W]
(Maximum value)
At relax 1.2
OUT 1 4.8
Total 6
Module Idle consumption
[W]
(Minimum value)
Full load [ ]W
(Maximum
value)
[Special elements W
]
Basic unit (586v3) 1.2 6
Infopanel (580v2) 0.17 0.64
Keypad (579v2) 0.20 1.55
125 kHz RFID card reader (584v2)
13.56 MHz RFID card reader
(583v2)
0.42 0.89
2N TELEKOMUNIKACE a.s., www.2n.cz 89/118
Module Idle consumption
[W]
(Minimum value)
Full load [ ]W
(Maximum
value)
[Special elements W
]
Bluetooth module (2271v2) 0.15 0.3
I/O module (577v2) 0.35 0.66 Closed relay 0.13
Wiegand module (581v1)
Specimen configuration consumption computation:
Module Minimum consumption
[W]
Maximum consumption
[W]
Basic unit 1.2 6
13.56 MHz RFID card reader (583v2) 0.42 0.89
I/O module (577v2) 0.35 0.66
Tamper switch 0 0
Wiegand module (581v1) x x
Total 2.07 7.55
It is obvious from the specimen configuration that all the modules have sufficient
outputs when an external power supply is used. When a PoE supply is used, the power
output is insufficient for all the modules, which results in automatic decrease in
backlight level, active output current supply, volume and LED intensity.
Some modules need a specific power output for their specific activities: the I/O
module, e.g., requires 0.13 W for relay closing (not included in the minimum
consumption).
Keypad Module
The Keypad module ( ) is used for a numeric access to the system.Part No. 9155031
The module contains two bus connectors for .2N Access Unit
These two connectors are fully interchangeable and can be used either as inputs
from the basic unit or outputs to other modules.
2N TELEKOMUNIKACE a.s., www.2n.cz 90/118
If this module is the last one on the bus, one of the connectors remains
unconnected.
The module package includes a 220 mm long interconnecting cable.
Touch Keypad
The Touch keypad ( ) provides a numerical input in the system.Part No. 9155047
The module contains two bus connectors. 2N Access Unit
These two connectors are fully interchangeable and can be used both as inputs
from the main unit and outputs to other modules.
If this module is the last one on the bus, one of the connectors remains
unconnected.
The module package includes a 220 mm long interconnecting cable.
125 kHz RFID Card Reader Module
The 125kHz RFID card reader module ( ) is used for reading RFID card Part No. 9155032
Ids in the 125 kHz band.
The module contains two bus connectors for .2N Access Unit
These two connectors are fully interchangeable and can be used either as inputs
from the basic unit or outputs to other modules.
If this module is the last one on the bus, one of the connectors remains
unconnected.
The module package includes a 220 mm long interconnecting cable.
The following RFID cards can be read:
EM4xxx
13.56 MHz RFID Card Reader NFC support
The 13.56 MHz RFID card reader ( ) is used for reading RFID card Ids Part No. 9155040
in the 13.56 MHz band.
The module contains two bus connectors.
These two connectors are fully interchangeable and can be used both as inputs
from the main unit and outputs to other modules.
If this module is the last one on the bus, one of the connectors remains
unconnected.
The module package includes a 220 mm long interconnecting cable.
The following RFID cards can be read (only the card serial number is read):
ISO14443A (Mifare, DESFire)
PicoPass (HID iClass)
2N TELEKOMUNIKACE a.s., www.2n.cz 91/118
FeliCa
ST SR(IX)
2N Mobile Key
®
Bluetooth & RFID reader 125kHz, 13.56MHz, NFC
Bluetooth with a combined 125 kHz and 13.56 MHz card reader module (Part No.
) is used for Smartphone/2N Mobile Key tablet/card access control, making 9155082
®
user calls and/or other functions.
NFC – a licensed function, for 2N Mobile Key for Android only.
®
The module contains two bus connectors.
These two connectors are fully interchangeable and can be used either as inputs
from the basic unit or outputs to other modules.
If this module is the last one on the bus, one of the connectors remains
unconnected.
The module package includes a 220 mm long interconnecting cable.
The following RFID cards can be read:
125 kHz
EM4xxx
13.56 MHz
ISO14443A (Mifare, DESFire)
PicoPass (HID iClass)
FeliCa
ST SR(IX)
2N Mobile Key
®
Tip
To accelerate card reading, you are recommended to select the card
types used by the user in the module settings.
2N TELEKOMUNIKACE a.s., www.2n.cz 92/118
Bluetooth & RFID reader 125kHz, secured 13.56MHz, NFC
Bluetooth with a combined 125 kHz and secured 13.56 MHz card reader (Part No.
) is used for Smartphone/2N Mobile Key tablet/card access control, making 9155084
®
user calls and/or other functions.
NFC – a licensed function, for 2N Mobile Key for Android only.
®
The module contains two bus connectors.
These two connectors are fully interchangeable and can be used either as inputs
from the basic unit or outputs to other modules.
If this module is the last one on the bus, one of the connectors remains
unconnected.
The module package includes a 220 mm long interconnecting cable.
The following RFID cards can be read:
125 kHz
EM4xxx
13.56 MHz
ISO14443A (Mifare, DESFire)
PicoPass (HID iClass)
FeliCa
ST SR(IX)
2N Mobile Key
®
HID SE (Seos, iClass SE, Mifare SE)
2N TELEKOMUNIKACE a.s., www.2n.cz 93/118
Tip
To accelerate card reading, you are recommended to select the card
types used by the user in the module settings.
Touch keypad & RFID reader 125kHz, 13.56MHz, NFC
The touch keypad with a combined 125 kHz and 13.56 MHz card reader (Part No.
) is used for code/card access control, making user calls and/or other 9155081
functions. The keypad surface is very sensitive yet weatherproof at the same time.
NFC – a licensed function, for 2N Mobile Key for Android only.
®
The module contains two bus connectors.
These two connectors are fully interchangeable and can be used either as inputs
from the basic unit or outputs to other modules.
If this module is the last one on the bus, one of the connectors remains
unconnected.
The module package includes a 220 mm long interconnecting cable.
The following RFID cards can be read:
125 kHz
EM4xxx
13.56 MHz
ISO14443A (Mifare, DESFire)
PicoPass (HID iClass)
FeliCa
ST SR(IX)
2N Mobile Key
®
Tip
To accelerate card reading, you are recommended to select the card
types used by the user in the module settings.
2N TELEKOMUNIKACE a.s., www.2n.cz 94/118
Touch keypad & RFID reader 125kHz, secured 13.56MHz, NFC
The touch keypad with a combined 125 kHz and secured 13.56 MHz card (Part No.
) reader is used for code/card access control, making user calls and/or other 9155083
functions. The keypad surface is very sensitive yet weatherproof at the same time.
NFC – a licensed function, for 2N Mobile Key for Android only.
®
The module contains two bus connectors.
These two connectors are fully interchangeable and can be used either as inputs
from the basic unit or outputs to other modules.
If this module is the last one on the bus, one of the connectors remains
unconnected.
The module package includes a 220 mm long interconnecting cable.
The following RFID cards can be read:
125 kHz
EM4xxx
13.56 MHz
ISO14443A (Mifare, DESFire)
PicoPass (HID iClass)
FeliCa
ST SR(IX)
2N Mobile Key
®
HID SE (Seos, iClass SE, Mifare SE)
Tip
To accelerate card reading, you are recommended to select the card
types used by the user in the module settings.
Bluetooth Reader
The Bluetooth reader module ( ) helps authenticate and subsequently Part No. 9155046
open doors using Android and iOS based smartphones via the Bluetooth protocol 4.0
as RFID card replacement. Install the application from 2N ®Mobile Key Google Play
and to m Appstore ake authentication work properly. The application requires phones
with Android OS 4.4 and higher and iOS 9 and higher.
2N TELEKOMUNIKACE a.s., www.2n.cz 95/118
The module contains two bus connectors.2N Access Unit
The two connectors are fully interchangeable and can be used both as inputs
from the main unit or outputs to other modules.
If this module is the last one on the bus, one of the connectors remains
unconnected.
The package includes a 220 mm long interconnecting cable.
The module uses the 2.4 GHz frequency.
IDs from the following smart phones can be read:
Android 4.4 and higher
iPhone 4S with iOS 8 and higher and higher
Fingerprint reader
The is used for automated verification of human fingers for access Fingerprint reader
control and intercom control.
The module contains two bus connectors.2N Access Unit
These two connectors are fully interchangeable and can be used both as inputs
from the main unit and outputs to other modules.
If this module is the last one on the bus, one of the connectors remains
unconnected.
The module package includes a 220 mm long interconnecting cable.
Important module properties:
FBI PIV and Mobile ID certification – FAP20
Durable glass touch surface
Rejects spoof fingerprints
-20 to 55 ºC operating temperature range,
0–90% relative humidity, noncondensing
Note
A higher moisture may deteriorate finger papillary line scanning. You are
advised to dry your finger and the reader scanning surface for successful
authentication.
Fingerprint scanning can be rather difficult with older persons whose
papillary lines are no so distinct (lower finger elasticity due to age
requires a higher pressure for scanning and the fingerprint might be
blurred).
2N TELEKOMUNIKACE a.s., www.2n.cz 96/118
I/O Module
The I/O module ( ) is used for extending of the number of inputs and Part No. 9155034
outputs.
The module contains two bus connectors for .2N Access Unit
These two connectors are fully interchangeable and can be used either as inputs
from the basic unit or outputs to other modules.
If this module is the last one on the bus, one of the connectors remains
unconnected.
The module package includes an 80 mm long interconnecting cable.
The inputs / outputs are addressed as follows:<module_name>.<input
, e.g. module5.relay1. Configure the module name in the Module /output_name>
name parameter in the Hardware / Extenders menu.
RELAY1 RELAY1 terminals with accessible 30 V / 1 A AC/DC NO/NC contact
RELAY2 RELAY2 terminals with accessible 30 V / 1 A AC/DC NO/NC contact
IN1 IN1 terminals for input in passive/ active mode (−30 V to +30 V DC)
OFF = open or U > 1.5 V
IN
ON = short-circuit or U < 1.5 V
IN
IN2
IN2 terminals for input in passive/active mode (−30 V to +30 V DC)
2N TELEKOMUNIKACE a.s., www.2n.cz 97/118
OFF = open or U > 1.5 V
IN
ON = short-circuit or U < 1.5 V
IN
TAMPER Tamper switch input, Part No. 9155038
Infopanel Module
The Infopanel module ( ) is used for inserting and backlighting of Part No. 9155030
printed information.
The module contains two bus connectors for .2N Access Unit
These two connectors are fully interchangeable and can be used either as inputs
from the basic unit or outputs to other modules.
If this module is the last one on the bus, one of the connectors remains
unconnected.
The module package includes a 220 mm long interconnecting cable.
Name tag dimensions: 69.2 (W) x 86.7 (H) mm (dimensional tolerance: +0; -0.5
mm).
For the printing template refer to www.2n.cz
Wiegand Module
The Wiegand module ( ) helps connect an external Wiegand device Part No. 9155037
(RFID card reader, fingerprint or other biometric data reader) and/or connect 2N
to an external security exchange. All the inputs and outputs are Access Unit
galvanically isolated from with the insulation strength of 500 V DC.2N Access Unit
The module contains two bus connectors for .2N Access Unit
These two connectors are fully interchangeable and can be used either as inputs
from the basic unit or outputs to other modules.
If this module is the last one on the bus, one of the connectors remains
unconnected.
The module package includes an 80 mm long interconnecting cable.
Configure the module name in the Module name parameter in the Hardware /
Extenders menu.
The LED IN input is addressed as follows: , e.g. <module_name>.<input1>
module2.input1.
The Tamper input is addressed as follows: , e.g. <module_name>.<tamper>
module2.tamper.
The LED OUT (negated)output is addressed as follows: <module_name>.
, e.g. module2.output1.<output1>
2N TELEKOMUNIKACE a.s., www.2n.cz 98/118
Reader W0 W1 GNDIN, IN, 1 Isolated 2-wire WIEGAND IN
LEDOUT Isolated open LED OUT switched against GND (up to 24 V 1
/ 50 mA)
Control
Panel
+UIN +U (5 to 15 V DC) WIEGAND OUT power supply input
W0 W1 GNDOUT, OUT,
2
Isolated 2-wire WIEGAND OUT
LEDIN (negated) Isolated input for open LED IN, input activated by GND
2
LEDIN Isolated input for open LED IN, input activated by +U
G active supply LED indicator +U WIEGAND OUTIN
TAMPER Tamper switch input, Part No. 9155038
2N TELEKOMUNIKACE a.s., www.2n.cz 99/118
2N ® IP Security Relay
The ( ) is used for enhancing security between Security relay 2N IP
®
Part No. 9159010
the access unit and the connected electric lock. It significantly enhances security of
the connected electric lock as it prevents unlocking by forced opening of the 2N
.Access Module
Function:
The is a device installed between the access unit (outside the Security relay 2N IP
®
secured area) and an electric lock (inside the secured area). The Security relay 2N IP
®
includes a relay that can only be activated if the valid opening code is received from
the access unit.
Specifications:
Passive switch: NO and NC contacts, up to 30 V / 1 A AC / DC
Switched output:
Where the security relay is fed from the intercom, 9 to 13 V DC is available on
the output depending on the power supply (PoE: 9 V; adapter: source voltage of
minus 1 V) / 400 mA DC.
Where the security relay is fed from an external power supply, 12 V / 700 mA DC
is available on the output.
Dimensions: (56 x 31 x 24) mm
Weight: 20 g
2N TELEKOMUNIKACE a.s., www.2n.cz 100/118
Loading...
