GS1910/XGS1910 Series

GbE Smart Managed Switch

Default Login Details

IP Address http://192.168.1.1 User Name admin Password 1234

Version 1.00 Edition 1, 05/2012

www.zyxel.com

IMPORTANT! READ CAREFULL Y

BEFORE USE. KEEP THIS GUIDE

FOR FUTURE REFERENCE.

IMPORTANT! READ CAREFULLY BEFORE USE. KEEP THIS GUIDE FOR FUTURE REFERENCE.

Note: This guide is a reference for a series of products. Therefore some features or

options in this guide may not be available in your product.

Graphics in this book may differ slightly from the product due to differences in operating systems, operating system versions, or if you installed updated firmware/software for your device. Every effort has been made to ensure that the information in this manual is accurate.

1.1 Introduction

Your S witch is a Gigabit Ethernet (GbE) switch with 20, 44 or 48 10/100/1000 Mbps Ethernet ports. The GS1910-24, GS1910-24HP, XGS1910-24 or XGS1910-48 also has four GbE dual personality interfaces. A dual personality interface includes one Gigabit Ethernet port and one slot for a miniGBIC transceiver (SFP module) with one port active at a time. The GS1910-48 and GS1910-48HP have four SFP slots.

The Ethernet ports on the GS1910-24HP or GS1910-48HP are all IEEE802.3at High Power over Ethernet (PoE) compliant and can supply power of up to 30W per Ethernet port.

CHAPTER 1

Getting to Know Your Switch

The XGS1910-24 or XGS1910-48 is stackable and provides two or four SFP+ slots for uplink or stacking. They can operate together with other XGS1910-24 or XGS1910-48 switches and need to be directly connected for stacking. The configurations are done on the master switch, which then maintains and manages the slave switches in the stack. You can stack up to eight XGS1910-24 or XGS1910-48 switches per stack.

With its built-in web configurator, managing and configuring the Switch is easy. In addition, the Switch can also be managed via third-party SNMP management.

1.1.1 Bridging Example

In this example the Switch connects different company departments (RD and Sales) to the corporate backbone. It can alleviate bandwidth contention and eliminate server and network bottlenecks. All users that need high bandwidth can connect to high-speed department servers via

GS1910/XGS1910 Series User’s Guide 5

Chapter 1 Getting to Know Your Switch

Backbone

Sales

Branch

10 Gbps

Trunk

the Switch. You can provide a super-fast uplink connection by using the optional 10 Gigabit uplink module on the Switch.

Figure 1 Bridging Application

1.1.2 High Performance Switching Example

The Switch is ideal for connecting two geographically dispersed networks that need high bandwidth. In the following example, a company uses the optional 10 Gigabit uplink modules to connect the headquarters to a branch office network. Within the headquarters network, a company can use trunking to group several physical ports into one logical higher-capacity link. Trunking can be used if for example, it is cheaper to use multiple lower-speed links than to under-utilize a high-speed, but more costly, single-port link.

Figure 2 High Performance Switching

GS1910/XGS1910 Series User’s Guide

1.1.3 Gigabit Ethernet to the Desktop

Internet

The Switch is an ideal solution for small networks which demand high bandwidth for a group of heavy traffic users. You can connect computers and servers directly to the Switch’ s port or connect other switches to the Switch. Use the optional 10 Gigabit uplink module to provide high speed access to a data server and the Internet. The uplink module supports a fiber-optic connection which alleviates the distance limitations of copper cabling.

In this example, all computers can share high-speed applications on the server and access the Internet. To expand the network, simply add more networking devices such as switches, routers, computers, print servers and so on.

Figure 3 Gigabit to the Desktop

Chapter 1 Getting to Know Your Switch

1.1.4 IEEE 802.1Q VLAN Application Example

A VLAN (Virtual Local Area Network) allows a physical network to be partitioned into multiple logical networks. Stations on a logical network belong to one or more groups. With VLAN, a station cannot directly talk to or hear from stations that are not in the same group(s) unless such traffic first goes through a router.

For more information on VLANs, refer to Chapter 9 on page 111.

1.1.4.1 Tag-based VLAN Example

Ports in the same VLAN group share the same frame broadcast domain, thus increasing network performance by reducing broadcast traffic. VLAN groups can be modified at any time by adding, moving or changing ports without any re-cabling.

GS1910/XGS1910 Series User’s Guide

Chapter 1 Getting to Know Your Switch

Shared resources such as a server can be used by all ports in the same VLAN as the server. In the following figure only ports that need access to the server need to be part of VLAN 1. Ports can belong to other VLAN groups too.

Figure 4 Shared Server Using VLAN Example

1.1.5 IPv6 Support

IPv6 (Internet Protocol version 6), is designed to enhance IP address size and features. The increase in IPv6 address size to 128 bits (from the 32-bit IPv4 address) allows up to 3.4 x 10 addresses. At the time of writing, the Switch supports the following features.

• Static address assignment and stateless auto-configuration

• Neighbor Discovery Protocol (a protocol used to discover other IPv6 devices in a network)

• Remote Management using ping SNMP, telnet and HTTP services

• ICMPv6 to report errors encountered in packet processing and perform diagnostic functions, such as "ping”

• IPv4/IPv6 dual stack; the Switch can run IPv4 and IPv6 at the same time

• Multicast Listener Discovery (MLD) snooping and proxy

1.2 Ways to Manage the Switch

Use any of the following methods to manage the Switch.

• Web Configurator. This is recommended for everyday management of the Switch using a (supported) web browser.

• SNMP. The device can be monitored and/or managed by an SNMP manager.

1.3 Good Habits for Managing the Switch

Do the following things regularly to make the Switch more secure and to manage the Switch more effectively.

GS1910/XGS1910 Series User’s Guide

Chapter 1 Getting to Know Your Switch

• Change the password. Use a password that’s not easy to guess and that consists of different types of characters, such as numbers and letters.

• Write down the password and put it in a safe place.

• Back up the configuration (and make sure you know how to restore it). Restoring an earlier working configuration may be useful if the device becomes unstable or even crashes. If you forget your password, you will have to reset the Switch to its factory default settings. If you backed up an earlier configuration file, you would not have to totally re-configure the Sw itch. Y ou could simply restore your last configuration.

GS1910/XGS1910 Series User’s Guide

Chapter 1 Getting to Know Your Switch

GS1910/XGS1910 Series User’s Guide

CHAPTER 2

Hardware Installation and

Connection

This chapter shows you how to install and connect the Switch.

2.1 Freestanding Installation

1 Make sure the Switch is clean and dry.

2 Set the Switch on a smooth, level surface strong enough to support the weight of

the Switch and the connected cables. Make sure there is a power outlet nearby.

3 Make sure there is enough clearance around the Switch to allow air circulation and

the attachment of cables and the power cord.

4 Remove the adhesive backing from the rubber feet.

5 Attach the rubber feet to each corner on the bottom of the Switch. These rubber

feet help protect the Switch from shock or vibration and ensure space between devices when stacking.

Figure 5 Attaching Rubber Feet

GS1910/XGS1910 Series User’s Guide

Chapter 2 Hardware Installation and Connection

Note: Do NOT block the ventilation holes. Leave space between devices when

stacking.

Note: For proper ventilation, allow at least 4 inches (10 cm) of clearance at the front

and 3.4 inches (8 cm) at the back of the Switch. This is especially important for enclosed rack installations.

2.2 Mounting the Switch on a Rack

This section lists the rack mounting requirements and precautions and describes the installation steps.

2.2.1 Rack-mounted Installation Requirements

• Two mounting brackets.

• Eight M3 flat head screws and a #2 Philips screwdriver.

• Four M5 flat head screws and a #2 Philips screwdriver.

Failure to use the proper screws may damage the unit.

2.2.1.1 Precautions

• Mak e sure the r ack will safely sup port the combined weight of all the equipment it contains.

• Make sure the position of the Switch does not make the rack unstable or topheavy. Take all necessary precautions to anchor the rack securely before installing the unit.

2.2.2 Attaching the Mounting Brackets to the Switch

1 Position a mounting bracket on one side of the Switch, lining up the four screw

holes on the bracket with the screw holes on the side of the Switch.

Figure 6 Attaching the Mounting Brackets

GS1910/XGS1910 Series User’s Guide

Chapter 2 Hardwar e In sta lla tion and Con n ec tion

2 Using a #2 Philips screwdriver, install the M3 flat head screws through the

mounting bracket holes into the Switch.

3 Repeat steps 1 and 2 to install the second mounting bracket on the other side of

the Switch.

4 You may now mount the Switch on a rack. Proceed to the next section.

2.2.3 Mounting the Switch on a Rack

1 Position a mounting br acket (that is already attached to the Switch) on one s ide of

the rack, lining up the two screw holes on the br ack et with the screw holes on the side of the rack.

Figure 7 Mounting the Switch on a Rack

2 Using a #2 Philips screwdriver, install the M5 flat head screws through the

mounting bracket holes into the rack.

3 Repeat steps 1 and 2 to attach the second mounting bracket on the other side of

the rack.

GS1910/XGS1910 Series User’s Guide

Chapter 2 Hardware Installation and Connection

GS1910/XGS1910 Series User’s Guide

CHAPTER 3

10/100/1000 Mbps RJ-45 Ethernet Ports

Console Port

10/100/1000 Mbps RJ-45 / SFP Dual Personality Interfaces

10/100/1000 Mbps RJ-45 PoE Ports

Console Port

10/100/1000 Mbps RJ-45 PoE / SFP Dual Personality Interfaces

10/100/1000 Mbps RJ-45 Ethernet Ports

SFP Slots

Hardware Overview

This chapter describes the front panel and rear panel of the Switch and shows y ou how to make the hardware connections.

3.1 Front Panel Connections

The figure below shows the front panel of the Switch.

Figure 8 Front Panel: GS1910-24

Figure 9 Front Panel: GS1910-24HP

Figure 10 Front Panel: GS1910-48

GS1910/XGS1910 Series User’s Guide

Chapter 3 Hardwar e Over vie w

10/100/1000 Mbps RJ-45 PoE Ports

SFP Slots

10/100/1000 Mbps RJ-45 Ethernet Ports

10/100/1000 Mbps RJ-45 / SFP Dual Personality Interfaces

Console Port

SFP+ Slot

10/100/1000 Mbps RJ-45 Ethernet Ports

10/100/1000 Mbps RJ-45 / SFP Dual Personality Interfaces

SFP+ Slot

Figure 11 Front Panel: GS1910-48HP

Figure 12 Front Panel: XGS1910-24

Figure 13 Front Panel: XGS1910-48

The following table describes the ports.

Table 1 Panel Connections

CONNECTOR DESCRIPTION

10/100/1000 Mbps RJ-45 Ethernet Ports

10/100/1000 Mbps RJ-45 PoE Ports (GS191024HP and GS1910-48HP only)

Connect these ports to a computer, a hub, an Ethernet switch or router.

GS1910/XGS1910 Series User’s Guide

Chapter 3 Hardware Overview

Table 1 Panel Connections (continued)

CONNECTOR DESCRIPTION

Dual Personality Interfaces

SFP Slots (GS1910-48 and GS191048HP only)

SFP+ Slots (XGS1910-24 and XGS191048 only)

Console Port At the time of writing, this port is reserved for future use, such as

Each interface has one 10/100/1000Base-T RJ-45 port and one Small Form-Factor Pluggable (SFP) slot (also called a mini-GBIC (Gigabit Interface Converter) slot), with one port active at a time.

• 10/100/1000Base-T P orts or 10/100/1000Base-T PoE Ports (GS191024HP and GS1910-48HP only):

Connect these ports to high-bandwidth backbone network Ethernet switches using Category 5/5e/6 1000Base-T Ethernet cables. Use an 8-wire Ethernet cable for Gigabit connections. Using a 4-wire Ethernet cable limits your connection to 100 Mbps. Note that the connection speed also depends on what the Ethernet device at the other end can support.

•SFP Slots: Use SFP transceivers in these ports for 1000Base-X fiber-optic

connections to backbone Ethernet switches.

Use SFP transceivers in these slots for fiber-optic or copper connections to backbone Ethernet switches.

Use SFP+ transceivers in these slots for fiber-optic connections to backbone Ethernet switches.

firmware upgrade using an RS-232 cable.

3.1.1 Ethernet Ports

The Switch has 1000Base-T auto-negotiating, auto-crossover Ethernet ports. In 10/100/1000 Mbps Gigabit Ethernet, the speed can be 10Mbps, 100 Mbps or 1000 Mbps. The duplex mode can be both half or full duplex at 100 Mbps and full duplex only at 1000 Mbps.

An auto-negotiating port can detect and adjust to the optimum Ethernet speed (10/100/1000 Mbps) and duplex mode (full duplex or half duplex) of the connected device.

An auto-crossover (auto-MDI/MDI-X) port automatically works with a straightthrough or crossover Ethernet cable.

3.1.1.1 Default Ethernet Settings

The factory default negotiation settings for the Ethernet ports on the Switch are:

• Speed: Auto

•Duplex: Auto

• Flow control: Off

• Dual Personality Interface: Fiber-optic module first

GS1910/XGS1910 Series User’s Guide

Chapter 3 Hardwar e Over vie w

3.1.2 Dual Personality Interfaces

There are four dual personality interfaces, comprising four 1000Base- T/SFP combo ports. For each interface you can connect either to the 1000Base- T port or the SFP slot. If an SFP transceiver is inserted in the SFP slot, the corresponding 1000BaseT port will be disabled.

Note: Connect the 1000Base-T RJ-45 port only after the transceiver is removed from

the corresponding SFP slot.

3.1.3 SFP/SFP+ Slots

These are slots for Small Form-Factor Pluggable (SFP) or SFP+ transceivers. The SFP is also referred to as a mini-GBIC. The SFP+ (SFP Plus) is an enhanced version of the SFP and supports data rates of 10 Gbps. A transceiver is a single unit that houses a transmitter and a receiver. Use a transceiver to connect a fiberoptic cable to the Switch. The Switch does not come with transceivers. You must use transceivers that comply with the Small Form-Factor Pluggable (SFP) Transceiver MultiSource Agreement (MSA). See the SFF committee’s INF-8074i specification Rev 1.0 for details.

You can change transceivers while the Switch is operating. You can use different transceivers to connect to Ethernet switches with different types of fiber-optic connectors.

• Type: SFP connection interface

• Connection speed: 1 Gigab it per second ( Gbps) or 10 Gig abit per second (Gbps )

To avoid possible eye injury, do not look into an operating fiberoptic module’s connectors.

3.1.3.1 Transceiver Installation

Use the following steps to install a transceiver (SFP or SFP+ module).

GS1910/XGS1910 Series User’s Guide

Chapter 3 Hardware Overview

1 Insert the transceiver into the slot with the exposed section of PCB board facing

down.

Figure 14 Transceiver Installation Example

2 Press the transceiver firmly until it clicks into place.

3 The Switch automatically detects the installed transceiver. Check the LEDs to

verify that it is functioning properly.

Figure 15 Installed Transceiver

3.1.3.2 Transceiver Removal

Use the following steps to remove a transceiver (SFP or SFP+ module).

1 Open the transceiver’s latch (latch styles vary).

Figure 16 Opening the Transceiver’s Latch Example

GS1910/XGS1910 Series User’s Guide

Chapter 3 Hardwar e Over vie w

2 Pull the transceiver out of the slot.

Figure 17 Transceiver Removal Example

3.1.4 Console Port

For local management, you can use a computer with terminal emulation software configured to the following parameters:

• VT100 terminal emulation

• 115200 bps

• No parity, 8 data bits, 1 stop bit

• No flow control Connect the male 9-pin end of the RS-232 console cable to the console port of the

Switch. Connect the female end to a serial port (COM1, COM2 or other COM port) of your computer.

3.2 Rear Panel

The following figure shows the rear panel of the Switch. The rear panel contains a connector for the power receptacle. The GS1910-48 and GS1910-48HP also have a console port on the rear panel. The XGS1910-48 has one console port and two SFP+ slots on the rear panel.

Figure 18 Rear Panel: GS1910-24

GS1910/XGS1910 Series User’s Guide

Figure 19 Rear Panel: GS1910-24HP

Figure 20 Front Panel: GS1910-48

Figure 21 Front Panel: GS1910-48HP

Figure 22 Front Panel: XGS1910-24

Chapter 3 Hardware Overview

Figure 23 Front Panel: XGS1910-48

3.2.1 Power Connector

Make sure you are using the correct power source as shown on the panel and that no objects obstruct the airflow of the fans.

Use the following procedures to connect the Switch to a power source after you have installed it.

1 Connect the female end of the power cord to the power socket of your Switch.

2 Connect the other end of the cord to a power outlet.

Keep the power supply switch and the Switch’s power switch in the OFF position until you come to the procedure for turning on the power.

Note: Use only power wires of the required diameter for connecting the Switch to a

power supply.

GS1910/XGS1910 Series User’s Guide

Chapter 3 Hardwar e Over vie w

3.3 LEDs

The following table describes the LEDs.

Table 2 LEDs

LED COLOR STATUS DESCRIPTION

PoE (GS191048HP only)

STACK (XGS191 0-24 and XGS1910

-48 only)

PWR Green On The system is turned on.

SYS Green Blinking The system is rebooting and performing self-diagnostic

ALM Red On There is a hardware failure.

10/100/1000 Mbps RJ-45 Ports LNK/ACT Green Blinking The system is transmitting/receiving to/from a 10/1000

PoE (GS191024HP and GS191048HP only)

SFP Slots

Green On Each Ethernet port’s LED is changed to act as a P oE LED

Green On The Switch is acting as the master in stacking. Amber On The Switch is acting as the backup master device in

Amber Blinking The system is transmitting/receiving to/from a 100

Green On Power supplied to all PoE Ethernet ports meets the IEEE

Amber On Power supplied to all PoE Ethernet ports meets the IEEE

by using the LED MODE button on the front panel.

Off Each Ethernet port’s LED is changed back to act as a

LNK/ACT LED by using the LED MODE button on the front panel.

stacking.

Blinking The Switch is acting as a slave member in stacking and

is being selected by the master in its web configurator stack screen.

Off The S witch is not working in stacking mode.

Off The system is off.

tests. On The system is on and functioning properly. Off The power is off or the system is not ready/

malfunctioning.

Off The system is functioning normally.

Mbps Ethernet network. On The link to a 10/1000 Mbps Ethernet network is up.

Mbps Ethernet network. On The link to a 100 Mbps Ethernet network is up. Off The link to an Ethernet network is down.

802.3at standard.

802.3af standard.

Off There is no power supplied.

GS1910/XGS1910 Series User’s Guide

Chapter 3 Hardware Overview

Table 2 LEDs (continued)

LED COLOR STATUS DESCRIPTION

LNK/ACT Green Blinking The system is transmitting/receiving to/from a 1000

Mbps Ethernet network. On The link to a 1000 Mbps Ethernet network is up.

Amber Blinking The system is transmitting/receiving to/from a 100

Mbps Ethernet network. On The link to a 100 Mbps Ethernet network is up. Off The link to an Ethernet network is down.

10G SFP+ Slots LNK/ACT Blue On The port has a successful connection.

Blinking The port is receiving or transmitting data. Off This link is disconnected.

GS1910/XGS1910 Series User’s Guide

Chapter 3 Hardwar e Over vie w

GS1910/XGS1910 Series User’s Guide

This section introduces the configuration and functions of the web configurator.

4.1 Introduction

The web configurator is an HTML-based management interface that allows easy Switch setup and management via Internet browser. Use Internet Explorer 7.0 and later or Firefox 10.0 and later versions. The recommended screen resolution is 1024 by 768 pixels.

In order to use the web configurator you need to allow:

• Web browser pop-up windows from your device. Web pop-up blocking is enabled by default in Windows XP SP (Service Pack) 2.

• JavaScript (enabled by default).

• Java permissions (enabled by default).

CHAPTER 4

The Web Configurator

4.2 System Login

1 Start your web browser.

2 Type “http://” and the IP address of the Switch (for example, the default management IP address is

192.168.1.1) in the Location or Address field. Press [ENTER].

GS1910/XGS1910 Series User’s Guide 25

Chapter 4 The Web Configurator

3 The login screen appears. The default username is admin and associated default password is

1234.

Figure 24 Web Configurator: Login

4 Click OK to view the first web configurator screen.

4.3 The Web Configurator Layout

The Port State Overview screen is the first screen that displays when you access the web configurator.

The following figure shows the navigating components of a web configurator screen.

Figure 25 The Web Configurator Layout

GS1910/XGS1910 Series User’s Guide

Chapter 4 The Web Configurator

A - Click the menu items to open submenu links, and then click on a submenu link to open the screen in the main window.

B, C - These are quick links which allow you to perform certain tasks no matter which screen you are currently working in.

B - Click this link to log out of the web configurator.

C - Click this link to display web help pages. The help pages provide descriptions for all of the

configuration screens.

In the navigation panel, click a main link to reveal a list of submenu links.

Table 3 Navigation Panel Sub-links Overview

CONFIGURATION MONITOR DIAGNOSTICS MAINTENANCE

The following table describes the links in the navigation panel.

Table 4 Navigation Panel Links

LINK DESCRIPTION

Configuration System

Information This link takes you to a screen where you can configure gener al identific ation informati on

and time settings for the Switch.

IP This link takes you to a screen where you can configure the IPv4 address, subnet mask

(necessary for Switch management) and DNS (domain name server) settings.

IPv6 This link takes you to a screen where you can configure the Switch’s IPv6 address and

prefix length.

NTP This link takes you to a screen where you can configure the NTP time servers from which

the Switch gets the time and date.

Log This link takes you to screens where you can setup a system log server.

Power Reduction

EEE This link takes you to a screen where you can enable EEE (Energy Efficient Ethernet)

standard on a port to help reduce power consumption.

GS1910/XGS1910 Series User’s Guide

Chapter 4 The Web Configurator

Table 4 Navigation Panel Links (continued)

LINK DESCRIPTION

Ports This link takes you to a screen where you can configure speed, flow control, the

Security

Switch This link takes y ou t o scree ns wher e yo u can change the system login password, manage

Network This link takes you to screens where you can set the maximum number of MAC addresses

AAA This link takes you to a screen where you can configure authentication and accounting

Aggregation

Static This link takes you to a screen where you can logically aggregate physical links to form

LACP This link takes you to a screen where you can configure dynamic link aggregation.

Spanning Tree

Bridge Settings

MSTI Mapping This link takes you to a screen where you can configure the MSTI (Multiple Spanning Tree

MSTI Priorities This link takes you to a screen where you can configure MSTI priority settings. CIST Ports This link takes you to a screen where you can configure CIST (Common and Internal

MSTI Ports This link takes you to a screen where you can configure MSTI ports.

MVR This link takes you to a screen where you can create multicast VLANs and select the

IPMAC

IGMP Snooping

MLD Snooping This link takes you to screens where you can configure MLD snooping.

LLDP

LLDP This link takes you to a screen where you can configure LLDP (Link Layer Discovery

LLDP-MED This link takes you to a screen where you can configure Link Layer Discovery Protocol-

MAC Table This link takes you to a screen where you can view the MAC address and VLAN ID of a

VLANs

VLAN Membership

Ports This link takes you to a screen where you can configure the static VLAN (IEEE 802.1Q)

Private VLANs

maximum frame size and power control settings for individual Switch ports.

the privilege levels for login accounts, and configure SNMP, remote management and RMON (Remote Network Monitor).

to learn on a port, configure IEEE 802.1x port authentication as well as MAC authentication for clients communicat ing via the S witch, con figure the acc ess cont rol list, DHCP snooping, DHCP relay, IP source guard and ARP inspection settings.

services via external servers. The external servers can be either RADIUS (Remote Authentication Dial-In User Service) or TACACS+ (Terminal Access Controller AccessControl System Plus).

one logical, higher-bandwidth link.

This link takes you to a screen where you can activate one of the STP modes and configure the STP settings on the Switch.

Instance) to VLAN mapping settings.

Spanning Tree) ports.

receiver port(s) and a source port for each multicast VLAN.

This link takes you to screens where you can configure IGMP snooping.

Protocol) on the Switch. LLDP allows a network device to advertise its identity and capabilities on the local network. It also allows the device to maintain and store information from adjacent devices which are directly connected to the network device.

Media Endpoint Discovery (LLDP- MED) for multimedia devices and IP Phones.

device attached to a port. You can also view what kind of MAC address it is.

This link takes you to a screen where you can configure and view 802.1Q VLAN parameters for the Switch.

settings on a port.

GS1910/XGS1910 Series User’s Guide

Chapter 4 The Web Configurator

Table 4 Navigation Panel Links (continued)

LINK DESCRIPTION

PVLAN Membership

Port Isolation This link takes you to a screen where you can enable port isolation on ports in a private

VCL

MAC-based VLAN

Protocol-based VLAN

Voice VLAN

Configuration This link takes you to a screen where you can configure a Voice VLAN for voice traffic. OUI This link takes you t o a screen where you can configure an Organizationally Unique

QoS

Port Classification

Port Policing This link takes you to a screen where you can configure QoS policers that allow you to

Port Scheduler This link takes you to a screen where you can configure QoS queues for outgoing traffic

Port Shaping This link takes you to a screen where you can configure traffic shaping for a queue and a

Port Tag Remarking

Port DSCP This lin k takes you to a screen where you can configure whether and how the Switch

DSCP-Based QoS

DSCP Translation

DSCP Classification

QoS Control List

Storm Control This link takes you to a screen where you can limit the number of unicast, broadcast and

WRED This link takes you to a screen where you can configure the weighted Random Early

Port Mirroring This link takes you to a screen where you can copy traffic from one port or ports to

UPnP This link takes you to a screen to enable UPnP. Stack This link takes you to a screen to enable stacking and manage other members in the

sFlow This link takes you to a screen where you can co nfig ur e an sFlow receiver (collector) and

Monitor

This link takes you to a screen where you can create private VLANs on the Switch. This screen is not available on the XGS1910-24 or XGS1910-48.

VLAN or IEEE 802.1Q tagged VLAN to prevent communication between ports in the same VLAN.

This link takes you to a screen where you can configure a MAC-based VLAN.

This link takes you to a screen where you can configure a protocol-based VLAN.

Identifier (OUI) address table that can be used for telephony devices detecting.

This link takes you to a screen where you can configure QoS classification settings for incoming traffic on a port.

limit the transmission rate of incoming traffic on a port.

on a port.

port. This link takes you to a screen where you can configure how the Switch sets the priority

level and drop eligible indicator field in the VLAN tag for traffic on an egress port.

modifies the DSCP value for traffic on a port. This link takes you to a screen where you can configure the DSCP to Qo S class and drop

precedence level mapping for all incoming traffic. This link takes you to a screen where you can configure the DSCP translation/mapping

table for incoming and/or outgoing traffic. This link takes you to a screen where you can configure the DSCP to QoS class mapping

table. This link takes you to a screen where you can configure a QoS control list to classify and

give different drop precedence levels and DSCP numbers to different packet types.

unknown packets the Switch receives per second on the ports.

Detection (RED) settings for QoS queues 0 to 5.

another port in order that you can examine the traffic from the first port without interference.

stack.

sFlow data sampling settings on the Switch.

GS1910/XGS1910 Series User’s Guide

Chapter 4 The Web Configurator

Table 4 Navigation Panel Links (continued)

LINK DESCRIPTION

System

Information This link takes you to a screen that displays general system information. CPU Load This link takes you to a screen that displays what percentage of the Switch’s processing

Log This link takes you to a screen that displays view system logs for the level that you

Detailed Log This link takes you to a screen that displays an individual log. HW monitor This link takes you to a screen that displays hardware monitoring information.

Ports

State This link takes you to a screen where you can view the status of the Switch connections. Traffic

Overview QoS Statistics This link takes you to a screen where you can view th e Swit ch’s QoS-related packet

QCL Status This link takes you to a screen where you can view the QoS control list status. Detailed

Statistics

Security

Access Management Statistics

Network This link takes you to a screen where you can view the status and settings of port

AAA This link takes you to a screen where you can view the status and statistics for

Switch This link takes you to a screen where you can view the settings or traffic statistics of

LACP

System Status This link takes you to a screen wh ere you can view the Switch’s link aggregation status. Port Status This link takes you to a screen where you can view the LACP settings on a port. Port Statistics This link takes you to a screen where you can view LACP statistics on a port.

Spanning Tree

Bridge Status This link takes you to a screen where you can view the status of STP bridage instances. Port Status This link takes you to a screen where you can view STP port role and port state. Port Statistics This link takes you to a screen where you can view STP packet statistics on a port.

MVR

Statistics This link takes you to a screen where you can view Multicast VLAN Registration (MVR)

MVR Channel Groups

MVR SFM Information

IPMC

IGMP Snooping

ability is currently used.

selected.

This link takes you to a screen where you can view the port statistics.

statistics.

This link takes you to a screen where you can check detailed performance data about an individual port on the Switch.

This link takes you to a screen where you can view the packet statistics for access control.

security, port authentication, access control list, DHCP snooping, DHCP relay, IP source guard and ARP inspection.

authentication and accounting servers.

RMON groups which contain detailed information about specific activities.

statistics. This link takes you to a screen where you can view MVR channels (groups) information.

This link takes you to a screen where you can view MVR SFM (Source-Filtered Multicast) information.

This link takes you to a screen where you can view IGMP snooping status, IGMP group information and SFM (Source -Filtered Multicast) information.

GS1910/XGS1910 Series User’s Guide

Chapter 4 The Web Configurator

Table 4 Navigation Panel Links (continued)

LINK DESCRIPTION

MLD Snooping This link takes you to a screen where you can view MLD snooping status, MLD group

information and SFM (Source -Filtered Multicast) information..

LLDP

Neighbours This link takes you to a screen where you can view the LLDP neighboring device

information.

LLDP-MED Neighbours

EEE This link takes you to a screen where you can view the EEE information exchanged via

Port Statistics This link takes you to a screen where you can view LLDP traffic statistics on the Switch or

MAC Table This link takes you to a screen where you can view the MAC address and VLAN ID of a

VLANs

VLAN Membership

VLAN Port This link takes you to a screen where you can view detailed VLAN settings on a port.

Stack This link takes you to a screen where you can see whether stacking is enabled on the

VCL

MAC-based

VLAN sFlow sFlow Statistics This link takes you to a screen where you can vi ew sFlow receiv er state and sF low packet

Diagnostic Ping This link takes you to a screen where you can ping IPv4 addresses to test connections. Ping6 This link takes you to a screen where you can ping IPv6 addresses to test connections. VeriPHY This link takes you to a screen where you can perform a physical wire-pair test of the

This link takes you to a screen where you can view the LLDP-MED neighboring device information.

LLDP.

on a port.

device attached to a port. You can also view what kind of MAC address it is.

This link takes you to a screen where you can view status of the VLAN group.

Switch.

This link takes you to a screen where you can view the MAC-based VLAN settings.

statistics on each port.

Ethernet connections on the specified port(s). VeriPHY® cable diagnostics provide extensive network cable information such as cable

length, termination status, and open/short fault location. Maintenance Restart Device This link takes you to a screen where you can reboot the system without turning the

power off. Factory Defaults This link takes you to a screen where you can to reset the Switch back to the factory

defaults. Software

Upload This link takes you to a screen where you can upload firmware to the Switch. Image Select This link takes you to a screen where you can switch to use a second firmware image if

available.

This screen is not available on the XGS1910-24 or XGS1910-48. Configuration

Backup This link takes you to a screen where you can back up your current Switch configuration

to a computer.

Upload This link takes you to a screen where you can restore a previously saved configuration

from your computer to the Switch.

GS1910/XGS1910 Series User’s Guide

Chapter 4 The Web Configurator

4.3.1 Change Your Password

After you log in for the first time, it is recommended you change the default administrator password. Click Configuration > Security > Switch > Users to display the next screen.

Figure 26 Change Administrator Login Password

4.4 Switch Lockout

You could block yourself (and all others) from using in-band-management (managing through the data ports) if you do one of the following:

1 Delete the management VLAN (default is VLAN 1).

2 Disable all ports.

3 Misconfigure the text configuration file.

4 Forget the password and/or IP address.

5 Prevent all services from accessing the Switch.

6 Change a service port number but forget it.

Note: Be careful not to lock yourself and others out of the Switch.

4.5 Logging Out of the Web Configurator

Click Logout in a screen to exit the web configurator. You have to log in with your password again after you log out. This is recommended after you finish a management session for security reasons.

4.6 Help

The web configurator’s online help has descriptions of individual screens and some supplementary information.

Click the Help link from a web configurator screen to view an online help description of that screen.

GS1910/XGS1910 Series User’s Guide

CHAPTER 5

Tutorials

This chapter provides some examples of using the Web Configurator to set up and use the Switch. The tutorials include:

• How to Change Switch Management IP Address

• How to Configure Login Accounts and Privilege Levels

• How to Manage a Configuration File

• How to Create a VLAN

• How to Set Up a Guest VLAN with IEEE 802.1x Authentication

• How to Use Private VLAN to Do Port Isolation in a VLAN

• How to Use IP Source Guard and DHCP Snooping to Prevent Spoofed Traffic

• How to Use DHCP Relay on the Switch

• How to Use Link Aggregation to Group Multiple Ports into One Logical Link

• How to Analyze Traffic Using Mirroring

• How to Use IGMP Snooping to Reduce Multicast Traffic Passing through your Switch

• How to Configure Access Control List (ACL) for Packets Filtering

• How to Reset the Switch via the Console Port

5.1 How to Change Switch Management IP Address

The default management IP address of the Switch is 192.168.1.1. You can configure the IP address to be in the same subnet as your network or have the Switch obtain a dynamic IP address from a DHCP server in your network. The following figure shows an example.

Figure 27 Initial Setup Example: Management IP Address

GS1910/XGS1910 Series User’s Guide 33

Chapter 5 Tutorials

1 Connect your computer to the Switch’s port which is in VLAN1 (the default management VLAN).

2 Open your web browser and enter 192.168.1.1 (the default management IP address) in the address

bar to access the web configurator. See Section 4.2 on page 25 for more information. Your computer must have an IP address in the range between “192.168.1.2” and “192.168.1.254”.

3 Log in with the admin account.

4 Click Configuration > System > IP in the navigation panel.

5 Enter 172.16.13.5 as the Switch’s new management IP

address, 255.255.255.0 as the subnet mask and

172.16.13.2 as the gateway’s IP address.

Alternatively, you can select the DHCP Client check box to have the Switch act as a DHCP client and get an IP address from the DHCP server to which the Switch is connected. Click Renew to update the IP address and DNS server information after you click Save. The IP address assigned by a DHCP server has priority over the IP address you manually configured.

6 The VLAN ID field lets you enter the ID of the VLAN group to which you want this management IP

address to belong. This is the same as the VLAN ID you configure in the Configuration > VLANs > VLAN Membership screen. In this example, leave the field at 1.

7 Click Save to save your changes back to the Switch.

Note: The Web Configurator may no longer be accessible unless you log in with the new

IP address. Check the DHCP server for the Switch’s dynamically assigned IP address when it is working as a DHCP client.

5.2 How to Configure Login Accounts and Privilege Levels

The admin account has a privilege level of 15, so the administrator can perform all types of system configuration. You cannot change the user name and privilege level of the admin account. You can create new login accounts the user used to log in to the Switch and manage the privilege levels for login accounts.

GS1910/XGS1910 Series User’s Guide

Chapter 5 Tutorials

In this example, you create a login account with the following information.

USER NAME PASSWORD PRIVILEGE LEVEL

user1 qwert12345 10

1 Log into the Switch’s Web Configurator with the admin account.

2 Click Configuration > Security > Switch > Users in the navigation panel. Click Add New User

to create a new login account.

3 Specify the user name, password and privilege level of the login account.

4 Click Save to apply your changes.

GS1910/XGS1910 Series User’s Guide

Chapter 5 Tutorials

5 By default, you cannot use a login account with a privilege level of 10 to do system maintenance,

such as configuring login accounts, uploading firmware or resetting to the factory defaults. To change the access privilege level for each feature group, go to Configuration > Security > Switch > Privilege Levels.

5.3 How to Manage a Configuration File

Configuration files define the Switch’s settings. You can use the Configuration screens to back up configuration files from the Switch to your computer and restore them from your computer to the Switch.

5.3.1 Backing up a Configuration File

Backing up your Switch configurations allows you to create v arious “snap shots” of your device from which you may restore at a later date.

To backup your configuration file,

1 Click Maintenance > Configuration > Save and click Save Configuration.

2 Click Save to display the File Download screen.

GS1910/XGS1910 Series User’s Guide

Chapter 5 Tutorials

3 Choose a location to save the file on your computer from the Save in drop-down list box and type

a descriptive name for it in the File name list box.

4 Click Save to save the configuration file to your computer.

5.3.2 Restoring a Configuration File

If you want to upload a previously saved configuration file from your computer to the Switch, go to Maintenance > Configuration > Upload. Select the *.xml file from its path and click Upload.

GS1910/XGS1910 Series User’s Guide

Chapter 5 Tutorials

After the upload is successful, the following screen displays.

"config" is the name of the configuration file on the Switch, so your backup configuration file is automatically renamed when you restore using this screen.

5.4 How to Create a VLAN

VLANs confine broadcast frames to the VLAN group in which the port(s) belongs. You can do this using IEEE 802.1Q tagged static VLAN with fixed port members.

A tagged VLAN uses an explicit tag (VLAN ID) in the MAC header to identify the VLAN membership of a frame across bridges - they are not confined to the switch on which they were created. The VLANs can be created statically by hand or dynamically through Multiple VLAN Registration Protocol (MVRP). The VLAN ID associates a frame with a specific VLAN and provides the information that switches need to process the frame across the network.

Each port on the Switch is capable of passing tagged or untagged frames. To forward a frame from an 802.1Q VLAN-aware switch to an 802.1Q VLAN-unaware switch, the Switch first decides where to forward the frame and then strips off the VLAN tag. To forward a frame from an 802.1Q VLANunaware switch to an 802.1Q VLAN-aware switch, the Switch first decides where to forward the frame, and then inserts a VLAN tag reflecting the ingress port's default VID. The default PVID is VLAN 1 for all ports, but this can be changed.

A broadcast frame (or a multicast frame for a multicast group that is known by the system) is duplicated only on ports that are members of the VID (except the ingress port itself), thus confining the broadcast to a specific domain.

By default, all ports on the Switch are in VLAN 1. In this example, you want to configure port 1 as a member of VLAN 2.

Figure 28 VLAN Example

GS1910/XGS1910 Series User’s Guide

Chapter 5 Tutorials

1 Access the Switch through http://192.168.1.1. Log into the Switch with the admin account.

2 Click Configuration > VLANs > VLAN Membership in the navigation panel. Click Add New

VLAN to create VLAN2.

3 Enter 2 in the VLAN ID field and enter a descriptive name in the VLAN Name field for the VLAN2

network.

4 Since the VLAN2 network is connected to port 1 on the Switch, select port 1’s check box under

Port Members to configure port 1 to be a permanent member of the VLAN.

5 Click Save to save the settings to the Switch.

5.4.1 Setting Port VID

Use PVID to add a tag to incoming untagged frames received on that port so that the frames are forwarded to the VLAN group that the tag defines.

GS1910/XGS1910 Series User’s Guide

Chapter 5 Tutorials

In the example network, configure 2 as the port VID on port 1 so that any untagged frames received on that port get sent to VLAN 2.

Figure 29 Port VID Example

1 Click Configuration > VLANs > Ports in the navigation panel.

2 Set Port VLAN Mode to Specific and enter 2 in the Port VLAN ID field for port 1.

3 To ensure that VLAN-unaware devices (such as computers and hubs) can receive frames properly,

you can either select Untag_all in the TX Tag field to set the Switch to remove any VLAN tags before sending or leave the TX Tag field at Untag_pvid to have the Switch remove a frame’s VLAN tag when the frame’s VLAN ID is the same as the PVID of the port on which the frame is transmitted.

4 click Save to save your changes back to the Switch.

GS1910/XGS1910 Series User’s Guide

Chapter 5 Tutorials

Internet

Guest VLAN 200 Ports 1, 2, 3 and 10

VLAN 1

5.5 How to Set Up a Guest VLAN with IEEE 802.1x Authentication

All ports on the Switch are in VLAN 1 by default. Say you enable IEEE 802.1x authentication on ports 1 to 8. Clients that connect to these ports should provide the correct user name and password in order to access the ports. You want to assign clients that connect to ports 1, 2 or 3 to a guest VLAN (200 for example) when they fail to authenticate with the authentication server. In this guest VLAN, clients can surf the Internet through a gateway attached to port 10, but are not allowed to access other network resources, such as the mail server or local data base.

5.5.1 Creating a VLAN for Port which is not IEEE 802.1x enabled

Follow the steps below to configure port 10 as a member of VLAN 200.

1 Access the web configurator through the Switch’s port which is not in VLAN 200.

2 Click Configuration > VLANs > VLAN Membership in the navigation panel. Click Add New

VLAN to create VLAN2.

3 Enter 200 in the VLAN ID field and enter a descriptive name (VLAN200 for example) in the VLAN

Name field for this VLAN.

4 Configure port 10 to be a permanent member of the VLAN.

GS1910/XGS1910 Series User’s Guide

Chapter 5 Tutorials

5 Click Save to save the settings to the Switch.

6 Click Configuration > VLANs > Ports in the navigation panel.

7 Set Port VLAN Mode to Specific and enter 200 in the Port VLAN ID field for port 10 to add a tag

to incoming untagged frames received on these ports so that the frames are forwarded to the VLAN group that the tag defines.

8 To ensure that VLAN-unaware devices (such as computers and hubs) can receive frames properly,

select Untag_all in the TX Tag field to set the Switch to remove VLAN tags before sending frames out of these ports.

9 click Save to save your changes back to the Switch.

5.5.2 Enabling IEEE 802.1x Port Authentication and Guest VLAN

Follow the steps below to enable port authentication to validate access to ports 1~8 to clients based on a RADIUS server.

1 Click Configuration > Security > Network > NAS. Select Enabled in the Mode field to activate

IEEE 802.1x authentication on the Switch.

GS1910/XGS1910 Series User’s Guide

Chapter 5 Tutorials

2 Select the Reauthentication Enabled check box to have a subscriber periodically re-enter his or

her username and password to stay connected to the port.

3 Select the Guest VLAN Enabled check box and enter the guest VLAN ID (200 in this example) to

enable the guest VLAN on the Switch. The Switch will automatically create the guest VLAN and configure the IEEE 802.1x-enabled ports as a member of the guest VLAN.

4 Set Admin State to Port-based 802.1x for ports 1 to 8 to turn on IEEE 802.1x authentication on

these ports.

5 Select the Guest VLAN Enabled check box on ports 1, 2 and 3. The Switch puts unauthenticated

clients in the specified guest VLAN.

6 Click Save. Clients that attach to port 1, 2 or 3 and fail to authenticate with the RADIUS server now

should be in VLAN 200 and can access the Internet via the Internet access gateway connected to port 10 which is also in VLAN 200, but cannot communicate with devices in VLAN 1.

GS1910/XGS1910 Series User’s Guide

Chapter 5 Tutorials

Internet

5.6 How to Use Private VLAN to Do Port Isolation in a VLAN

This tutorial is not applicable to the XGS1910-24 or XGS1910-48.

Port isolation prevents communication between ports. You want to do port isolation in a VLAN but still allow ports to access the Internet or network resources through the uplink port in the same VLAN. You use private VLAN to do port isolation in a VLAN instead of assigning each port to a separate VLAN and creating a different IP routing domain for each individual port.

By default, all ports on the Switch are in VLAN 1 and private VLAN 1. An isolated port is a port on which port isolation is enabled. An isolated port cannot communicate with other isolated ports even when they are in the same VLAN and same private VLAN.

In this example, you put ports 2 to 4 and 25 in private VLAN 25 and enable port isolation to block traffic between ports 2, 3 and 4.

5.6.1 Creating a Private VLAN

Follow the steps below to configure port 2, 3, 4 and 25 as a member of private VLAN 25.

1 Access the web configurator through the Switch’s port on which port isolation will not be enabled.

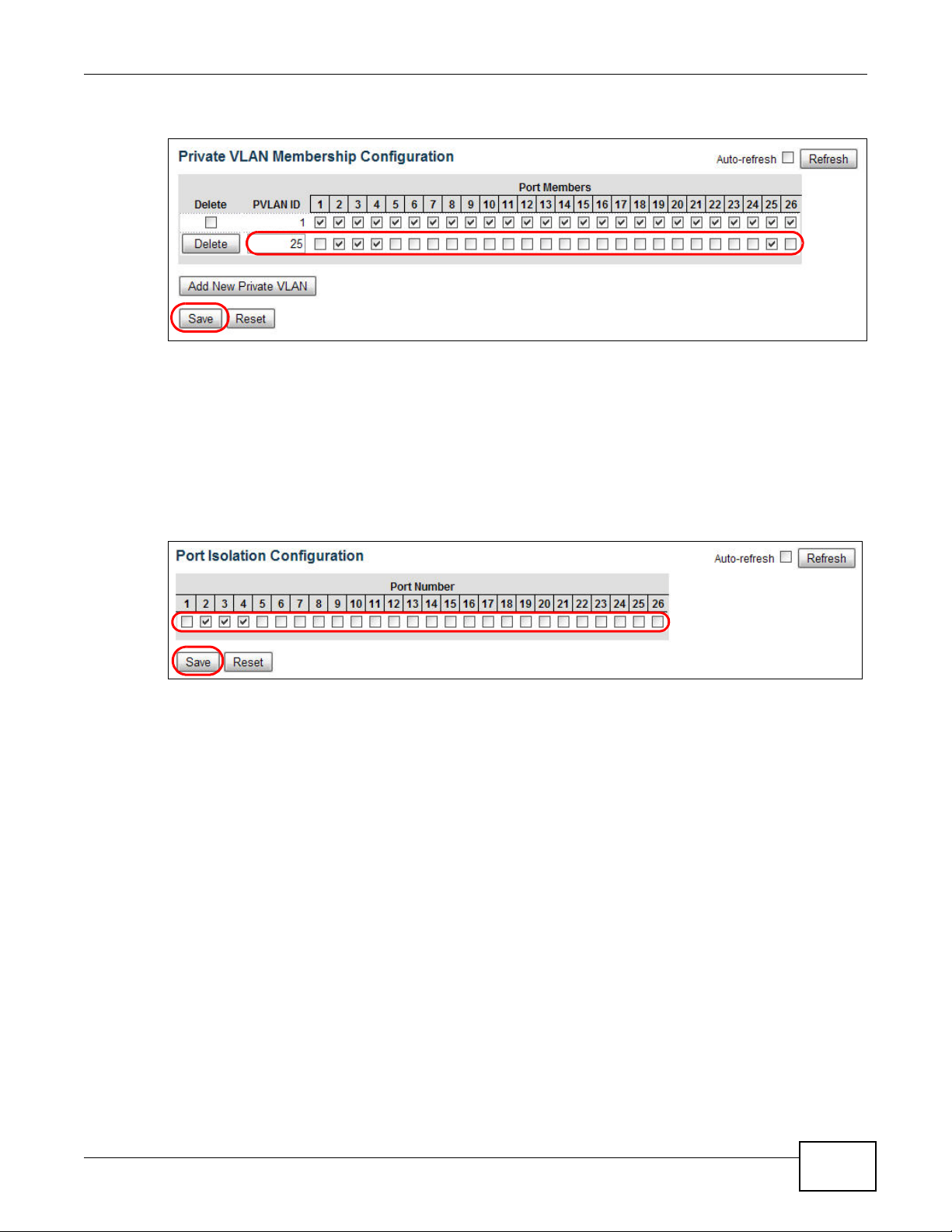

2 Go to Configuration > Private VLANs > PVLAN Membership. Click Add New Private VLAN.

3 Enter a private VLAN ID (25 for example) in the PVLAN ID field.

4 Select ports 2, 3, 4 and 25 to be members of this private VLAN.

GS1910/XGS1910 Series User’s Guide

5 Click Save to save the settings to the Switch.

5.6.2 Enabling Port Isolation

Follow the steps below to configure port isolation.

1 Click Configuration > Private VLANs > Port Isolation.

2 Select the check boxes of ports 2, 3 and 4, and click Save to add them to the isolated port list so

that they cannot send traffic to each other.

Chapter 5 Tutorials

From port 2, 3, or 4, you should be able to access the device that attaches to port 25, such as a server or default gateway.

5.7 How to Use IP Source Guard and DHCP Snooping to Prevent Spoofed Traffic

IP source guard uses a binding table to allow or block IP traffic in your network. When the Switch receives an IP packet, it looks up the appropriate MAC address, VLAN ID, IP address, and port number in the binding table. If there is a binding, the Switch forwards the packet. If there is not a binding, the Switch discards the packet.

The Switch builds the binding table by snooping DHCP packets (dynamic bindings) and from information provided manually by administrators (static bindings).

Use DHCP snooping to filter unauthorized DHCP packets on the network and to build the binding table dynamically. This can prevent clients from getting IP addresses from unauthorized DHCP servers.

GS1910/XGS1910 Series User’s Guide

Chapter 5 Tutorials

VLAN 100

If you want to use dynamic bindings to filter unauthorized ARP packets (typical implementation), you have to enable DHCP snooping before you enable ARP inspection.

T rusted vs. Untrusted Ports

Every port is either a trusted port or an untrusted port for DHCP snooping.

T rusted ports are connected to DHCP servers or other switches. The Switch learns dynamic bindings from trusted ports.

Note: The Switch will drop all DHCP requests if you enable DHCP snooping and there are

Untrusted ports are connected to subscribers. The Switch discards DHCP packets from untrusted ports in the following situations:

• The packet is a DHCP server packet (for example, OFFER, ACK, or NACK).

• The source MAC address and source IP address in the packet do not match any of the current bindings.

• The packet is a RELEASE or DECLINE packet, and the source MAC address and source port do not match any of the current bindings.

no trusted ports.

In the following example, you only want DHCP server A connected to port 5 to assign IP addresses to all devices in VLAN 100. Create a VLAN containing ports 5, 6 and 7. Connect a computer (M) to the Switch’s port which is not in VLAN 100.

The settings in this tutorial are as the following.

Table 5 Settings in this Tutorial

HOST

DHCP Server (A) 5 1 and 100 100 Yes DHCP Client (B) 6 1 and 100 100 No DHCP Client (C) 7 1 and 100 100 No

PORT CONNECTED

VLAN PVID

DHCP SNOOPING PORT TRUSTED

1 Access the Switch through http://192.168.1.1. Log into the Switch by entering the username

(default: admin) and password (default: 1234).

2 See Section 5. 4 on page 38 for how to create a VLAN and configure ports to join the VLAN.

GS1910/XGS1910 Series User’s Guide

Chapter 5 Tutorials

3 Go to Configuration > Security > Network > DHCP > Snooping to activate DHCP snooping on

the Switch.

4 Specify whether ports are trusted or untrusted ports for DHCP snooping. Select Trusted in the

Mode field for port 5 because the DHCP server is connected to port 5. Set ports 6 and 7 to Untrusted as they are connected to DHCP clients. Click Save.

5 Connect your DHCP server to port 5 and a computer (as DHCP client) to either port 6 or 7. The

computer should be able to get an IP address from the DHCP server. If you put the DHCP server on port 6 or 7, the computer will not able to get an IP address.

GS1910/XGS1910 Series User’s Guide

Chapter 5 Tutorials

6 Click Configuration > Security > Network > IP Source Guard > Configuration and enable IP

source guard on the Switch and on ports 6 and 7. Set the maximum number of DHCP clients to learn dynamically on ports 6 and 7. Click Save.

7 Go to Monitor > Security > Network > IP Source Guard to look at the current dynamic

bindings for DHCP snooping. You should see an IP binding for port 6 or 7 in VLAN 100.

5.8 How to Use DHCP Relay on the Switch

If the DHCP clients and the DHCP server are not in the same broadcast domain, the Switch can help to relay network information (such as the IP address and subnet mask) between a DHCP client and a DHCP server. This tutorial describes how to configure your Switch to forward DHCP client requests to a specific DHCP server. The DHCP server can then assign a specific IP address based on the information in the DHCP requests.

In this example, you have configured your DHCP server (192.168.2.3) and want to have it assign a specific IP address (say 172.16.1.18) and gateway information to DHCP client A based on the slot

GS1910/XGS1910 Series User’s Guide

ID, VLAN ID and port number in the DHCP request. Client A connects to the Switch’ s port 2 in VLAN

VLAN 102

DHCP Server

Port 2

PVID=102

172.16.1.18

192.168.2.3

102.

5.8.1 Creating a VLAN

1 Access the web configurator through the Switch’s port which is in VLAN 1.

Chapter 5 Tutorials

2 Configure port 2 as a member of VL AN 102. See Section 5.4 on page 38 for how to create a VLAN

and configure ports to join the VLAN.

5.8.2 Configuring DHCP Relay

1 Click Configuration > Security > Network > DHCP > Relay.

2 Select Enabled in the Relay Mode field to enable DHCP relay on the Switch.

3 Enter the DHCP server’s IP address (192.168.2.3 in this example) in the Relay Server field.

4 Select Enabled in the Relay Information Mode field to allow the Switch to add relay agent

information (such as the VLAN ID) to DHCP requests.

5 Select Replace in the Relay Information Policy field to have the Switch remove the original

DHCP relay agent information (if any) and add new information in the DHCP requests.

6 Click Save to save your changes back to the Switch.

GS1910/XGS1910 Series User’s Guide

Chapter 5 Tutorials

7 The DHCP server can then assign a specific IP address based on the DHCP request.

5.8.3 Troubleshooting

Check the client A’s IP address. If it did not receive the IP address 172.16.1.18, make sure:

1 Client A is connected to the Switch’s port 2 in VLAN 102.

5.9 How to Use Link Aggregation to Group Multiple Ports into One Logical Link

Link aggregation (trunking) is the grouping of physical ports into one logical higher-capacity link. You may want to trunk ports if for example, it is cheaper to use multiple lower-speed links than to under-utilize a high-speed, but more costly, single-port link.

However, the more ports you aggregate then the fewer available ports you have. A trunk group is one logical link containing multiple ports.

The beginning port of each trunk group must be physically connected to form a trunk group.

The Switch supports both static and dynamic link aggregation. The Switch supports the IEEE

802.3ad standard for static and dynamic (LACP) port trunking. This standard describes the Link

Aggregation Control Protocol (LACP), which is a protocol that dynamically creates and manages trunk groups.

Note: In a properly planned network, it is recommended to implement static link

aggregation only. This ensures increased network stability and control over the trunk groups on your Switch.

5.9.1 Static Port Trunking

This example shows you how to create a static port trunk group for ports 2-5.

1 Make your physical connections - make sure that the ports that you want to belong to the trunk

group are connected to the same destination. The following figure shows ports 2-5 on switch A connected to switch B.

GS1910/XGS1910 Series User’s Guide

Chapter 5 Tutorials

2 Configure static trunking - Click Configuration > Aggregation > Static. In this screen select

the traffic distribution type(s) used by this group and select the ports that should belong to this group as shown in the figure below. Packets from the same source and/or to the same destination are sent over the same link within the trunk. If the Switch is behind a router, the packet’s destination or source MAC address will be changed. In this case, set the Switch to distribute traffic based on its IP address to make sure port trunking can work properly.

Click Save when you are done.

5.9.2 Dynamic Port Trunking

When you enable LACP link aggregation on a port, the port can automatically negotiate with the ports at the remote end of a link to establish trunk groups. LACP also allows port redundancy, that is, if an operational port fails, then one of the “standby” ports become operational without user intervention. Please note that:

• You must connect all ports point-to-point to the same Ethernet Switch and configure the ports for LACP trunking.

• LACP only works on full-duplex links.

• All ports in the same trunk group must have the same media type, speed, duplex mode and flow control settings.

To configure the settings:

GS1910/XGS1910 Series User’s Guide

Chapter 5 Tutorials

Source port

Reflector port

Intermediate port

Destination port

Remote Port Mirroring VLAN

Intermediate port

1 Click Configuration > Aggregation > LACP. Enable LACP on ports for which you want to create a

trunk group using LACP. Leave the other fields to their default settings. Click Save.

5.10 How to Analyze Traffic Using Mirroring

With mirroring, you can copy a traffic flow (passing through the source port(s)) to another port (a destination port you copy the traffic to) in order that you can examine the traffic from the destination port without interference.

You can also use remote port mirroring to monitor multiple switches across your network. In remote port mirroring, the traffic from the source port(s) is forwarded to a specific remote port mirroring VLAN through a reflector port and copied to an intermediate port. Traffic are then carried over the VLAN and sent to a destination port in a remote switch through the intermediate ports that connect to other switches.

GS1910/XGS1910 Series User’s Guide

5.10.1 Configuring Mirroring

In this example, you are attached to port 2 but want to copy traffic received or transmitted on port 7 for analysis.

1 Access the Switch through http://192.168.1.1. Log into the Switch by entering the username

(default: admin) and password (default: 1234).

2 Go to Configuration > Port Mirroring. Select Enabled in the Mode field to activate mirroring on

the Switch.

3 Set Type to Mirror to do mirroring in one standalone switch.

Chapter 5 Tutorials

4 Configure port 2 to act as a destination port to which the Switch copy traffic from the source

port(s).

5 Select the direction of traffic flow you want to copy (Both in this example) on port 7.

6 Click Save. You then should be able to receive a copy of the traffic passing through port 7 to

examine it in more detail without interfering with the traffic flow on the original port.

GS1910/XGS1910 Series User’s Guide

Chapter 5 Tutorials

Reflector port

Intermediate port

Remote Port Mirroring VLAN 100

Intermediate port

5.10.2 Configuring Remote Port Mirroring

In this example, there are three switches (A, B and C) in your network. You are connected to port 10 of switch C but want to monitor traffic received or transmitted on port 4 of switch A. The copied

traffic is forwarded to remote port mirroring VLAN 100.

In Switch A:

1 Access the Switch through http://192.168.1.1. Log into the Switch by entering the username

(default: admin) and password (default: 1234).

2 Go to Configuration > Port Mirroring. Select Enabled in the Mode field to activate mirroring on

the Switch.

3 Set Type to Source to configure a source port on Switch A.

4 Enter the remote port mirroring VLAN ID number (100 in this example) and select a reflector port

(Port 7 for example) through which copied traffic is forwarded to the specified VLAN. The Switch will automatically create the remote port mirroring VLAN and configure the reflector and intermediate ports as a member of the remote port mirroring VLAN.

5 Select the direction of traffic flow you want to copy (Both in this example) on the source port (port

4 in this example).

6 Configure port 12 to act as an intermediate port to which traffic from the source port is copied that

connects to Switch B.

GS1910/XGS1910 Series User’s Guide

7 Click Save.

Chapter 5 Tutorials

GS1910/XGS1910 Series User’s Guide

Chapter 5 Tutorials

8 Click Configuration > Spanning Tree > CIST Ports to disable (R)STP on the reflector port to

prevent the port from entering blocking state.

GS1910/XGS1910 Series User’s Guide

Chapter 5 Tutorials

9 Go to Configuration > MAC Table to disable MAC address learning on the reflector and

intermediate ports so that the Switch will NOT filter or forward a frame based on the frame’s destination MAC address, or even drop the frame whose MAC address is not in the MAC address table on these ports.

In Switch B:

1 Access the Switch through http://192.168.1.1. Log into the Switch by entering the username

(default: admin) and password (default: 1234).

2 Go to Configuration > Port Mirroring. Select Enabled in the Mode field to activate mirroring on

the Switch.

3 Set Type to Intermediate to configure the intermediate ports that help forward traffic.

4 Enter the remote port mirroring VLAN ID number (100 in this example). The Switch will

automatically create the remote port mirroring VLAN and configure the intermediate ports as a member of this VLAN.

5 Configure ports (3 and 4 for example) to act as the intermediate ports that connect to Switch A and

Switch C.

GS1910/XGS1910 Series User’s Guide

Chapter 5 Tutorials

6 Click Save.

7 Go to Configuration > MAC Table to disable MAC address learning on the intermediate ports so

that the Switch will NOT filter or forward a frame based on the fr ame’ s destination MAC address, or even drop the frame whose MAC address is not in the MAC address table on these ports.

GS1910/XGS1910 Series User’s Guide

Chapter 5 Tutorials

In Switch C:

1 Access the Switch through http://192.168.1.1. Log into the Switch by entering the username

(default: admin) and password (default: 1234).

2 Go to Configuration > Port Mirroring. Select Enabled in the Mode field to activate mirroring on

the Switch.

3 Set Type to Destination to configure the intermediate ports that help forward traffic.

4 Enter the remote port mirroring VLAN ID number (100 in this example). The Switch will

automatically create the remote port mirroring VLAN and configure the intermediate and destination ports as a member of this VLAN.

5 Configure a port (2 for example) to act as the intermediate port that connects to Switch B.

6 Configure a port (10 for example) to act as the destination port that receives the copy of traffic

from the source port on Switch A for analysis.

7 Click Save.

GS1910/XGS1910 Series User’s Guide

Chapter 5 Tutorials

8 Go to Configuration > MAC Table to disable MAC address learning on the intermediate and

destination ports so that the Switch will NOT filter or forward a frame based on the frame’s destination MAC address, or even drop the frame whose MAC address is not in the MAC address table on these ports.

5.11 How to Use IGMP Snooping to Reduce Multicast Traffic Passing through your Switch

The Switch can passively snoop on IGMP packets transferred between IP multicast routers/switches and IP multicast hosts to learn the IP multicast group membership. It checks IGMP packets passing through it, picks out the group registration information, and configures multicasting accordingly. IGMP snooping allows the Switch to learn multicast groups without you having to manually configure them.

The Switch forwards multicast traffic destined for multicast groups (that it has learned from IGMP snooping or that you have manually configured) to ports that are members of that group. IGMP snooping generates no additional network traffic, allowing you to significantly reduce multicast traffic passing through your Switch.

The Switch can perform IGMP snooping on up to 32 VLANs. You can configure the Switch to automatically learn multicast group membership of any VLANs.

GS1910/XGS1910 Series User’s Guide

Chapter 5 Tutorials

Proxy

Follow the steps below to enable IGMP snooping on the Switch and a specific VLAN. You also have the Switch act as an IGMP proxy to report group changes to a connected multicast router (R).

1 Access the Switch through http://192.168.1.1. Log into the Switch by entering the username

(default: admin) and password (default: 1234).

2 Go to Configuration > IPMAC > IGMP Snooping > Basic Configuration. Select the Snooping

Enabled check box to activate IGMP snooping on the Switch.

3 The Unknown Multicast Flooding Enabled check box is selected by default and the Switch will

send the frame(s) to all ports when the it receives an unknown multicast frame.

4 In the IGMP SSM Range field, specify the source address range of the multicast group the clients

will listen to. The Switch forwards the packets with the configured source address(es) to the clients that join this group. This help prevent the clients from receiving traffic resulting from unwanted sources.

5 Set Leave Proxy Enabled and Proxy Enabled to allow the Switch to send a leave message with

its MAC address to the multicast router/switch only when it receives the leave message from the last host in a multicast group. The Switch also replaces the source MAC address in an IGMP v1/v2 report with its own MAC address before forwarding to the multicast router/switch. When the Switch receives more than one IGMP v1/v2 join reports that request to join the same multicast group, it only sends a new join report with its MAC address. This helps reduce the number of multicast join and leave messages passed to the multicast router/switch.

6 Select a router port (port 1 in this example) that connects to the multicast router or switch. The

Switch forwards IGMP control messages (Query, Join and Leave) to the router port.

7 Enable Fast Leave on the ports that connect to the hosts/clients (ports 7, 8 and 9 in this example).

In fast leave mode, the Switch removes an IGMP snooping membership entry immediately from the forwarding table when an IGMP leave message is received on the port from a host. This helps speed up the leave process.

8 Also set the maximum number of multicast groups the ports can join.

GS1910/XGS1910 Series User’s Guide

Chapter 5 Tutorials

9 Click Save.

10 Configure both the router port and the ports to which the multicast clients connect as a member of

VLAN 1234. See Section 5.4 on page 38 for how to create a VLAN and configure ports to join the VLAN.

11 Go to Configuration > IPMAC > IGMP Snooping > VLAN Configuration.

12 Select Snooping Enabled for VLAN 1234 to allow the Switch to learn the IP multicast group

membership of this VLAN.

13 Select IGMP Querier for VLAN 1234 to allow the Switch to act as the querier in the VLAN to send

IGMP General Query (GQ) and Group-Specific Query (GSQ) messages to this VLAN. A querier sends out an IGMP Group-Specific Query (GSQ) message to determine whether the hosts connected to the port should remain in the specific multicast group.

GS1910/XGS1910 Series User’s Guide

Chapter 5 Tutorials

10.1.2.0/24

Port 9

14 Click Save.

5.12 How to Configure Access Control List (ACL) for Packets Filtering

Access Control List (ACL) can be used as a simple packet filtering firewall to filter incoming traffic and prevent certain traffic from entering your network. ACL groups traffic into data flows according to specific criteria such as the source address, destination address, source port number, destination port number or incoming port number, and also define actions to be performed for a classified traffic flow.

The Switch checks traffic against the ACL rules in the order you list them.

In this example, you configure an ACL rule to identify all traffic coming from host A connected to port 9 and restrict the host’s access to a specific IPv4 network.

1 Access the Switch through http://192.168.1.1. Log into the Switch by entering the username

(default: admin) and password (default: 1234).

GS1910/XGS1910 Series User’s Guide

Chapter 5 Tutorials

2 Go to Configuration > Security > Network > ACL > Access Control List. Click the Add icon

to create a new ACL policy.

3 Select the port on which the matched traffic is received (All ports in this example).

4 Set Policy Filter to Specific and Policy Bitmask to 0xff to give this policy one ID number in the

Policy Value field. You then can apply this policy to a port using this policy ID.

5 Select IPv4 in the Frame Type field.

6 Select Network in the DIP Filter field and specify the destina t ion address and subnet ma sk of

matched traffic in this policy.

7 Set Action to Deny to block all mattached traffic.

GS1910/XGS1910 Series User’s Guide

Chapter 5 Tutorials

8 Click Save. The ordering of your rules is very important as rules are applied in the order that they

are listed. This tutorial uses the XGS1910-24 screens as an example. The screens may vary slightly for

different models.

9 Go to Configuration > Security > Network > ACL > Ports. Enter the ID of the ACL policy you

just created in the Policy ID field of the port to which you want to apply this policy, that is, port 9 to which host A is connected in this example.

GS1910/XGS1910 Series User’s Guide

Chapter 5 Tutorials

10 Click Save. The ACL configurations in the Ports page (such as Action or Rate Limiter ID) apply

only to traffic that does NOT matched the specified ACL policy.

5.13 How to Reset the Switch via the Console Port

If you lock yourself (and others) from the Switch or forget the administrator password, you will need to reload the factory-default configuration file or reset the S w itch back to the factory defaults.

Uploading the factory-default configuration file replaces the current configuration file with the factory-default configuration file. This means that you will lose all previous configurations and the speed of the console port will be reset to the default of 9600bps with 8 data bit, no parity , one stop bit and flow control set to none. The password will also be reset to “1234” and the IP address to

192.168.1.1.

To upload the configuration file, do the following:

1 Connect to the console port using a computer with terminal emulation software. See Section 3.1.4

on page 20 for details.

2 Disconnect and reconnect the Switch’s power to begin a session. When you reconnect the Switch’s

power, you will see the initial screen.

3 When you see the message “Executing boot script in 3.000 seconds - enter ^C to abort”

press the Ctrl-c key combination to stop the automatic boot and then type default.

4 Type reset after the “Erase from 0x40080000-0x4017ffff: ................” message.

GS1910/XGS1910 Series User’s Guide

Chapter 5 Tutorials

5 After the Switch restarts, you can use the default user name and password to log in.

>+M25PXX : Init device with JEDEC ID 0xC22018. Jaguar-1 board detected (VSC7460 Rev. B).

RedBoot(tm) bootstrap and debug environment [ROMRAM] Non-certified release, version 1_12_2-customized-z-XGS - built 19:04:36, Feb 8 2012

Copyright (C) 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009 Free Software Foundation, Inc. RedBoot is free software, covered by the eCos license, derived from the GNU General Public License. You are welcome to change it and/or distribute copies of it under certain conditions. Under the license terms, RedBoot's source code and full license terms must have been made available to you. Redboot comes with ABSOLUTELY NO WARRANTY.

RedBoot> default

... Erase from 0x40080000-0x4017ffff: ................

RedBoot> reset +M25PXX : Init device with JEDEC ID 0xC22018. Jaguar-1 board detected (VSC7460 Rev. B).

RedBoot(tm) bootstrap and debug environment [ROMRAM] Non-certified release, version 1_12_2-customized-z-XGS - built 19:04:36, Feb 8 2012

Platform: VCore-III (MIPS32 24KEc) JAGUAR RAM: 0x80000000-0x88000000 [0x800214d8-0x87fe1000 available] FLASH: 0x40000000-0x40ffffff, 256 x 0x10000 blocks == Executing boot script in 3.000 seconds - enter ^C to abort RedBoot> diag -a Hardware self-test: ... Passed IS0 TCAM self-test: ... Passed IS1 TCAM self-test: ... Passed IS2 TCAM self-test: ... Passed ES0 TCAM self-test: ... Passed L3 TCAM self-test: ... Passed DDR SDRAM: Testing [0x800214d8-0x87fe1000] - Zero Sweep Done

DDR SDRAM: Testing [0x800214d8-0x87fe1000] - Write Sweep .......................

................................................................................

........................ Done

DDR SDRAM: Testing [0x800214d8-0x87fe1000] - Read Sweep .......................

................................................................................

........................ Done

3 tests completed successfully. RedBoot> fis load -d managed Image loaded from 0x80040000-0x806a4d20 RedBoot> go

Username:

GS1910/XGS1910 Series User’s Guide

Chapter 5 Tutorials

GS1910/XGS1910 Series User’s Guide

CHAPTER 6

Troubleshooting

This chapter offers some suggestions to solve problems you might encounter. The potential problems are divided into the following categories.

• Power, Hardware Connections, and LEDs

• Switch Access and Login

6.1 Power, Hardware Connections, and LEDs

The Switch does not turn on. None of the LEDs turn on.

1 Make sure the Switch is turned on (in DC models or if the DC power supply is connected in AC/DC

models).

2 Make sure you are using the power adaptor or cord included with the Switch.

3 Make sure the power adaptor or cord is connected to the Switch and plugged in to an appropriate

power source. Make sure the power source is turned on.

4 Turn the Switch off and on (in DC models or if the DC power supply is connected in AC/DC models).

5 Disconnect and re-connect the power adaptor or cord to the Switch (in AC models or if the AC

power supply is connected in AC/DC models).

6 If the problem continues, contact the vendor.

The ALM LED is on.

1 Turn the Switch off and on (in DC models or if the DC power supply is connected in AC/DC models).

2 Disconnect and re-connect the power adaptor or cord to the Switch (in AC models or if the AC

power supply is connected in AC/DC models).

3 If the problem continues, contact the vendor.

GS1910/XGS1910 Series User’s Guide 69

Chapter 6 Troubleshooting

One of the LEDs does not behave as expected.

1 Make sure you understand the normal behavior of the LED. See Section 3.3 on page 22.

2 Check the hardware connections. See Section 3.1 on page 15.

3 Inspect your cables for damage. Contact the vendor to replace any damaged cables.

4 Turn the Switch off and on (in DC models or if the DC power supply is connected in AC/DC models).

5 Disconnect and re-connect the power adaptor or cord to the Switch (in AC models or if the AC

power supply is connected in AC/DC models).

6 If the problem continues, contact the vendor.

6.2 Switch Access and Login

I forgot the IP address for the Switch.

1 The default management IP address is 192.168.1.1.

2 Use the console port to log in to the Switch.

3 If this does not work, you have to reset the device to its factory defaults. See Section 5.13 on page

66.

I forgot the username and/or password.

1 The default username is admin and the default password is 1234.

2 If this does not work, you have to reset the device to its factory defaults. See Section 5.13 on page

66.

I cannot see or access the Login screen in the web configurator.

1 Make sure you are using the correct IP address.

• The default management IP address is 192.168.1.1.

• If you changed the IP address, use the new IP address.

GS1910/XGS1910 Series User’s Guide

Chapter 6 Troubleshooting

• If you changed the IP address and have forgotten it, see the troubleshooting suggestions for I

forgot the IP address for the Switch.

2 Check the hardware connections, and make sure the LEDs are behaving as expected. See Section

3.3 on page 22.

3 Make sure your Internet browser does not block pop-up windows and has JavaScripts and Java

enabled.

4 Make sure your computer is in the same subnet as the Switch. (If you know that there are routers

between your computer and the Switch, skip this step.)

5 Reset the device to its factory defaults, and try to access the Switch with the default IP address.

See Section 5.13 on page 66.

6 If the problem continues, contact the vendor.

I can see the Login screen, but I cannot log in to the Switch.

1 Make sure you have entered the user name and password correctly. The default user name is

admin, and the default password is 1234. These fields are case-sensitive, so make sure [Caps Lock] is not on.

2 If you have configured a secured client IP address in Configuration > Security > Switch >

Access Management, your computer’s IP address must match it.

3 Disconnect and re-connect the cord to the Switch.

4 If this does not work, you have to reset the device to its factory defaults. See Section 5.13 on page

66.

Pop-up Windows, JavaScripts and Java Permissions

In order to use the web configurator you need to allow:

• Web browser pop-up windows from your device.

• JavaScripts (enabled by default).

• Java permissions (enabled by default).

There is unauthorized access to my Switch via HTTP.

Use the Monitor > System > Log screen to check for unauthorized access to your Switch. To avoid unauthorized access, configure the secured client setting in the Configuration > Security > Switch > Access Management screen for HTTP/HTTPS and SNMP. Computers not belonging to the secured client set cannot get permission to access the Switch.

GS1910/XGS1910 Series User’s Guide

Chapter 6 Troubleshooting

GS1910/XGS1910 Series User’s Guide

any language, or transmitted in any form or by any means, electron ic, mecha nical, magneti c, optic al, chemic al, photoc opying, ma nual, or otherwise, without the prior written permission of ZyXEL Communications Corporation.

Disclaimer

ZyXEL does not assume any liability arising out of the application or use of any products, or software described herein. Neither does it convey any license under its patent rights nor the patent rights of others. ZyXEL further reserves the right to make changes in any products described herein without notice. This publication is subject to change without notice.

Trademarks

Trademarks mentioned in this publication are used for identification purposes only and may be properties of their respective owners.

Certifications

Federal Communications Commission (FCC) Interference Statement

This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference.

• This device must accept any interference received, including interference that may cause undesired operations.

APPENDIX A

Legal Information

FCC Warning

This device has been tested and found to comply with the limits for a Class A digital switch, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial environment. This device generates, uses, and can radiate ra dio freq uency energy and, if not ins talle d and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this device in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

CE Mark Warning:

This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

Taiwanese BSMI (Bureau of Standards, Metrology and Inspection) A Warning:

Notices

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. CLASS 1 LASER PRODUCT APPAREIL À LASER DE CLASS 1 PRODUCT COMPLIES WITH 21 CFR 1040.10 AND 1040.11. PRODUIT CONFORME SELON 21 CFR 1040.10 ET 1040.11.

Viewing Certifications

Go to http://www.zyxel.com to view this product’s documentation and certifications.

ZyXEL Limited Warranty

ZyXEL warrants to the original end user (purchaser) that this product is free from any defects in material or workmanship for a specific period (the Warranty Period) from the date of purchase. The Warranty Period varies by region. Check with your vendor and/or the

GS1910/XGS1910 Series User’s Guide 73

Appendix A Legal Information

authorized ZyXEL local distributor for details about the Warranty Period of this product. During the warranty period, and upon proof of purchase, should the product ha ve indicati ons of failure due to f aulty workma nship and/or materials, Z yXEL wil l, at its discret ion, repair or replace the defective products or components without charge for either parts or labor, and to whatever extent it shall deem necessary to restore the product or components to proper operating condition. Any replacement will consist of a new or re-manufactured functionally equivalent product of equal or higher value, and will be solely at the discretion of ZyXEL. This warranty shall not apply if the product has been modified, misused, tampered with, damaged by an act of God, or subjected to abnormal working conditions.

Note

Repair or replacement, as provided under this warranty, is the exclusive remedy of the purchaser. This warranty is in lieu of all other warranties, express or implied, including any implied warranty of merchantability or fitness for a particular use or purpose. ZyXEL shall in no event be held liable for indirect or consequential damages of any kind to the purchaser.

To obtain the services of this warranty, contact your vendor. You may also refer to the warranty policy for the region in which you bought the device at http://www.zyxel.com/web/support_warranty_info.php.

Registration

Register your product online to receive e-mail notices of firmware upgrades and information at www.zyxel.com for global products, or at www.us.zyxel.com for North American products.

Open Source Licenses

This product contains in part so me fre e soft wa re di strib ute d und er GPL li k e lice nses. Ope n sourc e lice nse s are pro vi ded with the firmware package. You can download the latest firmware at www.zyxel.com. To obtain the source code covered under those Licenses, please contact support@zyxel.com.tw to get it.

Safety Warnings

• Do NOT use this product near water, for example, in a wet basement or near a swimming pool.

• Do NOT expose your device to dampness, dust or corrosive liquids.

• Do NOT store things on the device.

• Do NOT install, use, or service this device during a thunderstorm. There is a remote risk of electric shock from lightning.

• Connect ONLY suitable accessories to the device.

• Do NOT open the device or unit. Opening or removing covers can expose you to dangerous high voltage points or other risks. ONLY qualified service personnel should service or disassemble this device. Please contact your vendor for further information.

• Make sure to connect the cables to the correct ports.

• Place connecting cables carefully so that no one will step on them or stumble over them.

• Always disconnect all cables from this device before servicing or disassembling.

• Use ONLY an appropriate power adaptor or cord for your device. Connect it to the right supply voltage (for example, 110V AC in North America or 230V AC in Europe).

• Do NOT allow anything to rest on the power adaptor or cord and do NOT place the product where anyone can walk on the power adaptor or cord.

• Do NOT use the device if the power adaptor or cord is damag ed as it might cause electrocution.

• If the power adaptor or cord is damaged, remove it from the device and the power source.

• Do NOT attempt to repair the power adaptor or cord. Contact your local vendor to order a new one.

• Do not use the device outside, and make sure all the connections are indoors. There is a remote risk of electric shock from lightning.

• Do NOT obstruct the device ventilation slots, as insufficient airflow may harm your device.

• The PoE (Power over Ethernet) devices that supply or receive power and their connected Ethernet cables must all be completely indoors.

• This product is for indoor use only (utilisation intérieure exclusivement).

Your product is marked with this symbol, which is known as the WEEE mark. WEEE stands for Waste Electronics and Electrical Equipment. It mean s that used elec tric al and el ectr oni c produ cts shoul d not be mix ed wi th general waste. Used electrical and electronic equipment should be treated separately.

GS1910/XGS1910 Series User’s Guide

Index

applications

bridging 5 IEEE 802.1Q VLAN 7 switched workgroup 6

basic setup tutorial 33 binding 45 binding table 45

building 45

certifications

notices 73

viewing 73 changing the password 32 console port

settings 20 copyright 73

Ethernet ports 17

default settings 17

FCC interference statement 73 front panel 15

getting help 32

hardware installation 11

mounting 12

hardware overview 15

DHCP snooping 45

trusted ports 46

untrusted ports 46 disclaimer 73 documentation

related 2

GS1910/XGS1910 Series User’s Guide 75

Installation

Rack-mounting 12

installation

freestanding 11

precautions 12 Internet Protocol version 6, see IPv6 introduction 5 IP source guard 45

DHCP snooping 45 IPv6 8

Neighbor Discovery Protocol 8

ping 8

Index

LEDs 22 lockout 32 login 25

password 32

managing the device

good habits 8 using SNMP. See SNMP. using the web configurator. See web configurator.

mini GBIC ports 18

connection speed 18 connector type 18 transceiver installation 18

transceiver removal 19 mounting brackets 12 MSA (MultiSource Agreement) 18

SNMP 8 status

LED 22

switch lockout 32

tagged VLAN 38 trademarks 73 transceiver

installation 18 removal 19

trusted ports

DHCP snooping 46

tutorials 33

DHCP snooping 45

ZyXEL Communications XGS1910, GS1910 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

1.1 Introduction

Getting to Know Your Switch

1.1.1 Bridging Example

1.1.2 High Performance Switching Example

1.1.3 Gigabit Ethernet to the Desktop

1.1.4 IEEE 802.1Q VLAN Application Example

1.1.5 IPv6 Support

1.2 Ways to Manage the Switch

1.3 Good Habits for Managing the Switch

2.1 Freestanding Installation

2.2 Mounting the Switch on a Rack

2.2.1 Rack-mounted Installation Requirements

2.2.2 Attaching the Mounting Brackets to the Switch

2.2.3 Mounting the Switch on a Rack

Hardware Overview

3.1 Front Panel Connections

3.1.1 Ethernet Ports

3.1.2 Dual Personality Interfaces

3.1.3 SFP/SFP+ Slots

3.1.4 Console Port

3.2 Rear Panel

3.2.1 Power Connector

3.3 LEDs

4.1 Introduction

The Web Configurator

4.2 System Login

4.3 The Web Configurator Layout

4.3.1 Change Your Password

4.4 Switch Lockout

4.5 Logging Out of the Web Configurator

4.6 Help

Tutorials

5.1 How to Change Switch Management IP Address

5.2 How to Configure Login Accounts and Privilege Levels

5.3 How to Manage a Configuration File

5.3.1 Backing up a Configuration File

5.3.2 Restoring a Configuration File

5.4 How to Create a VLAN

5.4.1 Setting Port VID

5.5 How to Set Up a Guest VLAN with IEEE 802.1x Authentication

5.5.1 Creating a VLAN for Port which is not IEEE 802.1x enabled

5.5.2 Enabling IEEE 802.1x Port Authentication and Guest VLAN

5.6 How to Use Private VLAN to Do Port Isolation in a VLAN

5.6.1 Creating a Private VLAN

5.6.2 Enabling Port Isolation

5.7 How to Use IP Source Guard and DHCP Snooping to Prevent Spoofed Traffic

5.8 How to Use DHCP Relay on the Switch

5.8.1 Creating a VLAN

5.8.2 Configuring DHCP Relay

5.8.3 Troubleshooting

5.9 How to Use Link Aggregation to Group Multiple Ports into One Logical Link

5.9.1 Static Port Trunking

5.9.2 Dynamic Port Trunking

5.10 How to Analyze Traffic Using Mirroring

5.10.1 Configuring Mirroring

5.10.2 Configuring Remote Port Mirroring

5.11 How to Use IGMP Snooping to Reduce Multicast Traffic Passing through your Switch

5.12 How to Configure Access Control List (ACL) for Packets Filtering

5.13 How to Reset the Switch via the Console Port

Troubleshooting

6.1 Power, Hardware Connections, and LEDs

6.2 Switch Access and Login

Legal Information

Index
