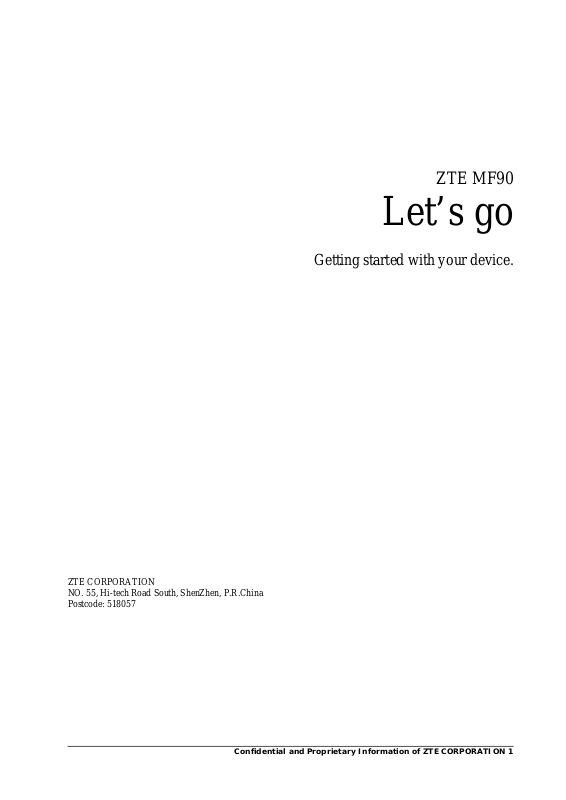

ZTE MF90

Let’s go

Getting started with your device.

ZTE CORPORATION
NO. 55, Hi-tech Road South, ShenZhen, P.R .C hi na
Postcode: 518057

Confidential and Proprietary Information of ZTE CORPORATION 1

ZTE MF90 Getting Started

LEGAL INFORMATION

Copyright © 2013 ZTE CORPORATION.

All rights reserved.

No part of this publication may be excerpted, reproduced, translated or utilized in any form or by any
means, electronic or mechanical, including photocopying and microfilm, without the prior written
permission of ZTE Corporation.

The manual is published by ZTE Corporation. We reserve the right to make modifications on print errors
or update specifications without prior notice.

Version No. : R1.0
Edition Time : 4.18.2013

NOTE:
Do not use the device in an enclosed environment or where heat dissipation is poor. Prolonged work in

such space may cause excessive heat and raise ambient temperature, which may lead to automatic
shutdown of the device for your safety. In the case of such event, cool the device in a well-ventilated
place before turning on for normal use.

2 Confidential and Proprietary Information of ZTE CORPORATION

ZTE MF90 Getting Started

Getting to Know Your Device

Appearance

The following figure is only for your reference. The actual product may be different.

1. LED Indicators

2. Power Button

3. WPS Button

4. External Antenna Connector

5. Micro USB Port

6. (U)SIM Card Slot

7. RESET Button

8. microSD Card Slot

NOTE: microSD logo

is a trademark of SD Card Association.

Indicators

Indicator Status Description

Red solid Error status. Not registered to the mobile

network, no (U)SIM card inserted or no
network service available.

Green solid Registered to the 2G/3G network.

Network

Green blinking Connected to the 2G/3G network and data is

Blue solid Registered to the 4G network.

being transferred.

Wi-Fi

Blue blinking Connected to the 4G network and data is being

transferred.

Blue solid WPS is active.

Blue blinking Wi-Fi is active.

Confidential and Proprietary Information of ZTE CORPORATION 3

LED light off Wi-Fi is off or your device is in sleep mode.

ZTE MF90 Getting Started

Battery

Red solid/ blinking The battery is low. Please charge the battery.

Green blinking The battery is being charged.

Green solid The battery level is middle or high.

LED light off Your device is in standby mode and not being

charged, or the battery is not inserted.

Connection Scenario

Your device supports two methods to connect to the Internet and supports multi-clients for
surfing on the Internet at the same time. The following figure is only for your reference.

 4G Mode: Use your (U)SIM card to access the Internet.

 Internet Wi-Fi Mode: Your device will connect to other WLAN device (hotspot device,

wireless router, etc.) via Wi-Fi to access the Internet. The WLAN device has already
connected to the Internet.

4 Confidential and Proprietary Information of ZTE CORPORATION

ZTE MF90 Getting Started

NOTE:

The subnets of your device and other WLAN device must be different.

Installing Your Device

1. Slide the back cover and remove it

2. Insert the (U)SIM card.

IMPORTANT: Your device does not support Micro/Nano or any other nonstandard SIM cards. To avoid
device damage, please do not use them.

3. Insert the microSD card if necessary.
