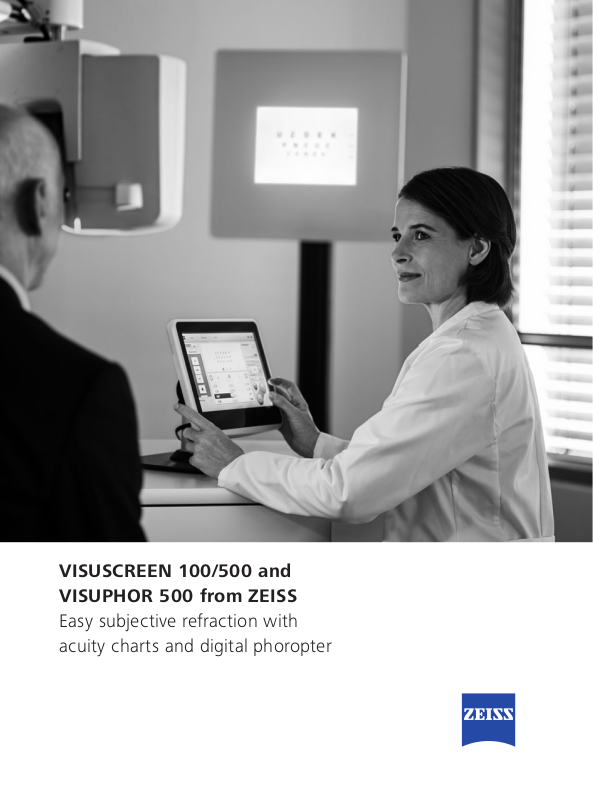

Page 1
VISUSCREEN 100/500 and
VISUPHOR 500 from ZEISS
Easy subjective refraction with
acuity charts and digital phoropter
Page 2
Confidently finding
the best correction
ZEISS modern vision testing at its best
Skillful determination of best-corrected visual
acuity can be time-consuming, requiring operator
experience and various fine adjustments. It is
well worth the effort when the result is perfect
vision correction, a superior viewing experience
and highly satisfied patients – as with the digital
phoropter VISUPHOR
systems VISUSCREEN 100 and VISUSCREEN 500
from ZEISS. Combining comfort and convenience
with speed and efficiency, they offer refraction
specialists a sophisticated, modular solution.
®
500 and the acuity chart
Made to assist your expertise
Simplicity best describes the handling experience
of the ZEISS subjective refraction system. Its clear,
uncluttered user interface puts the control elements
you need directly at the center of focus. The system
is operated via touch screen, both with an optional
medical grade panel PC or an iPad. Thanks to its
WLAN capabilities, cables are kept to a minimum,
allowing you to completely concentrate on the
refraction procedure.
• Select patients from a daily worklist or simply
start the refraction
• Upload presets from ZEISS autorefractors and
lensmeters or access input from a patient
database
• Choose from a wide range of optotypes and
preconfigure your favorite test workflow
Page 3
Highlights at a glance
Key benefits for you
Silent operation
Fast and smooth lens exchanges support efficient
vision optimization and final prescription in real time.
Simple touch screen control
The clearly structured user interface makes working
with the ZEISS VISUSCREEN/VISUPHOR very easy.
With the fully integrated GUI, both the phoropter
and acuity screen can be controlled as one subjective
refraction unit. Even single-handedly, with the
optional, medical grade panel PC or an iPad.
Smart workflow
The ZEISS VISUPHOR 500 enables preconfigured
workflows. Thereby, settings for each test are
op timally adjusted, fully automatically, making
standard refraction tests simple and fast. Settings
and workflows can also be individually configured
in the freestyle mode.
Choice of acuity chart systems
The ZEISS VISUPHOR 500 digital phoropter is an
accessory for the ZEISS VISUSCREEN 100/500 LCD
acuity chart system. It is available either with red/
green separation or with the renowned Polatest
®
technology from ZEISS. The acuity chart system
features over 20 tests for accurately assessing
monocular and binocular vision, and can also be
operated as stand-alone device if you prefer to
work with a trial lens set or a manual phoropter.
• Flexible: Subjective refraction systems from ZEISS
are modular and expandable to suit your needs.
• Simple: Acuity charts and phoropter allow easy,
intuitive operation via touch-screen interface.
• Efficient: Preconfigured workflows let you get right
to work, saving you time preparing refraction tests.
• Connected: You can upload presets from the
autorefractor VISUREF
lensmeter VISULENS
®
100 and the digital
®
500 from ZEISS; or directly
connect to selected data management systems
such as FORUM
®
from ZEISS.
Headrest control
Patient contact with the headrest is continuously
monitored and displayed on the screen.
Page 4
Specifications and technical data
VISUSCREEN 100/500 and VISUPHOR 500
from ZEISS
VISUSCREEN 100/500
Test area size (W x H) 299.5 x 223.5 mm
Testing distance 1 to 8 m
Polarization directions
for analyzers*
VISUPHOR 500
Spherical lenses –19.00 to +16.75 D (increments: 0.12 / 0.25 D)
Cylinder lenses 0 to ± 8.75 D
Cylinder axis 0 to 180° (increments: 1° steps)
PD 48 to 80 mm
Rotary prism 0 to 20 ∆
Retinoscopy +1.5 D, +2.0 D
Pin hole lens 2 mm
Maddox rod Right eye: red, horizontal / left eye: red, vertical
Red/green filter Right eye: red / left eye: green
Polarizing filter Right eye: 135°, 45° / left eye: 45°, 135°
Split prism Right eye: 6 ∆ BU
Physical data VISUSCREEN 100/500 VISUPHOR 500
Line voltage 100 – 240 V AC
Power consumption 50 VA 145 VA
Dimensions (W x H x D) 594 x 594 x 110 mm 361 x 280 x 108 mm
Weight 16 kg 5 kg
Interfaces 1x USB / WLAN 2x RS232 / Bluetooth
System requirements iPad 3, 4 or Air
Right eye: 45° / left eye: 135°
Left eye: 10 ∆ BI (up to 5 ∆ complement)
100 – 120 / 200 – 240 V AC
± 10%, 50…60 Hz
with iOS 7 or later
± 10%, 50…60 Hz
iPad 3, 4 or Air
with iOS 7 or later
ZEISS VISUSCREEN 100/500 −
advanced LCD acuity chart systems
for fast, accurate monocular and
binocular vision assessment
ZEISS VISUPHOR 500 −
a digital phoropter that streamlines
examination workflows and also con-
tributes to the positive professional
image of your eye care facility
*Only valid for VISUSCREEN 500
VISUPHOR 500 VISUSCREEN 100
VISUSCREEN 500
Carl Zeiss Meditec AG
Goeschwitzer Strasse 51–52
07745 Jena
Germany
www.zeiss.com/visuphor500
www.zeiss.com/med/contacts
Carl Zeiss Vision GmbH
Turnstrasse 27
73430 Aalen
Germany
www.zeiss.com/vision
EN_33_022_0011III Printed in Germany. CZ-XI/2016 International edition: only for sale in selected countries.
The contents of the brochure may differ from the current status of approval of the product or service offering in your country. Please contact our regional representatives for more information. Subject to changes in design and scope
of delivery and due to ongoing technical development. VISUPHOR, VISUREF, VISULENS, Polatest and FORUM are either trademarks or registered trademarks of Carl Zeiss Meditec AG or other companies of the ZEISS Group in Germany
and/or other countries. iPad and iPad Air are trademarks of Apple Inc., registered in the U.S. and other countries. iOS is a trademark of Cisco Technology Inc., registered in the U.S. and other countries.
© Carl Zeiss Meditec AG, 2016. All rights reserved.
