Zebra ET56BE-W12E Product Data Sheet

PRODUCT SPEC SHEET

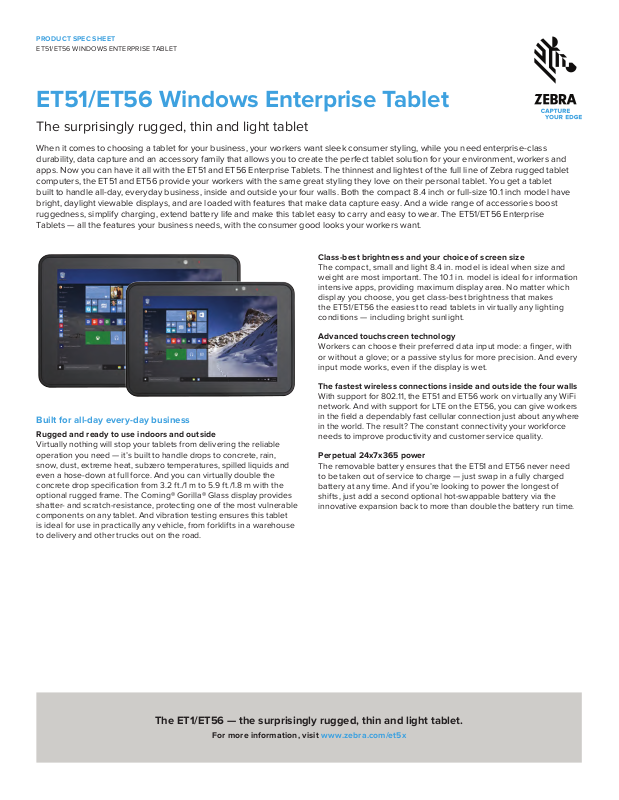

ET51/ET56 WINDOWS ENTERPRISE TABLET

ET51/ET56 Windows Enterprise Tablet

The surprisingly rugged, thin and light tablet

When it comes to choosing a tablet for your business, your workers want sleek consumer styling, while you need enterprise-class
durability, data capture and an accessory family that allows you to create the perfect tablet solution for your environment, workers and
apps. Now you can have it all with the ET51 and ET56 Enterprise Tablets. The thinnest and lightest of the full line of Zebra rugged tablet
computers, the ET51 and ET56 provide your workers with the same great styling they love on their personal tablet. You get a tablet
built to handle all-day, everyday business, inside and outside your four walls. Both the compact 8.4 inch or full-size 10.1 inch model have
bright, daylight viewable displays, and are loaded with features that make data capture easy. And a wide range of accessories boost
ruggedness, simplify charging, extend batter y life and make this tablet easy to carry and easy to wear. The ET51/ET56 Enterprise
Tablets — all the features your business needs, with the consumer good looks your workers want.

Class-best brightness and your choice of screen size

The compact, small and light 8.4 in. model is ideal when size and
weight are most important. The 10.1 in. model is ideal for information
intensive apps, providing maximum display area. No matter which
display you choose, you get class-best brightness that makes
the ET51/ET56 the easiest to read tablets in virtually any lighting
conditions — including bright sunlight.

Built for all-day every-day business

Rugged and ready to use indoors and outside

Virtually nothing will stop your tablets from delivering the reliable
operation you need — it’s built to handle drops to concrete, rain,
snow, dust, extreme heat, subzero temperatures, spilled liquids and
even a hose-down at full force. And you can virtually double the
concrete drop specification from 3.2 ft./1 m to 5.9 ft./1.8 m with the
optional rugged frame. The Corning® Gorilla® Glass display provides
shatter- and scratch-resistance, protecting one of the most vulnerable
components on any tablet. And vibration testing ensures this tablet
is ideal for use in practically any vehicle, from forklifts in a warehouse
to delivery and other trucks out on the road.

Advanced touchscreen technology

Workers can choose their preferred data input mode: a finger, with
or without a glove; or a passive stylus for more precision. And every
input mode works, even if the display is wet.

The fastest wireless connections inside and outside the four walls

With support for 802.11, the ET51 and ET56 work on virtually any WiFi
network. And with support for LTE on the ET56, you can give workers
in the field a dependably fast cellular connection just about anywhere
in the world. The result? The constant connectivity your workforce
needs to improve productivity and customer ser vice quality.

Perpetual 24x7x365 power

The removable battery ensures that the ET51 and ET56 never need
to be taken out of service to charge — just swap in a fully charged
battery at any time. And if you’re looking to power the longest of
shifts, just add a second optional hot-swappable battery via the
innovative expansion back to more than double the battery run time.

The ET1/ET56 — the surprisingly rugged, thin and light tablet.

For more information, visit www.zebra.com/et5x

PRODUCT SPEC SHEET

ET51/ET56 WINDOWS ENTERPRISE TABLET

The power to run the most demanding apps

The fast ultra-low power processor combines with plenty of memory,
allowing workers to run multiple apps simultaneously. And the processor
minimizes power consumption, extending useful battery life.

Advanced data capture

Advanced enterprise-class scanning

Add the Zebra enterprise-class SE4710 scan engine for light scanning
or SE4750 scan engine for moderate to heavy scanning via the easy
to install and easy to use expansion pack. Or pick any Zebra Bluetooth
scanner to pair with your tablet. And for occasional imaging, just
use the integrated 8MP rear-facing color camera.* No matter which
scanning option you choose, you can count on superior scanning
performance. Our scanners oer PRZM Intelligent Imaging and the
advanced algorithms that Zebra is famous for, providing your workers
with first-time every-time fast capture of virtually any 1D or 2D barcode
in any condition — damaged, dirty or poorly printed.

Video calls for on-the-spot help

The integrated 2MP front camera enables video calling over the WiFi
or cellular network, allowing your workers to get instant help from a
remote expert, co-worker or supervisor.

Customize your tablet solution with an unmatched
accessory family

The most charging options

Charging solutions that mount on a wall or sit on a desktop enable
charging anywhere in your facility. The unique ShareCradle provides
space- and cost-eciencies in the backroom by providing a common

base to charge all your Zebra mobile computers and tablets — just
insert the right cups for your devices in the charge bays. Charge
the tablets in cars, trucks, forklifts and more with third-party vehicle
cradles for cars and vehicle mounts. And docking station charging
solutions available for either the standalone tablet or the tablet inside
the rugged frame oer three USB ports, Ethernet and HDMI, providing
all the connectivity you need to use the ET51/ET56 as a desktop
solution and more.

Innovative Expansion Back to add new features

Simply replace the standard battery back with one of three Expansion
Backs to add a rotating handstrap, or the SE4710 or SE4750 enterprise
scan engine with a rotating handstrap. And the optional hot swappable
battery can be added to any Expansion Back for around-the-clock power.

Flexible ‘wearability’

One flexible case provides your workers with three ‘wearable’ options: in
a holster on a belt, in an over-the-shoulder strap or a cross-body strap.

Unsurpassed service

Extraordinary ‘cover everything’ service

Zebra OneCare sets the industry standard for repair services, keeping
your ET51 and ET56 tablets up, running at peak performance — and
in like new condition. Choose the level of service that fits your needs
and your budget. And no matter which level you choose, you get
comprehensive coverage that literally covers everything — normal wear
and tear and accidental damage. And since nobody knows our products
better than we do, you get unparalleled from-the-manufacturer expertise.

PRODUCT SPEC SHEET

ET51/ET56 WINDOWS ENTERPRISE TABLET

ET51/ET56 Enterprise Tablet

Physical Characteristics

Dimensions 8.4 in. tablet: 9 in. W x 5.9 in. H x 0.5 in. D/

228 mm W x 150 mm H x 12.7 mm D

10.1 in. tablet: 10.6 in. W x 7.1 in. H x 0.5 in. D/
269 mm W x 181 mm H x 12.7 mm D

Weight 8.4 in.: 1.26 lbs. /570 g; 10.1 in.: 1.69 lbs./ 765 g

Display 8.4 in.: 21.3 cm; 720 nits

10.1 in.: 25.7 cm; 540 nits
Supports up to 2560x 1600;
Corning Gorilla Glass; daylight viewable

Touch Panel Capacitive 10 point multi-touch

Keyboard Options Virtual; Bluetooth®; USB

Expansion Integrated connector to easily add accessories

Connectivity Docking connector: USB-C; rugged connec tor for

use with rugged dock
Interfaces

Notification LED flash; barcode decode;** camera LED indicator

Audio Stereo speakers and dual front-facing microphones

Performance Characteristics

CPU Intel Atom E3940 quad core 1.6 GHz (Turbo

Frequency = 1.8 GHz) Frequenc y supports 64 bit OS

Operating System Windows 10 IoT Enterprise

Memory 4GB LPDDR4 RAM; 64GB eMMC Flash; User

accessible micro SDXC card slot (standard
supports up to 2TB)

User Environment

Operating Temp. -4° F to 122° F/-20° C to 50° C

Storage Temp. -4° F to 140 ° F/-20° C to 60° C

Drop Specification Standard: 3.28 f t./1 m to concrete

per MIL-STD-810G
With optional rugged frame: 5.9 ft./1.8 m
to concrete per MIL-STD-810G

Sealing IP65

Vibration Random: 0.02²/Hz, 20Hz to 2khz 4 g RMS 1 hour

per axis

Humidity 5% to 95% non-condensing

Power

Battery User Profile Ample power for a full shift; continuous operation is

enabled with the secondary optional bat tery

Battery 8.4 in.: 3300 mAh 7.6V rechargeable Li-Ion; user

replaceable (25 Whr)

10.1 in.: 4950 mAh 7.7V rechargeable Li-Ion; user
replaceable (38 Whr)
Optional hot swappable 7.2V @ 3400mAh (24.4Whr)
secondary batter y (equivalent to 3.6V @ 6800mAh)

Data Capture

Scanning Available through the expansion back accessory:

SE4750 or SE4710 integrated advanced imagers
with hardware decoding

Rear Camera Image capture: 8MP auto-focus camera with user

controllable LED flash, illumination and aiming;
photographs, video, signatures and documents

Data Capture (continued)

Front Camera 2MP 1080p full HD optimized for video

Video 1080p (Full HD, 1920 x 1080), Frame rate = 30fps

Wireless Communications

WiFi (WLAN) 802.11 a/b/g/n /ac/r/k/ v; dual band 2x 2 MIMO for

Cellular (WWAN)
(ET56 only)

Bluetooth (WPAN) Class 1, Bluetooth v4.2 (Bluetooth LE)

GPS GNSS supports GPS, Galileo and Glonass with LTO

NFC P2P: ISO 18092; Reader/ Writer: ISO 14443 –A-B,

Sensors

Gyroscope Maintains orientation based on principles of

Motion Sensor 3-axis accelerometer that enables motion sensing

Ambient Light Sensor Automatically adjusts display brightness, keypad

Electronic Compass Independent — does not depend on GNSS

Peripherals and Accessories

Accessories include: ShareCradles (4-slot); docking stations; vehicle mount
cradle (third party); single slot charge cradle; 4-slot optional battery charger;
rugged frames; expansion back to easily add accessories (scanner/hand s trap
and optional battery bay or hand strap); passive stylus; hols ter; shoulder
strap; charging cables and more

Regulatory

For Regulatory information, please visit www.zebra.com/et5X

Warranty

Subject to the terms of Zebra’s hardware warranty statement, the ET51/
ET56 Enterprise Tablets are warranted against defects in workmanship and
materials for a period of 1 (one) year from the date of shipment. For complete
warranty statement , go to: http://www.zebra.com/warranty

Recommended Services

Zebra OneCare Select and Essential Support Services (www.zebra.com/

zebraonecare) maximize the availability and produc tivity of your devices.

Features include 24/7 technical support, device diagnostics, comprehensive
coverage, advance replacement and sof tware updates. Optional V isibility
Services are available.

Footnotes

* The integrated 8MP color camera does not oer PRZM, Zebra’s advanced

** Decode available when equipped with optional barcode scanner back.

collaboration and low lighting conditions

transmit and receive

Global LTE
North America: AT&T LTE
Verizon LTE

technology for Assisted-GPS without sacrificing
autonomous operation

MIFARE, FeliCa®, ISO 15693, NFC Forum Tag Types
1 to 4; Card emulation: ISO 14443 –A-B-B’, MIFARE,
FeliCa RF

conservation of angular momentum

applications for dynamic screen orientation and
power management

and display backlight

scanning algorithms or Intelligent Document Capture. Those options are
only available on Zebra scanners that are integrated via the expansion
pack and Zebra’s Bluetooth scanners, such as the RS6000 ring scanner,
the CS4070 pocketable companion scanner and Bluetooth handheld
scanners.

Markets and
Applications

Field Service

• Mobile dispatch

• Work order
management

• Asset tracking

• Maintenance/
inspection

• Meter reading

Field Sales

• Route accounting/
DSD

• Customer relations

• Pre-sales/order
management

• Merchandising/
survey

• Mobile payment

Transportation
and Logistics

• PoD/DSD sign o

• Yard and warehouse
management

• Routing/scheduling

• Cargo/container
tracking

• Fleet maintenance

• Asset management

Retail

• Inventory
management

• Assisted selling

• Price verification

• Mobile Point-of-Sale

• Line busting

Warehouse and
Distribution

• Warehouse and yard
management

• Returns processing

• EDI transactions

Manufacturing

• Inventory
management

• Supply-line
replenishment

• Safety testing

• Maintenance/repair

• Compliance
verification

• Receiving/put away/
shipping

PRODUCT SPEC SHEET

ET51/ET56 WINDOWS ENTERPRISE TABLET

NA and Corporate Headquarters

[phone]
[e-mail]

©2019 ZI H Corp and/or i ts aff iliates. Al l rights res erved. ZE BRA and th e stylized Ze bra head are t rademark s of ZIH Corp, re gistered in m any jurisdi ctions
worldwide. All other trademarks are the property of their respective owners. Part number: SS-ET51-56 03/13/2019

Asia-Pacific Headquarters

[phone]
[e-mail]

EMEA Headquarters

zebra.com/locations
[e-mail]

Latin America Headquarters

[phone]
[e-mail]
