Zebra ET56 integrator Guide

Download

ET51/56

Enterprise Tablet

Integrator Guide

for Android ™ 8.1.0 Oreo

MN-003458-08EN Rev. A

Copyright

ZEBRA and the stylized Zebra head are trademarks of Zebra Technologies Corporation, registered in many jurisdictions worldwide. Google, Android, Google Play and other marks are trademarks of Google LLC; Oreo is a trademark of Mondelez International, Inc. group. All other trademarks are the property of their respective owners. ©2021 Zebra Technologies Corporation and/or its affiliates. All rights reserved.

COPYRIGHTS & TRADEMARKS: For complete copyright and trademark information, go to

zebra.com/copyright

WARRANTY: For complete warranty information, go to zebra.com/warranty

END USER LICENSE AGREEMENT: For complete EULA information, go to zebra.com/eula

Terms of Use

• Proprietary Statement

This manual contains proprietary information of Zebra Technologies Corporation and its subsidiaries (“Zebra Technologies”). It is intended solely for the information and use of parties operating and maintaining the equipment described herein. Such proprietary information may not be used, reproduced, or disclosed to any other parties for any other purpose without the express, written permission of Zebra Technologies.

• Product Improvements

Continuous improvement of products is a policy of Zebra Technologies. All specifications and designs are subject to change without notice.

• Liability Disclaimer

Zebra Technologies takes steps to ensure that its published Engineering specifications and manuals are correct; however, errors do occur. Zebra Technologies reserves the right to correct any such errors and disclaims liability resulting therefrom.

• Limitation of Liability

In no event shall Zebra Technologies or anyone else involved in the creation, production, or delivery of the accompanying product (including hardware and software) be liable for any damages whatsoever (including, without limitation, consequential damages including loss of business profits, business interruption, or loss of business information) arising out of the use of, the results of use of, or inability to use such product, even if Zebra Technologies has been advised of the possibility of such damages. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

Revision History

Changes to the original guide are listed below:

Change Date Description

-01 Rev A 7/2019 Initial release

-02 Rev A 11/2019 Update accessory list, cradle drawings, and charging with Power Pack

-03 Rev. A 1/2020 Add support for ET51 Enterprise Tablet with Integrated Scanner configuration.

-04EN Rev. A 5/2020 Add support for USB-C charging.

-05EN Rev. A 3/2021 Change charging LED from orange to blinking amber. Remove USB-C

instructions.

Charging.

Change Date Description

-06EN Rev. A 10/4/21 Update GMS Restricted section on page 126. Add tall insert to Charge Only Cradle on page 24.

-07EN Rev. A 12/2021 Remove beep alert note on page 44.

-08EN Rev. A 9/2022 Update cradle support for ET5x with Integrated Scanner on page 103.

Copyright .............................................................................................................................. 2

Terms of Use ........................................................................................................................ 2

Revision History .................................................................................................................... 2

Table of Contents ................................................................................................................................... 4

About This Guide ................................................................................................................................. 10

Introduction ......................................................................................................................... 10

Configurations .................................................................................................................... 10

Software Versions .............................................................................................................. 11

Chapter Descriptions .......................................................................................................... 11

Notational Conventions ...................................................................................................... 11

Related Documents and Software ...................................................................................... 12

Service Information ............................................................................................................. 12

Provide Documentation Feedback ..................................................................................... 12

Getting Started ..................................................................................................................................... 13

Introduction ......................................................................................................................... 13

Unpacking ........................................................................................................................... 13

Getting Started ................................................................................................................... 13

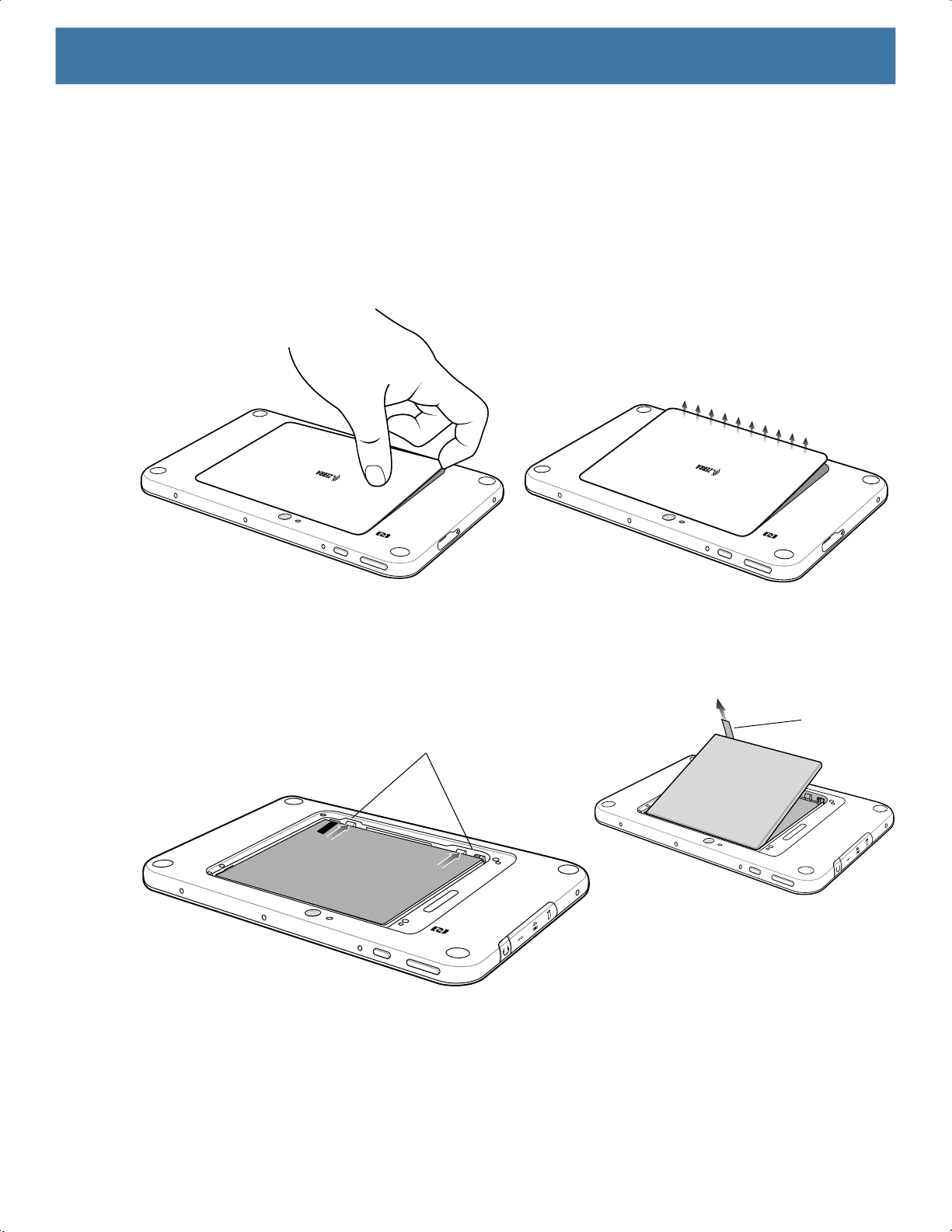

Installing a microSD Card ............................................................................................. 14

Install the microSD Card .......................................................................................... 15

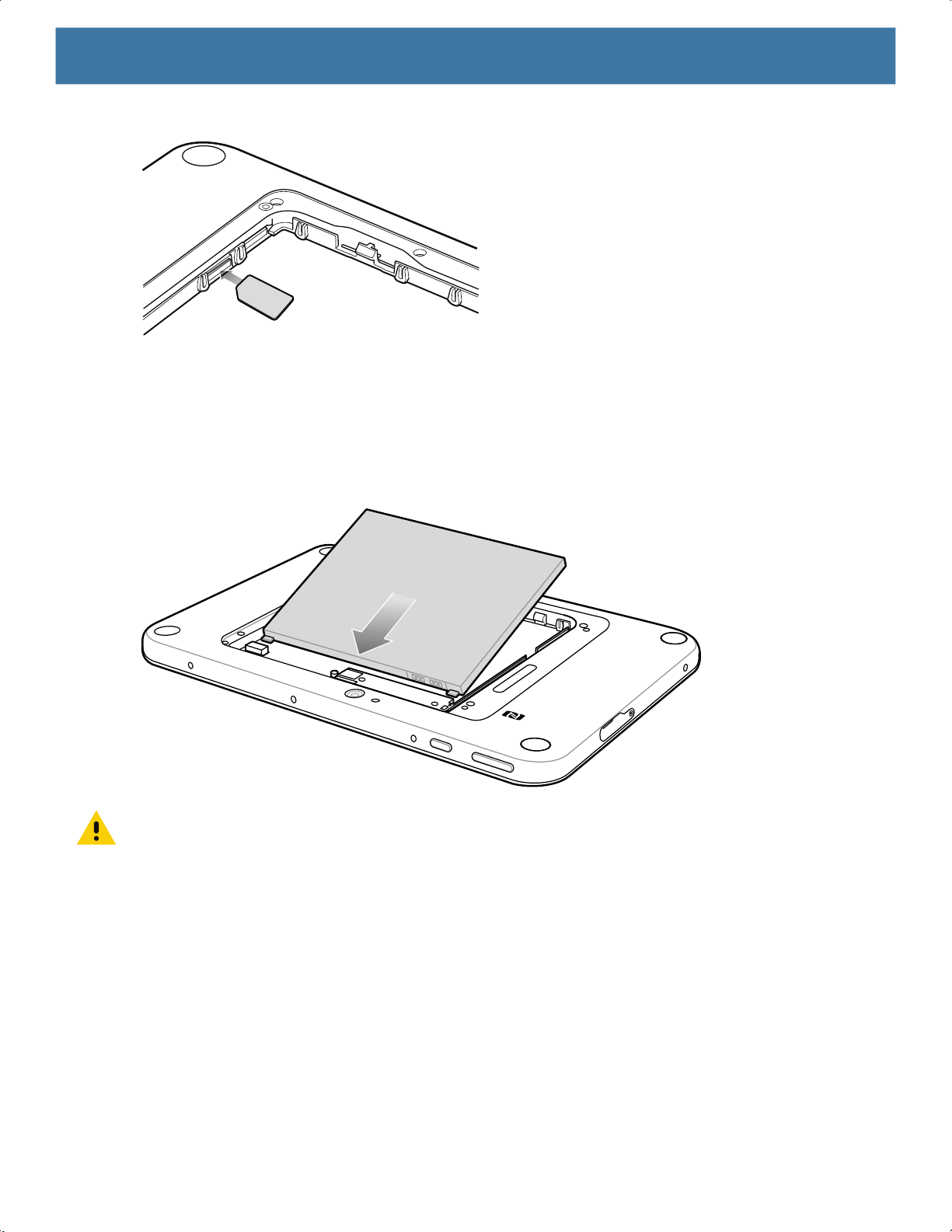

Install the nano SIM Card ........................................................................................ 15

Charging the Battery ..................................................................................................... 18

Resetting the Device .......................................................................................................... 18

Performing a Soft Reset ................................................................................................ 18

Performing a Hard Reset .............................................................................................. 18

Turning Off the Tablet ......................................................................................................... 19

Accessories ..........................................................................................................................................20

Introduction ......................................................................................................................... 20

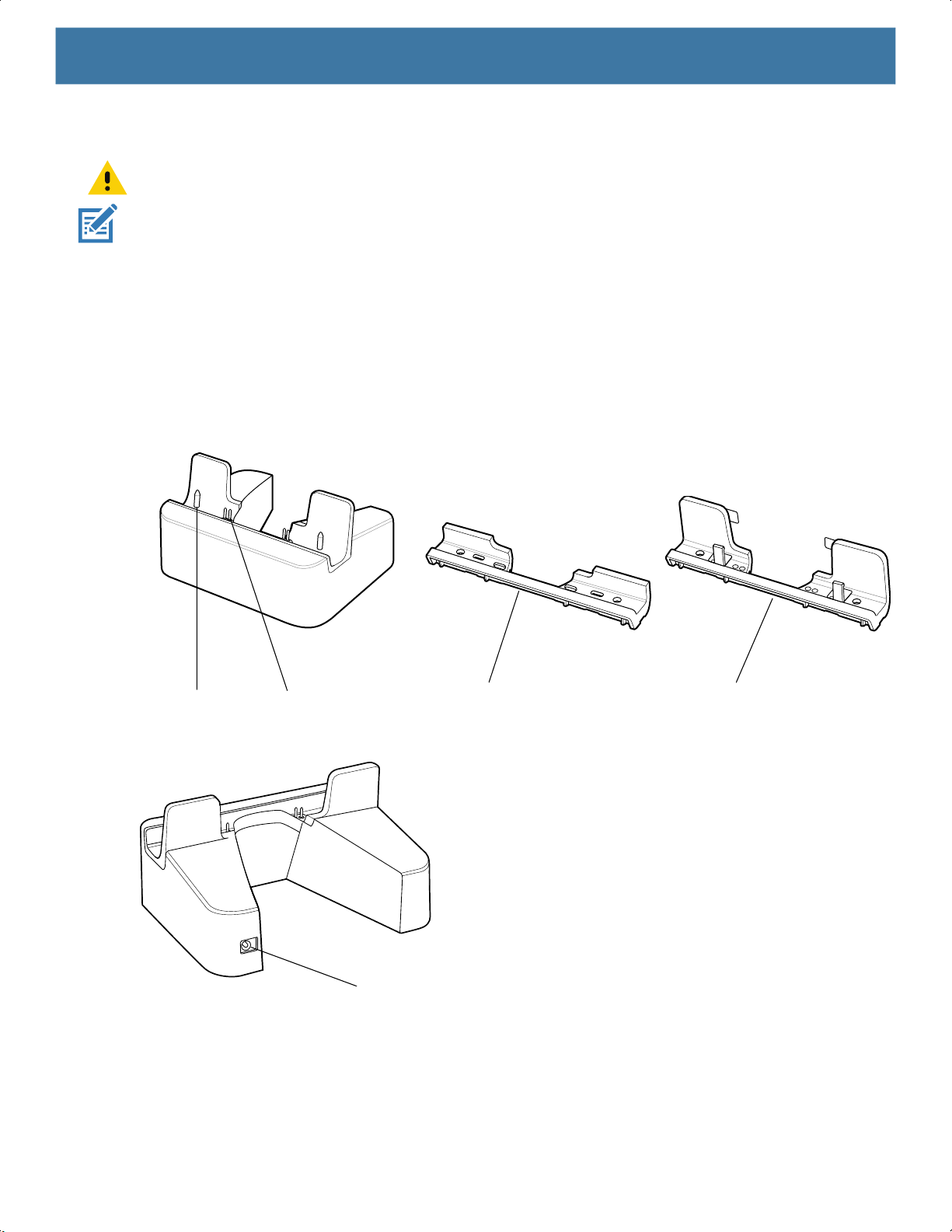

Charge Only Cradle ............................................................................................................ 23

Installing the Short Insert .............................................................................................. 23

Table of Contents

Installing the Tall Insert ................................................................................................. 24

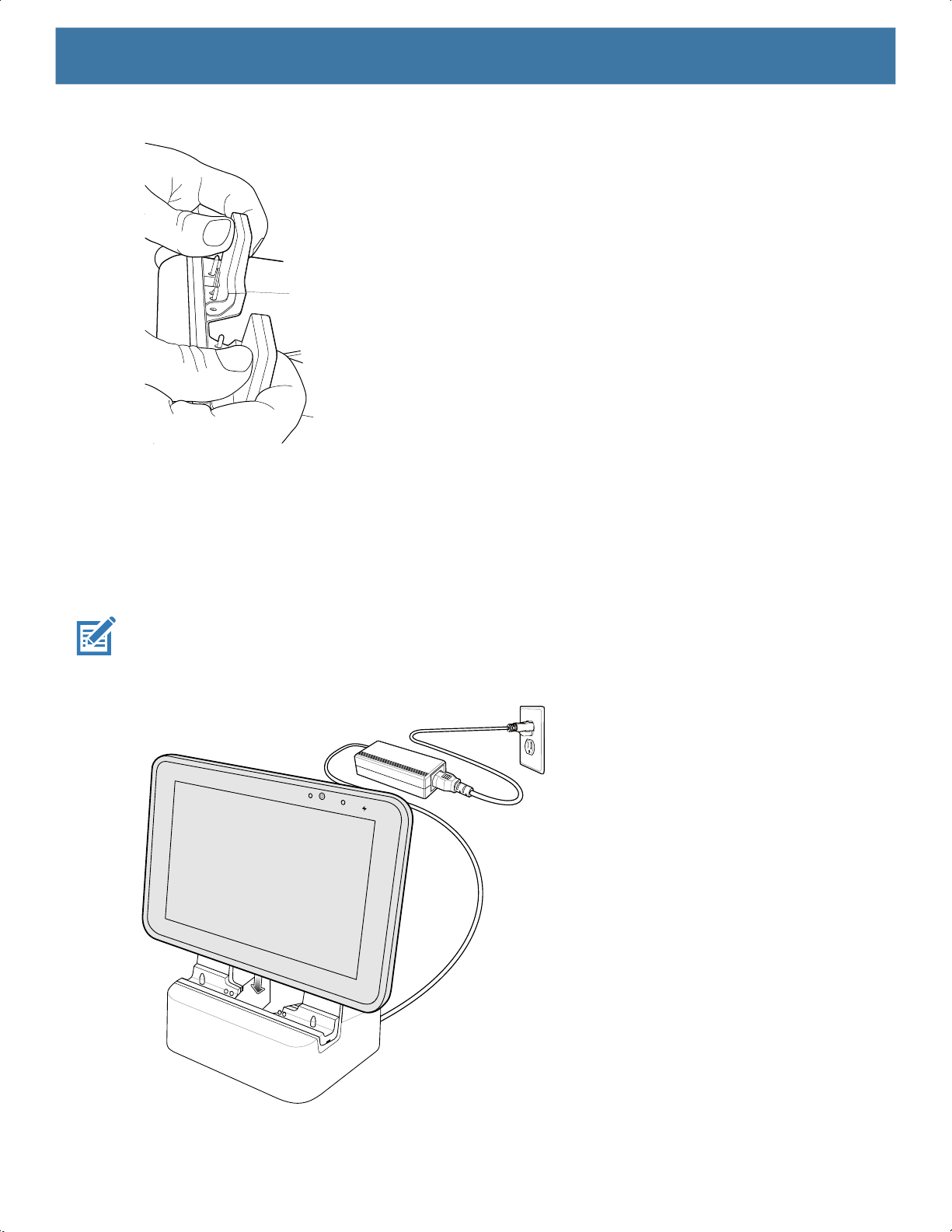

Charging the Device ...................................................................................................... 25

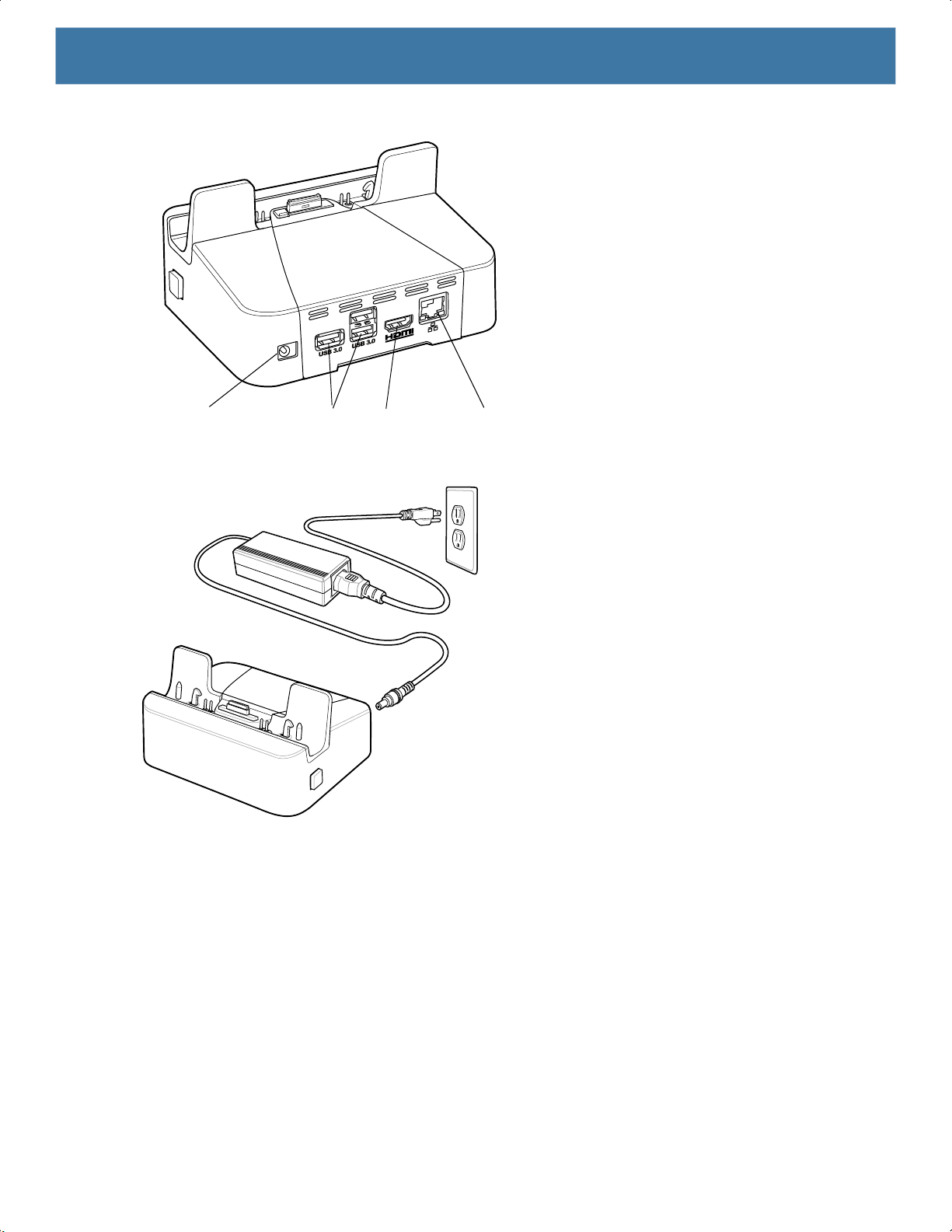

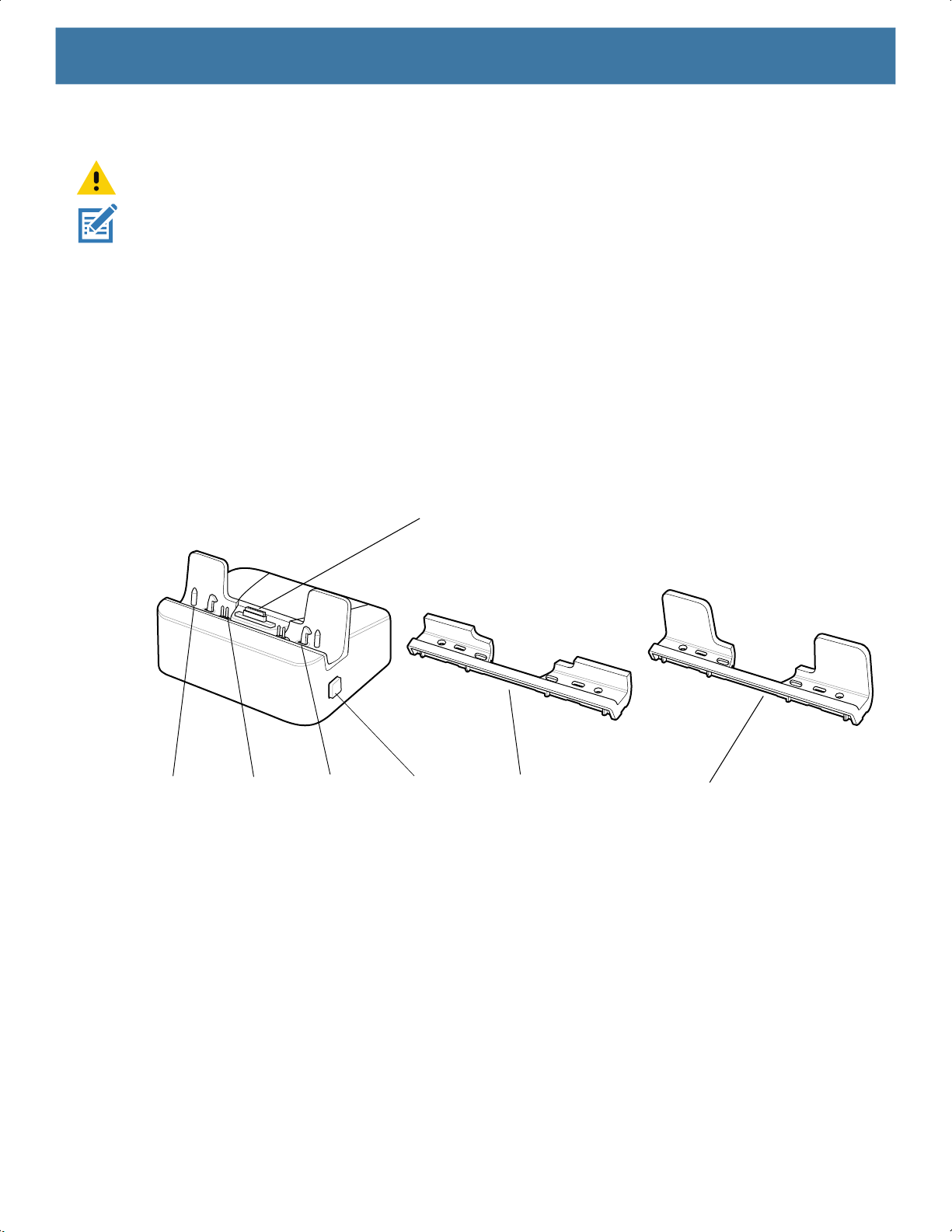

Communication and Charging Cradle ................................................................................ 27

Installing the Insert ........................................................................................................ 28

Charging the Device ...................................................................................................... 29

Rugged Communication and Charging Cradle ................................................................... 31

Charging the Device ...................................................................................................... 32

4-Slot Charge Only Cradle ................................................................................................. 35

Insert Installation ........................................................................................................... 35

Guide Installation .......................................................................................................... 36

Battery Charger Installation ........................................................................................... 37

Power Setup .................................................................................................................. 39

Insert Tablet into Slot .................................................................................................... 39

Device without Rugged Frame ................................................................................ 39

Device with Rugged Frame ..................................................................................... 40

Charging the Battery ..................................................................................................... 41

Rugged Charge Connector ................................................................................................. 42

Power Pack ........................................................................................................................ 44

Charging the Power Pack ............................................................................................. 45

Using Cradle ............................................................................................................ 45

Using the 4-Slot Battery Charger ............................................................................. 45

Charging the Power Pack ............................................................................................. 45

Rugged Frame .................................................................................................................... 47

Expansion Back .................................................................................................................. 49

Installation ..................................................................................................................... 49

Replacement Hand Strap .............................................................................................. 52

Attaching the Stylus to the Expansion Back .................................................................. 55

Removal ........................................................................................................................ 56

ET51 with Integrated Scanner Hand Strap ......................................................................... 59

Removing the Hand Strap ............................................................................................. 59

Installing the Hand Strap on the Back of the Device ..................................................... 59

Installing the Hand Strap on the Side of the Device ...................................................... 61

USB Communication ........................................................................................................................... 63

Introduction ......................................................................................................................... 63

Connecting to a Host Computer via USB ........................................................................... 63

Transferring Files .......................................................................................................... 63

Transferring Files using Photo Transfer Protocol .......................................................... 64

Disconnecting from a Host Computer ................................................................................. 64

DataWedge ........................................................................................................................................... 65

DataWedge ......................................................................................................................... 65

Profiles ................................................................................................................................ 65

Profile0 .......................................................................................................................... 65

Plug-ins ............................................................................................................................... 66

Input Plug-ins ................................................................................................................ 66

Table of Contents

Process Plug-ins ........................................................................................................... 66

Output Plug-ins ............................................................................................................. 66

Profiles Screen ................................................................................................................... 67

Profile Context Menu ..................................................................................................... 68

Options Menu ................................................................................................................ 68

Disabling DataWedge ................................................................................................... 68

Creating a New Profile ........................................................................................................ 68

Profile Configuration ........................................................................................................... 69

Associating Applications ............................................................................................... 70

Data Capture Plus ......................................................................................................... 72

Barcode Input ................................................................................................................ 75

Enabled .................................................................................................................... 75

Scanner Selection .................................................................................................... 75

Auto Switch to Default on Event .............................................................................. 76

Configure Scanner Settings ..................................................................................... 76

Decoders ................................................................................................................. 76

Decoder Params ...................................................................................................... 78

UPC EAN Params ................................................................................................... 84

Reader Params ........................................................................................................ 86

Scan Params ........................................................................................................... 89

UDI Params ............................................................................................................. 90

Multibarcode params ............................................................................................... 90

Keep enabled on suspend ....................................................................................... 90

Voice Input .................................................................................................................... 90

Keystroke Output .......................................................................................................... 91

Intent Output ................................................................................................................. 92

Intent Overview ........................................................................................................ 93

Usage ...................................................................................................................... 94

Using IP Output with IPWedge ...................................................................................... 94

Using IP Output without IPWedge ........................................................................... 95

Generating Advanced Data Formatting Rules ......................................................... 97

Configuring ADF Plug-in ............................................................................................... 97

Creating a Rule ............................................................................................................. 98

Defining a Rule ........................................................................................................ 98

Defining an Action .................................................................................................... 98

Deleting a Rule ........................................................................................................ 99

Order Rules List ....................................................................................................... 99

Deleting an Action .................................................................................................. 100

ADF Example ......................................................................................................... 100

DataWedge Settings ......................................................................................................... 104

Importing a Configuration File ..................................................................................... 105

Exporting a Configuration File ..................................................................................... 105

Importing a Profile File ................................................................................................ 105

Exporting a Profile ....................................................................................................... 105

Restoring DataWedge ................................................................................................. 106

Reporting ..................................................................................................................... 106

Configuration and Profile File Management ..................................................................... 106

Table of Contents

Enterprise Folder ......................................................................................................... 106

Auto Import .................................................................................................................. 107

Programming Notes .................................................................................................... 107

Overriding Trigger Key in an Application ..................................................................... 107

Capture Data and Taking a Photo in the Same Application ........................................ 107

Disabling DataWedge ................................................................................................. 107

Soft Scan Trigger ........................................................................................................ 108

Function Prototype ................................................................................................. 108

Scanner Input Plugin ................................................................................................... 108

Parameters ............................................................................................................ 108

Function Prototype ................................................................................................. 108

Parameters ............................................................................................................ 108

Return Values ........................................................................................................ 109

Example ................................................................................................................. 109

Comments ............................................................................................................. 109

Enumerate Scanners .................................................................................................. 109

Function Prototype ................................................................................................. 110

Parameters ............................................................................................................ 110

Return Values ........................................................................................................ 110

Example ................................................................................................................. 111

Comments ............................................................................................................. 111

Set Default Profile ....................................................................................................... 112

Default Profile Recap ............................................................................................. 112

Usage Scenario ..................................................................................................... 112

Function Prototype ................................................................................................. 112

Parameters ............................................................................................................ 112

Return Values ........................................................................................................ 112

Example ................................................................................................................. 113

Comments ............................................................................................................. 113

Reset Default Profile ................................................................................................... 113

Function Prototype ................................................................................................. 114

Parameters ............................................................................................................ 114

Return Values ........................................................................................................ 114

Example ................................................................................................................. 114

Comments ............................................................................................................. 114

Switch To Profile ......................................................................................................... 115

Profiles Recap ....................................................................................................... 115

Usage Scenario ..................................................................................................... 115

Function Prototype ................................................................................................. 115

Parameters ............................................................................................................ 115

Return Values ........................................................................................................ 116

Example ................................................................................................................. 116

Comments ............................................................................................................. 116

Notes ..................................................................................................................... 117

Settings ...............................................................................................................................................118

Table of Contents

Setting Screen Lock ......................................................................................................... 118

Setting Screen Lock Using PIN ................................................................................... 118

Setting Screen Unlock Using Password ...................................................................... 119

Setting Screen Unlock Using Pattern .......................................................................... 120

Showing Passwords .................................................................................................... 121

Accounts ........................................................................................................................... 121

Language Usage .............................................................................................................. 122

Changing the Language Setting .................................................................................. 122

Adding Words to the Dictionary ................................................................................... 122

Keyboard Settings ....................................................................................................... 122

About Tablet ..................................................................................................................... 122

Application Deployment .................................................................................................................... 124

Security ............................................................................................................................. 124

Secure Certificates ........................................................................................................... 124

Installing a Secure Certificate ........................................................................................... 124

Development Tools ........................................................................................................... 125

Android Application Development ............................................................................... 125

Development Workstation ...................................................................................... 125

Target Device ........................................................................................................ 125

EMDK for Android ....................................................................................................... 126

StageNow .................................................................................................................... 126

GMS Restricted ................................................................................................................ 126

ADB USB Setup ............................................................................................................... 126

Application Installation ...................................................................................................... 127

Installing Applications Using the USB Connection ...................................................... 127

Installing Applications Using the Android Debug Bridge ............................................. 128

Installing Applications Using a microSD Card ............................................................. 129

Uninstalling an Application .......................................................................................... 130

System Update ................................................................................................................. 131

Performing a System Update ...................................................................................... 131

Downloading the System Update Package ................................................................. 131

Using ADB ................................................................................................................... 131

Using microSD Card ................................................................................................... 133

Performing an Enterprise Reset ....................................................................................... 133

Downloading the Enterprise Reset Package ............................................................... 133

Using ADB ................................................................................................................... 133

Using microSD Card ................................................................................................... 134

Performing a Factory Reset .............................................................................................. 135

Downloading the Factory Reset Package ................................................................... 135

Using ADB ................................................................................................................... 135

Using microSD Card ................................................................................................... 136

Storage ............................................................................................................................. 137

Random Access Memory ............................................................................................ 137

Internal Storage ........................................................................................................... 138

External Storage ......................................................................................................... 139

Table of Contents

Formatting a microSD Card or USB Drive as Portable Storage .................................. 139

Formatting a microSD Card as Internal Memory ................................................... 140

Enterprise Folder ......................................................................................................... 141

App Management ............................................................................................................. 142

Viewing App Details .................................................................................................... 143

Managing Downloads ....................................................................................................... 143

Maintenance and Troubleshooting .................................................................................................. 145

Introduction ....................................................................................................................... 145

Maintaining the Device ..................................................................................................... 145

Battery Safety Guidelines ................................................................................................. 145

Cleaning Instructions ........................................................................................................ 146

Approved Cleanser Active Ingredients ........................................................................ 146

Harmful Ingredients ..................................................................................................... 146

Device Cleaning Instructions ....................................................................................... 147

Special Cleaning Notes ............................................................................................... 147

Cleaning Materials Required ....................................................................................... 147

Cleaning Frequency .................................................................................................... 147

Cleaning Battery Connectors ...................................................................................... 147

Troubleshooting ................................................................................................................ 149

Charge Only Cradle .................................................................................................... 150

Communication and Charging Cradles ....................................................................... 150

Expansion Backs ......................................................................................................... 151

4-Slot Charge Only Cradle .......................................................................................... 151

Charging Adapter ........................................................................................................ 152

4-Slot Battery Charger ................................................................................................ 152

Specifications ..................................................................................................................................... 153

Technical Specifications ................................................................................................... 153

SE4750 Expansion Back Decode Range ......................................................................... 157

SE4750 SR Decode Ranges ....................................................................................... 157

SE4750 MR Decode Ranges ...................................................................................... 157

Integrated Scanner ...................................................................................................... 158

Accessory Specifications .................................................................................................. 158

Charge Only Cradle .................................................................................................... 158

Communication and Charging Cradle ......................................................................... 159

Rugged Communication and Charging Cradle ........................................................... 159

Expansion Backs ......................................................................................................... 160

Index ....................................................................................................................................................162

About This Guide

Introduction

This guide provides information about using the device and accessories.

NOTE: Screens and windows pictured in this guide are samples and can differ from actual screens.

Configurations

This guide covers the following configurations:

Table 1 Configurations

Configuration

ET51CE 8.1.0 Oreo WLAN:

ET51CE with Integrated Scanner

ET51CT 8.1.0 Oreo WLAN:

ET56DE 8.1.0 Oreo WLAN:

Operating

System

802.11a/b/g/n/ac/d/h/i/k/r WPAN: Bluetooth

8.1.0 Oreo WLAN:

802.11a/b/g/n/ac/d/h/i/k/r WPAN: Bluetooth

802.11a/b/g/n/ac/d/h/i/k/r WPAN: Bluetooth WWAN: LTE

Radios Display Memory Data Capture

8.4” color 4 GB RAM/ 32 GB Flash

10.1” color 4 GB RAM/ 32 GB Flash

8.4” color 4 GB RAM/ 32 GB Flash

Camera, SE4750 Expansion Back, RS507, RS507X, RS6000, DS3608, DS3678, DS3578, DS2278.

Camera, integrated scanner, RS507, RS507X, RS6000, DS3608, DS3678, DS3578, DS2278.

Camera, SE4750 Expansion Back, RS507, RS507X, RS6000, DS3608, DS3678, DS3578, DS2278.

Software Versions

To determine the current software versions:

1. Swipe down from the Status bar to open the Quick Settings bar.

2. Touch > System.

3. Touch About tablet.

4. Scroll to view the following information:

• Model

• Android version

• Android security patch version

• Baseband version

• Kernel version

• Build number.

About This Guide

To determine the device serial number, touch About tablet > Status.

• Serial number

Chapter Descriptions

Topics covered in this guide are as follows:

• Getting Started, provides information on getting the tablet up and running for the first time.

• Accessories, describes the accessories available for the tablet and how to use the accessories with the tablet.

• USB Communication, describes how to connect the tablet to a host computer using USB.

• DataWedge, describes how to use and configure the DataWedge application.

• Settings, provides the settings for configuring the tablet

• Application Deployment, provides information for developing and managing applications.

• Maintenance and Troubleshooting, includes instructions on cleaning and storing the tablet, and provides troubleshooting solutions for potential problems during tablet operation.

• Specifications, includes a table listing the technical specifications for the tablet.

Notational Conventions

The following conventions are used in this document:

• Tablet refers to the Zebra ET51 or ET56 tablet.

• Bold text is used to highlight the following:

• Dialog box, window and screen names

• Drop-down list and list box names

• Check box and radio button names

• Icons on a screen

• Key names on a keypad

• Button names on a screen.

About This Guide

• Bullets (•) indicate:

• Action items

• Lists of alternatives

• Lists of required steps that are not necessarily sequential.

• Sequential lists (for example, those that describe step-by-step procedures) appear as numbered lists.

Service Information

If you have a problem with your equipment, contact Customer Support for your region. Contact information is available at: www.zebra.com/support

When contacting support, please have the following information available:

• Serial number of the unit (found on manufacturing label)

• Model number or product name (found on manufacturing label)

• Software type and version number

• IMEI number.

Customer Support responds to calls by email or telephone within the time limits set forth in support agreements.

If the problem cannot be solved by Customer Support, you may need to return the equipment for servicing and will be given specific directions. We are not responsible for any damages incurred during shipment if the approved shipping container is not used. Shipping the units improperly can possibly void the warranty.

If the device was purchased from a business partner, contact that business partner for support.

Provide Documentation Feedback

If you have comments, questions, or suggestions about this guide, send an email to EVM-Techdocs@zebra.com.

Getting Started

Introduction

This chapter explains how to set the device up for the first time.

Unpacking

Carefully remove all protective material from around the tablet and save the shipping container for later storage and shipping.

Verify that you received all equipment listed below:

• Tablet with lithium-ion battery

• Quick Reference Guide.

Inspect the equipment for damage. If you are missing any equipment or if you find any damaged equipment, contact the Zebra Support Center immediately. See Provide Documentation Feedback on page 12 for contact information.

Getting Started

In order to start using the device for the first time:

• Install microSD card

• Install nano SIM Card (ET56 only)

• Charge the device

• Perform basic configuration

Installing a microSD Card

To install a microSD card:

1. Press and hold the Power button until the menu appears.

2. Touch Power off.

3. Lift the notched corner of the battery cover and carefully lift the battery cover off the device.

Figure 1 Lifting Battery Cover

4. On the 8.4" version, push the two locking tabs up, then pull up on the tab to remove battery.

On the 10.1” version, push the two locking tabs up (1), then lift the battery up (2).

Figure 2 Removing the Battery - 8.4"

(1)

Locking Tabs

(2)

Pull Tab

Figure 3 Removing the Battery - 10.1”

Install the microSD Card

1. Insert the microSD card with contacts facing down; 8.4" version shown here.

Figure 4 Inserting microSD Card

8.4" Version

2. Push the micro SD card in and ensure that it locks into place.

Install the nano SIM Card

1. Insert the nano SIM card with contacts facing down.

10.1” Version

Figure 5 Inserting the nano SIM Card

8.4" Version

2. Push the SIM card in and ensure that it locks into place.

3. Replace the battery.

4. Press the battery down to ensure the two battery latches engage.

Figure 6 Inserting the Battery

CAUTION: Be aware of the orientation of the battery cover. Failure to replace the battery cover properly may damage the

battery cover.

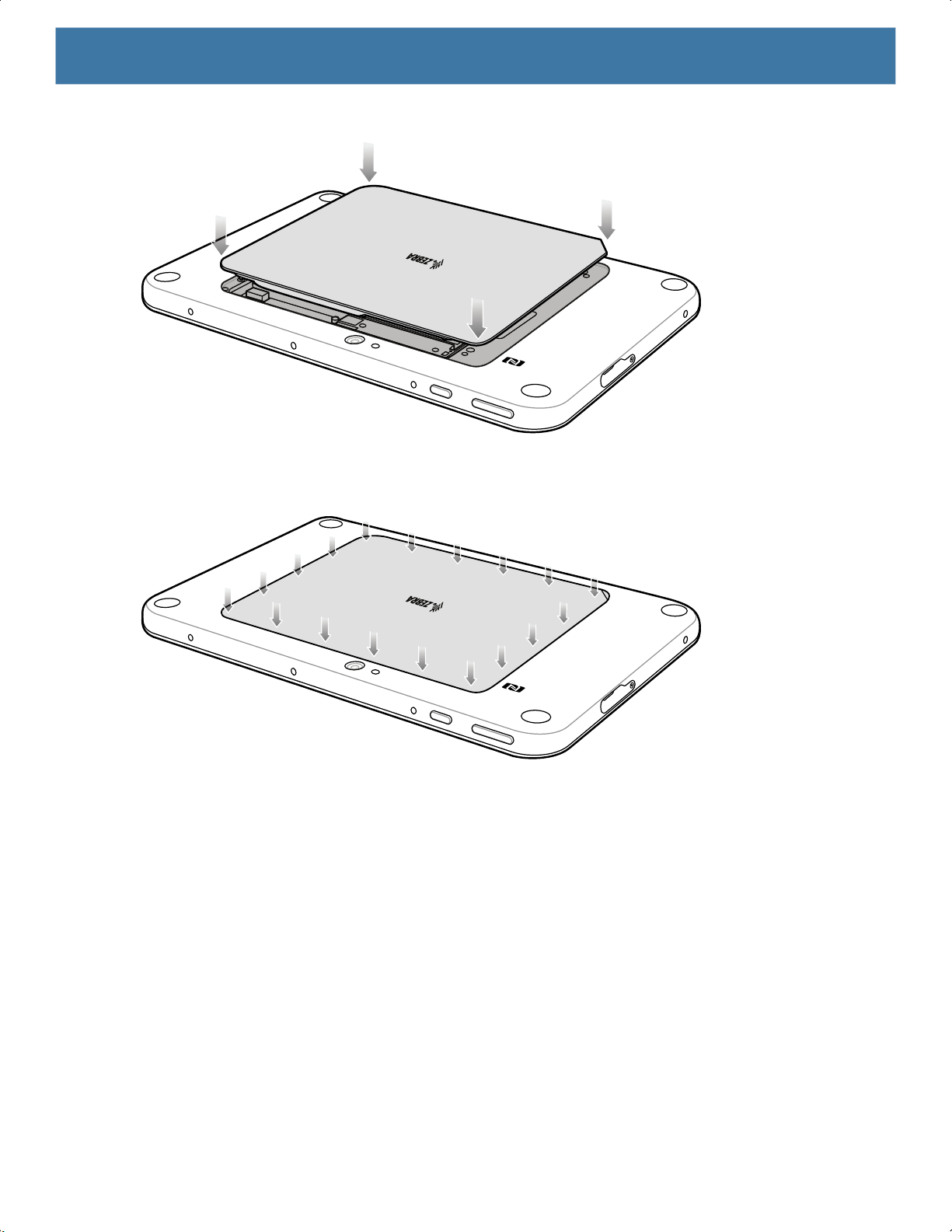

5. Align the tabs on the underside of the cover with the slot around the battery well. Make sure that the notch on the battery cover is at the bottom left cover of the device.

Figure 7 Aligning the Battery Cover

6. Carefully press down around the edge of the cover. Make sure that the cover is seated properly.

Figure 8 Pressing Down on the Battery Cover

7. Press Power button to turn on the device.

Charging the Battery

Use one of the cradles to charge the main battery installed in the device. See the chapter Accessories for charging accessories. See the ET51 or 56 User Guide for information about battery management.

The 8.4" tablet main battery charges from fully depleted to 90% in approximately 2.5 hours and from fully depleted to 100% in approximately 3.5 hours.

The 10.1" tablet main battery charges from fully depleted to 90% in approximately three hours and from fully depleted to 100% in approximately four hours.

NOTE: The Charging indicator only illuminates when the tablet is connected to AC power.

Table 2 Charging Indicator

LED Indication

Off Tablet is not in cradle. Tablet is not seated properly. Cradle is not powered.

Blinking amber Tablet is charging.

Green Charging complete.

Red Error in charging; check placement of the tablet.

Note: When the battery is initially inserted in the tablet, the amber LED flashes once if the battery power is low or the battery is not fully inserted.

Resetting the Device

The reset functions include the following:

• Soft reset

• Hard reset

• Enterprise reset - Performing an Enterprise Reset on page 133.

• Factory reset - Performing a Factory Reset on page 135.

Performing a Soft Reset

Perform a soft reset if applications stop working.

1. Press and hold the Power button until the menu appears.

2. Touch Restart.

The device reboots.

Performing a Hard Reset

CAUTION: Performing a hard reset with a microSD card installed in the device may cause damage or data corruption to the

microSD card. All un-saved data is lost after performing a hard reset.

Perform a hard reset if the device stops responding.

1. Press and hold the power button and the volume up button.

2. When the screen turns off, release the buttons.

The device reboots.

Turning Off the Tablet

NOTE: After the device is powered off and external power is applied to the device, the device will automatically

power on. This includes powered cradles, Expansion Back with Power Pack, Rugged Charge Connector, and power supply/USB-C cable.

To turn off the device:

1. Press and hold the power button until the menu appears.

2. Touch Power off.

Accessories

Introduction

The device accessories provide a variety of product support capabilities.

Table 3 Device Accessories

Accessory Part Number Description

Cradles

Charge Only Cradle CRD-ET5X-1SCG2 Charges the main battery and optional Power

Communication and Charging Cradle

Rugged Communication and Charging Cradle

4-Slot Charge Only Cradle CRD-ET5X-SE4CO2-01 Charges up to four main batteries and optional

Chargers

Power Supply

CRD-ET5X-1SCOM1 Charges the main battery and optional Power

CRD-ET5X-1SCOM2R Charges the main battery and optional Power

PWR-BGA12V108W0WW

Pack installed in the Expansion Back. Requires power supply

PWR-BGA12V50W0WW, DC line cord

CBL-DC-388A1-01 and country-specific AC line cord.

Pack installed in the Expansion Back. Requires power supply

PWR-BGA12V50W0WW, DC line cord

CBL-DC-388A1-01, and country-specific AC line cord.

Pack installed in the Expansion Back. Supports rugged frame and rugged IO Adapter. Requires power supply

PWR-BGA12V50W0WW, DC line cord

CBL-DC-388A1-01, and country-specific AC line cord.

Power Pack installed in the Expansion Back and up to four Power Packs in the optional 4-Slot Battery Charger. Requires power supply

CBL-DC-388A1-01, and country-specific AC line cord.

Provides power to the 4-Slot Charge Only Cradle.

PWR-BGA12V108W0WW, DC line cord

Accessories

Table 3 Device Accessories (Continued)

Accessory Part Number Description

Power Supply

Power Supply PWR-WUA5V12W0xx

4-Slot Battery Charger SAC-ET5X-4PPK1-01 Chargers up to four Power Packs. Requires

Rugged Charge Connector CHG-ET5X-CBL2-01 Charges the main battery and optional Power

Miscellaneous

Replacement 8.4" Internal Battery

Replacement 10.1" Internal Battery

Replacement 8.4" Battery Cover

Replacement 10.1" Battery Cover

PWR-BGA12V50W0WW

Where xx: AR = Argentina AU = Australia BR = Brazil CN = China EU = European Union

Countries GB = Great Britain IN = India KR = Korea US = United States

Provides power to the Charge Only Cradle, Communication and Charging Cradle, Rugged Communication and Charging Cradle, and 4-Slot Battery Charger for Optional Battery Power Pack.

Provides power to the tablet using the USB-C cable CBL-TC2X-USBC-01.

power supply Line cord CBL-DC-388A1-01, and

country-specific AC line cord.

Pack installed in the Expansion Back. Requires power supply

PWR-BGA12V50W0WW, DC

PWR-BGA12V50W0WW, DC Line Cord

CBL-DC-388A1-01 and country-specific AC line cord.

BTRY-ET5X-8IN5-01 Replacement battery for 8.4" tablet.

BTRY-ET5X-10IN5-01 Replacement battery for 10.1" tablet.

KT-ET5X-8BTDR2-01 Replacement battery cover for 8.4" tablet.

KT-ET5X-10BTDR2-01 Replacement battery cover for 10.1" tablet.

8.4" Rugged Frame with IO Adapter

10.1” Rugged Frame with IO Adapter

Replacement Rugged IO Connector

SG-ET5X-8RCSE2-02 Add extra protection for the 8.4" tablet and IO

Adapter for connection to the Rugged Communication and Charging Cradle.

SG-ET5X-10RCSE2-01 Add extra protection for the 10.1" tablet and IO

Adapter for connection to the Rugged Communication and Charging Cradle.

SG-ET5X-RGIO2-01 Replacement rugged IO connector for the

Rugged Frames.

Accessories

Table 3 Device Accessories (Continued)

Accessory Part Number Description

8.4" SE4750 Expansion Back

8.4" Expansion Back ZBK-ET5X-8RH1-01 Provides rotating hand strap and slot for

10.1” SE4750 Expansion Back

10.1” Expansion Back ZBK-ET5X-10RH1-01 Provides rotating hand strap and slot for

Power Pack

Passive Stylus SG-TC7X-STYLUS-03 Provides easy writing, drawing, and navigation

Replacement Expansion Back Hand Strap

Coiled Stylus Tether SG-ET5X-SLTETR-01 Secures a stylus to the hand strap.

8.4" Operations Case SG-ET5X-8HLST-01 Provides carrying solution for 8.4" tablet.

10.1” Operations Case SG-ET5X-10HLST-01 Provides carrying solution for 10.1" tablet.

Breakaway Shoulder Strap SG-ET5X-SHDRSTP-01 Use with the Operations Case and D-clips to

ZBK-ET5X-8SCN5-01 Provides data capture using the SE4750 scan

engine, rotating hand strap and slot for optional Power Pack.

optional Power Pack.

ZBK-ET5X-10SCN5-01 Provides data capture using the SE4750 scan

engine, rotating hand strap and slot for optional Power Pack.

optional Power Pack.

BTRY-ET5X-PRPK1-01

SG-ET5X-RHTP1-01 Replacement hands strap for Expansion

Provides additional power for charging the device battery using an Expansion Back.

and accuracy with the thin tip and hovering capabilities.

Backs.

carry tablet on shoulder.

Charge Only Cradle

CAUTION: Ensure that you follow the guidelines for battery safety described in Battery Safety Guidelines on page 145.

NOTE: The Charge Only Cradle (CRD-ET5X-1SCG1) comes with two inserts; tall insert and short insert. Install the tall insert

when using a device without a Rugged Frame or Expansion Back. Install the short insert when using with an Expansion Back and without a Rugged Frame.

This section describes how to use a Charge Only Cradle with the device.

The Charge Only Cradle:

• Provides power for operating the device.

• Charges the device’s battery

• Supports the ET51 Enterprise Tablet with Integrated Scanner.

Figure 9 Charge Only Cradle - Front View

Accessories

and optional Power Pack installed in an Expansion Back

Charging PinsGuide Pins Short insert Tall Insert

Figure 10 Charge Only Cradle - Rear View

Installing the Short Insert

Install the short insert when using an device with an Expansion Back and without a Rugged Frame.

1. Align the insert over the pins.

Power Input

Figure 11 Align Insert with Cradle

2. Press the insert down until it seats flush in the cradle.

Installing the Tall Insert

Install the tall insert when using a device without a Rugged Frame or Expansion Back.

Accessories

1. Peel the tape off the back of the insert.

2. Align the tall insert over the pins.

Figure 12 Align Insert with Cradle

3. Press the insert down until it seats flush in the cradle.

4. Press the tabs against the cradle to secure the insert to the cradle.

Charging the Device

Accessories

To charge the device in the Charge Only Cradle:

1. Align the device with the alignment pins on the cradle.

2. Insert the device into the cradle.

NOTE: Ensure the tablet is flat on the cradle and all charging contacts are touching the charging base.

Figure 13 Insert device into Charge Only Cradle

3. The device Charging LED indicates charging.

Accessories

4. To remove the device from the Charge Only Cradle, hold the cradle down with one hand and lift the device.

Figure 14 Remove device from Charge Only Cradle

Charge batteries in ambient temperatures from 0°C to +40°C (32°F to 104°F) as reported by the battery. Charging is intelligently controlled by the charger. To accomplish this, for small periods of time, the charger alternately enables and disables battery charging to keep the battery at acceptable temperatures.

The 8.4" tablet main battery charges from fully depleted to 90% in approximately 2 hours and from fully depleted to 100% in approximately 3 hours.

The 10.1" tablet main battery charges from fully depleted to 90% in approximately 3 hours and from fully depleted to 100% in approximately 5 hours.

NOTE: The Charging indicator only illuminates when the device is connected to AC power.

Table 4 Charging Indicator

LED Indication

Off Device is not in cradle; not seated properly; or cradle is not powered.

Blinking amber Device is charging.

Green Charging complete.

Red Error in charging; check placement of the device.

Accessories

Communication and Charging Cradle

CAUTION: Ensure that you follow the guidelines for battery safety described in Battery Safety Guidelines on page 145.

NOTE: The Communication and Charging Cradle (CRD-ET5X-1SCOM1) comes with two inserts; tall insert and short insert.

Install the tall insert when using without a Rugged Frame or Expansion Back. Install the short insert when using with an Expansion Back and without a Rugged Frame.

The Communication and Charging Cradle does not support the ET51 Enterprise Tablet with Integrated Scanner.

This section describes how to use a Communication and Charing Cradle with the tablet.

The Communication and Charging cradle:

• Provides power for operating the tablet.

• Provides ports for connecting USB devices to the tablet, video output and connection to a LAN.

• Charges the tablet’s battery

Figure 15 Communication and Charging Cradle - Front View

and optional Power Pack installed in an Expansion Back

Docking

Connector

Guide Pins Short Insert

Charging

Pins

Locking Latches

Release

Button

Tall Insert

Accessories

Figure 16 Communication and Charging Cradle - Rear View

USB 3.0 Ports LAN (RJ45) PortPower Input

Figure 17 Communication and Charging Cradle - Setup

Installing the Insert

HDMI Port

Install the tall insert when using a device without a Rugged Frame or Expansion Back. Install the short insert when using a device with an Expansion Back and without a Rugged Frame.

1. Align the insert over the pins.

Figure 18 Align Insert with Cradle

2. Press the insert down until it seats flush in the cradle.

Charging the Device

To charge the device in the Communication and Charging Cradle:

Accessories

1. Open the bottom access door and hold it to the back of the tablet.

2. Align the device with the alignment pins on the cradle.

3. Insert the device into the cradle. Note that the Communication and Charging Cradles contains a locking mechanism that locks the device to the cradle.

NOTE: Ensure the tablet is flat on the cradle and all charging contacts are touching the charging base.

Figure 19 Insert device into Communication and Charging Cradle

4. The device Charging LED indicates charging.

Accessories

5. To remove the device from the Communication and Charging Cradle, press the release button on the right side of the cradle and lift the device. Use thumb to hold down the cradle.

Figure 20 Remove ET5X from Communication and Charging Cradles

The 8.4" tablet main battery charges from fully depleted to 90% in approximately 2 hours and from fully depleted to 100% in approximately 3 hours.

The 10.1" tablet main battery charges from fully depleted to 90% in approximately 3 hours and from fully depleted to 100% in approximately 5 hours.

NOTE: The Charging indicator only illuminates when the device is connected to AC power.

Accessories

Rugged Communication and Charging Cradle

CAUTION: Ensure that you follow the guidelines for battery safety described in Battery Safety Guidelines on page 145.

This section describes how to use a Rugged Communication and Charing Cradle with the device.

The Rugged Communication and Charging cradle:

• Provides power for operating the device.

• Provides ports for connecting USB devices to the tablet, video output and connection to a LAN.

• Charges the device’s battery

• Supports the ET51 Enterprise Tablet with Integrated Scanner.

Figure 21 Rugged Communication and Charging Cradle - Front View

and optional Power Pack installed in an Expansion Back

Rugged Docking

Connector

Guide Pins

Charging

Pins

Locking Latches

Release

Button

Figure 22 Rugged Communication and Charging Cradle - Rear View

USB 3.0 Ports LAN (RJ45) PortPower Input

HDMI Port

Accessories

Figure 23 Rugged Communication and Charging Cradle - Setup

For the ET51 Enterprise Tablet with Integrated Scanner, ensure that the cradle pads are installed prior to inserting the device into the cradle.

Figure 24 Install Pads onto Cradle

Charging the Device

To charge the device using the Rugged Communication and Charging Cradle:

1. Align the device with the alignment pins on the cradle.

2. Insert the device into the cradle. Note that the Rugged Communication and Charging Cradles contains a locking mechanism that locks the device to the cradle.

NOTE: Ensure the tablet is flat on the cradle and all charging contacts are touching the charging base.

Accessories

Figure 25 Insert Rugged Frame device and IO Adapter into Rugged Communication and Charging Cradle

3. The device Charging LED indicates charging.

4. To remove the device from the Rugged Communication and Charging Cradle, press the release button on the right side of the cradle and lift the device. Use thumb to hold down the cradle.

Figure 26 Remove device from Rugged Communication and Charging Cradles

Accessories

The 8.4" tablet main battery charges from fully depleted to 90% in approximately 2 hours and from fully depleted to 100% in approximately 3 hours.

The 10.1" tablet main battery charges from fully depleted to 90% in approximately 3 hours and from fully depleted to 100% in approximately 5 hours.

NOTE: The Charging indicator only illuminates when the device is connected to AC power.

4-Slot Charge Only Cradle

CAUTION: Ensure that you follow the guidelines for battery safety described in Battery Safety Guidelines on page 145.

• Provides 5 VDC power for operating the device.

• Simultaneously charges up to four devices and up to four Power Packs using the optional Battery Charger Adapter.

Figure 27 4-Slot Charge Only Cradle

Accessories

Insert Installation

Install inserts into slots for device tablets without Rugged Frame.

Figure 28 Install Insert in Slot

Guide Installation

Accessories

The cradle comes with four 8” tablets guide and four 10” tablet guides. Install the appropriate guides for the tablets.

1. Align the two tabs on the guide with the two slots in the cradle.

Figure 29 Align Guide with Slot

Guide Tab

2. Place the guide down onto the cradle and then rotate the guide until it snaps into the cradle.

Figure 30 Rotate Guide onto Slot

Accessories

Battery Charger Installation

Install optional 4-Slot Battery Charger onto cradle:

1. Align the mounting holes on the bottom of the charger with the four studs on the cradle.

Accessories

Figure 31 Align Battery Charger on Adapter

2. Place the charger on the cradle and then slide toward the front of the cradle.

Power Setup

Figure 32 Power Setup with Optional Charger

PWR-BGA12V108W0WW

PWR-BGA12V50W0WW

Accessories

Insert Tablet into Slot

Device without Rugged Frame

1. Install insert into slot.

2. Align the two alignment holes on the bottom of the tablet with the two alignment pins in the slot.

Accessories

Figure 33 Insert ET5X without Rugged Frame into Slot

3. Place the device down into the slot with display facing away from Battery Charger.

Device with Rugged Frame

1. If applicable, remove insert from slot.

2. Slide device over slot into it touches the guide.

Figure 34 Insert device with Rugged Frame into Slot

3. Place the device down into the slot with display facing away from Battery Charger.

Charging the Battery

The 8.4" tablet main battery charges from fully depleted to 90% in approximately 2 hours and from fully depleted to 100% in approximately 3 hours.

The 10.1" tablet main battery charges from fully depleted to 90% in approximately 3 hours and from fully depleted to 100% in approximately 5 hours.

NOTE: The Charging indicator only illuminates when the device is connected to AC power.

Accessories

Rugged Charge Connector

CAUTION: Ensure that you follow the guidelines for battery safety described in Battery Safety Guidelines on page 145.

NOTE: The Rugged Charge Connector does not support the ET51 Enterprise Tablet with Integrated Scanner.

Use the Rugged Charge Connector to charge an device tablet.

Figure 35 Rugged Charge Connector

Accessories

1. Align the pins in the Rugged Charge Connector with the slots in the device.

Figure 36 Insert ET5X into Rugged Charge Connector

2. Plug the Power Supply connector into the Power Input Port on the Rugged Charge Connector.

Accessories

Figure 37 Plug Power Supply into Input Power Port

The 8.4" tablet main battery charges from fully depleted to 90% in approximately 2 hours and from fully depleted to 100% in approximately 3 hours.

The 10.1" tablet main battery charges from fully depleted to 90% in approximately 3 hours and from fully depleted to 100% in approximately 5 hours.

NOTE: The Charging indicator only illuminates when the device is connected to AC power.

Power Pack

The optional Power Pack provides additional power for charging the main battery.

Figure 38 Power Pack

Power Output Contacts

Accessories

Charge Level Indicators

Charge Indicator Button

1. Install one of the optional Expansion Backs. See ET51/56 Integrator Guide for more information.

2. Press the two release buttons on the side of the Expansion Back. The dummy battery insert ejects slightly.

Figure 39 Remove Dummy Battery Insert

Release Button (2)

3. Remove dummy battery insert.

4. Insert Power Pack into slot until it snaps into place.

Figure 40 Install Power Pack

Charging the Power Pack

Charge the Power Pack using:

• A cradle

• 4-Slot Charger.

Using Cradle

With the Power Pack installed in an Expansion Back, place the device into a cradle. The Power Pack charges in less than 3.5 hours.

Using the 4-Slot Battery Charger

CAUTION: Ensure that you follow the guidelines for battery safety described in Battery Safety Guidelines on page 145.

Use the 4-Slot Battery Charger to charge up to four Power Packs.

Figure 41 4-Slot Battery Charger

Accessories

Charging the Power Pack

Charge Power Packs in ambient temperatures from 0°C to +40°C (32°F to 104°F) as reported by the Power Pack. Charging is intelligently controlled by the charger. To accomplish this, for small periods of time, the charger alternately enables and disables Power Pack charging to keep the battery at acceptable temperatures.

The Power Pack charge LED shows the status of the battery charging. The Power Pack charges in less than three hours. When charging, the Charge LEDs indicate the charge level.

Accessories

Figure 42 Power Pack Charge LEDs

Charge Level Indicators

Table 5 Power Pack Charge Status Indicators

Power Pack

Indicators

Description

Power not applied to Power Pack.

Charge level is between 0% and 20%.

Charge level is between 20% and 40%.

Change level is between 40% and 60%.

Charge level is between 60% and 80%.

Charge level is between 80% and 100%.

Fully charged.

Charging error.

Solid Green LED

Blinking Green LED

Blinking Red LED

Rugged Frame

The Rugged Frame (8.4” and 10.1”) adds additional protection to the device. Use the Rugged I/O Adapter when docking the device into the Rugged Communications and Charging Cradle.

1. Open the access cover.

Figure 43 Open Access Door

Accessories

2. If installing the Rugged IO Adapter, pull the access cover away from the device until it separates from the device.

Figure 44 Remove Access Door

3. Insert the Rugged IO Adapter onto the tablet.

Accessories

Figure 45 Insert Rugged IO Adapter

4. Remove the Rugged Frame and screws from box.

5. Separate the top and bottom sections of the Rugged Frame.

6. Place the bottom section on a flat surface.

Figure 46 Protective Boot Assembly

Interface Connector

Rugged IO Adapter

7. Place the ET5X into the bottom section.

8. Align the top section over the bottom section.

9. Press the top section down onto the bottom section.

10.Using a T6 Torx screwdriver, secure the Rugged Frame together using the provided M1.6 Torx screws.

Figure 47 Secure 8” Rugged Frame

Figure 48 Secure 10” Rugged Frame

Accessories

11.Torque the screws to 12 N-cm.

Expansion Back

The Expansion Backs provide data capture and or Power Pack slot for the ET5X.

Installation

To install an Expansion Back:

CAUTION: Remove power before installing the Expansion Back.

1. Power off the ET5X.

Accessories

2. Remove battery cover and store in safe place.

Figure 49 Remove Battery Cover

3. On 8.4” version only, remove rubber gasket.

Figure 50 Remove Rubber Gasket

Rubber Gasket

Accessories

Figure 51 Align Expansion Back with 8” Configuration

Power Pack

Slot Cover

Interface Connector

4. Align expansion back with device. Ensure that the power pack slot cover is aligned with the bottom of the device and the interface connector on expansion back aligns with interface connector on device.

Figure 52 Align Expansion Back with 8” Configuration

Power Pack Slot

Cover

Interface Connector

Figure 53 Secure Screws

Screws (4)

5. Using a T6 Torx screwdriver, secure expansion back to device using four screws. Torque to 14 n-cm.

Replacement Hand Strap

Accessories

To replace the hand strap:

1. If the Power Pack is installed, remove the Power Pack.

2. Rotate the disk so that the strap end without the eyelet is aligned with the Power Pack opening.

3. Open both ends of the hand strap.

Figure 54 Open Straps

4. Pull the strap end without the eyelet through the slot on the Expansion Back.

Figure 55 Remove Strap

Accessories

5. Rotate the disk 180°.

6. Slide the pad off the hand strap.

7. Pull the eyelet end through the slot on the Expansion Back.

Figure 56 Pull Eyelet End

8. Remove pad from new replacement hand strap.

9. Rotate the disk so that one of the slots is aligned with the Power Pack opening.

Accessories

10.Feed the new hand strap through the slot at the Power Pack opening.

Figure 57 Feed New Strap

Eyelet

Power Pack

Opening

Hook

Material

Disk Slot

Hook

Material

Disk Slot

Hand Strap Disk

11.Slide pad onto hand strap with the stylus holder facing up.

12.Fold the eyelet end of the strap up and press hook and loop material together.

Figure 58 Secure Eyelet End

Pad

Stylus Holder

13.Rotate disk 180° so that the empty slot is aligned with the Power Pack opening.

14.Feed strap through the slot.

Accessories

Figure 59 Feed Strap

15.Fold the end of the strap up and press hook and loop material together.

Figure 60 Secure Strap

Attaching the Stylus to the Expansion Back

The Expansion Backs provide a holder for the stylus. To install the stylus onto the Expansion Back with th option tether:

1. Insert one loop of the tether into the hole in the stylus end cap.

Accessories

Figure 61 Insert Loop

2. Feed the other end of the tether through the loop.

Figure 62 Feed Tether Through Loop

3. Pull the tether all the way through the loop.

4. Insert the loop of the tether through the eyelet on the hand strap of the Expansion Back.

5. Feed the stylus through the loop.

Figure 63 Feed Stylus through Loop

6. Pull the stylus all the way through the loop.

7. Slide the stylus into the holder for storing the stylus.

Figure 64 Insert Stylus into Holder

Removal

To remove an Expansion Back:

Accessories

CAUTION: Remove power before removing the Expansion Back.

1. Power off the ET5X.

2. Using a T6 Torx screwdriver, remove four screws securing expansion back to device.

Figure 65 Remove Screws

Screws (4)

3. Lift Expansion Back off device.

Figure 66 Lift Expansion Back

4. On 8” version only, replace rubber gasket removed during installation.

Figure 67 Rubber Gasket Replacement

Rubber Gasket

5. Replace battery cover.

Figure 68 Align Battery Cover

Accessories

6. Carefully press down around the edge of the cover. Make sure that the cover is seated properly.

Figure 69 Press Down on Battery Cover

7. Press the Power button to turn on the ET5X.

Accessories

ET51 with Integrated Scanner Hand Strap

The ET51 Enterprise Tablet with Integrated Scanner comes with additional screws for securing the hand strap to the device.

Removing the Hand Strap

To remove the hand strap:

1. Push the hand strap stud through the hole of the lower hand strap.

2. Pull the lower hand strap from the upper hand strap.

3. Remove the two screws and two washers securing the upper and lower hand strap to the device.

Installing the Hand Strap on the Back of the Device

To install the hand strap on the back of the device:

1. Align the upper and lower hand strap mounting holes with the screw holes on the device.

Accessories

Washer

M2.5x11 Screw

Washer

2. Using a T6 Torx screwdriver, secure the upper and lower hand strap to the device using the one M2x6 screw, one M2.5x11 screw, and two washers.

3. Torque the screws to 20 N-cm (1.77 lb in).

M2x6 Screw

4. Feed the lower half of the hand strap through the upper half.

5. Position the hand strap for the right fit.

6. Align the stud with a hole in the lower half.

7. Press the lower hand strap down until the stud comes through the hole.

Accessories

Installing the Hand Strap on the Side of the Device

To install the hand strap on the side of the device:

1. Align the upper and lower hand strap mounting holes with the screw holes on the device.

Washer

M2.5x11 Screw

2. Using a T6 Torx screwdriver, secure the upper and lower hand strap to the device using the two M2.5x11 screws, and two washers.

3. Torque the screws to 20 N-cm (1.77 lb in).

4. Feed the lower half of the hand strap through the upper half.

Accessories

5. Position the hand strap for the right fit.

6. Align the stud with a hole in the lower half.

7. Press the lower hand strap down until the stud comes through the hole.

USB Communication

Introduction

This chapter provides information for transferring files between the device and a host computer.

Connecting to a Host Computer via USB

Connect the tablet to a host computer using a USB-C cable to transfer files between the tablet and the host computer.

CAUTION: When connecting the tablet to a host computer, follow the host computer’s instructions for connecting and dis-

connecting USB devices, to avoid damaging or corrupting files.

Transferring Files

NOTE: Use Transfer files to copy files between the device (internal memory or microSD card) and the host computer.

1. Connect a USB-C cable between the device and a host computer.

2. Pull down the Notification panel and touch USB charging this device.

By default, Charge this device is selected.

Figure 70 Use USB to Dialog Box

3. Touch Transfer files.

NOTE: After you change the setting to Transfer files, and then disconnect the USB cable, the setting reverts back to Charge

this device. If the USB cable is reconnected, select Transfer files again.

4. On the host computer, open a file explorer application.

5. Locate the device as a portable device.

6. Open the SD card or the Internal storage folder.

7. Copy files to and from the device or delete files as required.

Transferring Files using Photo Transfer Protocol

NOTE: Use Photo Transfer Protocol (PTP) to copy photos from either the microSD card or internal memory to the host

computer.

1. Connect the USB-C Cable to the tablet.

2. Pull down the Notification panel and touch USB for Charging.

Figure 71 USB Dialog Box

3. Touch Photo transfer (PTP).

4. On the host computer, open a file explorer application.

5. Open the SD card or the Internal storage folder.

6. Copy or delete photos as required.

Disconnecting from a Host Computer

CAUTION: Carefully follow the host computer’s instructions to unmount the device and disconnect USB devices correctly to

avoid losing information.

7. On the host computer, unmount the device.

8. Remove the USB-C cable from the device.

DataWedge

DataWedge is a utility that adds advanced barcode scanning capability to any application without writing code. It runs in the background and handles the interface to built-in barcode scanners. The captured barcode data is converted to keystrokes and sent to the target application as if it was typed on the keypad.

Profiles

DataWedge is based on profiles and plug-ins. A profile contains information on how DataWedge should behave with different applications.

Profile information consists of:

• Associated application

• Data Capture Plus configurations

• Input plug-in configurations

• Output plug-in configurations

• Process plug-in configurations.

Using profiles, each application can have a specific DataWedge configuration. For example, each user application can have a profile which outputs scanned data in the required format when that application comes to the foreground. DataWedge can be configured to process the same set of captured data differently based on the requirements of each application.

DataWedge includes the following pre-configured profiles which support specific built-in applications:

• Visible profiles:

Some Zebra applications are capable of capturing data by scanning. DataWedge is pre-loaded with private and hidden profiles for this purpose. There is no option to modify the private profiles.

Profile0

Profile0 can be edited but cannot be associated with an application. That is, DataWedge allows manipulation

of plug-in settings for Profile0 but it does not allow assignment of a foreground application. This configuration

• Profile0 - created automatically the first time DataWedge runs. Generic profile used when there are no

user created profiles associated with an application.

• Launcher - enables scanning when the Launcher is in foreground.

• DWDemo - provides support for the DWDemo application.

allows DataWedge to send output data to any foreground application other than applications associated with user-defined profiles when Profile0 is enabled.

Profile0 can be disabled to allow DataWedge to only send output data to those applications which are associated in user-defined profiles. For example, create a profile associating a specific application, disable Profile0 and then scan. DataWedge only sends data to the application specified in the user-created profile. This adds additional security to DataWedge enabling the sending of data only to specified applications.

Plug-ins

A plug-in is a software module utilized in DataWedge to extend its functionality to encompass technologies such as barcode scanning. The plug-ins can be categorized into three types based on their operations:

• Input Plug-ins

• Output Plug-ins

• Process Plug-ins.

Input Plug-ins

An Input Plug-in supports an input device, such as a barcode scanner contained in, or attached to the device.

DataWedge contains base plug-ins for these input devices.

Barcode Scanner Input Plug-in – The Barcode Scanner Input Plug-in is responsible for reading data from the

integrated barcode scanner and supports different types of barcode readers including laser, imager and internal camera. Raw data read from the barcode scanner can be processed or formatted using Process Plug-ins as required. DataWedge has built-in feedback functionality for the barcode scanner to issue user alerts. The feedback settings can be configured according to user requirement.

IMPORTANT: To avoid the unnecessary use of enable/disable scanner API calls, Zebra recommends that apps

register to be notified of changes in scanner status (using the SCANNER_STATUS parameter of the REGISTER_FOR_NOTIFICATION API). This enables apps to receive scanner status changes immediately rather than having to query and wait for the result. Status-change notifications include the active Profile name, which permits an app to use the enable/disable scanner API calls only when status changes effect a relevant Profile.

Process Plug-ins

Process Plug-ins are used in DataWedge to manipulate the received data according to the requirement, before sending to the foreground application via the Output Plug-in.

• Basic Data Formatting Process Plug-in – The Basic Data Formatting Plug-in allows DataWedge to add a prefix and/or a suffix to the captured data before passing it to an Output Plug-in.

• Advanced Data Formatting Process Plug-in – The Advanced Data Formatting Plug-in allows DataWedge to apply rules (actions to be performed based on defined criteria) to the data received via an input plug-in before passing it to an Output Plug-in.

Output Plug-ins

Output Plug-ins are responsible for sending the data from Input Plug-ins to a foreground application on the device.

• Keystroke Output Plug-in – The Keystroke Output Plug-in collects and sends data received from the Input Plug-in to the foreground applications by emulating keystrokes.

• Intent Output Plug-in – The Intent Output Plug-in collects and sends data received from the Input Plug-ins to foreground applications using the Android Intent mechanism.

• IP Output Plug-in – The IP Output Plug-in collects and sends data received from the Input Plug-ins to a host computer via a network connection. Captured data can be sent over an IP network to a specified IP address and port using either TCP or UDP transport protocols.

Profiles Screen

To launch DataWedge, swipe up from the bottom of the screen and touch . By default, three profiles appear:

• Profile0

• Launcher

• DWDemo.

Profile0 is the default profile and is used when no other profile can be applied.

Figure 72 DataWedge Profiles Screen

Profile names are color coded. Enabled profiles are white and disabled profiles are gray.

To configure a profile touch the profile name.

Profile Context Menu

Touch and hold a profile to open a context menu that allows additional actions to be performed on the selected profile.

Figure 73 Profile Context Menu

The profile context menu allows the profile to be edited (same as just tapping on a profile), renamed or deleted.

Options Menu

Touch to open the options menu.

Figure 74 DataWedge Options Menu

The menu provides options to create a new profile, access to general DataWedge settings and DataWedge version information.

Disabling DataWedge

1. Swipe up from the bottom of the screen and touch .

2. Touch .

3. Touch Settings.

4. Touch DataWedge enabled.

The blue check disappears from the checkbox indicating that DataWedge is disabled.

Creating a New Profile

To create a new profile:

1. Swipe up from the bottom of the screen and touch .

2. Touch .

3. Touch New profile.

4. In the New profile dialog box, enter a name for the new profile. It is recommended that profile names be unique and made up of only alpha-numeric characters (A-Z, a-z, 0-9).

Figure 75 New Profile Name Dialog Box

5. Touch OK.

The new profile name appears in the DataWedge profile screen.

Profile Configuration

To configure the Profile0 or a user-created profile, touch the profile name.

Figure 76 Profile Configuration Screen

The configuration screen lists the following sections:

• Profile enabled

• Applications

• Data Capture Plus (DCP)

• Barcode Input

• Voice input

• Keystroke output

• Intent Output

• IP Output.

Associating Applications

Use Applications option to associate applications with this profile. User created profiles should be associated with one or more applications and its activities.

1. Touch Associated apps. A list of applications/activities associated with the profile displays. Initially the list does not contain any applications/activities.

Figure 77 Associated Apps Screen

2. Touch .

3. Touch New app/activity.

Figure 78 Select Application Menu

4. In the Select application screen, select the desired application from the list.

5. In the Select activity menu, selecting the activity adds that application/activity combination to the associated application list for that profile. Selecting * as the activity results in all activities within that application being associated to the profile. During operation, DataWedge tries to match the specific application/activity combinations with the foreground application/activity before trying to match the general application/* combinations.

6. Touch .

Figure 79 Selected Application/Activity

Data Capture Plus

Data Capture Plus (DCP) is a DataWedge feature that enables the user to initiate data capture by touching a designated part of the screen. A variable screen overlay acts like a scan button.

Figure 80 Minimized Data Capture Panel

DCP

Button

The DataWedge profile configuration screen allows the user to configure how the DCP appears on the screen once the particular profile is enabled. The DCP is hidden by default. Enabling DCP option displays seven additional configuration parameters.

Figure 81 Data Capture Panel Settings

• Enable - Select to enable Data Capture Plus (default - disabled).

• Dock button on - Select position of the button.

• Left or right - Allows user to place the button on either the right or left edge of the screen.

• Left only - Places the button on left edge of the screen.

• Right only - Places the button on the right edge of the screen.

• Start in - Select the initial DCP state.

• Fullscreen mode - DCP covers the whole screen.

• Button mode - DCP displays as a circular button on the screen and can be switched to fullscreen mode.

• Button only mode - DCP displays as a circular button on the screen and cannot be switched to

fullscreen mode.

• Button highest position - Select the top of the range the user is allowed to move the DCP, given as a percent of the screen height (default - 0).

• Button lowest position - Select the bottom of the range the user is allowed to move the DCP, given as a percent of the screen height (default - 100).

• Drag detect time - Select the time in milliseconds that the scanner waits before activating scanner. This allows the user to drag the button without initiating scanner (default - 100 ms, maximum 1000 ms).

NOTE: The DCP does not appear if the scanner is disabled in the profile even though the Enabled option is set.

In Button mode, the user can place DCP in full screen mode by dragging the button over Fullscreen mode. The overlay covers the screen.

Figure 82 Maximized DCP

Swipe down to return to button mode.

Barcode Input

Use the Barcode Input options to configure the Barcode Scanner Input Plug-in for the profile.

Enabled

Enables or disables this plug-in. A check in the checkbox indicates that the plug-in is enabled.

Scanner Selection

Configures which scanning device to use for barcode data capture when the profile is active.

• Auto - The software automatically determines the best scanning device.

• DS3608 USB SSI Scanner - Scanning is performed using the optional USB scanner.

• Camera Scanner - Scanning is performed with the rear-facing camera.

• Pluggable Serial SSI Scanner - Scanning is performed using the Expansion Back.

• Bluetooth Scanner - Scanning is performed using the optional Bluetooth scanner.

• RS6000 Bluetooth Scanner - Scanning is performed using the RS6000 Bluetooth scanner.

• DS3678 Bluetooth Scanner - Scanning is performed using the DS3678 Bluetooth scanner.

• DS2278 Bluetooth Scanner - Scanning is performed using the DS2278 Bluetooth scanner.

• DS8178 Bluetooth Scanner - Scanning is performed using the DS8178 Bluetooth scanner.

Auto Switch to Default on Event

This feature configures DataWedge to select an external scanner as the default scanning device immediately upon connection and revert to a built-in scanner when the external scanner is disconnected. External scanners include those connecting by Bluetooth, serial cable or snap-on module. Disabled by default. This is only available when Scanner Selection is set to Auto.

This helps reduce scanning workflow interruptions when a Bluetooth scanner is introduced and/or it becomes disconnected due to losing power or moving out of range.

• Disabled - No scanner switching occurs when an external scanner is connected or disconnected (default).

• On connect - Selects the external scanner as the default scanning device immediately upon connection.

• On disconnect - Reverts to a built-in scanner based on its position in an internally managed scanner list (which varies by host device). This is usually the scanner most recently used prior to the external connection (see notes below).

• On connect/disconnect - Selects an external scanner as the default scanning device immediately upon connection. Upon disconnection, reverts to the scanner set as the default prior to the external connection.

NOTE: The system selects the default scanner based on the connection state and the scanner's position in an internally

managed scanner list. If the newly connected scanner is lower in the scanner list than the one currently selected as the default scanner, the newly connected scanner becomes the default scanner.

On devices with only one built-in scanner or imager, On disconnect reverts to that built-in scanner or imager.

Configure Scanner Settings

Select Configure Scanner Settings to set the following:

• Select scanner to set parameters

• Decoders

• Decoder params

• UPC/EAN params

• Reader params

• Scan params

• UDI params

• Multibarcode params

• Keep enabled on suspend

Decoders

Configures which barcode decoders are enabled or disabled. For best performance disable all unnecessary decoders.

Touch Decoders. The Barcode input screen appears. A check in the checkbox indicates that the decoder is enabled. By default the most commonly used decoders are enabled (shown below with an asterisk). The supported decoders are:

NOTE: DataWedge supports the decoders listed below but not all are validated on this device.

Table 6 Supported Decoders

Decoders

Camera

SE4710

Internal Imager

SE4750 Expansion Back

RS507/RS507X

RS6000

DS2278

DS3678

DS8178

Australian Postal

Aztec X X X X X X X X

Canadian Postal

Chinese 2 of 5 O O O O O O O O

Codabar X X X X X X X X

Code 11 O O O O O O O O

Code 128 X X X X X X X X

Code 39 X X X X X X X X

Code 93 O O O O O O O O

Composite AB O O O O O O O O

Composite C O O O O O O O O

Discrete 2 of 5 O O O O O O O O

Datamatrix X X X X X X X X

Dutch Postal O O O O O O O O

DotCode X N/A O O O O O O

EAN13 X X X X X X X X

EAN8 X X X X X X X X

GS1 DataBar X X O X X X X X

GS1 DataBar Expanded

GS1 DataBar Limited

O O O O O O O O

O O O -- O -- -- --

X X X X X X X X

O O X O O O O O

GS1 Datamatrix

GS1 QRCode O O O -- O O O O

HAN XIN O O O -- O O O O

Interleaved 2 of 5

O O O -- O O O O

O O O O O O O O

Table 6 Supported Decoders (Continued)

Decoders

Camera

SE4750 Expansion Back

SE4710

Internal Imager

RS6000

RS507/RS507X

DS2278

DS3678

DS8178

Japanese Postal

Korean 3 of 5 O O O O O O O O

MAIL MARK X X O -- X X X X

Matrix 2 of 5 O O X O O O O O

Maxicode X X O X X X X X

MicroPDF O O X O O O O O

MicroQR O O O O O O O O

MSI O O O O O O O O

PDF417 X X O X X X X X

QR Code X X X X X X X X

Decoder Signature

TLC 39 O O O O O O O O

Trioptic 39 O O O O O O O O

UK Postal O O O O O O O O

UPCA X X O X X X X X

UPCE0 X X X X X X X X

UPCE1 O O X O O O O O

US4state O O O O O O O O

US4state FICS O O O O O O O O

US Planet O O O O O O O O

US Postnet O O O O O O O O

O O O O O O O O

O O X O O O -- --

Touch to return to the previous screen.

Decoder Params

Use Decode Params to configure individual decoder parameters.

NOTE: Not all parameter options are available with all scanners. See the DataWedge app on each device for the available

scanners and parameter options.

Codabar

• CLSI Editing - Enable this parameter to strip the start and stop characters and insert a space after the first, fifth, and tenth characters of a 14-character Codabar symbol. Enable this feature if the host system requires this data format (default - disabled).

• Length1 - Use to set decode lengths (default - 6). See Decode Lengths for more information.

• Length2 - Use to set decode lengths (default - 55). See Decode Lengths for more information.

• NOTIS Editing - Enable this parameter to strip the start and stop characters from a decoded Codabar symbol. Enable this feature if the host system requires this data format (default - disabled).

• Redundancy - Sets the reader to read the barcode twice before accepting data. A check in the checkbox indicates that redundancy is enabled (default - enabled).

Code 11

• Length1 - Use to set decode lengths (default - 4). See Decode Lengths for more information.

• Length2 - Use to set decode lengths (default - 55). See Decode Lengths for more information.

• Redundancy - Sets the reader to read the barcode twice before accepting data. A check in the checkbox indicates that redundancy is enabled (default - enabled).

• Report Check Digit - Transmit Code 11 data with or without the check digit. A check in the checkbox indicates to send Code 11 data with check digit (default - disabled).

• Verify Check Digit - Check the integrity of all Code 11 symbols to verify that the data complies with the specified check digit algorithm. This selects the check digit mechanism for the decoded Code 11 barcode.

• No Check Digit - Do not verify check digit.

• 1 Check Digit - Barcode contains one check digit (default).

• 2 Check Digits - Barcode contains two check digits.

Code128

• Code128 Reduced Quiet Zone - Enables decoding of margin-less Code 128 barcodes (default - disabled).

• Ignore Code128 FCN4 - When enabled, and a Code 128 barcode has an embedded FNC4 character, it will be removed from the data and the following characters will not be changed. When the feature is disabled, the FNC4 character will not be transmitted but the following character will have 128 added to it (default disabled).

• Check ISBT Table - The ISBT specification includes a table that lists several types of ISBT barcodes that are commonly used in pairs. If ISBT128 Concat Mode is set, enable Check ISBT Table to concatenate only those pairs found in this table. Other types of ISBT codes are not concatenated. A check in the checkbox indicates that redundancy is enabled (default - disabled).

• Enable GS1-128 - Set the GS1 128 subtype. A check in the checkbox indicates that the option is enabled (default - enabled).

• Enable ISBT128 - Set the ISBT128 subtype. A check in the checkbox indicates that the option is enabled (default - enabled).

• Enable Plain Code128 - Set the Plain Code128 subtype. Enables other (non-EAN or ISBT) Code 128 subtypes. A check in the checkbox indicates that the option is enabled (default - enabled).

• ISBT128 Concatenation Mode - Select an option for concatenating pairs of ISBT code types:

• Concat Mode Never - Do not concatenate pairs of ISBT codes encountered (default).

• Concat Mode Always - There must be two ISBT codes in order to decode and perform concatenation.

Does not decode single ISBT symbols.

• Concat Mode Auto - Decodes and concatenates pairs of ISBT codes immediately. If only a single ISBT

symbol is present, the device must decode the symbol the number of times set via DataWedge

Configuration 4 - 11 Redundancy - Code128 before transmitting its data to confirm that there is no additional ISBT symbol.

• Length1 - Use to set decode lengths (default - 0). See Decode Lengths for more information.

• Length2 - Use to set decode lengths (default - 55). See Decode Lengths for more information.

• Redundancy - Sets the reader to read the barcode twice before accepting data. A check in the checkbox indicates that redundancy is enabled (default - disabled).

• Security Level - The scanner offers four levels of decode security for Code 128 barcodes. Select increasing levels of security for decreasing levels of barcode quality. There is an inverse relationship between security and scanner aggressiveness, so choose only that level of security necessary for any given application.

• Security Level 0 - This setting allows the scanner to operate in its most aggressive state, while

providing sufficient security in decoding most “in-spec” barcodes.

• Security Level 1 - This setting eliminates most misdecodes (default).

• Security Level 2 - Select this option if Security level 1 fails to eliminate misdecodes.

• Security Level 3 - If Security Level 2 is selected and misdecodes still occur, select this security level.

Be advised, selecting this option is an extreme measure against mis-decoding severely out of spec barcodes. Selecting this level of security significantly impairs the decoding ability of the scanner. If this level of security is needed, try to improve the quality of the barcodes.

Code39

• Code39 Reduced Quiet Zone - Enables decoding of margin-less Code 39 barcodes (default - disabled).

• Convert Code39 To Code32 - Code 32 is a variant of Code 39 used by the Italian pharmaceutical industry. Scan the appropriate barcode below to enable or disable converting Code 39 to Code 32 (default disabled).

• Full ASCII- Code 39 Full ASCII is a variant of Code 39 that pairs characters to encode the full ASCII character set. To enable or disable Code 39 Full ASCII (default - disabled),

• Length1 - Use to set decode lengths (default - 0). See Decode Lengths for more information.

• Length2 - Use to set decode lengths 4 (default - 55). See Decode Lengths for more information.

• Redundancy - Sets the reader to read the barcode twice before accepting data. A check in the checkbox indicates that redundancy is enabled (default - disabled).

• Report Check Digit - Transmit Code 39 data with or without the check digit. A check in the checkbox indicates to send Code 39 data with check digit (default - disabled).

• Report Code32 Prefix - Scan the appropriate barcode to enable or disable adding the prefix character “A” to all Code 32 barcodes (default - disabled).

• Security Level - Options: Security level 0, Security Level 1, Security Level 2 and Security Level 3 (default - Security level 1).

• Security Level 0 - This setting allows the scanner to operate in its most aggressive state, while

providing sufficient security in decoding most “in-spec” barcodes.

• Security Level 1 - This setting eliminates most misdecodes (default).

• Security Level 2 - Select this option if Security level 1 fails to eliminate misdecodes.

• Security Level 3 - If Security Level 2 is selected and misdecodes still occur, select this security level.

• Verify Check Digit - Enable this feature to check the integrity of all Code 39 symbols to verify that the data complies with a specified check digit algorithm. The digital scanner decodes only those Code 39 symbols that include a modulo 43 check digit. Enable this feature only if the Code 39 symbols contain a modulo 43 check digit (default - disabled).

Code93

• Length1 - Use to set decode lengths (default - 0). See Decode Lengths for more information.

• Length2 - Use to set decode lengths (default - 55). See Decode Lengths for more information.

• Redundancy - Sets the reader to read the barcode twice before accepting data. A check in the checkbox indicates that redundancy is enabled (default - disabled).

Composite AB

• UCC Link Mode

• Link Flag ignored - 1D component is transmitted regardless of whether a 2D component is detected.

• Always Linked - 1D and the 2D components are transmitted. If 2D is not present, the 1D component is

not transmitted.

• Auto Discriminate - the digital scanner determines if there is a 2D portion, then transmits the 1D

component, as well as the 2D portion if present. (default).

Discrete 2 of 5

• Length1 - Use to set decode lengths (default - 0). See Decode Lengths for more information.

• Length2 - Use to set decode lengths (default - 14). See Decode Lengths for more information.

• Redundancy - Sets the reader to read the barcode twice before accepting data. A check in the checkbox indicates that redundancy is enabled (default - enabled).

GS1 DataBar Limited

• GS1 Limited Security Level

• GS1 Security Level 1 - This setting allows the scanner to operate in its most aggressive state, while

providing sufficient security in decoding most “in-spec” barcodes.

• GS1 Security Level 2 - This setting eliminates most misdecodes (default).

• GS1 Security Level 3 - Select this option if Security level 2 fails to eliminate misdecodes.

• GS1 Security Level 4 - If Security Level 3 is selected and misdecodes still occur, select this security

level. Be advised, selecting this option is an extreme measure against mis-decoding severely out of spec barcodes. Selecting this level of security significantly impairs the decoding ability of the scanner. If this level of security is needed, try to improve the quality of the barcodes.

HAN XIN

• HAN XIN Inverse

• Disable - Disables decoding of HAN XIN inverse barcodes (default).

• Enable - Enables decoding of HAN XIN inverse barcodes.

• Auto - Decodes both HAN XIN regular and inverse barcodes.

Interleaved 2 of 5

• Check Digit

• No Check Digit - A check digit is not used. (default)

• USS Check Digit - Select to check the integrity of all Interleaved 2 of 5 symbols to verify the data

complies with either the Uniform Symbology Specification (USS) check digit algorithm.

• OPCC Check Digit - Select to check the integrity of all Interleaved 2 of 5 symbols to verify the data

complies with either the Optical Product Code Council (OPCC) check digit algorithm.

• Length1 - Use to set decode lengths (default - 14). See Decode Lengths for more information.

• Length2 - Use to set decode lengths (default - 10). See Decode Lengths for more information.

• Redundancy - Sets the reader to read the barcode twice before accepting data. A check in the checkbox indicates that redundancy is enabled (default - enabled).

• Report Check Digit - Transmit Interleaved 2 of 5 data with or without the check digit. A check in the checkbox indicates to send Interleaved 2 of 5 data with check digit (default - disabled).

• I2of5 Security Level - Options: I2of5 Security level 0, I2of5 Security Level 1, I2of5 Security Level 2 and I2of5 Security Level 3 (default - I2of5 Security level 1).

• Convert ITF-14 To EAN13 - Convert 14-character Interleaved 2 of 5 barcodes to EAN-13, and transmit as EAN-13. The Interleaved 2 of 5 barcode must be enabled and must have a leading zero and a valid EAN-13 check digit. A check in the checkbox indicates that the option is enabled (default - disabled).

• I2of5 Reduced Quiet Zone - Enables decoding of margin-less I2of5 barcodes (default - disabled).

Matrix 2 of 5

• Length1 - Use to set decode lengths (default - 10). See Decode Lengths for more information.

• Length2 - Use to set decode lengths (default - 0). See Decode Lengths for more information.

• Redundancy - Sets the reader to read the barcode twice before accepting data. A check in the checkbox indicates that redundancy is enabled (default - disabled).

• Report Check Digit - Transmit Matrix 2 of 5 data with or without the check digit. A check in the checkbox indicates to send Matrix 2 of 5 data with check digit (default - enabled).

• Verify Check Digit - Enable this feature to check the integrity of all Matrix 2 of 5 symbols to verify that the data complies with a specified check digit algorithm (default - enabled).

MSI

• Check Digit - With MSI symbols, one check digit is mandatory and always verified by the reader. The second check digit is optional.

• One Check Digit - Verify one check digit (default).

• Two Check Digits - Verify two check digits.

• Check Digit Scheme - Two algorithms are possible for the verification of the second MSI check digit. Select the algorithm used to encode the check digit.

• Mod-11-10 - First check digit is MOD 11 and second check digit is MOD 10 (default).

• Mod-10-10 - Both check digits are MOD 10.

• Length 1 - Use to set decode lengths (default - 4). See Decode Lengths for more information.

• Length 2 - Use to set decode lengths (default - 55). See Decode Lengths for more information.

• Redundancy - Sets the reader to read the barcode twice before accepting data. A check in the checkbox indicates that redundancy is enabled (default - enabled).

• Report Check Digit - Transmit MSI data with or without the check digit. A check in the checkbox indicates to send MSI data with check digit (default - disabled).

UK Postal

• Report Check Digit - Transmit UK Postal data with or without the check digit. A check in the checkbox indicates to send UK Postal data with check digit (default - disabled).

UPCA

• Preamble - Preamble characters are part of the UPC symbol consisting of Country Code and System Character. Select the appropriate option to match the host system.

There are three options for transmitting a UPCA preamble:

• Preamble None - Transmit no preamble.

• Preamble Sys Char - Transmit System Character only (default).

• Preamble Country and Sys Char - Transmit System Character and Country Code (“0” for USA). Select

the appropriate option to match the host system.

• Report Check Digit - The check digit is the last character of the symbol used to verify the integrity of the data. Enables or disables this option. A check in the checkbox indicates that the option is enabled (default enabled).

UPCE0

• Convert UPCE0 To UPCA - Enable to convert UPCE0 (zero suppressed) decoded data to UPC-A format before transmission. After conversion, the data follows UPC-A format and is affected by UPC-A programming selections. Disable to transmit UPCE0 decoded data as UPCE0 data, without conversion (default - disabled).

• Preamble - Preamble characters are part of the UPC symbol consisting of Country Code and System Character. Select the appropriate option to match the host system.

There are three options for transmitting a UPCE0 preamble:

• Preamble None - Transmit no preamble (default).

• Preamble Sys Char - Transmit System Character only.

• Preamble Country and Sys Char - Transmit System Character and Country Code (“0” for USA).

UPCE1

• Convert UPCE1 To UPCA - Enable this to convert UPCE1 decoded data to UPC-A format before transmission. After conversion, the data follows UPC-A format and is affected by UPC-A programming selections. Disable this to transmit UPCE1 decoded data as UPCE1 data, without conversion (default disabled).

• Preamble - Preamble characters are part of the UPC symbol consisting of Country Code and System Character. Select the appropriate option to match the host system.

There are three options for transmitting a UPCE1 preamble:

• Preamble None - Transmit no preamble (default).

• Preamble Sys Char - Transmit System Character only.

• Preamble Country and Sys Char - Transmit System Character and Country Code (“0” for USA).

US Planet

Decode Lengths

The allowable decode lengths are specified by options Length1 and Length2 as follows:

• Variable length: Decode symbols containing any number of characters.

• Set both Length1 and Length2 to 0.

• Range: Decode a symbol with a specific length range (from

• Set Length1 to

• Two Discrete Lengths: Decode only symbols containing either of two selected lengths.

• Set both Length1 or Length2 to the specific lengths. Length1 must be greater than Length2.

• One Discrete Length: Decode only symbols containing a specific length.

• Set both Length1 and Length2 to the specific length.

and set Length2 to b.

to b, including a and b).

UPC EAN Params

Allows the configuration of the parameters that apply to more than one UPC or EAN decoder.

NOTE: Not all parameter options are available with all scanners. See the DataWedge app on each device for the available

scanners and parameter options.

• Convert DataBar To UPC EAN - If this is set it converts DataBar barcodes to UPC/EAN format. For this setting to work UPC/EAN symbologies must be enabled. A check in the checkbox indicates that the option is enabled. (default - disabled).

• UPC Reduced Quiet Zone - Enables decoding of margin-less UPC barcodes. (default - disabled)

• Bookland - Enable Bookland decoding. A check in the checkbox indicates that the option is enabled. (default - disabled).

• Bookland Format - If Bookland EAN is enabled, select one of the following formats for Bookland data:

• Format ISBN-10 - The decoder reports Bookland data starting with 978 in traditional 10-digit format with

the special Bookland check digit for backward-compatibility. Data starting with 979 is not considered Bookland in this mode. (default)

• Format ISBN-13 - The decoder reports Bookland data (starting with either 978 or 979) as EAN-13 in

13-digit format to meet the 2007 ISBN-13 protocol.

• Coupon - Enables Coupon code decoding. Note that in order to successfully decode Coupon codes, all of the correct decoders must be enabled. A check in the checkbox indicates that the option is enabled. (default - disabled).

• Coupon Report Mode - Traditional coupon symbols are composed of two barcode: UPC/EAN and Code
