1. Manual Information

This Net Configuration Tool Manual provides information on the utility program used to set
printer operation conditions.

2. Operating System (OS) Environment

The following operating systems are supported for usage.

- Microsoft Windows XP (32bit/64bit)

- Microsoft Windows 2003 Server (32bit/64bit)

- Microsoft Windows Embedded For Point Of Service

- Microsoft Windows VISTA (32bit/64bit)

- Microsoft Windows 2008 Server (32bit/64bit)

- Microsoft Windows 7 (32bit/64bit)

- Microsoft Windows 8 (32bit/64bit)

Rev. 1.00

- 7 -

EM220II

Mobile Printer
Net Configuration Tool

3. Software Installation & Deletion

3-1 Installation

1) Execute the “Net Configuration Setup_V1.x.x.exe” file.

(This file must first be downloaded.)

2) Click the “Next” button.

Rev. 1.00

- 8 -

EM220II

Mobile Printer
Net Configuration Tool

3) Click the “Next” button.

(Install to: C:\Program Files\Zebra Technologies\Net Configuration Setup)

4) Installation will be completed on click the “Finish” button.

Rev. 1.00

- 9 -

EM220II

Mobile Printer
Net Configuration Tool

3-2 Deletion

1) Click and activate the “Programs and Features” icon in the Control Panel.

2) Select “Net Configuration Setup” and click the “Uninstall” button.

3) Click the “Yes” button to completely remove the application.

Rev. 1.00

- 10 -

EM220II

Mobile Printer
Net Configuration Tool

4. Configuration

Install and execute NetConfiguration.exe involved in CD.
(Start>>Zebra>>NetConfiguration.exe)

4-1 Serial / USB Configuration

Connect to Serial/USB cable, then click “Serial/USB Configuration”.

Rev. 1.00

- 11 -

EM220II

Mobile Printer
Net Configuration Tool

1) Choose the “Port”, then click “Connect”.

If it is properly connected, “Succeeded to printer connection” will be shown. Then the

configuration of the printer will be listed.

2) System & Information

Printer Name, Printer Port, User ID, User password can be set.

Rev. 1.00

- 12 -

EM220II

Mobile Printer
Net Configuration Tool

3) Protocol

You can set HTTPS, TELNET, FTP and SNMP protocol as able or disable.
SNMP can be also set.

4) BSS Information

When you click “Get BSS information”, close AP information will be listed.

Rev. 1.00

- 13 -

EM220II

Mobile Printer
Net Configuration Tool

5) Network

You can set Infrastructure/Adhoc, SSID, IP, Subnetmask and Gateway.

By setting “Inactivity Time”, you can disconnect the printer to host device when the data

is not transferred while inactivity time. If multiple host devices are used with one printer,

“Inactivity Time” is recommended. (Other host devices are restricted to use a printer if

one host device keep connecting to a printer.)

6) Authentication

You can set Authentication and Cryptograph. If it is Infrastructure mode, you need to set
Cryptograph with AP for proper connection. Then if it is Adhoc mode, you need to set
Cryptograph with host device.

Rev. 1.00

- 14 -

EM220II

Mobile Printer
Net Configuration Tool

7) Certificate

Printer can save the certificate file for EAP-TLS certification.
When you use TLS certification, CA certificate(PEM, Client Key(KEY/PEM), and client
certificate(PEM) file should be uploaded. The key size of certificate recommended is 512.
If the size of certificate is more than 512, it will take some time for EAP certification.

Rev. 1.00

- 15 -

EM220II

Mobile Printer
Net Configuration Tool

4-2 WLAN Configuration

To set the WLAN, PC and Printer should be in a same network.
(AP, PC, Printer network mode, SSID, encryption, authentication has to be set the same

way)

Connect to WLAN cable, then click “WLAN Configuration”.

1) When you press the Search button, the printer connected to the network will be shown

in the list.

Rev. 1.00

- 16 -

EM220II

Mobile Printer
Net Configuration Tool

2) Select the printer from the list and press the [Setting] button, and then the following

window for changing the WLAN settings will pop up.

3) Enter the proper IP Address, Subnet Mask, and Gateway of the currently used network,

and then click the [Save] button to save the settings.
(Device Baudrate setting, which is used for other models, is not necessary for our
printer.)

4) Select the printer from the list and press the [Configuration(web)] button, and then the

Login window will pop up.

Rev. 1.00

- 17 -

EM220II

Mobile Printer
Net Configuration Tool

5) Enter the ID and Password set in the printer, and click OK.

(Default settings are ID: “admin”, Password: “password”)

6) When you log in, you will see the web browser for changing the WLAN settings as

shown below.

Rev. 1.00

- 18 -

EM220II

Mobile Printer
Net Configuration Tool

7) You can search for the information of the wireless network by pressing the BSS Info

button.

8) When you press the BSS Info button, information about the SSID, BSSID, Network

Model, and Encryption information of the network in close range will be shown as follows.

Rev. 1.00

- 19 -

EM220II

Mobile Printer
Net Configuration Tool

4-3 Web browser

Our printer supports the security enhanced https protocol as well as http. When SSL of the
webserver of our printer is enabled, you must enter the address with “https” instead of
“http” in the address bar to connect to the web-server.
(Automatic connection will be made when connecting with the configuration tool.)

When SSL of the web-server is enabled,

* a security warning window will pop when you try to connect with https.

Accept the certificate provided by the printer in the warning window and continue.

When SSL of the web-server is disabled,

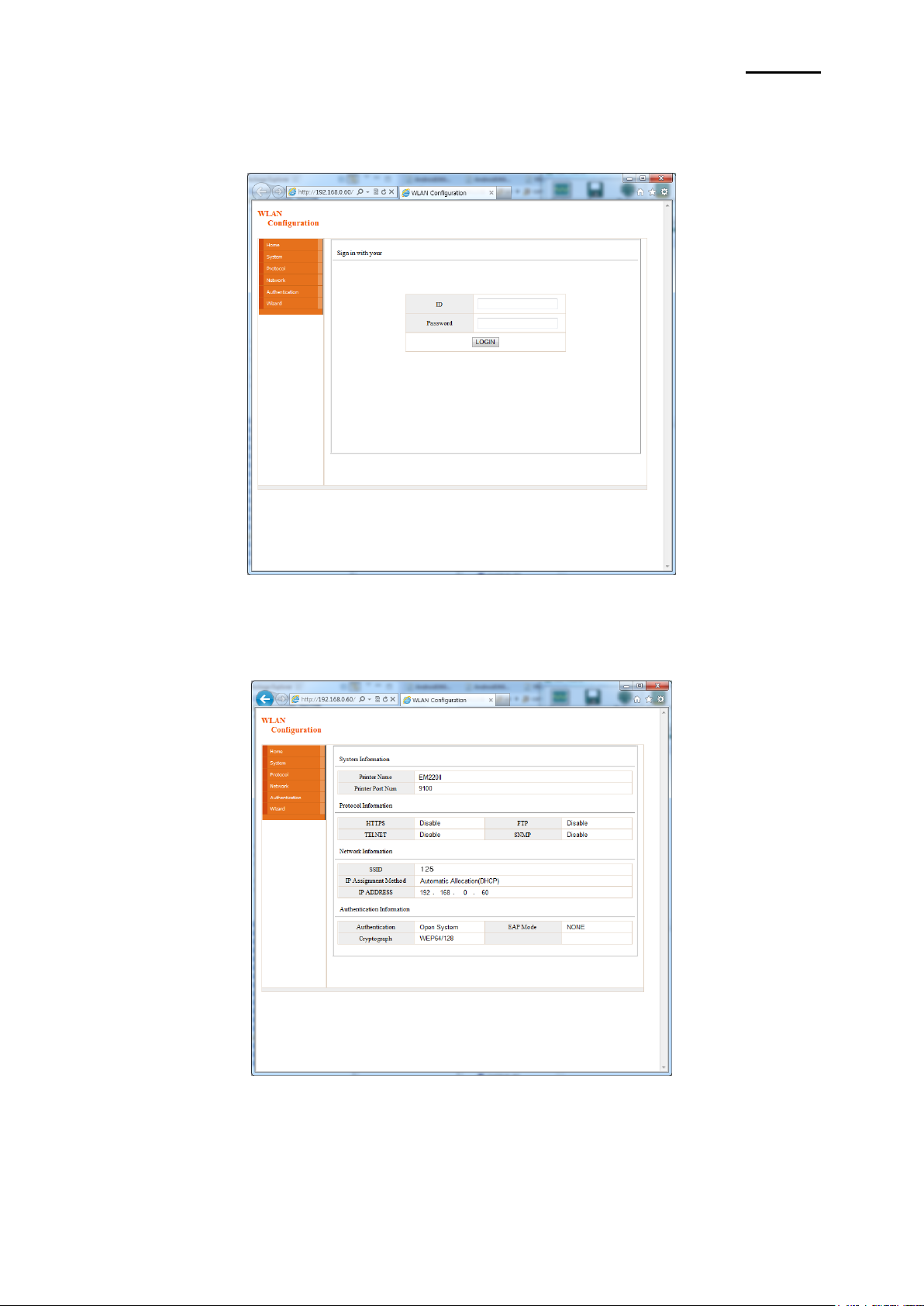

1) Enter the IP address of the printer in the address bar, and the following login window will

pop up.
Enter the ID and Password set for the printer, and then click [OK]
(Default setting values are ID: “admin”, Password: “password”.)

Rev. 1.00

- 20 -

EM220II

Mobile Printer
Net Configuration Tool

2) When the ID and Password match the ones registered in the printer, the following

window will be opened.

WLAN configuration is possible.

Home, System, Protocol, Network (WLAN), and Authentication can be configured from
this window, and the wizard mode is also provided for easier step by step configuration.

Rev. 1.00

www.zebra.com

Zebra Technologies International, LLC Zebra Technologies Europe Limited

333 Corporate Woods Parkway Dukes Meadow

Vernon Hills, Illinois 60061, 3109 USA Millboard Road

Phone: [phone]

Toll-Free: +1.800.423.0422

Fax: [phone]

Bourne End

Buckinghamshire, SL8 5XF, UK

Phone: [phone]

Fax: [phone]
