User's Manual
CNPS10X Optima
AMD Socket FM2/FM1/AM3+/AM3/AM2+/AM2 CPU & APUs
Intel Socket 1366/1156/1155/775 CPUs
To ensure safe and easy installation,
Please read the following precautions.
www.ZALMAN.com
Ver. 121113
English
1. Precautions
1) This cooler must be used with a 120mm fan.
2) Avoid inserting objects or hands into the fan while it is in operation to prevent
product damage and injuries.
3) Do not ingest the Thermal Grease, and avoid its contact with skin and eyes.
If contact is made with skin, wash off with water. If ingested or irritation
persists, seek medical attention.
4) To prevent possible injuries, gloves must be worn while handling this product.
5) Excessive force exerted on the fan may cause damage to the fan and/or
system.
6) Use and keep product away from reach of children.
7) Check the components list and condition of the product before installation.
If any problem is found, contact the retailer to obtain a replacement.
8) During transportation of the system, the cooler must be removed. Zalman is
not responsible for any damages that occur during the transport of a system.
9) Product design and specications may be revised to improve quality and
performance.
2. Specications
Spec.
Fan
Thermal Grease
2
Model
Material Pure Aluminum & Copper
Weight 630 g
Dimensions 132(L) Ⅹ 85(W) Ⅹ 152(H)
Bearing Type FSB (Fluid Shield Bearing)
RPM 1,000 ~ 1,700rpm ±10%
Noise Level 17.0 ~ 28.0rpm ±10%
Contents
[ZM-STG2M]
Temperature
Range
CNPS10X Optima
-40℃ ~ +150℃ ( -40 ~ +302℉)
㎜
1g
.COM
English
3. Components
1) Common Components
Cooler
Backplate
Side Caps
Loaging Block
Fan
Thermal Grease
Thermal Grease
[ZM-STG2M]
User's Manual
Fan Fixing Clips
NutsBolts
Double-sided Tape
2) Intel Components 3) AMD Components
Socket 1366/1156 /1155/775
FM2/FM1/AM3+/AM3/AM2+/AM2
Socket
Intel Clip
.COM
AMD Clip
3
English
4. Installation Requirements
1) Space Requirements
The cooler’s installation requires an unobstructed space of 85mm(width),
132mm(length), and 152mm(height), with the CPU as a central reference point.
Please check if components such as ODDs and PSU protrude into the required
space.
2) Air Guide Removal
Air guides on enclosures must be removed before the cooler’s installation since
they protrude into the cooler’s required space.
85㎜
152㎜
132㎜
3) Cooler Orientation
As shown in the diagram below, it
is recommended that the cooler be
installed so that air ows from the
cooler toward the enclosure’s rear
exhaust fan to be released.
* Recommended cooler orientation may
differ according to the motherboard
model.
4) CPU and RAM interference check
Any RAM with a height taller than 44mm (1.75 ) will have interference with the CPU
cooler. Please check the height of your RAM modules prior to installation.
4
.COM
English
X
O
5. Installation
1)
Intel Socket 1366 / 1155 / 1156 / 775 User
①
Partially unscrew the four bolts located on the base of the CPU cooler.
Then, insert the Intel Clips between the base and the heatpipe cover, with
the clips bent away from the heatsink.
Intel Clip
Caution
The holes in the Clip (as shown
below) are matched to the “keys” on
the heatpipe cover for secure Clip
installation.
Insert
②
Install the Bolts to the Backplate according to the socket type and
secure them with Side Caps.
2
1
Caution
Take note of the orientation of the Nuts and the Side Caps.
Key
Socket 775
Socket 1156/1155
Socket 1366
.COM
5
English
X
O
③ - ⓐ
Socket 775 Installation
Peel off the Loading Block cover and attach it to the Backplate with the
sticky side facing the center of the Backplate.
Loading Block
Peel off one side of the Double-sided Tape and attach it with the sticky side
facing the Loading block. Then, peel off the top cover.
Double-sided
Tape
Caution
Please make note of the orientation of the Loading Block’s Installation.
③ - ⓑ
Socket 1366/1156/1155 Installation
Peel off one side of the Double-sided Tape and attach it to the center of the
Backplate with the sticky side facing down. Then, peel off the top cover.
※
Socket 1366/1156/1155 Installation does not require the Loading Block.
6
.COM
English
④
Attach the Backplate assembly to
the back side of the motherboard by
aligning the Nuts to the motherboard
mounting holes. If you were
unsuccessful at rst attempt, you may
continue with the installation without
the Double-sided Tape as it is not a
necessary component.
⑤
Apply thermal grease just enough to thinly cover the CPU surface, then
fasten the Bolts to isntall the cooler.
M/B
⑥
Latch the Fan Fixing Clips to the notches located on the sides of the heatsink.
Note: It is often easier to latch the Fan Fixing Clips one at a time.
.COM
7
⑦
Position the fan as low as possible.
Tip
English
Lowering the fan helps to
cool the components on
the motherboard.
⑧
Connect the cooler’s 4-pin connector to the motherboard’s CPU Fan header.
M/B
Caution
Please make sure that PWM Control Mode is activated in the motherboard’s
BIOS settings.
8
.COM
English
X
O
2) AMD Socket FM2 / FM1 / FM3+ / FM3 / AM2 Installation
①
Partially unscrew the four bolts located on the base of the CPU cooler.
Then, insert the AMD Clips between the base and the heatpipe cover, with
the clips bent away from the heatsink.
AMD Clip
Caution
The holes in the Clip (as shown
below) are matched to the “keys” on
the heatpipe cover for secure Clip
installation.
Insert
Key
②
Install Bolts to the Backplate according to the Socket Type and secure
with Side Caps.
2
1
Caution
Take note of the orientation of the Nuts and the Side Caps.
.COM
9
English
O
X

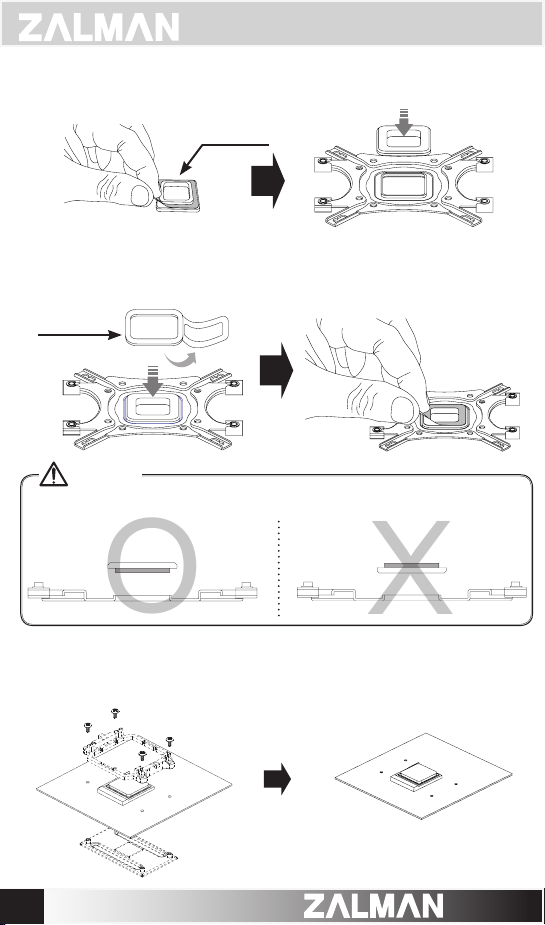

③
Peel off the Loading Block cover and attach it to the Backplate with the
sticky side facing the center of the Backplate.
Loading Block
Peel off one side of the Double-sided Tape and attach it with the sticky side
facing the Loading block. Then, peel off the top cover.
Double-sided
Tape
Caution
Please note that the sticky side of the Loading Block serves to attach the Loading Block
to the backplate.
④
Dismantle the CPU cooler retention bracket on the motherboard by unscrewing the
four bolts located at each corner (method may vary; consult the motherboard manual
for details). Be sure to keep the retention bracket so the stock CPU cooler can be used
as a backup.
M/B
.COM
10
M/B
English
⑤
Attach the Backplate assembly to
the back side of the motherboard by
aligning the Nuts to the
motherboard mounting holes.
If you were unsuccessful at first
attempt, you may continue with the
installation without the Double-sided
Tape as it is not a necessary
component.
⑥
Apply thermal grease just enough to thinly cover the CPU surface, then
fasten the Bolts to isntall the cooler.
⑦
Latch the Fan Fixing Clips to the notches located on the sides of the heatsink.
Note: It is often easier to latch the Fan Fixing Clips one at a time.
M/B
.COM
11
⑧
Position the fan as low as possible.
Tip
English
Lowering the fan helps to
cool the components on
the motherboard.
⑨
Connect the cooler’s 4-pin connector to the motherboard’s CPU Fan
header.
M/B
Caution
Please make sure that PWM Control Mode is activated in the motherboard’s
BIOS settings.
12
.COM
English
