* Please read before installation.
http://www.zalman.co.kr http://www.zalmanusa.com
AMD Socket AM2/754/939/940 CPU
Opteron
Athlon 64 X2 Dual-Core
Athlon 64 FX
Athlon 64
Sempron
(English version)
CNPS9500 AM2
(English Version)
※
The specifications of any product may change without prior notice to improve performance.
1
3. Exploded View
1. Features
1) Compatible with AMD Opteron, Athlon 64 X2 Dual-Core, Athlon 64 FX, Athlon 64, and Sempron for Socket
AM2/754/939/940.
2) Pure copper heatsink with component layout optimized for maximum cooling efficiency.
3) Innovative, patented, and curved heatpipe design for a heat transfer capacity of up to six heatpipes with
the use of just three.
4) Ultra slim fins (0.2mm) for minimized weight and reduced airflow resistance.
5) Adjustable fan speed controller (FAN MATE 2) included.
2. Specifications
CNPS9500 AM2
Model
Spec.
Heatsink Material
Weight (g)
Thermal Resistance (°C/W )
Dimensions
(mm)
Bearing Type
Rotation Speed
Noise Level
Input Voltage
Dissipation Area (
㎠
)
Pure Copper
530
(1)
0.12 ~ 0.16
85(L) X 112(W) X 125(H)
Dual Ball Bearing
1,350rpm ± 10% ~ 2,600rpm ± 10%
18.0dB ± 10% ~ 27.5dB ± 10%
(2)
5~12V
3,698
(Note 1) The maximum weight specified for a cooler is 450g for AMD socket AM2/754/939/940.
Special care and attention must be taken when moving a computer equipped with a cooler
exceeding the specified weight limit. Zalman Tech Co., Ltd. is not responsible for any damage
resulting from moving a computer.
(Note 2) Noise level was measured 1m away from the source.
Fan Support Fixing Bolt
Fan
Fan Support
CPU Block Cover
Heatsink
CPU Block Fixing Bolt
1) Cooler
2)FAN MATE 2
- Output Voltage : 5V ~ 11V ±2%
- Allowable Power : 6W or lower
※
The specifications of any product may change without prior notice to improve performance.
2
Korean Patent Application No. 05-45737
Korean Design Application No. 05-15303, 15304, 15306, 15307, 17970, 17971
Patent Applications pending in over 20 nations around the world including USA, EU, and Japan
4. Patents
1) If excessive force is exerted on the fan, it may result in malfunction or damage to the product and/or the
computer.
2) Avoid inserting any objects into the fan while it is in operation.
3) Keep the product away from the reach of children and pets.
4) Check the components list and condition of the product before installation. If any problem is found, contact
the place of purchase to obtain a replacement/refund.
5) CPU and motherboard are subject to damage if the product is incorrectly installed.
Familiarize yourself with the “Installation” steps before installing the product.
Disclaimer) Zalman Tech Co., Ltd. is not responsible for any damages due to external causes, including
but not limited to, improper use, problems with electrical power, accident, neglect, alteration,
repair, improper installation, or improper testing.
5. Precautions
6. Components
❶
CNPS9500 AM2
❷
Thermal Grease
❸
FAN MATE 2 (Fan Speed Controller)
❹
Cable for FAN MATE 2
❺
Double-sided Tape (to attach FAN MATE 2)
❻
One(1) Clip
❼
One(1) Lever
❽
User’s Manual
All AMD Socket AM2/754/939/940 CPUs :
- Opteron
- Athlon 64 X2 Dual - Core
- Athlon 64 FX
- Athlon 64
- Sempron
7. Compatible CPUs
❸
❷
❺
❹
❽
❻
❶
❼
※
The specifications of any product may change without prior notice to improve performance.
3

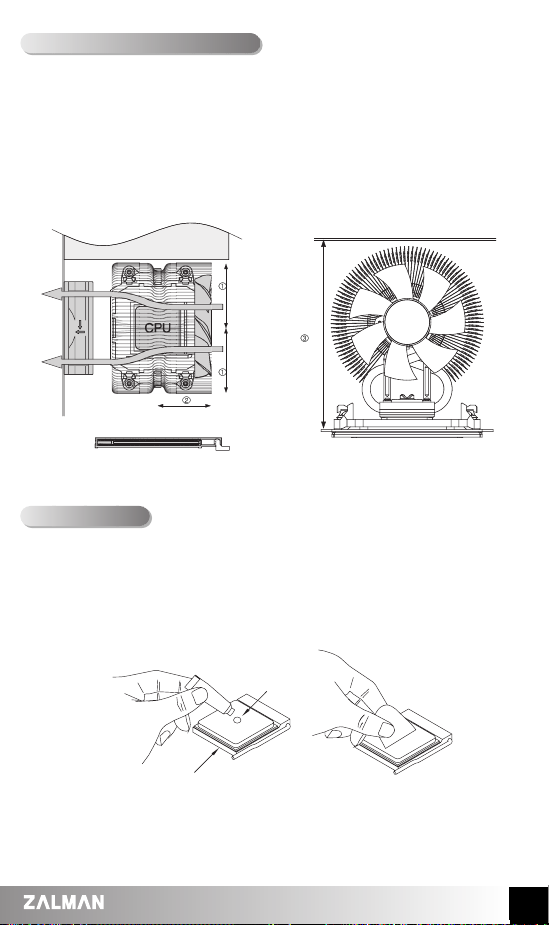

Cases equipped with an Air Guide must have their Air Guide Ducts removed before installation.
Install only on systems meeting the following conditions :
① There must be no interfering components (e.g. PSU, VGA card) within 56mm distance from the
center of the CPU.
② There must be no interfering components (e.g. ODD) within 45mm distance from the center of the CPU.
③ Case chassis cover must be distanced at least 135mm away from the motherboard.
①①
Thermal Grease Application
Clear off particles and residue from the top of the CPU then apply an even layer of the included thermal
grease on top of the CPU that makes contact with the base of the CNPS9500 AM2.
8. Installation Requirements
9. Installation
Thermal Grease
CPU (Lid)
Case chassis cover
135mm
Motherboard
Air Flow
System Fan
Case
Chassis
VGA Card Slot
56mm
56mm
PSU
45mm
※

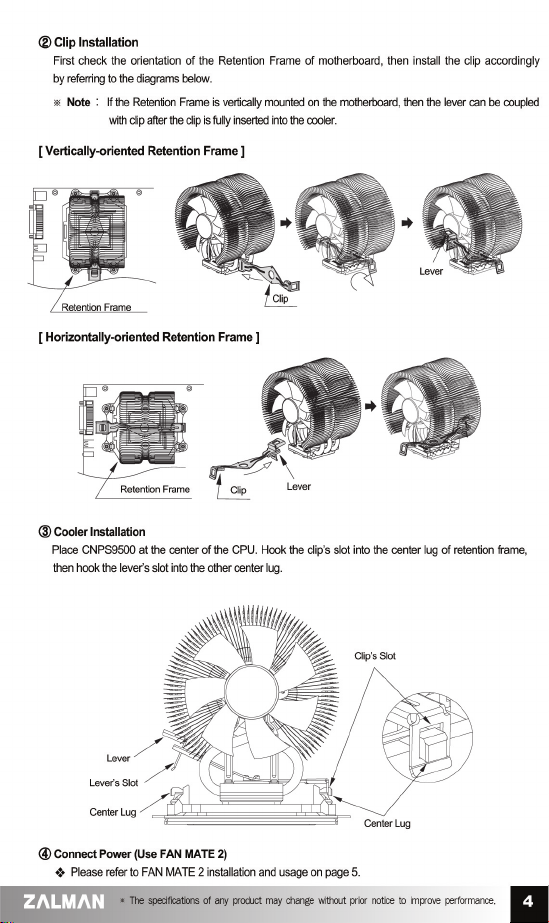

The specifications of any product may change without prior notice to improve performance.
5

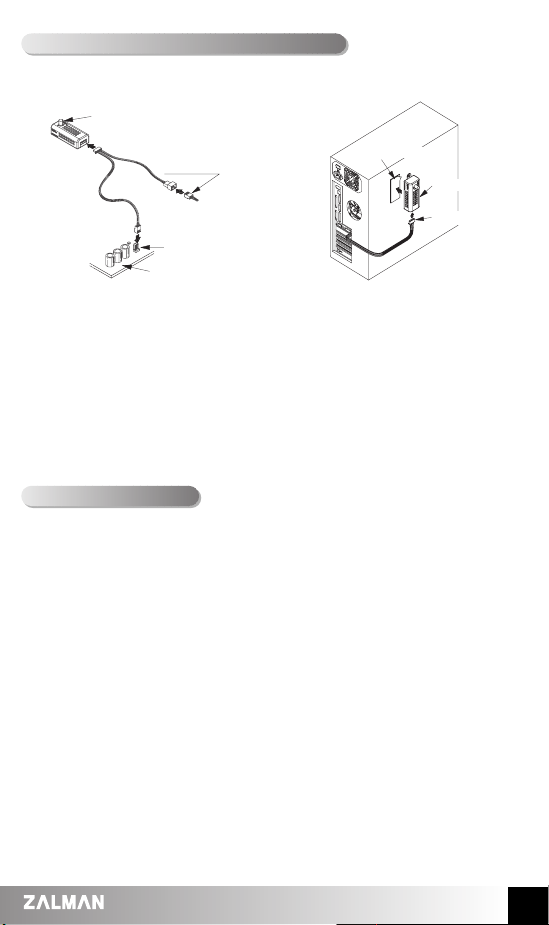

10. FAN MATE 2 Installation and Usage
11. Notes on Usage
11))
Installing FAN MATE 2 inside the System
22))
Installing FAN MATE 2 outside the System
Connect the appropriate 3-pin connector on the
cable to the CPU Fan Header and to the
CNPS9500’s Fan Connector.
Pull the 6-pin Connector out of the system and
connect it to FAN MATE 2, which can be
attached to the case with the Double-Sided Tape.
Control Knob
Fan Connector
(CNPS9500)
Motherboard
CPU Fan Header
Double - sided Tape
FAN MATE 2
6-Pin Connector
◆
Fan speed is controlled by adjusting the control knob. When the control knob on FAN MATE 2 is
turned fully counter-clockwise, the fan operates in Silent Mode. Turned fully clockwise, it operates in
Normal Mode.
Note) FAN MATE 2 has been specifically designed for the fan of this product. Zalman Tech Co., Ltd.
is not responsible for any damage to systems or CPUs caused by its use with other types of fans.
1) Checking CPU Compatibility
Please refer to “Compatible CPUs” on page 2 to confirm that your CPU is compatible before using
the CPU cooler.
2) Cautions During Booting
When booting the computer, it may automatically power down after an alarm sound is set off by a
system monitoring program. This indicates that the CPU fan is rotating slowly. If this happens, turn the
Control Knob fully clockwise to increase the fan speed. Then set ‘CPU Fan Detected’ to
‘Disabled’ in BIOS settings, or set the slowest rotational speed of the CPU fan in the system monitoring
program to less than or equal to 1300rpm.
Note) Some motherboards do not boot if the rotational speed of the CPU fan is below a certain rpm.
If the BIOS settings are updated, Silent Mode can be used. For more information on updating your
BIOS, please refer to the motherboard manufacturer's website. Disabling CPU fan speed detection
in BIOS settings does not affect computing performance.
3) OVERCLOCKING
Zalman Tech Co., Ltd. is not responsible for any damage resulting from CPU OVERCLOCKING.
※
The specifications of any product may change without prior notice to improve performance.
6
14.
Home Theatre PC Enclosures
TNN Computer Enclosures are the world’s first environment-friendly noiseless computer enclosures
that operate without the use of a fan. TNN Computer Enclosures use the aluminum enclosure itself
as a heatsink. They are ideal for environments that require silence, as well as for home theatre
systems and multi-media systems.
The HD160 is designed for ultra quiet home theatre
PC operation, utilizing optimized ventilation and
anti-vibration reinforcements, making it ideal for
environments that require silence such as living
rooms, bedrooms, educational facilities, and offices.
For more information, please visit our website.
13.
TNN (Totally No Noise) Computer Enclosures
TNN 300 TNN 500AF
HD160
The use of Zalman’s Noiseless Power Supply, CPU Cooler, Case Fan, Fanless Northbridge
Cooler, and Video Card Cooler will allow you to achieve stable performance and maintain a
noiseless environment.
12. Zalman Computer Noise Prevention System
Noiseless Power Supply Fanless Northbridge Cooler Heatpipe HDD Cooler
Noiseless Case Fan Quiet VGA Cooler Fan Controller
