Yokogawa UT350 Operating Manual

User’ s Manual
Models UT350/UT320 Digital Indicating Controllers User ’s Manual
IM 05D01D02-41E
IM 05D01D02-41E
2nd Edition
<Toc> <Rev>

Introduction

Thank you for purchasing the UT350/UT320 digital indicating controller.
How to Use the Manuals
i
Purpose Description
Setup Describes the tasks (installation, wiring, and others) required
Basic operation
Operating procedures and troubleshooting
Brief operation and setpoint recording
Title
1. Installation
2.
Initial Settings
3. Operations
4.1 Troubleshooting
5. Parameters
Regarding This Users Manual
(1) This manual should be provided to the end user. Keep an extra copy or copies of the
manual in a safe place.
(2) Read this manual carefully to gain a thorough understanding of how to operate this
product before starting operation.
(3) This manual describes the functions of this product. Yokogawa M&C Corporation
(hereinafter simply referred to as Yokogawa) does not guarantee the application of these functions for any particular purpose.
(4) Under absolutely no circumstances may the contents of this manual, in part or in
whole, be transcribed or copied without permission.
(5) The contents of this manual are subject to change without prior notice.
to make the controller ready for operations. Describes examples of setting PV input types, control output
types, and alarm types. Making settings described herein allows you to carry out basic control.
Describes key operation sequences. For operation control through external contact inputs, see “1.5 Terminal Wiring Diagrams.”
Contains the parameter map used as a guideline for setting parameters and lists of parameters for recording User Settings.
(6) Every effort has been made to ensure that the details of this manual are accurate.
However, should any errors be found or important information be omitted, please contact your nearest Yokogawa representative or our sales office.
Media No. IM 05D01D02-41E (CD) 2nd Edition : Sep 2002 (MC) All Rights Reserved Copyright © 2000, Y okogawa M&C Corporation
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<T oc> <Rev>
Safety Precautions
The following symbol is indicated on the controller to ensure safe use.
This symbol on the controller indicates that the operator must refer to an explanation in the user’s manual in order to avoid the risk of injury or death of personnel or damage to the instrument. The manual describes how the operator should exercise special care to avoid
CAUTION
electric shock or other dangers that may result in injury or loss of life.
The following symbols are used in the hardcopy user’s manuals and in the user’s manual supplied on the CD-ROM.
NOTE
Indicates that operating the hardware or software in a particular manner may damage it or result in a system failure.
ii
IMPORTANT
Draws attention to information that is essential for understanding the operation and/or features of the controller.
Regarding Force Majeure
Y okogawa M&C Corporation assumes no liability for any loss or damage, direct or indirect, caused by the use of or unpredictable defects of the product.
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<Int> <Rev>
Models UT350/UT320 Digital Indicating Controllers Users Manual
CONTENTS
Introduction........................................................................................................... i
1. Installation .............................................................................................. 1-1
1.1 Model and Suffix Codes.................................................................................. 1-1
1.2 How to Install................................................................................................... 1-2
1.3 How to Connect Wires .................................................................................... 1 -5
1.4 Hardware Specifications ................................................................................ 1-7
1.5 Terminal W iring Diagrams............................................................................ 1-12
2. Initial Settings ......................................................................................... 2-1
Toc-1
IM 05D01D02-41E 2nd Edition
2.1 Names and Functions of Front Panel Parts................................................... 2-2
2.2 Setting PV Input Type (Setting First at Power-on)......................................... 2-3
2.3 Changing PV Input T ype ................................................................................. 2- 6
2.4 Setting Control Output T ype........................................................................... 2-8
2.5 Changing Alarm Type ..................................................................................... 2-9
2.6 Description of Multiple Setpoints and PID................................................... 2-12
3. Operations .............................................................................................. 3-1
3.1 Monitoring-purpose Operating Displays Available during Operation ......... 3-1
3.2 Setting T arget Setpoint (SP) ........................................................................... 3-3

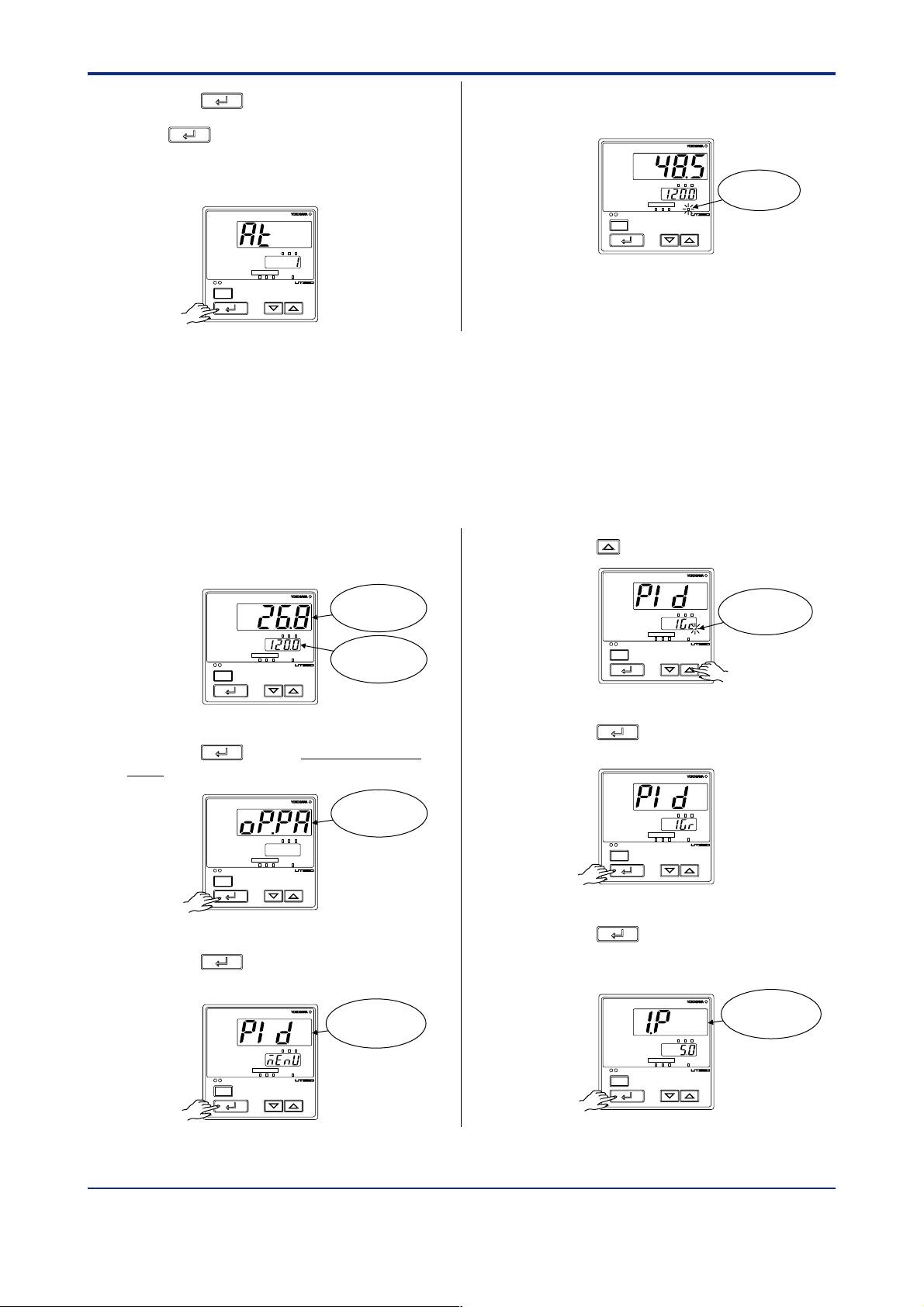

3.3 Performing/Canceling Auto-tuning................................................................ 3- 4
3.4 Setting PID Manually....................................................................................... 3-5
3.5 Setting Alarm Setpoints.................................................................................. 3-6
3.6 Selecting Target Setpoint Numbers (SP.NO) ................................................. 3-7
3.7 Switching between Run and Stop .................................................................. 3-8
3.8 Switching between AUTO and MAN............................................................... 3-9
3.9 Manipulating Control Output in Manual Operation ..................................... 3-10
4. T roubleshooting and Maintenance ........................................................ 4-1
4.1 Troubleshooting.............................................................................................. 4-1
4.2 Maintenance .................................................................................................... 4-4
4.2.1 Cleaning ........................................................................................... 4-4
4.2.2 Replacing Brackets........................................................................... 4-4
4.2.3 Attaching T erminal Cover.................................................................. 4-4
4.2.4 Replacing Parts with a Limited Service Life....................................... 4 -6
4.2.5 Replacing Control Output Relays...................................................... 4-7
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<Int> <Rev>
5. Parameters.............................................................................................. 5-1
6. Function Block Diagram and Descriptions............................................ 6-1
Revision Information ............................................................................................ i
Toc-2
5.1 Parameter Map ................................................................................................ 5-1
5.2 Lists of Parameters......................................................................................... 5-4
IM 05D01D02-41E
2nd Edition : Sep 20,2002-00
<Toc> <1. Installation>

1. Installation

This chapter describes installation, wiring, and other tasks required to make the controller ready for operation.

1.1 Model and Suffix Codes

Before using the controller, check that the model and suf fix codes match your order.
Model Suffix Code Description UT350 UT320
Type
Optional functions
-0 Standard type
-2 Heating/cooling type
Check that the following items are provided:
Digital indicating controller (of ordered model)...................... 1
Digital indicating controller (provided with retransmission output and 15 V DC loop power supply as standard)
Standard type (with 24 V DC loop power supply)-3
0 None 1 With communication, heater burnout alarm 2 With heater burnout alarm
1-1
Brackets (mounting hardware) ............................................. 1 pair
Unit label.............................................................................. 1
Users Manuals.................................................................... 3 (A2 size)
Users Manual (Reference) (CD-ROM version) .................... 1
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<T oc> <1. Installation>

1.2 How to Install

NOTE
To install the controller , select a location where:
1. no one may accidentally touch the terminals,
2. mechanical vibrations are minimal,
3. corrosive gas is minimal,
150mm
1-2
4. temperature can be maintained at about 23C and the fluctuation is minimal,
150mm150mm
150mm
5. no direct radiant heat is present,
6. no magnetic disturbances are caused,
7. no wind blows against the terminal board (reference junction compensation element),
8. no water is splashed,
9. no flammable materials are around,
Never place the controller directly on flammable items or equipment. If the controller has to be installed close to flammable items or equipment, be sure to
provide shielding panels all around the controller, at least 150 mm away from every side; the panels should be made of either 1.43 mm-thick metal-plated steel plates or 1.6 mm­thick uncoated steel plates.
NOTE
Never touch the opening at the bottom of the case. It is to be used in the factory at ship­ping.
Installation Position
Install the controller at an angle within 30 from horizontal with the front panel facing up­ward. Do not install it facing downward. The position of right and left sides should be hori­zontal.
Front panel
of controller
30
Must not exceed 30
Rear of controller
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<Toc> <1. Installation>
External Dimensions and Panel Cutout Dimensions
1-3
UT350
96
11
100
96
1 to 10 mm (Panel thickness)
General installation Side-by-side close installation
0
+0.8
92
92
(53)
+0.8
0
145 min.
"N" stands for the number of controllers to be installed. However, the measured value applies if N  5.
Large bracket
91.8
Small bracket
[(N-1)96+92]117 min.
112
+0.8
Unit: mm
0
+0.8
92
0
(25)
UT320
10048 11
96
1 to 10 mm (Panel thickness)
General installation Side-by-side close installation
70 min.
0
+0.8
92
145 min.
"N" stands for the number of controllers to be installed. However, the measured value applies if N 5.
92
(53)
+0.8
0
Small bracket
112
91.8
Small bracket
[(N-1)48+45]
+0.6
Unit: mm
0
+0.6
45
(25)
0
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<T oc> <1. Installation>
How to Install
Turn off the power to the controller before installing it on the panel because there is a possibility of electric shock.
CAUTION
After opening the mounting hole on the panel, follow the procedures below to install the controller:
1. Insert the controller into the opening from the front of the panel so that the terminal board on the rear is at the far side.
2. Set the brackets in place on the top and bottom of the controller as shown in the figure below, then tighten the screws of the brackets. Take care not to overtighten them.
1-4
Direction to insert the controller
Insert the controller into the opening at the front of the panel.
Panel
Insert a screwdriver into the brackets to tighten the screws.
Small bracket
(bottom mounting hardware)
Large bracket
(top mounting hardware)
Terminal board
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<Toc> <1. Installation>

1.3 How to Connect Wires

1) Before carrying out wiring, turn of f the power to the controller and check that the cables to be connected are not alive with a tester or the like because there is a possi­bility of electric shock.
CAUTION
2) Wiring must be carried out by personnel who have basic electrical knowledge and practical experience.
NOTE
1) Provide power from a single-phase instrument power supply. If there is a lot of noise in the power line, insert an insulating transformer into the primary side of the line and use a line filter (recommended part: ZAC2205-00U from TDK) on the secondary side. As a countermeasures against noise, do not place the primary and secondary power cables close to each other.
2) For thermocouple input, use shielded compensating lead wires for wiring. For R TD input, use shielded wires that have low conductor resistance and cause no significant differences in resistance between the three wires. The cables to be used for wiring, terminal specifications, and recommended parts are as shown below.
1-5
3) Control output relays may be replaced. However, because they have a life of 100,000 times that of the resistance load, use auxiliary relays to turn on/off a load.
4) The use of inductance (L) loads such as auxiliary relays, motors and solenoid valves causes malfunction or relay failure; always insert a CR filter for use with alternating current or a diode for use with direct current, as a spark-removal surge suppression circuit, into the line in parallel with the load.
5) When there is possibility of being struck by external lightening surge, use the arrester to protect the instrument.
For DC Relay Wiring For AC Relay Wiring
UT350/UT320
UTs contact
(Use one with a relay coil
rating less than the UTs
contact rating.)
External DC power supply
R
Relay
Diode (Mount it directly to the relay coil terminal (socket).)
UT350/UT320
UTs contact
(Use one with a relay coil
rating less than the UTs
contact rating.)
External AC power supply
R
Relay
CR filter (Mount it directly to the relay coil terminal (socket).)
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<T oc> <1. Installation>
Cable Specifications and Recommended Cables
Purpose Name and Manufacturer
Power supply, grounding, relay contact outputs
Thermocouple Shielded compensating lead wires, JIS C 1610, X- - -
RTD Shielded wires (three conductors), UL2482 (Hitachi Cable) Other signals Shielded wires
600 V PVC insulated wires, JIS C 3307, 0.9 to 2.0 mm2
(See Yokogawa Electric's GS 6B1U1-E.)
Recommended T erminal Lugs
Applicable wire size Tightening torque
0.3 to 1.65 mm
2
0.8 N·m or less
1-6
7 mm or less
3.7mm
or
7 mm or less
3.7mm
T erminal Covers (Optional parts)
Target Model Part Number Sales Unit For UT350 For UT320
1. Before attaching the terminal cover, bend the side with the groove inward as shown in Fig. A. Be careful not to bend it backwards. This not only marks it harder to attach the cover but will also weaken its hold.
2. Fit the holes on the top and bottom of the terminal cover the projections on the brackets (Fig. B) and lock in place. The figure right shows the attachment of a terminal cover to UT controller .
T9115YD 1 T9115YE 1
Figure A
Figure B
Fold the cover in the direction of the arrow.
Fit the cover hold over the protrusion on the mounting bracket.
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<Toc> <1. Installation>

1.4 Hardware Specifications

PV Input Signals
Number of inputs: 1 (terminals 11-12-13)
Input type: Universal input system. The input type can be selected with the software.
Sampling period: 250 ms
Burnout detection: Functions at TC, RTD, standard signal (0.4 to 2 V or 1 to 5 V)
Upscale, downscale, and off can be specified. For standard signal, burnout is determined to have occurred if it is 0.1 V or less.
Input bias current: 0.05 A (for TC or R TD b-terminal)
Measurement current (RTD): About 0.13 mA
Input resistance: 1 M or more for thermocouple or mV input
About 1 M for DC voltage input
Allowable signal source resistance: 250  or less for thermocouple or mV input Effects of signal source resistance: 0.1 V/ or less 2 k or less for DC voltage input Effects of signal source resistance: About 0.01%/100
1-7
Allowable wiring resistance: for RTD input Maximum 150 /wire: Conductor resistance between three wires should be equal However, 10 /wire for a maximum range of -150.0 to 150.0 C. Wire resistance effect: 0.1C/10
Allowable input voltage: 10 V DC for thermocouple, mV, or RTD input20 V DC for DC voltage input
Noise rejection ratio: 40 dB (50/60 Hz) or more in normal mode 120 dB (50/60 Hz) or more in common mode
Reference junction compensation error: 1.0 C (15 to 35C)1.5 C (0 to 15 C, 35 to 50 C)
Applicable standards: JIS, IEC, DIN (ITS-90) for thermocouples and RTD
Loop Power Supply
Supplies power to a two-wire transmitter. (15 V DC: terminals A resistor (10 to 250 ) connected between the controller and transmitter converts a current signal into a voltage signal, which is then read via the PV input terminal. Supply voltage: 14.5 to 18.0 V DC, max. 21 mA (provided with a protection circuit against a field short-circuit); 21.6 to 28.0 V DC, max. 30 mA (only for models with 24 V DC loop power supply) When using the 24 V DC loop power supply of the UT320, keep the operating ambient temperature between 0C and 40C.
14-15
; 24 V DC: terminals 21-22)
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<T oc> <1. Installation>
Retransmission Output
Either PV , target setpoint, or control output is output. Either the retransmission output or the loop power supply can be used with terminals
14-15
.
1-8
Number of outputs: 1 (terminals
14-15
)
Output signal: 4-20 mA DC
Load resistance: 600 or less
Output accuracy: 0.3% of span under standard operating conditions (232C,
5510% RH, power frequency of 50/60 Hz)
Control Output
Universal output system, The output type can be selected with the software.
Current output (Standard type: terminals Cooling side: terminals
Number of outputs 1 or 2 (two for heating/cooling type),
Output signal 4-20 mA DC
Load resistance 600or less Output accuracy 0.3% of span under standard operating
switched between a voltage pulse output
Voltage pulse output (Standard type: terminals Cooling side: terminals
16-17
; Heating/cooling type: Heating side: terminals 16-17;
14-15
)
and current output.
conditions (232 C, 5510% RH,
power frequency of 50/60 Hz)
16-17
; Heating/cooling type: Heating side: terminals 16-17;
14-15
)
Number of
outputs
Output signal
Resolution
1 or 2 (two for heating/cooling type),
switched between a voltage pulse output and current output.
On-voltage = 12 V or more (load resistance: 600 or more)
Off-voltage = 0.1 V DC or less
10 ms
Relay contact output (Standard type: terminals
2-3
; Cooling side: terminals 4-7)
Number of outputs
Output signal Three terminals (NC, NO, and common) /
Contact rating Terminals 1-2-3 :
Resolution 10 ms
1 or 2 (two for heating/cooling type)
250 V AC or 30 V DC, 3 A (resistance load)
240 V AC or 30 V DC, 1A (resistance load)
1-2-3
Two terminals
Terminal 4-7 :
; Heating/cooling type: Heating side: terminals 1-
Contact Inputs
Purpose: Selection between target setpoints or Auto/Man modes, or for other pur­poses
Number of inputs: 2
Input type: Non-voltage contact or transistor open collector input
Input contact rating: 12 V DC, 10 mA or more
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<Toc> <1. Installation>
On/off determination: For non-voltage contact input, contact resistance of 1 k or less is determined as on and contact resistance of 20 k or more as off. For transistor open collector input, input voltage of 2 V or less is determined as on and leakage current must not exceed 100 A when off.
Minimum status detection hold time: About 1 second.
Contact Outputs
Purpose: Alarm output, F AIL output, and others
Number of outputs: 3
Relay contact rating: 240 V AC/1 A or 30 V DC/1 A (COM terminal is common.)
(FAIL output : 1b)
Display Specifications
PV display: UT350: 4-digit, 7-segment red LED display , character height of 20 mm UT320: 4-digit, 7-segment red LED display , character height of 12 mm
Setpoint display: 4-digit, 7-segment red LED display, character height of 9.3 mm (for both UT350 and UT320)
1-9
Status indicating lamps: LEDs
Safety and EMC Standards
Safety: Compliant with IEC1010-1: 1990 and EN61010-1: 1992 Approved by CSA1010 CSA1010 installation category (overvoltage category): CA TII (IEC1010-1) Approved by UL508
EMC standards: The instrument continues to operate at a measuring accuracy of within 20% of the range during test.
Construction, Installation, and Wiring
Construction: Only the front panel is dust-proof and drip-proof (protection class IP55) For side-by-side close installation the controller loses its dust-proof and drip-proof protection.
Material: ABS resin and polycarbonate
Case color: Black
Weight: About 1 kg or less
Dimensions:
UT350  96 (W)  96 (H)  100 (depth from panel face) mm UT320  48 (W)  96 (H)  100 (depth from panel face) mm
Installation: Panel-mounting type. With top and bottom mounting hardware (1 each)
Panel cutout dimensions:
UT350  92 UT320  45
+0.8
(W)  92
0 +0.6
(W)  92
0
+0.8
(H) mm
0 +0.8
(H) mm
0
Installation position: Up to 30 upward facing (not designed for facing downward)
Wiring: M3.5 screw terminals (for signal wiring and power/ground wiring as well)
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<T oc> <1. Installation>
Power Supply Specifications
Power supply: Rated voltage of 100 to 240 V AC (10%), 50/60 Hz
Power consumption: Max. 20 VA (8.0 W max.)
Internal fuse rating: 250 V AC, 1.6A time-lug fuse
Data backup: Non-volatile memory (can be written to up to 100,000 times)
Withstanding voltage
- Between primary terminals* and secondary terminals**:
At least 1500 V AC for 1 minute (Note)
- Between primary terminals* and grounding terminal:
At least 1500 V AC for 1 minute (Note)
- Between grounding terminal and secondary terminals**:
At least 1500 V AC for 1 minute
- Between secondary terminals**:
At least 500 V AC for 1 minute * Primary terminals indicate power terminals and relay output terminals ** Secondary terminals indicate analog I/O signal, voltage pulse output, and contact
input terminals
Note: The withstanding voltage is specified as 2300 V AC per minute to provide a margin of safety .
1-10
Insulation resistance: 20 M or more at 500 V DC between power terminals and grounding terminal
Grounding: Class 3 grounding (grounding resistance of 100  or less)
Signal Isolations
PV input terminals: Isolated from other input/output terminals. Not isolated from the internal circuit.
15 V DC loop power supply terminals: Not isolated from 4-20 mA analog output and voltage pulse control output. Isolated from other input/output terminals and internal circuit.
24 V DC loop power supply terminals: Isolated from the 15 V DC loop power supply terminals, 4-20 mA analog output terminals and voltage pulse control output terminals, other I/O terminals and the internal circuitry .
4-20 mA analog output terminals (for control output and retransmission): Not isolated between 4-20 mA outputs and from 15 V DC loop power supply and voltage pulse control output. Isolated from other input/output terminals and internal circuit.
Voltage pulse control output terminals: Not isolated from 4-20 mA outputs and 15 V DC loop power supply . Isolated from other input/output terminals and internal circuit.
Relay contact control output terminals: Isolated between contact output terminals and from other input/output terminals and internal circuit.
Contact input terminals: Not isolated between contact input terminals and from com­munication terminals. Isolated from other input/output terminals and internal circuit.
Relay contact alarm output terminals: Not isolated between relay contact alarm outputs. Isolated from other input/output terminals and internal circuit.
RS-485 communication terminals: Not isolated from contact input terminals. Isolated from other input/output terminals and internal circuit.
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<Toc> <1. Installation>
Power terminals: Isolated from other input/output terminals and internal circuit.
Grounding terminals: Isolated from other input/output terminals and internal circuit.
Environmental Conditions
Normal operating conditions: Ambient temperature: 0 to 50C (40C or less for side-by-side close installation) The operating ambient temperature range is between 0C and 40C when the 24 V DC loop power supply of the UT320 is used. T emperature change rate: 10C/h or less Ambient humidity: 20 to 90% RH (no condensation allowed) Magnetic field: 400 A/m or less Continuous vibration at 5 to 14 Hz: Full amplitude of 1.2 mm or less Continuous vibration at 14 to 150 Hz: 4.9 m/s Short-period vibration: 14.7 m/s Shock: 147 m/s
2
or less, 1 1 ms
2
, 15 seconds or less
Installation height: Height above sea level of 2000 m or less Warm-up time: 30 minutes or more after power on
Transportation and storage conditions: T emperature: -25 to 70 C T emperature change rate: 20C/h or less Humidity: 5 to 95% RH (no condensation allowed)
2
or less
1-11
Effects of changes in operating conditions
- Effects from changes in ambient temperature:
- On voltage or thermocouple input, 1 V/C or 0.01% of F .S./C, whichever is larger
- On RTD input, 0.05C/C (ambient temperature) or less
- On analog output, 0.05% of F .S./C or less
- Effects from power supply fluctuation (within rated voltage range)
- On analog input, 1 V/10 V or 0.01% of F.S./10 V, whichever is larger
- On analog output, 0.05% of F.S./10 V or less
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<T oc> <1. Installation>

1.5 T erminal Wiring Diagrams

NOTE
Do not use unassigned terminals as relay terminals.
Terminal wiring diagrams are shown on and after the next page.
1-12
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<Toc> <1. Installation>
1
2
Relay contact output
3
Control output
NC
NO
COM
Contact rating: 250 V AC, 3 A
30 V DC, 3 A (resistance load)
Note: Select this option from
the OT parameter.
* Time proportional PID
relay contact output is
configured at factory
before shipment.
23
24
RS-485 communication
* Wiring can only be carried out
for controllers with
communication functions.
Maximum baud rate: 9600 bps
25
26
27
SDB(+)
SDA(-)
RDB(+)
RDA(-)
SG
24 V DC loop
power supply
* Wiring can only be carried
out for controllers with
24 V DC loop power supply.
12
13
TC input
11
12
RTD input
13
12
13
mV/V input
Installation category (overvoltage category): II (IEC1010-1)
A
b
B
NOTE
-
+
-
+
12
13
Note: Connecting a 250
resistor to the terminals is
optional.
Model: X010-250-2 (resistor with M3.5 crimp-on terminal
lugs)
*
When receiving 4-20 mA DC current signals,
set the PV input type to 1-5 V DC (setpoint
41).
Receiving 4-20 mA DC Current
Signals with the Controller
250
4-20mA
PV input
* Not configured at factory before shipment
See 2. Initial Settings,
for more
information.
-
+
14
15
Retransmission output
4-20 mA DC
14
15
15 V DC loop power supply
14.5-18.0VDC
(21 mA DC max.)
* PV retransmission is configured at factory
before shipment.
Load resistance: 600
or less
* If 15 V DC loop power supply is used,
retransmission output cannot be used.
-
+
-
+
16
17
Current/voltage
pulse output
4-20 mA DC,
voltage pulse
(12 V)
Control output
+
-
Note:Select this
option from the
OT parameter.
6
5
Alarm output
4
7
AL1
AL2
AL3
COM
Relay contact rating: 240 V AC, 1 A
30 V DC, 1 A (resistance load)
Relay
Alarm-1 output
Alarm-2 output
Alarm-3 output
Common
UT
8
9
Power supply
10
L
N
Allowable range: 100 to 240 V AC (
10%)
(free voltage)
50/60 Hz shared
Power supply
CAUTION
Before carrying out wiring, turn off the power
to the controller and check that cables to be
connected are not alive with a tester or the like
because there is a possibility of electric shock.
OT=0 (factory-set default)
Time proportional control
Relay output (terminals , and )
OT=1
Correspondence between parameter OT and control output types
Time proportional control
Voltage pulse output (terminals and )
OT=2
Current output
(terminals and )
OT=3
On-off control
Relay output (terminals , and )
* OT is a setup parameter. You can change the settings of the parameter OT to change the control output type.
See 2. Initial Settings,
for more information.
1
2
3
16
17
16
17
1
2
3
When switching target
setpoints 1 to 4:
DI1
DI2
1.SP
2.SP3.SP
4.SP
OFF
OFFOFF
ON ON
ON
OFF
ON
Contact rating: 12 V DC, 10 mA or more
1
2
3
4
5
6
7
8
9
10
21
22
23
24
25
26
27
28
29
30
11
12
13
14
15
16
17
18
19
20
Correspondence between parameter DIS and external contact input functions
When DIS=4
DI1
DI2
COM
Common
When DIS=3
2.SP when DI1=ON
1.SP when DI1=OFF
STOP when DI2=ON
RUN when DI2=OFF
Common
When DIS=2
Hides the LOCK parameter when DI1=ON.
Shows the LOCK parameter when DI1=OFF.
Common
When DIS=1 (Factory-set default)
2.SP when DI1=ON
1.SP when DI1=OFF
AUTO when DI2=ON
MAN when DI2=OFF
Common
When DIS=OFF
No function
No function
Common
DI1
DI2
COM
+5V
+5V
Contact
Transistor contact
*
DIS is a setup parameter.
Changing DIS setpoint allows you to change the function of external contact input.
* This wiring is only
possible for a controller
with a heater burnout
alarm.
29
28
Heater current
detection input
30
CT2
CT1
COM
CT
CT
No function
19
18
20
UT
19
18
20
21
22
21.6-28.0VDC
(30 mA DC max.)
-
+
Note: External Contact Input
If the power is turned on when the external contact input is OFF, the mode
(SP.no or A/M) existing before the power is turned off will be continued.
(except for RUN/STOP)
1-13
UT350 Standard T ype (Model UT350-0䊐 or UT350-3) or Heating/Cooling T ype (Model UT350-2䊐)
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<T oc> <1. Installation>
Heating-side control output
1
2
3
NC
NO
COM
Relay contact output
* Time proportional PID relay contact output
is configured at factory before shipment.
* Available if 4, 7 or 10 is set in the OT
(Control Output Type) setup parameter.
Contact rating: 250 V AC, 3 A
30 V DC, 3 A (resistance load)
23
24
25
26
27
SDB(+)
SDA(-)
RDB(+)
RDA(-)
SG
* Wiring can only be carried out
for controllers with communication
functions.
Maximum baud rate: 9600 bps
RS-485 communication
12
13
11
12
13
12
13
A
b
B
+
-
+
-
TC input
RTD input
mV/V input
Installation category (overvoltage category): II (IEC1010-1)
NOTE
12
13
*
When receiving 4-20 mA DC current signals,
set the PV input type to 1-5 V DC (setpoint
41).
Receiving 4-20 mA DC Current
Signals with the Controller
250
4-20mA
-
+
Note: Connecting a 250
resistor to the terminals is
optional.
Model: X010-250-2 (resistor with M3.5 crimp-on terminal
lugs)
PV input
* Not configured at factory before shipment
See 2. Initial Settings,
for more
information.
Heating-side control output
16
17
Current/voltage
pulse output
4-20 mA DC,
voltage pulse
(12 V)
+
-
* Available if 5, 6, 8, 9, 11
or 12 is set in the OT
(Control Output
Type) setup parameter.
14
15
14
15
+
-
+
-
Retransmission output
4-20 mA DC
14
15
+
-
4-20 mA DC,
voltage pulse (12 V)
15 V DC loop power supply
14.5-18.0VDC
(21 mA DC max.)
Cooling-side control output
8
9
10
L
N
Power supply
Power supply
Allowable range: 100 to 240 V AC (
10%)
(free voltage)
50/60 Hz shared
6
5
4
7
AL1
AL2
AL3
COM
Relay
Alarm output/cooling-side control output
Alarm-1 output
Alarm-2 output
Alarm-3 output
or cooling-side control
output (Note)
Common
Relay contact rating: 240 V AC, 1 A
30 V DC, 1 A (
resistance
load)
UT
When switching target
setpoints 1 to 4:
DI1
DI2
1.SP
2.SP3.SP
4.SP
OFF
OFFOFF
ON ON
ON
OFF
ON
Contact rating: 12 V DC, 10 mA or more
Correspondence between parameter DIS and external contact input functions
When DIS=4
DI1
DI2
COM
Common
When DIS=3
2.SP when DI1=ON
1.SP when DI1=OFF
STOP when DI2=ON
RUN when DI2=OFF
Common
When DIS=2
Hides the LOCK parameter when DI1=ON.
Shows the LOCK parameter when DI1=OFF.
Common
When DIS=1 (Factory-set default)
2.SP when DI1=ON
1.SP when DI1=OFF
AUTO when DI2=ON
MAN when DI2=OFF
Common
When DIS=OFF
No function
No function
Common
DI1
DI2
COM
+5V
+5V
Contact
Transistor contact
*
DIS is a setup parameter.
Changing DIS setpoint allows you to change the function of external contact input.
No function
19
18
20
UT
19
18
20
OT=4 (factory-set default) OT=5
Correspondence between parameter OT and heating-side/cooling-side output types
OT=6
OT=7 OT=8 OT=9 OT=10 OT=11 OT=12
* OT is a setup parameter. You can change the settings of the parameter OT to change the control output type.
See 2. Initial Settings,
for more information.
The control output types,
relay output
and voltage pulse output
shown in the table above refer to those of time proportional control.
To change the type to a relay output for on-off control, select
Relay Terminals
and change the setpoint of the proportional band to
0.
Heating side: Relay output
(terminals , and )
Cooling side: Relay output
(terminals and )
1
2
3
Heating side: Voltage pulse output
(terminals and )
Cooling side: Relay output
(terminals and )
16 17
Heating side: Current output
(terminals and )
Cooling side: Relay output
(terminals and )
16 17
14 15
14 15
14 15
14 15
14
15
14 15
Heating side: Relay output
(terminals , and )
Cooling side: Voltage pulse output
(terminals and )
1
2
3
Heating side: Relay output
(terminals , and )
Cooling side: Current output
(terminals and )
1
2
3
Heating side: Voltage pulse output
(terminals and )
Cooling side: Voltage pulse output
(terminals and )
16 17
Heating side: Current output
(terminals and )
Cooling side: Voltage pulse output
(terminals and )
16
17
Heating side: Voltage pulse output
(terminals and )
Cooling side: Current output
(terminals and )
16 17
Heating side: Current output
(terminals and )
Cooling side: Current output
(terminals and )
16
17
4
7
4
7
4
7
Note: The cooling-side control output is selected if 4, 5 or
6 is set in the OT (Control Output Type) setup
parameter. The alarm-3 output is not available.
The controller is factory-set to the cooling-side control
output (time proportional PID relay contact output).
* PV retransmission is configured at factory before shipment.
* If 15 V DC loop power supply is used,
retransmission output cannot be used.
* The retransmission output and 15 V DC
loop power supply are not available if
the cooling-side control output is set to
current output
and voltage pulse output.
29
28
Heater current
detection input
30
CT2
CT1
COM
CT
CT
* This wiring is only possible
for a controller with a heater
burnout alarm.
Note: External Contact Input
If the power is turned on
when the external contact
input is OFF, the mode
(SP.no or A/M) existing
before the power is turned
off will be continued.
(except for RUN/STOP)
1
2
3
4
5
6
7
8
9
10
21
22
23
24
25
26
27
28
29
30
11
12
13
14
15
16
17
18
19
20
CAUTION
Before carrying out wiring, turn off the power
to the controller and check that cables to be
connected are not alive with a tester or the like
because there is a possibility of electric shock.
UT350 Heating/Cooling T ype (Model UT350-2䊐)
1-14
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<Toc> <1. Installation>
1
2
Relay contact output
3
Control output
NC
NO
COM
Contact rating: 250 V AC, 3 A
30 V DC, 3 A (resistance load)
Note: Select this option from
the OT parameter.
* Time proportional PID
relay contact output is
configured at factory
before shipment.
23
24
RS-485 communication
* Wiring can only be carried out
for controllers with
communication functions.
Maximum baud rate: 9600 bps
25
26
27
SDB(+)
SDA(-)
RDB(+)
RDA(-)
SG
* Wiring can only be carried
out for controllers with
24 V DC loop power supply.
8
9
Power supply
10
L
N
Allowable range: 100 to 240 V AC (
10%)
(free voltage)
50/60 Hz shared
Power supply
CAUTION
Before carrying out wiring, turn off the power
to the controller and check that cables to be
connected are not alive with a tester or the like
because there is a possibility of electric shock.
6
5
Alarm output
4
7
AL1
AL2
AL3
COM
Relay contact rating: 240 V AC, 1 A
30 V DC, 1 A (resistance load)
Relay
Alarm-1 output
Alarm-2 output
Alarm-3 output
Common
UT
16
17
Current/voltage
pulse output
4-20 mA DC,
voltage pulse
(12 V)
Control output
+
-
Note:Select this option
from the OT
parameter.
12
13
TC input
11
12
RTD input
13
12
13
mV/V input
Installation category (overvoltage category): II (IEC1010-1)
A
b
B
NOTE
-
+
-
+
12
13
Note: Connecting a 250
resistor to the terminals is
optional.
Model: X010-250-2 (resistor with M3.5 crimp-on terminal
lugs)
*
When receiving 4-20 mA DC current signals,
set the PV input type to 1-5 V DC (setpoint
41).
Receiving 4-20 mA DC Current
Signals with the Controller
250
4-20mA
PV input
* Not configured at factory before shipment
See 2. Initial Settings,
for more
information.
-
+
14
15
Retransmission output
4-20 mA DC
14
15
15 V DC loop power supply
14.5-18.0VDC
(21 mA DC max.)
* PV retransmission is configured at factory
before shipment.
Load resistance: 600
or less
* If 15 V DC loop power supply is used,
retransmission output cannot be used.
-
+
-
+
* This wiring is only
possible for a controller
with a heater burnout
alarm.
29
28
Heater current
detection input
30
CT2
CT1
COM
CT
CT
OT=0 (factory-set default)
Time proportional control
Relay output (terminals , and )
OT=1
Correspondence between parameter OT and control output types
Time proportional control
Voltage pulse output (terminals and )
OT=2
Current output
(terminals and )
OT=3
On-off control
Relay output (terminals , and )
* OT is a setup parameter. You can change the settings of the parameter OT to change the control output type.
See “2. Initial Settings,
for more information.
1
2
3
16
17
16
17
1
2
3
When switching target
setpoints 1 to 4:
DI1
DI2
1.SP
2.SP3.SP
4.SP
OFF
OFFOFF
ON ON
ON
OFF
ON
Contact rating: 12 V DC, 10 mA or more
Correspondence between parameter DIS and external contact input functions
When DIS=4
DI1
DI2
COM
Common
When DIS=3
2.SP when DI1=ON
1.SP when DI1=OFF
STOP when DI2=ON
RUN when DI2=OFF
Common
When DIS=2
Hides the LOCK parameter when DI1=ON.
Shows the LOCK parameter when DI1=OFF.
Common
When DIS=1 (Factory-set default)
2.SP when DI1=ON
1.SP when DI1=OFF
AUTO when DI2=ON
MAN when DI2=OFF
Common
When DIS=OFF
No function
No function
Common
DI1
DI2
COM
+5V
+5V
Contact
Transistor contact
*
DIS is a setup parameter.
Changing DIS setpoint allows you to change the function of external contact input.
No function
19
18
20
UT
19
18
20
1
2
3
4
5
6
7
8
9
10
21
22
23
24
25
26
27
28
29
30
11
12
13
14
15
16
17
18
19
20
24 V DC loop
power supply
21
22
21.6-28.0VDC
(30 mA DC max.)
-
+
Note: External Contact Input
If the power is turned on when the external contact input is OFF, the
mode (SP.no or A/M) existing before the power is turned off will be
continued. (except for RUN/STOP)
1-15
UT320 Standard T ype (Model UT320-0䊐 or UT320-3) or Heating/Cooling T ype (Model UT320-2䊐)
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<T oc> <1. Installation>
Heating-side control output
1
2
3
NC
NO
COM
Relay contact output
* Time proportional PID relay contact
output is configured at factory
before shipment.
* Available if 4, 7 or 10 is set in the OT
(Control Output Type) setup parameter.
Contact rating: 250 V AC, 3 A
30 V DC, 3 A (resistance load)
23
24
25
26
27
SDB(+)
SDA(-)
RDB(+)
RDA(-)
SG
* Wiring can only be carried out
for controllers with communication
functions.
Maximum baud rate: 9600 bps
RS-485 communication
12
13
11
12
13
12
13
A
b
B
+
-
+
-
TC input
RTD input
mV/V input
Installation category (overvoltage category): II (IEC1010-1)
NOTE
12
13
*
When receiving 4-20 mA DC current signals,
set the PV input type to 1-5 V DC (setpoint
41).
Receiving 4-20 mA DC Current
Signals with the Controller
250
4-20mA
-
+
Note: Connecting a 250
resistor to the terminals is
optional.
Model: X010-250-2 (resistor with M3.5 crimp-on terminal
lugs)
PV input
* Not configured at factory before shipment
See “2. Initial Settings,
for more
information.
14
15
14
15
+
-
+
-
Retransmission output
4-20 mA DC
15 V DC loop power supply
14.5-18.0VDC
(21 mA DC max.)
* PV retransmission is configured at factory before shipment.
* If 15 V DC loop power supply is used,
retransmission output cannot be used.
* The retransmission output and 15 V DC
loop power supply are not available if
the cooling-side control output is set to
current output
and voltage pulse output.
Heating-side control output
16
17
Current/voltage
pulse output
4-20 mA DC,
voltage pulse
(12 V)
+
-
* Available if 5, 6, 8, 9,
11 or 12 is set in the OT
(Control Output Type)
setup parameter.
When switching target
setpoints 1 to 4:
DI1
DI2
1.SP
2.SP3.SP4.SP OFF
OFFOFF
ON ON
ON
OFF
ON
Contact rating: 12 V DC, 10 mA or more
Correspondence between parameter DIS and external contact input functions
When DIS=4
DI1
DI2
COM
Common
When DIS=3
2.SP when DI1=ON
1.SP when DI1=OFF
STOP when DI2=ON
RUN when DI2=OFF
Common
When DIS=2
Hides the LOCK parameter when DI1=ON.
Shows the LOCK parameter when DI1=OFF.
Common
When DIS=1 (Factory-set default)
2.SP when DI1=ON
1.SP when DI1=OFF
AUTO when DI2=ON
MAN when DI2=OFF
Common
When DIS=OFF
No function
No function
Common
DI1
DI2
COM
+5V
+5V
Contact
Transistor contact
*
DIS is a setup parameter.
Changing DIS setpoint allows you to change the function of external contact input.
No function
19
18
20
UT
19
18
20
Note: The cooling-side control output
is selected if 4, 5 or 6 is set in
the OT (Control Output
Type) setup parameter.
The alarm-3 output is not
available. The controller is
factory-set to the cooling-side
control output (time proportional
PID relay contact output).
8
9
10
L
N
CAUTION
Before carrying out wiring, turn off the power
to the controller and check that cables to be
connected are not alive with a tester or the like
because there is a possibility of electric shock.
Power supply
Power supply
Allowable range: 100 to 240 V AC (
10%)
(free voltage)
50/60 Hz shared
29
28
Heater current
detection input
30
CT2
CT1
COM
CT
CT
*
This wiring is only possible
for a controller with a
heater burnout alarm.
OT=4 (factory-set default) OT=5
OT=6
* OT is a setup parameter.
You can change the settings of the parameter OT to change the control output type.
See “2. Initial Settings,
for more information.
Heating side: Relay output
(terminals , and )
Cooling side: Relay output
(terminals and )
1
2
3
Heating side: Voltage pulse output
(terminals and )
Cooling side: Relay output
(terminals and )
16 17
Heating side: Current output
(terminals and )
Cooling side: Relay output
(terminals and )
16 17
Correspondence between parameter OT and heating-side/cooling-side output types
OT=7 OT=8 OT=9
Heating side: Relay output
(terminals , and )
Cooling side: Voltage pulse output
(terminals and )
1
2
3
Heating side: Voltage pulse output
(terminals and )
Cooling side: Voltage pulse output
(terminals and )
16 17
Heating side: Current output
(terminals and )
Cooling side: Voltage pulse output
(terminals and )
16 17
OT=10 OT=11 OT=12
The control output types,
relay output
and voltage pulse output
shown in the table above refer to those of time proportional control.
To change the type to a relay output for on-off control, select
Relay Terminals
and change the setpoint of the proportional band to
0.
Heating side: Relay output
(terminals , and )
Cooling side: Current output
(terminals and )
1
2
3
Heating side: Voltage pulse output
(terminals and )
Cooling side: Current output
(terminals and )
16
17
Heating side: Current output
(terminals and )
Cooling side: Current output
(terminals and )
16 17
12
13
14
15
100
Two-wire transmitter
PV input
0.4 to 2.0 V DC signal
Loop power
supply
14.5 to
18.0 V DC
External
resistor
(Note)
Note: Connecting a 100
resistor to the terminals is optional.
Model: X010-100-2 (resistor with M3.5 crimp-on terminal lugs)
15 V DC Power Supply Wiring to Two-wire Sensor
4-20 mA DC
12
13
21
22
250
Two-wire transmitter
PV input
1 to 5 V DC signal
Loop power
supply
21.6 to
28.0 V DC
External
resistor
(Note)
Note: Connecting a 250
resistor to the terminals is optional.
Model: X010-250-2 (resistor with M3.5 crimp-on terminal lugs)
24 V DC Power Supply Wiring to Two-wire Sensor
* Wiring can only be carried out for controllers with 24 V DC
loop power supply.
4-20 mA DC
1
2
3
4
5
6
7
8
9
10
21
22
23
24
25
26
27
28
29
30
11
12
13
14
15
16
17
18
19
20
6
5
4
7
AL1
AL2
AL3
COM
Relay
Alarm output/cooling-side control output
Alarm-1 output
Alarm-2 output
Alarm-3 output
or cooling-side control
output (Note)
Common
Relay contact rating: 240 V AC, 1 A
30 V DC, 1 A (
resistance
load)
UT
4
7
4
7
4
7
14 15
14 15
14 15
14 15
14 15
14 15
14
15
+
-
4-20 mA DC,
voltage pulse (12 V)
Cooling-side control output
Note: External Contact Input
If the power is turned on when the
external contact input is OFF, the
mode (SP.no or A/M) existing
before the power is turned off will be
continued. (except for RUN/STOP)
1-16
UT320 Heating/Cooling T ype (Model UT320-2䊐)
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<Toc> <2. Initial Settings>

2. Initial Settings

This chapter describes examples of setting PV input types, control output types, and alarm types. Carrying out settings described herein allows you to perform basic control. Refer to examples of various settings to understand how to set parameters required. Refer to 5.1 Parameter Map for an easy to understand explanation of setting various parameters. If you cannot remember how to carry out an operation during setting, press the display (operating display) that appears at power-on.
Setup Procedure
SET/ENT
key for more than 3 seconds. This brings you to the
2-1
Power-on
Set PV input.
See 2.2 Setting PV Input Type (Setting First at Power-on), or 2.3 Changing PV Input Type.
Set the control
output.
See 2.4 Setting Control Output Type.
Set the alarm
type and other setup
parameters.
Set operating
parameters.
Controller operation
(Factory-set to Unspecified.)
(Factory-set to Time Proportional Relay Output.)
Denotes a step that must always be followed.
Denotes a step that should be followed as necessary.
The following explanation of operation for the UT350s panel, shown in the figure, is the same as that of the UT320s panel.
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<T oc> <2. Initial Settings>

2.1 Names and Functions of Front Panel Parts

2-2
3. T arget setpoint (SP) number indicator lamps
5. Alarm indicator lamps
6. Light-loader interface
7. A/M key
8. SET/ENT key
Name of Part Process variable (PV)
1. display
2. Setpoint display Target setpoint (SP)
3. number indicator lamps
Status indicator
4. lamp
5. Alarm indicator lamps
6. Light-loader interface
7.
8.
9.
A/M key SET/ENT
key
and keys
A/M
SET/ENT
1. Process variable (PV) display
2. Setpoint display
4. Status indicator lamp
9. and keys
Displays PV. Displays a parameter symbol when you set a parameter. Displays an error code (in red) if an error occurs.
Displays the setpoint (SP) or the output value (OUT) during operation. Displays the set value of parameters on the parameter setting display.
When the SP number currently used for operation is 2, 3 or 4, the respective SP No. indicator lamp lighits. When the SP number is 1, the lamp does not lighit.
Is lit in green during manual operation. MAN: Is lit when in manual mode. Blinks during auto-tuning.
If any of alarms 1 to 3 occurs, the respective alarm indicator lamp (AL1 to AL3) is lit (in orange).
Interface for an adapter cable used when setting and storing parameters from a PC. This requires an optional parameter setting tool.
Used to switch between the AUTO and MAN modes. Each time you press the key, it switches to the AUTO or MAN mode alternately.
Used to switch or register a parameter. Pressing the key for more than 3 seconds allows you to switch between the operating display and the menu for operating parameter setting display alternately.
Used to change numerical values. On setting displays for various parameters, you can change target setpoints, parameters, and output values (in manual operation). Pressing the key decreases a numerical value, while pressing the key causes it to increase. You can hold down a key to gradually increase the speed of change.
2. Setpoint display
3. T arget setpoint (SP) number indicator lamps
6. Light-loader interface
7. A/M key
Function
1. Process variable (PV) display
4. Status indicator lamp
5. Alarm indicator lamps
8. SET/ENT key
9. and keys
IMPORTANT
The controller automatically returns to the display at the time of power-on (i.e., operating display) if no key is operated for at least one minute.
Setting of Main Parameters at the Factory before Shipment
Factory-set defaults
Item
Control output
Control action Reverse action (variable) Not specified PID parameter P = 5.0%, I = 240 seconds, D = 60 seconds. Alarm output
for standard type
controllers
Time proportional PID relay output (variable)
Heating side: Time proportional PID relay output (variable)
Cooling side: Time proportional PID relay output (variable)
Alarm-1: PV high limit, Alarm-2: PV low limit, Alarm-3: PV high limit
Factory-set defaults
for heating/cooling type controllers
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<Toc> <2. Initial Settings>

2.2 Setting PV Input T ype (Setting First at Power-on)

NOTE
The controller displays the operating display when the power is turned on. However, if PV input type has not been set, IN appears. In this case, first use the display the input range code to use, then press the the maximum value (RH) and minimum value (RL) of the PV input range (for voltage input, set the maximum value (SH) and minimum value (SL) of the PV input scale).
The controller is configured to the initial value of each parameter at the factory before shipment. First check the initial values shown in 5.2 Lists of Parameters, and change param­eter values as necessary .
Example of Temperature Input Example of Voltage Input
1V 5V (Input signal)
-200°C 1370°C
0°C 800°C
Minimum value of
PV input range (RL)
Parameters to be set for temperature input
1. PV input type (IN): Set according to a sensor
2. Maximum value of PV input range (RH): Set the maximum value of the range to be controlled.
3. Minimum value of PV input range (RL): Set the minimum value of the range to be controlled.
Instrument input range
PV input range
Maximum value of
PV input range (RH)
Set a range to be controlled
Parameters to be set for voltage input
1. PV input type (IN): Set according to an input signal
2. Maximum value of PV input range (RH): Set the maximum value of an input signal.
3. Minimum value of PV input range (RL): Set the minimum value of an input signal.
4. Position of PV input decimal point (SDP): Set the position of the decimal point for PV input display.
5. Maximum value of PV input scale (SH): Set the maximum value of the scale to be controlled.
6. Minimum value of PV input scale (SL): Set the minimum value of the scale to be controlled.
2V 4V
PV input range
RL
PV input scale
0.0m3/h 50.0m3/h
Minimum value of
PV input scale (SL)
SET/ENT
Instrument input range
Maximum value of PV input scale (SH)
key to register it. Then, set
RH
Set a range to be controlled
2-3
key to
The following operating procedure describes an example of setting the controller to a K­type thermocouple (-199.9C to 500.0C) and the measurement range of 0.0C to 200.0C.
Display screen at power-on
1.
The parameter IN for setting the PV input type appears.
SET/ENT
PV
A/M
SP
AL123
SP
234
MAN
Displays
parameter
IN.
Press the or key to display the
2.
required setpoint. The figure below is an example of the controller set to a K-type thermocouple (-199.9C to 500.0C). See Instrument Input Range Codes.
SET/ENT
PV
A/M
SP
AL123
SP
234
MAN
Blinks during
change.
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<T oc> <2. Initial Settings>
2-4
3.
Press the
SET/ENT
key once to register the
required setpoint.
4.
Press the
SET/ENT
SET/ENT
PV
A/M
SP
234
SP
MAN
AL123
key once to display the
parameter UNIT (PV Input Unit).
5.
Press the
SET/ENT
SET/ENT
PV
A/M
SP
234
SP
MAN
AL123
key once to display the parameter RH (maximum value of PV input range).
SET/ENT
PV
A/M
SP
AL123
SP
234
MAN
Displays
parameter
UNIT.
Displays
parameter
RH.
8.
Press the
SET/ENT
key once to display the parameter RL (minimum value of PV input range).
PV
A/M
SET/ENT
Press the or key to display the
9.
SP
AL123
SP
234
MAN
required setpoint. The figure below shows an example of setting the minimum value of PV input range to 0.0C.
10.
Press the
SET/ENT
SET/ENT
PV
A/M
SP
234
SP
MAN
AL123
Blinks during
key once to register the setpoint.
SET/ENT
PV
A/M
SP
AL123
SP
234
MAN
Displays
parameter
RL.
change.
Press the or key to display the
6.
required setpoint. The figure below shows an example of setting the maximum value of PV input range to 200.0C.
7.
Press the
SET/ENT
SET/ENT
PV
A/M
SP
234
SP
MAN
AL123
Blinks during
key once to register the
setpoint.
SET/ENT
PV
A/M
SP
AL123
SP
234
MAN
change.
If the type of input is voltage, also config­ure the PV Input Decimal Point Position (SDP), Maximum Value of PV Input Scale (SH) and Minimum Value of PV Input Scale (SL) that follow this step.
To set the type of control output, see steps
11.
7 and later in 2.4 Setting Control Output Type.” T o finish settings, press the key for more than 3 seconds. This returns you to the display shown at power-on (figure below).
PV
SET/ENT
A/M
SP
AL123
SP
234
MAN
Displays PV.
The PV display in the figure above shows the error code for input burnout ( ) if PV input wiring is not yet complete. The error code disappears when you wire the PV input terminals correctly .
SET/ENT
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<Toc> <2. Initial Settings>
Instrument Input Range Codes
Select the unit from the UNIT parameter.
Input Type
Unspecified
Thermocouple
RTD
Standard signal
DC voltage
K
J
T
B7 S
R
N
E
L(DIN)
U(DIN)
W
Platinel 2
PR20-40 17 W97Re3-
W75Re25
JPt100
Pt100
0.4 to 2 V 1 to 5 V 41 0 to 2 V 50 0 to 10 V 51
-10 to 20 mV 0 to 100 mV
Instrument Input
Range Code
OFF
1
2
3
4
5
6
8
9
10
11
12
13
14
15
16
18
30
31
35
36
37 40
55 -10.00 to 20.00 mV 56 0.0 to 100.0 mV
* Performance in the standard operating condition (at 232C, 5510%RH, and 50/60Hz power frequency) Note 1: The accuracy is 0.3C of instrument range 1 digit for a temperature range from 0C to 100C. Note 2: The accuracy is 0.5C of instrument range 1 digit for a temperature range from -100C to 200C. * T o receive a 4-20 mA DC signal, select a standard signal of 1 to 5 V DC and connect it to a 250 resistor . This resistor
is optional. Model: X010-250-2 (resistor with M3.5 crimp-on terminal lugs)
Instrument
Input Range
Set the data item PV Input Type "IN" to the OFF option to leave the PV input type undefined.
-200 to 1370C
-300 to 2500F
-199.9 to 999.9C 0 to 2300F
-199.9 to 500.0C
-199.9 to 999.9F
-199.9 to 999.9C
-300 to 2300F
-199.9 to 400.0C
-300 to 750F
0.0 to 400.0C
-199.9 to 750.0F 0 to 1800C
32 to 3300F
0 to 1700C
32 to 3100F
0 to 1700C
32 to 3100F
-200 to 1300C
-300 to 2400F
-199.9 to 999.9C
-300 to 1800F
-199.9 to 900.0C
-300 to 1300F
-199.9 to 400.0C
-300 to 750F
0.0 to 400.0C
-199.9 to 750.0F 0 to 2300C
32 to 4200F
0 to 1390C
32 to 2500F
0 to 1900C
32 to 3400F
0 to 2000C
32 to 3600F
-199.9 to 500.0C
-199.9 to 999.9F
-150.0 to 150.0C
-199.9 to 300.0F
-199.9 to 850.0C
-300 to 1560F
-199.9 to 500.0C
-199.9 to 999.9F
-150.0 to 150.0C
-199.9 to 300.0F
0.400 to 2.000 V
1.000 to 5.000 V
0.000 to 2.000 V
0.00 to 10.00 V
0.1% of instrument range 1 digit for temperatures equal to or higher than 0 0.2% of instrument range 1 digit for temperatures below 0
0.15% of instrument range 1 digit at 400C or more 5% of instrument range 1 digit at less than 400
0.15% of instrument range 1 digit
0.1% of instrument range 1 digit0.25% of instrument range 1 digit for temperatures
below 0
0.1% of instrument range 1 digit for temperatures equal to or higher than 0 0.2% of instrument range 1 digit for temperatures below 0
0.2% of instrument range 1 digit
0.1% of instrument range 1 digit0.5% of instrument range 1 digit at 800C or more
No accuracy is guaranteed at less than 800
0.2% of instrument range 1 digit
0.1% of instrument range 1 digit (Note 1) (Note 2)
0.2% of instrument range 1 digit (Note 1)
0.1% of instrument range 1 digit (Note 1) (Note 2)
0.2% of instrument range 1 digit (Note 1)
0.1% of instrument range 1 digit
The read-out range can be scaled between -1999 to
9999.
Measurement Accuracy
C
C
C
C
C
C
2-5
C
NOTE
The controller may automatically initialize the registered operating parameter setpoints if any change is made to the data item PV Input T ype (IN), Maximum Value of PV Input Range (RH), Minimum V alue of PV Input Range (RL), PV Input Decimal Point Position (SDP), Maximum V alue of PV Input Scale (SH) or Minimum Value of PV Input Scale (SL). After a change has been made to any of these data items, be sure to verify the registered operating parameter setpoints to ensure that they are correct. If any data item has been changed to its default, set it to a required value.
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<T oc> <2. Initial Settings>

2.3 Changing PV Input T ype

The following operating procedure describes an example of changing the K-type thermo­couple (-199.9C to 500.0C) to a Pt100 resistance temerature detector (-199.9C to
500.0C) and setting the measurement range of 0.0C to 200.0C.
2-6
PV input terminal Thermocouple/mV/V input
RTD input .................................................. - -
Bring the operating display into view
1.
(display appears at power on).
2.
Press the
SET/ENT
SET/ENT
PV
A/M
SP
234
SP
MAN
AL123
key for more than 3 sec-
onds to call up the menu OP.PA”.
SET/ENT
PV
A/M
SP
AL123
SP
234
MAN
..............................
Displays PV.
Displays
target setpoint.
Displays
menu OP.PA”.
1312
-
131211
5.
Press the
SET/ENT
key once to display the
menu FUNC”.
PV
A/M
SET/ENT
Press the key once to display the
6.
SP
AL123
SP
234
MAN
Displays
menu FUNC.
menu I/O”.
Displays
menu I/O.
SET/ENT
PV
A/M
SP
AL123
SP
234
MAN
Press the key once to display the
3.
menu STUP”.
4.
Press the
SET/ENT
SET/ENT
PV
A/M
SP
234
SP
MAN
AL123
key once to display the
parameter PWD”.
SET/ENT
PV
A/M
SP
AL123
SP
234
MAN
Displays
menu STUP”.
7.
Press the
SET/ENT
key once to display the
parameter IN (PV input type).
PV
A/M
SET/ENT
Press the or key to display the
8.
SP
AL123
SP
234
MAN
required setpoint. The figure below is an example of the controller set to a Pt 100 resistance temperature detector (-199.9C to 500.0C).
SET/ENT
PV
A/M
SP
AL123
SP
234
Blinks during
MAN
Displays
parameter
IN.
change.
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<Toc> <2. Initial Settings>
2-7
9.
Press the
SET/ENT
key once to register the
setpoint.
10.
Press the
SET/ENT
SET/ENT
PV
A/M
SP
234
SP
MAN
AL123
key once to display the
parameter UNIT (PV input unit).
11.
Press the
SET/ENT
SET/ENT
PV
A/M
SP
234
SP
MAN
AL123
key once to display the parameter RH (maximum value of PV input range).
SET/ENT
PV
A/M
SP
AL123
SP
234
MAN
Displays
parameter
UNIT.
Displays
parameter
RH.
14.
Press the
SET/ENT
key once to display the parameter RL (minimum value of PV input range).
PV
A/M
SET/ENT
Press the or key to display the
15.
SP
AL123
SP
234
MAN
required setpoint. The figure below shows an example of setting the mini­mum value of PV input range to 0.0C.
16.
Press the
SET/ENT
SET/ENT
PV
A/M
SP
234
SP
MAN
AL123
key once to register the setpoint.
SET/ENT
PV
A/M
SP
AL123
SP
234
MAN
Displays
parameter
RL.
Blinks during
change.
Press the or key to display the
12.
required setpoint. The figure below shows an example of setting the maximum value of PV input range to 200.0C.
13.
Press the
SET/ENT
SET/ENT
PV
A/M
SP
234
SP
MAN
AL123
Blinks during
key once to register the
setpoint.
SET/ENT
PV
A/M
SP
AL123
SP
234
MAN
change.
17.
Press the
SET/ENT
key for more than 3 seconds. This returns you to the display shown at power-on (figure below).
SET/ENT
PV
A/M
SP
AL123
SP
234
MAN
The PV display in the figure above shows the error code for input burnout ( ) if PV input wiring is not yet complete. The error code disappears when you wire the PV input terminals correctly .
Displays PV.
Displays
target setpoint.
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<T oc> <2. Initial Settings>

2.4 Setting Control Output T ype

The following operating procedure describes an example of changing time proportional PID relay output (0: factory-set default) to current output (2).
2-8
Control output terminal Time proportional PID relay (0)/on-off(3) output Current (2)/time proportional PID voltage pulse (1) output
For details on the heating/cooling control output terminals, see 1.5 Terminal Wiring Diagrams.
Bring the operating display into view
1.
(display appears at power on).
2.
Press the
SET/ENT
SET/ENT
PV
A/M
SP
234
SP
MAN
AL123
key for more than 3 sec-
onds to call up the menu OP.PA”.
SET/ENT
PV
A/M
SP
AL123
SP
234
MAN
Values in parentheses are setpoints
...........................
.............
Displays PV.
Displays
target setpoint.
Displays
menu OP.PA”.
1 2 3
--
16
17
-
5.
Press the
SET/ENT
key once to display the menu FUNC”.
PV
A/M
SET/ENT
Press the key once to display the
6.
SP
AL123
SP
234
MAN
menu I/O”.
SET/ENT
PV
A/M
SP
AL123
SP
234
MAN
Displays
menu FUNC.
Displays
menu I/O.
Press the key once to display the
3.
menu STUP”.
4.
Press the
SET/ENT
SET/ENT
PV
A/M
SP
234
SP
MAN
AL123
key once to display the
parameter PWD”.
SET/ENT
PV
A/M
SP
AL123
SP
234
MAN
Displays
menu STUP”.
7.
Press the
SET/ENT
key several times to display the parameter OT (control output type).
PV
A/M
SET/ENT
Press the or key to display the
8.
SP
AL123
SP
234
MAN
required setpoint. The figure below shows an example of setting to current output (4 to 20 mA DC).
SET/ENT
PV
A/M
SP
AL123
SP
234
MAN
Blinks during
Displays
parameter
OT.
change.
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<Toc> <2. Initial Settings>
2-9
9.
Press the
SET/ENT
key once to register the
setpoint.
SET/ENT
PV
A/M
SP
AL123
SP
234
MAN

2.5 Changing Alarm T ype

The following operating procedure describes an example of changing alarm-1 (factory-set default: PV high limit alarm) to PV low limit alarm. When you have changed alarm type, the alarm setpoint will be initialized; set the alarm setpoint again.
Alarm output terminals
Alarm-1 (terminal numbers ).......PV high limit alarm
Alarm-2 (terminal numbers ).......PV low limit alarm
Alarm-3 (terminal numbers ).......PV high limit alarm
Factory-set defaults
6 7
-
5 7
-
4 7
-
10.
Press the
SET/ENT
key for more than 3 sec­onds. This returns you to the display shown at power-on (figure below).
SET/ENT
PV
A/M
SP
AL123
SP
234
MAN
Displays PV.
Displays
target setpoint.
Bring the operating display into view
1.
(appears at power-on).
2.
Press the
SET/ENT
SET/ENT
PV
A/M
SP
234
SP
MAN
AL123
key for more than 3 sec-
onds to call up the menu OP.PA”.
SET/ENT
PV
A/M
SP
AL123
SP
234
MAN
Displays PV.
Displays
target setpoint.
Displays
menu OP.PA.
Press the key once to display the
3.
menu STUP”.
4.
Press the
SET/ENT
SET/ENT
PV
A/M
SP
234
SP
MAN
AL123
key once to display the parameter PWD”.
SET/ENT
PV
A/M
SP
AL123
SP
234
MAN
Displays
menu STUP”.
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<T oc> <2. Initial Settings>
2-10
5.
Press the
SET/ENT
key once to display the
menu FUNC”.
menu FUNC”.
6.
Press the
SET/ENT
SET/ENT
PV
A/M
SP
234
SP
MAN
AL123
key several times to
display the parameter AL1 (alarm-1 type).
PV
A/M
SET/ENT
Press the or key to display the
7.
SP
AL123
SP
234
MAN
parameter
required setpoint. The figure below shows an example of setting PV low limit alarm.
Displays
Displays
AL1.
8.
Press the
SET/ENT
key once to register the setpoint. Y ou can take the same steps for alarm-2 type (AL2), and alarm-3 type (AL3) that are displayed after this.
9.
Press the
SET/ENT
SET/ENT
PV
A/M
SP
234
SP
MAN
AL123
key for more than 3 sec­onds. This returns you to the display shown at power-on (figure below).
SET/ENT
PV
A/M
SP
AL123
SP
234
MAN
target setpoint.
Displays PV.
Displays
SET/ENT
When setting an alarm setpoint, see 3.4
10.
PV
A/M
SP
AL123
SP
234
MAN
Blinks during
change.
Setting Alarm Setpoints.
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<Toc> <2. Initial Settings>
List of Alarm Types
The table below shows the alarm types and alarm actions. In the table, codes 1 to 10 are not provided with stand-by actions, while codes 1 1 to 20 are
provided with stand-by actions.
2-11
Alarm action
Alarm type
No alarm OFF
PV high limit
PV low limit
Deviation high
limit
Deviation low
limit
De-energized on
deviation high
limit alarm
Fault diagnosis output (Note 1)
FAIL output
(Note 2)
Sensor grounding
alarm
SP high
limit
SP low
limit
Open/close shows status of relay contact, and lit and unlit shows status of lamp
Hysteresis
Open (unlit)
Alarm setpoint
PV
Hysteresis
Closed (lit)
Alarm setpoint PV
Hysteresis
Open (unlit)
PV
Target SP
Hysteresis
Closed (lit)
Deviation setpoint
Target SP Hysteresis
Closed (unlit)
PV
Target SP
Fault diagnosis output
The controller stops when in a FAIL state. The control output is set to OFF or 0% and alarm output is set to OFF.
Sensor grounding alarm
Hysteresis
Open (unlit)
SP
Closed (lit)
Hysteresis
Alarm setpoint
Closed (lit)
Open (unlit)
Closed (lit)
Deviation setpoint
Open (unlit)
PV
Open (lit)
Deviation
setpoint
Closed (lit)
Alarm setpoint
Open (unlit)
SP
Contact
closes
if alarm
occurs
Note 1: The fault diagnosis output turns on in case of input burnout, A/D converter failure, or reference junction compensation
(RJC) failure. The control output in case of input burnout or A/D converter failure is set to the value of the PO (Preset Output Value) setup parameter. In case of RJC failure, the controller continues control under the condition of RJC = OFF”.
Note 2: The FAIL output is on during normal operation and turns off in case of failure.
21
23
28
29
Closed
(lit)
Alarm type codeAlarm type code
Contact
closes
if alarm
occurs
7
17
8
18
24
25
30
31
Contact
opens
if alarm
occurs
6
16
9
19
10
20
Contact
opens
if alarm
occurs
1
11
2
12
3
13
4
14
22
5
15
Alarm type
De-energized
on deviation low
limit alarm
Deviation high
and low limits
Deviation
within
high and low
limits
De-energized
on PV high limit
De-energized
on PV low limit
Heater
burnout alarm 1
Heater
burnout alarm 2
Output high
limit
Output low
limit
Open/close shows status of relay contact, and lit and unlit shows status of lamp
Closed
(lit)
Deviation setpoint
(unlit)
Deviation setpoint
Open (lit)
Heater burnout alarms 1 and 2
Open (unlit)
Closed (lit)
Alarm action
Hysteresis
Open (lit)
Deviation
setpoint
Hysteresis Hysteresis
Hysteresis
Open
Target SP
Closed
(unlit)
PV
Hysteresis
Alarm setpoint
Hysteresis
Alarm setpoint Output value
Target SP
Open
(unlit)
Target SP
Closed
(lit)
Hysteresis
Alarm setpoint
Hysteresis
Alarm setpointOutput value
PV
Hysteresis
PV
PV
Open (unlit)
Closed (unlit)
PV
Open
(unlit)
Open (lit)
Closed
(unlit)
Closed (lit)
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<T oc> <2. Initial Settings>
It is effective in the following cases where;
Stand-by Action
C
Treated
as normal
Normal Abnormal
The alarm
output turns on.
The alarm output does not turn on in this region even if the PV value is below the low limit of the alarm setpoint.
- the power is turned on
- the target setpoint is changed
- the target setpoint number is switched (however, except for remote setpoint)
Low limit of alarm setpoint
2-12
Power-on
Time

2.6 Description of Multiple Setpoints and PID

The UT350/UT320 controllers have a maximum of four target setpoint (SP) parameters and has PID for each of these setpoints. The following shows the correspondence between the target setpoint numbers (SP.NO), target setpoints (SP), and PID parameters.
For example, if you have set “2” to the target setpoint number (SP.NO), the control param­eters available are target setpoint (2.SP), proportional band (heating-side proportional band) (2.P), integral time (heating-side integral time) (2.I), derivative time (heating-side derivative time) (2.D), cooling-side proportional band (2.Pc), cooling-side integral time (2.Ic), and cooling-side derivative time (2.Dc).
To use multiple target setpoints, see the table below to check the corresponding param­eters.
Target setpoint
number (SP.NO)
SP.NO=1 1.SP 1.P 1.I 1.D 1.Pc 1.Ic 1.Dc SP.NO=2 2.SP 2.P 2.I 2.D 2.Pc 2.Ic 2.Dc SP.NO=3 3.SP 3.P 3.I 3.D 3.Pc 3.Ic 3.Dc SP.NO=4 4.SP 4.P 4.I 4.D 4.Pc 4.Ic 4.Dc
Target
setpoint
(SP)
Proportional
band
(heating-side
proportional band)
Integral time
(heating-side
integral time)
PID parameter
Derivative time
(heating-side
derivative time)
Cooling-side
proportional
band
Cooling-side
integral time
derivative time
Cooling-side
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<Toc> <3. Operations>

3. Operations

This chapter describes key entries for operating the controller . For operations using external contact inputs, see 1.5 T erminal Wiring Diagrams.” If you cannot remem- ber how to carry out an operation during setting, press the seconds. This brings you to the display (operating display) that appears at power­on.
NOTE
Do not use the instrument generating strong magnetic field such as radio equipment and the like near the controller. This may cause the fluctuation of the PV value.

3.1 Monitoring-purpose Operating Displays A vailable during Operation

SET/ENT
key for more than 3
3-1
The monitoring-purpose operating displays available during operation are roughly classi­fied into two groups depending on the types of controller. One group is operating displays for a standard controller and the other group is operating displays for a heating/cooling controller.
Operating Displays for a Standard Controller
SP Display
The PV input value appears on the PV display . The target setpoint (1.SP) appears on the Setpoint display .
OUT Display
The PV input value appears on the PV display . The control output value (OUT) appears on the Setpoint display .
Operating Displays
Power-on
PV
SP
234
SP
MAN
AL123
A/M
SET/ENT
SP display
(allows the target
setpoint to be changed)
Target
Setpoint
SET/ENT
Output-value
symbol o
key
PV
A/M
SET/ENT
OUT display
(allows the control
output value to be changed)
SP
AL1 2 3
SP
234
MAN
Output
value %
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<T oc> <3. Operations>
Operating Displays for a Heating/Cooling Controller
SP Display
The PV input value appears on the PV display . The target setpoint (1.SP) appears on the Setpoint display .
Heating/Cooling OUT Display
The PV input value appears on the PV display . The heating (H) and cooling (C) sides control output values appears on the Setpoint dis-
play .
Operating Displays for Heating/Cooling Control
3-2
Power-on
PV
SP
234
SP
MAN
AL1 2 3
A/M
SET/ENT
SP display
(allows the target
setpoint to be changed)
SET/ENT
SET/ENT
key
key
Heating-side
output-value
symbol H
A/M
SET/ENT
Heating-side OUT display
(allows the control output
value to be changed)
Cooling-side output-value
symbol C
A/M
SET/ENT
Cooling-side OUT display
(allows the control output
value to be changed)
SP
234
SP
234
MAN
MAN
Heating-side
output %
Cooling-side
output %
PV
SP
AL123
PV
SP
AL123
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<Toc> <3. Operations>

3.2 Setting T arget Setpoint (SP)

The following operating procedure describes an example of setting 120.0 to a target setpoint. In automatic operation, the controller starts control using set target setpoints.
NOTE
When the target setpoint is set through communication, the target setpoint cannot be changed by keystroke.
3-3
Bring the operating display into view
1.
(display appears at power on).
PV
A/M
SET/ENT
Press the or key to display the
2.
SP
AL123
SP
234
MAN
required setpoint.
SET/ENT
PV
A/M
SP
AL123
SP
234
MAN
Displays PV.
Displays
target setpoint.
Blinks during
change.
3.
Press the setpoint.
SET/ENT
key once to register the
SET/ENT
PV
A/M
SP
AL123
SP
234
MAN
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<T oc> <3. Operations>

3.3 Performing/Canceling Auto-tuning

Auto-tuning should be carried out after setting a target setpoint (SP). Make sure the control­ler is in automatic operation mode (AUTO) and running state (RUN) before carrying out auto-tuning. See 3.8 Switching between AUT O and MAN, to change to AUTO and 3.7 Switching between Run and Stop, to change to Run.
NOTE
When on-off control is being used, auto-tuning cannot be carried out. Moreover , do not perform auto-tuning when controlling any of the following processes.
Control processes with quick response such as flow control or pressure control
Processes where even temporary output on/off results in inconvenience
Processes where a large output change at control element results in inconvenience
Processes where variations in PV may exceed an allowable range, adversely affect-
ing product quality
3-4
Bring the operating display into view
1.
(display appears at power on).
2.
Press the
SET/ENT
SET/ENT
PV
A/M
SP
234
SP
MAN
AL123
key for more than 3 sec-
onds to call up the menu OP.PA”.
SET/ENT
PV
A/M
SP
AL123
SP
234
MAN
Displays PV.
Displays
target setpoint.
MAN lamp
OFF.
Displays
menu OP.PA”.
3.
Press the
SET/ENT
key five times to display
the parameter “AT”.
PV
A/M
SET/ENT
Press the or key to display the
4.
SP
AL123
SP
234
MAN
parameter
required setpoint. Tuning for 1.SP is AT = 1.
SET/ENT
PV
A/M
SP
AL123
SP
234
MAN
Blinks during
change.
To cancel auto-tuning, set AT = OFF.
Displays
AT.
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<Toc> <3. Operations>
3-5
Press the
5.
setpoint. (This starts auto-tuning.) If the
SET/ENT
key once to register the
SET/ENT
key is pressed when AT = OFF, auto-tuning will be cancelled. In this case, PID contains the value existing before auto-tuning.
SET/ENT
PV
A/M
SP
AL123
SP
234
MAN

3.4 Setting PID Manually

If you know the values to be set or if suitable PID constants cannot be obtained by auto­tuning, follow the procedure below to set values.
During auto-tuning, the panel indications
6.
become as shown below.
SET/ENT
PV
A/M
SP
AL123
SP
234
MAN
Auto-tuning is complete when the MAN lamp goes off.
MAN lamp
blinks.
Bring the operating display into view
1.
(display appears at power on).
2.
Press the
SET/ENT
SET/ENT
PV
A/M
SP
234
SP
MAN
AL123
key for more than 3 sec-
onds to call up the menu OP.PA”.
3.
Press the
SET/ENT
SET/ENT
PV
A/M
SP
234
SP
MAN
AL123
key several times to
display the parameter PID”.
SET/ENT
PV
A/M
SP
AL123
SP
234
MAN
Displays PV.
Displays
target setpoint.
Displays
menu OP.PA.
Displays
parameter
PID.
Press the key once to display 1Gr”.
4.
5.
Press the
SET/ENT
SET/ENT
PV
A/M
SP
234
SP
MAN
AL123
key once to register the
setpoints.
6.
Press the
SET/ENT
SET/ENT
PV
A/M
SP
234
SP
MAN
AL123
key once to display the
parameter 1.P (proportional band for
1.SP).
SET/ENT
PV
A/M
SP
AL123
SP
234
MAN
Blinks during
change.
Displays
parameter
1.P.
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<T oc> <3. Operations>
3-6
Press the or key to display the
7.
required setpoint.
8.
Press the
SET/ENT
SET/ENT
PV
A/M
SP
234
SP
MAN
AL123
Blinks during
key once to register the
setpoint.
SET/ENT
PV
A/M
SP
AL123
SP
234
MAN
The same steps can be used for integral time (1.I) and derivative time (1.D) that are displayed after this.
change.
[TIP] The PID parameter numbers set in step 4. should be set as follows:
In case of PID for 1.SP, PID = 1Gr In case of PID for 2.SP, PID = 2Gr In case of PID for 3.SP, PID = 3Gr In case of PID for 4.SP, PID = 4Gr
9.
Press the
SET/ENT
key for more than 3 sec­onds. This returns you to the display shown at power-on (figure below).
SET/ENT
PV
A/M
SP
AL123
SP
234
MAN
Displays PV.
Displays
target setpoint

3.5 Setting Alarm Setpoints

The following operating procedure describes an example of setting 160.0 to alarm-1 setpoint. Check alarm type before setting the alarm setpoint. To change the type of alarm, see 2.5 Changing Alarm T ype.
Alarm output terminals
Alarm-1 (terminal numbers )............PV high limit alarm
Alarm-2 (terminal numbers )............PV low limit alarm
Alarm-3 (terminal numbers )............PV high limit alarm
Bring the operating display into view
1.
(display appears at power on).
SET/ENT
PV
A/M
SP
AL123
SP
234
MAN
Factory-set defaults
6 7
-
5 7
-
4 7
-
Displays PV.
Displays
target setpoint.
2.
Press the
SET/ENT
key for more than 3 sec­onds to call up the menu OP.PA”.
SET/ENT
PV
A/M
SP
AL123
SP
Displays
menu OP.PA.
234
MAN
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<Toc> <3. Operations>
3-7
3.
Press the
SET/ENT
key twice to display the
parameter A1”.
PV
A/M
SET/ENT
Press the or key to display the
4.
SP
AL123
SP
234
MAN
required setpoint.
SET/ENT
PV
A/M
SP
AL123
SP
234
MAN
Displays
parameter
A1.
Blinks during
change.
5.
Press the
SET/ENT
key once to register the setpoint.
SET/ENT
PV
A/M
SP
AL123
SP
234
MAN
Also configure the Alarm-2 Setpoint (A2) and Alarm-3 Setpoint (A3) parameters that follow this step.
6.
Press the
SET/ENT
key for more than 3 sec­onds. This returns you to the display shown at power-on (figure below).
SET/ENT
PV
A/M
SP
AL123
SP
234
MAN
target setpoint.
Displays PV.
Displays

3.6 Selecting T arget Setpoint Numbers (SP.NO)

The following operating procedure describes an example of changing a target setpoint number (SP.NO) from 1 to 2.
NOTE
If a target setpoint number has been switched using contact input, when the contact input is on, that number cannot be selected by keystroke.
When using target setpoint ramp setting function, PV tracking works if the target setpoint number is switched.
Bring the operating display into view
1.
(display appears at power on).
SET/ENT
PV
A/M
SP
AL123
SP
234
MAN
Displays PV.
Displays
target setpoint.
Press the
2.
onds to call up the menu OP.PA”.
SET/ENT
key for more than 3 sec-
SET/ENT
PV
A/M
SP
AL123
SP
234
MAN
Displays
menu OP.PA”.
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<T oc> <3. Operations>
3-8
3.
Press the
SET/ENT
key several times to
display the parameter SP.NO”.
PV
A/M
SET/ENT
Press the or key to display the
4.
SP
AL123
SP
234
MAN
required setpoint.
SET/ENT
PV
A/M
SP
AL123
SP
234
MAN
Displays
parameter
SP.NO.
Blinks during
change.
5.
Press the
SET/ENT
key once to register the setpoint.
6.
Press the
SET/ENT
SET/ENT
PV
A/M
SP
234
SP
MAN
AL123
key for more than 3 sec­onds. This returns you to the display shown at power-on (figure below).
SET/ENT
PV
A/M
SP
AL123
SP
234
MAN
SP2 lamp
ON.

3.7 Switching between Run and Stop

Switching between the RUN and STOP states can be performed only using external contact input.
NOTE
When the controller is shipped from the factory , it is configured so that switching between the RUN and STOP states cannot be performed. To make the switching possible, configure the DIS setup parameter as DIS = 4”.
18
Start of operation when OFF
20
18
Stop of operation when ON
20
When the controller is stopped, control output display is
SET/ENT
PV
A/M
SP
AL123
SP
234
MAN
When the controller is stopped, input and outputs are as follows:
PV input Displays PV. Control output Alarm output ON in the event of an alarm
Preset output value (factory-set default: 0%)
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<Toc> <3. Operations>

3.8 Switching between AUT O and MAN

NOTE
If AUT O and MAN have been switched using contact input, when the contact input is ON, switching between AUT O and MAN cannot be achieved by keystroke.
Bring the operating display into view (display appears at power on).
1.
3-9
Each time you press the
2.
alternately.
In automatic operation In manual operation
PV
SP
AL123
A/M
SET/ENT
SP
234
MAN
A/M
key on the front panel of the instrument, AUTO and MAN is switched
Displays
target setpoint.
MAN lamp
OFF.
SET/ENT
PV
A/M
SP
AL123
SP
234
MAN
Displays PV.
Displays
target setpoint.
Displays
output-value
symbol o.
A/M
SET/ENT
PV
SP
AL123
SP
234
MAN
Displays
output value.
%
MAN lamp
ON.
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<T oc> <3. Operations>

3.9 Manipulating Control Output in Manual Operation

NOTE
Control output cannot be changed if the controller is stopped. In this case, the preset output value (setup parameter PO) will be output.
3-10
A control output value is linked with a display value changed using the or key. Note that the control output changes as displayed without requiring the
Bring manual operating display into view.
1.
For switching to manual operation, see 3.8 Switching between AUT O and MAN.
Displays
output-value
symbol “o”.
SET/ENT
PV
A/M
SP
AL123
SP
234
output value.
MAN
Displays
MAN lamp
ON.
Press the or key to change a
2.
control output value. Y ou don’t need to press the
SET/ENT
SET/ENT
SET/ENT
key .
key .
PV
A/M
SP
AL123
SP
234
MAN lamp
MAN
Manipulating the Control Output during Heating/Cooling Control
Either of the following two displays appears when the mode is switched to MAN during heating/cooling control.
Heating-side OUT display
ON.
Symbol H
represents the
heating-side
output.
SET/ENT
PV
A/M
SP
AL123
SP
234
Cooling-side OUT display
Symbol C
represents the
cooling-side
output.
A/M
SET/ENT
PV
SP
AL123
SP
234
Heating-side
output.
MAN
%
Cooling-side
output.
MAN
%
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<Toc> <3. Operations>
Controller Behavior and Control Output Manipulation when the Dead Band
is Positive
The following is an example when the DB parameter is set at 12.4%.
3-11
If you hold down the
key with the heating-side output under manipulation (i.e., cooling­side output C = 0.0%), the heating-side output (H =) decreases. Consequently , both the heating-side and cooling-side outputs change to 0.0%. If you keep the
key held down longer, you enter the state of manipulating the cooling-side output, and its value begins to increase.
Inversely , if you hold down the
key with the cooling-side output under manipulation (i.e., heating-side output H = 0.0%), the cooling-side output (C =) decreases. Conse­quently , both the heating-side and cooling-side outputs go to 0.0%. If you keep the
key held down longer, you enter the state of manipulating the heating-side output, and its value begins to increase.
Output (%)
Dead band: Operating parameter DB
12.40-12.4
Cooling-side
manipulated output
DB=12.4
Change in manipulated output when the dead band is positive
Heating-side
manipulated output
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<Toc> <4. Troubleshooting and Maintenance>

4. T roubleshooting and Maintenance

4.1 T roubleshooting

T roubleshooting Flow
If the operating display does not appear after turning on the controllers power, follow the measures in the procedure below.
If a problem appears complicated, contact our sales representative.
Is the instrument
defective?
Yes
Totally
inoperable?
Yes
No
Is key
operation
faulty?
Yes
No
Is display
faulty?
Yes
No
Is I/O
signal faulty?
Yes
No
Is
communication
link faulty?
Yes
4-1
Check wiring on the power supply terminals.
Check the supply voltage.
No
Normal?
No
Yes
Ask the vendor for repair.
Check the key lock setting.
No
Correct
errors.
Correct?
Yes
Find the cause.
Is
key lock
enabled?
Disable
key lock.
Yes
Turn off power, and then turn it on again.
Check the instruments I/O specifications.
Check the specifications of I/O counterpart for wrong polarity.
No communication
capability.
IMPORTANT
Take note of the parameter settings when asking the vendor for repair .
Check the instrument's suffix code.
No
Does the code
include a communication
option?
Check the communication-related parameters.
Check communication wiring.
Check the specifications of communication counterpart.
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<T oc> <4. Troubleshooting and Maintenance>
Errors at Power on
The following table shows errors that may be detected by the fault diagnosis function when the power is turned on.
4-2
Error indication
(on PV display unit)
(E000) (E001) (E002)
PV decimal point blinks.
(E400)
Description
of error Faulty RAM Faulty ROM System data error
Faulty calibration value
Parameter error
PV
None
0% Normal action
(out of accuracy)
0%
Possible Errors during Operation
The following shows possible errors occurring during operations.
Error indication
(on PV display unit) Displays RJC
and PV alternately
PV value blinks.
(E300)
(B.OUT)
(OVER) or
(-OVER)
(E200)
SP decimal point blinks. (on setpoint display unit)
All indications off Faulty if power off/on does
All indications off Check for abnormal power.
Description
of error
RJC error
EEPROM error
A/DC error
PV burnout error
Excessive PV Out of -5 to 105%
Auto-tuning failure (Time-out)
Faulty communi­cation line
Runaway (due to defective power or noise)
Power off
PV
Measured with RJC=OFF
Normal action 105
%
Dependent on the BSL parameter Up-scale: 105% Down-scale: -5%
-5% or 105%
Normal action
Normal action
None
None
Control
output
0% or less or OFF
Normal action (out of accuracy)
Preset value output
Control
output
Normal action
Normal action
Preset value output
Preset value output
Normal action
Normal action
Normal action
0% or less or OFF
0
Normal action
Normal action
Normal action
Normal action
Normal action
Normal action
Normal action
OFF
OFF
%
Alarm output
OFF
Normal action (out of accuracy)
OFF 0%
Retransmis-
Alarm
sion output
output
Normal action
Normal action
Normal action
Normal action
Normal action
Normal action
Normal action
0% or less
0
%
Retransmission
output
0% or less Stopped
0% Normal action
(out of accuracy)
Commu-
Normal action
Normal action
Normal action
Normal action
Normal action
Normal action
Normal action
Stopped
Stopped
Communi-
cation
Normal action
nication
Faulty Contact us for repair.
Faulty Contact us for repair.
Check wires and sensor.
Check process.
Check process. Press any key to erase error indication.
Check wires and communication parameters, and make resetting. Recovery at normal receipt
not reset start the unit. Contact us for repair.
Remedy
Faulty Contact us for repair.
Check and set the parameters, as they have been set to the limited values.
Remedy
If a Power Failure Occurs during Operation
Momentary Power Failures shorter than 20 ms
The controller is not affected at all and continues normal operation.
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<Toc> <4. Troubleshooting and Maintenance>
Power Failures of 20 ms or longer
The alarm function of the controller continues to work normally. (Alarms with the stand-by feature temporarily return to their stand-by state, however.)
Setting parameters that have already been configured retain their settings.
Auto-tuning is cancelled.
After recovery from a power failure, control action resumes in the same mode as the
one before the occurrence of the power failure. The control output begins with the preset output value.
T roubleshooting when the Controller Fails to Operate Correctly
If your control tasks are not successful, check the preset parameters and controller wiring before concluding the controller to be defective. The following show some examples of troubleshooting you should refer to in order to avoid the possibility of other problems.
The Controller does not Show the measured input (PV).
The UT350/UT320 controllers have a universal input. The type of PV input can be set/changed using the parameter IN. At this point, the controller must be wired correctly according to the selected type of PV input. Check the wiring first if the controller fails to show the correct PV . To do this, refer to 2. Initial Settings. With the parameters RH, RL”, SDP, “SH and SL, it is possible to scale the input signal and change its number of decimal places. Also check that these parameters are configured correctly .
4-3
The Controller does not Provide any Control Output or the Control Output
does not Change at all.
The UT350/UT320 controllers have a universal output. The type of control output can be set/changed using the parameter OT”. At this point, the controller must be wired correctly according to the selected type of control output. Check the wiring first if the controller provides no control output. To do this, refer to 1.5 Terminal Wiring Diagrams. With the parameters OH and OL, it is possible to set/change the high and low limits of control output. The control output may not change at all, however , because of restrictions on these parameters. Also check the restrictions on these parameters.
The control output can only be changed when the controller is in the MAN mode. If the MAN lamp is off (i.e., the controller is in the AUTO mode), you cannot change the control output using key operation.
The control output does not change soon after the target setpoint (SP) has
been changed.
If this happens, check the setpoint of the parameter C.MD. In cases where fixed­point control is selected as the PID control mode (C.MD = 1), tracking based on the I­term works to prevent the control output from changing suddenly even if the target setpoint SP is varied. The control output therefore may appear to be working incorrectly at first; however it gradually adapts itself to the new target setpoint.
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<T oc> <4. Troubleshooting and Maintenance>

4.2 Maintenance

This section describes the cleaning and maintenance of the UT350/UT320.

4.2.1 Cleaning

The front panel and operation keys should be gently wiped with a dry cloth.
NOTE
Do not use alcohol, benzine, or any other solvents.

4.2.2 Replacing Brackets

When the brackets are broken or lost, purchase the following brackets for replacement.
4-4
Target Model Part No. UT350 T9115NL UT320 T9115NK
SEE ALSO
1.2 How to Install, for how to replace brackets.

4.2.3 Attaching T erminal Cover

When a terminal cover is necessary , purchase the following part.
Target Model Part No. UT350 T9115YD UT320 T9115YE
Sales Unit A large bracket and small bracket in pair Two small brackets in pair
Sales Unit 1 1
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<Toc> <4. Troubleshooting and Maintenance>
Attaching T erminal Cover
The procedure for attaching the terminal cover is as follows.
Do not touch the terminals on the rear panel when power is being supplied to the controller . Doing so may result in electric shock.
4-5
CAUTION
1.
Before attaching the terminal cover, turn of f the source circuit breaker and use a tester to check that the power cable is not conducting any electricity .
Before attaching the terminal cover, fold it once or twice so that the side which has the Handle With Care symbol ( ), is on the outside.
Fold over.
Grooved
Fold over.
Grooved
Folding Direction of Terminal Cover
Alert symbol on the back
NOTE
Do not fold the terminal cover the wrong way , doing so not only reduces the cover’s strength but may also cause the hinge to crack, thereby disabling attachment.
With the cover properly folded, fit its top and bottom holes to the protrusions of the
2.
mounting brackets.
Fit the hole of the terminal cover to the protrusion on the mounting bracket.
Attaching Terminal Cover
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<T oc> <4. Troubleshooting and Maintenance>

4.2.4 Replacing Parts with a Limited Service Life

The following UT350/UT320 parts have a limited service life. The service life given in the table assume that the controller is used under normal operating conditions.
4-6
Part Aluminum electrolytic condenser EEPROM Alarm output relays About 100,000 more ON-OFF operations or with resistance load Control output relays About 100,000 more ON-OFF operations or with resistance load
About 10 years (rated) About 100,000 times of writings
Service life
If any of these parts, except control output relays, cause a controller failure due to deterio­ration, contact your dealer for replacement at your cost. Control output relays can be replaced by yourself.
SEE ALSO
4.2.5 Replacing Control Output Relays, for how to replace the control output relays.
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<Toc> <4. Troubleshooting and Maintenance>

4.2.5 Replacing Control Output Relays

This subsection describes how to replace the control output relays. The replacement must be performed by an engineer qualified for the work.
Always turn off the power before starting the work in order to avoid electric shock. Do not pull out the internal unit for any other purpose other than to replace the control
CAUTION
output relays.
Insert a flat-blade screwdriver (tip width of 6 mm is recommended) into the opening with
1.
the tip in parallel with the front panel, and then turn the screwdriver gently . Take this procedure to four openings 1, 2, 3 and 4 (see the figure below) on the upper and lower parts of the bezel, in order . The bezel slightly moves forward from the housing.
4-7
1
2
4
3
Push up the center of the bottom gasket of bezel by a finger to release the latch.
2.
Latch (invisible in the panel)
Center of the bottom gasket
Panel
View from the bottom
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<T oc> <4. Troubleshooting and Maintenance>
Insert the screwdriver into the four openings and flip the tip forward to move the bezel
3.
more forward.
Hold the bezel and pull it along with the internal unit out of the housing.
4.
(Note) Be careful not to damage the RJC sensor.
The location and number of the relays differ depending on the model code of the UT350/
5.
UT320. Confirm the location of the control output relay to be replaced before pulling out the relay .
4-8
Upper
Relay (UT350-0 or UT320-0)
Pull out the relay to be replaced.
6.
The control output relays are easy to remove and mount, since they are connected via a socket onto the print boards.
Insert the new relay in the socket. Use the following relay .
Manufacturer OMRON
Model G6B-2114P-FD-US-P6B
Power supply 12 V DC
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<Toc> <4. Troubleshooting and Maintenance>
Insert the internal unit into the housing.
7.
Apply power to the controller and confirm that the initial operating display is shown. If the operating display is not shown properly , turn off the controller and pull out the internal unit. Then, insert it into the housing again.
This completes replacement of the control output relay .
4-9
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<Toc> <5. Parameters>

5. Parameters

This chapter contains a parameter map as a guideline for setting parameters, and lists of parameters for recording User Settings.

5.1 Parameter Map

5-1
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<T oc> <5. Parameters>
UT350/UT320 Parameter Map
Operating Display
5-2
SET3S
Menu
SET
SET3S SET3SSET3S
OP.PA
SET
LL A1 A2 A3 AT
SC
Not displayed when OT parameter set to 4 to 6. Displayed in automatic operation
SP.NO
PID
FL
BS
UPR
FL is displayed if you press the key
when PID = MENU.
DNR
OH
OL
H
Displayed for ON/OFF control
DR HB1 HB2 HC1 HC2
ORB ORH ORL
OR
The setpoints of the ORB, ORH and ORL parameters are only effective when a sensor grounding alarm is used. The OR parameter represents the moving average (for 5 cycle times) of the control output and is not a setpoint.
1.SP
2.SP
3.SP
4.SP
SET
OUT displaySP display
Pressing the
3.P
3.I
3.D
3.MR
3.Pc
3.Ic
3.Dc
3.DB
SET/ENT
Pressing the
SET/ENT
key when PID = 4Gr causes PID for 4.SP to appear.
4.P
4.I
4.D
4.MR
4.Pc
4.Ic
4.Dc
4.DB RDV
Not displayed for ON/OFF control
Displayed when integral time is OFF
Displayed for heating/cooling control
Displayed for heating/cooling control
Displayed when parameter ZON=ON
SET/ENT
To switch the parameter display, press the key.
Pressing the
SET/ENT
key when PID = 1Gr causes PID for 1.SP to appear.
1.P
1.I
1.D
1.MR
1.Pc
1.Ic
1.Dc
1.DB
Pressing the
SET/ENT SET/ENT
key when PID = 2Gr causes PID for 2.SP to appear.
2.P
2.I
2.D
2.MR
2.Pc
2.Ic
2.Dc
2.DB
key when
PID = 3Gr causes PID
for 3.SP to appear.
1.RP 2.RP
NOTE
Changing the registered value of a setup parameter may cause the registered value of an operating parameter to be initialized automatically. Thus, when you have changed a setup parameter, always check that the registered value of the operating parameter is appropriate. If it is initialized to default, reset it to the required value.
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<Toc> <5. Parameters>
5-3
STUP
SET
Password
check display
Control function
related
FUNC
SET SET
SPH SPL
AL1 AL2
AL3 HY1 HY2 HY3 DY1 DY2 DY3
CT
CTc
PO
POc
C.MD
ZON
AR
TMU
P.SL BPS
PRI STP DLN
ADR RP.T
TEST
Password input
(No password is required when PWD = 0.)
SET
Not displayed when OT parameter set to 4 to 6.
Displayed for heating/cooling control.
Displayed for heating/cooling control.
Displayed only for controllers with communication functions.
This parameter is not to be set.
SET
SET
SET3S
Press the key once. Press the key for 3 seconds. Press the or key once.
Setup Parameter Setting Display
SET/ENT
SET/ENT
Input/Output
related
IN
UNIT
RH
RL
SDP
SH
SL
RJC
BSL
OT RET RTH
RTL
DIS C.S1 C.S2 C.S3 C.S4
LOCK
PWD
I/O
When shipped from the factory, this parameter appears first after power-on.
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<T oc> <5. Parameters>

5.2 Lists of Parameters

* Parameters relating to PV or setpoints should all be set in real numbers.
For example, use temperature values to define target setpoints and alarm setpoints
for temperature input. * The User Setting column in the table is provided for the customer to record setpoints. * The column Target Item in CD-ROM in the table provides references from User’s
Manual (Reference) (CD-ROM version) which describes items in more detail and
items that are not contained in this manual. * Numbers in ( ) are the parameter setpoints that apply when the communication func-
tion is used. ex. OFF (0), ON (1)
Operating Parameters
5-4
Parameter
Symbol
(LL)
(A1)
(A2)
(A3)
(AT)
(SC)
(SP.NO)
(PID)
Name of Parameter Setting Range and Description Initial Value
LL communication interface selection
Alarm 1-setpoint
Alarm 2-setpoint
Alarm 3-setpoint
Auto-tuning
Super function
Target setpoint number selection
PID parameter display number
OFF (0): Communication is carried out via the RS485 communication terminals. ON (1):
Communication is carried out via the light-
loader adapter.
PV alarm / SP alarm: -100.0 to 100.0% of PV input range Deviation alarm: -100.0 to 100.0% of PV input range span Output alarm: -5.0 to 105.0% An alarm common to the 1.SP to 4.SP parameters.
OFF (0): No auto-tuning 1: Auto-tuning for 1.SP 2: Auto-tuning for 2.SP 3: Auto-tuning for 3.SP 4: Auto-tuning for 4.SP AUTO (5): Performs auto-tuning to all groups 1 to 4.
OFF (0): Disable
1: Overshoot suppressing function
Suppresses overshoots generated by abrupt changes in the target setpoint or by disturbances.
2: Hunting suppressing function (Stable mode)
Suitable to stabilize the state of control when the load varies greatly, or the target setpoint is changed. Enables to answer the wider characteristic changes compared with Response mode.
3: Hunting suppressing function (Response mode)
Enables quick follow-up and short converging time of PV for the changed target setpoint.
Note: Use SUPER function (SC) 2 or 3 in PID
control or PI control. SUPER function 2 or 3 is not available in the following controls:
1) ON/OFF control
2) P control (control for proportional band only)
3) PD control (control for proportional band and derivative item only)
4) Heating/cooling control
Do not use hunting suppressing function when control processes with response such as flow or pressure control.
0: Use target setpoint via communication. 1: Selects target setpoint 1 (1.SP). 2: Selects target setpoint 2 (2.SP). 3: Selects target setpoint 3 (3.SP). 4: Selects target setpoint 4 (4.SP).
MENU (0): Move to FL parameter display 1Gr (1) to 4Gr (4): Display of each PID parameter
with communication : OFF (0) without communication : ON (1)
PV high limit/SP high limit alarm:
100.0% of PV input range Deviation alarm: 0.0% of PV input range span Other PV/SP low limit alarm:
0.0% of PV input range Output high limit alarm: 100.0% Output low limit alarm: 0.0%
OFF (0)
OFF (0)
1
MENU (0)
User Setting
Target Item in CD-ROM
Ref.2.1(5) Ref.2.1(6)
Ref.4.1(1)
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<Toc> <5. Parameters>
5-5
Parameter
Symbol
(FL)
(BS)
(UPR)
(DNR)
(OH)
(OL)
(H)
(DR)
(HB1)
(HB2)
(HC1)
(HC2)
(ORB)
Name of Parameter Setting Range and Description Initial Value
PV input filter OFF (0), 1 to 120 second.
PV input bias -100.0% to 100.0% of PV input
Setpoint ramp-up-rate
Setpoint ramp-down­rate
Output high limit Heating-side output high limit (in heating/cooling control)
Output low limit Cooling-side output high limit (in heating/cooling control) ON/OFF control hysteresis Heating-side/cooling-side ON/OFF control hysteresis (in heating/cooling control) Direct/reverse action switching
setpoint 1
Heater burnout current setpoint 2
Heater burnout current measurement 1
Heater burnout current measurement 2
ON/OFF rate detection band
ON/OFF rate high limit
Used when the PV input fluctuates.
range span Used to correct the PV input range.
OFF (0)
0.0% + 1 digit of PV input range span to 100.0% of PV input range span Set ramp-up-rate or ramp-down-rate per hour or minute. Sets unit in ramp-rate-time unit (TMU).
-5.0 to 105.0% Heating-side limiter in heating/cooling control: 0.0 to 105.0% (OL < OH)
-5.0 to 105.0% Cooling-side limiter in heating/cooling control: 0.0 to
105.0% (OL < OH) In ON/OFF control: 0.0 to 100.0% of PV input range span In heating/cooling control: 0.0 to 100.0%
0: reverse action, 1: direct action
OFF (0), or 1 to 50 A
These are not setpoints.
0.0 to 100.0% of PV input range span
ORL + 1 digit to 105.0% 100.0%
Reverse
action
-
Control output
100%
0%
Direct action
+
Deviation
(PV-SP)
OFF (0)
0.0% of PV input range span
OFF (0)
OFF (0)
100% Heating/cooling control:
100.0%
0.0% Heating/cooling control:
100.0% ON/OFF control: 0.5% of PV input range span Heating/cooling control: 0.5%
0
OFF (0)Heater burnout current
The current value of the heater burnout detector is shown on the display of the HC1 or HC2 parameter.
1.0% of PV input range span
User Setting
Target Item in CD-ROM
Ref.1.1(1)
Ref.4.1(4)
Ref.2.1(3)
Ref.2.1(1)
Ref.3.3(5)
(ORH)
(ORL)
(OR)
(1.SP)
(2.SP)
(3.SP)
(4.SP)
ON/OFF rate low limit
On/off rate This is not a setpoint. The moving average (for 5
Target setpoint-1
Target setpoint-2
Target setpoint-3
Target setpoint-4
-5.0% to ORH - 1 digit 0.0%
cycle times) of the control output is shown.
0.0 to 100.0% of PV input range However, between target setpoint limiter lower limit (SPL) and upper limit (SPH).
0.0% of PV input range
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
Ref.3.3(4)
Ref.4.1(1)
<T oc> <5. Parameters>
PID-related Parameters
The following parameters are displayed when 1Gr is set to PID parameter display number (PID).
In this case, the corresponding target setpoint is 1.SP (target setpoint-1). To set PID corresponding to target setpoint 2 to 4, set 2Gr, “3Gr”, or “4Gr” to PID. The
relevant parameters will then be displayed.
5-6
Parameter
Symbol
(1.P)
(1.I)
(1.D)
(1.MR)
(1.Pc)
(1.Ic)
(1.Dc)
(1.DB)
Name of Parameter Setting Range and Description Initial Value
Proportional band/Heating­side proportional band (in heating/cooling control)
Integral time Heating-side integral time (in heating/cooling control)
Derivative time Heating-side derivative time (in heating/cooling control)
Manual reset
Cooling-side proportional band
Cooling-side integral time
time
Deadband
0.1 to 999.9% In heating/cooling control: 0.0 to 999.9% (heating-side ON/OFF control applies when 0.0)
OFF (0), 1 to 6000 second.
OFF (0), 1 to 6000 second.
-5.0 to 105.0% (enabled when integral time 1.I is OFF) The manual reset value equals the output value when PV = SP is true. For example, if the manual reset value is 50%, the output value is 50% when PV = SP becomes true.
0.0 to 999.9% (Cooling-side ON/OFF control applies when
0.0) OFF (0), 1 to 6000 second. 240 second.
-100.0 to 50.0% In heating/cooling control, a reagion where both of the heating- and cooling-side outputs are presented, or non of them is presented, can be set.
5.0%
240 second.
60 second.
50.0%
5.0%
60 second.OFF (0), 1 to 6000 second.Cooling-side derivative
3.0%
User Setting
Target Item in CD-ROM
Ref.4.1(1)
(1.RP)
(RDV)
Zone PID reference point-1
0.0 to 100.0% of PV input range. Note that 1.RP 2.RP.
100% value of PV input range
Refer to the table below for recording setpoints when two sets or more of PID parameters are used.
Parameter n=2 n=3 n=4 n.P n.I n.D n.MR n.Pc n.Ic n.Dc n.DB n.RP
Reference deviation
None None
OFF (0), 0.0 to100.0% of PV input range span Used to select PID constants according to a deviation from the setpoint. The 4th group of PID constants is used when the controller fails to keep track of the deviation.
OFF (0)
Ref.4.1(1)
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<Toc> <5. Parameters>
Auto-tuning
Auto-tuning is a function with which the controller automatically measures the process characteristics to automatically set the optimum PID constants. This function does not work when the controller is performing on-off control. The UT350/UT320 employ the Limit Cycle Method. As shown in the figure below , the controller temporarily changes its control output in a step-waveform manner. Then, it calculates the optimum proportional band (P), integral time (I) and derivative time (D) from the resulting response to set them in their respective parameters.
5-7
Setpoint
PV input value
Control output
auto-tuning
Start of
On
Interval of auto-tuning
On
Off
On
Off
Auto-tuning is complete when the 3rd peak arrives.
PID control based on
PID constants determined
by auto-tuning
Time
If the Output High Limit (OH) and Output Low Limit (OL) parameters are already config­ured, the control output turns on and off only between the outputs high and low limits during auto-tuning.
Auto-tuning Using Zone PID (see PID Switching (Zone PID)” later in
this chapter)
Setting of
AT Parameter OFF - Auto-tuning is turned off (disabled). 1 Determines the values of 1.P, 1.I and 1.D parameters by auto-tuning. 2 Determines the values of 2.P, 2.I and 2.D parameters by auto-tuning. 3 Determines the values of 3.P, 3.I and 3.D parameters by auto-tuning. 4 AUTO Median value of each zone
Auto-tuned Setpoint
The setpoints when auto­tuning is started
Determines the values of 4.P, 4.I and 4.D parameters by auto-tuning. Determines the values of all PID parameters in use by auto-tuning.
width
Remarks
The AT parameter settings numbered 1 to 4 in the table above are dependent on how many zones have been set. For example, if you have set two zones, you can use AT parameter settings 1 and 2. Likewise, if you have set three zones, you can use AT parameter settings 1, 2 and 3.
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<T oc> <5. Parameters>
Hysteresis (for T arget Setpoints (On-Off Control) and Alarm Setpoints)
Hysteresis can be set in on-off control setpoints and alarm setpoints as well. With the hysteresis settings, it is possible to prevent relays from chattering.
When hysteresis is set in a target setpoint
5-8
Output
Point of on-off action
(Target setpoint)
On
Off
Hysteresis
PV value
When hysteresis is set in an alarm setpoint
Example of hysteresis set in PV high limit alarm
Output
On
Off
Point of on-off action
(Alarm setpoint)
Hysteresis
PV value
T arget Setpoint Ramp Setting Function
Use this function to prevent the target setpoint from changing suddenly . The ramp setting function works when:
[1] the target setpoint is changed (example: change in 1.SP from 100°C to 150°C); [2] the target setpoint number is switched (example: switch from 1.SP to 3.SP); [3] the power is turned on or the controller is recovered from power failure; [4] a change is made from manual operation to automatic operation; or [5] a change is made from the STOP state to the RUN state.
If the target setpoint before switching is smaller than the target setpoint after switching, the controller operates according to the settings of the Setpoint Ramp UP (UPR) and Ramp Time Unit (TMU) parameters. If the target setpoint before switching is greater than the target setpoint after switching, the controller operates according to the settings of the Setpoint Ramp Down (DNR) and Ramp Time Unit (TMU) parameters.
NOTE
When using target setpoint ramp setting function, PV tracking works in case of the above conditions [2] to [5].
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<Toc> <5. Parameters>
The figure below shows an example when the Target Setpoint Number (SP .NO) parameter is switched. The 1.SP and 2.SP parameters are set to 500°C and 640°C, respectively . Thus, there is a temperature difference of 140°C between the 1.SP and 2.SP parameters. This example shows how the temperature is changed by as much as this temperature difference over a period of two minutes. In this example, the UPR parameter is 70°C and the TMU parameter is 1 minute.
1.SP 2.SP
5-9
2.SP=640
1.SP=500
°C
140°C temperature difference
°C
Switching from 1.SP to 2.SP parameter
PID Switching (Zone PID)
Using a zone PID, you can automatically switch between groups of PID constants accord­ing to the temperature zone. You can set a maximum of three temperature zones.
Maximum value of PV
input range (RH)
Reference point 2
(2.RP)
Reference point 1
(1.RP)
Minimum value of PV
input range (RL)
Setpoint
2-minute interval of temperature rise
PV input value
70°C/min (140°C/2 min) rate of temperature change
NOTE
When using target setpoint ramp setting function, PV tracking works in case of the above conditions [2] to [5].
Zone 3: Operated with 3rd group of PID constants
Zone 2: Operated with 2nd group of PID constants Zone 1: Operated with 1st group of PID constants
Time
<Setting Method>
[1] Set the Zone PID Selection (ZON) parameter to ON”. [2] Define a reference point.
When using two zones, define only reference point 1 (1.RP) between the minimum and maximum values of the PV input range. When using three zones, define reference points 1 and 2 (1.RP and 2.RP) in the same way as noted above.
NOTE
Set the maximum and minimum values, as close as possible to those of the actual range to be controlled, in the Maximum V alue of PV Input Range (RH) and Minimum Value of PV Input Range (RL) parameters. Otherwise, the controller may fail to determine the optimum values when auto-tuning is carried out.
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<T oc> <5. Parameters>
Setup Parameters
Control Function-related Parameters
5-10
Parameter
Symbol
(SPH)
(SPL)
(AL1)
(AL2)
(AL3)
(HY1)
(HY2)
(HY3)
(DY1)
(DY2)
(DY3)
(CT)
(CTc)
(PO)
(POc)
Name of Parameter Setting Range and Description Initial Value
Target setpoint limiter upper limit
Target setpoint limiter lower limit
Alarm-1 type 1
Alarm-2 type 2
Alarm-3 type 1
Alarm-1 hysteresis
Alarm-2 hysteresis
Alarm-3 hysteresis
Alarm-1 delay timer
Alarm-2 delay timer
Alarm-3 delay timer
Control output cycle time Heating-side control output cycle time (in heating/cooling control)
Cooling-side control output cycle time
Preset output/Heating-side preset output (in heating/cooling control)
Cooling-side preset output
0.0 to 100.0% of PV input range where, SPL < SPH Places a limit on the range within which the target setpoint is changed.
OFF (0), 1 to 25, 28 to 31 1: PV high limit (energized, no stand-by action) 2: PV low limit (energized, no stand-by action) 3: Deviation high limit (energized, no stand-by action) 4: Deviation low limit (energized, no stand-by action) 5: Deviation high limit (de-energized, no stand-by action) 6: Deviation low limit (de-energized, no stand-by action) These Alarm Type parameters are common to the parameters 1.SP to 4.SP. See 2.5 Changing Alarm Type for other alarm types.
0.0 to 100.0% of PV input range span Output alarm: 0.0 to 100.0%
Hysteresis for PV high limit alarm
Point of ON/OFF action
Output
An alarm is output when the delay timer expires after the alarm setpoint is reached.
0.00 to 99.59 (min, sec.) (enabled when alarm-1 type AL1 is 1 to 20 or 28 to 31)
Alarm setpoint
Alarm output
0.00 to 99.59 (min, sec.) (enabled when alarm-2 type AL2 is 1 to 20 or 28 to 31)
0.00 to 99.59 (min, sec.) (enabled when alarm-3 type AL3 is 1 to 20 or 28 to 31)
1 to 1000 second. 30 second.
1 to 1000 second. 30 second.
-5.0 to 105.0% In heating/cooling control: Heating side 0.0 to 105.0% In Stop mode, fixed control output can be generated.
0.0 to 105.0% In Stop mode, cooling-side fixed control output can be generated.
On
Off
(Alarm setpoint)
Hysteresis
PV value
Delay timer
off
PV
Delay timer
Hysteresis
on
Time
100.0% of PV input range
0.0% of PV input range
0.5% of PV input range span Output alarm:
0.5%
0.00
0.0%
0.0%
User Setting
Target Item
in CD-ROM
Ref.3.3(4)
Ref.3.3(2)
Ref.3.3(4)
Ref.2.1(8)
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<Toc> <5. Parameters>
5-11
Parameter
Symbol
(C.MD)
(ZON)
(AR)
(TMU)
(P.SL)
(BPS)
(PRI)
Name of Parameter Setting Range and Description Initial Value
PID control mode
Zone PID selection OFF: SP selection
(Excess integration prevention)
Ramp-rate time unit setting
Protocol selection 0
Baud rate 0: 600, 1: 1200, 2: 2400, 3: 4800, 4: 9600 (bps) 4
Parity 0: None
Stop bit 1, 2 1
0: Standard PID control (with output bump at SP change) 1: Fixed Point control (without output bump at SP change) Choose Fixed Point Control when controlling pressure or flow rate.
ON: Zone PID
AUTO (0), 50.0 to 200.0% Used when the control output travels up to 100% or down to 0% and stays at this point. The larger SP, the sooner PID computation (integral computation) stops.
0: hour, 1: minute Time unit of setpoint ramp-up (UPR) and setpoint ramp-down (DNR)
0: PC link communication 1: PC link communication (with sum check) 2: Ladder communication 3: Coordinated master station 4: Coordinated slave station 7: MODBUS (ASCII) 8: MODBUS (RTU) 10: Coordinated slave station (loop-1 mode) 11: Coordinated slave station (loop-2 mode)
1: Even 2: Odd
0
OFF
AUTO (0)Anti-reset windup
0
1
User Setting
Target Item
in CD-ROM
Ref.2.1(2)
Ref.4.1(2)
Ref.2.1(4)
Ref.4.1(4)
Communication
function
(STP)
(DLN)
(ADR)
(RP.T)
(TEST)
Data length
Address 1 to 99
Minimum response time
If this parameter symbol appears, press the SET/ENT key to return to the FUNC menu. Caution: Do not change the setpoint of the TEST parameter, otherwise the controller will be disabled.
7, 8; Fixed at 7, when the P.SL parameter is set to MODBUS (ASCII). Fixed at 8, when the P.SL parameter is set to MODBUS (RTU) or Ladder Communication.
However, the maximum number of stations connectable is 31.
0 to 10 ( 10 ms) 0
8
1
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<T oc> <5. Parameters>
Input-/Output-related Parameters
5-12
Parameter
Symbol
(IN)
(UNIT)
(RH)
(RL)
(SDP)
(SH)
(SL)
(RJC)
(BSL)
(OT)
Name of Parameter Setting Range and Description Initial Value
PV input type (PV INPUT terminals)
- - terminals
131211
PV input unit °C (0): Degree Celsius F (5): Fahrenheit
Max. value of PV input range
Min. value of PV input range
PV input decimal point position (displayed at voltage input)
Max. value of PV input scale (displayed at voltage input)
Min. value of PV input scale (displayed at voltage input)
Presence/absence of PV input reference junction compensation
Selection of PV input burnout action
Control output type
OFF (0), 1 to 18, 30, 31, 35 to 37, 40, 41, 50, 51, 55, 56 See Instrument Input Range Codes in 2. Initial Settings.
- (2): No unit (This parameter is not shown for voltage input.)
Set the PV input range, however RL < RH
-Temperature input Set the range of temperature that is actually controlled.
- Voltage input Set the range of a voltage signal that is applied. The scale across which the voltage signal is actually controlled should be set using the parameters Maximum Value of PV Input Scale (SH) and Minimum Value of PV Input Scale (SL).
0 to 3 Set the position of the decimal point of voltage-mode PV input. 0: No decimal place 1: One decimal place 2,3: Two, three decimal places
Set the read-out scale of voltage-mode PV input.
OFF (0), ON (1)
OFF (0) 1: Up scale 2: Down scale
0
Time proportional PID relay contact output (terminals - - )
1
Time proportional PID voltage pulse output (terminals - )
2
Current output (terminals - ) ON/OFF control relay contact output (terminals - - )
3
The following 4 to 12 are displayed only for heating/ cooling type controllers.
4
Heating-side relay output (terminals - - ), cooling-side relay output (terminals - )
5
Heating-side pulse output (terminals - ), cooling-side relay output (terminals - )
6
Heating-side current output (terminals - ), cooling-side relay output (terminals - )
7
Heating-side relay output (terminals - - ), cooling-side pulse output (terminals - )
8
Heating-side pulse output (terminals - ), cooling-side pulse output (terminals - )
9
Heating-side current output (terminals - ), cooling-side pulse output (terminals - )
10
Heating-side relay output (terminals - - ), cooling-side current output (terminals - )
Heating-side pulse output (terminals - ),
11
cooling-side current output (terminals - )
Heating-side current output (terminals - ),
12
cooling-side current output (terminals - )
1716
321
74
1716
74
1716
74
321
1514
1716
1514
1716
1514
321
1514
1716
1514
1716
1514
OFF (0)
°C (0)
Max. value of instrument input range
Min. value of instrument input range
1
100.0-1999 to 9999, however SL < SH
0.0
ON (1)
1
0
321
1716
321
Heating/cooling type: 4
User Setting
Target Item
in CD-ROM
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<Toc> <5. Parameters>
5-13
Parameter
Symbol
(RET)
(RTH)
(RTL)
(DIS)
(C.S1)
(C.S2)
(C.S3)
(C.S4)
(LOCK)
(PWD)
Name of Parameter Setting Range and Description Initial Value
Retransmission output type
Max. value of retransmission output scale
Min. value of retransmission output scale
DI function selection 1
OFF (0): Does not work. 1: PV, 2: SP, 3: OUT, 4: Loop power supply for sensor (15 V) In heating/cooling control, an output value before allocation to heating and cooling control (0 to 100%) is transmitted if setpoint 3 is selected (0 to 50%: Cooling-side output; 50 to 100%: Heating-side output).
RET=1, 2: RTL + 1 digit to 100.0% of PV input range RET=3: RTL + 1 digit to 100.0%
RET=1, 2: 0.0% of PV input range to RTH - 1 digit RET=3: 0.0% to RTH - 1 digit
Disables the external contact input.
OFF (0)
1
DI1: 2.SP (on)/1.SP (off), DI2: AUTO (on)/MAN (off)
2
DI1: Hides (on)/shows (off) the LOCK setup parameter. DI2: Unused.
3
See the table below.
4
DI1: 2.SP (on)/1.SP (off), DI2: STOP (on)/RUN (off)
1
100.0% of PV input range
0.0% of PV input range
SP Selection when DIS = 3 is set
DI1 DI2
1.SP
2.SP
3.SP
4.SP
SELECT display-1 registration
SELECT display-2 registration
SELECT display-3 registration
SELECT display-4 registration
Key lock
Password setting 0: Password not set
OFF ON OFF ON ON
OFF OFF ON
OFF (0), 201 to 1015 Select the desired parameter from among the operating and setup parameters, then register the number (D register No.) accompanying that parameter. For example, registering 231 for C.S1 allows you to change alarm-1 setpoint in operating display. Numbers for registering alarm SP parameter for operating display:
Alarm-1 setpoint: 231 Alarm-2 setpoint: 232 Alarm-3 setpoint: 233
Above numbers are alarm setpoint parameters for target setpoint-1 (1.SP).
OFF (0): No key lock 1: Change to any parameter prohibited
Prohibits any operating parameter or setup parameter from being changed. The setpoint of the LOCK parameter itself can be changed, however.
2: Change to and display of operating parameters prohibited
Turns off the display for setting operating parameters, thus prohibiting any change to the parameter settings. (Hold down the SET/ENT key for more than 3 seconds to show the password check display.)
3: Disables the A/M key on the instruments front panel.
1 to 9999
OFF (0)
OFF (0)
0
User Setting
Target Item
in CD-ROM
Ref.2.2(1)
Ref.3.1(1)
Ref.6.1(1)
Ref.7.1(2)
Ref.7.1(1)
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<T oc> <5. Parameters>
Useful Operating Displays (SELECT Display)
Registering frequently changed parameters in the SELECT display after ordinary operating displays will allow you to change settings easily . A maximum of four displays can be regis­tered.
Useful
operating display
Ordinary operating displays (example)
(SELECT display)
5-14
SET/ENT
PV
A/M
SP
AL123
SP
234
MAN
SET/ENT
SP display OUT display
key
SET/ENT
PV
A/M
SP
AL123
SP
234
MAN
SET/ENT
key
SET/ENT
PV
A/M
SP
AL123
SP
234
MAN
Alarm-1 setting
display (example)
SET/ENT
key
<Setting method>
Set the parameter numbers (D register numbers) you wish to register for setup parameters C.S1 to C.S4.
Alarm parameter for target setpoint-1 Registration number Alarm-1 setpoint parameter Alarm-2 setpoint parameter Alarm-3 setpoint parameter
231 232 233
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<Toc> <5. Parameters>
Heating/Cooling Control (for a Heating/Cooling Controller Only)
In heating/cooling control, the controller outputs the result of computation after splitting it into heating-purpose and cooling-purpose signals. In addition, the controller can perform PID control or on-off control on the heating and cooling sides separately. When performing on-off control, set the proportional band to “0”.
The controller splits the result of computation (0 to 100%) into heating-side and cooling­side signals, as described below.
0% to 50% of the computation result is presented as a 0% to 100% cooling-side output.
50% to 100% of the computation result is presented as a 0% to 100% heating-side output.
5-15
PV
PID computation
0% to 100%
Heating/cooling
computation
0% to 50%
Cooling-side output limiter
Cooling-side MV
output 0% to 100%
SP
Heating-side
output limiter
Heating-side MV
output 0% to 100%
Communication
Manual MV output
50% to 100%
Heating/cooling control provides two methods in which either none of the heating- and cooling-side outputs are presented or both of the heating- and cooling-side outputs are presented, as shown in the following figures.
Output (%) 100
Cooling-side output
Heating-side output
Cooling-side output
Output (%) 100
Heating-side output
00
0
Value of control output before split into heating- and
cooling-side outputs
100(%) 100(%)50
Value of control output before split into heating- and
0
Deadband (negative)Deadband (positive)
50
cooling-side outputs
Precautions in Heating/Cooling Control
Keep the ratio of the heating-side proportional band (P) to the cooling-side propor­tional band (Pc) equal to or below 5.
If neither the heating side nor the cooling side is performing on-off control, setting the integral time (I or Ic) of one side to “0” results in the Integral T ime parameters of both sides being set to OFF, irrespective of the integral time setting of the other side.
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<T oc> <5. Parameters>
Cycle Time
A cycle time can only be set if the type of control output is time proportional PID relay output or time proportional voltage pulse output.
A cycle time refers to one period consisting of on-and of f-state time lengths. The ratio of the on-state time to the off-state time differs according to the value of the
control output. The figure below shows on-to-off time ratios of the control output when the cycle time is set
to 10 seconds. Setting a shorter cycle time allows the controller to perform elaborate control at short time intervals. This significantly reduces the on-and off-state times, how­ever it shortens the service life of a relay .
5-16
On
Off
Cycle time
On
Off
Cycle time
Relays Behavior when Cycle Time = 10 sec.
For 20% of Control Output For 50% of Control Output For 80% of Control Output
10 sec.
On-state duration: 2 sec. Off-state duration: 8 sec.
10 sec. 10 sec.
On-state duration: 5 sec. Off-state duration: 5 sec.
On-state duration: 8 sec. Off-state duration: 2 sec.
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<Toc> <6. Function Block Diagram and Descriptions>

6. Function Block Diagram and Descriptions

This chapter contains the function block diagrams for Standard type, and Heat­ing/cooling type. For details on these function block diagrams, refer to the descrip­tions mentioned later.
6-1
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<T oc> <6. Function Block Diagram and Descriptions>
Function Block Diagram for Standard T ype
6-2
PV input terminals
12 1311
, and
PV INPUT
Input selection
Unit selection
Input range conversion
Input bias Input filter
Communication
terminals to
RS485
Control computationManual operation
A/M
2723
LOCALREMOTE
SP.NO=0 SP.NO=1 to 4
Target setpoint
ramp-rate function
AUTOMAN
AUTO (ON)/MAN (OFF) switching
Contact input
DI1 DI2
SP.NO
Target setpoints 1 to 4
Preset output Output limiter
STOP
RUN
*1
24 V loop
power supply
OT
Control
output
LPS
OUTPUT1 OUTPUT1
Terminals
21
22
and
Current or pulse
terminals
1716
and
terminals
, and
*1: If the setup parameter DIS (DI function selection) is set to 4,
when the contact input 2 is ON (stop state), that controller outputs the preset output value.
Terminal Parameter Function
Legend
Analog signal Contact signal Front panel key
Relay
2 31
15 V loop
power supply
terminals
Retransmission
OUTPUT2
/RET
Current
1514
and
output
RET
Alarm function
AL3AL2AL1
Alarm 1 Alarm 2 Alarm 3
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<Toc> <6. Function Block Diagram and Descriptions>
Function Block Diagram for Heating/Cooling T ype
6-3
PV input terminals
12 1311
, and
PV INPUT
Input selection
Unit selection
Input range conversion
Input bias Input filter
Communication
terminals to
RS485
Control computationManual operation
A/M
2723
LOCALREMOTE
SP.NO=0
SP.NO=1 to 4
Target setpoint
ramp-rate function
AUTOMAN
AUTO (ON)/MAN (OFF) switching
Contact input
DI1 DI2
SP.NO
Target setpoints 1 to 4
Heating-side
preset output
OUTPUT1 OUTPUT1
Current or pulse
terminals
and
Heating/cooling
computation
Heating-side
output limiter
Cooling-side
output limiter
*1 *1
OT
Heating-side
OT
Cooling-side
output
OUTPUT2
/RET
1716
Relay
terminals
2 31
, and
Current or pulse
terminals
1514
and
*1: If the setup parameter DIS (DI function selection) is set to 4,
when the contact input 2 is ON (stop state), that controller outputs the preset output value.
output
AL3
Relay
Cooling-side preset output
15 V loop
power supply
terminals
Retransmission
OUTPUT2
/LPS
Current
1514
and
output
RET
Alarm function
AL2AL1
Alarm 1 Alarm 2
Legend
Terminal Parameter Function Analog signal Contact signal Front panel key
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<T oc> <6. Function Block Diagram and Descriptions>
6-4
Functions and Parameters for Standard Type in Initial State (Factory-set
default)
Functions and parameters in initial state are given in the tables below. For details on each parameter, refer to “5.2 Lists of Parameters.
PV Input
PV input (INPUT) is a universal input, which can receive signals from thermocouple, RTD, or DC voltage signals. The controller is capable of biasing, and first-order lag computation (filtering) on input signals.
Each function can be set by the following parameters.
Setup Parameters
Input selection IN Unit selection UNIT Input range conversion RH, RL (SDP, SH, SL)
Operating Parameters
PV input bias BS OP.PA PV input filter FL OP.PA
Remote Input
Remote input can be received via communication. Set “0” in the parameter SP.NO (target setpoint number selection) for remote input. For more information, refer to GREEN Series Communication Functions (IM 05G01B02-01E).
Each function can be set by the following parameters.
Operating Parameters
Function Parameter
Function Parameter Menu
Menu I/O I/O I/O
Function Parameter
Target setpoint number selection
Menu
SP.NO OP.PA
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<Toc> <6. Function Block Diagram and Descriptions>
Contact Input
Changing the setpoint of the parameter DIS (DI function selection) allows you to change the function of contact input.
When DIS=OFF
No function for contact input.
When DIS=1 (factory-set default)
Target setpoint 2 (ON)/Target setpoint 1 (OFF) switching function is assigned to DI1 (con­tact input 1).
Automatic (ON)/Manual (OFF) switching function is assigned to DI2 (contact input 2). Manipulated output can be changed using the and keys in manual mode.
When DIS=2
Hide (ON)/Show (OFF) the parameter LOCK (key lock) switching function is assigned to DI1 (contact input 1).
No function is assigned to DI2 (contact input 2).
6-5
When DIS=3
It is possible to select one out of four setpoints by turning the two contact input signals ON or OFF. This function is assigned to DI1 (contact input 1) and DI2 (contact input 2).
Contact
input
DI1 DI2
For example, set contact input 1 (DI1) only to ON to change target setpoint 1 to 2. Set contact inputs 1 (DI1) and 2 (DI2) to ON to select target setpoint 4.
Target setpoint number to be selected (SP.NO)
1 OFF OFF
2
ON
OFF
3
OFF
ON
4 ON ON
When DIS=4
Target setpoint 2 (ON)/Target setpoint 1 (OFF) switching function is assigned to DI1 (con­tact input 1).
Run (OFF)/Stop (ON) switching function is assigned to DI2 (contact input 2). Preset output value is output when the operation is stopped. PV input and alarms remain functioning as normal.
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<T oc> <6. Function Block Diagram and Descriptions>
T arget Setpoint and PID
It is possible to use a maximum of four groups of target setpoints and PID parameters. The target setpoint can be selected by key operation or contact input. For selection by contact input, refer to Contact Input.
Operating Parameters
6-6
Function Parameter Target setpoint number selection Target setpoints 1 to 4 n.SP Proportional band (P) n.P Integral time (I) n.I Derivative time (D) n.D
Note: Parameters n.SP , n.P, n.I, n.D (n=1 to 4) correspond to the target setpoint number selected in the target setpoint
number selection (SP.NO).
SP.NO
Menu OP.PA OP.PA OP.PA OP.PA OP.PA
The target setpoint ramp rate setting function prevents the target setpoint form changing suddenly . It is possible to set the upward and downward changing rate (i.e., ramp rate) independently in the parameters UPR and DNR. The unit of the ramp rate (hour , or minute) is specified in TMU.
Setup Parameters
Function Parameter
Ramp-rate time unit setting TMU FUNC
Menu
Operating Parameters
Function Parameter
Target setpoint ramp-rate setting
Menu
UPR, DNR OP.PA
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<Toc> <6. Function Block Diagram and Descriptions>
Control Output
Control output (OUTPUT1) selects the output type among the current output, voltage pulse output, and relay contact output signal.
Preset output value is output when the operation is stopped by key operation or contact input, which takes priority over the manual operation.
Each function can be set by the following parameters.
Setup Parameters
6-7
Control output type selection OT Control output cycle time CT Preset output PO FUNC
Operating Parameters
Output limiter OL, OH OP.PA
Contact Output
Alarm 1 is output via DO1 (contact output 1). Alarm 2 is output via DO2 (contact output 2). Alarm 3 is output via DO3 (contact output 3).
Setup Parameters
Alarm 1 type AL1 Alarm 2 type AL2 Alarm 3 type AL3
Function Parameter
Function Parameter
Function Parameter
Menu I/O FUNC
Menu
Menu FUNC FUNC FUNC
Operating Parameters
Function Parameter Alarm 1 setpoint A1 Alarm 2 setpoint A2 Alarm 3 setpoint A3
Menu OP.PA OP.PA OP.PA
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<T oc> <6. Function Block Diagram and Descriptions>
Retransmission Output
PV , target setpoint, or control output can be output to retransmission output (OUTPUT2/ RET).
Each function can be set by the following parameters.
Setup Parameters
6-8
Function Parameter Retransmission output type RET Retransmission output scale RTH, RTL
15 V DC Loop Power Supply
The 15 V DC loop power supply (OUTPUT2/RET) uses the same terminal as retransmis­sion output. The 15 V DC loop power supply can not be used when retransmission output is used. To use the 15 V DC loop power supply, set “4” in retransmission output type selection parameter RET.
Each function can be set by the following parameters.
Setup Parameters
Function Parameter Retransmission output type RET I/O
Menu I/O I/O
Menu
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
<Int> <Toc>

Revision Information

Title : Models UT350/UT320 Digital Indicating Controllers Users Manual
Manual No. : IM 05D01D02-41E
May 2000/1st Edition
Newly published
May 2002/2nd Edition
Revision
i
Written by Yokogawa M&C Corporation
Published by Yokogawa M&C Corporation
2-9-32 Nakacho, Musashino-shi, Tokyo 180-8750, JAPAN
IM 05D01D02-41E 2nd Edition : Sep 20,2002-00
YOKOGAWA M&C CORPORATION Headquaters
2-9-32, Nakacho, Musashino-shi, Tokyo, 180-8750 JAPAN Phone: +81-422-52-5066 Facsimile: +81-422-51-8421
International Sales Dept.
Musashino Center Bldg. 2-9-32, Nakacho, Musashino-shi, Tokyo, 180-0006 JAPAN Phone: +81-422-52-5716 Facsimile: +81-422-55-8954
Sales Branch Offices
Tokyo, Nagoya, Osaka, Fukuoka
YOKOGAWA CORPORATION OF AMERICA Headquaters
2 Dart Road, Newnan, GA. 30265-1094 U.S.A. Phone: +1-770-253-7000 Facsimile: +1-770-251-2088 Sales Branch Offices / Texas, Phoenix, Chicago, Detroit, Los Angeles, New Jersey, Ollahoma
YOKOGAWA EUROPE B. V. Headquaters
Databankweg 20, Amersfoort 3821 AL THE NETHERLANDS Phone: +31-334-64-1611 Facsimile: +31-334-64-1610 Sales Branch Offices / Houten (Netherlands), Wien (Austria), Zaventem (Belgium), Ratingen (Germany), Madrid (Spain), Bratislava (Slovakia), Runcorn (United Kingdom), Milano (Italy), Velizy villacoublay(France), Johannesburg(Republic of South Africa)
YOKOGAWA AMERICA DO SUL S.A. Headquarters & Plant
Praca Acapulco, 31-Santo Amaro, Sao Paulo/SP, CEP-04675-190 BRAZIL Phone: +55-11-5681-2400 Facsimile: +55-11-5681-1274/4434
YOKOGAWA ENGINEERING ASIA PTE. LTD. Head office
5 Bedok South Road, 469270 SINGAPORE Phone: +65-241-9933 Facsimile: +65-241-2606
YOKOGAWA ELECTRIC KOREA CO., LTD. Head office
395-70, Shindaebang-dong, Dongjak-gu, Seoul,156-010, KOREA Phone: +82-2-3284-3021 Facsimile: +82-2-3284-3016
YOKOGAWA TAIWAN CORPORATION Head office
17F, No.39, Sec. 1, Chung Hwa Road Taipei, 100 TAIWAN Phone: +886-2-2314-9166 Facsimile: +886-2-2314-9918
YOKOGAWA AUSTRALIA PTY. LTD. Head office
Centre Court D1, 25-27 Paul Street North, North Ryde, N. S. W. 2113, AUSTRALIA Phone: +61-2-9805-0699 Facsimile: +61-2-9888-1844
YOKOGAWA BLUE STAR LTD. Head office
40 / 4 Lavelle Road, Bangalore, 560 001, INDIA Phone: +91-80-227-1513 Facsimile: +91-80-227-4270
LTD. YOKOGAWA ELECTRIC Headquarters
Grokholskiy per. 13, Build. 2, 4th Floor, 129090, Moscow, RUSSIA FEDERATION Phone: +7-095-737-7868 Facsimile: +7-095-737-7869
<Recycled Paper Used>
SIM1E-2002.6
Printed in Japan
Loading...
