User’ s Manual

Models UM350/UM330 Digital Indicator with Alarms User ’s Manual

IM 05F01D02-41E

2nd Edition

Blank Page

Introduction

Thank you for purchasing the UM350/UM330 digital indicator with alarms.

■ How to Use the Manuals

Purpose Title Description

1. Installation

Initial Settings

3. Operations

4.1 Troubleshooting

5. Parameters

Setup Describes the tasks (installation, wiring, and others) required

Basic operation

Operating procedures and troubleshooting

Brief operation and setpoint recording

■ Regarding This User’s Manual

(1) This manual should be provided to the end user. Keep an extra copy or copies of the

manual in a safe place.

to make the indicator ready for operations. Describes examples of setting PV input types, and alarm

types. Making settings described herein allows you to carry out basic monitoring.

Describes examples of setting alarm setpoints, as well as key operation necessary to run the indicator.

Contains the parameter map used as a guideline for setting parameters and lists of parameters for recording user settings.

(2) Read this manual carefully to gain a thorough understanding of how to operate this

product before starting operation.

(3) This manual describes the functions of this product. Yokogawa M&C Corporation

(hereinafter simply referred to as Yokogawa) does not guarantee the application of these functions for any particular purpose.

(4) Under absolutely no circumstances may the contents of this manual, in part or in

whole, be transcribed or copied without permission. (5) The contents of this manual are subject to change without prior notice. (6) Every effort has been made to ensure that the details of this manual are accurate.

However, should any errors be found or important information be omitted, please

contact your nearest Yokogawa representative or our sales office.

IM 05F01D02-41E

2nd Edition : May 07,2002-00Media No. IM 05F01D02-41E (CD) 2nd Edition : May 2002 (MC)

■ Safety Precautions

The following symbol is indicated on the indicator to ensure safe use.

This symbol on the indicator indicates that the operator must refer to an explanation in the user’s manual in order to avoid the risk of injury or death of personnel or damage to the instrument. The manual describes how the operator should exercise special care to avoid

CAUTION

electric shock or other dangers that may result in injury or loss of life.

The following symbols are used in the hardcopy user’s manuals.

NOTE

Indicates that operating the hardware or software in a particular manner may damage it or result in a system failure.

IMPORTANT

Draws attention to information that is essential for understanding the operation and/or features of the indicator.

■ Regarding Force Majeure

Y okogawa M&C Corporation assumes no liability for any loss or damage, direct or indirect, caused by the use of or unpredictable defects of the product.

IM 05F01D02-41E 2nd Edition : May 07,2002-00

Models UM350/UM330 Digital Indicator with Alarms User’s Manual

Introduction........................................................................................................... i

1. Installation .............................................................................................. 1-1

1.1 Model and Suffix Codes.................................................................................. 1-1

1.2 How to Install................................................................................................... 1-2

1.3 How to Connect Wires .................................................................................... 1-5

1.4 Hardware Specifications ................................................................................ 1-7

1.5 T erminal Wiring Diagrams.............................................................................1-11

2. Initial Settings ......................................................................................... 2-1

Toc-1

IM 05F01D02-41E 2nd Edition

2.1 Names and Functions of Front Panel Parts................................................... 2-2

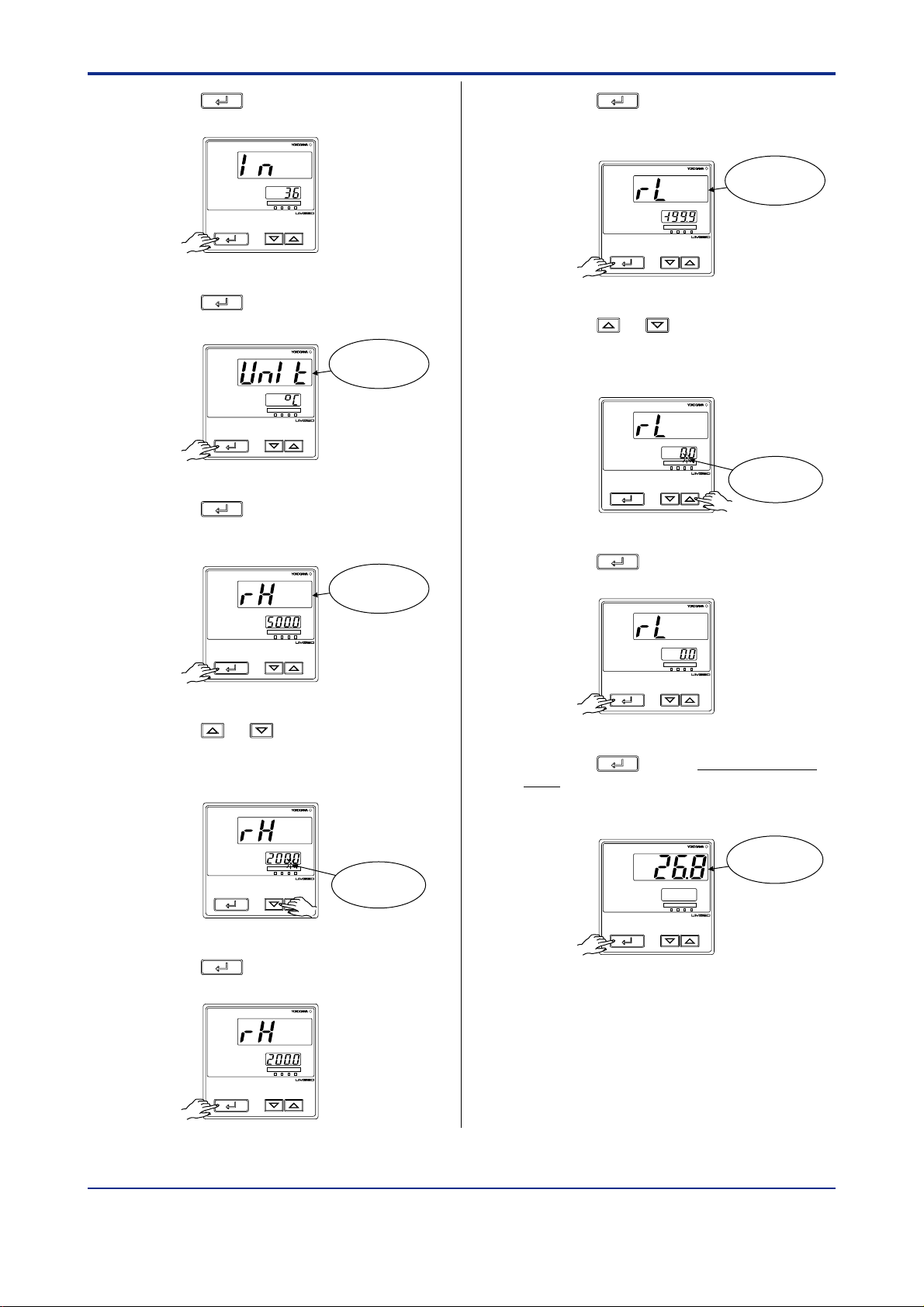

2.2 Setting PV Input T ype (Setting First at Power-on)......................................... 2-3

2.3 Changing PV Input T ype................................................................................. 2-7

2.4 Changing Alarm Type ..................................................................................... 2-9

2.5 Setting Hysteresis in Alarm Setpoint............................................................2-11

3. Operations .............................................................................................. 3-1

3.1 Monitoring-purpose Operating Display Available during Operation ........... 3-1

3.2 Setting Alarm Setpoints.................................................................................. 3-2

4. T roubleshooting and Maintenance ........................................................ 4-1

4.1 Troubleshooting.............................................................................................. 4-1

4.2 Maintenance .................................................................................................... 4-4

4.2.1 Cleaning ........................................................................................... 4-4

4.2.2 Replacing Brackets........................................................................... 4-4

4.2.3 Attaching T erminal Cover.................................................................. 4-4

4.2.4 Replacing Parts with a Limited Service Life....................................... 4-6

5. Parameters.............................................................................................. 5-1

5.1 Parameter Map ................................................................................................ 5-1

5.2 Lists of Parameters......................................................................................... 5-2

Revision Information ............................................................................................ i

IM 05F01D02-41E

2nd Edition : May 07,2002-00

Blank Page

1. Installation

This chapter describes installation, wiring, and other tasks required to make the indicator ready for operation.

1.1 Model and Suffix Codes

Before using the indicator, check that the model and suf fix codes match your order .

Model Suffix Code Description UM350 UM330

Type

Optional functions

-0 Standard type with three alarms

-3 Standard type with three alarms (with 24 V DC loop power supply)

Check that the following items are provided:

• Digital indicator with alarms (of ordered model) .................... 1

Digital indicator with Alarms (provided with retransmission output and 15 V DC loop power supply as standard)

0 None 1 With communication and additional alarm-4 2 With additional alarm-4

1-1

• Brackets (mounting hardware) ............................................. 1 pair

• Unit label.............................................................................. 1

• User’s Manuals.................................................................... 3 (A2 size)

• User’s Manual (Reference) (CD-ROM version)

(only for indicators with optional communication functions)... 1

IM 05F01D02-41E

2nd Edition : May 07,2002-00

1.2 How to Install

NOTE

To install the indicator , select a location where:

1. no one may accidentally touch the terminals,

2. mechanical vibrations are minimal,

3. corrosive gas is minimal,

150 mm

1-2

4. temperature can be maintained at about 23 C and the fluctuation is minimal,

150 mm150 mm

150 mm

5. no direct radiant heat is present,

6. no magnetic disturbances are caused,

7. no wind blows against the terminal board (reference junction compensation element),

8. no water is splashed,

9. no flammable materials are around,

Never place the indicator directly on flammable items or equipment. If the indicator has to be installed close to flammable items or equipment, be sure to pro-

vide shielding panels all around the indicator, at least 150 mm away from every side; the panels should be made of either 1.43 mm-thick metal-plated steel plates or 1.6 mm-thick uncoated steel plates.

NOTE

Never touch the opening at the bottom of the case. It is to be used in the factory at shipping.

● Installation Position

Install the indicator at an angle within 30 from horizontal with the front panel facing upward. Do not install it facing downward. The position of right and left sides should be horizontal.

Front panel

of indicator

30

Must not exceed 30

Rear of indicator

IM 05F01D02-41E 2nd Edition : May 07,2000-00

■ External Dimensions and Panel Cutout Dimensions

1-3

UM350

(53)

+0.8

100

1 to 10 mm (Panel thickness)

Large bracket

112

91.8

Small bracket

General installation Side-by-side close installation

+0.8

145 min.

[(N-1)96+92]117 min.

+0.8

"N" stands for the number of controllers to be installed. However, the measured value applies if N  5.

Unit: mm

UM330

(25)

+0.6

+0.8

General installation

+0.8

(25)

145 min.

Small bracket

(53)

10011

70 min.

112

91.8

Front of indicator

Unit: mm

Small bracket

1 to 10 mm (Panel thickness)

IM 05F01D02-41E 2nd Edition : May 07,2002-00

■ How to Install

Turn off the power to the indicator before installing it on the panel because there is a possibility of electric shock.

CAUTION

After opening the mounting hole on the panel, follow the procedures below to install the indicator:

1. Insert the indicator into the opening from the front of the panel so that the terminal board on the rear is at the far side.

2. Set the brackets in place on the top and bottom of the indicator as shown in the figure below, then tighten the screws of the brackets. Take care not to overtighten them.

1-4

Panel

Direction to insert the indicator

Insert the

indicator into the opening at the front of the panel.

Note: Right and left mounting for UM330.

Small bracket

(bottom mounting hardware)

Large bracket

(top mounting hardware)

Terminal board

Insert a screwdriver into the brackets to tighten the screws.

IM 05F01D02-41E 2nd Edition : May 07,2002-00

1.3 How to Connect Wires

1) Before carrying out wiring, turn of f the power to the indicator and check that the cables to be connected are not alive with a tester or the like because there is a possibility of electric shock.

CAUTION

2) Wiring must be carried out by personnel who have basic electrical knowledge and practical experience.

NOTE

1) Provide power from a single-phase instrument power supply. If there is a lot of noise in the power line, insert an insulating transformer into the primary side of the line and use a line filter (recommended part: ZAC2205-00U from TDK) on the secondary side. As a countermeasures against noise, do not place the primary and secondary power cables close to each other.

2) For thermocouple input, use shielded compensating lead wires for wiring. For R TD input, use shielded wires that have low conductor resistance and cause no significant differences in resistance between the three wires. The cables to be used for wiring, terminal specifications, and recommended parts are as shown below.

1-5

3) Alarm output relays have a life of 100,000 times that of the resistance load, use auxiliary relays to turn on/off a load.

4) The use of inductance (L) loads such as auxiliary relays, motors and solenoid valves causes malfunction or relay failure; always insert a CR filter for use with alternating current or a diode for use with direct current, as a spark-removal surge suppression circuit, into the line in parallel with the load.

5) When there is possibility of being struck by external lightening surge, use the arrester to protect the instrument.

■ For DC Relay Wiring ■ For AC Relay Wiring

UM350/UM330

Relay

UM’s contact

(Use one with a relay coil

rating less than the UM’s

Relay

contact rating.)

External DC power supply

Diode (Mount it directly to the relay coil terminal (socket).)

UM350/UM330

UM’s contact

(Use one with a relay coil

rating less than the UM’s

contact rating.)

External AC power supply

Relay

CR filter (Mount it directly to the relay coil terminal (socket).)

IM 05F01D02-41E 2nd Edition : May 07,2002-00

● Cable Specifications and Recommended Cables

Purpose Name and Manufacturer

Power supply, grounding, relay contact outputs

Thermocouple Shielded compensating lead wires, JIS C 1610, X- - -

RTD Shielded wires (three conductors), UL2482 (Hitachi Cable) Other signals Shielded wires

600 V PVC insulated wires, JIS C 3307, 0.9 to 2.0 mm2

(See Yokogawa Electric's GS 6B1U1-E.)

● Recommended T erminal Lugs

1-6

Applicable wire size Tightening torque

0.3 to 1.65 mm

7 mm or less

3.7mm

7 mm or less

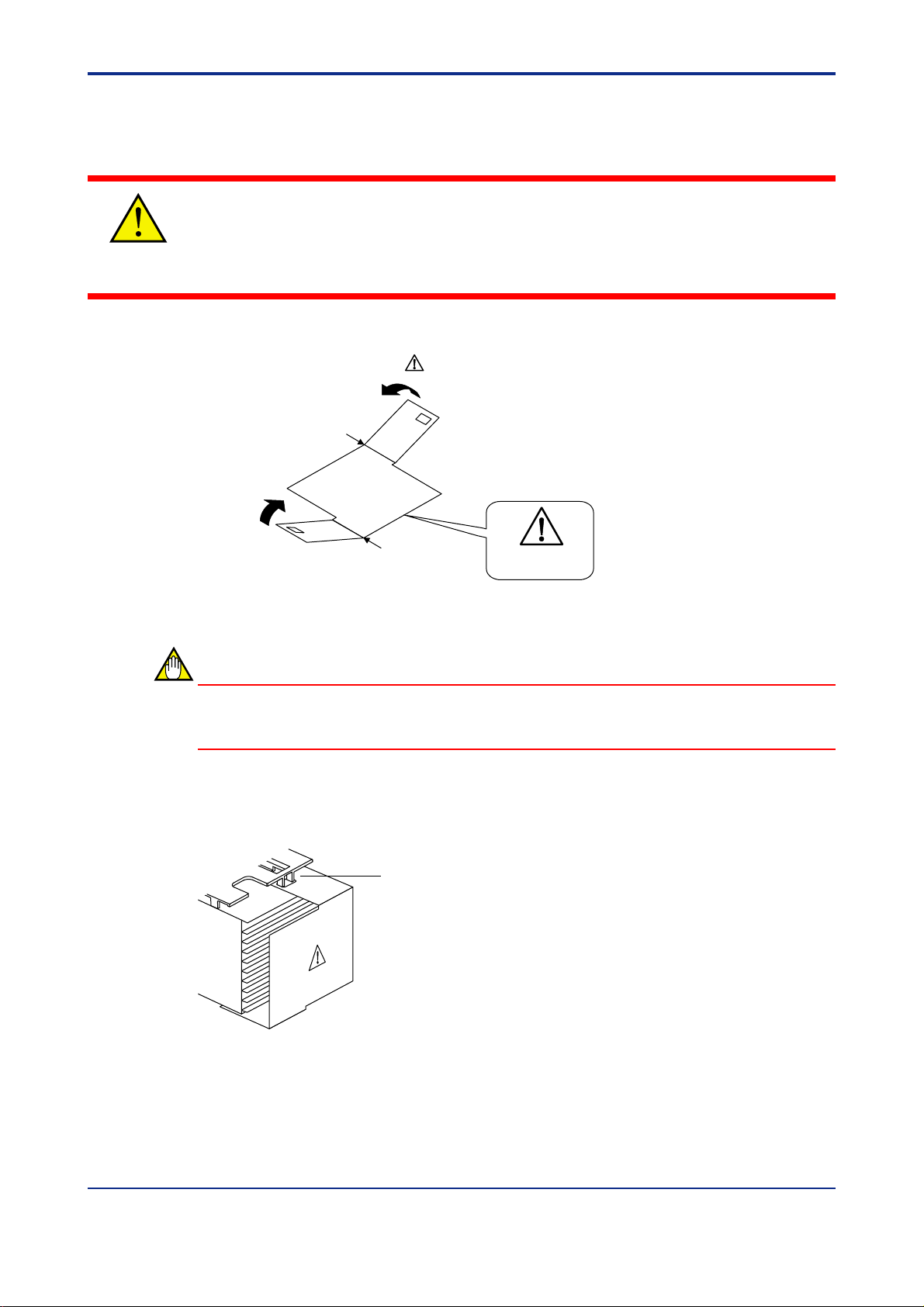

● T erminal Covers (Optional parts)

Target Model Part Number Sales Unit UM350 T9115YD 1 UM330 T9115YE 1

0.8 N·m or less

3.7mm

IM 05F01D02-41E 2nd Edition : May 07,2002-00

1.4 Hardware Specifications

PV Input Signals

• Number of inputs: 1 (terminals 11-12-13)

• Input type: Universal input system. The input type can be selected with the software.

• Sampling period: 250 ms

• Burnout detection: Functions at TC, RTD, standard signal (0.4 to 2 V or 1 to 5 V)

Upscale, downscale, and off can be specified. For standard signal, burnout is determined to have occurred if it is 0.1 V or less.

• Input bias current: 0.05  A (for TC or RTD b-terminal)

• Measurement current (RTD): About 0.13 mA

• Input resistance: 1 M or more for thermocouple or mV input

About 1 M for DC voltage input

• Allowable signal source resistance: 250  or less for thermocouple or mV input Effects of signal source resistance: 0.1  V/ or less 2 k or less for DC voltage input Effects of signal source resistance: About 0.01%/100 V

1-7

• Allowable wiring resistance: for RTD input Maximum 150 /wire: Conductor resistance between three wires should be equal However, 10 /wire for a maximum range of -150.0 to 150.0 C. Wire resistance effect: 0.1 C/10 

• Allowable input voltage: 10 V DC for thermocouple, mV, or RTD input 20 V DC for DC voltage input

• Noise rejection ratio: 40 dB (50/60 Hz) or more in normal mode 120 dB (50/60 Hz) or more in common mode

• Reference junction compensation error: 1.0 C (15 to 35 C) 1.5 C (0 to 15 C, 35 to 50 C)

• Applicable standards: JIS, IEC, DIN (ITS-90) for thermocouples and RTD

Loop Power Supply

Power is supplied to a two-wire transmitter. (15 V DC: terminals A resistor (10 to 250 ) connected between the indicator and transmitter converts a current signal into a voltage signal, which is then read via the PV input terminal. Supply voltage: 14.5 to 18.0 V DC, max. 21 mA (provided with a protection circuit against a field short-circuit); 21.6 to 28.0 V DC, max. 30 mA (only for models with 24 V DC loop power supply)

14-15

; 24 V DC: terminals 21-22)

IM 05F01D02-41E 2nd Edition : May 07,2002-00

Retransmission Output

Outputs the PV value. Either the retransmission output or the loop power supply can be used with terminals

14-15

1-8

• Number of outputs: 1 (terminals

14-15

)

• Output signal: 4-20 mA DC

• Load resistance: 600  or less

• Output accuracy: 0.3% of span under standard operating conditions (232 C,

5510% RH, power frequency of 50/60 Hz)

Contact Inputs

• Purpose: Resetting of PV peak and bottom values

• Number of inputs: 1

• Input type: Non-voltage contact or transistor open collector input

• Input contact rating: 12 V DC, 10 mA or more

• On/off determination: For non-voltage contact input, contact resistance of 1 k or less

is determined as “on” and contact resistance of 20 k or more as “off.” For transistor open collector input, input voltage of 2 V or less is determined as “on” and leakage current must not exceed 100  A when “off.”

• Minimum status detection hold time: About 1 second

Contact Outputs

• Purpose: Alarm output, F AIL output, and others

• Number of outputs: 4 (Max).

• Relay contact rating for Alarm 1 to 3: 240 V AC, 1 A, or 30 V DC, 1 A; 1a

• Relay contact rating for Alarm 4: 250 V AC, 3 A, or 30 V DC, 3 A (resistance load)

3 terminals (NC, NO, Common); 1c, (FAIL output : 1b)

Display Specifications

• PV display: 4-digit, 7-segment red LED display, character height of 20 mm (for both UM350 and UM330)

• Setpoint display: 4-digit, 7-segment, red LEDs, character height of 9.3 mm (for both UM350 and UM330)

• Status indicating lamps: LEDs

Safety and EMC Standards

• Safety: Compliant with IEC1010-1: 1990 and EN61010-1: 1992 Approved by CSA1010 CSA1010 installation category (overvoltage category): CA TII (IEC1010-1) Approved by UL508

• EMC standards: Complies with EN61326 (the instrument continues to operate at a measuring accuracy of within 20% of the range during tests):

IM 05F01D02-41E 2nd Edition : May 07,2002-00

Construction, Installation, and Wiring

• Construction: Only the front panel is dust-proof and drip-proof (protection class IP55) For side-by-side close installation the controller loses its dust-proof and drip-proof protection.

• Material: ABS resin and polycarbonate

• Case color: Black

• Weight: About 1 kg or less

• Dimensions:

UM350  96 (W)  96 (H)  100 (depth from panel face) mm UM330  96 (W)  48 (H)  100 (depth from panel face) mm

• Installation: Panel-mounting type. With top and bottom (or right and left) mounting hardware (1 each)

1-9

• Panel cutout dimensions: UM350  92 UM330  92

+0.8

(W)  92

0 +0.8

(W)  45

+0.8

(H) mm

0 +0.6

(H) mm

• Installation position: Up to 30 upward facing (not designed for facing downward)

• Wiring: M3.5 screw terminals (for signal wiring and power/ground wiring as well)

Power Supply Specifications

• Power supply: Rated voltage of 100 to 240 V AC (10%), 50/60 Hz

• Power consumption: Max. 20 VA (8.0 W max.)

• Internal fuse rating: 250 VAC, 1.6A time-lug fuse

• Data backup: Non-volatile memory (can be written to up to 100,000 times)

• Withstanding voltage

- Between primary terminals* and secondary terminals**:

At least 1500 V AC for 1 minute (Note)

- Between primary terminals* and grounding terminal:

At least 1500 V AC for 1 minute (Note)

- Between grounding terminal and secondary terminals**:

At least 1500 V AC for 1 minute

- Between secondary terminals**:

At least 500 V AC for 1 minute

Note: The withstanding voltage is specified as 2300 V AC per minute to provide a margin of safety.

* Primary terminals indicate power terminals and relay output terminals ** Secondary terminals indicate analog I/O signal, and contact input terminals

• Insulation resistance: 20 M or more at 500 V DC between power terminals and grounding terminal

• Grounding: Class 3 grounding (grounding resistance of 100  or less)

IM 05F01D02-41E 2nd Edition : May 07,2002-00

Signal Isolations

• PV input terminals: Isolated from other input/output terminals. Not isolated from internal circuit.

• 15 V DC loop power supply terminals: Not isolated from 4-20 mA analog output. Isolated from other input/output terminals and internal circuit.

• 24 V DC loop power supply terminals: Isolated from 4-20 mA analog output terminals, other input/output terminals and internal circuit.

• 4-20 mA analog output terminals (for retransmission): Not isolated from 15 V DC loop power supply . Isolated from other input/output terminals and internal circuit.

• Contact input terminals: Not isolated from communication terminals. Isolated from other input/output terminals and internal circuit.

• Relay contact output terminals: Not isolated between relay contact output terminals. Isolated from other input/output terminals and internal circuit.

• RS-485 communication terminals: Not isolated from contact input terminals. Isolated from other input/output terminals and internal circuit.

• Power terminals: Isolated from other input/output terminals and internal circuit.

• Grounding terminals: Isolated from other input/output terminals and internal circuit.

1-10

Environmental Conditions

• Normal operating conditions: Ambient temperature: 0 to 50 C (40 C or less for side-by-side close installation) 0 to 40 C if the 24 V DC loop power supply of Model UM330 is used T emperature change rate: 10 C/h or less Ambient humidity: 20 to 90% RH (no condensation allowed) Magnetic field: 400 A/m or less Continuous vibration at 5 to 14 Hz: Full amplitude of 1.2 mm or less Continuous vibration at 14 to 150 Hz: 4.9 m/s Short-period vibration: 14.7 m/s Shock: 147 m/s Installation height: Height above sea level of 2000 m or less Warm-up time: 30 minutes or more after power on

• Transportation and storage conditions: T emperature: -25 to 70 C T emperature change rate: 20 C/h or less Humidity: 5 to 95% RH (no condensation allowed)

• Effects of changes in operating conditions

- Effects from changes in ambient temperature:

or less, 1 1 ms

- On voltage or thermocouple input, 1  V/ C or 0.01% of F .S./  C, whichever is larger

- On RTD input, 0.05 C/ C (ambient temperature) or less

, 15 seconds or less

or less

- On analog output, 0.05% of F .S./ C or less

- Effects from power supply fluctuation (within rated voltage range)

- On analog input, 1  V/10 V or 0.01% of F.S./10 V, whichever is larger

- On analog output, 0.05% of F.S./10 V or less

IM 05F01D02-41E 2nd Edition : May 07,2002-00

1.5 T erminal Wiring Diagrams

NOTE

Do not use unassigned terminals as relay terminals.

Terminal wiring diagrams are shown on and after the next page.

1-11

IM 05F01D02-41E 2nd Edition : May 07,2002-00

■ UM350 Standard T ype (Model UM350-0䊐 or UM350-3䊐)

Power supply

Relay contact output

Contact rating: 250 V AC, 3 A

30 V DC, 3 A (resistance load)

* Wiring can only be carried out for indicators with communication functions. Maximum baud rate: 9600 bps

Allowable range: 100 to 240 V AC (

10%) (free voltage) 50/60 Hz shared

Installation category (overvoltage category): II (IEC1010-1)

NOTE

PV input

* Not configured at factory before shipment See “2.

Initial Settings,” for more

information.

* Wiring can only be carried out for indicators with 24 V DC loop power supply.

16 17

Retransmission output

4-20 mA DC

16 17

15 V DC loop power supply

14.5-18.0 V DC (21 mA DC max.)

* PV retransmission is configured at factory before shipment.

Load resistance: 600

Ω or less

* If 15 V DC loop power supply is used, retransmission output cannot be used.

1 2 3 4 5 6 7 8 9

21 22 23 24 25 26 27 28 29 30

11 12 13 14 15 16 17 18 19 20

8 9

12 13

11 12 13

12 13

21 22

21.6-28.0 V DC (30 mA DC max.)

23 24 25 26 27

SDB(+)

SDA(-)

RDB(+)

RDA(-)

6 5 4 7

AL1

AL2 AL3

COM

Relay contact rating: 240 V AC, 1 A

30 V DC, 1 A (resistance load)

1 2 3

Alarm 4 output

COM

A b

* Wiring can only be carried out for

UM350-䊐1 or UM350-

䊐2.

TC input

RTD input

mV/V input

Note: Connecting a 250

Ω resistor to the terminals is optional. Model: X010-250-2 (resistor with M3.5 crimp-on terminal lugs)

* When receiving 4-20 mA DC current signals, set the PV input type to 1-5 V DC (setpoint

“41”).

䊏

Receiving 4-20 mA DC Current

Signals with the Indicator

250 Ω

DI1

COM

Resets the PV

peak and bottom values

when DI1 is changed

from OFF to ON

Common

Contact input

Contact

Contact rating: 12 V DC, 10 mA or more

DI1

COM

+5V

Transistor contact

RS-485 communication

Alarm output

Relay

Alarm 1 output

Alarm 2 output

Alarm 3 output

Common

Power supply

24 V DC loop

power supply

4-20mA

CAUTION

Before carrying out wiring, turn off the power to the indicator and check that cables to be connected are not alive with a tester or the like because there is a possibility of electric shock.

IM 05F01D02-41E 2nd Edition : May 07,2002-00

1-12

■ UM330 Standard T ype (Model UM330-0䊐 or UM330-3䊐)

24 V DC Power Supply Wiring to Two-wire Sensor

15 V DC Power Supply Wiring to Two-wire Sensor

Note: Connecting a 250

Ω resistor to the terminals is optional. Model: X010-250-2 (resistor with M3.5 crimp-on terminal lugs)

* When receiving 4-20 mA DC current signals, set the PV input type to 1-5 V DC (setpoint

“41”).

䊏

Receiving 4-20 mA DC Current

Signals with the Indicator

250 Ω

4-20 mA

Installation category (overvoltage category): II (IEC1010-1)

NOTE

12 13

11 12 13

12 13

A b

TC input

RTD input

mV/V input

6 5 4 7

AL1

AL2 AL3

COM

16 17

Retransmission output

4-20 mA DC

16 17

15 V DC loop power supply

14.5-18.0 V DC (21 mA DC max.)

* PV retransmission is configured at factory before shipment.

Load resistance: 600

Ω or less

* If 15 V DC loop power supply is used, retransmission output cannot be used.

8 9

Power supply

23 24

RS-485 communication

* Wiring can only be carried out for indicators with communication functions. Maximum baud rate: 9600 bps

25 26 27

SDB(+)

SDA(-)

RDB(+)

RDA(-)

DI1

COM

Resets the PV

peak and bottom values

when DI1 is changed

from OFF to ON

Common

1 2

Relay contact output

Alarm 4 output

COM

Contact rating: 250 V AC, 3 A

30 V DC, 3 A (resistance load)

* Wiring can only be carried out for

UM330-䊐1 or UM330-

䊐2.

CAUTION

Before carrying out wiring, turn off the power to the indicator and check that cables to be connected are not alive with a tester or the like because there is a possibility of electric shock.

* Wiring can only be carried out for indicators with 24 V DC loop power supply.

Two-wire transmitter

PV input

0.4 to 2.0 V DC signal

Loop power

supply

14.5 to

18.0 V DC

External resistor (Note)

4-20 mA DC

Note: Connecting a 100

 resistor to the terminals is optional.

Model: X010-100-2 (resistor with M3.5 crimp-on terminal lugs)

100 

Two-wire transmitter

PV input

1 to 5 V DC signal

Loop power

supply

21.6 to

28.0 V

External resistor (Note)

4-20 mA DC

Note: Connecting a 250

 resistor to the terminals is optional.

Model: X010-250-2 (resistor with M3.5 crimp-on terminal lugs)

250 

Contact input

Contact

Contact rating: 12 V DC, 10 mA or more

DI1

COM

+5V

Transistor contact

* Wiring can only be carried out for indicators with 24 V DC loop power supply.

21 22

21.6-28.0 V DC (30 mA DC max.)

24 V DC loop

power supply

Alarm output

Relay

Alarm 1 output

Alarm 2 output

Alarm 3 output

Common

Relay contact rating: 240 V AC, 1 A

30 V DC, 1 A (resistance load)

Allowable range: 100 to 240 V AC (

10%) (free voltage) 50/60 Hz shared

PV input

* Not configured at factory before shipment See “2.

Initial Settings,” for more

information.

IM 05F01D02-41E

2nd Edition : May 07,2002-00

1-13

Blank Page

2. Initial Settings

This chapter describes examples of setting the types of PV input and alarm. Carrying out settings described herein allows you to perform basic monitoring. Refer to examples of various settings to understand how to set parameters required. Refer to “5.1 Parameter Map” for an easy to understand explanation of setting various parameters. If you cannot remember how to carry out an operation during setting, press the ing display) that appears at power-on.

Setup Procedure

SET/ENT

key for more than 3 seconds. This brings you to the display (operat-

2-1

Power-on

Set PV input.

See “2.2 Setting PV Input Type (Setting First at Power-on),” or “2.3 Changing PV Input Type.”

Set the alarm

type and other setup

parameters.

See “2.4 Changing the Alarm Type.”

Set the alarm

setpoints and other

operating parameters.

See “3.2 Setting Alarm Setpoints.”

Indicator operation

(Factory-set to “Unspecified.”)

Denotes a step that must always be followed.

Denotes a step that should be followed as necessary.

The following explanation of operation for the UM350’s panel, shown in the figure, is the same as that of the UM330’s panel.

IM 05F01D02-41E

2ndEdition : May 07,2002-00

2.1 Names and Functions of Front Panel Parts

2-2

4. SET/ENT key

Name of Part Process variable (PV)

1. display

Parameter setpoint display

3. Alarm indicator lamps SET/ENT

4. key

and

5. keys

SET/ENT

IMPORTANT

1. Process variable (PV) display

2. Parameter Setpoint display

Alarm indicator

lamps

5. and keys

• Displays a PV value during operation.

• Displays a parameter symbol when you set a parameter.

• Displays an error code in red if the indicator fails.

Displays the setpoint of a parameter when it is configured. If any of alarms 1 to 4 occurs, the respective alarm indicator lamp (AL1 to AL4) is lit (in orange). Used to switch or register a parameter. Pressing the key for more than 3 seconds allows you to switch

between the operating display and the menu for operating parameter setting display alternately. Used to change numerical values. On setting displays for various parameters, you can change parameters.

Pressing the key decreases a numerical value, while pressing the key causes it to increase. You can hold down a key to gradually increase the speed of change.

2. Parameter Setpoint display

Function

4. SET/ENT key

1. Process variable (PV) display

3. Alarm indicator lamps

5. and keys

The indicator automatically returns to the display at the time of power-on (i.e., Operating display) if no key is operated for at least one minute.

IM 05F01D02-41E

2nd Edition : May 07,2002-00

2.2 Setting PV Input T ype (Setting First at Power-on)

NOTE

• The indicator displays the operating display when the power is turned on. However, if PV input type has not been set, “IN” appears. In this case, first use the display the input range code to use, then press the the maximum value (RH) and minimum value (RL) of the PV input range (for voltage input, set the maximum value (SH) and minimum value (SL) of the PV input scale).

• The indicator is configured to the initial value of each parameter at the factory before shipment. First check the initial values shown in “5.2 Lists of Parameters,” and change parameter values as necessary .

Example of Temperature Input Example of Voltage Input

1V 5V (Input signal)

-200°C 1370°C

0°C 800°C

Minimum value of

PV input range (RL)

Parameters to be set for temperature input

1. PV input type (IN): Set according to a sensor

2. Maximum value of PV input range (RH): Set the maximum value of the range to be displayed.

3. Minimum value of PV input range (RL): Set the minimum value of the range to be displayed.

Instrument input range

PV input range

Maximum value of

PV input range (RH)

Set the actual read-out range.

Parameters to be set for voltage input

1. PV input type (IN): Set according to an input signal

2. Maximum value of PV input range (RH): Set the maximum value of an input signal.

3. Minimum value of PV input range (RL): Set the minimum value of an input signal.

4. Position of PV input decimal point (SDP): Set the position of the decimal point for PV input display.

5. Maximum value of PV input scale (SH): Set the maximum value of the scale to be displayed.

6. Minimum value of PV input scale (SL): Set the minimum value of the scale to be displayed.

2V 4V

PV input range

PV input scale

0.0m3/h 50.0m3/h

Minimum value of

PV input scale (SL)

SET/ENT

Instrument input range

Maximum value of

PV input scale (SH)

key to register it. Then, set

Set the actual read-out range.

2-3

key to

The following operating procedure describes an example of setting a K-type thermocouple (-199.9 C to 500.0 C) and a measurement range of 0.0 C to 200.0 C.

Display screen at power-on

The parameter “IN” for setting the PV input type appears.

AL1234

SET/ENT

Displays

parameter

“IN”.

Press the or key to display the

required setpoint. The figure below shows an example of setting a K-type thermocouple (-199.9 to

500.0C). See the Instrument Input Range Codes.

AL1234

SET/ENT

Blinks during

change.

IM 05F01D02-41E

2nd Edition : May 07,2002-00

2-4

Press the

SET/ENT

key once to register the

setpoint.

AL1234

SET/ENT

Press the

SET/ENT

key once to display the

parameter “UNIT” (PV input unit).

AL1234

SET/ENT

Press the

SET/ENT

key once to display the parameter “RH” (maximum value of PV input range).

AL1234

Displays

parameter

“UNIT”.

Displays

parameter

“RH”.

Press the

SET/ENT

key once to display the parameter “RL” (minimum value of PV input range).

AL1234

SET/ENT

Press the or key to display the

required setpoint. The figure below shows an example of setting the minimum value of PV input range to 0.0C.

AL1234

SET/ENT

10.

Press the

SET/ENT

key once to register the setpoint.

Displays

parameter

“RL”.

Blinks during

change.

SET/ENT

Press the or key to display the

required setpoint. The figure below shows an example of setting the maximum value of PV input range to 200.0C.

AL1234

SET/ENT

Press the

SET/ENT

key once to register the

setpoint.

AL1234

SET/ENT

Blinks during

change.

AL1234

SET/ENT

If the type of input is voltage, also configure the PV Input Decimal Point Position (SDP), Maximum Value of PV Input Scale (SH), and Minimum Value of PV Input Scale (SL) parameters that are displayed after this.

11.

Press the

SET/ENT

key for more than 3 seconds. This returns you to the display shown at power-on (figure below).

AL1234

SET/ENT

Displays PV.

The PV display in the figure above shows the error code for input burnout ( ) if PV input wiring is not yet complete. The error code disappears when you wire the PV input terminals correctly .

IM 05F01D02-41E

2nd Edition : May 07,2002-00

■ Instrument Input Range Codes

Selected the unit from UNIT parameter.

Input Type

Unspecified

Thermocouple

RTD

Standard signal

DC voltage

N10

E11

L(DIN) 12

U(DIN)

W15

Platinel 2 16

PR20-40 17

W97Re3W75Re25

JPt100

Pt100

0.4 to 2 V 1 to 5 V 41 0 to 2 V 50 0 to 10 V 51

-10 to 20 mV 0 to 100 mV

Instrument Input

Range Code

OFF

37 40

55 -10.00 to 20.00 mV 56 0.0 to 100.0 mV

* Performance in the standard condition (at 232C, 5510%RH, and 50/60 Hz power frequency. Note 1: The accuracy is 0.3C of instrument range 1 digit for a temperature range from 0C to 100C. Note 2: The accuracy is 0.5C of instrument range 1 digit for a temperature range from -100C to 200C. * To receive a 4-20 mA DC signal, select a standard signal of 1 to 5 V DC and connect it to a 250  resistor . This

resistor is optional. Model: X010-250-2 (resistor with M3.5 crimp-on terminal lugs)

Instrument

Input Range

Set the data item PV Input Type "IN" to the OFF option to leave the PV input

Set the data item PV Input Type "IN" to the OFF option to leave the PV input type undefined.

type undefined.

-200 to 1370C

-300 to 2500F

-199.9 to 999.9C 0 to 2300F

-199.9 to 500.0C

-199.9 to 999.9F

-199.9 to 999.9C

-300 to 2300F

-199.9 to 400.0C

-300 to 750F

0.0 to 400.0C

-199.9 to 750.0F

0 to 1800C

32 to 3300F

0 to 1700C

32 to 3100F

0 to 1700C

32 to 3100F

-200 to 1300C

-300 to 2400F

-199.9 to 999.9C

-300 to 1800F

-199.9 to 900.0C

-300 to 1300F

-199.9 to 400.0C

-300 to 750F

0.0 to 400.0C

-199.9 to 750.0F 0 to 2300C

32 to 4200F

0 to 1390C

32 to 2500F

0 to 1900C

32 to 3400F

0 to 2000C

32 to 3600F

-199.9 to 500.0C

-199.9 to 999.9F

-150.0 to 150.0C

-199.9 to 300.0F

-199.9 to 850.0C

-300 to 1560F

-199.9 to 500.0C

-199.9 to 999.9F

-150.0 to 150.0C

-199.9 to 300.0F

0.400 to 2.000 V

1.000 to 5.000 V

0.000 to 2.000 V

0.00 to 10.00 V

0.1% of instrument range 1 digit for temperatures equal to or higher than 0°C 0.2% of instrument range 1 digit for temperatures below 0°C

0.15% of instrument range 1 digit for temperatures equal to or higher than 400°C 5% of instrument range 1 digit for temperatures below 400°C

0.15% of instrument range 1 digit

0.1% of instrument range 1 digit 0.25% of instrument range 1 digit for temperatures

below 0°C

0.1% of instrument range 1 digit for temperatures equal to or higher than 0°C 0.2% of instrument range 1 digit for temperatures below 0°C

0.2% of instrument range 1 digit

0.1% of instrument range 1 digit 0.5% of instrument range 1 digit for temperatures

equal to or higher than 800°C No guarantee of accuracy for temperatures below 800°C

0.2% of instrument range 1 digit

0.1% of instrument range 1 digit (Note 1) (Note 2)

0.2% of instrument range 1 digit (Note 1)

0.1% of instrument range 1 digit (Note 1) (Note 2)

0.2% of instrument range 1 digit (Note 1)

0.1% of instrument range 1 digit

The read-out range can be scaled between -1999 and

9999.

Measurement Accuracy

2-5

IM 05F01D02-41E

2nd Edition : May 07,2002-00

NOTE

The indicator may automatically initialize the registered operating parameter setpoints if any change is made to the data item PV Input T ype (IN), Maximum Value of PV Input Range (RH), Minimum V alue of PV Input Range (RL), PV Input Decimal Point Position (SDP), Maximum V alue of PV Input Scale (SH) or Minimum Value of PV Input Scale (SL). After a change has been made to any of these data items, be sure to verify the registered operating parameter setpoints to ensure that they are correct. If any data item has been changed to its default, set it to a required value.

2-6

IM 05F01D02-41E

2nd Edition : May 07,2002-00

2.3 Changing PV Input T ype

The following operating procedure describes an example of changing the setting of K-type thermocouple (-199.9 to 500.0 C) to RTD Pt100 (-199.9 to 500.0 C) and a measurement range of 0.0 to 200.0 C.

2-7

PV input terminal Thermocouple/mV/V input

RTD input .................................................. - -

Bring the operating display into view

(display appears at power on).

AL1234

SET/ENT

Press the

SET/ENT

key for more than 3 sec-

onds to call up the menu “OP.P A”.

AL1234

SET/ENT

..............................

Displays PV.

Displays

menu “OP.PA”.

1312

131211

Press the

SET/ENT

key once to display the

menu “FUNC”.

Displays

AL1234

SET/ENT

Press the key once to display the

menu “FUNC”.

menu “I/O”.

Displays

AL1234

SET/ENT

menu “I/O”.

Press the key once to display the

menu “STUP”.

AL1234

SET/ENT

Press the

SET/ENT

key once to display the

parameter “PWD”.

AL1234

SET/ENT

Displays

menu “STUP”.

Displays

parameter

“PWD”.

Press the

SET/ENT

key once to display the

parameter “IN” (PV input type).

AL1234

SET/ENT

Press the or key to display the

required setpoint. The figure below shows an example of changing to RTD Pt100 (-199.9 to 500.0C).

AL1234

SET/ENT

Blinks during

Displays

parameter

“IN”.

change.

IM 05F01D02-41E 2nd Edition : May 07,2002-00

2-8

Press the

SET/ENT

key once to register the

setpoint.

AL1234

SET/ENT

10.

Press the

SET/ENT

key once to display the

parameter “UNIT” (PV input unit).

AL1234

SET/ENT

11.

Press the

SET/ENT

key once to display the parameter “RH” (maximum value of PV input range).

AL1234

Displays

parameter

“UNIT”.

Displays

parameter

“RH”.

14.

Press the

SET/ENT

key once to display the parameter “RL” (minimum value of PV input range).

AL1234

SET/ENT

Press the or key to display the

15.

required setpoint. The figure below shows an example of setting the minimum value of PV input range to 0.0C.

AL1234

SET/ENT

16.

Press the

SET/ENT

key once to register the setpoint.

Displays

parameter

“RL”.

Blinks during

change.

SET/ENT

Press the or key to display the

12.

required setpoint. The figure below shows an example of setting the maximum value of PV input range to 200.0C.

AL1234

SET/ENT

13.

Press the

SET/ENT

key once to register the

setpoint.

AL1234

SET/ENT

Blinks during

change.

AL1234

SET/ENT

17.

Press the

SET/ENT

key for more than 3 seconds. This returns you to the display shown at power-on (figure below).

AL1234

SET/ENT

Displays PV.

* If the type of input is voltage, also config-

ure the PV Input Decimal Point Position (SDP), Maximum Value of PV Input Scale (SH), and Minimum Value of PV Input Scale (SL) parameters that are displayed after this.

IM 05F01D02-41E 2nd Edition : May 07,2002-00

2.4 Changing Alarm T ype

The following operating procedure describes an example of changing alarm-1 (factory-set default: PV high limit alarm) to PV low limit alarm.

When you have changed alarm type, the alarm setpoint will be initialized; set the alarm setpoint again.

2-9

Alarm output terminals Factory-set defaults

Alarm-1 (terminal numbers )............PV high limit alarm

Alarm-2 (terminal numbers )............PV low limit alarm

Alarm-3 (terminal numbers )............PV high limit alarm

Alarm-4 (terminal numbers )......PV low limit alarm

Bring the operating display into view

(appears at power-on).

AL1234

SET/ENT

Press the

SET/ENT

key for more than 3 sec-

onds to call up the menu “OP.P A”.

AL1234

6 7

5 7

4 7

2 31

Displays PV.

Displays

menu “OP.PA”.

Press the

SET/ENT

key once to display the menu “FUNC”.

SET/ENT

Press the

SET/ENT

key once to display the parameter “AL1” (alarm-1 type).

Displays

menu “FUNC”.

AL1234

Displays

parameter

“AL1”.

AL1234

SET/ENT

Press the key once to display the

menu “STUP”.

AL1234

SET/ENT

Press the

SET/ENT

key once to display the

parameter “PWD”.

AL1234

SET/ENT

Displays

menu “STUP”.

Displays

parameter

“PWD”.

SET/ENT

Press the or key to display the

required setpoint. The figure below shows an example of setting PV low limit alarm.

AL1234

SET/ENT

Blinks during

change.

IM 05F01D02-41E 2nd Edition : May 07,2002-00

2-10

Press the

SET/ENT

key once to register the

setpoint.

AL1234

SET/ENT

Y ou can take the same steps for alarm-2 type (AL2), alarm-3 type (AL3), and alarm-4 type (AL4) that are displayed after this.

■ List of Alarm Types

The table below shows the alarm types and alarm actions. In the table, codes 1, 2, 9, and 10 are not provided with stand-by actions, while codes 1 1, 12, 19, and 20 are provided with stand-by actions.

Alarm action

Alarm type

“Open/close” shows status of relay contact, and “lit” and “unlit” shows status of lamp

No alarm OFF

Hysteresis

PV high limit

PV low limit

Open (unlit)

Closed (lit)

Alarm setpoint

Hysteresis

Alarm setpoint PV

Closed (lit)

Open (unlit)

Contact

closes

if alarm

occurs

Contact

opens

if alarm

occurs

Press the

onds. This returns you to the display shown at power-on (figure below).

See “3.2 Setting Alarm Setpoints” when setting an alarm setpoint.

Alarm type

De-energized

on PV high limit

De-energized

on PV low limit

SET/ENT

key for more than 3 sec-

AL1234

SET/ENT

Alarm action

“Open/close” shows status of relay contact, and “lit” and “unlit” shows status of lamp

Hysteresis

Closed

(unlit)

Open (lit)

Alarm setpoint

Hysteresis

Open (lit)

Alarm setpoint

Closed

(unlit)

Displays PV.

Alarm type codeAlarm type code

Contact

closes

if alarm

occurs

Contact

opens

if alarm

occurs

Fault diagnosis output (Note 1) FAIL output (Note 2)

Note 1: Fault diagnosis output

Turns on in case of input burnout, A/D converter failure, or reference junction compensation (RJC) failure.

Note 2: FAIL output

Turns off in case of program failure, ROM failure, RAM failure, or power failure. This output is on during normal operation. If it turns off, the retransmission output is set to 0%, the alarm output is set to OFF, and the indicator stops.

Stand-by Action

C

Treated

Normal

as normal

It is effective in the following cases where;

- the power is turned on

- the alarm type is changed

The alarm output does not turn on in this region even if the PV value is below the low limit of the alarm setpoint.

Power-on

Abnormal

The alarm

output turns on.

Low limit of alarm setpoint

Time

IM 05F01D02-41E 2nd Edition : May 07,2002-00

2221

2.5 Setting Hysteresis in Alarm Setpoint

The following operating procedure describes an example of setting a 5.0°C hysteresis level in the alarm setpoint.

2-11

Bring the operating display into view

(appears at power-on).

AL1234

SET/ENT

Press the

SET/ENT

key for more than 3 sec-

onds to call up the menu “OP.P A”.

AL1234

SET/ENT

Press the key once to display the

menu “STUP”.

Displays PV.

Displays

menu “OP.PA”.

Press the

SET/ENT

key several times to display the parameter “HY1” (alarm-1 hysteresis).

AL1234

SET/ENT

Press the or key to display the

required setpoint.

AL1234

SET/ENT

Press the

SET/ENT

key once to register the setpoint.

Displays

parameter

“HY1”.

Blinks during

change.

Press the

parameter “PWD”.

Press the

menu “FUNC”.

AL1234

SET/ENT

key once to display the

AL1234

SET/ENT

key once to display the

AL1234

Displays

menu “STUP”.

Displays

parameter

“PWD”.

Displays

menu “FUNC”.

AL1234

SET/ENT

Y ou can take the same steps for alarm-2 hysteresis (HY2), alarm-3 hysteresis (HY3), and alarm-4 hysteresis (HY4) that are displayed after this.

Press the

SET/ENT

key for more than 3 seconds. This returns you to the display shown at power-on (figure below).

Displays PV.

AL1234

SET/ENT

IM 05F01D02-41E 2nd Edition : May 07,2002-00

Blank Page

3. Operations

3-1

This chapter describes key entries for operating the indicator . If you cannot remember how to carry out an operation during setting, press the

SET/ENT

key for more than 3 seconds. This brings you to the display (operating display) that appears at poweron.

NOTE

Do not use the instrument generating strong magnetic field such as radio equipment and the like near the indicator. This may cause the fluctuation of the PV value.

3.1 Monitoring-purpose Operating Display A vailable during Operation

The following is the monitoring-purpose operating display available during operation.

Power On

SET/ENT

AL1234

Displays PV.

IM 05F01D02-41E

2nd Edition : May 07,2002-00

3.2 Setting Alarm Setpoints

The following operating procedure describes an example of setting a value of 160.0 in the alarm-1 setpoint parameter. Before setting the alarm setpoint, check the alarm type. To change the alarm type, see “2.4 Changing Alarm T ype.”

3-2

Alarm output terminals

Alarm-1 (terminal numbers )............PV high limit alarm

Alarm-2 (terminal numbers )............PV low limit alarm

Alarm-3 (terminal numbers )............PV high limit alarm

Alarm-4 (terminal numbers ).......PV low limit alarm

Bring the operating display into view

(display appears at power on).

AL1234

SET/ENT

Press the

SET/ENT

key for more than 3 sec-

onds to call up the menu “OP.PA”.

AL1234

SET/ENT

6 7 5 7 4 7 1

Factory-set defaults

Displays PV.

Displays

menu “OP.PA”.

Press the

SET/ENT

key once to register the

setpoint.

AL1234

SET/ENT

Y ou can take the same steps for alarm-2 setpoint (A2), alarm-3 setpoint (A3), and alarm-4 setpoint (A4) that are displayed after this.

Press the

SET/ENT

key for more than 3 seconds. This returns you to the display shown at power-on (figure below).

Displays PV.

Press the

SET/ENT

key once to display the

parameter “A1”.

AL1234

SET/ENT

Press the or key to display the

required setpoint.

AL1234

SET/ENT

AL1234

SET/ENT

Displays

parameter

“A1”.

Blinks during

change.

IM 05F01D02-41E

2nd Edition : May 07,2002-00

4. T roubleshooting and Maintenance

4.1 T roubleshooting

■ T roubleshooting Flow

If the operating display does not appear after turning on the indicator’s power, try to solve the problem by following the procedure below.

If the problem seems to be complex, contact the vendor from which you purchased the instrument.

Is the instrument

defective?

Yes

Totally

inoperable?

Yes

Is key

operation

faulty?

Yes

Is display

faulty?

Yes

Is I/O

signal faulty?

Yes

communication

link faulty?

Yes

4-1

Check wiring on the power supply terminals.

Check the supply voltage.

Normal?

Ask the vendor for repair.

Yes

Check the key lock setting.

Correct

errors.

Correct?

Yes

Find the cause.

Is key lock enabled?

Disable key lock.

Yes

Turn off power, and then turn it on again.

Check the instrument’s I/O specifications.

Check the specifications of I/O counterpart for wrong polarity.

No communication

capability.

IMPORTANT

Take note of the parameter settings when asking the vendor for repair.

Check the instrument's suffix code.

Does the code

include a communication

option?

Check the communication-related parameters.

Check communication wiring.

Check the specifications of communication counterpart.

IM 05F01D02-41E

2nd Edition : May 07,2002-00

■ Errors at Power on

The following table shows errors that may be detected by the fault diagnosis function when the power is turned on.

4-2

Error indication

(on PV display unit)

(E000) (E001) (E002)

PV decimal point blinks.

(E400)

Description

of error Faulty RAM Faulty ROM System data error

Faulty calibration value

Parameter error

None

0% Normal action

(out of accuracy)

■ Possible Errors during Operation

The following shows possible errors occurring during operations.

Error indication

(on PV display unit)

Displays “RJC” and PV alternately

PV value blinks.

(E300)

(B.OUT)

(OVER) or

(-OVER)

SP decimal point blinks. (on setpoint display unit)

All indications off Faulty if power off/on does

All indications off Check for abnormal power.

Description

of error

RJC error

EEPROM error

A/DC error

PV burnout error

Excessive PV Out of -5 to 105%

Faulty communication line

Runaway (due to defective power or noise)

Power off

Measured with RJC=OFF

Normal action

105

Dependent on the BSL parameter Up-scale: 105% Down-scale: -5%

-5% or 105%

Normal action

None

Control

output

0% or less or OFF

Normal action (out of accuracy)

Preset value

Control

output

Normal action

Preset value

Normal action

0% or less or OFF

Normal action

OFF

Alarm

output

OFF

Normal action (out of accuracy)

OFF 0%

Retransmis-

Alarm

sion output

output

Normal action

0% or less

Retransmission

output

0% or less Stopped

0% Normal action

(out of accuracy)

Commu-

Normal action

Stopped

Communi-

cation

Normal action

nication

Faulty Contact us for repair.

Check wires and sensor.

Check process.

Check wires and communication parameters, and make resetting. Recovery at normal receipt

not reset start the unit. Contact us for repair.

Remedy

Faulty Contact us for repair.

Check and set the parameters, as they have been set to the limited values.

Remedy

IM 05F01D02-41E 2nd Edition : May 07,2002-00

■ If a Power Failure Occurs during Operation

● Momentary Power Failures shorter than 20 ms

The indicator is not affected at all and continues normal operation.

● Momentary Power Failures of 20 ms or longer

• The alarm function of the indicator continues to work normally. (Alarms with the standby feature temporarily return to their stand-by state, however.)

• Setting parameters that have already been configured retain their settings.

4-3

IM 05F01D02-41E 2nd Edition : May 07,2002-00

4.2 Maintenance

This section describes the cleaning and maintenance of the UM350/UM330.

4.2.1 Cleaning

The front panel and operation keys should be gently wiped with a dry cloth.

NOTE

Do not use alcohol, benzine, or any other solvents.

4.2.2 Replacing Brackets

When the brackets are broken or lost, purchase the following brackets for replacement.

4-4

Target Model Part No. UM350 T9115NL UM330 T9115NK

4.2.3 Attaching T erminal Cover

When a terminal cover is necessary , purchase the following part.

Target Model Part No. UM350 T9115YD UM330 T9115YE

Sales Unit A large bracket and small bracket in pair Small brackets in pair

Sales Unit 1 1

IM 05F01D02-41E 2nd Edition : May 07,2002-00

■ Attaching T erminal Cover

The procedure for attaching the terminal cover is as follows.

Do not touch the terminals on the rear panel when power is being supplied to the indicator. Doing so may result in electric shock.

4-5

CAUTION

Before attaching the terminal cover, turn of f the source circuit breaker and use a tester to check that the power cable is not conducting any electricity .

Before attaching the terminal cover, fold it once or twice so that the side which has the “Handle With Care” symbol ( ), is on the outside.

Fold over.

Grooved

Fold over.

Grooved

Folding Direction of Terminal Cover

Alert symbol on the back

NOTE

Do not fold the terminal cover the wrong way , doing so not only reduces the cover’s strength but may also cause the hinge to crack, thereby disabling attachment.

With the cover properly folded, fit its top and bottom holes to the protrusions of the

mounting brackets.

Fit the hole of the terminal cover to the protrusion on the mounting bracket.

Attaching Terminal Cover

IM 05F01D02-41E 2nd Edition : May 07,2002-00

4.2.4 Replacing Parts with a Limited Service Life

The following UM350/UM330 parts have a limited service life. The service life given in the table assume that the controller is used under normal operating conditions.

4-6

Part Aluminum electrolytic condenser EEPROM About 100,000 times of writings Alarm 4 output relays About 100,000 more ON-OFF operations or with resistance load

About 10 years (rated)

Service life

IM 05F01D02-41E 2nd Edition : May 07,2002-00

5. Parameters

This chapter contains a parameter map as a guideline for setting parameters, and lists of parameters for recording User Settings.

5.1 Parameter Map

5-1

UM350/UM330 Parameter Map

Operating Display

PV display

SET3S

A1 A2 A3 A4

PEAK

BOTM

SET

SET3S

To switch the parameter display, press the key.

Displayed only for UM350-䊐1, UM350-䊐2, UM330-䊐1, UM330-䊐2

SET/ENT

SET

SET SET3S

Press the key once. Press the key for 3 seconds. Press the or key once.

STUPOP.PA

SET

Password

check display

Password input

(No password is required when PWD = 0.)

SET

Setup Parameter

Alarm/

Communication

related Input related

Setting Display

FUNC

SET SET

AL1

AL2

AL3 AL4

HY1

Displayed only for UM350-䊐1, UM350-䊐2, UM330-䊐1, UM330-䊐2

HY2 HY3 HY4 DY1

Displayed only for UM350-䊐1, UM350-䊐2, UM330-䊐1, UM330-䊐2

DY2 DY3 DY4 P.SL

Displayed only for UM350-䊐1, UM350-䊐2, UM330-䊐1, UM330-䊐2

BPS

PRI

STP

Displayed only for indicators with communication function.

DLN ADR RP.T

TEST

This parameter is not to be set.

SET/ENT

UNIT

SDP

SL RJC BSL RET RTH RTL

DIS C.S1 C.S2 C.S3 C.S4

LOCK

PWD

I/O

When shipped from the factory, the indicator is configured so that this parameter appears first after power-on.

IM 05F01D02-41E

2nd Edition : May 07,2002-00

5.2 Lists of Parameters

* Parameters relating to PV should all be set in real numbers.

For example, use temperature values to define alarm setpoints for temperature input. * The “User Setting” column in the table is provided for the customer to record setpoints. * Numbers in ( ) are the parameter setpoints that apply when the communication func-

tion is used. ex. OFF (0)

■ Operating Parameters

5-2

Parameter

Symbol

(A1)

(A2)

(A3)

(A4)

(PEAK)

(BOTM)

(FL)

(BS)

Name of Parameter Setting Range and Description

Alarm 1-setpoint

Alarm 2-setpoint

Alarm 3-setpoint

Alarm 4-setpoint

PV peak value

PV bottom value

PV input filter OFF (0), 1 to 120 sec.

PV input bias -100.0% to 100.0% of PV input range span

PV alarm: -100.0 to 100.0% of PV input range

Displays the maximum value of PV input during operation. This parameter is not to be set.

Displays the minimum value of PV input during operation. This parameter is not to be set.

Used when the PV input fluctuates.

Used to correct the PV input value.

Initial Value User setting

PV high limit alarm:

100.0% of PV input range PV low limit alarm:

0.0% of PV input range

OFF (0)

0.0% of PV input range span

IM 05F01D02-41E

2nd Edition : May 07,2002-00

■ Setup Parameters

● Alarm/Communication Related Parameters

5-3

Parameter

Symbol

(AL1)

(AL2)

(AL3)

(AL4)

(HY1)

(HY2)

(HY3)

(HY4)

(DY1)

Name of Parameter

Alarm-1 type

Alarm-2 type

Alarm-3 type

Alarm-4 type

Alarm-1 hysteresis

Alarm-2 hysteresis

Alarm-3 hysteresis

Alarm-4 hysteresis

Alarm-1 delay timer

Setting Range and Description Initial Value

OFF (0)

1 1: PV high limit (energized, no stand-by action) 2: PV low limit (energized, no stand-by action) 9: PV high limit (de-energized, no stand-by action) 10: PV low limit (de-energized, no stand-by action) 11: PV high limit (energized, stand-by action) 12: PV low limit (energized, stand-by action)

2 19: PV high limit (de-energized, stand-by action)

20: PV low limit (de-energized, stand-by action) 21: Fault diagnosis output

Turns on in case of input burnout, A/D converter failure, or reference junction compensation (RJC) failure.

1 22: FAIL output

Turns off in case of program failure, ROM failure, RAM failure, or power failure. This output is on during normal operation. If it turns off, the retransmission output is set to 0%, the alarm

output is set to OFF, and the indicator stops.

See “List of Alarm Types” for details on how these Alarm Type parameters behave.

0.0 to 100.0% of PV input range span

0.5% of PV

input range span

Hysteresis can be set in the alarm setpoint. Setting hysteresis prevents relays from chattering.

Hysteresis setting for PV high limit alarm

Output

Point of on-off action

Off

(Alarm setpoint)

Hysteresis

PV value

An alarm is output when the delay timer expires

Output alarms

0.5%

0.00

after the alarm setpoint is reached.

0.00 to 99.59 (min, sec.) (enabled when alarm1 type “AL1” is 1, 2, 9, 10, 11, 12, 19, and 20)

User Setting

(DY2)

(DY3)

(DY4)

(P.SL)

(BPS)

Alarm-2 delay timer

Alarm-3 delay timer

Alarm-4 delay timer

Protocol selection

Baud rate

Alarm setpoint

Hysteresis

Time

Alarm output

Delay timer

off

Delay timer

0.00 to 99.59 (min, sec.) (enabled when alarm2 type “AL2” is

1, 2, 9, 10, 11, 12, 19, and 20

)

0.00 to 99.59 (min, sec.) (enabled when alarm3 type “AL3” is

1, 2, 9, 10, 11, 12, 19, and 20

)

0.00 to 99.59 (min, sec.) (enabled when alarm4 type “AL4” is

1, 2, 9, 10, 11, 12, 19, and 20

)

0: PC link communication 1: PC link communication (with sum check) 2: Ladder communication 7: MODBUS (ASCII) 8: MODBUS (RTU)

0: 600, 1: 1200, 2: 2400, 3: 4800, 4: 9600 (bps)

IM 05F01D02-41E 2nd Edition : May 07,2002-00

5-4

Parameter

Symbol

(PRI)

(STP)

(DLN)

(ADR)

(RP.T)

(TEST)

Name of Parameter

Parity 0: None

Stop bit 1, 2

Data length

Address 1 to 99

Minimum response time

If this parameter symbol appears, press the SET/ENT key to return to the FUNC menu. Caution: Do not change the setpoint of the TEST parameter, otherwise the indicator will be disabled.

Setting Range and Description Initial Value

1: Even 2: Odd

7, 8 Fixed at 7, when the P.SL parameter is set to MODBUS (ASCII). Fixed at 8, when the P.SL parameter is set to MODBUS (RTU) or Ladder Communication.

However, the maximum number of stations connectable is 31.

0 to 10 ( 10 ms)

● Input-/Output-related Parameters

Parameter

Symbol

(IN)

(UNIT)

(RH)

(RL)

(SDP)

(SH)

(SL)

(BSL)

(RJC)

(RET)

(RTH)

(RTL)

Name of Parameter Setting Range and Description Initial Value

PV input type (PV INPUT terminals)

131211

- - terminals PV input unit °C (0): degree Celsius

Max. value of PV input range

Min. value of PV input range

PV input decimal point position (displayed at voltage input)

Max. value of PV input scale (displayed at voltage input)

Min. value of PV input scale (displayed at voltage input)

Selection of PV input burnout action

Presence/absence of PV input reference junction compensation

Retransmission output type

Max. value of retransmission output scale

Min. value of retransmission output scale

OFF, 1 to 18, 30, 31, 35 to 37, 40, 41, 50, 51, 55, 56 See Instrument Input Range Codes in “2. Initial Settings.”

°F (5): Fahrenheit Set the PV input range, however RL < RH

-Temperature input Set the range of temperature that is actually indicated.

- Voltage input Set the range of a voltage signal that is applied. The scale across which the voltage signal is actually indicated should be set using the parameters Maximum Value of PV Input Scale (SH) and Minimum Value of PV Input Scale (SL).

0 to 3 Set the position of the decimal point of voltagemode PV input. 0: No decimal place 1: One decimal place 2, 3: Two, three decimal places

-1999 to 9999, however SL < SH Set the read-out scale of voltage-mode PV input.

OFF (0) 1: Up scale 2: Down scale

OFF (0), ON (1) ON (1)

OFF (0): Does not work. 1: PV 4: Loop power supply for sensor (15 V)

RET=1: RTL + 1 digit to 100.0% of PV input range

RET=1: 0.0% of PV input range to RTH - 1 digit

User Setting

OFF (0)

°C (0)

Max. value of instrument input range

Min. value of instrument input range

100.0

0.0

100.0% of PV input range

0.0% of PV input range

IM 05F01D02-41E 2nd Edition : May 07,2002-00

5-5

Parameter

Symbol

(DIS)

(C.S1)

(C.S2)

(C.S3)

(C.S4)

(LOCK)

(PWD)

Name of Parameter Setting Range and Description Initial Value

DI function selection 1

SELECT display-1 registration

SELECT display-2 registration

SELECT display-3 registration

SELECT display-4 registration

Key lock

Password setting 0: Password not set

OFF (0): The external contact input is disabled. 1: Resets the values of the PEAK and BOTM

operating parameters to an off-to-on transition of the DI1 input.

OFF (0), 201 to 1015 For example, registering “231” for C.S1 allows you to change alarm-1 setpoint in operating display.

Numbers for registering alarm SP parameter for operating display: Alarm-1 setpoint: 231 Alarm-2 setpoint: 232 Alarm-3 setpoint: 233 Alarm-4 setpoint: 234

OFF (0): No key lock 1: Change to any parameter prohibited

Prohibits any operating parameter or setup parameter from being changed. The setpoint of the LOCK parameter itself can be changed, however.

2: Change to and display of operating parameters

prohibited Turns off the display for setting operating parameters, thus prohibiting any change to the parameter settings. (Press the SET/ENT key for more than 3 seconds to show the password check display.)

1 to 9999

OFF (0)

User Setting

IM 05F01D02-41E 2nd Edition : May 07,2002-00

■ List of Alarm Types

5-6

Alarm action

Alarm type

“Open/close” shows status of relay contact, and “lit” and “unlit” shows status of lamp

No alarm OFF

Hysteresis

PV high limit

PV low limit

Fault diagnosis output (Note 1) FAIL output (Note 2)

Open (unlit)

Closed (lit)

Alarm setpoint

Hysteresis

Alarm setpoint PV

Closed (lit)

Open (unlit)

Contact

closes

if alarm

occurs

Contact

opens

if alarm

occurs

Alarm type

“Open/close” shows status of relay contact, and “lit” and “unlit” shows status of lamp

De-energized

on PV high limit

De-energized

on PV low limit

Note 1: Fault diagnosis output

Turns on in case of input burnout, A/D converter failure, or reference junction compensation (RJC) failure.

Note 2: FAIL output

Stand-by Action

C

Treated

Normal Abnormal

as normal

It is effective in the following cases where;

- the power is turned on

- the alarm type is changed

The alarm output does not turn on in this region even if the PV value is below the low limit of the alarm setpoint.

Closed

(unlit)

Hysteresis

Open (lit)

Alarm setpoint

The alarm

output turns on.

Alarm action

Hysteresis

Alarm setpoint

Open (lit)

Closed

(unlit)

Low limit of alarm setpoint

Alarm type codeAlarm type code

Contact

closes

if alarm

occurs

Contact

opens

if alarm

occurs

2221

Power-on

Time

● Behavior of the PV High-limit Alarm Parameter (Alarm Type Code: 1)

PV value

Alarm

setpoint

Alarm

contact output

OffOff On

Alarm hysteresis

IM 05F01D02-41E 2nd Edition : May 07,2002-00

■ Useful Operating Display (SELECT Display)

Registering frequently changed parameters in the SELECT display after ordinary operating displays will allow you to change settings easily . A maximum of four displays can be registered.

Useful

operating display

(SELECT display)

Ordinary operating

displays (example)

5-7

AL1234

SET/ENT

PV display

SET/ENT

AL1234

key

SET/ENT

Alarm-1 setting

display (example)

SET/ENT

key

Set the parameter numbers (D register numbers) you wish to register for setup parameters C.S1 to C.S4.

● Numbers for Registration with SELECT Display

Operating Parameter Registration Number Alarm-1 setpoint (A1) Alarm-2 setpoint (A2) Alarm-3 setpoint (A3) Alarm-4 setpoint (A4) Bias (BS) 243 Filter (FL) 244

231 232 233 234

Setup Parameter Registration Number Alarm-1 hysteresis Alarm-2 hysteresis Alarm-3 hysteresis Alarm-4 hysteresis

919 920 921 922

IM 05F01D02-41E 2nd Edition : May 07,2002-00

Blank Page

Revision Information

● Title : Models UM350/UM330 Digital Indicator with Alarms User’s Manual

● Manual No. : IM 05F01D02-41E

May 2000/1st Edition

Newly published

May 2002/2nd Edition

Correction

Written by Products Documents

Controllers & Conditioners Division Yokogawa M&C Corporation

Published by Yokogawa M&C Corporation

1-19-18 Nakacho, Musashino-shi, Tokyo 180-0006, JAPAN

IM 05F01D02-41E

1st Edition : May 31,2000-00

Blank Page

Yokogawa UM330 Operating Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Introduction

CONTENTS

1. Installation

1.1 Model and Suffix Codes

1.2 How to Install

1.3 How to Connect Wires

1.4 Hardware Specifications

1.5 T erminal Wiring Diagrams

2. Initial Settings

2.1 Names and Functions of Front Panel Parts

2.2 Setting PV Input T ype (Setting First at Power-on)

2.3 Changing PV Input T ype

2.4 Changing Alarm T ype

2.5 Setting Hysteresis in Alarm Setpoint

3. Operations

3.1 Monitoring-purpose Operating Display A vailable during Operation

3.2 Setting Alarm Setpoints

4. T roubleshooting and Maintenance

4.1 T roubleshooting

4.2 Maintenance

4.2.1 Cleaning

4.2.2 Replacing Brackets

4.2.3 Attaching T erminal Cover

4.2.4 Replacing Parts with a Limited Service Life

5. Parameters

5.1 Parameter Map

5.2 Lists of Parameters

Revision Information
