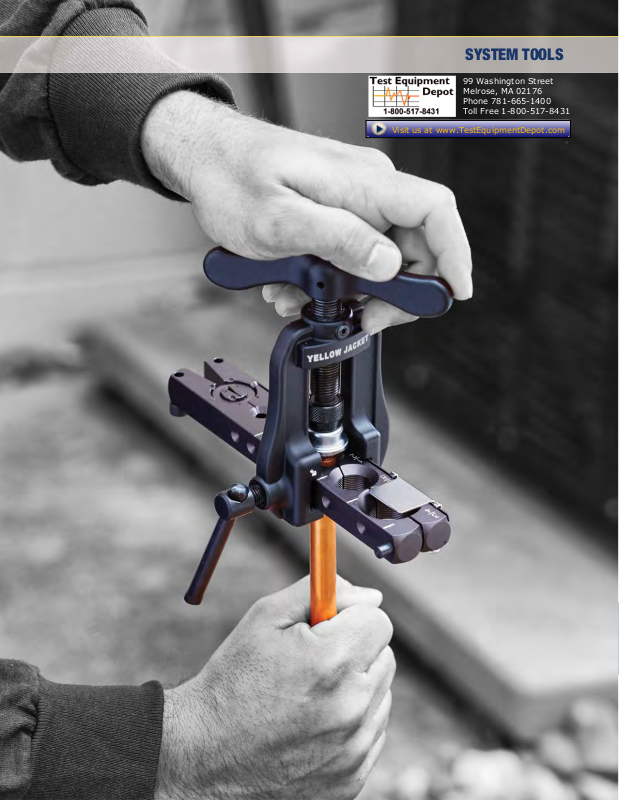

SYSTEM TOOLS

MACHINES

RECOVERY

99 Washington Street Melrose, MA 02176

Phone 781-665-1400 Toll Free 1-800-517-8431

Visit us at www.TestEquipmentDepot.com

VACUUM PUMP

SYSTEMS

CHARGING HOSES

VACUUM AND

VALVES AND PARTS

HOSE ADAPTERS,

CHARGING

SYSTEMS

WIRELESS AND

INSTRUMENTS

ELECTRONIC

INSTRUMENTS

HEATING

AND DETECTORS

LEAK MONITORS

SYSTEM TOOLSGAUGES

Page 2

RECOVERY

MACHINES

SYSTEMS

VACUUM PUMP

VACUUM AND

CHARGING HOSES

HOSE ADAPTERS,

VALVES AND PARTS

YELLOW JACKET HVAC&R

SYSTEMS

CHARGING

GAUGES

ELECTRONIC

INSTRUMENTS

WIRELESS AND

HEATING

INSTRUMENTS

YELLOW JACKET

Deluxe 45º Flaring Tool

A full range 1/8" to 3/4" O.D. ﬂ aring tool for soft copper

LEAK MONITORS

AND DETECTORS

SYSTEM TOOLS

Page 3

EDITION 66 CATALOG

DELUXE 45° FLARING TOOL

MACHINES

RECOVERY

Flare Diameter

• Designed with the new R-410A system requirements in mind

• Self-centering yoke grips without marring or constricting tube

• Automatic tube height gauge for correct tubing height

• Multi-faceted burnishing cone produces a burnished ﬂ are

seat for a positive seal

• Easy-to-use with four basic steps

• Made in the USA

Note: To improve grip on copper, all moving parts including the wing nut threads, wing nut mating threads and feed screw threads must be oiled regularly. Failure to do so may result in tubing slippage, undersize

ﬂ ares and damage to the tool.

R-410A Flare Diameters

• Installation instructions for systems using R-410A vary

between manufacturers with respect to 45˚ ﬂ ares. Some require the larger ﬂ ares produced by the Deluxe 45˚ Flaring

Tool (60278) while others prefer the rolled ﬂ are produced by

the eccentric cone ﬂ aring tool

• Instead of the standard 1/4" (7/16-20 thread, 1/4" O.D.)

ﬁ tting for air conditioning systems, some manufacturers are moving to 5/16" (1/2-20 thread, 5/16" O.D.) to differentiate

ﬁ ttings and avoid misconnections. These ﬁ ttings can often

be found on mini split systems

Maximum Diameter of Flare Cone (Average)

Flare size produced by mfgr. specs

1/8"

3/16"

1/4"

5/16"

3/8" 1/2" 5/8"

* These tube sizes are not used by some R-410A equipment manufacturers. The Deluxe Flaring Tool 60278 adopts the SAE standard for these sizes.

3/4"

SAE spec Some R-410A

most ﬂ aring tools produced by 60278

0.181"

0.248"

0.327"

0.406"

0.488"

0.622"

0.748"

0.917"

* *

0.358" *

0.520"

0.654"

0.776"

0.945"

ECCENTRIC CONE FLARING TOOL

VACUUM PUMP

SYSTEMS

CHARGING HOSES

VACUUM AND

VALVES AND PARTS

HOSE ADAPTERS,

CHARGING

SYSTEMS

opened

1. With cone up, open the two dies of the clamping yoke

height gauge

3. Insert tubing until it touches the height gauge

UPC# Description

60278 60214 60268 60269 60273 60274

Deluxe ﬂ aring tool for 1/8" to 3/4" O.D. Replacement wing nut Replacement grip Wing nut and bolt Burnishing cone and pin Yoke assembly

sizes

2. Select sizes on underside of dies to match tubing O.D.

start of 45° burnished ﬂ are

4. Turn the feed screw to ﬂ are the tubing

Off-center hardened steel cone with 45° ﬂ are produces a rolling action for uniform ﬂ are walls without galling in 3/16" to 3/4" O.D. tubing.

• Large feed screw handle for smooth turning with little effort

• Black oxide-ﬁ nished steel ﬂ aring bars are heat-treated for

durability and secure grip on tubing

• Recommended for soft materials such as copper and aluminum

• Built-in clutch release to prevent over-torquing

UPC# Description

60295 Flaring tool with eccentric cone for 3/16" to 3/4" O.D.
