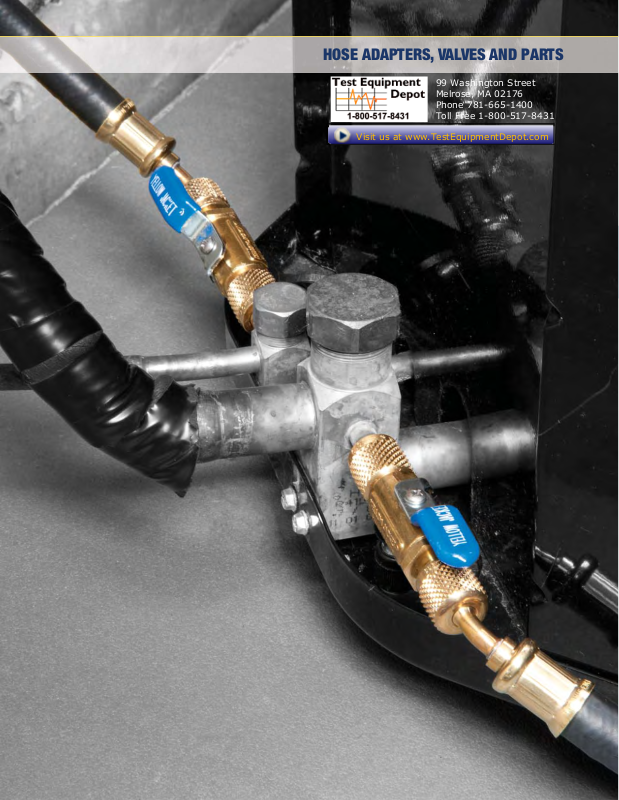

HOSE ADAPTERS, VALVES AND PARTS
MACHINES
RECOVERY
99 Washington Street
Melrose, MA 02176
Phone 781-665-1400
Toll Free 1-800-517-8431
Visit us at www.TestEquipmentDepot.com
SYSTEMS
SYSTEMS
SUPEREVAC
SUPEREVAC
CHARGING HOSES
VACUUM AND
VALVES AND PARTS
HOSE ADAPTERS,
CHARGING
SYSTEMS
INSTRUMENTS
ELECTRONIC
INSTRUMENTS
HEATING
AND DETECTORS
LEAK MONITORS
SYSTEM TOOLSGAUGES
29
Page 2
RECOVERY
RECOVERY
RECOVERY
MACHINES
MACHINES
MACHINES
1/4" 4-IN-1 BALL VALVE TOOL
For vacuum, charge, cores and recovery
SYSTEMS
VACUUM PUMP
VACUUM AND
CHARGING HOSES
HOSE ADAPTERS,
HOSE ADAPTERS,
VALVES AND PARTS
VALVES AND PARTS
SYSTEMS
CHARGING
18997
18975
18971
18978
18979
Remove and replace Schrader cores
without losing charge.
• Extra 1/4" side port on 18975 to attach
electronic micron vacuum gauge right
at system for greater accuracy or to
add refrigerant
• Evacuate and charge through an
unrestricted line for increased speed
and higher vacuum
• Core removal allows recovery unit to
work at maximum effi ciency, speeding
the recovery process
UPC# Description
18975 Vacuum/charge valve with side port
18971 Vacuum/charge valve without side port
18980 Accessory set - 2 piece
18978 Schrader rethreading accessory
18979 Broken Schrader remover accessory
18983 Quad rings (10 pak)
18997 Grappler rod/nut assembly
18973 Gasket for 18975 (5 pak)
18974 Seal kit includes core, cap,
4 “O” rings, gasket
19305 Schrader cores (10 pak)
YELLOW JACKET HVAC&R
FULL CONTROL
BALL VALVES FOR
VACUUM/CHARGING
93846 93836 93830
93834 93844 93840
5/16" 4-IN-1
BALL VALVE TOOL
GAUGES
ELECTRONIC
WIRELESS AND
HEATING
LEAK MONITORS
SYSTEM TOOLS
For R-410A systems
with 5/16" access ports
INSTRUMENTS
INSTRUMENTS
Similar to the 1/4" 4-in-1 core tool but with
5/16" fl are fi ttings. For use with R-410A
systems and mini splits with larger 5/16"
service ports.
UPC# Description
AND DETECTORS
18985
18981 5/16" Vacuum/charge valve
18987 5/16" Grappler rod/nut assembly
18988 5/16" Rethread accessory
18989 5/16" Schrader remover
18984 Seal kit includes core, cap,
19173 5/16" Quick coupler x 1/4" MFL Schr
19305 Schrader cores (10 pak)
18985
5/16" Vacuum/charge valve with side port
without side port
4 “O” rings, gaskets
COMPACT BALL VALVES
1/4" and 5/16"
93844
93843
Compact ball valves feature full fl ow for charging
and recovery. Metal valve handle.
• 1/4" ball valves are UL recognized to
4000 psi (276 bar) minimum burst, 800 psi
(55 bar) maximum working pressure
• 5/16" for R-410A applications where
• 5/16" system ports are used
• 5/16" are UL recognized to 4000 psi
• (276 bar) minimum burst, 800 psi (55 bar)
• maximum working pressure
UPC# Description
93844 1/4" Compact ball valve – straight
93843 1/4" Compact ball valve – 45°
93842 1/4" Compact ball valves – 45° (3 pak)
93825 5/16" Compact ball valve for
5/16" Female fl are x 1/4" Male fl are-45°
93826 5/16" Compact ball valve for
1/4" Female fl are x 5/16" Male fl are
93827 5/16" Compact ball valve for
5/16" Female fl are x 5/16" Male fl are
93838 93848
When building your own charging/vacuum
system, these straight fl ow-through
valves connect hoses and provide fullfl ow capacity.
• No angles to cause restrictions and
pressure drops
• Handle position shows when the valve is
opened or securely closed
Use gaskets on page 35.
M. fl . x
M. fl .
1/4" 93834 93833 93844 19020
SAE*
5/16" – – 93827 19020
SAE
3/8" 93836 93832 93846 19011
SAE*
1/2" 93838 – 93848 19015
SAE
1/2" 93830 93831 93840 19020
Acme*
19095 Replacement handle/screw for all
19096 Replacement handle/screw for all
* UL Listed
1/4", 3/8" and Acme valves (2 pc. set)
1/2" fl are valves (2 pc. set)
M. fl . x
1/4" FPT
M. fl . x
Fe. fl .
Gaskets
32
Page 3
EDITION 66 CATALOG
MACHINES
MACHINES
RECOVERY
RECOVERY
GAS RETENTION VALVE
• Valve controls refrigerant fl ow from
access fi tting
• Closes Schrader before disconnecting
• Back seat valve feature to retain gas in
hose when disconnecting
• 1/4" Female fl are x 1/4" Male fl are
• 500 psi working pressure
• Made in the USA
UPC# Description
18993 Core depressor valve
VACUUM/CHARGE VALVE
1/4" vacuum/charge
valve with or without
side port. For faster
vacuum/charging or
removing/replacing
Schrader cores.
VALVE CORE TOOL
Self contained tool for quickly removing and
replacing cores. Handle contains six cores.
UPC# Description
19306 Valve core tool
125 AND 145 LB.
CYLINDER VALVE ADAPTER
Finger tight adapters fi t
125 and 145 lb. cylinders.
Seal remains seated.
UPC# Description
19105 3/4" NPS cylinder adapter with
1/4" Male fl are
19106 3/4" NPS cylinder adapter with
3/8" Male fl are
18001 Replacement gasket (10 pak)
MODIFIED NEEDLE VALVE
In-line control
UPC# Description
69670 Needle type bleed valve 1/4" fl are
MANIFOLD
PARTICULATE FILTER
VACUUM PUMP
SYSTEMS
CHARGING HOSES
VACUUM AND
VALVES AND PARTS
VALVES AND PARTS
HOSE ADAPTERS,
HOSE ADAPTERS,
CHARGING
SYSTEMS
UPC# Description
18990 Vacuum/Charge valve with side port
19000 Vacuum/Charge valve
Replacement parts
18995 “O” ring set
18996 Shut-off stem
18997 Grappler rod/nut assembly
QUICK COUPLER-STYLE
BRAZE-IN FITTINGS
Braze-in brass fi tting with replaceable soft
seat. Quick coupler-style fi ttings are the
same as supplied on metal hose.
UPC# Description
19082 1/4" Str. Female fl . with CH20 gasket
19083 1/4" 45° Female fl . with CH20 gasket
19084 1/4" 90° Female fl . with CH20 gasket
19085 3/8" Str. Female fl . with quad ring
19086 3/8" 45° Female fl . with quad ring
19087 3/8" 90° Female fl . with quad ring
19088 1/2" Str. only Female with CH80 gasket
Use 19015 (CH80), 19020 (CH20) and 19026 (quad ring) seals.
VACUUM PUMP
INTAKE ADAPTER
Reducing adapter
for pump intakes on
SUPEREVAC™ and other
vacuum pumps.
UPC# Description
19130 3/8" Fe. fl . x 1/4" M. fl . adapter
19131 1/2" Fe. fl . x 3/8" M. fl . adapter
19132 1/2" Fe. fl . x 1/4" M. fl . adapter
19160 1/2" Fe. fl . x 1/2" M. Acme adapter
19133 3/8" Fe. fl . x 1/2" M. fl . adapter
VACUUM PUMP ADAPTER
Convert a 3/8" or 1/2" vacuum pump
intake into 1/4" and 1/2" Acme R-134a
compatible fi ttings.
UPC# Description
36018 1/2" Pump adapter with 1/4" fl are
and 1/2" Acme Male fi ttings
36019 3/8" Pump adapter with 1/4" fl are
and 1/2" Acme Male fi ttings
Manifold particulate fi lters trap particles
before they damage valve seats or pass
into recovery equipment. Screens are
replaceable and cleanable.
UPC# Description
41119 1/4" Manifold particulate fi lter
41120 3/8" Manifold particulate fi lter
41121 1/2" Manifold particulate fi lter
41122 Replacement fi lter screen (5 pak)
ADD-A-HOSE COUPLER
Add-a-hose couplers easily connect
hoses to the length desired.
UPC# Description UPC# Description
19143 3/16" Male fl are 19150 5/8" Male fl are
19144 1/4" Male fl are 19152 3/4" Male fl are
19146 3/8" Male fl are 19142 1/2" Acme
19148 1/2" Male fl are – –
WIRELESS AND
INSTRUMENTS
ELECTRONIC
INSTRUMENTS
HEATING
AND DETECTORS
LEAK MONITORS
SYSTEM TOOLSGAUGES
33
Page 4
RECOVERY
RECOVERY
RECOVERY
MACHINES
MACHINES
MACHINES

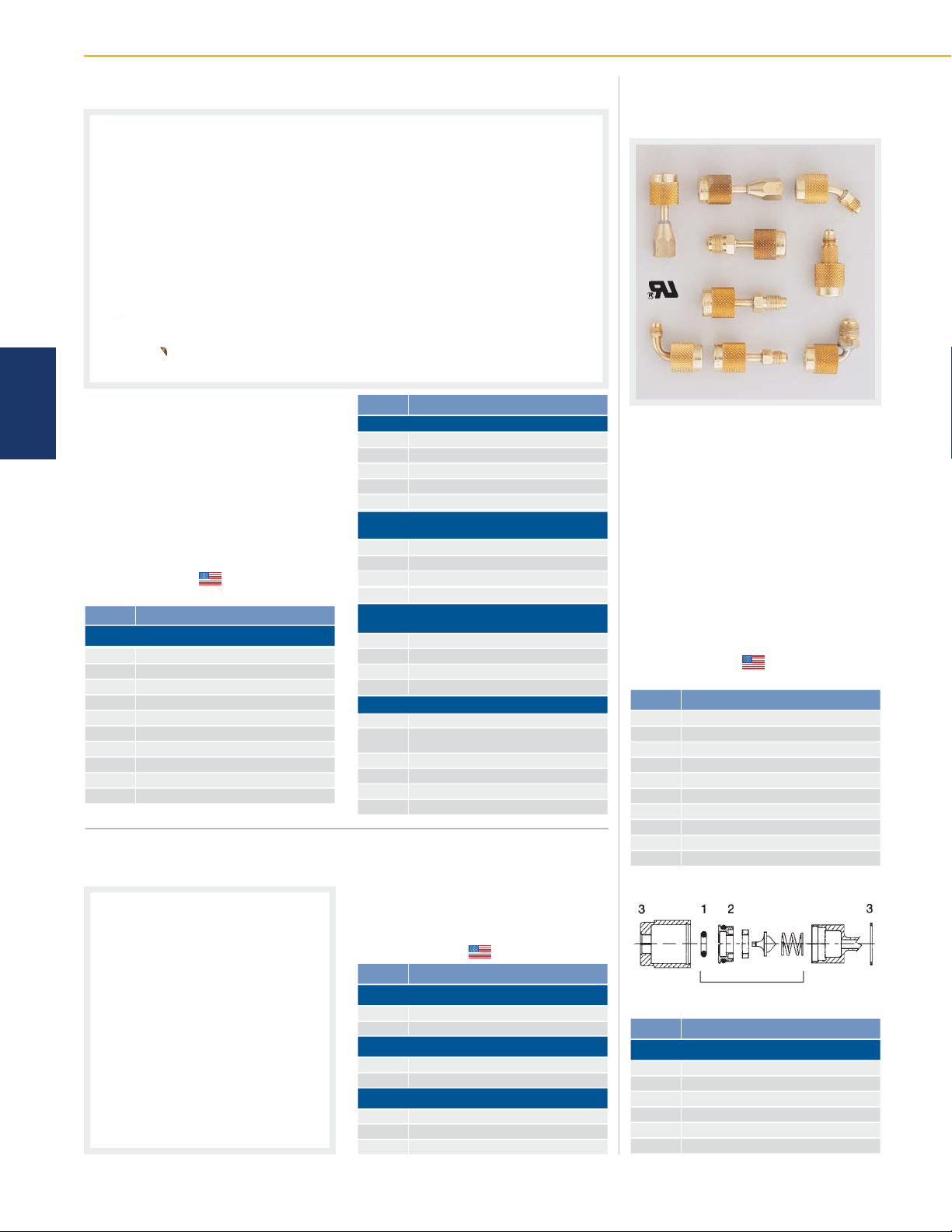

QUICK COUPLERS Expanded line
YELLOW JACKET HVAC&R
SEALRIGHT™
QUICK COUPLERS
SYSTEMS
VACUUM PUMP
VACUUM AND
CHARGING HOSES
• Full size with deep knurling for easy
HOSE ADAPTERS,
HOSE ADAPTERS,
• CH14 “Adjust-a-Valve” opener in all
VALVES AND PARTS
VALVES AND PARTS
• Acme conversion couplers are available
SYSTEMS
CHARGING
• 5/16" Conversion couplers available
• Made in the USA
UPC# Description
Straight quick couplers
GAUGES
ELECTRONIC
WIRELESS AND
19125 1/8" Female QC x 1/4" Male fl are (Ford)
19120 3/16" Female QC x 1/4" Male fl are (GM)
19101 1/4" Female QC x 1/4" Male fl are
19102 1/4" Female QC x 3/8" Male fl are
19111 1/4" Female QC Str. x 1/8" NPT Male
19116 1/4" Female QC Str. x 1/4" NPT Male
19103 3/8" Female QC x 3/8" Male fl are
19104 3/8" Female QC x 1/4" Male fl are
19115 1/2" Female QC x 3/8" Male fl are
INSTRUMENTS
19114 3/8" Female QC x 1/2" Male fl are
QUICK COUPLERS
HEATING
LEAK MONITORS
SYSTEM TOOLS
Schrader core in male end
INSTRUMENTS
AND DETECTORS
19165
19110
19201
19202
19118
19203
19211
19114
19214
19104
handling
1/4" Female ends
for recovery tank threads and R-134a
cylinder threads
19172
19191
19171
19174
19173
19192
19175
19115
19120
19210
19102
19166
19220
19168
19158
19103
19161
19116
19101
19162
19111
UPC# Description
90° Quick couplers
19220 3/16" Female QC 90° x 1/4" Male fl are
19201 1/4" Female QC 90° x 1/4" Male fl are
19202 1/4" Female QC 90° x 3/8" Male fl are
19203 3/8" Female QC 90° x 3/8" Male fl are
19214 3/8" Female QC 90° x 1/2" Male fl are
Gauge quick couplers with
CH14 adjustable valve opener
19110 1/4" Female QC x 1/8" NPT Fe.
19118 1/4" Female QC Str. x 1/4" NPT Fe.
19210 1/4" Female QC 90° x 1/8" NPT Fe.
19218* 1/4" Female QC 90° x 1/4" NPT Fe.
5/16" Quick couplers with
CH14 adjustable valve opener
19121* 5/16" QC Str. x 1/4" Male fl are
19221* 5/16" QC 90° x 1/4" Male fl are
19122* 1/4" QC Str. x 5/16" Male fl are
19222* 1/4" QC 90° x 5/16" Male fl are
ACME 1/2" couplers – auto straight
19161 1/4" Female QC x 1/2" Acme Male
19162 1/4" Female hex x 1/2" Acme Male
19166 1/2" Acme Male x 1/2" Acme Female
19165 1/2" Acme Female x 1/4" Male fl are
19168 1/2" Acme Female x 1/8" NPT Male
19158 1/2" Acme Female x 14 mm Male
* Not pictured
for permanent applications
• All couplers have Schrader valve cores in
Male fl are end
• Female coupler end has deep knurling for
easy handling
• Patented CH14 “Adjust-a-Valve” opener
in all 1/4" Female ends
• Made in the USA
UPC# Description
Straight quick couplers
19171 1/4" Female QC x 1/4" Male fl are
19172 3/8" Female QC x 1/4" Male fl are
90° Bend quick couplers
19191 1/4" Female QC x 1/4" Male fl are
19192 3/8" Female QC x 1/4" Male fl are
45º R-410A couplers
19173 5/16" Female QC x 1/4" Male fl are
19174 1/4" Female QC x 5/16" Male fl are
19175 5/16" Female QC x 5/16" Male fl are
19125
19128 19129 19208
19117
19169
1916319209 19217
SealRight fi ttings automatically and
immediately trap refrigerant in the hose
when disconnected, helping meet nonventing regulations and preventing fi nger
burns. One-piece attaches quickly, saving
up to 50 percent in time compared to
2-piece quick couplers.
• Works with or without Schrader core
• Gaskets resist deterioration from
SealRight repair assembly components
• CFC, HCFC, HFC refrigerants and
refrigerant oils. Field serviceable
• Made in the USA
UPC# Description
19109 1/4" SealRight Str. x 1/4" Male fl are
19208 1/4" SealRight 45° x 1/4" Male fl are
19209 1/4" SealRight 90° x 1/4" Male fl are
19100 Set of 19109 and 19209
19117 1/4" SealRight Str. x 3/8" Male fl are
19217 1/4" SealRight 90° x 3/8" Male fl are
19128 1/4" SealRight Str. x 1/8" NPT Female
19129 1/4" SealRight Str. x 1/4" NPT Female
19169 Acme 1/2" SealRight x 1/2" Acme
19163 Acme 1/2" SealRight x 1/4" Male fl are
UPC# Description
SealRight repair assembly components
19037 “O” rings (10 pak) (1)
19038 Plug assembly with all seals (2)
19039 Nut and clip (3)
19040 Rebuild kit (4)
19041 Overhaul kit with all above parts
19045 Gasket set
19109
34
Page 5
EDITION 66 CATALOG
SINGLE VALVES
MACHINES
MACHINES
RECOVERY
RECOVERY
40318 40317 40350
QUICK COUPLER

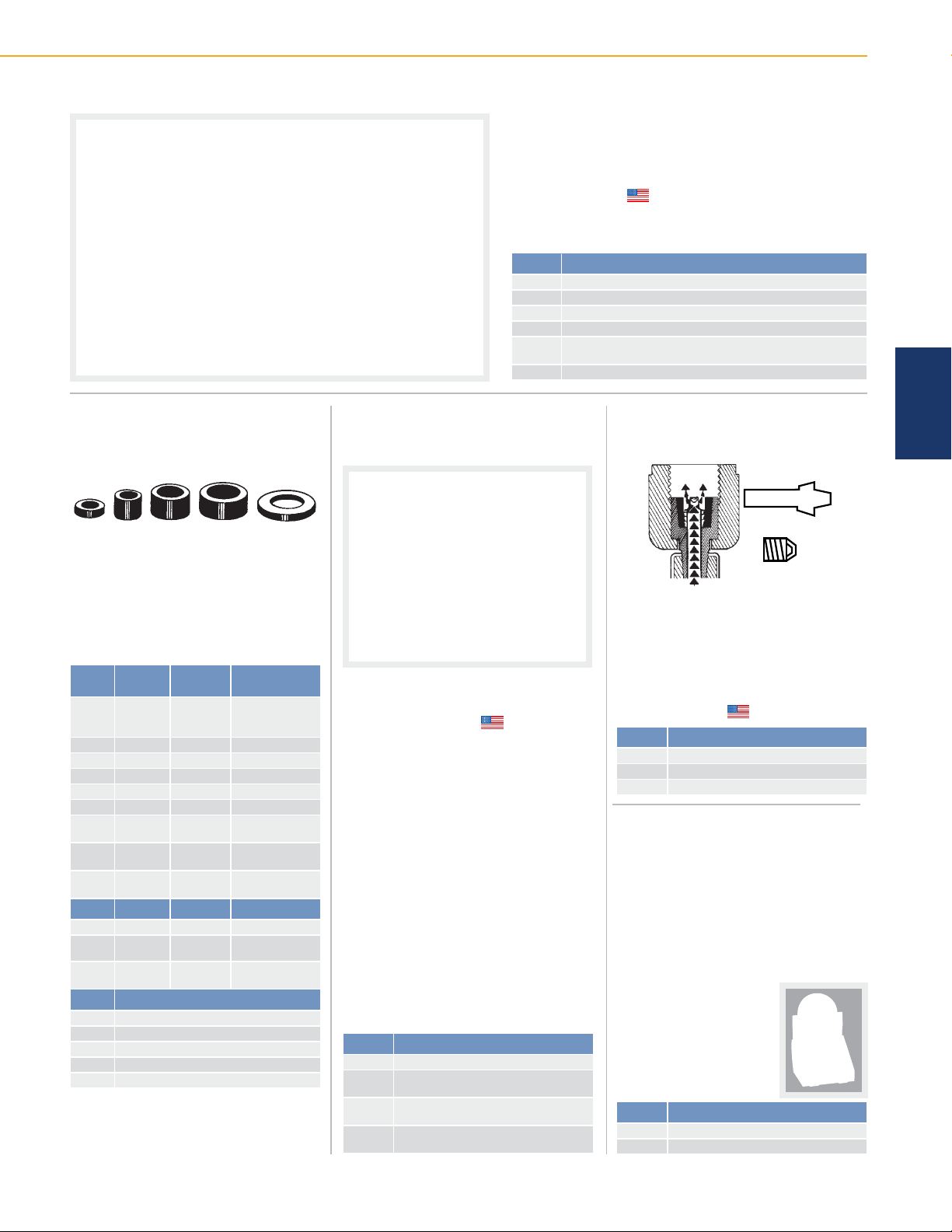

GASKETS AND “O” RINGS
19021 19005 19011 19015 18001
The only gaskets designed for optimum
performance with YELLOW JACKET
Charging Hoses. Works with all refrigerants.
Manufactured to strict tolerances to resist
blow out.
Gasket/
UPC#
19020 CH20/10 10 1/4" Hose
19005 CH20/100 100 1/4" Hose
19011 CH11 10 3/8" Hose
19015 CH80 10 1/2"-5/8" Hose
19012 E hose 10 3/4" Hose
18001** 10 Cylinder valve
19021 1/8" 10 1/8" Coupler
19022 5 60667
19010 CH20 and 6 1/4" Hose
UPC# “O” ring Quantity Application
19026* – 10 3/8" Quad ring
19034 – 10 “O” ring for
19037 – 10 1/4” SealRight
UPC# Description
59651 1/4" Copper gaskets (10 pak)
59652 3/8" Copper gaskets (10 pak)
59653 1/2" Copper gaskets (10 pak)
59654 5/8" Copper gaskets (10 pak)
59655 3/4" Copper gaskets (10 pak)
* Gaskets for some metal hose sizes. Others use 19020
**Flat washer.
Gasket
CH14 3 opener
or 19011 gaskets.
Quantity Application
Part
5/16" Hose
1/2" Acme hose
Recovery pliers
14 mm Male
“O” ring
• Individual manifolds for hi- and lo-sides of system
• Individual valves are available in two or three port versions
• Nylon seals with double “O” rings
4032540315
• Made in the USA
UPC# Description
40317 Hi-side manifold with gauge
40318 Lo-side manifold with gauge and hook
40315 2 Port valve – 1/8" NPT Female x 1/4" Male fl are
40325 3 Port valve – 1/8" NPT Female x 2 1/4" Male fl ares
40350 2 Port valve – 1/4" QC Female with CH14 depressor x
1/4" Male fl are with Schrader
40326 Lo-side 1/4" valve for R-32 and R-410A
PARTS KITS AND
EMPTY BOXES
The 19003 complete kit includes the following
gaskets, valve openers and SealRight parts in
a 12 compartment case.
• Five 1/8" gaskets
• Five 1/8" valve openers
• One hundred 3/16"–1/4" gaskets
• Ten 1/4" Adjust-a-Valve openers
• Ten 1/4" fl at valve openers
• Ten 3/8" gaskets
• Ten 1/2"–5/8" gaskets
• Ten cylinder valve fl at gaskets
• Ten SealRight “O” rings
• Four SealRight plug and seal assemblies
• Four 1/4" SealRight nut and clip
UPC# Description
19003 Complete kit
19004 11" x 6-3/4" x 3/4"
60178 11" x 6-3/4" x 3/4"
60135 11" x 6-3/4" x 3/4"
Kit box with parts label
12 Compartments empty
18 Compartments empty
“ADJUST-A-VALVE™”
OPENERS
(old)
CH75
CH14
(current)
High volume fl ow pattern
The patented “Adjust-a-Valve” reaches
out-of-tolerance Schrader valves in 1/4",
3/16" and 5/16" couplers. Simply rotate
the opener with needle nose pliers to the
desired height and when fi nished, rotate it
back. “Adjust-a-Valve” for 1/4" and 5/16"
hoses is the same.
UPC# Description
19302 “Adjust-a-Valve” openers (10 pak)
19301 1/4" Valve openers (10 pak)
19304 1/8" Valve openers (10 pak)
GASKET REMOVER PICK
Easily remove worn gaskets from hoses
and replace with new gaskets. Sharp,
angled pick is long enough to pull the
gasket from deep inside the hose. Notch
on the opposite end of the pick for placing
the depressor inside the hose. Pick stores
inside case along with fi ve CH20 gaskets
(included) for protection and safety.
UPC# Description
19047 Gasket Remover Pick (Individual)
19048 Counter Display (12 pak)
VACUUM PUMP
SYSTEMS
CHARGING HOSES
VACUUM AND
VALVES AND PARTS
VALVES AND PARTS
HOSE ADAPTERS,
HOSE ADAPTERS,
CHARGING
SYSTEMS
WIRELESS AND
INSTRUMENTS
ELECTRONIC
INSTRUMENTS
HEATING
AND DETECTORS
LEAK MONITORS
SYSTEM TOOLSGAUGES
35
Page 6
RECOVERY
RECOVERY
RECOVERY
MACHINES
MACHINES
MACHINES
AUTOMOTIVE R-134a
A/C COUPLERS
Premium with control valve
SYSTEMS
VACUUM PUMP
41301 - 41338
YELLOW JACKET HVAC&R
LIQUID CHARGING ADAPTER
Convert liquid to saturated vapor
• To protect the compressor, adapter
orifi ce reduces liquid fl ow to a level
below compressor capacity
• Refrigerant fl ashes off into a saturated
vapor to speed entry
• Eliminates the time and work of
heating cylinders
VACUUM AND
CHARGING HOSES
HOSE ADAPTERS,
HOSE ADAPTERS,
CHARGING
GAUGES
ELECTRONIC
WIRELESS AND
Couplers interface with R-134a service
VALVES AND PARTS
VALVES AND PARTS
ports. 14 mm Female thread or 1/4" Male
fl are available.
• Quick, easy connect/disconnect
• Control valve for access to systems even
SYSTEMS
• Integral safety sleeve holds coupler
• Highest fl ow characteristics
• Low profi le for tight applications
UPC# Description
41301 Chrome hi-side x 14 mm R-134a coupler
41302 Chrome lo-side x 14 mm R-134a coupler
41327 Hi-side x 3/8" Male fl., R-134a coupler
41328 Lo-side x 3/8" Male fl., R-134a coupler
41337 Hi-side x 1/4" Male fl., R-134a coupler
41338 Lo-side x 1/4" Male fl., R-134a coupler
41300 Replacement “O” rings (2 pak)
INSTRUMENTS
at working pressures
securely to service port
Liquid charging is recommended when
charging blends into refrigeration and air
conditioning systems. A liquid charging
adapter is necessary for safe and fast liquid
(saturated vapor) charging through the low
pressure side of a system. The YELLOW
JACKET liquid charging adapter connects to
the cylinder valve or refrigerant tank.
AUTOMOTIVE R-134a
ECONOMY A/C COUPLERS
A basic R-134a service coupler with no
control valve. Snaps on for instant fl ow.
UPC# Description
41318 Lo-side coupler with 1/4" fl are
41317 Hi-side coupler with 1/4" fl are
41305 Replacement “O” ring set (6 pak)
UPC# Description
41123 1/4" Liquid charging adapter
41124 5/16" Liquid charging adapter
41132 Replacement “O” ring/orifi ce for
41138 Replacement “O” ring/orifi ce for
1/4" adapter
5/16" adapter
AUTOMOTIVE 1234YF
A/C COUPLERS
• Couplers interface with 1234yf
service ports.
• M12x1.5-6H Female thread
• Quick, easy connect/disconnect
• Meets SAE J639
UPC# Description
41441 1234yf hi-side coupler, 14mm
41442 1234yf lo-side coupler, 14mm
AUTOMOTIVE A/C FITTINGS COUPLERS
HEATING
INSTRUMENTS
LEAK MONITORS
AND DETECTORS
SYSTEM TOOLS
36
19161
Adapter fi ttings designed to work with
1/2" Acme or 14 mm threads.
19163
19165
19158
19168
19162
40265
19169
19142
19166
UPC# Description
19157* 14 mm Male x 1/4" Male fl are
19156* 14 mm Male x 3/8" Male fl are
19161 1/2" Acme Male x 1/4" Female fl are
19165 1/2" Acme Female x 1/4" Male fl are
19158 1/2" Acme Female x 14 mm Male
19162 1/2" Acme Male x 1/4" Female fl are hex
19168 1/2" Acme Female x 1/8" Male pipe
19169 1/2" Acme Male x 1/2" Acme SealRight
19163 1/2" Acme SealRight x 1/4" Male fl are
19166 1/2" Acme Female x 1/2" Acme Male
40265 1/2" Acme
19142 1/2" Acme union
19153* 1/2" Acme Female hex x 13 mm
R-134a
* Not pictured
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176
TestEquipmentDepot.com
Male x 1/8" NPT Male half union
lo-side Male for A/C system
Loading...
