Yellow Jacket VACUUM PUMP SYSTEMS Catalog

Download

Page 1

VACUUM PUMP SYSTEMS

CHARGING

SYSTEMS

GAUGES

MACHINES

RECOVERY

VACUUM PUMP

SYSTEMS

SuperEvac

CHARGING HOSES

VACUUM AND

VALVES & PARTS

HOSE ADAPTERS,

WIRELESS AND

INSTRUMENTS

ELECTRONIC

LEAK DETECTORS

AND MONITORS

INSTRUMENTS

HEATING

SYSTEM TOOLS

Page 2

SYSTEMS

CHARGING

GAUGES

RECOVERY

MACHINES

SuperEvac

SYSTEMS

VACUUM PUMP

YELLOW JACKET® HVAC/R

VACUUM AND

CHARGING HOSES

HOSE ADAPTERS,

VALVES & PARTS

ELECTRONIC

INSTRUMENTS

WIRELESS AND

AND MONITORS

LEAK DETECTORS

HEATING

INSTRUMENTS

Vacuum Pumps

Select from a complete line of Vacuum Pumps that meet your needs.

SYSTEM TOOLS

Page 3

EDITION 70 CATALOG

CHARGING

SYSTEMS

Superevac™ VACUUM PUMPS 4, 6, 8, 11 cfm

Enhancements to Improve Performance and Ergonomics:

• Convenient shoulder strap for easy carrying over long distances with built-in mount points.

• Smaller oil bath requires half as much oil as previous design

• Built-in cooling fins to cool pump and increase performance

• Oil suck-back valve improvement

• Elongated oil sight glass – easier to see oil level

• Tethered oil drain plug

The Superevac™ vacuum pump is a highly

efficient, two-stage rotary vane oil-sealed pump field-rated at 15 microns or better.

Features & Benefits

• Isolation valve for oil changes without losing vacuum in the system

• Gas ballast valve keeps oil cleaner, longer during evacuation of wet system

• Internal intake check valve to help prevent oil backup into the system during a power failure

• Intake filter screen keeps damaging particles from entering the pump

• Heavy duty rotors and bearings

• Built-in vacuum gauge

• Wide mouth oil reservoir port for easier, cleaner filling. Doubles as a pump exhaust – threaded to attach a garden hose for exhausting to a remote location.

• Large brass oil drain for easy access to fast oil changes

• Downward angled oil pump to remove contaminants usually trapped in other sump designs.

• Heavy duty steel handle

• Lift hook for hoisting pump to rooftops

• Two-year warranty

• Made in the USA

GAUGES

MACHINES

RECOVERY

VACUUM PUMP

SYSTEMS

SuperEvac

CHARGING HOSES

VACUUM AND

VALVES & PARTS

HOSE ADAPTERS,

Domestic Model 93540 Model 93560 Model 93580 Model 93590

Free air displacement 4.0 cfm 6.0 cfm 8.0 cfm 11.0 cfm Number of stages 2-stage rotary vane 2-stage rotary vane 2-stage rotary vane 2-stage rotary vane Field blankoff 15 microns 15 microns 15 microns 15 microns

Intake 1/4" and two 3/8" Male ares 1/4" and two 3/8" Male ares 1/2", 3/8", 1/4" Male ares 1/2", 3/8", 1/4" Male ares

Motor 1/2 hp - 1725 rpm 1/2 hp - 1725 rpm 1/2 hp - 1725 rpm 1/2 hp - 1725 rpm Thermal overload protection Yes Yes Yes Yes Voltage (single phase) 115V/60 Hz 115V/60 Hz 115V/60 Hz 115V/60 Hz Power cord 6' - motor mounted switch 6' - motor mounted switch 6' - motor mounted switch 6' - motor mounted switch Oil capacity 36 oz. 36 oz. 28 oz. 28 oz. Dimensions 16" L x 6" W x 11.5" H 16" L x 6" W x 11.5" H 17.5" L x 6" W x 11.5" H 17.5" L x 6" W x 11.5" H

(40.6 cm X 15.2 cm X 29.2 cm) (40.6 cm X 15.2 cm X 29.2 cm) (44.5 cm X 15.2 cm X 29.2 cm) (44.5 cm X 15.2 cm X 29.2 cm) Net weight 30.3 lbs. (13.7 kg) 31.2 lbs. (14.2 kg) 32.5 lbs. (14.8 kg) 34.1 lbs. (15.4 kg)

Export Model 9354x Model 9356x Model 9358x Model 9359x

Free air displacement 113/95 L/M 170/142 L/M 225/190 L/M 310/260 L/M Motor 1/2 hp - 1725/1425 rpm 1/2 hp - 1725/1425 rpm 1/2 hp - 1725/1425 rpm 1/2 hp - 1725/1425 rpm Motor voltage (dual phase) 115/230V / 50-60 Hz 115/230V / 50-60 Hz 115/230V / 50-60 Hz 115/230V / 50-60 Hz Dimensions

(42.5 cm X 15.2 cm X 29.2 cm) (42.5 cm X 15.2 cm X 29.2 cm) (46.4 cm X 15.2 cm X 29.2 cm) (46.4 cm X 15.2 cm X 29.2 cm) Net weight 33.2 lbs. (15.1 kg) 33.9 lbs. (15.4 kg) 35.5 lbs. (16.1 kg) 37.0 lbs. (16.8 kg) Model # 93542 (95 L/M at 50 Hz) 93562 (142 L/M at 50 Hz) 93582 (190 L/M at 50 Hz) 93592 (260 L/M at 50 Hz) US plug (113 L/M at 60 Hz) (170 L/M at 60 Hz) (225 L/M at 60 Hz) (310 L/M at 60 Hz) Factory voltage setting 230V 230V 230V 230V Model # Euro plug 93543 (95 L/M at 50 Hz) 93563 (142 L/M at 50 Hz) 93583 (190 L/M at 50 Hz) 93593 (260 L/M at 50 Hz) Factory voltage setting 230V 230V 230V 230V (EU/UK plug) Model # 93544 (95 L/M at 50 Hz) 93564 (142 L/M at 50 Hz) 93584 (190 L/M at 50 Hz) AU/NZ plug (113 L/M at 60 Hz) (170 L/M at 60 Hz) (225 L/M at 60 Hz) Factory voltage setting 230V 230V 230V Model # UK Plug 93547 (95 L/M at 50 Hz) 93567 (142 L/M at 50 Hz) 93587 (190 L/M at 50 Hz) Factory voltage setting 230V 230V 230V

All parts listed will not work with NH3.

16.75" L x 6" W x 11.5" H 16.75" L x 6" W x 11.5" H 18.25" L x 6" W x 11.5" H 18.25" L x 6" W x 11.5" H

For replacement parts, refer to the manual (also available at yellowjacket.com)

WIRELESS AND

INSTRUMENTS

ELECTRONIC

LEAK DETECTORS

AND MONITORS

INSTRUMENTS

HEATING

SYSTEM TOOLS

Page 4

SYSTEMS

CHARGING

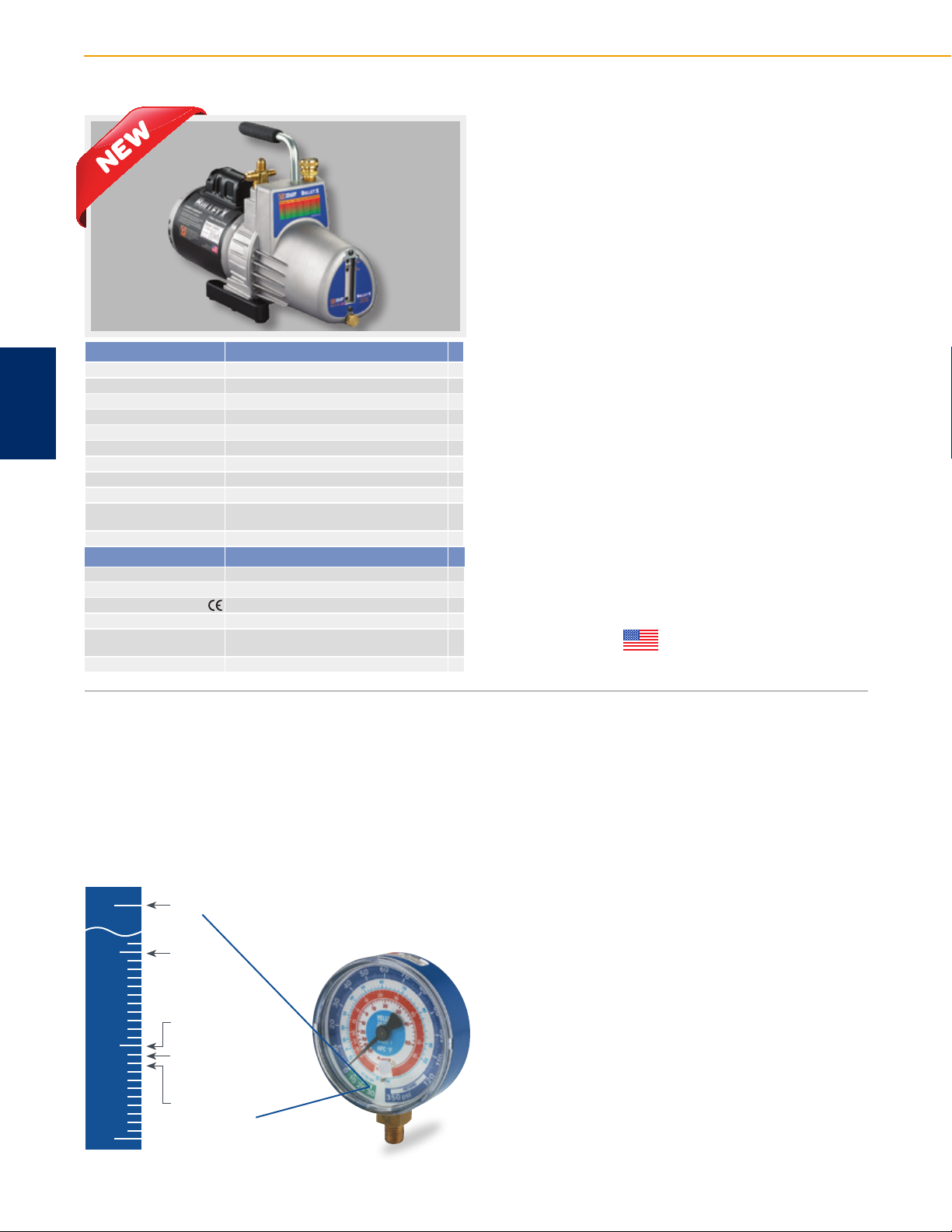

BuLLeT®X VACUUM PUMPS

GAUGES

RECOVERY

MACHINES

Domestic Model 93600

Free air displacement 7.0 cfm Number of stages 2-stage rotary vane Field blankoff 25 microns

SYSTEMS

VACUUM PUMP

VACUUM AND

HOSE ADAPTERS,

VALVES & PARTS

Intake 1/4" x 3/8" x 3/8"

SYSTEMS

Motor 1/2 hp - 1725 rpm Thermal overload protection Voltage (single phase) 115V/60 Hz Power cord Oil capacity 28 oz. (0.828 L) Dimensions

(44.5 cm x 15.2 cm x 30.5 cm) Net weight 31.7 lbs. (14.4 kg)

CHARGING HOSES

Export EU/UK 93610; AU/NZ 93620

Detachable IEC Cord type EU/UK AU/NZ Free air displacement 200/165 L/M Motor 1/2 hp - 1725/1425 rpm Voltage (dual phase) 115/230V / 50-60 Hz Dimensions

(45.7 cm x 15.2 cm x 30.5 cm) Net weight 34.5 lbs (15.7 kg)

Yes

6' - motor mounted switch - U.S. plug

17.5" L x 6" W x 12" H

18" L x 6" W x 12" H

YELLOW JACKET® HVAC/R

The BULLET®X pulls down to 25 microns or

better, protecting from contaminants and non-condensable gasses in the HVAC system, which can damage components, reduce efﬁciency and cause system failure.

• Integrated cooling fins to cool pump and increase

performance

• Oil suck-back valve improvement

• Elongated oil sight glass – easier to see oil level

• Internal intake check valve to help prevent oil backup

into the system during a power failure

• Intake filter screen keeps damaging particles from

entering the pump

• Heavy-duty rotors and bearings

• Wide mouth oil reservoir port for easier and cleaner

filling. Doubles as pump exhaust; threaded to attach garden hose for exhausting to remote location.

• Large brass oil drain for easy access to fast

oil changes

• Downward angled oil sump to remove contaminants

usually trapped in other sump designs

• Heavy-duty steel handle for well-balanced carrying

• Two-year warranty

• Made in the USA

For replacement parts, refer to the manual at yellowjacket.com

HOW TO MEASURE AN “ADEQUATE” VACUUM

Many contractors pull the refrigerant out and think the work is done. In reality, when you get to 29 inches of vacuum (the

ELECTRONIC

WIRELESS AND

LEAK DETECTORS

HEATING

SYSTEM TOOLS

green zone on your gauge), you are only half nished. Once the

INSTRUMENTS

recovery machine has done its work, it’s time to nish off the job

with a vacuum pump.

Standard Lo-Side Gauge

Shows vacuum in inches. A ±1% gauge would be accurate to ±7600 microns when calibrated at a full vacuum (which is generally not the case with this type of gauge).

AND MONITORS

INSTRUMENTS

23,400 microns

29.80 in.

1,000 microns ASHRAE

29.90 in.

500 microns

29.91 in.

400 microns Equipment Manufacturers

29.92 in.

50-150 microns

Only an electronic vacuum gauge can precisely measure the level at which non-condensable gas is removed from system.

Why a Vacuum Pump?

ASHRAE recommends evacuation to below 1000 microns for moisture removal and below 500 microns after replacing a compressor. Some equipment manufacturers call for evacuation to 400 microns to ensure that harmful water vapor is removed from the system.

When you have water vapor in your system, the risk of icing up capillary tubing and expansion valves becomes much higher. A high quality vacuum pump will be able to take you down to 200-500 microns. With the system almost completely free from water vapor, you are ready to put the refrigerant back in the system. A thorough approach to evacuation ensures longer equipment life and reduced risk of problems.

Use a Vacuum Gauge to Read Vacuum Down to 25 Microns

1000 microns equal only 0.039 inches of mercury, a measurement that cannot be made with a mechanical gauge, or determined by evacuation time or the sound of the pump. A popular tool that can measure vacuum at evacuation levels below 1000 microns is an electronic vacuum gauge.

The best place to measure vacuum is at the system, not at the pump. With a combination vacuum/charging valve, you can attach the electronic vacuum gauge directly to the system and isolate it from the pump, hoses and manifold for a true indication of the vacuum in the system. With a digital vacuum gauge, you can see the last evidence of moisture being removed and witness that the system has been dried out.

Page 5

EDITION 70 CATALOG

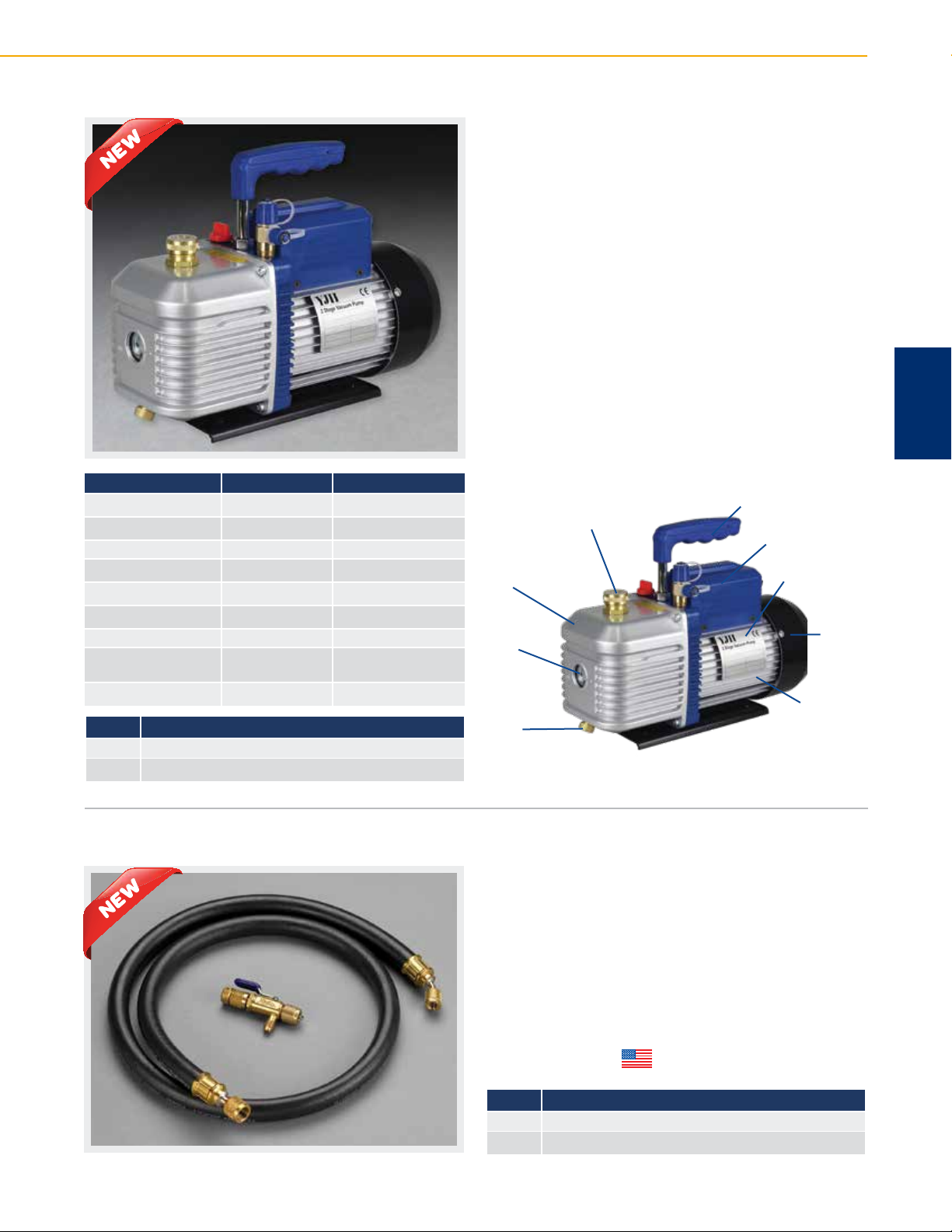

YJII® VACUUM PUMPS

SPECIFICATIONS 93266 93265 INTL

Free Air Displacement 5 cfm 4 cfm 95 L/M

Ultimate Vacuum 25 microns 25 microns

Number of Stages 2 Stage 2 Stage

Motor 1/2 hp - 1725 rpm 1/2 hp - 3000 rpm

Intake Ports 1/4” and 3/8” SAE 1/4” and 3/8” SAE

Voltage (single phase) 120V (50-60 Hz) 220-240V (50-60 Hz)

Oil Capacity 18 oz (532 ml) 532 ml

Dimensions

Weight 25.3 lbs (11.5 kg) 10.9 kg

13" x 5" x 11"

UPC# Description

93266 YJII® Vacuum Pump 5cfm

93265 YJII

Vacuum Pump 4cfm INTL

330 mm x 127 mm x

279 mm

YJII® is a compact, lightweight, portable and affordable pump for servicing small systems.

• Deep ultimate vacuum

• Quick flow rate

• Wide range of applications

• Lightweight, durable aluminum housing

• Small and portable

• Reliable – runs steadily for long periods

• Thermal protector in motor to guarantee pump runs

steadily and safely

• High torque motor design for easy start-up and

efficient operation, even in the harshest conditions

• 1/4” and 3/8” SAE flare inlet connections allow for

flexibility of hose fittings/sizes

• 3/4" garden hose exhaust fitting with removable cap

for venting

• Oversized 3/8" oil drain for faster oil changes

• Vacuum pump oil included

• One year warranty

Ergonomic Handle

Exhaust Fitting

Die Cast Aluminum Housing

Oil Sight Glass

Oil Drain

Capacitor Box

Heavy Duty Motor

Fan Cover

Overload Protector

CHARGING

SYSTEMS

GAUGES

MACHINES

RECOVERY

VACUUM PUMP

SYSTEMS

SuperEvac

CHARGING HOSES

VACUUM AND

VALVES & PARTS

HOSE ADAPTERS,

WIRELESS AND

INSTRUMENTS

ELECTRONIC

MaxFLow™ EVACUATION KITS

• Perform A/C and refrigeration system evacuations at

least 4x faster than using 1/4” hoses

• Reduce the time it takes to pull and hold vacuum

leaving a tight and dry system

• 1/4" (93887) and 5/16" (93889) Core/Vacuum/Charge

Tools removes cores that cause restriction

• 1/2" large diameter hose creates full, quicker ﬂow

• Heavy duty hose won’t collapse

• Vacuum rated to 20 microns

• Opens up over 90% of internal diameter of access hose

• Made in the USA

UPC# Description

93887 MAXFLOW™ Evacuation Kit 3/8" x 1/4" 45°

™

93889 MAXFLOW

Evacuation Kit 3/8" x 5/16" 45°

LEAK DETECTORS

AND MONITORS

INSTRUMENTS

HEATING

SYSTEM TOOLS

Page 6

SYSTEMS

CHARGING

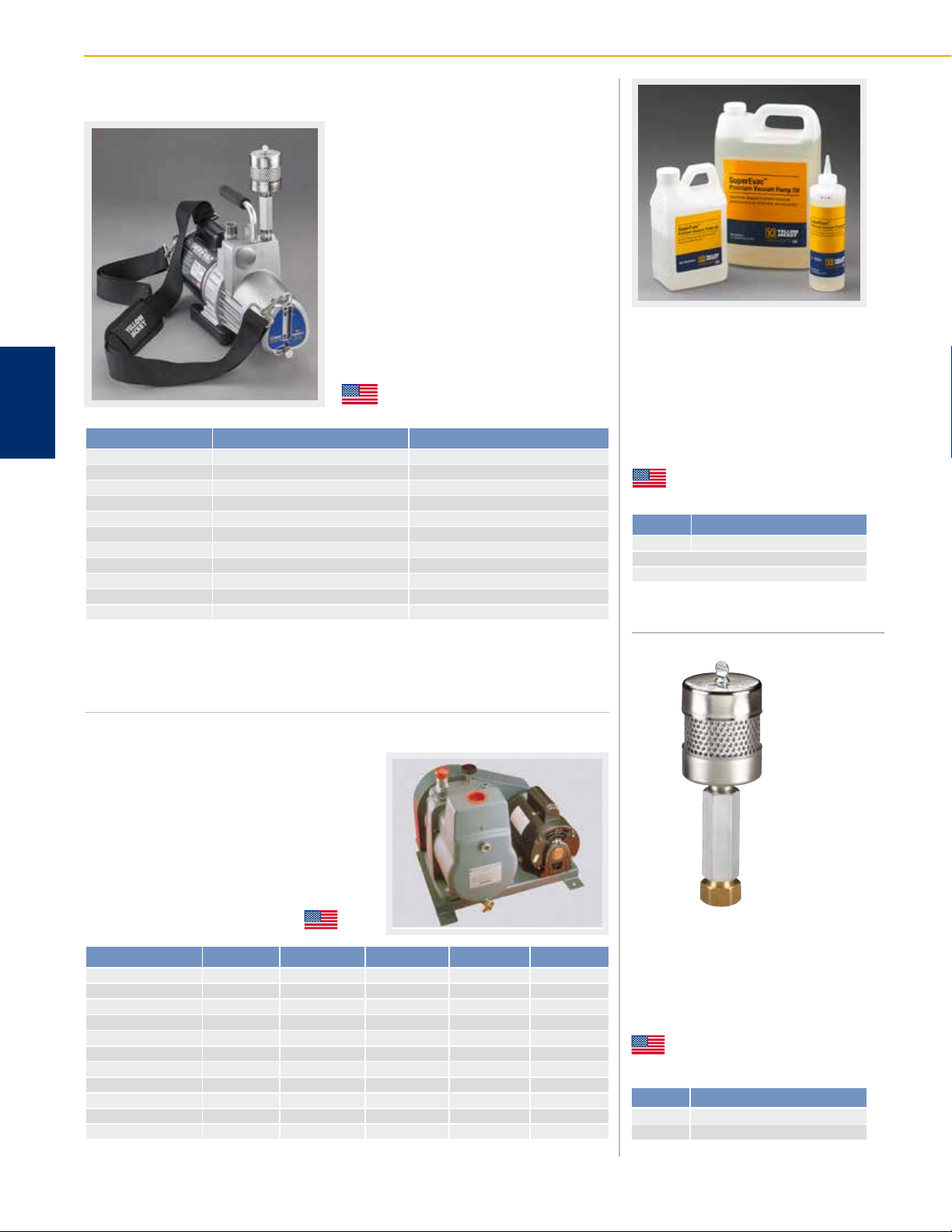

Superevac™ PUMP FOR AMMONIA SYSTEMS

GAUGES

RECOVERY

MACHINES

SuperEvac

SYSTEMS

VACUUM PUMP

VACUUM AND

CHARGING HOSES

Free air displacement 8.0 cfm 190 L/M (50 Hz) Number of stages 2-stage rotary vane 2-stage rotary vane Field blankoff 15 microns 15 microns Intake 1/2" Male pipe 1/2" Male pipe Motor 1/2 hp – 1725 rpm 1/2 hp – 1425 rpm (50 Hz) Thermal overload Yes Yes Voltage 115V/60 Hz 115/230V 50 Hz* Power cord 6' – rocker style switch 6' – rocker style switch Oil capacity 47 oz. 47 oz. Dimensions 17.5" L x 6.0" W x 11.5" H 18.25" L x 6.0" W x 11.5" H Net weight 36.2 lbs. (16.4 kg) 38.8 lbs. (17.6 kg)

* The 93533 is factory wired for 230V. It can also be conﬁgured for 115V. Remove the motor switch plate and make connec-

tions as shown on the motor label.

Designed and built to the same quality speciﬁcations as other

uperEvac

™

pumps.

Features a pump exhaust that doubles as an oil ﬁll port.

MADE IN THE USA

Model 93530 Model 93533*

YELLOW JACKET® HVAC/R

VACUUM PUMP OIL

YELLOW JACKET® vacuum pump oil

is specially rened and formulated

for extremely low vapor pressure and

high pump efciency at all temperature

conditions to help keep your pump running for years.

MADE IN THE USA

SDS sheet on website

UPC# Description

93091 Pint of vacuum oil - 24 per case 93092 Quart of vacuum oil - 12 per case 93096 Gallon of vacuum oil - 6 per case

HOSE ADAPTERS,

For replacement parts, refer to the manual (also available at yellowjacket.com)

VALVES & PARTS

BELT DRIVE VACUUM PUMPS

ELECTRONIC

INSTRUMENTS

WIRELESS AND

LEAK DETECTORS

HEATING

SYSTEM TOOLS

(0.88-17.7 cfm) by Hyvac Products

These two-stage pumps are lab rated at

0.1 micron and feature large oil capacity, vented exhaust, standard belt guards, motor capacitors and automatic overload

protection. Optional exhaust lters available.

AND MONITORS

One year warranty.

UPC# 80200 80210 80220 80230 80240

cfm - free air (L/M) 0.88 (25) 2.79 (79) 5.6 (160) 10.6 (310) 17.7 (500) Ultimate vacuum (lab) 0.1 micron 0.1 micron 0.1 micron 0.1 micron 0.1 micron

INSTRUMENTS

Stages 2 2 2 2 2 Motor hp (ODP) 1/4 1/3 1/2 1 1-1/2 Voltage (single phase) 115V/60 Hz 115V/60 Hz 115V/60 Hz 115V/60 Hz 115V/60 Hz Pump rpm 580 525 525 525 550 Oil capacity 1 quart 1-1/2 quart 2.5 quarts 3.5 quarts 4.5 quarts Gas ballast Standard Standard Standard Standard Standard Intake O.D. 9/16" 7/8" 1-1/4" 1-5/16" 1-13/16" Dimensions Shipping weight 70 lbs. 110 lbs. 135 lbs. 154 lbs. 242 lbs.

For special electrical requirements, contact factory. Some 50 Hz available for export.

MADE IN THE USA

(L x W x H) 15" x 10" x 11" 18" x 12" x 11" 18" x 13" x 16" 18" x 16" x 19" 21" x 20" x 20"

OIL EXHAUST FILTER

Screws onto the pump exhaust to eliminate oil mist. Use on SuperEvac™ and BULLET® pumps.

MADE IN THE USA

UPC# Description

93386 Exhaust lter

93387 Replacement element

Page 7

EDITION 70 CATALOG

CHARGING

SYSTEMS

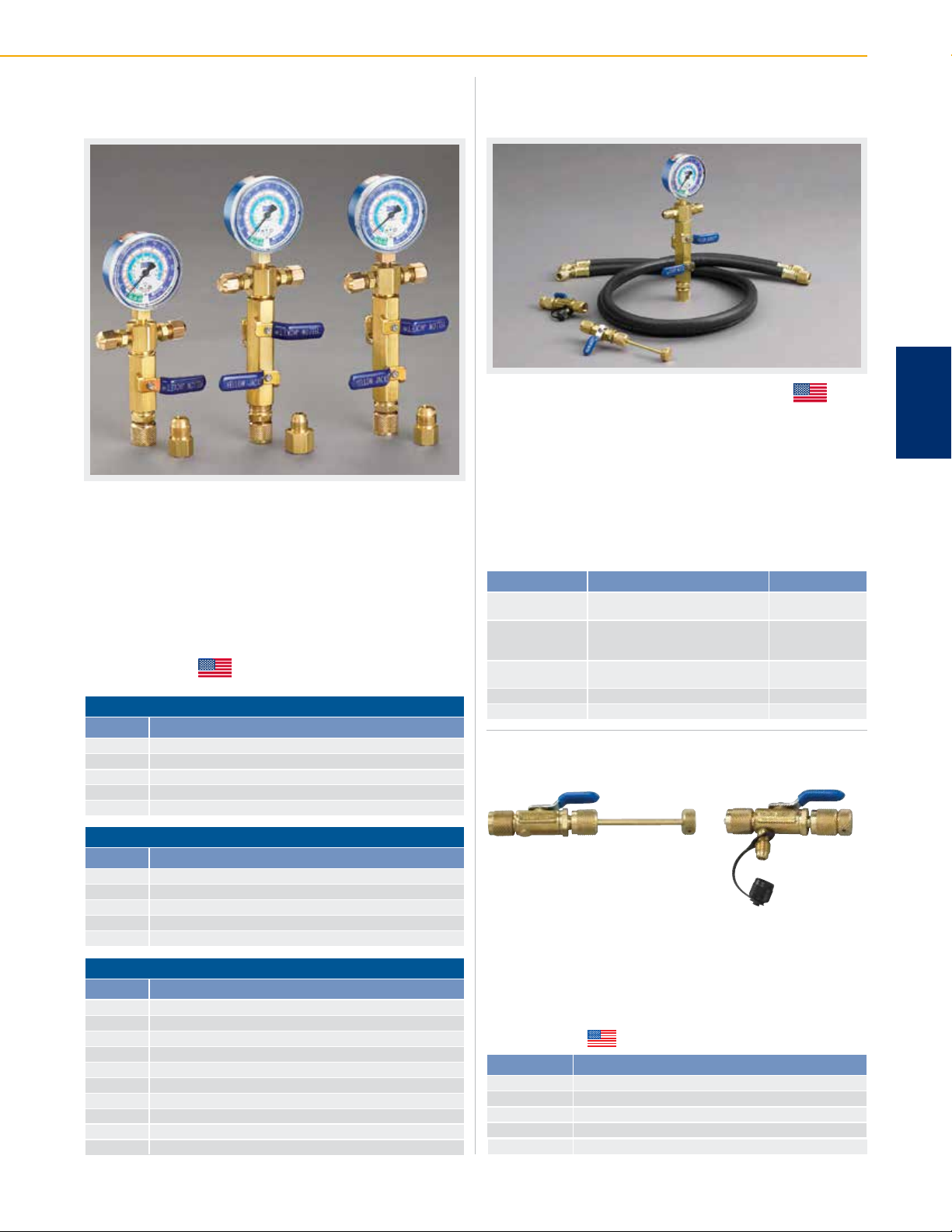

Superevac™ EVACUATION MANIFOLDS

Superevac™ manifolds are engineered as system components for the Superevac pumps to help decrease vacuum time by over 50 percent and

improve micron readings. Mounts with 1/2" or 3/8" Female are quick

coupler and provides easy connections for two 3/8" vacuum hoses.

• Flutterless™ gauge

• Non-restricting, full ow valves for fast vacuum

• Convenient 1/4 turn full ow

• Extra port for electronic gauge

• Now includes step-down adapter to connect to 3/8" pump intake

• Made in the USA

3/8" Female ﬂare coupler

UPC# Description

93851 Single valve with 1/4" Schrader mount with 3/8" Female are 93852 Single valve with lo-side gauge mount with 3/8" Female are 93853 Two valves with lo-side gauge mount with 3/8" Female are

19011 CH-11 gasket (10 pak)

19131 Pump step-down adapter - 1/2" Female are to 3/8" Male are

1/2" Female ﬂare coupler

UPC# Description

93850 Single valve with 1/4" Schrader mount with 1/2" Female are 93855 Single valve with lo-side gauge mount with 1/2" Female are 93860 Two valves with lo-side gauge mount with 1/2" Female are

19015 CH-80 gasket (10-pak)

19133 Pump step-up adapter - 3/8" Female are to 1/2" Male are

Additional replacement parts

UPC# Description

19030 3/8" “O” ring (10 pak) 19096 Ball valve replacement handles (2 pak)

40272 1/4" Male are with Schrader for 93850 41139 3/8" Male are x 1/4" NPT Male tting

49016 Blue compound °F gauge 77921 1/4" Flare x 1/8" NPT Male elbow 93211 3/8" Flare cap with gasket 93854 1/2" Flare connector 93847 3/8" Flare connector for 93846 93858 3/8" Flare connector for 93851-53

Superevac™ EVACUATION

SYSTEMS I, II & III

System III

All system components are available separately, but system pricing makes I, II and III attractive buys.

All systems include a two-valve manifold and two 3/8" vacuum

hoses for a fast vacuum. Vacuum valves, included with all systems, allow core removal and system isolation. This combination reduces vacuum time by over 50 percent compared to using a regular 1/4" manifold and evacuating through only one side.

System II adds 69075 electronic gauge and standard ratchet wrench to the basic System I.

System III adds a 6 or 8 cfm Superevac™ pump to System II.

UPC# for 1/2" Description UPC# for 3/8"

93865 System I: 2-valve manifold, 2 93866 16248 48" vacuum hoses, 2 valves

93875 System II: all of above plus 93876 69075 electronic vacuum gauge and ratchet wrench

93886 System III: all of above plus 93885 (8 cfm) a

CH-11 gasket (10 pak) 19011 19015 CH-80 gasket (10 pak)

Superevac pump (6 cfm)

MADE IN THE USA

1/4" AND 5/16" BALL VALVE 4-IN-1

VACUUM/CHARGE VALVE & CORE TOOL

18971

This versatile tool for the lo- or hi-side of a system does four jobs:

1. Vacuum valve. Extra 1/4" side port on

18975 to attach electronic micron vacuum gauge right at system

for greater accuracy. Working pressure of 800 psi.

2. Core removal access. Lets you evacuate and charge through an

unrestricted line for increased speed and higher vacuum.

3. Core replacement.

4. Recovery valve. Core removal speeds recovery process.

Made in the USA

UPC# Description

18971 1/4" Vacuum/charge valve without side port 18975 1/4" Vacuum/charge valve with side port 18981 5/16" Vacuum/charge valve without side port 18985 5/16" Vacuum/charge valve with side port 18986 1/4" Male x 5/16" female vacuum/charge valve

18975

GAUGES

MACHINES

RECOVERY

VACUUM PUMP

SYSTEMS

CHARGING HOSES

VACUUM AND

VALVES & PARTS

HOSE ADAPTERS,

WIRELESS AND

INSTRUMENTS

ELECTRONIC

LEAK DETECTORS

AND MONITORS

INSTRUMENTS

HEATING

SYSTEM TOOLS

Page 8

SYSTEMS

CHARGING

YELLOW JACKET® HVAC/R

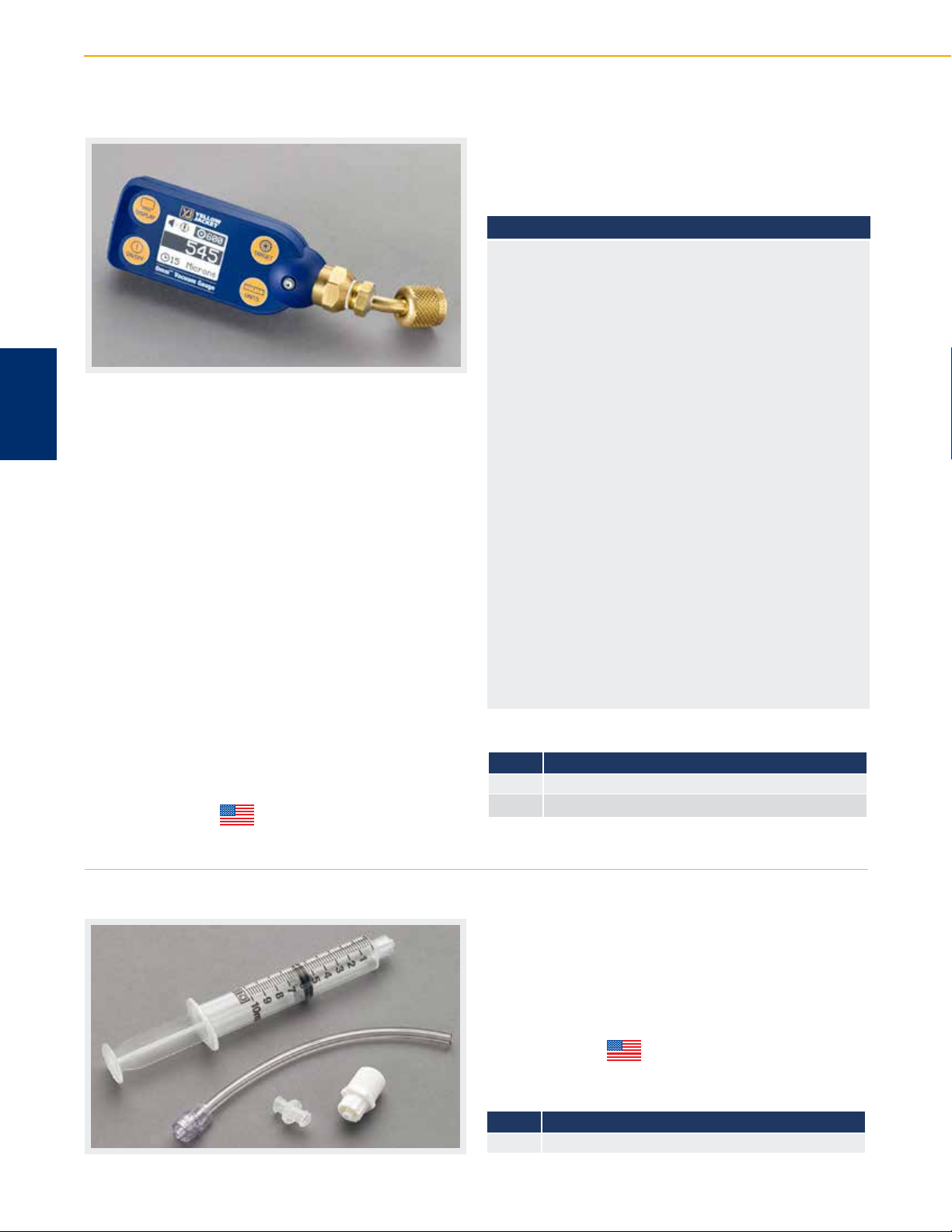

oMNI™ DIGITaL vacuuM GauGe

Compact, easy-to-use, and more unique

GAUGES

RECOVERY

MACHINES

The YELLOW JACKET® OMNI™ Digital Vacuum Gauge is an easy-to-use, compact vacuum gauge that is loaded

SYSTEMS

VACUUM PUMP

with features for the price. And it’s rugged, too. Made with high impact, glass reinforced housing, it survives moisture and accidental drops or attachment to a high pressure line. The easy-to-clean vacuum sensor handles 450 psi positive pressure and reads several units of vacuum (microns, millibar, Torr and Pascal).

VACUUM AND

•

CHARGING HOSES

•

VALVES & PARTS

•

HOSE ADAPTERS,

•

ELECTRONIC

INSTRUMENTS

WIRELESS AND

•

Audio and visual signal when target vacuum level is

reached

Electronic paper display for clear visibility – even in

direct sunlight

Rich and intuitive user interface – turn it on and it is

ready to use with default settings

45° degree bend for tting (1/4” or 5/16”)

Automatic power down and time out

Power savings - multiple time-out selections

Low battery indicator and automatic power-down

when inactive

Adapter ttings available

Made in the USA

features than any other unit on the market.

Specications

Vacuum Reading Resolution:

1 micron (from 1,000 to 5 microns)

10 microns (from 10,000 to 1,000 microns)

100 microns (from 25,000 to 10,000 microns)

Display Vacuum Measurement Accuracy:

+/- 20% of reading (from 10,000 to 25 microns)

Vacuum Reading Range:

5 to 25,000 Microns

(33.3 mBar, 25 Torr, 3330 Pa);

Progress bar-graph from Atmosphere (ATM)

to 25,000 Microns

Proof Pressure: 450 psi

Working Temperature: 32°F to 104°F (0°C to 40°C)

Storage Temperature: -4°F to 140°F (-20°C to 60°C)

Working Humidity: 0-95% RH (non-condensing) I

Class: IP-50

Battery Life: 100+ hours continuous

Battery: (2) AAA batteries (included)

Size: 6” long x 1.6” wide x 1.6” thick

including tting (15.3 x 4 x 4 cm)

Weight: 0.39 lb (175 grams)

Warranty One year

UPC# Description

69020 OMNI™ Digital Vacuum Gauge with 1/4" Coupler

™

69021 OMNI

Digital Vacuum Gauge with 5/16" Coupler

AND MONITORS

LEAK DETECTORS

HEATING

INSTRUMENTS

SYSTEM TOOLS

vacuuM SeNSor cLEANING KIT

Follow cleaning procedure for these YELLOW JACKET®

vacuum gauges: 69020 series OMNI with P51 digital manifold and Mantooth gauges or 69086

digital vacuum gauge.

Made in the USA

UPC# Description

69030 Vacuum Sensor Cleaning Kit

™

, 67030 series used

Page 9

EDITION 70 CATALOG

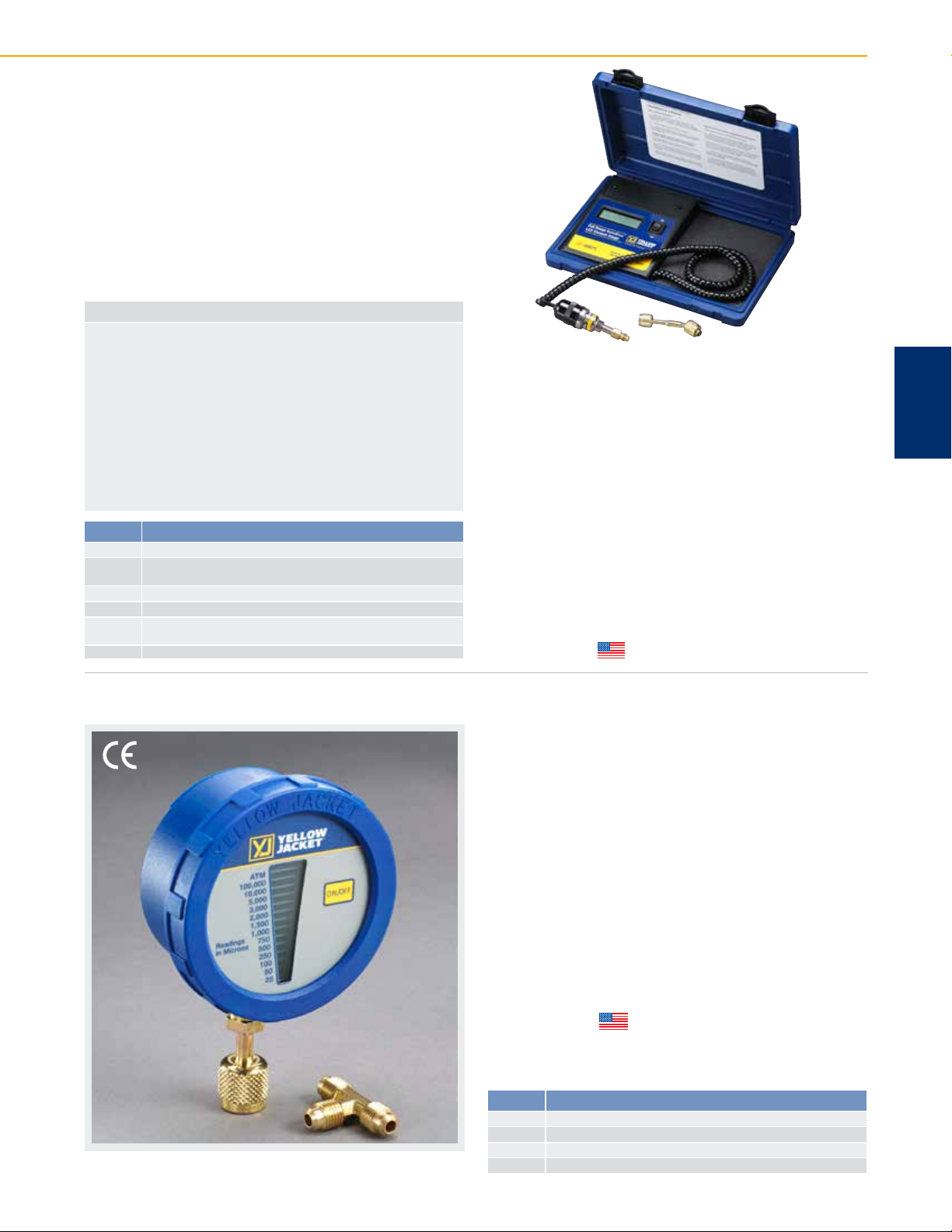

SuperEvac™ LCD VACUUM GAUGE

Full range from atmosphere to 1 micron

The Supe revac™ LCD vacuum gauge combines thermocouple

sensor technology with advanced electronics for precise readings and repeatability not found with thermistor sensors

or analog meters.

Thermocouple technology has long been proven in laboratory and

precision industrial instrumentation for sensing the deep vacuum range. Thermocouple sensors are factory calibrated and exhibit few of the electronic variances of thermistor sensors found in many other electronic gauges. Durable molded case with storage for sensor, cable and brass connector.

Speciﬁcations

Response time: 3 seconds Calibration: Automatic Warm up: 3 seconds Sensor cable: 5.5' (167 cm) coiled Sensor connection: 1/4" Male are Maximum pressure: To avoid sensor damage, do not exceed 5 psig Operating temperature range: 32˚ to 120˚F (0˚ to 49˚C) Display: 0.5" LCD with battery check Automatic shut-off: Yes Power: D cell battery, 70 hours continuous battery life Dimensions: 9" x 12.25" x 2.37" (230 mm x 310 mm x 60 mm) Accuracy: ± 20% of reading

UPC# Description

69075 Superevac™ LCD vacuum gauge full range complete in case 69067 Optional ball valve to add to sensor 1/8" NPT Female x

1/4" Female are

69071 Brass connector 1/4" Female are x 1/4" Female are 69073 Replacement sensor for 69070, 69075 19110 Optional coupler to add to sensor 1/8" NPT Female x

1/4" Female are

69058 Replacement cord

69058 cord

69073 sensor

Thermocouple sensor features:

• No adjustments or warm-up. Stays calibrated after on/off switching and long evacuations

• Automatic battery compensation

• Automatic ambient temperature compensation

• Replacement sensor requires no calibration

LCD gauge features:

• Automatic off 20 minutes after power up and no change

• Normal handling and jarring will not affect the LCD reading

• Case protects electronic circuitry and sensor

• Calibration standards traceable to NIST

• Precision circuitry controls sensor and translates sensor input into micron readings

• Made in the USA

69071 connector

CHARGING

SYSTEMS

GAUGES

MACHINES

RECOVERY

VACUUM PUMP

SYSTEMS

CHARGING HOSES

VACUUM AND

VALVES & PARTS

HOSE ADAPTERS,

DIGITAL LCD ECONOMY VACUUM GAUGE

This product is protected by one or more of U.S. Patent Number: 6,779,350; 6,832,491; 7,073,346; 7,310,965; and 7,428,822.

The digital LCD economy vacuum gauge indicates air and moisture

have been removed from the system. Track down the 14 level bargraph from atmosphere to 25 microns to know that the system is clean and the vacuum pump is performing properly. Packaged

complete with 9V alkaline battery and hanging hook.

• Unique thermal conductivity sensor automatically compensates

for temperature with no calibration

• Simple On/Off controls

• Easy-to-clean sensor handles 450 psi positive pressure

• Rugged contractor-grade construction with tough ABS housing

and solid state circuitry for accuracy

• Automatic battery saver shuts gauge off after 20 minutes with no

reading changes

• Low battery indicator

• Calibration standards traceable to NIST

• Patented technology

• Made in the USA

To keep the 69080 vacuum gauge accurate, it is best to avoid oil contamination. Keep the sensor vertical whenever possible and connect the gauge directly to the system, away from the pump.

UPC# Description

69080 Digital LCD vacuum gauge with battery, hook and pouch 69081 Replacement soft-sided protective case 69079 Replacement battery door and screw

69095 Tee tting

WIRELESS AND

INSTRUMENTS

ELECTRONIC

LEAK DETECTORS

AND MONITORS

INSTRUMENTS

HEATING

SYSTEM TOOLS

Page 10

SYSTEMS

CHARGING

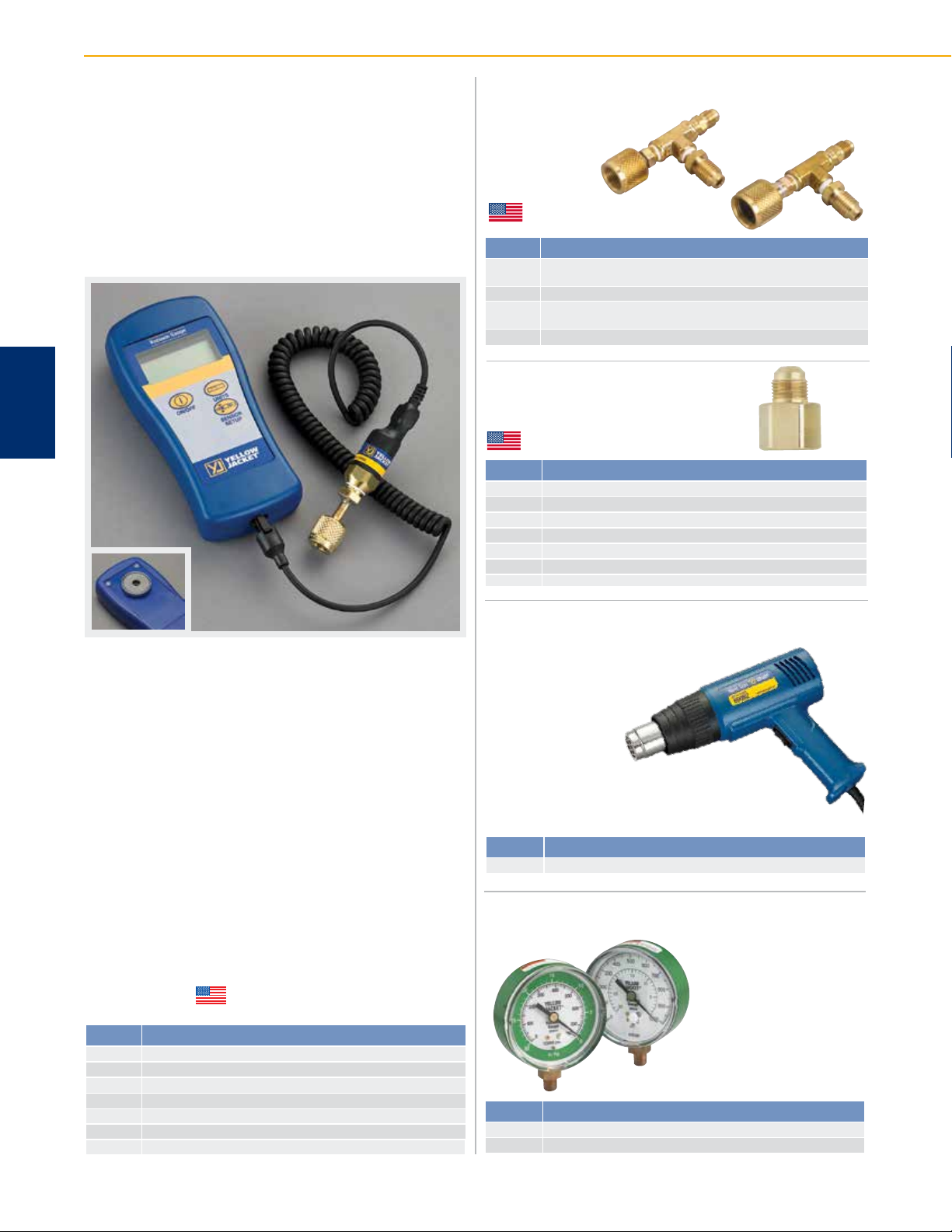

DIGITAL VACUUM GAUGE

Seven units of vacuum for confidence

This easy-to-use gauge shows that air and moisture have been removed from the system. Simple push of a button changes the

GAUGES

RECOVERY

VACUUM PUMP

VACUUM AND

display readout between 7 units of measurement. Each displays

from atmosphere to 10 microns (bargraph indication above 25000 microns) of vacuum to let you know that your vacuum pump is clean and performing properly. If the sensor gets dirty,

simply plug a new sensor into the gauge, run through a quick calibration process and be back on the job within minutes.

MACHINES

SYSTEMS

CHARGING HOSES

YELLOW JACKET® HVAC/R

VACUUM PUMP ADAPTER

Convert a 3/8" or 1/2" vacuum pump intake into

are and Acme compatible ttings.

MADE IN THE USA

UPC# Description

36018 1/2" Pump adapter with 1/4" are and 1/2" Acme Male ttings

19015 1/2" Replacement gaskets for 36018 (10 pak)

36019 3/8" Pump adapter with 1/4" are and 1/2" Acme Male ttings

19011 3/8" Replacement gaskets for 36019 (10 pak)

VACUUM PUMP INTAKE REDUCER ADAPTER

MADE IN THE USA

UPC# Description

19030 Rubber gasket “O” ring (10 pak) for 19130 and 19133

19130 3/8" Female . x 1/4" Male . adapter 19131 1/2" Female . x 3/8" Male . adapter 19132 1/2" Female . x 1/4" Male . adapter 19133 3/8" Female . x 1/2" Male . adapter 19160 1/2" Female . x 1/2" Male Acme adapter

93058 Rubber gasket “O” ring for 19131, 19132 and 19160

This product is protected by one or more of U.S. Patent Number:

HOSE ADAPTERS,

VALVES & PARTS

ELECTRONIC

WIRELESS AND

LEAK DETECTORS

HEATING

6,779,350; 6,832,491; 7,073,346; 7,310,965; and 7,428,822.

• Unique patented thermal conductivity sensor automatically compensates for temperature

• Replaceable, cleanable, plug-in sensor (Part #69087) handles 450 psi positive pressure

• Displays seven different units of vacuum (microns, milliTorr, Torr, millimeters of mercury, millibar, kiloPascal and Pascal)

INSTRUMENTS

• 12" coiled sensor cord stretches to 24" for easy reach, connectivity and readability of display

• Low battery indicator

• Automatic shut-off after 20 minutes

• Calibration standards traceable to NIST

• 32° to 122°F (0° to 50°C) operating temperature range

AND MONITORS

• 14 oz. (392 g) with battery

• Approximately 25 hours continuous battery life

• Accuracy ±20% of reading

• Made in the USA

INSTRUMENTS

UPC# Description

69086 Hand-held vacuum gauge with fabric carry pouch 69087 Replacement sensor for older models without detachable cords 69088 Replacement cable for original version - not detachable 40819 Replacement cable for new version - detachable 69101 Replacement sensor and cord assembly

SYSTEM TOOLS

69091 Replacement fabric pouch 69030 Vacuum Sensor Cleaning Kit

Magnet adheres to any metal surface

HEAT GUN

600° and 1000°F settings. Shockproof and tough housing is durable and lightweight. Use for:

• Coil defrosting

• Faster vacuums

• Drying out condensation in motors, clutches, etc.

Kits include gun, adapters and case.

UPC# Description

69092 Heat gun kit 115V - UL, CSA

MECHANICAL VACUUM GAUGES

Mechanical vacuum gauges for system installation. Bourdon tube type gauge.

1/8" NPT Male bottom

tting. CAUTION: Handle

gauges carefully to assure

full service life. See page 53 for further details.

UPC# Description

69044 3 1/8" Vacuum gauge 0-30 inHg/760-0 Torr (mm) 69045

3 1/8" Vacuum gauge European version (1000-0 millibar/30-0 inch)
