Yaskawa E7B User Manual

E7B Drive/Bypass

Technical Manual

Model: E7B Document Number: TM.E7B.01

Quick Reference for Bypass Parameters

Parameter

Number

A1-00 0 b5-04 100 E1-05 240V or 480V L1-05 0.2

A1-01 2 b5-06 100 E1-06 60 L2-01 2

A1-03 0 b5-07 0 E1-07 3 L2-02 0.1

A1-04 0 b5-08 0 E1-08 18 L2-03 0.1

A1-05 0 b5-09 0 E1-09 1.5 L2-04 0.3

A2-01 b5-10 1 E1-10 10.8 L2-05 190

A2-02 b5-11 0 E1-11 0 L3-01 1

A2-03 b5-12 0 E1-12 0 L3-02 120

A2-04 b5-13 0 E1-13 0 L3-04 1

A2-05 b5-14 1 E2-01 kVA Dep. L3-05 1

A2-06 b5-15 0 E2-03 kVA Dep. L3-06 120

A2-07 b5-16 0 E2-05 kVA Dep. L4-01 0

A2-08 b5-17 0 F6-01 3 L4-02 2

A2-09 b5-18 0 F6-02 0 L4-05 0

A2-10 b5-19 0 F6-03 1 L4-06 80

A2-11 b5-20 1 F6-05 0 L5-01 10

A2-12 b5-21 1 H1-01 70 L5-02 0

A2-13 b5-22 0 H1-02 L5-03 600

A2-14 b5-23 0 H1-03

A2-15 b5-24 0 L6-02 15

A2-16 b5-25 0 L6-03 10

A2-17 b5-26 0 H1-04 4 L8-01 0

A2-18 b5-27 60 H1-05 6 L8-02 95

A2-19 b5-2

A2-20 b5-29 1 H2-02 3B L8-06 kVA Dep.

A2-21 b5-30 0 H3-02 See Table 2 of

A2-22 b8-01 1 L8-10 0

A2-23 b8-04 kVA Dep. L8-11 300

A2-24 b8-05 20 H3-03 0 L8-12 45

A2-25 b8-06 0 H3-08 See Table 2 of

A2-26 C1-01 60 L8-18 1

A2-27 C1-02 60 L8-19 20

A2-28 C1-03 30 H3-09 See Table 2 of

A2-29 C1-04 30 n1-02 1

A2-30 C1-09 10 n3-01 5

A2-31 C1-11 0 H3-10 100 n3-02 150

A2-32 C2-01 0.2 H3-11 0 n3-03 1

b1-01 See Table 2 of

b1-02 1 C6-02 kVA Dep. o1-03 0

b1-03 0 C6-03 kVA Dep. H4-01 2 o1-05 3

b1-04 1 C6-04 kVA Dep. H4-02 100 o1-06 0

b1-07 1 C6-05 0 H4-03 0 o1-07 2

b1-08 1 d1-01 10.0 H4-04 8 o1-08 3

b1-11 0 d1-02 6.0 H4-05 50 o2-01 1

b1-12 0 d1-03 0 H4-06 0 o2-02 0

b2-01 0.5 d1-04 40 H4-07 0 o2-03 0

b2-02 50 d1-17 6 H4-08 0 o2-04 kVA Dep.

b2-03 5.0 d2-01 100 H5-01 1F o2-05 1

b2-04 0 d2-02 0 H5-02 3 o2-06 1

b2-09 0 d2-03 0 H5-03 0 o2-07 0

b3-01 2 d3-01 0 H5-04 3 o2-08 1

b3-02 120 d3-02 0 H5-05 1

b3-03 2 d3-03 0 H5-06 5

b3-05 0.2 d3-04 1 H5-07 1

b3-14 1 d4-01 0 H5-08 0

b4-01 0 d4-02 10 H5-09 2

b4-02 0 E1-01 208, 240V or

b5-01 0 L1-02 8

b5-02 2 E1-03 F L1-03 3

b5-03 5 E1-04 60 L1-04 1

Factory Setting

the bypass

schematic

User

Setting

Parameter

Number

8 0 H2-01 0 L8-03 4

C2-02 0.2 H3-12 0.3 n3-04 40

C4-01 1 H3-13 See Table 2 of

C4-02 200 o1-02 1

Factory Setting

480V

User

Setting

Parameter

Number

L1-01 1

Factory

Setting

See Table 2 of

the bypass

schematic

the bypass

schematic

the bypass

schematic

the bypass

schematic

the bypass

schematic

User

Setting

Parameter

Number

L6-01 6

L8-09 1

L8-15 1

n1-01 1

o1-01 6

o2-10

o2-12 0

o2-14 0

o2-15 0

o3-01 0

o3-02 1

T1-02 kVA Dep.

T1-04 kVA Dep.

Factory Setting

User

Setting

0

Warnings and Cautions

WARNING

This Section provides warnings and cautions pertinent to this product, that if not heeded, may result in personal injury, fatality, or equipment damage. Yaskawa is not responsible for consequences of ignoring these instructions.

YASKAWA manufactures component parts that can be used in a wide variety of industrial applications. The selection and application of YASKAWA products remain the responsibility of the equipment designer or end user. YASKAWA accepts no responsibility for the way its products are incorporated into the final system design. Under no circumstances should any YASKAWA product be incorporated into any product or design as the exclusive or sole safety control. Without exception, all controls should be designed to detect faults dynamically and fail safely under all circumstances. All products designed to incorporate a component part manufactured by YASKAWA must be supplied to the end user with appropriate warnings and instructions as to that part’s safe use and operation. Any warnings provided by YASKAWA must be promptly provided to the end user. YASKAWA offers an express warranty only as to the quality of its products in conforming to standards and specifications published in the YASKAWA manual. NO OTHER WARRANTY, EXPRESS OR IMPLIED, IS OFFERED. YASKAWA assumes no liability for any personal injury, property damage, losses, or claims arising from misapplication of its products.

•

Read and understand this manual before installing, operating, or servicing this Drive and Bypass Unit. All warnings, cautions, and instructions must be followed. All activity must be performed by qualified personnel. The Drive must be installed accord ing to this manual and local codes.

• Do not connect or disconnect wiring while the power is on. Do not remove covers or touch circuit boards while the power is

on.

• Before servicing, disconnect all power to the equipment. The internal capacitor remains charged even after the power supply

is turned off. Status indicator LEDs and Digital Operator display will be extinguished when the DC bus voltage is below 50 VDC. To prevent electric shock, wait at least five minutes after all indicators are OFF and measure DC bus voltage level to confirm safe level.

• Do not perform a withstand voltage test on any part of the unit. This equipment uses sensitive devices and may be damaged

by high voltage.

• The Drive and Bypass unit is not suitable for circuits capable of delivering more than the specified RMS symmetrical

amperes. Install adequate branch short circuit protection per applicable codes. Refer to the specification. Failure to do so may result in equipment damage and/or personal injury.

• Do not connect unapproved LC or RC interference suppression filters, capacitors, or overvoltage protection devices to the

output of the Drive. These devices may generate peak currents that exceed Drive specifications.

• To avoid unnecessary fault displays caused by contactors or output switches placed between Drive and motor, auxiliary

contacts must be properly integrated into the control logic circuit.

• YASKAWA is not responsible for any modification of the product made by the user; doing so will void the warranty. This

product must not be modified.

• Verify that the rated voltage of the Drive and Bypass unit matches the voltage of the incoming power supply before applying

power.

• To meet CE directives, proper line filters and proper installation are required.

i

-

WARNING

• Some drawings in this manual may be shown with protective covers or shields removed, to describe details. These must be

replaced before operation.

• Observe electrostatic discharge procedures when handling circuit cards to prevent ESD damage.

• The equipment may start unexpectedly upon application of power. Clear all personnel from the Drive, motor, and machine

area before applying power. Secure covers, couplings, shaft keys, and machine loads before energizing the Drive and Bypass unit.

• Please do not connect or operate any equipment with visible damage or missing parts. The operating company is responsible

for any injuries or equipment damage resulting from failure to heed the warnings in this manual.

 Intended Use

Drives and Bypass Units are intended for installation in electrical systems or machinery.

For use in the European Union, the installation in machinery and systems must conform to the following product standards of the Low Voltage Directive: EN 50178, 1997-10, Equipping of Power Systems with Electronic Devices EN 60201-1, 1997-12 Machine Safety and Equipping with Electrical Devices

Part 1: General Requirements (IEC 60204-1:1997)/ EN 61010, 1997-11Safety Requirements for Information Technology Equipment (IEC 950:1991 + A1:1992 + A2:1993 + A3:1995 + A4:1996, modified)

Other

The Drive and Bypass unit is suitable for use on a circuit capable of delivering not more than 100,000 RMS symmetrical amperes, 240Vac maximum (240V Class) and 480Vac maximum (480V Class).

This manual is for reference only and subject to change without notice.

ii

Introduction

This Section describes the applicability of the Manual

 Product Description

The E7 Bypass unit provides a means of bypassing the Drive while allowing the motor to operate at full speed, directly from the AC line. It incorporates an AC Drive and three contactor Bypass arrangement in a single UL listed enclosure. The three electrically in terlocked IEC rated contactors isolate the Drive when operating in Bypass mode.

Control logic provides industry standard Hand/Off/Auto functions and safety circuit interlocks in both drive and Bypass op erating modes.

E7 Bypass components include: a fused 120 VAC control circuit transformer, an input Motor Circuit Protector (MCP) circuit breaker/disconnect, motor overload relay, selector switches and indicating lights.

The E7 Drive, a component of the E7 Bypass package, is a Pulse Width Modulated Drive for 3-Phase AC induction motors. This type of Drive is also known as an Adjustable Frequency Drive, Variable Frequency Drive, AC Drive, AFD, ASD, VFD, and Inverter. In this manual, the E7 Drive will be referred to as the “Drive”.

The Drive is a variable torque AC drive, designed specifically for HVAC applications in building automation, including fans, blowers and pumps. A new benchmark for size, cost, performance, benefits, and quality, the Drive includes numerous built-in features such as network communications, H/O/A, PI, parameter storage and copy functions.

The Drive has embedded communications for the popular building automation protocols, Johnson Controls Metasys® N2 and Siemens APOGEE™ FLN, as well as Modbus®. An optional LONWORKS® interface card is also available.

The LCD keypad/operator is equipped with Hand/Off/Auto functions, copy feature, 7 language choices, and 5 lines of display with 16 characters per line. User parameter settings can be recovered at any time via “User Initialization”. Optional DriveWizard software allows upload/download, as well as graphing and monitoring of drive parameters from a PC for ease of drive management.

Built-in PI control eliminates the need for closed loop output signals from a building automation system. It includes feedback display, inverse, square root and differential control functions, and maintains setpoint for closed loop control of fans and pumps for pressure, flow, or temperature regulation.

This manual is applicable to E7 Drives defined by model numbers CIMR-E7U_ _ _ _ contained within Bypass units defined by model numbers E7B_ _ _ _. This manual reflects the software version 4010.

This manual is subject to change as product improvements occur. The latest version of the manual can be obtained from the Yaskawa website

www.yaskawa.com . The date shown on the rear cover is changed when revisions are made.

Introduction iii

This manual may describe trademarked equipment, which is the property of other companies. These trademarks are the property of the registered owner companies and may include the following:

APOGEE

Metasys®, trademark of Johnson Controls Inc.

Modbus®, trademark of Schneider Automation, Inc.

LONWORKS®, trademark of Echelon Corporation

“Standard” or “Configured” options - are available with standard lead times

“Engineered” or “Custom” options - are available only with extended lead times

Introduction iv

 Resources Available

Document Number Description

TM.E7.01 E7 Drive User Manual

TM.E7.02 E7 Drive Programming Manual

TM.E7.21 E7 APOGEE™ FLN Technical Manual

TM.E7.22 E7 Metasys® N2 Technical Manual

IG.AFD.20 LONWORKS® Option Installation Guide

IG.AFD.23 BACnet Option Installation Guide

IG.AFD.50 3-15 PSI Pressure Transducer Installation Guide

IG.E7B.02 E7B Drive Bypass System with Touchpad Control Panel Option

CD.E7.01 CD ROM, Drives for Building Automation

Document Description

Table of Resources

Manuals, Installation Guides, and CD’s

Software

DriveWizard® Software DriveWizard® Software Version 5.3

ESP Energy Savings Predictor for E7

Flyers, Bulletins, Pricebook, Binders, And Specifications

Document Number Description

FL.E7.01 Flyer, 2 page, E7 Drives and Bypass Packages

BL.E7.01 Bulletin, Multi-page, E7 Drives and Bypass Packages

PB.E7.01 E7 Price Book

DRG.E7 E7 Drives Resources Guide Binder for Building Automation

SG.E7.01 EngSpec15172 E7 Specification Guide, Section 15172 for Consulting Engineers

SG.E7.10 SubmittalSpec E7 Submittal Specification

SG.E7B.10 SubmittalSpec E7 Bypass Submittal Specification

SG.E7C.10 SubmittalSpec E7 Configured Submittal Specification

SG.E7E.10 SubmittalSpec E7 Engineered Submittal Specification

Bypass Model Number and Enclosure Style

The Bypass covers two voltage ranges: 208-240 VAC and 480 VAC. Ratings applicable are from 1/2 to 500 HP.

Table 1.1 Bypass

Voltage

208 VAC

240 VAC

Bypass

Base Model Number

NEMA 1

E7BVD002 E7BBD002 0.5 2.4 CIMR-E7U22P2

E7BVD003 E7BBD003 0.75 3.5 CIMR-E7U22P2

E7BVD004 E7BBD004 1 4.6 CIMR-E7U22P2

E7BVD007 E7BBD007 2 7.5 CIMR-E7U22P2

E7BVD010 E7BBD010 3 10.6 CIMR-E7U22P2

E7BVD016 E7BBD016 5 16.7 CIMR-E7U23P7

E7BVD024 E7BBD024 7.5 24.2 CIMR-E7U27P5

E7BVD030 E7BBD030 10 30.8 CIMR-E7U27P5

E7BVD046 E7BBD046 15 46.2 CIMR-E7U2011

E7BVD059 E7BBD059 20 59.4 CIMR-E7U2015

E7BVD074 E7BBD074 25 74.8 CIMR-E7U2018

E7BVD088 E7BBD088 30 88 CIMR-E7U2022

E7BVD114 E7BBD114 40 114 CIMR-E7U2030

E7BVD143 E7BBD143 50 143 CIMR-E7U2037

E7BVD169 E7BBD169 60 169 CIMR-E7U2045

E7BVD211 E7BBD211 75 211 CIMR-E7U2055

E7BVD273 E7BBD273 100 273 CIMR-E7U2075

E7BVD343 E7BBD343 125 343 CIMR-E7U2090

E7BVD396 E7BBD396 150 396 CIMR-E7U2110

E7BVA002 E7BBA002 0.5 2.2 CIMR-E7U22P2

E7BVA003 E7BBA003 0.75 3.2 CIMR-E7U22P2

E7BVA004 E7BBA004 1 4.0 CIMR-E7U22P2

E7BVA006 E7BBA006 2 6.8 CIMR-E7U22P2

E7BVA009 E7BBA009 3 9.6 CIMR-E7U22P2

E7BVA015 E7BBA015 5 15.2 CIMR-E7U23P7

E7BVA022 E7BBA022 7.5 22 CIMR-E7U25P5

E7BVA028 E7BBA028 10 28 CIMR-E7U27P5

E7BVA042 E7BBA042 15 42 CIMR-E7U2011

E7BVA054 E7BBA054 20 54 CIMR-E7U2015

E7BVA068 E7BBA068 25 68 CIMR-E7U2018

E7BVA080 E7BBA080 30 80 CIMR-E7U2022

E7BVA104 E7BBA104 40 104 CIMR-E7U2030

*NEMA 12

FVFF

HP

Bypass

Continuous

Output Current (Amps)

Uses

Basic Drive

Model-Number

Physical Installation 1 - 2

Table 1.1 Bypass

Bypass

Base Model Number

Voltage

NEMA 1

E7BVA130 E7BBA130 50 130 CIMR-E7U2037

E7BVA154 E7BBA154 60 154 CIMR-E7U2037

230 VAC

480 VAC

* The Nema 12 FVFF Enclosure is ventilated and filtered with gaskets. UL does not recognize NEMA 12

ventilated enclosures, therefore, for UL purposes, these units are designated NEMA 1.

E7BVA192 E7BBA192 75 192 CIMR-E7U2045

E7BVA248 E7BBA248 100 248 CIMR-E7U2075

E7BVA312 E7BBA312 125 312 CIMR-E7U2075

E7BVA360 E7BBA360 150 360 CIMR-E7U2090

E7BVB001 E7BBB001 0.5 1.1 CIMR-E7U42P2

E7BVB001 E7BBB001 0.75 1.6 CIMR-E7U42P2

E7BVB002 E7BBB002 1 2.1 CIMR-E7U42P2

E7BVB003 E7BBB003 2 3.4 CIMR-E7U42P2

E7BVB004 E7BBB004 3 4.8 CIMR-E7U42P2

E7BVB007 E7BBB007 5 7.6 CIMR-E7U43P7

E7BVB011 E7BBB011 7.5 11 CIMR-E7U45P5

E7BVB014 E7BBB014 10 14 CIMR-E7U47P5

E7BVB021 E7BBB021 15 21 CIMR-E7U49P0

E7BVB027 E7BBB027 20 27 CIMR-E7U4011

E7BVB034 E7BBB034 25 34 CIMR-E7U4015

E7BVB040 E7BBB040 30 40 CIMR-E7U4018

E7BVB052 E7BBB052 40 52 CIMR-E7U4024

E7BVB065 E7BBB065 50 65 CIMR-E7U4030

E7BVB077 E7BBB077 60 77 CIMR-E7U4037

E7BVB096 E7BBB096 75 96 CIMR-E7U4045

E7BVB124 E7BBB124 100 124 CIMR-E7U4055

E7BVB156 E7BBB156 125 156 CIMR-E7U4075

E7BVB180 E7BBB180 150 180 CIMR-E7U4090

E7BVB240 E7BBB240 200 240 CIMR-E7U4110

E7BVB302 E7BBB302 250 302 CIMR-E7U4160

*NEMA 12

FVFF

(Continued)

HP

Bypass

Continuous

Output Current (Amps)

Uses

Basic Drive

Model-Number

Physical Installation 1 - 3

Enclosure Data

Table 1.2 208V Enclosure Data

Input

HP

Volts

0.75 E7U22P21 E7B_D003 3.5 3.8 68

208

Drive

1

Model CIMR-

0.5 E7U22P21 E7B_D002 2.4 2.6 68

1 E7U22P21 E7B_D004 4.6 5.1 78

2 E7U22P21 E7B_D007 7.5 8.2 110

3 E7U22P21 E7B_D010 10.6 11.7 141

5 E7U23P71 E7B_D016 16.7 18.4 202

7.5 E7U27P51 E7B_D024 24.2 26.6 273

10 E7U27P51 E7B_D030 30.8 33.9 365

15 E 7U20111 E7B_D046 46.2 50.8 578

20 E7U20151 E7B_D059 59.4 65.3 653

25 E7U20181 E7B_D074 74.8 82.3 746

30 E7U20221 E7B_D088 88.0 96.8 939

40 E7U20301 E7B_D114 114.0 125.4 1340

50 E7U20370 E7B_D143 143.0 157.3 1523

60 E7U20450 E7B_D169 169.0 185.9 1762

75 E7U20550 E7B_D211 211.0 232.1 2244

100 E7U20750 E7B_D273 273.0 300.3 3003 1214 lbs

125 E7U20900 E7B_D343 343.0 377.3 3296 1330 lbs

150 E7U21100 E7B_D396 396.0 435.6 4029 1423 lbs

Bypass

Model

Number

2

NEC

FLA

OL 110 % 1 min

Note 1: Horsepower rating is based on a standard NEMA B 4-pole motor.

3

Heat

Loss

NEMA 1 & NEMA 12 -FVFF

Watts

H W D

29.48 19.06 13.66

40.48 25.63 14.66

84.00 25.63 26.25

Enclosure Dimensions

inches

Dimension Drawing

S-5512

Dimension Drawing

S-5514

Dimension Drawing

S-5525

4

Weight

Assembly

115 lbs

6

127 lbs 164 lbs

208 lbs

7

221 lbs 307 lbs

847 lbs

8

943 lbs

9

Enclosure Dimensions w/Add-on

5

of

NEMA 1 & NEMA 12-FVFF

H W D

inches

43.35 19.06 13.66

Dimension Drawing

S-5513

55.35 25.63 14.66 Dimension Drawing

S-5515

NOT REQUIRED

4

Weight5 of

Assembly

+Add-on

156 lbs

291 lbs

Electrical

Schematic

Box

E7B-00

Note 2: The underscore position in these model numbers codes for the enclosure type: V = NEMA1, B = NEMA12 FVFF.

Note 3: Heat loss is the amount of heat dissipated by the drive at full load with all standard options available inside the enclosure. Drive heat sink losses are

included in the heat loss data. Heat loss data is for the enclosure without the add-on enclosure.

Note 4: Height dimension (H) excludes the mounting screw tabs. Depth dimension (D) excludes MCP disconnect handle.

Note 5: This data represents the total weight with all possible standard options. Weight could be less depending on the options specified.

Note 6: All standard options are available in this size enclosure except options E (RFI Filter) and K (5% Output Reactor). Options E and K require the add-on

enclosure.

Note 7: All options are available in this size enclosure except E (RFI Filter), R (3% Line Reactor), and K (5% Output Reactor). Only option E combined with

either option R or option K can be installed in the add-on enclosure. Options R and K together require an increase in the size of the E7 Bypass Enclosure. Contact the factory if all three options are required. Options D (2 Motor “OR”) or A (2 Motor “AND”) for 30 Hp and 40 Hp, or for 75 Hp and 100 Hp, require the next size enclosure.

Note 8: Heat sink mounted externally varies the depth dimension depending on the drive size. Depth will not exceed dimension shown.

Note 9: All options are available in this size enclosure except options D (2 Motor “OR”) or A (2 Motor “AND”) for 75 Hp and 100 Hp require the next

size enclosure.

Physical Installation 1 - 4

Table 1.3 240/230V Enclosure Data

Input

Volts

240

230

HP

Drive

1

Model CIMR-

0.5 E7U22P21 E7B_A002 2.2 2.4 68

0.75 E7U22P21 E7B_A003 3.2 3.5 68

1 E7U22P21 E7B_A004 4.0 4.4 78

2 E7U22P21 E7B_A006 6.8 7.5 110

3 E7U22P21 E7B_A009 9.6 10.6 141

5 E7U23P71 E7B_A015 15.2 16.7 202

7.5 E7U25P51 E7B_A022 22.0 24.2 273

10 E7U27P51 E7B_A028 28.0 30.8 365

15 E7 U20111 E7B_A042 42.0 46.2 578

20 E7U20151 E7B_A054 54.0 59.4 653

25 E7U20181 E7B_A068 68.0 74.8 746

30 E7U20221 E7B_A080 80.0 88.0 939

40 E7U20301 E7B_A104 104.0 114.4 1340

50 E7U20370 E7B_A130 130.0 143.0 1523

60 E7U20370 E7B_A154 154.0 169.4 1544

75 E7U20450 E7B_A192 192.0 211.2 1860

100 E7U20750 E7B_A248 248.0 272.8 3003 1214 lbs

125 E7U20750 E7B_A312 312.0 343.2 3045 1330 lbs

150 E7U20900 E7B_A360 360.0 396.0 3440 1423 lbs

Bypass

Model

Number

2

NEC FLA

OL

110%

1 min

Note 1: Horsepower rating is based on a standard NEMA B 4-pole motor.

3

Heat

Loss Watts

Enclosure Dimensions

NEMA 1 & NEMA 12 -FVFF

H W D

29.48 19.06 13.66

Dimension Drawing

40.48 25.63 14.66

Dimension Drawing

84.00 25.63 26.25

Dimension Drawing

inches

S-5512

S-5514

S-5525

4

Weight

Assembly

115 lbs

6

127 lbs 164 lbs

208 lbs

7

221 lbs 307 lbs

847 lbs

8

943 lbs

9

Enclosure Dimensions w/Add-on

5

of

NEMA 1 & NEMA 12-FVFF

H W D

inches

43.35 19.06 13.66

Dimension Drawing

S-5513

55.35 25.63 14.66

Dimension Drawing

S-5515

NOT REQUIRED

4

Weight5 of

Assembly

+Add-on

156 lbs

291 lbs

Electrical

Schematic

Box

E7B-00

Note 2: The underscore position in these model numbers codes for the enclosure type: V = NEMA1, B = NEMA12 FVFF.

Note 3: Heat loss is the amount of heat dissipated by the drive at full load with all standard options available inside the enclosure. Drive heat sink losses are

included in the heat loss data. Heat loss data is for the enclosure without the add-on enclosure.

Note 4: Height dimension (H) excludes the mounting screw tabs. Depth dimension (D) excludes MCP disconnect handle.

Note 5: This data represents the total weight with all possible standard options. Weight could be less depending on the options specified.

Note 6: All standard options are available in this size enclosure except options E (RFI Filter) and K (5% Output Reactor). Options E and K require the add-on

enclosure.

Note 7: All options are available in this size enclosure except E (RFI Filter), R (3% Line Reactor), and K (5% Output Reactor). Only option E combined with

either option R or option K can be installed in the add-on enclosure. Options R and K together require an increase in the size of the E7 Bypass Enclosure. Contact the factory if all three options are required. Option A (2 Motor “AND”) for 30 Hp and 40 Hp, or for 75 Hp and 100 Hp, require the next size enclosure. Option D (2 Motor “OR”) for 40 Hp, or for 75 Hp and 100 Hp, require the next size enclosure.

Note 8: Heat sink mounted externally varies the depth dimension depending on the drive size. Depth will not exceed dimension shown.

Note 9: All options are available in this size enclosure except options D (2 Motor “OR”) or A (2 Motor “AND”) for 75 Hp and 100 Hp require the next size

enclosure.

Physical Installation 1 - 5

Table 1.4 480V Enclosure Data

Input

HP

Volt s

0.75 42P21 E7B_B001 1.6 1.8 57

480

Drive

1

Model

CIMR-

0.5 42P21 E7B_B001 1.1 1.2 57

1 42P21 E7B_B002 2.1 2.3 62

2 42P21 E7B_B003 3.4 3.7 89

3 42P21 E7B_B004 4.8 5.3 121

5 43P71 E7B_B007 7.6 8.4 155

7.5 45P51 E7B_B011 11.0 12.1 217

10 47P51 E7B_B014 14.0 15.4 318

15 49P01 E7B_B021 21.0 23.1 404

20 40111 E7B_B027 27.0 29.7 408

25 40151 E7B_B034 34.0 37.4 485

30 40181 E7B_B040 40.0 44.0 618

40 40241 E7B_B052 52.0 57.2 1040

50 40301 E7B_B065 65.0 71.5 1045

60 40371 E7B_B077 77.0 84.7 1197

75 40451 E7B_B096 96.0 105.6 1357

100 40551 E7B_B124 124.0 136.4 1749

125 40750 E7B_B156 156.0 171.6 2032

150 40900 E7B_B180 180.0 198.0 2486

200 41100 E7B_B240 240.0 264.0 2955 1240 lbs

250 41600 E7B_B302 302.0 332.2 4225 1352 lbs

300 41850 E7B_B361 361.0 397.1 4425

350 41850 E7B_B414 414.0 455.4 4451

400 42200 E7B_B477 477.0 524.7 5099

450 42200 E7B_B515 515.0 566.5 5154

500 43000 E7B_B590 590.0 649.0 7329

Bypass

Model

Number

2

NEC

FLA

OL 110% 1 min

Note 1: Horsepower rating is based on a standard NEMA B 4-pole motor.

3

Heat

Loss

NEMA 1 & NEMA 12 -FVFF

Watts

H W D

29.48 19.06 13.66

40.48 25.63 14.66

84.00 25.63 26.25

Enclosure Dimensions

inches

Dimension Drawing

S-5512

Dimension Drawing

S-5514

Dimension Drawing

S-5525

TBD

4

Weight

Assembly

115 lbs

6

127 lbs 164 lbs

142 lbs

203 lbs

232 lbs

7

241 lbs

8

943 lbs

9

Enclosure Dimensions w/Add-on

5

of

TBD

NEMA 1 & NEMA 12-FVFF

H W D

43.35 19.06 13.66

Dimension Drawing

55.35 25.63 14.66

Dimension Drawing

inches

S-5513

S-5515

NOT REQUIRED

4

Weight5 of

Assembly

+Add-on

156 lbs

189 lbs

281 lbs

319 lbs

332 lbs

Electrical

Schematic

Box

E7B-00

Note 2: The underscore position in these model numbers codes for the enclosure type: V = NEMA1, B = NEMA12 FVFF.

Note 3: Heat loss is the amount of heat dissipated by the drive at full load with all standard options available inside the enclosure. Drive heat sink losses are

included in the heat loss data. Heat loss data is for the enclosure without the add-on enclosure.

Note 4: Height dimension (H) excludes the mounting screw tabs. Depth dimension (D) excludes MCP disconnect handle.

Note 5: This data represents the total weight with all possible standard options. Weight could be less depending on the options specified.

Note 6: All standard options are available in this size enclosure except options E (RFI Filter) and K (5% Output Reactor). Options E and K require the

add-on enclosure.

Note 7: All options are available in this size enclosure except E (RFI Filter), R (3% Line Reactor), and K (5% Output Reactor). Only option E combined with

either option R or option K can be installed in the add-on enclosure. Options R and K together require an increase in the size of the E7 Bypass Enclosure. Contact the factory if all three options are required. Options D (2 Motor “OR”) or A (2 Motor “AND”) for 75 Hp and 100 Hp, or for 200 Hp and 250 Hp, require the next size enclosure.

Note 8: Heat sink mounted externally varies the depth dimension depending on the drive size. Depth will not exceed dimension shown.

Note 9: All options are available in this size enclosure except options D (2 Motor “OR”) or A (2 Motor “AND”) for 200 Hp and 250 Hp require the next

size enclosure.

Physical Installation 1 - 6

Confirmations upon Delivery

A.C. INPUT

A.C. OUTPUT

Volts: 480

Hz: 50/60

Phase: 3

Amps: 71.6

Volts: 0-480

Hz: 0-60

Phase: 3

Amps: 65

Serial No: 4W033727440-0002 Model No,: E7BVB065R Type: E7 BYPASS W.D.: E7B-00 Inst. Manual: TM.E7.01,CD.E7.01

UNPN0001

 Receiving Checks

Check the following items as soon as the Drive and Bypass unit is delivered.

Table 1.5 Checks

Item Method

Has the correct model of Bypass unit been delivered?

Is the Bypass unit damaged in any way?

Are any screws or other components loose? Use a screwdriver or the appropriate tool to check for tightness.

If you find any irregularities in the above items, contact the shipping company, the distributor or representative you purchased the Bypass unit from or your Yaskawa office immediately.

The Bypass unit is thoroughly tested at the factory. Any damages or shortages evident when the equipment is received must be reported immediately to the commercial carrier that transported the material. Shipping damage is not covered by the Yaskawa warranty. After unpacking and inspecting for damage, verify that internal wire connections have not come loose during shipment by spot checking wire terminations with a screwdriver or the appropriate tool.

Check the model number on the nameplate on the right side of the Bypass unit. Reconcile with packing slip and/or order information.

Inspect the entire exterior of the Bypass unit to see if there are any dents, scratches or other damage resulting from shipping.

Bypass unit storage must be in a clean and dry location. Maintain the factory packaging and provide covering as needed to protect the Bypass unit from construction site dirt, water, debris and traffic prior to and during construction.

 Bypass Nameplate Information

A nameplate is attached to the right side of the enclosure and the inside of the door of each Bypass unit.

The nameplate shown below is an example for a standard Bypass unit.

Fig 1.1 Bypass Nameplate

(Example)

Physical Installation 1 - 7

 Drive Nameplate Information

Input Power Specifications

Output Power Specifications

Drive Model Number

Drive Enclosure and

Weight

Serial Number

UL File Number

A nameplate is also attached to the right side of the Drive inside the Bypass enclosure. The following nameplate is an example for a standard Drive.

Revision Code

Fig 1.2 Drive Nameplate

(Example)

 Bypass Unit Model Numbers

The model number on the nameplate of the Bypass unit indicates the enclosure, voltage, Drive rated current and options of the Bypass unit in alphanumeric codes.

E7BVB096RSL

BASE NUMBER OPTIONS

E 7 B

3-Contactor Bypass

E7

Enclosure

NEMA 1

V B

NEMA 12

Voltage

208V

D

230/240V

A

480V

B

Current

NEC Rated Amps (Ex.: “096” = 96A)

Motor Control

Touchpad & LED

T Y

Touchpad & LCD

0 22mm Operators & LCD D 2 Motor “OR” A 2 Motor “AND”

0

None (leave blank) Cap Filter

N

RFI Filter

E

0

None (leave blank)

F

Fuses

(1) 3% and 5% Bus Reactors are only available as an option on base numbers up to E7B_D074, A068, and B040; larger drives have a Bus Reactor as standard.

(2) 3% Input Reactor, when combined with the standard Bus Reactor (available on base numbers E7B_D088, A080, and B052 and above), yields a total of 5% input impedance.

(3) Serial Comm options (J), (L), (U) or (V) cannot be ordered if both (S) and (P) are combined.

(4) 2 Motor “OR” and 2 Motor “AND” options (D) and (A) are only available with 22mm operators option (0).

(5) Options (M) and (S) are not available with options (T) or (Y) - 4-20mA output is standard with options (T) or (Y).

(6) Not available with options (T) or (Y).

(4)

Input Filter

Input Fuses

Fig 1.3 Bypass Unit Model Number

Communications

Not Enabled (leave blank)

0

EtherNet/IP

2 L LonWorks J Enable METASYS N2 U Enable APOGEE FLN V Enable Modbus 3 BACnet

4-20mA Output

0

None (leave blank)

M

4-20 mA Output

3-15 PSI Transducer

0

None (leave blank)

P

3-15 PSI Transducer

Speed Pot

0

None (leave blank)

S

Speed Pot

Custom Nameplates

0

None (leave blank)

W

Custom Nameplates

Load Reactor

None (leave blank)

0 K

5% Load Reactor

Line Impedance

None (leave blank)

0 X

3% Bus Reactor

Z 5% Bus Reactor R 3% Input Reactor

(3)

(6)

(5)

(3)

(5)

(1)

(2)

 Bypass Unit Enclosures

All Bypass units are intended for non-hazardous locations. Various enclosure types are provided to protect against the application environmental conditions:

Nema Type 1 Enclosures are constructed for indoor use to provide a degree of protection against incidental contact with enclosed electrical equipment and falling dust or dirt.

NEMA Type 12 FVFF Enclosures. NEMA provides for both non-ventilated and ventilated NEMA 12 enclosures. When ventilated, a suffix to the type number defines the ventilation method. A NEMA 12 FVFF enclosure has Forced Ventilation with inlet air Filter and outlet air Filter. The internal pressure is positive with respect to the ambient pressure. UL does not recognize NEMA 12 ventilated enclosures, therefore, these enclosures are designated NEMA 1 for UL purposes.

Physical Installation 1 - 8

Bypass Product Options

Option A - Two motor “AND” control: Allows the operation of two motors from one Drive or Bypass. Pump #1 “AND” pump #2 are operated at the same speed via the output from one Drive or Bypass. The motors are always operated simultaneously therefore, no transfer switch is involved. With the 2 motor “AND” option, motor OverLoad Relays and fuses are provided for each motor and the Drive’s internal motor overload function is disabled. The two motors can be of different capacity if this capacity difference was considered in the ordering process. The factory needs to know the FLA value of each motor controlled in order to select the correct motor overload devices and fuses. (Specifying different capacity motors results in longer, non-standard lead times).

Option D - Two motor “OR” control: A MTR #1/AUTO/MTR #2 selector switch is provided to allow local or remote motor operation selection, between two identical motors, for control by either the Drive or the Bypass (for example, Pump #1 “OR” AUTO “OR” Pump #2). In the AUTO position a contact closure from a BAS, at TB1 terminals 23 and 24, can switch between the two motors. The two motors must be the same horsepower and current draw.

Option E - RFI/EMI Filter: Filters to further attenuate possible VFD generated noise. Radio frequency interference/electro magnetic interference filters reduce conducted noise on the Drive input power leads and therefore, radiated noise from those leads. This option is installed on the input power side of the Drive, between the input contactor and the Drive.

Option F - Drive Input Fuses: Fuses capable of protecting semiconductor devices, rated at 200 kAIC are connected to the line side of the Drive, between the input contactor and the Drive, to protect the Drive semiconductors when motor or output conductor short circuit faults occur.

Option J - Enable Embedded Serial Communications: A no cost option. The Drive in a Bypass unit is capable of network communication via one of 3 embedded protocols. Specifying option J and the protocol to be employed (Metasys, APOGEE or Modbus) will provide the necessary parameter settings and wiring (jumpers) to be network ready when delivered (Project specific H5-0X parameters are setup by the user).

Option K - 5% Output Reactor: Employed on the output side of the Drive for reduction of peak voltages applied to the driven motor. In long Drive to motor lead length situations, high carrier frequency and reflected waves can cause high voltage spikes at the motor. An output reactor provides motor protection in these long motor lead length situations. This option is installed on the output power side of the Drive, between the output contactor and the Drive.

Option L - Serial Communication, Echelon LonWorks: An isolated RS-422/485 circuit board provides LonTalk protocol for network communication to a BAS. This option plugs into the CN2 connection on the Drive control circuit board.

Option M - 4 to 20 mA Output: Provides two programmable 0 to 10 VDC analog outputs or two programmable 4 to 20 mA analog outputs.

Option N

of voltage distortion and electrical noise. This passive wye-delta capacitve filter is intended for installation on the VFD input in order to protect other sensitive electronic loads, it provides attenuation of conducted RFI and EMI.

Option P - Pressure to Electrical Transducer: This transducer is employed when converting a pneumatic signal to an electrical signal for use as the Drive speed command input. The need for this option comes up on retrofit applications when the pneumatic signal that formerly controlled the pneumatic actuator on Inlet Guide Vanes (IGV), for example, is now to be used to control the fan speed via the Drive. This option is wired to Drive terminals +V, A2 and AC, parameters H3-10 and H3-11 are used for final field calibration of this input if there is jobsite variation from the typical 3 to 15 PSIG pneumatic signal input range.

- Input Capacitive Network Radio Frequency Interference Filter: Electronic equipment can be sensitive to low levels

Physical Installation 1 - 9

Option R - 3% Input Line Reactor: Employed on the input side of the Drive for Total Harmonic Distortion (THD) suppression. A line reactor also minimizes the potential for Drive input diode damage from line transients and reduces voltage peaks on the DC bus capacitors. This option is installed on the input power side of the Drive, between the input contactor and the Drive.

Option S - Speed Potentiometer: A door mounted single turn potentiometer for manual control of Drive output and motor speed. This option is wired to Drive terminals +V, A1 and AC and is used as the local speed command input to the Drive instead of the keypad up and down arrows. Parameters for use of this option in conjunction with other input signals are detailed in Table 5.2.

Option W - Engraved Plastic Nameplate: An enclosure identification nameplate to carry the controlled equipment “tag number”.

Option X - 3% DC Bus Reactor: Attenuates harmonic distortion by limiting the rate of rise of the input current. The bus reactor is wired to the Drive (+1) and (+2) DC bus terminals to provide the equivalent impedance of a 3% input reactor. This option is only used on the low end of the horsepower range where DC bus reactors are not a standard Drive component (25 HP and below @ 208 VAC, 25 HP and below @ 240 VAC, and 30 HP and below @ 480 VAC.)

Option Z - 5% DC Bus Reactor: Attenuates harmonic distortion by limiting the rate of rise of the input current. The bus reactor is wired to the Drive (+) and (-) DC bus terminals to provide the equivalent impedance of a 5% input reactor. This option is only used on the low end of the horsepower range where DC bus reactors are not a standard Drive component (25 HP and below @ 208 VAC, 25 HP and below @ 240 VAC, and 30 HP and below @ 480 VAC.)

Physical Installation 1 - 10

Bypass Component Descriptions

Keypad

MCP

Disconnect

Indicating Lights

Selector Switches

Operator

 Bypass Unit Front Control Panel

The external appearance, component names, and terminal arrangement of the Bypass unit is shown in Figures 1.4 through 1.8.

Fig 1.4 E7 Bypass Unit Appearance

 Keypad Operator

In a Bypass unit the keypad operator is mounted flush with the hinged door of the enclosure. The addition of a HAND/ OFF/AUTO selector switch for the Bypass logic circuit makes the Hand, Off and Auto keys on the standard Drive keypad

operator redundant. In this Bypass configuration the keypad Hand, Off and Auto keys are disabled in the Drive firmware and a mask (membrane) is placed over the keypad operator to cover these keys, avoiding the potential for confusion. The membrane over the Drive keypad is order a separate keypad, part number CDR001115).

non-removable on these Bypass units (In order to use the keypad copy function on a Bypass unit -

 Indicating Lights

On the enclosure door just below the digital operator are six 22 mm, 24 VAC LED indicating lights for: “Control Power”, “Drive Run”, “Bypass Run”, “Motor OL/Safeties Fault “Drive Fault” and “Smoke Purge”. LED type indicating lights are pro vided to improve the reliability well beyond that of incandescent bulbs. LED’s have a MTBF of 100K hours, eliminating any need for “push to test” type pilot lights.

Physical Installation 1 - 11

-

 HAND/OFF/AUTO Selector Switch

CAUTION

Only qualified service personnel should use the defeater feature.

A three position rotary switch employed to control the source of the motor start and speed commands in either the Drive or Bypass operating modes.

Hand Position – Drive Mode: The Drive input and output contactors are energized and the Drive is given a run command. Operation is via the local speed input from the keypad or optional speed potentiometer.

Hand Position – Bypass Mode:

line.

Off Position: No power is applied to the Bypass circuit. The Drive input and output contactors are energized and the Drive is stopped (run command removed). The Off position takes precedence over a serial communication run command.

Auto Position – Drive Mode: The Drive input and output contactors are energized. The Drive is enabled to receive a run command contact closure and speed input analog signal from a Building Automation System (BAS).

Auto Position – Bypass Mode: The motor full speed across-the-line run/stop is controlled by a BAS contact closure, energizing the Bypass contactor.

The H/O/A switch must be in the AUTO position if serial communication is to be used for Drive run, stop and speed control.

The Bypass contactor is energized causing the motor to run at full speed directly across-the-

 DRIVE/BYPASS Selector Switch

A two position rotary switch selecting motor operation from the Drive or directly across-the-line. When transferring from Drive operation to Bypass operation, the logic circuit will require the Bypass unit to stop the motor before completing the transfer to full speed across-the-line operation.

 NORMAL/TEST Selector Switch

A two position rotary switch, test position is used to energize the Drive input contactor while operating in the Bypass mode (via the HAND or AUTO switch position). In Drive mode switching from NORMAL to TEST position will remove the power from the Drive and the motor will stop. In Bypass mode the test position powers the Drive for programming or other “tests” while keeping it isolated from the motor.

 MCP Motor Circuit Protector Circuit Breaker/Disconnect

Electrically located on the input power side of the Bypass unit, the MCP adjustable, instantaneous trip circuit breaker provides protection from short circuits for the motor power cables. The Bypass three phase input power connection is made to the input terminals of the MCP. The door mounted rotary operating mechanism is a convenient means of disconnecting the Bypass unit from line power for equipment maintenance. The MCP must be in the OFF position in order to open the enclosure door. Service and troubleshooting personnel are provided with a means to defeat this door interlock. The rotary handle provides trip indication and can be padlocked in the OFF position.

Defeater

Fig 1.5 MCP Handle Positions – RESET/LOCK, OFF, TRIP, ON Shown in the “ON” position

Physical Installation 1 - 12

 Internal Bypass Panel

Fig 1.6 MCP Handle Positions – Shown OFF, With Padlock

Digital Operator

PCB A3

Customer Wiring

Terminal Strip (TB1)

PCB A2

Drive

Line

Connections

Motor Circuit

Protector

Load

Connections

Overload

Relay

Control Power

Transformer

Fig 1.7 Internal Bypass Panel

Input

Contactor

(K1)

Physical Installation 1 - 13

Bypass

Contactor

(K3)

Output

Contactor

(K2)

TB1 Label Defining Customer Control Circuit Connection Points

Fig 1.8 Control Terminal Strip

TB1 with Terminal Numbers Printed on the PCB

Slide Switches for switch selectable functions (Auto Transfer, Remote Transfer and Smoke Purge) are behind this ribbon cable connector. See Fig. 1.9 for details.

 Contactors

The Bypass is a “3 contactor Bypass” circuit employing IEC rated contactors in an electrically interlocked arrangement to allow mutually exclusive operation in Drive or Bypass modes. To minimize enclosure space requirements, they are mounted in a 3 contactor assembly. The control logic and “soft start” characteristic of the Drive limit the Drive input and output contactors to motor FLA current or less. For this reason, the Drive input and output contactors have lower current ratings than the Bypass contactor. The Bypass contactor is exposed to motor inrush current (LRA) when starting the motor across-the-line and therefore requires a higher current rating.

 OverLoad Relay

The OverLoad Relay (OLR) is mounted to the contactor assembly or back panel (depending on rating), just above the Bypass contactor (see Figure 1.7). Electrically on the output power side of the Bypass unit, the adjustable thermal OLR provides overload protection for the motor in both the Drive and Bypass operating modes. The Bypass three phase output power connection to the motor is made to the output terminals of the overload relay. The OLR is set up in the factory to be a manual reset device, requiring operator attention if an overload trip-out is experienced.

 Control Power Transformer

A Control Power Transformer (CPT) is provided to power the Bypass 120 VAC control circuit. The VA capacity is determined by the control circuit and optional functions specified for the unit. 100 VA of extra transformer capacity for customer control logic is provided in the standard unit and additional capacity is available as an “engineered” or “custom” option. The CPT primary is fused in both legs, the secondary is fused when required by NEC (above 350 VA). One side of the transformer secondary is grounded to the Bypass enclosure.

 Relay and Selector Switch Logic

Operating elements such as indicating lights and selector switches, as well as the control relay logic, have been incorporated into a PCB assembly to eliminate the potential for loose wires after shipment and to control factory costs. The operating elements are located on PCB A3, mounted to the inside of the enclosure door and ribbon cable connected to the control relay logic PCB A2. The control relay logic PCB A2 is mounted to the left hand side of the enclosure and contains the control circuit field wiring terminal strip (TB1).

 Drive/Bypass logic interlocks explained

The Bypass 120 VAC relay logic circuit is interconnected with the Drive multi-function digital input terminals and multifunction digital output terminals to allow a single customer interface to control both Drive and Bypass circuits. Some of these terminals are therefore not available for other field use.

Physical Installation 1 - 14

Drive Multi-function input terminals:

Terminal S1 receives the Drive run command from the 120 VAC relay logic circuit.

Terminal S3 receives the Drive run enable signal from the 120 VAC relay logic circuit.

Terminal S5 receives the Drive local/remote command from the 120 VAC relay logic circuit via the HAND/OFF/

AUTO and NORMAL/TEST selector switch.

Drive Multi-function output terminals:

Terminals M1 and M2 are a normally open Drive run relay contact used to communicate the Drive operational mode to the 120 VAC relay logic circuit.

Terminals M3 and M4 are a normally open serial com. run status relay contact used to communicate the Drive operational state to the 120 VAC relay logic circuit.

Terminals MA and MC are a normally open Drive fault relay contact used to communicate the Drive fault status to the 120 VAC relay logic circuit.

 PCB Jumpers explained

The S101 “Berg pin” jumper on the control relay logic PCB A2 is not for field use. It is employed only in the factory to enable the 2 motor “OR” configured option. It is removed when this option is present and must be in place when this option is not part of the unit specification (See Figure 1.9). The S102 “Berg pin” jumper on the control relay logic PCB A2 is not for field use. It is employed only in the factory to enable the Run/Stop Push Button (3 wire control) configured option. It is removed when this option is present and must be in place when this option is not part of the unit specification (See Figure 1.9). TB1 terminals 1 and 2 are jumpered (J1) as the unit is shipped from the factory. If a customer supplied series circuit of NC safety devices is to be used, this jumper is removed and the safety circuit connected between terminals 1 and 2. TB1 terminals 5 and 6 are jumpered (J2) as the unit is shipped from the factory. If a customer supplied Drive NO enabling contacts are to be used (such as a damper end switch or occupied cycle timer), this jumper is removed and the enabling contacts wired between terminals 5 and 6.

Physical Installation 1 - 15

 Switch Selectable Functions:

Slide Switches

PCB Jumpers

The slide switches used to select these functions are located on the relay controller Printed Circuit Board (PCB) A2 (See Figure 1.9). The factory default is for these functions to be de-selected.

Smoke Purge: When enabled (switch S105) this function allows a contact closure, between terminals 17 and 18 of TB1, to transfer motor operation to bypass for a maximum capacity smoke control function. When in smoke purge mode, during emergency fire/smoke situations, the motor overloads and safety interlock circuit are overridden to shift the priority to protecting people rather than equipment.

Auto Transfer to Bypass: If enabled (switch S103), the E7 Bypass unit will automatically transfer the motor operation from Drive to Bypass in the event of a Drive fault. When the Drive fault condition has cleared, this function is reset by moving the circuit breaker to the OFF position, waiting for the keypad to go blank, then switching back to the DRIVE position.

Before selecting this function in fan applications, care must be taken to ensure that the duct-work is

IMPORTANT

Remote Transfer to Bypass: When selected (switch S104) this function allows a contact closure from a BAS, between terminals 25 and 26 of TB1, to transfer motor operation from Drive mode to Bypass mode. This remote tranfer to Bypass function overrides the DRIVE/BYPASS manual switch.

designed to handle the pressure resulting from full speed operation with the VAV terminal unit dampers at minimum position or closed.

Fig 1.9 Printed Circuit Board A2

Physical Installation 1 - 16

Exterior and Mounting Dimensions

BYPASS RUN

CONTROL

POWER ON

E7

DRIVE

RUN

MOTOR OL/

SAFETIES FAULT

SMOKE PURGE

DRIVE FAULT

TEST

NORMAL

BYPASS

DRIVE

HAND

OFF

AUTO

RUN

STOP

FWD

REV

SEQ

REF

ALARM

AUTO

Monitor

MENU

ESC

DATA

ENTER

RESET

32.00

(812.8)

0.75 (19)

13.66 (347)

2.37

(60.2)

19.06

(484.1)

Ø0.50(4PLS) (Ø12.7) 

1.29

(32.8)

16.50

(419.1)

2.50

(63.5)

29.48

(748.8)

RECOMMENDED CONDUIT ENTRANCE AREA TOP, BOTTOM  AND SIDE

MIN. 6

(152.4)

MIN. 6 (152.4)

DIMENSIONS IN INCHES (MM), FOR REFERENCE ONLY

MIN. 1.50

(3.81)

TOP VIEW

 Bypass Unit 30 HP and Below, 480 VAC; 15 HP and Below, 208V/240V

Fig 1.10 Enclosure 1 for up to 30HP, 480 VAC

NEMA 1 and NEMA 12 FVFF Enclosures

Physical Installation 1 - 17

 Bypass Unit 30 HP and Below, 480 VAC; 15 HP and Below, 208V/240V

E7

BYPASS

NORMAL

TEST

SAFETIES FAULT

MOTOR OL/

DRIVE

PURGE

SMOKE

AUTO

HAND

OFF

FAULT

DRIVE

BYPASS

RUN

POWER ON

CONTROL

DRIVE RUN

RUN

STOP

FWD

REV

SEQ

REF

ALARM

AUTO

Monitor

MENU

ESC

DATA ENTER

RESET

32.00

(812.8)

0.75

(19)

0.75

(19)

Ø0.50(4PLS)

(Ø12.7)

13.50

(342.9)

16.50

(419.1)

1.29

(32.8)

5.37

(136.4)

19.06

(484.1)

12.60

(317.5)

44.60

(1132.8)

29.48

(748.8)

13.87 (3.81)

43.35

(1,101.2)

13.66 (347)

2.37

(60.2)

2.50

(63.5)

RECOMMENDED

CONDUIT ENTRANCE AREA TOP, BOTTOM  AND SIDE

MIN. 6

(152.4)

MIN. 1.50

(3.81)

DIMENSIONS IN INCHES (MM), FOR REFERENCE ONLY

9.1 3.375

(231.1)

(85.7)

TOP VIEW

With Add-On Box

Fig 1.11 Enclosure 1, with Options Extension, for up to 30HP, 480 VAC

NEMA 1 and NEMA 12 FVFF Enclosures

Physical Installation 1 - 18

 Bypass Unit 40 HP to 100 HP, 480 VAC; 20 HP to 40 HP, 208V/240V

E7

AUTO

HAND

DRIVE

TEST

NORMAL

BYPASS

PURGE

SMOKE

CONTROL POWER ON

SAFETIES FAULT

MOTOR OL/

BYPASS

RUN

OFF

FAULT

DRIVE

RUN

DRIVE

RUN

STOP

FWD

REV

SEQ

REF

ALARM

AUTO

Monitor

MENU

ESC

DATA ENTER

RESET

43.00

(1092.2)

14.66

(372.4)

3.50

(88.9)

1.32

(33.5)

DIMENSIONS IN INCHES (MM), FOR REFERENCE ONLY

23.00

(584.2)

23.00

(584.2)

40.48

(1028.2)

RECOMMENDED CONDUIT ENTRANCE AREA TOP, BOTTOM  AND SIDE

Ø0.50 (4PLS) (Ø12.7) 

MIN. 6 (152.4)

0.75 (19)

2.37

(60.2)

MIN. 1.50

(3.81)

TOP VIEW

Fig 1.12 Enclosure 2, for 40HP to 100HP, 480 VAC

NEMA 1 and NEMA 12 FVFF Enclosures

Physical Installation 1 - 19

 Bypass Unit 40 HP to 100 HP, 480 VAC; 20 HP to 40 HP, 208V/240V

E7

BYPASS

NORMAL

TEST

SAFETIES FAULT

MOTOR OL/

DRIVE

PURGE

SMOKE

AUTO

HAND

OFF

FAULT

DRIVE

BYPASS RUN

POWER ON

CONTROL

DRIVE RUN

RUN

STOP

FWD

REV

SEQ

REF

ALARM

AUTO

Monitor

MENU

ESC

DATA

ENTER

RESET



RECOMMENDED CONDUIT ENTRANCE AREA TOP, BOTTOM  AND SIDE

TOP VIEW

40.48

(1028.2)

43.00

(1092.2)

56.60

(1437.6)

55.35

(1431.3)

Ø0.50 (4PLS) (Ø12.7) 

MIN. 6 (152.4)

2.37

(60.2)

14.66

(372.4)

18.00

(457.2)

3.50

(88.9)

7.44

(189)

14.87

(377.7)

0.75 (19)

13.60

(345.4)

0.75 (19)

1.32

(33.5)

25.63 (651)

23.00

(584.2)

MIN. 1.50

(3.81)

DIMENSIONS IN INCHES (MM), FOR REFERENCE ONLY

9.1 4.375

(231.1)

(111.1)

With Add-On Box

Fig 1.13 Enclosure 2, with Options Extension, for up to 40HP to 75HP, 480 VAC

NEMA 1 and NEMA 12 FVFF Enclosures

Physical Installation 1 - 20

 Bypass Unit 125 HP to 250 HP, 480 VAC; 50 HP to 125 HP, 208V

1.70

(43.2)

15.00 (381)



CIRCUIT BREAKER HANDLE LOCATION

1.00

(25.4)

1.00

(25.4)

EYEBOLTS ARE

MIN. 10.00 (254)

REMOVABLE

42.00

(1066.8)

.62

(15.8)

(4 PLS)

1.38

(35.1)

3.00

(76.2)

13.00

(330.2)

MIN. SPACE REQ'D TO OPEN DOOR

20.00 (508)

THIS DIMENSION IS 23.50 IF A MA FRAME CIRCUIT BREAKER IS USED

35.50

(901.7)

HEATSINK

DRIVE

84.00

(2133.6)



37.75

(958.8)

35.00 (889)

FOR BOTTOM CONDUIT ENTRY, DUE TO POSSIBLE INTERFERENCE WITH OPTIONAL EQUIPMENT MOUNTED INTERNALLY, VERIFY SPECIFIC REQUIREMENTS WITH THE FACTORY.

3.00

(76.2)

10.00 (254)

COVER PLATE

5.00

(127)

12.00

(304.8)

TOP VIEW

DIMENSIONS IN INCHES (MM), FOR REFERENCE ONLY

RECOMMENDED CONDUIT ENTRANCE AREA TOP AND BOTTOM  

Fig 1.14 Enclosure F1, for 125HP to 250HP, 480 VAC

NEMA 1 and NEMA FVFF 12 Enclosures

Physical Installation 1 - 21

 Dimensions and Weights

Rated

Input

Voltage

208V

240V

230V

Continuous

Output

Current (Amps)

Nominal

(1)

HP

Bypass

_ _ _

2.4 1/2 D002

3.5 3/4 D003

4.6 1 D004

7.5 2 D007

10.6 3 D010

16.7 5 D016

24.2 7.5 D024

30.8 10 D030

46.2 15 D046

59.4 20 D059

74.8 25 D074

88 30 D088

114 40 D114

143 50 D143

169 60 D169

211 75 D211

273 100 D273 1214

343 125 D343 1330

396 150 D396 1423

2.2 1/2 A002

3.2 3/4 A003

4.0 1 A004

6.8 2 A006

9.6 3 A009

15.2 5 A015

22 7.5 A022

28 10 A028

42 15 A042

54 20 A054

68 25 A068

80 30 A080

104 40 A104

130 50 A130

154 60 A154

192 75 A192

248 100 A248 1214

312 125 A312 1330

360 150 A360 1376

Table 1.6 Bypass Dimensions and Weights

NEMA 1 and NEMA 12

Dimensions inches (mm)

_

Height

(2)

32.00

(812.8)

43.00

(1092.2)

84.00

(2133.6)

32.00

(812.8)

43.00

(1092.2)

84.00

(2133.6)

Width Depth

19.06

(484.1)

25.63

(651.0)

37.75

(958.9)

19.06

(484.1)

25.63

(651.0)

37.75

(958.9)

16.03

(407.2)

17.03

(432.6)

21.7

(551.2)

16.03

(407.2)

17.03

(432.6)

21.7

(551.2)

Mounting

Dimensions

30.5 x 16.5 (774.7) x

41.5 x 23.0

(1054.1 x

Floor Mount

35.0 x 13.0

(889 x 330.0)

30.5 x 16.5 (774.7) x

41.5 x 23.0

(1054.1 x

Floor Mount

35.0 x 13.0

(889 x 330.0)

Wall

H x W

(419.1)

584.2)

W x D

(419.1)

584.2)

W x D

Drawing

Drawing Number

Number

(w/ Add-on

Box)

S-5512 S-5513

S-5514 S-5515

S-5525 N/A

S-5512 S-5513

S-5514 S-5515

S-5525 N/A

Weight

(4)

(3)

(lbs)

115

127

208

221

847

943

115

127

208

221

847

943

(1) Horsepower rating is based on standard NEMA B 4-pole motor design

(2) Height dimension includes the mounting screw tabs.

(3) Add-on box adds 13.6 inches to Height dimension and 91 lbs. Max. to total

(4) Data represents the total weight of the Drive with all possible standard options, not shipping weight.

Physical Installation 1 - 22

Rated

Input

Voltage

480V

Table 1.6 Bypass Dimensions and Weights (Continued)

Continuous

Output

Current (Amps)

Nominal

(1)

HP

Bypass

_ _ _

NEMA 1 and NEMA 12

Dimensions inches (mm)

_

Height

(2)

Width Depth

Wall

Mounting

Dimensions

H x W

Drawing

Number

1.1 1/2 B001

1.6 3/4

2.1 1 B002

3.4 2 B003

4.8 3 B004

7.6 5 B007

11 7.5 B011

32.00

(812.8)

19.06

(484.1)

16.03

(407.2)

30.5 x 16.5 (774.7) x

(419.1)

S-5512 S-5513

14 10 B014

21 15 B021

27 20 B027

40 30 B040

52 40 B052

65 50 B065

77 60 B077

96 75 B096

43.00

(1092.2)

25.63

(651.0)

17.03

(432.6)

41.5 x 23.0 (1054.1 x

584.2)

S-5514 S-5515

124 100 B124

156 125 B156

180 150 B180

240 200 B240 1240

84.00

(2133.6)

37.75

(958.9)

21.7

(551.2)

302 250 B302 1352

Floor Mount

W x D

35.0 x 13.0

(889 x 330.0)

S-5525 N/A

Drawing

Number

(w/ Add-on

Box)

Weight

(4)

(3)

(lbs)

115

127

14234 25 B034

203

232

241

943

(1) Horsepower rating is based on standard NEMA B 4-pole motor design

(2) Height dimension includes the mounting screw tabs.

(3) Add-on box adds 13.6 inches to Height dimension and 91 lbs. Max. to total

(4) Data represents the total weight of the drive with all possible standard options, not shipping weight.

Physical Installation 1 - 23

Checking and Controlling Installation Site

Install the Bypass unit as described below and maintain the specified operating conditions.

 Installation Site

Location of the Bypass unit is important to achieving proper performance and design operating life. Install the Bypass unit as close as possible to the motor. The NEMA type 1 & 12 enclosed units should be installed in an area where it will be protected from: Direct sunlight, rain or moisture, corrosive gasses or liquids, vibration and dust or metallic particles. The ambient air available for cooling the unit should be 104° F (40° C) or less.

Wall mount units require a minimum 6 inch clearance above and below, to achieve adequate heat sink cooling. When the addon box is employed for optional equipment, no additional bottom clearance is required.

No side clearance is required for cooling because the cooling air flow is in and out of the enclosure door at the front surface of the unit (do not block the air flow louvers). Clearance for the opening swing of the enclosure door should be considered when placing these units. The door is hinged on the left and must open through at least a 90 degree swing with a 120 to 180 degree swing being preferable (minimum clearance is 1.5”).

Floor mounted units require a minimum clearance of 10 inches above the enclosure to allow for air flow over the heat sink fins.

Install the Bypass unit under the following conditions in UL pollution degree 1 & 2 environments. This excludes wet locations where surfaces may become conductive due to moisture and contaminant loading.

Table 1.7 Installation Site

Type Ambient Operating Temperature Humidity Plenum Rated

NEMA Type 1 & 12 14 to 104°F (-10-to-+ 40°C) 95%-RH-or-less-(no-condensation) Ye s

Observe the following precautions when mounting the Bypass unit.

• Install the Bypass unit in a clean location that is free from oil mist and dust.

• Install the Bypass unit in an environment where metal shavings, oil, water, or other foreign matter will not get into the

Bypass enclosure.

• Install the Bypass unit in a location free from radioactive materials.

• Install the Bypass unit in a location free from harmful gasses and liquids.

• Install the Bypass unit in a location without excessive vibration.

• Install the Bypass unit in a location free from chlorides.

• Install the Bypass unit in a location not in direct sunlight.

• Install the Bypass unit on a non-combustible surface.

Physical Installation 1 - 24

 Controlling the Ambient Temperature

To enhance the reliability of operation, the Bypass unit should be installed in an environment free from extreme temperature variations. Do not store this Technical Manual or any other documents on the top surface of the Bypass unit, they may cover the heat sink cooling air discharge opening and cause the unit to overheat.

If the Bypass unit is installed in an enclosure (such as an electrical control box in an air handling unit), use a cooling fan or air conditioner to maintain the Bypass unit internal air temperature below 113°F (45°C).

 Protecting the Bypass Unit from Foreign Matter

During Bypass unit installation and project construction, it is possible to have foreign matter, such as metal shavings or wire clippings, fall inside the Bypass unit. To prevent foreign matter from falling into the Bypass unit, place a temporary cover over the unit.

Always remove the temporary cover from the Bypass unit before start-up. Otherwise, ventilation will be reduced, causing the Bypass unit to overheat.

Physical Installation 1 - 25

 Installation Orientation and Enclosure Considerations

Install the Bypass unit vertically so as not to reduce the cooling efficiency. When installing the Bypass unit, always provide the recommended installation clearances to allow normal heat dissipation.

When preparing to mount the unit, lift it by the base (or lifting rings when provided), never by the enclosure door. For effective cooling and proper maintenance, the wall mounted units must be installed on a flat non-flammable vertical surface using four mounting screws.

To mount units employing the add-on box, a hex head mounting screw and socket wrench will be required for the lower left mounting hole location. See Figure 1.15.

For all units, the MCP handle should be in the OFF position to open the enclosure door. The wall mount units have two full turn fasteners, CCW to open, that require a flat blade screwdriver to open the enclosure door.

Mounting Holes

Fig 1.15 Add-on Options Box

Physical Installation 1 - 26

Chapter 2

Electrical Installation

This chapter describes wiring and the electrical installation process for a Drive and

Bypass unit.

Termination Configuration - Power Wiring ..................................... 2

Field Wiring, Pressure Wire Connector, Wire Type, Range

and Tightnening Torque Specifications ..................................... 3

Cable Length between Drive and Motor .................................... 4

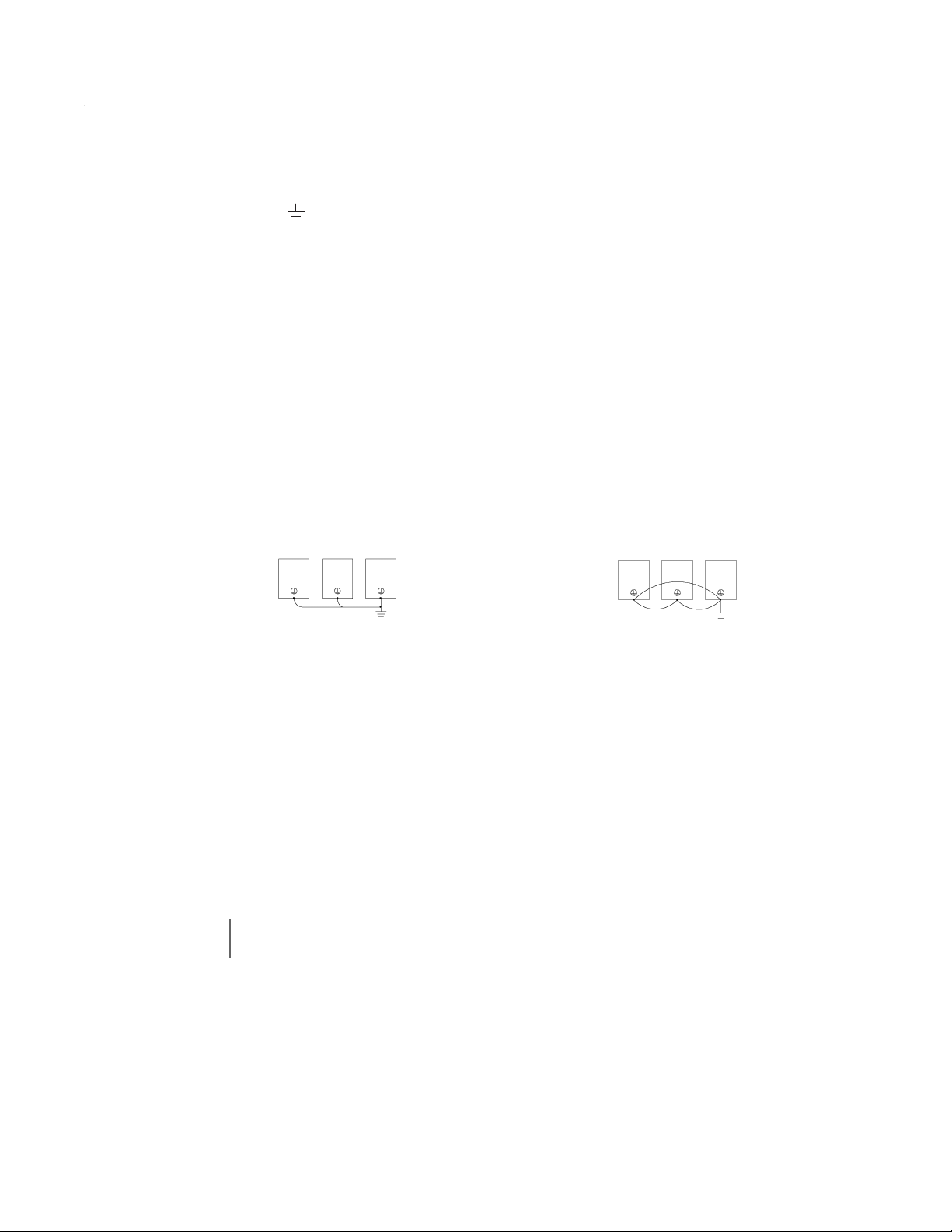

Grounding ................................................................................. 5

Wire Routing ............................................................................. 6

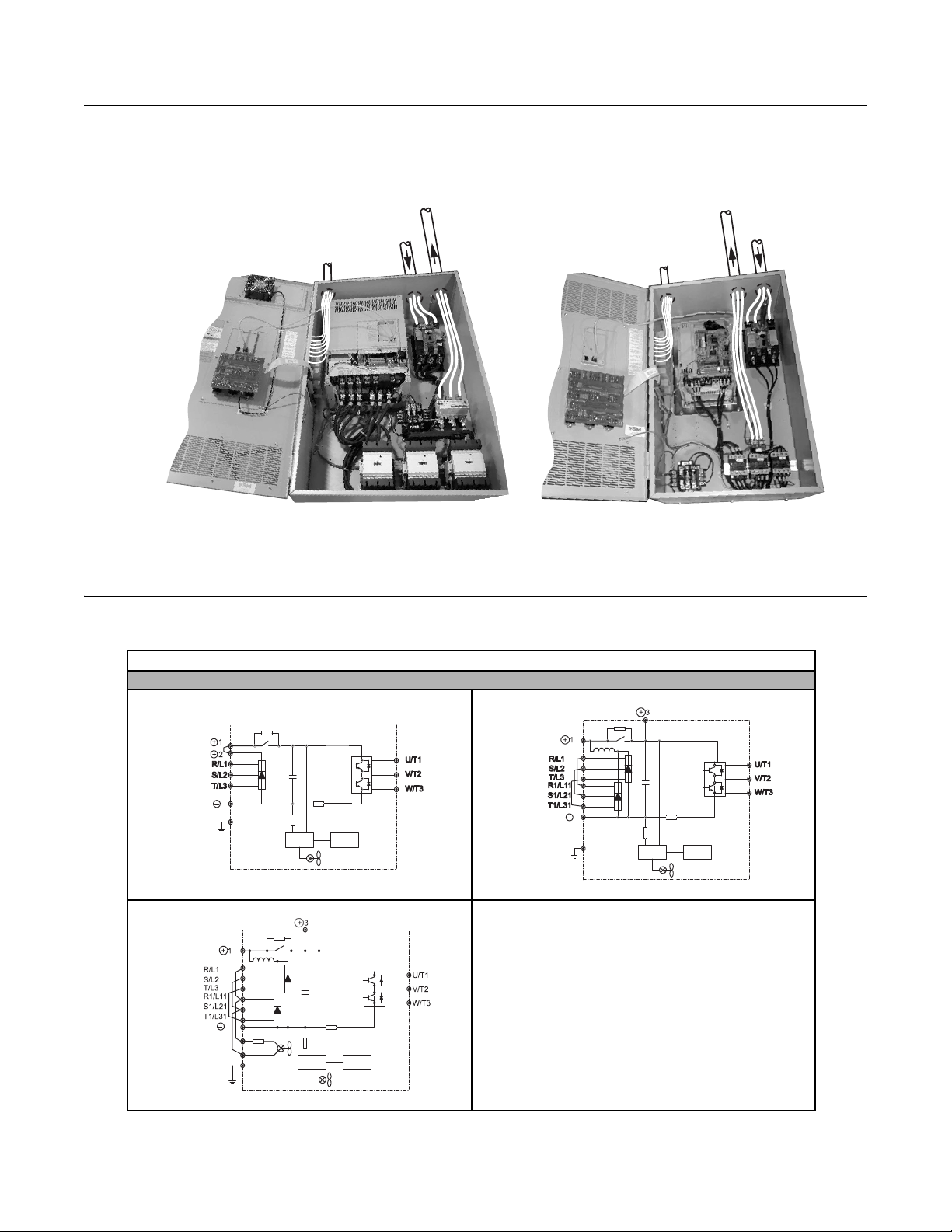

Drive Main Circuit Configurations 208-240 VAC ....................... 7

Drive Main Circuit Configurations 480 VAC .............................. 8

Control Wiring ................................................................................ 9

Bypass Field Control Wire Landing ........................................... 9

Annunciation Contacts .............................................................. 9

Damper Control Circuit ............................................................ 10

Building Automation system Run/Stop circuit: ......................... 10

Safety Interlock Circuit: ........................................................... 10

Building Automation System Interlock Circuit

(Drive and Bypass enable input): ............................................ 10

Switch Selectable Functions: .................................................. 10

Bypass Relay Controller PCB ................................................. 11

Drive Speed Control Circuit Wiring .......................................... 12

Drive Terminal Block Configuration ......................................... 13

Wiring Checks ......................................................................... 14

Control Circuit Wiring Precautions .......................................... 14

Bypass Control Circuit Terminal Functions ............................. 15

DIP Switch S1 ......................................................................... 16

Shunt Connector CN15 ........................................................... 17

Field Wiring Diagram ............................................................... 18

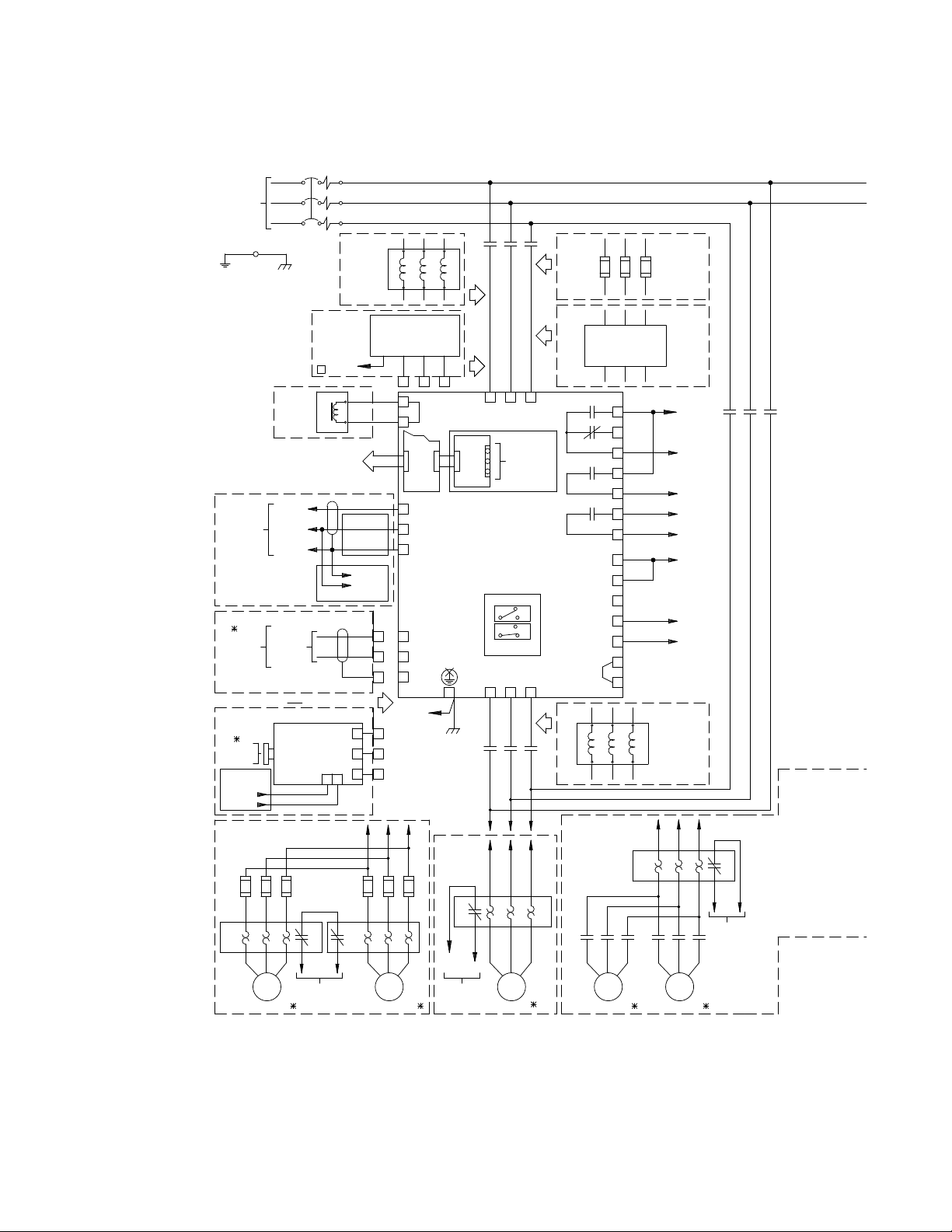

Wiring Diagram ............................................................................ 20

Logic Diagram .............................................................................. 22

Electrical Installation 2 - 1

Termination Configuration - Power Wiring

Overload Relay

The Circuit Breaker/MCP is located in the upper right hand side of the Bypass unit. The Bypass three phase input power connection is made to the input terminals of the MCP. See Figure 2.1 and 2.2 for representative examples.

Motor

Input Power

Ground Lug

Fig 2.1 Typical Input Power Connection, Fig. 2.2 Typical Input and Output Power

Wall Mount Unit Connections, Floor Mount Unit

The OverLoad Relay (OLR) is mounted to the contactor assembly or back panel (depending on rating), just above the bypass contactor. The Bypass three phase output power connection to the motor is made to the output terminals of the OverLoad Relay. See Figure 2.3 for representative examples.

Motor Connections

Connections

Ground Lug

Motor Connections

Input Power

Fig 2.3 Typical Output Power Connection, Wall Mount Units

Electrical Installation 2 - 2

 Field Wiring, Pressure Wire Connector, Wire Type, Range and Tightnening

208V 480V

MFG. PART

NUMBER

WIRE SIZE

RANGE

(AWG)

MFG. PART

NUMBER

MFG. PART

NUMBER

WIRE SIZE

RANGE

(AWG)

MFG.

PART

NUMBER

WIRE SIZE

RANGE

(AWG)

208V

CIRCUIT BREAKER

BYPASS MODEL NO.

BASE NUMBER

_ _ _ _ -XXXX

BYPASS MODEL NO.

BASE NUMBER

_ _ _ _ -XXXX

WIRE SIZE

RANGE

(AWG)

GROUND LUG

FOR 0 TO 100 AMPS, USE 60 -75 C COPPER WIRE, AND ABOVE 100 AMPS, USE 75 C COPPER WIRE.

1204 - 2/0

3 x 500

STANDARD BYPASS OVERLOAD RELAY OR, WITH OPTION D A.C. CONTACTORSOR, WITH OPTION A OVERLOAD RELAYS

TIGHTENING

TORQUE

(LB.-IN.)

TIGHTENING

TORQUE

(LB.-IN.)

CUSTOMER A.C. LINE WIRING

CUSTOMER EARTH GROUND WIRING

CUSTOMER A.C. MOTOR WIRING

240V

WIRE SIZE

RANGE

(AWG)

480V240V

BYPASS MODEL NO.

BASE NUMBER

_ _ _ _ -XXXX

240V 480V208V

D002

D003

D004

D007

D010

D016

D024

D030

D046

D059

D074

D088

D114

D143

D169

D211

D273

D343

D396

A002

A003

A004

A006

A009

A015

A022

A028

A042

A054

A068

A080

A104

A130

A154

A192

A248

A312

A360

B001

B002

B003

B004

B007

B011

B014

B021

B027

B034

B040

B052

B065

B077

B096

B124

B156

B180

B240

B302

B361

B414

B477

B515

B590

14 - 10 35

840

6 - 4 45

D002

D003

D004

D007

D010

D016

D024

D030

D046

D059

D074

D088

D114

D143

D169

D211

D273

D343

D396

A002

A003

A004

A006

A009

A015

A022

A028

A042

A054

A068

A080

A104

A130

A154

A192

A248

A312

A360

B001

B002

B003

B004

B007

B011

B014

B021

B027

B034

B040

B052

B065

B077

B096

B124

B180

B240

B302

B361

B414

B477

B515

B590

B156

FAL36003

FAL36007

FAL36030

FAL36015

FAL36050

FAL36100

KAL36150

KAL36250

LAL36400

MAL36600

MAL36800

14 - 4

12 - 4

12 - 1/0

4 - 350 kcmil

35

80

250

TIGHTENING

TORQUE

(LB.-IN.)

TIGHTENING

TORQUE

(LB.-IN.)

TIGHTENING

TORQUE

(LB.-IN.)

1 x (1-600 kcmil)

(1-3) x (3/0-500 kcmil)

250

375

2 x (1-250 kcmil) 2 x 375

D002

D003

D004

D007

D010

D016

D024

D030

D046

D059

D074

D088

A002

A003

A004

A006

A009

A015

A022

A028

A042

A054

A068

A080

B001

B002

B003

B004

B007

B011

B014

B021

B027

B034

B040

B052

B065

B077

B096

D114

D143

D169

D211

D273

D343

D396

*

The fourth underscore position in these model numbers codes for the enclosure type: V = NEMA1, B = NEMA12 FVFF.

A104

A130

A154

A192

A248

A312

A360

B124

B156

B180

B240

B302

B361

B414

B477

B515

B590

LR2 D13

LR2 D15

LR2 D25

LR2 D35

18 - 10

14 - 6

10 - 1/0

15

75

LR2 D35

LR2 D3563

LR9 F5567

LR9 F5569

LR9 F5571

LR9 F7575

LR9 F7579

10 - 1/0

6 - 3/0

10 - 1/0

6 - 300 kcmil

6 - 3/0

2 x (6-300 kcmil)

75

100

200

275

2 x 500

2 x 5002 x (6-300 kcmil)

LR9 F7579

LR9 F7581

2 x (6-300 kcmil)

3 x (6-300 kcmil)

2 x 500

LR2 D13

LR2 D15

18 - 10

15

LR2 D25

LR2 D35

14 - 6

10 - 1/0

15

75

LR2 D35

LR9 F5567

LR9 F5569

LR9 F5571

LR9 F7575

10 - 1/0

6 - 3/0

6 - 300 kcmil

2 x (6-300 kcmil)

6 - 300 kcmil

75

200

275

2 x 500

LC1 D18

LC1 D25

LC1 D32

LC1 D40

LC1 D50

LC1 D65

LC1 D80

LC1 D115

LC1 D150

LC1 F185

LC1 F265

LC1 F330

LC1 F400

LC1 F500

LC1 F630

LC1 D09

18 - 10

18 - 8

14 - 6

10 - 3

10 - 2

8 - 250 kcmil

6 - 3/0

6 - 300 kcmil

4 - 500 kcmil

2 x (2-600 kcmil)

3 x (2-600 kcmil)

7

15

20

45

100

200

275

500

2 x 500

3 x 500

LR2 D35

10 - 1/0 75

LR2 D15

18 - 10 15

LR2 D15

18 - 10 15

LR2 D35

10 - 1/0 75

LR2 D25

14 - 6 15

LR2 D35

10 - 1/0 75

LR2 D35

10 - 1/0 75

LR9 F5569

6 - 3/0 200

LR9 F7579

2 x (6-300 kcmil) 2 x 500

LR9 F5571

6 - 300 kcmil 275

LR9 F7581

3 x (6-300 kcmil) 3 x 500

LR9 F7575

2 x (6-300 kcmil) 2 x 500

4 - 350 kcmil

(1-3) x 300

CURRENT

RATING (AMPS)

3

7

15

30

50

100

150

250

400

600

800

* *

*

Torque Specifications

IMPORTANT

WARNING

Determine the wire size for the main circuit so that line voltage drop is within 2% of the rated voltage. Line voltage drop is calculated as follows:

Line voltage drop(V) = √3 x wire resistance (Ω/km) x wire length (m) x current (A) x 10

Prior to removing any protective cover or wiring any part of the Drive, remove all power sources, including main input power and control circuit power. Wait a minimum of 5 minutes after power removal, before removing any cover. The charge lamp located within the Drive should be off prior to working inside. Even if the charge lamp is off, one must measure the AC input, output, and DC Bus potential to insure safe levels prior to resuming work. Failure to adhere to this warning may result in personal injury or death.

Electrical Installation 2 - 3

-3

 Cable Length between Drive and Motor

The Bypass unit should be installed as close as possible to the motor to minimize the length of load side power cable needed between the Drive and the motor. If the cable between the Drive and the motor is long, the high-frequency leakage current will increase, causing the Drive output current to increase as well. This may affect peripheral devices. To prevent this, reduce cable length, or if necessary, adjust the carrier frequency (set in C6-02) as shown in Table 2.1.

The line side power cables, load side power cables and the control wiring should all be run in a separate conduit. Careful attention to this recommended design practice will avoid many potential motor and Drive related problems.

Table 2.1 Motor Cable Length vs. Carrier Frequency (C6-02)

Motor Cable Length 164 ft. (50m) maximum 328 ft. (100m) maximum More than 328 ft.(100m)

Carrier Frequency 15kHz maximum 10kHz maximum 5kHz maximum

(See the limitations on carrier frequency, based on Drive capacity and model number in Appendix B).

Electrical Installation 2 - 4

 Grounding

NO

OK

NO

 Drive and Motor Ground Wire Landing

The Drive ground lug (terminal ) is connected to the enclosure. The enclosure ground lug must be connected to earth

ground. See Figures 2.1 and 2.2.

The Drive has a second ground lug to accept the motor ground lead. See Figure 2.9.

 Ground Wiring Precautions

Observe the following precautions when connecting the ground wire:

1. 208-240 VAC Drives should have a ground connection with resistance of less than 100 Ω..

2. 480 VAC Drives should have a ground connection with resistance of less than 10 Ω..

3. Do not share the ground wire with other devices, such as large-current electrical equipment.

4. Always use a ground wire that complies with technical standards on electrical equipment and minimize the length of the ground wire. Leakage current flows through the Drive. Therefore, if the distance between the ground rod and the ground terminal is too long, potential on the ground terminal of the Drive will become unstable.

5. When using more than one Drive, be careful not to loop the ground wire.

Fig 2.4 Ground Wiring Examples

For grounding connection to earth ground see Figures 2.1 and 2.2.

 Control Circuit Ground Terminals

The removable Drive control terminal card provides two ground terminals (marked TB3 and TB4) to accept the control wire shield connection. The control wire shield should be connected on this end only, the opposite end should be isolated with electrical tape.

IMPORTANT

Grounding of the Bypass enclosure and motor is required for proper system operation.

Electrical Installation 2 - 5

 Wire Routing

Control

circuit wiring

Control

circuit wiring

Input

power

Input

power

Motor

connection

Motor

connection

Power supply

Control circuits

{

1

Note

CIMR-_ _ _ 20P4 to 2018

(1/2 Hp to 25 Hp)

CIMR-_ _ _ 2037 to 2110 (50 Hp to 150 Hp)

Power supply

Control circuits

{

Notes 1 & 3

The following Figures indicate suggested wire entry and bending areas for representative wall mount enclosures.

Typical Enclosure 2 Typical Enclosure 2

Fig 2.5 Wall Mount Enclosures

 Drive Main Circuit Configurations 208-240 VAC

Table 2.2 Drive Main Circuit Configurations

208-240 VAC

Notes 1 & 3

CIMR-_ _ _ 2022 and 2030 (30 Hp to 40 Hp)

{

---

Power supply

Control circuits

Electrical Installation 2 - 6

 E7 Drive Main Circuit Configurations 480 VAC

Power supply

Control circuits

{

Note

1

CIMR-_ _ _ 4024 to 4055

(40 Hp to 100 Hp)

Power supply

Control circuits

{

Notes 1 & 3

Power supply

Control circuits

{

Notes 1 & 3

3

CIMR-_ _ _ 4075 to 4160 and CIMR-_ _ _ 4185 to 4300

(125 Hp to 500 Hp)

Table 2.3 Drive Main Circuit Configurations

480 VAC

CIMR-_ _ _ 40P4 to 4018

(1/2 Hp to 30 Hp)

---

Electrical Installation 2 - 7

Control Wiring

 Bypass Field Control Wire Landing

The Bypass field control wiring is terminated on the relay control PCB A2, Terminal block TB1. The terminal designations are labeled on the door, adjacent to PCB A2 (see Figure 2.6). Route the control wiring as shown in Figure 2.5.

TB1 terminals 1 and 2 are jumpered (J1) as the unit is shipped from the factory. If a customer supplied series circuit of NC safety devices is to be used, this jumper is removed and the safety circuit connected between terminals 1 and 2. TB1 terminals 5 and 6 are jumpered (J2) as the unit is shipped from the factory. If customer supplied Drive NO enabling contacts (open = Drive disabled, closed = Drive enabled) are to be used (such as a damper end switch or occupied cycle timer), this jumper is removed and the enabling contacts wired between terminals 5 and 6.

Fig 2.6 TB1 Control Terminal Locations, All Models

Electrical Installation 2 - 8

 Annunciation Contacts

Drive Fault

Motor OL/Customer

Safeties Fault

13 16

15

14

16

15

14

16

15

14

13

12

11

13

12

11

12

11

Power Off

Power on; no drive fault and no MOL/CS fault

Power on; drive fault and MOL/CS fault

Contacts for customer use are provided and wired to TB1 as follows for use as annunciators of Bypass unit operation. All are 1 amp at 120 VAC contacts.

Table 2.4 Annunciation Contacts

Function Type TB1 Terminals

Motor OL/Safeties Fault Form C 14-15-16

Bypass Run Form A 9-10

Drive Run Form A 7-8

Drive Fault Form C 11-12-13

The “Motor OL/Safeties Fault” and “Drive Fault” annunciation contacts sequence of operation is shown below:

Electrical Installation 2 - 9

 Damper Control Circuit

TB1 terminals 19 and 20 are provided to power a customer supplied 120 VAC relay, electric actuator or electro-pneumatic solenoid air valve employed to control a pneumatic damper actuator, typically for outdoor air intake damper interlock. The power rating of the connected device should be no more than 40 VA continuous and 70 VA inrush. An off command (from the H/O/A switch) or a safety device trip-out will immediately de-energize these terminals. At the same time the Drive will begin the ramp to stop process (in Drive mode with the default stopping method). In some air handling unit applications operation during the ramp to stop time with the dampers closed may be problematic. Over pressurization of ducts or trip-out on high DC bus voltage, due to overhauling of the load by other fans in the system, are possible outcomes. One solution is to reprogram the stopping method in parameter b1-03 to “coast to stop” eliminating the potential for both of these problems.

 Building Automation system Run/Stop circuit:

A control terminal block position (TB1, terminals 3 and 4) is provided to connect the Normally Open (NO) Run/Stop contact from a BAS or other remote controller for auto mode control.

There must be continuity between these terminals in order for the motor to run, in auto mode.

 Safety Interlock Circuit:

A control terminal block position (TB1, terminals 1 and 2) is provided to connect the series circuit of Normally Closed (NC) safety devices such as: freeze up thermostats, smoke/fire sensors, high pressure limits, temperature limits or vibration detectors.

There must be continuity between these terminals in order for the motor to run.

 Building Automation System Interlock Circuit (Drive and Bypass enable input):

A control terminal block position (TB1, terminals 5 and 6) is provided to connect Normally Open (NO) enabling contacts such as: damper end switches or occupied cycle timers.

There must be continuity between these terminals in order for the motor to run.

 Switch Selectable Functions:

The slide switches used to select these functions are located on the relay controller Printed Circuit Board (PCB) A2 (See Figure 1.9). The factory default is for these functions to be de-selected.

Smoke Purge: When enabled (switch S105) this function allows a contact closure, between terminals 17 and 18 of TB1, to transfer motor operation to bypass for a maximum capacity smoke control function. When in smoke purge mode, during emergency fire/smoke situations, the motor overloads and safety interlock circuit are overridden to shift the priority to protecting people rather than equipment.

Remote Transfer to Bypass: When selected (switch S104) this function allows a contact closure from a BAS, between terminals 25 and 26 of TB1, to transfer motor operation from Drive mode to bypass mode. This remote tranfer to bypass function overrides the Drive/Bypass manual switch.

Electrical Installation 2 - 10

 Bypass Relay Controller PCB

26

25

24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

ON PCB A2

TB1

(L1)

Customer provided contact closure inputs must have a minimum rating of 0.1 amp at 120 VAC.

Fig 2.7 Bypass Control Circuit Inputs and Outputs

Electrical Installation 2 - 11

 Drive Speed Control Circuit Wiring

External frequency reference

0 to +10 V

Shield terminal

Speed setting power supply, +15 V 20 mA

Master speed reference, 0 to +10 V (20 kΩ)

Master speed reference, 4 to 20 mA (250 Ω)/0 to +10 V (20 kΩ)

E (G)

P = Wire Pair

The auto mode speed reference (speed command) field wiring connection is made directly to Drive terminals A2 (signal positive), AC (signal common) and G (shield). Keep this lead length as short as possible to maintain signal quality. Insulated twisted shielded pair wire (2 conductor # 18 ga, Belden 8760 or equivalent) is required. Do not run these wires in the same conduits as other AC power or control wires. The shield must be connected on this end only, stub and isolate the other end. The signal employed is 4 to 20 mA with parameter H3-08 set for “2: 4 - 20 mA”. For 0 to 10 VDC, parameter H3-08 is set for “0: 0 - 10 VDC” and the E7 control board DIP switch S1-2 must be in the OFF position. (See Figure 2.11)

For remote operation, keep the length of the control wiring to 50 m or less. Separate the control wiring from high-power lines

(input power, motor leads or relay sequence circuits) to reduce induction from peripheral devices.

When setting speed commands from an external speed potentiometer (and not from a Digital Operator), use shielded twisted-

pair wires and ground the shield to terminal E(G), as shown in Figure 2.8. Terminal numbers and wire sizes are shown in

Table 2.5.

Fig 2.8 Analog Input Terminal Configuration on Drive

Electrical Installation 2 - 12

 Drive Terminal Block Configuration

Models CIMR-_ _ _2018 (25 HP, 208V)/ 4018 (30 HP, 480V) and smaller

Models CIMR-_ _ _2022 (30 HP, 208V)/ 4030 (40 HP, 480V) and larger



AC MP

AMS6

-V

IG

R- M5

FM

R+RP

S1

S4SPS7 M4

+V

S3

SCS+A2

M2

SN M6

AC

A1

E(G) E(G)

MCMB

S5

M1

AC MA

M3S2 S-

AC MP

AMS6

-VIGR- M5FMR+RP

S1

S4SPS7 M4

+V

S3

SCS+A2M2SN M6

AC

A1

E(G) E(G)

MCMB

S5

M1

AC MA

M3S2 S-

Ground terminal

Charge indicator

Main circuit terminals

Control circuit terminals

The wiring terminals are shown in Figure 2.9.

Fig 2.9 Drive Terminal Configuration

Electrical Installation 2 - 13

Terminals

Shield sheath

Insulation

Connect to shield sheath terminal E(G) at Drive

Insulate with tape

Do not connect here.

DRIVE

TERMINALS:

FM, AC, AM, SC, SN,

SP, A1, A2, +V, S1, S2,

S3, S4, S5, S6, S7, MA,

MB, MC, M1, M2, M3,

M4, MP, R+, R-, S+,

S-, IG

TB1 ON PCB A2

TERMINALS:

TB1-1 through TB1-26

Table 2.5 Terminal Numbers and Wire Sizes (Same for all Bypass Units)

Terminal

Screws

Phoenix

type *3

Tightening

To rq u e

lb.-in.

(N•m)

4.2 to 5.3

(0.5 to 0.6)

Possible

Wire Sizes

AWG

(mm2)

Stranded

wire:

26 to 16

(0.14 to 1.5)

Recommended

Wire Size

AWG

(mm2)

18

(0.75)

• Shielded, twisted-pair wire

• Shielded, polyethylene-covered,

vinyl sheath cable

Wire Type

*1

E(G) M3.5

*1.Use shielded twisted-pair cables to input an external speed command. *2.We recommend using straight solderless terminals on digital inputs to simplify wiring and improve reliability. *3.We recommend using a thin-slot screwdriver with a 3.5 mm blade width.

7.0 to 8.8

(0.8 to 1.0)

20 to 14

(0.5 to 2*2)

12

(1.25)

 Wiring Checks

After all wiring is completed, perform the following checks:

1. Is all wiring correct?

2. Have all wire clippings, screws or other foreign material been removed from the Drive and Bypass enclosure?

3. Are all terminal screws tight?

 Control Circuit Wiring Precautions

Observe the following precautions when wiring control circuits:

1. Separate control wiring from power/motor wiring and other high-power lines.

2. Separate wiring for control circuit terminals for digital outputs from wiring to other control circuit terminals.

3. If using an optional external power supply, it should be a UL Listed Class 2 power supply source.

4. Use twisted-pair or shielded twisted-pair cables for control circuits to prevent operating faults. Prepare cable ends as

shown in Figure 2.10.

5. Connect the shield wire to terminal E(G).

6. Insulate the shield with tape to prevent contact with other signal lines and equipment.

Fig 2.10 Preparing the Termination of Shielded Twisted-Pair Cables

Electrical Installation 2 - 14

 Bypass Control Circuit Terminal Functions

The functions of the control circuit terminals are shown in Table 2.6.

Table 2.6 Bypass Control Circuit Terminals

Type No. Signal Name Function Signal Level

Digital

input

signals

Analog

input

signals

(Drive)

TB1-3

TB1-4

TB1-1

TB1-2

TB1-5

TB1-6

TB1-17

TB1-18

TB1-23

TB1-24

TB1-25

TB1-26

+V +15 VDC power supply +15 VDC power supply for analog Transmitters

A1 Analog Input or Speed Command 0 to +10 VDC/100% 0 to +10 V(20 kΩ)

A2 Multi-function analog input

AC Analog input common – –

E(G)

Auto Mode run/stop command Run when CLOSED; stopped when OPEN.

NC Safety Circuit Fault when OPEN

BAS Interlock Enable Drive when Closed

Smoke Purge *Transfer to Bypass when Closed

2 Motor “OR” *Transfer to Motor 2 When Closed

Remote Transfer *Transfer to Bypass when Closed

Shield wire, optional ground line

connection point

4 to 20 mA/100%

0 to +10 VDC/100% (H3-08)

– –

Function set by

H3-09.

Contacts

+15 VDC

(Max. current: 20 mA)

4 to 20 mA(250Ω)

0 to +10 V(20kΩ)

Dry

TB1-7

TB1-8

TB1-9

Digital

output

signals

Analog

output

signals

(Drive)

* Switch Selectable Options

TB1-10

TB1-11

TB1-12

TB1-13

TB1-14

TB1-15

TB1-16

FM Multi-function analog output

AC Analog output common –

AM Multi-function analog output

Running on Drive

Running on Bypass

Drive Fault

Motor Overload or

Safety Circuit Fault

CLOSED During Operation

11/12 CLOSED During Fault Condition

12/13 OPEN During Fault Condition

14/15 OPEN During Fault Condition

15/16 CLOSED During Fault Condition

Frequency Output

0 to +10 VDC/100% frequency

Current Monitor 0 to +10 VAC/100% Drive's rated current

Dry contacts

Contact capacity:

1 A max. at 250 VAC

1 A max. at 30 VDC

Multi-function

analog monitor 1

Function set by

H4-01

0 to +10 VDC max. ±5%

2 mA max.

Multi-function

analog monitor 2

Function set by

H4-04

Electrical Installation 2 - 15

Table 2.6 Bypass Control Circuit Terminals (Continued)

S1

1

Terminating resistance

DIP Switch S1-1 located on terminal board.

2

1

Type No. Signal Name Function Signal Level

RS-485/

422

(Drive)

R+

R-

S+

S-

Communication input

For 2-wire RS-485, short R+ to S+

and R- to S-.

Communication output

Differential input,

optical isolation

Differential input,

optical isolation

IG Signal common - -

Control

Power

Output

TB1-19

TB1-20

TB1-21

TB1-22

Damper Control Pneumatic Control Interface 40VA@120V

Customer Use Power Customer control Devices 100VA@120V

 DIP Switch S1

DIP Switch S1 is described in this section. The functions of DIP switch S1 are shown in Table 2.7.

Fig 2.11 DIP Switch S1 Location

Table 2.7 DIP Switch S1

Name Function Setting

S1-1 RS-485 and RS-422 terminating resistance

S1-2 Input signal for analog input A2

Electrical Installation 2 - 16

OFF: No terminating resistance (Factory default) ON: Terminating resistance of 110Ω

OFF: 0-10 VDC (internal resistance: 20 KΩ) ON: 4-20 mA (internal resistance: 250 Ω) (Factory default)

Shunt Connector CN15

The shunt connector CN15 is described in this section. Shunt connector along with parameters H4-07 and H4-08 select the signal range of the analog output terminals FM and AM.

Shunt connector CN15 is only available when the optional Terminal Card with the 4-20mA Analog Output Monitor is installed (Model No. ETC618120). See Chapter 7 for installation of the optional Terminal Card.

The function of various shunt connector CN15 configurations is shown in Table 2.8.

Fig 2.12 Shunt Connector CN15 Location

Table 2.8 Shunt Connector CN15 Configuration Options

CN15 Analog Output Monitor Configurations

Voltage Output (0-10 VDC) for terminals FM-AC (CH1) and AM-AC (CH2)

Current Output (4-20mA) for terminals FM-AC (CH1) and AM-AC (CH2)

Voltage Output (0-10 VDC) for terminals FM-AC (CH1) Current Output (4-20mA) for terminals AM-AC (CH2)

Current Output (4-20mA) for terminals FM-AC (CH1) Voltage Output (0-10 VDC) for terminals AM-AC (CH2)

The software configuration for the analog output monitor signal type is listed below:

Parameter

No.

H4-07

H4-08

Parameter Name

Digital Operator Display

Terminal FM Signal Level Selection

AO Level Select1

Terminal AM Signal Level Selection

AO Level Select2

0: 0 - 10 V 2: 4-20 mA

Description

Setting Range

0 or 2 0 Programming

Factory

Setting

Location

Electrical Installation 2 - 17

 Field Wiring Diagram

Use these diagrams to document your field wiring. We suggest copying this page based on your installation needs.

Fig 2.13 Field Wiring Diagram

Electrical Installation 2 - 18

Notes:

Electrical Installation 2 - 19

Wiring Diagram

(1)

(2)

(3)

(4)

(5)

(6)

(T2)

(L2)

(T1)

(L1)

(T3)

(L3)

(1)

(2)

(1)

(2)

(1)

(2)

(T2)

(L2)

(T1)

(L1)

(T3)

(L3)

C2C1B2A2

B1A1

(2) (4) (6)

(1) (3) (5)

(95)

(96)

(T2)

(L2)

(T1)

(L1)

(T3)

(L3)

(T2)

(L2)

(T1)

(L1)

(T3)

(L3)

(2) (4) (6)

(1) (3) (5)

(95)

(96)

(T2)

(L2)

(T3)

(L3)

(T1)

(L1)

(2) (4) (6)

(1) (3) (5)

(1)

(2)

(1)

(2)

(1)

(2)

(95)

(96)

(95)

(96)

(2) (4) (6)

(1) (3) (5)

(1)

(2)

(1)

(2)

(1)

(2)

L1/A1

L1/A2

L2/B1

L2/B2

L3/C1

L3/C2

GND1 GND2

C2C1B2A2

B1A1

EG

+1

+2

MB

MC

MA

M1

M2

M3

M4

S1

S3

SC

S4

S5

SN

L1 L2 L3

T1 T2 T3

SP

A1

+V

AC

E

A2

AC+V

AC

+V

A2

FROM

CUSTOMER'S

A.C. LINES

L1

L3

L2

A.C. MOTOR #1

A.C. MOTOR #2

SHIELD

0R

JUMPER

A.C. MOTOR #2A.C. MOTOR #1

111

S10

SEE

NOTE 1

SEE

NOTE 1

EARTH

GROUND

LOAD

LINE

+

-

A2

ISOLATED AUTO MODE SPEED REFERENCE

+V

TO A2

T3

T2

T1

T3

T2

T1

T3

T2

T1

T2

T3

T1

T2

T3

SEE

NOTE 2

SEE

NOTE 2

SEE

NOTE 2

SEE

NOTE 2

TO A2TO A2

TO A2

SEE

NOTE 5

1T1

1T3

1T2

5T1

5T3

5T2

4T2

4T1

4T3

1T2

1T1

1T3

1T2

1T1

1T3

1T1

1T2

4T3

4T2

4T1

3T1

3T2

3T3

2T1

2T2

2T3

L2

L1+2+1

L3

A2

AC

DRIVE

INPUT

FUSES

INPUT

RFI

FILTER

OPTION F

OPTION E

DC BUS CHOKE

MANUAL SPEED POT OPTION S

2 MOTOR

"AND"

OPTION A

OPTION K

STD. AUTO MODE SPEED REFERENCE

STD.

4-20MADC

0-10VDC

MA

111

MA

3-15 PSI PRESSURE TRANSDUCER OPTION P

5% LOAD

REACTOR

(SEE

TABLE 2)

OPTION N

L1 L2 L3

OPTION R

3% INPUT REACTOR

TO DRIVE

TERMINAL

E

LEAD WIRE

OPTION N

GREEN

(GRN) (YEL) (YEL) (YEL)

DELTA-WYE CAPACITIVE

INPUT FILTER

A5

GND LUG

OR

OPTION Z

OPTION X

(SEE

TABLE 3

FOR CB1

AMPERE

RATINGS)

PE

E

F10F12 F11

A.C. MOTOR

(T1) (T3)

(T2)

(T1)

(T2)

(T3)

(T2)

(T1) (T3)(T1) (T3)

(T2)

(T1) (T3)

(T2)

E

OFF

ON

1

2

DIP SWITCH S1

TERMINAL

BOARD

DRIVE FAULT

DRIVE RUNNING

JUMPER

SERIAL COMM. RUN

REMOVE JUMPER FOR DC BUS CHOKE OPTIONS X OR Z

SEE THE

APPROPRIATE TECHNICAL MANUAL FOR NETWORK CONNECTIONS

OPTION L

CN2

CN1

CN2

CONTROL

BOARD

A6

TO CABINET DOOR MOUNTED DRIVE KEYPAD

WITHOUT OPTION P

WITH OPTION P

WITH OPTION S

RUN FWD

BYPASS DRIVE

ENABLE

SEQ. COM.

FAULT RESET

HAND/AUTO

COM.

(R) (S) (T)

E7

DRIVE

(U) (V) (W)

+24V

MANUAL REF. IN 0-10VDC (20K OHM)

+15VDC 20mA MAX.

ANALOG COM.

(G) TB3 SHIELD

AUTO REF. IN (AS SET BY H3-08)

COM.

VCC

J2

3-14.5 PSI PNEUMATIC SIGNAL

3-15 PSI

FOLLOWER

PART NO.

UTC000038

4-20MA

OUTPUT

CB1

K1

F3

F4 F5

K2

L4

S10

K4 K5

K3

S12

S11

F9

F8

F7

EG

CG1

L2

PG1

L2/1.07

L11/1.23

L12/1.22

L3/1.14

L4/1.15

L5/1.16

L6/1.17

L7/1.18

L8/1.20

L9/1.21

L1/1.04

L1

L13/1.24

A1

A4

L14/1.21

L15/1.20

L15/1.32

L14/1.31

2L1

2L2

2L3

1L3

1L1

1L2

111

1T1

1T2

1T3

MC

M4

M3

M2

MA

1L1

1L2

MA

S1

2T1

2T2

2T3

(W)

(B)

SN

S5

(R)

(B)

2 MOTOR

"OR"

OPTION D

Electrical Installation 2 - 20

(61)

(62)

(61)

(62)

(A2) (A1)

(A1)

(A2) (A1)

(61)

(62)

(61)

(62)

(1) (2)

(A2) (A1)

(13) (14)

(1)

(2)

(X2)

F2

F1

(X1)

121

3

2

1

2

3

2

1

3

2

1

3

2

1

2

11

10

9

34

3

2

1

5

2

1

8

7

4

6

14

12

13

8

11

10

9

8

7

6

5

16

15

14

13

12

7

6

5

4

3

2

1

8

7

6

5

4

3

20

19

18

17

26

25

24

23

22

21

1

/1.12

/1.39

DRIVE RUN

BYPASS RUN

DRIVE FAULT

CONTACTS FOR CUSTOMER USE

RATED: 1A, 120VAC

MAX.

AUTO MODE RUN/STOP CONTACT (CLOSED = RUN)

MOTOR #1/MOTOR #2 SELECT CONTACT (CLOSED=MOTOR #2) MIN. RATING:

0.1A,120VAC

SMOKE PURGE CONTACT (CLOSED=PURGE) MIN. RATING:

0.1A,120VAC

CUSTOMER MUST PROVIDE PROPER SHORT CIRCUIT PROTECTION AND MEANS OF DISCONNECT.

REMOTE TRANSFER TO BYPASS CONTACT (CLOSED=BYPASS) MIN. RATING:

0.1A,120VAC

100

114

125

126

- INDICATES CUSTOMER WIRING.

- INDICATES COMPONENTS NOT SUPPLIED BY YASKAWA.

CABINET

BLOWER(S)

(IF REQUIRED)

CABINET

BLOWER(S)

(IF REQUIRED)

JUMPER

MOTOR OVERLOAD OR CUSTOMER SAFETIES FAULT

SEE

NOTE 1

J2

J1

FOR INSERTION OF NORMALLY CLOSED CUSTOMER SAFETY CONTACTS

FOR INSERTION OF NORMALLY OPEN BLDG. AUTOMATION SYSTEM INTERLOCK, OR NORMALLY OPEN DAMPER END SWITCH

SEE NOTE 3

120VAC DAMPER SOLENOID 40VA MAX.

INPUT CONTACTOR

OUTPUT CONTACTOR

BYPASS CONTACTOR

MOTOR #1 CONTACTOR

MOTOR #2 CONTACTOR

A

B

208

AB

(H1)

(H1) (H4)

(H4)

(H2) NONE

(H2) TO (H4)

(H1) TO (H3)

(H2) TO (H3)

JUMPER

LOCATION

TERMINALS

A3

OPTION D

230/240

460/480

(B) (B)

(W)(W)

2 MOTOR

"OR"

OPTION D

MANUAL SPEED POT

OPTION S

2 MOTOR "OR"

OPTION D

120VAC,1 PHASE 100VA MAX. POWER FOR CUSTOMER USE CUSTOMER TO PROVIDE FUSING (BUSSMANN FNQ-R-1.25 IS RECOMMENDED)

SEE NOTE 6

SEE NOTE 4

MANUAL SPEED POT OPTION S

INPUT

VOLTS

CONTROL TRANSFORMER PRIMARY CONNECTIONS

SEE SHEET 2 FOR NOTES AND TABLES.

MA

(R) (R)

B2,B4,B6B1,B3,B5

TO A1

TO A1 OR A4

109

112

104

111

128

135

133

138

136

131

138

CONTROL TRANSFORMER

CN206A

BYPASS DRIVE

S201

TEST NORMAL

S203

CN207

HAND AUTO

CN206B

OFF

S202

PART NUMBER UTC000037-2

DS201

PART NUMBER UOPN0001

CABINET DOOR OPERATOR PANEL

DS206DS202

CN203

DS205

CN205

DS203

DS204

CN204

CN1

BYPASS OPERATOR

INTERFACE PCB

CONTROL

POWER ON

DRIVE

KEYPAD

SMOKE PURGE

MOTOR OL/

SAFETIES FAULT

BYPASS

RUN

DRIVE FAULT

DRIVE

RUN

TO A1 CONTROL BOARD CN1

R1

POT PCB

MAX. SPEED TRIM

R2

PART NO. URSN0001

2.5K OHM

MANUAL SPEED

MANUAL SPEED POT

ASSEMBLY

(1R1)

(1L3)

AUTO

MTR #1

(1R2)

(1L4)

00X

MTR #2

0XX

S104

S105

SMOKE PURGE

REMOTE TRANSFER TO BYPASS

AUTO-TRANSFER TO BYPASS

S103

CN102C TB1

CN102B

CN103

PG2

TB1

CN102A

DISABLE

(TOP)

DISABLE

(TOP)

ENABLE

(BOTTOM)

ENABLE

(BOTTOM)

DISABLE

(TOP)

PART NUMBER

UTC000036

ENABLE

(BOTTOM)

BYPASS RELAY

CONTROLLER PCB

PART NUMBER

UTC000036

K3

K2

K3

K1

K2

K5

K4

RC4

RC5

K4

K5

K4

K5

PG2

F6T1

L2/1.39

EG1

DG1

A3

L11/1.18

L12/1.17

L3/1.14

L4/1.16

L5/1.17

L6/1.18

L7/1.20

L8/1.23

L9/1.24

L1

R1

S1

L13/1.19

A2

124

122

123

121

MC

S1

M4

M3

M2

SN

S5

MA

1L1

1L2

3

100

116

114

116

114

(R)

111

112

113

115

1

2

(W)

(B)

Items within dashed line boxes are optional equipment

Electrical Installation 2 - 21

Logic Diagram

FROM

CUSTOMERS

A.C. LINES

+

-

SHIELD

0R

TRIM

MAX. SPEED

2.0K

ISOLATED AUTO MODE SPEED REFERENCE

ALSO SHOWN IN CONTROL RELAY LOGIC CIRCUIT

SEE SH.3,

NOTE 5

(3) (5) (5) (1)

(3) (5)

(4) (6)

AC

A1

+V

G

4-20MADC (WITH PARAMETER H3-08=1)

0-10VDC (WITH PARAMETER H3-08=0, AND CONTROL BOARD DIP SWITCH S1-2 OFF)

STANDARD AUTO MODE SPEED REFERENCE INPUT

A2

AC

R2

1

2

3

EARTH

GROUND

CN103/

(T1)

(L1)

(T3)

(L3)

(T2)

(L2)

DRIVE

RUNNING

SERIAL

COMM. RUN

DRIVE FAULT

JUMPER

MANUAL SPEED POT OPTION S

2.5K

- INDICATES COMPONENTS NOT SUPPLIED BY YASKAWA

SEE SH. 2

MA

S5

SN

S1

MA

M2

M3

M4

MC

A. C. MOTOR *

E7

(R) (S) (T)

RUN FWD

BYPASS DRIVE

ENABLE

FAULT RESET

HAND/AUTO

COM.

(U) (V) (W)

(G) TB3 SHIELD

AUTO REF. IN (AS SET BY PARAMETER H3-08)

ANALOG COM.

SEQ. COM

+15 V

MANUAL REF. IN 0 TO 10VDC (20k ohm)

(E)

GND LUG

MANUAL

SPEED

+24V

ANALOG COM.

(T2)

(T1)

(T3)

L1 L2 L3

S1

S3

S4

S5

SN

M3

M4

MB

MC

MA

T1 T2 T3

G

A2

AC

SC

+V

A1

E

GNDLUA

6

5

4

3

2

1

M1

M2

7

8

12

13

14

20

1

2

3

21

22

(1) (3)

SP

AC

5

S12

A1

RY2

RY3

CB1

R1

RY1

K2

K1

CN102B

L1/2.10

L2/2.10

L3/2.18

L4/2.18

L5/2.06

L6/2.06

CN102C

CN203

CN204

CN203

K110 K116 K119

K122

CN102B

L2

L3

L1

2L1

2L3

2L2

2T1

2T2

2T3

1T1

1T2

1T3

1L3

1L2

1L1

Electrical Installation 2 - 22

/2.01

/2.40

/2.01

/2.40

PRESENT ONLY

WITH 350VA, OR GREATER

AUTO

MTR#1

MTR#2

OXX

OOX

AUTO

MTR#1

MTR#2

(MTD. ON PANEL)

120VAC, 1PH., 60HZ.

FOR CUSTOMER USE

DAMPER ELECTRIC

PNEUMATIC SOLENOID

MOTOR SELECT

(CLOSED = MTR#2)

TO SHEET 2

CUSTOMER MUST PROVIDE PROPER

SHORT CIRCUIT PROTECTION

(5) (1)

(5) (3)

(6) (4)

(5) (3)(5) (3)

(6) (4)

(5) (3)

(7) (8)

(6) (4)

(2)(6)

(3) (5)

(5)(1)

(2) FORM C

RUN/STOP ENGINEERED OPTION

(OPERATIONAL ONLY IN THE HAND MODE)

(MTD. ON PANEL)

(MTD. SEPARATELY

ON CABINET DOOR)

(MTD. SEPARATELY ON CABINET DOOR)

(1)

(2)

S101

CN103/

1T2

1T3

1T1

1L3

1L2

1L1

DAMPER CONTROL AND 120 VOLT POWER

S1

MA 100

1L1

1L2

MA 125

126

MA 119 120119 120

119 120

100

122 121

124 123

1

2

3

(1) (5)

(NOT USED)

MA 100

2 MOTOR "OR" OPTION D

REMOVE THE

BYPASS RELAY

PCB JUMPER

S101

OPTION D

CONTROL TRANSFORMER

MOTOR #1

CONTACTOR

MOTOR #2 CONTACTOR

MOTOR SELECT CONTROL RELAY

STOP

RUN

RUN/STOP CONTROL RELAY

(X2)

(X1)

(X2)

12

(A1) (A2)

1 2

19 20

21 22

24

23

NH

2

1

11

3

21

19

18

3

9

10

(2) (7)

(6) (10)

(13) (14)

23

78

24

25

(1) (2)

1

6

23

21

6

T1

F1

F2

F6

K3

K4

K5

K4

K5

K4

CN102A CN102A

TB1 TB1

TB1

L7 L8

CN102C

CN205

RC4

RC5

CN203

CN102C

K104

K108

K111K114

K116

K118

K125

S2

S3

K6

RC28

CN207 CN207

CN102C CN102C

CN203

RV101

CN207

CN102C

CN203

R123 C117

CN102B

K123

GND

100

Electrical Installation 2 - 23

120VAC FROM SHEET 1

REMOTE TRANSFER

TO BYPASS CONTACT

(CLOSED = BYPASS)

AUTO MODE

RUN/STOP CONTACT

(CLOSED = RUN)

CUSTOMER

SAFETY INTERLOCKS

JUMPER

(7) (8)

(6) (4)

(7) (8)

(5) (3)

(6) (2)

(7) (8)

(6) (4)

(7) (8)

(2) (6)

(4) (6)

(7) (8)

(8)(7)

(1) (5)

(6) (4)

(7) (8)

(6) (4)

(5) (1)

(4) (6)

(1)(5)

(3)(5)

(5) (1)

(5)(3)

(4) (6)

(3) (5)

(4) (6)

(6)(6)(2) (4)

(6)(4)

(2) FORM A

(1) FORM C

(2) FORM A

(1) FORM C

(1) FORM A, (1) FORM C

(2) FORM A

(1) FORM A

(2) FORM A

221, 228

113, 118

(1)

(2)

REMOVE JUMPER

FOR RUN/STOP PB OPTION

CN103/ CN103/

CN103/

S102

(1) (5) (5) (3)

(FACTORY SETTING

IS "DISABLE")

(1) (2)

DISABLE

(TOP) (BOTTOM)

ENABLE

DISABLE

AUTO TRANSFER

TO BYPASS

(TOP)

S103

ENABLE

(BOTTOM)

(FACTORY SETTING

IS "DISABLE")

(1) (2)

REMOTE TRANSFER

TO BYPASS

S104

CN103/

BAS INTERLOCK/

DAMPER END

SWITCH

(CLOSED =

DAMPER OPEN)

117 118

111MA

100112

100114113

100115 116

M2

MCMA

MA

M3 M4

CABINET BLOWER(S)

COMBINED)

(360VA. MAX.

ALL BLOWERS

TOTAL FOR

W

CONTROL POWER ON

R

DRIVE FAULT

OUTPUT CONTACTOR

INPUT CONTACTOR

G

DRIVE RUN

BYPASS CONTACTOR

B

BYPASS RUN

DRIVE FAULT RELAY

DRIVE RUN RELAY

MOTOR OVERLOAD/ CUSTOMER SAFETIES FAULT RELAY

RUN RELAY

DAMPER OPTION CONTROL RELAY

BYPASS PILOT RELAY

AUTO TRANSFER

RELAY

REMOTE TRANSFER

RELAY

R

MOTOR OVERLOAD/ CUSTOMER SAFETIES FAULT

(1)

(2)

(1)

(2)

3

1

2

3

65

4

(A1) (A2)

3

6

1

8

(1)

(2)

5

4

(A1) (A2)

(1)

(2)

9

7

25

26

2

(96)

(95)

34

45

2

1

12

11

1

2

26

2

7

1

5

(1) (3)

(1)

(2)

6

8

(11) (7)

13

4

21

DS201

DS203

CN102A

TB1 TB1 TB1 TB1TB1TB1

K2

K1

CN203

DS204

CN102A

K3

DS205

CN203

CN102A

TB1 TB1

CN102B

K3

K2

B1,B3,B5

S12

L6/1.29

L2/1.24

L5/1.27

L1/1.23

L3/1.25 L4/1.26

L7/1.06 L8/1.06

L7/1.06

L8/1.06

CN102B

CN102C

CN206A

R113

R114

R115

R116

R107

CN203

B2,B4,B6

CN206B CN206B

CN203

CN102B

CN203

K105

K104

K106

K107

K108

K109

K110

K111

K112

K113

K114

K113

K114

K115

K116

K115

K117

K119

K120

K121

K124 K124

K123

DS202

CN102A

K6

CN203

K124K124

R101 C101

R102 C102

R103 C103

R112 C111

R105

C105

C115

R120

C106

R106

R104 C104

R109 C108

C109R110

R108 C107

Electrical Installation 2 - 24

L7/1.06 L8/1.06

SMOKE PURGE

S105

(TOP)

(BOTTOM)

DISABLE

(1R3) (1R4)

(NORMALLY OPEN (NO))

(1L3) (1L4)

(NORMALLY OPEN (NO))

(1R3) (1R4)

(NORMALLY OPEN (NO))

(1R3) (1R4)

(NORMALLY OPEN (NO))

ENABLE

(1) (2)

(FACTORY SETTING

IS "DISABLE")

BYPASS

DRIVE

OX

S201

OFF

AUTO

HAND

OOX

S202

OFF

AUTO

HAND

XOO

S5

S202

TEST

NORMAL

OX

S6

S203

TB1 TB1

17

SMOKE PURGE

CONTACT

(CLOSED = PURGE)

CN103/ CN203

K117

18

14

15

16

17

R111 C110

CN103/

R122

CN203

R118 C113

R119 C114

R121 C116

(7) (8)

K118

21

(7) (8)

DS206

10

A

(1)

(2)

K119

(7) (8)

C112R117

21

K120

(7) (8)

21

K121

(7) (8)

K122

21

(7) (8)

K123

(7) (8)

K124

21

(7) (8)

SMOKE PURGE RELAY

(2) FORM A

(1) FORM A

SMOKE PURGE

BYPASS-DRIVE

CONTROL RELAY

(1) FORM A, (1) FORM C

AUTO MODE CONTROL RELAY

(2) FORM A

HAND MODE CONTROL RELAY

(2) FORM A

(1) FORM A

TEST-NORMAL CONTROL RELAY

(2) FORM A

(1) FORM C

BYPASS RELAY PCB UTC000036 CONNECTORS OPERATOR PCB UTC000037-2 CONNECTORS

CN102A

CN102B

CN102C

CN103

TB1

- CUSTOMER CONNECTION POINT ON 26 POINT, 1 PIECE PHOENIX

XX

CONNECTOR. TORQUE WIRE CONNECTIONS TO 4.4 POUND-INCH.

- 8 POINT MOLEX HEADER.

XX

USED TO CONNECT THE PANEL HARNESS TO THE BYPASS RELAY PCB.

- 8 POINT MOLEX HEADER.

XX

USED TO CONNECT THE PANEL HARNESS TO THE BYPASS RELAY PCB.

- 14 POINT, 1 PIECE PHOENIX CONNECTOR.

XX

USED TO CONNECT PANEL MOUNTED OPTIONS TO THE BYPASS

RELAY PCB.

XX

- 26 POINT RIBBON CABLE HEADER.

USED TO CONNECT TO THE CABINET DOOR MOUNTED OPERATOR

PCB CONNECTOR CN203.

CN203

XY

- 26 POINT RIBBON CABLE HEADER.

CN204

CN205

CN206A

CN206B

CN207

USED TO CONNECT TO THE BYPASS RELAY PCB CONNECTOR CN103.

- 3 POINT, 2 PIECE PHOENIX CONNECTOR.

X

USED TO CONNECT THE OPTIONAL CABINET DOOR MOUNTED MANUAL

SPEED POT TO THE OPERATOR PCB/PANEL.

- 3 POINT, 2 PIECE PHOENIX CONNECTOR.

X

USED TO CONNECT THE OPTIONAL CABINET DOOR MOUNTED 2 MOTOR

"OR" SELECTOR SWITCH TO THE OPERATOR PCB/PANEL.

- 2 POINT, 2 PIECE PHOENIX CONNECTOR.

X

USED TO CONNECT THE OPTIONAL CABINET DOOR MOUNTED BLOWER(S)

TO THE OPERATOR PCB/PANEL.

- 2 POINT, 2 PIECE PHOENIX CONNECTOR.

X

USED TO CONNECT THE OPTIONAL CABINET DOOR MOUNTED BLOWER(S)

TO THE OPERATOR PCB/PANEL.

- 3 POINT, 2 PIECE PHOENIX CONNECTOR.

X

USED TO CONNECT THE OPTIONAL CABINET DOOR MOUNTED PARTS (AND

THE "HAND" MODE RUN AND STOP PUSHBUTTONS) TO THE

OPERATOR PCB/PANEL.

RUN AND FAULT CONTACT ANNUNCIATION

RATED: 1AMP, 120VAC MAX.

TB1 TB1 TB1 TB1 TB1 TB1 TB1 TB1 TB1 TB1

78910111213141516

DRIVE RUN BYPASS RUN MOTOR OVERLOAD OR

K105 K105K107 K109 K109K112

(3) (5) (5) (1)(5)(3) (5)(3) (1)(5)(3) (5)

K105 K105

(6)(4) (6) (2)

DRIVE FAULT

CUSTOMER SAFETIES FAULT

Electrical Installation 2 - 25

Notes:

Electrical Installation 2 - 26

Chapter 3 Control Panel

This chapter describes the displays and functions of the Control Panel.

Digital Operator and Control Panel Display .................................... 2

Digital Operator Keys ................................................................. 3

Drive Mode Indicators ................................................................ 4

Control Panel Indicator Lights .................................................... 5

Drive Main Menus .......................................................................... 8

Main Menu Structure ................................................................. 9

- DRIVE - Operation Menu ...................................................... 10

- QUICK - Quick Setting Menu ................................................ 13

- ADV- Programming Menu ..................................................... 14

- VERIFY - Modified Constants (Parameters) Menu ............... 15

- A.TUNE - Auto-Tuning Menu ................................................ 15

Example of Changing a Parameter .............................................. 16

Control Panel 3 - 1

Digital Operator and Control Panel Display

Drive Mode Indicators

See Table 3.2

Key Descriptions

See Table 3.1

Menu Display

See Table 3.12

-DRIVE- Rdy

Frequency Ref

U1-01= 60.00 Hz

- - - - - - - - - - - - - - - - - - - - - - - - - - - - -

U1-02= 60.00Hz U1-03= 10.05A

{

Blue White

Green

Red

Amber

Ready Display

Drive can operate when a drive

Data Display

Displays monitor data, parameter

1 line x 13 characters

3 lines x 16 characters

RUN & STOP Indicators

See Tables 3.4 and 3.5

Indicating Lights

Selector Switches

numbers and settings

command is input

The various items included on the Digital Operator Display and Control Panel are described below.

Fig 3.1 E7 Bypass Control Panel Component Names and Functions

Control Panel 3 - 2

 Digital Operator Keys

The names and functions of the Digital Operator Keys are described in Table 3.1.

Table 3.1 Digital Operator Keys

Key Name Function

MENU Key Scrolls from one of the five main menus to the next.

ESCAPE Key Returns to the display before the DATA/ENTER key was pressed.

MONITOR Key Selects the monitor (-DRIVE-) mode from any display location.

INCREASE Key Increases parameter numbers and set values. Used to move to the next item or data.

DECREASE Key

SHIFT/RESET Key

DATA/ENTER Key Pressed to enter menus and parameters as well as to set values.

Decreases parameter numbers and set values. Used to move to the previous item or data.

Selects the digit to be changed. The selected digit will blink. Also resets the Drive when a fault has occurred.

Control Panel 3 - 3

 Drive Mode Indicators

The definition of the Drive mode indicators are shown in Table 3.2.

Table 3.2 Drive Mode Indicators

Indicator Definition

FWD Lit when a forward run command is input. Also lit when the Drive is in “Hand” Mode.

REV Lit when a reverse run command is input.

AUTO SEQ Lit when set up for remote run command, see Table 3.3.

AUTO REF Lit when set up for remote speed command, see Table 3.3.

ALARM Lit when a fault has occurred and flashing when an alarm has occurred.

 Drive AUTO Sequence (SEQ) and AUTO Reference (REF) indicators

The Bypass operates differently than a stand alone Drive with regard to these two indicators. The Bypass control logic interfaces with the Drive via terminals that would be used, in a Drive only installation, for the AUTO Sequence (Run Command), and AUTO Reference (Speed Command).

Since these terminals are active and the appropriate parameters configured for the Bypass unit operation (see Tables 5.1 and

5.2), the AUTO Sequence and AUTO Reference LED’s will be lit even when the H/O/A is in HAND position (local control), providing both the run and speed command from the local control panel. The control signals are “Local” to the Drive and Bypass unit, but “Remote” (AUTO) from the Drive itself.

An exception to this rule occurs for the AUTO REF indicator when serial communication is employed.

Analog Input

Serial COM Input

Table 3.3 Drive AUTO Sequence (SEQ) and

Auto Reference (REF) Indicators

Indicator Hand Auto

Remote SEQ On On

Remote REF On On

Remote SEQ On On

Remote REF Off On

Control Panel 3 - 4

 Drive Run Indicator

The status of the “RUN” indicator is shown in Table 3.4 when the Drive is either in the “Hand” or “Auto” mode.

Table 3.4 RUN Indicator

Indicator Status Description

On Drive is running

Blinking Drive is decelerating to a stop

Off Drive is stopped

 Drive Stop Indicator

The status of the “STOP” indicator is shown in Table 3.5 when the Drive is either in the “Hand” or “Auto” mode.

Table 3.5 STOP Indicator

Indicator Status Description

On Drive is decelerating to a stop or stopped

Blinking Drive is in a run condition but the speed command is zero

Off Drive is running

 Control Panel Indicator Lights

 Control Power Indicator

Table 3.6 Control Power Indicator

Indicator Status Condition

On

Off

 Drive Run Indicator

Indicator Status Condition

On

3 Phase Power is applied to the Bypass unit and the control power transformer is functioning.

3 Phase Power is disconnected from the Bypass unit or a control power transformer fuse has cleared.

Table 3.7 Drive Run Indicator

The Drive has been given a run command in hand or auto mode and the Bypass circuit is de-energized.

Off

The Drive has no run command in either the hand or auto modes. The unit may be operating in Bypass mode.

Control Panel 3 - 5

 Bypass Run Indicator

Indicator Status Description

On

Table 3.8 Bypass Run Indicator

The Bypass has been given a run command in the HAND or AUTO mode.

Or, the operation has been remotely transferred to Bypass using the switch selectable “Remote Transfer to Bypass” feature (S104) via a BAS contact closure at terminals TB1-25 and TB1-26.

Or, the operation has been automatically transferred to Bypass after a Drive fault condition via the switch selectable “Auto Transfer to Bypass” feature (S103).

Or, the operation has been transferred to Bypass using the switch-selectable “Smoke Purge” feature (S105) via a contact closure at terminals TB1-17 and TB1-18.

The motor is running at full speed across-the-line and the Drive is deenergized.

Off

 Motor OL/Safeties Fault Indicator

Table 3.9 Motor OL/Safeties Fault Indicator

Indicator Status Description

On

Off The motor overload (S10) and NC “motor safety circuit” are satisfied.

The Bypass has no run command in either the HAND or AUTO modes. The unit may be operating in Drive mode.

The motor overload (S10) has tripped OFF de-energizing both the Drive and Bypass Circuits.

Or, the NC “motor safety circuit” connected to terminals TB1-1 and TB1-2 has an open circuit condition.

Control Panel 3 - 6

 Drive Fault Indicator

Indicator Status Description

On The Drive has tripped OFF due to an internal Drive fault.

Off The Drive is ready for operation, or operating normally.

 Smoke Purge Indicator

Indicator Status Description

On

Off Smoke Purge is not active, the Drive & Bypass are operating normally.

Table 3.10 Drive Fault Indicator

Table 3.11 Smoke Purge Indicator

The Smoke Purge function has been selected by closing switch S105 on PCB A2 and the building fire control system has closed a contact between terminals TB1-17 and TB1-18.

Control Panel 3 - 7

Drive Main Menus

The Drive’s parameters and monitoring functions are organized into groups called menus that make it easier to read and set parameters. The Drive is equipped with five menus. The five menus and their primary functions are shown in Table 3.12 and are directly available by pressing the MENU key.

Table 3.12 Drive Main Menus

Main Menu Primary Function(s)

- DRIVE -

Operation

- QUICK -

Quick Setting

- ADV -

Programming

- VERIFY -

Modified Constants

(Parameters)

- A.TUNE -

Auto-Tuning

The Drive can be run in this menu. Also called the “Monitor” menu. Use this menu for monitoring values such as frequency reference or output current, displaying fault history or displaying the fault traces.

The Drive can be programmed in this menu. Use this menu to set/read the most commonly used parameters.

The Drive can be programmed in this menu. Use this menu to set/read every parameter.

The Drive can be programmed in this menu. Use this menu to set/read the parameters that have been modified from their factory default settings.

For Bypass units Auto-Tuning can only be accomplished through the DriveWizard software (Part Number DWST616-C2). A free download from www.drives.com. The Drive can be programmed in this menu. Use this menu to auto-tune the Drive in order to utilize the bi-directional speed search feature.

Control Panel 3 - 8

 Main Menu Structure

-DRIVE-

** Main Menu **

- - - - - - - - - - - - - Operation

-DRIVE-

** Main Menu **

- - - - - - - - - - - - - -

Quick Setting

-DRIVE-

** Main Menu **

- - - - - - - - - - - - - -

Pr ogrammi ng

-DRIVE-

** Main Menu **

- - - - - - - - - - - - - -

Modified Consts

-DRIVE-

** Main Menu **

- - - - - - - - - - - - - -

Auto-Tuning

1

MENU

The menu selection display will appear when the MENU key is pressed from a monitor or setting display. While viewing the menu selection display, press the MENU key repeatedly to scroll between the menu selections.

MENU

Press the DATA/ENTER key to enter the desired menu selection.

1

Modified Consts = Modified Parameters

MENU

Control Panel 3 - 9

 - DRIVE - Operation Menu

-DRIVE-

** Main Menu **

- - - - - - - - - - - - - Operation

-DRIVE- Rdy Frequency Ref

U1-01 = 0.00Hz

- - - - - - - - - - - - - - - - - - - -

U1-02= 0.00Hz

x1

This menu is used for setting a speed command or monitoring values such as output frequency and output current. It is also used for displaying the fault history and the fault traces. The Drive may be limited to this menu in order to accept a run command, see parameter b1-08 in Chapter 5 and Table 5.1.

 U1 Monitor Parameter List

Follow the key operations below to access the Operation Menu.

U1-03= 0.00A

Use and keys to scroll through the U1 “Monitor” parameter list.

Monitor Parameters

U1-01 Frequency Ref

U1-02 Output Freq

U1-03 Output Current

U1-06 Output Voltage

U1-07 DC Bus Voltage

U1-08 Output kWatts

U1-10 Input Term Sts

U1-11 Output Term Sts

U1-12 Int Ctl Sts 1

U1-13 Elapsed Time

U1-14 FLASH ID

U1-15 Term A1 Level

U1-16 Term A2 Level

U1-18 Mot SEC Current

U1-20 SFS Output

U1-24 PI Feedback

U1-28 CPU ID

U1-29 kWh

U1-30 MWh

U1-34 OPE Detected

U1-36 PI Input

U1-37 PI Output

U1-38 PI Setpoint

U1-39 Transmit Err

U1-40 FAN Elapsed Time

U1-51 Auto Mode Fref

U1-52 Hand Mode Fref

U1-53 PI Feedback 2

Control Panel 3 - 10

 U2 Fault Trace Parameter List

-DRIVE- Rdy Monitor

U1-01= 0.00Hz

- - - - - - - - - - - - - - - - - - - -

U1-02= 0.00Hz

-DRIVE- Rdy Fault Trace

U2-01= None

- - - - - - - - - - - - - - - - - - - -

U2-02= None

-DRIVE- Rdy Current Fault

U2-01 = None

- - - - - - - - - - - - - - - - - - - -

U2-02= None

After viewing the “Monitor” parameter list, in order to view the “Fault Trace” parameter list, follow the example below.

U1-03= 0.00A

Use and keys to scroll through the U2 “Fault Trace” parameter list.

Fault Trace Parameters

U2-01 Current Fault

U2-02 Last Fault

U2-03 Frequency Ref

U2-04 Output Freq

U2-05 Output Current

U2-07 Output Voltage

U2-08 DC Bus Voltage

U2-09 Output kWatts

U2-11 Input Term Sts

U2-12 Output Term Sts

U2-13 AC Drive Status

U2-14 Elapsed Time

U2-03= 0.00Hz

Control Panel 3 - 11

 U3 Fault History Parameter List

-DRIVE- Rdy Fault Trace

U2-01= None

- - - - - - - - - - - - - - - - - - - -

U2-02= None

-DRIVE- Rdy Fault History

U3-01= None

- - - - - - - - - - - - - - - - - - - -

U3-02= None

-DRIVE- Rdy Last Fault

U3-01 = None

- - - - - - - - - - - - - - - - - - - -

U3-02= None

After viewing the “Fault Trace” parameter list, in order to view the “Fault History” parameter list, follow the example below.

U2-03= 0.00A

Use and keys to scroll through the U3 “Fault History” parameter list.

Fault History Parameters

U3-01 Last Fault

U3-02 Fault Message 2

U3-03 Fault Message 3

U3-04 Fault Message 4

U3-05 Elapsed Time 1

U3-06 Elapsed Time 2

U3-07 Elapsed Time 3

U3-08 Elapsed Time 4

U3-09 Fault Message 5

U3-10 Fault Message 6

U3-11 Fault Message 7

U3-12 Fault Message 8

U3-13 Fault Message 9

U3-14 Fault Message 10

U3-15 Elapsed Time 5

U3-16 Elapsed Time 6

U3-17 Elapsed Time 7

U3-18 Elapsed Time 8

U3-19 Elapsed Time 9

U3-20 Elapsed Time 10

U3-03= None

Control Panel 3 - 12

 - QUICK - Quick Setting Menu

-QUICK-

** Main Menu **

- - - - - - - - - - - - - Quick Setting

-QUICKReference Source

- - - - - - - - - - - - - - - - - - - -

B1-01= 1 *1*

Terminals

“1”

x2

This menu is used to set/read a limited set of parameters in the Drive. Follow the key operations below to access the Quick Setting Menu.

Use and keys to scroll through the “Quick Setting” parameter list.

Parameter

Number

Parameter Name

b1-01 Frequency Reference Selection

b1-02 Run command Selection

b1-03 Stopping Method Selection

b5-01 PI Mode Selection

b5-02* Proportional Gain Setting

b5-03* Integral Time Setting

b5-31* PI Unit Selection

C1-01 Acceleration Time 1

C1-02 Deceleration Time 1

d2-01 Frequency Reference Upper Limit

d2-02 Frequency Reference Lower Limit

E1-01 Input Voltage Setting

E2-01 Motor Rated Current

H3-08* Terminal A2 Signal Level Selection

H3-09* Auxiliary Terminal Function Selection

H3-13*

Master/Frequency Reference Terminal Selection

* This parameter’s menu location is Quick Setting when b5-01=1, and Programming when b5-01=0.

Control Panel 3 - 13

 - ADV- Programming Menu

-ADV-

** Main Menu **

- - - - - - - - - - - - - Programming

-ADVInitialization

- - - - - - - - - - - - - - - - - - - -

A1-00= 0

Select Language

x3

This menu is used to set/read every parameter in the Drive. Follow the key operations below to access the Programming Menu.

Use , , and keys to scroll through the “Programming” parameter group list. For a complete parameter list see Appendix A.

Parameter Group Functions

A1 Initialization A2 User Parameters b1 Sequence b2 DC Braking b3 Speed Search b4 Delay Timers b5 PI Control b8 Energy Saving C1 Accel/Decel C2 S-Curve Acc/Dec C4 Torque Comp C6 Carrier Freq d1 Preset Reference d2 Reference Limits d3 Jump Frequencies d4 Sequence d6 Field-Weakening E1 V/F Pattern E2 Motor Setup F6 Com OPT Setup H1 Digital Inputs H2 Digital Outputs H3 Analog Inputs H4 Analog Outputs H5 Serial Com Setup L1 Motor Overload L2 PwrLoss Ridethru L3 Stall Prevention L4 Ref Detection L5 Fault Restart L6 Torque Detection L8 Hdwe Protection n1 Hunting Prev n3 High Slip o1 Monitor Select o2 Key Selections o3 COPY Function

Control Panel 3 - 14

 - VERIFY - Modified Constants (Parameters) Menu

-VERIFY-

** Main Menu **

- - - - - - - - - - - - - Modified Consts

See Note 1

x4

See Note 1

-A.TUNE-

** Main Menu **

- - - - - - - - - - - - - -

Auto-Tuning

-A.TUNEMtr Rated Power

- - - - - - - - - - - - - - - - - - - -

T

-02 = 0.40kW

(0.00~650.00)

x5

This menu is used to set/read only those parameters that have been modified from the Drive’s original factory default settings. Follow the key operations below to access the Modified Constants (Parameters) Menu.

Note 1: If there are not any parameters that have been modified from their original factory default settings, then the display

will state “None Modified”. Otherwise, use the “increase” and “decrease” keys to scroll through the “Modified Constants” (Parameters) list.

 - A.TUNE - Auto-Tuning Menu

For E7 Bypass units Auto-Tuning can only be accomplished through the DriveWizard software (Part Number DWST616-C2). A free download from www.drives.com.

This menu is used to auto-tune the Drive in order to utilize the bi-directional speed search feature. Follow the key operations below to access the Auto-Tuning Menu.

Use and keys to scroll through the “Auto-Tuning” parameter list.

Auto-Tuning Parameters

T1-02 Mtr Rated Power

T1-04 Rated Current

1

“0.40kW”

Control Panel 3 - 15

Example of Changing a Parameter

-DRIVE- Rdy Frequency Ref

U1-01 = 0.00Hz

- - - - - - - - - - - - - - - - - - - -

U1-02= 0.00Hz

-DRIVE-

** Main Menu **

- - - - - - - - - - - - - -

Operation

-QUICK-

** Main Menu **

- - - - - - - - - - - - - -

Quick Setting

-ADV-

** Main Menu **

- - - - - - - - - - - - - -

Programming

-ADV-

Initialization

- - - - - - - - - - - - - - - - - - - -

A1-01= 0

Select Language

-ADV-

Accel/Decel

- - - - - - - - - - - - - - - - - - - -

C1-01= 1.0sec

Accel Time 1

-ADV-

Accel Time 1

- - - - - - - - - - - - - - - - - - - -

C1-01 = 30.0sec

(0.0~6000.0)

Table 3.13 provides an example of how to change parameter “C1-02” (Deceleration Time 1) from 30 sec to 40 sec.

Table 3.13 Changing a Parameter in the Programming Menu

Step

Number

Digital Operator Display

Description

1 The Drive is first powered up.

U1-03= 0.00A

2 Press the MENU key to scroll to “Operation” menu.

3 Press the MENU key to scroll to “Quick Setting” menu.

4 Press the MENU key to scroll to “Programming” menu.

5 Press the DATA/ENTER key to enter “Programming” menu.

6 Press the INCREASE key until C1-01 (Accel/Decel) is displayed.

7 Press the SHIFT/RESET key to move flashing digit to the right.

“30.0sec”

Control Panel 3 - 16

Table 3.13 Changing a Parameter in the Programming Menu (Continued)

-ADV-

Decel Time 1

- - - - - - - - - - - - - - - - - - - -

C1-02 = 30.0sec

(0.0~6000.0)

-ADV-

Decel Time 1

- - - - - - - - - - - - - - - - - - - -

C1-02= 0030. 0sec

(0.0~6000.0)

-ADV-

Decel Time 1

- - - - - - - - - - - - - - - - - - - -

C1-02= 0030.0sec

(0.0~6000.0)

-ADV-

Decel Time 1

- - - - - - - - - - - - - - - - - - - -

C1-02= 0030.0sec

(0.0~6000.0)

-ADV-

Decel Time 1

- - - - - - - - - - - - - - - - - - - -

C1-02= 0040.0sec

(0.0~6000.0)

-ADV-

Entry Accepted

-ADV-

Decel Time 1

- - - - - - - - - - - - - - - - - - - -

C1-02 = 30.0sec

(0.0~6000.0)

40

-DRIVE-

** Main Menu **

- - - - - - - - - - - - - -

Operation

-DRIVE- Rdy Frequency Ref

U1-01= 0.00Hz

- - - - - - - - - - - - - - - - - - - -

U1-02= 0.00Hz

Step

Number

8 Press the INCREASE key to display C1-02 (Decel Time 1).

9 Press the DATA/ENTER key to access setting display.

10 Press the SHIFT/RESET key to move the flashing digit to the right.

11

Digital Operator Display Description

“30.0sec”

Press the SHIFT/RESET key to move the flashing digit to the right.

“30.0sec”

12

“30.0sec”

13

14 The monitor display for C1-02 returns.

“30.0sec”

15

16

U1-03= 0.00A

Press the INCREASE key to increase the set data.

Press the DATA/ENTER key to enter the set data. “Entry Accepted” is displayed for 1.0 sec after the data setting has been confirmed.

Press the MENU key to scroll to “Operation” menu.

Press the DATA/ENTER key to enter “Operation” menu.

Control Panel 3 - 17

Notes:

Control Panel 3 - 18

Chapter 4 Start Up and Operation

This chapter describes the procedures to prepare for and conduct the E7B Drive

and Bypass unit start up.

Start Up Introduction ...................................................................... 2

Bypass Start Up Preparation .......................................................... 3

Bypass Unit Start Up Procedure .................................................... 4

Bypass Operation Description......................................................... 8

Selector Switch Functions ......................................................... 9

Switch Selectable Functions .................................................... 10

Contact Closure Inputs and Outputs ....................................... 10

Start Up and Operation 4 - 1

Start Up Introduction

In order to provide you with the most reliable Drive and Bypass unit available, and to avoid any extra costs related to loss or reduction of warranty coverage, an authorized Yaskawa service representative should complete this start up procedure. Please complete the checklist in this document and maintain it in a secured location. Should you have a need to contact Yaskawa in the future, technical service personnel may request information from this document.

CAUTION

Procedures within this document assume that start up is being accomplished by a Yaskawa authorized service person who has training on the product and is capable of working through the detailed steps with power applied to the Bypass unit while the enclosure door is open.

Start Up and Operation 4 - 2

BYPASS START UP PREPARATION

 1. Review this Bypass Technical Manual and any option instructions and schematics shipped with the Drive and Bypass

unit.

 2. Verify that the model numbers and voltage ratings are as specified in the purchase order by matching the nameplate

data for each unit to the purchase order.

 3. Verify that the unit has been installed in accordance with Chapter 1, Receiving and Mechanical Installation and

Chapter 2, Electrical Installation.

 4. Inspect the security of the supply line power, ground connections and all control circuit connections as identified in

Chapter 2, Electrical Installation.

Double check all the power wires and motor wires.

Verify that the electrical supply power lines are connected to the input circuit breaker and that the motor leads are connected to the output terminals of the overload relay. Ensure that all connections are tight, loose wire connections may cause intermittent problems or overheating. Factory connections sometimes come loose during shipment.

 5. Review the installer’s “as wired” schematic. Determine if a driven motor “safety circuit” is connected. This is a series

circuit of NC contacts from devices such as a smoke/fire sensor, freeze-up thermostat or high static pressure limit switch. Verify that these customer emergency contacts are properly terminated in the Bypass safety shutdown circuit. These contacts should be wired between terminal TB1-1 and TB1-2. No field programming is required.

Verify that all other field installed wires are correctly terminated (included the shields).

 6. Verify that the motor is wired for the application voltage. Record the motor nameplate information:

Voltage ______________________________ Motor Rated Amps ___________________________________

 7. Verify that the input voltage matches the Bypass unit rating.

 8. Verify that the motor rated full load amps (FLA) does not exceed the rated output current of the Drive and Bypass

controlling it. When multiple motors are simulaneously operated by the Drive, the sum of all motor FLA values must be less than or equal to that of the Drive and Bypass controlling them.

 9. Record any other connections to the Bypass unit, by terminal number to determine if special programming of any of

the following is required. (see Chapter 5 for programming details).

• Multi-function Digital Inputs

• Multi-function Digital Outputs

• Analog Outputs

• Differential PI control

 10. Verify that the building automation system logic is ready for the start, stop and speed command functions.

Start Up and Operation 4 - 3

BYPASS UNIT START UP PROCEDURE

OverLoad Relay

Bypass Contactor

Adjustment Dial

Reset Button

(Please review “Bypass Start Up Preparation” on page 4-3)

 1. Before applying power, make sure that the following conditions are met:

• The DRIVE/BYPASS switch is in the DRIVE position.

• The HAND/OFF/AUTO switch is in the OFF position.

• The NORMAL/TEST switch is in the NORMAL position. [Note: If the TEST position is selected while the DRIVE/BYPASS switch is in the DRIVE position, the fault code “UV, DC Bus Undervolt” will be briefly displayed and the Drive will shut down. TEST mode is only available when in the BYPASS position.]

• The VAV terminal unit dampers, in supply fan applications, are open to prevent duct flexing or damage in a full speed, across the line starting situation.

• The electro-mechanical motor OverLoad Relay (OLR) (S10) is adjusted to equal the Full Load Amps (FLA) value from the motor nameplate.

The OLR is mounted to the contactor assembly or back panel (depending on rating), just above the Bypass contactor. See Figure 4.1. Electrically on the output power side of the Bypass unit, the adjustable thermal OLR provides overload protection for the motor in both the Drive and Bypass operating modes. The OLR is set up in the factory to be a manual reset device, requiring operator attention if an overload trip-out is experienced.

 2. Apply power to the Drive and Bypass package. Ensure that all three phases are present and that the input voltage is

Fig 4.1 Typical Motor Overload and Contactors

IMPORTANT

correct for the system being set up. The CONTROL POWER ON, STOP and AUTO SEQ and REF LEDs on the control panel should be ON and the display will be in the “-DRIVE-/Operation” menu showing the active speed command. [Note: If the MOTOR OL/SAFETIES FAULT light is ON, press the reset button on the motor OLR (S10) and check the “safety device” circuit between terminals TB1-1 and TB1-2.].

To maintain overcurrent, short-circuit, and ground-fault protection, the manufacturer’s instructions for setting the motor OLR must be followed.

Start Up and Operation 4 - 4

 3. Various menus are directly available by pressing the MENU key (see Chapter 3). When in the “-DRIVE-/Operation”

menu, the Drive can accept a run command from local (Hand mode) or remote (Auto mode) sources. Press the MENU key until the “-ADV-/Programming” menu is displayed. From here, any of the parameters can be accessed and changed using the ,, and DATA/ENTER keys. See Appendix A for a list of programmable features. The “-VERIFY-/Modified Consts” menu can be used to review or modify only those parameters that have been changed from the Drive’s default values. Using the ,, and DATA/ENTER keys as needed, verify that the parameters are correct for the Drive and installation conditions. See the Factory Parameter Settings printed in Table 1 and Table 2 on page 2 of the Schematic Diagram that was shipped with the unit. Consider any additional parameter settings that may be needed by this specific application.

The Factory Parameter Settings table documents Drive parameter settings, required to interface with the Bypass logic circuit, that have been established at the factory and stored in a dedicated location in memory as “User Initialization” values (think of it as a “back-up file”). If additional parameters are set to the specific needs of the application project, and the system operation has been checked and verified, then the “User Initialization” values should be stored in memory again by selecting and entering “1: Set Default” in parameter o2-03.

When there is a need for re-initialization of the “user” parameters (re-setting to the “User Initialization” values) of the Bypass unit, then a “User Initialization” function should be carried out by selecting “1110: User Initialize” in parameter A1-03. This will re-establish the drive set-up required for the Bypass application and any “user” parameter values that have been stored.

The factory parameter settings required to interface with the bypass logic circuit have also been stored in the digital keypad memory. If there is a need for re-initialization (re-setting to a known factory starting point for trouble-shooting purposes) of the Bypass unit, then the “back-up file” in the digital keypad memory can be copied to the drive. In parameter o3-01 select “2: OP->INV WRITE” to carry out the copy function.

Table 1 of the schematic is also used to document parameters that have been factory set to typical values for fan and pump applications. These parameters may be changed to meet the needs of the specific application. In Table 5.1 of this manual shading is used to distinguish between settings required by the Bypass logic and those that may be changed.

 4. From the “-ADV-/Programming” menu, go to parameter E1-01 and select the nominal input voltage that the Drive will

receive in this specific application. The overall voltage classification of the Drive cannot be changed by this parameter. However, the input voltage should be adjusted within the range available for the given voltage “class” of the Drive to match the input voltage level normally found on the jobsite. For example, 480 VAC class Drives may be employed on nominal three phase voltage distribution systems of: 380, 400, 415, 440, 460 or 480 VAC. The factory default values may need to be changed to meet the needs of the application distribution voltage.

 5. From the “-ADV-/Programming” menu, go to parameter E2-01 and enter the Motor rated current. Set this parameter to

the Full Load Amps (FLA) rating shown on the motor nameplate. This is essential for proper Drive operation and motor overload protection.

 6. If the unit being started has the Speed Potentiometer option, proceed directly to step 7. Otherwise, press the

MONITOR key to return to the “-DRIVE-/Operation” menu. The AUTO SEQ and REF LEDs and the STOP and CONTROL POWER ON LEDs on the control panel should be ON at this time.

To start the motor in Drive mode, move the HAND/OFF/AUTO switch to HAND. The DRIVE RUN LED will turn

ON and the Drive will ramp up to “6 HZ”. Verify that motor rotation is correct. [Note: In Bypass packages, the Drive is programmed at the factory for 5 seconds of DC injection braking at start (to stop a rotating motor when switching from BYPASS to DRIVE), expect to see this delay each time the Drive is started.]

If the direction of motor rotation is wrong, turn the HAND/OFF/AUTO switch to OFF; and turn the Power OFF! Wait for the Red CHARGE LED (near the Drive power terminals) to go out. When it does, swap the wires in the motor junction box for T1 & T2 or on the output terminals of the motor OLR (S10). Tighten the terminal lugs, reapply the power, turn to HAND and re-check the rotation direction.

Start Up and Operation 4 - 5

 7. If a Speed Potentiometer option is present, turn the Speed Potentiometer fully counterclockwise to ensure that the

local speed command is zero. If necessary, press the MONITOR key to return to the “-DRIVE-/Operation” menu. The AUTO SEQ and REF LEDs and the STOP and CONTROL POWER ON LEDs on the control panel should be ON at this time.

To start the motor in Drive mode, move the HAND/OFF/AUTO switch to HAND, then rotate the Speed Potentiometer clockwise to establish a speed command in the 6 to 10 Hz range. The DRIVE RUN LED will turn ON and the Drive will ramp up to this setting. Verify that motor rotation is correct. [Note: In Bypass packages the Drive is programmed at the factory for 5 seconds of DC injection braking at start (to stop a rotating motor when switching from BYPASS to DRIVE), expect to see this delay each time the Drive is started.]

If the direction of motor rotation is wrong, turn the HAND/OFF/AUTO switch to OFF; and turn the Power OFF! Wait for the Red CHARGE LED (near the Drive power terminals) to go out. When it does, swap the wires in the motor junction box for T1 & T2 or on the output terminals of the motor OLR (S10). Tighten the terminal lugs, reapply the power, turn to HAND; and re-check the rotation direction.

 8. With correct motor rotation, press the MONITOR key, if necessary, to return to the “-DRIVE-/Operation” menu.

Using the observing operation. If excessive vibration of the driven load is noted at specific input frequencies, the Jump Frequency function may be used to eliminate this vibration, by programming d3-01 through d3-04.

 9. Determine whether the remote speed command is a 0-10 VDC or a 4-20 mA signal. The positive side of the signal

should be connected to terminal A2 of the Drive terminal strip. The COMMON of the remote speed command signal should be connected to terminal AC of the Drive. See the connection diagram on page 1 of the Bypass schematic. [Note: The factory default is 4-20 mA, to change to 0 to 10 VDC adjust parameter H3-08 to “0: 0-10VDC” and move Drive DIP switch S1-2, on the Drive terminal PCB to the OFF position.]

,, and DATA/ENTER keys, manually run the Drive throughout its entire operating range, while

 10. Observe if the remote speed command can achieve the minimum and maximum speeds desired. If not, perform the

following (see Chapter 5):

For 0-10 VDC input at Terminal A2

1. With no input, adjust the Bias (H3-11 setting) until an output of “0.0 Hz” is obtained.

2. With full scale input, adjust the Gain (H3-10 setting) until an output of “60.0 Hz” (or other desired maximum

frequency) is obtained.

For 4-20 mA input at Terminal A2

1. With 4 mA input, adjust Bias (H3-11 setting) until an output of “0.0 Hz” is obtained.

2. With 20 mA input, adjust Gain (H3-10 setting) until an output of “60.0 Hz” (or other desired maximum

frequency) is obtained.

 11. Turn the HAND/OFF/AUTO switch to AUTO, then request a run command and speed reference signal from the

building automation system to confirm remote (auto) operation.

 12. In preparation for testing the Bypass, observe the trip setting of the circuit breaker (CB1). The trip point is factory set

at the lowest possible setting and must be adjusted for each application. This breaker will trip due to inrush current and load inertia unless it is reset!

• For fan applications adjust the trip setting to ten times motor FLA.

• For pump applications adjust the trip setting to six times motor FLA.

If circuit breaker tripping is experienced at these settings during motor starting on Bypass, increase the setting gradually until the motor can be started without circuit breaker tripping.

Start Up and Operation 4 - 6

Trip Setting Adjustment Dial

MCP

Adjustment Dial Label

Fig 4.2 Typical MCP Circuit Breaker

IMPORTANT

To maintain overcurrent, short-circuit, and ground-fault protection, the manufacturer’s instructions for setting the instantaneous-trip circuit breaker must be followed.

 13. Turn the HAND/OFF/AUTO switch to OFF and the DRIVE/BYPASS switch to BYPASS. The Drive will ramp the

motor to zero speed, then the Drive will be de-energized and control transferred to Bypass mode. Be prepared to monitor the rotation direction of the motor in Bypass operation. “Bump” the HAND/OFF/AUTO switch to the HAND position and quickly back to OFF. Check the motor rotation.

Do not allow the motor to continue operating in

BYPASS until rotation is correct!

If the rotation direction in Bypass is correct, skip the rest of this step. If not, carry out the following corrections:

1. Turn OFF the incoming power feed to the Drive. Since the correct rotation in Drive mode was previously established, do not change any output wires at the motor.

2. Instead, verify that power to the circuit breaker is OFF. Then swap L1 & L2 on the input side of the circuit breaker/disconnect switch (CB1). This will affect rotation in Bypass operation only. Once connections are complete and tight, reapply the incoming power and repeat the previous step to re-check the rotation direction in Bypass mode.

 14. Run the motor in Bypass by placing the HAND/OFF/AUTO switch in HAND. Record all the phase voltages and

currents at this time.

 15. Select the OFF position of the HAND/OFF/AUTO switch and place the BYPASS/DRIVE switch in DRIVE. Turn to

the HAND position and scroll the Speed Command to “60 HZ” operation. Monitor the voltages and currents in each of the output phases at full speed to make sure the voltages are balanced and the currents are within the motor nameplate rating during accel, stable speed, and decel.

 16. If this application requires the Drive to operate in PI mode, see Chapter 5.

 17. For fan applications, with the HAND/OFF/AUTO switch set to AUTO, have the building automation system give the

Drive a run command and a speed command. Put the BYPASS/DRIVE switch into BYPASS and let the load speed up and stabilize. Then move the switch to DRIVE. Observe if the DC braking is enough to stop the fan in the time period set in parameter b2-03 (5 sec factory setting). If not, set this parameter to its maximum setting, which is 10.0 seconds. If this is not enough, slowly increase the braking current setting (parameter b2-02) but do not go above 90% to protect the Drive output devices.

For serial communication, refer to TM.E7.21 (APOGEE FLN) and TM.E7.22 (Metasys N2).

Start Up and Operation 4 - 7

Bypass Operation Description

(For manual switch positions, control inputs and switch selectable functions.)

The Bypass has two modes of operation: Bypass and Drive. When in the Bypass mode the connected motor is run directly from the incoming AC line, whereas in Drive mode the motor is run from the Drive output. The DRIVE/BYPASS switch located on the front panel determines operating mode. Within each operating mode are two methods of control; HAND and AUTO. The HAND/OFF/AUTO switch on the front panel determines this control method.

Table 4.1 provides a look at various combinations of the control panel selector switch positions, control inputs to TB1 and the status of the switch selectable options.

Table 4.1 Bypass Inputs and Operating Mode

Selector Switches Contact Closure Inputs Switch Selectable Functions

Run

H/O/A D/B N/T

O 0 None H D N X X 0 0 0 Drive H D N 0 X 0 0 0 None

H D N X 0 0 0 0 None H D T X X 0 0 0 None H B N X X Bypass

H B T X X Bypass* H B N 0 X 0 None H B N X 0 0 None

A D N X X X 0 0 0 Drive A D N X 0 X 0 0 0 None A D N X X 0 0 0 0 None

A D T X X X 0 0 0 None A B N X X X Bypass A B T X X X Bypass*

A B N X 0 X 0 None A B N X X 0 0 None H D N X X X 0 X 0 X 0 Drive

H D N X X X X Bypass H D N X X X X Bypass H D N X X X X Bypass

O D N X X X X Bypass A D N X X X X 0 X 0 X 0 Drive A D N X X X X X Bypass

A D N X X X X X Bypass A D N X X X X X Bypass

TB1

3 & 4

Enable

TB1

5 & 6

Safety

TB1

1 & 2

Auto Xfer Remote Xfer Smoke Purge

S103

DRV

FLT

S104

TB1

25 & 26

S105

TB1

17 & 18

Operating Mode

Result

Note: A blank cell indicates the input can be in any of the possible positions.

* = Drive energized, output contactor open.

Table 4.1 Definitions:

H/O/A = Hand/Off/Auto TB = Terminal Block

D/B = Drive/Bypass S10X = Slide Switch Number

N/T = Normal/Test X = Closed Contacts or Enabled

DRV FLT = Drive Fault Contacts 0 = Open Contacts or Disabled

Start Up and Operation 4 - 8

For additional influences on the Drive behavior in Drive operating mode, consult Table 5.1 and Table 5.2. These tables explain the settings of Drive parameters required by the Bypass logic (Table 5.1) and those that are also dependent upon the control options present on the unit (Table 5.2). For Example: In the second line of Table 5.2, for a Bypass equipped with no options and switch S1-2 in the off position, the hand mode speed command is based on the setting of d1-02 and the auto mode speed command signal is 0-10VDC.

 Selector Switch Functions

Operating in HAND position - Drive mode:

The Drive can be operated locally from the control panel by first placing the DRIVE/BYPASS switch in DRIVE. Then placing the HAND/OFF/AUTO switch in the HAND position gives the front panel control of the Drive operation. Moving the switch to HAND also provides the run command to the Drive. When placed into HAND mode the Drive begins running at the hand mode speed command.

Operating in AUTO position - Drive mode:

The Drive can be operated remotely by placing the DRIVE/BYPASS switch in DRIVE. Then placing the HAND/OFF/ AUTO switch in the AUTO position gives a remote device (BAS or DDC) control of the Drive. In the AUTO position the Drive will look for a run command contact closure at terminals TB1-3 and TB1-4 on the relay PCB A2. Speed command signal level and source is determined by the parameter settings and the options present in the unit, see Tables 5.1 and 5.2. The AUTO speed command must be wired directly to the Drive terminals A2 and AC, not the control terminal block TB1. Consult Figures 2.7 and 2.8 in Chapter 2, Electrical Installation for correct configuration of the speed command (analog frequency reference).

Operating in HAND position - Bypass mode:

The Bypass can be operated locally from the front control panel by placing the DRIVE/BYPASS switch in BYPASS. In

BYPASS mode the Bypass contactor coil can be energized manually by placing the HAND/OFF/AUTO switch in HAND position. In Bypass mode, moving the HAND/OFF/AUTO switch to HAND causes the motor to run at full speed,

directly “across the line”.

Operating in AUTO position - Bypass mode:

The Bypass can be operated remotely by placing the DRIVE/BYPASS switch in BYPASS and the HAND/OFF/AUTO switch in AUTO. In the AUTO position the Bypass will look for a run command contact closure at terminals TB1-3 and TB1-4 on the relay PCB A2, to control the run/stop status of “across the line” full speed motor operation.

Operating in TEST position - Bypass mode:

TEST position is used to energize the Drive input contactor while operating in the Bypass mode. The only valid use of the TEST position is in Bypass mode. In Drive mode, switching from NORMAL to TEST position will remove the Drive

run command and the motor will stop. In Bypass mode, the test position powers the Drive for programming or other “tests” while keeping it isolated from the motor.

Start Up and Operation 4 - 9

 Switch Selectable Functions

The switch selectable functions, Smoke Purge, Auto Transfer and Remote Transfer represent various methods of transfer- ring from the Drive mode of operation to the Bypass mode. They may be enabled in any combination from none of them to all of them. See Table 4.1 for a summary of some common combinations of these switch selectable inputs.

Smoke Purge: When enabled (switch S105) this function allows a contact closure between terminals TB1-17 and TB1-18 to transfer motor operation to Bypass for a maximum capacity smoke control function. When in smoke purge mode, during emergency fire/smoke situations, the motor overloads and safety interlock circuit are overridden to shift the priority to protecting people rather than equipment. [Note: Smoke purge overrides all other control inputs and selector switches. Smoke purge operation can only be terminated by opening the contact closure at terminals TB1-17 and TB1-18 or by opening the Circuit Breaker (CB1).]

Auto Transfer to Bypass: When enabled (switch S103), the Bypass unit will automatically switch into Bypass mode on a Drive fault. After clearing the Drive fault condition, the function resets by moving the circuit breaker to the OFF position and waiting for the keypad to go blank. CAUTION: Before selecting this function in fan applications, care must be taken to ensure that the ductwork is designed to handle the pressure resulting from full speed operation with the VAV terminal unit dampers at minimum position or closed.

Remote Transfer to Bypass: When enabled (switch S104) this function allows a contact closure from a BAS, between terminals TB1-25 and TB1-26, to transfer motor operation from Drive mode to Bypass mode. This remote transfer to Bypass function overrides the DRIVE/BYPASS manual switch. An open contact causes operation in Drive mode and a closed contact results in Bypass mode.

 Contact Closure Inputs and Outputs

Customer Safety Interlocks Input: Termin a l s TB1-1 and TB1-2 are used as a Drive or Bypass override from the NC contacts of the customer’s safety device series circuit. Anytime all the safety device contacts are closed, the Drive or Bypass will oper ate. When any one of these contacts open, the Drive or Bypass will immediately stop operating. This input is momentary, when a customer safety device contact re-closes, the Drive or Bypass will return to operation.

Auto Mode Run/Stop Contact Input: TB1-3 and TB1-4 are input terminals used for the Run/Stop command when in the AUTO mode. When these input contacts close, the unit will begin running. When the contacts reopen, the unit will cease

running.

BAS Interlock or Drive Enable Input: An open contact at TB1-5 and TB1-6 will override the run command, preventing Drive or Bypass operation until these input contacts are closed. For example this input could insure that the system dampers achieve an operating position before the fan is started in order to protect the ductwork from over pressure.

Drive Run Contact Output: Ter m i n a l s TB1-7 and TB1-8 are an output contact that closes whenever the motor is running in Drive mode. If the Drive is receiving a run command, but a fault condition occurs, this contact will

Bypass Run Contact Output: Ter m i n als TB1-9 and TB1-10 are an output contact that closes whenever the motor is running in Bypass mode. If the Bypass is receiving a run command, but a fault condition occurs, this contact will

Drive Fault Contact Output: Terminals TB1-11, TB1-12 and TB1-13 are a Form C set of output relay contacts, NO and NC that are activated when the Drive is in a fault condition.

not be closed.

-

Start Up and Operation 4 - 10

Motor Overload or Customer Safeties Fault Contact Output: Terminals TB1-14, TB1-15 and TB1-16 are a Form C set of output relay contacts, N.O. and N.C. that are activated when one of the N.C. contacts of the Customer Safety device input series circuit or the motor overload relay contacts is opened.

120VAC Damper Actuator Output: Output terminals TB1-19 and TB1-20 are provided to energize a damper actuator circuit or solenoid air valve, typically for outdoor air intake dampers. When the motor is stopped, the output voltage is removed in order to close the dampers. Whenever the Drive or Bypass is running, the terminals output 120VAC to power a 40VA damper actuator circuit.

120VAC Control Power Output: Output terminals TB1-21 and TB1-22 are provided to energize additional, customer defined control logic circuits. A maximum of 100VA control power is available, the user must provide the short circuit protection.

Optional Two Motor “OR” Selection Input: Ter m inals TB1-23 and TB1-24 are used only when the “Two Motor OR option” is part of the unit. These input terminals are used for choosing between motor 1 or motor 2 when the optional MOTOR 1/AUTO/MOTOR 2 selector switch is in the AUTO position.

Start Up and Operation 4 - 11

Notes:

Start Up and Operation 4 - 12

Chapter 5 Programming

This Manual contains descriptions of all parameters in the Drive that may be useful in Bypass applications. Parameters are listed in alpha-numerical order. Parameter number and name, along with a detailed description and its settings are described on the following pages.

Bypass Basic Programming Parameters ........................................ 2

Discussion of Table 5.2 Option-Dependent Bypass

Parameter Settings: ................................................................... 5

A1 Initialization .......................................................................... 9

b1 Sequence ........................................................................... 11

b2 DC Braking ......................................................................... 16

b3 Speed Search ..................................................................... 18

b5 PI Function ......................................................................... 22

b8 Energy Savings .................................................................. 37

C1 Accel/Decel ........................................................................ 38

d1 Preset References .............................................................. 39

d2 Reference (Speed Command) Limits .................................. 41

d3 Jump Frequencies .............................................................. 42

d4 Sequence ........................................................................... 43

E1 V/f Pattern .......................................................................... 44

E2 Motor Setup ........................................................................ 50

F6 Com OPT Setup

(Applies only to the LonWorks® option) .............................. 51

H1 Digital Inputs ...................................................................... 52

H2 Digital Outputs .................................................................... 57

H3 Analog Inputs ..................................................................... 58

L2 Momentary Power Loss Ride-thru Function ....................... 64

L3 Stall Prevention ................................................................... 65

L4 Speed Command Loss Detection ....................................... 68

L5 Fault Restart ....................................................................... 69

L6 Torque Detection ................................................................ 71

L8 Hardware Protection ........................................................... 73

o1 Monitor Configuration ......................................................... 75

o2 Key Selections .................................................................... 79

o3 Digital Operator Copy Function .......................................... 82

T1 Auto-Tuning ........................................................................ 85

Programming 5 - 1

Bypass Basic Programming Parameters

The basic Drive programming for a Bypass unit is different from that of a Drive installation without the Bypass option.

Several Drive parameters have been programmed at the factory to meet the needs of the Bypass logic circuit. See Table 5.1 below, the highlighted parameters are required by the Bypass logic circuit. Only those parameters that are changed from the Drive default are listed.

Table 5.1 Bypass Parameter Settings

PAR AMETER

NUMBER

b1-01 SEE

b1-08 1 0 N/A Run Command Selection During Programming –

b2-03 5.0 0.0 SEC DC Injection Braking Time At Start – Sets the

d1-01 10.0 0.0 HZ Frequency Reference 1 – Hand Mode Speed Refer-

d1-02 6.0 0.0 HZ Frequency Reference 2 – Hand Mode Speed Refer-

d1-04 40.0 0.0 HZ Frequency Reference 4 – Speed Reference, used with

E1-01 208, 240

F6-01 3 1 N/A Operation Selection After Communication Error –

H1-01 70 24 N/A Terminal S3 Function Selection – Set for Drive run

H1-02 SEE

H1-03 SEE

H2-02 3B A N/A Terminals M3 - M4 Function Selection – Set for serial

H3-02 SEE

H3-08 SEE

SETTING

For

Bypass

TABLE

5.2

or 480

TABLE

5.2

TABLE

5.2

TABLE

5.2

TABLE

5.2

Drive

Default

240 or

480

14 N/A Terminal S4 Function Selection – Set for fault reset or

100.0 % Terminal A1 Gain Setting Terminal A1 Gain /

UNITS DESCRIPTION

1 N/A Frequency Reference Selection – Selects the speed

command input source

Selects if run command is accepted in DRIVE Operation menu only or in all menus.

braking time at Drive start, to stop a coasting motor before starting

ence, used with serial communication, see Table 5.2 and H1-03

ence, used without serial communication, see Table

5.2 and H1-03

serial communication loss and H5-04 = “4: Run at d1-04”

VOLTS

3 N/A Terminal S5 Function Selection – Set For Frequency

2 N/A Terminal A2 Signal Level –Signal selection, 0 to 10

Input Voltage Setting – Set to the nominal Voltage Setting for the incoming line

Selects the serial com error response, alarm and continue operation

enable

Frequency Reference 1

Reference 1 or Serial Communication

communication run command

VDC (Drive control board switch S1-2 off) or 4 to 20 mA (Drive control board switch S1-2 on)

KEYPAD DISPLAY

For Bypass Setting

Reference Source / Ter minals

RUN CMD at PRG / Enabled

Dcinj Time@Start / (0-10)

Reference 1 / (0-60)

Reference 2 / (0-60)

Reference 4 / (0-60)

Input Voltage / (range)

Com Bus Flt Sel / Alarm Only

Terminal S3 Sel / Drive Enable

Terminal S4 Sel / MultiStep Ref 1

Terminal S5 Sel / MultiStep Ref 1

Term M3-M4 Sel / Com RUN Command

(0-1000)

Term A2 Signal / 0-10 VDC

Programming 5 - 2

Table 5.1 (Continued)Bypass Parameter Settings

PAR AMETER

NUMBER

H3-09 SEE

H3-13 SEE

L4-05 0 1 N/A Frequency Reference Loss Detection Selection –

L5-01 10.0 0 N/A Number of Re-start Attempts – Sets the number of

L5-03 600 180 SEC Maximum Restart Time After Fault – If not success-

o2-02 0 1 N/A OFF Key Function During Auto Run - Enables or dis-

o2-15 0 1 N/A Hand Key Function Selection - Enables or disables the

o3-02 1 0 Read Allowed Selection – Enables or disables keypad

SETTING

For

Bypass

TABL E

5.2

TABL E

5.2

Drive

Default

UNITS DESCRIPTION

2 N/A Terminal A2 Function Selection – Selects how this

input will be used by the Drive

0 N/A Master Frequency Reference Terminal Selection –

Determines which terminal (A1 or A2) will be the main speed reference source.

Determines Drive response to loss of the frequency speed command

times the Drive will perform an automatic re-start

fully started after this time, restart attempts stop and Drive faults

ables the Off key.

Hand and Auto keys.

copy functions

KEYPAD DISPLAY

For Bypass Setting

Terminal A2 Sel / Aux Reference

TA1/A2 Select / Main Fref TA1

Ref Loss Sel / Stop

Num of Restarts / (0-10)

Max Restart Time / (.5-600.0)

Oper STOP Key / Disabled

Hand Key / Disabled

Read Allowable / Enabled

Shaded Areas = Parameter settings required by the Bypass logic. The shaded Bypass Parameter Settings in Table 5.1 document Drive parameter settings, required to interface with the Bypass logic circuit, that have been established at the factory and stored in a dedicated location in the memory as “User Initialization” values (think of it as a “back-up file”).

Table 5.1 is also used to document parameters that have been factory set, for convenience, to typical values for fan and pump applications. These parameters may be changed to meet the needs of the specific application.

If additional parameters are set to the specific needs of the application project, and the system operation has been checked and verified, then the “User Initialization” values should be stored in memory again by selecting and entering “1: Set Default” in parameter o2-03.

When there is a need for re-initialization of the “user” parameters (re-setting to the “User Initialization” values) of the Bypass unit, then a “User Initialization” function should be carried out by selecting “1110: User Initialize” in parameter A1-03. This will re-establish the drive set-up required for the Bypass application and any “user” parameter values that have been stored.

The factory parameter settings required to interface with the bypass logic circuit have also been stored in the digital keypad memory. If there is a need for re-initialization (re-setting to a known factory starting point for trouble-shooting purposes) of the Bypass unit, then the “back-up file” in the digital keypad memory can be copied to the drive. In parameter o3-01 select “2: OP->INV WRITE” to carry out the copy function.

If Serial Communication is to be employed, the following parameter values are essential, see also Appendix D.

Serial Communication Significant Parameters

Protocol Option Code H5-02 H5-07 H5-08 H5-09

Metasys J 3 1 1 10

APOGEE FLN J 2 1 2 10

Modbus J 3 1 0 10

LonWorks L 3 0 0 10

Programming 5 - 3

Table 5.2 Option Dependent Bypass Parameter Settings

Parameters Effected by Options Specified and

Settings

Options

None 1* 14* 3* 0.0 2* 0 0* Off* On* X X

None 1 14 3 0.0 0 0 0 Off Off X X

P and S 1 14 3 100* 2 2* 1 Off On X X X

J and P 0

J and S 1 14 6C 100 2 2 0 Off On X X X

L and P 0

L and S 1 14 6C 100 2 2 0 On On X X X

b1-01H1-02H1-03H3-02H3-08H3-09H3-

P 1 14 3 0.0 2 0 0 Off On X X X

S 1 14 3 100 2 2 1 Off On X X

S 1 14 3 100 0 2 1 Off Off X X

J 0 14 6C 0.0 2 2 0 Off On X X X

J 0

L 0 14 6C 0.0 2 2 0 On On X X X

L 0

@

6C 0.0 0 2 0 Off Off X X X

3

@

6C 0.0 2 2 0 Off On X X X X

3

@

6C 0.0 0 2 0 On Off X X X

3

@

6C 0.0 2 2 0 On On X X X X

3

13

Drive PCB Switch S1

1 2

Resulting Hand Speed

Command Source

Keypad

d1-

01

02

04

Speed

Pot.

Resulting Auto Speed

Command Signal

Terminal A2

4-20 mA0-10

VDC

3-15

PSIG

Serial Com

Run Speed

#

Definitions: L = LonWorks Option Card * = The Drive factory default S = Speed Potentiometer # = The H/O/A switch must be in the AUTO position J = Native Protocols (N2 or P1) to allow serial com. to control the Drive. P = Pneumatic Pressure Transducer (3-15 PSIG) @ = Jumpers required from S5 to S6 and S4 to SN

Parameter Reference: b1-01: Speed Command Input Source H3-13: Master Frequency Reference Terminal Selection

0: Operator 0: Main Fref TA1 1: Terminals 1: Main Fref TA2

H1-02: Terminal S4 Function Selection d1-01: Frequency Reference 1

3: Multi-step Ref 1 d1-02: Frequency Reference 2 14: Fault Reset d1-04: Frequency Reference 4

H1-03: Terminal S5 Function Selection

3: Multi-step Ref 1

6C: Com/Inv Sel 2 H3-02: Terminal A1 Gain Setting Note: Hand mode run/stop for Drive and Bypass is always via H3-08: Terminal A2 Signal Level the front control panel HAND/OFF/AUTO switch.

0: 0 - 10 VDC

2: 4 - 20 mA H3-09: Terminal A2 Function Selection

0: Frequency Bias

2: Aux Reference

Programming 5 - 4

 Discussion of Table 5.2 Option-Dependent Bypass Parameter Settings:

Drive Parameter Settings for Various Combinations of Bypass and Options

Notes:

See Appendix D, Communications, for additional information on serial communication.

Hand mode run/stop for Drive and Bypass is always via the front control panel HAND/OFF/AUTO switch.

The HAND/OFF/AUTO switch must be in AUTO position if serial communication is to be used to control the Drive.

For "monitoring only" of Drive parameters and operation, via serial communication, the user needs only to set-up the H5-0X "Serial Com Setup" parameters. All other parameters may remain as they were factory programmed for the Bypass unit and options.

Option L, LonWorks serial communication always requires DIP switch S1-1 (terminating resistor) to be ON. See the LonWorks Option Installation Guide (IG.AFD.20.LONWORKS) for additional parameter setting instructions.

 Options - None; Bypass with no options:

Hand mode speed command from Keypad/Operator. Auto mode speed command input signal, 4-20 mA applied to Drive terminal A2. Auto mode run/stop contact closure for Drive and Bypass applied to terminals TB1-3 and TB1-4.

Significant

Parameter Setting

b1-01 = 1: Terminals (default) Speed command source = Terminals

H3-08 = 2: 4-20 mA (default) Terminal A2 is programmed for 4-20 mA (Note – Control PCB DIP switch S1-2

must also be ON)

H3-02 = 0.0 Terminal A1 gain = 0.0 (To insure no stray signal level at this unused terminal)

H3-09 = 0: Frequency Bias Terminal A2 function is set to “bias” the terminal A1 input. Terminal A1 is not

used, therefore the A2 “bias” signal becomes the speed command.

H1-03 = 3: Multi-Step Ref 1 (default)

A terminal S5 input contact closure selects d1-02 (keypad) as a preset speed. This input contact is closed when H/O/A = Hand.

Drive Operational Result

 Options - None; Bypass with no options:

Hand mode speed command from Keypad/Operator. Auto mode speed command input signal, 0-10 VDC applied to Drive terminal A2. Auto mode run/stop contact closure for Drive and Bypass applied to terminals TB1-3 and TB1-4.

Significant

Parameter Setting

b1-01 = 1: Terminals (default) Speed command source = Terminals

H3-08 = 0: 0-10 VDC Terminal A2 is programmed for 0-10 VDC (Note – Control PCB DIP switch S1-2

must also be OFF)

H3-02 = 0.0 Terminal A1 gain = 0.0 (To insure no stray signal level at this unused terminal)

H3-09 = 0: Frequency Bias Terminal A2 function is set to “bias” the terminal A1 input. Terminal A1 is not

used, therefore the A2 “bias” signal becomes the speed command.

H1-03 = 3: Multi-Step Ref 1 (default)

A terminal S5 input contact closure selects d1-02 (keypad) as a preset speed. This input contact is closed when H/O/A = Hand.

Drive Operational Result

Programming 5 - 5

 Options - P "Pneumatic Pressure Transducer"; Bypass with pneumatic input for speed control:

Hand mode speed command from Keypad/Operator. Auto mode speed command input signal from the pneumatic transducer, or 4-20 mA applied to Drive terminal A2. Auto mode run/stop contact closure for Drive and Bypass applied to terminals TB1-3 and TB1-4.

Significant

Parameter Setting

b1-01 = 1: Terminals (default) Speed command source = Terminals

H3-08 = 2: 4-20 mA (default) Terminal A2 is programmed for 4-20 mA (Transducer output is 4-20 mA) (Note

– Control PCB DIP switch S1-2 must also be ON)

H3-02 = 0.0 Terminal A1 gain = 0.0 (To insure no stray signal level at this unused terminal)

H3-09 = 0: Frequency Bias Terminal A2 function is set to “bias” the terminal A1 input. Terminal A1 is not

used, therefore the A2 “bias” signal becomes the speed command.

H1-03 = 3: Multi-Step Ref 1 (default)

A terminal S5 input contact closure selects d1-02 (keypad) as a preset speed. This input contact is closed when H/O/A = Hand.

Drive Operational Result

 Options - P and S "Pneumatic Pressure Transducer" and "Speed Pot."; Bypass with pneumatic input and speed potentiometer for speed control:

Hand mode speed command from speed potentiometer. Auto mode speed command input signal from the pneumatic transducer, or 4-20 mA applied to Drive terminal A2. Auto mode run/stop contact closure for Drive and Bypass applied to terminals TB1-3 and TB1-4.

Significant

Parameter Setting

b1-01 = 1: Terminals (default) Speed command source = Terminals

H3-13 = 1: Main Fref TA2 Main speed command source = Terminal A2 and the Aux speed command source

= Terminal A1

H3-08 = 2: 4-20 mA (default) Terminal A2 is programmed for 4-20 mA (Transducer output is 4-20 mA) (Note

– Control PCB DIP switch S1-2 must also be ON)

H3-09 = 2: Aux Reference (default) Aux Terminal (A1) function is set to be a speed command input.

H1-03 = 3: Multi-Step Ref 1 (default)

A terminal S5 input contact closure selects Aux Terminal (A1) as a preset speed. This input contact is closed when H/O/A = Hand.

Drive Operational Result

 Options - S "Speed Pot."; Bypass with speed potentiometer for speed control:

Hand mode speed command from speed potentiometer. Auto mode speed command input signal, 4-20 mA applied to Drive terminal A2. Auto mode run/stop contact closure for Drive and Bypass applied to terminals TB1-3 and TB1-4.

Significant

Parameter Setting

b1-01 = 1: Terminals (default) Speed command source = Terminals

H3-13 = 1: Main Fref TA2 Main speed command source = Terminal A2 and the Aux speed command source

= Terminal A1

H3-08 = 2: 4-20 mA (default) Terminal A2 is programmed for 4-20 mA (Note – Control PCB DIP switch S1-2

must also be ON)

H3-09 = 2: Aux Reference (default) Aux Terminal (A1) function is set to be a speed command input.

H1-03 = 3: Multi-Step Ref 1 (default)

A terminal S5 input contact closure selects Aux Terminal (A1) as a preset speed. This input contact is closed when H/O/A = Hand.

Drive Operational Result

Programming 5 - 6

Yaskawa E7B User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

 Product Description

Control logic provides industry standard Hand/Off/Auto functions and safety circuit interlocks in both drive and Bypass op erating modes.

E7 Bypass components include: a fused 120 VAC control circuit transformer, an input Motor Circuit Protector (MCP) circuit breaker/disconnect, motor overload relay, selector switches and indicating lights.

The Drive has embedded communications for the popular building automation protocols, Johnson Controls Metasys® N2 and Siemens APOGEE™ FLN, as well as Modbus®. An optional LONWORKS® interface card is also available.

This manual is applicable to E7 Drives defined by model numbers CIMR-E7U_ _ _ _ contained within Bypass units defined by model numbers E7B_ _ _ _. This manual reflects the software version 4010.

This manual may describe trademarked equipment, which is the property of other companies. These trademarks are the property of the registered owner companies and may include the following:

Metasys®, trademark of Johnson Controls Inc.

Modbus®, trademark of Schneider Automation, Inc.

LONWORKS®, trademark of Echelon Corporation

Other Documents and Manuals are available to support special use or installation of this product. These documents may be provided with the product or upon request or downloaded from www.drives.com. Documents may include the following:

 Definitions of Acronyms and Abbreviations

 Terminology in This Manual

“Standard” or “Configured” options - are available with standard lead times

“Engineered” or “Custom” options - are available only with extended lead times

 Resources Available

Document Number Description

Document Description

Table of Resources

Manuals, Installation Guides, and CD’s

Software

Flyers, Bulletins, Pricebook, Binders, And Specifications

Document Number Description

See also www.drives.com.

Table of Contents

Chapter 1

Physical Installation

Bypass Model Number and Enclosure Style

Table 1.1 Bypass

Enclosure Data

Table 1.2 208V Enclosure Data

Table 1.3 240/230V Enclosure Data

Table 1.4 480V Enclosure Data

Confirmations upon Delivery

 Receiving Checks

Table 1.5 Checks

 Bypass Nameplate Information

 Drive Nameplate Information

 Bypass Unit Model Numbers

Fig 1.3 Bypass Unit Model Number

 Bypass Unit Enclosures

Bypass Product Options

Bypass Component Descriptions

Indicating Lights

 Bypass Unit Front Control Panel

Fig 1.4 E7 Bypass Unit Appearance

 Keypad Operator

 HAND/OFF/AUTO Selector Switch

 DRIVE/BYPASS Selector Switch

 NORMAL/TEST Selector Switch

 MCP Motor Circuit Protector Circuit Breaker/Disconnect

 Internal Bypass Panel

Fig 1.7 Internal Bypass Panel

Fig 1.8 Control Terminal Strip

 Contactors

 OverLoad Relay

 Control Power Transformer

 Relay and Selector Switch Logic

 Drive/Bypass logic interlocks explained

 PCB Jumpers explained

 Switch Selectable Functions:

Fig 1.9 Printed Circuit Board A2

Exterior and Mounting Dimensions

 Bypass Unit 30 HP and Below, 480 VAC; 15 HP and Below, 208V/240V

 Bypass Unit 40 HP to 100 HP, 480 VAC; 20 HP to 40 HP, 208V/240V

 Bypass Unit 125 HP to 250 HP, 480 VAC; 50 HP to 125 HP, 208V

 Dimensions and Weights

Table 1.6 Bypass Dimensions and Weights

(1) Horsepower rating is based on standard NEMA B 4-pole motor design

(2) Height dimension includes the mounting screw tabs.

(3) Add-on box adds 13.6 inches to Height dimension and 91 lbs. Max. to total

(4) Data represents the total weight of the Drive with all possible standard options, not shipping weight.

(1) Horsepower rating is based on standard NEMA B 4-pole motor design

(2) Height dimension includes the mounting screw tabs.

(3) Add-on box adds 13.6 inches to Height dimension and 91 lbs. Max. to total

(4) Data represents the total weight of the drive with all possible standard options, not shipping weight.

Checking and Controlling Installation Site
