yard-man YMGBV3100 PARTS LIST
32

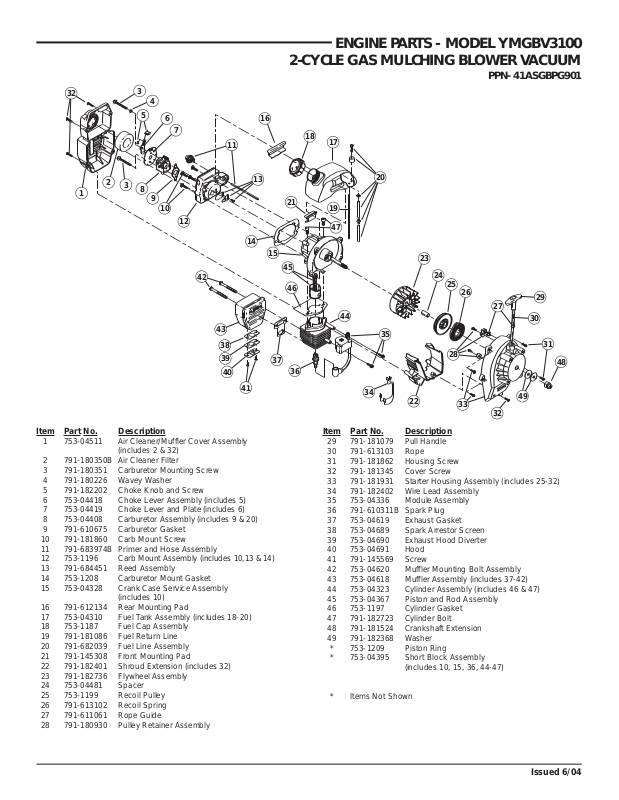

ENGINE PARTS - MODEL YMGBV3100
2-CYCLE GAS MULCHING BLOWER VACUUM
PPN- 41ASGBPG901
3
4
5
6
7
11
16
18
17
2
3
1
8
9
10
12
42
43
38
39
40
13
14
41
Item Part No. Description
1 753-04511 Air Cleaner/Muffler Cover Assembly
2 791-180350B Air Cleaner Filter
3 791-180351 Carburetor Mounting Screw
4 791-180226 Wavey Washer
5 791-182202 Choke Knob and Screw
6 753-04418 Choke Lever Assembly (includes 5)
7 753-04419 Choke Lever and Plate (includes 6)
8 753-04408 Carburetor Assembly (includes 9 & 20)
9 791-610675 Carburetor Gasket
10 791-181860 Carb Mount Screw
11 791-683974B Primer and Hose Assembly
12 753-1196 Carb Mount Assembly (includes 10,13 & 14)
13 791-684451 Reed Assembly
14 753-1208 Carburetor Mount Gasket
15 753-04328 Crank Case Service Assembly
16 791-612134 Rear Mounting Pad
17 753-04310 Fuel Tank Assembly (includes 18-20)
18 753-1187 Fuel Cap Assembly
19 791-181086 Fuel Return Line
20 791-682039 Fuel Line Assembly
21 791-145308 Front Mounting Pad
22 791-182401 Shroud Extension (includes 32)
23 791-182736 Flywheel Assembly
24 753-04481 Spacer
25 753-1199 Recoil Pulley
26 791-613102 Recoil Spring
27 791-611061 Rope Guide
28 791-180930 Pulley Retainer Assembly
(includes 2 & 32)
(includes 10)
15
37
45
21
46
36
20
19
47
23
24
25
44
34
35
22
26
27
28
33
32
29
30
49
Item Part No. Description
29 791-181079 Pull Handle
30 791-613103 Rope
31 791-181862 Housing Screw
32 791-181345 Cover Screw
33 791-181931 Starter Housing Assembly (includes 25-32)
34 791-182402 Wire Lead Assembly
35 753-04336 Module Assembly
36 791-610311B Spark Plug
37 753-04619 Exhaust Gasket
38 753-04689 Spark Arrestor Screen
39 753-04690 Exhaust Hood Diverter
40 753-04691 Hood
41 791-145569 Screw
42 753-04620 Muffler Mounting Bolt Assembly
43 753-04618 Muffler Assembly (includes 37-42)
44 753-04323 Cylinder Assembly (includes 46 & 47)
45 753-04367 Piston and Rod Assembly
46 753-1197 Cylinder Gasket
47 791-182723 Cylinder Bolt
48 791-181524 Crankshaft Extension
49 791-182368 Washer
* 753-1209 Piston Ring
* 753-04395 Short Block Assembly
* Items Not Shown
(includes 10, 15, 36, 44-47)
31
48
Issued 6/04
HOUSING PARTS - MODEL YMGBV3100
2-CYCLE GAS MULCHING BLOWER VACUUM
PPN- 41ASGBPG901
4
8
5
1
6
23
3
7
10
1
2
20
21
2
20
9
12
21
24
21
19
22
Item Part No. Description
1 753-04753 Engine Cover Assembly (includes 2)
2 753-04595 Cover Screw
3 791-182419 Throttle Control Assembly (includes 4-7)
4 791-182420 Upper Throttle Control Plate
5 791-00048 Throttle Control Lever
6 791-182422 Lower Throttle Control Plate
7 791-182423 Screw, Plastic
8 791-182405 Rocker Switch Assembly
9 753-04483 Engine Mounting Plate (includes 10 & 11)
10 791-182409 Washer
11 791-181903 Screw
12 791-182410 Mode Control Flapper
13 791-00050 Mode Control Lever (includes 22)
11
21
22
13
24
15
16
14
17
18
Item Part No. Description
14 753-04596 Impeller Blade
15 753-04833 Washer
16 753-04834 Lock Washer
17 791-182414 Bolt
18 791-00051 Blower/Vac Tube Assembly (includes 22)
19 791-182417 Vacumm Bag Adapter
20 791-182424 Mounting Plate Hardware
21 791-182425 Blower/Vac Tube Mounting Hardware
22 791-181482 Screw
23 791-00049 Throttle Cable
24 791-181345 Screw
* 791-612930 Cable Tie
* 753-04465 Vacuum Bag Assembly
* 753-04325 Patio Head
(includes 19, Vacuum Bag & Cable Tie)
Issued 6/04
* Items Not Shown
