Yard-Man 604G, 604H Operator's Manual

Operator's Manual

Auto Drive

Lawn Tractors

Models 604G & 604H

IMPORTANT: Read safety rules and instructions carefully before operating equipment.

Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered,

brush-covered or grass-covered land unless the engine's exhaust system is equipped with a spark arrester meeting applicable local or state
laws (if any). If a spark arrester isused, it should be maintained in effective working order by the operator. In the State of California the above
is required by law (Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal
lands. A spark arrester for the muffler is available through your nearest engine authorized service dealer or contact the service department,
P.O. Box 361131 Cleveland, Ohio 44136-0019.

MTDLLC, P.O.BOX361131CLEVELAND,OHIO44136-0019

PRINTED IN U.S.A.

FORM NO. 770-104481:;

(11/2003)

TABLEOFCONTENTS

Content

Customer Support

Important Safe Operation Practices
Tractor Set-U p
Operation

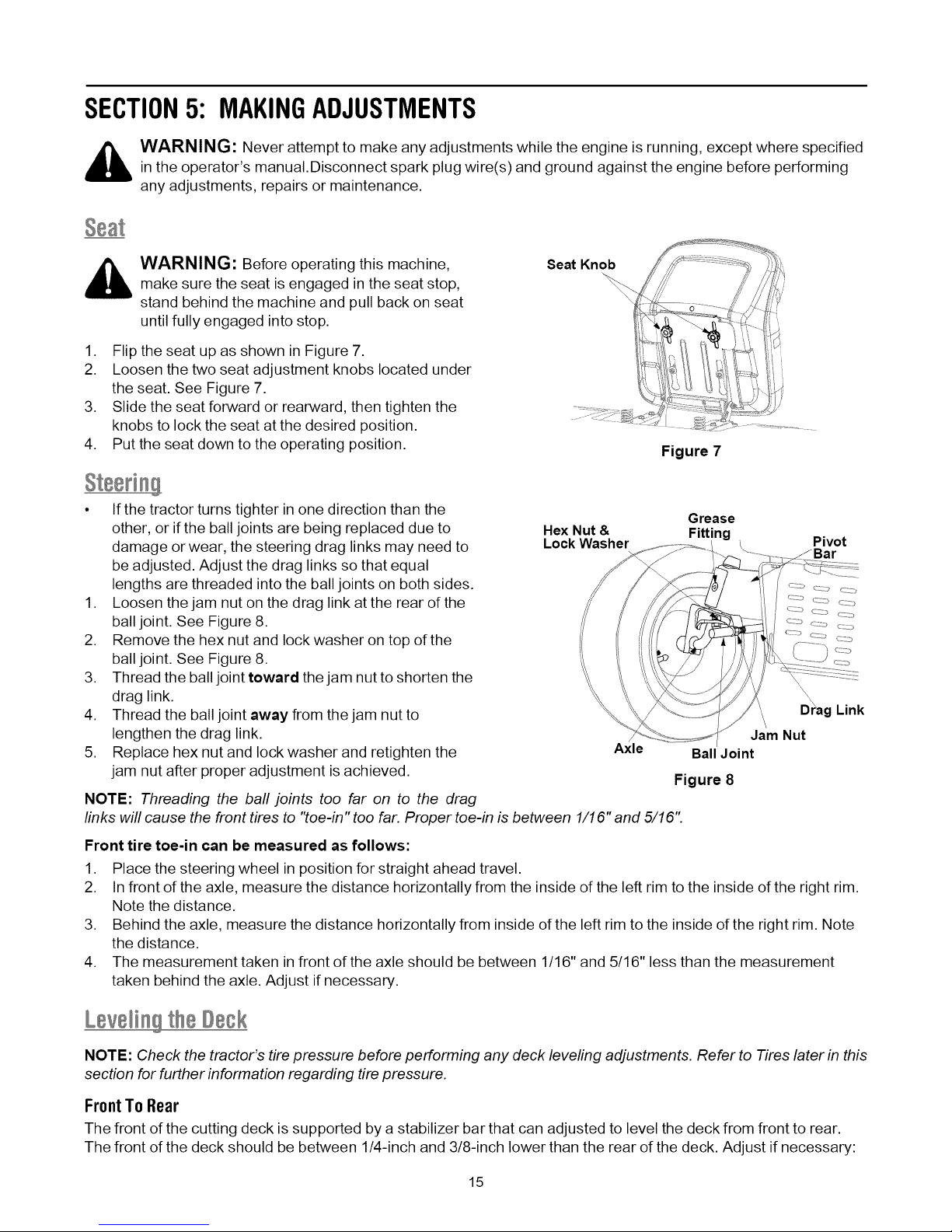

Making Adjustments

Page Content Page

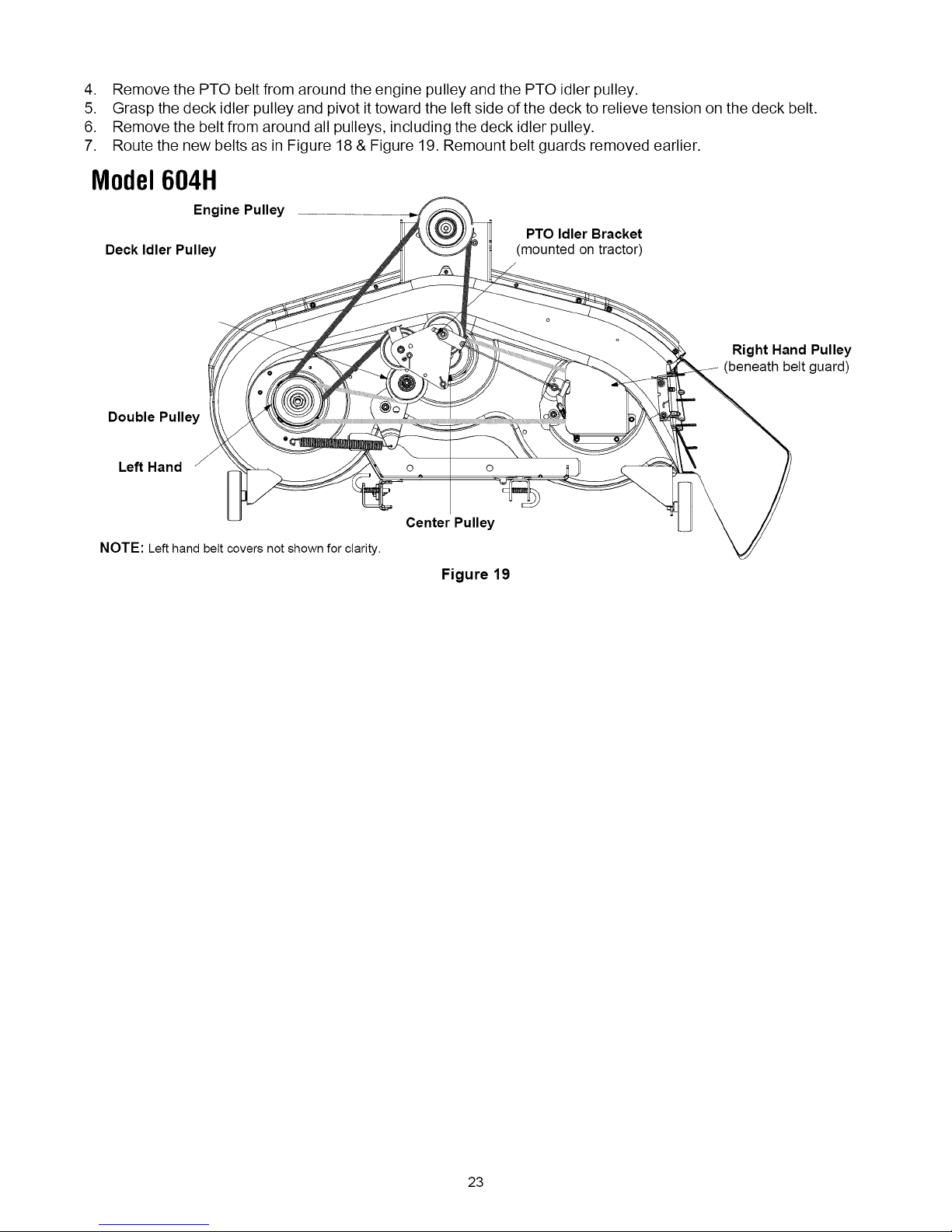

2 Maintenance 17
3 Attachments &Accessories 24

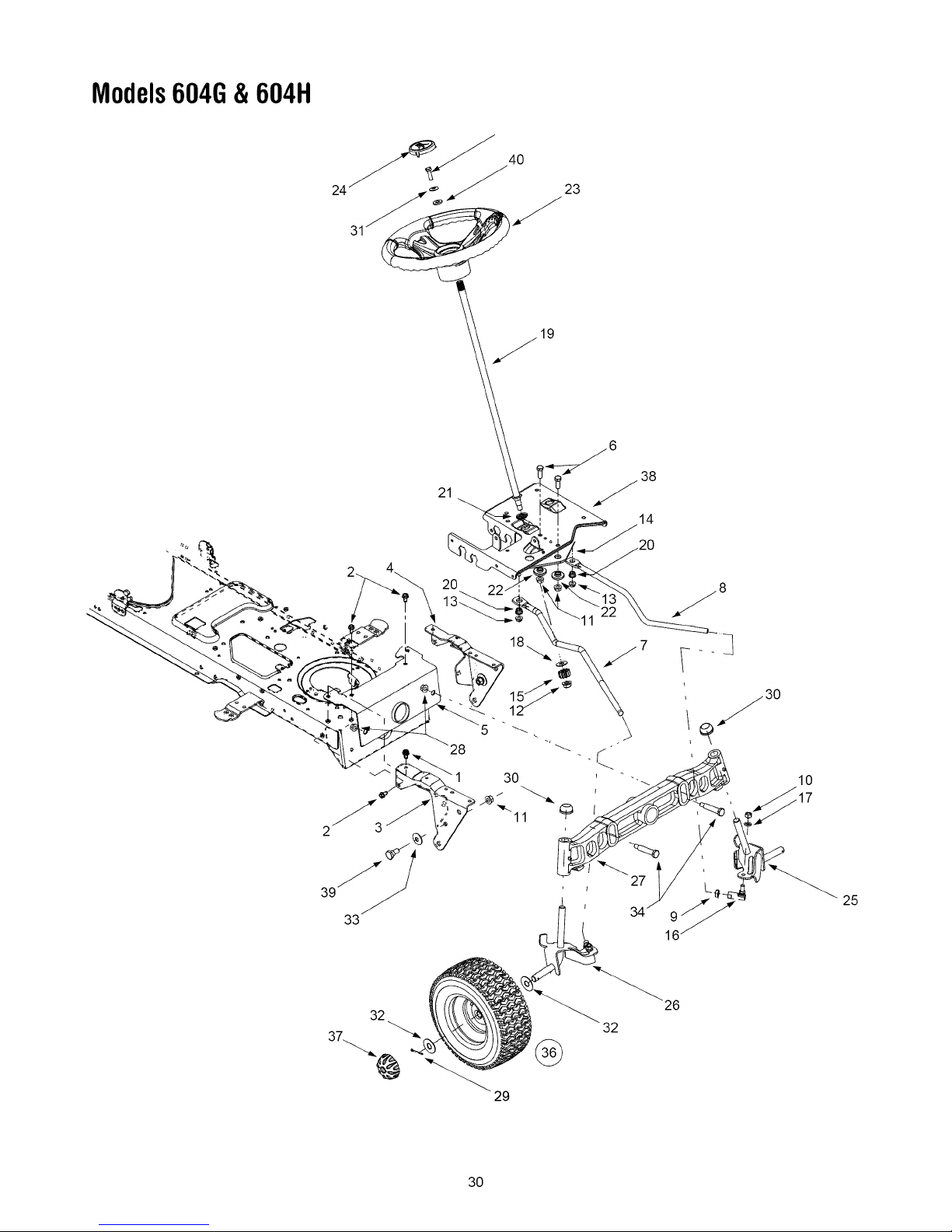

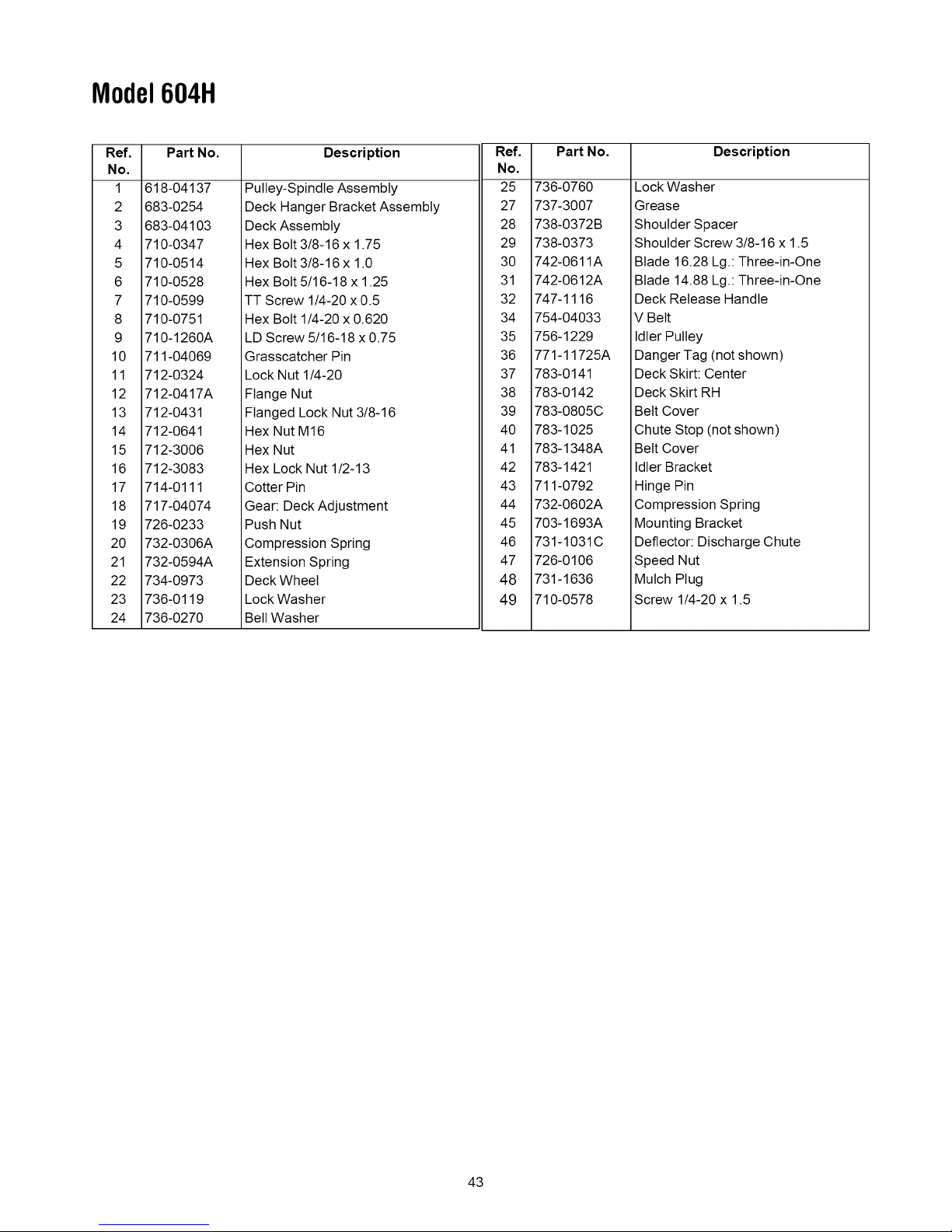

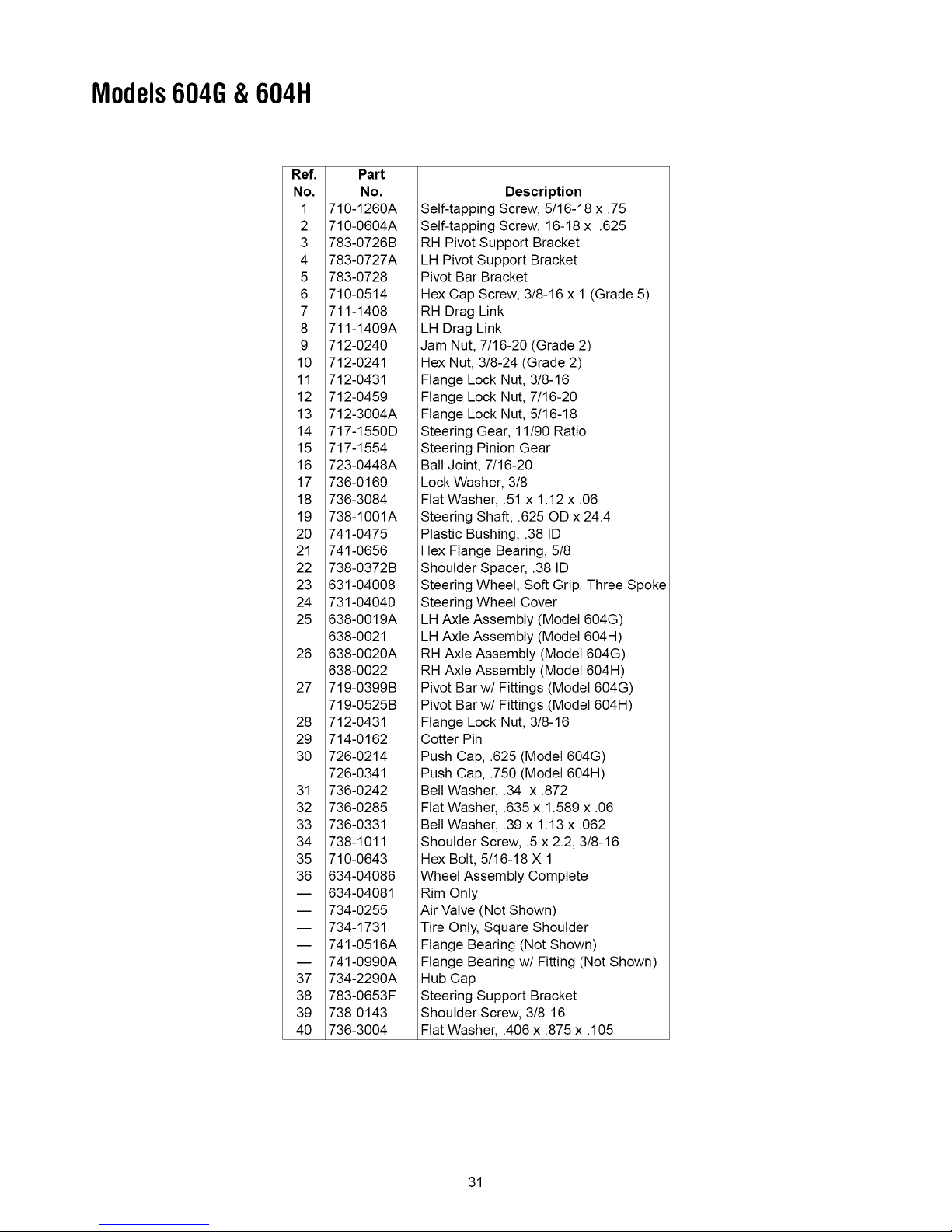

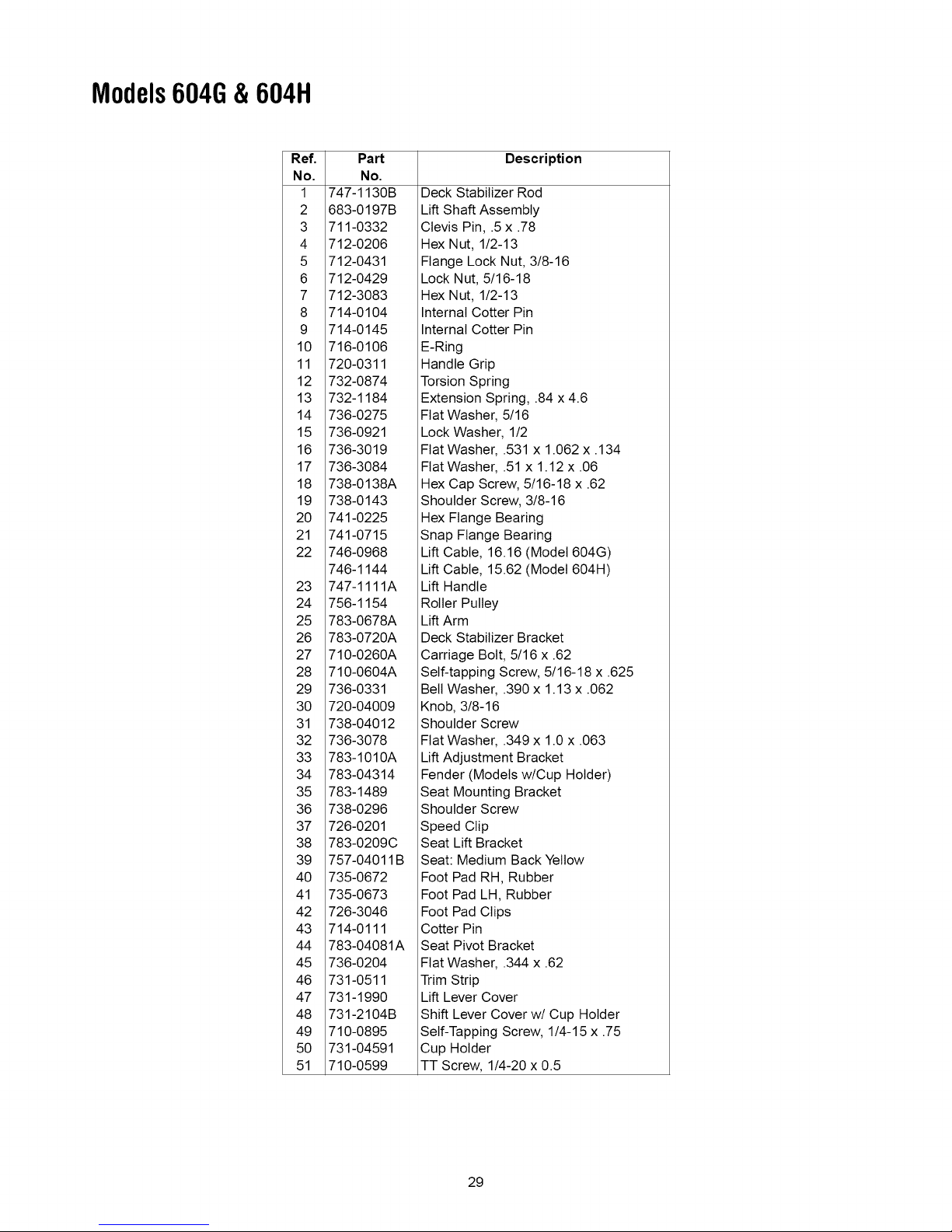

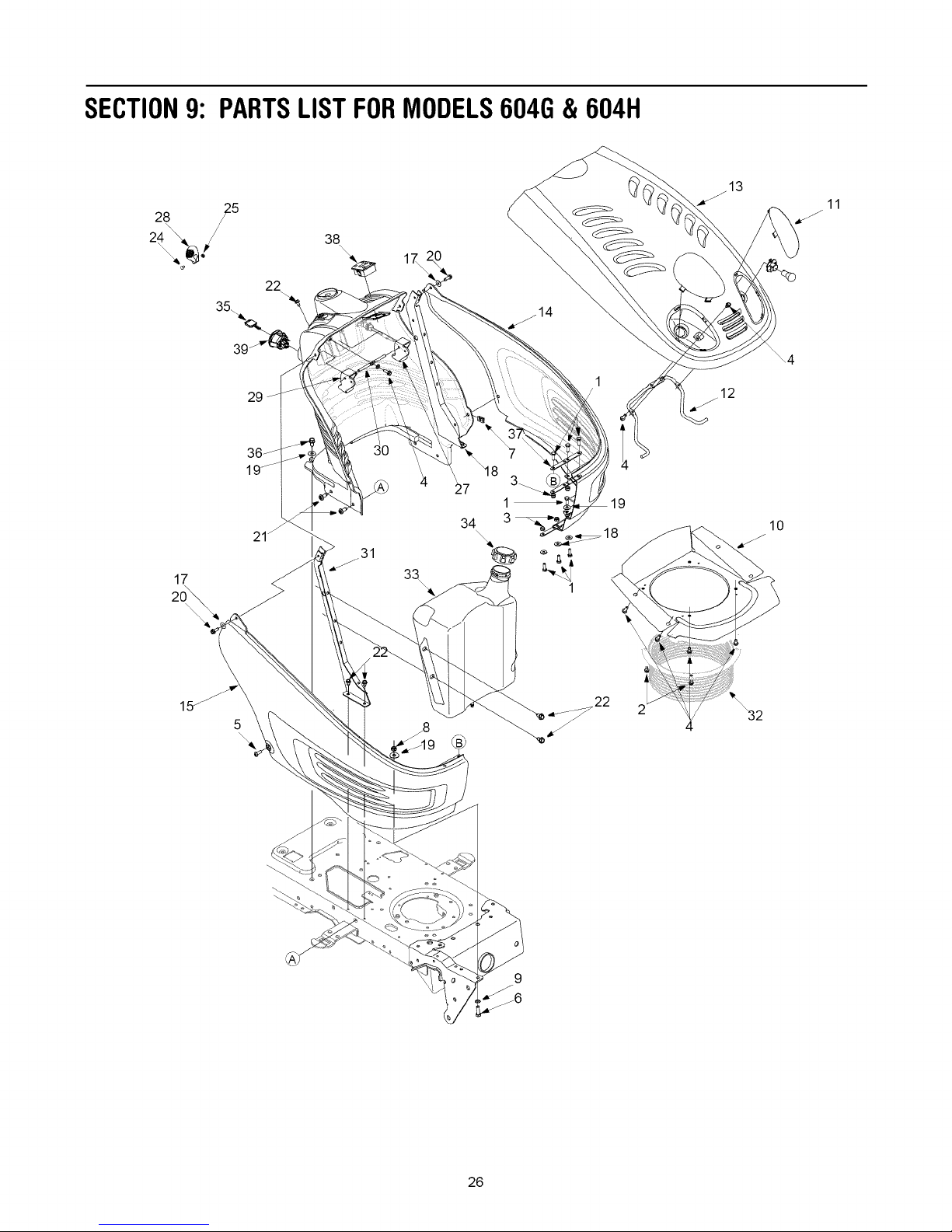

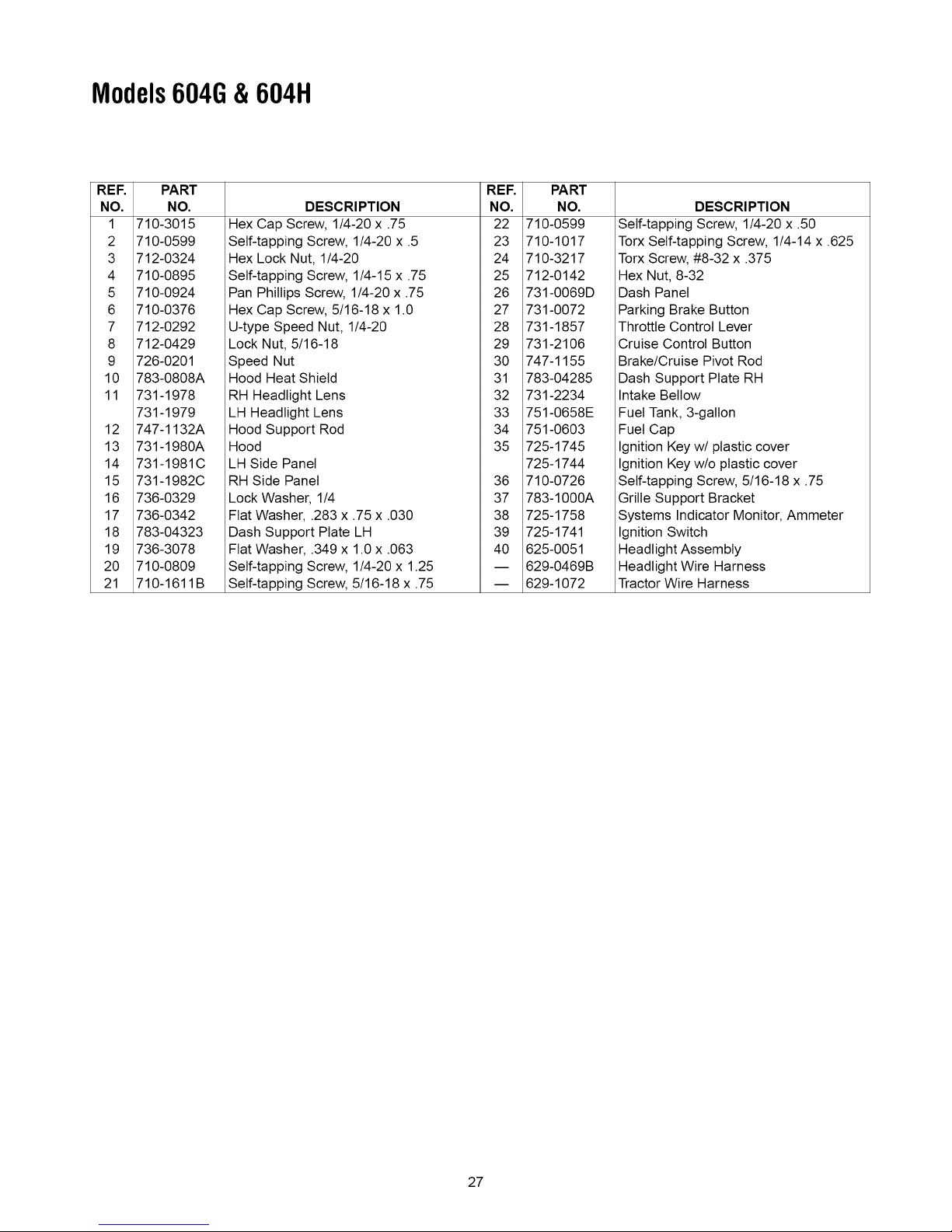

7 Illustrated Parts List 26

9 Warranty Back Cover

15

FINDINGMODELNUMBER

This Operator's Manual is an important part of your new lawn tractor. Itwill help you assemble, prepare and
maintain the unit for best performance. Please read and understand what it says.

Before you start assembling your new equipment, please locate the model plate under the
seat of the tractor and copy the information in the space provided below. A sample model plate is
also given below. This information will be necessary to use the manufacturer's web site and/or
help from the Customer Support Department or an authorized service dealer.

Model Number)

www.yardman.com

(Serial Number)

MTD LLC
P. O. BOX 361131
CLEVELAND,OH 44136

330-220-4683

880-888-7318

Copy the model number here:

Copy the serial number here:

CUSTOMERSUPPORT

Please doNOTreturntheunitto the retailer fromwhereit waspurchased,withoutfirstcontactingCustomerSupport.

If you have difficulty assembling this product or have any questions regarding the controls, operation or
maintenance of this unit, you can seek help from the experts. Choose from the options below:

Visit yardman.com for many useful suggestions. Click on Customer Support button and you
will get the four options reproduced here. Click on the appropriate button and help is
immediately available.

answer you are

looking for could be just

a mouse c//cA away!

" f

To reach the Customer Support Line, please call 1-800-800-7310.

p_ef_e,

NeeJ li}al as._ista_c÷ ? Click _e_e te f_

_UalS O_li_e

!

answer are

looking for could be just

a mouse c/_cA away]

" f

En ine

The engine manufacturer is responsible for all engine-related issues with regards to

performance, power-rating, specifications, warranty and service. Please refer to the engine
manufacturer's Owner's/Operator's Manual, at the end of this manual, for more information.

SECTION1: IMPORTANTSAFEOPERATIONPRACTICES

WARNING" This symbol points out important safety instructions which, if not followed, could endanger

the personal safety and/or property of yourself and others. Read and follow all instructions in this manual
before attempting to operate this machine. Failure to comply with these instructions may result in personal
injury. When you see this symbol--heed its warning.

DANGER: This machine was built to be operated according to the rules for safe operation in this manual.

As with any type of power equipment, carelessness or error on the part of the operator can result in serious
injury. This machine is capable of amputating hands and feet and throwing objects. Failure to observe the
following safety instructions could result in serious injury or death.

California Proposition 65 Warning: Engine exhaust, some of its constituents, and certain vehicle

components contain or emit chemicals known to the State of California to cause cancer and birth defects or

other reproductive harm.

GeneralOperation

1. Read, understand, and follow all instructions on the
machine and in the manual(s) before attempting to
assemble and operate. Keep this manual in asafe place

for future and regular reference and for ordering

replacement parts.

2. Be familiar with all controls and their proper operation.
Know how to stop the machine and disengage them
quickly.

3. Never allow children under 14 years old to operate this
machine. Children 14years old and over should read and
understand the operation instructions and safety rules in
this manual and should be trained and supervised by a
parent.

4. Never allow adults to operate this machine without
proper instruction.

5. To help avoid blade contact or a thrown object injury,
keep bystanders, helpers, children and pets at least 75

feet from the machine while it is in operation. Stop

machine if anyone enters the area.

6. Thoroughly inspect the area where the equipment is to
be used. Remove all stones, sticks, wire, bones, toys,
and other foreign objects which could be picked up and
thrown by the blade(s). Thrown objects can cause
serious personal injury.

7. Plan your mowing pattern to avoid discharge of material
toward roads, sidewalks, bystanders and the like. Also,
avoid discharging material against a walt or obstruction

which may cause discharged material to ricochet back

toward the operator.

8. Always wear safety glasses or safety goggles during
operation and while performing an adjustment or repair to
protect your eyes. Thrown objects which ricochet can
cause serious injury to the eyes.

9. Wear sturdy, rough-soled work shoes and close-fitting
slacks and shirts. Loose fitting clothes and jewelry can be
caught in movable parts. Never operate this machine in

bare feet or sandals.

10. Be aware of the mower and attachment discharge
direction and do not point it at anyone. Do not operate the
mower without the discharge cover or entire grass
catcher in its proper place.

11. Do not put hands or feet near rotating parts or under the
cutting deck. Contact with the blade(s) can amputate

hands and feet.

12. A missing or damaged discharge cover can cause blade
contact or thrown object injuries.

13. Stop the blade(s) when crossing gravel drives, walks, or
roads and while not cutting grass.

14. Watch for traffic when operating near or crossing
roadways. This machine is not intended for use on any
public roadway.

15. Do not operate the machine while under the influence of
alcohol or drugs.

16. Mow only in daylight or good artificial light.

17. Never carry passengers.

18. Disengage blade(s) before shifting into reverse. Back up
slowly. Always took down and behind before and while
backing to avoid a back-over accident.

19. Slow down before turning. Operate the machine
smoothly. Avoid erratic operation and excessive speed.

20. Disengage blade(s), set parking brake, stop engine and
wait until the blade(s) come to a complete stop before
removing grass catcher, emptying grass, unclogging
chute, removing any grass or debris, or making any
adjustments.

21. Never leave a running machine unattended. Always turn
off blade(s), place transmission in neutral, set parking
brake, stop engine and remove key before dismounting.

22. Use extra care when loading or unloading the machine

into a trailer or truck. This unit should not be driven up or
down ramp(s), because the unit could tip over, causing
serious personal injury. The unit must be pushed

manually on ramp(s) to load or unload properly.

23. Muffler and engine become hot and can cause a burn. Do
not touch.

24. Check overhead clearances carefully before driving
under tow hanging tree branches, wires, door openings
etc., where the operator may be struck or pulled from the
unit, which could result in serious injury.

25. Disengage all attachment clutches, depress the brake
pedal completely and shift into neutral before attempting
to start engine.

26. Your machine is designed to cut normal residential grass
of a height no more than 10". Do not attempt to mow
through unusually tall, dry grass (e.g., pasture) or piles of
dry leaves. Dry grass or leaves may contact the engine
exhaust and/or build up on the mower deck presenting a
potential fire hazard.

27.Useonlyaccessoriesandattachmentsapprovedforthis
machinebythemachinemanufacturer.Read,
understandandfollowallinstructionsprovidedwiththe
approvedaccessoryorattachment.

28.Dataindicatesthatoperators,age60yearsandabove,
areinvolvedinalargepercentageofridingmower-
relatedinjuries.Theseoperatorsshouldevaluatetheir
abilitytooperatetheridingmowersafelyenoughto
protectthemselvesandothersfromseriousinjury.

29.Ifsituationsoccurwhicharenotcoveredinthismanual,
usecareandgoodjudgment.CalltheCustomerSupport

Lineforassistance.

SlopeOperation

Slopes are a major factor related to toss of control and tip-
over accidents which can result insevere injury or death. All
slopes require extra caution. If you cannot back up the slope
or if you feel uneasy on it, do not mow it.

For your safety, use the slope gauge included as part of this
manual to measure slopes before operating this unit on a
sloped or hilly area. If the slope isgreater than 15 degrees as
shown on the slope gauge, do not operate this unit on that
area or serious injury could result.

Do:

1. Mow up and down slopes, not across. Exercise extreme
caution when changing direction on slopes.

2. Watch for holes, ruts, bumps, rocks, or other hidden
objects. Uneven terrain could overturn the machine. Tall
grass can hide obstacles.

3. Use slow speed. Choose a low enough speed setting so
that you will not have to stop or shift while on the slope.
Tires may lose traction on slopes even though the brakes
are functioning properly. Always keep machine in gear

when going down slopes to take advantage of engine

braking action.

4. Follow the manufacturer's recommendations for wheel

weights or counterweights to improve stability.

5. Use extra care with grass catchers or other attachments.
These can change the stability of the machine.

6. Keep all movement on the slopes slow and gradual. Do
not make sudden changes in speed or direction. Rapid
engagement or braking could cause the front of the
machine to lift and rapidly flip over backwards which
could cause serious injury.

7. Avoid starting or stopping on aslope. Iftires lose traction,
disengage the blade(s) and proceed slowly straight down
the slope.

DoNot:

1. Do not turn on slopes unless necessary; then, turn slowly
and gradually downhill, if possible.

2. Do not mow near drop-offs, ditches or embankments.
The mower could suddenly turn over if a wheel is over the
edge of a cliff, ditch, or if an edge caves in.

3. Do not try to stabilize the machine by putting your foot on
the ground.

4. Do not use a grass catcher on steep slopes.

5. Do not mow on wet grass. Reduced traction could cause
sliding.

6. Do not shift to neutral and coast downhill. Over-speeding
may cause the operator to lose control of the machine
resulting in serious injury or death.

7. Do not tow heavy pull behind attachments (e.g. loaded
dump cart, lawn roller, etc.) on slopes greater than 5
degrees. When going down hilt, the extra weight tends to
push the tractor and may cause you to loose control. (e.g.
tractor may speed up, braking and steering ability are
reduced, attachment may jack-knife and cause tractor to
overturn).

Children

1. Tragic accidents can occur if the operator is not alert to
the presence of children. Children are often attracted to
the machine and the mowing activity. They do not
understand the dangers. Never assume that children will
remain where you last saw them.

a. Keep children out of the mowing area and in

watchful care of a responsible adult other than the
operator.

b. Be alert and turn machine off if a child enters the

area.

c. Before and while backing, look behind and down

for small children.

d. Never carry children, even with the blade(s) shut

off. They may fall off and be seriously injured or
interfere with safe machine operation.

e. Use extreme care when approaching blind

corners, doorways, shrubs, trees or other objects
that may block your vision of a child who may run

into the machine.

f. Disengage the cutting blade(s) before shifting in

reverse. The "No-Cut-In Reverse" feature is a
reminder not to cut in reverse and to help avoid

back over accidents. Do not defeat it.

g. Keep children away from hot or running engines.

They can suffer burns from a hot muffler.

h. Remove key when machine is unattended to

prevent unauthorized operation.

2. Never allow children under 14 years old to operate the
machine. Children 14 years old and over should read and

understand the operation instructions and safety rules in
this manual and should be trained and supervised by a
parent.

Towing

1. Tow only with a machine that has a hitch designed for
towing. Do not attach towed equipment except at the
hitch point.

2. Follow the manufacturers recommendation for weight
limits for towed equipment and towing on slopes.

3. Never allow children or others in or on towed equipment.

4. On slopes, the weight of the towed equipment may cause
loss of traction and loss of control.

5. Travel slowly and allow extra distance to stop.

6. Do not shift to neutral and coast downhill.

Service

Gasoline:

1,

To avoid personal injury or property damage use
extreme care in handling gasoline. Gasoline is
extremely flammable and the vapors are explosive.
Serious personal injury can occur when gasoline is
spilled on yourself or your clothes which can ignite. Wash
your skin and change clothes immediately.

a. Use only an approved gasoline container.

b. Never fill containers inside a vehicle or on atruck

or trailer bed with a plastic liner. Always place
containers on the ground away from your vehicle
before filling.

c. When practical, remove gas-powered equipment

from the truck or trailer and refuel it on the ground.

Ifthis is not possible, then refuel such equipment
on atrailer with a portable container, rather than
from a gasoline dispenser nozzle.

d. Keep the nozzle in contact with the rim of the fuel

tank or container opening at all times until fueling

is complete. Do not use a nozzle lock-open
device.

e. Extinguish all cigarettes, cigars, pipes and other

sources of ignition.

f. Never fuel machine indoors.
g. Never remove gas cap or add fuel while the

engine is hot or running. Allow engine to cool at
least two minutes before refueling.

h. Never over fill fuel tank. Fill tank to no more than

½ inch below bottom of filler neck to allow space
for fuel expansion.

i. Replace gasoline cap and tighten securely.

j. Ifgasoline is spilled, wipe it off the engine and

equipment. Move unit to another area. Wait 5

minutes before starting the engine.

k. To reduce fire hazards, keep machine free of

grass, leaves, or other debris build-up. Clean up
oil or fuel spillage and remove any fuel soaked

debris.

1. Never store the machine or fuel container inside
where there is an open flame, spark or pilot light

as on a water heater, space heater, furnace,
clothes dryer or other gas appliances.

m.

Allow a machine to cool at least 5 minutes before
storing.

General:

1.

Never run an engine indoors or in a poorly ventilated
area. Engine exhaust contains carbon monoxide, an
odorless, and deadly gas.

2.

Before cleaning, repairing, or inspecting, make certain
the blade(s) and all moving parts have stopped.
Disconnect the spark plug wire and ground against the
engine to prevent unintended starting.

3.

Periodically check to make sure the blades come to
complete stop within approximately (5) five seconds after
operating the blade disengagement control. If the blades
do not stop within the this time frame, your unit should be

serviced professionally by your Troy-Bilt dealer.

4. Check brake operation frequently as it is subjected to
wear during normal operation. Adjust and service as
required.

5. Check the blade(s) and engine mounting bolts at
frequent intervals for proper tightness. Also, visually

inspect blade(s) for damage (e.g., excessive wear, bent,

cracked).

Replace the blade(s) with the original equipment
manufacturer's (O.E.M.) blade(s) only, listed in this

manual. "Use of parts which do not meet the original
equipment specifications may lead to improper
performance and compromise safety!"

6. Mower blades are sharp. Wrap the blade or wear gloves,
and use extra caution when servicing them.

7. Keep all nuts, bolts, and screws tight to be sure the
equipment is in safe working condition.

8. Never tamper with the safety interlock system or other
safety devices. Check their proper operation regularly.

9. After striking a foreign object, stop the engine, disconnect
the spark plug wire(s) and ground against the engine.
Thoroughly inspect the machine for any damage. Repair
the damage before starting and operating.

10. Never attempt to make adjustments or repairs to the

machine while the engine is running.

11. Grass catcher components and the discharge cover are
subject to wear and damage which could expose moving
parts or allow objects to be thrown.

For safety protection, frequently check components and

replace immediately with original equipment

manufacturer's (O.E.M.) parts only, listed in this manual.
"Use of parts which do not meet the original equipment
specifications may lead to improper performance and
compromise safety!"

12. Do not change the engine governor settings or over-
speed the engine. The governor controls the maximum
safe operating speed of the engine.

13. Maintain or replace safety and instruction labels, as
necessary.

14. Observe proper disposal taws and regulations for gas,
oil, etc. to protect the environment.

Sesp0 sibili

Restrict the use of this power machine to persons who
read, understand and follow the warnings and

instructions in this manual and on the machine.

lULl

lULl

a.

64

Z
I--

lULl

1'91

SIGHT AND HOLD THIS LEVEL WITH A VERTICAL TREE

A POWER POLE

15°

,_WARNING

Do not mow on inclines with a slope in excess of 15 degrees (a rise of approximately 2-1/2 feet every 10 feet). A riding mower
could overturn and cause serious injury. If operating a walk-behind mower on such a slope, it is extremely difficult to maintain
your footing and you could slip, resulting in serious injury.

Operate RIDING mowers up and down slopes, never across the face of slopes.

t.O

SECTION3: TRACTORSET-UP

NOTE: This manual covers specifications of two models. Please follow instructions and parts numbers pertaining to
your tractor only.

Attachi £ Batter Cables

NOTE: If these cables are already attached, proceed to "Attaching Steering Wheel."
IMPORTANT:The positive battery terminal is marked Pos.

(+). The negative battery terminal is marked Neg. (-).

1. The positive cable (heavy red wire) is secured to the
positive battery terminal (+) with a hex bolt and hex
nut at the factory. Make certain that the rubber boot
covers the terminal to help protect itfrom corrosion.

2. Remove the hex bolt and wing nut from the negative
cable. See Figure 1.

3. Remove the black plastic cover, if present, from the
negative battery terminal and attach the negative
cable (heavy black wire) to the negative battery
terminal (-) with the bolt and wing nut.

4. Make certain the hold-down strap is in position over
the battery, securing it in place.

NOTE: If the battery is put into service after the date shown on top of battery, charge the battery as instructed on
page 18 of this manual prior to operating the tractor.

Rubber

Boot

Wing

Nut

Hex Bolt

/

Figure 1

Attachi The Steeri g Wheel

1. The hardware for attaching the steering wheel has
been packed within the steering wheel, beneath
steering wheel cap. Carefully pry off the steering

wheel cap and remove the hardware.

2. With the wheels of the tractor pointing straight
forward, place the steering wheel over the steering

shaft. Place the washer (with the cupped side down)
over the steering shaft and secure with the hex bolt.
See Figure 2.

3. Place the steering wheel cap over the center of the

steering wheel and push downward until it "clicks" into
place.

Attachi TheSeat

NOTE: For shipping reasons, seats are either fastened

to the tractor seat's pivot bracket with a plastic tie, or
mounted backward to the pivot bracket. In either case,
free the seat from its shipping position and remove the
two knobs from the bottom of seat before proceeding with

instructions below.

• Ifyour seat was shipped mounted backwards on the

seat pivot bracket, pull out the tab found on the seat
stop and hold itopen while sliding the seat off the seat
pivot bracket. See Figure 3.

1. Position the shoulder screws (found on the base of
the seat) inside the slot openings in the seat pivot
bracket. See Figure 3.

Steering____

Wheel Cap

Hex Bolt

& Washer

Knobs

Shoulder

Screws

Opening

in Slot

Steering

Shaft

Figure 2

Figure 3

_ ARNING" Before operating this machine, make sure the seat is engaged in the seat stop, stand behindthe machine and pull back on seat until fully engaged into stop.

2. Slide the seat slightly rearward in the seat pivot bracket, lining up the rear slots in the pivot bracket with the
remaining two holes in the seat's base.

3. Select desired position for the seat, and secure with the two knobs removed earlier. See Figure 3.

Gasand0il FilloUp

The gasoline tank is located under the hood and depending on the model of tractor, has a capacity of either two or
three gallons. Do not overfill.

_ ARNING" Use extreme care when handling gasoline. Gasoline is extremely flammable and the vaporsare explosive. Never fuel machine indoors or while the engine is hot or running. Extinguish cigarettes,

cigars, pipes, and other sources of ignition.

IMPORTANT: Even if the tractor is shipped with motor oil in the engine, you must check the engine oil level before
operating. The capacity of the engine's sump and oil filter is 62 oz (1.8 liters). Be careful not to overfill.

RemoveShi B a88

IMPORTANT:The shipping brace must be removed and
discarded before operating your riding mower.

WARNING" Make sure the riding mower'sengine is off, ignition key removed, and the
parking brake engaged before proceeding further.

1. Locate the shipping brace and accompanying
warning tag on the right side of the mower, between

discharge chute and cutting deck. See Figure 4.

2. While holding the discharge chute up, rotate the
shipping brace clockwise and remove.

3. Discard the shipping brace.

_ ARNING" The mowing deck is capable ofthrowing objects. Failure to operate the riding

mower without the discharge cover in the proper
operating position could result in serious personal
injury and/or property damage.

Warning Tag

Figure 4

SECTION4: OPERATION

Ksswth®88st 81s

Read this owner's manual and safety rules before operating your lawn mower. Compare figure below with your lawn
tractor to learn about the Ioction and purpose of various controls and adjustments. Save this manual for future
reference. It is very important to follow the instructions and operate the controls properly.

A

\

E

F
G

B H

C

J

D

A Systems Indicator Monitor/Ammeter G Cruise Control Button

B PTO (Power Take-off) Lever 14 Ignition Switch
C Choke Control I Brake Pedal
D Shift Lever J Drive Pedal

E Throttle Control Lever K Deck Lift Lever
F Parking Brake Button

NOTE: Any reference in this manual to the RIGHT or LEFT side of the tractor is observed from operator's position.

K

Figure 5

ThrottleControlLever

The throttle control lever controls the speed of the engine. When set in a
given position, the throttle will maintain a uniform engine speed.

IMPORTANT:When operating the tractor with the cutting deck engaged,
throttle control lever must always be in the FAST (rabbit) position.

ChokeControl

The choke control can be found on the left side of the dash panel and is
activated by pulling the knob outward. Activating the choke control closes
the choke plate on the carburetor and aids in starting the engine.

BrakePedal

The brake pedal is used for sudden stops or setting the parking brake. This
pedal must be fully depressed to activate the safety interlock switch when starting the tractor.

Slow

Throttle Control Choke

ParkingBrakeButton

NOTE: The parking brake must be set if the operator leaves the seat with
the engine running; otherwise the engine will automatically shut off.

• To set the parking brake, fully depress the brake pedal and push the
parking brake button in. Hold the button in while taking your foot off the brake pedal. Both parking button and
brake pedal will stay depressed.

• To release the parking brake, depress the brake pedal slightly. The parking brake button will then return to its
original position.

IMPORTANT:Always set the parking brake when leaving the tractor unattended.

DrivePedal

The drive pedal controls movement and ground speed of the tractor. Depress the drive pedal with your right foot
(when the tractor shift lever is in either forward or reverse) to cause the tractor to move. The further down the pedal
is depressed, the faster the tractor will travel. The pedal will return to its original position when it is not depressed.

PTO(Blade Engage)Lever

Engaging the PTO (Blade Engage) lever transfers power to the cutting deck ON _7_-.....

or other (separately available) attachments. The PTO lever must be
disengaged (Blade Stop) when (1) starting the engine, (2) traveling in BLADE_ ^__ _ ur#=_(_)

reverse or (3) if the operator leaves the seat. STOP "Z_
To engage the PTO (Blade Engage), proceed as follows:

1. Move the throttle control lever to the FAST (rabbit) position.

2. Grasp the PTO (Blade Engage) lever and pivot it all the way forward into the engaged (ON) position.

3. Keep the throttle lever in the FAST (rabbit) position for the most efficient use of the cutting deck or other
(separately available) attachments.

To disengage the PTO (Blade Engage), proceed as follows:

1. Move the PTO (Blade Engage) lever to the Blade Stop position. This will cut off power to deck or other
attachments.

• The engine will automatically shut off if:
(i) the operator leaves the seat while the PTO (Blade Engage) is still engaged regardless of

whether the parking brake is engaged, and

(ii) the PTO (Blade Engage) is engaged while the drive pedal is in position for reverse travel.

IgnitionSwitch

Ignition switch is activated to start the engine. Insert key into the ignition
switch and turn clockwise to the START position. Release the key into the
ON position once engine has fired.

,_ WARNING" Never leave a running machine unattended. Always

disengage PTO, move shift lever into neutral position, set parking
brake, stop engine and remove key to prevent unintended starting.

Off

\

On/Lights

Start

10

Headlights

• To turn on the headlights, rotate the same ignitionkey from ON position to ON/LIGHTS position of the ignition

switch.

• To turn off the headlights, rotate the ignition key from ON/LIGHTS position to either ON position (to leave the

engine running) or OFF position (to shut the engine off).

,_ WARNING" Never move the key into the Start position while the engine is running. Doing so may causedamage to your engine's starter.

SystemsIndicatorMonitor/ HourMeter

Your tractor is equipped with four indicator lights and an ammeter as shown
in the figure here.

If the brake light or PTO light illuminates when attempting to start the unit,
proceed as follows:

AMPS 0

Oil

#

Brake

Brake light on Depress the brake pedal.

%

PTO light on Move PTO lever to "Blade Stop" position.

It is normal for the oil light and the battery light to illuminate while the engine
is cranking, but if either illuminates while the engine is running, follow the
steps below as per indication:

r--1

Amm!ter

©

PTO

iiiiiiiii iiitiitiitiiiiiiiiiiiiiliiliili!i i ! !

Oil light on Stop the tractor immediately and check thecrankcase oil level as instructed in the

engine manual. Add oil as required.

Ammeter

The ammeter measures the electrical output of the engine's charging system. Under normal operating conditions,
with engine at full throttle, the ammeter should indicate positive charge.

Shift Lever t F

The shift lever has three positions: FORWARD (F), NEUTRAL (N) and
REVERSE (R).These control the direction of movement of the tractor.
Depress the brake pedal and let the tractor stop before moving the shift
lever to one of these three positions.

IMPORTANT:Never force the shift lever. Doing so may result in serious
damage to the tractor's transmission.

CruiseControlButton

The cruise control feature should only be utilized while traveling in the
forward direction. To engage the cruise control, follow these steps:

1. Place shift lever in FORWARD position, then slowly depress the drive
pedal until desired speed is achieved.

2. Lightly depress the cruise control button.

3. While continuing to hold the cruise button in, lift your foot from the drive
pedal (you should feel the cruise latch engage).

4. Once engaged, the cruise control button and the drive pedal will lock in
the "down" position, and the tractor will maintain same forward speed.

tN

Y

"Shift

Knob

,i

NOTE: Cruise control cannot be engaged at the tractor's fastest ground speed. If the operator should attempt to do
so, the tractor will automatically decelerate to the fastest optimal mowing ground speed.

• To disengage the cruise control, lightly depress either the brake pedal or the drive pedal.

11

• To change to the reverse direction when operating with cruise control, depress the brake pedal to disengage
the cruise control and bring the tractor to a complete stop. Then place the shift lever in the REVERSE position
and depress the drive pedal.

SeatAdjustmentLever

To adjust the seat forward or backward, loosen the two seat adjustment knobs and reposition the seat to the desired
position. Once a comfortable position is found, tighten the adjustment knobs to lock the seat in place.

DeckLiftLever

The deck lift lever is used to change the height of the cutting deck. To use,
move the lever to the left, then place it in one of the six notches best suited
for your application.

To set the cutting height of the deck you will also have to adjust the deck
wheels so that they are between 1/4-inchand ½-inch above the ground when
the tractor is on a smooth, flat surface such as a driveway, refer to Deck
Levelling instructions on page 15.

NOTE: The deck wheels are an anti-scalp feature of the deck and are not

designed to support the weight of the cutting deck.

CupHolder(if equipped)

The tractor's cup holder is located on the fender to the left of the seat, just to the rear of the parking brake lever.

Safe sted0ckSwitches

The safety interlock system prevents the engine from cranking or starting unless the parking brake is engaged, and
the PTO lever is disengaged. If this system should ever malfunction, do not operate the tractor, immediately contact

a service dealer.

• The safety interlock system will automatically shut off the engine if the operator leaves the seat before engaging
the parking brake.

• The safety interlock system will automatically shut off the engine if the operator leaves the tractor's seat with the
PTO (Blade Engage) lever engaged, regardless of whether the parking brake is engaged.

• The safety interlock system will automatically shut off the engine if the PTO (Blade Engage) lever is moved into
the engaged (ON) position with the drive pedal in position for reverse travel.

CAUTION: Tampering with or attempting to bypass the Safety Interlock Switches in any way will void your

tractor's warranty. Do not operate the tractor if the interlock system is malfunctioning.

12

NOTE: Refer to the TRACTORSET-UPon page 7 manual for
gasoline and oil flU-up instructions.

1. Insert the tractor key into the ignition switch.

2. Disengage the PTO (Blade Engage) lever.

3. Engage the tractor's parking brake.

4. Pull the Choke Control knob outward.

5. Turn the ignition key clockwise to the START position.
After the engine starts, release the key. It will return to
the ON position.

IMPORTANT: Do net hold the key inthe START position for
longer than ten seconds at a time. Doing so may cause
damage to your engine's electric starter.

6. After the engine starts, move the throttle control lever
to the FAST position and Choke Control knob inward.

NOTE: Do net leave choke control on while operating the

tractor. Doing so will result in a "rich" fuel mixture and
cause the engine to run poorly.

WARNING: Ifyou strike a foreign object, stop the

engine, disconnect the spark plug wire(s) and ground
against the engine. Thoroughly inspect the machine for any
damage. Repair damage before restarting.

1. If the blades are engaged, disengage the PTO.

2. Turn the ignition key counterclockwise to the OFF
position.

3. Remove the key from the ignition switch to prevent
unintended starting.

Idvi I Tie Tractor

• Depress the brake pedal to release the parking brake.

• Move the throttle lever into the FAST (rabbit) position.

• To move forward, place the shift lever in the FORWARD position, then slowly depress the drive pedal until the
desired speed is achieved. To move in reverse, place the shift lever in the REVERSE position, check that the
area behind is clear, then slowly depress the drive pedal.

DrivingOnSlopes

IMPORTANT:Refer to the SLOPEGAUGEon page 6 to help determine slopes where you may operate the tractor safely.

• Mow up and down slopes, never across.

• Watch for holes, ruts, bumps, rocks, or other hidden objects. Uneven terrain could overturn the machine. Tall

grass can hide obstacles.

• Avoid turns when driving on a slope. If a turn must be made, attempt while going downward on the slope.

• Avoid stopping when driving up a slope. If it is necessary to stop while driving up a slope, start up smoothly and
carefully to reduce the possibility of flipping the tractor over backward.

The following information will be helpful when using the cutting deck with your tractor.

• Do not mow at high ground speed, especially if a mulch kit or grass collector is installed.

13

• For best results it is recommended that the first two laps be cut with the discharge thrown towards the center.
After the first two laps, reverse the direction to throw the discharge to the outside for the balance of cutting. This

will give a better appearance to the lawn.

• Do not cut the grass too short. Short grass invites weed growth and yellows quickly in dry weather.

• Mowing should always be done with the engine at full throttle.

• Under heavier conditions it may be necessary to go back over the cut area a second time to get a clean cut.

• Do not attempt to mow heavy brush and weeds and extremely tall grass. Your tractor is designed to mow lawns,
not clear brush.

• Keep the blades sharp and replace the blades when worn. Refer to CuttingBladeson page 19 of this manual for
proper blade sharpening instructions.

_ WARNING" To help avoid blade contact or a thrown object injury, keep bystanders, helpers, childrenand pets at least 75 feet from the machine while it is in operation. Stop machine if anyone enters the area.

Mulching

Some models are equipped with a mulch kit with special blades to recirculate the grass clippings into the lawn
where they act as a natural fertilizer.

• On models with 46-inch decks, where the mulch kit is packed separately within the tractor's crate, follow the
instructions included with the mulch kit.

Observe the following points for best results when mulching.

• Never attempt to mulch if the lawn is damp. Wet grass tends to stick to the underside of the cutting deck
preventing proper mulching of the clippings.

• Do not attempt to mulch more than 1/3 the total height of the grass or approximately 1-1/2 inches. Doing so will
cause the clippings to clump up beneath the deck and not be mulched effectively.

• Maintain a slow ground speed to allow the grass clippings more time to effectively be mulched.

• Always position the throttle control lever in the FAST (rabbit) position and allow it to remain there while mowing.
Failing to keep the engine at full throttle places strain on the tractor's engine and does not allow the blades to
properly mulch grass.

NOTE: It is not necessary to remove the discharge chute to operate the mower with the mulch kit installed.

To operate the cutting deck without mulching, on
models so equipped, simply remove the mulch plug by
unthreading the plastic wing nut which fastens itto the
cutting deck. See Figure 6. This will allow the clippings
to discharge through the side opening.

Wing Nut

Screw

/

Mulch Plug

Figure 6

14

SECTION5: MAKINGADJUSTMENTS

_ ARNING" Never attempt to make any adjustments while the engine is running, except where specified

_ WARNING" Before operating this machine,make sure the seat is engaged in the seat stop,

1. Flip the seat up as shown in Figure 7.

2. Loosen the two seat adjustment knobs located under

3. Slide the seat forward or rearward, then tighten the

4. Put the seat down to the operating position.

• Ifthe tractor turns tighter in one direction than the

1. Loosen the jam nut on the drag link at the rear of the

2. Remove the hex nut and lock washer on top of the

3. Thread the ball joint toward the jam nut to shorten the

4. Thread the ball joint away from the jam nut to

5. Replace hex nut and lock washer and retighten the

NOTE: Threading the ball joints too far on to the drag
links will cause the front tires to "toe-in" too far. Proper toe-in is between 1/16" and 5/16".

Front tire toe-in can be measured as follows:

1. Place the steering wheel in position for straight ahead travel.

2. In front of the axle, measure the distance horizontally from the inside of the left rim to the inside of the right rim.

3. Behind the axle, measure the distance horizontally from inside of the left rim to the inside of the right rim. Note

4. The measurement taken in front of the axle should be between 1/16" and 5/16" less than the measurement

in the operator's manual.Disconnect spark plug wire(s) and ground against the engine before performing
any adjustments, repairs or maintenance.

Seat Knob

stand behind the machine and pull back on seat
until fully engaged into stop.

the seat. See Figure 7.

knobs to lock the seat at the desired position.

Figure 7

other, or if the ball joints are being replaced due to
damage or wear, the steering drag links may need to
be adjusted. Adjust the drag links so that equal
lengths are threaded into the ball joints on both sides.

ball joint. See Figure 8.

ball joint. See Figure 8.

drag link.

lengthen the drag link.

jam nut after proper adjustment is achieved.

Note the distance.

the distance.

taken behind the axle. Adjust if necessary.

Hex Nut & Fitting
Lock Washer

Axle Ball Joint

Grease

Jam Nut

Figure 8

Pivot

FBar

Link

LevelingtheDeck

NOTE: Check the tractor's tire pressure before performing any deck leveling adjustments. Refer to Tires later in this

section for further information regarding tire pressure.

FrontTo Rear

The front of the cutting deck is supported by a stabilizer bar that can adjusted to level the deck from front to rear.
The front of the deck should be between 1/4-inch and 3/8-inch lower than the rear of the deck. Adjust if necessary:

15

1. With the tractor parked on a firm, level surface, place

Lock Nut

the deck lift lever in the top notch (highest position)
and rotate the blade nearest the discharge chute so
that it is parallel with the tractor.

2. Measure the distance from the front of the blade tip to
the ground and the rear of the blade tip to the ground.

Deck v_

Stabilizer

Bracket

The first measurement taken should be between 1/4"
and 3/8" less than the second measurement.

Deck

Determine the approximate distance necessary for
proper adjustment and proceed, if necessary, to the
next step.

\

3. Locate the two lock nuts on the opposite side of the
stabilizer bracket. See Figure 9. Tighten the lock nuts

to raise the front of the deck; loosen the lock nuts to
lower the front of the deck.

Figure 9

Sideto Side

If the cutting deck appears to be mowing unevenly, a side

to side adjustment can be performed. Adjust if necessary
as follows:

,

With the tractor parked on a firm, level surface, place
the deck lift lever in the top notch (highest position)
and rotate both blades so that they are perpendicular

with the tractor.

,

Measure the distance from the outside of the left
blade tip to the ground and the distance from the

outside of the right blade tip to the ground. Both
measurements taken should be equal. If they're not,
proceed to the next step.

,

Loosen, but do not remove, the hex cap screw on the

Hex Cap Screvt

/'

/

Figure 10

left deck hanger bracket. See Figure 10.

4.

To balance the deck turn the adjustment gear, located immediately behind the hex cap screw, clockwise/up or
counterclockwise/down. See Figure 10. You will need an adjustable wrench for this step.

5.

The deck is properly balanced when both blade tip measurements, taken earlier, are equal.

6.

Retighten the hex cap screw on the left deck hanger bracket when proper adjustment is achieved.

x

x

Adjustment Gear

B aReAd stm®st

,_ WARNING" Never attempt to adjust thebrakes while the engine is running. Always

disengage PTO, move shift lever into neutral
position, stop engine and remove key to
prevent unintended starting.

If the tractor does not come to a complete stop when the
brake pedal is completely depressed, or if the tractor's
rear wheels can roll with the parking brake applied, the
brake is in need of adjustment. The brake disc can be
found on the right side of the transmission in the rear of
the tractor. Adjust if necessary as follows:

,

Looking at the transmission from the right side of the
tractor, locate the compression spring and brake disc.
See Figure 11.

2. Loosen, but do not remove, the hex nut found on the right side of the brake assembly. See Figure 11.

3. Using a feeler gauge, set the gap between the brake disc and the brake puck at .011"

4. Re-tighten the hex nut loosened earlier.

Set gap
at .011"

Brake Disc

Transmission

NOTE: View shown from beneath tractor.

Figure 11

16

SECTION6: MAINTAININGYOURLAWNTRACTOR

_ ARNING" Before performing any maintenance or repairs, disengage PTO, move shift lever into neutral

Refer to the engine manualfor engine maintenance instructions.

• Check engine oil level before each use as instructed in the engine manual. Read and follow instructions

position, set parking brake, stop engine and remove key to prevent unintended starting.

carefully. Refer to this manual for details about type and grade of oil.

ChangingEngine0il Oil FillCap Protective Cap

1. Unscrew oil fill cap and remove dipstick from the oil fill Oil Drain Hose
tube. See Figure 12.

2. Pop open the protective cap on the end of the oil drain
valve to expose the oil drain port. See Figure 12.

3. Push the oil drain hose (packed with this manual) onto
the oil drain port. Route the opposite end of the hose
into an appropriate oil collection container with a
capacity great enough to collect the used oil
(approximately 62 oz.).

4. Push the oil drain valve in slightly, then rotate
counterclockwise and pull outward to begin draining oil.

See Figure 12. Oil Fill Tube Oil Drain

5. Service the oil filter as instructed in the engine manual. Valve

6. Perform the above steps in the opposite order after oil
has finished draining. Refill the engine with Oil Drain Port

approximately 62 oz.(1.8 liters) of new motor oil.

Air Cleaner Figure 12

Service the pre-cleaner, if so equipped, and cartridge as
instructed in the engine manual at the end of this manual.

SparkPlug

Clean the spark plug and reset its gap once a season, preferably at the start of each mowing season. Refer to the
engine manual for correct plug type and gap specifications.

Engine

• Lubricate the engine with motor oil as instructed in the engine manual.

PivotPoints& Linkage

• Lubricate all pivot points on the drive system, parking brake and lift linkage at least once a season with light oil.

RearWheels

• Remove rear wheels from the axles once a season; lubricate the axles and rims with an all-purpose automotive
grease and re-install the wheels

FrontWheels

• Each front wheel axle is equipped with a grease fitting; lubricate with a grease gun after every 25 hours of
tractor operation or at least once a season.

81®asis Th®Esgi e & Deck

• Wipe off any fuel or oil spillage on the machine promptly. Do not allow grass, leaves, and dirt to accumulate
around the cooling fins or on any other part of the machine, especially the pulleys and other moving parts.

IMPORTANT:The use of a pressure washer or garden hose to clean your tractor is NOT recommended. It may cause
damage to electrical components, spindles, pulleys, bearings or the engine. The use of water will reduce life of the

17

tractor and/or its serviceability.

,_ WARNING" Before servicing, repairing, or inspecting, always disengage PTO, move shift lever into

neutral position, set parking brake, stop engine and remove key from tractor to prevent unintended starting.

Ti e Pressure

IMPORTANT:Never exceed the maximum inflation pressure shown on the sidewall of the tire.

• The recommended operating tire pressure is approximately 10 psi for the rear tires and 14 psi for the front tires.
Refer to the tire sidewall for exact tire manufacturer's recommended or maximum psi. Do not overinflate.
Uneven tire pressure could cause the cutting deck to mow unevenly.

The battery is sealed and maintenance-free. Acid levels
cannot be checked. However, some care is required for
long battery life:

• Always keep the battery cables and terminals clean
and free of corrosive build-up.

• After cleaning the battery and terminals, apply a
light coat of petroleum jelly or grease to both

terminals

• Always keep the rubber boot positioned over the
positive terminal to prevent shorting.

IMPORTANT: If removing the battery, disconnect the
negative (black) wire from its terminal first, followed by

the positive (red) wire. When re-installing the battery,
always connect the positive (red) wire to its terminal first,
followed by negative (black) wire.

Charging

• Ifthe tractor has not been used for an extended period of time, use a voltmeter or load tester to measure the
charge. The voltmeter should read 12.6 V or higher for adequate charge. Otherwise, charge the battery with an
automotive-type 12-volt charger for a minimum of one hour at six amps. Follow the chart below to charge:

State of Charge Charging Time

Voltmeter Reading (percentage) (minutes)

12.7 100 0

12.4 75 90

12.2 50 180
12 25 280

,_ WARNING" Batteries give off an explosive gas while charging. Charge the battery in a well ventilatedarea and keep away from an open flame or pilot light as on a water heater, space heater, furnace, clothes

dryer or other gas appliances.

Jump-Starting

IMPORTANT:Do not jump-start a damaged battery. Before connecting the jumper cables, make sure that the two

equipment are not in contact and their ignitions are turned off. Follow the sequence described below very closely.

1. Connect the positive (+) lead of the jumper cable to the positive (+) post of the discharged battery.

2. Connect the other end of the positive (+) jumper cable to the positive (+) post of the good battery.

3. Connect one end of the negative (-) jumper cable to the negative (-) post of the good battery.

18

4. Connect the other end of the negative (-) cable to the engine block of the stalled tractor, away from the battery,
and stand back.

5. Start the stalled tractor and leave it running to charge the battery.

6. Disconnect the negative (-) jumper cable from the tractor.

7. Disconnect the other end of the negative (-) jumper cable from the negative (-) post of the good battery.

8. Disconnect the positive (+) jumper cable from the positive (+) post of the good battery.

9. Disconnect the other end of the positive (+) jumper cable from the formerly dead battery.

Two fuses are installed in your tractor's wiring harness to protect the tractor's electrical system from damage
caused by excessive amperage.

• Ifthe electrical system does not function, or your tractor's engine will not crank, first check to be certain that one
of the fuses has not blown. One can be found under the hood mounted behind the top of the dash panel on the
support bar. The other fuse is mounted to the inside of the frame, behind the battery. Pull each fuse out to
determine if it is good or blown.

IMPORTANT: Always use a fuse with the same amperage capacity for replacement.

8 tti DeckRemoval

The cutting deck will have to be removed from the tractor
for a variety of service tasks. To remove the cutting
deck, proceed as follows:

1. Place the PTO lever in the disengaged (OFF) position
and engage the parking brake.

2. Lower the deck by moving the deck lift lever into the
bottom notch on the right fender.

3. Remove the PTO belt from around the engine pulley
and from around the PTO idler pulley(s).

4. Looking at the cutting deck from the left side of the
tractor, locate the deck support pin on the rear left
side of the deck. See Figure 13.

,

Pull the deck support pin outward to release the deck

from the deck lift arm.

6.

Rotate the pin slightly toward the rear of the tractor
and release the pin into the hole provided.

7.

Repeat the above steps on the right side of the
tractor.

8.

Move the deck lift lever into the top notch on the right fender to raise the deck lift arms out of the way.

9.

Gently slide the cutting deck toward the front of the tractor allowing the hooks on the deck to release themselves

from the deck stabilizer rod. Do net let the deck fall to the ground.

Support Pin

Figure 13

8 tti Blades

_b ARNING" Shut tractor engine off, remove ignition key, disconnect the spark plug wire(s) and groundagainst the engine before proceeding with job. Protect your hands by using heavy gloves or a rag to grasp

the cutting blade

• Periodically inspect the blade adapter and/or spindle for cracks or damage, especially if you strike a foreign
object. Replace immediately if damaged. Remove the blades following instructions below:

1. Remove the deck from beneath the tractor, then gently flip the deck over to expose its underside.

2. Place a block of wood between the center deck housing baffle and the cutting blade to act as a stabilizer. See
Figure 14.

3. Use a 15/16" wrench, remove the hex flange nut that secures the blade to the spindle assembly. See Figure 14.

4. To properly sharpen the cutting blades, remove equal amounts of metal from both ends of the blades along the
cutting edges, parallel to the trailing edge, at a 25° to 30 ° angle. See Figure 14.

• Ifthe cutting edge of the blade has already been sharpened to within 5/8" of the wind wing radius, or if any metal
separation is present, replace the blades with new ones. See Figure 14.

19

IMPORTANT:Each cutting blade edge has to be ground equally to maintain proper blade balance. A poorly balanced
blade will cause excessive vibration, may damage the tractor and/or result in personal injury.

Hex Flange Nut

/

/

Worn _paration

Wind Wing

/

<

Spindle Assembly

Sharpen edge evenly

nirnurn

Figure 14

5. Test the blade by balancing it on a round shaft screwdriver. Grind metal from the heavy side until it balances
evenly.

6. When replacing the blade, be sure to install the blade with the side of the blade marked "Bottom" (or with a part
number stamped in it) facing the ground when the mower is in the operating position.

7. Use a torque wrench to tighten the blade spindle hex flange nut to between 70 and 90 foot-pounds.

8. Gently slide the cutting deck (from the right side) out from underneath the tractor.

: a sm:ssb DdveBelt

NOTE: It is recommended that both drive belts be replaced at the same time.

,

Remove the cutting deck as instructed earlier in this section.

2.

After disconnecting the battery cables, remove the battery and battery tray from beneath the seat.

Variable-Speed Opening Shift Lever

Pulley RearIdler Pulley [] Drive belt (Upper)

/

/

I

if

Battery Tray Drivebelt (Lower)

[J

i

iBelt Keeper

Front Idler Pulley

Keeper Pins_i

-_

I I

II
II

I(_ II

II

\ \

\

\

rq

uJ

Sin

Transmission

Transmission Pulley

%

%

p_l c

¢- .......

Double-Idler Bracket......

i

Idler Pulley

i

Engine Pulley

Front of Tractor

NOTE: View shown from above tractor.

Figure 15

20

IMPORTANT:When removing the battery, disconnect the NEGATIVE (Black) wire from its terminal first, followed by
the POSITIVE (Red) wire. Re-install in reverse order.

UpperDriveBelt

1. Locate the transmission idler pulley on the upper drive belt by looking through the battery tray opening. See
Figure 15.

,

Grasp the bracket and pivot the transmission idler pulley toward the rear of the tractor to release tension on the
upper drive belt.

,

Remove the belt from around the transmission idler pulley.

4.

Remove the upper drive belt from around the transmission pulley and the variable-speed pulley. Slowly rotate
the pulley counterclockwise to roll the belt off it.

,

Remove the upper drive belt by pulling it up through the battery tray opening.

6.

Reroute the new upper drive belt as shown in Figure 15.

Lower DriveBelt

IMPORTANT: Note the routing of the lower drive belt
around both the pulleys and the belt keepers before
performing the following steps.

1. Locate the variable-speed pulley through the
battery tray opening. See Figure 15.

2. Remove the variable-speed pulley by loosening the
hex bolt that secures it to the transmission. Use a

second wrench to hold the hex nut on the bottom
side of the pulley.

3. Slide the belt offthe variable-speed pulley as you lift
the pulley up and out through the battery tray
opening.

4. Remove the rear idler pulley from the double-idler
bracket while unrouting the belt from around both
the rear and the front idler pulley. See Figure 15.

5. Remove the hex bolt from the center of the engine
pulley and gently lower it off the engine crankshaft.
Be careful not to lose any washers or spacers which
may be on top of the engine pulley.

IMPORTANT: When remounting the engine pulley, torque the center hex bolt to between 38 and 50 foot-pounds.

6. Remove the drive belt by feeding it from both ends toward the front idler pulley on the double-idler bracket. See
Figure 15.

7. Reassemble by following the above steps in reverse order. Reroute the new belt around the pulleys, belt
keepers and keeper pins exactly as the old one was routed. Refer to Figure 15.

• The drive pedal is properly adjusted when the hole in the double-idler bracket has approximately 1-3/8" of travel

with ten pounds of pressure applied to the drive pedal. See Figure 16.

Double-Idler

Bracket

Hole

NOTE: View shown from above tractor.

Front of Tractor

Figure 16

21

Idler

Adjuster Rod

v

After replacing the drive belts, adjust the drive
pedal on your tractor as follows:

1. Locate the speed control assembly on the
underside of the steering support bracket. See
Figure 17.

2. Remove both hairpin clips from the pin which is
fastened to the speed control assembly (be careful

not to lose the small flat washers found on the pin).
See Figure 17.

3. Remove the drive pedal return spring.

4. Using two 9/16" wrenches, remove the pin from the

speed control assembly. See Figure 17.

5. Thread the idler adjustment rod inward or outward

to lengthen or shorten the travel of the double-idler
bracket until proper adjustment is achieved.

6. Reassemble by following the above steps in

reverse order.

Chas theBeckBelt

_ ARNING" Shut tractor engine off, remove ignition key, disconnect the spark plug wire(s) and groundagainst the engine before proceeding with job.

Neutral

Return

Bracket

Hairpin

lips

AutoDrive '_Pedal

Return Spring

Idler

Adj. Rod

Figure 17

Place Wrenches Here

Speed Control

Assembly

IMPORTANT:The V-belts on your tractor are specially designed to engage and disengage safely. A substitute (non-
OEM) V-belt can be dangerous by not disengaging completely. For a proper working machine, use factory
approved belts.

• All belts on the tractor are subject to wear and should be replaced if cracking, shredding or rotting occurs. To

change or replace the deck belts on your tractor, proceed as follows:

1. Lower the deck by moving the deck lift lever to the lowest position.

2. Take the belt guards off by removing the self-tapping screws that fasten them to the deck surface. See Figure

18 & Figure 19 (as the case may be) for location of the screws.

3. Grasp the PTO idler bracket and pivot it toward the discharge chute to relieve tension on the PTO belt.

Model604G

Engine Pulley

Left Hand Pulley

PTO Idler Bracket

(mounted on tractor)

Right Hand Pulley

(beneath belt guard)

J

Deck Idler Pulley

OeckBe,tIBottoml

[]PTO Belt (Top)

Center Pulley

Figure 18

Self-Tapping Screws

22

4. Remove the PTO belt from around the engine pulley and the PTO idler pulley.

5. Grasp the deck idler pulley and pivot it toward the left side of the deck to relieve tension on the deck belt.

6. Remove the belt from around all pulleys, including the deck idler pulley.

7. Route the new belts as in Figure 18 & Figure 19. Remount belt guards removed earlier.

Model604H

Engine Pulley

PTO Idler Bracket

Deck Idler Pulley

Double Pulley

Left Hand o o

Center Pulley

NOTE: Left hand belt covers not shown for clarity.

(mounted on tractor)

/

Right Hand Pulley

(beneath belt guard)

Figure 19

23

SECTION7: OFF-SEASONSTORAGE

,_ WARNING" Never store the machine or fuel container indoors where there is an open flame, spark or

• Clean and lubricate the tractor as instructed on page 17 before storing for an extended period.

,_ WARNING" Drain fuel only into an approved container outdoors, away from an open flame. Allow engineto cool. Extinguish cigarettes, cigars, pipes, and other sources of ignition prior to draining fuel.

• Follow instructions in the Seasonal Storage section of the engine manual for proper engine care prior to storing

• It is not necessary to remove the battery from the tractor for storage. However, clean the top of the battery and

NOTE: Recharge the battery before returning it to service after storage. Even if the tractor starts, the engine
charging system may not bring the battery upto a full charge, unless it is recharged.

pilot light such as on water heater, furnace, clothes dryer or other gas appliance.

your tractor.

make sure it has full charge. Disconnect the negative terminal of the battery before storing the tractor.

ASa8 ®sts&Accessed®s

The following attachments and accessories are available for your lawn tractor. See your local retail store or dealer
for price and availability.

MODEL

OEM-190-116
OEM-190-118
OEM-190-601
OEM-190-602
OEM-190-603
OEM-190-604
OEM-190-607
OEM-190-822
OEM-190-823

42-inch Deck Mulch Kit
46-inch Deck Mulch Kit

FastAttach TM Twin Bagger Grass Collector (for 42-inch Decks)
FastAttach TM Twin Bagger Grass Collector (for 46-inch Decks)

FastAttach TM Grille Guard (mounts on front of tractor)
FastAttach TM Yard-Mate TM Storage Container/Toolbox (mounts on rear of tractor)
FastAttach TM Deluxe Tractor Sunshade

FastAttach TM 46-inch Front Dozer Blade
FastAttach 7M42-inch Two-stage Snow Thrower

DESCRIPTION

24

SECTION8: TROUBLESHOOTING

Engine fails to start

Engine runs erratic

Engine overheats

Engine hesitates at high
RPM

1. PTOtever/knobengaged.

2. Parking brake not engaged.

3. Spark plug wire(s) disconnected.

4. Throttle control lever not in correct
starting position.

5. Fuel tank empty, or stale fuel.

6. Blocked fuel line.

7. Faulty spark plug.

8. Engine flooded.

1. Unit running with CHOKE applied.

2. Spark plug wire loose.

3. Blocked fuel line or stale fuel.

4. Vent in gas cap plugged.

5. Water or dirt in fuel system.

6. Dirty air cleaner.

1. Engine oil level low.

2. Air flow restricted.

1. Spark plug gap too close.

1. Place PTO lever/knob in OFF position.

2. Engage parking brake.

3. Connect wire(s) to spark plug.

4. Place throttle lever to CHOKE position.

5. Fill tank with clean, fresh gas.

6. Clean fuel line or replace fuel filter, if so
equipped.

7. Clean, adjust gap or replace plug.

8. Crank engine with throttle in FAST position.

1. Place throttle lever in FAST position.

2. Connect and tighten spark plug wire.

3. Clean fuel line; fill tank with clean, fresh gas.
Replace fuel filter, if so equipped.

4. Clear vent or replace cap if damaged.

5. Drain fuel tank. Refill with clean, fresh gas.

6. Replace air cleaner cartridge or clean pre-
cleaner, if so equipped.

1. Fill crankcase with proper capacity and weight of
oil.

2. Clean grass clippings and debris from around the
engine's cooling fins and blower housing.

1. Remove spark plug(s) and reset the gap at .030".

Idles poorly

Excessive vibration 1. Cutting blade loose, unbalanced or 1. Tighten blade and spindle, balance blade and/or

Mower will not mulch
grass

Uneven cut

1. Spark plug fouled, faulty or gap too
wide.

2. Dirty air cleaner.

damaged, replace blade.

1. Engine speed too low.

2. Wet grass.

3. Excessively high grass.

4. Dull blade.

1. Deck not balanced properly.

2. Dull blade.

3. Uneven tire pressure.

1,

Replace spark plug(s). Set plug gap at .030".

2.

Replace air cleaner cartridge or clean pre-

cleaner, if so equipped.

1. Place throttle in FAST (rabbit) position.

2. Do not mow when grass is wet; wait until later to
cut.

3. Mow once at a high cutting height, then mow
again at desired height or make a narrower
cutting swath.

4. Sharpen or replace blade.

1. Perform side-to-side deck adjustment.

2. Sharpen or replace blade.

3. Check tire pressure in all four tires.

NOTE: For unsolved problems and/or further details, visit www.mtdproducts, com or call the Customer Support Line

at 1-800-800-7310.

25

SECTION9: PARTSLISTFORMODELS604G& 604H

28

\

38

\

22

35_

13

11

29

12

_18

1

34 3

10

31

1

5

\\

26

Models604G& 604H

REF. PART

NO. NO.

1 710-3015
2 710-0599
3 712-0324
4 710-0895
5 710-0924
6 710-0376
7 712-0292
8 712-0429
9 726-0201

10 783-0808A
11 731-1978

731-1979
12 747-1132A
13 731-1980A
14 731-1981C
15 731-1982C
16 736-0329
17 736-0342
18 783-04323
19 736-3078

20 710-0809
21 710-1611B

DESCRIPTION

Hex Cap Screw, 1/4-20 x .75
Self-tapping Screw, 1/4-20 x .5
Hex Lock Nut, 1/4-20
Self-tapping Screw, 1/4-15 x .75
Pan Phillips Screw, 1/4-20 x .75
Hex Cap Screw, 5/16-18 x 1.0
U-type Speed Nut, 1/4-20
Lock Nut, 5/16-18
Speed Nut

Hood Heat Shield
RH Headlight Lens

LH Headlight Lens
Hood Support Rod

Hood
LH Side Panel
RH Side Panel

Lock Washer, 1/4
Flat Washer, .283 x .75 x .030
Dash Support Plate LH
Flat Washer, .349 x 1.0 x .063
Self-tapping Screw, 1/4-20 x 1.25
Self-tapping Screw, 5/16-18 x .75

REF.

NO.

22
23
24
25
26
27
28
29
30
31
32
33
34
35

36
37
38
39
40

PART

NO.
710-0599
710-1017
710-3217
712-0142
731-0069D
731-0072
731-1857
731-2106
747-1155
783-04285
731-2234
751-0658E
751-0603
725-1745
725-1744
710-0726
783-1000A
725-1758
725-1741
625-0051
629-0469B
629-1072

DESCRIPTION

Self-tapping Screw, 1/4-20 x .50
Torx Self-tapping Screw, 1/4-14 x .625
Torx Screw, #8-32 x .375
Hex Nut, 8-32

Dash Panel
Parking Brake Button

Throttle Control Lever
Cruise Control Button
Brake/Cruise Pivot Rod

Dash Support Plate RH

Intake Bellow

Fuel Tank, 3-gallon
Fuel Cap

Ignition Key w/plastic cover

Ignition Key w/o plastic cover
Self-tapping Screw, 5/16-18 x .75
Grille Support Bracket
Systems Indicator Monitor, Ammeter

Ignition Switch
Headlight Assembly
Headlight Wire Harness

Tractor Wire Harness

27

Models604G& 604H

24

32

26-

7

28

Models604G& 604H

Ref.

No.

1

2

3

4

5

6

7
8

9
10
11
12
13
14
15
16
17
18
19

20
21
22

23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51

Part

No.

747-1130B

683-0197B
711-0332
712-0206
712-0431
712-0429
712-3083
714-0104
714-0145
716-0106
720-0311
732-0874
732-1184
736-0275
736-0921
736-3019
736-3084
738-0138A
738-0143
741-0225
741-0715
746-0968
746-1144
747-1111A
756-1154
783-0678A
783-0720A
710-0260A
710-0604A
736-0331
720-04009
738-04012
736-3078
783-1010A
783-04314
783-1489
738-0296
726-0201
783-0209C
757-04011B
735-0672
735-0673
726-3046
714-0111
783-04081A
736-0204
731-0511
731-1990
731-2104B
710-0895
731-04591
710-0599

Description

Deck Stabilizer Rod
Lift Shaft Assembly

Clevis Pin, .5 x .78
Hex Nut, 1/2-13
Flange Lock Nut, 3/8-16
Lock Nut, 5/16-18
Hex Nut, 1/2-13

Internal Cotter Pin
Internal Cotter Pin

E-Ring
Handle Grip
Torsion Spring
Extension Spring, .84 x 4.6
Flat Washer, 5/16
Lock Washer, 1/2
Flat Washer, .531 x 1.062 x .134
Flat Washer, .51 x 1.12 x .06
Hex Cap Screw, 5/16-18 x .62
Shoulder Screw, 3/8-16
Hex Flange Bearing
Snap Flange Bearing
Lift Cable, 16.16 (Model 604G)
Lift Cable, 15.62 (Model 604H)

Lift Handle
Roller Pulley

Lift Arm
Deck Stabilizer Bracket

Carriage Bolt, 5/16 x .62
Self-tapping Screw, 5/16-18 x .625
Belt Washer, .390 x 1.13 x .062
Knob, 3/8-16

Shoulder Screw
Flat Washer, .349 x 1.0 x .063

Lift Adjustment Bracket
Fender (Models w/Cup Holder)
Seat Mounting Bracket

Shoulder Screw
Speed Clip

Seat Lift Bracket
Seat: Medium Back Yellow

Foot Pad RH, Rubber
Foot Pad LH, Rubber
Foot Pad Clips

Cotter Pin
Seat Pivot Bracket

Flat Washer, .344 x .62
Trim Strip

Lift Lever Cover
Shift Lever Cover w/Cup Holder

Self-Tapping Screw, 1/4-15 x .75
Cup Holder
TT Screw, 1/4-20 x 0.5

29

Models604G& 604H

40

23

19

38

21

14

25

32

37

29

30

Models604G& 604H

Ref.

No.

1

2

3

4

5

6

7

8

9
10
11
12
13
14
15
16
17
18
19

20
21
22
23
24
25

26

27

28
29
30

31
32
33
34
35
36

m

37
38
39
40

Part

No.

710-1260A
710-0604A
783-0726B
783-0727A
783-0728
710-0514
711-1408
711-1409A
712-0240
712-0241
712-0431
712-0459
712-3004A
717-1550D
717-1554
723-0448A
736-0169
736-3084
738-1001A
741-0475
741-0656
738-0372B
631-04008
731-04040
638-0019A
638-0021
638-0020A
638-0022
719-0399B
719-0525B
712-0431
714-0162
726-0214
726-0341
736-0242
736-0285
736-0331
738-1011
710-0643
634-04086
634-04081
734-0255
734-1731
741-0516A
741-0990A
734-2290A
783-0653F
738-0143
736-3004

Description

Self-tapping Screw, 5/16-18 x .75
Self-tapping Screw, 16-18 x .625
RH Pivot Support Bracket
LH Pivot Support Bracket

Pivot Bar Bracket
Hex Cap Screw, 3/8-16 x 1 (Grade 5)

RH Drag Link
LH Drag Link
Jam Nut, 7/16-20 (Grade 2)
Hex Nut, 3/8-24 (Grade 2)
Flange Lock Nut, 3/8-16
Flange Lock Nut, 7/16-20
Flange Lock Nut, 5/16-18
Steering Gear, 11/90 Ratio
Steering Pinion Gear
Ball Joint, 7/16-20
Lock Washer, 3/8
Flat Washer, .51 x 1.12 x .06
Steering Shaft, .625 OD x 24.4
Plastic Bushing, .38 ID
Hex Flange Bearing, 5/8
Shoulder Spacer, .38 ID
Steering Wheel, Soft Grip, Three Spoke
Steering Wheel Cover
LH Axle Assembly (Model 604G)
LH Axle Assembly (Model 604H)
RH Axle Assembly (Model 604G)
RH Axle Assembly (Model 604H)
Pivot Bar w/Fittings (Model 604G)
Pivot Bar w/Fittings (Model 604H)
Flange Lock Nut, 3/8-16

Cotter Pin
Push Cap, .625 (Model 604G)

Push Cap, .750 (Model 604H)
Belt Washer, .34 x .872
Flat Washer, .635 x 1.589 x .06
Belt Washer, .39 x 1.13 x .062
Shoulder Screw, .5 x 2.2, 3/8-16
Hex Bolt, 5/16-18 X 1
Wheel Assembly Complete
Rim Only
Air Valve (Not Shown)
Tire Only, Square Shoulder
Flange Bearing (Not Shown)
Flange Bearing w/Fitting (Not Shown)
Hub Cap
Steering Support Bracket
Shoulder Screw, 3/8-16
Flat Washer, .406 x .875 x .105

31

Models604G& 604H

@

31

6g

19

IMPORTANT: For a proper

working machine, use

Factory Approved Parts.

V-belts are designed to

5

engage and disengage
safely. A substitute (non
OEM) V-belt can be
dangerous by not
disengaging completely.

2

_27

71

2

49

23

9

67

55

_75

41 47

46

68

66

1_51

4s\_

\

32

Models604G& 604H

Ref.

No.

1
2
3
4
5
6
7
8
9

10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42

Part

No.

17840
618-04133
618-04147
647-04020

710-0607

710-0726

710-0809

710-1007

710-1266

710-3144

711-0736

712-0241

712-0429

712-0431

714-0104

714-0111

714-0209

714-0470

720-04028

723-3018

732-0384

732-0525

732-0716

732-0963

736-0169

737-3007

738-0372B

747-04146

747-04164

747-1127

748-0334

750-0566A

754-0467

754-0468

756-0981A

783-04283

783-04360

783-04442
647-0031C
647-0032A
683-0266

710-0650

Description

Mounting Bracket
Drive Assembly

Variable Spd. Pulley Assembly

Shift Lever Assembly
TT Screw 5/16-18 x 0.5

AB Screw 5/16-12 x 0.75

TT Screw 1/4-20 x 1.25
TT Sems Screw 3/8-16 x 1.5
Hex Bolt 5/16-18 x 3.5
Hex Bolt 3/8-16 x 2.0
Ferrule
Hex Nut 3/8-24
Hex Lock Nut 5/16-18

Flange Lock Nut 3/8-16
Hairpin Clip

Cotter Pin
Hairpin Clip

Cotter Pin
Shift Knob
Ball Joint

Extension Spring
Spring Clip
Extension Spring
Extension Spring

Lock Washer 3/8
Grease

Shoulder Spacer
Shift Rod

Brake Rod
Idler Adj. Rod

Spacer: Transaxte
Spacer

V Belt
V Belt

Flat Idler Pulley
Shift Bracket

Shift Bracket
Double Idler Bracket: Center

Brake Control Assembly
Speed Control Assembly
Drive Pedal Assembly

TT Screw 5/16-18 x 0.875

Ref. Part

No. No.

43 710-0726
44 710-1260A
45 710-1611B
46 711-04159
47 712-0130
48 712-3004A
49 714-0104
50 726-04028
51 732-0335
53 732-0963
54 735-0662
55 735-3049
56 736-0262
57 736-3008
58

738-0155

60

741-0225

61

741-3065B

62

747-04093

65

783-0653F

66

783-0732

67

783-0773A

68

783-0780B

69

756-04002

70

712-0700

71

718-0758A

72

683-04055

73

683-04130

74

710-0227

75

725-1644

76

750-0736

77

710-0514

78

747-04146

79

726-0320

8O

736-0242

81

710-0627

82

634-0104
634-0070
734-0255
734-1730

83

734-2290A

84

736-0430

Description

AB Screw 5/16-12 x 0.75

LD Screw 5/16-18 x 0.75
TT Screw 5/16-18 x 0.75

Pin

Hex Lock Nut 3/8-16
Flange Lock Nut

Cotter Pin

Push Nut

Compression Spring

Extension Spring

Control Pad

Brake Pad
Flat Washer
Flat Washer

Shoulder Screw

Hex Flange Bearing

Hex Flange Bearing: Split

Brake Lock Rod

Steering Support Bracket

Lock-Out Bracket
Brake Pedal
Neutral Return Bracket

Transmission Pulley

Flange Nut 9/16-18
Pulley Hub

Transmission Torque Bracket

Idler Bracket

AB Screw #8-18 x 0.5
Spring Switch

Shoulder Spacer

Hex Bolt 3/8-16 x 1.0

Shift Rod

Insulator Nut Plate
Bell Washer

Hex Cap Screw
Wheel Assembly
Rim Assembly

Air Valve
Tire

Hub Cap

Flat Washer

33

Models604G& 604H

13

10

6

4

9

12

11

14

21

20

11

12

18

16

17

15

3

19

22
23

J

J

J

J

J

t

/

J

28

25

26

27

29

34

Models604G& 604H

Ref.

No.

1
2
3

4
5
6
7
8
9

10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

Part

No.

732-0614
716-0231
736-0336
736-0337
736-0349
736-0335
710-1325
719-04017
711-1109
741-0335
717-1464
716-0108
741-0340
721-0338

618-04041

741-0336
717-1362
717-1363
718-0228
736-0519
711-04053
736-0495
741-0337

611-0011

741-0862
732-0863
719-04018
717-0678
761-0202
710-1206

661-0001

737-0148

Description

Ring, Wire
Ring, E Type, .750
Flat Washer, 5/8 x 1.0 x .030"
Flat Washer, 5/8 x 1.0 x .040*
Flat Washer, 5/8 x 1.0 x .020*
Washer, Thrust .635 x 1.26 x .06
Self-tapping Screw, 1/4-20 x 1.625
Upper Housing
Input Shaft
Needle Bearing, .625 x .813 x .495

14-tooth Bevel Pinion
Retaining Ring, .437

Sleeve Bearing, .75 x .1.0 x 1.0
Seal, .75 x 1.0 x .125
Differential Assembly
Flange Bearing, 5/8 x 3/4 x 3/4

42-tooth Bevel Gear
42-tooth Bevel Gear

Clutch Collar
Flat Washer, .70 x 1.125 x .031

Drive Shaft
Thrust Washer, 1.0 x .632 x .0

Flange Bearing, 5/8 x 3/4 x 15/16
Detent Shaft Assembly

Detent Ball
Compression Spring

Lower Housing
Brake Puck

Brake Disc
Self-tapping Screw, 1/4-20 x 2.375

Brake Assembly
Grease (19 oz.)

*Use applicable flat washer (12a, 12b or 12c)in this application
allowing .0150/.0020 in end-play

NOTE: If rebuilding the upper housing of the transmission, add
two ounces of Unirex ® N3 grease (Part No. 737-0289) in the

input shaft cavity.

35

Models604G&604H

58 /

51

_2

_53

4 17

59

64

39/

10/

78

"14
"23
_26

34
30_

Model 604H

16

24

28

_25

_9

Model 604G

36

Models604G& 604H

Ref. Part No.

No.

1 17962
2 647-0064
3 683-0450
4 710-0224
5 710-0276
6 710-0520
7 710-0726
8 710-0831
9 710-3029

10 711-1044
11 712-0130
12 712-0229
13 712-3004A
14 712-3010
15 714-0104
16 714-0470
17 726-0201
18 731-2111A
19 732-0991A

20 732-1013
21 732-1170

22 736-0108
23 736-0119

24 736-0140
25 736-0171

26 736-0242
27 736-0300

28 736-0322
29 736-3039

30 736-0372B
31 741-0708

32 747-1112D

Description

Switch Plate

Lever Assembly: PTO Engage
Plate Assembly: PTO Engage

AB Screw #10-16 x 0.5
Carriage Screw: Special

Hex Bolt 3/8-16 x 1.5

AB Screw 5/16-12 0.75

Hex Bolt 3/8-16 x 5.5
Hex Bolt 7/16-20 x 1.25
Belt Guard Pin
Lock Nut
Push Nut

Flange Lock Nut

Hex Nut 5/16-18
Cotter Pin
Cotter Pin

Speed Nut

PTO Knob

Belt Guard

Belt Guard

Extension Spring

Flat Washer

Lock Washer

Flat Washer

Lock Washer

Belt Washer

Flat Washer

Flat Washer

Flat Washer
Spacer

Hex Split Flange Bearing

Handle: Deck Engage

Ref.

No.

33
34

35
36

37

38

39

40

41

42
43
44
45
46
47
48
49

5O
51
52

53
54

55
56

57
58

59
6O

61
62

63
64

Part No.

747-1286A
748-0415B
750-0956
756-0627B
756-0982B
756-1208
783-04467
783-0744A
738-0227
736-3010

683-0302

732-0944
736-0275
710-0347
712-0429
754-0497
754-0349
732-04035
736-0222
725-1426
710-0599
783-04329
710-0726
710-3005
738-04058
712-0324
710-0642
747-04121A
710-0703
725-1706A
783-0349
738-0143

Description

Rod: Belt Keeper
Spacer
Spacer
Idler Pulley
Engine Pulley
Idler Pulley
Bracket: Deck Stop
Bracket: Stop

Flat Washer
Flat Washer

Engagement Plate Assembly
Extension Spring

Flat Washer
Hex Bolt 3/8-16 x 1.75

Hex Lock Nut 5/16-18
V Belt
V Belt

Compression Spring

Lock Washer

Solenoid

]T Screw 1/4-20 x 0.5

Seat Bracket
AB Screw 5/16-12

Hex Bolt 3/8-16 x 1.25

Shoulder Spacer

Lock Nut 1/4-20

]T Screw 1/4-20 x 0.75

Battery Hold-Down Rod

Carriage Screw

Battery

Battery Tray

Shoulder Screw 3/8-16

37

Models604G& 604H

4

12

23_

REF.

NO.

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19

2O
21
22
23
24

PART

NO.
710-0227
710-0599
710-0604A
710-1237
710-1314A
710-1315
712-3017
721-0460
726-0205
725-0157
736-0300
751B221535
751-0535
751-0564
751-0616
751-0650
751-0651
751-3140
751-3141
751-3142
783-0615B
783-0625C
712-0271
746-1086

DESCRIPTION

Self-tapping Screw, #8-18 x .5
Self-tapping Screw, 1/4-20 x .5
Self-tapping Screw, 5/16-18 x .625
Screw, #10-32 x .625
Socket Cap Screw, 5/16-18 x .625
Self-tapping Screw, 3/8-16 x 1.25
Hex Nut, 3/8-16

Exhaust Gasket
Hose Clamp

Cable Tie (not shown)
Flat Washer

Casing Clamp
Fuel Line Hose

Muffler Deflector
Muffler, Twin Inlet

RH Exhaust Pipe
LH Exhaust Pipe

Oil Drain Valve
Oil Drain Hose

Oil Drain Cap
Muffler Heat Shield

Engine Heat Shield
Sems Nut 1/4-20

Throttle Cable

ll_ 21

i I I)

5

17

_5

15

14

38

(.D
(D

HEADLIGHTS

HEADLIGHTS

LOW OIL INDICATOR LIGHT

BLK

OILSENSOR

ALTERNATOR

ALTERNATOR

AFTERFIRE SOLENOID

MAGNETO

I STARTER t

PTO INDICATOR LIGHT

gB_

_ I RED (

YEL/BLK

ORGJW_T

II PTOSWITCH

725-1657A

- f

SOLENOID
725-1426

FUSE
20 AMP

FUSE
20 AMP

SEAT SWITCH
725-1303
725-1439

BRAKE
SWITCH
725-1657A

Ammeter

MECHANICAL
REVERSE KILL

KEY SWITCH

725-1741

OFF
G+M+A1

RUN 1
B+At

L+A2

RUN 2
B+A1

START

B+S+A1

O
_"D

i

CPJ

,m-

PARKING BRAKE INDICATOR LIGHT

1 KEY SWITCH OFF
2 PTO OFF

3 TRACTOR UNOCCUPIED
4 BRAKE SWITCH OFF

Model604G

61

/ 63

23

\\\\ _.

\\\

17

6O

16

15\\\\ "\\.

10

24 _8

_I0

45

C

37

2

37

3

18_

4O

.'4O

J

5O

16

,_._54

i

49

.51

35

Model604G

Ref.

No.

1
2
3

4

5
6

7

8

9
10
11
12
13
14
15
16
17
18
19

2O
21
22
23
24
25
26
27
28
29
3O
31

Part No.

711-04069
618-0565
683-0198G
683-0254
736-0140
710-0520
710-0528
710-0726
710-0751
710-1238
710-0650
710-3151
712-0337
712-0417A
712-0431
712-0429
712-3006
712-0324
714-0470
716-3020
717-04074
726-0233
731-1031C
731-2486A
732-0306A
732-0470A
734-0973
710-0134
736-0119
736-0158
736-0162

Description

Grass Catcher Pin, 1/4-20
Spindle Assy., 5.75 Dia. w/Fitting

42-inch Deck Shell
Deck Adj. Bracket w/Weld Nut

Flat Washer, .385 x .62 x .063
Hex Cap Screw, 1/4-20 x 1.5
Hex Cap Screw, 5/16-18 x 1.25
Self-tapping Screw, 5/16-12 x .75
Hex Cap Screw, 1/4-20 x .62
Hex Hd. Washer Scr., 5/16-18 x .875
Self-tapping Screw, 5/16-18 x .875
Hex Cap Screw, 5/8-18 x .875
Hex Nut, 5/8-18
Hex Flange Nut, 5/8-18
Flange Lock Nut, 3/8-16
Flange Lock Nut, 5/16-18
Hex Nut, 1/4-20
Hex Lock Nut, 3/8-16
Cotter Pin, 1/8 x 1.25

Internal Snap Ring

Deck Adjustment Gear
Push Nut..25 x .5

Side Discharge Chute Assembly
Belt Cover

Comp. Spring, .406 x .531 x 1.75
Extension Spring, .50 x 4.74
Deck Wheel, 5 x 1.38
Carriage Screw, 1/4-20 x .5
Lock Washer, 5/16
Lock Washer, 5/8
Flat Washer, .64 x 1.0 x .12

Ref. Part No.

No.

32 736-0270
33 738-0373

34 741-0524
35 742-0616A
36 747-1116
37 748-0331
38 750-0932A
39 683-0440
40 754-0498
41 756-0627B
42 756-1202
43 710-1830
44 746-0970
45 783-1291
46 711-1534
47 731-2363
48 712-3087
49 710-0599
50 783-1146A
51 712-0641
54 736-0760
55 710-3180
56 732-1165
57 783-04013A
58 712-3010
59 783-1025
60 703-1693A
61 711-0792
62 726-0106
63 732-0602A

Description

Belt Washer, .265 x .75 x .062
Shoulder Screw, .498 x 1.53

Bearing, .625 x 1.574 x .470
Blade, Star Center, 21.23"
Deck Release Pin

Shoulder Spacer, .625 x .324
Spacer, .635 x .88 x 1.72
Deck Brake Assembly

Deck Belt
Idler Pulley, 3.5

Double Pulley, 5.0
Self-tapping Screw, 1/4-20 x 4.0

Brake Cable, 5.05

Idler Bracket

Pin, 3/8-16, 3/8 x 3.27
Mulch Plug
Wing Nut
Self-Tapping Screw, 1/4-20 x .5

Deck Skirt
Hex Nut, M-16 x 1.5
Lock Washer
Hex Bolt, 5/16-18 x 1.75

Extension Spring
Stab. Bracket: Pulley

Hex Nut
Chute Stop (not shown)

Mount. Bracket
Hinge Pin

Speed Nut
Torsion Spring

41

Model604H

41

34

13

28

42

/

/

/

21

1

32

2O

17

2

24

/

43_'_._. lO

44/ \ . 1

/

/

4

37

1

12-_

42

Model604H

Ref.

No.

1
2
3
4
5
6
7
8
9

10
11
12
13
14
15
16
17
18

19
20
21
22
23
24

Part No. Description

618-04137
683-0254
683-04103
710-0347
710-0514
710-0528
710-0599
710-0751
710-1260A
711-04069
712-0324
712-0417A
712-0431
712-0641
712-3006
712-3083
714-0111
717-04074
726-0233
732-0306A
732-0594A
734-0973
736-0119
736-0270

Pulley-Spindle Assembly
Deck Hanger Bracket Assembly
Deck Assembly

Hex Bolt 3/8-16 x 1.75
Hex Bolt 3/8-16 x 1.0
Hex Bolt 5/16-18 x 1.25
TT Screw 1/4-20 x 0.5
Hex Bolt 1/4-20 x 0.620
LD Screw 5/16-18 x 0.75
Grasscatcher Pin
Lock Nut 1/4-20

Flange Nut
Flanged Lock Nut 3/8-16

Hex Nut M16
Hex Nut
Hex Lock Nut 1/2-13
Cotter Pin

Gear: Deck Adjustment
Push Nut

Compression Spring
Extension Spring

Deck Wheel
Lock Washer
Bell Washer

Ref.

No.

25
27
28
29

30
31
32
34
35
36
37
38

39
40
41
42
43
44
45
46
47

48
49

Part No. Description

736-0760
737-3007
738-0372B
738-0373
742-0611A
742-0612A
747-1116
754-04033
756-1229
771-11725A
783-0141
783-0142
783-0805C
783-1025
783-1348A
783-1421
711-0792
732-0602A
703-1693A
731-1031C
726-0106
731-1636

710-0578

Lock Washer
Grease

Shoulder Spacer
Shoulder Screw 3/8-16 x 1.5

Blade 16.28 Lg.: Three-in-One
Blade 14.88 Lg.: Three-in-One

Deck Release Handle

V Belt

Idler Pulley
Danger Tag (not shown)

Deck Skirt: Center
Deck Skirt RH
Belt Cover

Chute Stop (not shown)
Belt Cover

Idler Bracket
Hinge Pin

Compression Spring
Mounting Bracket
Deflector: Discharge Chute
Speed Nut
Mulch Plug
Screw 1/4-20 x 1.5

43

MANUFACTURER'S LIMITED WARRANTY FOR:

YaRD.MaNTM

®

The limited warranty set forth below is given by MTD LLC with
respect to new merchandise purchased and used in the
United States, its possessions and territories.

"MTD" warrants this product against defects in material and
workmanship for a period of two (2) years commencing on the
date of original purchase and wilt, at its option, repair or
replace, free of charge, any part found to be defective in
materials or workmanship. This limited warranty shall only
apply if this product has been operated and maintained in
accordance with the Operator's Manual furnished with the
product, and has not been subject to misuse, abuse,
commercial use, neglect, accident, improper maintenance,
alteration, vandalism, theft, fire, water, or damage because of
other peril or natural disaster. Damage resulting from the
installation or use of any part, accessory or attachment not
approved by MTD for use with the product(s) covered by this
manual will void your warranty as to any resulting damage.

Normal wear parts are warranted to be free from defects in
material and workmanship for a period of thirty (30) days from
the date of purchase. Normal wear parts include, but are not
limited to items such as: batteries, belts, blades, blade
adapters, grass bags, rider deck wheels, seats, snow thrower
skid shoes, shave plates, auger spiral rubber and tires.

HOW TO OBTAIN SERVICE: Warranty service is available,
WITH PROOF OF PURCHASE, through your local authorized
service dealer. To locate the dealer in your area, check your
Yellow Pages, or contact MTD LLC at P.O. Box 361131,
Cleveland, Ohio 44136-0019, or call 1-800-800-7310 or log
on to our Web site at www.mtdproducts.com.

This limited warranty does not provide coverage in the
following cases:

a,

The engine or component parts thereof. These items

may carry a separate manufacturer's warranty. Refer
to applicable manufacturer's warranty for terms and

conditions.

b,

Log splitter pumps, valves, and cylinders have a

separate one year warranty.

C.

Routine maintenance items such as lubricants, filters,

blade sharpening, tune-ups, brake adjustments, clutch
adjustments, deck adjustments, and normal

deterioration of the exterior finish due to use or
exposure.

d,

Service completed by someone other than an

authorized service dealer.

e,

MTD does not extend any warranty for products sold or

exported outside of the United States, its possessions
and territories, except those sold through MTD's
authorized channels of export distribution.

f,

Replacement parts that are not genuine MTD parts.
Transportation charges and service calls.

g.

No implied warranty, including any implied warranty of
merchantability of fitness for a particular purpose,
applies after the applicable period of express written

warranty above as to the parts as identified. No other

express warranty, whether written or oral, except as
mentioned above, given by any person or entity,
including a dealer or retailer, with respect to any product,
shall bind MTD. During the period of the warranty, the
exclusive remedy is repair or replacement of the product

as set forth above.
The provisions as set forth in this warranty provide the

sole and exclusive remedy arising from the sale. MTD
shall not be liable for incidental or consequential loss or
damage including, without limitation, expenses incurred
for substitute or replacement lawn care services or for
rental expenses to temporarily replace a warranted
product.

Some states do not allow the exclusion or limitation of
incidental or consequential damages, or limitations on how

long an implied warranty lasts, so the above exclusions or
limitations may not apply to you.

In no event shall recovery of any kind be greater than the
amount of the purchase price of the product sold. Alteration

of safety features of the product shall void this warranty.

You assume the risk and liability for toss, damage, or injury to
you and your property and/or to others and their property
arising out of the misuse or inability to use the product.

This limited warranty shall not extend to anyone other than the
original purchaser or to the person for whom it was purchased
as a gift.

HOW STATE LAW RELATES TO THIS WARRANTY: This
limited warranty gives you specific legal rights, and you may

also have other rights which vary from state to state.

IMPORTANT:Owner must present Original Proof of
Purchase to obtain warranty coverage.

MTD LLC, P.O.BOX361131CLEVELAND,OHIO44136-0019; Phone:[phone]
