Operator's Manual
21" Self Propelled
Mulching Mower
Model 565
IMPORTANT: Read safety rules and instructions carefully before operating equipment.
Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-
covered, brush-covered or grass-covered land unless the engine's exhaust system is equipped with a spark arrester meeting
applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator.
In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have
similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized
service dealer or contact the service department, P.O. Box 361131 Cleveland, Ohio 44136-0019.
MTDLLC, P.O.BOX361131CLEVELAND,OHIO44136-0019
PRINTED IN U.S.A. FORM NO. 769-00545A
(11/2002)
TABLEOFCONTENTS
Content Page
Important Safe Operation Practices ................................................................... 3
Slope Guage ...................................................................................................... 6
Assembling Your Lawn Mower .......................................................................... 7
Know Your Lawn Mower .................................................................................... 9

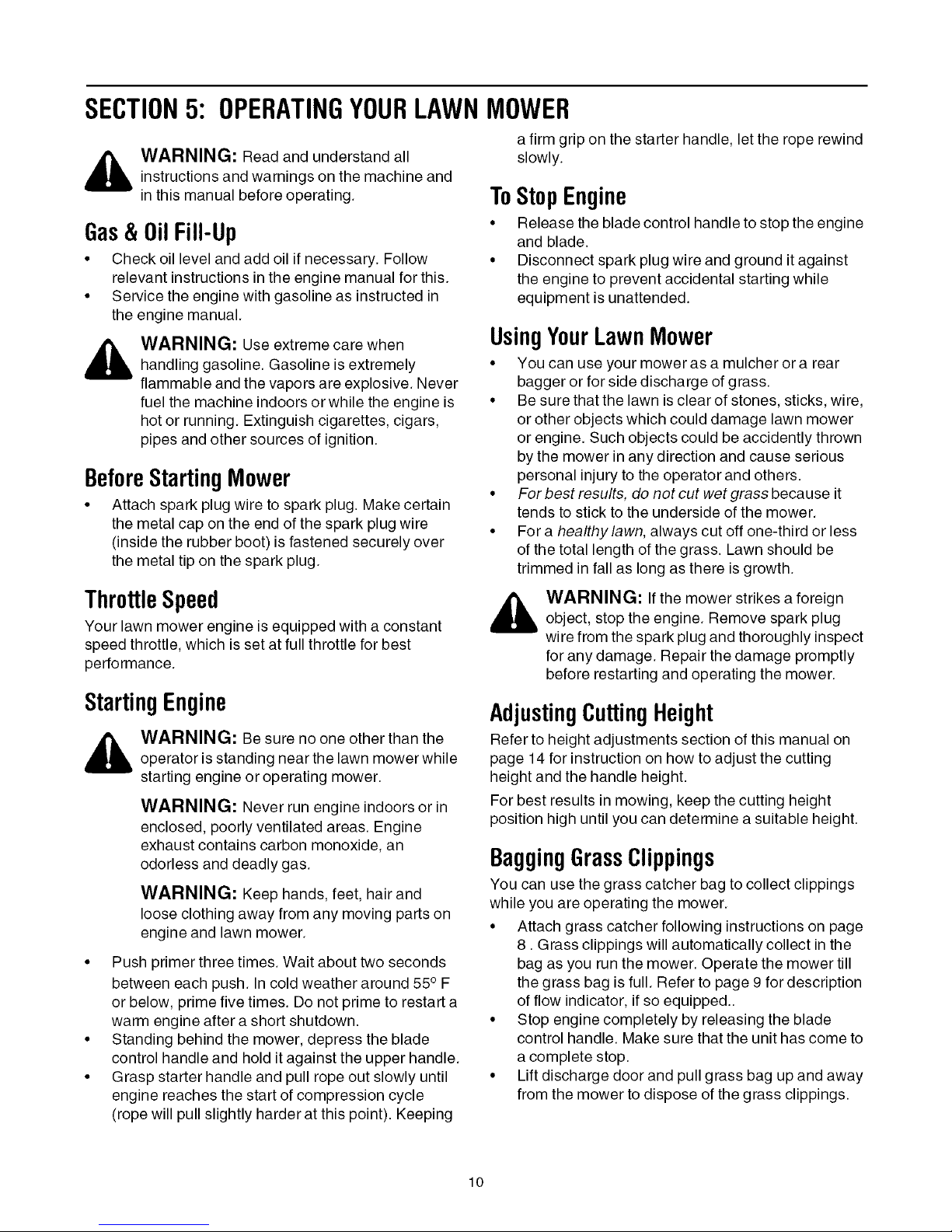

Operating Your Lawn Mower ............................................................................. 10
Maintaining Your Lawn Mower .......................................................................... 11
Service &Adjustments ....................................................................................... 13
Off-Season Storage ........................................................................................... 14
Troubleshooting ................................................................................................. 15

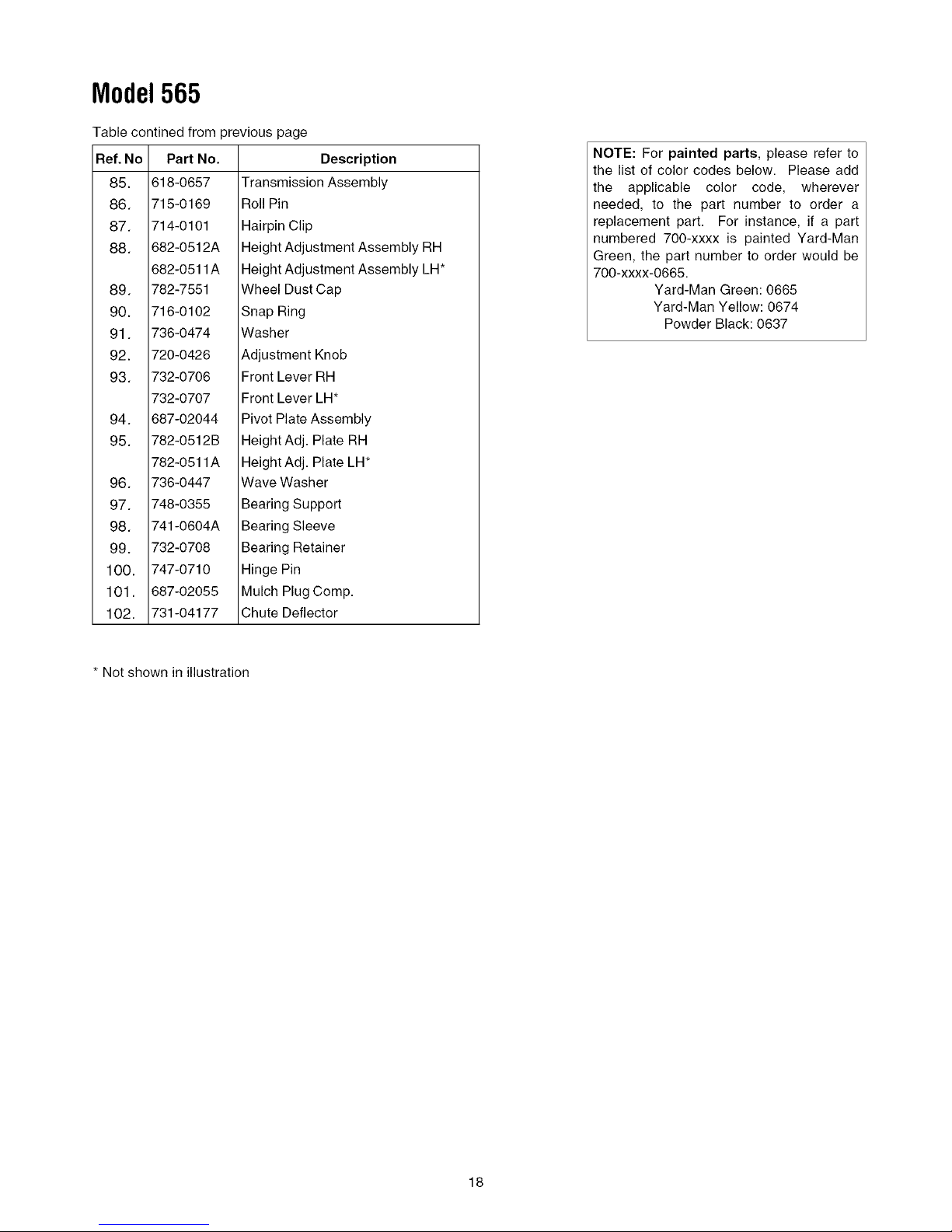

Parts List ............................................................................................................ 16
FINDINGMODELNUMBER
This Operator's Manual is an important part of your new Lawn Mower. It will help you assemble, prepare
and maintain the unit for best performance. Please read and understand what it says.
Before you start assembling your new equipment, please locate the model plate on the
equipment and copy the information from it in the space provided below. The information on
the model plate is very important if you need help from our Customer Support Department or
an authorized dealer.
• You can locate the model number by standing behind the unit in the operating position and looking
down at the cutting deck. A sample model plate is explained below. For future reference, please copy
the model number and the serial number of the equipment in the space below.
(Model Number) (Serial Number)
IVlTD LLO
P. O. BOX 361131
CLEVELAND,OH 44136
www=yardman.com
338=228=4583
800=8@0=731 @
Copy the model number here:
Copy the serial number here:
ENGINEINFORMATION
The engine manufacturer is responsible for all engine-related issues with regards to performance, power-
rating, specifications, warranty and service. Please refer to the engine manufacturer's Owner's/Operator's
Manual packed separately with your unit for more information.
CALLINGCUSTOMERSUPPORT
If you have difficulty assembling this product or have any questions regarding the controls,
operation or maintenance of this unit, please call the Customer Support Department. Call 1- (330)
220-4MTD (4683) or 1- (800)-800-7310 to reach a Customer Support representative. Please
have your unit's model number and serial number ready when you call. See previous section to
locate this information. You will be asked to enter the serial number in order to process your call.
SECTION1: IMPORTANTSAFEOPERATIONPRACTICES
WARNING: This symbol points out important safety instructionswhich, if not followed, could endanger
the personal safety and/or property of yourself and others. Read and follow all instructions in this manual
before attempting to operate this machine. Failure to comply with these instructions may result in personal
injury. When you see this symbol--HEED ITS WARNING.
WARNING: Engine exhaust, some of its constituents, and certain vehicle components contain or emit
chemicals known to State of California to cause cancer and birth defects or other reproductive harm.
WARNING: This machine was built to be operated according to the rules for safe operation in this
manual. As with any type of power equipment, carelessness or error on the part of the operator can result in
serious injury. This machine is capable of amputating hands and feet and throwing objects. Failure to
observe the following safety instructions could result in serious injury or death.
GeneralOperation
1. Read this operator's manual carefully in its entirety
before attempting to assemble this machine. Read,
understand, and follow all instructions on the
machine and in the manual(s) before operation. Be
completely familiar with the controls and the proper
use of this machine before operating it. Keep this
manual in a safe place for future and regular
reference and for ordering replacement parts.
2. This machine is a precision piece of power
equipment, not a plaything. Therefore, exercise
extreme caution at all times. Your unit has been
designed to perform one job: to mow grass. Do not
use it for any other purpose.
3. Never allow children under 14 years old to operate
this machine. Children 14 years old and over
should read and understand the operation
instructions and safety rules in this manual and
should be trained and supervised by a parent. Only
responsible individuals who are familiar with these
safe operation rules should use this machine.
4. Thoroughly inspect the area where equipment is to
be used. Remove all stones, sticks, wire, bones,
toys and other foreign objects which could be
tripped over or picked up and thrown by the blade.
Thrown objects can cause serious personal injury.
Plan your mowing pattern to avoid discharge of
material toward roads, sidewalks, bystanders and
the like. Also, avoid discharging material against a
wall or obstruction which may cause discharged
material to ricochet back toward the operator.
5. To help avoid blade contact or a thrown object
injury, stay in the operator zone behind the handles
and keep bystanders, helpers, children and pets at
least 75 feet from the machine while it is in
operation. Stop machine if anyone enters the area.
6. Always wear safety glasses to protect your eyes
during equipment operation and while performing
an adjustment or repair. Thrown objects which
ricochet can cause serious injury to the eyes.
7. Wear sturdy, rough-soled work shoes and close-
fitting slacks and shirts. Shirts and pants that cover
the arms and legs and steel-toed shoes are
recommended. Never operate this machine in bare
feet, sandals, slippery or light weight (e.g. canvas)
shoes.
8. Do not put hands or feet near rotating parts or
under the cutting deck. Contact with the blade can
amputate hands and feet.
9. A missing or damaged discharge cover can cause
blade contact or thrown object injuries.
10. Many injuries occur as a result of the mower being
pulled over the foot during a fall caused by slipping
or tripping. Do not hold on to the mower if you are
falling; release the handle immediately.
11. Never pull the mower back toward you while you
are walking. If you must back the mower away from
a wall or obstruction first look down and behind to
avoid tripping and then follow these steps:
a. Step back from the mower to fully extend
your arms.
b. Be sure you are well balanced with sure
footing.
c. Pull the mower back slowly, no more than
half way toward you.
d. Repeat these steps as needed.
5. Do not operate the mower while under the influence
of alcohol or drugs.
6. Do not engage the self-propelled mechanism on
units so equipped while starting engine.
7. The blade control handle is a safety device. Never
attempt to bypass its operation. Doing so makes
the safety device inoperative and may result in
personal injury through contact with the rotating
blade. The blade control handle must operate
easily in both directions and automatically return to
the disengaged position when released.
8. Never operate the mower in wet grass. Always be
sure of your footing. A slip and fall can cause
serious personal injury. If you feel you are losing
yourfooting,releasethebladecontrolhandle
immediatelyandthebladewillstoprotatingwithin
threeseconds.
9. Mowindaylightorgoodartificiallight;walk,notrun.
10.Stopthebladewhencrossinggraveldrives,
walkwaysorroads.
11.Iftheequipmentshouldstarttovibrateabnormally,
stoptheengineandcheckimmediatelyforthe
cause.Vibrationisgenerallyawarningoftrouble.
12.Shuttheengineoffandwaituntilthebladecomes
toacompletestopbeforeremovingthegrass
catcheroruncloggingthechute.Thecuttingblade
continuestorotateforafewsecondsafterthe
engineisshutoff.Neverplaceanypartofthebody
inthebladeareauntilyouaresurethebladehas
stoppedrotating.
13.Neveroperatemowerwithoutpropertrail shield,
dischargecover,grasscatcher,bladecontrol
handleorothersafetyprotectivedevicesinplace
andworking.Neveroperatemowerwithdamaged
safetydevices.Failuretodosocanresultin
personalinjury.
14.Mufflerandenginebecomehotandcancausea
burn.Donottouch.
15.Onlyusepartsandaccessoriesmadebythe
originalequipmentmanufacturer(O.E.M).Failure
todosocanresultinpersonalinjury.
16.Ifsituationsoccurwhicharenotcoveredinthis
manual,usecareandgoodjudgment.Contactyour
dealerforassistance.Telephone1-800-800-7310
forthenameofyournearestdealer.
2. Do not mow slopes greater than 15 degrees as
shown on the slope gauge.
3. Do not mow on wet grass. Unstable footing could
cause slipping.
Children
Tragic accidents can occur if the operator is not alert to
the presence of children. Children are often attracted to
the mower and the mowing activity. They do not
understand the dangers. Never assume that children
will remain where you last saw them.
1. Keep children out of the mowing area and under
the watchful care of a responsible adult other than
the operator.
2. Be alert and turn mower off if a child enters the
area.
3. Before and while moving backwards, look behind
and down for small children.
4. Use extreme care when approaching blind corners,
doorways, shrubs, trees, or other objects that may
obscure your vision of a child who may run into the
mower.
5. Keep children away from hot or running engines.
They can suffer burns from a hot muffler.
6. Never allow children under 14 years old to operate
a power mower. Children 14 years old and over
should read and understand the operation
instructions and safety rules in this manual and
should be trained and supervised by a parent.
Service
SlopeOperation
Slopes are a major factor related to slip and fall
accidents which can result in severe injury. Operation
on slopes requires extra caution. If you feel uneasy on a
slope, do not mow it. Before operating this unit on a
slope or hilly area, use the slope gauge on page 6 to
measure slopes. If the slope is greater than 15
degrees, do not mow it.
Do:
I,
Mow across the face of slopes; never up and down.
Exercise caution when changing direction.
2. Watch for holes, ruts, rocks, hidden objects, or
bumps which can cause you to slip or trip. Tall
grass can hide obstacles.
3. Always be sure of your footing. A slip and fall can
cause serious personal injury. If you feel you are
losing your balance, release the blade control
handle immediately, and the blade will stop rotating
within 3 seconds.
DoNot:
1. Do not mow near drop-offs, ditches or
embankments, you could lose your footing or
balance.
SafeHandlingof Gasoline:
1. To avoid personal injuryor property damage use
extreme care inhandling gasoline. Gasoline is
extremely flammable and the vapors are explosive.
Serious personal injury can occur when gasoline is
spilled on yourself or your clothes which can ignite.
2. Wash your skin and change clothes immediately.
3. Use only an approved gasoline container.
4. Never fill containers inside a vehicle or on a truck or
trailer bed with a plastic liner.Always place
containers on the ground away from your vehicle
before filling.
5. Ifpossible, remove gas-powered equipment from
the truck or trailer and refuel iton the ground. If this
is not possible, then refuel such equipment on a
trailer with a portable container, rather than from a
gasoline dispenser nozzle.
6. Keep the nozzle incontact with the rim of the fuel
tank or container opening at all times until fueling is
complete. Do not use a nozzle lock-open device.
7. Extinguish all cigarettes, cigars, pipes and other
sources of ignition.
8. Never fuel machine indoors because flammable
vapors will accumulate inthe area.
9. Neverremovegascaporaddfuelwhiletheengine
ishotorrunning.Allowenginetocoolatleasttwo
minutesbeforerefueling.
10.Neveroverfillfueltank.Filltanktonomorethan1/2
inchbelowbottomoffillernecktoprovidespacefor
fuelexpansion.
11.Replacegasolinecapandtightensecurely.
12.Ifgasolineisspilled,wipeitofttheengineand
equipment.Moveunittoanotherarea.Wait5
minutesbeforestartingtheengine.
13.Neverstorethemachineorfuelcontainerinside
wherethereisanopenflame,sparkorpilotlightas
onawaterheater,spaceheater,furnace,clothes
dryerorothergasappliances.
14.Toreducefirehazard,keepmowerfreeofgrass,
leaves,orotherdebrisbuild-up.Cleanupoilorfuel
spillageandremoveanyfuelsoakeddebris.
15.Allowamowertocoolatleast5minutesbefore
storing.
GeneralService:
1. Never run an engine indoors or in a poorly
ventilated area. Engine exhaust contains carbon
monoxide, an odorless and deadly gas.
2. Before cleaning, repairing, or inspecting, make
certain the blade and all moving parts have
stopped. Disconnect the spark plug wire and
ground against the engine to prevent unintended
starting.
3. Check the blade and engine mounting bolts at
frequent intervals for proper tightness. Also,
visually inspect blade for damage (e.g., bent,
cracked, worn) Replace blade with the original
equipment manufacture's (O.E.M.) blade only,
listed in this manual. "Use of parts which do not
meet the original equipment specifications may
lead to improper performance and compromise
safety!"
4. Mower blades are sharp and can cut. Wrap the
blade or wear gloves, and use extra caution when
servicing them.
5. Keep all nuts, bolts, and screws tight to be sure the
equipment is in safe working condition.
6. Never tamper with safety devices. Check their
proper operation regularly.
7. After striking a foreign object, stop the engine,
disconnect the spark plug wire and ground against
the engine. Thoroughly inspect the mower for any
damage. Repair the damage before starting and
operating the mower.
8. Never attempt to make a wheel or cutting height
adjustment while the engine is running.
9. Grass catcher components, discharge cover, and
trail shield are subject to wear and damage which
could expose moving parts or allow objects to be
thrown. For safety protection, frequently check
components and replace immediately with original
equipment manufacturer's (O.E.M.) parts only,
listed in this manual. "Use of parts which do not
meet the original equipment specifications may
lead to improper performance and compromise
safety!"
10. Do not change the engine governor setting or
overspeed the engine. The governor controls the
maximum safe operating speed of the engine.
11. Maintain or replace safety and instruction labels, as
necessary.
12. Observe proper disposal laws and regulations.
Improper disposal of fluids and materials can harm
the environment.
YourResponsibility
• Restrict the use of this power machine to persons who read, understand and follow the warnings and
instructions in this manual and on the machine.
WARNING,
09
.i
ILl u_
!
!
I
I
I
SIGHT AND HOLD THIS LEVEL WITH A VERTICAL TREE
A POWER POLE
A CORNER OF A BUILDING
OR A FENCE POST
15 °
L
_ WARNING
£o
Do not mow on inclines with a slope in excess of 15 degrees (a rise of approximately 2-1/2 feet every 10 feet). A riding mower
could overturn and cause serious injury. If operating a walk-behind mower on such a slope, it is extremely difficult to maintain
your footing and you could slip, resulting in serious injury.
Operate RIDING mowers up and down slopes, never across the face of slopes.
SECTION3: ASSEMBLINGYOURLAWNMOWER
RemovingUnitFromCarton
• Remove staples, break glue on top flaps, or cut
tape at carton end and peel along top flap to open.
• Remove loose parts included with unit (i.e.,
operator's manual, oil, etc.).
• Cut corners and lay carton down flat. Remove
packing material.
• Roll or slide unit out of carton. Check carton
thoroughly for loose parts.
NOTE: Make sure not to crimp cables while removing
loose parts or the entire unit from the carton.
ToolsRequired
• Pair of Pliers
• Funnel
• Set of adjustable wrenches
NOTE: Reference to right or left hand side of the mower
and/or front or behind the mower is observed from the
operating position.
Please identify each piece of the
HardwarePack
hardware pack as shown in
figure here. Nut (2) Bolt (2)
Wing Carriage
Raise the lower handle in the direction shown in
Figure 1 (step 2) till it snaps into place.
Raise the upper handle in the direction shown in
Figure 1 (step 3). Tighten the wing nuts which are
already on the handle. See Figure 2.
Upper Handle
Lower Handle
Tighten this
wing nut
Figure 2
NOTE: Make sure to route the cables inside the lower
handle. Also do not crimp the cables while lifting the
handle up.
• For shipping purposes, the hairpin clip is placed in
the outer hole of the weld pin on the lower handle.
Remove the hairpin clip from the outer hole of the
weld pin. See Figure 3.
• Using a pair of pliers, insert the hairpin clip into the
inner hole on the weld pin. Repeat on other side.
See Figure 3.
DisconnectingSparkPlug
• Before setting up your lawn mower, disconnect the
spark plug wire from the spark plug, and ground it
against the engine.
AssemblingHandle
• Remove grass bag from the unit and set it out of the
way. See Figure 1 (step 1).
• Remove any packing material which may be
between the upper and lower handles for shipping
purposes.
2. Lift lower handle
Move bag
away
3. Lift u
Figure 1
Carriage Bolt
.d_<andle
Wing Nut
Mounting Bracket
/
_Weld Pin
Hairpin Clip"
• Insert the carriage bolt, included in the hardware
pack, in the upper hole on the handle mounting
bracket (carriage bolt must go to the inside of
handle). Secure with one plastic wing nut, also
included in the hardware pack. Repeat on the other
side with remaining items from the hardware pack.
• Attach cables to the lower handle with the two cable
ties already on the lower handle. Insert pegs on
cable ties into the holes on the lower handle. Pull
cable ties tight and cut off the extra.
/
Figure 3
AttachingStarterRope
The rope guide is already attached to the right side of
the upper handle of your mower. See Figure 4.
• With spark plug wire disconnected and grounded,
hold the blade control handle against the upper
handle, and pull the starter rope out of the engine.
• Slip the rope through the rope guide as shown
below. Tighten the wing nut holding the rope guide
to the upper handle.
_gNut Upper
Handle
Rope Guide/ _
j Handle
_S Lower
Figure 4
AssemblingGrassCatcher
NOTE: If the grass catcher came pre-assembled,
proceed to the next section. If not, follow the steps
below to assemble it before attaching to the mower.
_ ARNING: When using the mower to baggrass clippings, make sure the hooks on the
grass catcher are firmly seated on the chute
pivot rod, and the rear discharge door rests
firmly against the top of the grass catcher.
AttachingGrasscatcher
• Lift the rear discharge door and place the grass
catcher on the pivot rod. Let go of discharge door
so that it rests on the grass catcher. See Figure 6.
Rear Discharge
Door
Insert frame into grass bag with the black plastic
side on the bottom of bag. See Figure 5.
Grass Catcher
/Frame Insertframe
Bag
Plastic
Channel
Figure 5
Slip the openings in the side of the plastic channel
on bag over the hooks on the grass catcher frame.
Secure bag to the frame by working the six plastic
channels on bag over frame. All of the plastic
channels except the center top of the bag attach
from the outside of bag. The center top of the bag
attaches from inside the bag. See Figure 5.
into
Grass Catcher
Assembly
Complete
Figure 6
Converting To Mulcher
• Lift the rear discharge door on the mower and lift
the grass catcher up. Release the discharge door
to allow it to close the rear opening of the mower.
ConvertingToSideDischarge
• Make sure the grass catcher is off the unit and the
rear discharge door is closed. Refer to Figure 7.
• On the side of the mower, lift the mulching plug.
See Figure 7.
• Slide the two hooks of the side-discharge chute
under the hinge pin on the mulching plug assembly.
Lower the side mulching plug.
• Do not remove the side mulching plug at any time,
even when you are not mulching.
Mulching Plug
Hin(
/ Deflector
Hooks
(Slide hooks under the two
sides of hinge pin)
Figure 7
SECTION4: KNOWYOURLAWNMOWER
Read this owner's manual and safety rules before
operating your lawn mower. Compare the illustrations
in Figure 8 with your lawn mower to familiarize yourself
with the location of various controls and adjustments.
Save this manual for future reference.
_ WARNING: The operation of any lawnmower can result in foreign objects being
thrown into the operator's eyes thus causing
severe eye damage. Always wear safety
glasses while operating the mower, or while
performing any adjustments or repairs on it.
Upper Handle
/
/
/
/
Blade Control Handle
/
/ /
/
Throttle Control
/
j/
/
/
Lower Bail Handle
Bag-Fill Indicator
_(if equipped)
/
Lower Handle
/
Starter
Rope
Grasscatcher
Bag
Chute Cutting eight
M Jlching Adjustment Levers
Plug
NOTE: For engine controls, please refer to
the engine manual
/
Figure 8
Starter Rope
The starter rope is attached to the handle. Stand behind
the unit and pull the starter rope to start the unit.
BladeControl Handle
The blade control handle is located on the upper handle
of the mower. The blade control handle must be
depressed in order to operate the unit. Release the
blade control handle to stop the engine and the blade.
_ ARNING: The blade control handle is asafety device. Never attempt to bypass its
operations or alter it in any way.
Lower Bail Handle
The lower bail handle is located on the upper handle
and is used to engage the drive. Squeeze the lower bail
handle against the upper handle to engage the drive;
release it to slow down or stop the mower from
propelling.
Bag-FillIndicator(if equipped)
Some models are equipped with a bag-fill indicator on
the grass catcher bag to add convenience to your work.
While the mower is running, air will flow through the bag
and into the "sail." If the grass catcher is empty, air
flows through easily pushing the sail up. If the grass
catcher is full, air does not flow through it allowing the
sail to fall. So the position of the sail acts as a bag-fill
indicator signifying when to empty the grass bag.
Cutting HeightAdjustmentLever
These levers are located on each wheel and they are
used to adjust the cutting height. All four levers have to
be at the same relative position to ensure uniform cut.
MulchingPlug
The mulching plug is used only for mulching purposes.
Instead of collecting the grass clippings in a grass
catcher, your mower has the option of recirculating the
clippings back to the lawn. Make sure that the rear
discharge door is closed and the grass catcher is
removed from the unit while mulching.
SECTION5: OPERATINGYOURLAWNMOWER
a firm grip on the starter handle, let the rope rewind
slowly.
_ ARNING: Read and understand allinstructions and warnings on the machine and
in this manual before operating.
Gas&OilFill-Up
• Check oil level and add oil if necessary. Follow
relevant instructions in the engine manual for this.
• Service the engine with gasoline as instructed in
the engine manual.
_ ARNING: Use extreme care whenhandling gasoline. Gasoline is extremely
flammable and the vapors are explosive. Never
fuel the machine indoors or while the engine is
hot or running. Extinguish cigarettes, cigars,
pipes and other sources of ignition.
BeforeStartingMower
• Attach spark plug wire to spark plug. Make certain
the metal cap on the end of the spark plug wire
(inside the rubber boot) is fastened securely over
the metal tip on the spark plug.
ToStopEngine
• Release the blade control handle to stop the engine
and blade.
• Disconnect spark plug wire and ground it against
the engine to prevent accidental starting while
equipment is unattended.
UsingYourLawnMower
• You can use your mower as a mulcher or a rear
bagger or for side discharge of grass.
• Be sure that the lawn is clear of stones, sticks, wire,
or other objects which could damage lawn mower
or engine. Such objects could be accidently thrown
by the mower in any direction and cause serious
personal injury to the operator and others.
• For best results, do not cut wet grass because it
tends to stick to the underside of the mower.
• For a healthy lawn, always cut off one-third or less
of the total length of the grass. Lawn should be
trimmed in fall as long as there is growth.
ThrottleSpeed
Your lawn mower engine is equipped with a constant
speed throttle, which is set at full throttle for best
performance.
StartingEngine
WARNING: Be sure no one other than the
operator is standing near the lawn mower while
starting engine or operating mower.
WARNING: Never run engine indoors or in
enclosed, poorly ventilated areas. Engine
exhaust contains carbon monoxide, an
odorless and deadly gas.
WARNING: Keep hands, feet, hair and
loose clothing away from any moving parts on
engine and lawn mower.
• Push primer three times. Wait about two seconds
between each push. In cold weather around 55° F
or below, prime five times. Do not prime to restart a
warm engine after a short shutdown.
• Standing behind the mower, depress the blade
control handle and hold it against the upper handle.
• Grasp starter handle and pull rope out slowly until
engine reaches the start of compression cycle
(rope will pull slightly harder at this point). Keeping
_ ARNING: Ifthe mower strikes a foreignobject, stop the engine. Remove spark plug
wire from the spark plug and thoroughly inspect
for any damage. Repair the damage promptly
before restarting and operating the mower.
AdjustingCuttingHeight
Refer to height adjustments section of this manual on
page 14 for instruction on how to adjust the cutting
height and the handle height.
For best results in mowing, keep the cutting height
position high until you can determine a suitable height.
BaggingGrassClippings
You can use the grass catcher bag to collect clippings
while you are operating the mower.
• Attach grass catcher following instructions on page
8. Grass clippings will automatically collect in the
bag as you run the mower. Operate the mower till
the grass bag is full. Refer to page 9 for description
of flow indicator, if so equipped..
• Stop engine completely by releasing the blade
control handle. Make sure that the unit has come to
a complete stop.
• Lift discharge door and pull grass bag up and away
from the mower to dispose of the grass clippings.
10
SECTION6: MAINTAININGYOURLAWNMOWER
• Inspect muffler periodically, and replace if
necessary. Damaged mufflers or spark arresters
_ ARNING: Always stop the engine and
disconnect the spark plug wire before
performing any maintenance work or
adjustments on your lawn mower.
CleaningMower
The underside of the mower deck should becleaned
after each use to prevent any build-up of grass
clippings, leaves, dirt, or other debris. If this debris is
allowed to accumulate, it will result in rust and
corrosion.
NOTE: We do not recommend the use of pressure
washers or garden hose to clean your unit, These may
cause damage to electric components, spindles,
pulleys, bearings, or the engine, The use of water will
result in shortened life and reduce serviceability,
• Disconnect spark plug wire.
• Drain the gasoline from the lawn mower, or place a
piece of plastic under the gas cap.
• Tip the mower so that it rests on the housing. Keep
the side with the air cleaner facing up. Hold the
mower firmly.
• Scrape and clean the underside of the deck with a
suitable tool. Do not spray with water.
• Put the mower back on its wheels on the ground. If
you had put plastic under the gas cap, make sure to
remove it now.
can create a fire hazard.
_ ARNING: Avoid muffler and surrounding
areas while the mower engine is hot because
temperature of these areas of the engine may
exceed 150° F.
Lubrication
\
Lube
Lube
_ib ARNING: Never tip the mower more than
90 degrees in any directions and do not leave
the mower tipped for any length of time. Oil can
drain into the upper part of the engine causing
a starting problem.
EngineCare
A list of key maintenance jobs required for good
performance by the mower is given below. Follow the
accompanying engine manual for detailed list and
instructions.
• Change engine oil regularly, as instructed in the
engine manual. Check oil level before starting
engine every time.
• Service air cleaner regularly. You may have to
service this more frequently if you are operating the
mower under extremely dusty conditions.
• Clean the engine periodically. Remove dirt and
debris with a cloth or brush.
• Clean the spark plug and reset the gap to .030" at
least once a season. Refer to the engine manual for
correct spark plug type.
with light oil. The blade control must operate freely
Figure 9: Lubrication Chart
Wheels
• Lubricate the wheels and bearings, if so equipped,
at least once a season with light oil or engine oil.
Also, if the wheels are removed for any reason,
lubricate the surface of the axle bolt and the inner
surface of the wheel with light oil.
MulchPlug& RearDischargeDoor
• Lubricate the torsion spring and the pivot point on
each end of the rear discharge door using a light oil.
Transmission
• The transmission is pre-lubricated and sealed at
the factory and does not require lubrication on a
regular basis as part of maintenance.
BladeControl
• Lubricate the pivot points on the blade control
handle and the brake cable at least once a season
in both directions.
11
Engine
• Follow the engine manual instructionsand
recommended schedule for lubricating engine
components.
BladeCare
• Periodically inspect the blade adapter and pulley
for cracks, especially if you strike a foreign object.
Replace when necessary.
_ ARNING: When removing the cuttingblade for sharpening or replacement, protect
hands by using heavy gloves or a thick rag to
grasp the cutting blade.
• Disconnect spark plug wire from spark plug.
• Turn mower on its side making sure that the air filter
and the carburetor are up.
To RemoveBlade:
• Remove the hex bolt which holds the blade
adapter-pulley assembly to the engine crankshaft.
See Figure 10. Remove the pulley assembly and
the bell support from the crankshaft.
• Remove blade from the blade adapter and pulley.
Adapter-Pulley
Assembly
Blade
To ReplaceBlade:
• Before reinstalling the blade-pulley assembly to the
unit, lubricate the engine crankshaft and the inner
surface of the blade adapter with light oil.
• Also lubricate the bolt hole and the hex bolt.
• Insert the hex bolt, earlier removed, through the
center holes on the blade bell support and the
blade adapter-pulley assembly respectively.
• Install the blade assembly on the crankshaft.
Tighten the hex bolt to the recommended torque.
Blade Mounting Torque:
Center bolt: 450 in.lbs, minimum, 600
in.lbs, maximum.
To Sharpen Blade:
• The blade can be sharpened with a file or on a
grinding wheel. Do not attempt to sharpen the
blade while it is still on the mower.
• Follow the original angle of grind as a guide. Make
sure that each cutting edge receives an equal
amount of grinding to prevent an unbalanced blade.
NOTE: An unbalanced blade will cause excessive
vibration when rotating at high speeds, may cause
damage to the mower and could break, causing
personal injury. Test the blade by balancing it on a
round shaft screwdriver or a blade balancer.
• Ifthe blade is not balanced, remove metal from the
heavy side until it balances evenly.
Blade Bell
Support
Hex Bolt
Figure 10
12
SECTION7: SERVICE& ADJUSTMENTS
ReplacingDriveBelt
• Remove two shoulder screws securing the front
drive cover to the mower deck. See Figure 11.
Loosen this screw
Shoulder
if!Screw
Transmission Front Drive
• Press inward on the sides of the front drive cover
and release the tabs that secure the front drive
cover to the height adjuster brackets. Remove drive
cover from the mower.
• Using a torx wrench, loosen the screw holding the
belt tension spring to the transmission. See Figure
11. Do not remove the screw completely. As you
loosen the screw, tension on the belt will release.
• Push the transmission up a little and slide the belt
off the transmission pulley.
• Lift the mower to access the belt from the underside
of the mower.
_ ARNING: Use a thick piece of rag tohandle the blade while sliding the belt in the
next step. Make sure the engine does not start
at all while doing this job.
• Slide the belt off the engine pulley and around the
blade. See Figure 12.
• Replace with the new belt, working around the
blade. Make sure the belt is firmly seated on the
engine pulley while pulling from the other side and
sliding it around the transmission pulley.
• Put the mower down with all four wheels firmly
placed on one level.
Screw
Cover
Figure 11
Tighten the screw, loosened earlier, to secure the
belt tension spring to the transmission, and
reassemble the front drive cover.
Right Front _!_-v-_----_
Wheel
..-- eft Front
J
Wheel --_'_
Figure 12
ReplacingRearFlap
• To remove rear flap, cut off the flat end of the wire
rod which secures itto the deck. See Figure 13.
• Attach the new flap and new rod to deck, bending
the ends of the new rod over to secure to deck.
Rear Discharge
Handle Doo_
0rocket
Bracket
Near
Flap
Figure 13
AdjustingHandleHeight
Your mower is shipped with the handle in the higher
height position.
• Remove the starter rope from the rope guide.
• Remove the upper handle by removing the hand
knobs and carriage bolts. Lay the upper handle out
of the way, being careful not to bend or kink cables.
• Remove the hairpin clips from the weld pins on the
handle brackets. Refer to Figure 3.
• Remove the carriage bolts and wing nuts from the
handle brackets. Press out on the legs of the lower
handle. Remove lower handle from the mower.
• Turn the lower handle around so the notch on the
bottom of the lower handle is facing forward as
shown in Figure 14. Reassemble, placing the
bottom holes in the handle over the weld pins in the
handle mounting bracket.
13
\
\
Notch
For rough or uneven lawns, move the height
adjustment handles to higher cutting height
position.
Height Adjustment
Lever
Lower
Handle
Figure 14
Reassemble the upper handle to the lower handle.
Place the hairpin clips in the inner holes of the weld
pins and replace the carriage bolts and wing nuts
on the handle brackets. Attach the starter rope as
instructed inthe Assembly section.
J
AdjustingCuttingHeight
IMPORTANT: All wheels must be placed in the same
relative position. For rough or uneven lawns, move the
height adjustment lever to a higher position. This will
help stop scalping of the grass.
An adjusting plate and thumb lever at each wheel
provides cutting height adjustment. Each adjusting
plate has nine height positions. Height of cut will be
changed when you move the thumb lever from one
position to another.
• Simply depress the lever towards the wheel and
move the lever assembly to desired position. See
Figure 15.
Figure 15
AdjustingCarburetor
If the engine is running rough, minor adjustments to the
carburetor may be required to compensate for
differences in fuel, temperature, altitude and load.
NOTE: Dirty air cleaner may cause an engine to run
rough.Before adjusting carburetor, check air cleaner.
To adjust the carburetor, please follow the
recommendations and instructions on carburetor
adjustment in the engine manual.
_ WARNING: Ifany adjustments are made to
the engine (e.g. carburetor) while the engine is
running, keep clear of all moving parts. Be
careful of heated surfaces like the muffler.
SECTION8: OFF-SEASONSTORAGE
Prepare your lawn mower for storage at the end of the
season or if the unit will not be used for 30 days or
more. Store the mower in a clean, dry area.
Mower
• Clean underside of the mower following
instructions in the Maintain Your Lawn Mower
section of this manual.
• Lubricate mower as instructed on page 12.
• You can fold your mower's handle for convenient
storage: Remove the starter rope from the rope
guide; loosen the two hand knobs on the sides of
the handle, and let the upper handle fold down to
the rear. Move the hairpin clips to the outer hole in
the weld pins on the handle mounting brackets.
Spread the sides of the lower handle, and push it
forward and down.
• Inspect and replace/sharpen blade, if required.
Engine
• Follow recommendations in the engine manual for
off-season storage of the engine.
• Change oil if it has not been changed in the last
three months. For instructions on howto change oil,
refer to the engine manual.
• Clean engine and remove any grass clippings.
Other
• Do not store gasoline from one season to another.
• Replace your gasoline can if it starts to rust. Rust
and/or dirt in the gasoline will cause problems.
Store unit in a clean, dry area. Do not store next to
corrosive materials, such as fertilizer.
NOTE: If storing in an unventilated or metal storage
shed, be certain to rustproof the equipment by coating
with a light oil or silicone.
14
SECTION9: TROUBLE-SHOOTING
Problem Possible Cause Corrective Action
Engine fails to start
Engine runs erratic
Engine overheats 1. 1.
Occasional skip 1. 1.
(hesitates) at high
speed
Idles poorly 1. Spark plug faulty, or gap too wide 1. Reset gap to.030 inches or replace spark plug.
Excessive vibration 1. Blade loose or unbalanced 1. Tighten blade and adapter, balance blade.
Mower will not 1. Wet grass 1. Wait until grass is dry to cut.
mulch grass 2. Excessively high grass 2. Mow once at a high cutting height, then mow
Uneven cut 1. Wheels not at same height 1. Reposition all wheels at same height.
1. Blade control handle disengaged
2. Spark plug wire disconnected
3. Fuel tank empty, or stale fuel
4. Blocked fuel line
5. Faulty spark plug
6. Engine flooded
1. Spark plug wire loose
2. Blocked fuel line or stale fuel
3. Vent in gas cap plugged
4. 4.
Water or dirt in fuel system
5. 5.
Dirty air cleaner
Engine oil level low
2. 2.
Air flow restricted
Spark plug gap too close
2. Dirty air cleaner 2. Clean air cleaner.
2. Bent cutting blade 2. Replace blade.
3. Bent engine crankshaft 3. Contact the nearest service center
3. Dull blade 3. Sharpen or replace blade.
2. Dull blade 2. Sharpen or replace blade.
1. Engage blade control handle
2. Connect wire to spark plug
3. Fill up tank with fresh gasoline
4. Clean fuel line
5. Clean, adjust gap, or replace
6. Wait a few minutes to restart, Do not prime.
1. Connect and tighten spark plug wire.
2. Clean fuel line, fill tank with fresh gasoline.
3.
Clear vent.
Drain fuel tank. Refill with fresh fuel.
Clean air cleaner. Refer to engine manual.
Fill crankcase with proper oil.
Clean lawn mower engine.
Adjust gap to.030 inches.
again at desired height.
NOTE: For repairs beyond the minor adjustments listed above, contact your local authorized service dealer.
15
SECTION10:
PARTSLISTFORMODEL565
1
\
52
64
66
65,
22 10_
27
16
45
79
63
102
36
37
16
Model565
Ref. No Part No.
1, 747-2136
2. 710-0599
3, 736-0270
4, 782-7006
5, 732-1014
6, 712-3005
7, 647-04014
8, 749-1499
9. 711-1513
10. 712-0324
11. 746-0883
12. 710-1270
13. 720-0279
14. 720-0284
15. 710-1205
16, 746-0554
17. 710-1174
18, 687-02034
687-002032
19. 726-0240
20. 714-0104
21. 710-1008
22. 746-04026
23. 664-04011
24, 710-1650
25. 631-0075B
26, 710-0606
27. 712-0324
28. 787-01107
29. 782-5003
30. 710-1017
31, 782-5004A
32. 710-0216
33, 732-04089
34, 712-0431
35. 731-2600
36, 782-5002
37, 754-0637
38, 712-0324
39, 711-04058
40. 748-04015
41, 742-0741
42. 736-0524A
43. 710-0606
Jvnin illustration
Description
Lower Bail Handle
TT Screw 1/4-20 x 0.5
Bell Washer .265 x 0.75
Hinged Mounting Bracket
Torsion Spring
Lock Nut
Control Lever
Upper Handle
Axle: Rear
Hex Lock Nut, 1/4-20
Throttle Housing
Oval C-Sunk Screw 1/4-20 x 1.31
Handle Knob
Handle Knob
Eye Bolt
Control Cable: 40.5"
Carriage Bolt 5/16-18 x 2.0
RH Bracket Assembly
LH Bracket Assembly
Cable Tie (not shown)
Cotter Pin
Self-Tapping Seres Screw
Drive Cable
Grassbag Assembly
Shoulder Screw # 12 -24
Engine Spacer
Hex Bolt 1/4-20 x 1.5
Lock Nut 1/4-20
21" Deck
RH Rear Baffle
Screw AB: 1/4-14:.625
LH Rear Baffle
Hex Screw 3/8-16 x .75
Torsion Spring
Hex Nut 3/8-16
Transmission Cover (Yellow)
Front Baffle
V-Belt
Hex Nut 1/4-20
Axle: Front
Blade Adapter w/Pulley
21" Mulching Blade
Blade Bell Support
Hex Screw 1/4-20 x 1.50
Ref.No
44.
45.
46.
47.
48.
49.
50.
51.
52.
53.
54.
55.
56.
57.
58.
59.
60.
61.
62.
63.
64.
65.
66.
67.
68.
69.
70.
71.
72.
73.
75.
76.
77.
78.
79.
80.
81.
82.
83.
84.
Part No.
710-1257
749-0907B
731-1426
712-0431
732-04090
734-2042
716-0865
717-1761
717-1762
747-04080
736-0451
712-3005
710-0896
687-02033
687-02032
715-0221
710-0286
17488A
17489A
732-0866
720-0312
738-0507B
736-0105
734-04019
736-0182
736-0272
738-0481A
732-0700
731-1236
747-0996
732-04090
731-04134
736-3013
710-1650
710-0286
750-04162
738-1002
710-0703
712-0397
710-0216
732-1043
750-1165
750-1166
756-1231
Description
Hex Screw 3/8-24 x 2.50
Lower Handle
HubCap
Flange Lock Nut
Torsion Spring
Wheel 8 x 2
Snap Ring
Gear 14T LH FWD
Gear 14T RH FWD *
Grass Bag Frame
Saddle Washer
Hex Flange Lock Nut 3/8-16
Hex Scr. w/Washer 1/4-14 x .625
RH Handle Bracket
LH Handle Bracket
Dowel Pin
Pan Head Screw
RH Pivot Bar
LH Pivot Bar*
Height Adj. Lever
Foam Grip
Shoulder Scr .500 Dia. x .434
Washer .401 x .870 x .063
Wheel, 14 x 2.125
Spring Washer .50 I.D. x 1.00.D.
Fiat Washer
Shoulder Screw
Wire
Rear Trailing Shield
Pivot Rod
Torsion Spring
Rear Discharge Door
Fiat Washer
Shoulder Screw
Machine Screw
Spacer .375 x .50 x 1.02" Lg.
Shoulder Screw 1/4-14
Carriage Bolt 1/4-20
Wing Nut
Hex Bolt 3/8-16 x 1.0"
Belt Tension Spring
Slev. Spacer RH
Slev. Spacer LH*
Input Pulley
Table contined on next page
17
Model565
Table contined from previous page
Ref. No Part No.
85. 618-0657
86. 715-0169
87. 714-0101
88. 682-0512A
682-0511A
89. 782-7551
90. 716-0102
91. 736-0474
92. 720-0426
93. 732-0706
732-0707
94. 687-02044
95. 782-0512B
782-0511A
96. 736-0447
97. 748-0355
98. 741-0604A
99. 732-0708
100. 747-0710
101. 687-02055
102. 731-04177
Transmission Assembly
Roll Pin
Hairpin Clip
Height Adjustment Assembly RH
Height Adjustment Assembly LH*
Wheel Dust Cap
Snap Ring
Washer
Adjustment Knob
Front Lever RH
Front Lever LH*
Pivot Plate Assembly
Height Adj. Plate RH
Height Adj. Plate LH*
Wave Washer
Bearing Support
Bearing Sleeve
Bearing Retainer
Hinge Pin
Mulch Plug Comp.
Chute Deflector
Description
NOTE: For painted parts, please refer to
the list of color codes below. Please add
the applicable color code, wherever
needed, to the part number to order a
replacement part. For instance, if a part
numbered 700-xxxx is painted Yard-Man
Green, the part number to order would be
700-xxxx-0665.
Yard-Man Green: 0665
Yard-Man Yellow: 0674
Powder Black: 0637
* Not shown in illustration
18
Safety& DecorativeLabels
777S30118
777S30108
ON SiDE ............
DISCHARGE DOOR
777832102
MODEL PLATE
777D00535
777D06790
777D05464
WARNING
751T64208569
EMiSSiONS 751T64210474
PRIMER 751T641873
19
MANUFACTURER'S LIMITED WARRANTY FOR:
YaRD-MaN)
The limited warranty set forth below is given by MTD LLC with
respect to new merchandise purchased and used in the
United States, its possessions and territories.
MTD LLC warrants this product against defects for a period of
two (2) years commencing on the date of original purchase
and will, at its option, repair or replace, free of charge, any
part found to be defective in materials or workmanship. This
limited warranty shall only apply if this product has been
operated and maintained in accordance with the Operator's
Manual furnished with the product, and has not been subject
to misuse, abuse, commercial use, neglect, accident,
improper maintenance, alteration, vandalism, theft, fire,
water, or damage because of other peril or natural disaster.
Damage resulting from the installation or use of any
accessory or attachment not approved by MTD LLC for use
with the product(s) covered by this manual will void your
warranty as to any resulting damage.
Normal wear parts or components thereof are subject to
separate terms as follows: All normal wear parts or
component failures will be covered on the product for a period
of 90 days regardless of cause. After 90 days, but within the
two year period, normal wear part failures will be covered
ONLY IF caused by defects in materials or workmanship of
OTHER component parts. Normal wear parts and
components include, but are not limited to: batteries, belts,
blades, blade adapters, grass bags, rider deck wheels, seats,
snow thrower skid shoes, shave plates, auger spiral rubber,
and tires.
HOW TO OBTAIN SERVICE: Warranty service is available,
WITH PROOF OF PURCHASE, through your local authorized
service dealer. To locate the dealer inyour area, check your
Yellow Pages, or contact MTD LLC at P.O. Box 361131,
Cleveland, Ohio 44136-0019, or call 1-800-800-7310 or log
on to our Web site at www.mtdproducts.com.
This limited warranty does not provide coverage in the
following cases:
a. The engine or component parts thereof. These items
carry a separate manufacturer's warranty. Refer to
applicable manufacturer's warranty for terms and
conditions.
b. Log splitter pumps, valves, and cylinders have a sepa
rate one year warranty.
c. Routine maintenance items such as lubricants, filters,
blade sharpening, tune-ups, brake adjustments, clutch
adjustments, deck adjustments, and normal
deterioration of the exterior finish due to use or
exposure.
d. MTD LLC does not extend any warranty for products
sold or exported outside of the United States, its
possesions and territories, except those sold through
MTD LLC's authorized channels of export distribution.
e. Parts that are not genuine MTD parts are not covered
by this warranty.
f. Service completed by someone other than an
authorized service dealer is not covered by this
warranty.
g. Transportation charges and service calls are not
covered.
No implied warranty, including any implied warranty of
merchantability of fitness for a particular purpose,
applies after the applicable period of express written
warranty above as to the parts as identified. No other
express warranty, whether written or oral, except as
mentioned above, given by any person or entity,
including a dealer or retailer, with respect to any product,
shall bind MTD LLC. During the period of the warranty,
the exclusive remedy is repair or replacement of the
product as set forth above.
The provisions as set forth in this warranty provide the
sole and exclusive remedy arising from the sale. MTD
LLC shall not be liable for incidental or consequential
loss or damage including, without limitation, expenses
incurred for substitute or replacement lawn care services
or for rental expenses to temporarily replace a warranted
product.
Some states do not allow the exclusion or limitation of
incidental or consequential damages, or limitations on how
long an implied warranty lasts, so the above exclusions or
limitations may not apply to you.
In no event shall recovery of any kind be greater than the
amount of the purchase price of the product sold. Alteration
of safety features of the product shall void this warranty.
You assume the risk and liability for loss, damage, or injury to
you and your property and/or to others and their property
arising out of the misuse or inability to use the product.
This limited warranty shall not extend to anyone other than the
original purchaser or to the person for whom it was purchased
as a gift.
HOW STATE LAW RELATES TO THIS WARRANTY: This
limited warranty gives you specific legal rights, and you may
also have other rights which vary from state to state.
MTD LLC, P.O.BOX361131CLEVELAND,0HI0 44136-0019; Phone:1-800-800-7310
2O
Loading...
