Yamaha VMX17YC User Manual
Read this manual carefully before operating this vehicle.

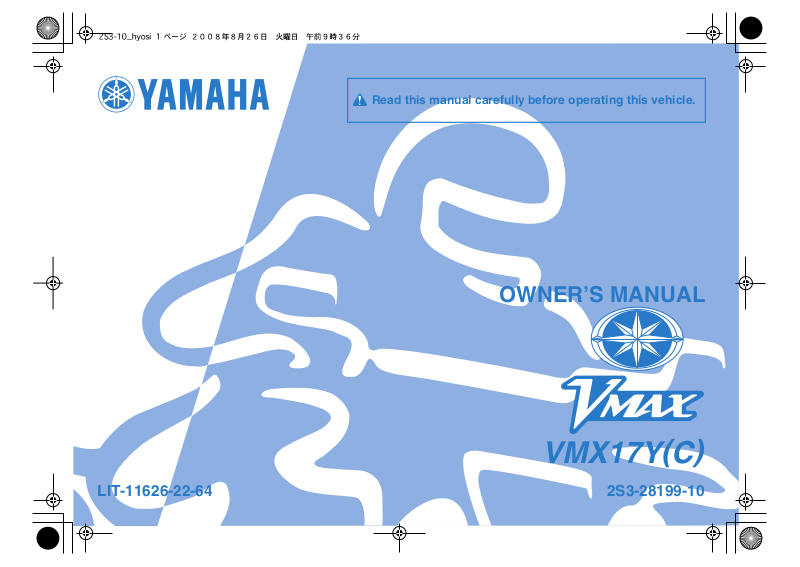

OWNER’S MANUAL
LIT-11626-22-64
VMX17Y(C
2S3-28199-10
)
EAU10042
Q
Read this manual carefully before operating this vehicle. This manual should stay with this vehicle if it is sold.
INTRODUCTION
EAU10081
Congratulations on your purchase of the Yamaha VMX17Y(C). This model is the result of Yamaha’s vast experience in the
production of fine sporting, touring, and pacesetting racing machines. It represents the high degree of craftsmanship and
reliability that have made Yamaha a leader in these fields.
This manual will give you an understanding of the operation, inspection, and basic maintenance of this motorcycle. If you
have any questions concerning the operation or maintenance of your motorcycle, please consult a Yamaha dealer.
The design and manufacture of this Yamaha motorcycle fully comply with the emissions standards for clean air applicable
at the date of manufacture. Yamaha has met these standards without reducing the performance or economy of operation of
the motorcycle. To maintain these high standards, it is important that you and your Yamaha dealer pay close attention to the
recommended maintenance schedules and operating instructions contained within this manual.
Yamaha continually seeks advancements in product design and quality. Therefore, while this manual contains the most current product information available at the time of printing, there may be minor discrepancies between your motorcycle and this
manual. If there is any question concerning this manual, please consult a Yamaha dealer.
WARNING
Please read this manual and the “YOU AND YOUR MOTORCYCLE: RIDING TIPS” booklet carefully before operating
this motorcycle. Do not attempt to operate this motorcycle until you have attained adequate knowledge of its controls and operating features. Regular inspections and careful maintenance, along with good operating techniques,
will help ensure that you safely enjoy the capabilities and reliability of this motorcycle.
EWA10011
IMPORTANT MANUAL INFORMATION
Particularly important information is distinguished in this manual by the following notations:
This is the safety alert symbol. It is used to alert you to potential personal injury
hazards. Obey all safety messages that follow this symbol to avoid possible injury
or death.
EAU10132
WARNING
NOTICE
TIP
A WARNING indicates a hazardous situation which, if not avoided, could result in
death or serious injury.
A NOTICE indicates special precautions that must be taken to avoid damage to the
vehicle or other property.
A TIP provides key information to make procedures easier or clearer.
IMPORTANT MANUAL INFORMATION
VMX17Y(C)
OWNER’S MANUAL
©2008 by Yamaha Motor Corporation, U.S.A.
1st edition, July 2008
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
Yamaha Motor Corporation, U.S.A.
is expressly prohibited.
Printed in Japan.
P/N LIT-11626-22-64
EAU10193
TABLE OF CONTENTS
LOCATION OF IMPORTANT
LABELS
SAFETY INFORMATION
DESCRIPTION
INSTRUMENT AND CONTROL
FUNCTIONS
..............................................1-1
...................2-1
...................................3-1
Left view ...........................................3-1
Right view .........................................3-2
Controls and instruments..................3-3
........................................4-1
Main switch/steering lock .................4-1
Indicator and warning lights .............4-2
Speedometer unit ............................4-4
Multi-function display .......................4-5
Handlebar switches .......................4-12
Clutch lever ....................................4-14
Shift pedal ......................................4-14
Brake lever ....................................4-15
Brake pedal ...................................4-15
ABS ...............................................4-16
Fuel tank cap .................................4-17
Fuel ................................................4-18
Catalytic converters .......................4-19
Seats .............................................4-20
Adjusting the front fork ...................4-22
Adjusting the shock absorber
assembly ....................................4-24
Luggage strap holders ...................4-26
EXUP system ................................4-26
Sidestand ...................................... 4-26
Ignition circuit cut-off system ......... 4-27
FOR YOUR SAFETY –
PRE-OPERATION CHECKS
OPERATION AND IMPORTANT
RIDING POINTS
Starting the engine ..........................6-1
Shifting ............................................ 6-2
Engine break-in ...............................6-3
Parking ............................................ 6-4
PERIODIC MAINTENANCE AND
ADJUSTMENT
Owner’s tool kit ................................ 7-2
Periodic maintenance chart for the
emission control system .............. 7-3
General maintenance and
lubrication chart ........................... 7-4
Removing and installing the
cowling and panels ......................7-9
Checking the spark plugs .............. 7-11
Canister (for California only) ......... 7-12
Engine oil and oil filter cartridge ....7-12
Final gear oil .................................. 7-15
Coolant .......................................... 7-17
Air filter element ............................7-20
Checking the engine idling
speed ......................................... 7-20
.................................. 6-1
.................................... 7-1
.............. 5-1
Checking the throttle cable free
play ............................................ 7-21
Valve clearance ............................ 7-21
Tires .............................................. 7-21
Cast wheels .................................. 7-24
Clutch lever ................................... 7-24
Checking the front brake lever
free play ..................................... 7-24
Adjusting the rear brake light
switch ......................................... 7-25
Checking the front and rear brake
pads ........................................... 7-25
Checking the brake fluid level ....... 7-26
Changing the brake and clutch
fluids .......................................... 7-27
Checking and lubricating the
cables ........................................ 7-27
Checking and lubricating the
throttle grip and cable ................ 7-28
Checking and lubricating the
brake and clutch levers .............. 7-28
Checking and lubricating the
brake pedal ................................ 7-29
Checking and lubricating the
shift pedal .................................. 7-29
Checking and lubricating the
sidestand ................................... 7-29
Checking the front fork .................. 7-30
Checking the steering ................... 7-30
Checking the wheel bearings ........ 7-31
Battery ........................................... 7-31
TABLE OF CONTENTS
Replacing the fuses .......................7-34
Replacing the headlight bulb .........7-36
Tail/brake light ...............................7-37
Replacing a turn signal light
bulb ............................................7-37
Replacing a license plate light
bulb ............................................7-38
Replacing the auxiliary light
bulb ............................................7-39
Supporting the motorcycle ............. 7-40
Troubleshooting .............................7-40
Troubleshooting charts ..................7-42
MOTORCYCLE CARE AND
STORAGE
Matte color caution ..........................8-1
Care .................................................8-1
Storage ............................................8-4
SPECIFICATIONS
CONSUMER INFORMATION
Identification numbers ...................10-1
Reporting safety defects ................ 10-3
Motorcycle noise regulation ........... 10-4
Maintenance record ....................... 10-5
YAMAHA MOTOR CORPORATION,
...........................................8-1
.............................. 9-1
............10-1
U.S.A. STREET AND ENDURO
MOTORCYCLE LIMITED
WARRANTY ...............................10-7
YAMAHA EXTENDED SERVICE
(Y.E.S.) ...................................... 10-9
LOCATION OF IMPORTANT LABELS
Read and understand all of the labels on your vehicle. They contain important information for safe and proper operation of
your vehicle. Never remove any labels from your vehicle. If a label becomes difficult to read or comes off, a replacement label
is available from your Yamaha dealer.
1
EAU10383
1
1-1
23
5
4
LOCATION OF IMPORTANT LABELS
1
WARNING
BEFORE YOU OPERATE THIS VEHICLE, READ
THE OWNER’S MANUAL AND ALL LABELS.
ALWAYS WEAR AN APPROVED MOTORCYCLE
HELMET, eye protection, and protective clothing.
2 CALIFORNIA ONLY
4B5-21686-00
3
PREMIUM
UNLEADED GASOLINE ONLY
91 Min.
Octane (R+M) / 2
Pump
5GK-2118K-00
5PW-2415E-11
4
Cold tire normal pressure should be set
as follows.
Up to 90kg (198 lbs) load
: 250 kPa, ( 2.50 kgf/cm
: 290 kPa, ( 2.90 kgf/cm2 ), 42 psi
90 kg (198 lbs)
: 250 kPa, ( 2.50 kgf/cm2 ), 36 psi
: 290 kPa, ( 2.90 kgf/cm2 ), 42 psi
maximum load
~
2
), 36 psi
2S3-21668-00
5
This unit contains high pressure nitrogen gas.
Mishandling can cause explosion.
Read owner's manual for instructions.
Do not incinerate, puncture or open.
4AA-22259-80
1
2
3
4
5
6
7
8
9
1-2
SAFETY INFORMATION
Be a Responsible Owner
As the vehicle’s owner, you are responsible for the safe and proper operation
1
of your motorcycle.
Motorcycles are single-track vehicles.
2
Their safe use and operation are dependent upon the use of proper riding
techniques as well as the expertise of
the operator. Every operator should
know the following requirements before
riding this motorcycle.
He or she should:
●
Obtain thorough instructions from
a competent source on all aspects
of motorcycle operation.
●
Observe the warnings and mainte-
nance requirements in this Own-
er’s Manual.
●
Obtain qualified training in safe
and proper riding techniques.
●
Obtain professional technical ser-
vice as indicated in this Owner’s
Manual and/or when made neces-
sary by mechanical conditions.
Safe Riding
Perform the pre-operation checks each
EAU10283
time you use the vehicle to make sure it
is in safe operating condition. Failure to
inspect or maintain the vehicle properly
increases the possibility of an accident
or equipment damage. See page 5-1
for a list of pre-operation checks.
●
This motorcycle is designed to carry the operator and a passenger.
●
The failure of motorists to detect
and recognize motorcycles in traffic is the predominating cause of
automobile/motorcycle accidents.
Many accidents have been caused
by an automobile driver who did
not see the motorcycle. Making
yourself conspicuous appears to
be very effective in reducing the
chance of this type of accident.
Therefore:
●
Wear a brightly colored jacket.
●
Use extra caution when you are
approaching and passing
through intersections, since intersections are the most likely
places for motorcycle accidents
to occur.
●
Ride where other motorists can
see you. Avoid riding in another
2-1
motorist’s blind spot.
●
Many accidents involve inexperienced operators. In fact, many operators who have been involved in
accidents do not even have a current motorcycle license.
●
Make sure that you are qualified
and that you only lend your motorcycle to other qualified operators.
●
Know your skills and limits.
Staying within your limits may
help you to avoid an accident.
●
We recommend that you practice riding your motorcycle
where there is no traffic until you
have become thoroughly familiar with the motorcycle and all of
its controls.
●
Many accidents have been caused
by error of the motorcycle operator. A typical error made by the operator is veering wide on a turn
due to excessive speed or undercornering (insufficient lean angle
for the speed).
●
Always obey the speed limit and
never travel faster than warrant-
SAFETY INFORMATION
ed by road and traffic conditions.
●
Always signal before turning or
changing lanes. Make sure that
other motorists can see you.
●
The posture of the operator and
passenger is important for proper
control.
●
The operator should keep both
hands on the handlebar and
both feet on the operator footrests during operation to maintain control of the motorcycle.
●
The passenger should always
hold onto the operator, the seat
strap or grab bar, if equipped,
with both hands and keep both
feet on the passenger footrests.
Never carry a passenger unless
he or she can firmly place both
feet on the passenger footrests.
●
Never ride under the influence of
alcohol or other drugs.
●
This motorcycle is designed for
on-road use only. It is not suitable
for off-road use.
Protective apparel
The majority of fatalities from motorcy-
cle accidents are the result of head injuries. The use of a safety helmet is the
single most critical factor in the prevention or reduction of head injuries.
●
Always wear an approved helmet.
●
Wear a face shield or goggles.
Wind in your unprotected eyes
could contribute to an impairment
of vision that could delay seeing a
hazard.
●
The use of a jacket, heavy boots,
trousers, gloves, etc., is effective in
preventing or reducing abrasions
or lacerations.
●
Never wear loose-fitting clothes,
otherwise they could catch on the
control levers, footrests, or wheels
and cause injury or an accident.
●
Always wear protective clothing
that covers your legs, ankles, and
feet. The engine or exhaust system become very hot during or after operation and can cause burns.
●
A passenger should also observe
the above precautions.
Avoid Carbon Monoxide Poisoning
All engine exhaust contains carbon
monoxide, a deadly gas. Breathing carbon monoxide can cause headaches,
dizziness, drowsiness, nausea, confusion, and eventually death.
Carbon Monoxide is a colorless, odorless, tasteless gas which may be
present even if you do not see or smell
any engine exhaust. Deadly levels of
carbon monoxide can collect rapidly
and you can quickly be overcome and
unable to save yourself. Also, deadly
levels of carbon monoxide can linger
for hours or days in enclosed or poorly
ventilated areas. If you experience any
symptoms of carbon monoxide poisoning, leave the area immediately, get
fresh air, and SEEK MEDICAL TREATMENT.
●
Do not run engine indoors. Even if
you try to ventilate engine exhaust
with fans or open windows and
doors, carbon monoxide can rapidly reach dangerous levels.
●
Do not run engine in poorly ventilated or partially enclosed areas
such as barns, garages, or carports.
●
Do not run engine outdoors where
1
2
2-2
SAFETY INFORMATION
engine exhaust can be drawn into
a building through openings such
as windows and doors.
1
Loading
Adding accessories or cargo to your
motorcycle can adversely affect stabili-
2
ty and handling if the weight distribution
of the motorcycle is changed. To avoid
the possibility of an accident, use extreme caution when adding cargo or
accessories to your motorcycle. Use
extra care when riding a motorcycle
that has added cargo or accessories.
Here, along with the information about
accessories below, are some general
guidelines to follow if loading cargo to
your motorcycle:
The total weight of the operator, passenger, accessories and cargo must
not exceed the maximum load limit.
Operation of an overloaded vehicle
could cause an accident.
Maximum load:
189 kg (417 lb) (CAL)
190 kg (419 lb) (U49)
When loading within this weight limit,
keep the following in mind:
●
Cargo and accessory weight
should be kept as low and close to
the motorcycle as possible. Securely pack your heaviest items as
close to the center of the vehicle as
possible and make sure to distribute the weight as evenly as possible on both sides of the motorcycle
to minimize imbalance or instability.
●
Shifting weights can create a sudden imbalance. Make sure that accessories and cargo are securely
attached to the motorcycle before
riding. Check accessory mounts
and cargo restraints frequently.
●
Properly adjust the suspension
for your load (suspension-adjustable models only), and
check the condition and pressure of your tires.
●
Never attach any large or heavy
items to the handlebar, front
fork, or front fender. These
items, including such cargo as
sleeping bags, duffel bags, or
tents, can create unstable handling or a slow steering response.
●
This vehicle is not designed to
pull a trailer or to be attached to
a sidecar.
Genuine Yamaha Accessories
Choosing accessories for your vehicle
is an important decision. Genuine
Yamaha accessories, which are available only from a Yamaha dealer, have
been designed, tested, and approved
by Yamaha for use on your vehicle.
Many companies with no connection to
Yamaha manufacture parts and accessories or offer other modifications for
Yamaha vehicles. Yamaha is not in a
position to test the products that these
aftermarket companies produce.
Therefore, Yamaha can neither endorse nor recommend the use of accessories not sold by Yamaha or
modifications not specifically recommended by Yamaha, even if sold and
installed by a Yamaha dealer.
2-3
SAFETY INFORMATION
Aftermarket Parts, Accessories,
and Modifications
While you may find aftermarket products similar in design and quality to
genuine Yamaha accessories, recognize that some aftermarket accessories
or modifications are not suitable because of potential safety hazards to you
or others. Installing aftermarket products or having other modifications performed to your vehicle that change any
of the vehicle’s design or operation
characteristics can put you and others
at greater risk of serious injury or death.
You are responsible for injuries related
to changes in the vehicle.
Keep the following guidelines in mind,
as well as those provided under “Loading” when mounting accessories.
●
Never install accessories or carry
cargo that would impair the performance of your motorcycle. Carefully inspect the accessory before
using it to make sure that it does
not in any way reduce ground
clearance or cornering clearance,
limit suspension travel, steering
travel or control operation, or ob-
scure lights or reflectors.
●
Accessories fitted to the handlebar or the front fork area can
create instability due to improper
weight distribution or aerodynamic changes. If accessories
are added to the handlebar or
front fork area, they must be as
lightweight as possible and
should be kept to a minimum.
●
Bulky or large accessories may
seriously affect the stability of
the motorcycle due to aerodynamic effects. Wind may attempt to lift the motorcycle, or
the motorcycle may become unstable in cross winds. These accessories may also cause
instability when passing or being
passed by large vehicles.
●
Certain accessories can displace the operator from his or
her normal riding position. This
improper position limits the freedom of movement of the operator and may limit control ability,
therefore, such accessories are
not recommended.
●
Use caution when adding electrical accessories. If electrical accessories exceed the capacity of the
motorcycle’s electrical system, an
electric failure could result, which
could cause a dangerous loss of
lights or engine power.
Aftermarket Tires and Rims
The tires and rims that came with your
motorcycle were designed to match the
performance capabilities and to provide
the best combination of handling, braking, and comfort. Other tires, rims, sizes, and combinations may not be
appropriate. Refer to page 7-21 for tire
specifications and more information on
replacing your tires.
1
2
2-4
DESCRIPTION
Left view
EAU10410
1
1
2
3
2
3
4
5
6
7
11
8
1. Headlight (page 7-36)
2. Front fork spring preload adjusting bolt (page 4-22)
9
3. Front fork rebound damping force adjusting knob (page 4-22)
4. Battery (page 7-31)
5. Owner’s tool kit (page 7-2)
6. Fuel tank cap (page 4-17)
7. Shock absorber assembly spring preload adjusting knob (page 4-24)
10
4
567
9
8. Shock absorber assembly rebound damping force adjusting knob
(page 4-24)
9. Sidestand (page 4-26)
10. Shift pedal (page 4-14)
11. Front fork compression damping force adjusting screw (page 4-22)
8
3-1
Right view
DESCRIPTION
EAU10420
12 3 5
1. Passenger seat (page 4-20)
2. Rear brake fluid reservoir (page 7-26)
3. Rider seat (page 4-20)
4. Fuse box 1 (page 7-34)
5. Radiator cap (page 7-17)
6. Coolant reservoir (page 7-17)
7. Engine oil level check window (page 7-12)
8. Brake pedal (page 4-15)
4
2
3
4
5
6
810
7
9. Fuse box 2 (page 7-34)
10. Shock absorber assembly compression damping force adjusting
knob (page 4-24)
69
7
8
9
3-2
DESCRIPTION
Controls and instruments
EAU10430
1
2
3
4
5
6
7
8
1. Clutch lever (page 4-14)
2. Left handlebar switches (page 4-12)
9
3. Clutch fluid reservoir (page 7-26)
4. Speedometer unit (page 4-4)
5. Shift timing indicator light
6. Front brake fluid reservoir (page 7-26)
7. Right handlebar switches (page 4-12)
8. Brake lever (page 4-15)
123 4 67 8
11
5
910
9. Throttle grip (page 7-21)
10. Multi-function display (page 4-5)
11. Main switch/steering lock (page 4-1)
3-3
INSTRUMENT AND CONTROL FUNCTIONS
EAU10460
Main switch/steering lock
OFF
LOCK
The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.
ON
All electrical circuits are supplied with
power, and the meter lighting, taillight,
license plate light, auxiliary light and
position lights come on, and the engine
can be started. The key cannot be removed.
TIP
The headlight comes on automatically
when the engine is started and stays on
until the key is turned to “OFF”, even if
ON
EAU39242
the engine stalls.
EAU10661
OFF
All electrical systems are off. The key
can be removed.
EWA10061
WARNING
Never turn the key to “OFF” or
“LOCK” while the vehicle is moving.
Otherwise the electrical systems will
be switched off, which may result in
loss of control or an accident.
EAU10681
LOCK
The steering is locked, and all electrical
systems are off. The key can be removed.
To lock the steering
1. Turn the handlebars all the way to
the left.
2. Push the key in from the “OFF” position, and then turn it to “LOCK”
while still pushing it.
3. Remove the key.
To unlock the steering
Push the key in, and then turn it to
“OFF” while still pushing it.
2
3
4
5
6
7
8
9
4-1
INSTRUMENT AND CONTROL FUNCTIONS
Indicator and warning lights
9
8
1
2
3
7
6
5
4
1. Fuel level warning light “ ”
2. Right turn signal indicator light “ ”
5
3. Coolant temperature warning light “ ”
4. Neutral indicator light “ ”
6
5. High beam indicator light “ ”
6. Engine trouble warning light “ ”
7
7. Left turn signal indicator light “ ”
8. Anti-lock Brake System (ABS) warning
8
9. Oil level warning light “ ”
ABS
light “ ”
9
2
3
4
EAU11003
1
EAU11030
Turn signal indicator lights “ ” and
“”
The corresponding indicator light flashes when the turn signal switch is
pushed to the left or right.
EAU11060
Neutral indicator light “ ”
This indicator light comes on when the
transmission is in the neutral position.
EAU11080
High beam indicator light “ ”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU46562
Oil level warning light “ ”
This warning light comes on if the engine oil level is low. To check the electrical circuit of the warning light, place
the vehicle on a level surface, set the
engine stop switch to “ ” and turn the
key from “OFF” to “ON”.
If the warning light does not come on
and then go off, have a Yamaha dealer
check the electrical circuit.
If the warning light stays on, proceed as
follows.
1. Set the engine stop switch to “ ”.
2. Turn the key to “OFF”, wait two
minutes, and then turn the key to
“ON”.
3. If the warning light comes on and
does not go off, check the engine
oil level. (See page 7-12.) If the
warning light still stays on after
confirming the oil level is correct,
have a Yamaha dealer check the
vehicle.
TIP
This warning light WILL NOT come on:
when the engine is idling
●
when riding
●
if the engine has stalled and the
●
key has not been turned from “ON”
to “OFF” and then back to “ON”
HOWEVER, if the warning light is on
when the engine is started, it will stay
on until the key is turned to “OFF”.
EAU11350
Fuel level warning light “ ”
This warning light comes on when the
fuel level drops below approximately
4-2
INSTRUMENT AND CONTROL FUNCTIONS
3.9 L (1.03 US gal, 0.86 Imp.gal). When
this occurs, refuel as soon as possible.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical circuit.
EAU11442
Coolant temperature warning light
“”
This warning light comes on if the engine overheats. If this occurs, stop the
engine immediately and allow the engine to cool.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical circuit.
ECA10021
NOTICE
Do not continue to operate the engine if it is overheating.
TIP
●
For radiator-fan-equipped vehicles, the radiator fan(s) automatically switch on or off according to
the coolant temperature in the radiator.
●
If the engine overheats, see page
7-42 for further instructions.
EAU46440
Engine trouble warning light “ ”
This warning light comes on if a problem is detected in the electrical circuit
monitoring the engine. If this occurs,
have a Yamaha dealer check the
self-diagnosis system. (See page 4-12
for an explanation of the self-diagnosis
device.)
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. If the warning light does not come
on for a few seconds, then go off, have
a Yamaha dealer check the electrical
circuit.
4-3
TIP
This warning light will come on when
the key is turned to “ON” and the start
switch is pushed, but this does not indicate a malfunction.
ABS warning light “ ”
ABS
EAU39501
If this warning light comes on or flashes
while riding, the ABS may not work correctly. If this occurs, have a Yamaha
dealer check the system as soon as
possible. (See page 4-16.)
EWA10081
WARNING
If the ABS warning light comes on or
flashes while riding, the brake system reverts to conventional braking.
Therefore, be careful not to cause
the wheels to lock during emergency braking. If the warning light
comes on or flashes while riding,
have a Yamaha dealer check the
brake system as soon as possible.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
2
3
4
5
6
7
8
9
INSTRUMENT AND CONTROL FUNCTIONS
If the warning light does not come on or
remains on, have a Yamaha dealer
check the electrical circuit.
1
2
3
4
5
6
7
8
9
EAU46352
Speedometer unit
2
1
3
4
1. Tachometer
2. Shift timing indicator light
3. Tachometer red zone
4. Speedometer
Speedometer
The speedometer shows the riding
speed, and can be switched between
miles and kilometers. (See page 4-5 for
details.)
Tachometer
The tachometer allows the rider to
monitor the engine speed and keep it
within the ideal power range. When the
key is turned to “ON”, the tachometer
needle will sweep once across the r/
min range and then return to zero r/min
4-4
in order to test the electrical circuit.
ECA10031
NOTICE
Do not operate the engine in the tachometer red zone.
Red zone: 9500 r/min and above
Shift timing indicator light
See page 4-6 for an explanation and
settings for this indicator light.
INSTRUMENT AND CONTROL FUNCTIONS
1
2
3
4
5
6
EAU46592
Multi-function display
1
1. Multi-function display
EWA12312
WARNING
Be sure to stop the vehicle before
making any setting changes to the
multi-function display. Changing
settings while riding can distract the
operator and increase the risk of an
accident.
A “SELECT” button and a “RESET”
button are located on the handlebar
holder. These buttons allow you to control or change the settings in the
multi-function display.
12
1. “SELECT” button
2. “RESET” button
The multi-function display is set to the
Normal mode every time the key is
turned to “ON”.
Normal mode
The following functions are available in
the Normal mode:
●
an odometer (which shows the total distance traveled)
●
a clock
●
two tripmeters (which show the
distance traveled since they were
last set to zero)
●
a fuel reserve tripmeter (which
shows the distance traveled since
the fuel level warning indicator
started flashing)
4-5
●
a fuel meter
●
a transmission gear indicator
●
a coolant temperature display
●
a self-diagnosis device
1. Odometer
2. Clock
3. Trip/Fuel
4. Fuel meter
5. Transmission gear display
6. Coolant temperature display
TIP
The speedometer and odometer/tripmeter displays can be switched between miles and kilometers. To switch
the speedometer and odometer/tripmeter displays, press “SELECT” for at
least two seconds.
2
3
4
5
6
7
8
9
INSTRUMENT AND CONTROL FUNCTIONS
Tripmeters
Turn the key to “ON”. Push “SELECT”
to switch the display between the tripmeters “TRIP-1” and “TRIP-2” in the fol-
1
lowing order.
TRIP-1 → TRIP-2 → TRIP-1
When the fuel amount in the fuel tank
2
decreases to 3.9 L (1.03 US gal, 0.86
Imp.gal), the fuel warning indicator
3
starts flashing, and the tripmeter automatically changes to the fuel reserve
tripmeter “TRIP-F” and starts counting
4
the distance traveled from that point. In
that case, push “SELECT” to switch the
5
display between the various tripmeters
in the following order:
6
TRIP-F → TRIP-1 → TRIP-2 → TRIP-F
To reset a tripmeter, select it by pushing “SELECT”, and then push “RESET”
7
for at least one second. If you do not reset the fuel reserve tripmeter manually,
8
it resets itself automatically and the display returns to the prior meter after re-
9
fueling and traveling 5 km (3 mi).
Select mode
The various functions of this multi-function display are adjusted in the Select
mode.
TIP
The transmission must be in neu-
●
tral to change settings in this
mode.
Shifting the transmission into gear
●
saves all settings made, then cancels the Select mode and displays
the Normal mode in all screens.
Depending on the screen, pushing
●
“RESET” saves settings or cancels the Select mode to display the
Normal mode.
Push and hold “SELECT” and “RESET”
for at least three seconds to enter the
Select mode.
The following items can be set/adjusted
in this mode:
●
brightness
●
shift timing indicator light
●
clock
●
stopwatch
●
countdown clock
●
system status
4-6
●
maintenance counters
TIP
To return to the Normal mode, push
“SELECT” to scroll to “ ”, then push
“RESET”.
Adjusting the brightness
This function allows you to adjust the
brightness of the tachometer unit panel
(“Meter panel”), the tachometer needle
(“Needle”), and the speedometer and
multi-function displays (“Display”) to
suit the outside lighting conditions.
1. Push “SELECT” to highlight
“Brightness”.
2. Push “RESET”, then push
“SELECT” to scroll through the
functions and to highlight an item.
3. Push “RESET”; the brightness lev-
el segments for the selected item
starts flashing.
4. Push “SELECT” to highlight the
desired brightness level.
5. Push “RESET” to set the brightness level.
6. Push “SELECT” to scroll to “ ”,
then push “RESET” to return to the
previous menu.
Selecting the shift timing indicator light
settings
1
1. Shift timing indicator light
This function allows you to choose
whether or not the shift timing indicator
light is activated and whether it flashes
or stays on when activated.
1. Push “SELECT” to highlight “Shift
light”.
INSTRUMENT AND CONTROL FUNCTIONS
2. Push “RESET”.
3. Push “SELECT” to highlight “Operation selection”.
4. Push “RESET”.
Push “SELECT” and highlight “On”
to activate the indicator light; the
indicator light comes on and stays
on when activated.
Push “SELECT” and highlight
“Flash” to activate the indicator
light; the indicator light flashes
when activated.
4-7
Push “SELECT” and highlight “Off”
to deactivate the indicator light; the
indicator light neither comes on
nor flashes.
TIP
The indicator light flashes once every
two seconds to show that it has been
deactivated. The indicator light goes off
after this menu is exited.
5. Push “SELECT” to scroll to “ ”,
then push “RESET” to return to the
previous menu.
Setting the r/min in relation to the shift
timing indicator light
This function allows you to select the
engine speed at which the indicator
light is activated and deactivated. All
gears can be set to the same activation/
2
3
4
5
6
7
8
9
INSTRUMENT AND CONTROL FUNCTIONS
deactivation r/min or the gears can be
set individually.
Push “SELECT” to highlight “r/min setting”, then push “RESET”.
1
2
3
TIP
The shift timing indicator light can be
set to activate and deactivate between
4
3000 r/min and 11000 r/min in increments of 500 r/min.
5
To set all gears to the same r/min:
6
1. Push “SELECT” to highlight “All”.
7
8
2. Push “RESET”; “On” is displayed.
9
start flashing.
4. Push “SELECT” to highlight the
engine speed at which the shift
timing indicator light is activated.
5. Push “RESET” to set the selected
engine speed. “Off” is highlighted
and the r/min digits start flashing.
6. Push “SELECT” to highlight the
engine speed at which the shift
timing indicator light is deactivated.
7. Push “RESET” to set the selected
engine speed.
8. Push “RESET” again to return to
the previous menu.
To set individual gear r/min:
1. Push “SELECT” to highlight gears
from “1st” through “5th”, then push
“RESET”.
min:” in order to set the r/min for
the individual gears.
TIP
After setting r/min for individual gears, if
“All” is chosen, all previously set r/min
for individual gears return to the default
settings of 9000 (activation) and 11000
(deactivation).
3. Push “SELECT” to scroll to “ ”,
then push “RESET” to return to the
previous menu.
Setting the shift timing indicator light
brightness
This function allows you to adjust the
brightness of the shift timing indicator
light.
1. Push “SELECT” to highlight
“Brightness”.
3. Push “RESET” and the r/min digits
2. Push “RESET” and the r/min digits
for the highlighted gear start flashing, then perform steps 4–8 under
“To set all gears to the same r/
4-8
2. Push “RESET” and the brightness
level segments start flashing.
3. Push “SELECT” to highlight the
desired brightness level.
4. Push “RESET” to set the selected
brightness level.
5. Push “RESET” to return to the previous menu.
6. Push “SELECT” to scroll to “ ”,
then push “RESET”. This allows
you to select another item in the
menu.
Setting the clock
1. Push “SELECT” to highlight “Display”.
INSTRUMENT AND CONTROL FUNCTIONS
3. Push “RESET” and the hour digits
start flashing.
4. Push “SELECT” to increment the
hours.
5. Push “RESET”, and the minute
digits start flashing.
6. Push “SELECT” to increment the
minutes.
7. Push “RESET” to start the clock.
8. Push “RESET” again to return to
the previous menu.
Resetting all the brightness and shift
timing indicator light functions:
This resets ALL settings made to the
brightness and shift timing indicator
light functions.
1. Push “SELECT” to highlight “Display”.
4. Push “RESET”, then push
“SELECT” to highlight “Yes”.
5. Push “RESET” to reset the brightness and shift timing light indicator
values to the factory setting. The
display returns to the Normal
mode.
TIP
To perform further multi-function display settings, enter the Select mode
again by pushing and holding
“SELECT” and “RESET” for at least
three seconds.
2
3
4
5
6
7
8
2. Push “RESET”; the following
screen is displayed.
2. Push “RESET”.
3. Push “SELECT” to highlight “All reset”.
4-9
Using the stopwatch
9
The stopwatch can be activated as follows.
1. Push “SELECT” to highlight “Stopwatch”.
INSTRUMENT AND CONTROL FUNCTIONS
1
2. Push “RESET”.
3. Push “SELECT” to highlight “Stop-
2
watch”.
3
4
4. Push “RESET”.
5
The multi-function display changes to the Normal mode and the
stopwatch is displayed in place of
6
the clock.
7
8
5. Push “SELECT” to start the stop-
9
watch.
6. Push “SELECT” or the start switch
“” to stop the stopwatch.
7. Push “RESET” to reset the stopwatch.
TIP
If neither “SELECT” or “RESET”
●
are pushed for one minute, the
screen automatically changes to
the Normal mode.
Pushing “RESET” for at least two
●
seconds changes the screen to
the Normal mode.
To perform further multi-function
●
display settings, enter the Select
mode again by pushing and holding “SELECT” and “RESET” for at
least three seconds.
Using the countdown clock:
The countdown clock can be activated
as follows.
1. Push “SELECT” to highlight “Stopwatch”.
2. Push “RESET”.
3. Push “SELECT” to highlight
“Countdown”.
4. Push “RESET”. The multi-function
display changes to the Normal
mode, the stopwatch is displayed
in place of the clock, and the transmission gear indicator changes to
the countdown clock.
5. Push “SELECT” or shift into gear
and the countdown clock starts
counting down from “5”. Simultaneously, the shift timing indicator
flashes according to the number
displayed (i.e., when “5” is displayed, the indicator flashes five
times, when “4” is displayed, the
indicator flashes four times, etc.).
The stopwatch starts counting
when the countdown clock finishes
counting.
6. Push “SELECT” or push the start
switch “ ” to stop the countdown
clock.
7. Push “RESET” to reset the countdown clock and stopwatch.
8. Push “RESET” to reset the countdown clock, and then repeat steps
5–6, OR push “RESET” again for
at least two seconds to enter the
Normal mode.
4-10
INSTRUMENT AND CONTROL FUNCTIONS
TIP
To perform further multi-function display settings,
sion is in neutral,
be sure the transmis-
then enter the
Select mode again by pushing and
holding “SELECT” and “RESET” for at
least three seconds.
Checking and resetting the system status
The status/readings of the following
items are displayed, and the tripmeters
can be reset.
●
tripmeters and odometer
●
fuel consumption
●
air intake temperature
●
throttle opening position
TIP
●
The “System status” menu cannot
be entered if the fuel level warning
light or coolant temperature warning light is on.
●
If, when the engine is running
while the system status menu is
displayed, the fuel level warning
light or coolant temperature warning light comes on, the Normal
mode is automatically displayed.
1. Push “SELECT” to highlight “System status”, then push “RESET”.
2. Push “SELECT” to highlight “Yes”,
then push “RESET”. (Highlighting
“No” and pushing “RESET” returns
to the previous menu.)
The display changes to the status
screen.
Push “SELECT” and the various tripmeters and the odometer are displayed
in the following order:
(TRIP-F) → TRIP-1 → TRIP-2 → ODO
→
(TRIP-F)
Push “RESET” to reset a tripmeter.
4-11
TIP
Push “SELECT” for at least two
●
seconds to switch between miles
and kilometers.
Pushing “RESET” displays the
●
Normal mode for five seconds.
Pushing “SELECT” and “RESET”
for at least three seconds, changes the display to the Normal mode.
To perform further multi-function
●
display settings, enter the Select
mode again by pushing and holding “SELECT” and “RESET” for at
least three seconds.
Resetting the maintenance counters
This function allows you to reset the
maintenance counters for the tires, the
engine oil, and an item of your choice.
1. Push “SELECT” to highlight “Maintenance”, then push “RESET”.
2
3
4
5
6
7
8
9
INSTRUMENT AND CONTROL FUNCTIONS
1
2
3
4
1
2. Push “SELECT” to highlight the
item to reset.
2
3
3. Push “RESET” to reset the item.
4
TIP
The bottom area was left blank for an-
5
other item the rider cares to check the
distance of since it has been changed,
6
replaced or checked (i.e., air filter element, engine parts, etc.).
7
8
9
4. Push “SELECT” to scroll to “ ”.
5. Push “RESET” to return to the previous menu.
Self-diagnosis device
EAU12347
Handlebar switches
1
Left
1. Error code display
This model is equipped with a self-diagnosis device for various electrical circuits.
If a problem is detected in any of those
circuits, the engine trouble warning light
comes on and the display indicates a
two-digit error code.
ECA11590
NOTICE
If the display indicates an error
code, the vehicle should be checked
as soon as possible in order to avoid
engine damage.
If the display indicates any error codes,
note the code number, and then have a
Yamaha dealer check the vehicle.
1. Dimmer switch “ / ”
2. Turn signal switch “ / ”
3. Horn switch “ ”
4. Hazard switch “ ”
4-12
INSTRUMENT AND CONTROL FUNCTIONS
Right
1
2
1. Engine stop switch “ / ”
2. Start switch “ ”
EAU12400
Dimmer switch “ / ”
Set this switch to “ ” for the high
beam and to “ ” for the low beam.
EAU12460
Turn signal switch “ / ”
To signal a right-hand turn, push this
switch to “ ”. To signal a left-hand
turn, push this switch to “ ”. When released, the switch returns to the center
position. To cancel the turn signal
lights, push the switch in after it has returned to the center position.
EAU12500
Horn switch “ ”
Press this switch to sound the horn.
EAU12660
Engine stop switch “ / ”
Set this switch to “ ” before starting
the engine. Set this switch to “ ” to
stop the engine in case of an emergency, such as when the vehicle overturns
or when the throttle cable is stuck.
EAU12711
Start switch “ ”
Push this switch to crank the engine
with the starter. See page 6-1 for starting instructions prior to starting the engine.
EAU41700
The engine trouble warning light will
come on when the key is turned to “ON”
and the start switch is pushed, but this
does not indicate a malfunction.
EAU12765
Hazard switch “ ”
With the key in the “ON” position, use
this switch to turn on the hazard lights
(simultaneous flashing of all turn signal
lights).
The hazard lights are used in case of
an emergency or to warn other drivers
when your vehicle is stopped where it
might be a traffic hazard.
ECA10061
NOTICE
Do not use the hazard lights for an
extended length of time with the engine not running, otherwise the battery may discharge.
2
3
4
5
6
7
8
9
4-13
INSTRUMENT AND CONTROL FUNCTIONS
1
Clutch lever
1
1
2
4
3
4
1. Clutch lever
2. Clutch lever position adjusting dial
5
3. Arrow mark
4. Distance between clutch lever and
6
handlebar grip
The clutch lever is located at the left
handlebar grip. To disengage the
7
clutch, pull the lever toward the handlebar grip. To engage the clutch, release
8
the lever. The lever should be pulled
rapidly and released slowly for smooth
clutch operation.
9
The clutch lever is equipped with a
clutch lever position adjusting dial. To
adjust the distance between the clutch
lever and the handlebar grip, turn the
adjusting dial while holding the lever
3
EAU12830
2
pushed away from the handlebar grip.
Make sure that the appropriate setting
on the adjusting dial is aligned with the
arrow mark on the clutch lever.
The clutch lever is equipped with a
clutch switch, which is part of the ignition circuit cut-off system. (See
page 4-27.)
4-14
EAU12870
Shift pedal
1. Shift pedal
The shift pedal is located on the left
side of the engine and is used in combination with the clutch lever when
shifting the gears of the 5-speed constant-mesh transmission equipped on
this motorcycle.
Loading...
