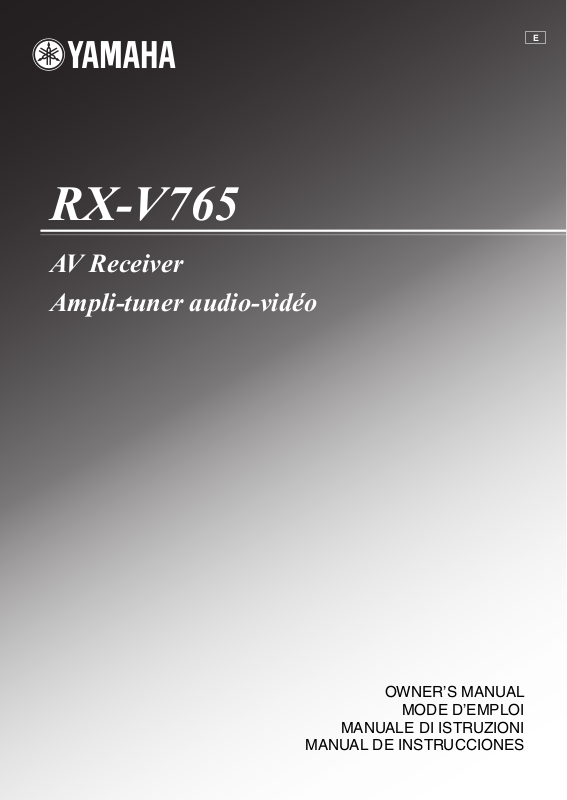

RX-V765

AV Receiver

Ampli-tuner audio-vidéo

OWNER’S MANUAL

MODE D’EMPLOI

MANUALE DI ISTRUZIONI

MANUAL DE INSTRUCCIONES

Caution: Read this before operating your unit.

1 To assure the finest performance, please read this manual

carefully. Keep it in a safe place for future reference.

2 Install this sound system in a well ventilated, cool, dry, clean

place – away from direct sunlight, heat sources, vibration, dust, moisture, and/or cold. Allow ventilation space of at least 30 cm on the top, 20 cm on the left and right, and 20 cm on the back of this unit.

3 Locate this unit away from other electrical appliances, motors,

or transformers to avoid humming sounds.

4 Do not expose this unit to sudden temperature changes from

cold to hot, and do not locate this unit in an environment with high humidity (i.e. a room with a humidifier) to prevent condensation inside this unit, which may cause an electrical shock, fire, damage to this unit, and/or personal injury.

5 Avoid installing this unit where foreign objects may fall onto

this unit and/or this unit may be exposed to liquid dripping or splashing. On the top of this unit, do not place: – Other components, as they may cause damage and/or

discoloration on the surface of this unit.

– Burning objects (i.e. candles), as they may cause fire,

damage to this unit, and/or personal injury.

– Containers with liquid in them, as they may fall and liquid

may cause electrical shock to the user and/or damage to this unit.

6 Do not cover this unit with a newspaper, tablecloth, curtain,

etc. in order not to obstruct heat radiation. If the temperature inside this unit rises, it may cause fire, damage to this unit, and/or personal injury.

7 Do not plug in this unit to a wall outlet until all connections

are complete.

8 Do not operate this unit upside-down. It may overheat,

possibly causing damage.

9 Do not use force on switches, knobs and/or cords. 10 When disconnecting the power cable from the wall outlet,

grasp the plug; do not pull the cable.

11 Do not clean this unit with chemical solvents; this might

damage the finish. Use a clean, dry cloth.

12 Only voltage specified on this unit must be used. Using this

unit with a higher voltage than specified is dangerous and may cause fire, damage to this unit, and/or personal injury. Yamaha will not be held responsible for any damage resulting from use of this unit with a voltage other than specified.

13 To prevent damage by lightning, keep the power cord and

outdoor antennas disconnected from a wall outlet or the unit during a lightning storm.

14 Do not attempt to modify or fix this unit. Contact qualified

Yamaha service personnel when any service is needed. The cabinet should never be opened for any reasons.

15 When not planning to use this unit for long periods of time

(i.e. vacation), disconnect the AC power plug from the wall outlet.

16 Install this unit near the AC outlet and where the AC power

plug can be reached easily.

17 Be sure to read the “Troubleshooting” section on common

operating errors before concluding that this unit is faulty.

18 Before moving this unit, press AMAIN ZONE ON/OFF

to set this unit in the standby mode, and disconnect the AC power plug from the wall outlet.

19 VOLTAGE SELECTOR (Asia and General models only)

The VOLTAGE SELECTOR on the rear panel of this unit must be set for your local main voltage BEFORE plugging into the AC wall outlet. Voltages are:

...... AC 110/120/220/230–240 V, 50/60 Hz (General model)

..........................AC 220/230–240 V, 50/60 Hz (Asia model)

20 The batteries shall not be exposed to excessive heat such as

sunshine, fire or like.

21 Excessive sound pressure from earphones and headphones can

cause hearing loss.

22 When replacing the batteries, be sure to use batteries of the

same type. Danger of explosion may happen if batteries are incorrectly replaced.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if you turn off this unit by AMAIN ZONE ON/ OFF. In this state, this unit is designed to consume a very small quantity of power.

■ For U.K. customers

If the socket outlets in the home are not suitable for the plug supplied with this appliance, it should be cut off and an appropriate 3 pin plug fitted. For details, refer to the instructions described below.

Note

The plug severed from the mains lead must be destroyed, as a plug with bared flexible cord is hazardous if engaged in a live socket outlet.

■ Special Instructions for U.K. Model

IMPORTANT

THE WIRES IN MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:

Blue: NEUTRAL Brown: LIVE

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED. Making sure that neither core is connected to the earth terminal of the three pin plug.

Caution-i En

Caution: Read this before operating your unit.

Information for Users on Collection and Disposal of Old Equipment and used Batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/ EC and 2006/66/EC. By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items. [Information on Disposal in other Countries outside the European Union] These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol (bottom two symbol examples):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

Limited Guarantee for European Economic Area (EEA) and Switzerland

Thank you for having chosen a Yamaha product. In the unlikely event that your Yamaha product needs guarantee service, please contact the dealer from whom it was purchased. If you experience any difficulty, please contact Yamaha representative office in your country. You can find full details on our website (http://www.yamaha-hifi.com/ or http://www.yamaha-uk.com/ for U.K. resident).

The product is guaranteed to be free from defects in workmanship or materials for a period of two years from the date of the original purchase. Yamaha undertakes, subject to the conditions listed below, to have the faulty product or any part(s) repaired, or replaced at Yamaha’s discretion, without any charge for parts or labour. Yamaha reserves the right to replace a product with that of a similar kind and/or value and condition, where a model has been discontinued or is considered uneconomic to repair.

Conditions

1. The original invoice or sales receipt (showing date of purchase, product code and dealer’s name) MUST accompany the defective product, along with a statement detailing the fault. In the absence of this clear proof of purchase, Yamaha reserves the right to refuse to provide free of charge service and the product may be returned at the customer’s expense.

2. The product MUST have been purchased from an AUTHORISED Yamaha dealer within the European Economic Area (EEA) or Switzerland.

3. The product must not have been the subject of any modifications or alterations, unless authorised in writing by Yamaha.

4. The following are excluded from this guarantee: a. Periodic maintenance and repair or replacement of parts due to normal wear and tear. b. Damage resulting from:

(1) Repairs performed by the customer himself or by an unauthorised third party. (2) Inadequate packaging or mishandling, when the product is in transit from the customer. Please note that it is the customer’s responsibility to

ensure the product is adequately packaged when returning the product for repair.

(3) Misuse, including but not limited to (a) failure to use the product for its normal purpose or in accordance with Yamaha’s instructions on the proper

use, maintenance and storage, and (b) installation or use of the product in a manner inconsistent with the technical or safety standards in force in

the country where it is used. (4) Accidents, lightning, water, fire, improper ventilation, battery leakage or any cause beyond Yamaha’s control. (5) Defects of the system into which this product is incorporated and/or incompatibility with third party products. (6) Use of a product imported into the EEA and/or Switzerland, not by Yamaha, where that product does not conform to the technical or safety

standards of the country of use and/or to the standard specification of a product sold by Yamaha in the EEA and/or Switzerland. (7) Non AV (Audio Visual) related products.

(Products subject to “Yamaha AV Guarantee Statement” are defined in our website at http://www.yamaha-hifi.com/ or

http://www.yamaha-uk.com/ for U.K. resident.)

5. Where the guarantee differs between the country of purchase and the country of use of the product, the guarantee of the country of use shall apply.

6. Yamaha may not be held responsible for any losses or damages, whether direct, consequential or otherwise, save for the repair or replacement of the product.

7. Please backup any custom settings or data, as Yamaha may not be held responsible for any alteration or loss to such settings or data.

8. This guarantee does not affect the consumer’s statutory rights under applicable national laws in force or the consumer’s rights against the dealer arising from their sales/purchase contract.

Caution-ii En

Contents

INTRODUCTION

Features.................................................................... 2

About this manual................................................... 3

Supplied accessories................................................3

Part names and functions ....................................... 4

Front panel ................................................................. 4

Rear panel .................................................................. 5

Front panel display..................................................... 6

Remote control........................................................... 7

Quick start guide.....................................................8

PREPARATION

Preparing remote control ....................................... 9

Installing batteries in the remote control ................... 9

Using the remote control............................................ 9

Connections ........................................................... 10

Placing speakers....................................................... 10

Connecting speakers ................................................ 11

Information on jacks and cable plugs ...................... 14

Connecting a video monitor..................................... 15

Connecting other components ................................. 16

Connecting a multi-format player or an external

decoder................................................................. 18

Connecting an external amplifier............................. 18

Using REMOTE IN/OUT jacks............................... 19

Connecting a Yamaha iPod universal dock or

Bluetooth™ wireless audio receiver.................... 19

Connecting a camcorder or portable audio player ...19

Connecting the FM and AM antennas ..................... 20

Connecting the power cable..................................... 20

Turning this unit on and off ..................................... 20

Optimizing the speaker setting for your

listening room (YPAO) ..................................... 21

Using Auto Setup..................................................... 21

When an error message is displayed during

measurement ........................................................ 23

When a warning message is displayed after

measurement ........................................................ 23

BASIC OPERATION

Playback................................................................. 24

Basic procedure........................................................ 24

Using the SCENE function ...................................... 24

Muting audio output temporarily (MUTE) ..............25

Adjusting high/low frequency sound

(tone control) ....................................................... 25

Enjoying pure hi-fi sound (Pure Direct mode) ........ 25

Using your headphones............................................ 26

Displaying input signal information ........................ 26

Changing information on the front panel display .... 26

Enjoy the sound field programs .......................... 27

Selecting sound field programs................................ 27

Enjoying unprocessed input sources

(Straight decoding mode) .................................... 30

Enjoying sound field programs without surround

speakers (Virtual CINEMA DSP) ....................... 30

Enjoy sound field programs with headphones

(SILENT CINEMA™) ........................................ 30

Enjoying more spatial sound fields

(CINEMA DSP 3D mode)................................... 30

FM/AM tuning ...................................................... 31

Tuning into the desired FM/AM station

(Frequency tuning mode)..................................... 31

Registering FM/AM stations and tuning in

(Preset tuning mode)............................................ 31

Radio Data System tuning ................................... 33

Displaying the Radio Data System information ......33

Selecting the Radio Data System program type

(PTY Seek mode) ................................................ 33

Using the enhanced other networks (EON) data

service.................................................................. 34

Using iPod™.......................................................... 35

Controlling iPod™................................................... 35

Using Bluetooth™ components ........................... 37

Pairing the Bluetooth™ wireless audio receiver

and your Bluetooth™ component........................ 37

Playback of the Bluetooth™ component ................. 37

Other functions ..................................................... 38

Using the sleep timer ............................................... 38

Using the HDMI™ control function ........................ 38

ADVANCED OPERATION

Setting the option menu for each input source

(OPTION menu) ............................................... 39

OPTION menu items ............................................... 39

Outputting a video signal input from another

input source during reproducing a multi-channel

audio signal.......................................................... 41

Editing surround decoders/sound field

programs ........................................................... 42

Setting sound field parameters................................. 42

Sound field parameters ............................................ 42

Changing various settings of this unit

(SETUP menu) .................................................. 46

Basic operation of the SETUP menu ....................... 47

Speaker Setup .......................................................... 47

Sound Setup ............................................................. 49

Function Setup ......................................................... 50

DSP Parameter ......................................................... 52

Memory Guard......................................................... 52

Using multi-zone configuration ........................... 53

Connecting Zone2.................................................... 53

Controlling Zone2.................................................... 54

Controlling other components with the remote

control................................................................ 55

Setting remote control codes.................................... 55

Programming from other remote controls ............... 56

Resetting all remote control codes ........................... 57

Advanced setup ..................................................... 58

APPENDIX

Troubleshooting .................................................... 60

General..................................................................... 60

HDMI™................................................................... 63

Tuner (FM/AM) ....................................................... 64

Remote control......................................................... 64

iPod™ ...................................................................... 65

Bluetooth™.............................................................. 66

Auto Setup (YPAO)................................................. 66

Glossary ................................................................. 69

Sound field program information ....................... 71

Information on HDMI™...................................... 72

Specifications......................................................... 73

Index ...................................................................... 74

(at the end of this manual)

List of remote control codes...................................i

INTRODUCTION

PREPARATION

OPERATION

BASIC

OPERATION

ADVANCED

APPENDIX

English

1 En

INTRODUCTION

Features

■ Built-in 7-channel power amplifier

• Minimum RMS Output Power (20 Hz-20 kHz, 0.08%

THD, 8 Ω)

• FRONT L/R: 95 W + 95 W

• CENTER: 95 W

• SURROUND L/R: 95 W + 95 W

• SURROUND BACK L/R: 95 W + 95 W

■ Speaker/Preout outputs

• Speaker jacks (7-channel + presence 2-channel), preout

output jacks (7-channel, and subwoofer preout jack x 2)

■ Input/Output terminals

Input terminals

• HDMI input x 4

• Audio/Video input

[Audio] Digital input (coaxial) x 2, digital input (optical) x 2, analog input x 2 [Video] Component video x 2, S-video x 1, composite video x 4

• Audio input (analog) x 2

• Phono input x 1

• Multi-channel audio input x 1

• Dock input x 1

• V-AUX input

[Audio] Analog x 1, stereo mini jack x 1 [Video] Composite video x 1

Output terminals

• Monitor output

[Audio/Video] HDMI x 1 [Video] Component video x 1, Composite video x 1

• Audio/Video output

[Audio] Analog x 1 [Video] Composite video x 1

• Audio output

Analog x 1

• Zone2 output

Analog x 1

Other terminals

Remote input x 1, Remote output x 1 Trigger output x 1

■ Proprietary Yamaha technology for the creation of sound fields

• CINEMA DSP 3D

• Compressed Music Enhancer mode

• Virtual CINEMA DSP

• SILENT CINEMA™

■ Digital audio decoders

• Dolby TrueHD, Dolby Digital Plus

• DTS-HD Master Audio, DTS-HD High Resolution

Audio, DTS Express

• Dolby Digital, Dolby Digital EX

• DTS, DTS 96/24, DTS-ES Matrix 6.1,

DTS-ES Discrete 6.1

• Dolby Pro Logic, Dolby Pro Logic II,

Dolby Pro Logic IIx

• DTS NEO:6

• DSD

■ Sophisticated FM/AM tuner

• 40-station random and direct preset tuning

• Automatic preset tuning

• Radio Data System tuning

HDMI™

■

(High-Definition Multimedia Interface)

• HDMI interface for standard, enhanced or high-

definition video as well as multi-channel digital audio – Automatic audio and video synchronization (lip sync)

information capability

– Deep Color video signal (30/36 bit) transmission

capability

– “x.v.Color” video signal transmission capability – High refresh rate and high resolution video signals

capability

– High definition digital audio format signals capability

• Analog video to HDMI digital video up-conversion

(composite video → HDMI, component video → HDMI) capability for monitor out

• Analog video input up-scaling for HDMI digital video

output 576i or 576p → 720p, 1080i or 1080p

• HDMI control capability

■ DOCK jack

• DOCK jack to connect a Yamaha iPod universal dock

(such as YDS-11, sold separately) or Bluetooth wireless audio receiver (such as YBA-10, sold separately)

■ Automatic speaker setup features

• “YPAO” (Yamaha Parametric Room Acoustic

Optimizer) for automatically optimizing speaker outputs suitable for listening environments

■ Other features

• 192-kHz/24-bit D/A converter

• OSD (on-screen display) menus that allow you to

optimize this unit to suit your individual audiovisual system

• Pure Direct mode for pure hi-fi sound for all sources

• Adaptive dynamic range controlling capability

• SCENE function that allows you to change input

sources and sound field programs with one key

• Sleep timer

• Multi-zone function

2 En

About this manual

• Some operations can be performed by using either the keys on the front panel or the ones on the remote control. In case the key names differ between

the front panel and the remote control, the key name on the remote control is given in parentheses.

• This manual is printed prior to production. Design and specifications are subject to change in part as a result of improvements, etc. In case of

differences between the manual and product, the product has priority.

• “AMAIN ZONE ON/OFF” or “eHDMI 1” (example) indicates the name of the parts on the front panel or the remote control. Refer to the

“Controls diagram” or “Part names and functions” on page 4 for the information about each position of the parts.

• y indicates a tip for your operation.

• ☞ indicates the page describing the related information.

Bluetooth™

Bluetooth is a registered trademark of Bluetooth SIG and is used by

Manufactured under license from Dolby Laboratories.

Dolby, Pro Logic and the double-D symbol are trademarks of Dolby

Laboratories.

Manufactured under license under U.S. Patent No’s:

5,451,942;5,956,674;5,974,380;5,978,762;6,226,616;6,487,535 &

other U.S. and worldwide patents issued & pending. DTS is a

registered trademark and the DTS logos, Symbol, DTS-HD and DTS-

iPod™

“iPod” is a trademark of Apple Inc., registered in the U.S. and other

countries.

Yamaha in accordance with a license agreement.

“HDMI,” the “HDMI” logo and “High-Definition Multimedia

Interface” are trademarks, or registered trademarks of HDMI

Licensing LLC.

x.v.Color™

“x.v.Color” is a trademark of Sony Corporation.

“SILENT CINEMA” is a trademark of Yamaha Corporation.

INTRODUCTION

PREPARATION

OPERATION

BASIC

Supplied accessories

Check that you received all of the following parts.

• Remote control (see page 9)

• Batteries (AAA, R03, UM-4) x 2 (see page 9)

• Optimizer microphone (see page 21)

• AM loop antenna (see page 20)

• Indoor FM antenna (see page 20)

• Controls diagram

OPERATION

ADVANCED

INFORMATION APPENDIX

ADDITIONAL

3 En

English

Front panel

Part names and functions

MAIN

ZONE

SILENT

PHONES

CINEMA

ON/OFF

THROUGH

HDMI

ZONE2

CONTROL

ON/OFF

TONE

INFO

PROGRAM INPUT

CONTROL

N Q SO R

A MAIN ZONE ON/OFF

Turns this unit on and off (see page 20).

B PHONES jack

For connecting headphones (see page 26).

C ZONE2 ON/OFF

Switches Zone2 between on and off (see page 54).

D HDMI THROUGH

During standby, lights up under the following conditions:

• the HDMI control function is enabled (see page 50).

• an HDMI signal input to this unit passes through this unit and

output (see page 50).

E ZONE2 CONTROL

Enables operation of a receiver set in Zone2, including input source switching, volume control and tuner operation, with the main amplifier or remote control after this key is pressed.

F INFO

Changes information on the front panel display, such as input source and sound field program name (see page 26).

G MEMORY

Registers FM/AM stations as preset stations (see page 32).

H PRESET l / h

Selects an FM/AM preset station (see page 32).

I FM/AM

Changes the tuner bands between FM and AM.

J TUNING l / h

Changes FM/AM frequencies.

K Front panel display

Displays information on this unit (see page 6).

L VOLUME control

Controls the volume of this unit (see page 24).

M SCENE

Switches between linked sets of input sources and sound field programs (see page 24).

GF JIH

MEMORY

BD/DVD

PRESET

SCENE

STRAIGHT

EFFECT

VOLUME

FM AM

RADIO

PURE DIRECT

OPTIMIZER

TUNING

AUX

MIC

VIDEO

AUDIO

PORTABLE

U VTP

N TONE CONTROL

Adjusts high-frequency/low-frequency output of speakers/ headphones (see page 24).

O PROGRAM selector

Changes sound field programs (see page 27).

P STRAIGHT

Toggles between the selected sound field program and straight decoding mode (see page 30).

Q PURE DIRECT

Changes mode to Pure Direct mode (see page 25). This key lights up when Pure Direct mode is on.

R INPUT selector

Selects an input source (see page 24).

S OPTIMIZER MIC jack

For connecting the supplied optimizer microphone and adjusting output characteristics of speakers (see page 21).

T VIDEO (VIDEO AUX) jack

For connecting the video output cable of a camcorder or game console (see page 19).

U AUDIO L/R (VIDEO AUX) jack

For connecting the audio output cable of a camcorder or game console (see page 19).

V PORTABLE (VIDEO AUX) jack

For connecting the audio output cable of a portable music player (see page 19).

4 En

Rear panel

Part names and functions

COMPONENT

VIDEO

OPTICAL

(

DOCK

VIDEO

COAXIAL

)

(CD)

AV 2

AV 3

HDMI

ANTENNAPHONO

S.VIDEO

UNBAL.

GND

OPTICAL

AV 6

AV 4

AV 5

ij mknop

OUT

HDMI 1 HDMI 2 HDMI 3 HDMI 4

(

)

BD/DVD

MONITOR OUT

COMPORNENT

VIDEO

GND

AUDIO1

AUDIO2

FRONT

OUT

a DOCK jack

For connecting a Yamaha iPod universal dock (YDS-11, sold separately) or a Bluetooth wireless audio receiver (YBA-10, sold separately) (see page 19).

b PHONO jacks

For connecting a turntable (see page 17).

c ANTENNA jacks

For connecting supplied FM and AM antennas (see page 20).

d HDMI OUT/HDMI 1-4 jacks

For connecting an HDMI-compatible video monitor or external components for HDMI inputs 1-4 (see page 16).

e REMOTE IN/OUT jacks

For connecting an external component that supports the remote control function (see page 19).

f TRIGGER OUT jack

For connecting an external terminal with a trigger input terminal to operate it linked with operation of this unit. For example, when an electric screen that supports a trigger input is connected, it opens and closes linked with operation of an input source selected in this unit.

g SPEAKERS terminals

For connecting front right and left, center, surround and surround back speakers (see page 11). Connect the presence speakers (see page 12) or the speakers for Zone2 (see page 53) to the EXTRA SP jacks.

h Power Cable

Connect this cable to an AC wall outlet (see page 20).

i AV 1-6 jacks

For connecting external components for audio/video inputs 1-6 (see page 16).

j AV OUT jacks

Outputs audio/video signals from a selected analog input source to an external component (see page 17).

k AUDIO 1 /2 j acks

For connecting external components for audio inputs 1-2 (see page 17).

VIDEO

e f

REMOTE

OUT

12V

0.1A MAX.

TRIGGER OUT

SURROUND

MULTI CH INPUT

SUR.BACK

SPEAKERS

FRONT

CENTER

FRONT

SURROUND

SINGLE

SUR. BACK

PRE OUT

CENTER

SUBWOOFER

ZONE2

AUDIO

OUT

l MONITOR OUT terminals

Outputs video signals from this unit to a video monitor, such as a TV (see page 15).

m MULTI CH INPUT terminals

For connecting a player that supports a multi-channel output (see page 18).

n AUDIO OUT jacks

Outputs audio signals from a selected analog input source to an external component (see page 17).

o ZONE2 OUT jacks

Outputs sound of this unit to an external amplifier set in a different zone.

p PRE OUT terminals

For connecting a subwoofer with built-in amplifier (see page 11) or an external power amplifier (see page 18).

EXTRA SP

SURROUND BACK/

BI-AMP

CENTER

SUBWOOFER

SINGLE

ZONE2/PRESENCE

INTRODUCTION

PREPARATION

OPERATION

BASIC

OPERATION

ADVANCED

INFORMATION APPENDIX

ADDITIONAL

English

5 En

Part names and functions

abcdfehg

ij ki

Front panel display

a HDMI indicator

Lights up during normal communication when HDMI is selected as an input source.

b CINEMA DSP indicator

Lights up when a sound field program that uses CINEMA DSP is selected.

c CINEMA DSP 3D indicator

Lights up when CINEMA DSP 3D is activated.

d Tuner indicator

Lights up during receiving radio broadcast signals from an FM/ AM station (see page 31).

e ZONE2 indicator

Lights up when Zone2 is turned on (see page 53).

f SLEEP indicator

Lights up when the sleep timer is activated (see page 38).

g MUTE indicator

Flashes when audio is muted.

h VOLUME indicator

Displays volume levels.

i Cursor indicators

Light up when corresponding cursors on the remote control are available for operations.

j Multi information display

Displays menu items and settings for the current operation.

k Speaker indicators

Indicate speaker terminals from which signals are currently output.

Subwoofer

Presence L Presence R

Front L

Surround L

Surround back L

PL PR

LR SL SR

SBL SB SBR

Center

Front R

Surround R

Surround back R

Surround back

STEREO

TUNED

SLEEP

ZONE

VOL.

MUTE

PL PR

LR SL SR

SBL SB SBR

6 En

Remote control

Part names and functions

MAIN

ZONE2

TRANSMIT

POWER

SOURCE

HDMI

1234

V-AUX PHONO

TUNER

INFO

MEMORY

MOVIE

MUSIC

SCENE

DVD

ENTER

RETURN

TOP

REC

1234

INPUT

TV VOL

MUTE

POWER

SLEEP

AUDIO

1256

[ A ] DOCK

PRESET

ENHANCER SUR. DECODE

STEREO

STRAIGHT

PURE DIRECT

OPTIONSETUP

VOLUM E

DISPLAY

7856

TV CH

CODE SET

MULTI

TUNING

RADIO

MUTE

ENT

POWER

a Remote control signal transmitter

Transmits infrared signals.

b MAIN/ZONE2

Switches the zone to be operated by the remote control between the Main zone and Zone2 (see page 54).

c TRANSMIT

Lights up when a signal is output from the remote control.

d SOURCE POWER

Switches an external component on and off.

e Input selection keys

HDMI 1-4 AV 1-6 AUDIO 1/2 V-AUX

Select HDMI inputs 1 through 4. Select AV inputs 1 through 6. Select AUDIO inputs 1 and 2. Selects the V-AUX jack on the front panel of this

unit.

o p

PHONO

Selects a component such as a turntable that is connected to the PHONO jack on the rear panel as an input source.

[A]

To control external components using the

lExternal component operation keys separately from operations of this unit

(see page 55).

DOCK

Selects a Yamaha iPod universal dock/Bluetooth wireless audio receiver connected to the DOCK jack.

TUNER MULTI

Selects the FM/AM tuner. Selects a signal input from the MULTI CH

INPUT jack on the rear panel as an input source.

f Tuner keys

Select the FM band or AM band.

AM MEMORY PRESET k / n TUNING k / n

Presets radio stations. Select a preset station. Change tuning frequencies.

g INFO

Changes information on the front panel display, such as input source and sound field program name (see page 26).

h Sound selection keys

Selects sound field programs (see page 27).

i SCENE

Switch between linked sets of input sources and sound field programs (see page 24).

j SETUP

Displays the SETUP menu (see page 47).

k Cursors k / n / l / h/ENTER/RETURN

Cursors k / n / l / h

Select menu items displayed on the front panel display or on a video monitor, or change settings.

ENTER RETURN

Confirms a selected item. Returns to the previous screen or

ends the menu display.

l External component operation keys

Operate recording, playback etc. of external components (see page 55).

m Numeric keys

Enter numbers.

n TV control keys

Enable operations of a monitor such as a TV and a projector.

o CODE SET

Sets remote control codes for external component operations (see page 55).

p POWER

Switches this unit on and standby.

q SLEEP

Switches the sleep timer operations (see page 38).

r OPTION

Displays the OPTION menu (see page 39).

s VOLUME +/–

Adjust the volume of this unit (see page 24).

t DISPLAY

Changes the operation mode of the iPod connected to the Yamaha iPod universal dock (see page 35).

u MUTE

Turns the mute function of the sound output on and off (see page 25).

INTRODUCTION

PREPARATION

OPERATION

BASIC

OPERATION

ADVANCED

INFORMATION APPENDIX

ADDITIONAL

English

7 En

Quick start guide

When you use this product for the first time, perform the steps below. See the related pages for details of operations and settings.

Step 1: Prepare items for setup

Prepare speakers, DVD player, cables, and other items necessary for setup. For example, prepare the following items for setting up a

7.1-channel sound system.

Front right speaker

Video monitor

Front left speaker

Center speaker

Components

(such as DVD player)

Surround left speaker

Requirements qty.

Speakers Front speaker 2

Active subwoofer 1

Speaker cable 5

Subwoofer cable 1

Reproduction component such as DVD player 1

Video monitor such as TV 1

Video cable or HDMI cable 2

Audio cable 2

• Prepare at least two (front) speakers. Speakers other than front speakers

may be used in the following order of preference: 1 Two surround speakers 2 One center speaker 3 One or two surround back speakers

• If your video monitor is a CRT, we recommend that you use magnetically

shielded speakers.

• An audio cable is not required when you use an HDMI cable.

Subwoofer

Surround right speaker

Surround back right

Surround back left speaker

Center speaker 1

Surround speaker 2

Surround back speaker 2

speaker

Step 2: Set up your speakers

Place your speakers in the room and connect them to this unit.

• Placing speakers ☞P. 1 0

• Connecting speakers ☞P. 1 1

• This unit has a YPAO (Yamaha Parametric Room Acoustic Optimizer)

that automatically optimizes this unit based on room acoustic characteristics (audio characteristics of the speakers, speaker positions, and room acoustics, etc.). You can enjoy good balanced sound without special knowledge by using the YPAO technology (see page 21).

Step 3: Connect your components

Connect your TV, DVD player, or other components.

• Connecting a video monitor ☞P. 1 5

• Connecting other components ☞P. 1 6

• Connecting a multi-format player or an

external decoder ☞P. 1 8

• Connecting an external amplifier ☞P. 1 8

• Connecting a Yamaha iPod universal

dock or Bluetooth wireless audio receiver ☞P. 1 9

• Connecting the FM and AM antennas ☞P. 2 0

Step 4: Turn on the power

Connect the power cable and turn on this unit.

• Connecting the power cable ☞P. 2 0

• Turning this unit on and off ☞P. 2 0

Step 5: Select the input source and start playback

Select the component connected in the step 3 as an input source and start playback.

• Basic procedure ☞P. 2 4

• Selecting sound field programs ☞P. 2 7

• This unit supports the SCENE function that changes the input source and

sound field program at one time. Four SCENE are preset for different purposes for Blu-ray disc, DVD and CD. You can select from a SCENE from those just by pressing a remote control key. See page 24 for details.

8 En

PREPARATION

Preparing remote control

Installing batteries in the remote control

1 Take off the battery compartment cover.

2 Insert the two supplied batteries (AAA, R03,

UM-4) according to the polarity markings (+ and –) on the inside of the battery compartment.

3 Snap the battery compartment cover back

into place.

Notes

• Change all batteries if you notice the following conditions: – the operation range of the remote control narrows. – the transmit indicator does not flash or is dim.

• Do not use old batteries together with new ones.

This may shorten the life of the new batteries or cause old batteries to leak.

• Do not use different types of batteries (such as alkaline and manganese batteries) together. Specification of batteries may be different even though they look the same.

• If you find leaking batteries, discard the batteries immediately, taking care not to touch the leaked material. If the leaked material comes into contact with your skin or gets into your eyes or mouth, rinse it away immediately and consult a doctor. Clean the battery compartment thoroughly before installing new batteries.

• Dispose of the old batteries correctly in accordance with your local regulations.

• If the remote control is without batteries for more than 2 minutes, or if exhausted batteries remain in the remote control, the contents of the memory may be cleared. In such a case, install new batteries and set the remote control code.

Using the remote control

The remote control transmits a directional infrared ray. Be sure to aim the remote control directly at the remote control sensor on this unit during operation.

Remote control sensor window

within 6 m

Notes

• Do not spill water or other liquids on the remote control.

• Do not drop the remote control.

• Do not leave or store the remote control in the following conditions: – places of high humidity, such as near a bath – places of high temperatures, such as near a heater or stove – places of extremely low temperatures – dusty places

• You can operate external components with this remote control by setting the remote control code. See page 55 for details.

30 30

INTRODUCTION

PREPARATION

OPERATION

BASIC

OPERATION

ADVANCED

INFORMATION APPENDIX

ADDITIONAL

9 En

English

Connections

Placing speakers

This unit supports up to 7.1-channel surround playback. We recommend the following speaker layout in order to obtain the optimum surround effect.

7.1-channel speaker layout

Speaker channels

80˚

SBL

30˚

60˚

30 cm or more

6.1-channel speaker layout

30˚

60˚

80˚

5.1-channel speaker layout

30˚

60˚

80˚

SBR

■ Front left and right speakers (FL and FR)

The front speakers output the front channel sounds (stereo sound) and effect sounds. Place these speakers at an equal

distance from the ideal listening position. When using a screen, the appropriate top positions of the speakers are about 1/4 of the screen from the bottom.

■ Center speaker (C)

The center speaker outputs the center channel sounds (dialog, vocals, etc.). Place it halfway between the left and right speakers. When using a TV, place the speaker just above or just under the center of the TV with the front surfaces of the TV and the speaker aligned. When using a screen, place it just under the center of the screen.

■ Surround left and right speakers (SL and SR)

The surround speakers output effect sounds and surround sounds. Place them at the rear left and rear right facing the

listening position. To obtain a natural sound flow in the 5.1-channel speaker layout, place them slightly further back than in the 7.1channel speaker layout.

■ Surround back left and right speakers (SBL and SBR) / Surround back speaker (SB)

The surround back left and right speakers output rear effect sounds. Place them at the rear of the room facing the

listening position at least 30 cm away from each other, ideally at the same distance as that between the front left and right speakers. In the 6.1-channel speaker layout, surround back left and right channel sound signals are mixed down and output from the single surround back speaker. In the 5.1-channel speaker layout, surround back left and

right channel sound signals are output from the surround left and right speakers.

■ Subwoofer (SW)

The subwoofer speaker outputs bass sounds and lowfrequency effect (LFE) sounds included in Dolby Digital and DTS signals. Use a subwoofer with a built-in

amplifier, such as the Yamaha Active Servo Processing Subwoofer System. Place it exterior to the front left and right speakers facing slightly inward to reduce reflections from a wall.

10 En

Connecting speakers

EXTRA SP

ZONE2/PRESENCE

ZONE2

SUBWOOFER

SING

Connections

When you connect speakers, connect them to the respective jacks as follows, according to your speaker layout.

• You can connect up to two subwoofers. When two subwoofers are connected, the same sound is output from them.

■ 6.1-channel

SPEAKERS

a Front speaker L FRONT (L)

b Front speaker R FRONT (R)

c Center speaker CENTER

d Surround speaker L SURROUND (L)

e Surround speaker R SURROUND (R)

f Surround back speaker SURROUND

SINGLE

h Subwoofer 1 SUBWOOFER 1

i Subwoofer 2 (optional) SUBWOOFER 2

Speakers Jacks on this unit

BACK/BI-AMP (SINGLE)

■ 5.1-channel

R.BACK

PUT

FRONT

ENTER

AUDI

e d

ZONE2

CENTER

SURROUND

FRON

URROUND

SUR. BAC

RE OUT

SURROUND BACK/

BI-AMP

CENTER

SUBWOOFER

Speakers Jacks on this unit

a Front speaker L FRONT (L)

b Front speaker R FRONT (R)

c Center speaker CENTER

d Surround speaker L SURROUND (L)

e Surround speaker R SURROUND (R)

h Subwoofer 1 SUBWOOFER 1

i Subwoofer 2 (optional) SUBWOOFER 2

INTRODUCTION

PREPARATION

OPERATION

BASIC

OPERATION

ADVANCED

■ 7.1-channel

Speakers Jacks on this unit

a Front speaker L FRONT (L)

b Front speaker R FRONT (R)

c Center speaker CENTER

d Surround speaker L SURROUND (L)

e Surround speaker R SURROUND (R)

f Surround back speaker L SURROUND

BACK/BI-AMP (L)

g Surround back speaker R SURROUND

BACK/BI-AMP (R)

h Subwoofer 1 SUBWOOFER 1

i Subwoofer 2 (optional) SUBWOOFER 2

INFORMATION APPENDIX

ADDITIONAL

English

11 En

Connections

Presence speakers

You can connect presence speakers (PL/PR) that output front effect sounds to this unit. With CINEMA DSP sound field programs (see page 27) and their CINEMA DSP 3D functions, a sound with a richer and more spacial presence can be created. You can adjust the vertical position of center sound such as a dialog (see page 47).

0.5 to 1 m0.5 to 1 m

PRPL

1.8 m 1.8 m

To use the presence speakers, connect them to the EXTRA SP jacks and set “Extra SP Assign” in “Speaker Setup” in the SETUP menu to “Presence” (see page 47).

EXTRA SP

I-AM

Presence

speaker L

ZONE2/PRESENCE

Presence speaker R

MI 3

FRON

ENTE

RROUN

RROUND BACK

• Although you can connect both surround back speakers and presence

speakers to this unit, you cannot output sounds from those speakers at the same time. This unit automatically selects speakers to output sounds according to the selected input source and sound field program.

• You can connect Zone2 speakers with a multi-zone function to the

EXTRA SP jacks. For details, see page 53.

12 En

Connecting the speaker cable

Connections

Caution

• A speaker cable is a pair of insulated cables running side by side in general. One of the cables is colored differently

or striped to indicate a polarity. Connect one end of the colored/striped cable to the “+” (red) terminal of this unit and the other end to that of your speaker, and connect one end of the other cable to the “–” (black) terminal of this unit and the other end to that of your speaker.

• Before connecting the speakers, be sure to disconnect the power cable.

• Do not let the bare speaker wires touch each other or any metal part of this unit. This could damage this unit and/or

speakers. If the circuit shorts out, “CHECK SP WIRES!” appears on the front panel display when this unit is turned on.

• If your video monitor is a CRT, use magnetically shielded speakers. If images on the monitor are still distorted even

when you use the magnetically shielded speakers, place the speakers away from the monitor.

• Use speakers with an impedance of 6-ohm or larger. Set speaker impedance in “ADVANCED SETUP” before

connecting the speakers. You can also use 4-ohm speakers as the front speakers when you set “SP IMP.” to “6ΩMIN” (see page 58).

1 Remove approximately 10 mm of insulation

from the end of each speaker cable and then twist bare wires of the cable together so that they will not cause a short circuits.

Using bi-amplification connections

You can connect speakers that support bi-amplification connections to this unit. To connect the speakers via a biamp connection, connect them to the FRONT jacks and SURROUND BACK/BI-AMP jacks as illustrated.

10 mm

To enable the bi-amp connection, connect the power cable to the wall outlet, display the ADVANCED SETUP menu and set “BI AMP” to “ON” (see page 58).

Front speakers

Right Left

2 Loosen the knob, insert the twisted bare

wires into the hole, and then tighten the knob.

INTRODUCTION

PREPARATION

OPERATION

BASIC

OPERATION

ADVANCED

Red: positive (+)

Black: negative (–)

• You can connect the presence speakers (see page 12) or the speakers in

the second zone (Zone2) (see page 53) to the EXTRA SP jacks.

Connecting the banana plug (Except U.K., Europe, Russian, Asia and Korea models)

Tighten the knob, and then insert the banana plug into the end of the terminal.

Banana plug

SINGLE

This unit

FRONT

SURROUND BACK/

BI-AMP

Caution

Before making bi-amplification connections, remove any brackets or cables that connect a woofer with a tweeter. Refer to the instruction manuals of speakers for details. When not making bi-amplification connections, make sure that the brackets or cables are connected before connecting the speaker cables.

Note

• You cannot use surround back speakers or extra speakers (presence and

Zone2 speakers) when bi-amplification connections are made.

INFORMATION APPENDIX

ADDITIONAL

English

13 En

Connections

Information on jacks and cable plugs

This unit has the following input and output jacks. Use jacks and cables appropriate for components that you are connecting.

■ Audio jacks

Jack and cables Description

AUDIO jacks To transmit conventional analog

(white)

AUDIO

(red)

(stereo) signals. Use stereo pin

cables. Connect red plugs to red

jacks (R) and white plugs to white

jacks (L).

COAXIAL jacks To transmit coaxial digital audio

(orange)

COAXIAL

signals. Use pin cables for digital

audio signals.

OPTICAL jacks To transmit optical digital audio

signals. Use optical fiber cables for

OPTICAL

optical digital audio signals.

■ Video jacks

Jack and cables Description

VIDEO jacks To transmit conventional

VIDEO

(yellow)

S VIDEO jack To transmit S-video signals that

S VIDEO

COMPONENT VIDEO jacks

COMPONENT

VIDEO

(red)

(blue)

(green)

composite video signals. Use video

pin cables.

include luminance (Y) and

Cameroonians (C) components.

Use S-video cables.

To transmit component video

signals that include luminance (Y),

chrominance blue (PB) and

chrominance red (PR) components.

Use component video cables.

■ Video/audio jacks

Jack and cables Description

HDMI jacks To transmit digital video and

digital audio signals. Use HDMI

HDMI

• We recommend that you use a commercially available 19-pin HDMI

cable no longer than 5 meters (16 feet) with the HDMI logo printed on it.

• If you connect this unit to a component that has a DVI jack, an HDMI/

DVI-D cable is required.

• You can check error information on HDMI connections (see page 72).

HDMI

cables.

A video signal input to this unit is output from the jacks in MONITOR OUT for the same kind of signal as the input signal. For example, if a VCR with a composite output signal and a DVD player with a component video output signal are connected, connect both VIDEO jack and COMPONENT VIDEO jack in MONITOR OUT to the video monitor. If an HDMI input compatible monitor is connected, this unit automatically converts an analog signal that is input from a video input jack to a digital video signal, and then outputs it from the HDMI OUT jack.

Input Output

HDMI

COMPONENT

VIDEO

S VIDEO

VIDEO

Not converted Converted

HDMI

COMPONENT

VIDEO

14 En

Connecting a video monitor

0.1A MAX.

OUT

(

)

COMPO

OUT

AV 3

(CD)

AV 5

AV 6

OUT

COMPO

Connections

Connect a video monitor such as a TV or projector to an output jack of this unit. You can select one of the following three types according to the input signal format supported by the video monitor: HDMI OUT, COMPONENT VIDEO and VIDEO (composite video).

Note

• Make sure that this unit and video monitor are unplugged from the AC wall outlets.

TV or projector

Outputting sound of a TV from this unit

To output sound of a TV from this unit, connect an audio output terminal of the TV to any of the AV 1-6 jacks.

If the TV supports an optical digital output, we recommend that you use the AV 1. Connecting to the AV 1 allows you to switch an input source to the AV input 1 with a just a single key operation using the SCENE function (see page 24).

PBYP

OUT

HDMI

HON

.VIDE

REMOTE

RIGGER OU

NEN

VIDE

D/DVD

MONITOR OUT

COMPORNENT

VIDEO

TV or projector

Digital output

HON

VIDE

(optical)

.VIDE

NBAL.

ANTENN

MONITOR

RNENT

IDE

INTRODUCTION

PREPARATION

OPERATION

BASIC

OPERATION

ADVANCED

■ To connect an HDMI video monitor

Jacks on components Jacks on this unit

a HDMI input HDMI OUT

• This unit supports the HDMI control function. By connecting a TV that

supports the HDMI control, operations of this unit can be controlled with the remote control of the TV. For details, see page 38.

■ To connect component video monitor

Note

• Only video signals input from this unit via the COMPONENT VIDEO

jack are output from the COMPONENT VIDEO jack.

Jacks on components Jacks on this unit

b Component video output MONITOR OUT

(COMPONENT VIDEO)

■ To connect composite video monitor

Note

• Only video signals input from this unit via the VIDEO jacks are output

from the VIDEO jacks.

Jacks on components Jacks on this unit

c Video input (composite) MONITOR OUT (VIDEO)

AXIAL

OPTICAL

(

)

PTICAL

FRO

UDI

AUDI

Note

• If the video monitor connected to this unit supports the HDMI control

function, we recommend that you connect its audio output jack to the OPTICAL jack of the AV1 jacks of this unit. By doing so, this unit automatically turns on and “TV” of SCENE is automatically selected when you turn on the video monitor. You can obtain the same result even if you connect the audio output jacks to the AV2-6, AUDIO1-2 or VAUX jacks by assigning those jacks to TV in advance (see page 24).

INFORMATION APPENDIX

ADDITIONAL

English

15 En

Connections

TRIGGER OUT

MAX.

ZONE2

COMPO

Connecting other components

This unit has input and output jacks for respective input and output sources. You can reproduce sound and movies from input sources selected with the front panel display or remote control.

Note

• Make sure that this unit and other components are unplugged from the AC wall outlets.

Audio/video input

(AV 1-6)

Phono input

(PHONO)

Audio/video output (AV OUT)

DOCK

PHONO

GND

OPTICAL

AV 4

S.VIDEO

AV 5

AV 6

COMPONENT

VIDEO

OPTICAL

(

AV 1

VIDEO

COAXIAL

)

(CD)

AV 2

AV 3

Audio input (AUDIO 1-2)

■ Audio and video player/Set-top box

Output jacks on the connected external component

External

components

External component

with HDMI output

External component

with component video

output

External component

with S-video output

External component

with composite video

output

Signals Output jacks

Audio/Video HDMI output HDMI1 (BD/DVD) HDMI 1

Audio Optical digital output AV1 (TV) OPTICAL

Video Component video output COMPONENT VIDEO

Audio Coaxial digital output AV2 COAXIAL

Video Component video output COMPONENT VIDEO

Audio Analog audio output AV5 AUDIO

Video S-video output S VIDEO

Audio Coaxial digital output AV3 (CD) COAXIAL

Video Composite video output VIDEO

Audio Optical digital output AV4 OPTICAL

Video Composite video output VIDEO

Audio Analog audio output AV5 AUDIO

Video Composite video output VIDEO

Audio Analog audio output AV6 AUDIO

Video Composite video output VIDEO

HDMI 1 HDMI 2 HDMI 3 HDMI 4

(

)

BD/DVD

NTENNA

OUT

ONITOR OU

RNENT

IDE

FRONT

AUDIO2

AUDIO1

HDMI2 HDMI 2

HDMI3 HDMI 3

HDMI4 HDMI 4

REMOT

0.1A

SURROUND

MULTI CH INPUT

SUR.BACK

CENTER

SUBWOOFER

RON

AUDIO

ZONE2

OUT

Multi channel audio input (MULTI CH)

Input sources/jacks of this unit

HDMI input (HDMI 1-4)

Audio output (AUDIO OUT)

16 En

Connections

• Input sources in parentheses are recommended to connect to the respective jacks. If a component is compatible with the SCENE function, you can switch

the input source to that component with a single key operation using the SCENE function (see page 24).

• You can change the name of the input source displayed on the front panel display or the video monitor as necessary (see page 52).

• See page 53 on how to use ZONE2 OUT jack.

■ Audio player

Output jacks on the connected external component

External components Output jacks

External component with optical digital

output

External component with coaxial digital

output

External component with analog audio

output

Turntable Analog audio output PHONO PHONO

• When connecting a turntable with a low-output MC cartridge to the PHONO jack, use an in-line boosting transformer or MC-head amplifier.

• Connect your turntable to the GND terminal of this unit to reduce noise in the signal.

• We recommend connecting the coaxial digital output terminal of a CD player to the AV3 jack.

Optical digital output AV 1 (TV) OPTICAL

AV 4 OPTICAL

Coaxial digital output AV 2 COAXIAL

AV 3 (CD) COAXIAL

Analog audio output AV 5 AUDIO

AV 6 AUDIO

AUDIO 1 AUDIO

AUDIO 2 AUDIO

Input sources/jacks of this unit

About audio/video output jacks

Among the analog audio and analog video signals input to this unit via input terminals, the audio/video signals of the selected input sources are output from the AV OUT jack and AUDIO OUT jack. An HDMI input signal, COMPONENT VIDEO input signal or digital audio input signal cannot be output. When using the AV OUT jacks or AUDIO OUT jacks, connect them as follows:

When using the AV OUT jacks: connect them to composite video and analog audio input jacks of an external

component.

When using the AUDIO OUT jacks: connect them to analog audio jacks of an external component.

INTRODUCTION

PREPARATION

OPERATION

BASIC

OPERATION

ADVANCED

17 En

INFORMATION APPENDIX

ADDITIONAL

English

Connections

abc d

Connecting a multi-format player or an external decoder

This unit has 8 sets of input jacks (FRONT L/R, CENTER, SURROUND L/R, SUR. BACK and SUBWOOFER) to input multi-channel analog sound signals. If your playback component, such as a DVD player or SACD player, has multi-channel analog output capability, you can enjoy up to 7.1-channel multi-channel sound. To output multi-channel sound, connect the audio output jacks of your playback component to the MULTI CH INPUT jacks of this unit, and set the input source of this unit to “MULTI CH.” For details on how to change input sources, see page 24.

CENTER

SURROUND

FRONT

out

Front out

Multi-format player/External decoder

(7.1-channel output)

Notes

• When you select “MULTI CH” as the input source, the digital sound field

processor is automatically disabled.

• Since this unit does not redirect signals input at the MULTI CH INPUT

jacks to accommodate for missing speakers, connect at least a 5.1channel speaker system when using this feature.

• When the input source is switched to “MULTI CH,” images input from a

component connected to “AV1-6” or “V-AUX” can be displayed on a video monitor (see page 41). If your DVD player does not support multichannel digital output, connect it to these input jacks.

SUR.BACK

MULTI CH INPUT

LRLR LR

Surround

back out

Surround

SUBWOOFER

Subwoofer out

Center out

Connecting an external amplifier

The same channel signals are output from the jacks of the PRE OUT terminals as from their corresponding SPEAKERS terminals. When connecting an external power amplifier (pre-main amplifier) to enhance speaker output, connect the input terminals of the power amplifier to the PRE OUT terminals of this unit.

Note

• When a component is connected to the PRE OUT terminals, do not

connect speakers to the SPEAKERS terminals corresponding to those PRE OUT terminals.

CENTERSINGLE

FRONT

SURROUND

PRE OUT

a FRONT (PRE OUT) jacks

Front channel output jacks.

b SURROUND (PRE OUT) jacks

Surround channel output jacks.

c SUR. BACK (PRE OUT) jacks

Surround back output jacks. When you only connect one external amplifier for the surround back channel, connect it to the SUR. BACK (SINGLE) jack.

• To output surround back channel signals through these jacks, set

“Sur.B L/R SP” to any parameter except for “None” in “Speaker Setup” (see page 48).

d CENTER (PRE OUT) jack

Center channel output jack.

e SUBWOOFER (PRE OUT) 1/2 jack

Connect a subwoofer with a built-in amplifier. When two subwoofers are connected, the same sound is output from them.

SUR. BACK

SUBWOOFER

18 En

Connections

OUT

)

COMPO

GND

COMPO

l l

D TV

Using REMOTE IN/OUT jacks

When the components are the Yamaha products and have the capability of the transmission of the remote control signals, connect the REMOTE IN and REMOTE OUT jacks to the remote control input and output jack with the monaural analog mini cable as follows.

DMI 1HDMI 2DMI 3DMI 4

D/DVD

NITOR

RNENT

IDE

REMOTE

OUT

IDE

Remote

control out

Infrared signal

receiver or Yamaha

component

• If your Yamaha component supports the SCENE link playback function,

remote connection automatically starts playback when you press MSCENE (or iSCENE) to select a SCENE.

• If the component connected to the REMOTE OUT jack is not a Yamaha

product, set “SCENE IR” in the ADVANCED SETUP menu to “OFF” (see page 58).

Remote control in

Yamaha component

(CD or DVD player, etc.)

Connecting a camcorder or portable audio player

The V-AUX terminals on the front panel are useful for connecting a camcorder, a game console or a portable music player to this unit. Be sure to turn down the volume of this unit and other components before making connections.

VOLUM

EMOR

D/DV

TRAIGH

EFFECT

Video output

PRESET

ENE

UREDIRECT

VIDEO

Analog audio

output

ADI

VIDEO

AUDIO

NIN

PTIMIZER

AUX

PORTABLE

output

VIDEO

AUDIO

Analog audio

AUX

PORTABLE

INTRODUCTION

PREPARATION

OPERATION

BASIC

OPERATION

ADVANCED

Connecting a Yamaha iPod universal dock or Bluetooth™ wireless audio receiver

This unit has the DOCK jack, to which you can connect a Yamaha iPod universal dock (YDS-11, sold separately) or a Bluetooth wireless audio receiver (YBA-10, sold separately). You can play an iPod or a Bluetooth component with this unit by connecting it to the DOCK jack. Use a dedicated cable for connection between the dock/ receiver and this unit.

DOCK

PHON

NENT

IDE

Yamaha iPod universal dock/Bluetooth wireless audio receiver

.VIDE

Game console/Camcorder Music player

• To connect a component to the PORTABLE jack, use a 3.5 mm stereo

mini plug cable.

• When external components are connected both the PORTABLE jack and

AUDIO jack, sound input from the PORTABLE jack is output.

INFORMATION APPENDIX

ADDITIONAL

English

19 En

Connections

COMPO

OUT

COMPO

Connecting the FM and AM antennas

An indoor FM antenna and an AM loop antenna are supplied with this unit. Connect these antennas properly to the respective jacks.

Indoor FM antenna

NENT

IDEO

• The supplied antennas are normally sensitive enough to obtain good

reception.

• Position the AM loop antenna away from this unit.

• If you cannot get good reception, we recommend that you use an outdoor

antenna. For more details, consult the nearest authorized Yamaha dealer or service center.

• Always use the AM loop antenna even when the outdoor antenna is

connected.

Outdoor AM antenna Connect a 5 to 10 m vinylcovered wire, and extend it outdoors (use the AM loop antenna together with this antenna).

PHON

VIDE

Ground (GND terminal) The GND terminal is not for earth grounding. To reduce noises, connect a ground bar or a vinyl-covered wire with a copper plate at its tip, and place it in the moist ground.

ANTENNA

.VIDE

UNBAL.

MONITOR OUT

RNEN

VIDE

GND

Assembling the AM loop antenna

AM loop antenna

EMOT

VIDE

12V

TRIGGER OUT

0.1A MAX.

Connecting the power cable

After all connections are complete, plug the AC power cable of this unit into an AC wall outlet.

To the AC wall outlet

RESENCE

Power cable

Turning this unit on and off

1 Press AMAIN ZONE ON/OFF (or

pPOWER) to turn on this unit.

2 Press AMAIN ZONE ON/OFF (or

pPOWER) again to turn off this unit (standby).

• This unit needs a few seconds until ready to play back.

• You can also turn on this unit by pressing MSCENE (or iSCENE).

• This unit consumes a small amount of electricity even during standby.

We recommend disconnecting the power cable from the AC wall outlet.

Caution

Do not unplug this unit while it is turned on. Doing so may damage this unit or cause the settings of this unit to be saved incorrectly.

Connecting the AM loop antenna

The wires of the AM loop antenna have no polarity. You can connect either wire to the AM terminal and the other to the GND terminal.

Press and hold ReleaseInsert

20 En

Optimizing the speaker setting for your listening room (YPAO)

This unit has a Yamaha Parametric Room Acoustic Optimizer (YPAO). With the YPAO, this unit automatically adjusts the output characteristics of your speakers based on speaker position, speaker performance, and the acoustic characteristics of the room. We recommend that you first adjust the output characteristics with the YPAO when you use this unit.

INTRODUCTION

Notes

• Loud test tones may be output during the automatic

setup procedure. Do not allow small children to enter the room during the procedure.

• To achieve the best results, make sure the room is as

quiet as possible while the automatic setup procedure is in progress. If there is too much ambient noise, the results may not be satisfactory.

• You can manually adjust the output characteristics of your speakers

with “2 Manual Setup” in the SETUP menu. For details, see page 47.

Using Auto Setup

1 Check the following points.

Before starting the automatic setup, check the following.

• All speakers and subwoofer are connected

properly.

• Headphones are disconnected from this unit.

• The video monitor is connected properly.

• This unit and the video monitor are turned on.

• This unit is selected as the video input source of the

video monitor.

• The connected subwoofer is turned on and the

volume level is set to about half way (or slightly less).

• The crossover frequency controls of the connected

subwoofer are set to the maximum.

CROSSOVER/

VOLUME

HIGH CUT

“MIC ON. View OSD MENU” appears on the front panel display. The following menu screen appears on the video monitor.

1 AutoSetup

ExtraSPAssign >Zone2Presence None

EQ Type;;;;Natural

. Start

[

[]/[]:Up/Down

[ENTER]:Start

• You can bring up the above menu screen from the SETUP menu

(see page 47).

3 Place the optimizer microphone at your

normal listening position on a flat level surface with the omni-directional microphone heading upward.

Optimizer microphone

• It is recommended that you use a tripod or something similar to fix the

optimizer microphone at the same height as your ears would be when seated in your listening position. You can fix the optimizer microphone to the tripod with the attaching screw of the tripod.

PREPARATION

OPERATION

BASIC

OPERATION

ADVANCED

INFORMATION APPENDIX

ADDITIONAL

4 When the speakers are connected to EXTRA

MIN MAX

Subwoofer

MIN MAX

2 Connect the supplied optimizer microphone

to the OPTIMIZER MIC jack on the front panel.

OPTIMIZER

MIC

VIDE

VIDEO

AUDI

Optimizer microphone

RTABL

SP jacks, press kCursor k repeatedly to select “Extra SP Assign,” and then press kCursor l / h to select how to use EXTRA SP jacks from “Zone2,” “Presence” or “None.”

If this unit does not work when you press kCursor, press jSETUP once and then operate this unit.

English

21 En

Optimizing the speaker setting for your listening room (YPAO)

5 To select a sound character for adjustment,

press kCursor n to select “EQ Type” and then press kCursor l / h.

If this unit does not work when you press kCursor, press jSETUP once and then operate this unit. This unit has a parametric equalizer that adjusts the output levels for each frequency range. The equalizer is adjusted to produce a cohesive sound field based on automatically measured speaker characteristics. In “EQ Type,” you can select the following parametric equalizer characteristics suitable for the desired sound characteristics.

Natural

Adjusts all speakers to achieve natural sound. Select this if sounds in the high frequency range seem too strong when “EQ Type” is set to “Flat.”

Flat

Adjusts each speaker to obtain the same characteristics. Select this if your speakers have similar qualities.

Front

Adjusts each speaker to obtain the same characteristics as the front left and right speakers. Select this if your front left and right speakers have significantly better qualities than the other speakers.

6 Press kCursor n to select “Start” and then

press kENTER to start the setup procedure.

A countdown starts and a measurement starts in 10 seconds. A loud test tone is output during measurement.

Notes

• During the automatic setup procedure, do not perform any

operation on this unit.

• To cancel the automatic setup procedure, press kCursor k.

Measurement takes about 3 minutes. To obtain precise results, stay where you will not disturb the measurement, such as to the side of or behind the speakers or outside the room.

When measurement is successfully completed, “YPAO Complete” appears on the front panel display and the results appear on the video monitor.

DIST

Displays the speaker distance from the listening position in the following order: Closest speaker distance/Farthest speaker distance

LVL

Displays the speaker output levels in the following order: Lowest speaker output level/Highest speaker output level

Notes

• If “ERROR” appears on the video monitor during the automatic setup

procedure, measurement is canceled and the type of error is displayed. For details, see “When an error message is displayed during measurement” (see page 23).

• If problems occur during measurement, “WARNING (XX)” (xx indicates

the number of warning) appears above “RESULT” (see page 23).

7 Press kENTER.

The speaker characteristics are adjusted according to measurement results. To cancel the operation, press kCursor l / h to select “Cancel” and press kENTER. When the following screen appears, remove the optimizer microphone. The automatic setup procedure is now complete.

1 AutoSetup

AUTOSETUPComplete 

DisconnectMicrophone

PRESS[ENTER]

[SETUP]:Exit

The optimizer microphone is sensitive to heat. Store it in a cool place and away from direct sunlight after measurement. Do not leave it in a place where it will be subjected to high temperatures such on an AV component.

• If you do not want to apply the measurement results, select “Cancel.”

• Perform the automatic setup procedure again if you change the number

or positions of speakers.

• If you press kENTER before removing the optimizer microphone,

“1 Auto Setup” of “Speaker Setup” in the SETUP menu (see page 47) is displayed.

1 AutoSetup

RESULT SP:3/4/0.1 DIST:2.50/3.00m LVL:-3.5/+4.5dB

. >Set Cancel

[]/[]:Select

[ENTER]:Finish

Displays the number of speakers connected to this unit in the following order: Total of Front, Center, and Presence/Total of Surround and Surround Back/Subwoofer

22 En

Optimizing the speaker setting for your listening room (YPAO)



When an error message is displayed during measurement

Press kCursor n once, and select “Retry” or “Exit” using kCursor l / h and then press kENTER.

ERROR

.E-9:USER CANCEL

any function

>RetryExit

[ENTER]:Return

Retry

Performs the automatic setup procedure again.

Exit

Terminates the measurement and the automatic setup procedure.

• See page 66 for details on error messages.

• When “E-5:NOISY” appears, you can continue measurement. To

continue measurement, select “Proceed.” However, we recommend that you solve the problem first and then perform measurement again.

operate

Don't

[]/[]:Select

When a warning message is displayed after measurement

If a problem occurs during measurement, “WARNING” is displayed on the result display screen. Check the error and solve the problems.

WARNING

W-1:OUTOFPHASE Reversechannel FL--CENTER -----SL--SBL--[]/[]:Select

[ENTER]:Return

• See page 67 for details on warning messages.

• Optimization will not be performed while a warning message is

displayed. We recommend that you solve the problem and perform the automatic setup procedure again.

1 If “→” is displayed on the left of “WARNING”

on the result display screen, press kENTER.

Details of the warning message are displayed. If there are multiple warning messages, you can display the next message using kCursor h.

2 To return to the top result display, press

kENTER again.

INTRODUCTION

PREPARATION

OPERATION

BASIC

OPERATION

ADVANCED

INFORMATION APPENDIX

ADDITIONAL

English

23 En

BASIC OPERATION

Playback

Basic procedure

1 Tur n o n e x t er n al co mponents (TV, DVD

player, etc.) connected to this unit.

2 Rotate the RINPUT selector (or press the

eInput selection keys) to select an input source.

The name of the selected input source is displayed for a few seconds.

Input source name

VOL.

SW C

Vol um e

VOL.

SL SR

SW C

LR SL SR

AV1

• You can change the input source name displayed on the front panel

display or on the video monitor as necessary (see page 52).

3 Play the external component that you have

selected as the source input, or select a radio station on the tuner.

Refer to the instruction manuals provided with the external component for details on playback. For selecting radio stations or playback of an iPod or Bluetooth component using this unit, see the following.

• Using iPod (see page 35)

• Using Bluetooth components (see page 37)

4 Tur n t he LVOLUME control to adjust the

volume (or press sVOLUME +/–).

Volume-18.5dB

Note

When you play back a DTS-CD, noise may be output in some

conditions, which may cause a speaker malfunction. Make sure

that the volume is set to low before starting playback. If noise is

output, do the following.

1) When only noise is output If a DTS bitstream signal is not properly input to this unit, only noise is output. Connect the playback component to this unit by digital connection and play back the DTS-CD. If the condition is not improved, the problem may results from the playback component. Consult the manufacturer of the playback component.

2) When noise is output during playback or skip operation Before playing back the DTS-CD, display the OPTION menu after selecting the input source and set “Decoder Mode” to “DTS” (see page 40).

Using the SCENE function

This unit has four SCENE keys that allow you to change input sources and sound field programs with one key. A set of input source and sound program suitable for a certain situation, such as playing back movies or music, is assigned to each key by default.

Input source Sound field program

BD/DVD HDMI1 Straight

TV AV1 Straight

CD AV3 Straight

RADIO TUNER 7ch Enhancer

• This unit turns on when MSCENE (or iSCENE) is pressed during

standby.

• If a Yamaha DVD player that can receive SCENE control signals is

connected to the REMOTE OUT jack of this unit, the DVD player automatically turns on and starts playback when MSCENE (or iSCENE) is pressed (see page 19). For details, refer to the instruction manual of the DVD player.

Selecting a SCENE

Press MSCENE (or iSCENE).

Registering input source/sound field program

Select the desired input source/sound field program, and press down MSCENE (or iSCENE) until “SET Complete” appears on the front panel display.

When the OSD is displayed on the video monitor, “SCENE Setting Complete” appears on the video monitor.

• If you are using the remote control for an external component, set that

external component too whenever SCENE setting is performed. For more details, see the next section.

24 En

Playback

Switching remotely controlled external components linked to SCENE selections

You can operate an external component with the remote control of this unit by setting a remote control code for the external component for each input source. Setting remote control codes for desired input sources allows you to switch between external components linked to SCENE selections. When you change the SCENE key settings, change settings of the external component as well by following the steps below.

1 Register the remote control code of an

external component to the desired input source (see page 55).

Note

• Remote control codes cannot be registered to TUNER input

sources.

2 Press eInput selection keys on the

remote control for the input source whose remote control code was registered in step 1 for about 3 seconds while pressing down iSCENE key whose assignment you want to change.

The external component can now be controlled remotely just by selecting the iSCENE key.

Muting audio output temporarily (MUTE)

1 Press uMUTE on the remote control to mute

the audio output.

The MUTE indicator on the front panel display flashes while audio output is muted.

2 Press uMUTE again to resume audio

output.

Adjusting high/low frequency sound (tone control)

You can adjust the balance of the high frequency range (Treble) and low frequency range (Bass) of sounds output from the front left and right speakers to obtain desired tone.

• The tone control of the speakers or headphones can be set separately. Set

the headphone tone control with the headphones connected.

1 Press NTONE CONTROL on the front panel

repeatedly to select “Treble” or “Bass.”

The current setting is displayed on the front panel display.

Treble

0.0dB

2 Rotate the OPROGRAM selector to adjust

the output level in those frequency ranges.

Adjustable range: –10.0 dB to +10.0 dB The display returns to the previous screen soon after you release the selector.

Notes

• The tone control settings are not effective during playback in Pure Direct

mode.

• If you set the balance extremely off, sounds may not match those from

other channels well.

Enjoying pure hi-fi sound (Pure Direct mode)

Use Pure Direct mode to enjoy the pure high fidelity sound of the selected source. When Pure Direct mode is activated, this unit plays back the selected source with the least circuitry.

Press QPURE DIRECT (or hPURE DIRECT) to turn the Pure Direct mode on or off.

The following features are disabled in Pure Direct mode.

– sound field program and tone control – display and operation of the OPTION menu and

SETUP menu

– multi-zone function

• The front panel display turns off in Pure Direct mode. It turns on again

when Pure Direct mode is turned off.

INTRODUCTION

PREPARATION

OPERATION

BASIC

OPERATION

ADVANCED

INFORMATION APPENDIX

ADDITIONAL

25 En

English

Playback

Using your headphones

Plug your headphones in the BPHONES jack on the front panel.

When you select a sound field program while using the headphones, the mode is automatically set to SILENT CINEMA mode.

Notes

• When you connect headphones, no signals are output from the

SPEAKERS terminals.

• When multi-channel signals are processed, sounds in all channels are

divided to left and right channels. When the input source is set to “MULTI CH,” only front L/R sound is output from the headphones.

Displaying input signal information

When HDMI1-4 or AV1-4 is selected as the input source, you can display audio/video signal information.

• Input signal information is displayed on both a video monitor and the

front panel display.

1 Select the desired input source, and press

rOPTION.

The OPTION menu for the selected input source is displayed (see page 39).

2 Press kCursor k / n to select “Signal Info,”

and press kENTER.

Information on input signals is displayed. See page 40 on information displayed on the screen.

• You can change items of information displayed on the front panel

display using kCursor k / n.

• If an HDMI related error occurs, error information is displayed at

the bottom of the screen.

3 To end the information display, press

rOPTION.

Changing information on the front panel display

You can display information on the front panel display such as the names of the currently selected sound field program and surround decoders on the front panel display. To change the display, press FINFO (or gINFO) repeatedly. The following information can be displayed on the front panel display.

• Currently selected input source name (Input)

• Currently selected sound field program name (DSP

Program)

• Currently selected surround decoder (Audio Decoder)

• Currently set FM/AM tuner frequency (Frequency)

• FM Radio Data System information (Program Service,

Program Type, Radio Text, Clock Time)

• iPod playback information (Song, Album, Artist, List)

For example, if you select HDMI1 and display “DSP Program,” the following screen appears on the front panel display.

Input source

Straight

Sound field program (DSP program)

The information on each input source that can be displayed is shown in the table below.

Input source Items

HDMI1-4 AV 1 - 6 AUDIO1-2 V- AU X PHONO

MULTI CH Input

FM/AM Frequency

iPod (Simple remote mode)

iPod (Menu browse mode)

Bluetooth Input

*: “Program Service,” “Program Type,” “Radio Text” and “Clock

Type” do not appear when the radio station does not provide the Radio Data System service.

Input DSP Program Audio Decoder

DSP Program Audio Decoder Program Service* Program Type* Radio Text* Clock Time*

Input DSP Program Audio Decoder

(Play information display) Artist Album Song DSP Program Audio Decoder

(Play menu display) List

DSP Program Audio Decoder

26 En
