Yamaha CLP-430, CLP-S406, CLP-440, CLP-470, CLP-S408 User Manual

...

OWNER’S MANUAL

CLP470

CLP440

CLP430

CLP-S408 CLP-S406 CLP-465GP

IMPORTANT

— Check your power supply —

Make sure that your local AC mains voltage matches the voltage speciﬁed on the name plate on the bottom panel. In some areas a voltage selector may be provided on the rear panel of the main keyboard unit near the power cord. Make sure that the voltage selector is set for the voltage in your area. The voltage selector is set at 240V when the unit is initially shipped. To change the setting use a "minus" screwdriver to rotate the selector dial so that the correct voltage appears next to the pointer on the panel.

For information on assembling the instrument, refer to the instructions at the end of this manual.

SPECIAL MESSAGE SECTION

PRODUCT SAFETY MARKINGS: Yamaha electronic products may have either labels similar to the graphics shown below or molded/stamped facsimiles of these graphics on the enclosure. The explanation of these graphics appears on this page. Please observe all cautions indicated on this page and those indicated in the safety instruction section.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

See bottom of Keyboard enclosure for graphic symbol markings.

The exclamation point within the equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

The lightning flash with arrowhead symbol, within the equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electrical shock.

IMPORTANT NOTICE: All Yamaha electronic products are tested and approved by an independent safety testing laboratory in order that you may be sure that when it is properly installed and used in its normal and customary manner, all foreseeable risks have been eliminated. DO NOT modify this unit or commission others to do so unless specifically authorized by Yamaha. Product performance and/or safety standards may be diminished. Claims filed under the expressed warranty may be denied if the unit is/has been modified. Implied warranties may also be affected.

SPECIFICATIONS SUBJECT TO CHANGE: The information contained in this manual is believed to be correct at the time of printing. However, Yamaha reserves the right to change or modify any of the specifications without notice or obligation to update existing units.

ENVIRONMENTAL ISSUES: Yamaha strives to produce products that are both user safe and environmentally friendly. We sincerely believe that our products and the production methods used to produce them, meet these goals. In keeping with both the letter and the spirit of the law, we want you to be aware of the following:

Battery Notice: This product MAY contain a small nonrechargeable battery which (if applicable) is soldered in place. The average life span of this type of battery is approximately five years. When replacement becomes necessary, contact a qualified service representative to perform the replacement.

Warning: Do not attempt to recharge, disassemble, or incinerate this type of battery. Keep all batteries away from children. Dispose of used batteries promptly and as regulated by applicable laws. Note: In some areas, the servicer is required by law to return the defective parts. However, you do have the option of having the servicer dispose of these parts for you.

Disposal Notice: Should this product become damaged beyond repair, or for some reason its useful life is considered to be at an end, please observe all local, state, and federal regulations that relate to the disposal of products that contain lead, batteries, plastics, etc.

NOTICE: Service charges incurred due to lack of knowledge relating to how a function or effect works (when the unit is operating as designed) are not covered by the manufacturer’s warranty, and are therefore the owners responsibility. Please study this manual carefully and consult your dealer before requesting service.

NAME PLATE LOCATION: The graphic below indicates the location of the name plate. The model number, serial number, power requirements, etc., are located on this plate. You should record the model number, serial number, and the date of purchase in the spaces provided below and retain this manual as a permanent record of your purchase.

Model

Serial No.

Purchase Date

92-469- 1 (bottom)

FCC INFORMATION (U.S.A.)

1.IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT!

This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Yamaha may void your authority, granted by the FCC, to use the product.

2.IMPORTANT: When connecting this product to accessories and/or another product use only high quality shielded cables. Cable/s supplied with this product MUST be used. Follow all installation instructions. Failure to follow instructions could void your FCC authorization to use this product in the USA.

3.NOTE: This product has been tested and found to comply with the requirements listed in FCC Regulations, Part 15 for Class “B” digital devices. Compliance with these requirements provides a reasonable level of assurance that your use of this product in a residential environment will not result in harmful interference with other electronic devices. This equipment generates/uses radio frequencies and, if not installed and used according to the instructions found in the users manual, may cause interference harmful to the operation of other electronic devices. Compliance with FCC regulations

does not guarantee that interference will not occur in all installations. If this product is found to be the source of interference, which can be determined by turning the unit “OFF” and “ON”, please try to eliminate the problem by using one of the following measures:

Relocate either this product or the device that is being affected by the interference.

Utilize power outlets that are on different branch (circuit breaker or fuse) circuits or install AC line filter/s.

In the case of radio or TV interference, relocate/ reorient the antenna. If the antenna lead-in is 300 ohm ribbon lead, change the lead-in to co-axial type cable.

If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type of product. If you can not locate the appropriate retailer, please contact Yamaha Corporation of America, Electronic Service Division, 6600 Orangethorpe Ave, Buena Park, CA90620

The above statements apply ONLY to those products distributed by Yamaha Corporation of America or its subsidiaries.

* This applies only to products distributed by YAMAHA CORPORATION OF AMERICA.

(class B)

COMPLIANCE INFORMATION STATEMENT

(DECLARATION OF CONFORMITY PROCEDURE)

Responsible Party : Yamaha Corporation of America

Address : 6600 Orangethorpe Ave.,

Buena Park, Calif. 90620

Telephone : 714-522-9011

Type of Equipment : Digital Piano

Model Name : CLP-470/440/430/S408/S406/

465GP

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1)this device may not cause harmful interference, and

2)this device must accept any interference received including interference that may cause undesired operation.

See user manual instructions if interference to radio reception is suspected.

*This applies only to products distributed by	(FCC DoC)
YAMAHA CORPORATION OF AMERICA.

IMPORTANT NOTICE FOR THE UNITED KINGDOM

Connecting the Plug and Cord

IMPORTANT. The wires in this mains lead are coloured in accordance with the following code:

BLUE : NEUTRAL BROWN : LIVE

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured makings identifying the terminals in your plug proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED.

Making sure that neither core is connected to the earth terminal of the three pin plug.

•This applies only to products	(2 wires)
distributed by Yamaha Music	U.K. Ltd.

PRECAUTIONS

PLEASE READ CAREFULLY BEFORE PROCEEDING

* Please keep this manual in a safe place for future reference.

WARNING

Always follow the basic precautions listed below to avoid the possibility of serious injury or even death from electrical shock, short-circuiting, damages, fire or other hazards. These precautions include, but are not limited to, the following:


Power supply/Power cord		If you notice any abnormality

•Do not place the power cord near heat sources such as heaters or radiators, and do not excessively bend or otherwise damage the cord, place heavy objects on it, or place it in a position where anyone could walk on, trip over, or roll anything over it.

•Only use the voltage specified as correct for the instrument. The required voltage is printed on the name plate of the instrument.

•Use only the supplied power cord/plug.

•Check the electric plug periodically and remove any dirt or dust which may have accumulated on it.

•When one of the following problems occur, immediately turn off the power switch and disconnect the electric plug from the outlet. Then have the device inspected by Yamaha service personnel.

•The power cord or plug becomes frayed or damaged.

•It emits unusual smells or smoke.

•Some object has been dropped into the instrument.

•There is a sudden loss of sound during use of the instrument.

Do not open

•This instrument contains no user-serviceable parts. Do not open the instrument or attempt to disassemble or modify the internal components in any way. If it should appear to be malfunctioning, discontinue use immediately and have it inspected by qualified Yamaha service personnel.

Water warning

•Do not expose the instrument to rain, use it near water or in damp or wet conditions, place on it any containers (such as vases, bottles or glasses) containing liquids which might spill into any openings. If any liquid such as water seeps into the instrument, turn off the power immediately and unplug the power cord from the AC outlet. Then have the instrument inspected by qualified Yamaha service personnel.

•Never insert or remove an electric plug with wet hands.

Fire warning

•Do not put burning items, such as candles, on the unit. A burning item may fall over and cause a fire.

4	DMI-3 1/2

CAUTION

Always follow the basic precautions listed below to avoid the possibility of physical injury to you or others, or damage to the instrument or other property. These precautions include, but are not limited to, the following:

Power supply/Power cord

Connections

•Do not connect the instrument to an electrical outlet using a multiple-connector. Doing so can result in lower sound quality, or possibly cause overheating in the outlet.

•When removing the electric plug from the instrument or an outlet, always hold the plug itself and not the cord. Pulling by the cord can damage it.

•Remove the electric plug from the outlet when the instrument is not to be used for extended periods of time, or during electrical storms.

Assembly

•Read carefully the attached documentation explaining the assembly process. Failure to assemble the instrument in the proper sequence might result in damage to the instrument or even injury.

Location

•Do not place the instrument in an unstable position where it might accidentally fall over.

•When transporting or moving the instrument, always use two or more people. Attempting to lift the instrument by yourself may damage your back, result in other injury, or cause damage to the instrument itself.

•Before connecting the instrument to other electronic components, turn off the power for all components. Before turning the power on or off for all components, set all volume levels to minimum.

•Be sure to set the volumes of all components at their minimum levels and gradually raise the volume controls while playing the instrument to set the desired listening level.

Handling caution

•Do not insert a finger or hand in any gaps on the key cover or instrument. Also take care that the key cover does not pinch your finger.

•Never insert or drop paper, metallic, or other objects into the gaps on the key cover, panel or keyboard. This could cause physical injury to you or others, damage to the instrument or other property, or operational failure.

•Do not rest your weight on, or place heavy objects on the instrument, and do not use excessive force on the buttons, switches or connectors.

•Do not use the instrument/device or headphones for a long period of time at a high or uncomfortable volume level, since this can cause permanent hearing loss. If you experience any hearing loss or ringing in the ears, consult a physician.

• Before moving the instrument, remove all connected cables.
		Using the bench (If included)
• When setting up the product, make sure that the AC outlet you		Using the bench (If included)
	• Do not place the bench in an unstable position where it might
are using is easily accessible. If some trouble or malfunction
occurs, immediately turn off the power switch and disconnect		accidentally fall over.
the plug from the outlet. Even when the power switch is turned	• Do not play carelessly with or stand on the bench. Using it as a
off, electricity is still flowing to the product at the minimum		tool or stepladder or for any other purpose might result in
level. When you are not using the product for a long time,		accident or injury.
make sure to unplug the power cord from the wall AC outlet.	• Only one person should sit on the bench at a time, in order to
		prevent the possibility of accident or injury.
	• Do not attempt to adjust the bench height while sitting on the
		bench, since this can cause excessive force to be imposed on
		the adjustment mechanism, possibly resulting in damage to
		the mechanism or even injury.
	• If the bench screws become loose due to extensive long-term
		use, tighten them periodically using the included tool.

Yamaha cannot be held responsible for damage caused by improper use or modifications to the instrument, or data that is lost or destroyed.

Always turn the power off when the instrument is not in use.

DMI-3 2/2	5

NOTICE

To avoid the possibility of malfunction/ damage to the product, damage to data, or damage to other property, follow the notices below.

Handling and Maintenance

•Do not use the instrument in the vicinity of a TV, radio, stereo equipment, mobile phone, or other electric devices. Otherwise, the instrument, TV, or radio may generate noise.

•Do not expose the instrument to excessive dust or vibrations, or extreme cold or heat (such as in direct sunlight, near a heater, or in a car during the day) to prevent the possibility of panel disfiguration, damage to the internal components or unstable operation. (Verified operating temperature range: 5° – 40°C, or 41° – 104°F.)

•Do not place vinyl, plastic or rubber objects on the instrument, since this might discolor the panel or keyboard.

•In the case of a model with a polished finish, bumping the surface of the instrument with metal, porcelain, or other hard objects can cause the finish to crack or peel. Use caution.

•During extreme changes in temperature or humidity, condensation may occur and water may collect on the surface of the instrument. If water is left, the wooden parts may absorb the water and be damaged. Make sure to wipe any water off immediately with a soft cloth.

Saving data

•Saved data may be lost due to malfunction or incorrect operation. Save important data to a USB storage device/ external device such as a computer (page 42).

•To protect against data loss through media damage, we recommend that you save your important data onto two USB storage devices.

Information

About copyrights

•Copying of the commercially available musical data including but not limited to MIDI data and/or audio data is strictly prohibited except for your personal use.

•This product incorporates and bundles computer programs and contents in which Yamaha owns copyrights or with respect to which it has license to use others’ copyrights. Such copyrighted materials include, without limitation, all computer software, style files, MIDI files, WAVE data, musical scores and sound recordings. Any unauthorized use of such programs and contents outside of personal use is not permitted under relevant laws. Any violation of copyright has legal consequences. DON'T MAKE, DISTRIBUTE OR USE ILLEGAL COPIES.

About functions/data bundled with the instrument

•Some of the preset songs have been edited for length or arrangement, and may not be exactly the same as the original.

About this manual

•The illustrations and displays as shown in this manual are for instructional purposes only, and may appear somewhat different from those on your instrument.

•Windows is a registered trademark of Microsoft® Corporation in the United States and other countries.

•Apple, Mac and Macintosh are trademarks of Apple Inc., registered in the U.S. and other countries.

•The company names and product names in this manual are the trademarks or registered trademarks of their respective companies.

NOTICE

Thank you for purchasing the Yamaha Clavinova! We recommend that you read this manual carefully so that you can fully take advantage of the advanced and convenient functions of the Clavinova.

We also recommend that you keep this manual in a safe and handy place for future reference.

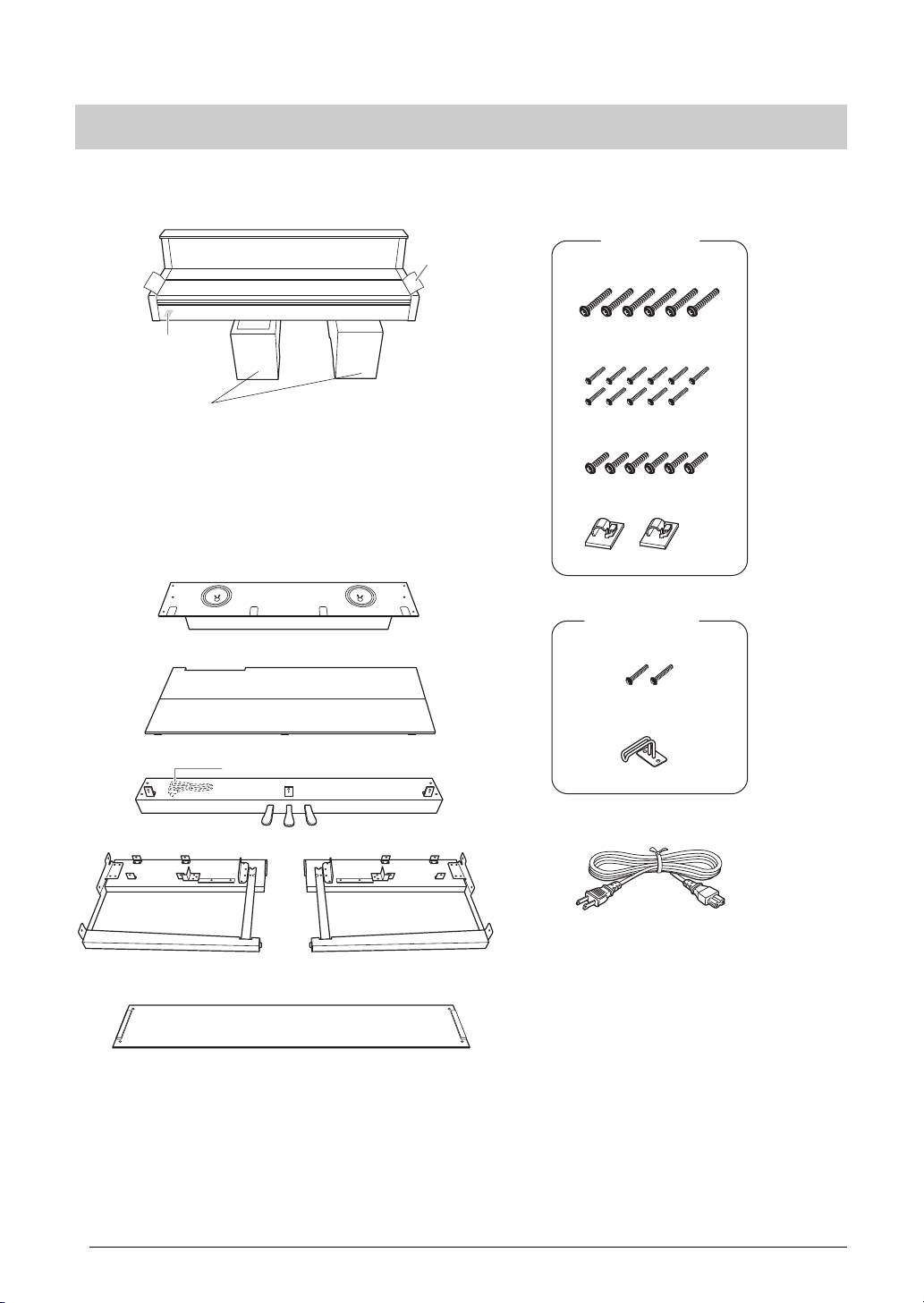

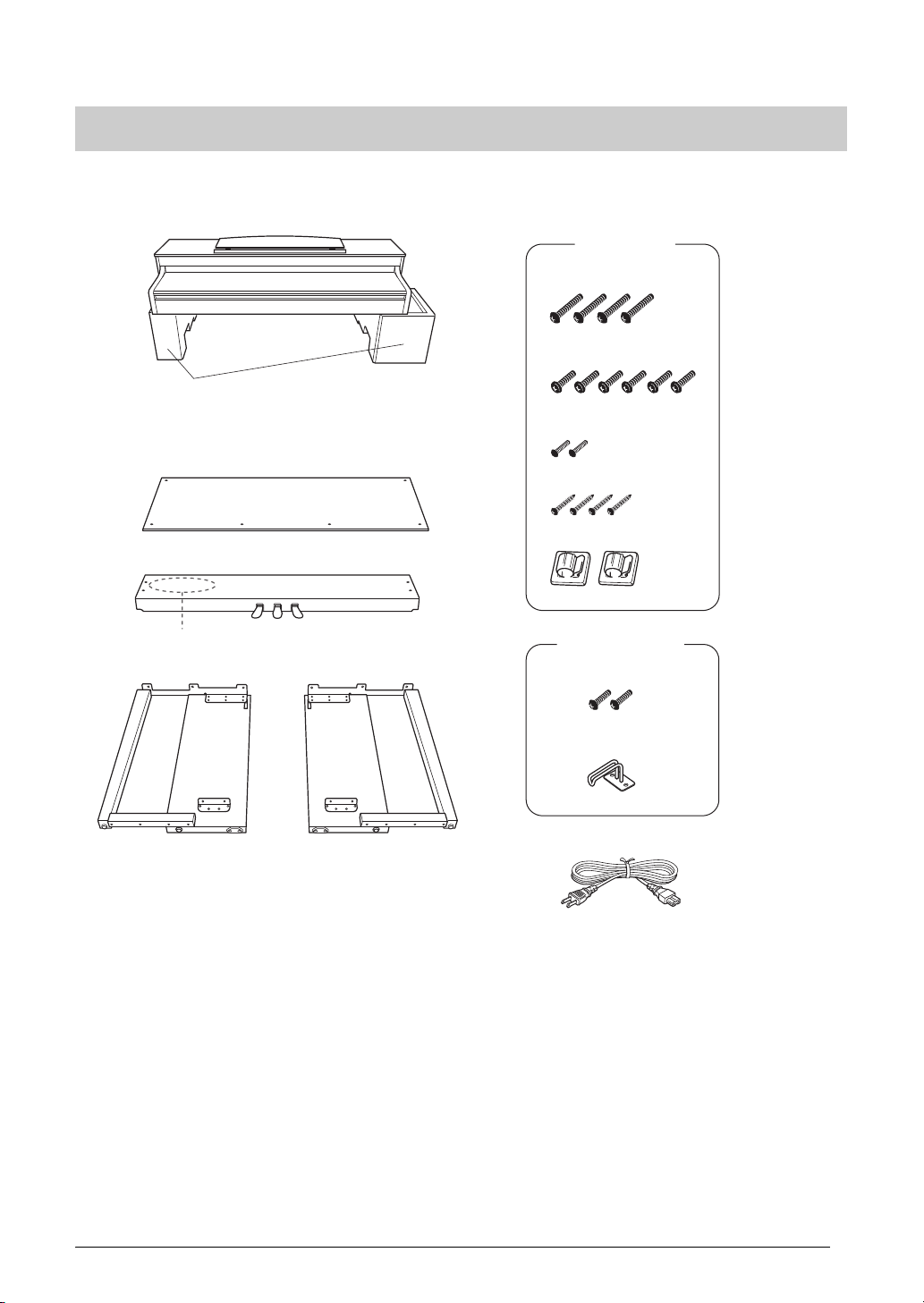

Included Accessories

Owner’s manual (this book)

“50 greats for the Piano” (Music Book)

My Yamaha Product User Registration

The PRODUCT ID on the sheet will be needed when you fill out the User Registration form.

AC Power Cord

Bench

A bench may be included or optional, depending on your locale.

About the Manuals

This instrument has the following documents and instructional materials.

Included Documents

Owner’s Manual (this book)

This document explains how to use the

Clavinova.

•Introduction

This section explains how to set up and start using your Clavinova. Setup is so simple, you can start playing right away.

•Advanced Functions

This section introduces useful functions that aid in your practice, such as playing back the preset songs, recording your performance and more.

•Detailed Settings

This section explains how to make detailed settings for the Clavinova’s various functions.

•Appendix

This section contains various reference material, such as the display message list, Voice list and other information.

Icons on this manual

Example

470

440

430

S408

S406

465GP

This indicates that the relevant function is only available on certain models. These icons indicate that the function is available on the CLP-470/440/430/465GP but not on the CLP-S408/S406.

Online Materials (Downloadable from the web)

MIDI Data Format

This document contains both the MIDI Data Format and the MIDI Implementation Chart.

MIDI Basics (English, French, German and Spanish only)

If you want to know more about MIDI and how to use it, refer to this introductory book.

The instructional materials above are available for downloading from the Yamaha Manual Library. Access the Yamaha Manual Library, then enter your model name (CLP-470, for example) in the Model Name area to search for the manuals.

Yamaha Manual Library

http://www.yamaha.co.jp/manual/

Included Accessories

Main Features

Real Grand Expression (RGE) Sound Engine

This lets you enjoy the playing response and expressive capability of a concert grand piano. In addition to providing smooth tonal changes that respond to your playing touch, it also features a new Smooth Release function which can clearly enunciate staccato notes and produce the sound of lingering resonance when gently lifting your fingers from the keys. These effects capture the true essence of an acoustic grand piano to help you create and perform with luscious piano-like expression.

Highly evolved touch and expression: Graded Hammer 3 (GH3) keyboard (CLP-430/ 465GP) and Graded Hammer 3 (GH3) keyboard with synthetic ivory keytops (CLP440/S406)

The Graded Hammer keyboard features natural grand-piano type key weights (heavier in the low range and lighter in the higher range) providing a pleasant playability that is unmatched by conventional electronic pianos.

The Graded Hammer keyboard also offers superb playability for legato (without pedal operation) and repetitive striking techniques, as with a grand piano.

The CLP-440/S406 feature synthetic ivory keytops which simulates the moderate hygroscopic characteristics of real ivory and offers a less slippery surface, smooth key movement, and a warm and inviting color.

NW (Natural Wood) keyboard with synthetic ivory keytops and Linear Graded Hammer (CLP-470/S408)

In addition to the features offered by the GH3 keyboard with the synthetic ivory top model, the CLP-470/S408 uses natural wood for the inside of the white keys (NW keyboard), and utilizes the Linear Graded Hammer feature, in which the hammer weight of all keys is different, just as on an acoustic piano. These features provide a heavier weighted touch that surpasses that of conventional electronic pianos and is closer in feel to a grand piano.

Audio Playing and Recording from a USB Flash Memory

Audio files (.wav) saved to a USB storage device such as a USB flash memory can be played back on the instrument. Moreover, since you can record your performance as audio data to a USB flash memory device, it is possible to listen to your performance on portable music players, with the data transferred by computer.

Main Features

PRECAUTIONS ...........................................................	4
NOTICE ........................................................................	6
Included Accessories ....................................................	7
About the Manuals .......................................................	7
Main Features ...............................................................	8
Introduction
Panel Controls ............................................................	10
Getting Started
— Playing the Clavinova as a Piano ...........................	12
Key Cover.................................................................................	12
Music Rest................................................................................	13
Music Braces ............................................................................	14
Lid..............................................................................................	14
Turning the power on.............................................................	15
Setting the volume — [MASTER VOLUME] .....................	16
Using headphones...................................................................	17
Switching the speakers on/off................................................	17
Using the pedals ......................................................................	18
Adjusting the touch sensitivity — [TOUCH] .....................	19
Using the metronome — [METRONOME]........................	20
Maintenance ...............................................................	21
Advanced Functions
Playing various musical instrument sounds
(Voices) ......................................................................	22
Selecting Voices.......................................................................	22
Listening to the Voice Demo Songs .....................................	22
Enhancing and customizing the sound — [BRILLIANCE]/
[REVERB]/[EFFECT].............................................................	24
Transposition — [TRANSPOSE] .........................................	25
Layering two Voices (Dual mode) ........................................	26
Splitting the keyboard range and playing two different
Voices (Split mode).................................................................	27
Playing back Songs .....................................................	29
Songs compatible with this instrument ...............................	29
Playing back Songs..................................................................	30
Useful playback functions......................................................	32
Playing a one-hand part — Part Cancel function (MIDI
Songs)........................................................................................	32

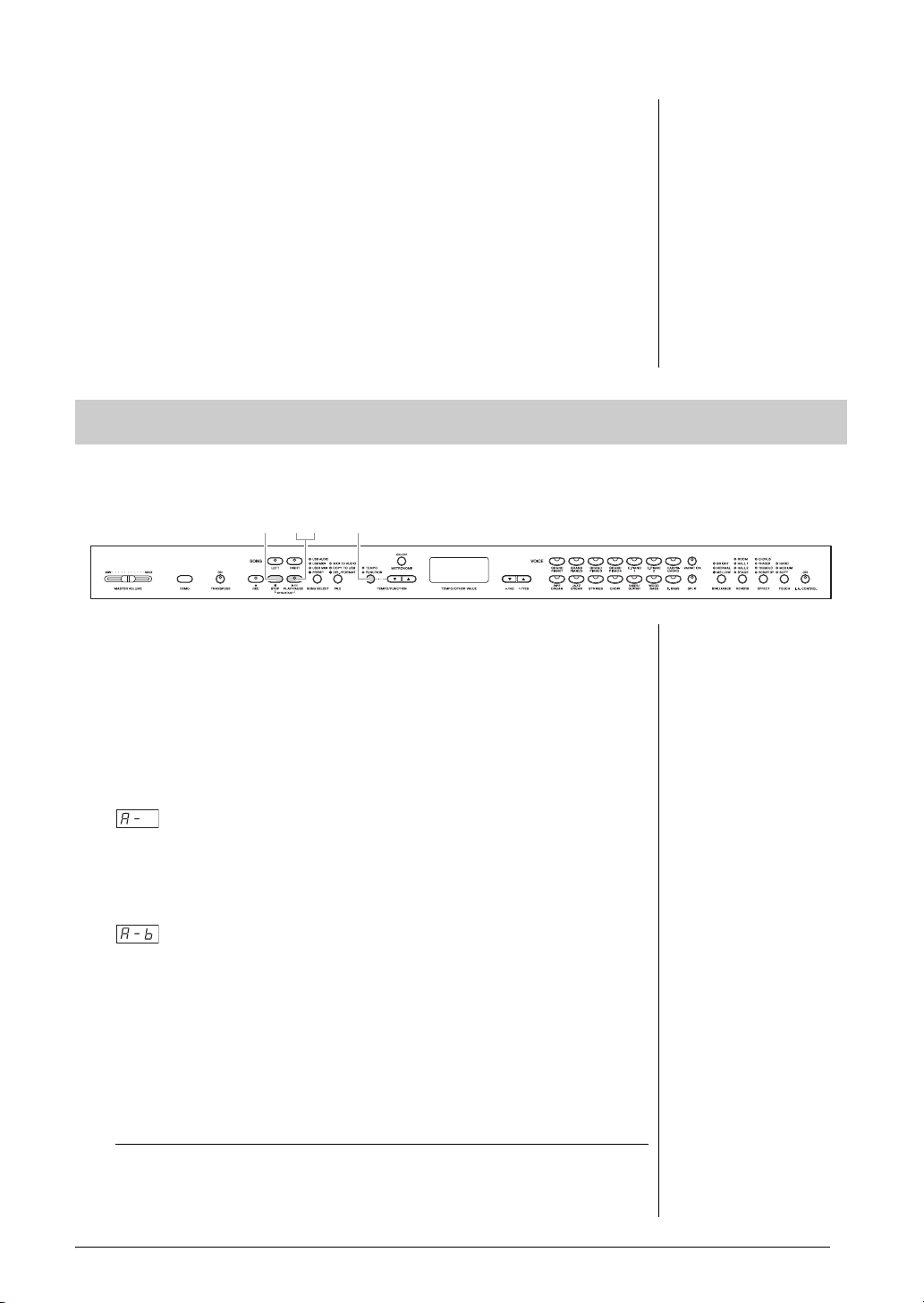

A-B Repeat function (MIDI Songs)......................................	33
Recording Your Performance ....................................	34
Quickly recording a performance without specifying a part
(MIDI/Audio recording)........................................................	34
Recording specific parts of a Performance
(MIDI recording) ....................................................................	36

Deleting recorded performance data (MIDI recording)...	37
Changing the initial settings such as Voice and Tempo after
recording (MIDI recording)..................................................	38

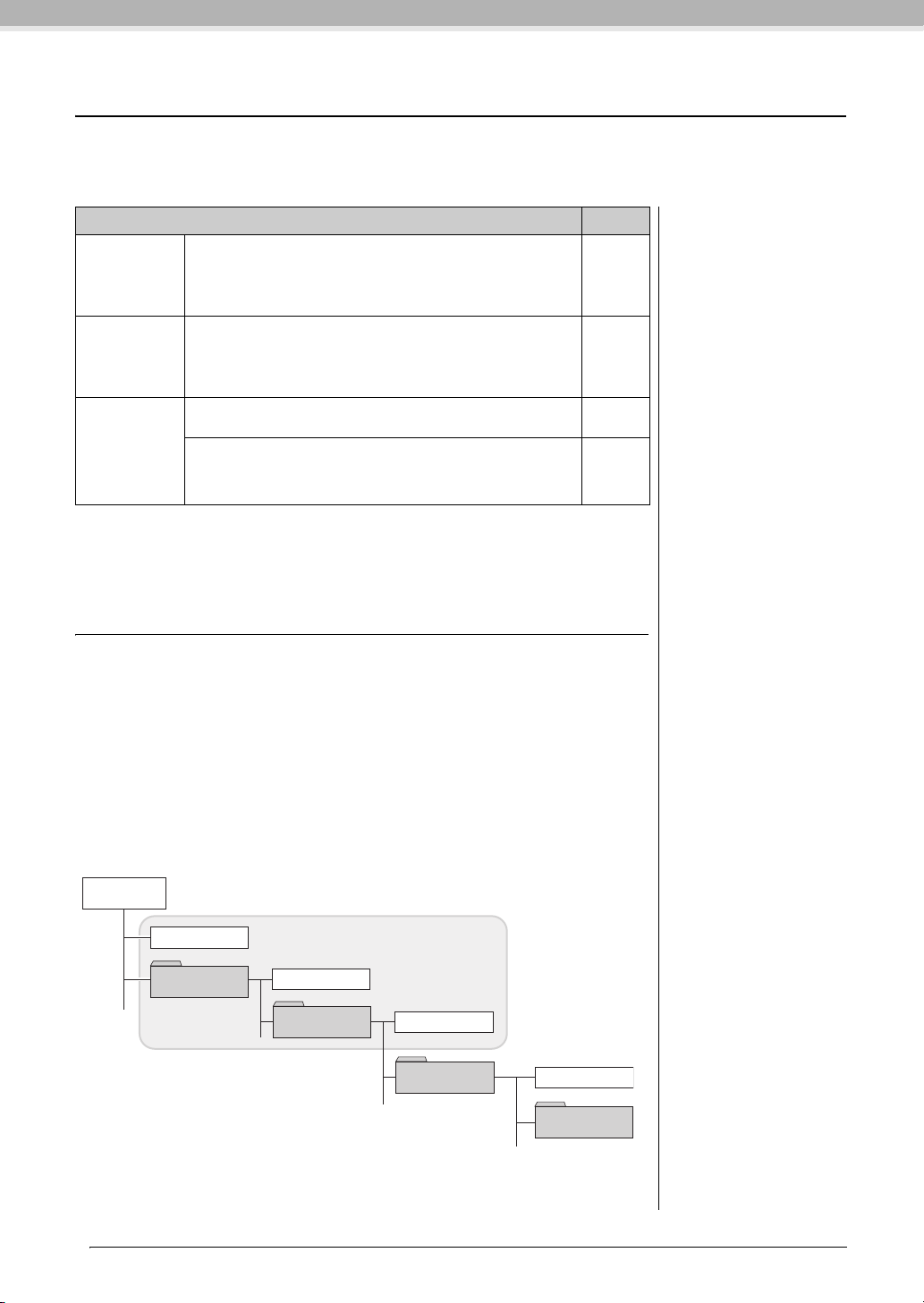

Handling Song Files ...................................................	40
Convert a MIDI Song to an Audio Song during
playback ...................................................................................	41
Copying User Songs in the instrument to a USB storage
device........................................................................................	42
Deleting a Song file in the USB storage device ...................	43
Formatting the USB storage device......................................	44

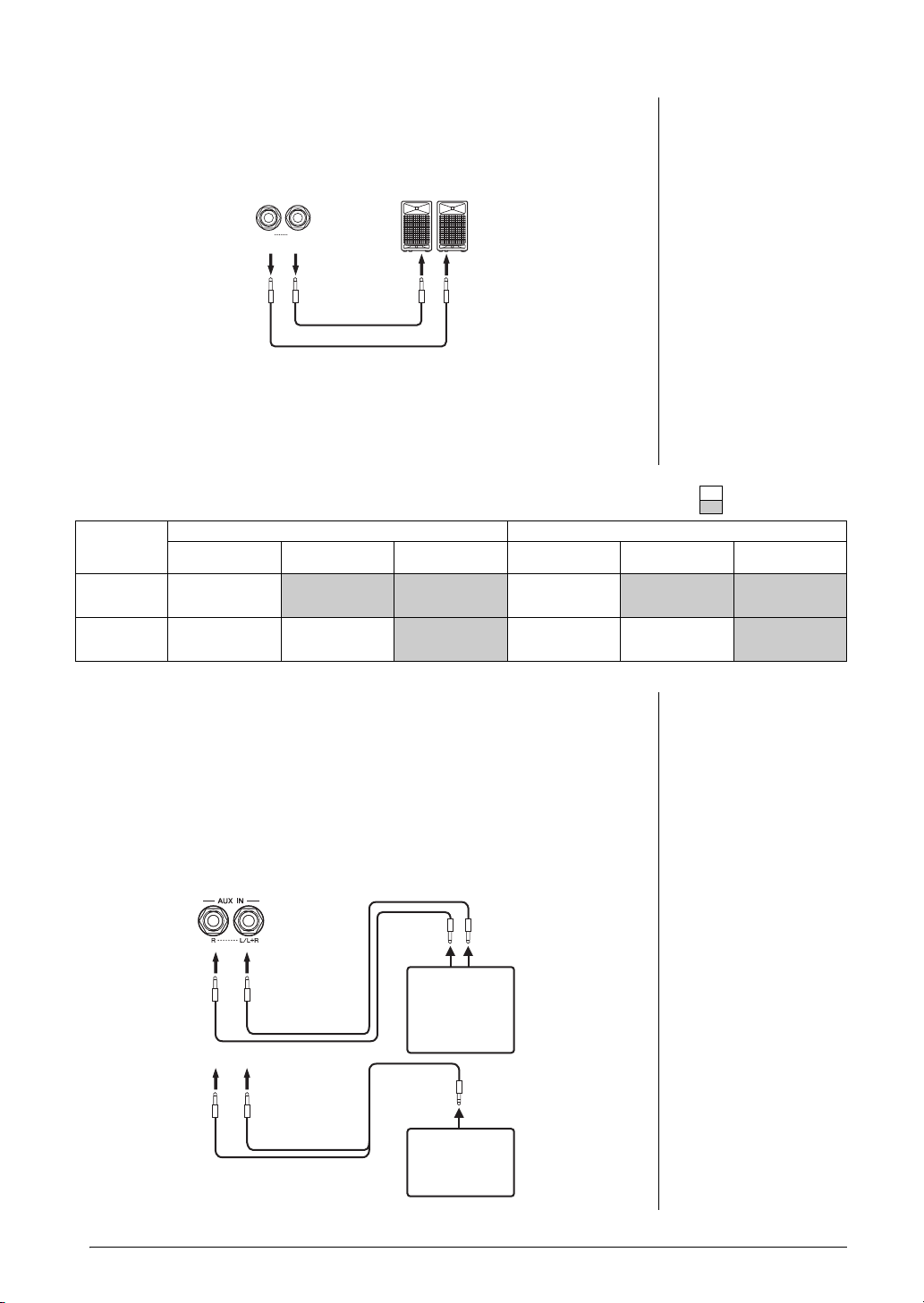

Connections................................................................	45

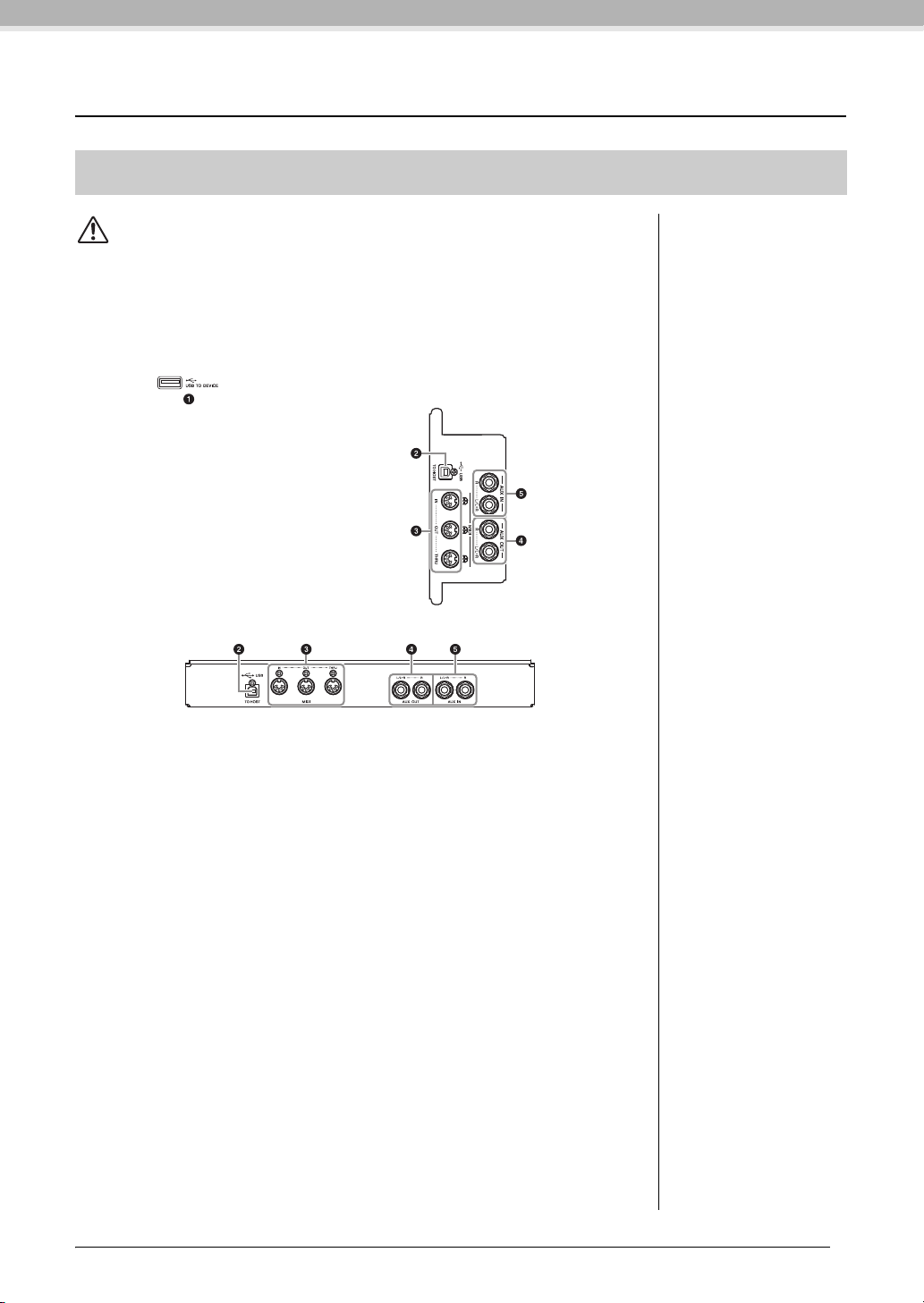

Connectors...............................................................................	45

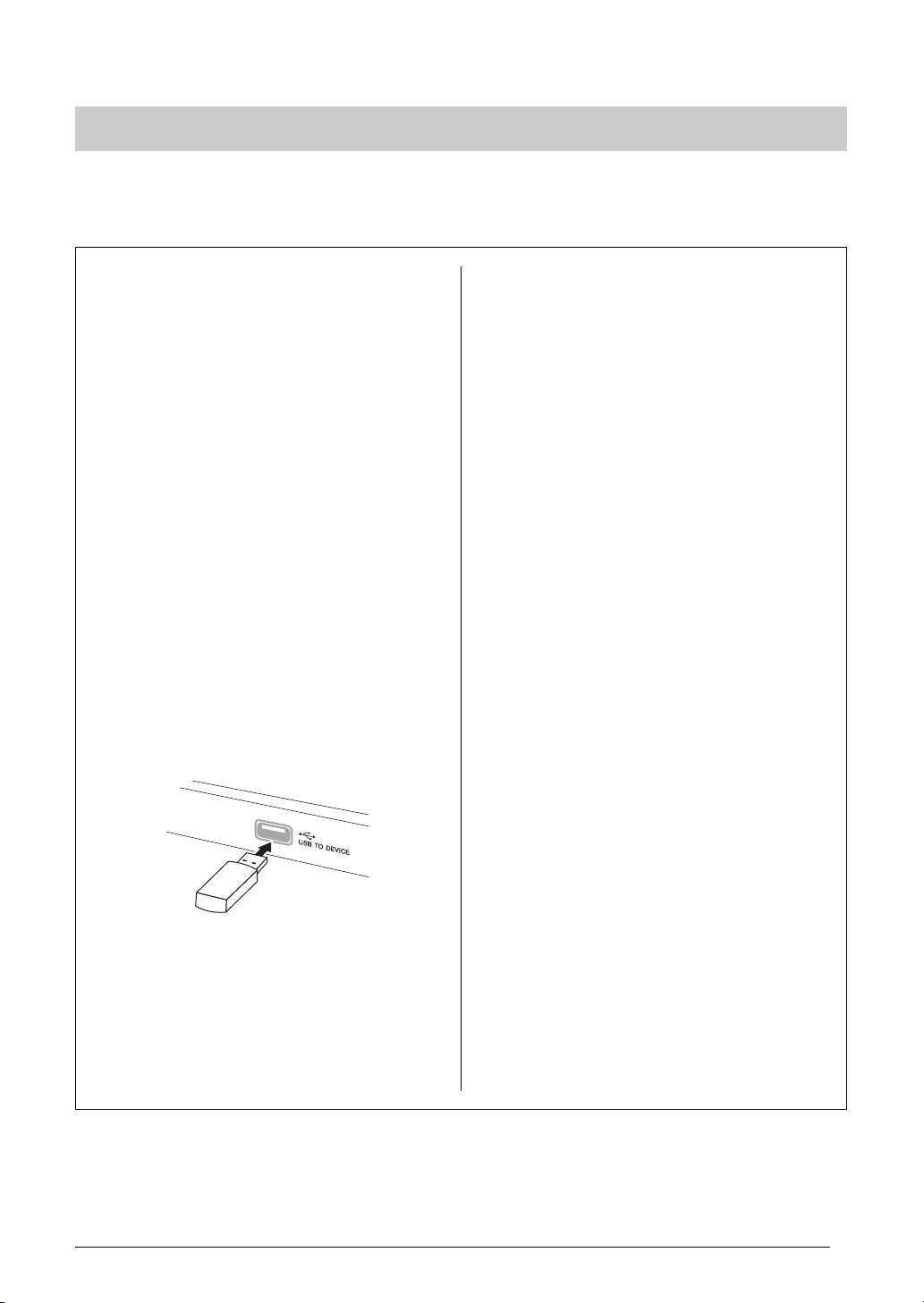

Connecting a USB storage device.........................................	47

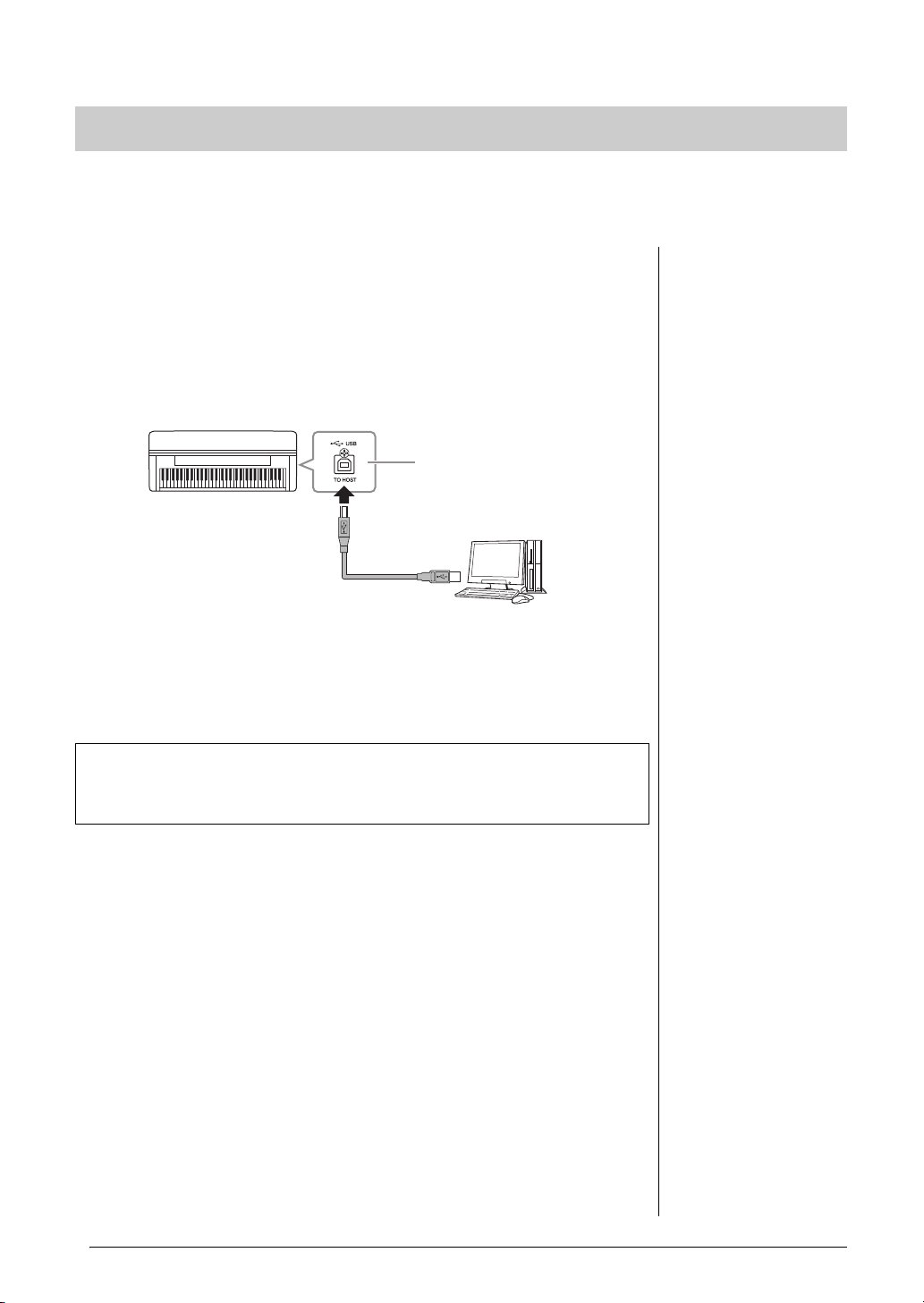

Connecting to a computer.....................................................	48

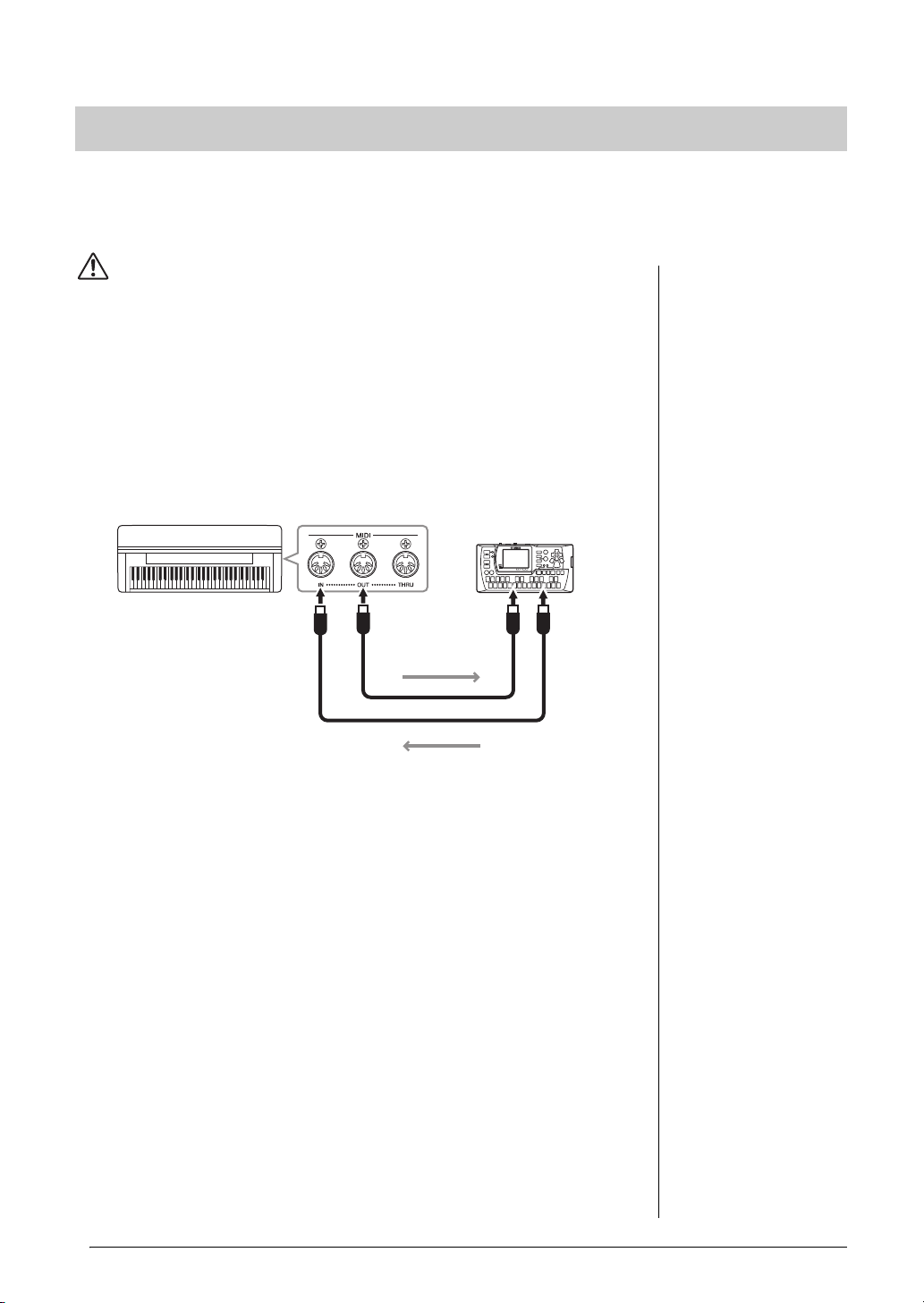

Connecting external MIDI devices ......................................	50
Detailed Settings
Function Parameters — Various Convenient
Settings .......................................................................	51

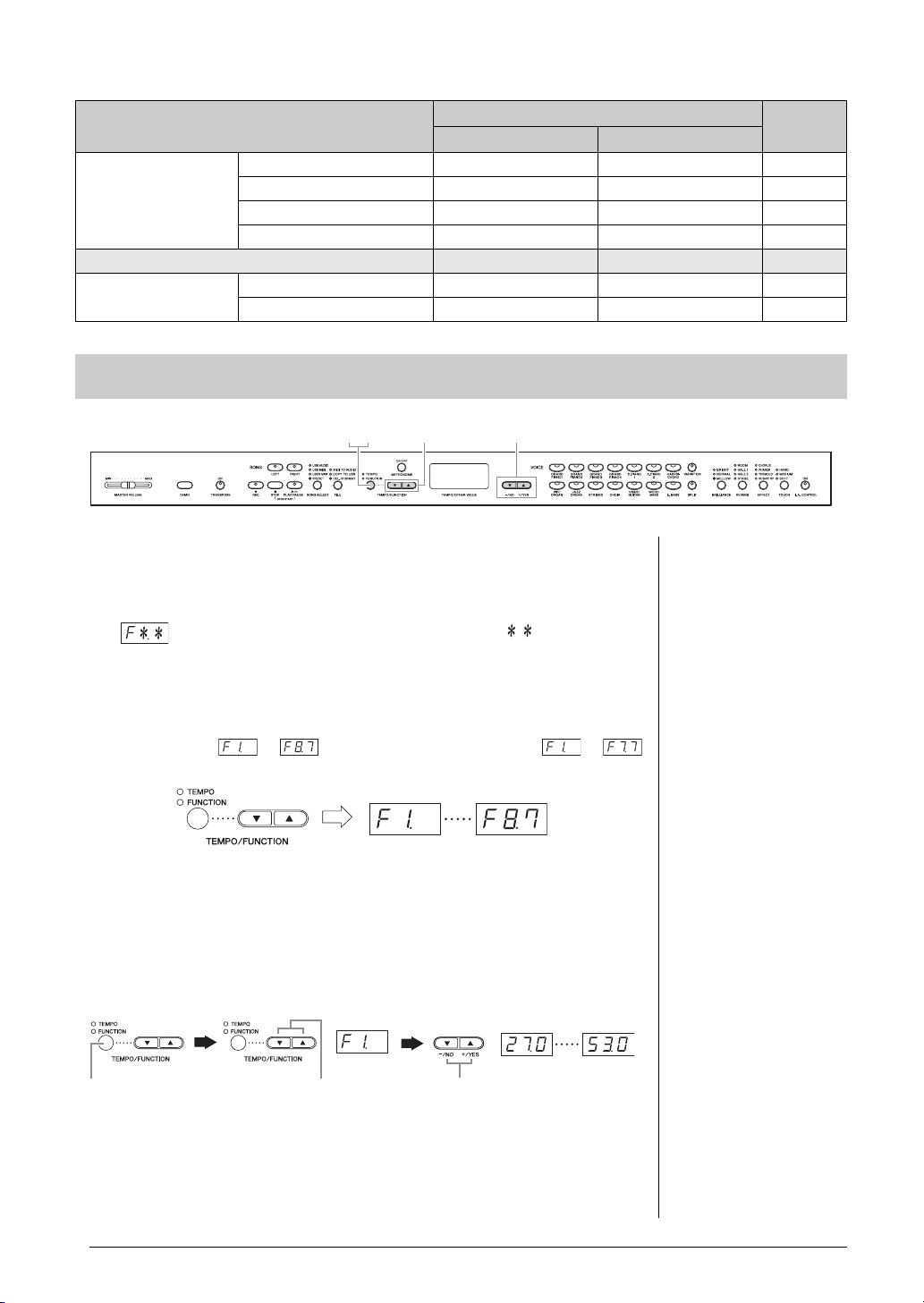

Function mode — basic operation .......................................	52

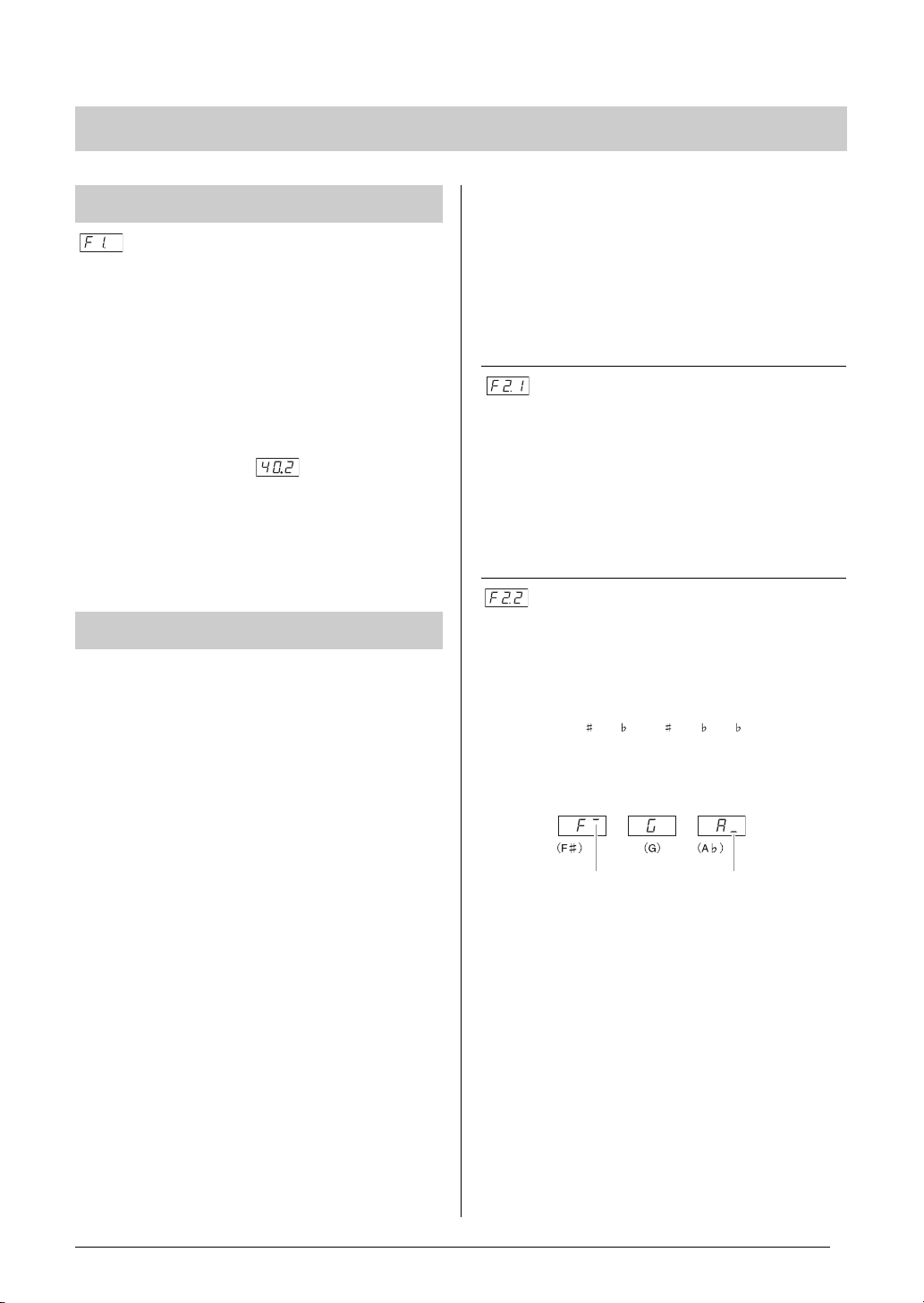

Function parameters — details.............................................	53
Restoring the default (factory-programmed) settings.......	61
Appendix
Message List................................................................	62
Troubleshooting.........................................................	63
Preset Voice List .........................................................	64
Default Setting List ....................................................	67

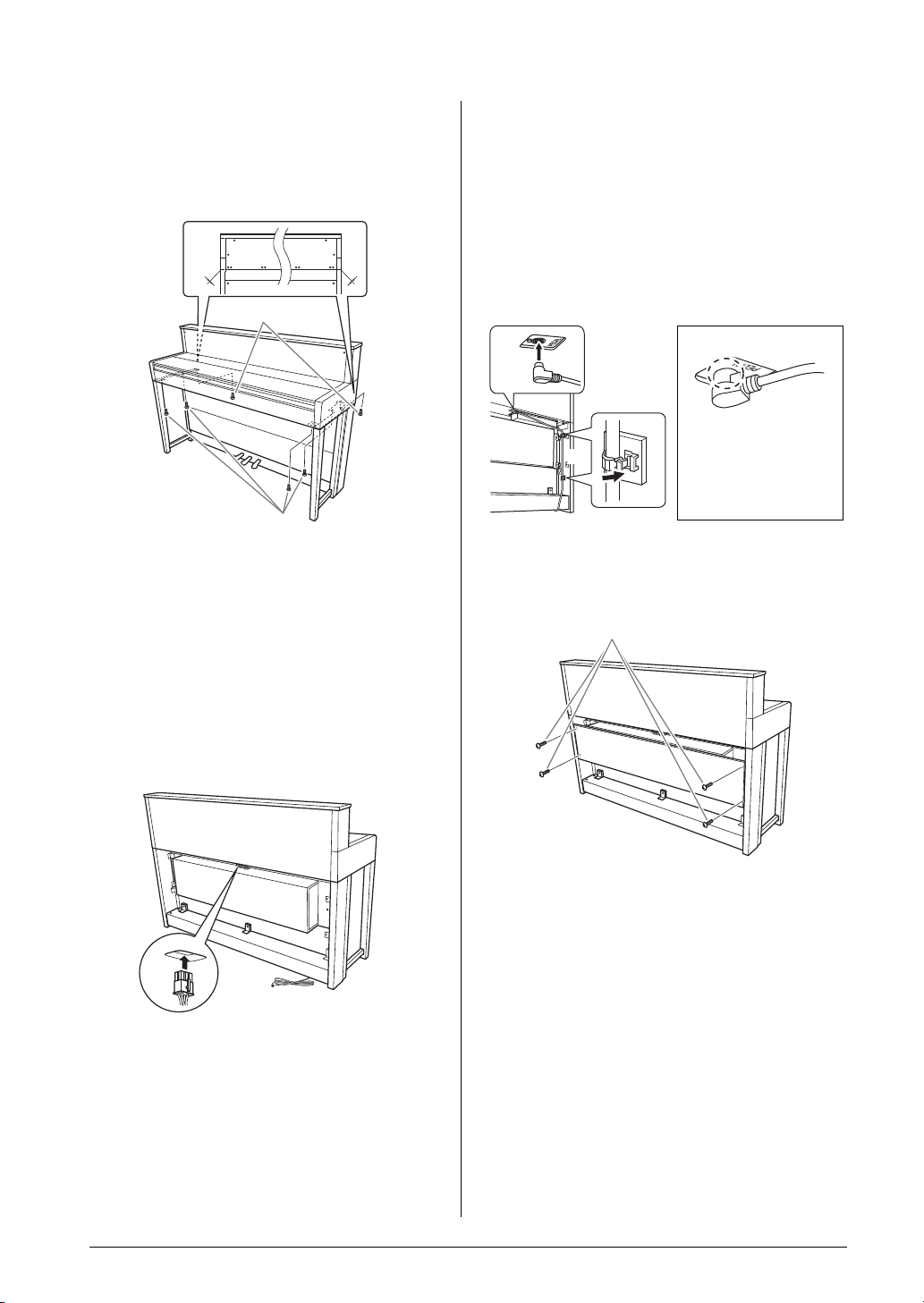

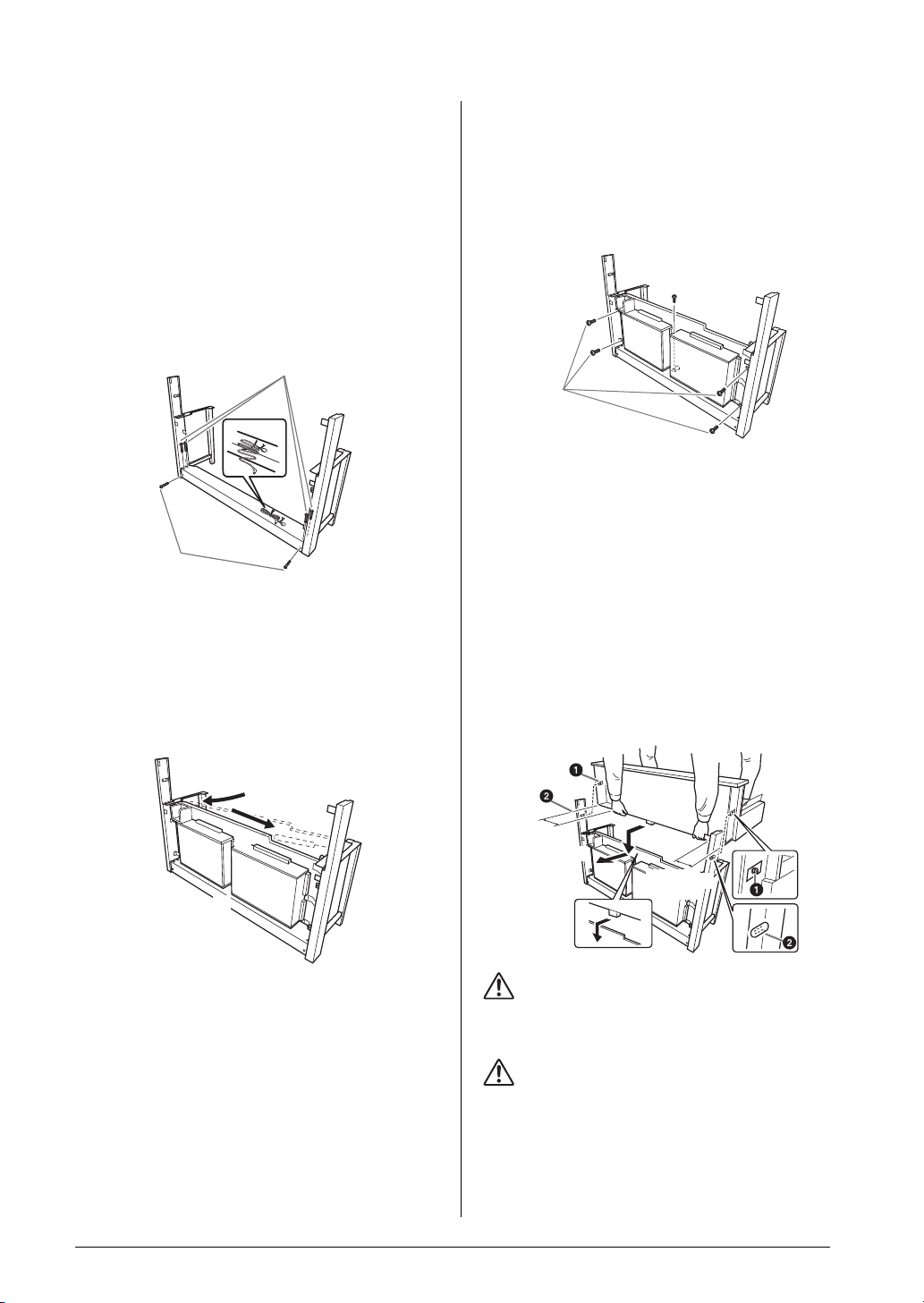

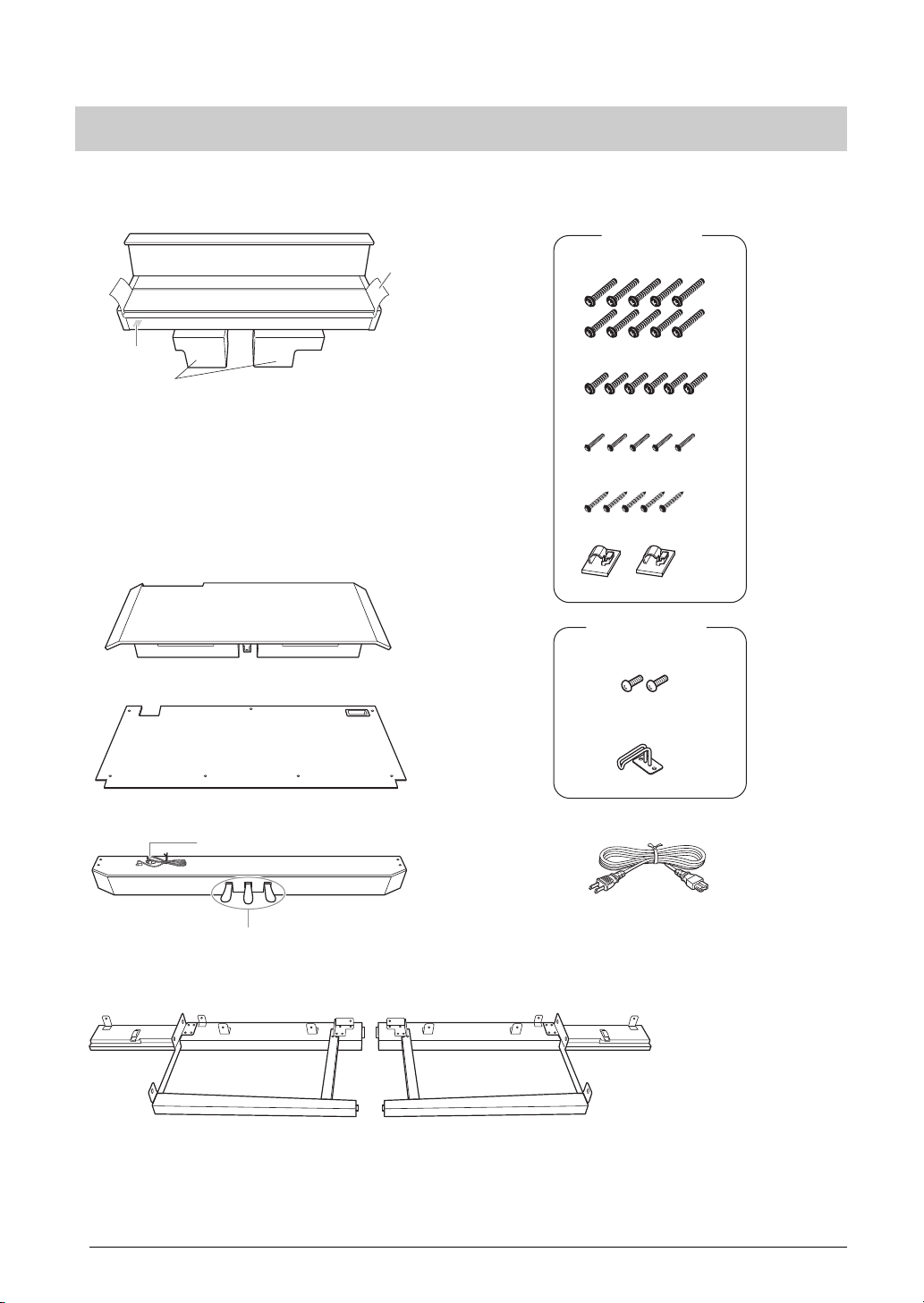

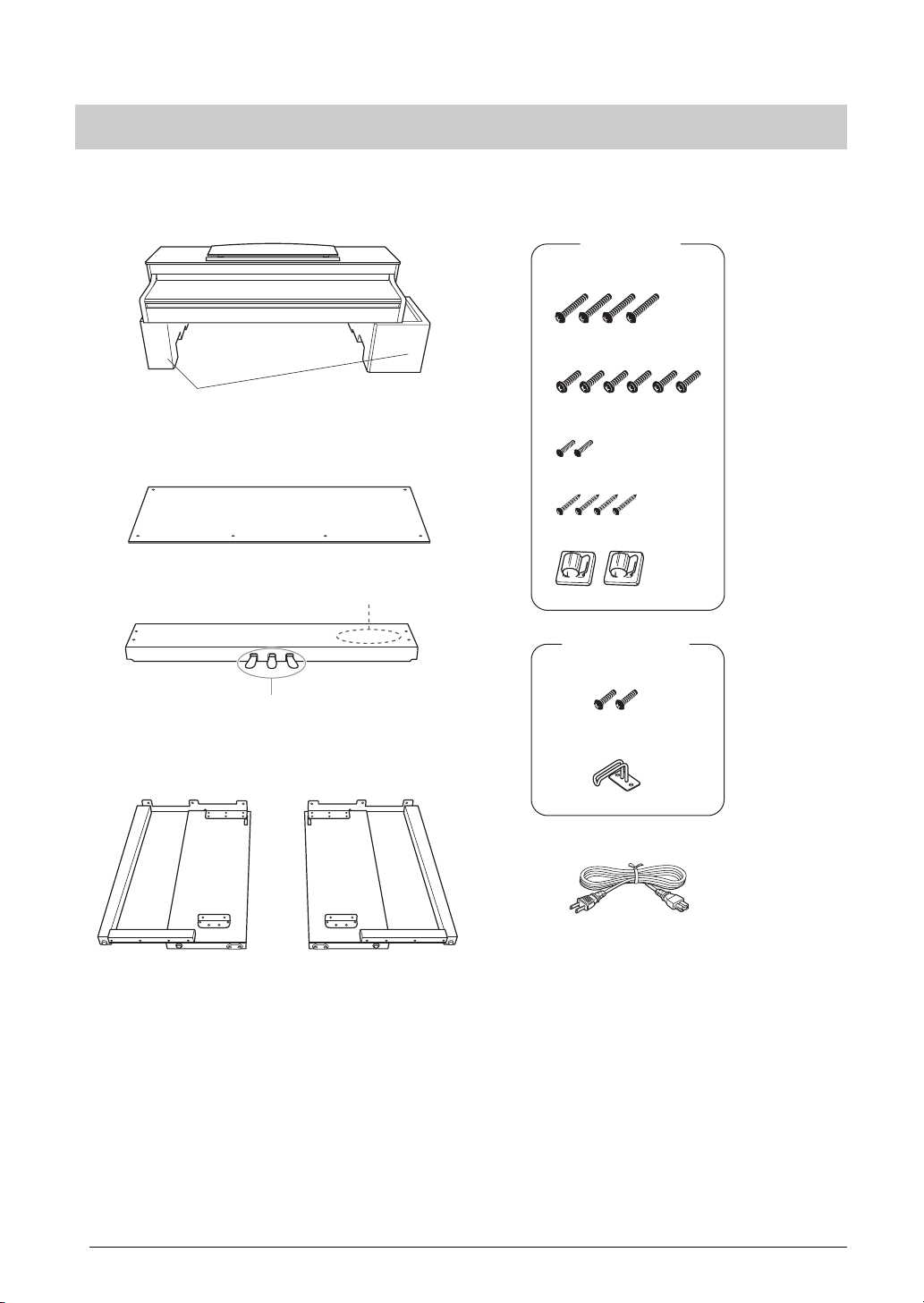

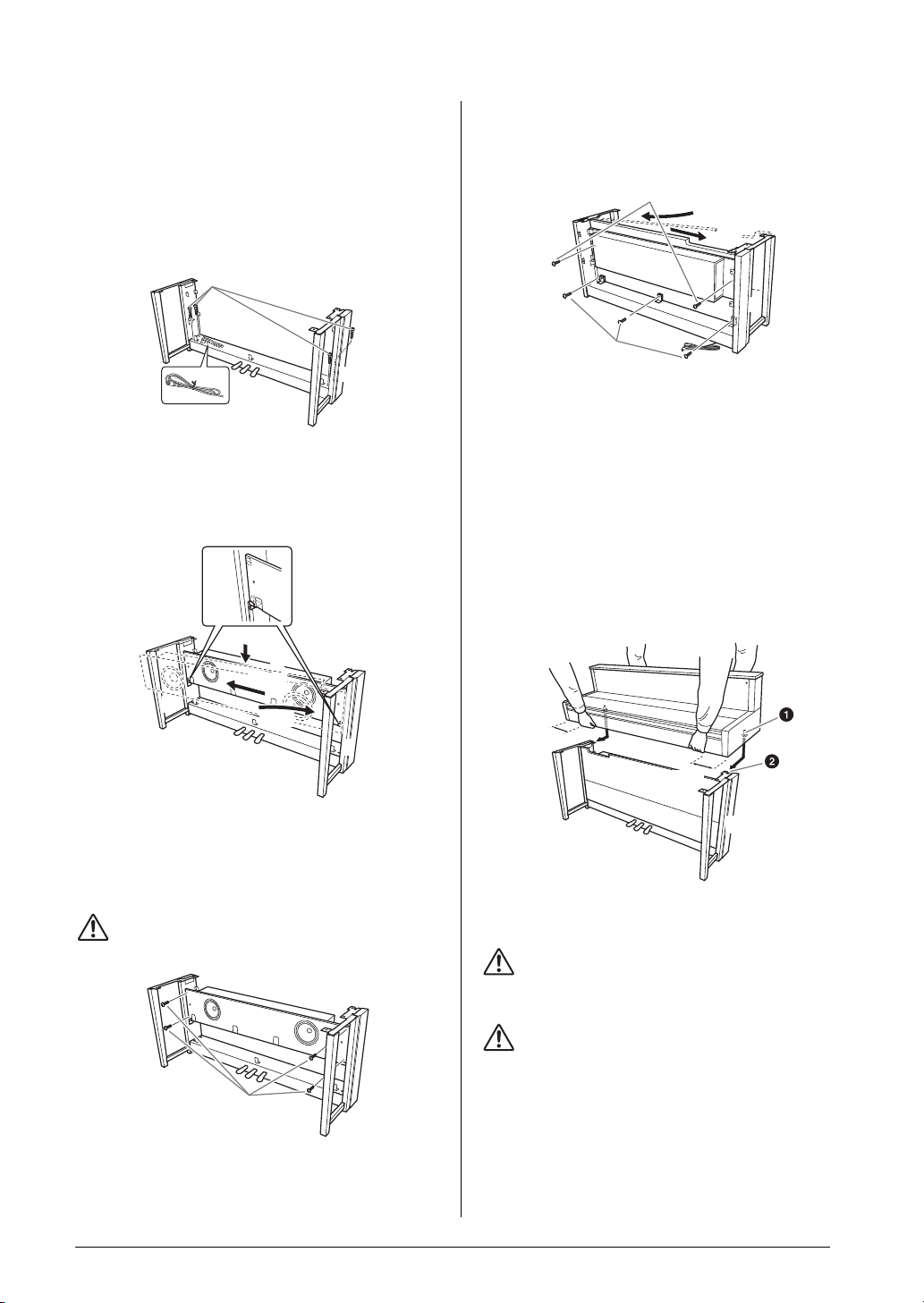

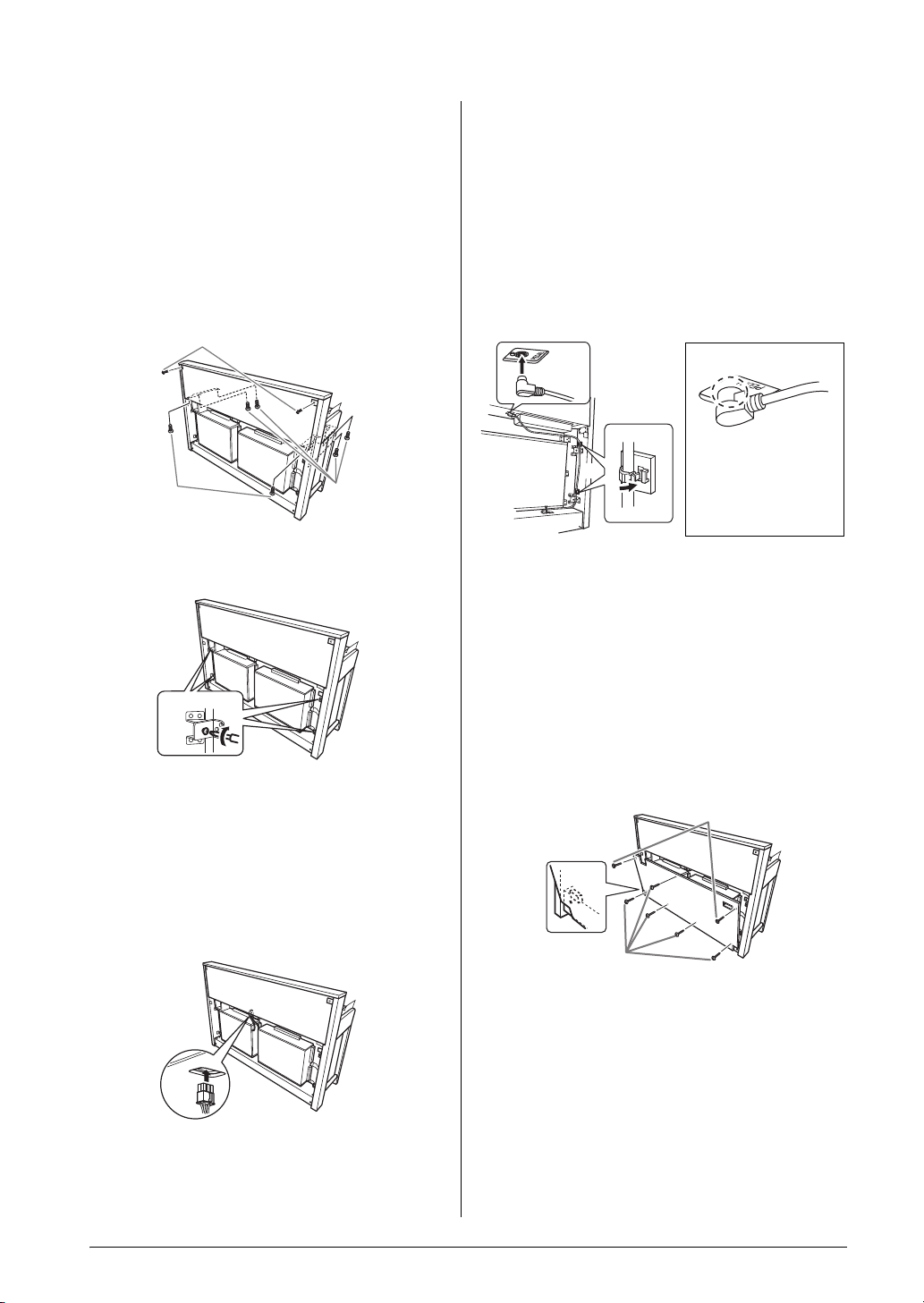

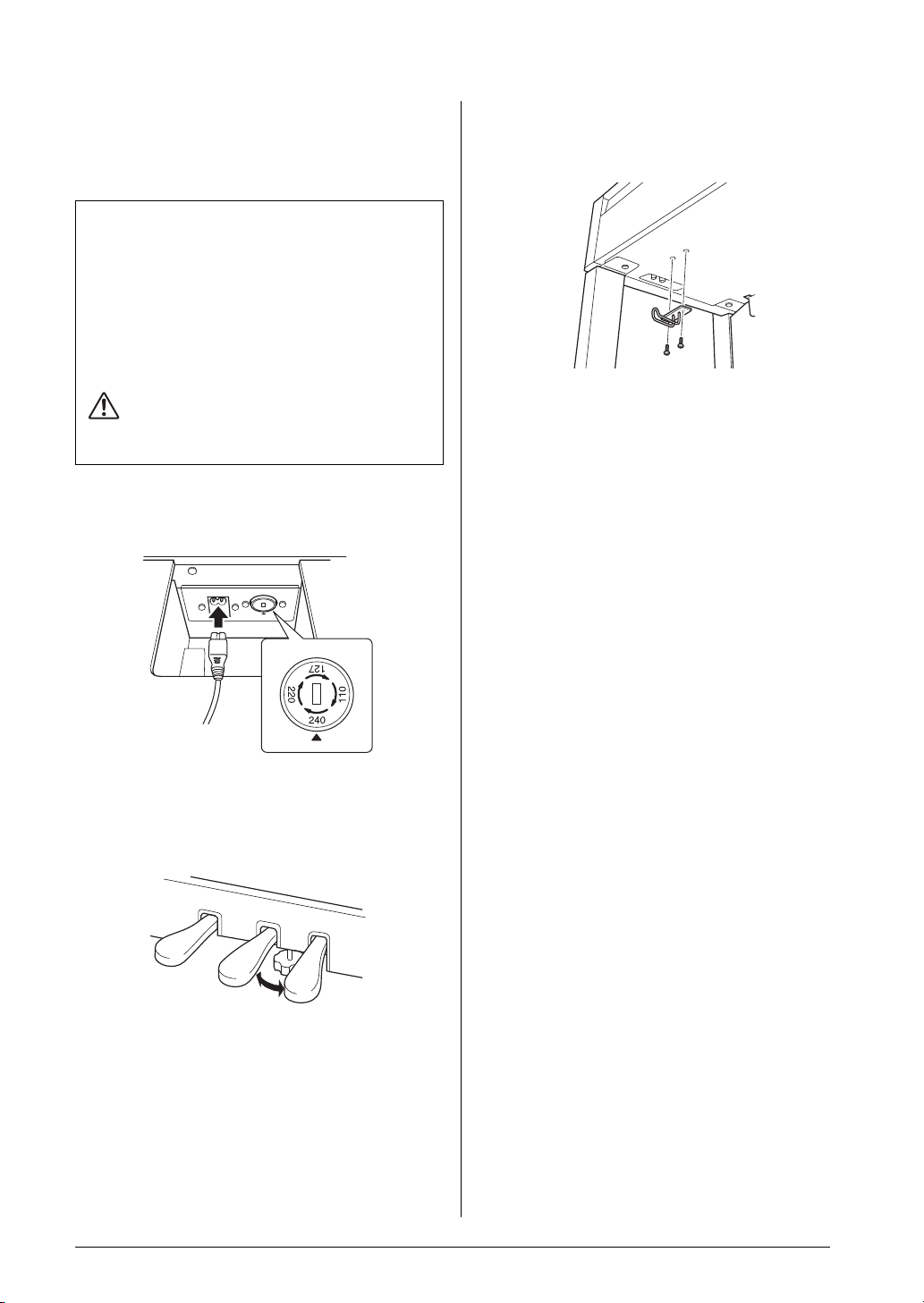

Assembling the Clavinova..........................................	69
Assembly Precautions ............................................................	69

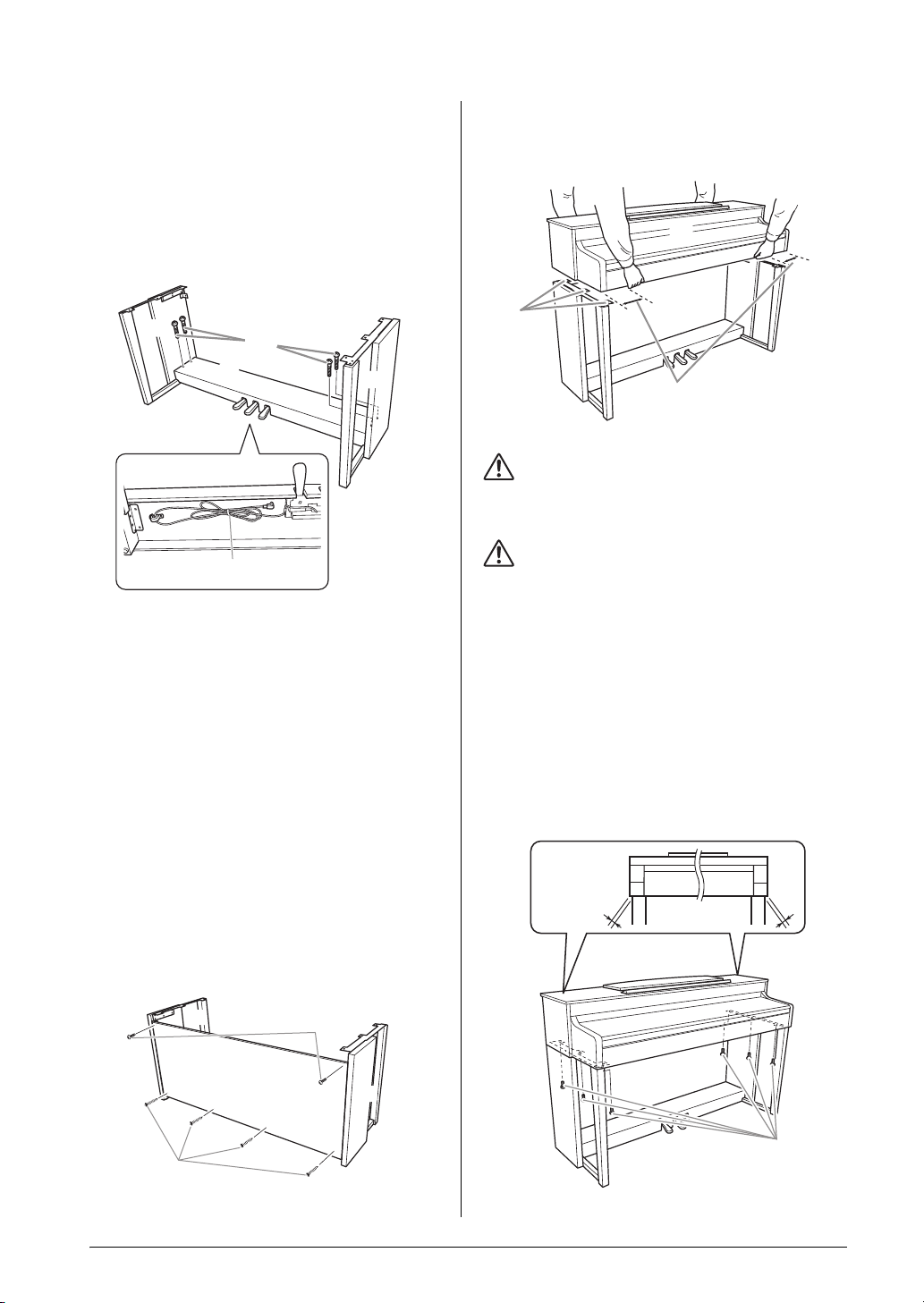

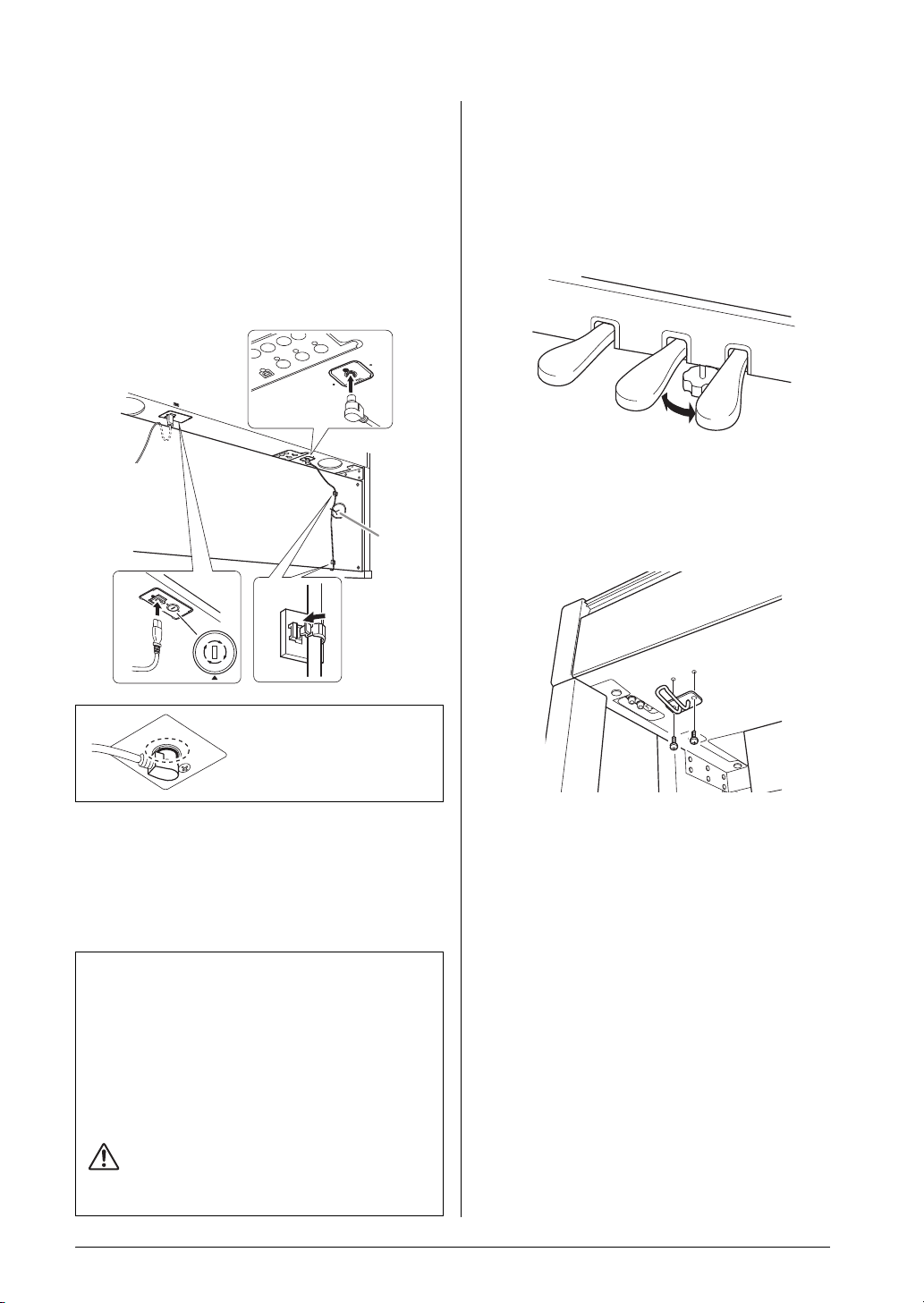

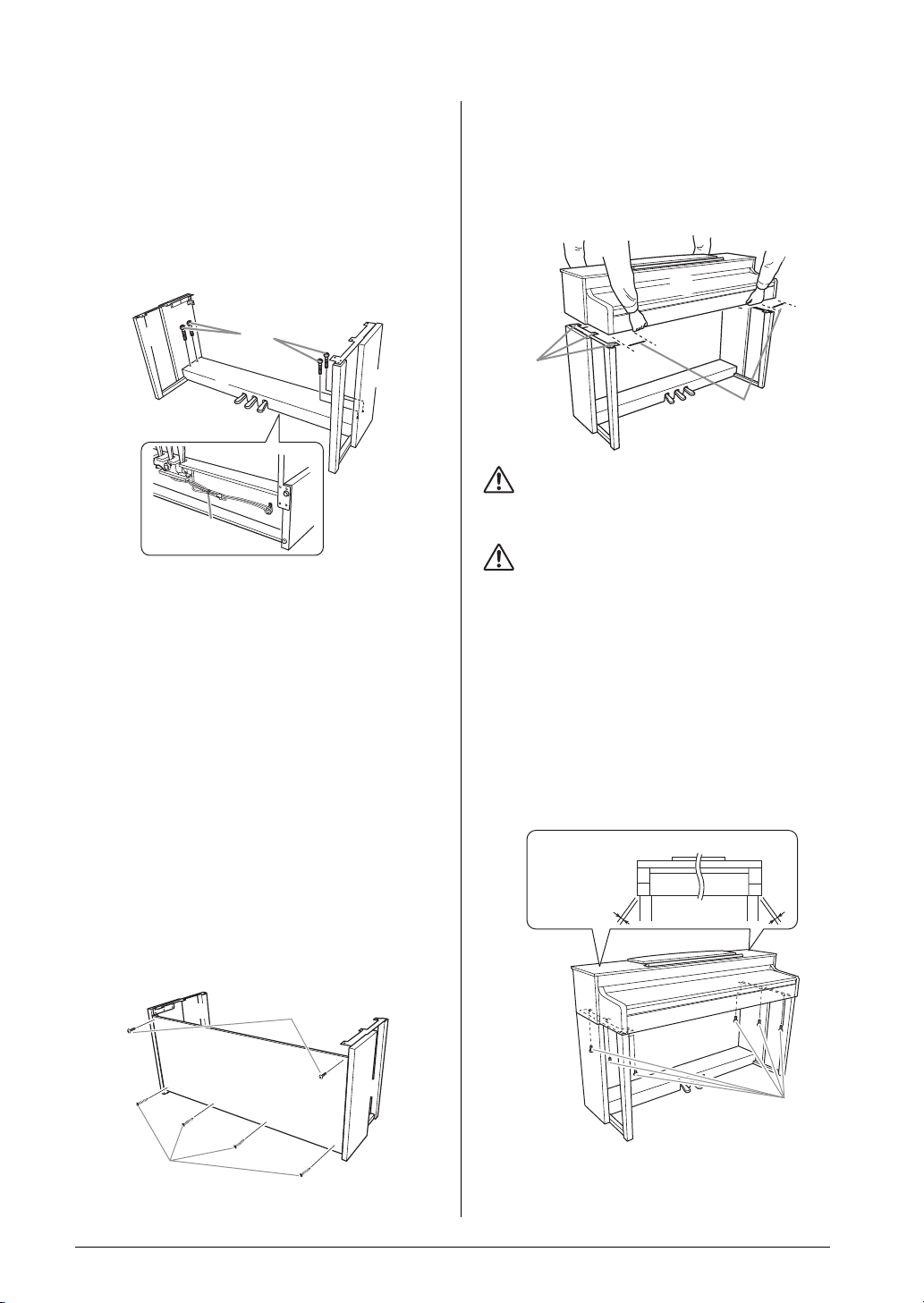

CLP-470 Assembly .................................................................	70
CLP-440/430 Assembly..........................................................	73
CLP-S408 Assembly ...............................................................	76
CLP-S406 Assembly ...............................................................	80

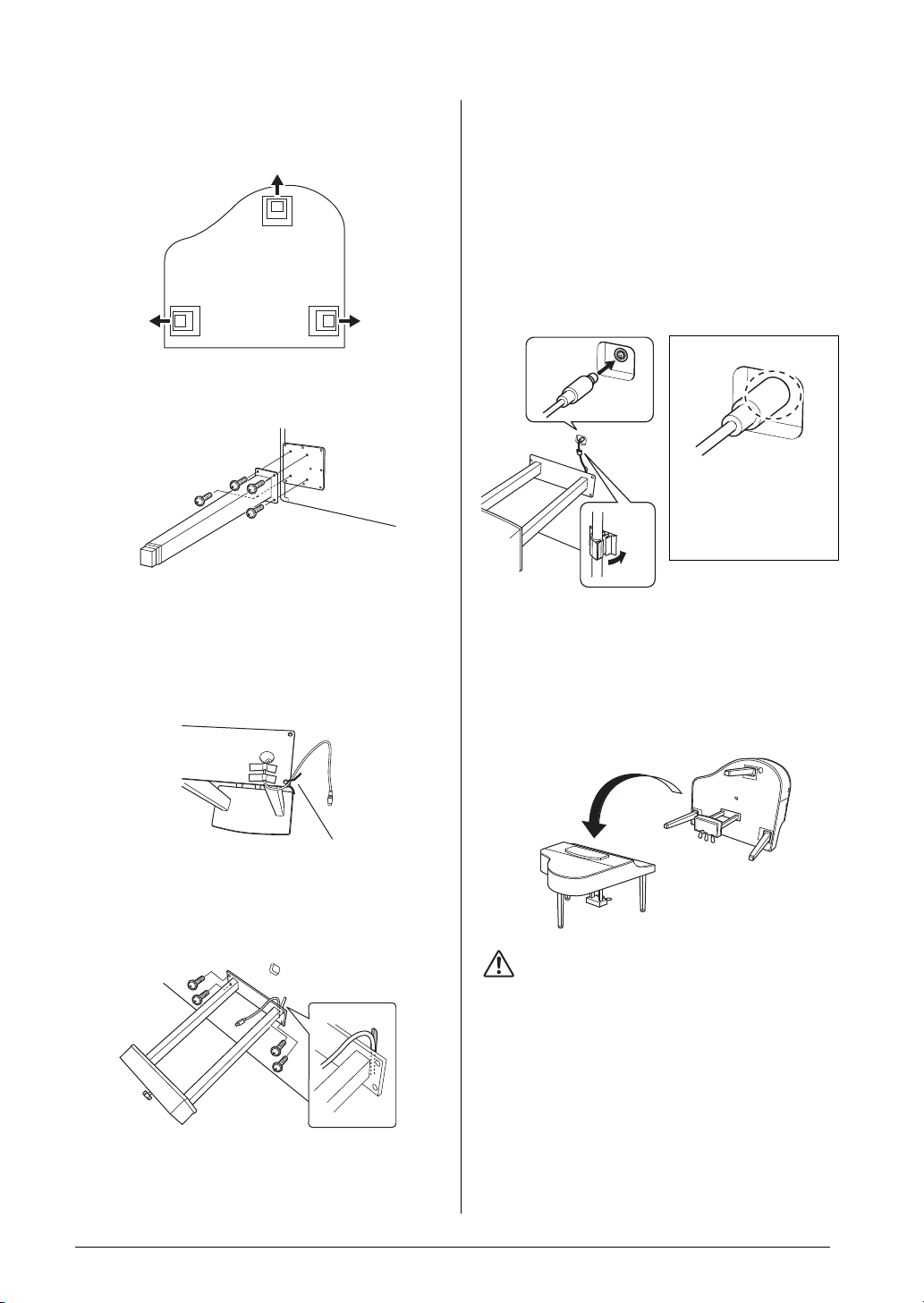

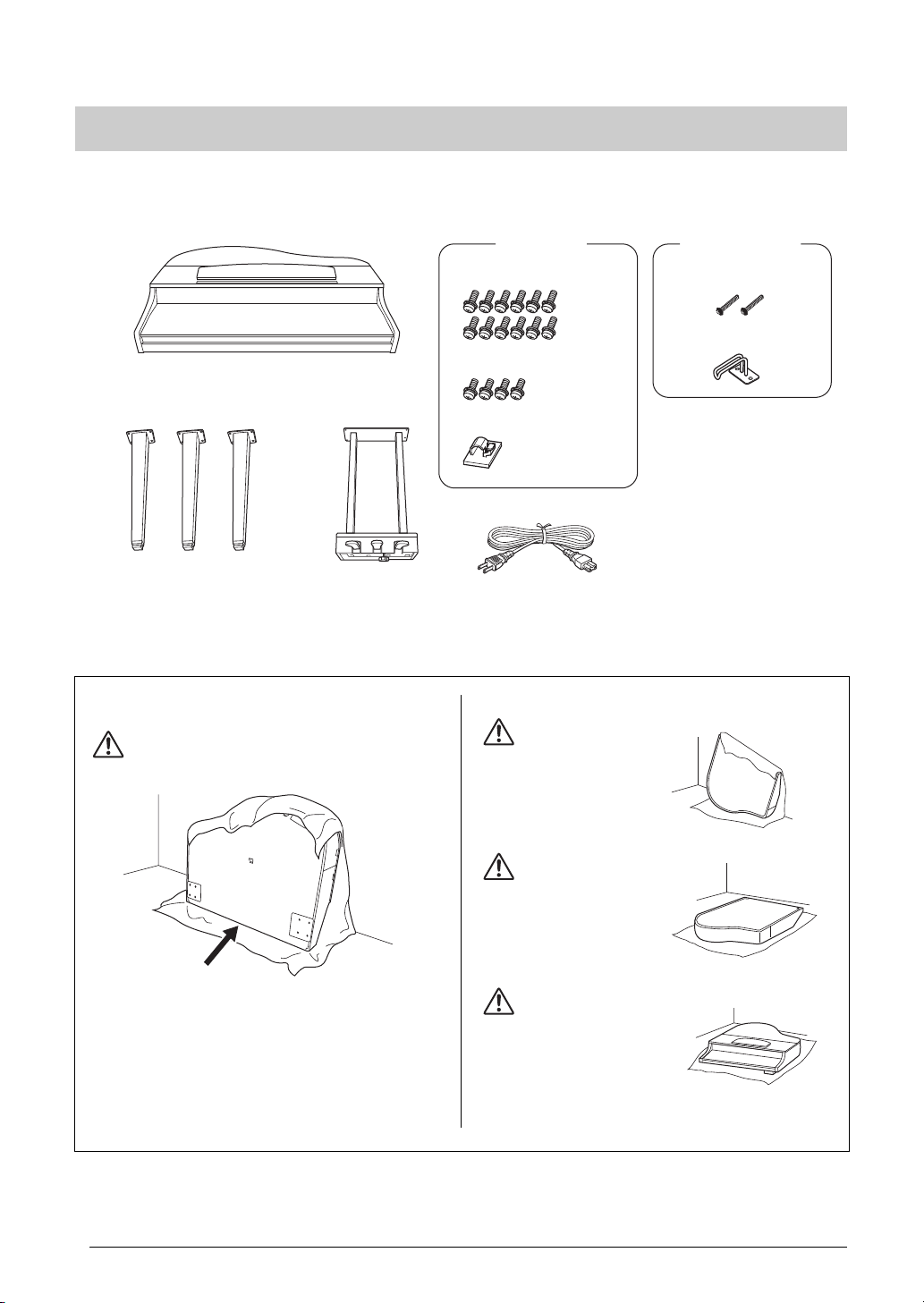

CLP-465GP Assembly............................................................	84
Specifications..............................................................	87
Index ...........................................................................	89

Table of Contents

Introduction

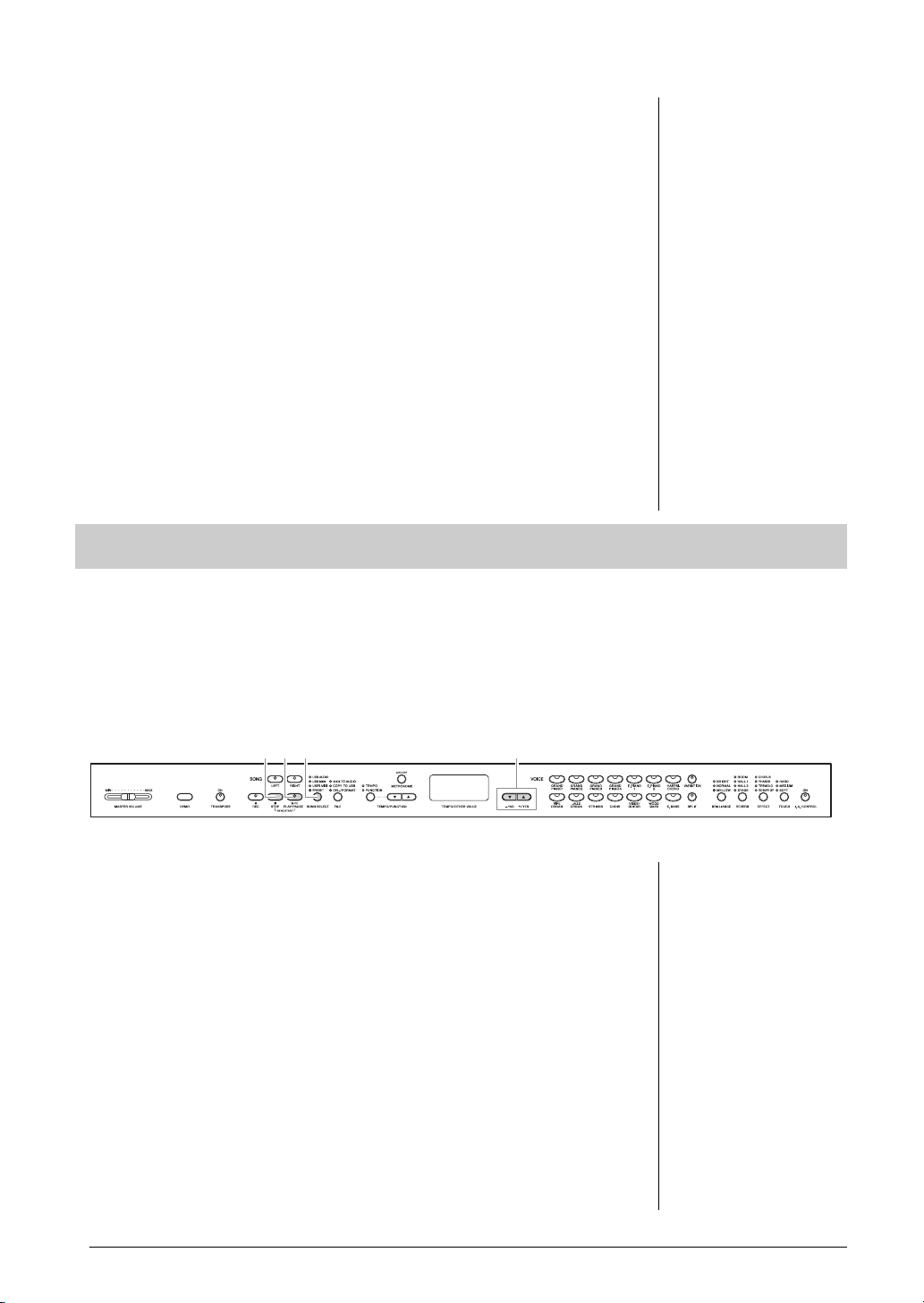

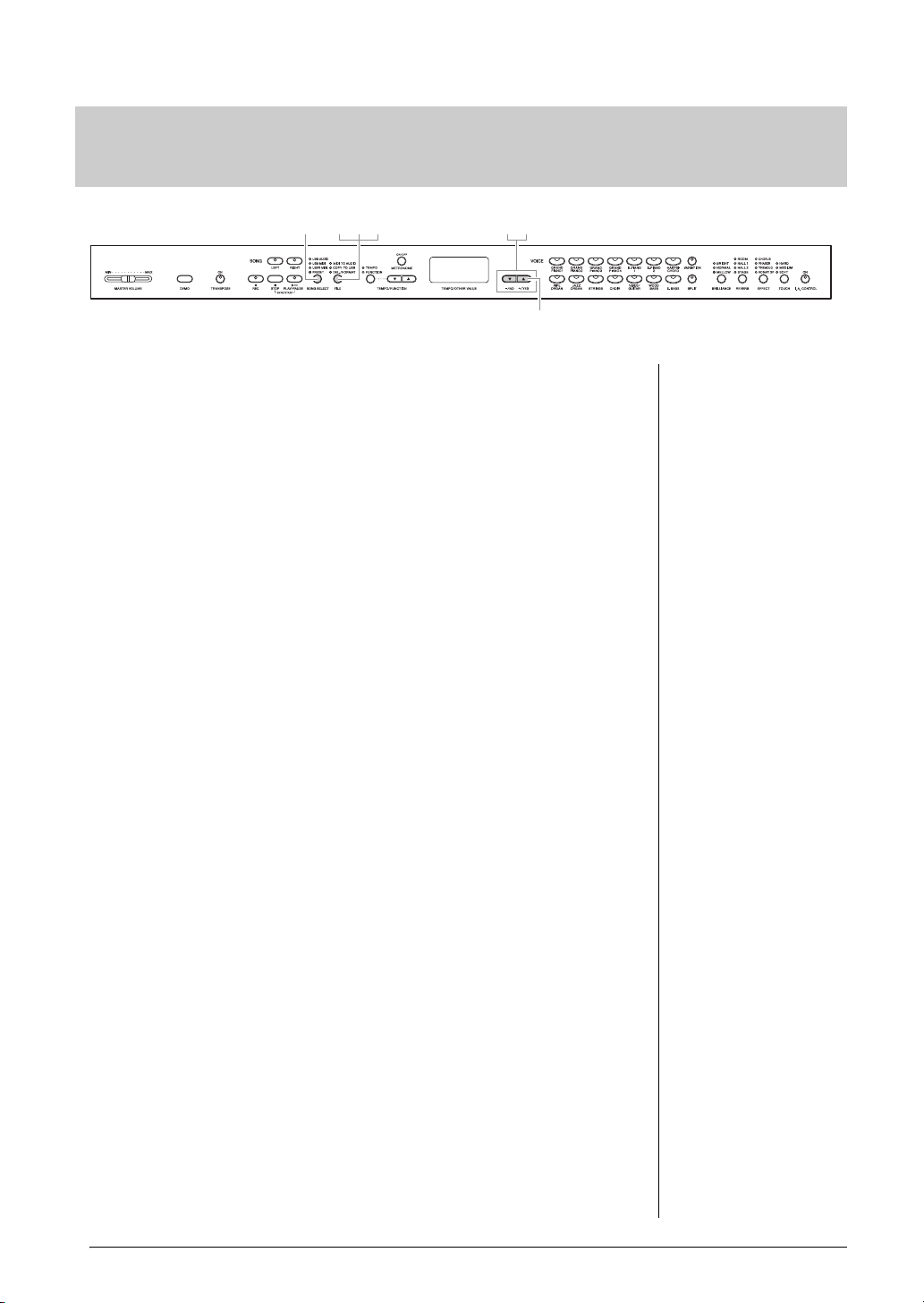

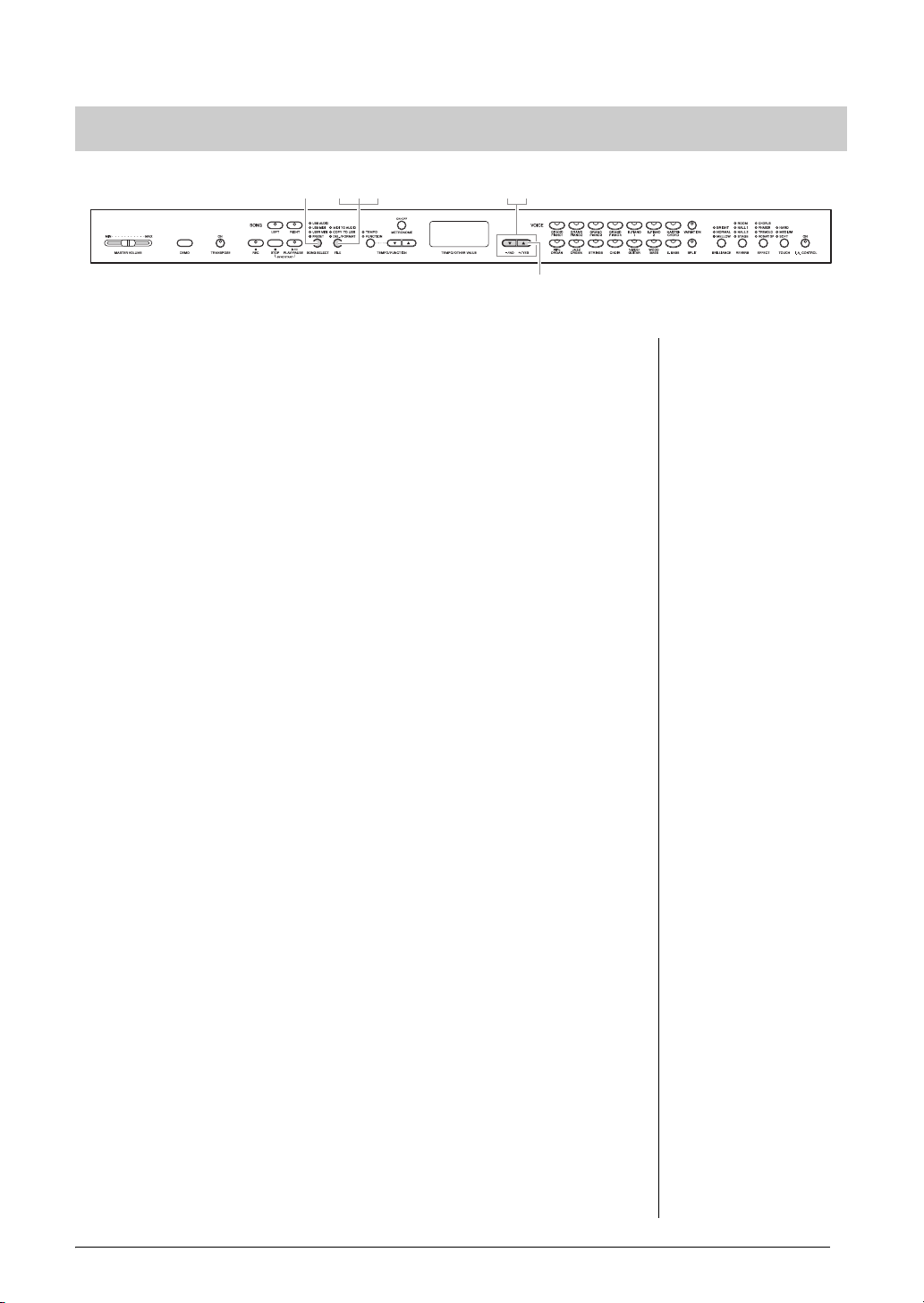

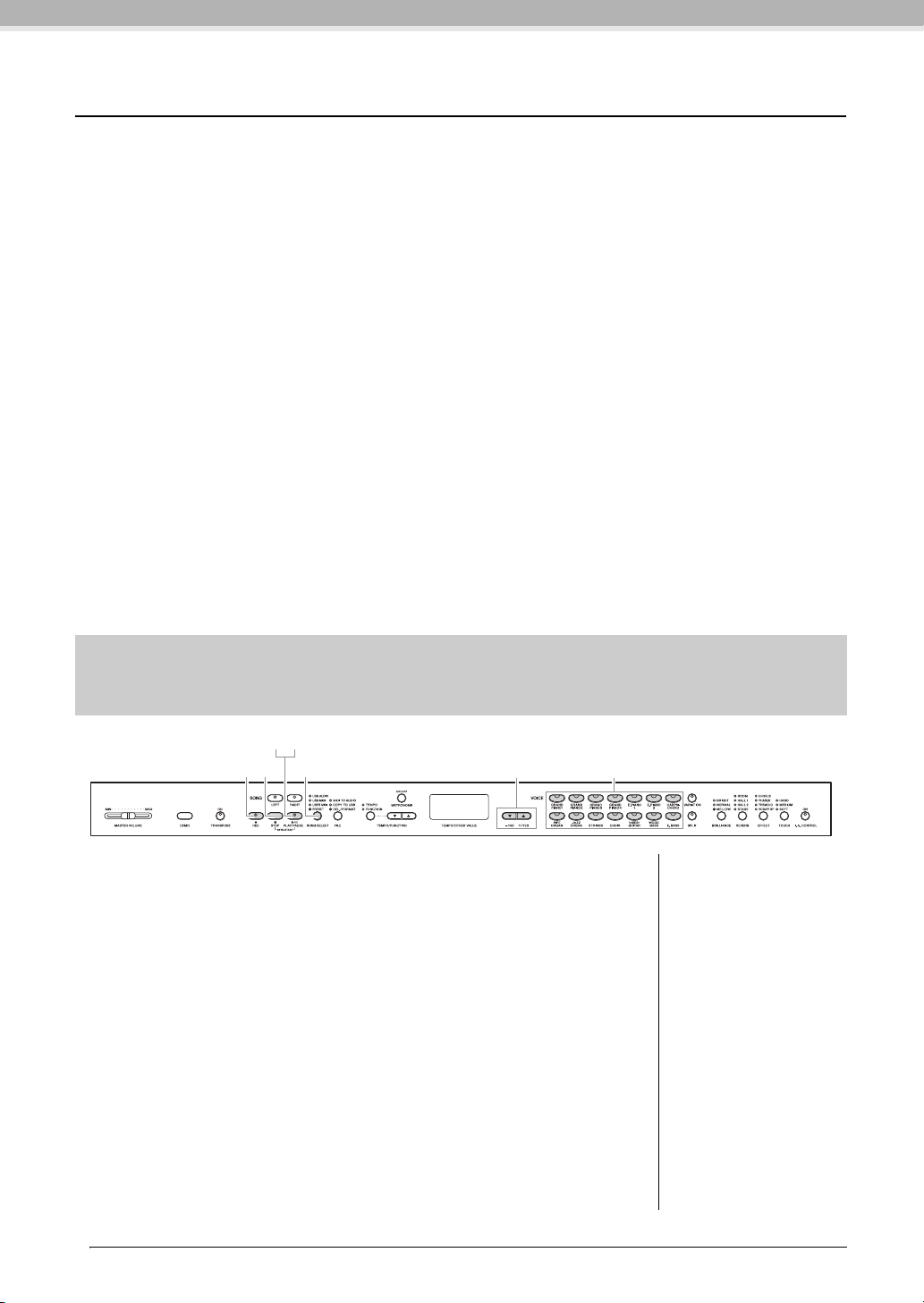

Panel Controls

The panel illustrations shown are taken from the CLP-470.

8 9

)

A-1 B-1 C0

G2 A2

1	[ ] Power switch ............................................	page 15
2	[MASTER VOLUME] slider ............................	page 16
	For adjusting the volume level using this slider.
3	[DEMO] button................................................	page 23
	Demonstration playback is available for each Voice.
4	[TRANSPOSE] button.....................................	page 25
	You can shift the pitch of the entire keyboard up or down so
	that the pitch will match that of another instrument or singer,
	while you play the same, unshifted keys.
5	[REC] button....................................................	page 34
	For recording your keyboard performance.
6	[RIGHT], [LEFT] buttons ...............................	page 32
	For turning the leftand right-hand parts on or off as desired
	so you can practice the corresponding part (the part that is
	turned off) on the keyboard.
7	[PLAY/PAUSE], [STOP] buttons.....................	page 30
	These control playback of the Preset Songs and your recorded
	songs, etc.
8	[SONG SELECT] button..................................	page 30
	For selecting a Song to play back or record.
9	[FILE] button ...................................................	page 40
	For managing song files such as copying recorded songs to a
	USB storage device, as well as formatting a USB storage device.

@ Display.............................................................

page 15

NOTICE

Do not turn off the power to the instrument while flashing dashes appear in the display (indicating the operation is in process). Doing so may damage the data.

#[-/NO], [+/YES] buttons

For setting values or performing file operations. Pressing both buttons simultaneously for certain value settings (Transpose, Tempo, etc.) restores the default value.

$ Voice buttons...................................................	page 22
For selecting Voices.
% [VARIATION] button	page 22
(CLP-470/440/S408/S406)...............................	page 22

Lets you call up an alternate version of the selected Voice, having a different sound.

^ [SPLIT] button	page 27
(CLP-470/440/S408/S406)...............................
For playing different Voices on the leftand right-hand
sections of the keyboard.
& [BRILLIANCE], [REVERB],	page 24
[EFFECT] buttons...........................................

For adjusting the brightness of the sound and adding reverb effects to the sound.

* [TOUCH] button ............................................

page 19

For adjusting the touch response.

)[TEMPO/FUNCTION],

[TEMPO/FUNCTION ] buttons .... pages 20, 52

For changing the song tempo (speed) and selecting other useful functions.

( [I. A. CONTROL] button................................

page 16

For adjusting the sound quality depending on the master volume.

A [USB TO DEVICE] terminal ..........................

page 47

! [METRONOME] button..................................	page 20	For connecting the instrument to a USB storage device,
For using the metronome.		allowing you to copy the recorded data in the instrument to
		the device or play back data stored in the device.

10 Introduction

Panel Controls

Yamaha CLP-430, CLP-S406, CLP-440, CLP-470, CLP-S408 User Manual

	(CLP-470/440/S408/S406)
$	&
#	%
#

^ * (

CLP-470/440/430			CLP-S408/S406
	Music rest	(CLP-470/440)			Music rest
	Music rest	Music braces	Key cover		(page 13)
	(page 13)	Music braces			(page 13)
	(page 13)	(page 14)
		(page 14)	(page 12)
			(page 12)
Key cover
(page 12)
[PHONES] jacks,			[PHONES] jacks,	I/O connectors
	I/O connectors		[SPEAKER]switch	I/O connectors
	I/O connectors		[SPEAKER]switch	(page 45)
[SPEAKER]switch	(page 45)		(page 17)	(page 45)
[SPEAKER]switch	(page 45)		(page 17)
(page 17)

Pedals Pedals (page 18) (page 18)

CLP-465GP Lid

(page 14)

Music rest

(page 13)

Music braces (page 14)

Key cover (page 12)

[AC IN] connector (page 15)

I/O connectors (page 45)

[PHONES] jacks
(page 17)	Pedals
	(page 18)

Introduction 11

Panel Controls

Getting Started — Playing the Clavinova as a Piano

With the full set of pedals and expressive keyboard, this instrument can be played just like a real acoustic piano. This section shows you how to simply set up the instrument and play it. It also shows you how to use the built-in metronome, convenient for practice purposes. We’ve also included for your piano-playing pleasure “50 greats for the Piano,” a score book to help you master the instrument.

Key Cover

CAUTION

•Hold the cover with both hands when opening or closing it. Do not release it until it is fully opened or closed. Be careful to avoid catching fingers (yours or others, especially children’s) between the cover and the unit.

•Do not place objects such as a piece of metal or paper on top of the key cover. Small objects placed on the key cover may fall inside the unit when the cover is opened and may be nearly impossible to remove. This could cause electric shock, short circuit, fire or other serious damage to the instrument.

NOTICE

•Disconnect the optional USB storage device connected to the [USB TO DEVICE] terminal before closing the key cover. Closing the cover with the device still connected may damage the device.

•(CLP-S408/S406) When transporting the instrument, cover the entire keyboard with the protective sheet (pages 76, 80) before closing the key cover. The sheet will protect the keyboard from being scratched.

470

440

430

S408

S406

465GP

To open the key cover:

Lift the cover slightly, then push and slide it to the end completely so that both the panel buttons and keyboard are visible. In this condition, you can make various panel operations such as Voice selection and Song recording/ playback as well as playing the keyboard.

Be careful to avoid catching your fingers when opening or closing the cover.

To close the key cover:

Slide the cover toward you and gently lower the cover over the keys.

You can open the key cover so that only the keyboard appears. This hides the “electronic” panel controls and lets you feel as if you’re playing an actual acoustic piano.

470

440

430

S408

S406

465GP

To open the key cover:

1. Hold the front edge of the key cover top with both hands, then open the key cover slowly.

2. Close the edge of the key cover. (Fold it down so that it is flat with the cover.)

To close the key cover:

If the music rest is unfolded, fold it back.

Unfold the edge of the key cover.

Hold the key cover with both hands and close it slowly.

12 Introduction

Getting Started — Playing the Clavinova as a Piano

Music Rest

470

440

430

S408

S406

465GP

To raise the music rest:

Pull the music rest up and toward yourself as far as it will go.

Flip down the two metal supports at the left and right on the rear of the music rest.

3. Lower the music rest so that it rests on the metal supports.

To lower the music rest:

Pull the music rest toward yourself as far as it will go.

Raise the two metal supports (at the rear of the music rest).

Gently lower the music rest backward until it is all the way down.

CAUTION

Do not try to use the music rest in a half-raised position. Also, when raising or lowering the music rest, do not release your hands from the music rest until it is all the way up or down.

470

440

430

S408

S406

465GP

Unfold the music rest:

When opening the key cover, unfold the music rest.

Fold the music rest:

When closing the key cover, fold the music rest.

Introduction 13

Getting Started — Playing the Clavinova as a Piano

Music Braces

470

440

430

S408

S406

465GP

These braces are for holding the pages of music books in place.

To open

To close

Lid

470

440

430

S408

S406

465GP

CAUTION

•Make sure that the end of the stay fits securely in the lid recess. If the stay is not properly seated in the recess, the lid may fall, causing damage or injury.

•Be careful that you or others do not bump the stay while the lid is raised. The stay may be bumped out of the lid recess causing the lid to fall.

•Be careful to avoid catching fingers (yours or others, especially children's) when raising or lowering the lid.

To open the lid:

1. Raise and hold the right side of the lid (viewed from the keyboard end of the instrument).

2. Raise the lid stay and carefully lower the lid so that the end of the stay fits into the recess in the lid.

To close the lid:

1. Hold the lid stay and carefully raise the lid.

2. Hold the lid in its raised position and lower the lid stay.

3. Carefully lower the lid.

14 Introduction

Getting Started — Playing the Clavinova as a Piano

Turning the power on

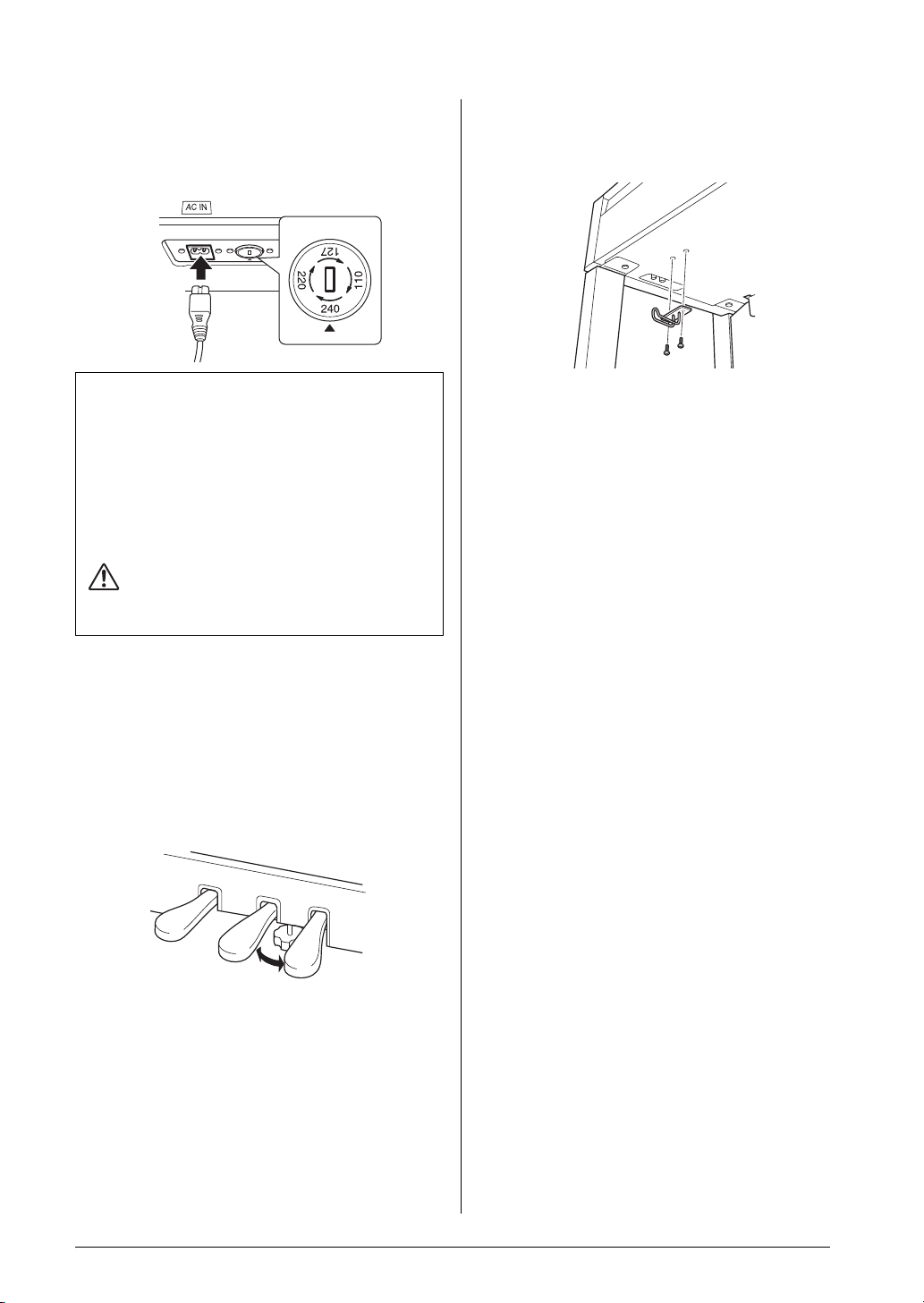

1. Connect the power cord.

First insert the plug of the power cable into the AC connector on the Clavinova, then plug the other end of the cable into the proper AC outlet on the wall. In some areas a plug adaptor may be provided to match the pin configuration of the AC wall outlets in your area. For more information on connecting the power cord, refer to the assembly instructions on page 69.

1-1

1-2

The shape of the plug differs depending on the locale.

WARNING

Make sure your instrument is rated for the AC voltage supplied in the area in which it is to be used (voltage rating appears on the name plate on the bottom panel). In some areas, a voltage selector may be provided on the bottom panel of the main keyboard unit near the AC IN. Make sure that the voltage selector is set for the voltage in your area. Connecting the unit to the wrong AC supply can cause serious damage to the internal circuitry and may even pose a shock hazard!

Use only the AC power cord supplied with your instrument. If the supplied cord is lost or damaged and needs to be replaced, contact your Yamaha dealer. The use of an inappropriate replacement can pose a fire and shock hazard!

The type of AC power cord provided with your instrument may be different depending on the country in which it is purchased. (In some areas a plug adaptor may be provided to match the pin configuration of the AC wall outlets in your area.) Do NOT modify the plug provided with your instrument. If the plug will not fit the outlet, have a proper outlet installed by a qualified electrician.

2. Turn the power on.

Press the [ ] power switch located on the right of the keyboard to turn the power on.

The display located in the center of the front panel and the power indicator located below the left end of the keyboard lights up.

Power switch

Power indicator

Display

Normally indicates tempo

Power indicator

If you close the key cover without turning the power off, the power indicator remains lit, indicating that the power is still on.

When you’re ready to turn off the power, press the power switch again.

The display and the power indicator turn off.

CAUTION

Even when the instrument is turned off, electricity is still flowing to the instrument at the minimum level. When you are not using the instrument for a long time or during electrical storms, make sure you unplug the AC power plug from the wall AC outlet.

Introduction 15

Getting Started — Playing the Clavinova as a Piano

Setting the volume — [MASTER VOLUME]

To adjust the volume, use the [MASTER VOLUME] slider located at the left of the panel. Play the keyboard to actually produce sound while you adjust the volume.

Decreases the	Increases the
level.	level.

MASTER VOLUME: The volume level of the entire keyboard sound.

CAUTION

NOTE

Adjusting the [MASTER VOLUME] slider also affects the output level of the [PHONES] jacks and the output level of the AUX OUT jack.

I.A. Control (Intelligent Acoustic Control)

I.A. Control is a function which automatically adjusts and controls the sound quality according to the overall volume of the instrument. Even when the volume is low, it permits both low sounds and high sounds to be clearly heard.

Pressing the [I.A. CONTROL] button turns the function on and off. When it is on, the lamp lights. I.A. Control is effective only from the sound output of the instrument speakers.

Adjusting I. A. Control Depth

The depth of I. A. Control can be adjusted by holding down the [I. A. CONTROL] button and simultaneously using the [-/NO] [+/YES] buttons. The range is from -3 to 3. The higher the value, the more clearly that low and high sounds are heard at lower volume levels. The current setting appears on the display while the [I. A. CONTROL] button is held.

The default setting (0) can be recalled by holding down the [I. A. CONTROL] button and simultaneously pressing the [-/NO] and [+/YES] buttons together.

16 Introduction

Getting Started — Playing the Clavinova as a Piano

Using headphones

Connect a pair of headphones to one of the [PHONES] jacks. Two [PHONES] jacks are provided. You can connect two sets of standard stereo headphones. (If you are using only one pair of headphones, you can plug them into either of these jacks.)

CAUTION

Do not use headphones at a high volume for an extended period of time. Doing so may cause hearing loss.

Optional headphones

HPE-160 Yamaha headphones.

Bottom surface

Standard stereo phone plug

Using the headphone hanger

You can hang the headphones on the instrument. Install the headphone hanger using included two screws (4 x 10mm) as shown in the illustration.

NOTICE

Do not hang anything other than the headphones on the hanger. Doing so may damage the instrument or the hanger.

Switching the speakers on/off

470	440	430	S408	S406	465GP
470	440	430	S408	S406	465GP
The [SPEAKER] switch turns the internal speakers on or off.
NORMAL		The speakers produce sound as long as a pair of headphones is
NORMAL
ON		not connected.
ON		The speakers always produce sound.
OFF................		The speakers produce no sound.

Introduction 17

Getting Started — Playing the Clavinova as a Piano

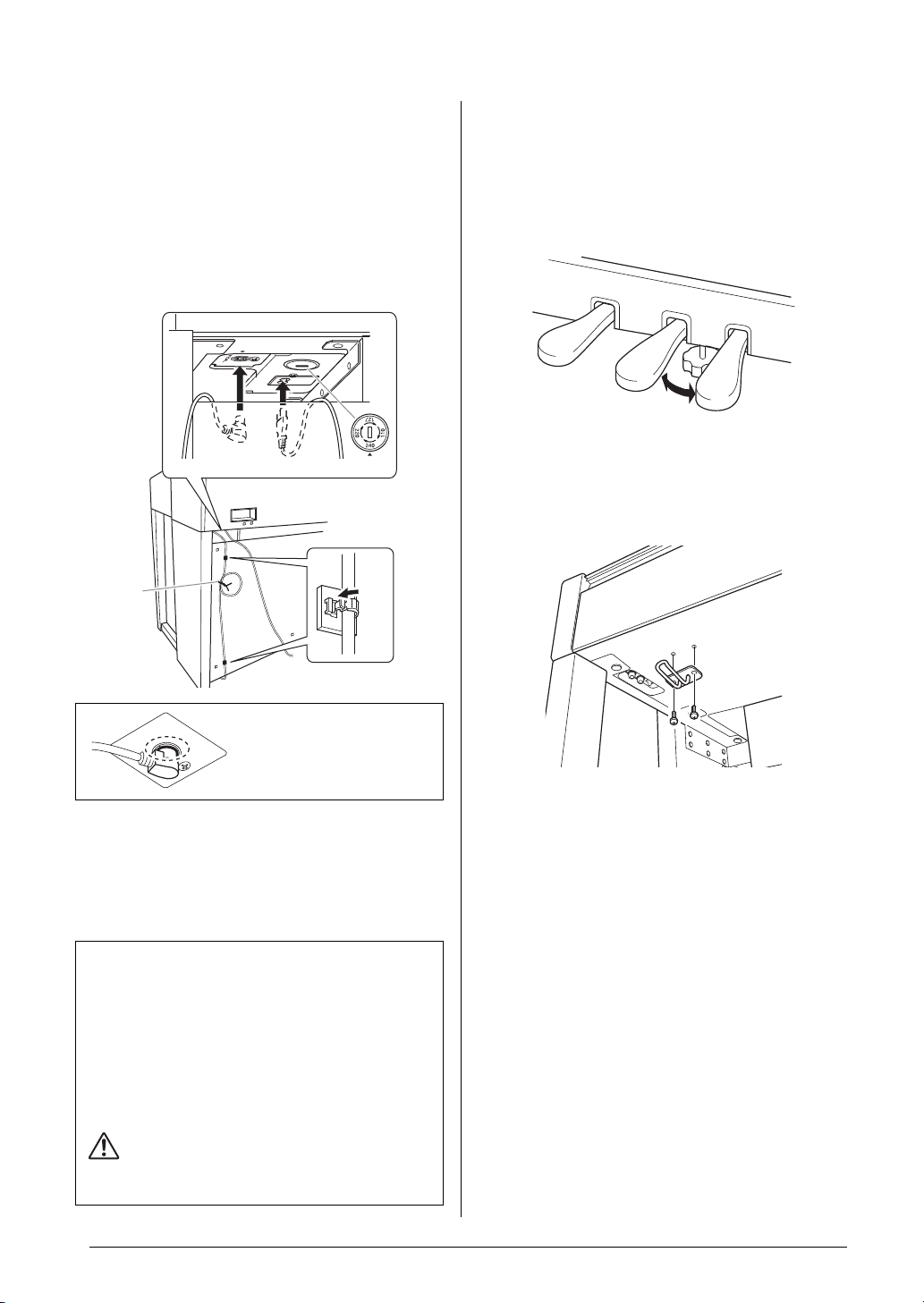

Using the pedals

The Clavinova has three foot pedals: damper pedal (right), sostenuto pedal (center), and soft pedal (left) that produce a range of expressive effects similar to those produced by the pedals on an acoustic piano.

Damper (Right) Pedal

When this pedal is pressed, the sound is sustained, even when the keys are released. When this is used with one of the Grand Piano Voices, a special resonance effect is added, which effectively reproduces the rich, resonant sound of the frame and soundboard of a real acoustic piano. The depth of this resonance effect can be set in the Function parameters (page 51).

When you press the damper pedal here, the notes you play before you release the pedal have a longer sustain.

Half-pedal function

This instrument also has a Half-pedal function which allows you to use half-damper techniques, in which the damper is pressed somewhere between all the way down and all the way up. In this half-damper state (on a real piano), the damper felts only partially mute the strings. The Half-pedal function on the Clavinova lets you delicately and expressively control the damper muting, and create subtle nuances in your performance. It also lets you finely control the point at which pressure on the pedal affects the damper muting. (See the Function mode parameters on page 51.)

GP Responsive Damper Pedal	470	440	430	S408	S406	465GP

This special pedal (only on the CLP-470/S408) has been designed to provide enhanced tactile response and, when pressed, is much closer in feel to the pedal of an actual grand piano. It makes it easier to physically experience the half-pedal point and more easily apply the half-pedal effect than other pedals. Since the pressing sensation may vary depending on the situation, including the location where the instrument is installed, you may want to adjust the half-pedal point to the desired setting (page 51).

Sostenuto (Center) Pedal

If you play a note or chord on the keyboard and press the sostenuto pedal while holding the note(s), the notes will sustain as long as the pedal is held. Organ, string and choir Voices will continue to sound for as long as the sostenuto pedal is depressed. All subsequent notes will not sustain.

When you press the sostenuto pedal here while holding the note, the note will sustain as long as you hold the pedal.

Soft (Left) Pedal

The soft pedal reduces the volume and slightly changes the timbre of notes played while the pedal is pressed. The soft pedal will not affect notes that are already playing or sustaining when it is pressed. Press the pedal immediately before you play the target notes.

NOTE

The pedals are covered with vinyl covers when shipped from the factory. If your instrument features the GP Responsive Damper Pedal, remove the cover from the damper pedal for optimum use of the pedal effect.

NOTE

The center and left pedals can also be assigned to song start/ pause operation ([PLAY/PAUSE] function) in the Function mode (page 51).

NOTE

When you select the Jazz Organ Voice, the ROTARY SP of the [EFFECT] section (page 25) is automatically selected and the Left pedal functions to switch the rotary speed of the rotary speaker.

18 Introduction

Getting Started — Playing the Clavinova as a Piano

Adjusting the touch sensitivity — [TOUCH]

			[−/NO][+/YES]					[TOUCH]

You can select four different types of keyboard touch sensitivity by pressing the [TOUCH] button. Select one to match different playing styles and preferences.

HARD ...........	Requires that the keys be played quite hard to produce maximum
	loudness.
MEDIUM .....	Produces a fairly “standard” keyboard response.
SOFT .............	Allows maximum loudness to be produced with relatively light
	key pressure.
FIXED...........	All notes are produced at the same volume no matter how hard the
	keyboard is played. (No indicators are lit.) The fixed volume can
	be changed.

Changing the volume when FIXED is selected

The volume in FIXED mode can be changed by using the [-/NO] [+/YES] buttons while holding down the [TOUCH] button. The volume range is from 1 through 127. The

current volume level appears on the display while the	Volume
current volume level appears on the display while the
[TOUCH] button is held.
The default setting (64) can be recalled by pressing the
[-/NO] and [+/YES] buttons together while holding down
the [TOUCH] button.

NOTE

This setting does not change the weight of the keyboard.

Default setting: MEDIUM

NOTE

The touch sensitivity type will become the common setting for all Voices. However, the touch sensitivity settings may have little or no effect with certain Voices that are not normally responsive to keyboard dynamics. (Refer to the “Preset Voice List” on page 64.)

NOTE

The touch volume set in FIXED mode will become the common setting for all Voices.

Setting range: 1 (minimum volume) – 127 (maximum volume)

Default setting: 64

Introduction 19

Getting Started — Playing the Clavinova as a Piano

Using the metronome — [METRONOME]

This instrument features a built-in metronome (a device that keeps an accurate tempo) that is convenient for practicing.

[−/NO][+/YES]

[TEMPO/FUNCTION ]

1. Start the metronome.

The metronome sound is turned on by pressing the

[METRONOME] button.

The beat indicator flashes at the current tempo.

Adjusting the tempo

Press the [TEMPO/FUNCTION] button (the indicator lights). The tempo of the metronome can be set from 5 to 500 beats per minute by using the [TEMPO/FUNCTION ] buttons.

The default setting (120) can be recalled by pressing both the [] and [] buttons simultaneously.

Adjusting the time signature

The time signature (beat) of the metronome can be set by simultaneously holding down the [METRONOME] button and using the

[-/NO]/[+/YES] buttons. You can set the beat from 0	Beat

to 15. The current setting appears on the display while the [METRONOME] button is held.

The first beat is accented with a bell sound and the rest with clicks. When the time signature is set to “0,” clicks sound on all beats.

The default setting (0) can be recalled by pressing the [-/NO] and [+/YES] buttons together while holding down the [METRONOME] button.

2. Stop the metronome.

Turn off the metronome by pressing the [METRONOME] button.

NOTE

The volume of the metronome can be adjusted in the Function mode (page 51).

NOTE

The default settings of tempo and time signature for MIDI Songs differ depending on the Songs. When you select a MIDI Song, the setting here will be canceled and the original tempo and the time signature for the selected Song will be called up.

20 Introduction

Getting Started — Playing the Clavinova as a Piano

Maintenance

To keep your Clavinova in optimum condition, we recommend that you periodically follow the maintenance points below.

Instrument and Bench Maintenance

• When cleaning the instrument, use a soft, dry or slightly damp cloth.

NOTICE

Do not use paint thinners, solvents, cleaning fluids, or chemical-impregnated wiping cloths.

If you are using a model with a polished finish, gently remove dust and dirt with a soft cloth. Do not wipe too hard since small particles of dirt can scratch the instrument's finish.

To keep the surface polished, apply commercially available piano polisher to a soft cloth and wipe the instrument’s surface with it. Then, polish it with a separate cloth. Before using any piano polisher, make sure to read the instructions for proper usage.

• Tighten the screws of the instrument and bench periodically.

Bench Height Adjustment

The bench height can be adjusted by rotating the handle. Rotating clockwise heightens the bench. (Before shipment, the handle is firmly fastened.)

Pedal Cleaning

As with an acoustic piano, pedals may become tarnished over years of use. When this occurs, polish the pedal with a compound designed for piano pedals. Before using the compound, make sure to read the instructions for proper usage.

Tuning

Unlike an acoustic piano, the instrument does not need to be tuned. It always stays perfectly in tune.

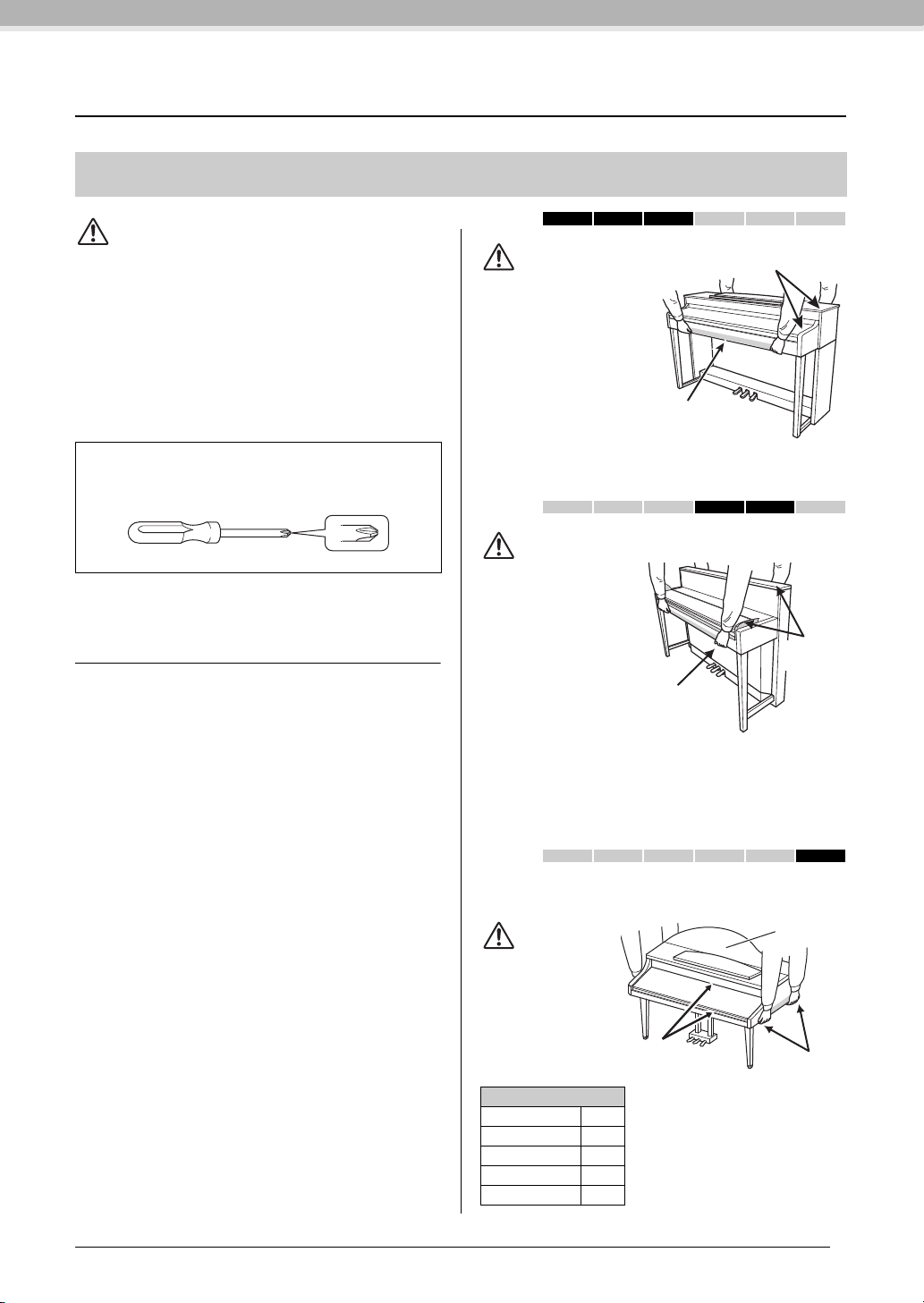

Transporting

You can transport the instrument along with other belongings. You can move the unit as it is (assembled) or you can disassemble the unit down to the condition it was in when you first took it out of the box. Transport the keyboard horizontally. Do not lean it up against a wall or stand it up on its side. Do not subject the instrument to excessive vibration or shock.

When transporting the assembled instrument, make sure all screws are properly tightened and have not been loosened by moving the instrument.

NOTICE

(CLP-S408/S406) When transporting the instrument, cover the entire keyboard with the protective sheet (pages 76,5, 80) before closing the key cover. The sheet will protect the keyboard from being scratched.

Introduction 21

Getting Started — Playing the Clavinova as a Piano

Advanced Functions

Playing various musical instrument sounds (Voices)

In addition to the wonderfully realistic piano sounds, you can select and play other musical instrument sounds (Voices), such as organ or stringed instruments.

Selecting Voices

[VARIATION]

Voice buttons (CLP-470/440/S408/S406)

Select the desired Voice by pressing one of the Voice buttons. Try playing the keyboard and listening to the sound.

[VARIATION]	470	440	430	S408	S406	465GP

Lets you call up an alternate version of the selected Voice. Pressing the [VARIATION] or selected Voice button toggles the variation on and off. The lamp lights when [VARIATION] is enabled. Refer to “Preset Voice List” on page 64 for more information on the characteristics of each variation.

NOTE

The loudness of the Voice changes depending on how hard you play the keyboard; however, for certain Voices there is little or no effect. Refer to “Touch Response” in the “Preset Voice List” (page 64).

Listening to the Voice Demo Songs

To familiarize yourself with the characteristics of the Voices, listen to the Demo Songs for each Voice. Refer to the Preset Voice List on page 64 for more information on the characteristics of each preset Voice.

				: Included
				—: Not included

Voice	Title	Composer	CLP-470/440/S408/S406	CLP-430/465GP

GRAND PIANO1	Valse op.34-1 “Valse Brillante”	F. F. Chopin		

GRAND PIANO2	Intermezzo, 6 Stücke, op.118-2	J. Brahms		

HARPSICHORD	Concerto a cembalo obbligato, 2 violini,			
HARPSICHORD	viola e continuo No.7, BWV.1058			
	viola e continuo No.7, BWV.1058

PIPE ORGAN/	Herr Christ, der ein'ge Gottes-Sohn,	J. S. Bach		
PIPE ORGAN1	BWV.601			
PIPE ORGAN1	BWV.601

PIPE ORGAN2	Triosonate Nr.6, BWV.530		—	

The demonstration Songs listed above are short rearranged excerpts of the original compositions.

	22	Advanced Functions
	22	Playing various musical instrument sounds (Voices)
		Playing various musical instrument sounds (Voices)

1	3	3	2	2

1. Press the [DEMO] button to call up the Demo mode.

The Voice button indicators will flash in sequence.

2. Select a Songs and start playback.

Press one of the Voice buttons to start playback of all Songs starting from the corresponding Voice Demo Song — featuring the Voice normally selected by that Voice button. If you wait for a short while without pressing any buttons, the GRAND PIANO 1 Demo Song will begin playback.

3. Stop the Voice demo and exit from the Demo mode.

Press the [DEMO] or [STOP] button.

To temporarily stop a Demo Song while playing it, press the [PLAY/ PAUSE] button.

Listening to the Piano Demos
	470	440	430	S408	S406	465GP
(sampling technologies)

You can play Piano Demos which showcase the sophisticated piano Voice sampling technologies.

After you press the [DEMO] button, press the [VARIATION] button. Next, press the Voice button assigned to the particular Piano Demo (see below) you wish to hear. The Demo Songs are assigned to the Voice buttons as follows.

Piano Demo (Sampling technology)		Voice button

Stereo Sampling		GRAND PIANO1

Mono Sampling		GRAND PIANO2

Sustain Sampling	With	GRAND PIANO3

	Without	GRAND PIANO4

Key-off Sampling	With	E.PIANO1

	Without	E.PIANO2

String Resonance	With	HARPSICHORD

	Without	PIPE ORGAN

To stop playback, press the [DEMO] or [STOP] button.

Mode:

A mode is a status under which you can execute a certain function. In the Demo mode, you can play back demonstration Songs.

NOTE

The Demo mode cannot be called up during Song recording (page 34) or file operations (page 40).

NOTE

MIDI reception is not possible in the Demo mode. Demo Song data is not transmitted via the MIDI terminals.

NOTE

The tempo of Demo Songs cannot be adjusted. Also, the Part Cancel function (page 32) and the A-B Repeat function (page 33) are not available in Demo mode.

NOTE

For explanation about the each sampling and details about the Voices to which the sampling can be applied, refer to Preset Voice List on page 64. Refer to page 51 to specify the depth of the sampling effect on the Voices.

	Advanced Functions		23
	Playing various musical instrument sounds (Voices)		23
	Playing various musical instrument sounds (Voices)

Enhancing and customizing the sound — [BRILLIANCE]/ [REVERB]/[EFFECT]

[−/NO] [+/YES]		[REVERB]



		[BRILLIANCE]

			[EFFECT]
[BRILLIANCE]		Default setting: NORMAL
[BRILLIANCE]		Default setting: NORMAL
This control can be used to change the tonality or “timbre” of the sound output.		NOTE
Press the [BRILLIANCE] button a few times until the indicator corresponding to		When the BRILLIANCE is set to
		BRIGHT, the overall sound will be
the desired type lights. When two adjacent indicators are lit, the type that is		slightly louder. If the MASTER
		VOLUME is set at a high level the
between the two indicated types is selected. For example, when both NORMAL		VOLUME is set at a high level the
		sound may become distorted. If
and MELLOW are lit, the brilliance setting between NORMAL and MELLOW is		so, lower the MASTER VOLUME
		level.
selected. This parameter affects the entire sound of the instrument.
BRIGHT ..........Bright tone
NORMAL........Standard tone
MELLOW........Soft and mellow tone
[REVERB]
This control enables you to select various digital reverb effects that would add
extra depth and expression to the sound and create a realistic acoustic ambience.
Press the [REVERB] button a few times until the indicator corresponding to the
desired type lights. No effect is produced when all indicators are off. You can also
adjust the reverb depth (see below).
Off ....................	When no reverb effect is selected, no REVERB indicator is lit.	Default setting:
	The GRAND PIANO1 – GRAND PIANO4 Voices feature an acoustic-	The default reverb type (including
	The GRAND PIANO1 – GRAND PIANO4 Voices feature an acoustic-	Off) and depth settings are
	piano-like soundboard resonance effect, even when the Reverb is off.	different for each Voice.
ROOM .............	This setting adds a continuous reverb effect to the sound, similar to the
	acoustic reverberation you would hear in a room.
HALL 1 ............	For a “bigger” reverb sound, use the HALL 1 setting. This effect simulates
	the natural reverberation of a small-size concert hall.
HALL 2 ............	For a truly spacious reverb sound, use the HALL 2 setting. This effect
	simulates the natural reverberation of a large concert hall.
STAGE .............	Simulates the reverb of a stage environment.
Adjusting Reverb Depth
The reverb depth for the selected Voice can be adjusted by simultaneously		Setting range: 0 (no effect) – 20
		(maximum reverb depth)
holding down the [REVERB] button and pressing the [-/NO] or [+/YES] button.		(maximum reverb depth)

The depth range is from 0 through 20. The current depth setting appears on the
display while the [REVERB] button is held.
The default setting can be recalled by simultaneously holding down the
[REVERB] button and pressing the [-/NO] [+/YES] buttons together.

	24	Advanced Functions
	24	Playing various musical instrument sounds (Voices)
		Playing various musical instrument sounds (Voices)

[EFFECT]

The button allows you to select an effect to enhance the sound and give it greater depth and animation.

Press the [EFFECT] button a few times until the indicator corresponding to the desired type lights. No effect is produced when all indicators are off. You can also adjust the effect depth (see below).

Off .............................	When no effect is selected, no EFFECT indicator is lit.
CHORUS ..................	A shimmering, broadening effect
PHASER ...................	Adds a sweeping effect to the sound.
TREMOLO...............	Tremolo effect
ROTARY SP.............	Adds the vibrato effect of a rotary speaker.

Adjusting Effect Depth

The effect depth for the selected Voice can be adjusted by simultaneously holding down the [EFFECT] button and pressing the [-/NO] or [+/YES] button. The depth range is from 0 through 20. The current depth setting appears on the display while the [EFFECT] button is held.

The default setting can be recalled by simultaneously holding down the [EFFECT] button and pressing the [-/NO] [+/YES] buttons together.

Default setting:

The default effect type (including Off) and depth settings are different for each Voice.

NOTE

When you select ROTARY SP, pressing and releasing the left pedal switches between fast/slow rotation of the rotary speaker.

Setting range: 0 (no effect) – 20 (maximum effect depth)

Transposition — [TRANSPOSE]

You can transpose the pitch of the instrument—both that of your keyboard performance and that of Song playback—to match the pitch of another instrument or vocalist, without having to actually change keys on the keyboard. Transposition can be set in semitone units. For example, if you set the transposition amount to “5,” playing key C produces pitch F. In this way, you can play the song as if it were in C major, and the Clavinova will transpose it to the key of F.

		[TRANSPOSE]			[-/NO][+/YES]

Setting the transposition amount		Transpose: Change the key
The transposition amount can be set in semitone intervals		Transpose: Change the key
The transposition amount can be set in semitone intervals		signature of a song. On the
by pressing the [-/NO] [+/YES] button while holding down		Clavinova, transposing shifts the
by pressing the [-/NO] [+/YES] button while holding down		pitch of the entire keyboard.
the [TRANSPOSE] button. The default setting (0) can be		Setting range: -12 semitones


recalled by pressing the [-/NO] and [+/YES] buttons	Transposition	(down one octave) – 12 semitones
recalled by pressing the [-/NO] and [+/YES] buttons		(up one octave)
together while holding down the [TRANSPOSE] button.		Default setting: 0 (normal pitch)
together while holding down the [TRANSPOSE] button.

	Advanced Functions		25
	Playing various musical instrument sounds (Voices)		25
	Playing various musical instrument sounds (Voices)

Turning transpose on or off

Each time you press the [TRANSPOSE] button, transpose turns on or off. When the lamp is flashing, the function is on. When it is off or the transposition amount is 0, the lamp does not flash.

NOTE

Audio Song playback cannot be transposed.

Layering two Voices (Dual mode)

This function lets you layer and play two different Voices at the same time. You can layer Voices of two different categories or two different Voices in the same category, and create a composite Voice of greater richness and texture.

1 2

1. Call up the Dual mode.

Press two Voice buttons at the same time. The Voice indicators of both selected Voices will light when the Dual mode is active.

Try playing the keyboard and listen to the resulting sound.

Voice 1/ Voice 2

According to the Voice numbering priority shown on the right, the lower value Voice number will be designated as Voice 1, and the other Voice as Voice 2.

Voice numbering priority

The Function mode provides access to a number of other Dual mode functions, such as volume balance setting or octave setting (page 51).

2. Exit the Dual mode and return to normal play mode.

To return to the normal single-Voice play mode, press any single Voice button.

NOTE

(CLP-470/440/S408/S406)

Dual and Split (page 27) modes cannot be called up at the same time.

(CLP-470/440/S408/S406) [VARIATION] in Dual Mode

The [VARIATION] button’s indicator will light if the variation is engaged for either or both of the Dual mode Voices. While Dual mode is called up, the [VARIATION] button can be used to turn the variation for both Voices on or off. To turn the variation on or off for only one of the Voices, hold the Voice button for the other Voice and press the button of the Voice for which you want to change the variation.

[REVERB] in Dual Mode

An optimum reverb type for the combination of Voices is assigned automatically.

[EFFECT] in Dual Mode

Depending on the conditions, one effect type will take priority over the other. To change the effect depth, press the [-/NO] or [+/YES] button while holding the [EFFECT] button. This will be applied to Voice 1 only. The depth can also be changed in the Function mode (page 51).

	26	Advanced Functions
	26	Playing various musical instrument sounds (Voices)
		Playing various musical instrument sounds (Voices)

Splitting the keyboard range and playing two different Voices (Split mode)

470

440

430

S408

S406

465GP

Split mode enables you to play two different Voices on the keyboard — one with the left hand and another with the right hand. For example, you can play a bass part using the Wood Bass or Electric Bass Voice with the left hand, and a melody with the right hand.

					Voice buttons		[SPLIT]

1. Call up the Split mode.

Press the [SPLIT] button so that its indicator lights. The default setting (WOOD BASS) will be selected for the left-hand Voice at first.

The Function mode (page 51) provides access to a number of other Split mode functions, such as the volume balance setting or octave setting.

2. Specify the split point (the border between the right-and left-hand range).

While simultaneously holding down the [SPLIT] button, press the key to which you want to assign the split point. Alternately, while simultaneously holding down the [SPLIT] button, press the [-NO]/[+/YES] buttons the necessary number of times to change the split point.

A -1

F2 (Default setting)

NOTE

Dual (page 26) and Split modes cannot be called up simultaneously.

NOTE

A specified “split point” key is included in the left-hand range.

NOTE

The split point can also be changed in the Function mode (page 51).

NOTE

The default split point can be recalled by simultaneously holding down the [SPLIT] button and pressing both the [-/NO] and [+/YES] buttons together.

	Advanced Functions		27
	Playing various musical instrument sounds (Voices)		27
	Playing various musical instrument sounds (Voices)

The name of the current split-point key appears on the display while the [SPLIT] button is held.

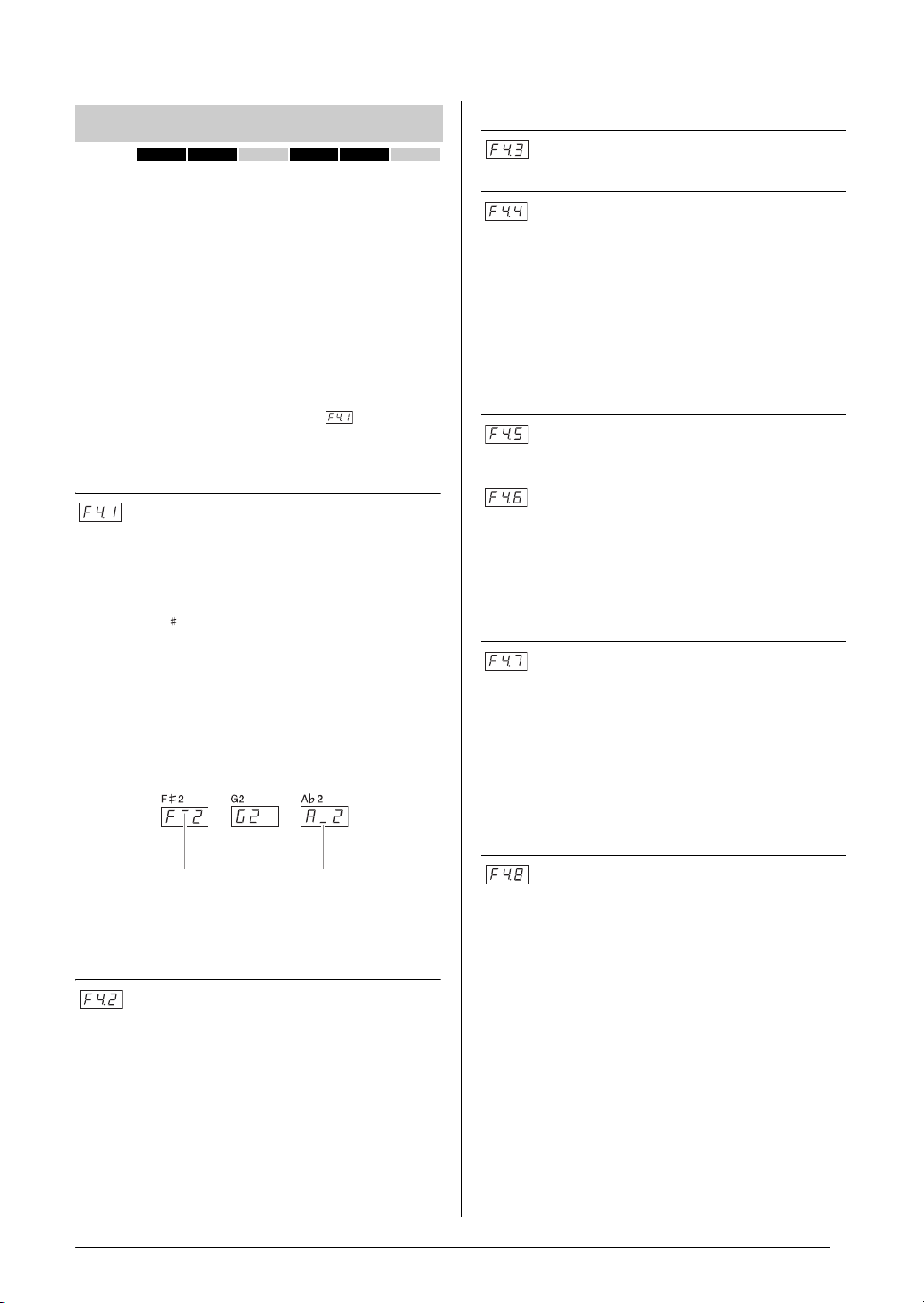

Example of split-point key display

High bar indicates sharp note

Low bar indicates flat note

3. Select a Voice for the right hand.

Press a Voice button.

To turn the variation on or off for the right-hand split Voice, press the [VARIATION] button or the currently selected Voice button.

4. Select a Voice for the left hand.

Press the corresponding Voice button while holding the [SPLIT] button. (The indicator of the Left Voice button will light while the [SPLIT] button is pressed.)

To turn the variation on or off for the left-hand split Voice, hold the [SPLIT] button and press the [VARIATION] button or the currently selected Voice button.

Try playing the keyboard and listen to the resulting sound.

5. Exit Split mode and return to normal play mode.

Press the [SPLIT] button again so that its indicator goes out.

NOTE

[VARIATION] in Split Mode

Normally, the Voice indicator of the right Voice lights in Split mode. The [VARIATION] can be used to turn the variation for the right Voice on or off as required. While the [SPLIT] button is held, however, the Voice indicator of the left Voice lights. In this state the [VARIATION] button turns the variation for the left Voice on or off.

[REVERB] in Split Mode

An optimum reverb type for the split Voices is assigned automatically.

[EFFECT] in Split Mode

Depending on the conditions, one effect type will take priority over the other. To change the effect depth, press the [-/NO] or [+/YES] button while holding the [EFFECT] button. This will be applied to the right Voice only. The depth can also be changed in the Function mode (page 51).

	28	Advanced Functions
	28	Playing various musical instrument sounds (Voices)
		Playing various musical instrument sounds (Voices)

Playing back Songs

This instrument can play Preset Songs, User Songs (you recorded), or commercially available Songs. In addition to listening to these Songs, you can play the keyboard as the Song plays back. The Songs reside on internal memory and the external USB storage device connected to the [USB TO DEVICE] terminal.

MIDI Songs and Audio Songs

There are two kinds of Songs that can be recorded and played back on this instrument: MIDI Songs and Audio Songs.

A MIDI Song is comprised of your keyboard performance information and is not a recording of the actual sound itself. The performance information refers to which keys are played, at what timing, and at what strength—just as in a musical score. Based on the recorded performance information, the tone generator (of the Clavinova, etc.) outputs the corresponding sound. A MIDI Song uses a small amount of data capacity in comparison to audio recording, and allows you to easily change the event like a Voice.

An Audio Song is a recording of the performed sound itself. This data is recorded in the same way as that used in recording cassette tapes, or with voice recorders, etc. This data can be played with a portable music player, etc., allowing you to easily let other people hear your performance.

NOTE

For a general overview of MIDI and how you can effectively use it, refer to “MIDI Basics” (downloadable from the Yamaha website).

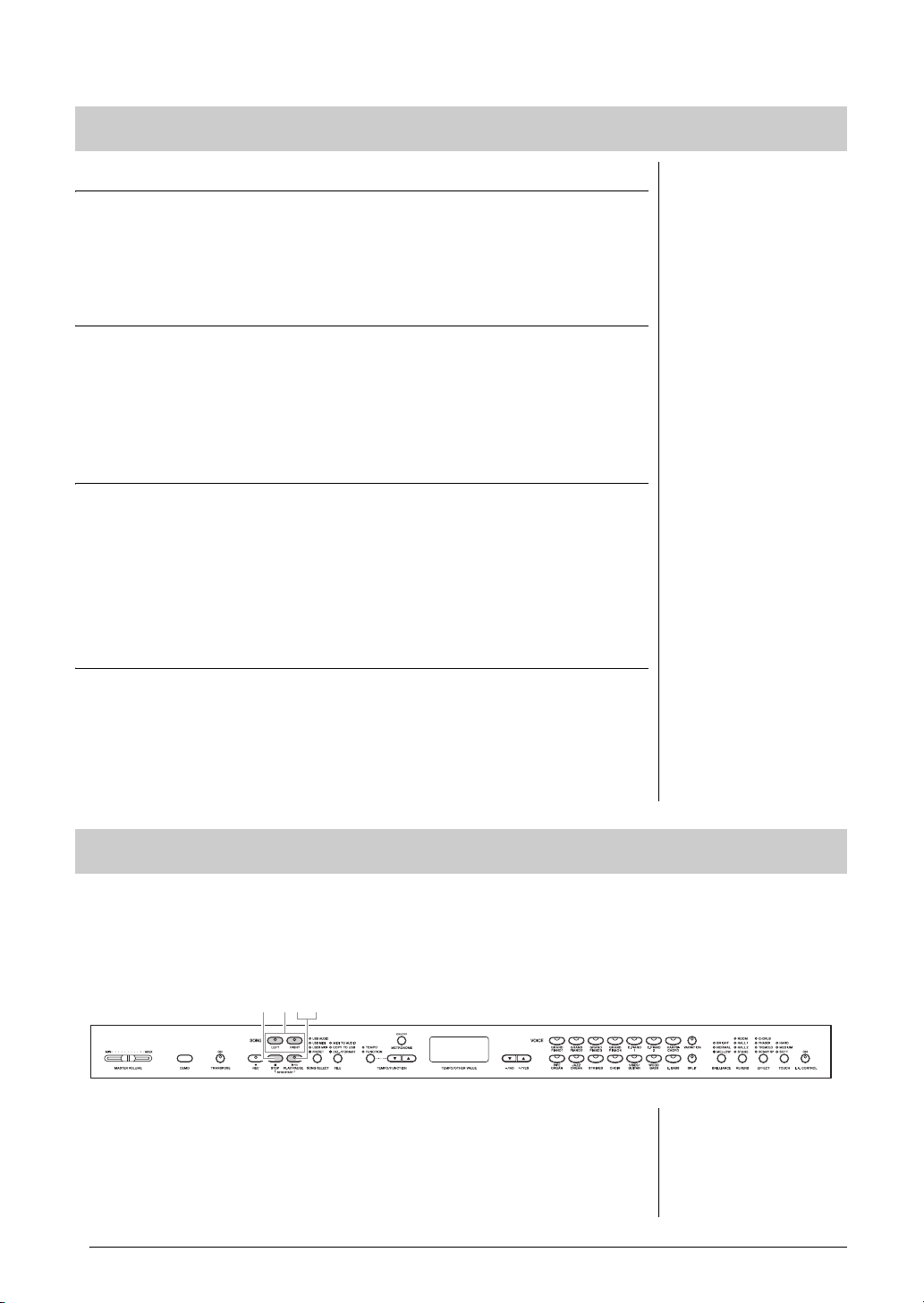

Songs compatible with this instrument

Songs are contained in one of four different memory locations, called “Drives” on this instrument. The four lamps (PRESET / USER MIDI / USB MIDI / USB AUDIO) located above the [SONG SELECT] button show these drives.

Drive	Song Number	Song Type

PRESET	001–050	Preset Song (MIDI)
		50 piano preset Songs in the instrument. These
		correspond to the scores in the book “50 greats for the
		Piano,” included for your convenience and enjoyment.

USER MIDI	U.01– U.10	User Songs in the instrument (MIDI)
		MIDI Songs which have been recorded to the instrument
		by using the Record function (page 34). Up to 10 Songs
		(U.01– U.10) can be saved on this instrument.

	001–xxx	External Songs in the instrument (MIDI)
		MIDI Songs transferred from a computer (page 49). Up to
		999 Songs (001– 999) can be transferred (saved) to this
		instrument.

USB MIDI	U.00–U.99	User Songs in the USB storage device (MIDI)
		MIDI Songs which have been recorded and stored to a
		USB storage device by using the Record function (page
		34). Up to 100 Songs (U.00– U.99) can be played back.

	001–xxx	External Songs in the USB storage device (MIDI)
		Commercially available MIDI Songs or MIDI Songs which
		have been edited on a computer, etc. and saved to the
		USB storage device. Up to 999 Songs (001–999) can be
		played back.

USB AUDIO	A.00–A.99	User Songs in the USB storage device (Audio)
		These are audio Songs saved to the USB storage device
		by recording them with this instrument (page 34) or
		converting them from MIDI data (page 41). Up to 100
		Songs (A.00– A.99) can be played back.

	001–xxx	External Songs in the USB storage device (Audio)
		Commercially available Songs, etc. saved to the USB
		storage device. Up to 999 Songs (001–999) can be
		played back.

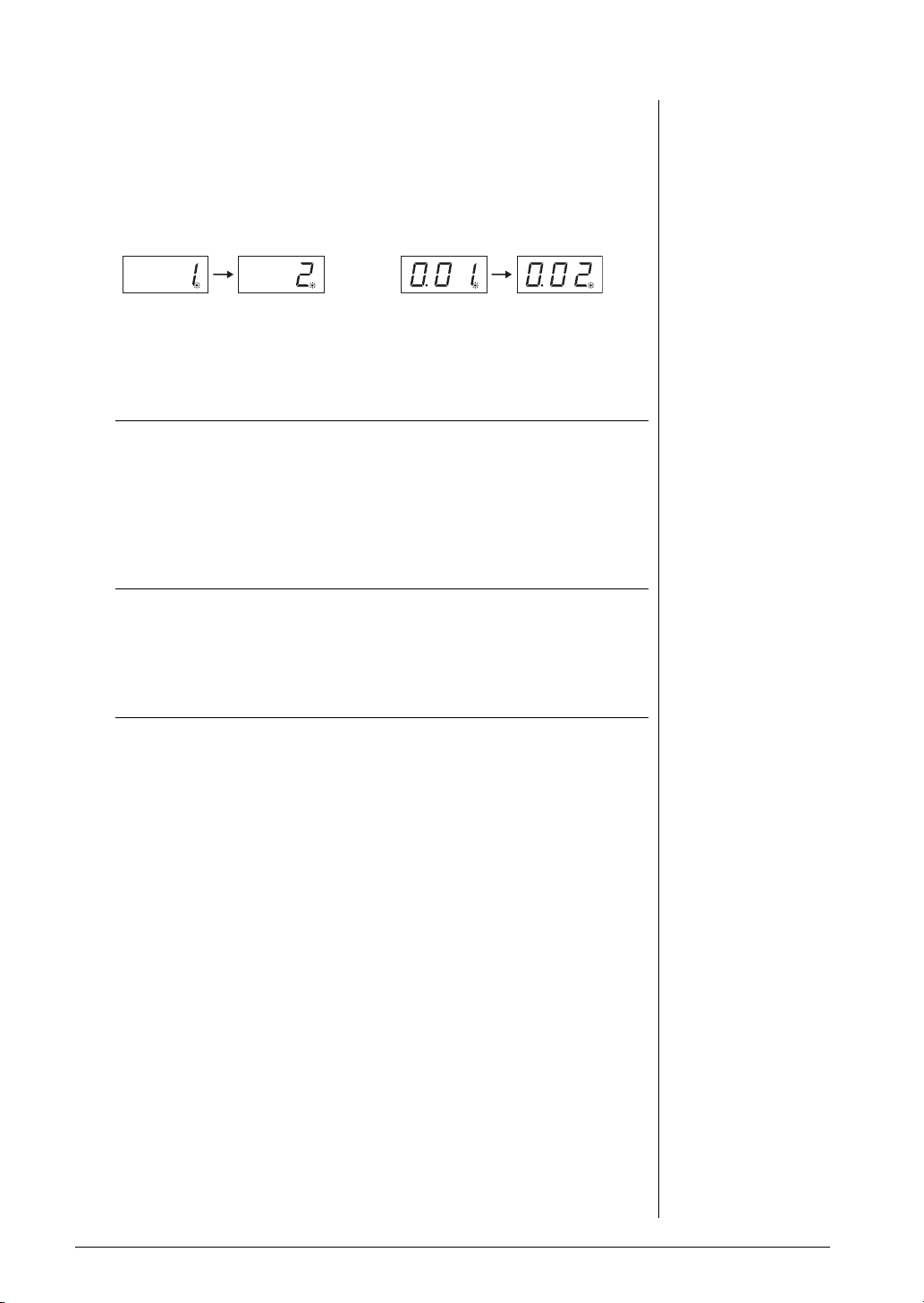

Song numbers; [xxx] indicates numerals.

NOTE

Songs recorded by this instrument are called User Songs. Songs created in other ways than by this instrument are called External Songs. The USB storage device stores User Songs in USER FILES folder.

	Advanced Functions		29
	Playing back Songs		29
	Playing back Songs
