AMP CONTROL UNIT

NETWORK HUB and BRIDGE

Owner’s Manual Mode d’emploi Bedienungsanleitung Manual de instrucciones

LINK CONDUCT

ERROR

LOCK

NETWORK HUB AND BRIDGE

ACU16-C/NHB32-C

Owner’s Manual Addendum

Please make the following changes and additions to the ACU16-C/NHB32-C owner’s manual. Some of these are due to the ACU16-C/NHB32-C system software upgrade, while others are corrections and supplementary explanations.

Changes due to the software upgrade

❏ Support for CobraNet “Low Latency” (system software v1.10)

In conjunction with the upgrade to system software V1.10, the latency setting that had been ﬁxed at 5.33 ms can now be selected from three choices (5.33 ms/2.67 ms/1.33 ms). This allows even lower-latency distribution of audio signals. In addition, you can now make connections at the desired latency to digital mixers such as the PM5D or digital mixing engines such as the DME64N/24N via the Yamaha “MY16-C” card.

Changing the latency can be done in conjunction with NetworkAmp Manager V1.1.0E. For the procedure, refer to the NetworkAmp Manager owner’s manual (PDF format).

The latency and audio bit depth settings will determine the limits on the number of channels that can be distributed in one bundle, and the number of bundles that can be distributed.

• NHB32-C

20-bit 24-bit

Latency

5.33ms 8 8 7 8

2.67ms 8 8 8 8

1.33ms 8 4 8 4

Channels per

bundle

Maximum number of bundles

(total of input and output)

Channels per

bundle

Maximum number of bundles

(total of input and output)

•ACU16-C

Latency

5.33ms 4

2.67ms 4

1.33ms 4

Maximum number of

bundles (input only)

If two or more different latencies exist in a CobraNet network, it may become impossible for the various devices to communicate correctly. You must make sure that all CobraNet devices in a single network have the same latency setting.

Additions and corrections

❏ Cable Length & Switching Hubs

The maximum length of a cable used in a 100Base-T Ethernet network is 100 m (a maximum of 2 km for a multimode optical ﬁber cable), but depending on the type of cable used and on the performance of the switching hub, there are cases in which this length cannot be guaranteed. Three or four switching hubs can be connected, but this also will depend on the performance of the switching hub.

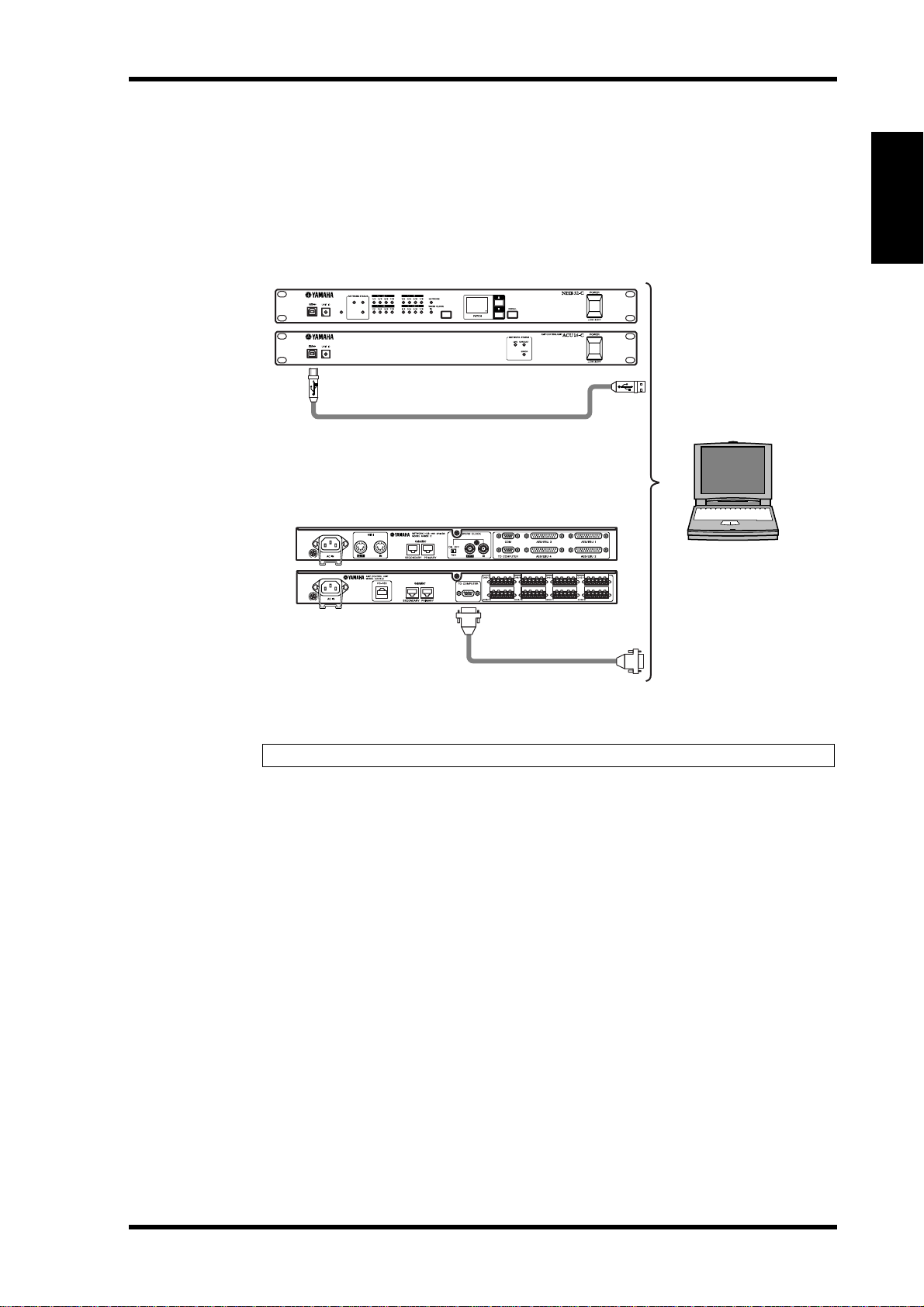

❏ “System Requirements (NetworkAmp Manager)” (page 10)

The following items have been added to the operating requirements for NetworkAmp Manager.

•If your computer has HyperThreading Technology, you must disable it when connecting via USB.

•This software cannot be used on a computer that has multiple CPUs (e.g., Intel’s Xeon processor or AMD’s Opteron processor).

•This software cannot be used on a computer that has a dual core CPU (e.g., Intel’s Pentium-D processor or AMD’s Athlon64 x2 processor).

•This software cannot be used on a computer running Windows XP x64 Edition.

– 2 –

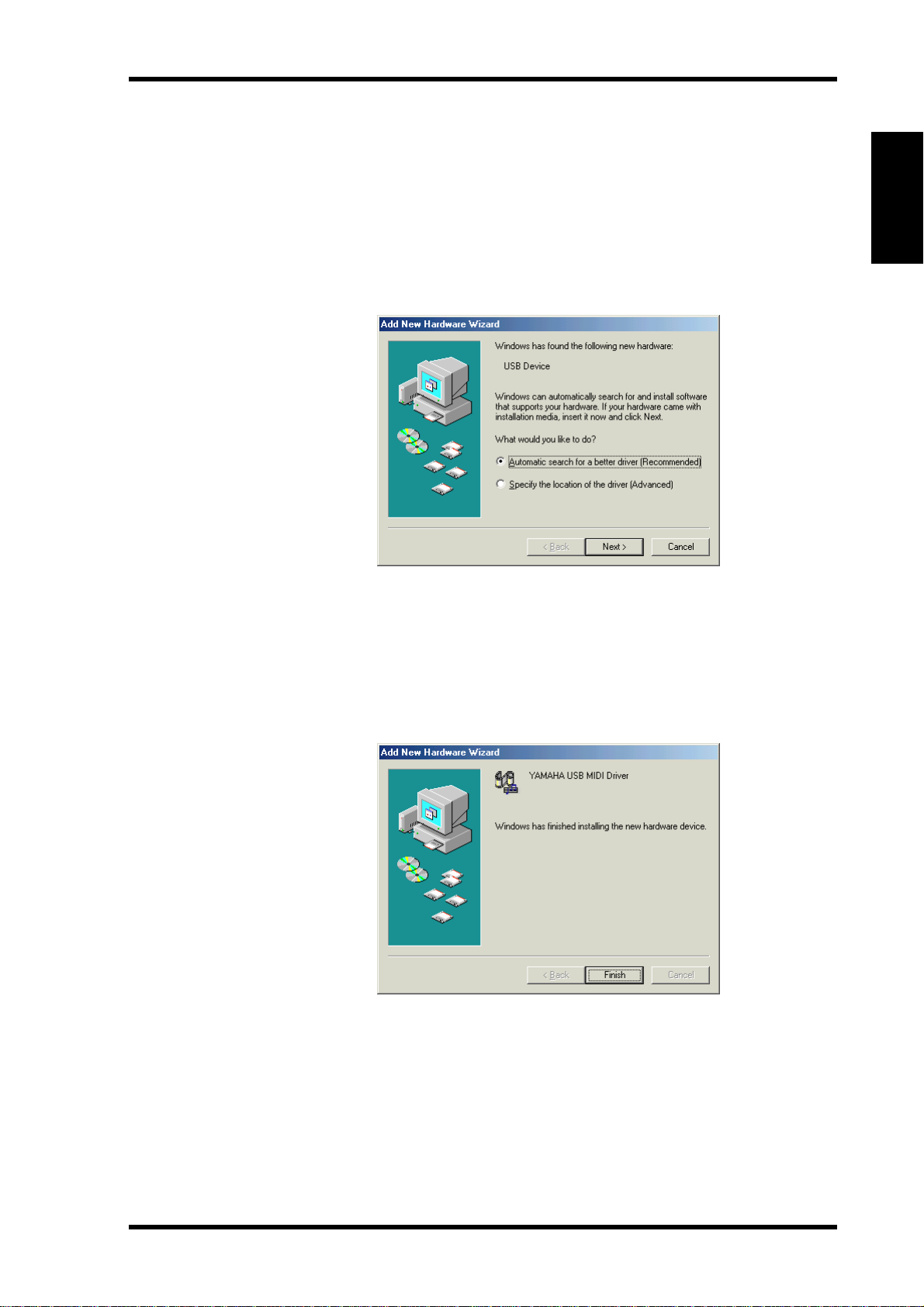

❏ “Installing Acrobat Reader” (page 12)

Incorrect—To view the Network Amp Manager Owner’s Manual, you’ll need to install the Adobe Acrobat Reader

software, which is included on the CD-ROM. If you already have this software installed, skip this section.

Correct—To view the NetworkAmp Manager Owner’s Manual (PDF format), Adobe Reader software (free of charge)

must be installed. If you don’t have Adobe Reader, please download it from the Adobe Corporation’s website. http://www.adobe.com

❏ “PRIMARY & SECONDARY CobraNet ports” (page 22)

Incorrect—Primary and secondary can be used to build redundancy into systems. Under normal conditions, the

ACU16-C uses the PRIMARY port. However, if communication via that port fails, it will automatically switch to the SECONDARY port and operation will continue uninterrupted.

Correct—Primary and secondary can be used to build redundancy into systems. Under normal conditions, the ACU16-

C uses the PRIMARY port. However, if system problems such as port malfunction or broken cable occur in the PRIMARY port, it will automatically switch to the SECONDARY port. The audio signal will be momentarily interrupted, but the duration of the interruption will depend on the performance and settings of the hub, and on the structure of the system.

❏ “Introduction” (page 25)

Incorrect—Up to eight NHB32-Cs can be used on a single CobraNet network, providing bridging between 512

CobraNet audio channels and 512 AES/EBU format inputs and outputs.

Correct—Up to eight NHB32-Cs can be used on a single CobraNet network, providing bridging a maximum (total

inputs and outputs) of 256 channels of CobraNet audio and AES/EBU audio.

❏ “CobraNet Primary & Secondary” (page 35)

Incorrect—In the ﬁrst example, if a primary connection fails, the system automatically switches to secondary and

operation continues uninterrupted. However, if the switching hub fails, the entire system stops working. In the second example, individual switching hubs are used for primary and secondary, so even if switching hub A fails, operation continues on secondary via switching hub B.

Correct—In the ﬁrst example, if a primary connection fails, the system automatically switches to secondary. However if

the switching hub fails, the entire system stops working. In the second example, individual switching hubs are used for primary and secondary, so even if switching hub A fails, operation continues on secondary via switching hub B. Be aware that with either connection, the time required in order to switch between primary and secondary will depend on the performance and settings of the hub.

ENGLISH

❏ “CobraNet Primary & Secondary, Ex. 2” (page 35)

In consideration of a case in which the primary connection fails, connect switching hub A and switching hub B.

NHB32-C NHB32-C

LINKCONDUCT

ERROR

LOCK

Ethernet switching hub A

ACU16-C ACU16-C

NETWORK HUB AND BRIDGE

LINKCONDUCT

LOCK

Ethernet switching hub B

ERROR

NETWORK HUB AND BRIDGE

Primary CobraNet

Secondary CobraNet

– 3 –

Notes on rack-mounting the unit

If you install the ACU16-C/NHB32-C along with another ACU16-C/NHB32-C or other device in a rack that is not well ventilated, the temperature inside the rack may rise due to the heat generated from the devices and the devices may be unable to perform properly. When you rack-mount the unit, be sure to keep a gap of 1U (4.5cm) above and below the unit for better ventilation. Also, install the ventilation panels in these gaps or remove the partition panels.

Anmerkungen zum Rackeinbau des Geräts

We nn Sie den ACU16-C/NHB32-C gemeinsam mit einem anderen ACU16-C/NHB32-C oder einem Gerät mit mangelhafter Lüftung in ein Rack einbauen, könnte die Te mperatur im Innern des Racks rapide ansteigen und Ausfälle der vorhandenen Geräte verursachen. Lassen Sie über und unter Geräten in einem Rack jeweils 1HE (4,5cm) frei, um eine ausreichende Luftzirkulation zu gewährleisten. In diesen Öffnungen müssen Lüftungsblenden angebracht werden. Außerdem sind eventuell vorhandene Trennplatten zu entfernen.

Remarques concernant l’installation de l’unité dans un rack

Si vous installez l’ACU16-C/NHB32-C dans le même rack qu’un deuxième ACU16-C/NHB32-C ou tout autre dispositif avec une ventilation autonome plutôt limitée, la température au sein du rack pourrait très vite monter à des valeurs qui empêchent les unités de fonctionner correctement. De ce fait, pour le montage en rack, il convient de laisser un espace d’1U (4,5cm) au-dessus et en dessous de tels dispositifs pour assurer une bonne circulation d’air frais. De plus, il faut couvrir les ouvertures ainsi laissées avec des panneaux de ventilation. Retirez toute cloison éventuellement présente entre deux unités.

If the temperature inside the rack is expected to be 40°C or higher (in this case, the room temperature is generally about 30°C or higher), install the fan kit on the top shelf of the rack, and install the ventilation panels between devices or remove the partition panels. The fan kit must generate a maximum wind of 1.6m of 5mmH2O or higher.

/min or higher and a maximum static pressure

We nn die Temperatur im Innern des Racks die 40°C-Marke zu übersteigen droht (was der Fall ist, wenn die Raumtemperatur mindestens 30°C beträgt), müssen Sie ganz oben im Rack eine Lüftereinheit und zwischen den Geräten Lüftungsblenden einbauen. Trennplatten zwischen diesen Partien müssen entfernt werden. Die Lüftereinheit muss einen Luftstrom von mindestens 1,6m 5mmH2O oder mehr erzeugen.

/min und einen statischen Druck von

Si la température au sein du rack risque de monter au-delà de 40°C (auquel cas la température ambiante s’élève à 30°C ou plus), installez un kit de ventilation en haut du rack et des panneaux de ventilation entre les unités. Retirez en outre les cloisons qui les séparent. Le kit de ventilation doit générer un ﬂux d’air supérieur à 1,6m 5mmH2O ou plus.

/min et une pression statique de

Notas acerca de la instalación en rack de la unidad

Si instala el ACU16-C/NHB32-C junto con otro ACU16-C/ NHB32-C u otro dispositivo en un armario rack que no esté correctamente ventilado, la temperatura en el interior del armario puede elevarse debido al calor generado por los propios dispositivos y afectar al correcto funcionamiento de los mismos. Cuando instale la unidad en rack, asegúrese de dejar una separación de 1U (4.5cm) por encima y por debajo de la unidad con el ﬁn de conseguir una correcta ventilación. Además, instale los paneles de ventilación en estas separaciones o elimine los paneles de partición.

fan kit/Lüftereinheit/

Kit de ventilation/Kit de ventilación

ACU16-C/NHB32-C

ventilation panel/Lüftungsblenden/

Panneau de ventilation/Panel de ventilación

ACU16-C/NHB32-C

ventilation panel/Lüftungsblenden/

Panneau de ventilation/Panel de ventilación

Si se calcula que la temperatura en el interior del rack sea de 40°C o más (en este caso, cuando la temperatura de la habitación es de 30°C o superior), instale el kit de ventilación en la parte superior del armario rack e instale los paneles de ventilación entre los dispositivos o elimine los paneles de división. El kit de ventilación debe generar un caudal mínimo

de 1.6m mm H

M.D.G., Pro Audio & Digital Musical Instrument Division, Yamaha Corporation

/min o superior con una presión estática mínima de 5

O o superior.

Important Note for PC-N Series Power

Ampliﬁer Users

When you are using the ACU16-C connected to a PC9500N or PC4800N power ampliﬁer, the NetworkAmp Manager's meter may not display the correct value, depending on your power ampliﬁer. Please check your power ampliﬁer for the following items to ﬁnd out whether the problem has been ﬁxed on your ampliﬁer:

Locate the product serial number label on the packing container or on the rear panel of the power ampliﬁer.

•If the ﬁrst two alphabetical letters in the serial number are IL, IM, IN, IO, IP, IX, IY, IZ, or JH, the problem may not have been ﬁxed on the ampliﬁer. Otherwise, you can assume that the problem has been ﬁxed on your ampliﬁer.

• On units that have a serial number that begins with any of the letter combinations described above, if there is a green round sticker adjacent to the serial number label, the problem has been ﬁxed on the unit.

If the problem has not been ﬁxed on your power ampliﬁer, contact your Yamaha dealer.

Wichtiger Hinweis für den Einsatz von

Endstufen der PC-N-Serie

We nn Sie den ACU16-C an eine Endstufe des Typs PC9500N oder PC4800N anschließen, zeigen die Meter von NetworkAmp Manager eventuell nicht den richtigen Wert an. Wenn das bei Ihnen der Fall ist, können Sie folgendermaßen ermitteln, ob das Problem der Endstufe behoben werden muss:

Bringen Sie die Seriennummer Ihrer Endstufe in Erfahrung. Diese ﬁnden Sie auf dem Lieferkarton und dem rückseitigen Ty penschild.

•Wenn die ersten beiden Buchstaben der Seriennummer „IL”, „IM”, „IN”, „IO”, „IP”, „IX”, „IY”, „IZ” oder „JH” lauten, bedarf die Endstufe eventuell noch einer Aktualisierung. Andernfalls können Sie davon ausgehen, dass das Problem bereits behoben wurde.

•Auf Geräten, deren Seriennummer mit den oben erwähnten Buchstaben beginnt und bei denen das Problem bereits behoben wurde, beﬁndet sich neben dem Typenschild ein runder grüner Aufkleber.

Fehlt dieser Aufkleber auf Ihrer Endstufe, so wenden Sie sich bitte an Ihren Yamaha-Händler.

Remarque importante à l’attention

des utilisateurs d’un ampliﬁcateur de

puissance de la série PC-N

Quand l’ACU16-C est branché à un ampliﬁcateur de puissance PC9500N ou PC4800N, il se peut (selon l’ampli de puissance) que l’afﬁchage de niveau de NetworkAmp Manager n’indique pas la valeur correcte. Contrôlez alors le numéro de série de votre ampliﬁcateur comme suit pour vériﬁer si ce problème doit être corrigé ou non:

Vériﬁez le numéro de série de l’ampliﬁcateur sur l’emballage ou le panneau arrière de l’appareil.

•Si les deux premières lettres du numéro de série correspondent à “IL”, “IM”, “IN”, “IO”, “IP”, “IX”, “IY”, “IZ” ou “JH”, le problème n’a peut-être pas été corrigé sur l’ampliﬁcateur. Si les lettres initiales du numéro de série diffèrent des caractères ci-dessus, vous pouvez partir du principe que le problème a été corrigé sur votre ampliﬁcateur.

•Certains ampliﬁcateurs dont le numéro de série commence par une paire de lettres mentionnée ci-dessus pourraient comporter une vignette ronde et verte collée à côté de l’étiquette du numéro de série. La présence de cette vignette signiﬁe que le problème a été corrigé sur l’appareil en question.

Si le problème n’a pas été corrigé sur votre ampliﬁcateur de puissance, contactez votre revendeur Yamaha.

Nota importante para los usuarios de

los ampliﬁcadores de la serie PC-N

Si utiliza el ACU16-C conectado a un ampliﬁcador PC9500N o PC4800N, el indicador NetworkAmp del Manager puede que no visualice el valor correcto, dependiendo de su ampliﬁcador. Compruebe los siguientes elementos en su ampliﬁcador para saber si el problema se ha solucionado:

Localice la etiqueta del número de serie del producto en el embalaje o en el panel posterior del ampliﬁcador.

•Si las dos primeras letras del número de serie son “IL”, “IM”, “IN”, “IO”, “IP”, “IX”, “IY”, “IZ” o “JH”, es posible que el problema no se haya solucionado en el ampliﬁcador. De lo contrario, puede asumir que el problema se ha solucionado en el ampliﬁcador.

• En las unidades con números de serie que empiecen por cualquier serie de letras mencionada, si observa un punto verde al lado de la etiqueta del número de serie, el problema se ha solucionado en la unidad.

Si el problema persiste en el ampliﬁcador, contacte con su distribuidor Yamaha.

M.D.G., Pro Audio & Digital Musical Instrument Division, Yamaha Corporation

FCC INFORMATION (U.S.A.)

1. IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT! This product, when installed as indicated in the instructions requirements. Modifications not expressly approved by Yamaha may void your authority, granted by the FCC, to use the product.

2. IMPORTANT: When connecting be used. Follow all installation instructions. Failure to follow instructions could void your FCC authorization to use this product in the USA.

3. NOTE: This product has been tested and found to comply with the requirements listed in FCC Regulations, these requirements other electronic devices. This equipment generates/uses cause interference installations. If this product is found to be the source of interference, problem by using different branch (circuit is 300 ohm ribbon lead, change the lead-in to coaxial type cable. If these corrective authorized to distribute this type of product. Division, 6600 Orangethorpe Ave, Buena Park, CA 90620

The above statements apply ONLY to those products distributed by Yamaha Corporation of America or its subsidiaries.

provides a reasonable level of assurance

harmful to the operation of other electronic

one of the following measures:

this product to accessories and/or another product use only high quality shielded cables. Cable/s

breaker or fuse)

that your use of this product

radio frequencies and, if not installed and used according to the instructions

devices. Compliance with FCC regulations

Relocate either

circuits or install

If you can not locate the appropriate retailer,

AC line filter/s.

which can be determined by turning the unit “OFF” and

this product or

In the case

the device that

in a residential

is being affected

of radio or TV interference, relocate/reorient

measures do not produce satisfactory results,

please contact

environment will not

does not guarantee that

Part 15 for Class “B”

by the interfe

Yamaha Corporation

contained in this manual,

rence. Utilize power outlets

WARNING: THIS APPARATUS MUST BE EARTHED

IMPORTANT

THE WIRES IN THIS MAINS LEAD ARE COLOURED IN A

CCORDANCE WITH THE FOLLOW

GREEN-A

ND-YELLOW : EARTH BLUE : NEUTRAL BROWN : LIVE As the colours of the wires in the mains lead of this apparatus may

not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured GREEN and YELLOW must be connected to the terminal in the plug which is marked by the letter E or by the safety earth symbol or coloured GREEN and YELLOW.

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED.

*This applies only to products distributed by YAMAHA KEMBLE

MUSIC (U.K.) LTD.

ING CODE

meets FCC

supplied with this product MUST

digital devices. Compliance with

result in harmful interference

found in the users manual, may

interference

“ON”, please try to eliminate the

the antenna. If

please contact the local retailer

of America,

will not occur in all

the antenna lead-in

Electronic Service

with

that are on

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF

ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK). NO USER-SERVICEABLE

PARTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

The above warning is located on the top of the unit.

IMPORTANT SAFETY INSTRUCTIONS

Explanation of Graphical Symbols

The lightning ﬂash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufﬁcient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

1 Read these instructions. 2Keep these instructions. 3 Heed all warnings. 4 Follow all instructions. 5 Do not use this apparatus near water. 6 Clean only with dry cloth. 7 Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

8 Do not install near any heat sources such as

radiators, heat registers, stoves, or other apparatus (including ampliﬁers) that produce heat.

9 Do not defeat the safety purpose of the polar-

ized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not ﬁt into your outlet, consult an electrician for replacement of the obsolete outlet.

10 Protect the power cord fr om being walked on or

pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11 Only use attachments/accessories speciﬁed by

the manufacturer.

12 Use only with the cart, stand,

tripod, bracket, or table speciﬁed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

13 Unplug this apparatus during lightning storms

or when unused for long periods of time.

14 Refer all servicing to qualiﬁed service person-

nel. Servicing is required when the apparatus has been damaged in any way, such as powersupply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.
