Xerox DocuColor 250 Configuation Guide
Splash RPX-i Color Server
Configuration Guide
© 2006 Electronics for Imaging, Inc. The information in this publication is covered under Legal Notices for this product.
45054801
05 May 2006
|
|
CONTENTS |
3 |
|
|
|
|
CONTENTS
INTRODUCTION |
7 |
|
|
|
|
|
Terminology and conventions |
7 |
|
|
|
|
About this document |
7 |
NETWORK SETUP |
8 |
|
|
|
|
|
Configuring the Splash RPX-i for AppleTalk printing |
8 |
|
|
|
|
Configuring the Splash RPX-i for TCP/IP and LPR printing |
9 |
|
Connecting the Splash RPX-i for the TCP/IP network |
9 |
|
Configuring the Splash RPX-i for the TCP/IP network |
9 |
|
Enabling TCP/IP printing from the Splash RPX-i |
11 |
|
Configuring Windows 2000/XP/Server 2003 for TCP/IP printing |
11 |
|
|
|
|
Configuring the Splash RPX-i for NDPS Printing |
12 |
|
|
|
|
Configuring a Novell NetWare print queue |
18 |
|
|
|
|
Connecting to a Fiery |
20 |
SETTING DEFAULT PREFERENCES |
21 |
|
|
|
|
|
Setting default job settings |
21 |
|
Editing default job settings |
21 |
|
|
|
|
Setting up Splash RPX-i preferences |
22 |
|
Setting Server preferences |
23 |
|
Setting additional Server preferences |
24 |
|
Setting Page preferences |
24 |
|
Setting Network preferences |
25 |
|
Setting Color preferences |
26 |
|
Setting Appearance preferences |
27 |
|
Setting Button Bar preferences |
27 |
|
Setting and reading a log file |
27 |
|
|
CONTENTS |
4 |
|
|
|
|
USING THE WEB QUEUE MANAGER |
30 |
|
|
|
|
|
Preparing the Web Queue Manager |
30 |
|
|
|
|
Configuring the Web Queue Manager |
31 |
|
Configuring the TCP/IP Control Panel |
31 |
|
Enabling Web Access |
32 |
|

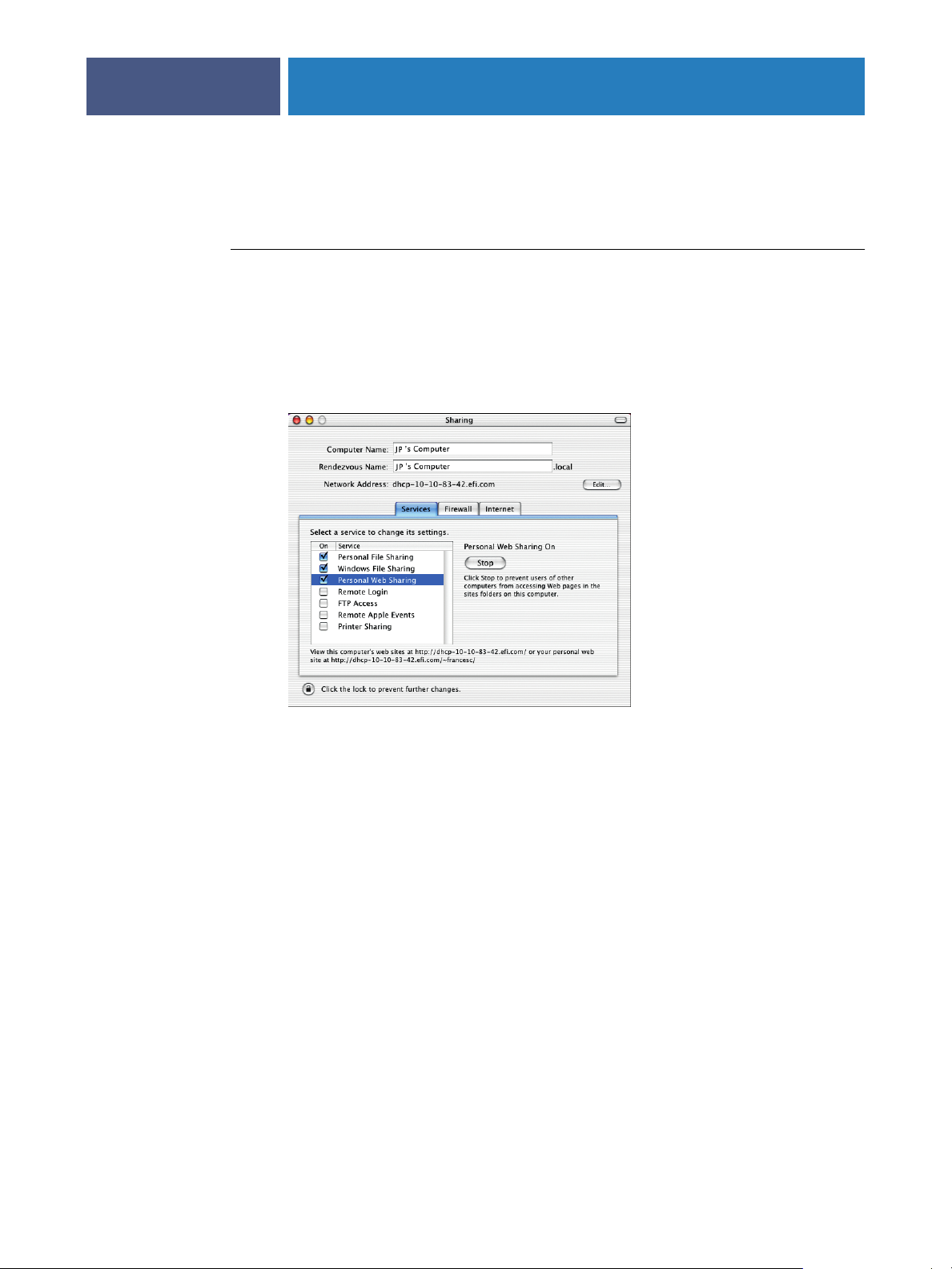

Enabling Web Sharing |
33 |
|
|
|
|
Controlling Web Queue Management privileges |
34 |
ADMINISTERING THE SPLASH RPX-I |
36 |
|
|
|
|
|
Changing the Administrator password |
36 |
|
|
|
|
Managing users and accounts |
36 |
|
|
|
|
Secure Access |
38 |
|
Editing Secure Access client error messages |
39 |
|
Using Secure Access at client workstations |
39 |
|
Printing with Secure Access |
39 |
|
|
|
|
Printing the Configuration Report |
40 |
|
|
|
|
Backing up and restoring preferences |
40 |
|
|
|
|
Updating software |
41 |
|
|
|
|

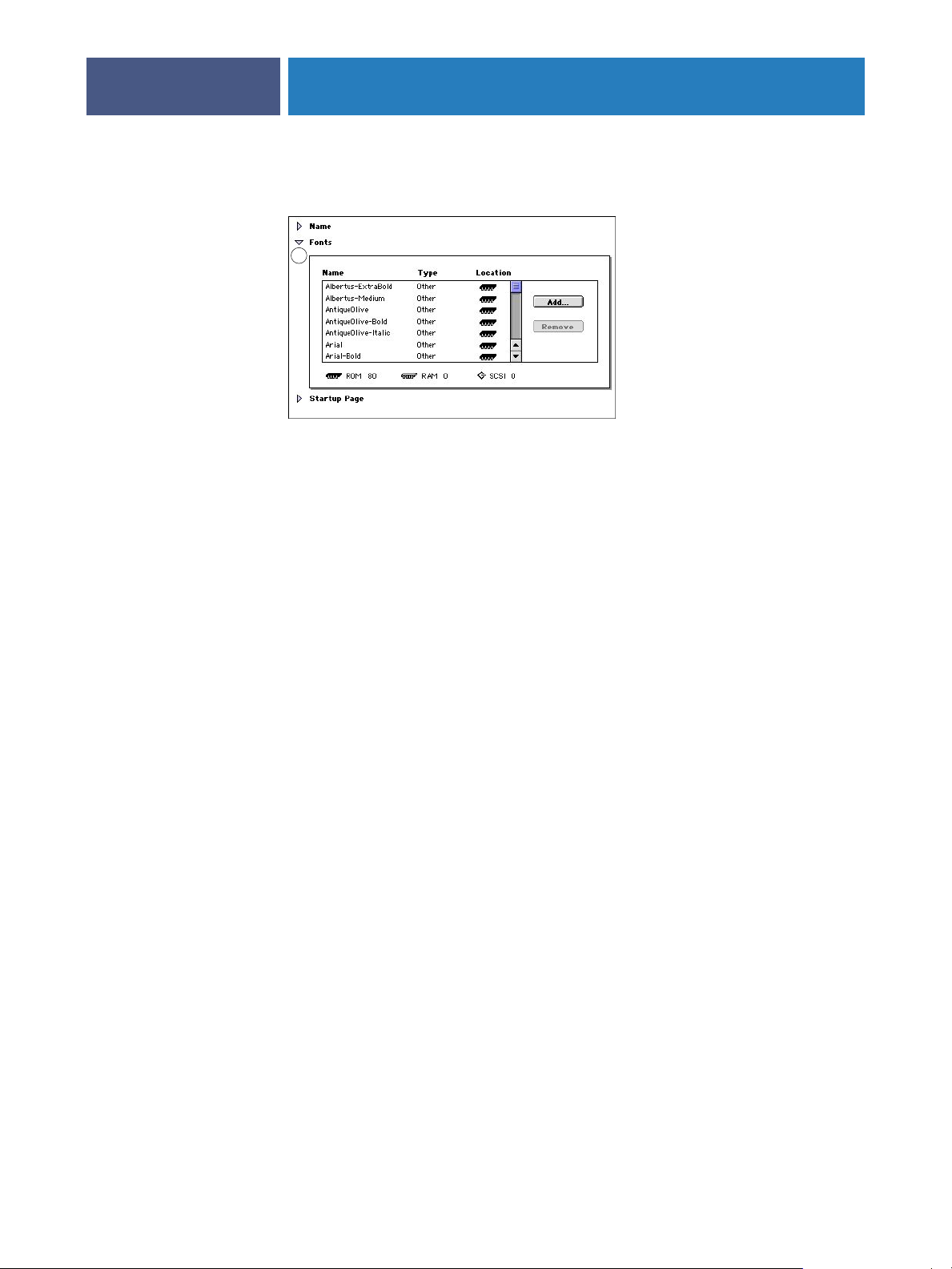

Downloading fonts |
42 |
|
|
|
|
Setting up scan mailboxes |
44 |
|
|
|
|
Setting up Hot Folders and Virtual Printers |
44 |
|
Configuring the Splash RPX-i for Hot Folders |
44 |
|
Configuring Hot Folders for SMB file sharing |
46 |
|
Configuring Hot Folders for AppleTalk file sharing |
46 |
|
|
|
|
Scanning for viruses |
46 |
|
|
|
|
Energy considerations |
47 |
|
Power-On |
47 |
|
Energy Saver |
47 |
|
EnergyStar Compliance |
47 |
|
Sleep Mode |
47 |
INDEX |
49 |
|
|
INTRODUCTION |
5 |
|
|
|
|
INTRODUCTION
This document describes how to set up network servers and clients to use the Splash RPX-i Color Server. For general information about using the copier, your computer, application software, or network, see the documentation that accompanies those products.
Terminology and conventions
This document uses the following terminology and conventions.
Term or convention |
Refers to |
|
|
Copier |
DocuColor 240/250 |
|
|
Fiery |
Fiery Network Controller |
|
|
Mac OS |
Apple Mac OS 9, Mac OS X |
|
|
Splash RPX-i |
Splash RPX-i Color Server |
|
|
Titles in italics |
Other documents in this set |
|
|
Windows |
Microsoft Windows 2000, Windows XP, Windows Server 2003 |
|
|
About this document
This document covers the following topics:
•Setting up the network environment
•Setting preferences for the Splash RPX-i
•Administering the Splash RPX-i
|
|
NETWORK SETUP |
6 |
|
|
|
|
NETWORK SETUP
This chapter describes environments that typically include one or more network configurations. It describes how to set up and configure your network for printing to the Splash RPX-i from Mac OS or Windows computers.
The Splash RPX-i supports AppleTalk, Bonjour/Rendezvous, AppleShare, Microsoft TCP/IP,
Novell NetWare NDPS for TCP/IP or LPR Printing, and Legacy support for NetWare Print
Queue setup through PConsole.
Configuring the Splash RPX-i for AppleTalk printing
This section describes how to configure the Splash RPX-i to receive jobs from computers on an AppleTalk network.
TO CONFIGURE THE SPLASH RPX-I FOR APPLETALK PRINTING
1Choose Location from the Apple menu on the Splash RPX-i and then choose Network Preferences.
2From the Show menu, choose Built-in Ethernet for the TCP/IP network.
3Click the AppleTalk tab.
4Select the Make AppleTalk Active check box.
5If more than one zone is displayed, select the appropriate AppleTalk Zone.
|
|
NETWORK SETUP |
7 |
|
|
|
|
6Click Apply Now.
7Close Network Preferences.
8In the Splash Server application, choose Preferences from the Splash Server menu.
9Click the Network tab and select AppleTalk Registration.
For more information, see page 24.
10Click OK.
Configuring the Splash RPX-i for TCP/IP and LPR printing
This section describes how to configure the Splash RPX-i to receive print jobs from a TCP/IP or LPR network.
To configure the Splash RPX-i and users’ computers for TCP/IP printing, complete the following procedures:
•Connect the Splash RPX-i to the TCP/IP network.
•Configure the Splash RPX-i for the TCP/IP network.
•Enable TCP/IP printing.
•Configure users’ computers for TCP/IP printing.
Connecting the Splash RPX-i for the TCP/IP network
Connect the Local Area Network (LAN) card or Ethernet port to the network.
Configuring the Splash RPX-i for the TCP/IP network
The following procedure explains how to configure the Splash RPX-i for the
TCP/IP network.
TO CONFIGURE THE SPLASH RPX-I FOR THE TCP/IP NETWORK
1Obtain a router address from your network administrator.
2Choose Location from the Apple menu on the Splash RPX-i, and then choose Network Preferences.
The TCP/IP Control Panel appears.
|
|
NETWORK SETUP |
8 |
|
|
|
|
3From the Show menu, choose the local area network (LAN) card type or Built-in Ethernet for the TCP/IP network.
4To configure the TCP/IP address manually, choose Manually from the Configure menu. To have a TCP/IP address automatically assigned from the network, choose Using DHCP.
Assigning the Splash RPX-i a static TCP/IP address allows users to locate the Splash RPX-i reliably on the network. To set up the DHCP server to use the same TCP/IP address, contact your network administrator.
5Type the IP address for the Splash RPX-i.
6Type a Subnet mask number, if required.
NOTE: If the Subnet mask number is different than the default mask number, change it to match the number used on your network. For more information, contact your network administrator.
7Type the Router address (gateway address), if required.
A network router maintains a list of IP addresses for two or more groups of network devices. The router then uses the list of addresses to direct network data to the appropriate location on the network. To enter two or more router addresses, press Return after entering each address.
8Type the Name server address for your local DNS server on your network (optional).
9Type the search domain name that pertains to your DNS name; for example, design.corp.com (optional).
10Click Apply Now to confirm the new setup.
11Close the Network Control Panel.
|
|
NETWORK SETUP |
9 |
|
|
|
|
Enabling TCP/IP printing from the Splash RPX-i
The following procedure explains how to enable TCP/IP printing from the Splash RPX-i.
TO ENABLE TCP/IP DIRECT PRINTING
1Start the Splash RPX-i application.
2Choose Log In from the Server menu.
3Type the Administrator password and click OK.

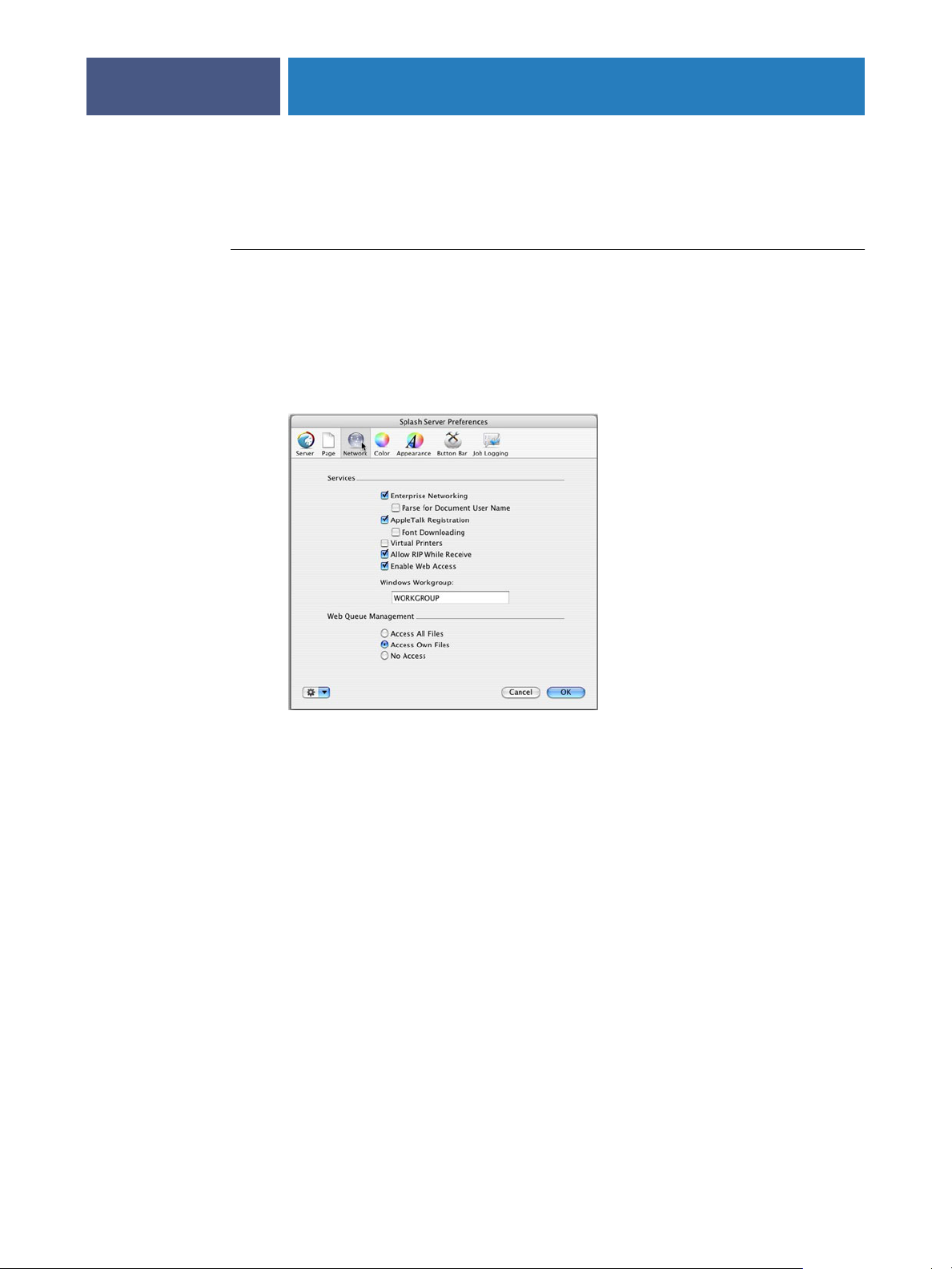

4Choose Preferences from the Splash Server menu.
The Splash Server Preferences dialog box appears.
5Click the Network tab.
6Select Enterprise Networking and click OK.
The Splash RPX-i is ready to check that the network status for LPR/IP is online.
Configuring Windows 2000/XP/Server 2003 for TCP/IP printing
The Splash RPX-i accepts print jobs from the TCP/IP network on a Windows 2000/XP/ Server 2003 or Novell NetWare NDPS LPR network. In addition, users on a TCP/IP network can print files directly to the Splash RPX-i by using Drop Folders or Hot Folders.
NOTE: To print over the TCP/IP network, your computer must have Splash software appropriate for your operating system installed, and must be connected to the Splash RPX-i.
Windows computers are pre-configured with the Microsoft TCP/IP software installed. For information about configuring Windows for TCP/IP printing to the Splash RPX-i, see the
Printing Guide.
|
|
NETWORK SETUP |
10 |
|
|
|
|
Configuring the Splash RPX-i for NDPS Printing
The Novell NetWare server must be set up and configured prior to installing and configuring the NetWare Client. The NetWare Client must be installed on the workstation being used to configure the NetWare server for NDPS printing.
NOTE: Use the latest NetWare support pack and NetWare Client. For more information, see the documentation that accompanies NetWare.
The following procedures assume NDPS has been installed on your NetWare Server and is properly configured. An NDPS Broker and NDPS Manager are required for configuring NDPS printing. If these do not exist, contact your network administrator.
TO ADD THE SPLASH RPX-I PPD TO THE NOVELL NETWARE NDPS BROKER
1Log on to the NetWare file server with Administrator privileges.
2Start NetWare Administrator.
NOTE: To start NetWare Administrator, go to the Sys:Public\Win32 folder on the NetWare server and click the nwadmin32 icon.
3Double-click the Broker icon in the NetWare Admin window.
4Click Resource Management (RMS).
1 Resource Management (RMS)
1
|
|
NETWORK SETUP |
11 |
|
|
|
|
5 Click Add Resources.
1 Add Resources
1
6In Resource Types, select the Windows operating system that you want for the Splash RPX-i Driver installation.
NOTE: You can add printer drivers for more than one Windows operating system, but you must repeat this procedure and the following procedure to install the appropriate printer driver for each Windows platform.
If the Splash RPX-i driver has already been installed, it appears in the installed printer drivers listed in the Current Resources Section. If the Splash RPX-i driver is not listed, you must install it from the Splash RPX-i User Software and Documentation CD.
7Insert the Splash RPX-i User Software and Documentation CD into the CD-ROM drive.
8In the Manage Resources dialog box, click Add.
The Add Resources dialog box appears.
9Click Browse in the Add Resources dialog box.
|
|
NETWORK SETUP |
12 |
|
|
|
|
10Browse to the CD-ROM drive, select the appropriate driver from the Standard drivers folder, and then click OK.
11Verify the location of the file and click OK.
12Click Continue.
The printer driver is copied to the Novell NDPS Server.
Use the following procedure to create a Printer Agent for the NDPS Manager.
TO CREATE A PRINTER AGENT
1Log on to the NetWare file server with Administrator privileges.
2Start NetWare Administrator.
NOTE: To start NetWare Administrator, go to the Sys:Public\Win32 folder on the NetWare server and click the nwadmin32 icon. For more information, see the documentation that accompanies NetWare.
3In the NetWare Administrator window, choose Create from the Object menu.
4In the New Object dialog box, select NDPS Printer and click OK.
5 In the Create NDPS Printer dialog box, type a name in the NDPS Printer Name field.
6 Select the Create a New Printer Agent option in the Printer Agent Source area.
|
|
NETWORK SETUP |
13 |
|
|
|
|
7Click Create.
The Create Printer Agent dialog box appears with the NDPS Printer Name you chose displayed.
8For the NDPS Manager Name, click the Browse button (“...”).
9 In the Select Object dialog box, select the desired NDPS Manager object and click OK.
10In the Create Printer Agent dialog box, make sure that Novell Printer Gateway is selected in the Gateway Types list and click OK.
The Configure Novell for NDPS for Printer Agent dialog box appears.
|
|
NETWORK SETUP |
14 |
|
|
|
|
11 Select (Generic) PS for the Printer Type and click OK.
12 Select Remote (LPR on IP) and click Next.
A new user interface in the Configure Port Handler dialog box appears.
|
|
NETWORK SETUP |
15 |
|
|
|
|
13 Select Host Address or Host Name.
If you select the Host Address field, type the IP address of the Splash RPX-i.
If you select the Host Name, type the DNS name. You can leave Printer Name as the default, PASSTHROUGH, or type any printer name.
14Click Finish.
15Click the appropriate Windows operating system tab, choose the Splash RPX-i PPD, and then click Continue.
The NDPS Information dialog box appears. The current Splash RPX-i PPDs selected for the Windows operating systems for this NDPS Printer Agent are listed.
16Click OK.
