Xerox AltaLink B8045, AltaLink B8055, AltaLink B8065, AltaLink B8075, AltaLink B8090 Product Enhancement
Xerox® AltaLink® Enhancement Read Me 1
Xerox® AltaLink®
Product Enhancement Read Me
Description of new features and enhancements to the products specified below.
Release Date: October 28, 2019 dc19rn3900
Product Model
System Software
Network Controller
Xerox® AltaLink® C8070
101.003.099.28200
101.003.28200
Xerox® AltaLink® C8045/55
101.002.099.28200
101.002.28200
Xerox® AltaLink® C8030/35
101.001.099.28200
101.001.28200
Xerox® AltaLink® B8045/B8090
101.008.099.28200
101.008.28200
Xerox® AltaLink® Enhancement Read Me 2
Contents
Firmware 101.xxx.099.28200 October 2019 ......................................................................................................... 5
Agentless Cloud Authentication for XWC ............................................................................................. 5
California Password Law ....................................................................................................................... 5
Energy Star 3.0 ...................................................................................................................................... 5
Various Fixes ......................................................................................................................................... 5
Firmware 101.xxx.089.22600 September 2019 .................................................................................................... 5
Improved reliability after upgrade with pre-upgrade patch ................................................................. 5
Enablement of Cherry TC-1100 Card Reader ........................................................................................ 5
Enablement of Blackboard Card Reader ............................................................................................... 5
Gemalto MD cards are now compliant with FIPS 140-2 security level 1 .............................................. 5
Enablement of SafeNet SHAC SC 650 Card ........................................................................................... 6
Firmware 101.xxx.069.20900 August 2019........................................................................................................... 6
Low Power Mode .................................................................................................................................. 6
Firmware 101.xxx.069.17810 July 2019 ................................................................................................................ 6
Xerox® Lockdown Security Solution ...................................................................................................... 6
Oberthur ID-One PIV V8 Card Supported when using Smart Card Authentication .............................. 6
Additional Fixes Included in this Version .............................................................................................. 6
Firmware 101.xxx.059.13300 May 2019 ............................................................................................................... 7
Card Reader........................................................................................................................................... 7
Firmware 101.xxx.059.12100 May 2019 ............................................................................................................... 7
EIP Peripheral API updates .................................................................................................................... 7
EIP ability to request LDAP user attributes to include in user session data ......................................... 7
Translations added for B&W Output Color setting Auto ...................................................................... 7
Xerox® Lockdown Security Solution ...................................................................................................... 7
General Fixes ......................................................................................................................................... 8
Implemented a fix to include the 1 gigabyte option on the CWIS page. ......................................................... 8
Firmware 101.xxx.029.03810 March 2019 ........................................................................................................... 8
User Permissions ................................................................................................................................... 8
Restricted access to print color ............................................................................................................. 8
Firmware 101.xxx.009.00300 January 2019 ......................................................................................................... 8
1. B&W saved jobs .................................................................................................................................... 8
2. Safenet SC650 v4.0 SIPRNet tokens ...................................................................................................... 8
3. Group Fax Improvements ..................................................................................................................... 8
Firmware 101.xxx.028.32100 December 2018 ..................................................................................................... 8
Color Quality Improvements ................................................................................................................. 8
Various bug fixes ................................................................................................................................... 8
Enablement of SecuraKey ET4-AUS-D-WR8 Proximity Card Reader..................................................... 8
Mixed Size Originals Feature support for Oficio Media (8.5x13.4) ....................................................... 9
Support for Croatian and Ukrainian languages. .................................................................................... 9
Security ................................................................................................................................................. 9
Xerox® AltaLink® Enhancement Read Me 3
Re-Introduced Support for Gemalto IDPrime MD 3810 and 830b cards .............................................. 9
Firmware 101.xxx.008.27400 Nov 2018 ............................................................................................................... 9
PCL Printing Improvement .................................................................................................................... 9
Fax Confirmation Sheet ......................................................................................................................... 9
Firmware 100.xxx.068.26100 Sept 2018............................................................................................................... 9
1. Image Quality Improvements ............................................................................................................... 9
2. Support for Gemalto IDPrime MD 3810 and 830b cards ...................................................................... 9
3. Secure Print with smartcard user identification ................................................................................... 9
4. PKCS12 certificate installation ............................................................................................................ 10
Firmware 100.xxx.058.22800 Aug 2018 ............................................................................................................. 10
1. Image Quality Improvements ............................................................................................................. 10
2. General fixes for Authentication and Connectivity. ............................................................................ 10
Firmware 100.xxx.048.17300 July 2018 .............................................................................................................. 11
1. Enablement for POP3 Over Secured Connection (TLS). ............................................................................. 11
Image Quality Improvements ............................................................................................................. 11
General fixes for Copy, Print and Output functionality. ..................................................................... 11
Firmware 100.xxx.038.10200 April 2018 ............................................................................................................ 12
1. Hide Network Troubleshooting ........................................................................................................... 12

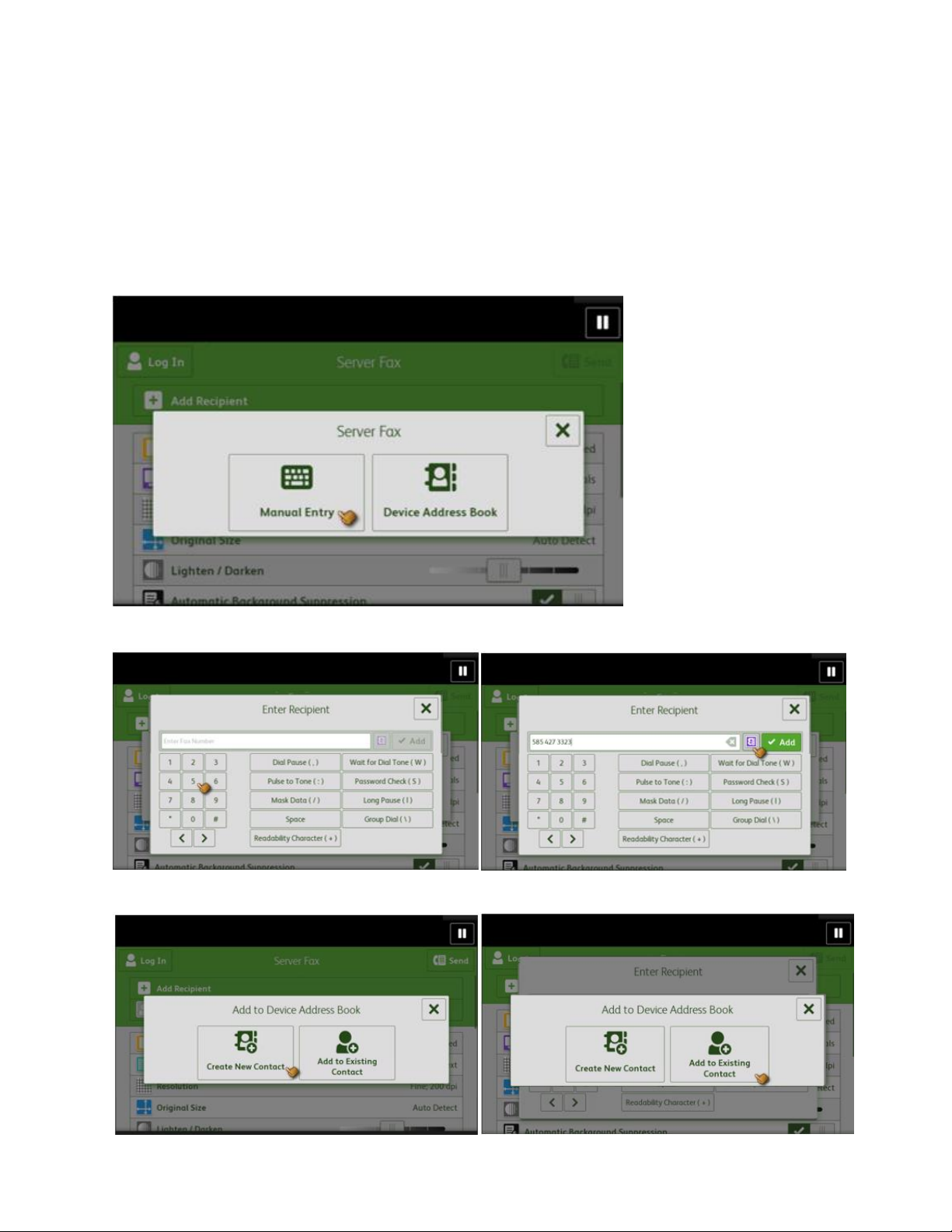

2. Ability to Edit Device Address Book for Server Fax on the LUI (On The Fly) ....................................... 13
3. Image Quality Improvements ............................................................................................................. 16
4. Authentication. ................................................................................................................................... 16
5. General fixes for Copy, Print and Output functionality. ..................................................................... 17
Firmware 100.xxx.028.05200 March 2018 ......................................................................................................... 17
1. Image Quality Improvements ............................................................................................................. 17
2. Scanning .............................................................................................................................................. 17
3. Authentication. ................................................................................................................................... 17
4. General fixes for Copy, Print Output, and EIP functionality. .............................................................. 17
Firmware 100.xxx.018.01610 January 2018 ....................................................................................................... 17
1. Image Quality Improvements ............................................................................................................. 17
2. SMB Scanning ...................................................................................................................................... 18
3. Xerox Dropbox App blank screen ........................................................................................................ 18
4. Scanning CAC/PIV/Smartcard Authentication .................................................................................... 18
5. General fixes for Accounting, Copy, Print Output and EIP functionality. ........................................... 18
Firmware 100.xxx.107.34110 December 2017 ................................................................................................... 18
1. Image Quality Improvements ............................................................................................................. 18
2. Xerox Dropbox App blank screen ........................................................................................................ 19
Firmware 100.xxx.107.28600 October 2017 ....................................................................................................... 19
1. ThinPrint Protocol Support ................................................................................................................. 19
2. Ability to hide username or IDs for Security ....................................................................................... 21
3. Xerox® Lockdown Security Solution / Healthcare Lockdown Solution ............................................... 22
Firmware 100.xxx.077.17900 & (.17010 for B8045/B8090) July 2017 ............................................................... 23
Custom Administrator Solution .......................................................................................................... 23
Xerox® AltaLink® Enhancement Read Me 4
2. Cloning Webservice............................................................................................................................. 24
3. EIP Authentication .............................................................................................................................. 25
4. Disable Print Submission of Clone Files .............................................................................................. 25
5. Disable SNMP Sets .............................................................................................................................. 25
6. XML Configuration Report .................................................................................................................. 25
7. Support Log Tab .................................................................................................................................. 25
8. Network Troubleshooting Log Feature ............................................................................................... 25
Xerox® AltaLink® Enhancement Read Me 5
Firmware 101.xxx.099.28200 October 2019
Agentless Cloud Authentication for XWC
MFP support to allow the device to authenticate directly with the XWC without the need to use an on-prem agent. See
XWC documentation version 5.4 for how to set up this capability.
California Password Law
Updates to comply with 2020 California Password law (SB-327).
This software release supports the California password law SB-327 effective January 1, 2020. The device admin password
and SNMP private string will be the device serial number if a forced altboot reload is performed. The password is case
sensitive.
Energy Star 3.0
This software release ensures our products will continue to meet Energy Star. Energy Star 3.0 means more stringent power
efficiency and conservation requirements and is going into effect October 2019. This software release provides the necessary
updates to meet these new specifications.
Various Fixes
• Device creates csr with an Alternate DNS name of (printer-host-name). local and customer certificate authority
rejects the printer csr.
• Device is trying to send data Home (13.13.56.127 - usa0300xmg002-ext.epn.useastgw.xerox.com) every 2
minutes.
• PC shows an error message when inserting a USB thumb drive that was used on a device for scan to USB
Firmware 101.xxx.089.22600 September 2019
Improved reliability after upgrade with pre-upgrade patch
Included in the zip file with the software is pre-upgrade patch 1057305v11. This patch is required when using
the smaller binary differential compression (BDC) files and fixes some issues that resulted in configuration
changes or inability to reconnect to an 802.1x network when upgrading from a 100.xxx release to a 101.xxx
release.
Follow the Installation Instructions to ensure the pre-upgrade patch is used correctly.
The pre-upgrade patch provides the following improvements.
- Required to support BDC file upgrades.
- Fixed an issue that results in postscript error messages after applying the pre-upgrade patch on some
100.xxx versions.
- Added improved version checking to ensure patch would only install on versions that required the preupgrade patch.
- Auto Upgrade Settings are retained properly.
- 802.1x authentication mode is no longer set back to default EAP-MD5. This ensures the device can
connect to the network after upgrade.
- 802.1x username is no longer missing on web UI after upgrading from 100.xxx to 101.xxx. This ensures the
device can connect to the network after upgrade.
Enablement of Cherry TC-1100 Card Reader
The TC-1100 Cherry Card Reader is now supported.
Enablement of Blackboard Card Reader
The PS4101-USB Blackboard Card Reader is now supported.
Gemalto MD cards are now compliant with FIPS 140-2 security level 1
Gemalto MD 3810 and 830b smart cards now support FIPS 140-2 security level 1. Email Signing no longer
fails when FIPS 140-2 is enabled
Xerox® AltaLink® Enhancement Read Me 6
Enablement of SafeNet SHAC SC 650 Card
To enable the support for the SafeNet SHAC SC650 card the following steps are required:
1. FIPS must be disabled
2. Feature Key must be installed
• Install Key: 227334773923
• Uninstall Key: 227434773923
3. A Cherry TC-1100 Card Reader must be connected. (This is the recommended Reader)
To Install a feature from the LUI
• Login onto the device as Admin.
• Go to Device → Tools → Device Settings → General → Feature Installation.
• Enter the Install key and select [OK].
• A screen should pop up indicating your feature has been installed successfully.

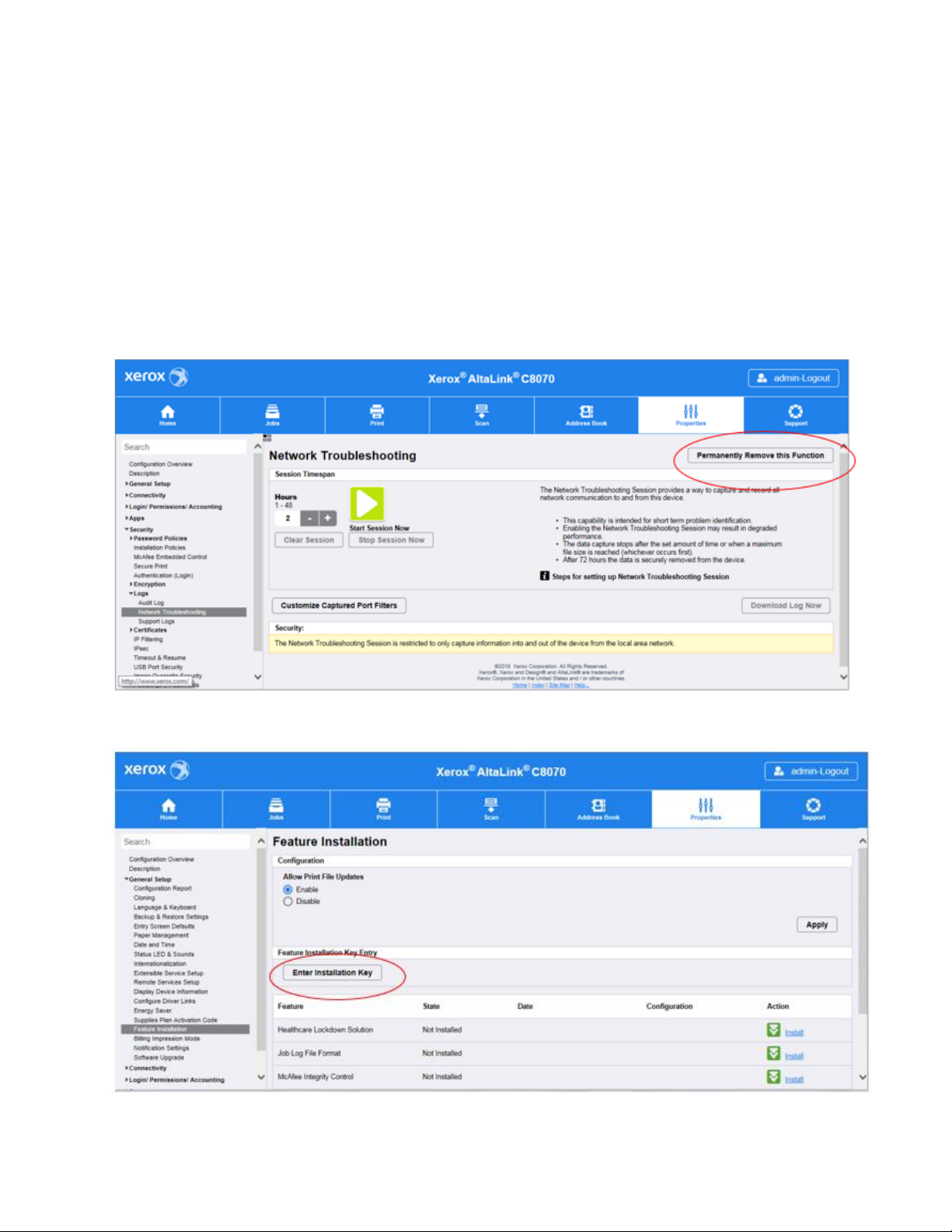

To Install a feature from the Web UI
• From a Web browser, enter the Xerox® device’s IP address to access the Web UI. When prompted,
login as Admin.
• Go to Properties → General Setup → Feature Installation → Select [Enter Installation Key].
• Click on the Enter Installation Key screen and enter the Install key and select [Apply].
• A screen should pop up indicating your feature has been installed successfully.
To Uninstall a feature from the Web UI
Follow the same steps as you would for Install however make sure to enter the Uninstall Key when prompted
for the feature installation key.
Firmware 101.xxx.069.20900 August 2019
Low Power Mode
This release fixes as issue found in version 101.xxx.069.17810 where the device would not wake up when in
Low Power mode even though the user pressed the Power Saver button. Print jobs would wake the device
successfully.
Firmware 101.xxx.069.17810 July 2019
Xerox® Lockdown Security Solution
This release introduces other languages in support for this feature.
Oberthur ID-One PIV V8 Card Supported when using Smart Card Authentication
Oberthur ID-One PIV cards are now supported when using smart card authentication.
Additional Fixes Included in this Version
- Applying the clone file to a machine using a customer certificate no longer causes the device to revert
to the self-signed certificate.
- Improvements made during the boot process to eliminate DHCP error when connecting to an 802.1x
network
- Machine will now reliably exit from power saver mode and no longer need to be unplugged to become
active.
- If Remote Services is disabled, the audit log will no longer display “remote Service.sh crash”
messages.
- Additional improvements made to prevent the message “Card Reader Detected” from appearing.
Xerox® AltaLink® Enhancement Read Me 7
Firmware 101.xxx.059.13300 May 2019
Card Reader
This release fixes an issue reintroduced in AltaLink software versions 101.xxx.008.27400 – 101.xxx.059.12100
where a “Card Reader Detected” Pop Up message appears on the device local user interface after wake up
from sleep mode. This issue is fixed whether the card reader is plugged into the front or back USB port and
whether the card reader is directly connected to the device or is connected using a USB splitter cable.
Firmware 101.xxx.059.12100 May 2019
EIP Peripheral API updates
The EIP Peripheral API has been updated to provide more information on TWN 4 card readers attached to an
AltaLink device. The EIP Peripheral API previously communicated the card reader Vendor ID, Product ID, and
Interface Type (keyboard). The new capability also provides Serial Number, Firmware version, Interface
protocol and interface class. This information can be retrieved by Xerox Device Manager and used by Xerox
Service Manager and PLM for asset tracking of the card readers.
Refer to the latest version of EIP DDK or SDK for more information on the EIP Peripheral API.
EIP ability to request LDAP user attributes to include in user session data
Added the EIP ability to request sAMAccountName & userPrincipalName from LDAP as part of the
xrxSessionGetSessionInfo() call in the Session Web service to include in the user session data.
This method allows a client to retrieve information about the currently logged in user. It returns a block of XML
data that is defined by the SessionInfoSchema.xsd. An optional parameter can be passed in to request a list
of LDAP attributes from the MFD.
Note: Other LDAP values may become available in the future, but for now only sAMAccountName &
userPrincipalName are available.
Note: For the GetSessionInformation request to return info for sAMAccountName & userPrincipalName the
following must be true on the MFD being used:
• The EIP version must be 4.1.4+ or 3.5.7+ (EIP 3.7.X not supported)
• LDAP must be configured on the MFD
• LDAP Personalization must be completed successfully for the user logged in at the MFD Local UI
Refer to the latest version of EIP DDK or SDK for more information on the EIP Peripheral API.
Translations added for B&W Output Color setting Auto
Language Translations have been provided for the B&W Saved Jobs feature provided in a previous release
(101.xxx.009.00300). Full translations for "Auto" are now available in the Print From app.
Xerox® Lockdown Security Solution
This release introduces the Xerox® Lockdown Security Solution previously known as Xerox® Healthcare
Lockdown Solution, initially introduced with Firmware 073.xxx.197.2850 October 2017. (This release includes
English language only. Other language translations will be added in a future release.)
Note: The Xerox® Lockdown Security Solution kit part number 301K33790 can be ordered by contacting your
Xerox® account representative.
Installation of this release enables a device Administrator to install the purchasable Xerox® Lockdown Security
Solution on a device. While the Solution content is contained in this release, the feature is hidden until it is
activated by purchase of the kit and installation of a Feature Installation Key (FIK).
Xerox® AltaLink® Enhancement Read Me 8
The Xerox® Lockdown Security Solution permanently enhances certain security aspects of the Xerox®
WorkCentre® Devices by encrypting the hard drive, overwriting hard drive data immediately after use,
preventing jobs from being stored on or printed from USB devices, recording who has used the device and
how they used it and providing additional controls designed to protect specific Xerox® networked and nonnetworked devices against malicious attacks.
Refer to description in Firmware 100.xxx.107.28600 October 2017 for more details.
General Fixes
Implemented a fix to include the 1 gigabyte option on the CWIS page.
Firmware 101.xxx.029.03810 March 2019
User Permissions
User permissions of Allow Only Secure Print is now working.
Restricted access to print color
Restricted access to print color for non-logged in users is no longer printing in color instead of black and white.
Firmware 101.xxx.009.00300 January 2019
1. B&W saved jobs
After installing this release: in the ”Print From” app, the default ”Output Color” for saved
jobs will be “Auto,” meaning saved jobs will print as defined by their submitted color
attributes. If they were saved as a B/W image, they will print as a B/W image. If they
were saved as color images, they will print as color images. The previous default “Auto
Detect” is still available. “Auto Detect” will print jobs according to their image
composition. If color pixels are detected in the image, it will print in color. (Note: USA
English only. Other languages will be delivered in a future release.)
2. Safenet SC650 v4.0 SIPRNet tokens
Added support for the SafeNet SC650 v4.0 SIPRNet card to this release.
3. Group Fax Improvements
The group fax application can now send to a large number of faxes successfully. It will no longer fail and
lockup.
Firmware 101.xxx.028.32100 December 2018
Color Quality Improvements
Many color quality improvements for Scan, Copy, and Print are included in this release above and beyond
previous releases. After installing this release, ensure a copy and print calibration have been performed. If
quality is still not acceptable, contact Xerox Customer Technical Support.
Various bug fixes
- When opening and closing the envelope tray, the message will be correctly cleared.
- Sending tabloid size PDF documents using IPP protocol no longer results in job shrinking to fit on Letter size paper.
- Fax Forward fields can now be cleared and reset to default.
Enablement of SecuraKey ET4-AUS-D-WR8 Proximity Card Reader
SecuraKey card reader model: ET4-AUS-D-WR8 is supported in this release.
Loading...
