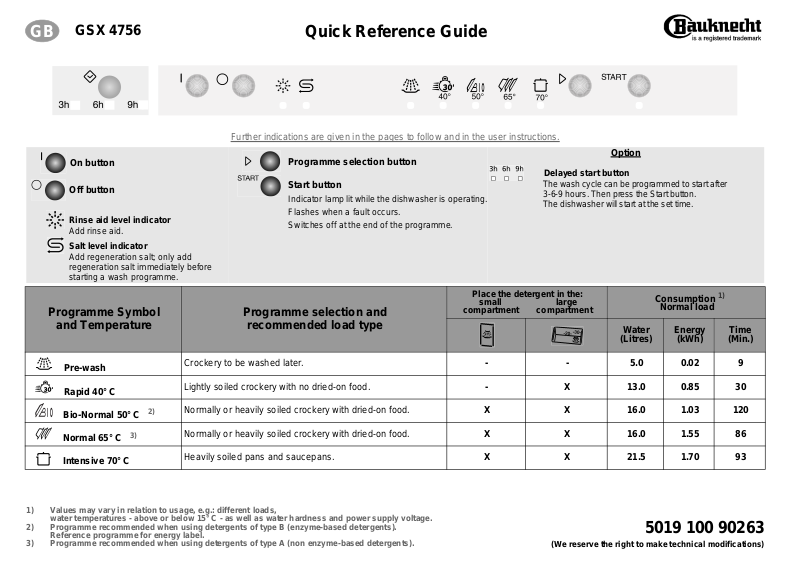

Whirlpool GSX 4756/4 TW PROGRAM CHART
GB GSX 4756 |
Quick Reference Guide |
|
|
|
|
|
|
|
|
|
|
|
|
|
On button
Off button
Rinse aid level indicator
Add rinse aid.
Salt level indicator
Add regeneration salt; only add regeneration salt immediately before starting a wash programme.
Further indications are given in the pages to follow and in the user instructions.
Programme selection button
Start button
Indicator lamp lit while the dishwasher is operating.
Flashes when a fault occurs.
Switches off at the end of the programme.
Option
Delayed start button
The wash cycle can be programmed to start after 3-6-9 hours. Then press the Start button.
The dishwasher will start at the set time.
|
|
|
Place the detergent in the: |
|
Consumption 1) |
|
|||||||
|
|
|
small |
|
large |
|
|
||||||
|
Programme Symbol |
Programme selection and |
|
|
Normal load |
|
|||||||
|
compartment |
compartment |
|
|
|||||||||
|
|
|
|
|
|
||||||||
|
and Temperature |
recommended load type |
|
|
|
|
|
|
Water |
|
Energy |
|
Time |
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
(Litres) |
|
(kWh) |
|
(Min.) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Pre-wash |
Crockery to be washed later. |
- |
|
- |
|
5.0 |
|
0.02 |
|
9 |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Rapid 40° C |
Lightly soiled crockery with no dried-on food. |
- |
|
|
X |
13.0 |
|
0.85 |
|
30 |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Bio-Normal 50° C 2) |
Normally or heavily soiled crockery with dried-on food. |
|
X |
|
X |
16.0 |
|
1.03 |
|
120 |
||
|
|
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Normal 65° C 3) |
Normally or heavily soiled crockery with dried-on food. |
|
X |
|
X |
16.0 |
|
1.55 |
|
86 |
||
|
Intensive 70° C |
Heavily soiled pans and saucepans. |
|
X |
|
X |
21.5 |
|
1.70 |
|
93 |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1)Values may vary in relation to usage, e.g.: different loads,
water temperatures - above or below 15° C - as well as water hardness and power supply voltage.
2)Programme recommended when using detergents of type B (enzyme-based detergents). Reference programme for energy label.
3)Programme recommended when using detergents of type A (non enzyme-based detergents).
5019 100 90263
(We reserve the right to make technical modifications)
How to use the dishwasher |
Upper and lower rack |
1.After loading the dishwasher, turn on the water supply tap and open the dishwasher door.
2.Press the On button to switch the dishwasher on. One of the programme indicator lamps will light up.
3.Press the programme selector button until the corresponding indicator lamp switches on. If required, select options (if supplied).
4.Press the Start button to start the selected wash programme.The Start indicator lamp will switch on. Once set, the programmed data cannot be altered by pressing the programme selector buttons.
Note: once the Start button has been pressed, the dishwasher memorises the last programme selected. This information remains in the memory even during interruption of the power supply.
To change the selected programme, open the door
(caution: danger of scalding from steam!) and press the Start button for about 5 seconds, until the Start indicator lamp switches off. Select a new programme and press the Start button again.
Note: if the dishwasher is switched off during a wash programme, when switched on again it will resume the wash cycle from where it was interrupted.
Only open the dishwasher door if strictly necessary during a wash cycle and exercise maximum caution. Danger of scalding from steam.
5.To indicate the end of a programme, an acoustic signal is activated 4 times, the Start indicator lamp switches off and the End indicator lamp (if fitted) lights up (for about 30 min.).
6.Only open the door once the wash cycle has terminated (caution: danger of scalding from steam) and press the OFF button to switch the dishwasher off. All the indicator lamps switch off.
7.Unload the lower rack before the upper one. Close the water tap.
Upper rack
Rack height adjustment:
(The dishwasher is delivered with the upper rack in the top position).
The rack height can also be changed when loaded.
•To lower: pull out the two side handles and gently lower the rack.
•To raise: pull up the two side handles until the rack clicks into place.
•The rack must be level on both sides.
Crockery holders:
•Down: cups and long-stemmed glasses.
•Up: plates.
“Vario Organizer” multi-purpose support:
•To be used, for example, for longhandled utensils (arrange knives with the blade facing downwards), cups and glasses.
•May be used in three different

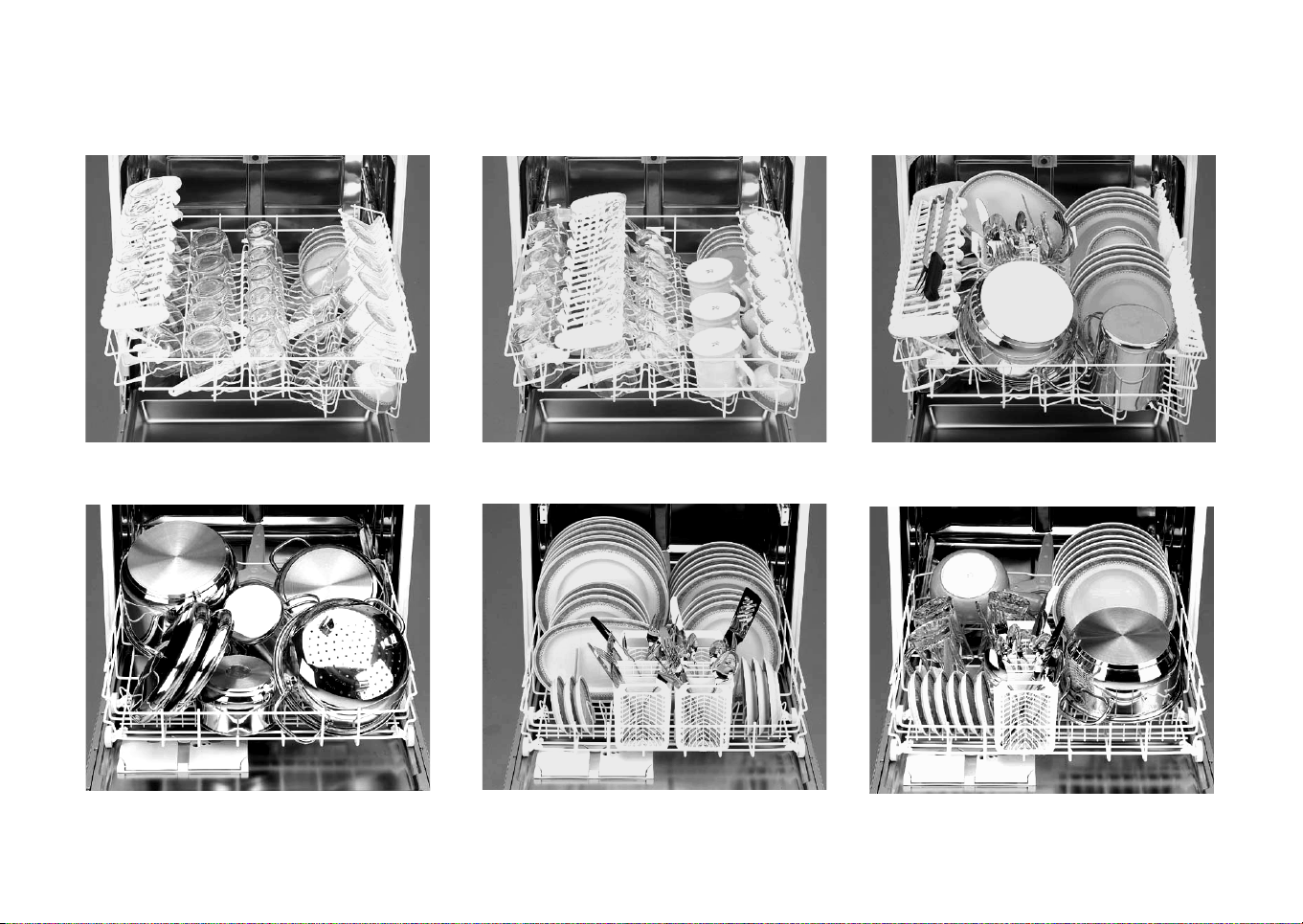

positions (see also “Dishwasher loading instructions” on Page 4).
1.Upon the left-hand side of the rack.
2.Upside-down, towards the centre of the rack.
3.Upside-down, towards the left side.
Glass holder:
Lower rack
B
A
C
Plate holders:
•May be lowered to increase available space (A).
•May be removed to increase available space (B). To remove: pull the handle up.
B
A
Cutlery basket:
The cutlery basket can be removed to increase (C) available space.
C
Please read the user instructions carefully.
