GB AWV 805

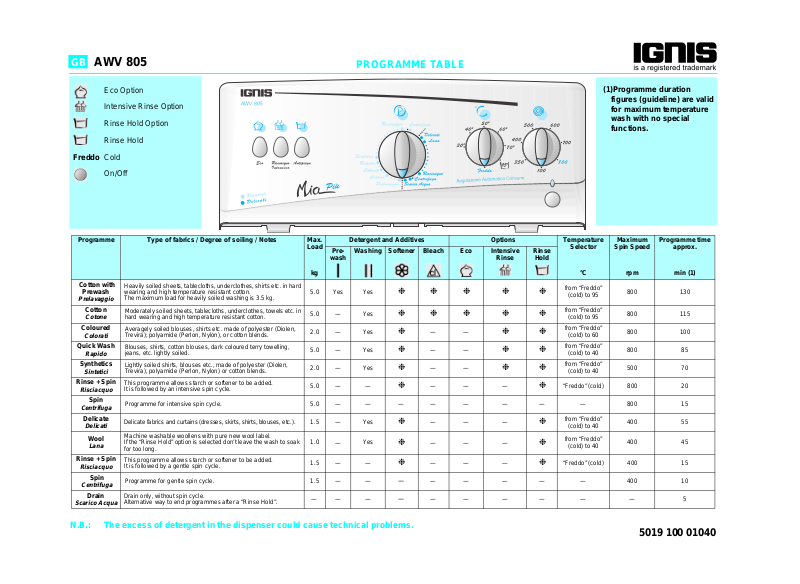

PROGRAMME TABLE

	Eco Option	(1)Programme duration
	Intensive Rinse Option	figures (guideline) are valid
		for maximum temperature
	Rinse Hold Option	wash with no special
		functions.
	Rinse Hold

Freddo Cold

On/Off

Programme	Type of fabrics / Degree of soiling / Notes	Max.		Detergent and Additives												Options							Temperature	Maximum	Programme time
		Load																					Selector	Spin Speed	approx.
			Pre-	Washing			Softener			Bleach			Eco			Intensive				Rinse
			wash													Rinse				Hold
		kg																					°C	rpm	min (1)
Cotton with	Heavily soiled sheets, tablecloths, underclothes, shirts etc. in hard																						from “Freddo”
Prewash	wearing and high temperature resistant cotton.	5.0	Yes	Yes																				800	130
																							(cold) to 95
Prelavaggio	The maximum load for heavily soiled washing is 3.5 kg.
Cotton	Moderately soiled sheets, tablecloths, underclothes, towels etc. in	5.0	—	Yes																			from “Freddo”	800	115
Cotone	hard wearing and high temperature resistant cotton.																						(cold) to 95
Coloured	Averagely soiled blouses, shirts etc. made of polyester (Diolen,	2.0	—	Yes							—		—										from “Freddo”	800	100
Colorati	Trevira); polyamide (Perlon, Nylon), or cotton blends.																						(cold) to 60
Quick Wash	Blouses, shirts, cotton blouses, dark coloured terry towelling,	5.0	—	Yes							—		—										from “Freddo”	800	85
Rapido	jeans, etc. lightly soiled.																						(cold) to 40
Synthetics	Lightly soiled shirts, blouses etc., made of polyester (Diolen,	2.0	—	Yes							—		—										from “Freddo”	500	70
Sintetici	Trevira), polyamide (Perlon, Nylon) or cotton blends.																						(cold) to 40
Rinse + Spin	This programme allows starch or softener to be added.	5.0	—	—							—		—			—							“Freddo” (cold)	800	20
Risciacquo	It is followed by an intensive spin cycle.
Spin	Programme for intensive spin cycle.	5.0	—	—			—			—			—			—			—				—	800	15
Centrifuga
Delicate	Delicate fabrics and curtains (dresses, skirts, shirts, blouses, etc.).	1.5	—	Yes							—		—			—							from “Freddo”	400	55
Delicati																							(cold) to 40
Wool	Machine washable woollens with pure new wool label.		—								—		—			—							from “Freddo”
	If the “Rinse Hold” option is selected don’t leave the wash to soak	1.0		Yes																				400	45
Lana																							(cold) to 40
	for too long.
Rinse + Spin	This programme allows starch or softener to be added.	1.5	—	—							—		—			—							“Freddo” (cold)	400	15
Risciacquo	It is followed by a gentle spin cycle.
Spin	Programme for gentle spin cycle.	1.5	—	—				—			—		—			—				—			—	400	10
Centrifuga
Drain	Drain only, without spin cycle.	—	—	—				—			—		—			—				—			—	—	5
Scarico Acqua	Alternative way to end programmes after a “Rinse Hold”.

N.B.: The excess of detergent in the dispenser could cause technical problems.

5019 100 01040
