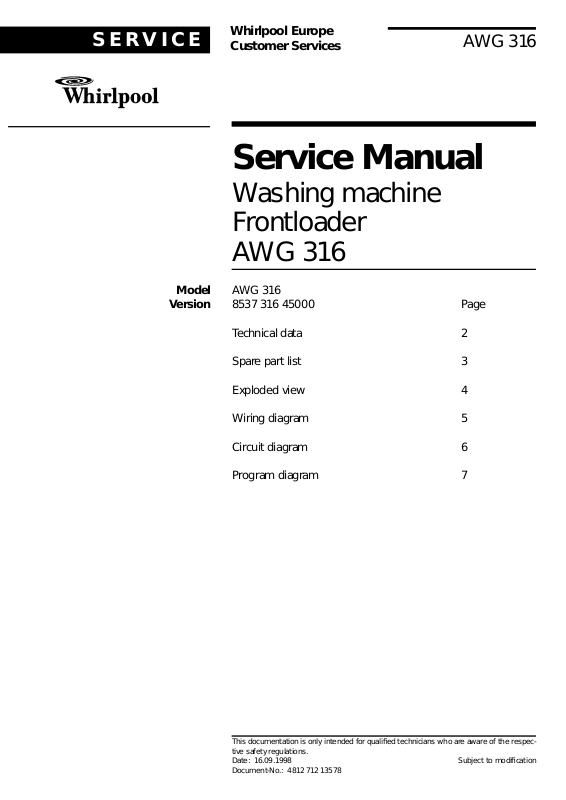

S E R V I C E |
Whirlpool Europe |
AWG 316 |
Customer Services |
Service Manual
Washing machine
Frontloader
AWG 316
Model |
AWG 316 |
|
Version |
8537 316 45000 |
Page |
|
Technical data |
2 |
|
Spare part list |
3 |
|

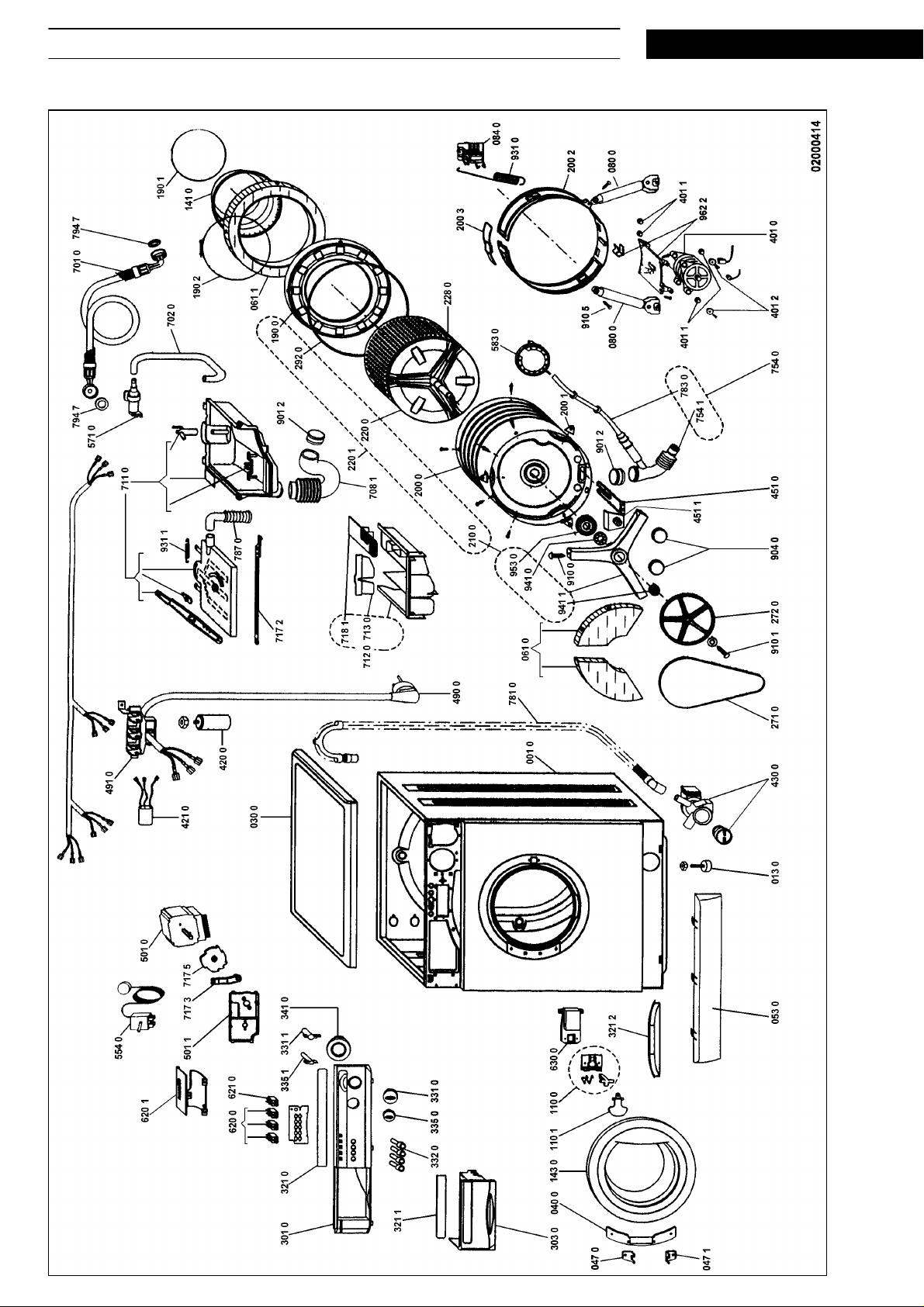

Exploded view |
4 |
|

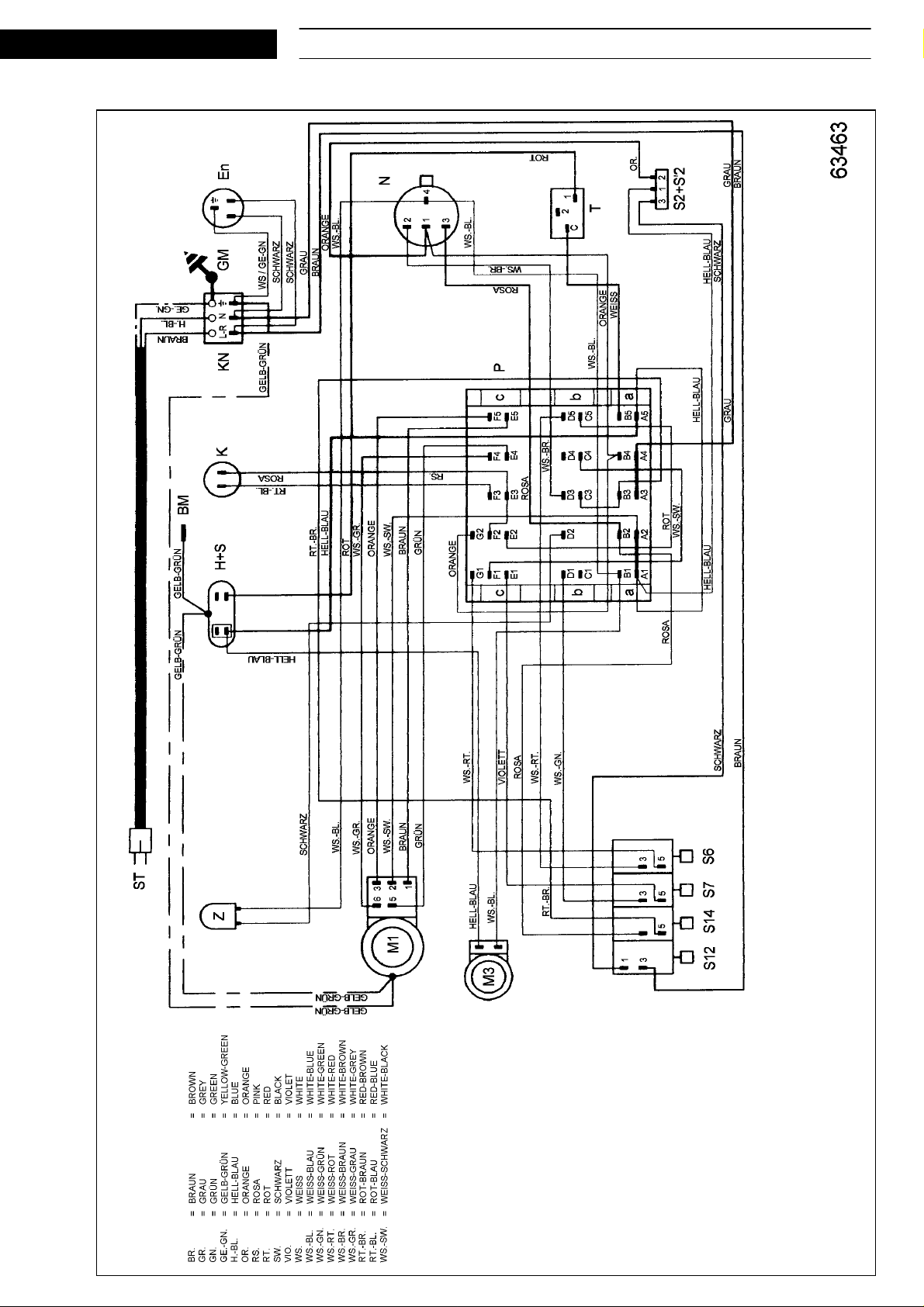

Wiring diagram |
5 |
|

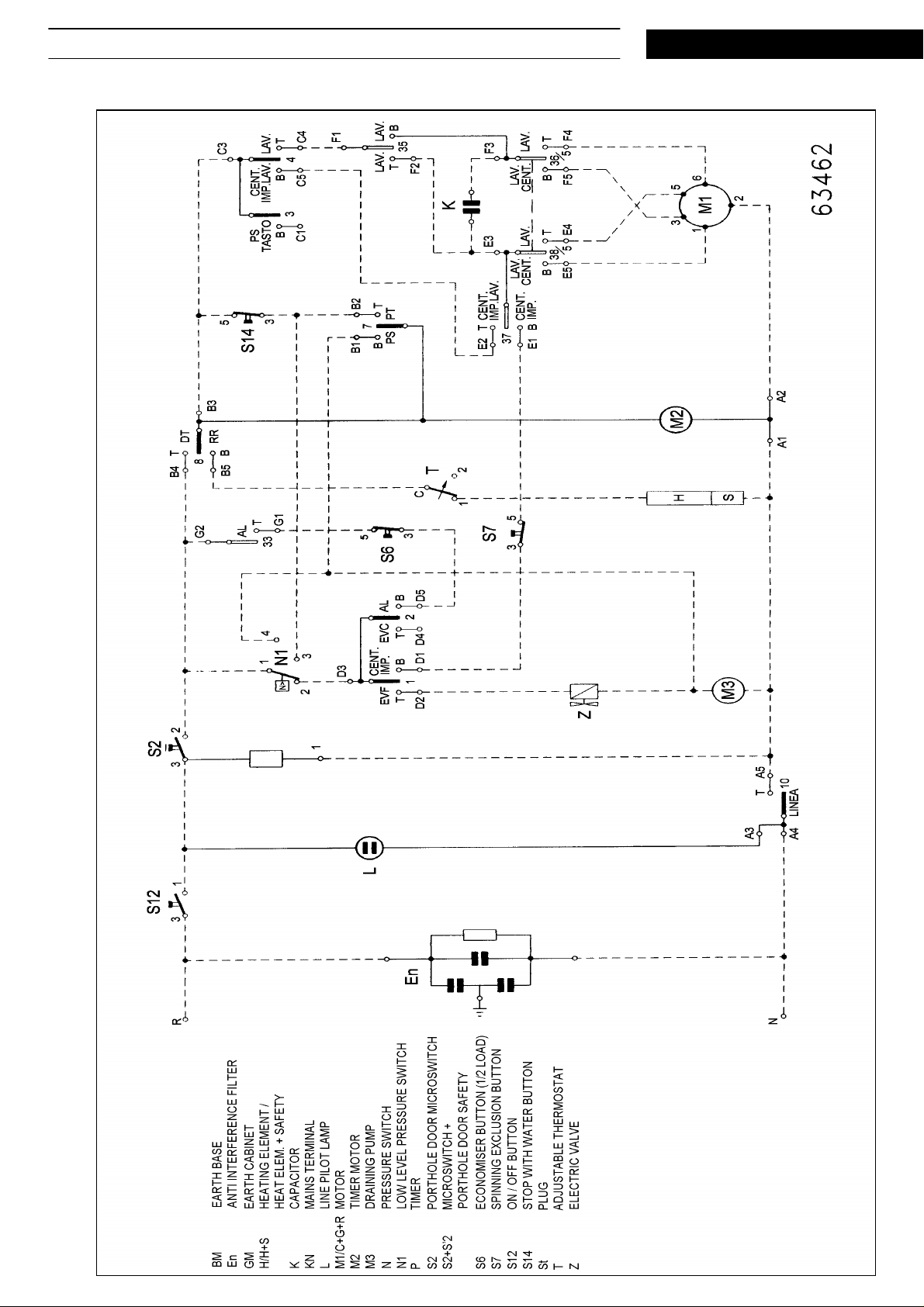

Circuit diagram |
6 |
|

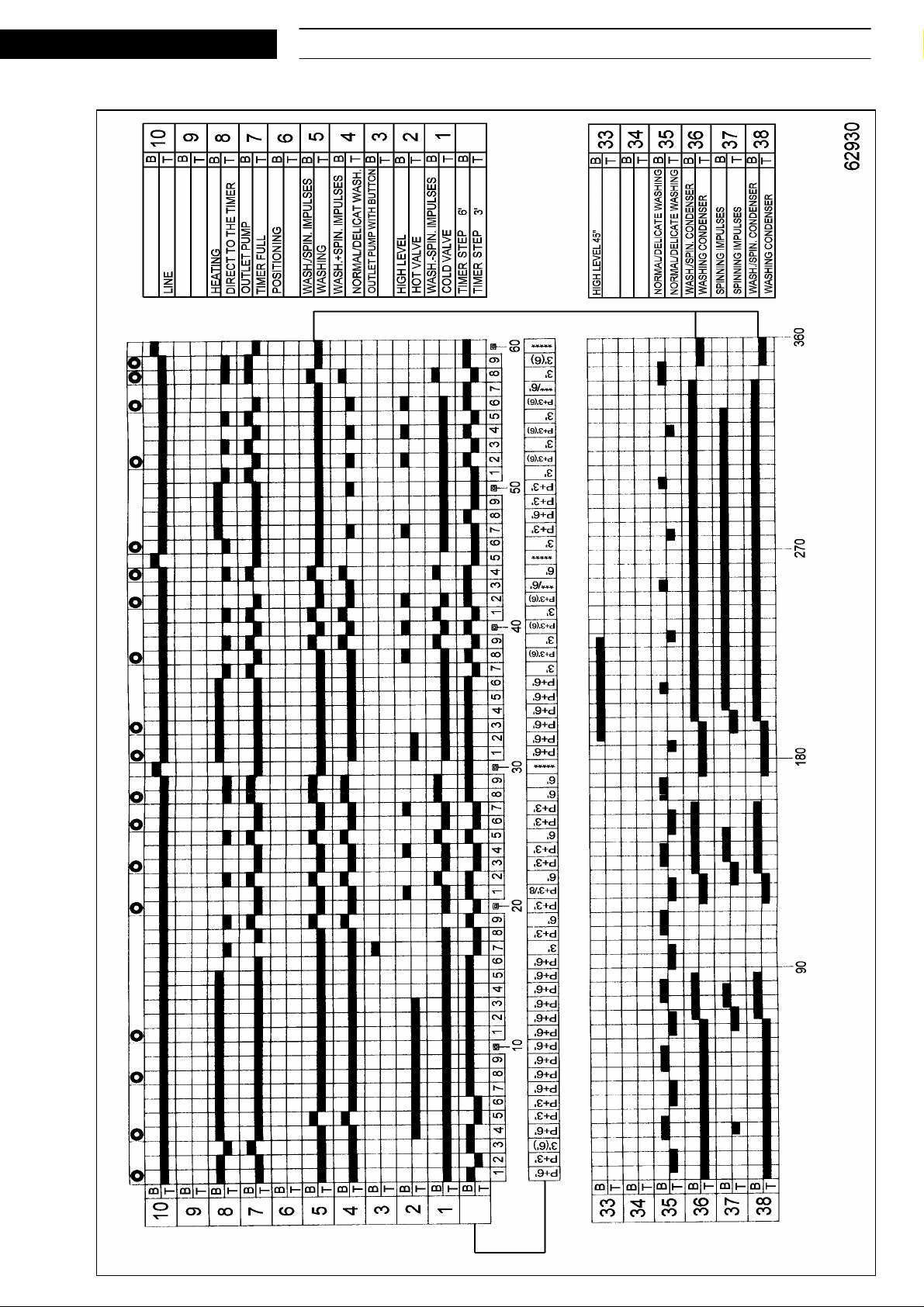

Program diagram |
7 |
This documentation is only intended for qualified technicians who are aware of the respec-
tive safety regulations. |
|
Date: 16.09.1998 |
Subject to modification |
Document-No.: 4812 712 13578 |
|
16.09.1998 / Page 2 |
AWG 316 |
Whirlpool Europe |
|
S E R V I C E |
Doc. No: 4812 712 13578 |
8537 316 45000 |
Customer Service |
||
|
|
|
|
|
Technical data
Dimensions
Height |
85.0 |
cm |
Width |
59.5 |
cm |
Depth |
34.0 |
cm |
Weight |
|
|
Unpacked |
61.5 |
kg |
Packed |
63 |
kg |
General specifications |
|
|
Voltage |
230 |
V |
Total power |
2.1 |
kW |
Fuse |
10 |
A |
Drum data |
|
|
Drum speed |
|
|
Spinning |
600 |
rpm |
Capacity |
|
|
Drum Volume |
29 |
l |
Max. load dry laundry |
4 |
kg |
Electrical building parts |
|
|
Heating |
|
|
Rated power draft |
1.75 |
kW |
Mains Voltage |
230 |
V |
Drain pump |
|
|
Power consumption |
~ 25 |
W |
Capacity |
~ 16 |
l/min. |
Rotation speed |
~ 2800 |
rpm |
Height of drain hose |
max.0.90 |
m |
|
min. 0.60 |
m |
Motor |
|
|
Type |
Asynchronous 2/16 |
|
Timer |
|
|
Type |
ELBI 0724 |
|
The timer chart includes |
|
|
2 basic programmes |
|
|
-normal washing
-delicate washing & wool
Thermostat
A - adjustable thermostat up to 90 |
˚C |
Pressostat (without laundry)
Low level |
~ 6 |
l |
High level |
~ 16.5 |
l |
Push button switch
Version with 4 buttons:
-On / Off
-Half load
-Spin delay / Anticrease
-Stop spin
|
S E R V I C E |
|
Whirlpool Europe |
|
|
AWG 316 |
16.09.1998 / Page 3 |
|||
|
|
Customer Service |
|
|
8537 316 45000 |
Doc. No: 4812 712 13578 |
||||
|
Spare part list |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
Model |
|
AWG 316 |
|
|
|
|
|||
|
Service No. |
853731645000 |
|
|
|
|
|
|||
|
Version |
|
853731645000 |
|
|
|
|
|
||
|
|
|
|
|
|
|
||||
|
Pos. No. 12NC Code |
Description |
|
Pos. No. 12NC Code |
Description |
|||||
001 0 |
4819 440 19933 |
Cabinet |
|
|
620 0 |
4819 276 18382 |
Switch |
|||
013 0 |
4819 462 58273 |
Foot |
|
|
620 1 |
4819 462 58373 |
Guard |
|||
030 0 |
4819 440 19831 |
Table top |
621 0 |
4819 276 18381 |
Switch |
|||||
040 0 |
4819 417 19367 |
Hinge |
|
|
630 0 |
4819 690 18139 |
Door lock |
|||
047 0 |
4819 401 18864 |
Bracket |
|
|
701 0 |
4819 530 28882 |
Hose, inlet |
|||
047 1 |
4819 401 18865 |
Bracket |
|
|
702 0 |
4819 530 29045 |
Hose, inlet |
|||
053 0 |
4819 440 19646 |
Plinth |
|
|
708 1 |
4819 529 18114 |
Hose |
|||
061 0 |
4819 466 89406 |
Counter weight |
711 0 |
4819 418 79792 |
Container |
|||||
061 1 |
4819 466 99084 |
Counter weight |
712 0 |
4819 418 79486 |
Guard |
|||||
080 0 |
4819 529 18125 |
Shock absorber |
713 0 |
4819 440 19804 |
Panel |
|||||
084 0 |
4819 466 99139 |
Shelf |
|
|
717 2 |
4819 535 98625 |
Rod left |
|||
110 0 |
4819 417 58129 |
Door catch |
717 2 |
4819 535 98627 |
Rod right |
|||||
110 1 |
4819 498 69888 |
Handle |
|
|
717 3 |
4819 466 99086 |
Actuator |
|||
141 0 |
4819 468 18268 |
Door bellow |
717 5 |
4819 528 38458 |
Cam |
|||||
143 0 |
4819 440 19832 |
Window |
|
|
718 1 |
4819 462 79935 |
Cover |
|||
190 0 |
4819 440 19852 |
Ring |
|
|
754 0 |
4819 530 29009 |
Drainhose cpl. |
|||
190 1 |
4819 532 88043 |
Ring |
|
|
754 1 |
4819 529 28196 |
Hose |
|||
190 2 |
4819 401 18723 |
Tension tape |
781 0 |
4819 530 29026 |
Pipe,exhaust |
|||||
200 0 |
4819 418 18362 |
Tub |
|
|
783 0 |
4819 530 29011 |
Hose |
|||
200 1 |
4819 404 79251 |
Bracket |
|
|
787 0 |
4819 529 18116 |
Hose |
|||
200 2 |
4819 466 89422 |
Ring Collar |
794 7 |
4822 480 50121 |
Gasket + filter |
|||||
200 3 |
4819 417 58144 |
Clamping piece |
901 2 |
4819 401 18804 |
Strap |
|||||
210 0 |
4819 404 79252 |
Crosspiece |
904 0 |
4819 462 48468 |
Stopper |
|||||
220 0 |
4819 418 18363 |
Drum |
|
|
910 0 |
4819 502 18446 |
Screw |
|||
220 1 |
4819 418 18336 |
Tub cpl. |
|
|
910 1 |
4819 502 18447 |
Screw |
|||
228 0 |
4819 535 78155 |
Crosspiece,drum |
910 5 |
4819 502 18448 |
Screw |
|||||
271 0 |
4819 358 18146 |
Belt |
|
|
931 0 |
4819 492 38144 |
Spring Suspension |
|||
272 0 |
4819 528 88114 |
Pulley |
|
|
931 1 |
4819 492 38142 |
Spring,wire |
|||
292 0 |
4819 468 18225 |
Gasket |
|
|
941 0 |
4819 520 28032 |
Bearing |
|||
301 0 |
4819 453 19874 |
Control panel |
941 1 |
4819 520 28033 |
Bearing |
|||||
303 0 |
4819 498 78229 |
Grip |
|
|
953 0 |
4819 532 68802 |
Shaft seal |
|||
321 0 |
4819 459 19582 |
Insert |
|
|
962 2 |
4819 466 89368 |
Support |
|||
321 1 |
4819 459 19583 |
Insert |
|
|
|
|
|
|
||
321 2 |
4819 460 78533 |
Batten |
|
|
|
|
|
|
||
331 0 |
4819 412 58738 |
Knob,timer |
|
|
|
|
||||
331 1 |
4819 535 18127 |
Shaft |
|
|
|
|
|
|
||
332 0 |
4819 410 28918 |
Button |
|
|
|
|
|
|
||
335 0 |
4819 412 58609 |
Knob Temp. |
|
|
|
|
||||
335 1 |
4819 535 18128 |
Shaft |
|
|
|
|
|
|
||
341 0 |
4819 413 79265 |
Indication disc |
|
|
|
|
||||
401 0 |
4819 361 58194 |
Motor |
|
|
|
|
|
|
||
401 1 |
4819 532 68858 |
Bushing |
|
|
|
|
|
|
||
401 2 |
4819 532 58285 |
Washer |
|
|
|
|
|
|
||
420 0 |
4819 121 18214 |
Capacitor |
|
|
|
|
||||
421 0 |
4819 121 18213 |
Interf.filter |
|
|
|
|
||||
430 0 |
4819 360 18252 |
Pump,draining |
|
|
|
|
||||
451 0 |
4819 259 28878 |
Heating element |
|
|
|
|
||||
451 1 |
4819 462 58372 |
Guard |
|
|
|
|
|
|
||
490 0 |
4819 321 18333 |
Cable,mains |
|
|
|
|
||||
491 0 |
4819 290 68395 |
Connect.block |
|
|
|
|
||||
501 0 |
4819 282 18765 |
Timer Elbi 0724 |
|
|
|
|
||||
501 1 |
4819 404 79312 |
Holder |
|
|
|
|
|
|
||
554 0 |
4819 271 29063 |
Thermostat |
|
|
|
|
||||
571 0 |
4819 281 28263 |
Valve,magnet |
|
|
|
|
||||
583 0 |
4819 271 29062 |
Pressostat |
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
