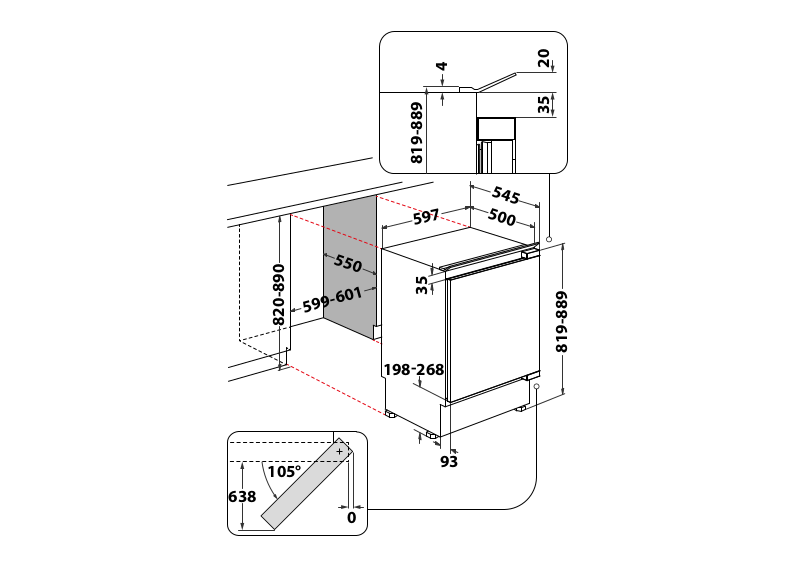

WHIRLPOOL ARG 146/A+/LA.1 Extended Technical Drawing

820-890

	550
	601
599	-
599

4	20
-889	35
819
	545
597	500
597

35	-889
	819

198-268

105°

638

WHIRLPOOL ARG 146/A+/LA.1 Extended Technical Drawing

ARG 146/A+/LA.1	12NC/Fx: 859991556250	GTIN (EAN) code:
		8003437042799

DIMENSION		MEASURE
WOODEN CABINET - Overall Wooden Cabinet - BI
01.	Height MIN of the tall cabinet Niche, including all required space for installation or ventilation		820	mm
(HMIN_T)
02.	Height MAX of the tall cabinet Niche, including all required space for installation or ventilation		890	mm
(HMAN_T)
03.	Width MIN of the tall cabinet Niche, including all required space for installation or ventilation		600	mm
(WMIN_T)
04.	Width MAX of the tall cabinet Niche, including all required space for installation or ventilation		600	mm
(WMAN_T)
05.	Depth of the tall cabinet Niche, including all required space for installation or ventilation (DN_T)		550	mm
06.	Height MIN of the base cabinet Niche, including all required space for installation or ventilation		820
(HMIN_B)
07.	Height MAX of the base cabinet Niche, including all required space for installation or ventilation		890
(HMAN_B)
08.	Width MIN of the base cabinet Niche, including all required space for installation or ventilation		599
(WMIN_B)
09.	Width MAX of the base cabinet Niche, including all required space for installation or ventilation		601
(WMAN_B)
10.	Depth of the base cabinet Niche, including all required space for installation or ventilation		550
(DN_B)
11.	Indicates whether a ventilation opening is needed or not. Default is "N"		No
12.	Appliance can be used as base for other appliances from the same manufacturer. Default is "N"		Yes
WOODEN CABINET - Door – Drawer
13.	Height MIN Decorative Front, if appliance has more than one front, only the most bottom left		645
front is described here (HMIF)				mm
14.	Width MIN Decorative Front, if appliance has more than one front, only the most bottom left		586	mm
front is described here (WMIF)
15.	Weight/Thickness of the decorative bottom front panel of the Kitchen manufacturer needs		Yes
(essential)
16.	Weight MAX of the decorative bottom front panel of the Kitchen manufacturer (WEMAF)		0	kg
17.	Thickness MIN Decorative Front, if appliance has more than one front only the most bottom left		0	mm
front is described here(TMIF)
18.	Thickness MAX Decorative Front, if appliance has more than one front only the most bottom left		0	mm
front is described here(TMAF)
Additional Fronts (2 doors)
19.	Height MIN Decorative Front, when appliance has more than one front, upper front is discribed		0
here (HMIFU)				mm
20.	Width MIN Decorative Front, when appliance has more than one front, upper front is discribed		0	mm
here (WMIFU)
21.	Weight/Thickness of the decorative upper front panel of the Kitchen manufacturer needs		Yes
(essential)
22.	Weight MAX of the decorative upper front panel of the Kitchen manufacturer (WEMAFU)		0	kg
23.	Thickness MIN Decorative Front, when appliance has more than one front, upper front is		0	mm
discribed here (TMIFU)
24.	Thickness MAX Decorative Front, when appliance has more than one front, upper front is		0	mm
discribed here (TMAFU)

DIMENSION		MEASURE
APPLIANCE
Overall Appliance
01.	Height MIN Product, watch the detail drawing for the exact position of the dimension line	819	mm
(HMIP)
02.	Height MAX product, watch the detail drawing for the exact position of the dimension line	889	mm
(HMAP)
03.	Width product, watch the detail drawing for the exact position of the dimension line (WP)	597	mm
04.	Depth product without front, watch the detail drawing for the exact position of the	500	mm
dimension line (DP)
05.	Depth product, watch the detail drawing for the exact position of the dimension line (D)	545	mm
06.	Depth MIN plinth return front (DMIPRF)	0	mm
07.	Depth MAX plinth return front (DMAPRF)	93	mm
08.	Height MIN Plinth return. This dimension is taken by minimum appliance height (HMIPR)	198	mm
09.	Height MAX Plinth return. This dimension is taken at minimum appliance height (HMAPR)	268	mm
Door or Drawer
10.	Height front. When appliance has more than one front, only the most bottom left front is	0	mm
discribed here (HF)
11.	Width front. When appliance has more than one front, only the most bottom left front is	597	mm
discribed here (WF)
12.	Depth front (DF)	0	mm
13.	Maximum depth all protruding elements, e.g. handles, controls (DC)	0	mm
14.	Lateral clearance between front edge and most protruding elements which avoid to open a 0		mm
neighbour front more than 90° (CC)
15.	Projection of front in relation to housing of appliance (FPT)	20	mm
16.	Projection of front in relation to bearing area of the appliance. Taken at MIN height of	0	mm
appliance if adjustable height(FPB)
17.	Height Product Panel. When product panel is missing, set to 0 (HMAPP)	35	mm
18.	Lateral projection of front including controls when door is opened totaly. At the side where	0	mm
the hinge is mounted (FPOD)
19.	Space in front, which is required to guarantee full operability. The most protruding part	638	mm
gives this dimension (RSF)
20.	Lateral projection of opened front at the side where the hinge is fixed (FPD)	0	mm
21.	Door hinge positiong and tipology	Right-
		changeable
22.	Type of preparation to fix the cover door	Fixed
		mounting
23.	Maximum angle when door is opened totaly (AOD)	105	°
24.	Maximum thickness of the upper front panel (TUFP)	4	mm
Additional Fronts (2 doors)
25.	Height front, when appliance has more than one front, upper front is discribed here (HUF)	0	mm
26.	Width front, when appliance has more than one front, upper front is discribed here (WUF)	0	mm
27.	Useful space between the 2 doors, including hinges size (HMAFG)	20	mm
28.	Distance between the bottom of the product and the center line between the fridge doors	0	mm

(HFG)
